This document defines and explains coordinate geometry. It begins by defining a grid, coordinate grid, x-axis, and y-axis. It then discusses plotting and finding ordered pairs on a coordinate grid with four quadrants by following steps of first locating the x-value and then the y-value, and whether numbers are positive or negative determines the direction. Examples are provided to demonstrate plotting various ordered pairs in all four quadrants of the coordinate system.

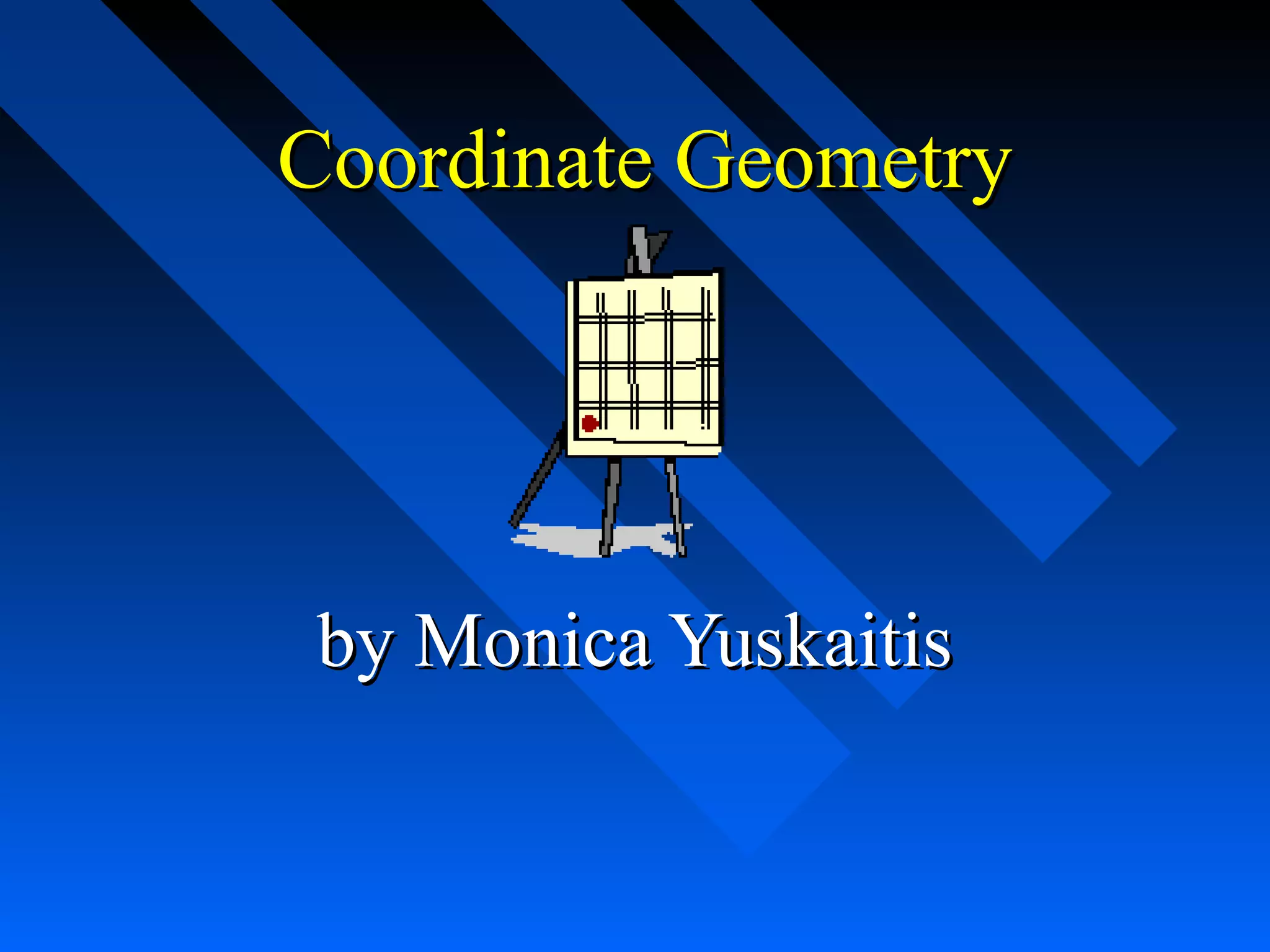

1. Coordinate Geometry
by Monica Yuskaitis

2. Definition
 Grid – A pattern of horizontal and
vertical lines, usually forming
squares.
Copyright © 2000 by

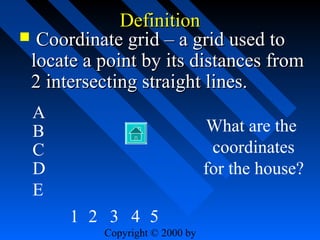

3. Definition
 Coordinate grid – a grid used to
locate a point by its distances from
2 intersecting straight lines.
A
B
C
D
E
What are the
coordinates
for the house?
1 2 3 4 5
Copyright © 2000 by

4. Definition
 x axis – a horizontal number line
on a coordinate grid.
0 1 2 3 4 5 6
Copyright © 2000 by
x

5. Hint
 x is the shortest and likes to lie
down horizontally.
0 1 2 3 4 5 6
Copyright © 2000 by
x

6. Definition
 y axis – a vertical number line on
a coordinate grid.
y
6
5
4
3
2
1
0
Copyright © 2000 by

7. Hint
 y is the tallest and stands upright or
vertically.
y
6
5
4
3
2
1
0
Copyright © 2000 by

8. Definition
 Coordinates – an ordered pair of
numbers that give the location of a
point on a grid. (3, 4)
6
5
(3,4)
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by

9. Hint

The first number is always the x or first letter
in the alphabet. The second number is always
the y the second letter in the alphabet.
6
5
(3,4)
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by

10. How to Plot Ordered Pairs
 Step 1 – Always find the x value
first, moving horizontally either right
(positive) or left (negative). (2, 3)
y
6
5
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by
x

11. 
How to Plot Ordered Pairs
Step 2 – Starting from your new position
find the y value by moving vertically
either up (positive) or down (negative).
6
(2, 3) 5
4
(2,3)
y 3
2
1
00 1 2 3 4 5 6 x
Copyright © 2000 by

12. 

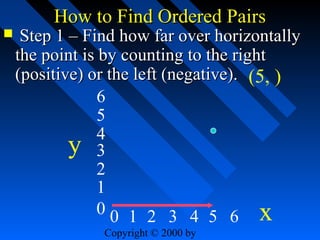

How to Find Ordered Pairs
Step 1 – Find how far over horizontally
the point is by counting to the right
(positive) or the left (negative). (5, )
6
5
4
y 3
2
1
00 1 2 3 4 5 6 x
Copyright © 2000 by

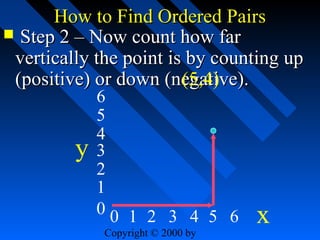

13. How to Find Ordered Pairs
 Step 2 – Now count how far
vertically the point is by counting up
(positive) or down (negative).
(5,4)
y
6
5
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by
x

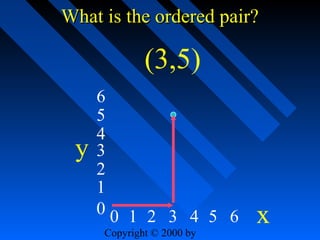

14. What is the ordered pair?
(3,5)
y
6
5
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by
x

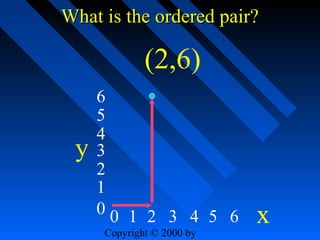

15. What is the ordered pair?
(2,6)
y
6
5
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by
x

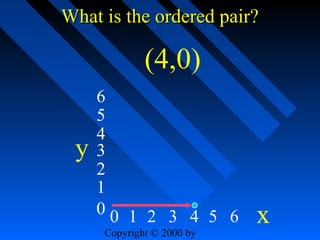

16. What is the ordered pair?
(4,0)
y
6
5
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by
x

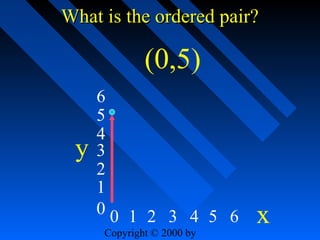

17. What is the ordered pair?
(0,5)
y
6
5
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by
x

18. What is the ordered pair?
(1,1)
y
6
5
4
3
2
1
00 1 2 3 4 5 6
Copyright © 2000 by
x

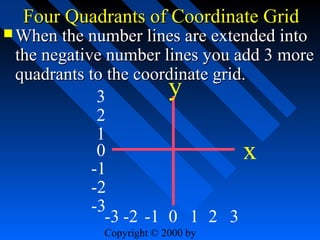

19. Four Quadrants of Coordinate Grid
 When the number lines are extended into
the negative number lines you add 3 more
quadrants to the coordinate grid.
y
3
2
1
0
x
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by

20. Four Quadrants of Coordinate Grid

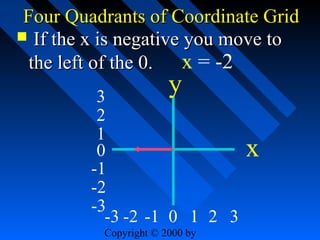

 If the x is negative you move to
the left of the 0. x = -2
y
3
2
1
0
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by
x

21. Four Quadrants of Coordinate Grid

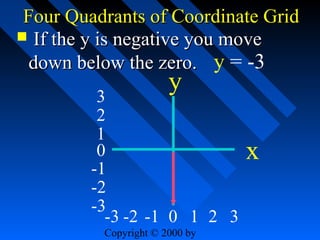

 If the y is negative you move
down below the zero. y = -3
y
3
2
1
0
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by
x

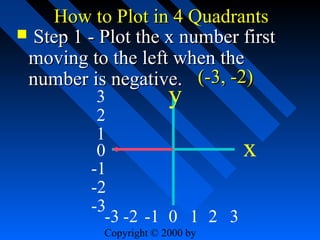

22. How to Plot in 4 Quadrants
 Step 1 - Plot the x number first
moving to the left when the
number is negative. (-3, -2)
3
y
2
1
0
x
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by

23. How to Plot in 4 Quadrants
 Step 2 - Plot the y number
moving from your new position
down 2 when the number is
y
negative.3
2
(-3, -2) 1
0
x
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by

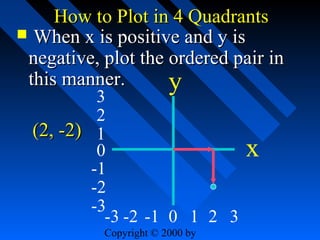

24. How to Plot in 4 Quadrants
 When x is positive and y is
negative, plot the ordered pair in
this manner.
y
3
2
(2, -2) 1
0
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by
x

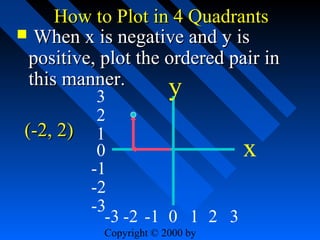

25. How to Plot in 4 Quadrants
 When x is negative and y is
positive, plot the ordered pair in
this manner.
y
3
2
(-2, 2) 1
0
x
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by

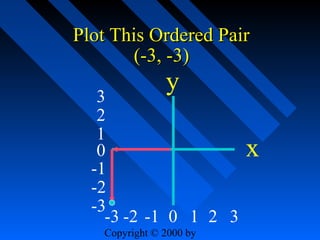

26. Plot This Ordered Pair
(-3, -3)
y
3
2
1
0
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by
x

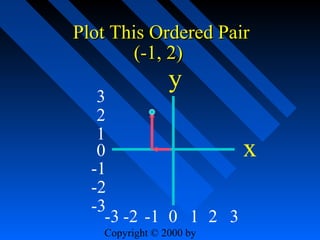

27. Plot This Ordered Pair
(-1, 2)
y
3
2
1
0
x
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by

28. Plot This Ordered Pair
(1, -1)
y
3
2
1
0
x
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by

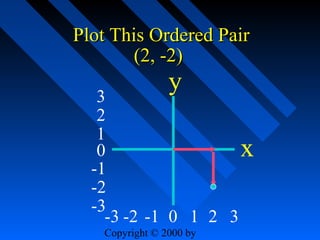

29. Plot This Ordered Pair
(2, -2)
y
3
2
1
0
x
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by

30. Plot This Ordered Pair
(-3, -2)
y
3
2
1
0
x
-1
-2
-3
-3 -2 -1 0 1 2 3
Copyright © 2000 by
