The document covers lectures 11-13 with a focus on microprogrammed control, specifically addressing the microprogram sequencer and its role in determining microinstruction addresses. It introduces various concepts like instruction op-code mapping and pipeline registers for improving execution speed. Additionally, it outlines the structure of subsequent sections related to these topics.

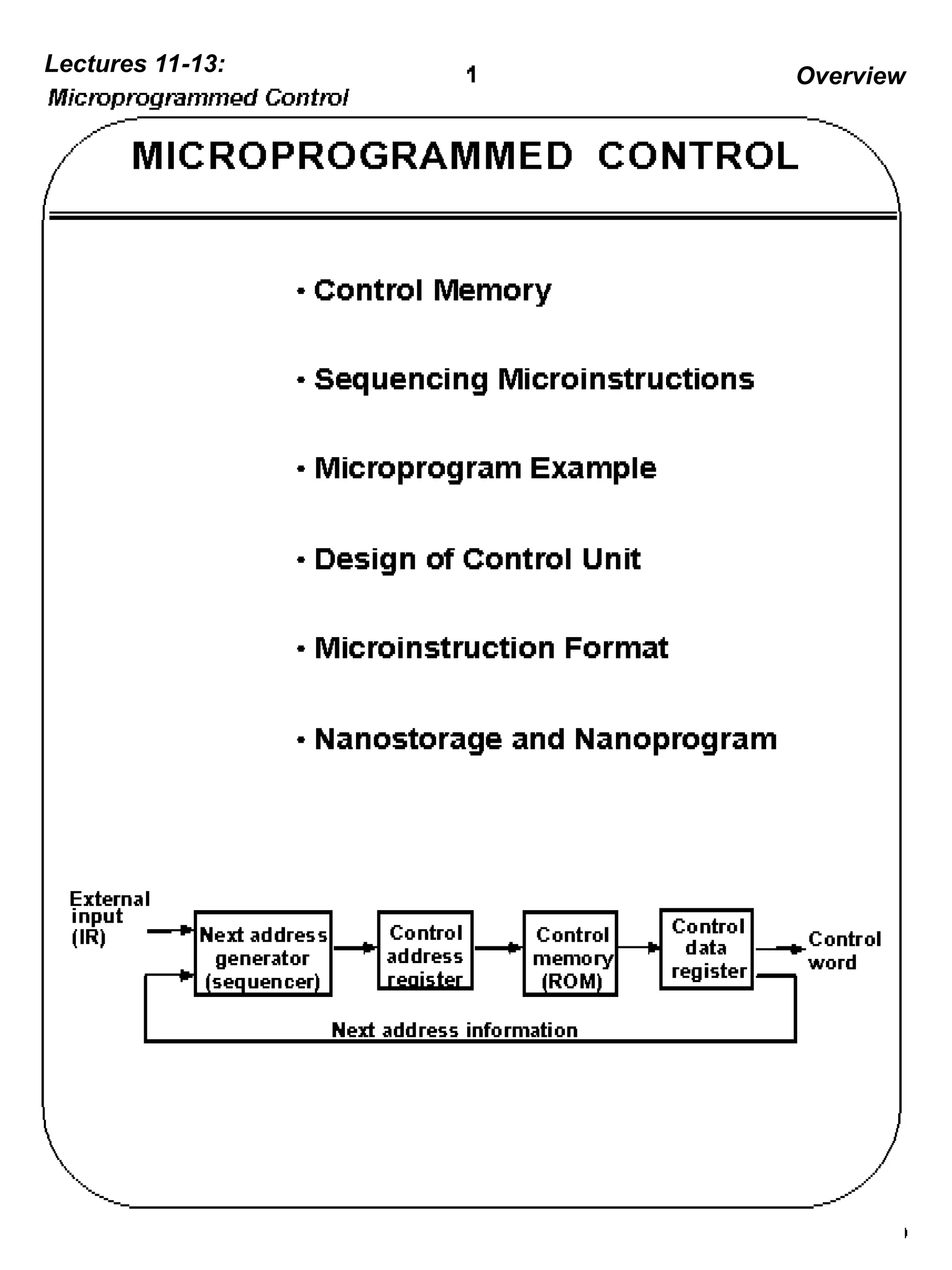

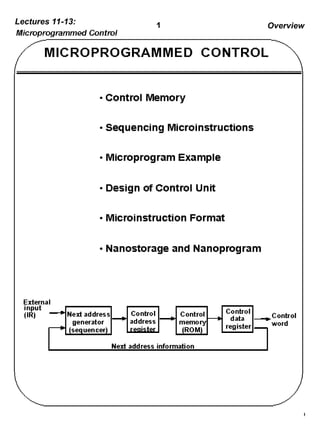

1. Lectures 11-13: Overview

2. Lectures 11-13: Section 7-1:

3. Lectures 11-13:

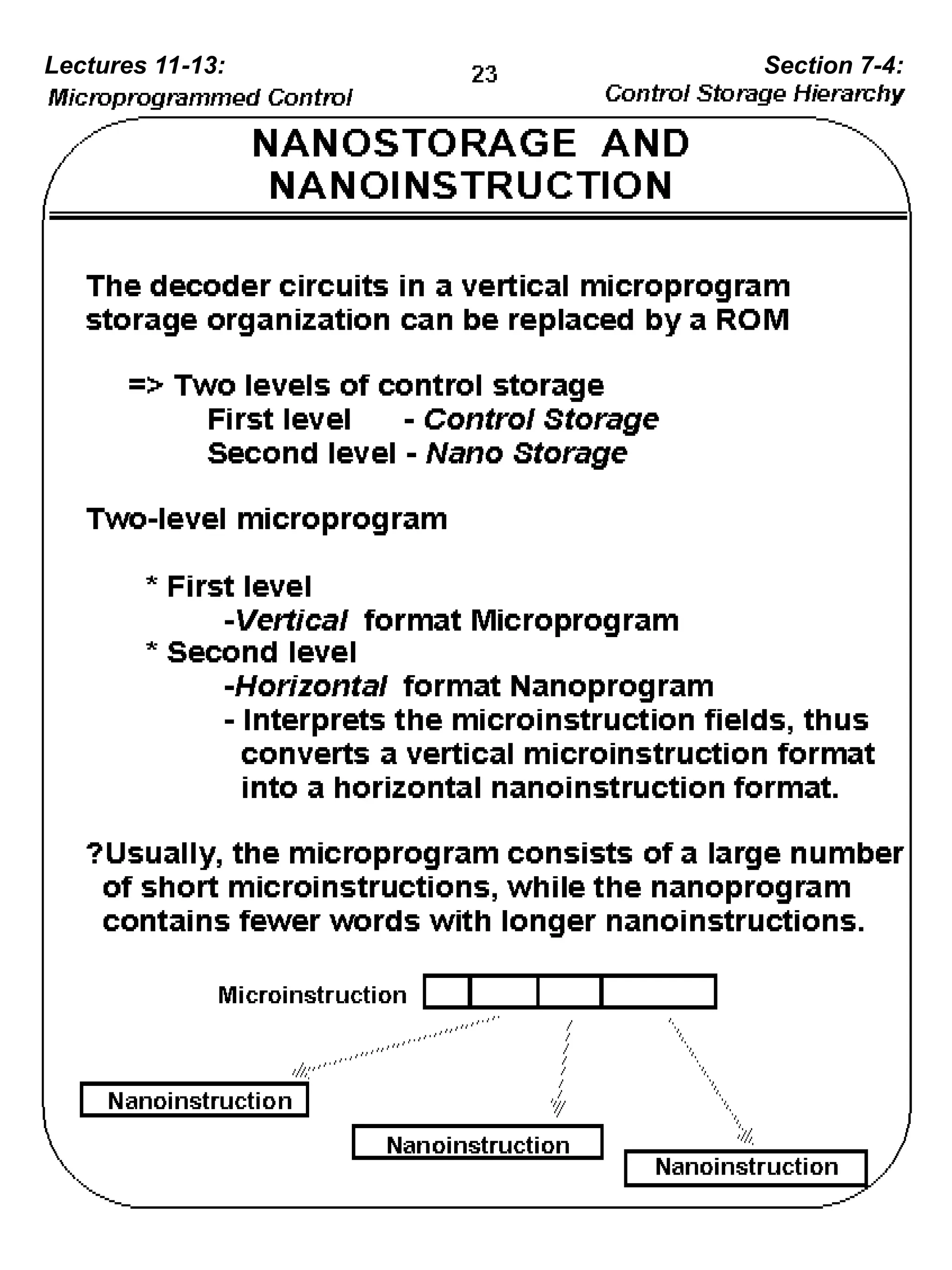

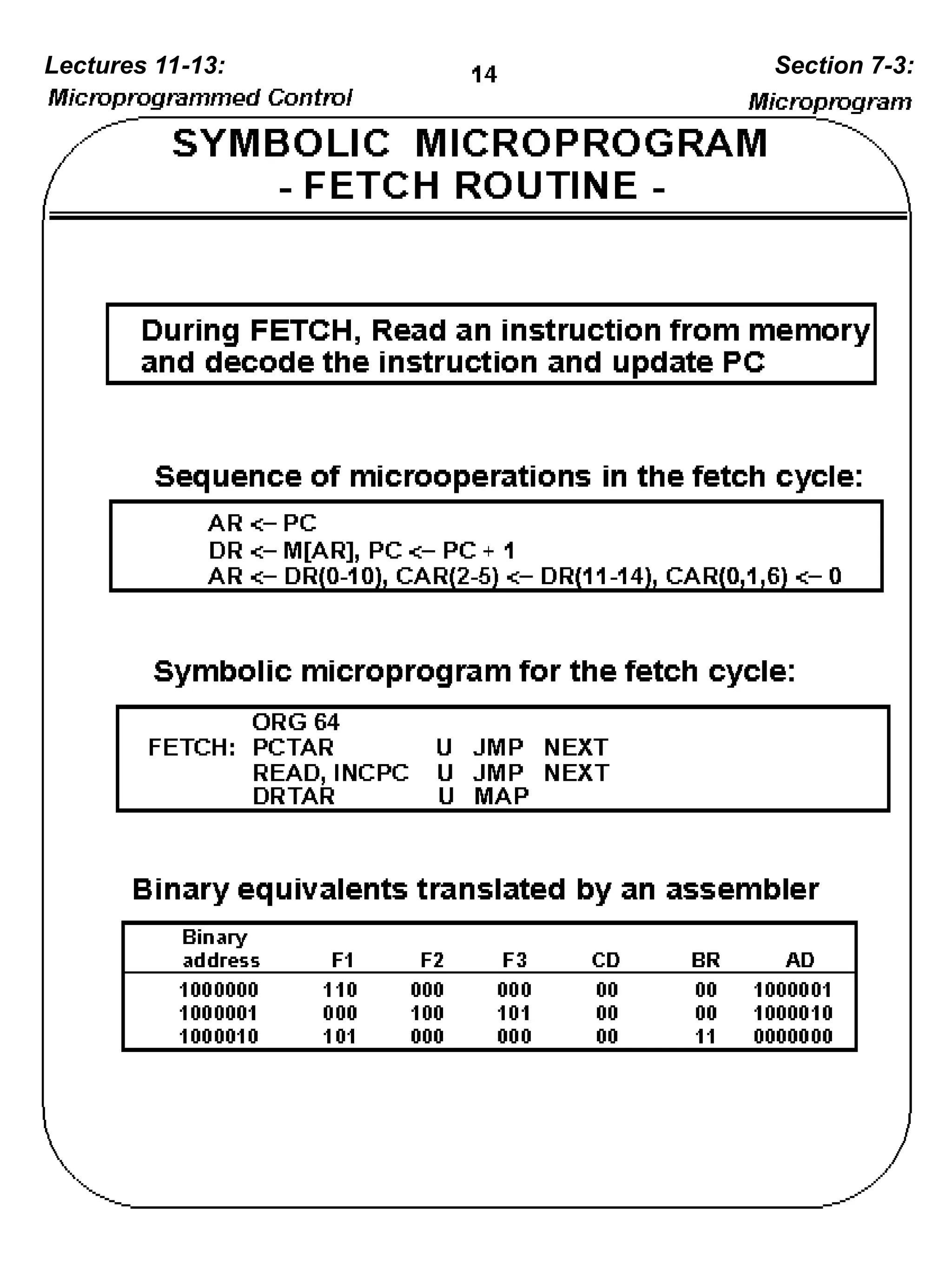

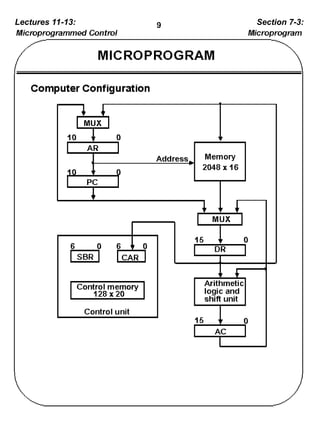

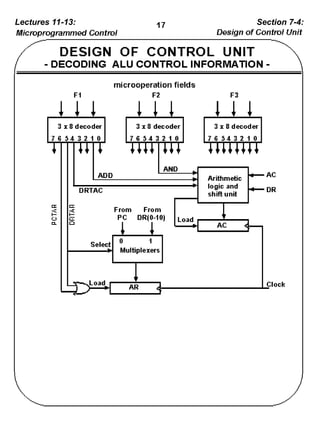

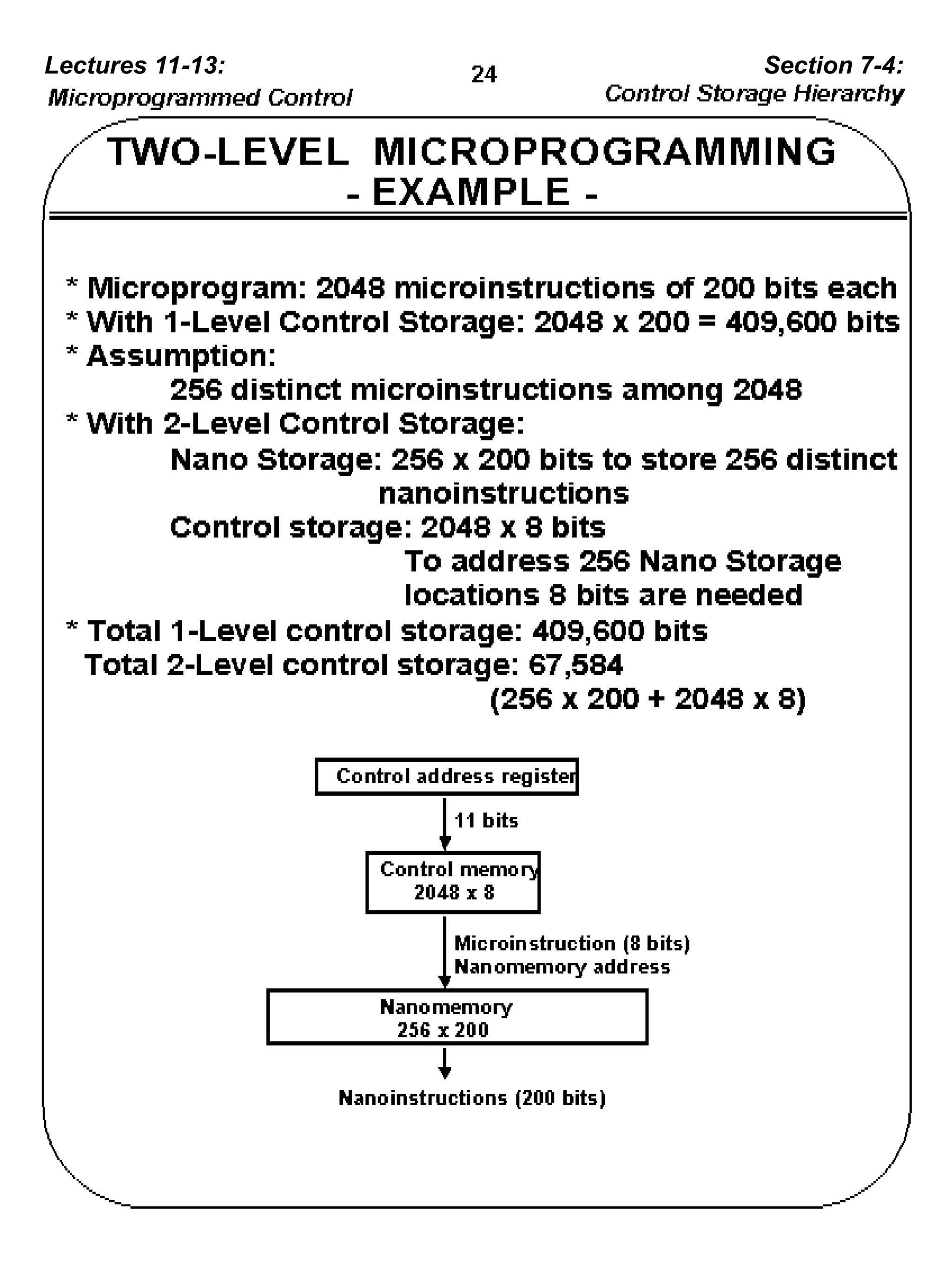

Microprogrammed Control
Section 7-1:

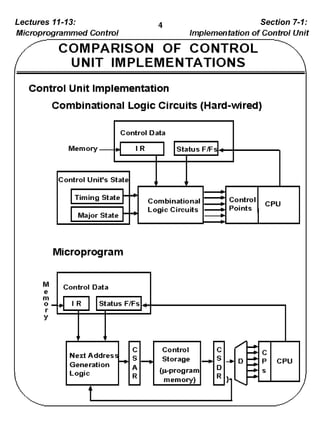

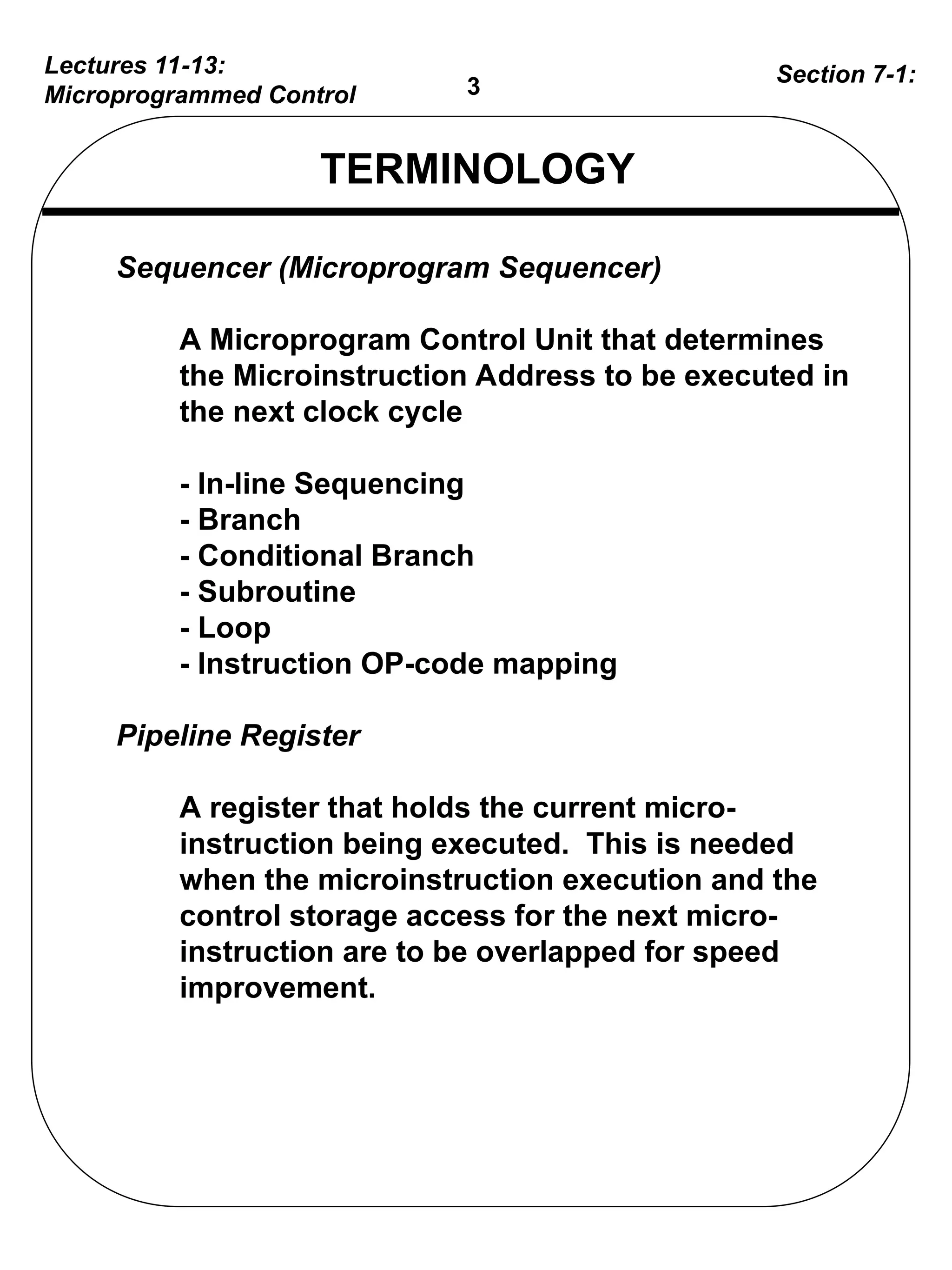

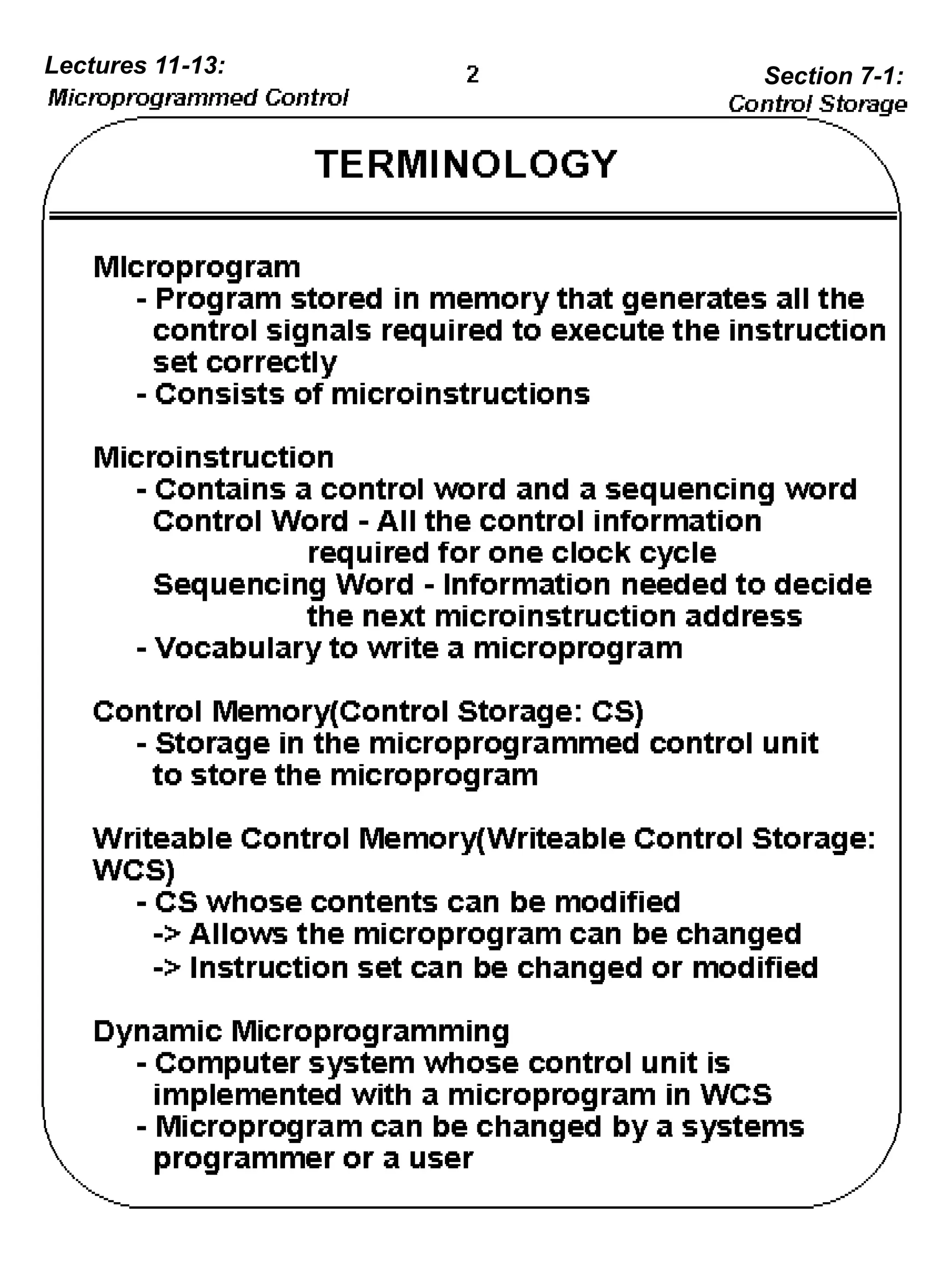

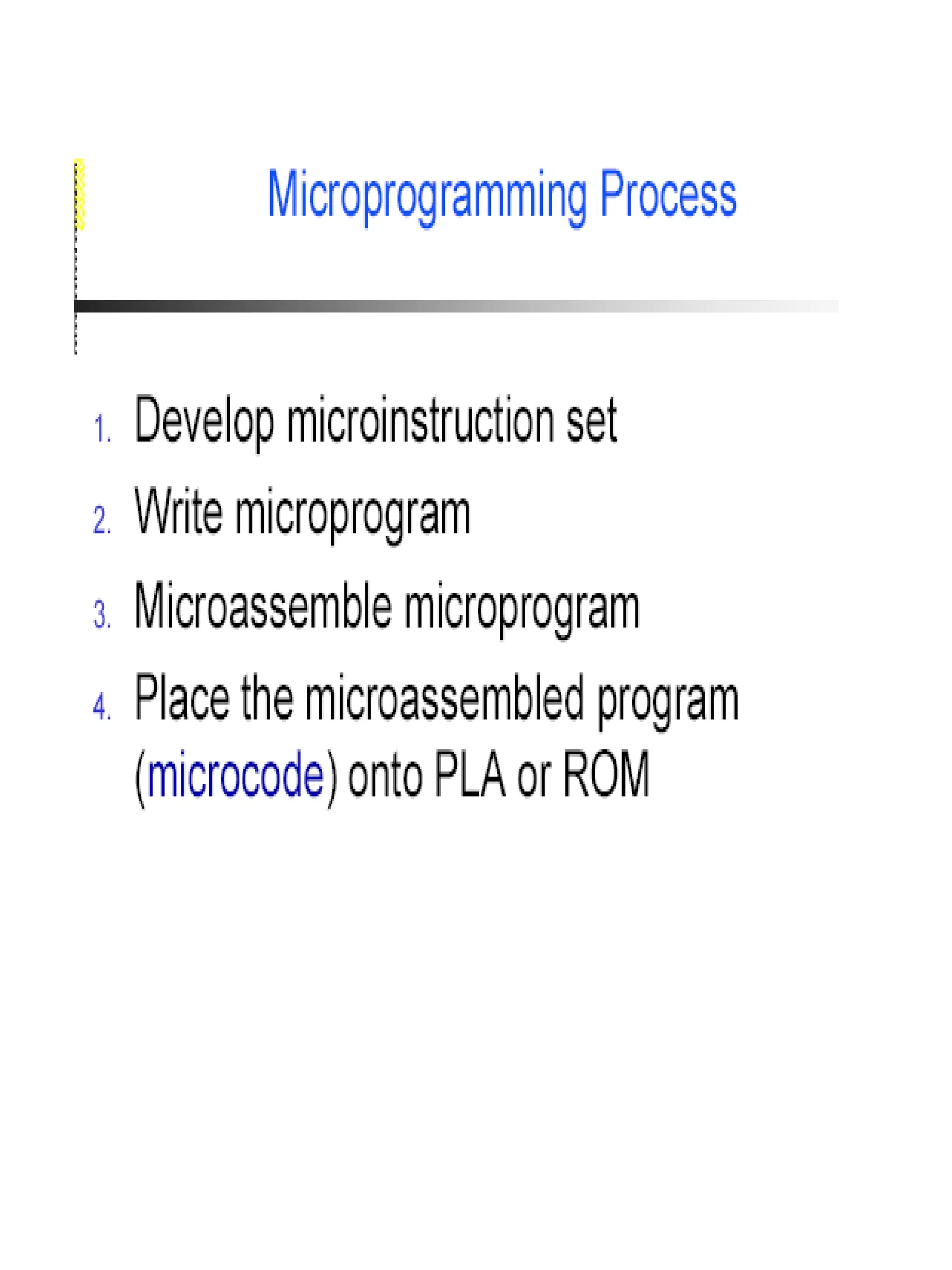

TERMINOLOGY

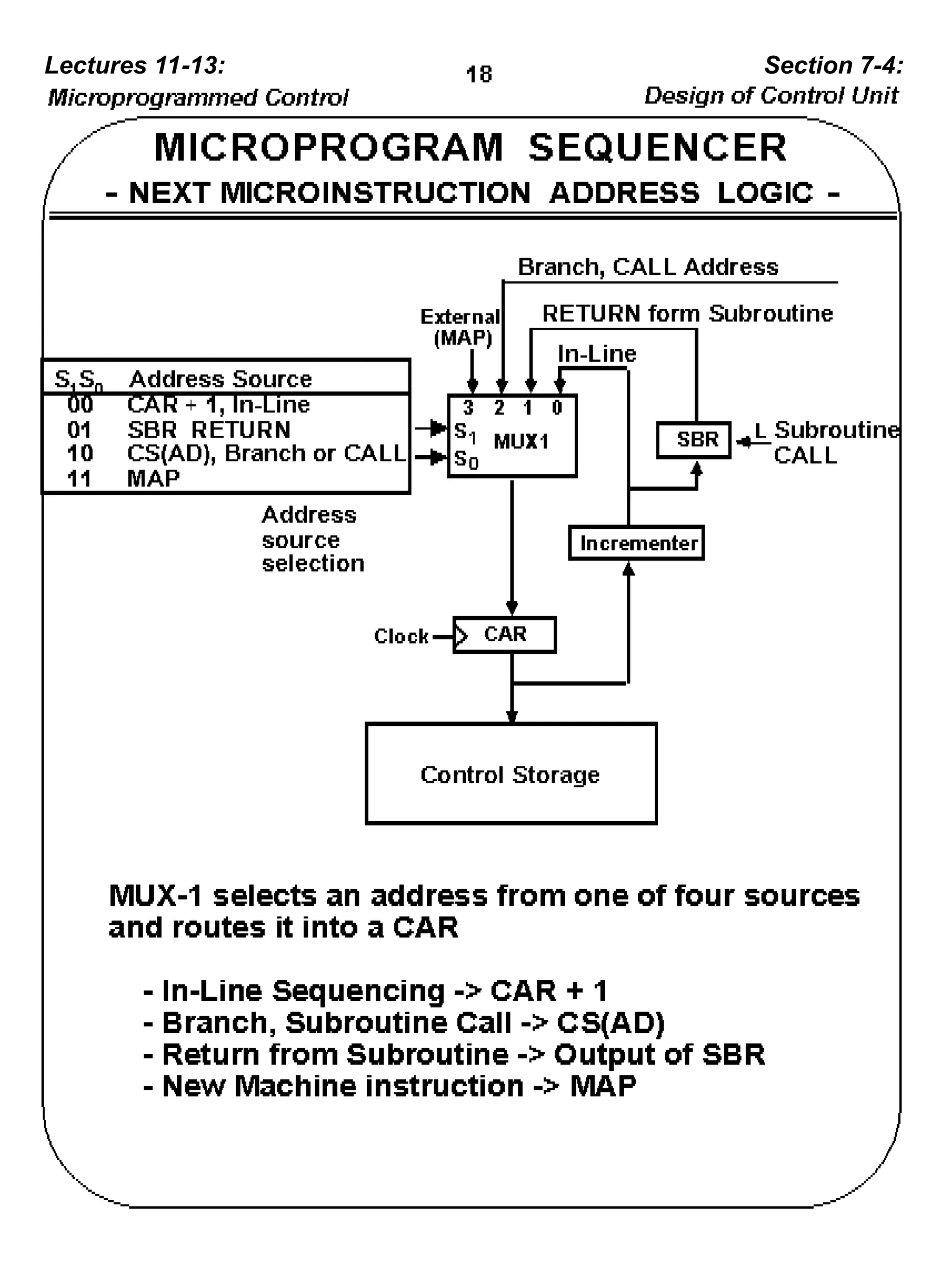

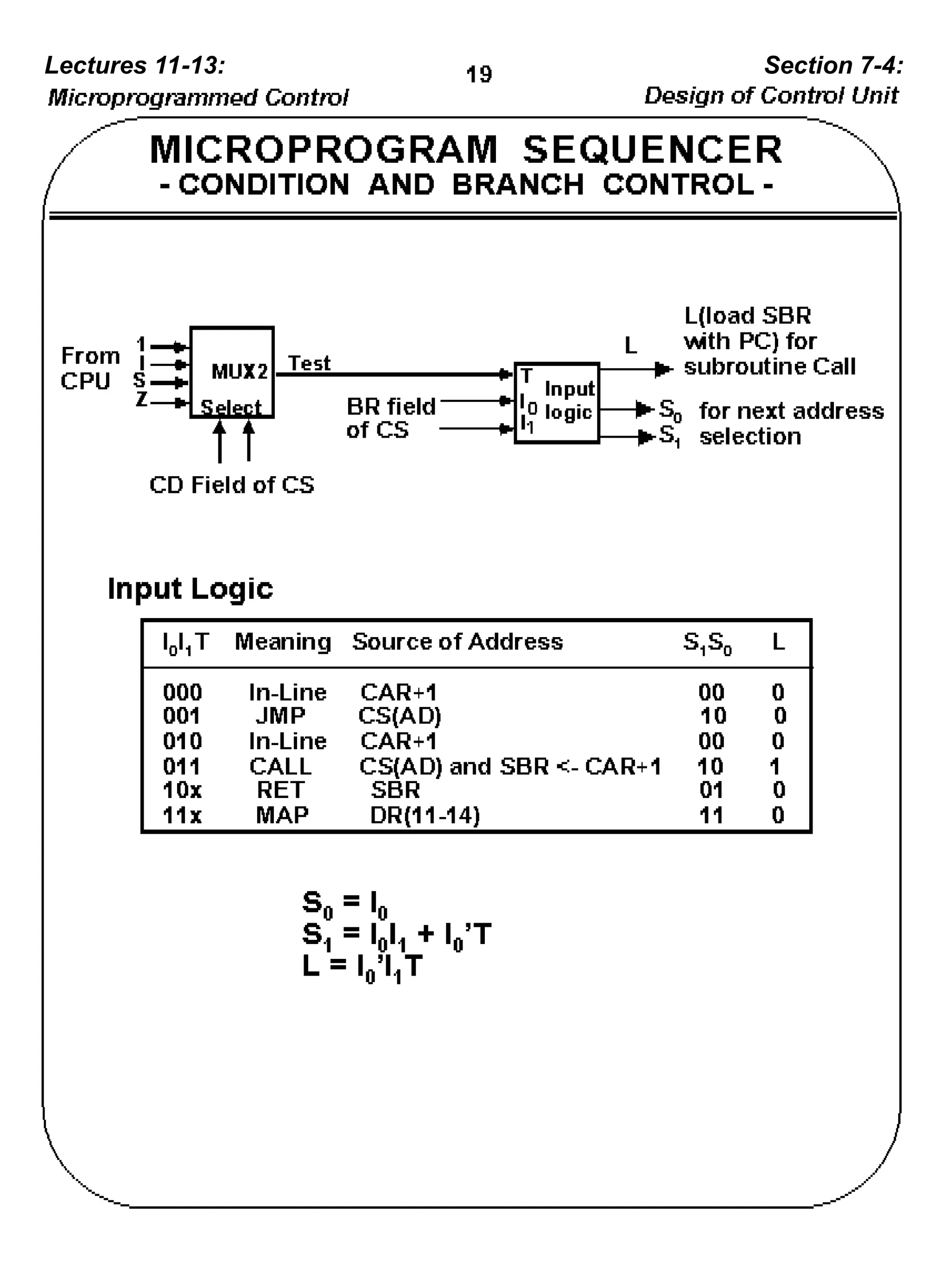

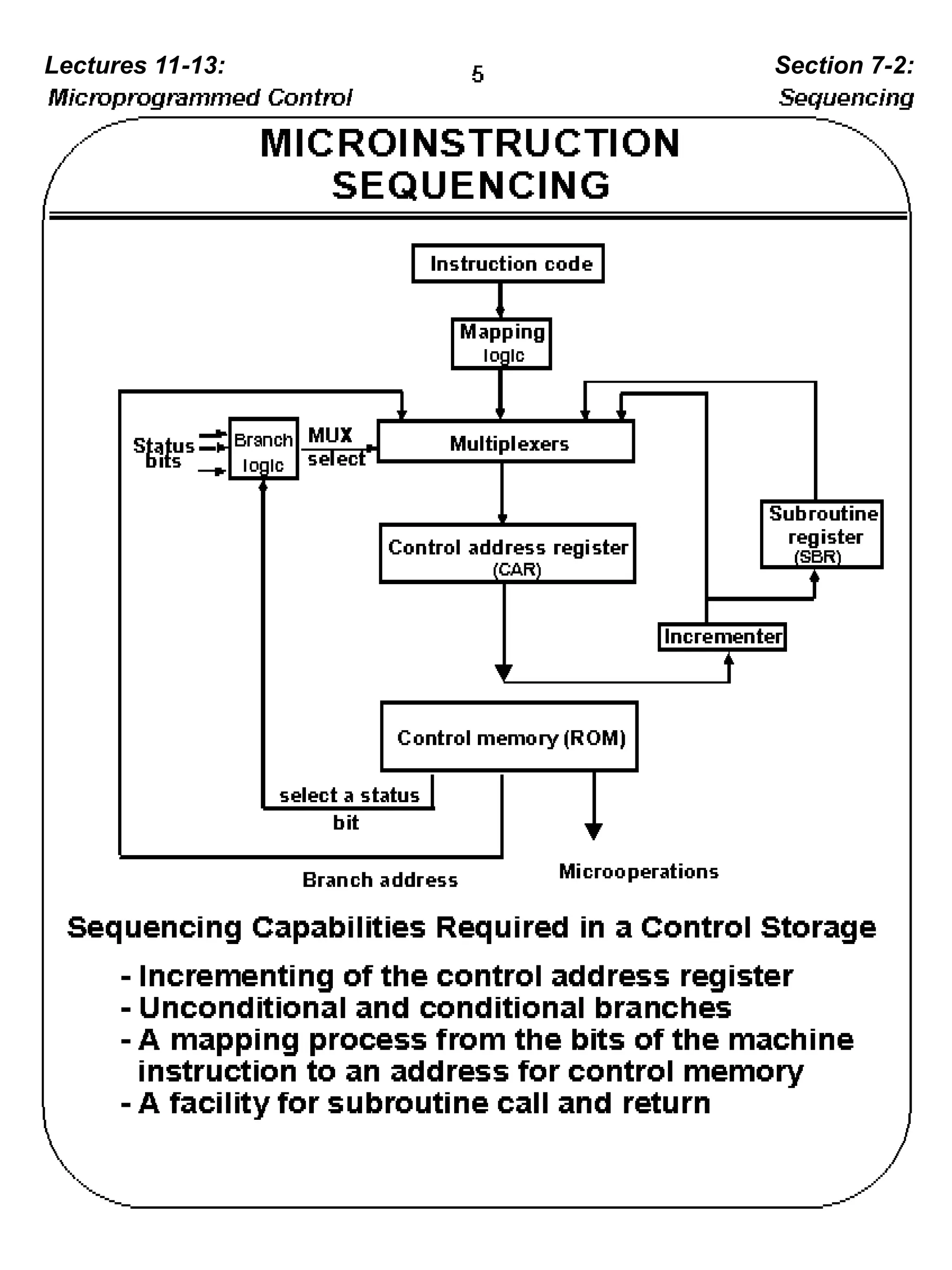

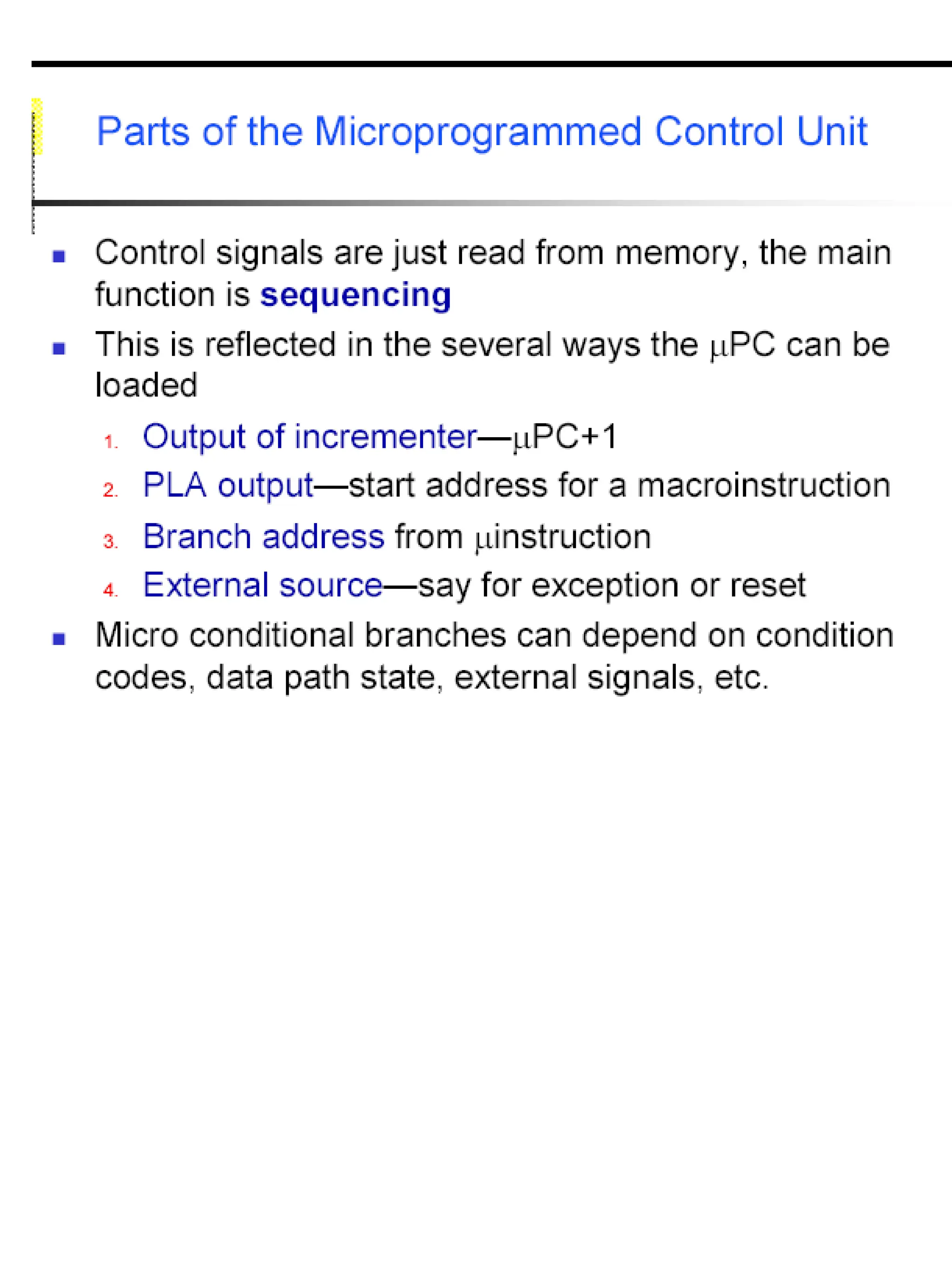

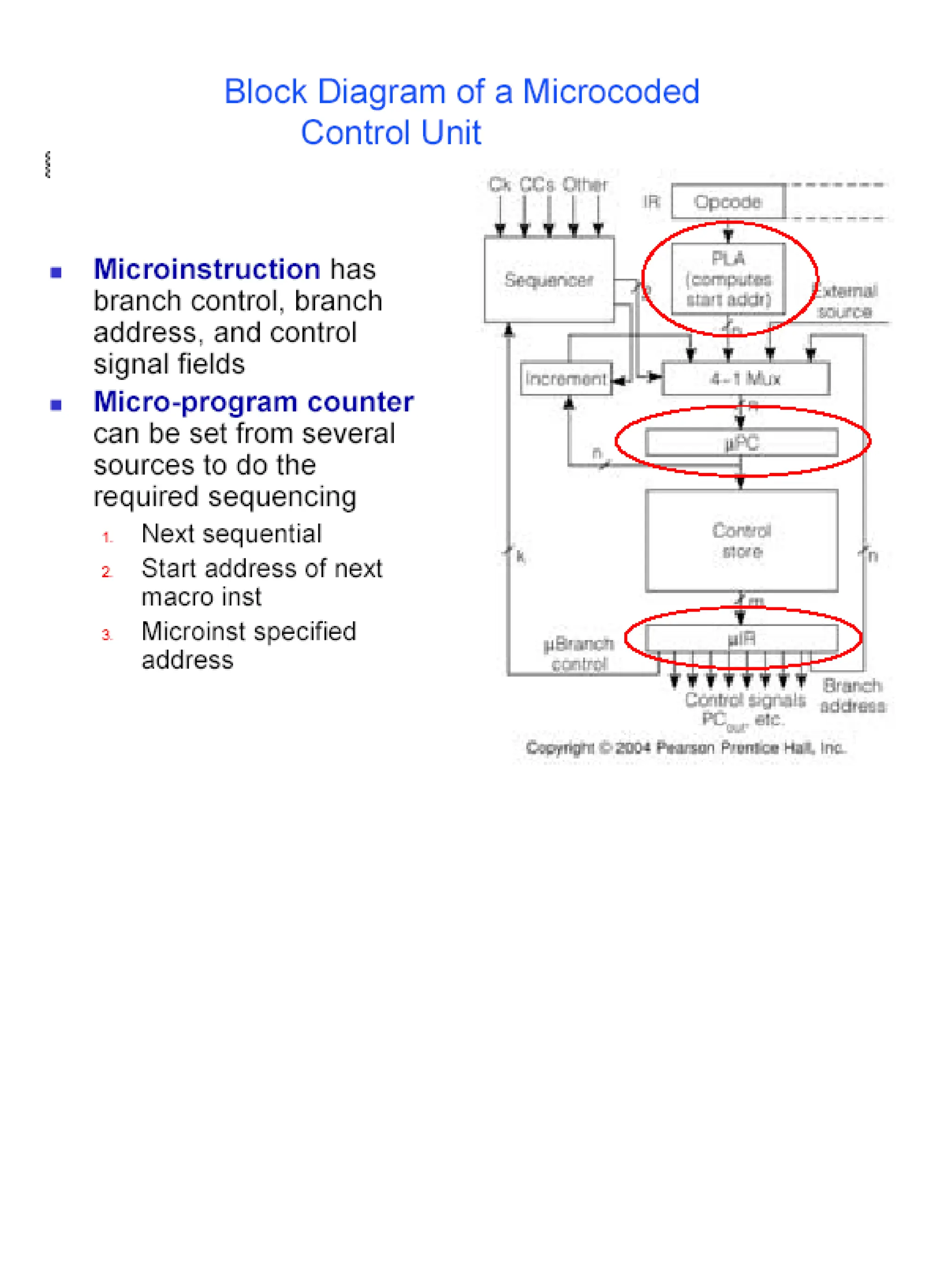

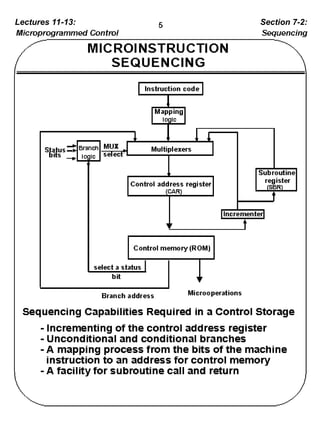

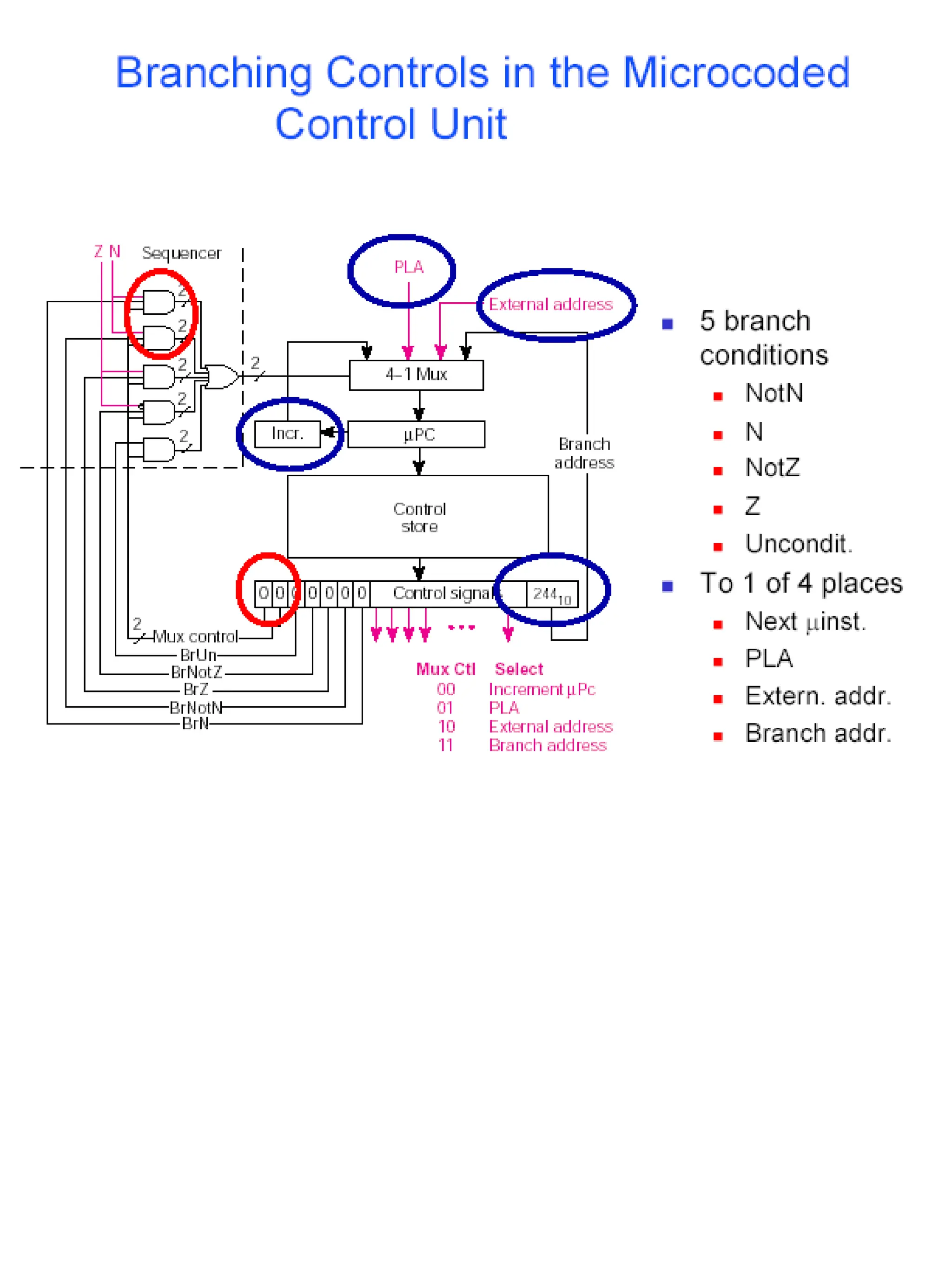

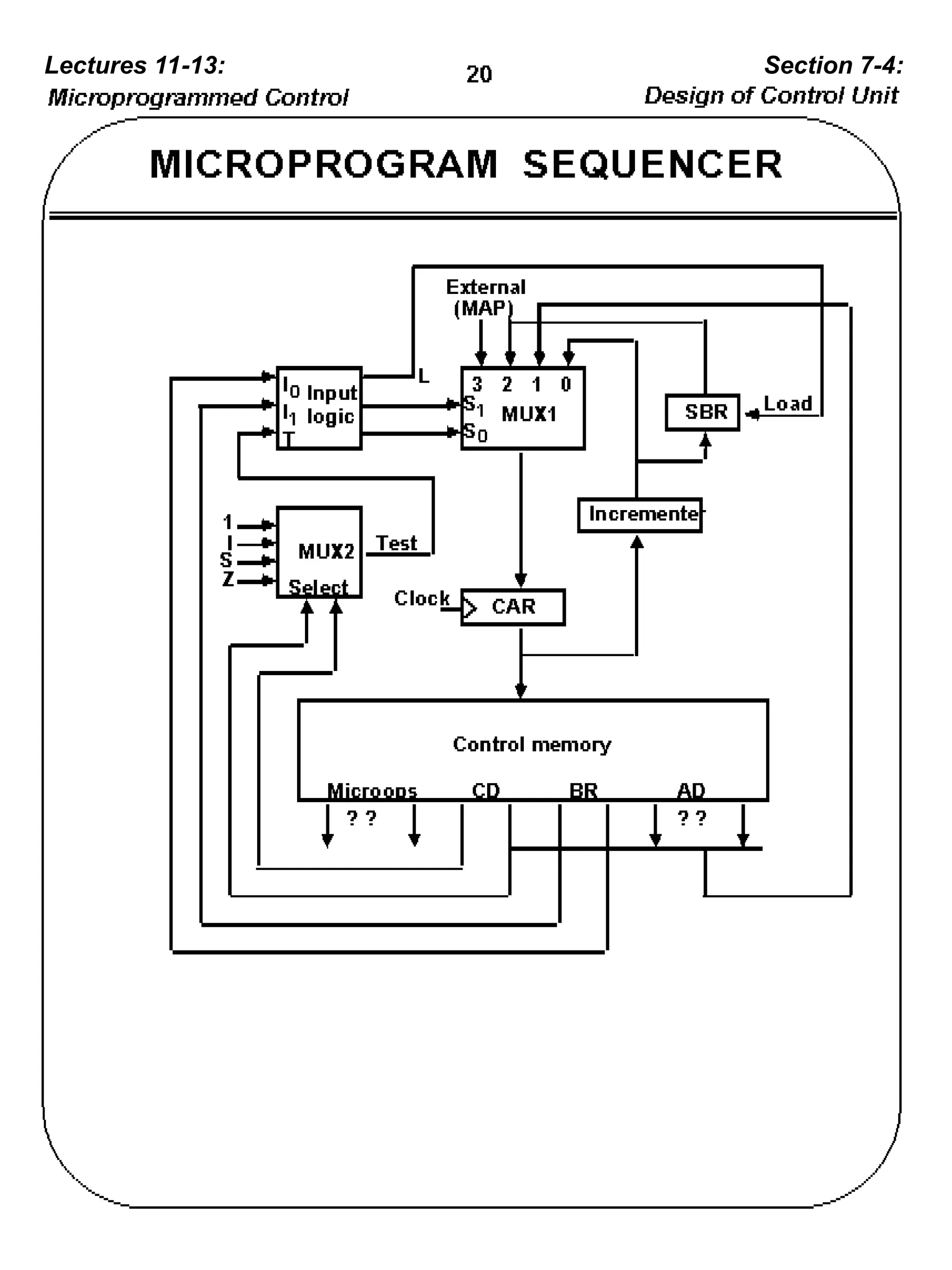

Sequencer (Microprogram Sequencer)
A Microprogram Control Unit that determines
the Microinstruction Address to be executed in
the next clock cycle

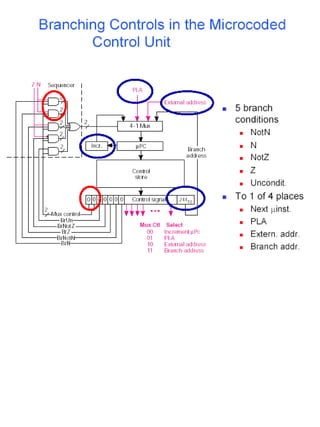

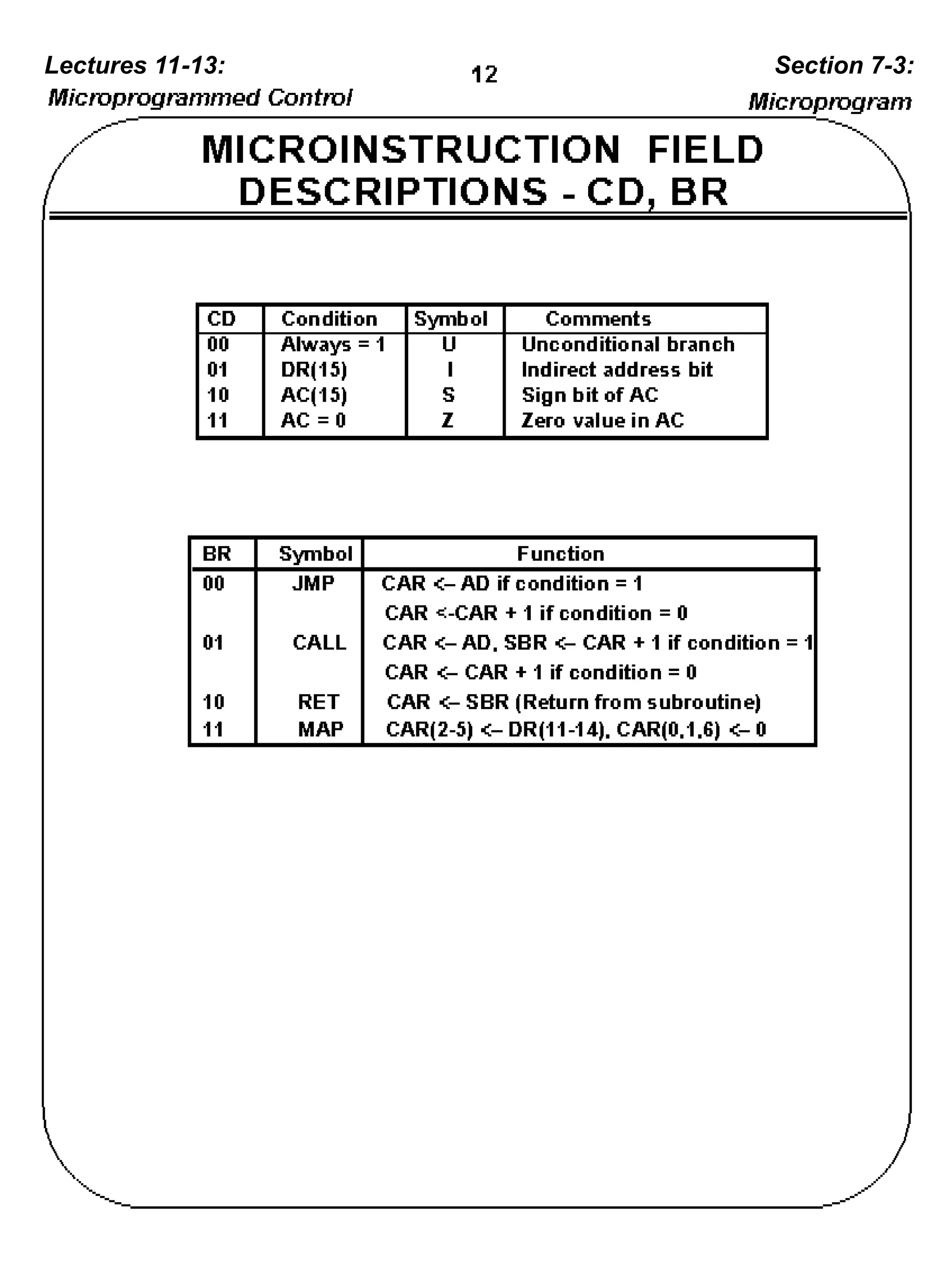

- In-line Sequencing
- Branch
- Conditional Branch
- Subroutine
- Loop

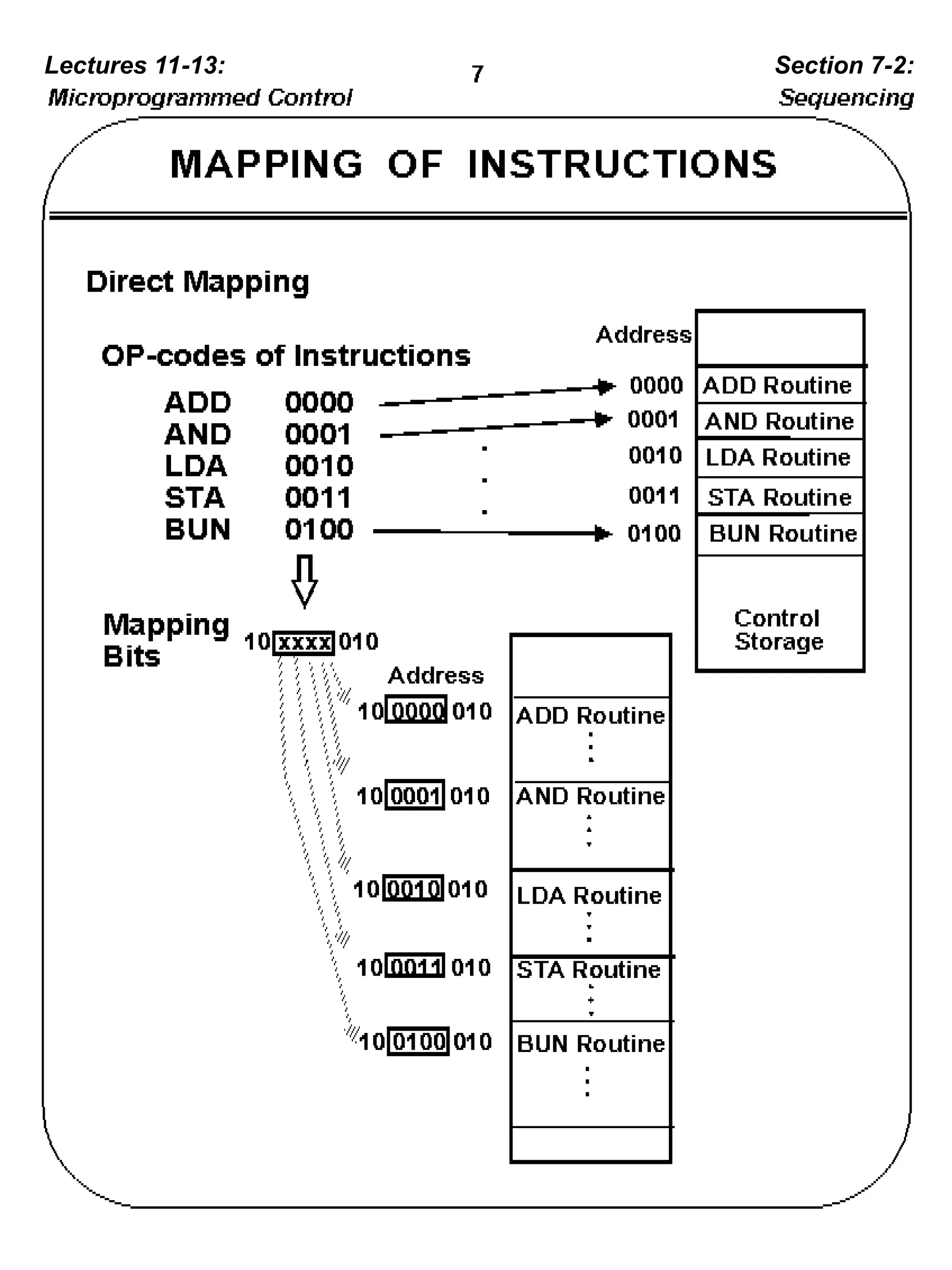

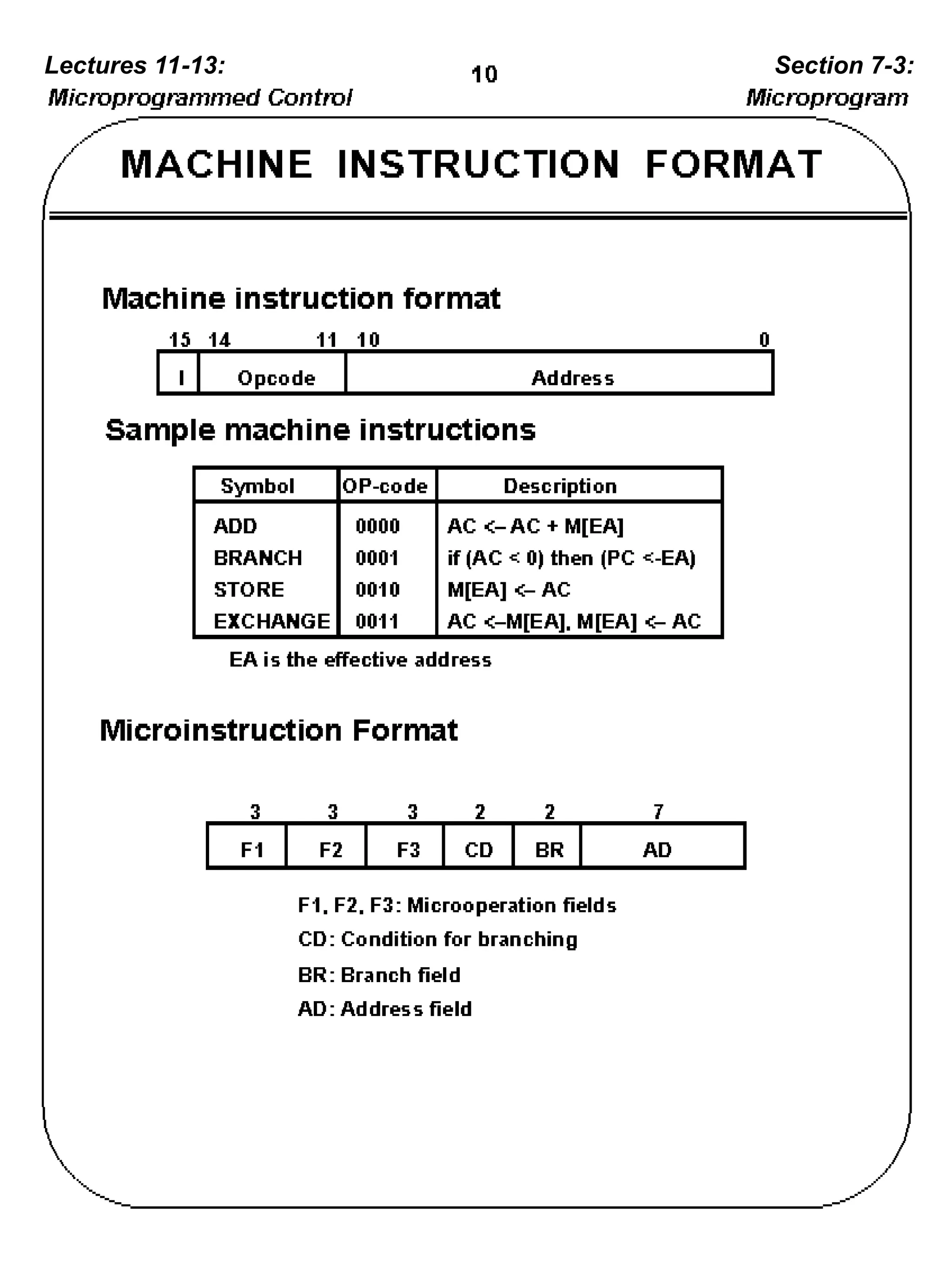

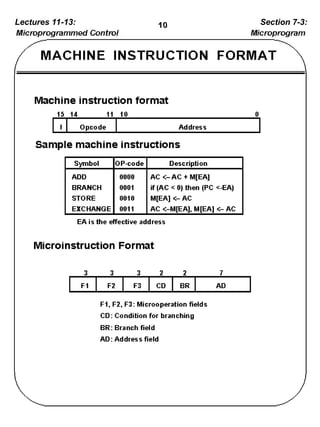

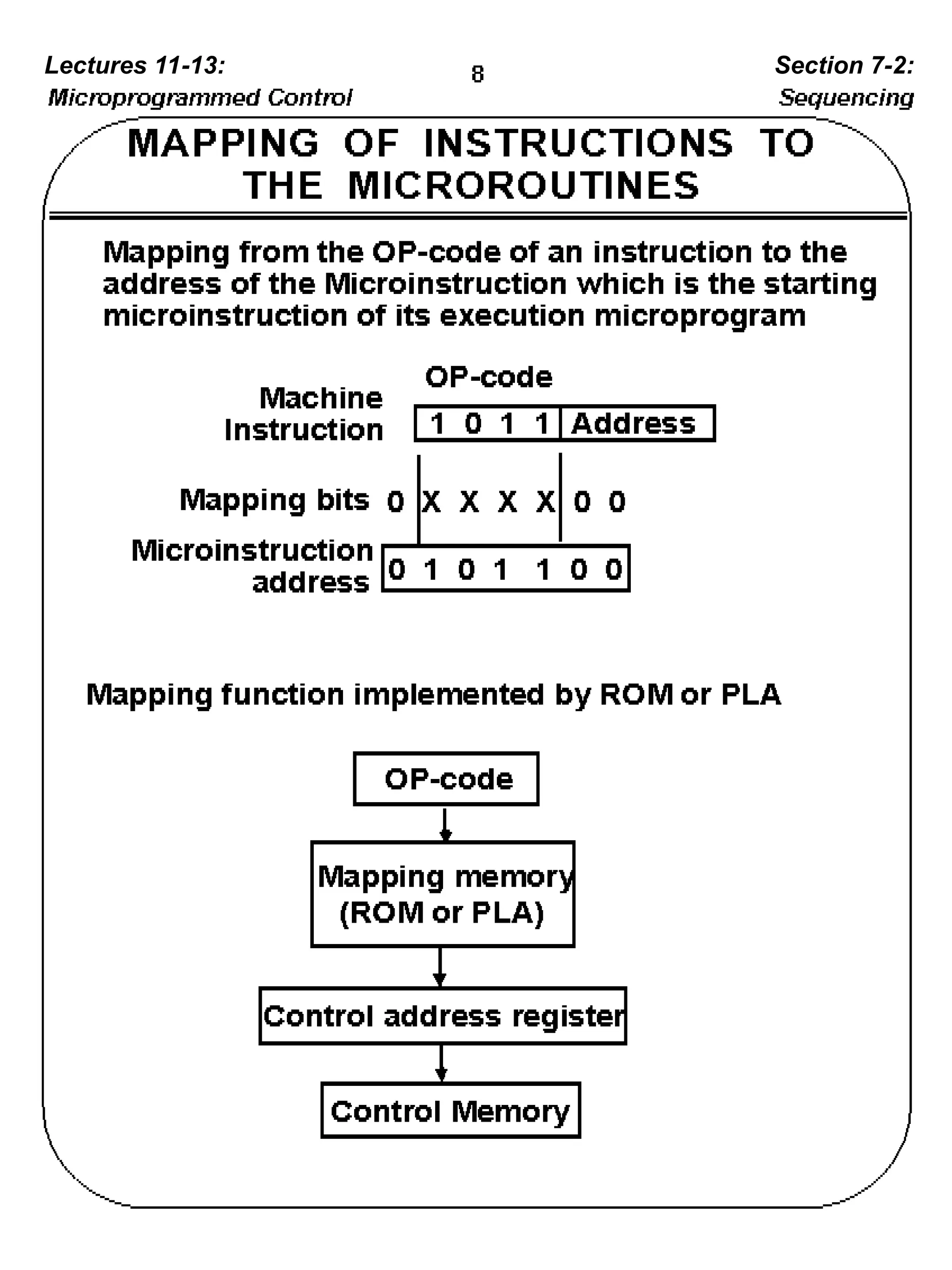

- Instruction OP-code mapping
Pipeline Register
A register that holds the current micro-
instruction being executed. This is needed
when the microinstruction execution and the
control storage access for the next micro-
instruction are to be overlapped for speed
improvement.
