The document provides instructions for solving circuits using different analysis methods like nodal analysis and mesh analysis. It asks the reader to use nodal analysis to find voltages at various nodes labeled v1 through v4 for the circuit shown in Figure 1. It also asks the reader to use mesh analysis to find the current Io for the same circuit and to find the voltage vs and current is for another circuit shown in the figure.

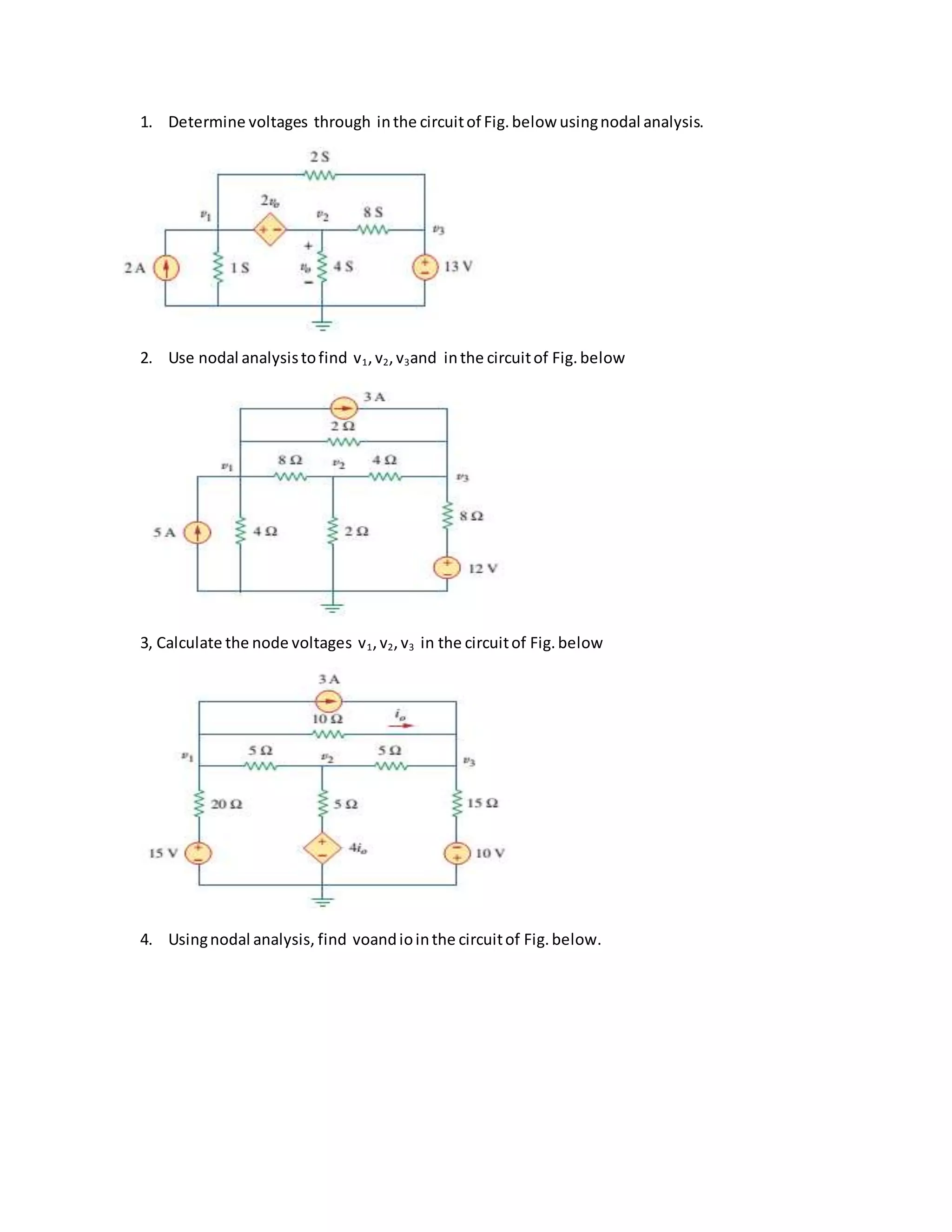

1. 1. Determine voltages through inthe circuitof Fig.below usingnodal analysis.
2. Use nodal analysistofind v1,v2,v3and inthe circuitof Fig.below
3, Calculate the node voltages v1,v2,v3 in the circuitof Fig.below

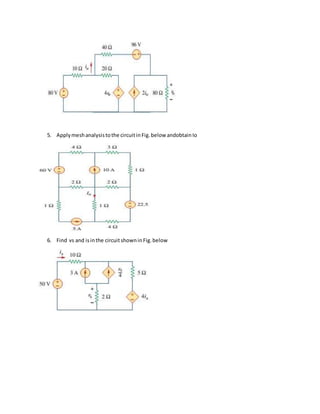

4. Usingnodal analysis, find voandiointhe circuitof Fig.below.

2. 5. Applymeshanalysistothe circuitinFig.below andobtainIo
6. Find vs and isinthe circuitshowninFig.below

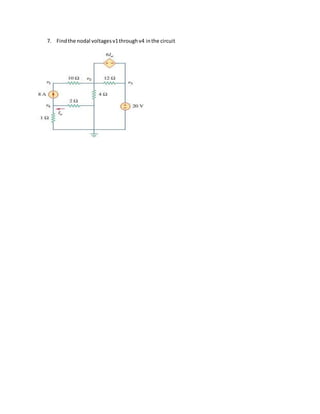

3. 7. Findthe nodal voltagesv1throughv4 inthe circuit
