Construction drawing

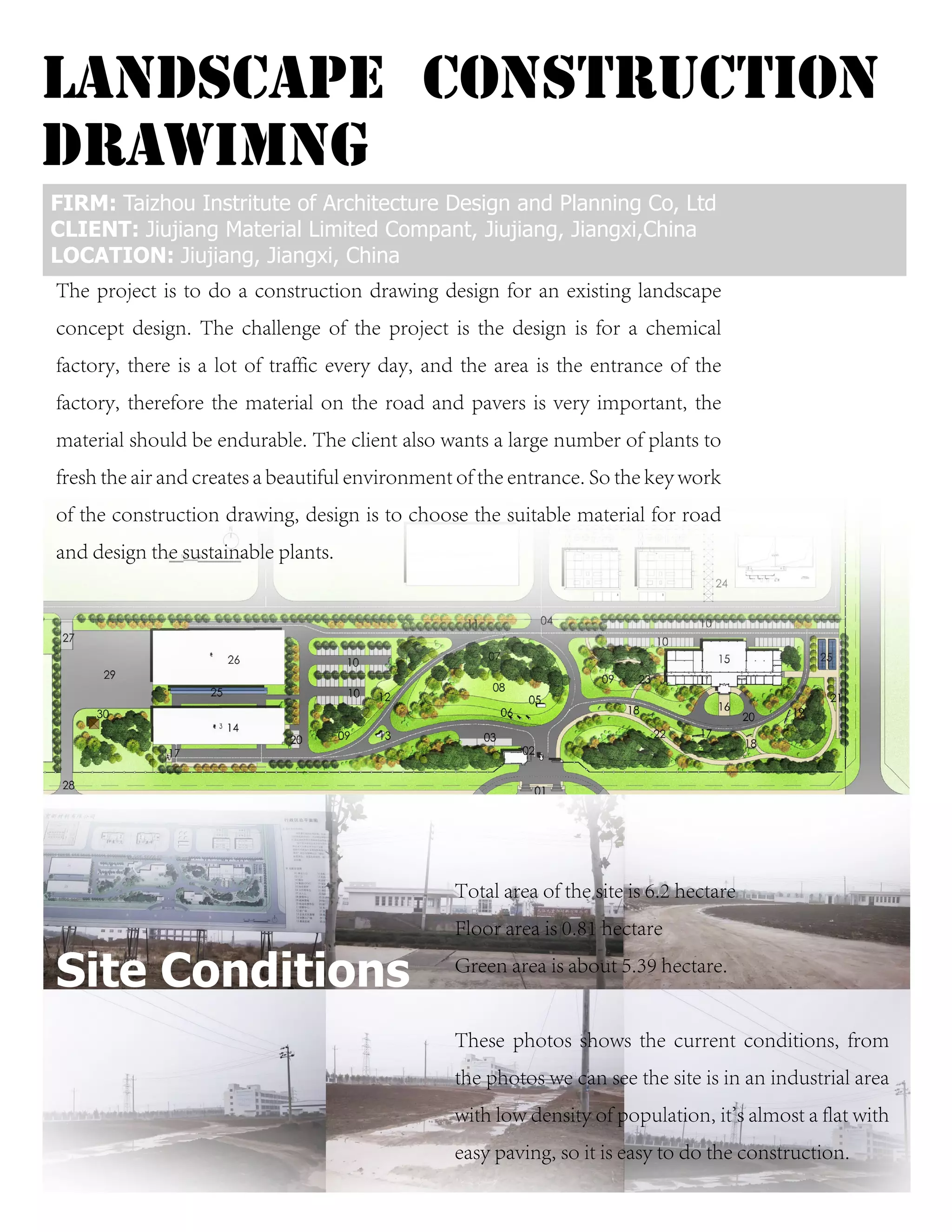

1. Landscape Construction
Drawimng
The project is to do a construction drawing design for an existing landscape
concept design. The challenge of the project is the design is for a chemical
factory, there is a lot of traffic every day, and the area is the entrance of the
factory, therefore the material on the road and pavers is very important, the
material should be endurable. The client also wants a large number of plants to
fresh the air and creates a beautiful environment of the entrance. So the key work
of the construction drawing, design is to choose the suitable material for road
and design the sustainable plants.
FIRM: Taizhou Instritute of Architecture Design and Planning Co, Ltd
CLIENT: Jiujiang Material Limited Compant, Jiujiang, Jiangxi,China
LOCATION: Jiujiang, Jiangxi, China
Total area of the site is 6.2 hectare
Floor area is 0.81 hectare
Green area is about 5.39 hectare.
These photos shows the current conditions, from
the photos we can see the site is in an industrial area
with low density of population, it's almost a flat with
easy paving, so it is easy to do the construction.
Site Conditions
7. Dark grey stone paving
Dark grey stone paving
Dark grey stone paving
Grey granit paving
Grey granit paving
Edge Green Space
Grey granit paving
We designed the front square of Control Center. The
square combines with green space and paving, and
most of the pavers are dark gray because this is for
a work area. We use different pavers to distinguish
different area. Like the granite pavers are in the center
square and paving stones for pedestrians.
Paving Design
9. Grey granite paving
Granite paving Clay brick paving
Clay brick paving
Granite paving
Stone paving
Concrete mortar Sand bedding
Sand bedding
Concrete mortar
Concrete Concrete
Concrete
Concrete
Compacted gravel Compacted gravel
Compacted gravel
Compacted gravel
Soil subgrade Soil subgrade
Soil subgrade
Soil subgrade
Brown clay brick paving
Stone pavingSidewalk pavement sections
Sidewalk pavement plan
Grey granite paving
Grey granite paving
Brown brick paving
Brown clay brick paving
Brown clay brick paving
Sidewalk pavement plan
10. A
B
Requirement of Plant Pit for Tree (cm)
Height Diameter of Soil Ball Deep if Plant Pit Diameter of Plant Pit
150 40-50 50-60 80-90
150-250 70-80 80-90 100-110
250-400 80-100 90-110 120-130
over 400 over 140 over 120 over 180
11. Southern magnolia A
Southern magnolia B
Privet
Cypress
Albizzia julibrssin A
Albizzia julibrssin B
Albizzia julibrssin C
Ailanthus
Hackberry A
Hackberry B
Hackberry C
Sakura A
Sakura B
Sakura C
Hibiscus
Crape myrtle
Gardenia
C
Planting Schedule
Planting Design. Tree
12. A
B
Requirement of Plant Pit for Shurb (cm)
Crown Diameter Deep if Plant Pit Diameter of Plant Pit
200 70-90 90-100
100 60-70 70-90
