Complete the C++ program and implement the routines that are not

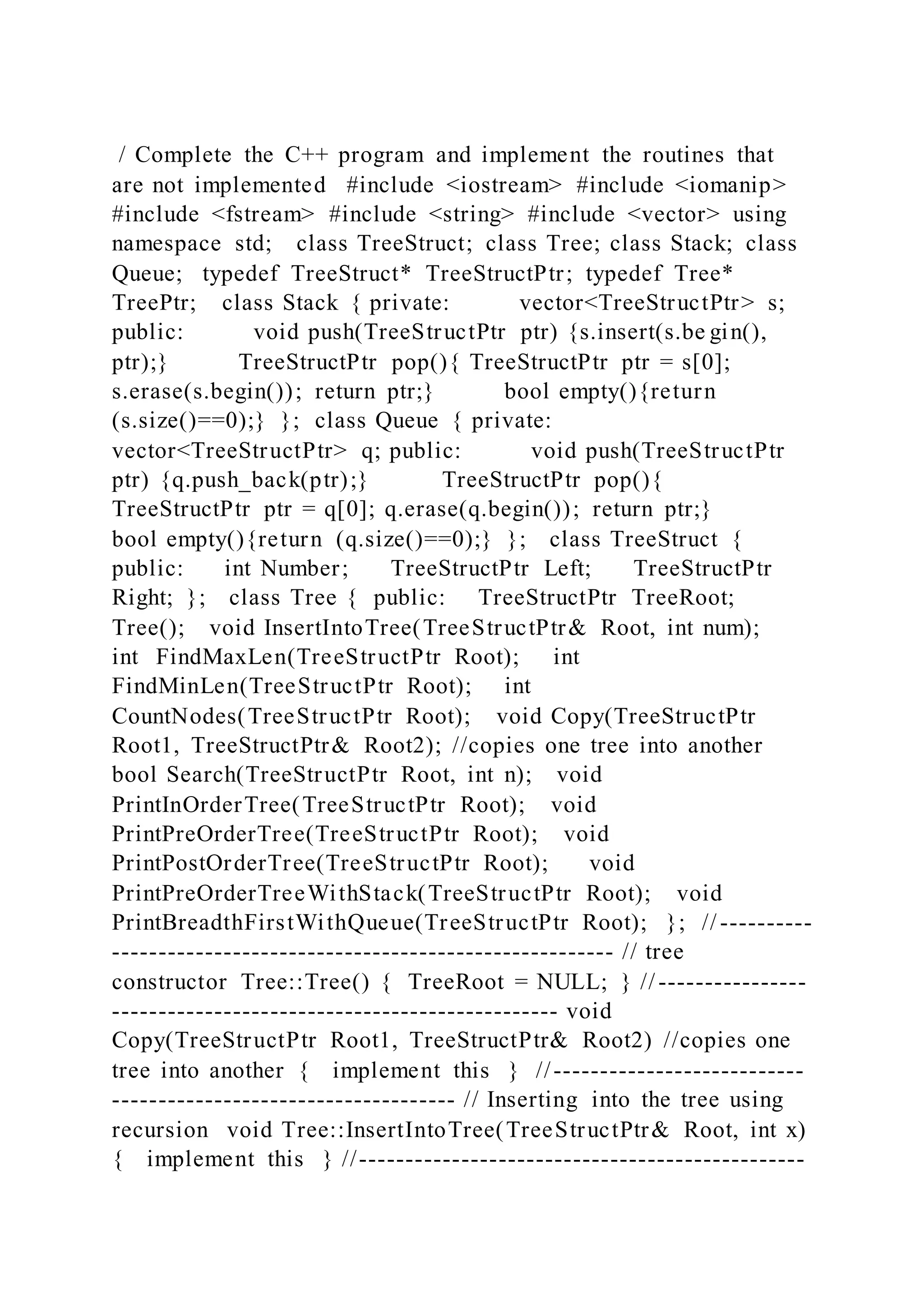

1. / Complete the C++ program and implement the routines that
are not implemented #include <iostream> #include <iomanip>
#include <fstream> #include <string> #include <vector> using
namespace std; class TreeStruct; class Tree; class Stack; class
Queue; typedef TreeStruct* TreeStructPtr; typedef Tree*
TreePtr; class Stack { private: vector<TreeStructPtr> s;
public: void push(TreeStructPtr ptr) {s.insert(s.be gin(),
ptr);} TreeStructPtr pop(){ TreeStructPtr ptr = s[0];
s.erase(s.begin()); return ptr;} bool empty(){return
(s.size()==0);} }; class Queue { private:
vector<TreeStructPtr> q; public: void push(TreeStructPtr
ptr) {q.push_back(ptr);} TreeStructPtr pop(){
TreeStructPtr ptr = q[0]; q.erase(q.begin()); return ptr;}
bool empty(){return (q.size()==0);} }; class TreeStruct {
public: int Number; TreeStructPtr Left; TreeStructPtr
Right; }; class Tree { public: TreeStructPtr TreeRoot;
Tree(); void InsertIntoTree(TreeStructPtr& Root, int num);
int FindMaxLen(TreeStructPtr Root); int
FindMinLen(TreeStructPtr Root); int
CountNodes(TreeStructPtr Root); void Copy(TreeStructPtr
Root1, TreeStructPtr& Root2); //copies one tree into another
bool Search(TreeStructPtr Root, int n); void
PrintInOrderTree(TreeStructPtr Root); void
PrintPreOrderTree(TreeStructPtr Root); void
PrintPostOrderTree(TreeStructPtr Root); void
PrintPreOrderTreeWithStack(TreeStructPtr Root); void
PrintBreadthFirstWithQueue(TreeStructPtr Root); }; // ----------
------------------------------------------------------ // tree
constructor Tree::Tree() { TreeRoot = NULL; } //----------------
------------------------------------------------ void
Copy(TreeStructPtr Root1, TreeStructPtr& Root2) //copies one
tree into another { implement this } //---------------------------
------------------------------------- // Inserting into the tree using
recursion void Tree::InsertIntoTree(TreeStructPtr& Root, int x)
{ implement this } //------------------------------------------------

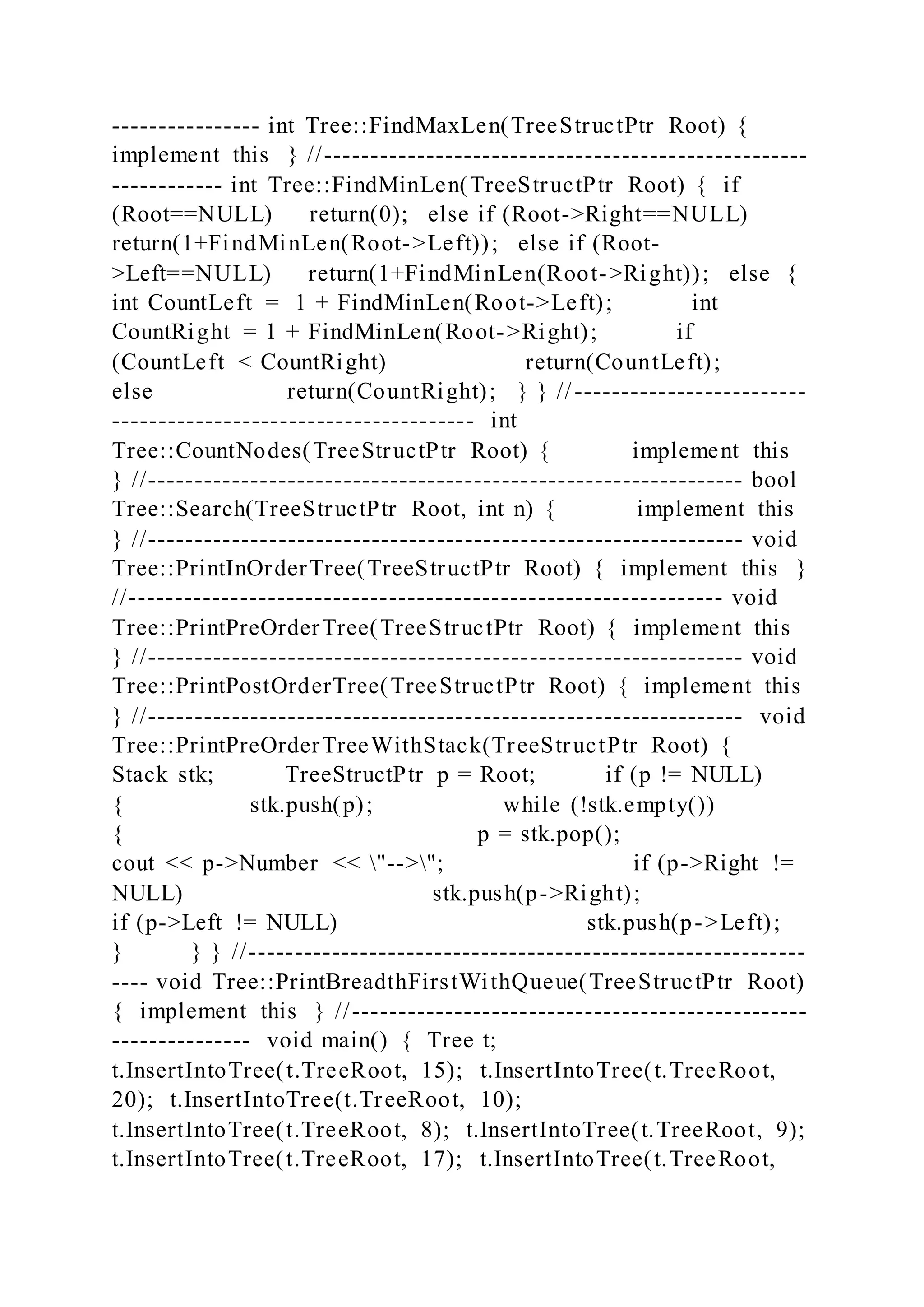

2. ---------------- int Tree::FindMaxLen(TreeStructPtr Root) {
implement this } //----------------------------------------------------
------------ int Tree::FindMinLen(TreeStructPtr Root) { if
(Root==NULL) return(0); else if (Root->Right==NULL)
return(1+FindMinLen(Root->Left)); else if (Root-
>Left==NULL) return(1+FindMinLen(Root->Right)); else {
int CountLeft = 1 + FindMinLen(Root->Left); int
CountRight = 1 + FindMinLen(Root->Right); if
(CountLeft < CountRight) return(CountLeft);
else return(CountRight); } } //-------------------------
--------------------------------------- int
Tree::CountNodes(TreeStructPtr Root) { implement this
} //---------------------------------------------------------------- bool
Tree::Search(TreeStructPtr Root, int n) { implement this
} //---------------------------------------------------------------- void
Tree::PrintInOrderTree(TreeStructPtr Root) { implement this }
//---------------------------------------------------------------- void
Tree::PrintPreOrderTree(TreeStructPtr Root) { implement this
} //---------------------------------------------------------------- void
Tree::PrintPostOrderTree(TreeStructPtr Root) { implement this
} //---------------------------------------------------------------- void
Tree::PrintPreOrderTreeWithStack(TreeStructPtr Root) {
Stack stk; TreeStructPtr p = Root; if (p != NULL)
{ stk.push(p); while (!stk.empty())
{ p = stk.pop();
cout << p->Number << "-->"; if (p->Right !=
NULL) stk.push(p->Right);
if (p->Left != NULL) stk.push(p->Left);
} } } //------------------------------------------------------------
---- void Tree::PrintBreadthFirstWithQueue(TreeStructPtr Root)
{ implement this } //-------------------------------------------------
--------------- void main() { Tree t;
t.InsertIntoTree(t.TreeRoot, 15); t.InsertIntoTree(t.TreeRoot,
20); t.InsertIntoTree(t.TreeRoot, 10);
t.InsertIntoTree(t.TreeRoot, 8); t.InsertIntoTree(t.TreeRoot, 9);
t.InsertIntoTree(t.TreeRoot, 17); t.InsertIntoTree(t.TreeRoot,

3. 21); t.InsertIntoTree(t.TreeRoot, 22);
t.InsertIntoTree(t.TreeRoot, 23); t.InsertIntoTree(t.TreeRoot,
24); t.InsertIntoTree(t.TreeRoot, 25);
t.InsertIntoTree(t.TreeRoot, 26); t.InsertIntoTree(t.TreeRoot,
11); cout << " Printing Pre Order " << endl;
t.PrintPreOrderTree(t.TreeRoot); cout << " ---------------------
--------------------------" << endl; getchar(); cout << "Printing
Post Order " << endl; t.PrintPostOrderTree(t.TreeRoot); cout
<< " -----------------------------------------------" << endl;
getchar(); cout << "Printing In Order " << endl;
t.PrintInOrderTree(t.TreeRoot); cout << " -----------------------
------------------------" << endl; getchar(); cout << boolalpha
<< endl << endl; cout << " Searching 30: " <<
t.Search(t.TreeRoot, 30) << endl; cout << " Searching 8: " <<
t.Search(t.TreeRoot, 8) << endl; cout << " Searching 10: " <<
t.Search(t.TreeRoot, 10) << endl; cout << "-----------------------
--------------------" << endl; getchar(); cout << "Printing Pre
Order with Stack " << endl;
t.PrintPreOrderTreeWithStack(t.TreeRoot); cout << " ---------
--------------------------------------" << endl; getchar(); cout <<
"Printing level by level BreathFirst Traversal " << endl;
t.PrintBreadthFirstWithQueue(t.TreeRoot); cout << " ----------
-------------------------------------" << endl; getchar(); cout <<
endl; int MaxLen = t.FindMaxLen(t.TreeRoot); int MinLen =
t.FindMinLen(t.TreeRoot); int TotalNodes =
t.CountNodes(t.TreeRoot); cout << "Max is " << MaxLen <<
endl; cout << "Min is " << MinLen << endl; cout << "Num
of Nodes is " << TotalNodes << endl; cout << "-----------------
------------------------------" << endl; getchar(); Tree t2;
Copy(t.TreeRoot, t2.TreeRoot); cout << "Printing In Order the
copy of the tree" << endl; t2.PrintInOrderTree(t2.TreeRoot);
cout << " -----------------------------------------------" << endl;
} //---------------------------------------------------------------- /*
Your output should look like the foolowing Printing Pre Order
15-->10-->8-->9-->11-->20-->17-->21-->22-->23-->24-->25--
>26--> ----------------------------------------------- Printing Post

4. Order 9-->8-->11-->10-->17-->26-->25-->24-->23-->22-->21--
>20-->15--> ----------------------------------------------- Printing
In Order 8-->9-->10-->11-->15-->17-->20-->21-->22-->23--
>24-->25-->26--> -----------------------------------------------
Searching 30: false Searching 8: true Searching 10: true -------
------------------------------------ Printing Pre Order with Stack
15-->10-->8-->9-->11-->20-->17-->21-->22-->23-->24-->25--
>26--> ----------------------------------------------- Printing level
by level BreathFirst Traversal 15-->10-->20-->8-->11-->17--
>21-->9-->22-->23-->24-->25-->26--> -----------------------------
------------------ Max is 8 Min is 3 Num of Nodes is 13 ---------
-------------------------------------- Printing In Order the copy of
the tree 8-->9-->10-->11-->15-->17-->20-->21-->22-->23-->24-
->25-->26--> ----------------------------------------------- Press any
key to continue */
Solution
#include <iostream>
#include <iomanip>
#include <fstream>
#include <string>
#include <vector>
#include <stdio.h>
using namespace std;
class TreeStruct;

5. class Tree;
class Stack;
class Queue;
typedef TreeStruct* TreeStructPtr;
typedef Tree* TreePtr;
class Stack
{
private:
vector<TreeStructPtr> s;
public:
void push(TreeStructPtr ptr) {s.insert(s.begin(), ptr);}
TreeStructPtr pop(){ TreeStructPtr ptr = s[0];
s.erase(s.begin()); return ptr;}
bool empty(){return (s.size()==0);}
};
class Queue
{
private:
vector<TreeStructPtr> q;
public:
void push(TreeStructPtr ptr) {q.push_back(ptr);}
TreeStructPtr pop(){ TreeStructPtr ptr = q[0];
q.erase(q.begin()); return ptr;}
bool empty(){return (q.size()==0);}

6. };
class TreeStruct
{
public:
int Number;
TreeStructPtr Left;
TreeStructPtr Right;
};
class Tree
{
public:
TreeStructPtr TreeRoot;
Tree();
void InsertIntoTree(TreeStructPtr& Root, int num);
int FindMaxLen(TreeStructPtr Root);
int FindMinLen(TreeStructPtr Root);
int CountNodes(TreeStructPtr Root);
void Copy(TreeStructPtr Root1, TreeStructPtr& Root2);
//copies one tree into another
bool Search(TreeStructPtr Root, int n);
void PrintInOrderTree(TreeStructPtr Root);
void PrintPreOrderTree(TreeStructPtr Root);
void PrintPostOrderTree(TreeStructPtr Root);

7. void PrintPreOrderTreeWithStack(TreeStructPtr Root);
void PrintBreadthFirstWithQueue(TreeStructPtr Root);
};
//----------------------------------------------------------------
// tree constructor
Tree::Tree()
{
TreeRoot = NULL;
}
//----------------------------------------------------------------
void Copy(TreeStructPtr Root1, TreeStructPtr& Root2)
//copies one tree into another
{
if (Root1 == NULL) //base case to end recursion when at tree
end
Root2 == NULL;
else{
Root2->Number = Root1->Number;
// Just call recursively to copy the subtrees:
Copy(Root1->Left, Root2->Left);
Copy(Root1->Right, Root2->Right);
}
}
//----------------------------------------------------------------

8. // Inserting into the tree using recursion
void Tree::InsertIntoTree(TreeStructPtr& Root, int x)
{
TreeStructPtr p = Root, prev=Root;
while (p != NULL)
{ prev = p;
if (x < p->Number)
p = p->Left;
else if (x > p->Number)
p = p->Right;
else
{ cout << " !!!! " << x << " is already in the tree " << endl;
return;
}
}
TreeStructPtr NewNode;
NewNode = new (TreeStruct);
NewNode->Number = x;
NewNode->Left = NULL;
NewNode->Right = NULL;
if (Root == NULL)
Root = NewNode;
else if (prev->Number < x)
prev->Right = NewNode;
else

9. prev->Left = NewNode;
return;
}
//----------------------------------------------------------------
int Tree::FindMaxLen(TreeStructPtr Root)
{
if (Root == NULL)
return(0);
else if (Root->Right == NULL)
return(1+FindMaxLen(Root->Left));
else if (Root->Left == NULL)
return(1+FindMaxLen(Root->Right));
else
{
int CountLeft = 1 + FindMaxLen(Root->Left);
int CountRight = 1 + FindMaxLen(Root->Right);
if (CountLeft > CountRight)
return(CountLeft);
else
return(CountRight);
}
return 0;
}
//----------------------------------------------------------------

10. int Tree::FindMinLen(TreeStructPtr Root)
{
if (Root==NULL)
return(0);
else if (Root->Right==NULL)
return(1+FindMinLen(Root->Left));
else if (Root->Left==NULL)
return(1+FindMinLen(Root->Right));
else
{
int CountLeft = 1 + FindMinLen(Root->Left);
int CountRight = 1 + FindMinLen(Root->Right);
if (CountLeft < CountRight)
return(CountLeft);
else
return(CountRight);
}
}
//----------------------------------------------------------------
int Tree::CountNodes(TreeStructPtr Root)
{
if(Root == NULL) { //This node doesn't exist. Therefore there
are no nodes in this 'subtree'
return 0;

11. } else { //Add the size of the left and right trees, then add 1
(which is the current node)
return CountNodes(Root->Left) + CountNodes(Root->Right) +
1;
}
}
//----------------------------------------------------------------
bool Tree::Search(TreeStructPtr Root, int n)
{
bool found;
TreeStructPtr curr;
curr = Root;
found = false;
while ((curr != NULL) && (! found))
if (curr->Number == n)
found = true;
else if (n < curr->Number)
curr = curr->Left;
else
curr = curr->Right;
return found;
}
//----------------------------------------------------------------

12. void Tree::PrintInOrderTree(TreeStructPtr Root)
{
if (Root == NULL)return;
/* first recur on Left child */
PrintInOrderTree(Root->Left);
/* then print the data of node */
printf("%d-->", Root->Number);
/* now recur on Right child */
PrintInOrderTree(Root->Right);
}
//----------------------------------------------------------------
void Tree::PrintPreOrderTree(TreeStructPtr Root)
{
if (Root == NULL)
return;
/* first print data of node */
printf("%d-->", Root->Number);
/* then recur on Left sutree */
PrintPreOrderTree(Root->Left);

13. /* now recur on Right subtree */
PrintPreOrderTree(Root->Right);
}
//----------------------------------------------------------------
void Tree::PrintPostOrderTree(TreeStructPtr Root)
{
if (Root == NULL)
return;
// first recur on Left subtree
PrintPostOrderTree(Root->Left);
// then recur on Right subtree
PrintPostOrderTree(Root->Right);
// now deal with the node
printf("%d-->", Root->Number);
}
//----------------------------------------------------------------
void Tree::PrintPreOrderTreeWithStack(TreeStructPtr Root)
{
Stack stk;
TreeStructPtr p = Root;
if (p != NULL)
{

14. stk.push(p);
while (!stk.empty())
{
p = stk.pop();
cout << p->Number << "-->";
if (p->Right != NULL)
stk.push(p->Right);
if (p->Left != NULL)
stk.push(p->Left);
}
}
}
//----------------------------------------------------------------
void Tree::PrintBreadthFirstWithQueue(TreeStructPtr Root)
{
Queue que;
TreeStructPtr p = Root;
if (p != NULL)
{
que.push(p);
while (!que.empty())
{
p = que.pop();
cout << p->Number << "-->";
if (p ->Left != NULL)

15. que.push(p->Left);
if (p->Right != NULL)
que.push(p->Right);
}
}
}
//----------------------------------------------------------------
int main()
{
Tree t;
t.InsertIntoTree(t.TreeRoot, 15);
t.InsertIntoTree(t.TreeRoot, 20);
t.InsertIntoTree(t.TreeRoot, 10);
t.InsertIntoTree(t.TreeRoot, 8);
t.InsertIntoTree(t.TreeRoot, 9);
t.InsertIntoTree(t.TreeRoot, 17);
t.InsertIntoTree(t.TreeRoot, 21);
t.InsertIntoTree(t.TreeRoot, 22);
t.InsertIntoTree(t.TreeRoot, 23);
t.InsertIntoTree(t.TreeRoot, 24);
t.InsertIntoTree(t.TreeRoot, 25);
t.InsertIntoTree(t.TreeRoot, 26);
t.InsertIntoTree(t.TreeRoot, 11);
cout << " Printing Pre Order " << endl;
t.PrintPreOrderTree(t.TreeRoot);

16. cout << " -----------------------------------------------" << endl;
cout << "Printing Post Order " << endl;
t.PrintPostOrderTree(t.TreeRoot);
cout << " -----------------------------------------------" << endl;
cout << "Printing In Order " << endl;
t.PrintInOrderTree(t.TreeRoot);
cout << " -----------------------------------------------" << endl;
cout << boolalpha << endl << endl;
cout << " Searching 30: " << t.Search(t.TreeRoot, 30) <<
endl;
cout << " Searching 8: " << t.Search(t.TreeRoot, 8) << endl;
cout << " Searching 10: " << t.Search(t.TreeRoot, 10) <<
endl;
cout << "-------------------------------------------" << endl;
cout << "Printing Pre Order with Stack " << endl;
t.PrintPreOrderTreeWithStack(t.TreeRoot);
cout << " -----------------------------------------------" << endl;
cout << "Printing level by level BreathFirst Traversal " <<
endl;
t.PrintBreadthFirstWithQueue(t.TreeRoot);

17. cout << " -----------------------------------------------" << endl;
cout << endl;
int MaxLen = t.FindMaxLen(t.TreeRoot);
int MinLen = t.FindMinLen(t.TreeRoot);
int TotalNodes = t.CountNodes(t.TreeRoot);
cout << "Max is " << MaxLen << endl;
cout << "Min is " << MinLen << endl;
cout << "Num of Nodes is " << TotalNodes << endl;
cout << "-----------------------------------------------" << endl;
/*
Tree t2;
Copy(t.TreeRoot, t2.TreeRoot);
cout << "Printing In Order the copy of the tree" << endl;
t2.PrintInOrderTree(t2.TreeRoot);
cout << " -----------------------------------------------" << endl;
*/
return 0;
}
//----------------------------------------------------------------
/* Your output should look like the foolowing
Printing Pre Order

18. 15-->10-->8-->9-->11-->20-->17-->21-->22-->23-->24-->25--
>26-->
-----------------------------------------------
Printing Post Order
9-->8-->11-->10-->17-->26-->25-->24-->23-->22-->21-->20--
>15-->
-----------------------------------------------
Printing In Order
8-->9-->10-->11-->15-->17-->20-->21-->22-->23-->24-->25--
>26-->
-----------------------------------------------
Searching 30: false
Searching 8: true
Searching 10: true
-------------------------------------------
Printing Pre Order with Stack
15-->10-->8-->9-->11-->20-->17-->21-->22-->23-->24-->25--
>26-->
-----------------------------------------------
Printing level by level BreathFirst Traversal
15-->10-->20-->8-->11-->17-->21-->9-->22-->23-->24-->25--
>26-->
-----------------------------------------------

19. Max is 8
Min is 3
Num of Nodes is 13
-----------------------------------------------
Printing In Order the copy of the tree
8-->9-->10-->11-->15-->17-->20-->21-->22-->23-->24-->25--
>26-->
-----------------------------------------------
Press any key to continue
*/
