Rugged Panel PCs
for a World in Motion

2. 217.02.2017

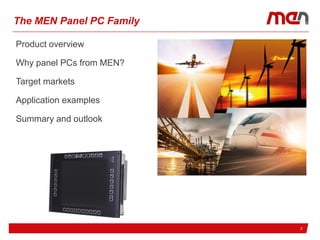

The MEN Panel PC Family
Product overview
Why panel PCs from MEN?
Target markets
Application examples
Summary and outlook

3. 317.02.2017
Product Range
Display Computers & HMIs Panel PC Electronics

4. 4
Why Panel PCs from MEN?

5. 517.02.2017
Robustness
Rugged for harsh environments
 -40°C to +85°C, fanless operation
 Shock, vibration
 Humidity, dust, chemical influence
Qualified and developed in
accordance with standards, e.g.
 EN 50155, EN 50128, EN 50129
 IEC 61508
 DO-160, DO-254 etc.
 Reliable for mission-critical applications

6. 617.02.2017
Competence in Environmental Qualification
Pre-qualification in our in-house laboratory
 EMC emission
 Radiated emission disturbances
 Contacted emission disturbances
 EMC immunity
 ESD, BURST, SURGE, BCI
 Electromagnetic field immunity
 Variation of voltage supply
 Electrical safety
 High voltage tests
 Environmental
 Temperature and humidity
 Shock, bump, vibration, drop
Accredited tests in external test labs

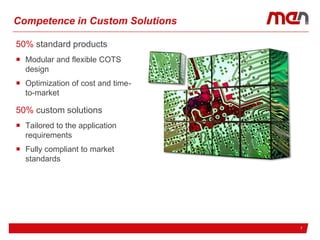

7. 50% standard products
 Modular and flexible COTS
design
 Optimization of cost and time-
to-market
50% custom solutions
 Tailored to the application
requirements
 Fully compliant to market
standards
717.02.2017
Competence in Custom Solutions

8. Target Markets
Markets
 Rail and public transport
 Heavy vehicles
 Industrial automation
Sample applications
 COTS and custom
 See following pages
24

9. 9
Driver Desk Solutions
The customer
 Manufacturer of braking and control
(e.g. driver assistance) systems
The application
 Driver desk information displays
 E.g. for monitoring fuel consumption
The electronics
 Based on MEN Standard components
 Inside customized housing with 7” and
10 TFT” display and touch
 Complete device in accordance with
EN 50155

10. 10

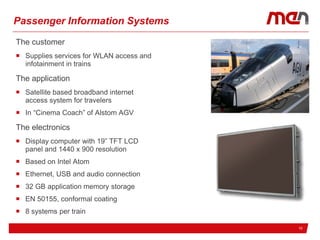

Passenger Information Systems
The customer
 Supplies services for WLAN access and
infotainment in trains
The application
 Satellite based broadband internet
access system for travelers
 In “Cinema Coach” of Alstom AGV
The electronics
 Display computer with 19” TFT LCD
panel and 1440 x 900 resolution
 Based on Intel Atom
 Ethernet, USB and audio connection
 32 GB application memory storage
 EN 50155, conformal coating
 8 systems per train

11. 11

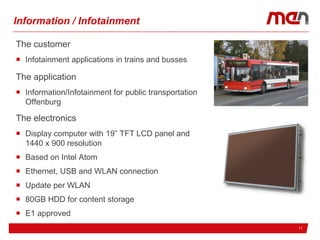

Information / Infotainment
The customer
 Infotainment applications in trains and busses
The application
 Information/Infotainment for public transportation
Offenburg
The electronics
 Display computer with 19” TFT LCD panel and
1440 x 900 resolution
 Based on Intel Atom
 Ethernet, USB and WLAN connection
 Update per WLAN
 80GB HDD for content storage
 E1 approved

12. 1217.02.2017

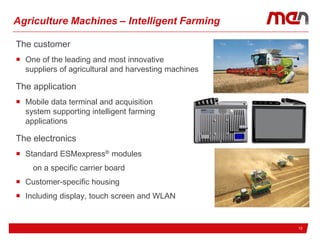

Agriculture Machines – Intelligent Farming
The customer
 One of the leading and most innovative
suppliers of agricultural and harvesting machines
The application
 Mobile data terminal and acquisition
system supporting intelligent farming
applications
The electronics
 Standard ESMexpress® modules
on a specific carrier board
 Customer-specific housing
 Including display, touch screen and WLAN

13. 13

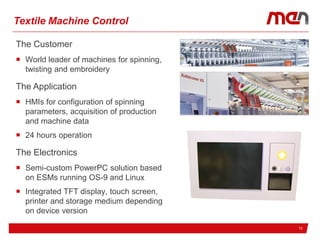

Textile Machine Control
The Customer
 World leader of machines for spinning,
twisting and embroidery
The Application
 HMIs for configuration of spinning
parameters, acquisition of production
and machine data
 24 hours operation
The Electronics
 Semi-custom PowerPC solution based
on ESMs running OS-9 and Linux
 Integrated TFT display, touch screen,
printer and storage medium depending
on device version

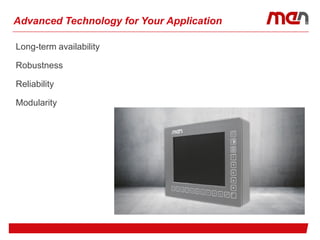

14. Advanced Technology for Your Application
Long-term availability
Robustness
Reliability
Modularity
