This document provides an overview of modular hardware components and solutions for flight simulators from RealSims, LLC. RealSims offers a wide range of products including flight controls, cockpit platforms, seats, enclosures, and more. Their flagship product is the Fastrac Platform Optimization Deck, which serves as the foundation for modularly building a simulator. Integrators can select from available components like controls, displays and seats to configure a simulator tailored to their needs. RealSims aims to provide flexible, high quality and cost effective modular solutions.

1. Modular Solutions, Systems & Components
Information Technology Solutions
For The System Intergator
HARDWARE
MANUFACTURING
Simulator system design &
manufacturing . Military &
commercial aircraft and
ground vehicle simulators.
UAV operator consoles
Display system design
fabrication and integration, high
fidelity cockpit trainers, custom
structures, engineering fixtures
and gantry’s. Motion system
platforms,
Modular/Reconfigurable
simulator component sales.
Flight Controls, Cockpit
Enclosures, for open and full
cockpit training environments
FACILITY MANAGEMENT RealSims,LLC is a manufacturer and Integrators can start with our baseline patented
Simulator center facility design provider of high quality simulator products, FasTrac Platform Optimization Deck
and facility management services and solutions. Since 2002 the (POD) which serves as the foundation to the
services. Simulator operator company has earned an outstanding simulator, and populate it using a number of
staffing resources. Simulator reputation as a leading provider of modular available modular components to achieve the
system maintenance, reconfigurable simulator hardware and cost optimal fidelity to meet the training needs.
effective modular components.
CONSULTING &
Components such as Flight Controls, Seats,
As a certified Service Connected Disabled Instrument Consoles, and Display Systems, etc
DEVEL OPMEN T
Veteran Owned Business (SDVOB) the can be mounted to the foundation POD using
SERVICES
company delivers military grade, high quality an array of mountings points located on the
System design, Custom
products to the US Department of Defense, deck surface, under and on the sides of the
Database Development,
Aerospace and Commercial Aviation POD. Start simple and build to a FULL
Custom Scenario Mission and
Scenery Enhancement
Industry. MOTION solution over time, depending on
Development, Network and your budget. Many existing DROP ON
Our goal and focus is and remains on the
Cyber Security Services
delivery of cost effective, high quality consoles and fixtures are available in this
(penetration analysis)
modular products for the system integrator. catalog. If you require something that is not
CONSULT ING
6855 Tico Rd currently available, we can fabricate it for you.
Tit usv ille , FL 3 278 0 We achieve this by delivery of a line of
MODULAR, commercially available off the
+1 ( 407) 873- 3145
shelf products. Our unique modular
w ww.RealSi ms.co m “erector set” approach to building a
1
simulator enables the end user to achieve
Info@r ealSi ms.co m
total flexibility.

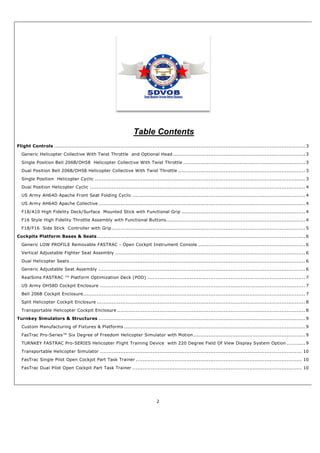

2. Table Contents
Flight Controls ................................................................
................................................................................................
.................................................... 3
Generic Helicopter Collective With Twist Throttle and Optional Head ................................
.............................................................................. 3
Single Position Bell 206B/OH58 Helicopter Collective With Twist Throttle ................................
........................................................................ 3
Dual Position Bell 206B/OH58 Helicopter Collective With Twist Throttle ................................
........................................................................... 3
Single Position Helicopter Cyclic ................................
................................................................................................
............................................................ 3
Dual Position Helicopter Cyclic ................................
................................................................................................
............................................................... 4
US Army AH64D Apache Front Seat Folding Cyclic ................................................................
...................................................................... 4
US Army AH64D Apache Collective ................................
................................................................................................
.......................................................... 4
F18/A10 High Fidelity Deck/Surface Mounted Stick with Functional Grip ................................
......................................................................... 4
F16 Style High Fidelity Throttle Assembly with Functional Buttons................................................................
Buttons .................................................. 4
F18/F16 Side Stick Controller with Grip ................................
................................................................................................
.................................................. 5
Cockpits Platform Bases & Seats................................
................................................................................................
........................................................... 6
Generic LOW PROFILE Removable FASTRAC - Open Cockpit Instrument Console ............................................................... 6
................................
Vertical Adjustable Fighter Seat Assembly ................................................................................................
................................................ 6
Dual Helicopter Seats ................................
................................................................................................
........................................................................... 6
Generic Adjustable Seat Assembly ................................
................................................................................................
.......................................................... 6

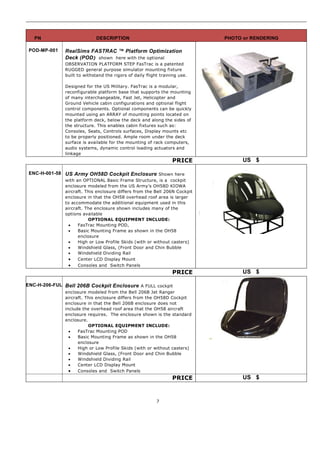

RealSims FASTRAC ™ Platform Optimization Deck (POD) ................................................................
(POD ............................................................. 7
US Army OH58D Cockpit Enclosure ................................
................................................................................................
......................................................... 7
Bell 206B Cockpit Enclosure................................
................................................................................................
................................................................... 7

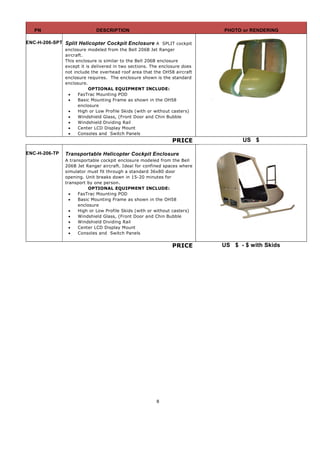

Split Helicopter Cockpit Enclosure ................................
................................................................................................
........................................................... 8
Transportable Helicopter Cockpit Enclosure ................................................................
............................................................................... 8

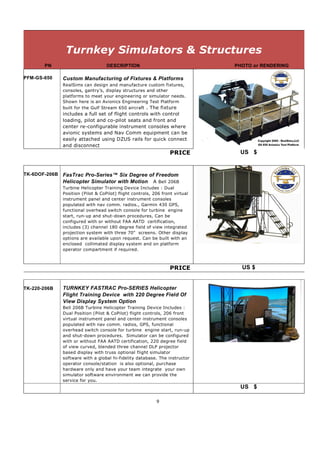

Turnkey Simulators & Structures ................................
................................................................................................
.......................................................... 9
Custom Manufacturing of Fixtures & Platforms ................................................................
........................................................................... 9
FasTrac Pro-Series™ Six Degree of Freedom Helicopter Simulator with Motion .................................................................. 9
................................
TURNKEY FASTRAC Pro-SERIES Helicopter Flight Training Device with 220 Degree Field Of View Display System Option ........... 9
SERIES
Transportable Helicopter Simulator ................................
................................................................................................
....................................................... 10
FasTrac Single Pilot Open Cockpit Part Task Trainer ................................................................
.................................................................. 10
FasTrac Dual Pilot Open Cockpit Part Task Trainer ................................................................
.................................................................... 10
2

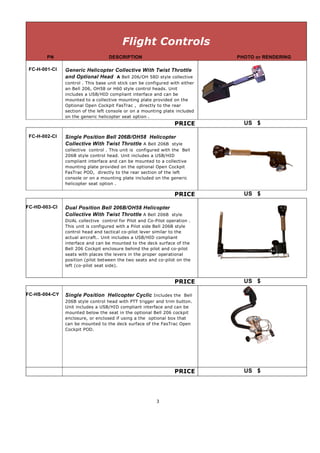

3. Flight Controls
PN DESCRIPTION PHOTO or RENDERING
FC-H-001-Cl Generic Helicopter Collective With Twist Throttle
and Optional Head A Bell 206/OH 58D style collective
control . This base unit stick can be configured with either
an Bell 206, OH58 or H60 style control heads. Unit
includes a USB/HID compliant interface and can be
mounted to a collective mounting plate provided on the
Optional Open Cockpit FasTrac , directly to the rear
section of the left console or on a mounting plate included
on the generic helicopter seat option .
PRICE US $
FC-H-002-Cl Single Position Bell 206B/OH58 Helicopter
Collective With Twist Throttle A Bell 206B style
collective control . This unit is configured with the Bell
206B style control head. Unit includes a USB/HID
compliant interface and can be mounted to a collective
mounting plate provided on the optional Open Cockpit
FasTrac POD, directly to the rear section of the left
console or on a mounting plate included on the generic
helicopter seat option .
PRICE US $
FC-HD-003-Cl Dual Position Bell 206B/OH58 Helicopter
Collective With Twist Throttle A Bell 206B style
DUAL collective control for Pilot and Co-Pilot operation .
This unit is configured with a Pilot side Bell 206B style
control head and tactical co-pilot lever similar to the
actual aircraft.. Unit includes a USB/HID compliant
interface and can be mounted to the deck surface of the
Bell 206 Cockpit enclosure behind the pilot and co-pilot
seats with places the levers in the proper operational
position (pilot between the two seats and co-pilot on the
left (co-pilot seat side).
PRICE US $
FC-HS-004-CY Single Position Helicopter Cyclic Includes the Bell
206B style control head with PTT trigger and trim button.
Unit includes a USB/HID compliant interface and can be
mounted below the seat in the optional Bell 206 cockpit
enclosure, or enclosed if using a the optional box that
can be mounted to the deck surface of the FasTrac Open
Cockpit POD.
PRICE US $
3

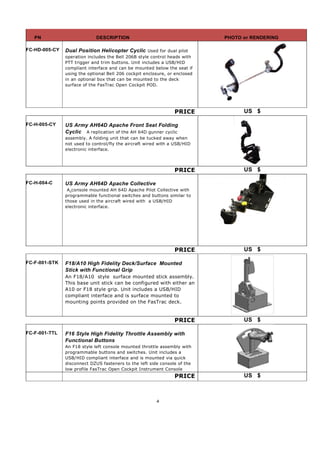

4. PN DESCRIPTION PHOTO or RENDERING
FC-HD-005-CY Dual Position Helicopter Cyclic Used for dual pilot
operation includes the Bell 206B style control heads with
PTT trigger and trim buttons. Unit includes a USB/HID
compliant interface and can be mounted below the seat if
using the optional Bell 206 cockpit enclosure, or enclosed
in an optional box that can be mounted to the deck
surface of the FasTrac Open Cockpit POD.
PRICE US $
FC-H-005-CY US Army AH64D Apache Front Seat Folding
Cyclic A replication of the AH 64D gunner cyclic
assembly. A folding unit that can be tucked away when
not used to control/fly the aircraft wired with a USB/HID
electronic interface.
PRICE US $
FC-H-004-C US Army AH64D Apache Collective
A console mounted AH 64D Apache Pilot Collective with
programmable functional switches and buttons similar to
those used in the aircraft wired with a USB/HID
electronic interface.
PRICE US $
FC-F-001-STK F18/A10 High Fidelity Deck/Surface Mounted
Stick with Functional Grip
An F18/A10 style surface mounted stick assembly.
This base unit stick can be configured with either an
A10 or F18 style grip. Unit includes a USB/HID
compliant interface and is surface mounted to
mounting points provided on the FasTrac deck.
PRICE US $
FC-F-001-TTL F16 Style High Fidelity Throttle Assembly with
Functional Buttons
An F18 style left console mounted throttle assembly with
programmable buttons and switches. Unit includes a
USB/HID compliant interface and is mounted via quick
disconnect DZUS fasteners to the left side console of the
low profile FasTrac Open Cockpit Instrument Console
PRICE US $
4

5. PN DESCRIPTION PHOTO or RENDERING
FC-F-002-STK F18/F16 Side Stick Controller with Grip The
controller unit mounts into the left side console of the
optional FasTrac Generic LOW PROFILE Cockpit to DZUS
rails provided, The control includes a USB/HID compliant
interface and can be configured with either F18 or F16
Grips that are tactically equal to that found in the
aircraft. The buttons and switches on the control are user
programmable.
PRICE US $
5

6. Cockpits Platform Bases & Seats
PN DESCRIPTION PHOTO or RENDERING
CPT-F-001- Generic LOW PROFILE Removable FASTRAC -
GEN Open Cockpit Instrument Console A low profile
instrument console with glare shield and built in LCD
instrument display (used for display of customer
furnished virtual instrumentation panel) . Also includes
right and left side consoles with mounting support for
included fighter style USB HID side stick and throttle
assemblies. An optional single seat with fwd/aft
adjustable position rails for easy egress is available. The
entire unit is removable from the FasTrac POD for easy
replacement of additional future aircraft and/or driver
consoles. Finish is satin gray & black powder coat
PRICE US $
SEA-F-001-EJ Vertical Adjustable Fighter Seat Assembly A high
quality adjustable ejection style seat. Includes a seat
base assembly mounted to the FasTrac POD Deck
mounting points to provide VERTICAL (UP DN) travel
adjustment up to 3“
PRICE US $
SEA-HD-001 Dual Helicopter Seats Designed to fit into Bell 206
or OH58 Cockpit Enclosure. Shown here with optional 5
point restraints and generic helicopter collective.
Standard Seats mount to an included seat plate. An
optional seat frame designed to fit into our cockpit
enclosures or onto the deck surface of our FasTrac POD
of open cockpit configurations is available.
PRICE US $
SEA-HS-001 Generic Adjustable Seat Assembly A robust high
quality adjustable (non aircraft specific) cockpit seat.
Includes a seat base assembly that mounts to the FasTrac
POD Deck via mounting points . VERTICAL (Up/Dn and
HORIZONTAL (Fwd/Aft) adjustment allows the seat to be
moved far enough back to enable pilot egress via the right
side of the cockpit area.
PRICE US $
6

7. PN DESCRIPTION PHOTO or RENDERING
POD-MP-001 RealSims FASTRAC ™ Platform Optimization
Deck (POD) shown here with the optional
OBSERVATION PLATFORM STEP FasTrac is a patented
RUGGED general purpose simulator mounting fixture
built to withstand the rigors of daily flight training use.
Designed for the US Military. FasTrac is a modular,
reconfigurable platform base that supports the mounting
of many interchangeable, Fast Jet, Helicopter and
Ground Vehicle cabin configurations and optional flight
control components. Optional components can be quickly
mounted using an ARRAY of mounting points located on
the platform deck, below the deck and along the sides of
the structure. This enables cabin fixtures such as:
Consoles, Seats, Controls surfaces, Display mounts etc
to be properly positioned. Ample room under the deck
surface is available for the mounting of rack computers,
audio systems, dynamic control loading actuators and
linkage
PRICE US $
ENC-H-001-58 US Army OH58D Cockpit Enclosure Shown here
with an OPTIONAL Basic Frame Structure, is a cockpit
enclosure modeled from the US Army’s OH58D KIOWA
aircraft. This enclosure differs from the Bell 206N Cockpit
enclosure in that the OH58 overhead roof area is larger
to accommodate the additional equipment used in this
aircraft. The enclosure shown includes many of the
options available
OPTIONAL EQUIPMENT INCLUDE:
 FasTrac Mounting POD,
 Basic Mounting Frame as shown in the OH58
enclosure
 High or Low Profile Skids (with or without casters)
 Windshield Glass, (Front Door and Chin Bubble
 Windshield Dividing Rail
 Center LCD Display Mount
 Consoles and Switch Panels
PRICE US $
ENC-H-206-FUL Bell 206B Cockpit Enclosure A FULL cockpit
enclosure modeled from the Bell 206B Jet Ranger
aircraft. This enclosure differs from the OH58D Cockpit
enclosure in that the Bell 206B enclosure does not
include the overhead roof area that the OH58 aircraft
enclosure requires. The enclosure shown is the standard
enclosure.
OPTIONAL EQUIPMENT INCLUDE:
 FasTrac Mounting POD
 Basic Mounting Frame as shown in the OH58
enclosure
 High or Low Profile Skids (with or without casters)
 Windshield Glass, (Front Door and Chin Bubble
 Windshield Dividing Rail
 Center LCD Display Mount
 Consoles and Switch Panels
PRICE US $
7

8. PN DESCRIPTION PHOTO or RENDERING
ENC-H-206-SPT Split Helicopter Cockpit Enclosure A SPLIT cockpit
enclosure modeled from the Bell 206B Jet Ranger
aircraft.
This enclosure is similar to the Bell 206B enclosure
except it is delivered in two sections. The enclosure does
not include the overhead roof area that the OH58 aircraft
enclosure requires. The enclosure shown is the standard
enclosure.
OPTIONAL EQUIPMENT INCLUDE:
 FasTrac Mounting POD
 Basic Mounting Frame as shown in the OH58
enclosure
 High or Low Profile Skids (with or without casters)
 Windshield Glass, (Front Door and Chin Bubble
 Windshield Dividing Rail
 Center LCD Display Mount
 Consoles and Switch Panels
PRICE US $
ENC-H-206-TP Transportable Helicopter Cockpit Enclosure
A transportable cockpit enclosure modeled from the Bell
206B Jet Ranger aircraft. Ideal for confined spaces where
simulator must fit through a standard 36x80 door
opening. Unit breaks down in 15-20 minutes for
transport by one person.
OPTIONAL EQUIPMENT INCLUDE:
 FasTrac Mounting POD
 Basic Mounting Frame as shown in the OH58
enclosure
 High or Low Profile Skids (with or without casters)
 Windshield Glass, (Front Door and Chin Bubble
 Windshield Dividing Rail
 Center LCD Display Mount
 Consoles and Switch Panels
PRICE US $ - $ with Skids
8

9. Turnkey Simulators & Structures
PN DESCRIPTION PHOTO or RENDERING
PFM-GS-650 Custom Manufacturing of Fixtures & Platforms
RealSims can design and manufacture custom fixtures,
consoles, gantry’s, display structures and other
platforms to meet your engineering or simulator needs.
Shown here is an Avionics Engineering Test Platform
built for the Gulf Stream 650 aircraft . The fixture
includes a full set of flight controls with control
loading, pilot and co-pilot seats and front and
center re-configurable instrument consoles where
avionic systems and Nav Comm equipment can be
easily attached using DZUS rails for quick connect
and disconnect
PRICE US $
TK-6DOF-206B FasTrac Pro-Series™ Six Degree of Freedom
Helicopter Simulator with Motion A Bell 206B
Turbine Helicopter Training Device Includes : Dual
Position (Pilot & CoPilot) flight controls, 206 front virtual
instrument panel and center instrument consoles
populated with nav comm. radios., Garmin 430 GPS,
functional overhead switch console for turbine engine
start, run-up and shut-down procedures, Can be
configured with or without FAA AATD certification,
includes (3) channel 180 degree field of view integrated
projection system with three 70” screens. Other display
options are available upon request. Can be built with an
enclosed collimated display system and on platform
operator compartment if required.
PRICE US $
TK-220-206B TURNKEY FASTRAC Pro-SERIES Helicopter
Flight Training Device with 220 Degree Field Of
View Display System Option
Bell 206B Turbine Helicopter Training Device Includes :
Dual Position (Pilot & CoPilot) flight controls, 206 front
virtual instrument panel and center instrument consoles
populated with nav comm. radios, GPS, functional
overhead switch console for turbine engine start, run-up
and shut-down procedures. Simulator can be configured
with or without FAA AATD certification, 220 degree field
of view curved, blended three channel DLP projector
based display with truss optional flight simulator
software with a global hi-fidelity database. The instructor
operator console/station is also optional, purchase
hardware only and have your team integrate your own
simulator software environment we can provide the
service for you.
US $
9

10. PN DESCRIPTION PHOTO or RENDERING
TK-H-206-TP Transportable Helicopter Simulator
Our Transportable helicopter trainer was designed
under a US Army contract. The cockpit can quickly
disassembled and moved through a standard 36x80”
door opening by one person. This design includes a
removable roof, rapid disconnect instrument console,
front display LCD mount and built in castors. With the
cockpit roof removed (using snaps that hold the roof
in place) it can be lifted onto its built in castors and
rolled to the location required. The entire process can
be completed by one person in 15-20 minutes.
Mounting provisions under the seats are included to
house simulator computers and audio equipment. Our
Dual Position Bell 206B/OH58 Helicopter Collective
With Twist Throttle, Dual Position Helicopter Cyclic,
Dual Anti Torque Pedals and Dual Helicopter Seats,
are included in the price LCD, CPU’s, SW and
DISPLAYS ARE OPTIONAL
PRICE US $
TK-PTT-H60-SFT FasTrac Single Pilot Open Cockpit Part Task
Trainer
Originally designed and manufactured under a US
Navy contract, this open cockpit part task trainer is a
re-configurable/modular system based on our FasTrac
POD (PN XXXXX). Shown here this POD is configured
with a US Navy H60 virtual instrument console using
game quality flight controls to reduce cost. The
optional surround observation deck allows easy access
to the student by the flight instructor and provides
safe easy egress. Multiple PODS can be affordably
networked for mutti-student classroom instruction
under control of a single instructor. PODS were
designed for confined space use and fit through a
standard door opening.
PRICE US $
TK-PTT-H60-DFT FasTrac Dual Pilot Open Cockpit Part Task
Trainer
This Open Cockpit Part Tsak Trainer uses two FasTrac
PODS located side by side for dual crew classroom
training. Many optional MODULAR LINE REPLACABLE
instrument console and vehicle control component
and cockpit enclosures can be installed on the POD
deck to emulate just about any type of rotor, fixed
wing, fighter, corporate or commercial jet or vehicle
such as a construction cab, Hum-Vee or MRAP vehicle.
Ample room under the POD deck is provided for the
installation of rack computers audio systems, control
actuators and linkage. If you require another type of
simulator you only need to replace the modular
consoles and/or controls resulting in a totally new
simulator training environment.
PRICE US $
10
