1. AIR CONDITIONING and VENTILATION SYSTEMS
NME 515
COMFORT COOLING
Engr. Charlton Inao, ME
TESDA TVET NC Level 3 RAC-CRE Certified
17/23/2020 E ngr Charlton Inao

2. COMFORT COOLING
Engr. Charlton Inao, ME
TESDA TVET NC Level 3 RAC-
CRE Certified
27/23/2020 E ngr Charlton Inao

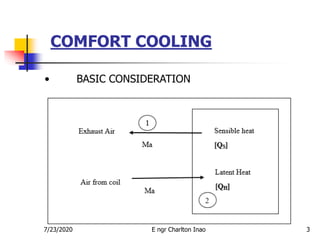

3. COMFORT COOLING
3
• BASIC CONSIDERATION
7/23/2020 E ngr Charlton Inao

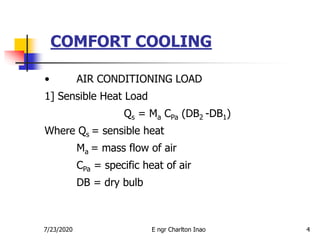

4. COMFORT COOLING
4
• AIR CONDITIONING LOAD
1] Sensible Heat Load
Qs = Ma CPa (DB2 -DB1)
Where Qs = sensible heat
Ma = mass flow of air
CPa = specific heat of air
DB = dry bulb
7/23/2020 E ngr Charlton Inao

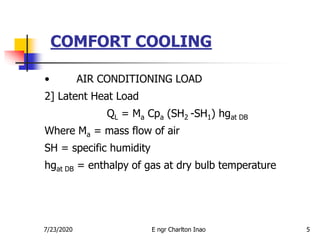

5. COMFORT COOLING
5
• AIR CONDITIONING LOAD
2] Latent Heat Load
QL = Ma Cpa (SH2 -SH1) hgat DB
Where Ma = mass flow of air
SH = specific humidity
hgat DB = enthalpy of gas at dry bulb temperature
7/23/2020 E ngr Charlton Inao

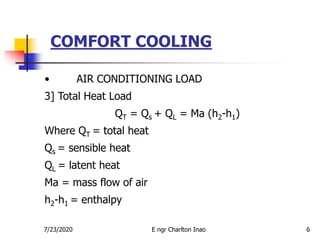

6. COMFORT COOLING
6
• AIR CONDITIONING LOAD
3] Total Heat Load
QT = Qs + QL = Ma (h2-h1)
Where QT = total heat
Qs = sensible heat
QL = latent heat
Ma = mass flow of air
h2-h1 = enthalpy
7/23/2020 E ngr Charlton Inao

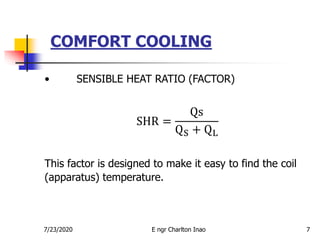

7. COMFORT COOLING
7
• SENSIBLE HEAT RATIO (FACTOR)
SHR =
Qs
QS + QL
This factor is designed to make it easy to find the coil
(apparatus) temperature.
7/23/2020 E ngr Charlton Inao

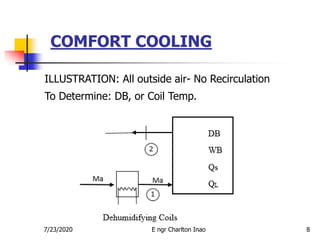

8. COMFORT COOLING
8
ILLUSTRATION: All outside air- No Recirculation
To Determine: DB, or Coil Temp.
7/23/2020 E ngr Charlton Inao

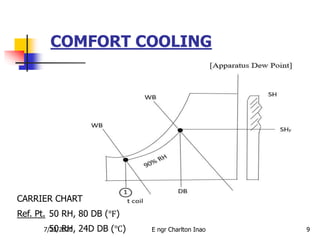

9. COMFORT COOLING
9
CARRIER CHART
Ref. Pt. 50 RH, 80 DB (℉)
50 RH, 24D DB (℃)7/23/2020 E ngr Charlton Inao

10. COMFORT COOLING
10
CARRIER CHART
Ref. Pt. 50 RH, 80 DB (℉)
50 RH, 24D DB (℃)7/23/2020 E ngr Charlton Inao

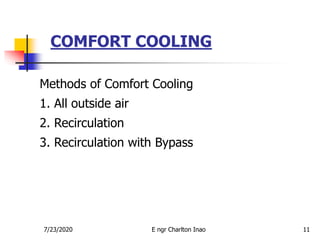

11. COMFORT COOLING
11
Methods of Comfort Cooling
1. All outside air
2. Recirculation
3. Recirculation with Bypass
7/23/2020 E ngr Charlton Inao

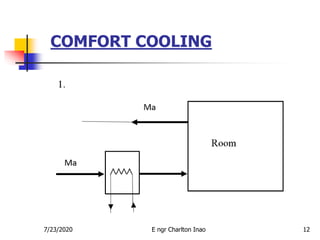

12. COMFORT COOLING
127/23/2020 E ngr Charlton Inao

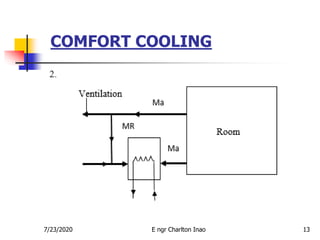

13. COMFORT COOLING
137/23/2020 E ngr Charlton Inao

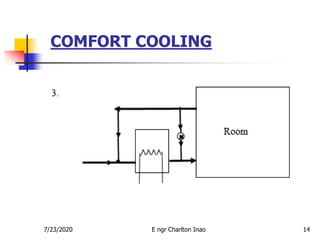

14. COMFORT COOLING
147/23/2020 E ngr Charlton Inao
