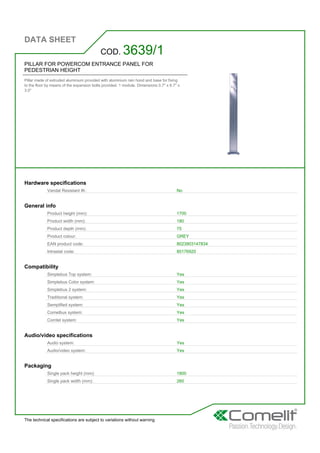

1. DATA SHEET
The technical specifications are subject to variations without warning
PILLAR FOR POWERCOM ENTRANCE PANEL FOR
PEDESTRIAN HEIGHT
Pillar made of extruded aluminium provided with aluminium rain hood and base for fixing
to the floor by means of the expansion bolts provided. 1 module. Dimensions 0.7'' x 6.7'' x
3.0''
COD. 3639/1
Hardware specifications
Vandal Resistant IK: No
General info
Product height (mm): 1700
Product width (mm): 180
Product depth (mm): 75
Product colour: GREY
EAN product code: 8023903147834
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Packaging
Single pack height (mm): 1800
Single pack width (mm): 260

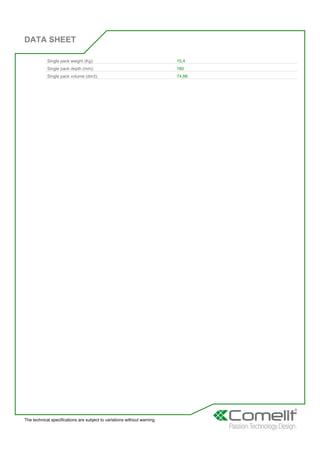

2. DATA SHEET
The technical specifications are subject to variations without warning
Single pack weight (Kg): 15,4
Single pack depth (mm): 160
Single pack volume (dm3): 74,88
