The document provides technical specifications for an angled housing used for a Powercom entrance panel, designed to optimize user interaction by angling towards them. It includes compatibility with various systems such as Simplebus and Comelbus, along with packaging dimensions and weight. The product dimensions are 7.2'' x 13.9'' x 3.9'' and it can be installed easily at a 45° angle.

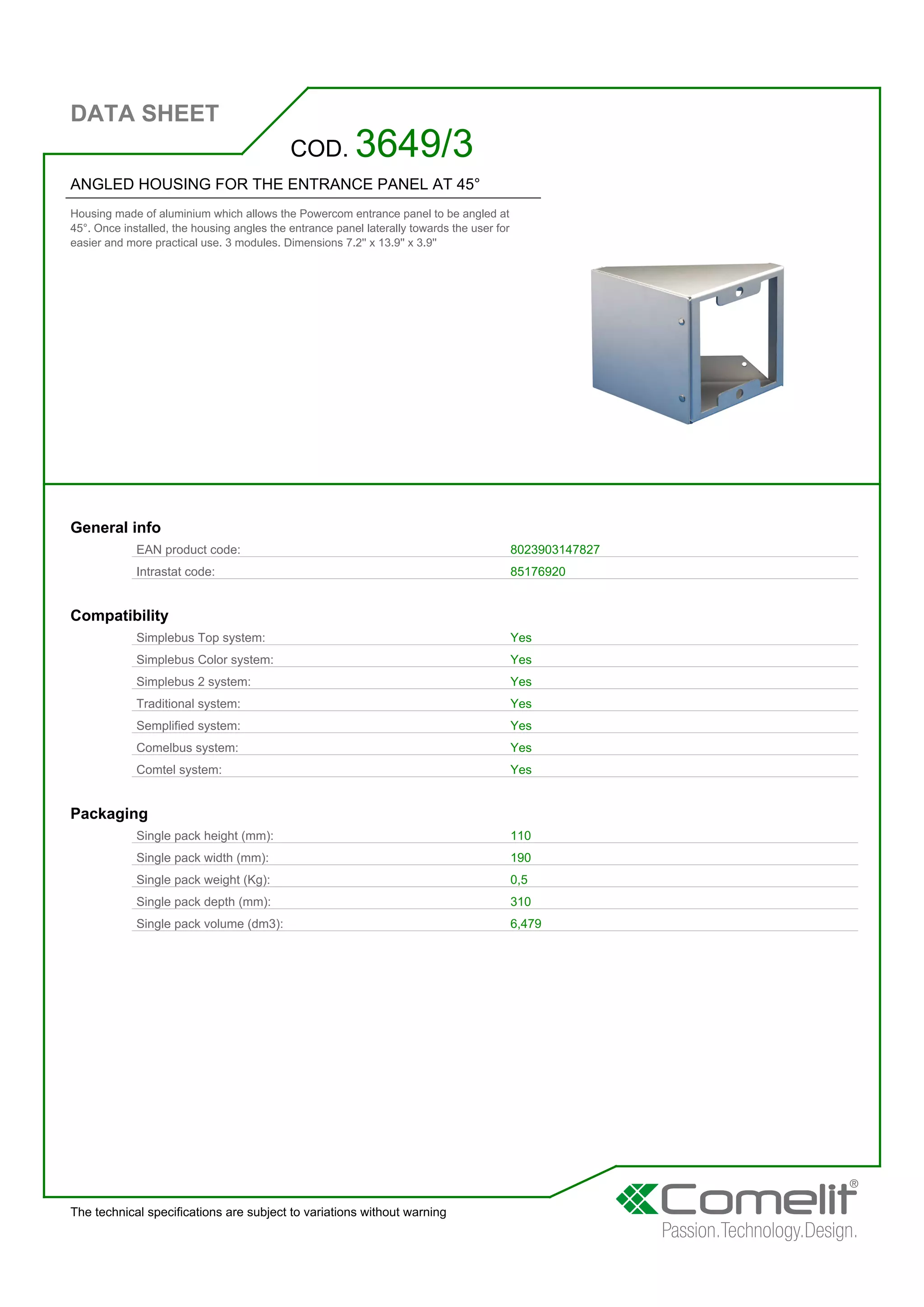

1. DATA SHEET
The technical specifications are subject to variations without warning
ANGLED HOUSING FOR THE ENTRANCE PANEL AT 45°
Housing made of aluminium which allows the Powercom entrance panel to be angled at
45°. Once installed, the housing angles the entrance panel laterally towards the user for
easier and more practical use. 3 modules. Dimensions 7.2'' x 13.9'' x 3.9''
COD. 3649/3
General info
EAN product code: 8023903147827
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes
Packaging
Single pack height (mm): 110
Single pack width (mm): 190
Single pack weight (Kg): 0,5
Single pack depth (mm): 310
Single pack volume (dm3): 6,479
