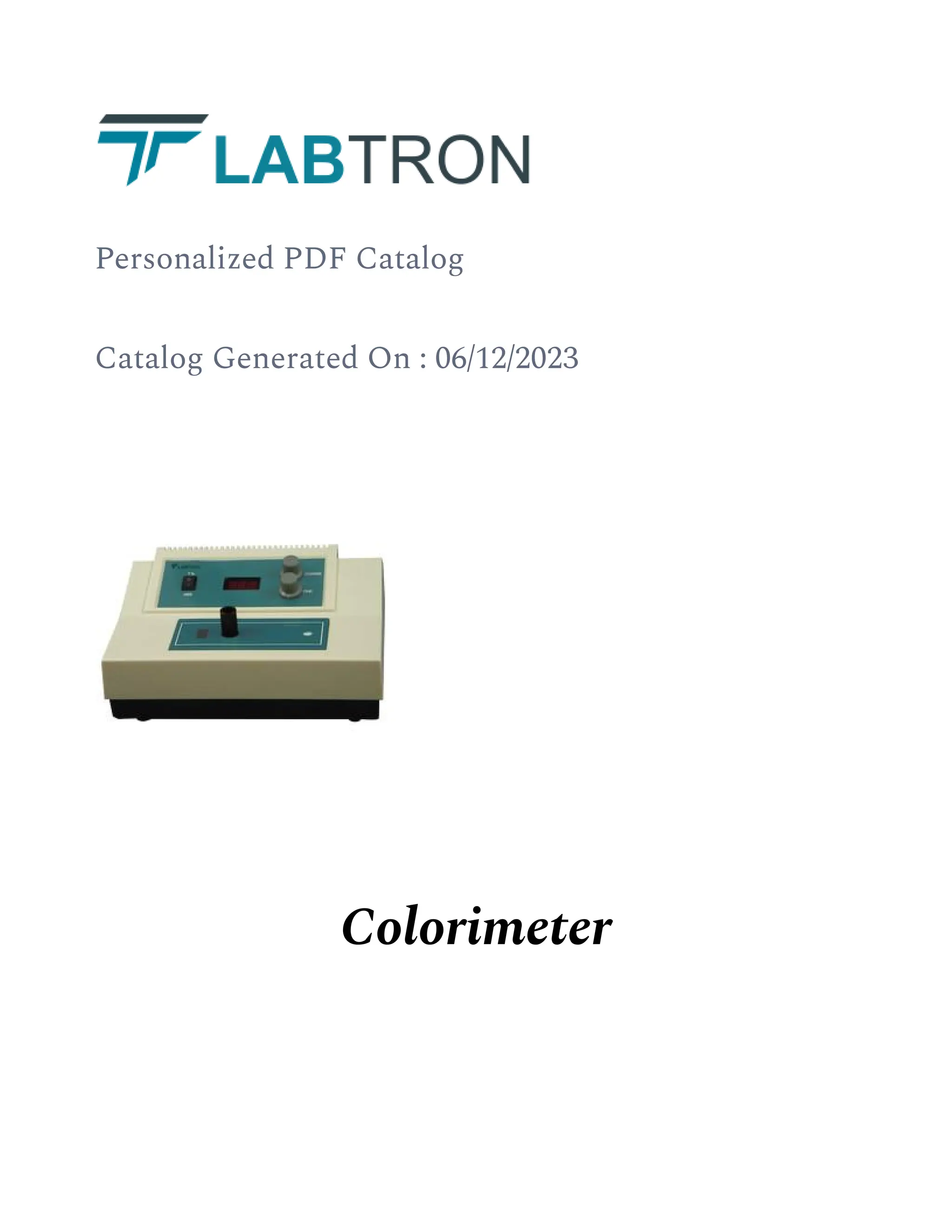

1. Personalized PDF Catalog
Catalog Generated On : 06/12/2023
Colorimeter

2. https://www.labtron.info/ |
info@labtron.info
Description :
Colorimeter is a durable photoelectric
colorimeter with benchtop design.
Equipped with specific light filters of
the visible range (420 to 660 nm) to
measure the concertation and
determine the color. Its three digit
LED display shows Transmittance and
Absorbance values.
Specifications :

3. Wavelength
Range
420 to 660 nm
Filter
420 nm , 470 nm ,530
nm ,620 nm , 660 nm
High stability
and
reproducibility
± 5 nm
Economy
Consumes only 1.5ml
of reagent
Detector Silicon Photo-cell

4. Photoelectric
Range
T % : 0 % to 100 %,
ABS : log T 0-2
Photoelectric
Accuracy
± 2 T
Light Source
6V 0.5 A tungsten
lamp
Indicator
LED three-digit
display
Power Supply
110 V or 220 V AC 10
W

5. Dimension 280 x 220 x 122 mm
Weight 3 kgs (body only)
Features :
​ Optical system with lamp,
heat absorption filters,
lens, and diaphragm
​ Coarse and Fine focusing
control knobs
​ Silicon photo cell detector

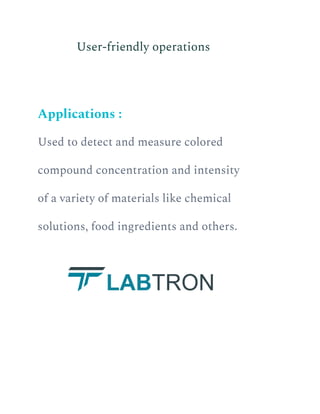

6. ​ User-friendly operations
Applications :
Used to detect and measure colored
compound concentration and intensity
of a variety of materials like chemical
solutions, food ingredients and others.

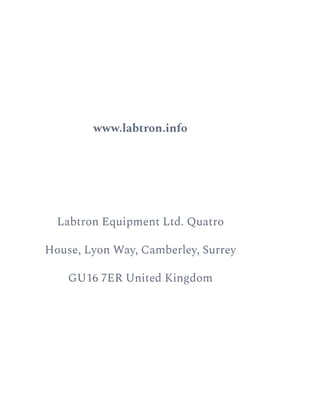

7. www.labtron.info
Labtron Equipment Ltd. Quatro
House, Lyon Way, Camberley, Surrey
GU16 7ER United Kingdom

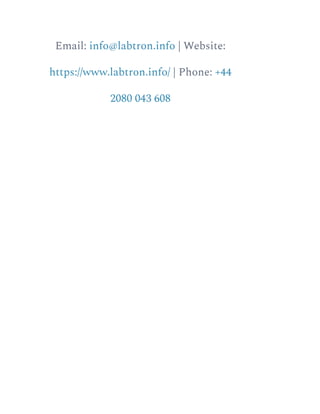

8. Email: info@labtron.info | Website:
https://www.labtron.info/ | Phone: +44
2080 043 608
