1. Juha-Pekka Tolvanen
jpt@metacase.com
Collaborative
modeling and metamodeling

2. Agenda
 Collaborative metamodeling
 Collaborative modeling
 Q&A

3. Experts define languages
& generators
Team models with domain
concepts & generate code
 Integrated
language definition
 No programming
needed
 Language evolution
 Several integrated
languages
 Collaborative
language
engineering
(metamodeling)
 Models update
on any change
 Scalable to
large models
(4 billion)
 Fast
generators
 Interfaces to
various IDEs
(VS, Eclipse)
 Collaborative
modeling
Context for collaboration: MetaEdit+

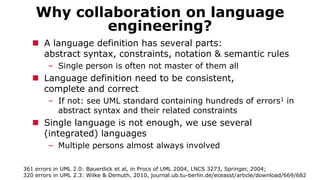

4. Why collaboration on language
engineering?
 A language definition has several parts:
abstract syntax, constraints, notation & semantic rules
– Single person is often not master of them all
 Language definition need to be consistent,
complete and correct
– If not: see UML standard containing hundreds of errors1 in
abstract syntax and their related constraints
 Single language is not enough, we use several
(integrated) languages
– Multiple persons almost always involved
361 errors in UML 2.0: Bauerdick et al, in Procs of UML 2004, LNCS 3273, Springer, 2004;
320 errors in UML 2.3: Wilke & Demuth, 2010, journal.ub.tu-berlin.de/eceasst/article/download/669/682‎

5. Collaborative metamodeling
(example: TDL by ETSI)
A) Concepts
(Abstract syntax)
B) Constraints
(Static semantics)
C) Notation
(Concrete syntax)
D) Generators
(Semantics)

6. Demonstration:

7. Benefits of collaborative
metamodeling
 Leads to better quality languages
– Languages can be checked early while being defined
– Users may immediately test the language, incl. validation
– When defined in smaller increments the risk of creating the
wrong language constructs is reduced
 Development of languages and generators is faster:
– Parallel effort
– Work shared based on expertise
 Language adoption and acceptance improves since
language users are directly involved

8. Why collaborative modeling?
 Collaboration means working together with the same
model - even at the same time
– Even in the same diagram (not typical, but possible)
– Partly with the same model elements (typical)
 Known and proven technology to enable collaboration:
Repository with concurrency control
– Conflicts detected and handled at the modeling time
• Trace to users
– No need to diff
– No need to merge
– Scales to large models

9. Collaborative modeling
(example: automotive system)
A) Hardware
B) Functions
C) Allocation
D) Behavior
+ 16 other
– Safety
– Errors
– Timing
– ...

10. Demonstration:

11. Benefits of collaborative modeling
 Team can work in the same design space in parallel
– E.g. If feedback is needed from colleagues they all can see
the same model (or model element) and update it
 No time and effort is needed to handle conflicts
 Development is faster as all model information is
available as needed
 Work from multiple views – often based on different
languages – can be integrated at model level
 Trace is available among views and model elements
 Models can be checked and verified early – not based on
one diagram only but on larger model which may be
based on different languages

12. Cases, tutorial, videos, manuals
and evaluation version available
at:
www.metacase.com
Contact: Juha-Pekka Tolvanen (jpt@metacase.com)
Company: info@metacase.com
Thank you!
