Coexisting of Android & Robots

www.immobilienscout24.de

Coexisting of Android and Robots
Introduction to RoboGuice & Robotium
Android Meetup Berlin | 30.05.2012 | Hasan Hosgel

About me

Hasan Hoşgel
Twitter: @alosdev
Github: alosdev
G+: Hasan Hosgel

Senior Developer
Mobile enthusiast,
Man of action

Germany‘s leading
ImmobilienScout24
real-estate portal
550 employees,
160 in the IT

Seite | Coexisting of Android and Robots |
3 Hasan Hosgel

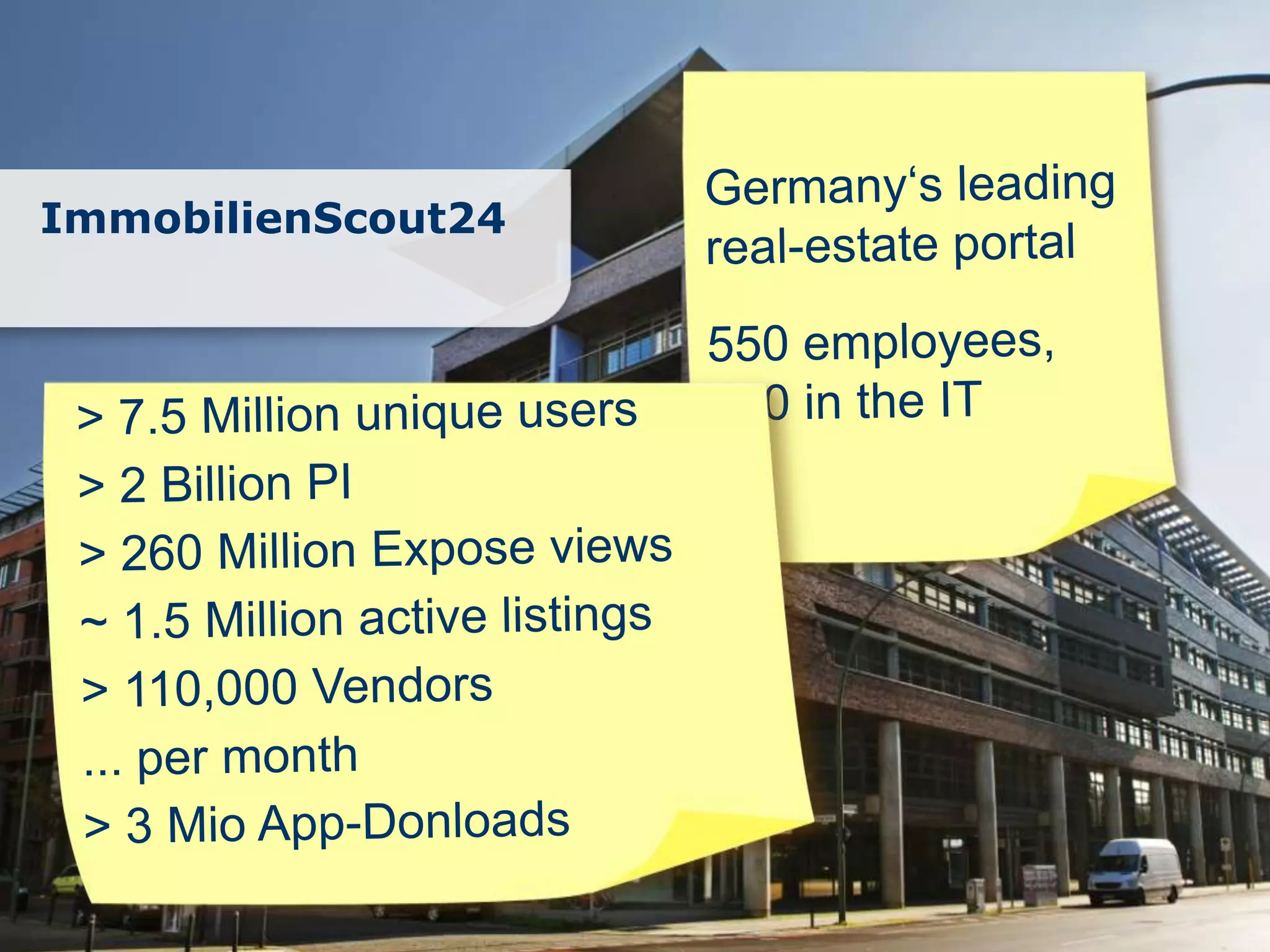

Germany‘s leading
ImmobilienScout24
real-estate portal
550 employees,
> 7.5 Million unique users 160 in the IT
> 2 Billion PI
> 260 Million Expose views
~ 1.5 Million active listings
> 110,000 Vendors
... per month
> 3 Mio App-Downloads
4 Hasan Hosgel

Germany‘s leading
ImmobilienScout24
real-estate portal
550 employees,
> 7.5 Million unique users 160 in the IT
> 2 Billion PI 2 datacenter
> 260 Million Expose views ~100 physical
~ 1.5 Million active listings ~800 virtual
> 110,000 Vendors ... machines
... per month
> 3 Mio App-Downloads
5 Hasan Hosgel

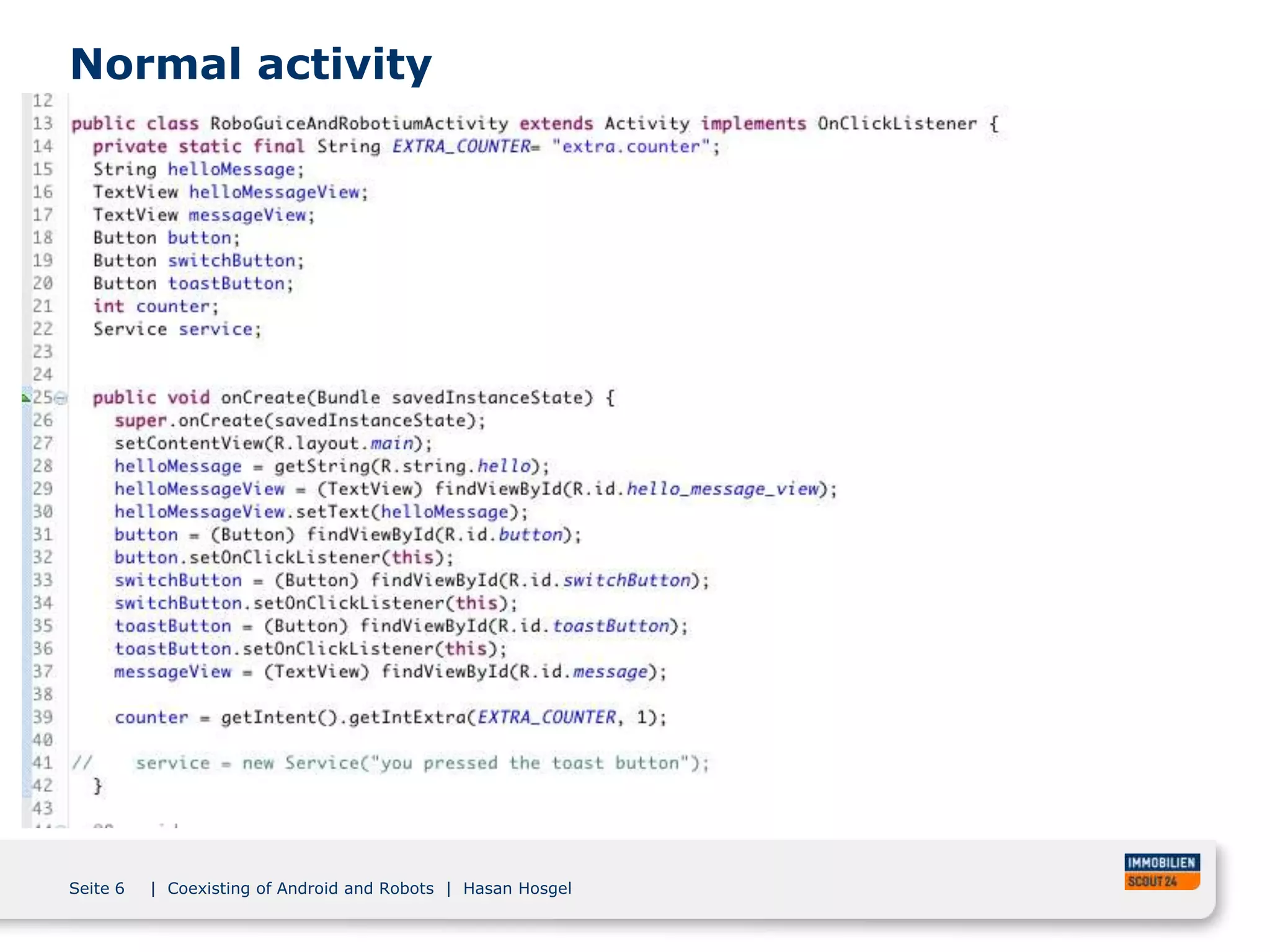

Normal activity

Seite 6 | Coexisting of Android and Robots | Hasan Hosgel

Normal activity

do you like it?

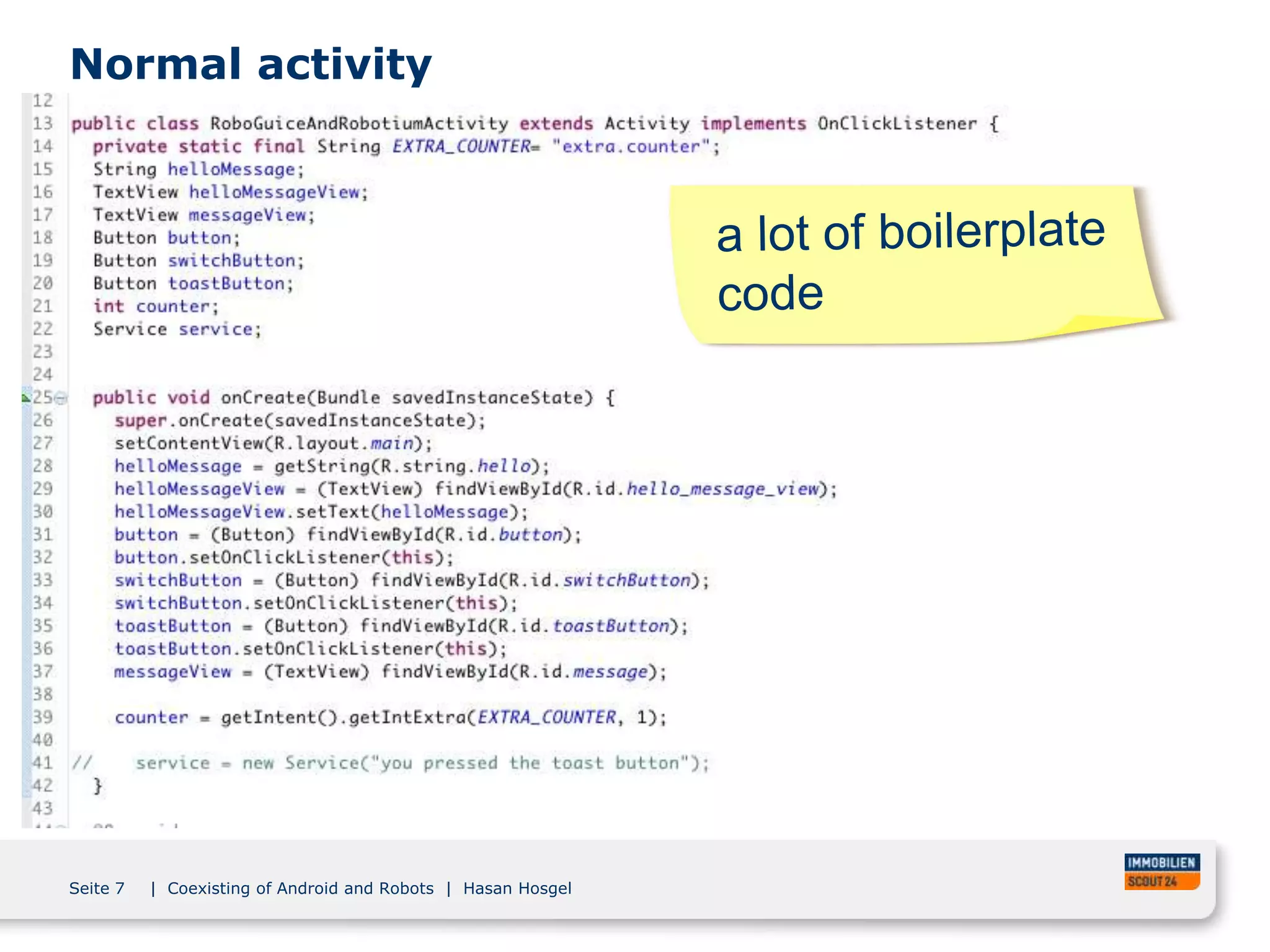

Normal activity

do you like it?

a lot of boilerplate
code

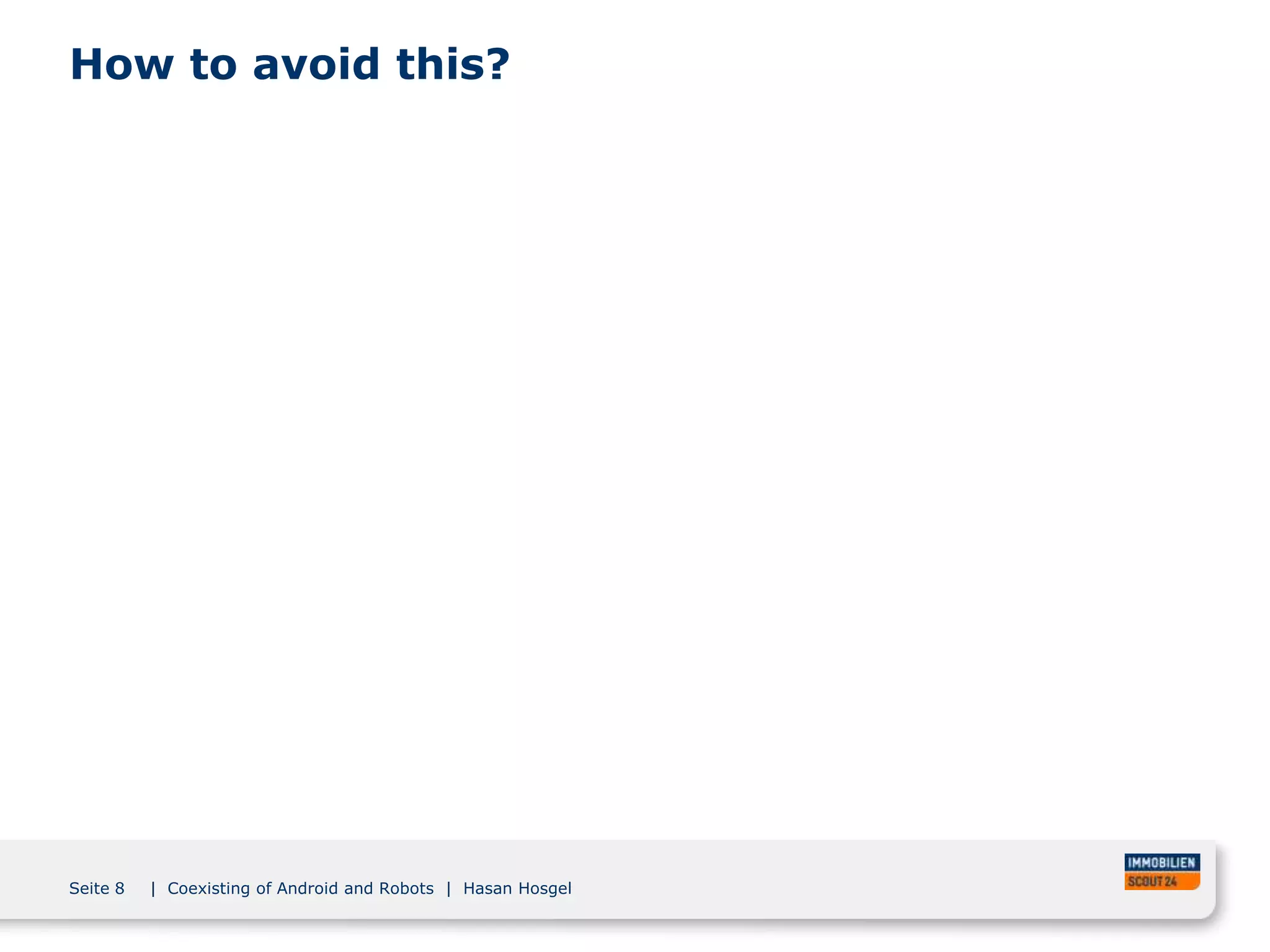

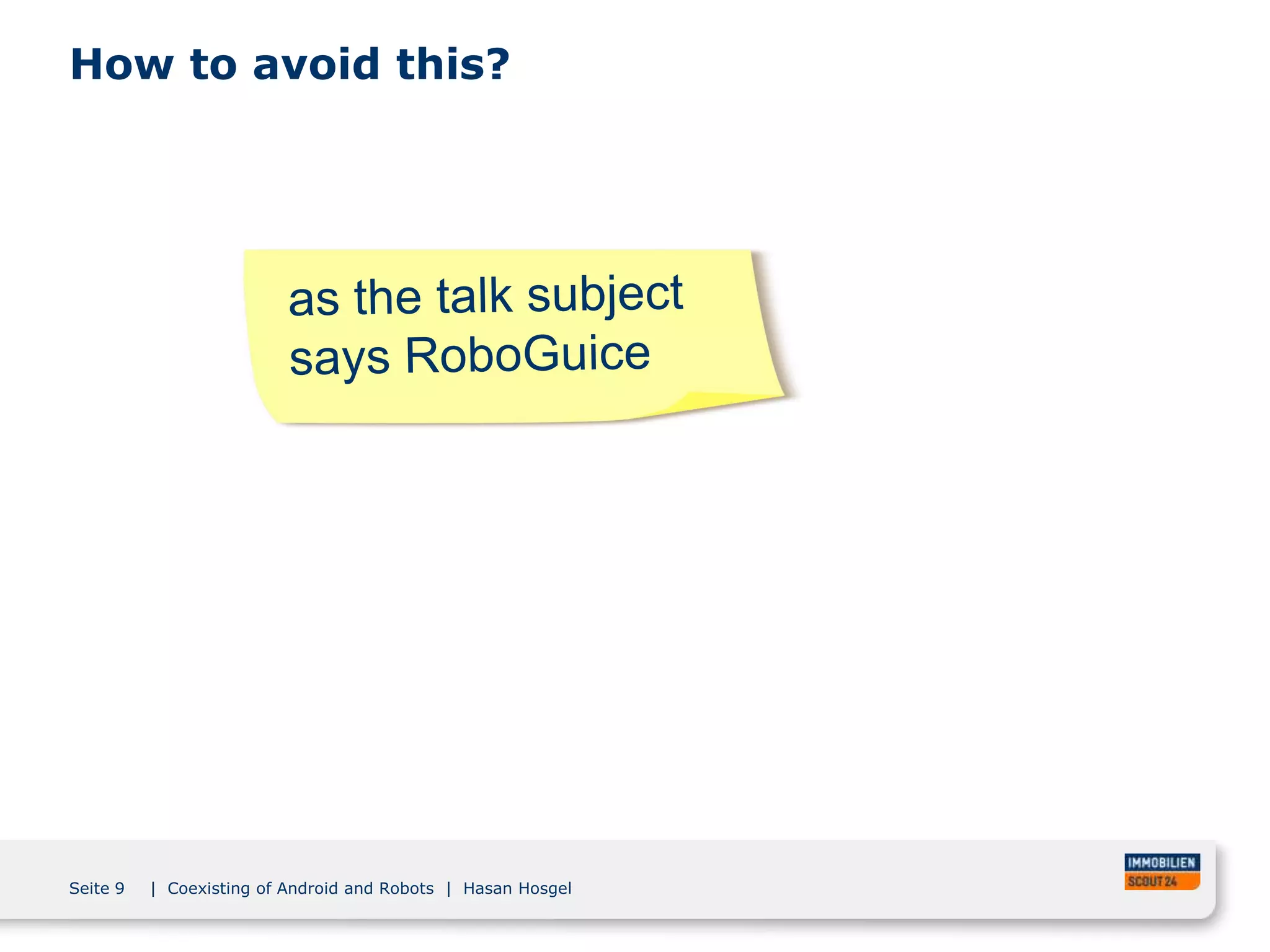

How to avoid this?


How to avoid this?

as the talk subject
says RoboGuice


RoboGuice

DI & IOC Framework
for Android

Source: http://roboguice.org


RoboGuice

DI & IOC Framework
for Android

based on Google Guice no
AOP (JSR-330 compatible)



RoboGuice

DI & IOC Framework
for Android

based on Google Guice no
AOP (JSR-330 compatible)

actual version 2.0

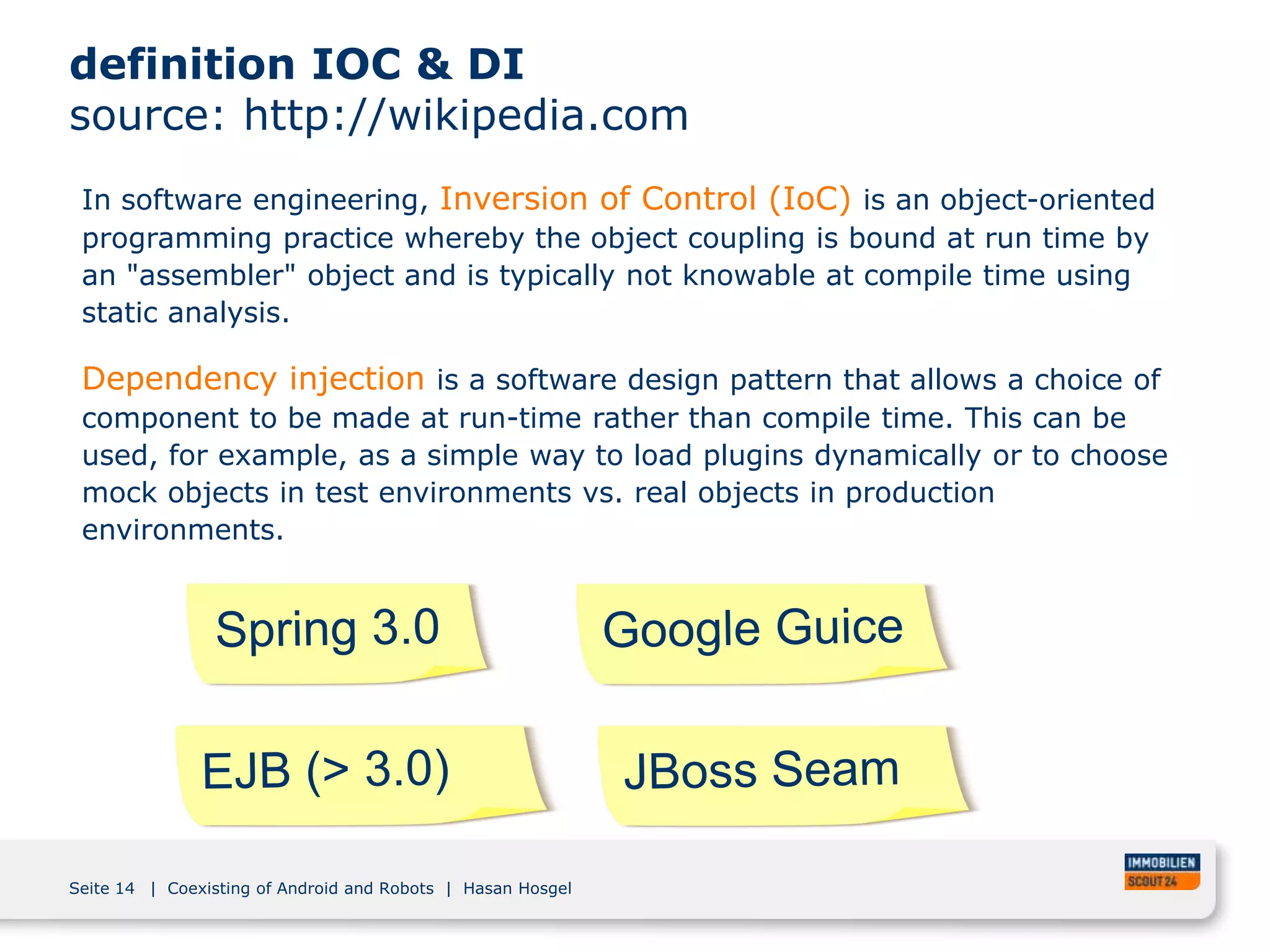

definition IOC & DI
source: http://wikipedia.com
In software engineering, Inversion of Control (IoC) is an object-oriented
programming practice whereby the object coupling is bound at run time by
an "assembler" object and is typically not knowable at compile time using
static analysis.

Dependency injection is a software design pattern that allows a choice of
component to be made at run-time rather than compile time. This can be
used, for example, as a simple way to load plugins dynamically or to choose
mock objects in test environments vs. real objects in production
environments.

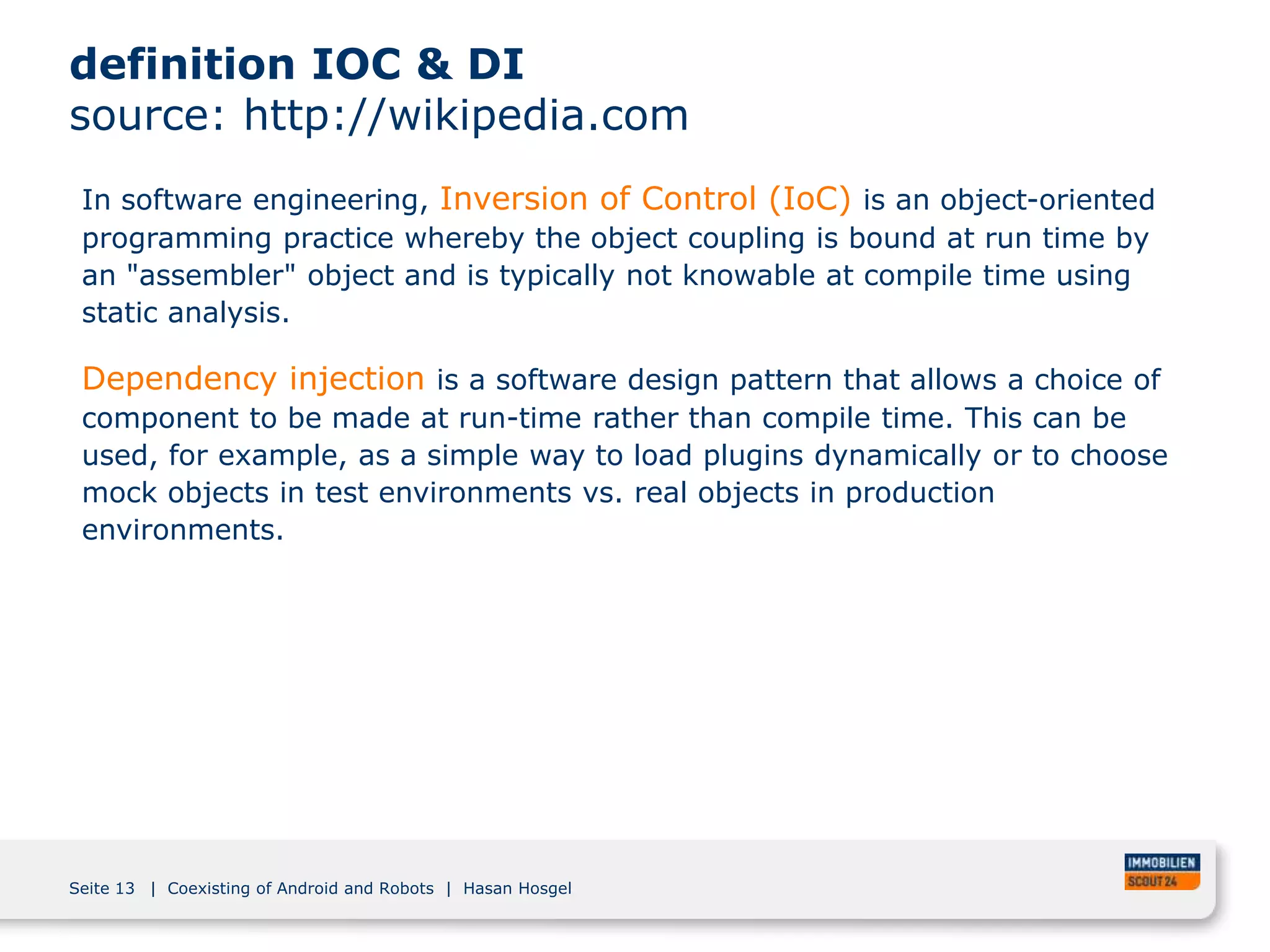

definition IOC & DI
source: http://wikipedia.com
In software engineering, Inversion of Control (IoC) is an object-oriented
programming practice whereby the object coupling is bound at run time by
an "assembler" object and is typically not knowable at compile time using
static analysis.

Dependency injection is a software design pattern that allows a choice of
component to be made at run-time rather than compile time. This can be
used, for example, as a simple way to load plugins dynamically or to choose
mock objects in test environments vs. real objects in production
environments.

Spring Google Guice

EJB (> 3.0) JBoss Seam


What you need for RoboGuice?

Android project

RoboGuice 2.0

Guice 3.0 no AOP

javax.inject


Configuration

extend Robo* classes


Configuration


create
roboguice_modules.xml


Configuration


create

create your
AbstractModule


Configuration


create

create your
AbstractModule

configure the module
in the xml


Injection Types


Injection Types

member injection


Injection Types

member injection

setter injection


injection types

member injection

setter injection

constructor
injection


annotation types part 1

! @Inject
! standard Guice annotation
! @InjectView(resId)
! inject views after „setContentView()“ in „onCreate()“
! @InjectResource(resId)
! inject resource in „onCreate()“
! @InjectExtra(extraName)
! inject extra only in „onCreate()“ NOT „onNewIntent()“
! @InjectPreference(keyName)
! reads preference by keyName
! @InjectFragment(resId, tagName)
! inject the fragment to the resId with the tagName


annotation types part 2

! @ContentView(resId)
! set layout for activity/ fragment
! @Named(valueName)
! with the valueName a specific configuration can be
done
! no annotation but related Provider<T>
! asynchronous injection, if the creation is expensive and
not always used. The method #get() can be used


RoboGuiced activity

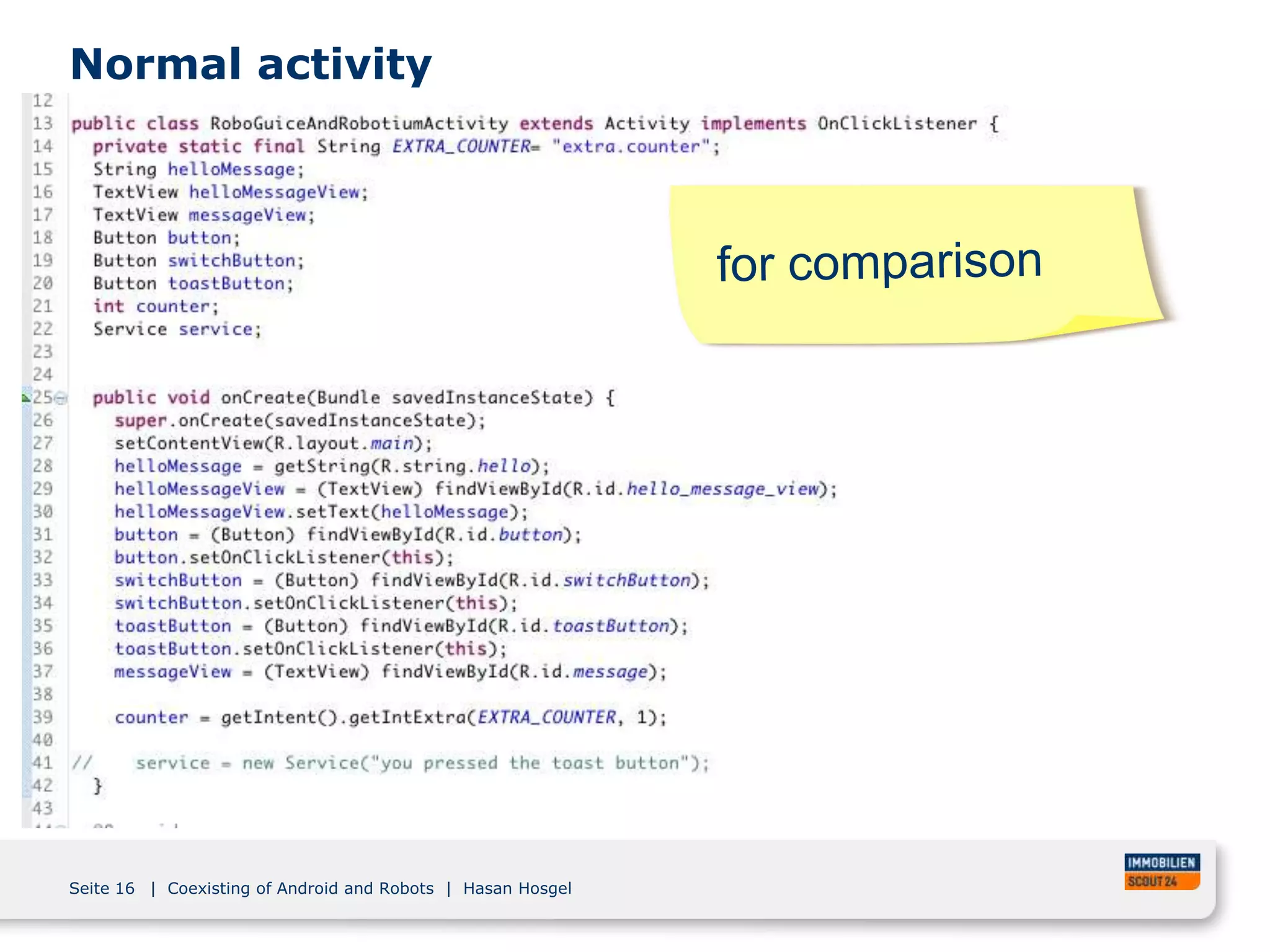

Normal activity

for comparison

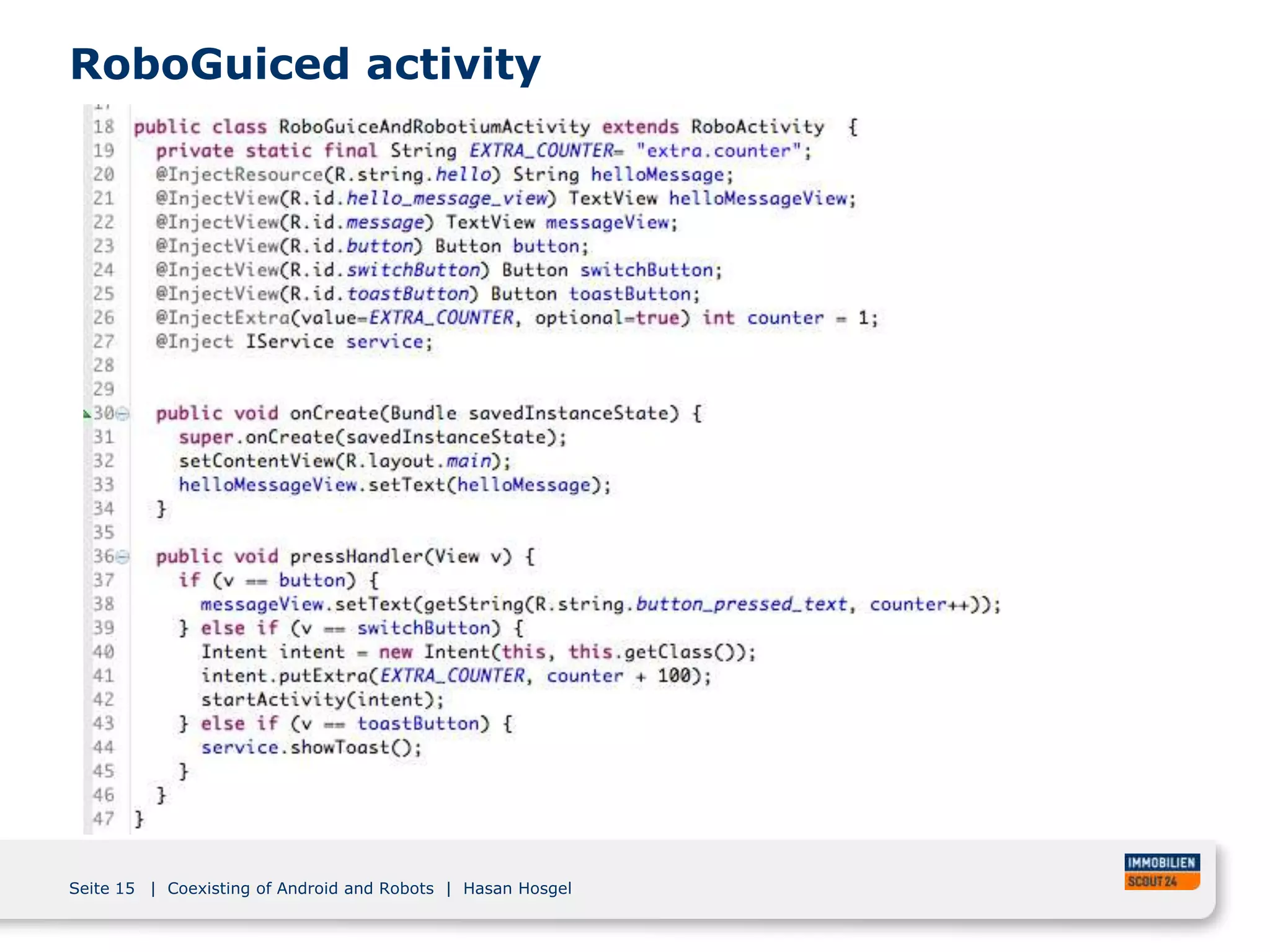

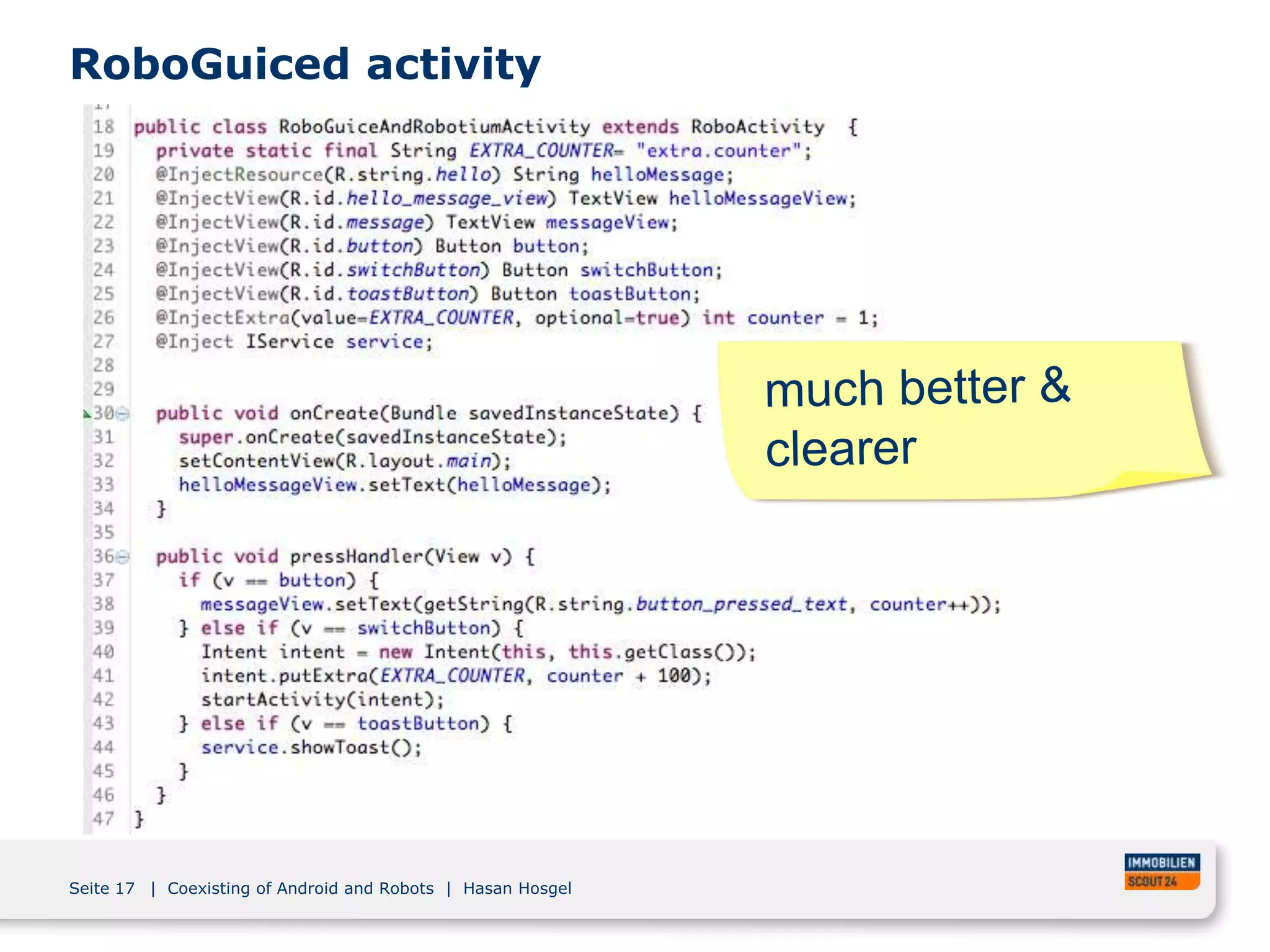

RoboGuiced activity

much better &
clearer


RoboGuice in Action


RoboGuice in Action

Live Coding...


Robotium

Test Framework for
Android

similar to Selenium/
WebTest

actual version 3.2.1


What you need for Robotium?

robotium-solo-3.2.1

extend from
ActivityInstrumentationTestCase2

instanciate Solo

finishInactiveActivities &
finishOpenedActivities on solo in
teardown

What you can do with Robotium?

! remote run of application/ black box tests
! click on view
! long click on view
! scroll
! search for text and view
! wait for text and view
! enter text
! send keys

! configure sleeper/ waiter? NO è use fork
https://github.com/alosdev/robotium


Robotium in Action


Robotium in Action

Live Coding...


Why this fuss?

! clearer structure/ better API
! better testable/ test automation
! state of the art è proven in production (@IS24 since more
than 1 year)
! good for libraries

use RoboGuice & Robotium for Android

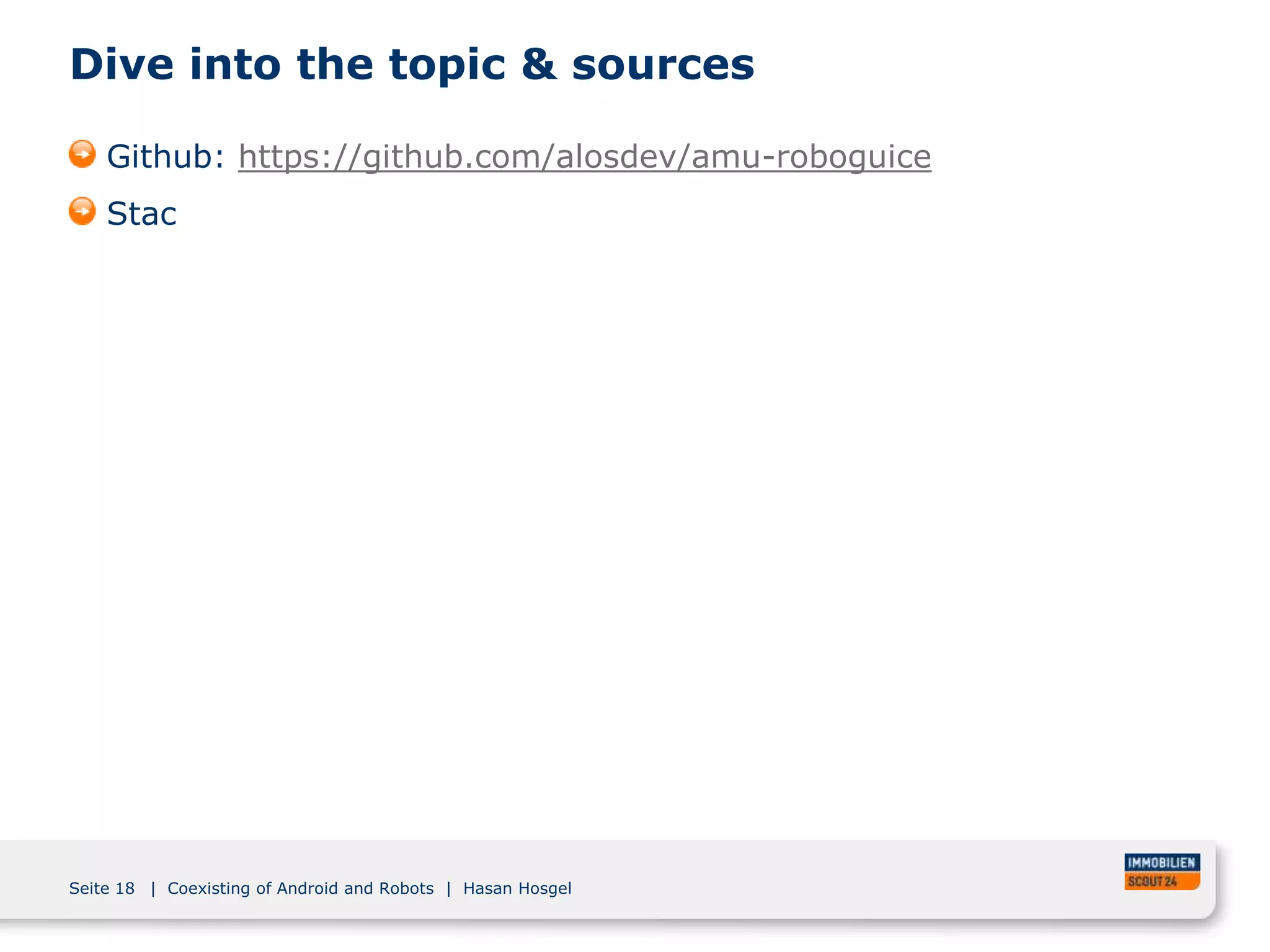

Dive into the topic & sources

! github with sample project of presentation:
! https://github.com/alosdev/amu-roboguice
! slideshare:
! http://www.slideshare.net/hosgel/coexisting-of-
android-robots
! RoboGuice:
! http://roboguice.org/
! Robotium:
! http://robotium.org/
! deeper look into RoboGuice:
! http://www.blog.project13.pl/wp-content/uploads/
2011/12/presentation.html


Thanks for your
attention! Questions?
