Code generation in Magento 2 automatically generates code to handle dependency injection, interception, and the service layer. Key types of generated code include factories for object instantiation, proxies for optional dependencies, interceptors for plugins, repositories for the service layer, extension attributes, and loggers. This code generation improves abstraction, avoids boilerplate code, and enables features like dependency injection, aspect-oriented programming and generic programming in Magento 2.

2. Code Generation
in Magento 2
Sergii Shymko
Senior Software Engineer
Magento, an eBay Inc. company

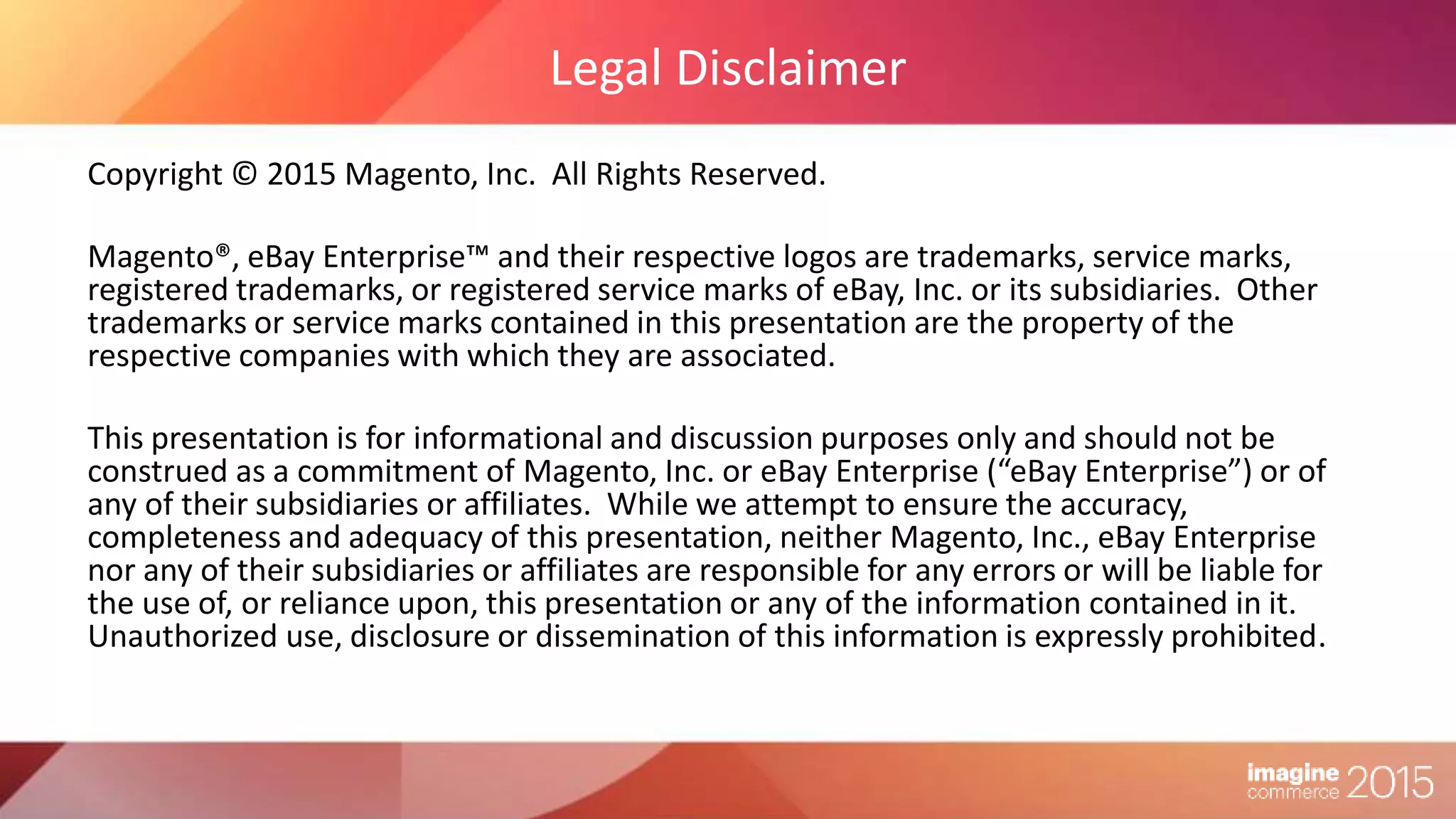

3. Legal Disclaimer
Copyright © 2015 Magento, Inc. All Rights Reserved.
Magento®, eBay Enterprise™ and their respective logos are trademarks, service marks,
registered trademarks, or registered service marks of eBay, Inc. or its subsidiaries. Other
trademarks or service marks contained in this presentation are the property of the
respective companies with which they are associated.
This presentation is for informational and discussion purposes only and should not be
construed as a commitment of Magento, Inc. or eBay Enterprise (“eBay Enterprise”) or of
any of their subsidiaries or affiliates. While we attempt to ensure the accuracy,
completeness and adequacy of this presentation, neither Magento, Inc., eBay Enterprise
nor any of their subsidiaries or affiliates are responsible for any errors or will be liable for
the use of, or reliance upon, this presentation or any of the information contained in it.
Unauthorized use, disclosure or dissemination of this information is expressly prohibited.

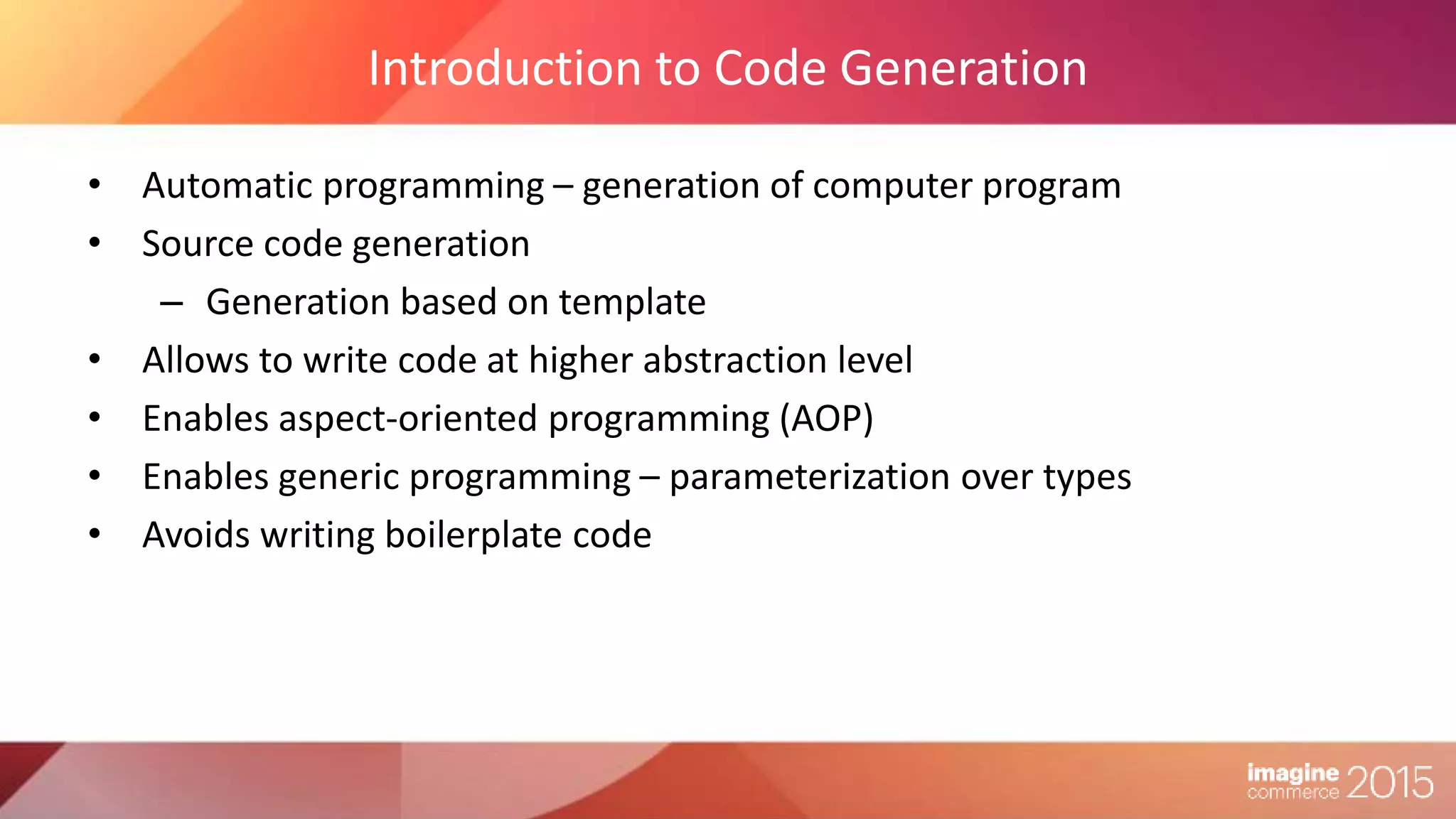

4. Introduction to Code Generation
• Automatic programming – generation of computer program
• Source code generation
– Generation based on template
• Allows to write code at higher abstraction level
• Enables aspect-oriented programming (AOP)
• Enables generic programming – parameterization over types
• Avoids writing boilerplate code

5. Code Generation in Magento 1.x

6. Code Generation in Magento 2

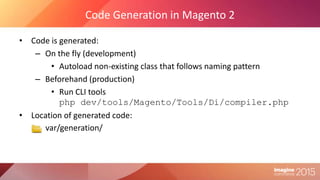

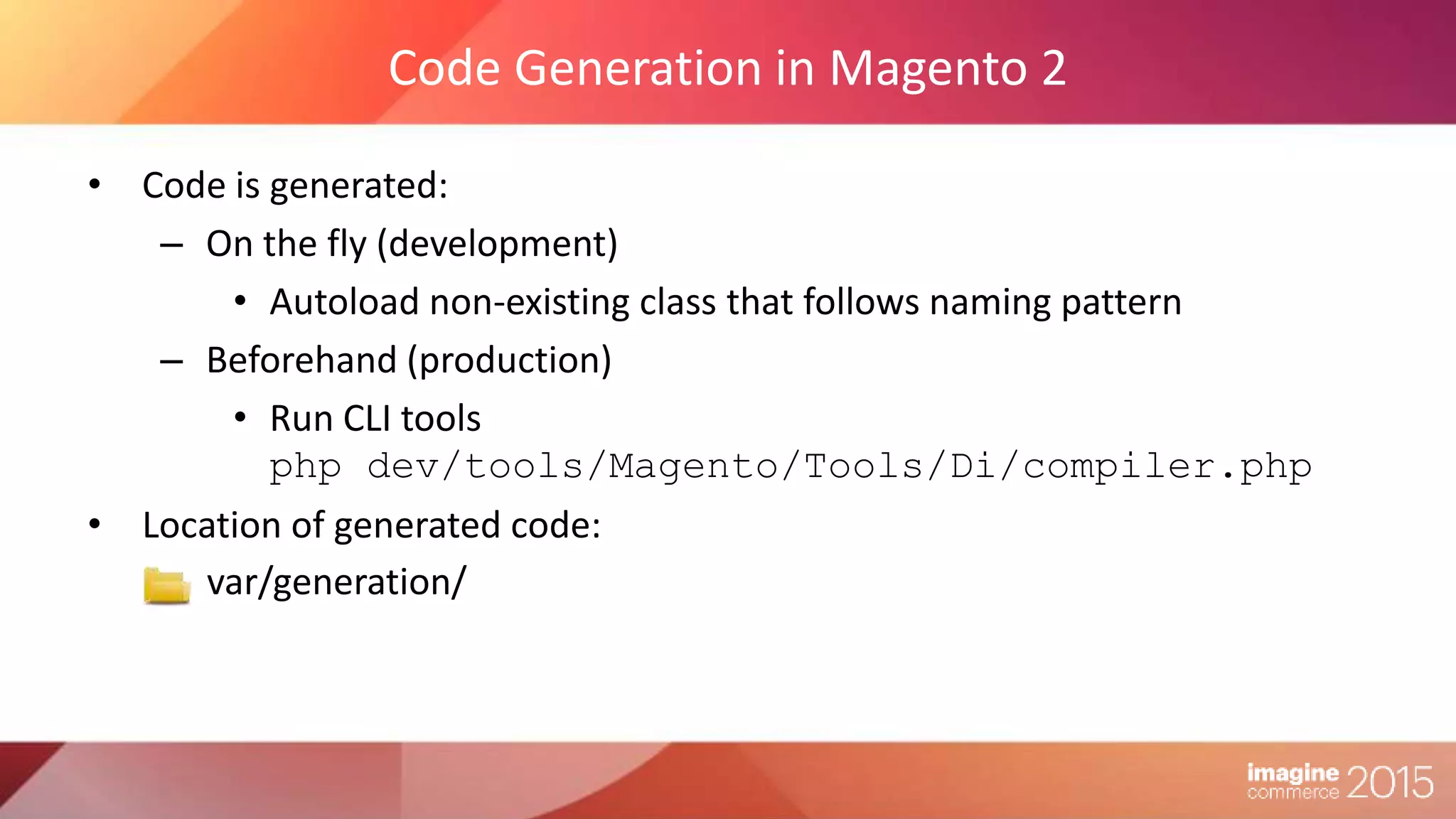

7. Code Generation in Magento 2
• Code is generated:
– On the fly (development)
• Autoload non-existing class that follows naming pattern
– Beforehand (production)
• Run CLI tools
php dev/tools/Magento/Tools/Di/compiler.php
• Location of generated code:
var/generation/

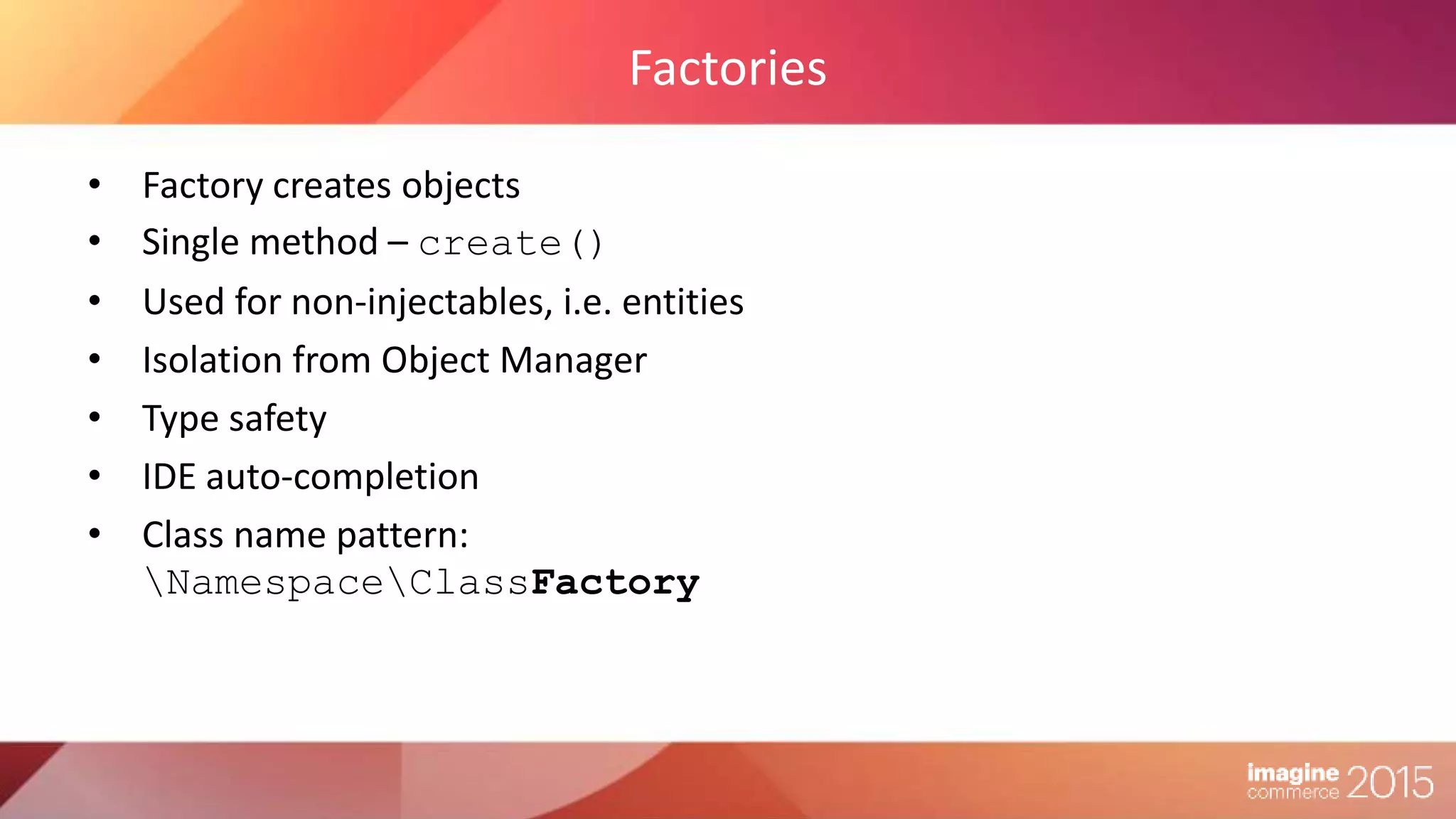

8. Factories
• Factory creates objects
• Single method – create()
• Used for non-injectables, i.e. entities
• Isolation from Object Manager
• Type safety
• IDE auto-completion
• Class name pattern:
NamespaceClassFactory

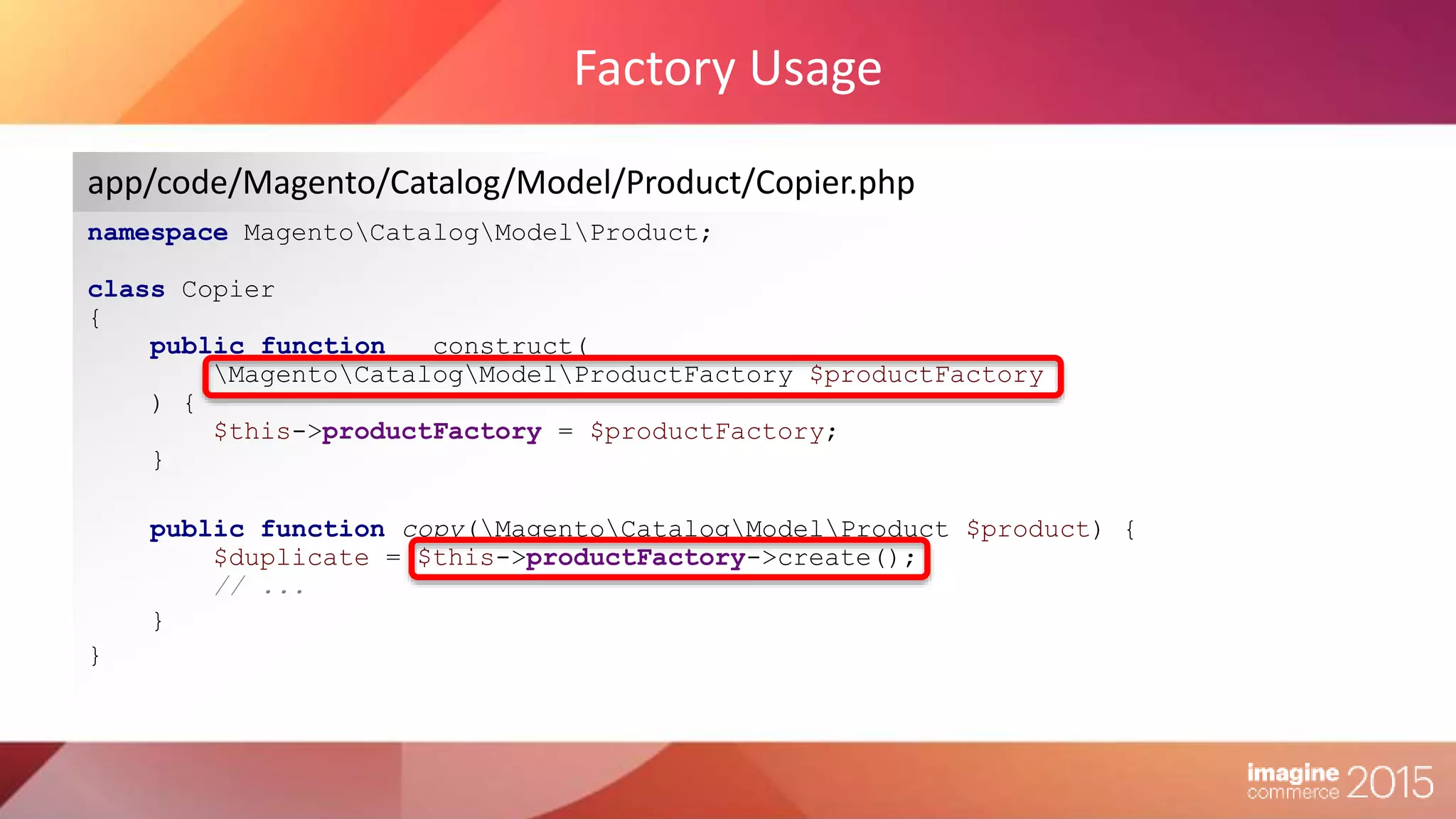

9. Factory Usage
namespace MagentoCatalogModelProduct;
class Copier
{
public function __construct(
MagentoCatalogModelProductFactory $productFactory
) {
$this->productFactory = $productFactory;
}
public function copy(MagentoCatalogModelProduct $product) {
$duplicate = $this->productFactory->create();
// ...
}
}
app/code/Magento/Catalog/Model/Product/Copier.php

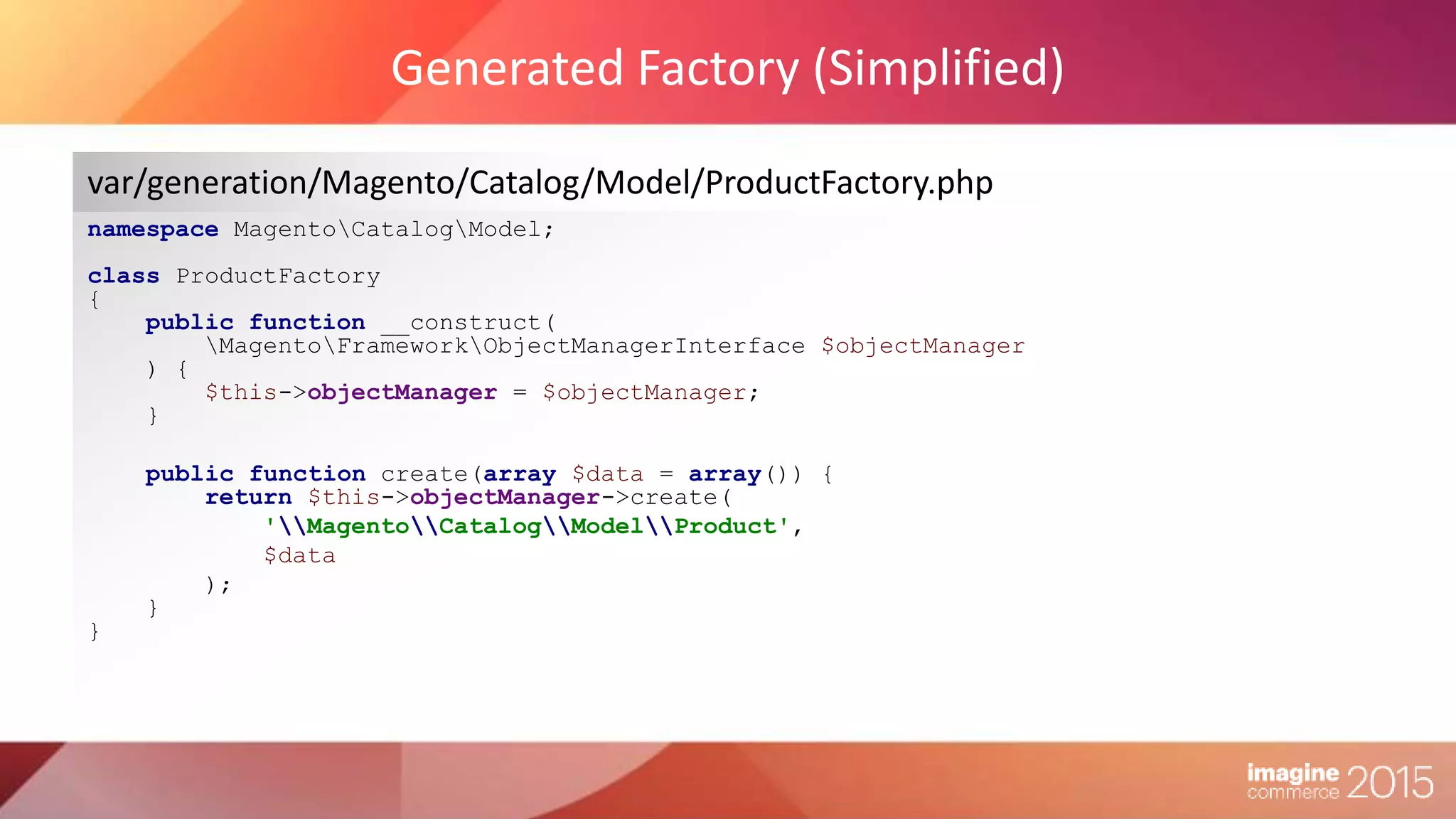

10. Generated Factory (Simplified)
namespace MagentoCatalogModel;
class ProductFactory
{
public function __construct(
MagentoFrameworkObjectManagerInterface $objectManager
) {
$this->objectManager = $objectManager;
}
public function create(array $data = array()) {
return $this->objectManager->create(
'MagentoCatalogModelProduct',
$data
);
}
}
var/generation/Magento/Catalog/Model/ProductFactory.php

11. Proxies
• Implementation of GoF pattern
• Follows interface of subject
• Delays creation of subject
– Delays creation of dependencies
• Forwards calls to subject
• Used for optional dependencies of DI
• Class name pattern:
NamespaceClassProxy

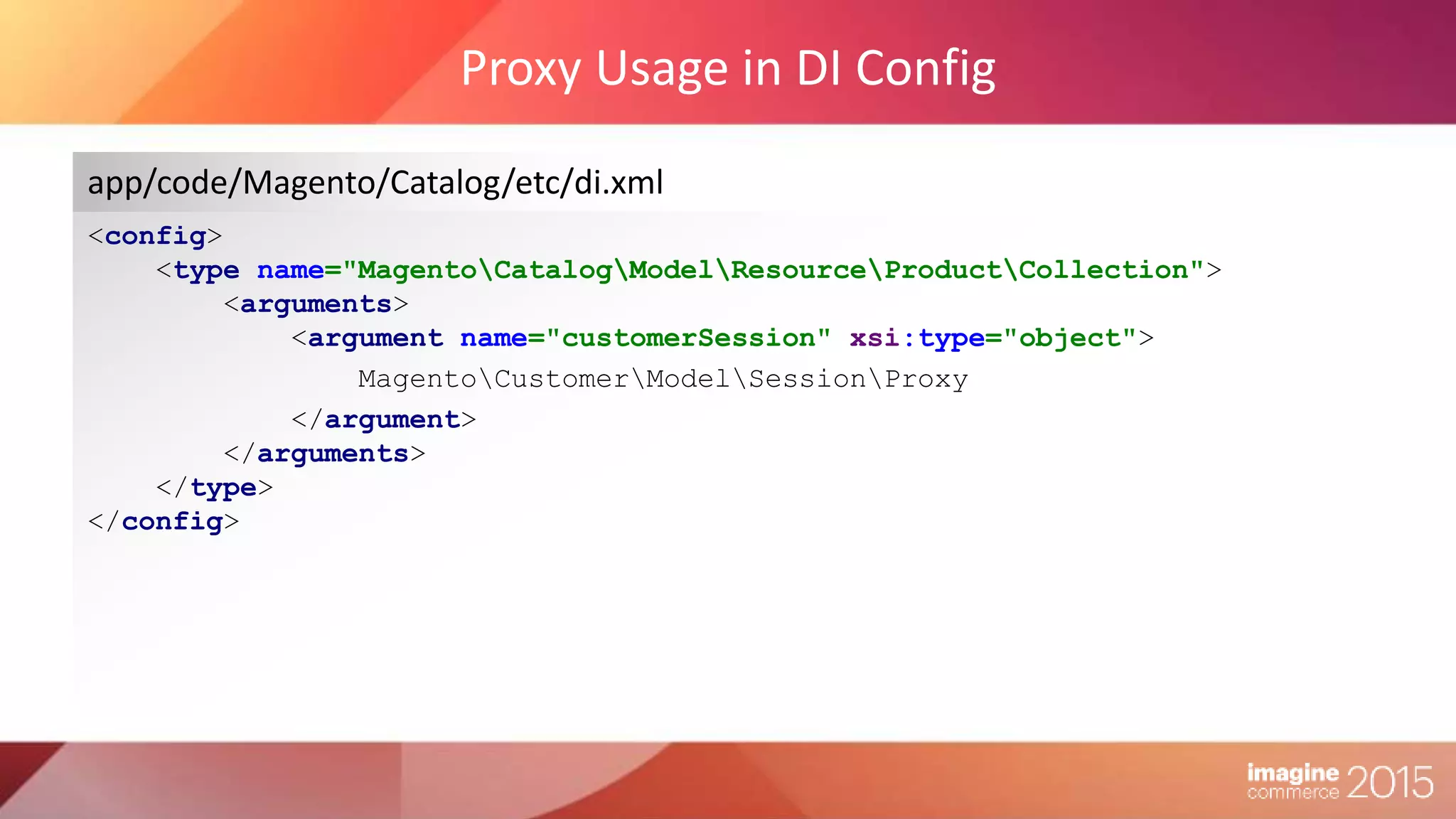

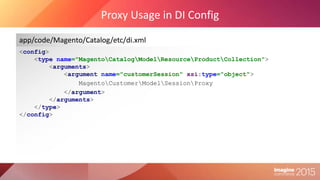

12. Proxy Usage in DI Config
<config>
<type name="MagentoCatalogModelResourceProductCollection">
<arguments>
<argument name="customerSession" xsi:type="object">
MagentoCustomerModelSessionProxy
</argument>
</arguments>
</type>
</config>
app/code/Magento/Catalog/etc/di.xml

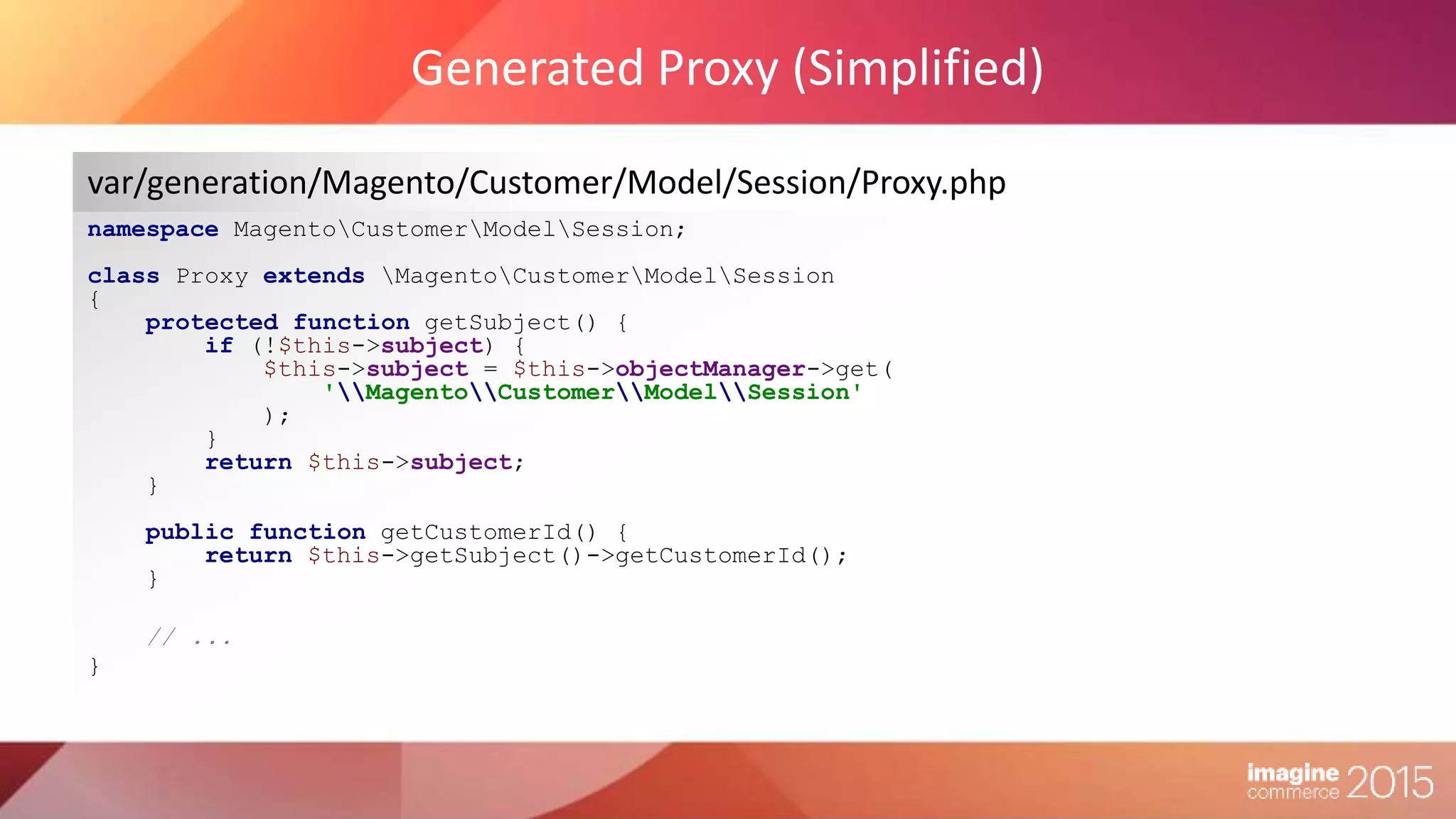

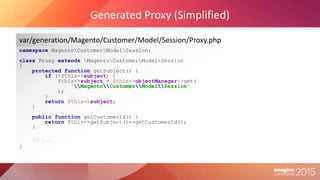

13. Generated Proxy (Simplified)
namespace MagentoCustomerModelSession;
class Proxy extends MagentoCustomerModelSession
{
protected function getSubject() {
if (!$this->subject) {
$this->subject = $this->objectManager->get(
'MagentoCustomerModelSession'
);
}
return $this->subject;
}
public function getCustomerId() {
return $this->getSubject()->getCustomerId();
}
// ...
}
var/generation/Magento/Customer/Model/Session/Proxy.php

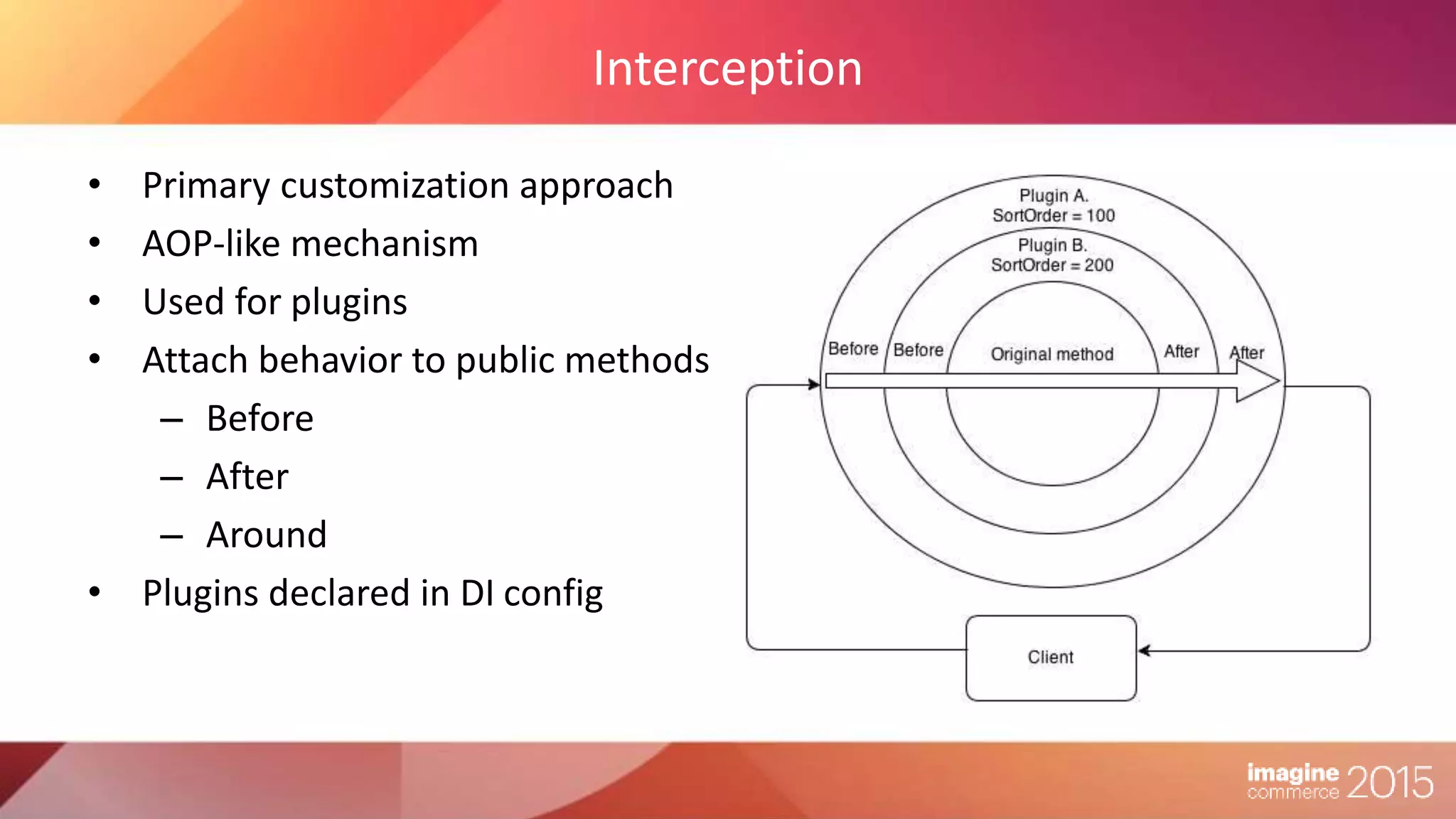

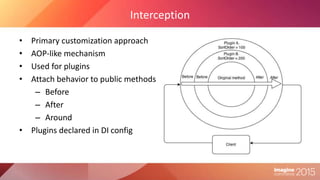

14. Interception
• Primary customization approach
• AOP-like mechanism
• Used for plugins
• Attach behavior to public methods
– Before
– After
– Around
• Plugins declared in DI config

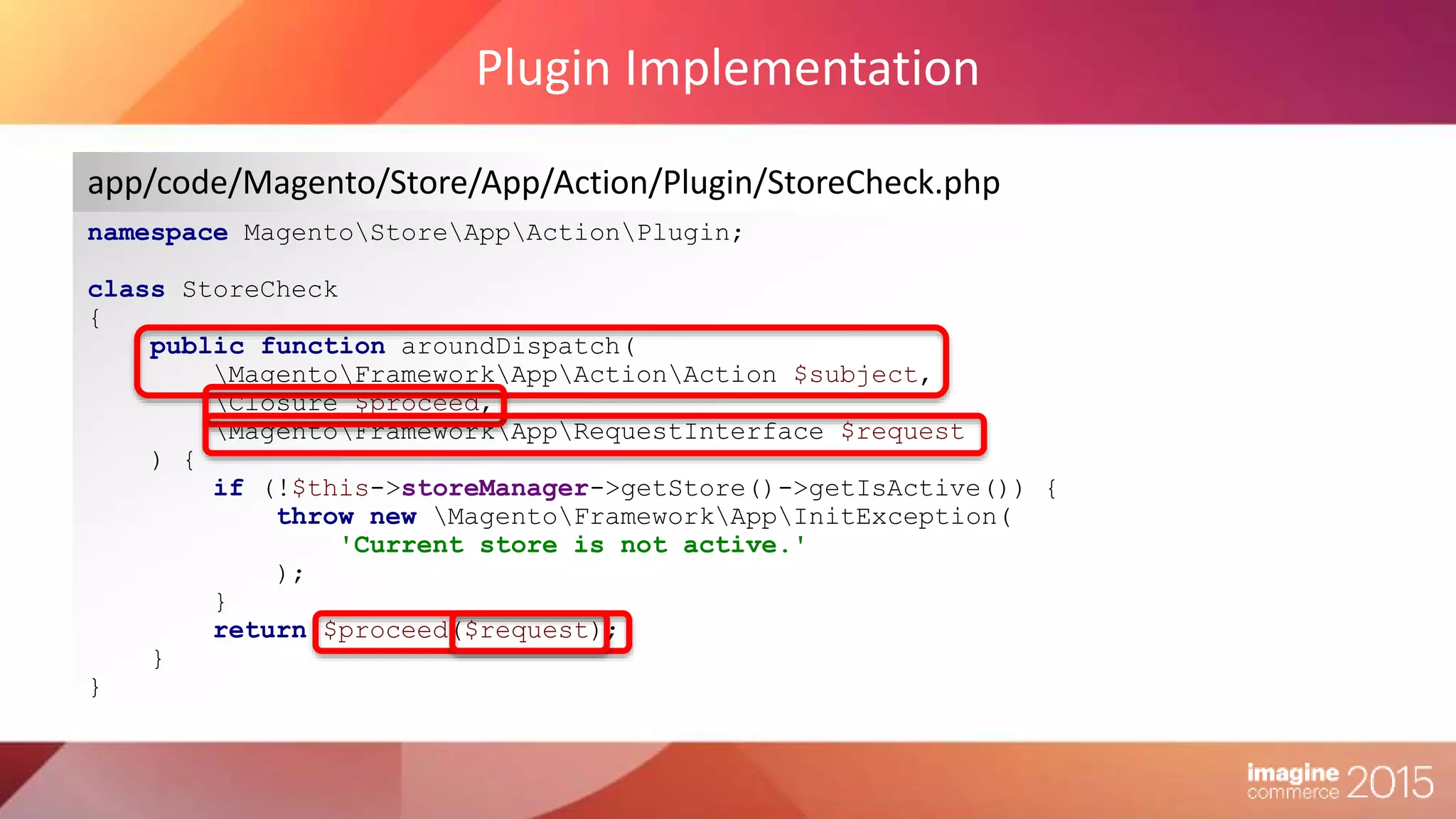

15. Plugin Implementation
namespace MagentoStoreAppActionPlugin;
class StoreCheck
{
public function aroundDispatch(
MagentoFrameworkAppActionAction $subject,
Closure $proceed,
MagentoFrameworkAppRequestInterface $request
) {
if (!$this->storeManager->getStore()->getIsActive()) {
throw new MagentoFrameworkAppInitException(
'Current store is not active.'
);
}
return $proceed($request);
}
}
app/code/Magento/Store/App/Action/Plugin/StoreCheck.php

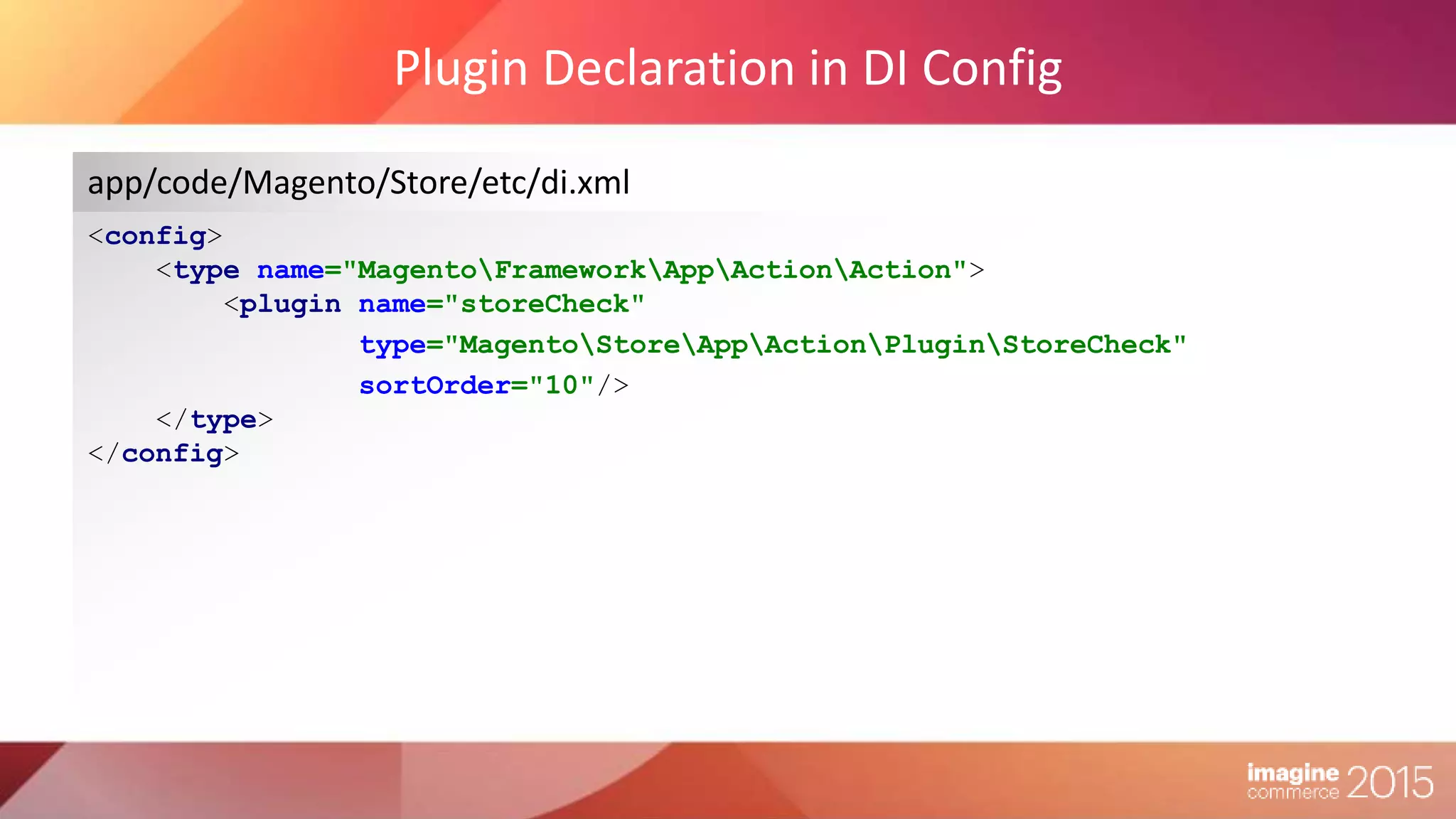

16. Plugin Declaration in DI Config
<config>
<type name="MagentoFrameworkAppActionAction">
<plugin name="storeCheck"
type="MagentoStoreAppActionPluginStoreCheck"
sortOrder="10"/>
</type>
</config>
app/code/Magento/Store/etc/di.xml

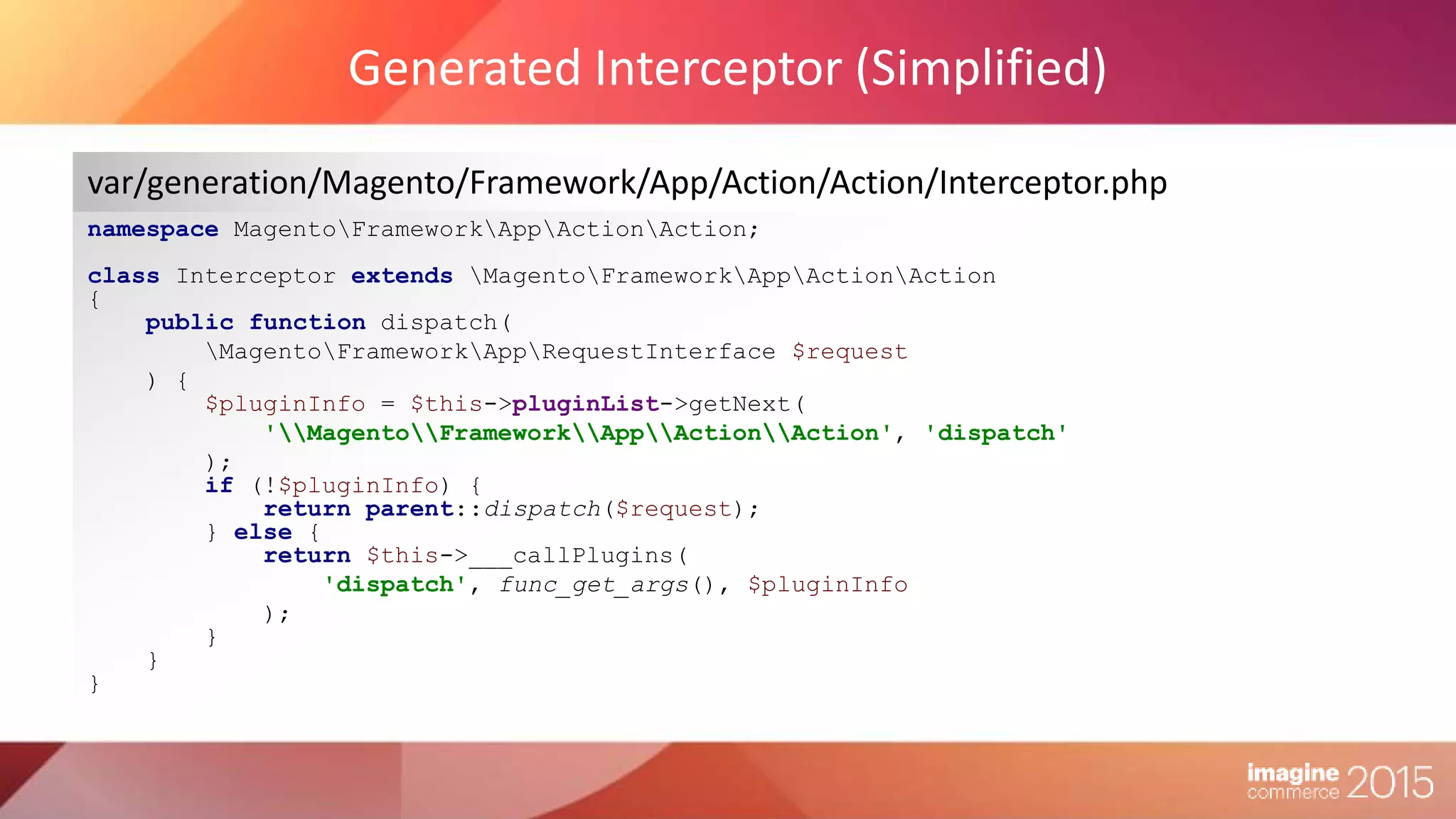

17. Generated Interceptor (Simplified)
namespace MagentoFrameworkAppActionAction;
class Interceptor extends MagentoFrameworkAppActionAction
{
public function dispatch(
MagentoFrameworkAppRequestInterface $request
) {
$pluginInfo = $this->pluginList->getNext(
'MagentoFrameworkAppActionAction', 'dispatch'
);
if (!$pluginInfo) {
return parent::dispatch($request);
} else {
return $this->___callPlugins(
'dispatch', func_get_args(), $pluginInfo
);
}
}
}
var/generation/Magento/Framework/App/Action/Action/Interceptor.php

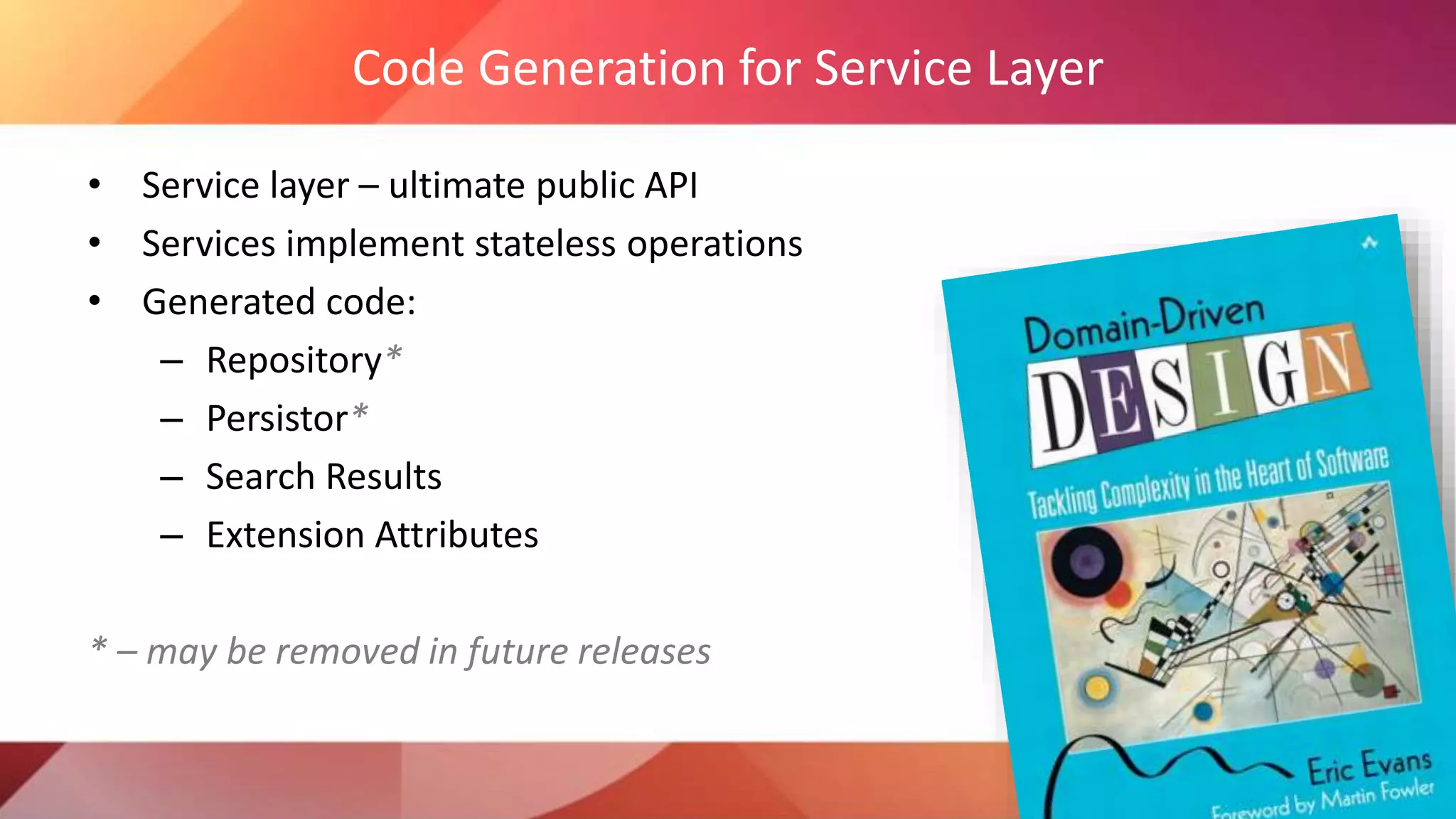

18. Code Generation for Service Layer
• Service layer – ultimate public API
• Services implement stateless operations
• Generated code:
– Repository*
– Persistor*
– Search Results
– Extension Attributes
* – may be removed in future releases

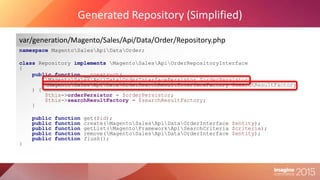

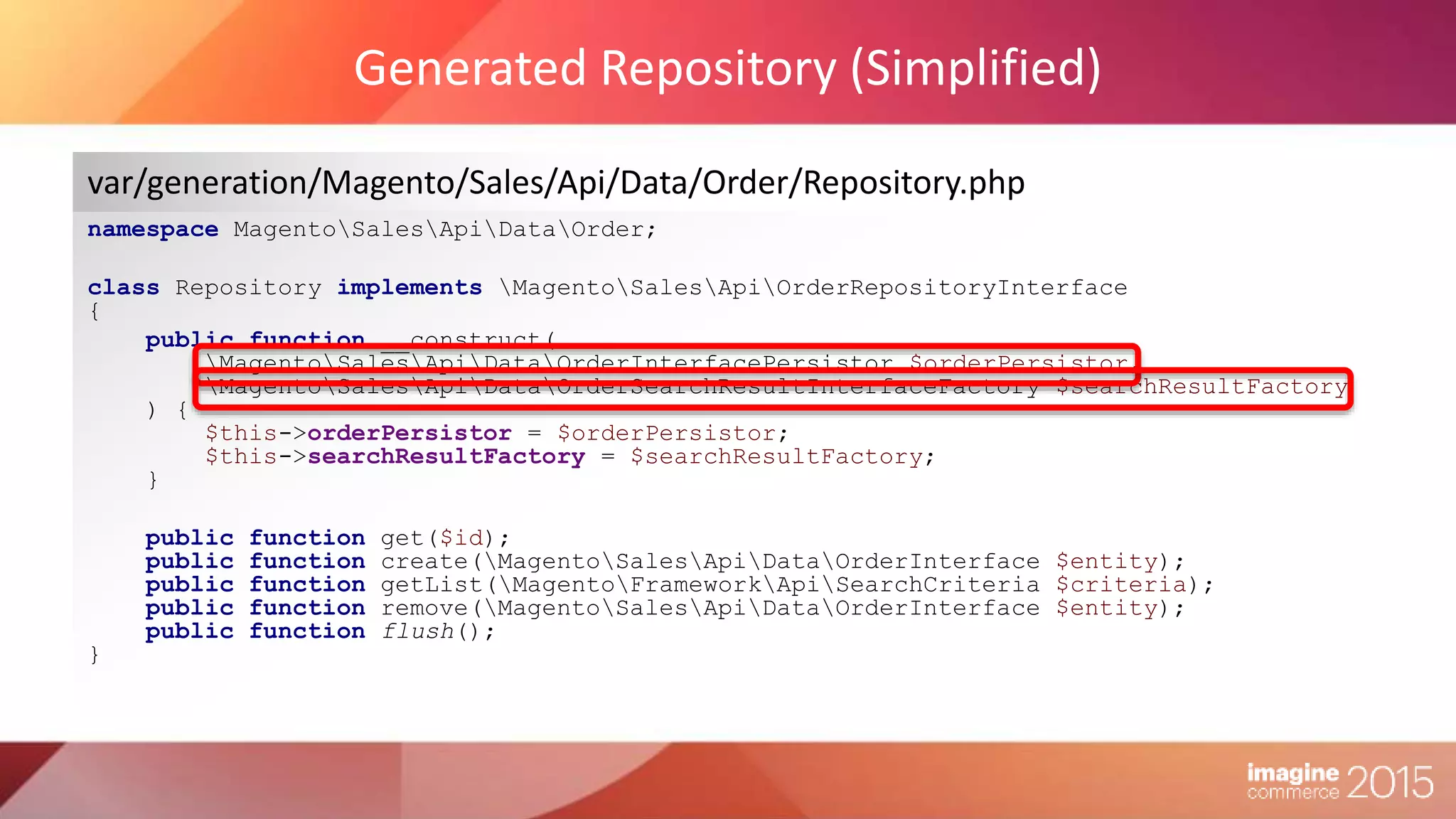

19. Generated Repository (Simplified)
namespace MagentoSalesApiDataOrder;
class Repository implements MagentoSalesApiOrderRepositoryInterface
{
public function __construct(
MagentoSalesApiDataOrderInterfacePersistor $orderPersistor,
MagentoSalesApiDataOrderSearchResultInterfaceFactory $searchResultFactory
) {
$this->orderPersistor = $orderPersistor;
$this->searchResultFactory = $searchResultFactory;
}
public function get($id);
public function create(MagentoSalesApiDataOrderInterface $entity);
public function getList(MagentoFrameworkApiSearchCriteria $criteria);
public function remove(MagentoSalesApiDataOrderInterface $entity);
public function flush();
}
var/generation/Magento/Sales/Api/Data/Order/Repository.php

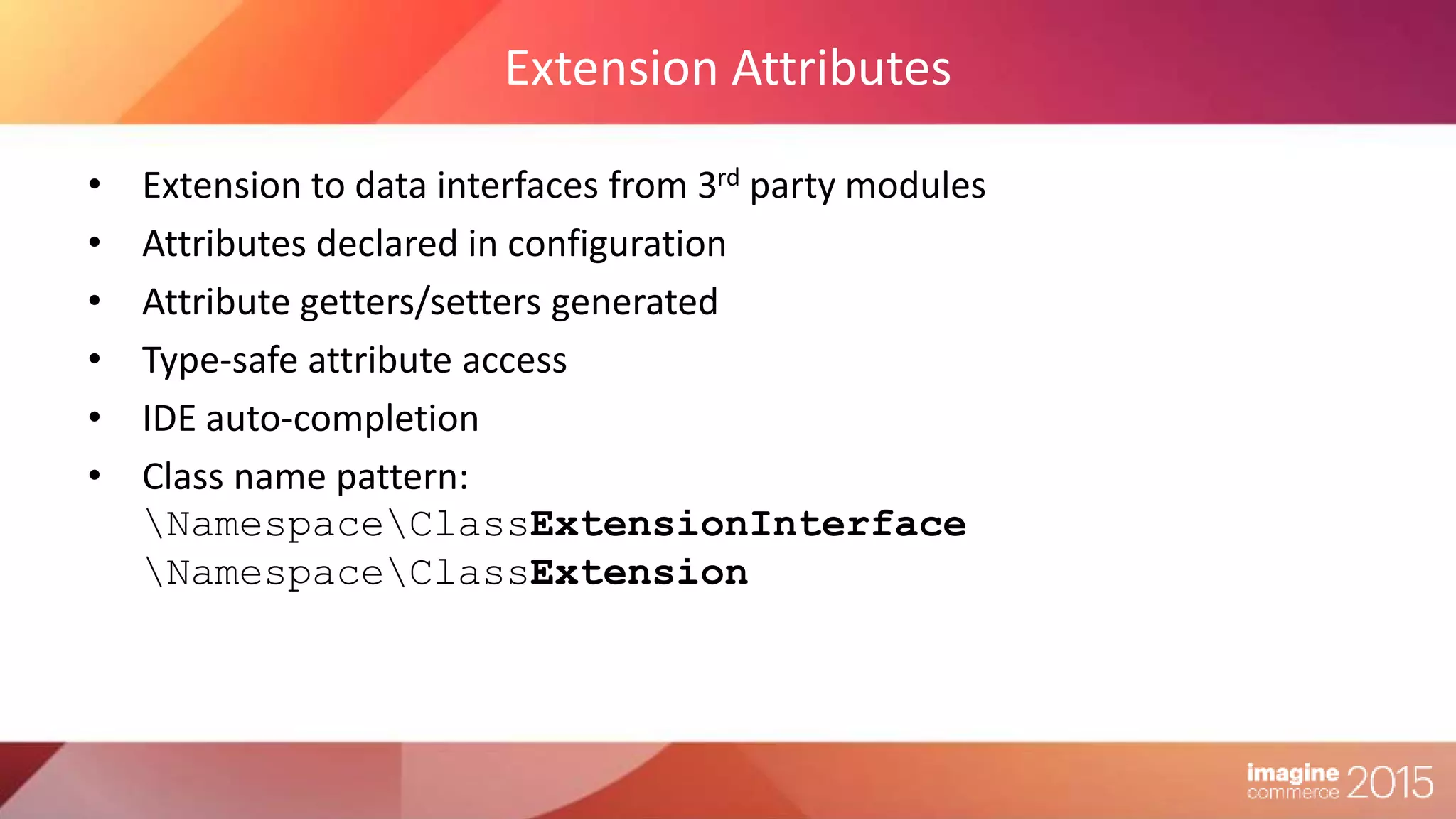

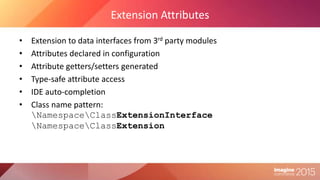

20. Extension Attributes
• Extension to data interfaces from 3rd party modules
• Attributes declared in configuration
• Attribute getters/setters generated
• Type-safe attribute access
• IDE auto-completion
• Class name pattern:
NamespaceClassExtensionInterface
NamespaceClassExtension

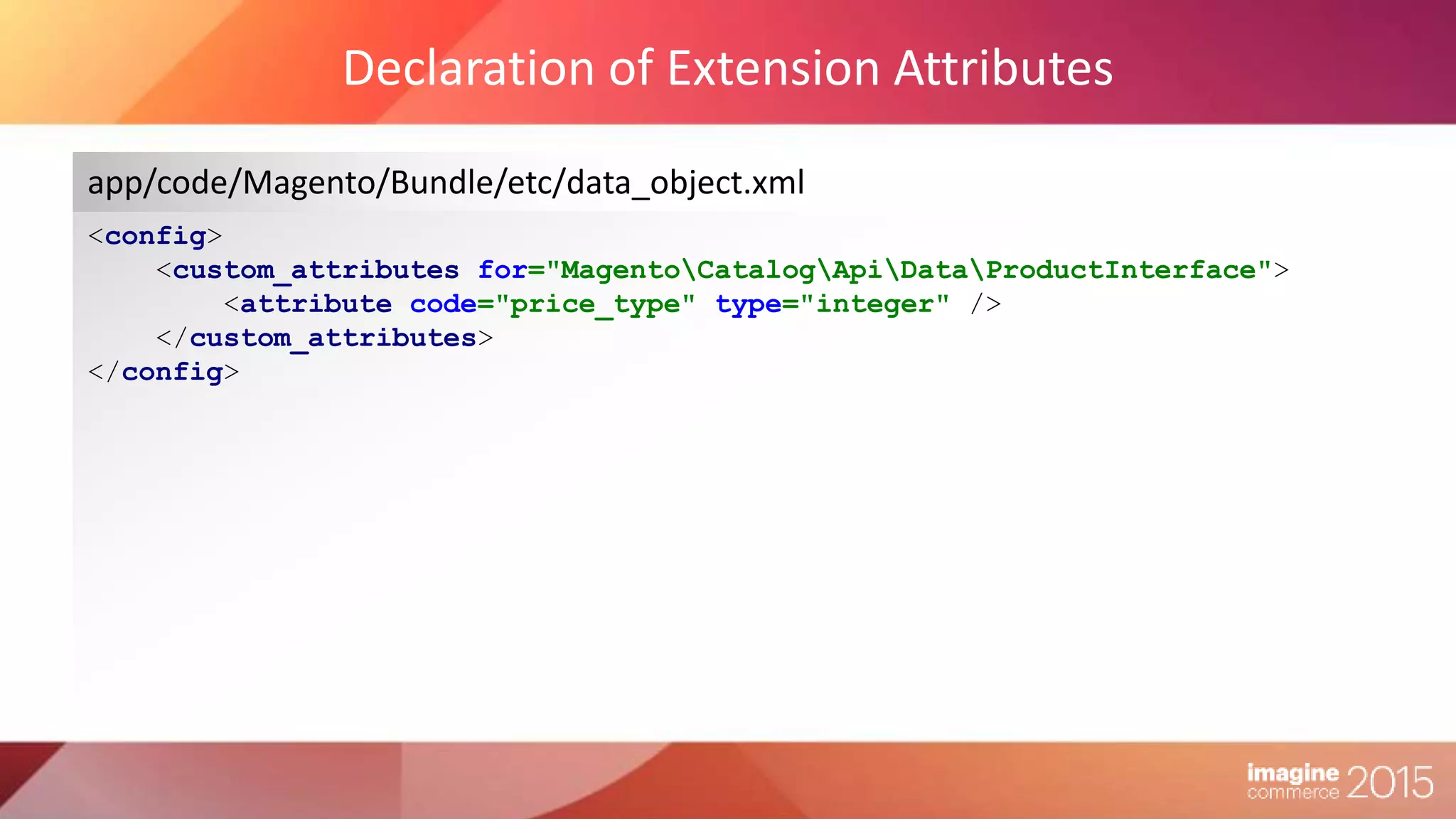

21. Declaration of Extension Attributes
<config>
<custom_attributes for="MagentoCatalogApiDataProductInterface">
<attribute code="price_type" type="integer" />
</custom_attributes>
</config>
app/code/Magento/Bundle/etc/data_object.xml

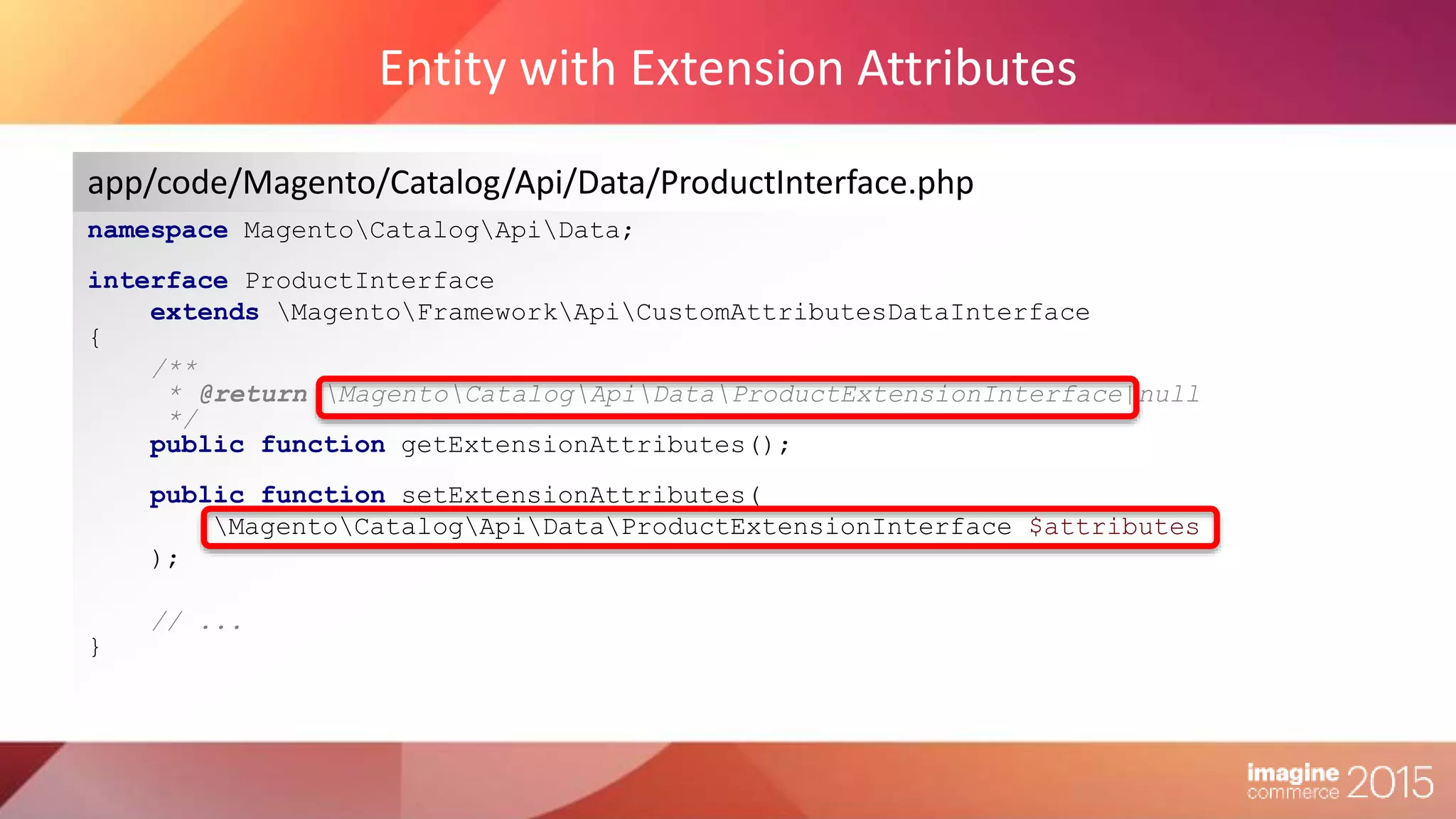

22. Entity with Extension Attributes
namespace MagentoCatalogApiData;
interface ProductInterface
extends MagentoFrameworkApiCustomAttributesDataInterface
{
/**
* @return MagentoCatalogApiDataProductExtensionInterface|null
*/
public function getExtensionAttributes();
public function setExtensionAttributes(
MagentoCatalogApiDataProductExtensionInterface $attributes
);
// ...
}
app/code/Magento/Catalog/Api/Data/ProductInterface.php

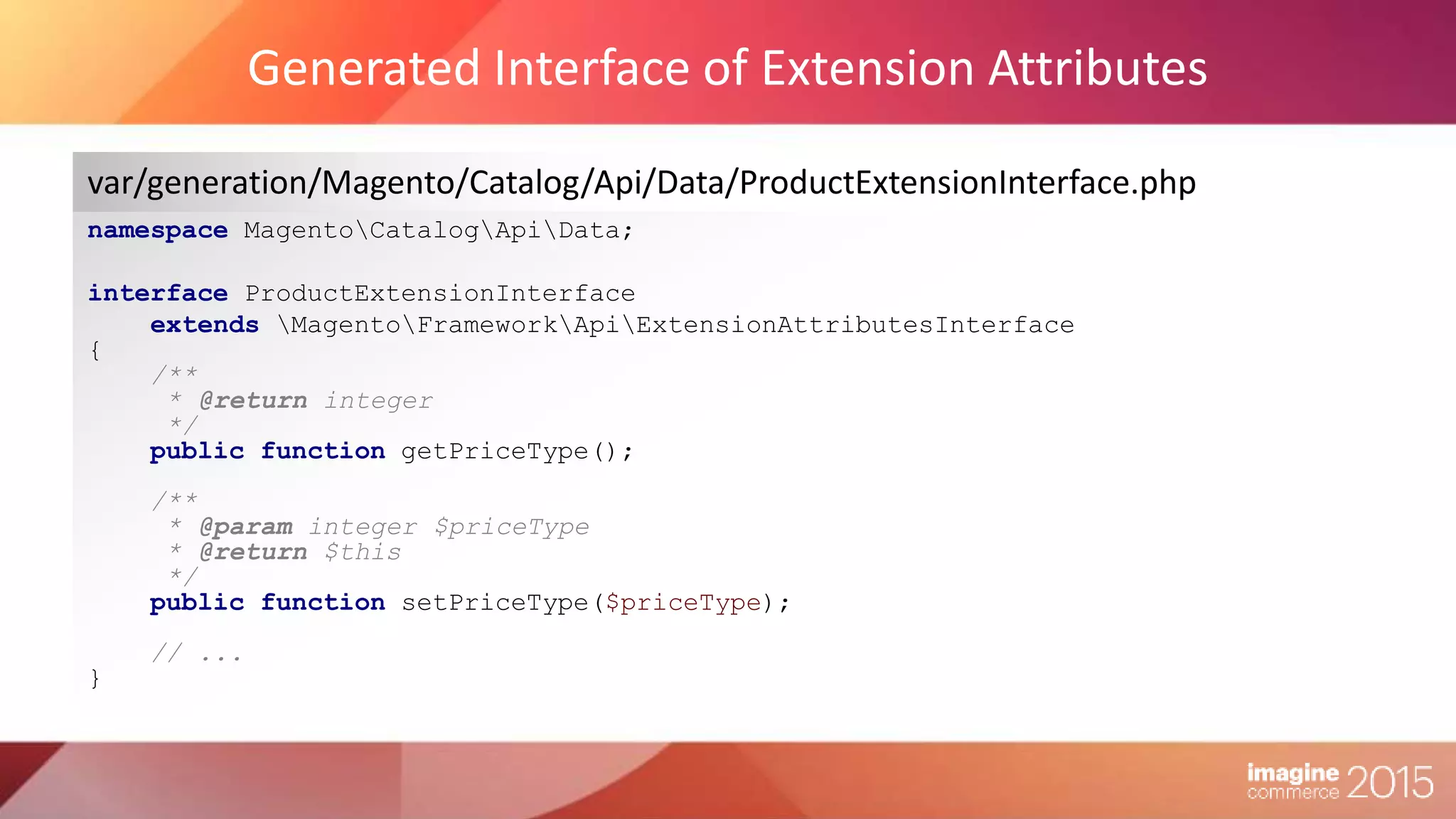

23. Generated Interface of Extension Attributes
namespace MagentoCatalogApiData;
interface ProductExtensionInterface
extends MagentoFrameworkApiExtensionAttributesInterface
{
/**
* @return integer
*/
public function getPriceType();
/**
* @param integer $priceType
* @return $this
*/
public function setPriceType($priceType);
// ...
}
var/generation/Magento/Catalog/Api/Data/ProductExtensionInterface.php

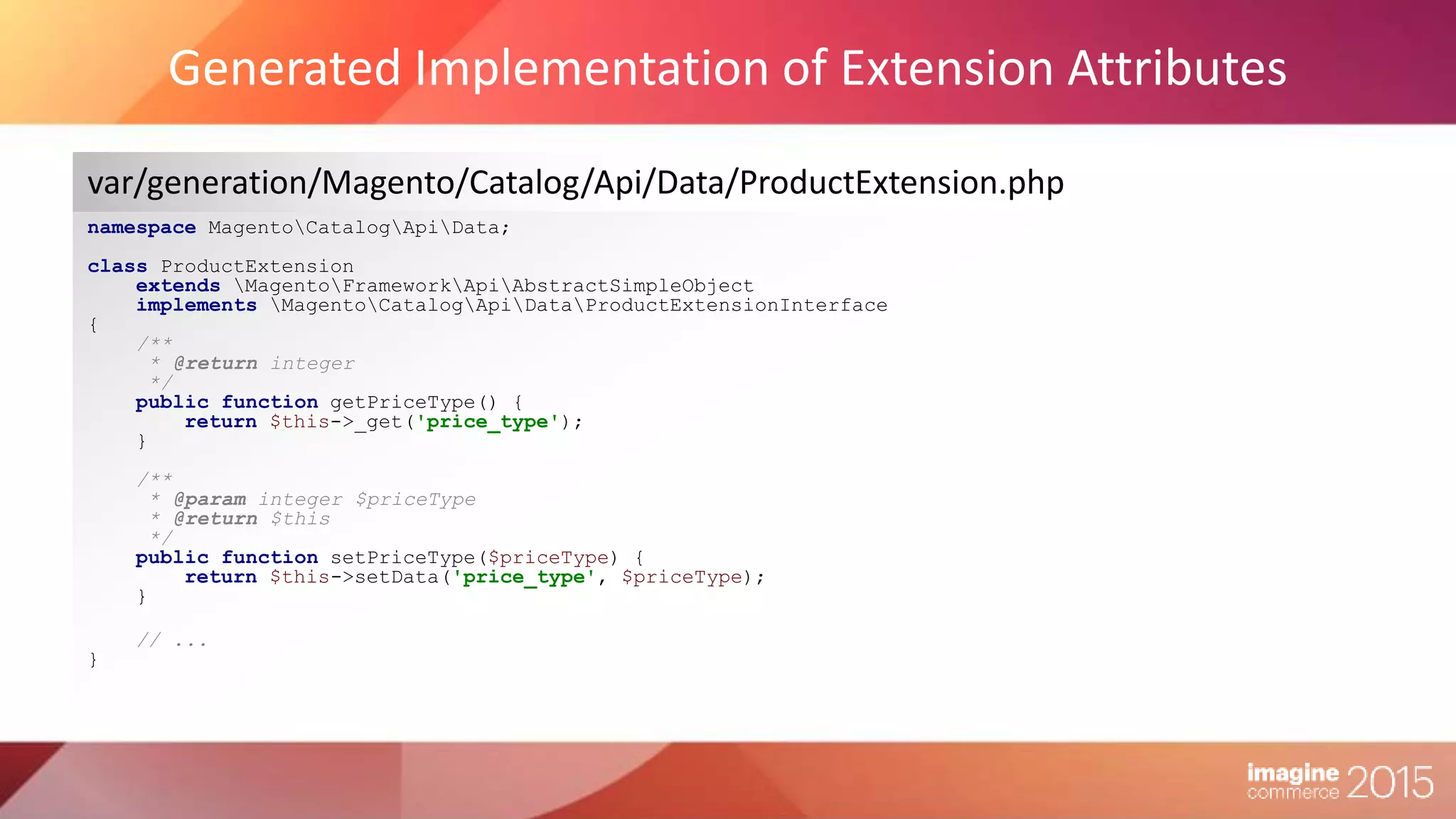

24. Generated Implementation of Extension Attributes
namespace MagentoCatalogApiData;
class ProductExtension
extends MagentoFrameworkApiAbstractSimpleObject
implements MagentoCatalogApiDataProductExtensionInterface
{
/**
* @return integer
*/
public function getPriceType() {
return $this->_get('price_type');
}
/**
* @param integer $priceType
* @return $this
*/
public function setPriceType($priceType) {
return $this->setData('price_type', $priceType);
}
// ...
}
var/generation/Magento/Catalog/Api/Data/ProductExtension.php

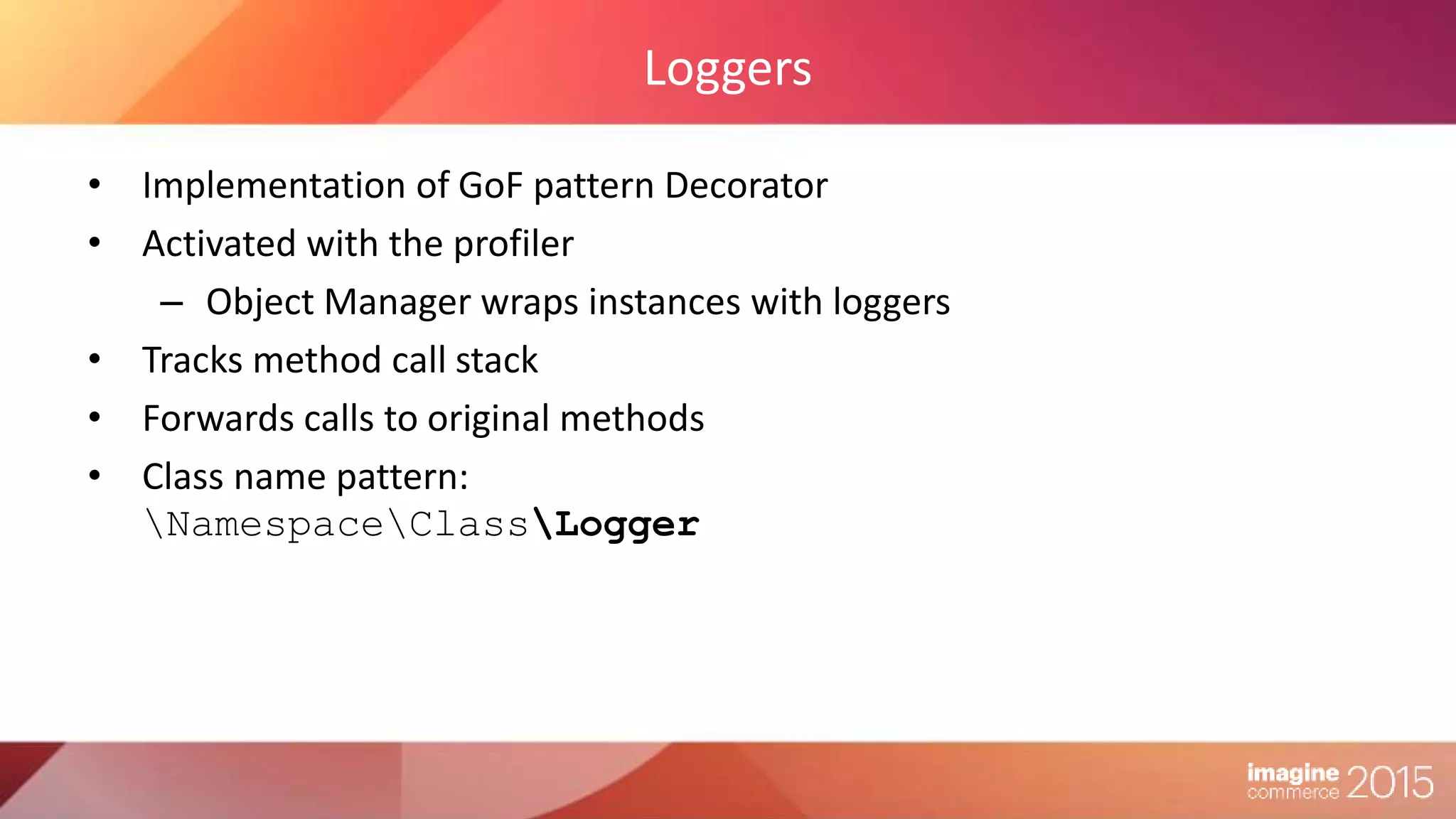

25. Loggers
• Implementation of GoF pattern Decorator
• Activated with the profiler
– Object Manager wraps instances with loggers
• Tracks method call stack
• Forwards calls to original methods
• Class name pattern:
NamespaceClassLogger

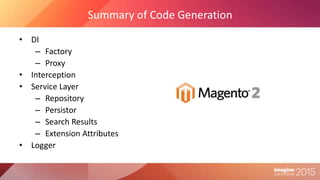

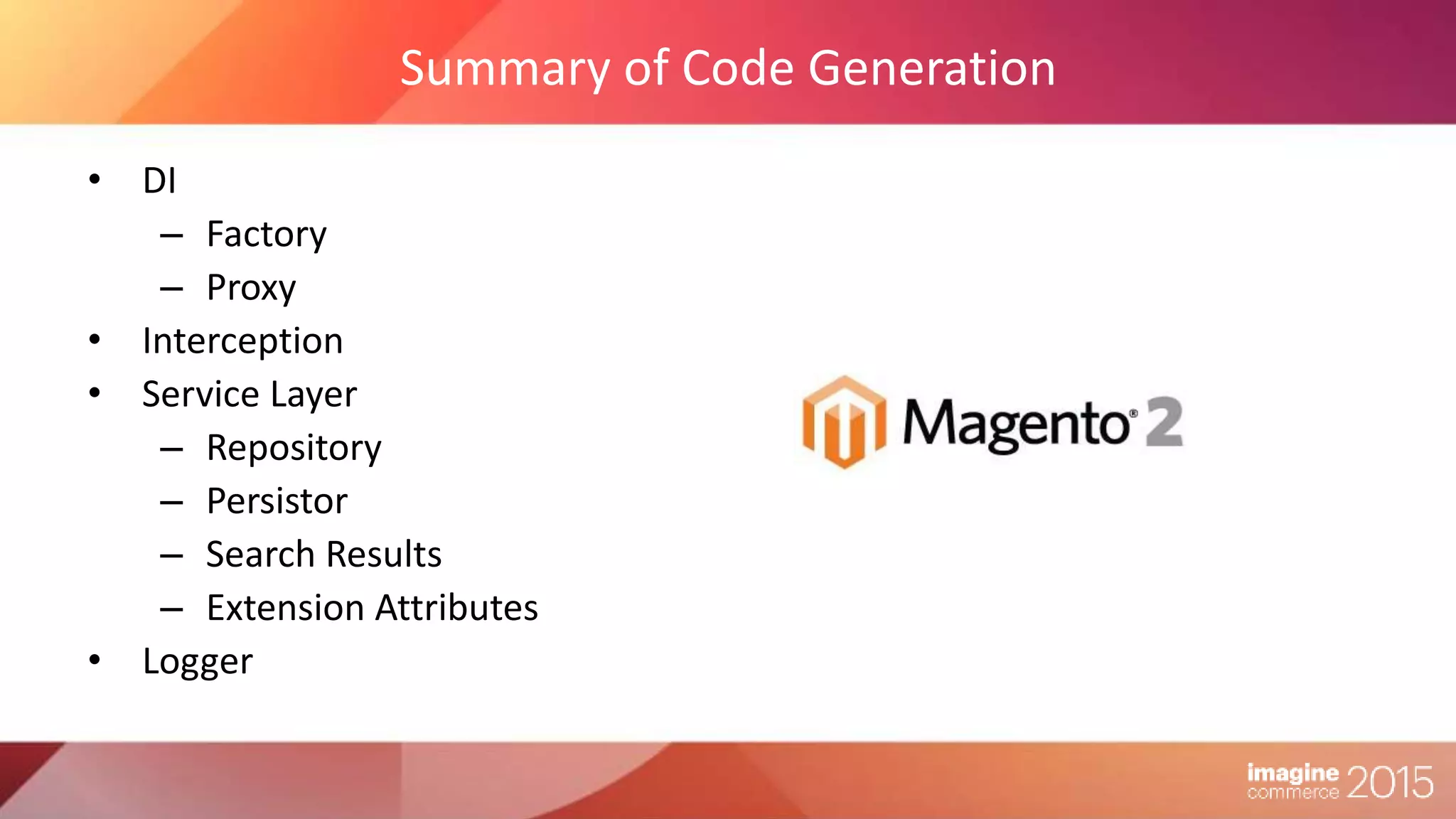

26. Summary of Code Generation
• DI
– Factory
– Proxy
• Interception
• Service Layer
– Repository
– Persistor
– Search Results
– Extension Attributes
• Logger

27. Thank You!
Q & A
Sergii Shymko
sshymko@ebay.com

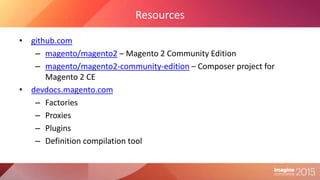

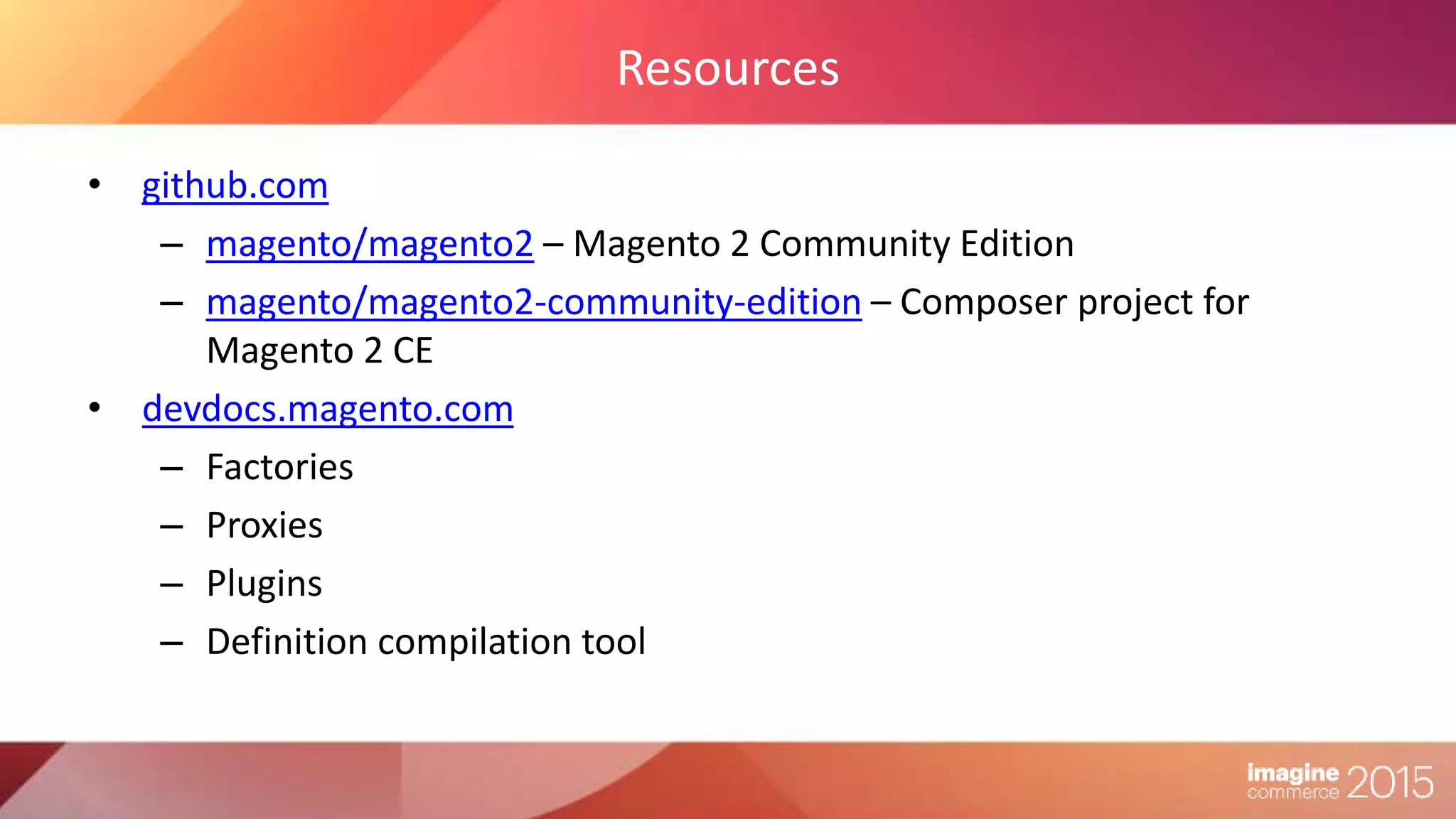

28. Resources
• github.com
– magento/magento2 – Magento 2 Community Edition
– magento/magento2-community-edition – Composer project for
Magento 2 CE
• devdocs.magento.com
– Factories
– Proxies
– Plugins
– Definition compilation tool
