Omni cnc router vacuum system has 3 parts:
Part 1: Bakelite vacuum table:vacuum hole,cover,sealing strip:
Vacuum hole Vacuum cover
Sealing Strip:
1300*2500mmcnc router: 4 independent small vacuum area, each area has 3 vacuum holes,
total 12 holes.
1500*3000mm,2000*3000mm: 6 independent small vacuum area, each has 3 vacuum holes,
total 18 holes.
Omni supply 24 vacuum hole cover and 20M length sealing strip for 1325 cnc router.
Omni supply 36 vacuum hole cover and 30M length sealing strip for 1530,2030,2040 cnc
router.

2. OMNI CNC Technology Co.,Lt T: 86-531-85669100 / F: 86-531-89003210
Address: No.8-10,Advanced Business Cetnter,Tianqiao,Jinan,Shandong,China,250032

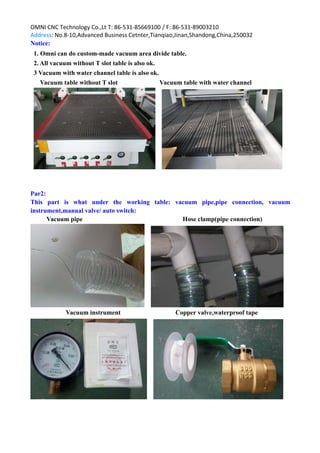

Notice:
1. Omni can do custom-made vacuum area divide table.
2. All vacuum without T slot table is also ok.
3 Vacuum with water channel table is also ok.
Vacuum table without T slot Vacuum table with water channel
Par2:
This part is what under the working table: vacuum pipe,pipe connection, vacuum
instrument,manual valve/ auto switch:
Vacuum pipe Hose clamp(pipe connection)
Vacuum instrument Copper valve,waterproof tape

3. OMNI CNC Technology Co.,Lt T: 86-531-85669100 / F: 86-531-89003210
Address: No.8-10,Advanced Business Cetnter,Tianqiao,Jinan,Shandong,China,250032
Manual vacuum switch Electronic button vacuum switch
PS: Electronic vacuum switch on ATC cnc router control cabinet:
Notice:
1 Every vacuum pipe connection have waterproof, hose clamp.
2 There is wire rope in the vacuum pipe. Pipe without deformation.
3 Copper vacuum valve have high seal effect and anti-rust.
4 Manual vacuum valve control and auto button vacuum control depend on your choice.
Part 3: Vacuum pump(here are the most popular models):
Type1: 2.2kw volute vacuum pump,80cbm/h

4. OMNI CNC Technology Co.,Lt T: 86-531-85669100 / F: 86-531-89003210
Address: No.8-10,Advanced Business Cetnter,Tianqiao,Jinan,Shandong,China,250032

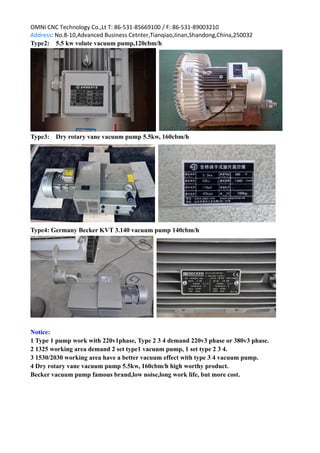

Type2: 5.5 kw volute vacuum pump,120cbm/h
Type3: Dry rotary vane vacuum pump 5.5kw, 160cbm/h
Type4: Germany Becker KVT 3.140 vacuum pump 140cbm/h
Notice:
1 Type 1 pump work with 220v1phase, Type 2 3 4 demand 220v3 phase or 380v3 phase.
2 1325 working area demand 2 set type1 vacuum pump, 1 set type 2 3 4.
3 1530/2030 working area have a better vacuum effect with type 3 4 vacuum pump.
4 Dry rotary vane vacuum pump 5.5kw, 160cbm/h high worthy product.
Becker vacuum pump famous brand,low noise,long work life, but more cost.
