Big data and its impact on SOA

Big Data
& its impact on SOA

Demed L’Her
Sr Director, Product Management, Oracle
demed.lher@oracle.com (twitter: @demed)

1 Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 13

Demed L’Her

• Senior Director, Product Management at Oracle –
Engineering team
• Based in Redwood Shores, California
• Team in charge of Oracle SOA Suite: Adapters, Service
Bus, BPEL, Event Processing, SOA Suite for Healthcare
(Java CAPS and WebLogic Integration)
• Responsible for product roadmap, execution
• With Oracle since 2006
• Co-author http://snipurl.com/soa11gbook
• Twitter: @demed | email: demed.lher@oracle.com


Program Agenda

1. Big Data Trends
2. Big Data and SOA
3. Integration Patterns for Big Data
4. Fast Data


Introduction to Big Data:
Problems, Trends
& Technology


Data
Explosion

Web & social
networks
experienced it
first…

Infographic by Go-gulf.com


… but enterprises are now facing it too … but
• Retail and web transaction data (to refine
enterprises are
recommendations, detect trends etc.) also facing it
• “Sensor” data: now
• GPS in mobile phones
• RFIDs
• NFC
• SmartMeters
• Etc.
• Log file monitoring and analysis
• Security monitoring

Utilities deploying smart meters?
 200x information flowing to data center!

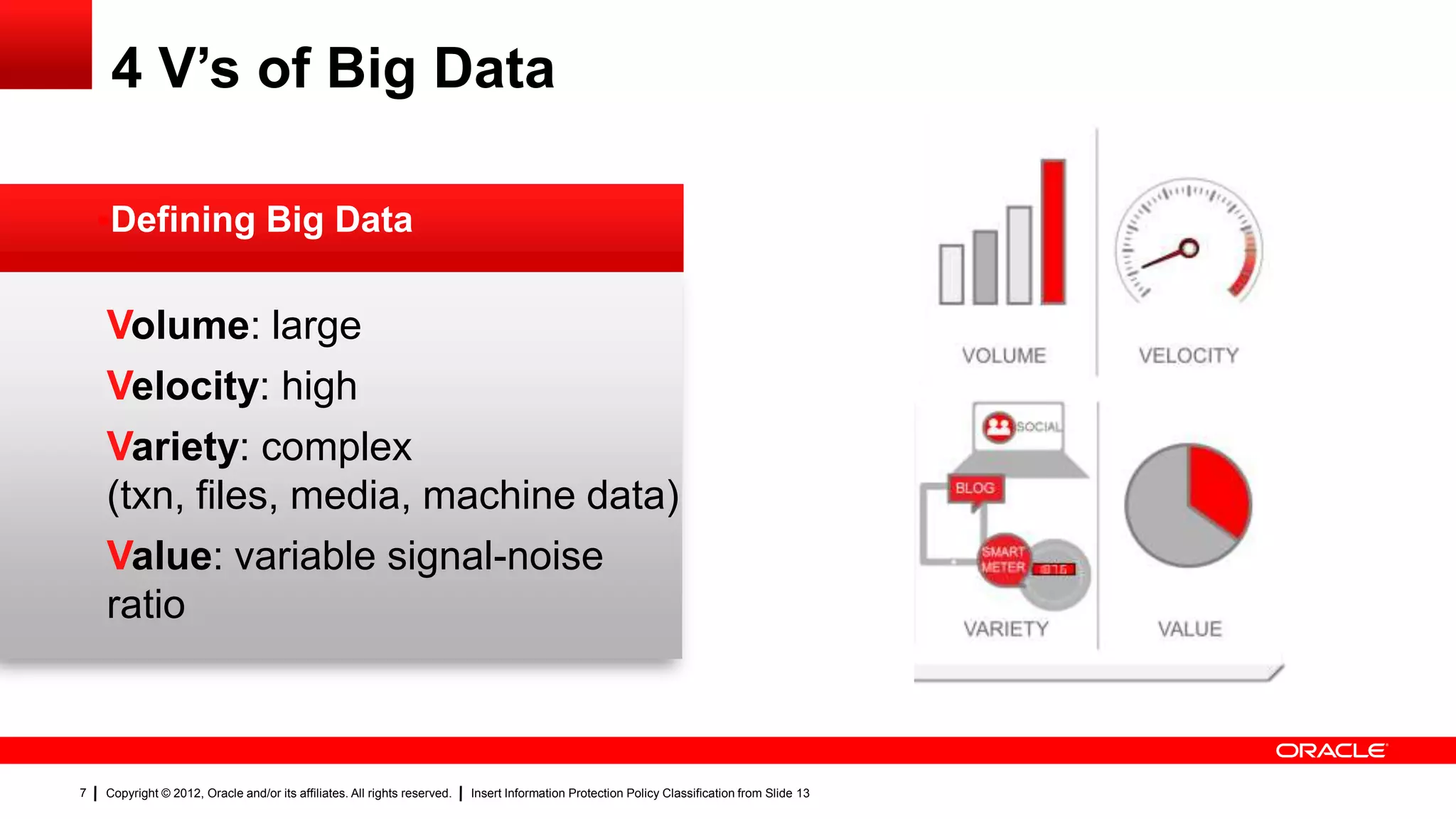

4 V’s of Big Data

Defining Big Data

Volume: large
Velocity: high
Variety: complex
(txn, files, media, machine data)
Value: variable signal-noise
ratio

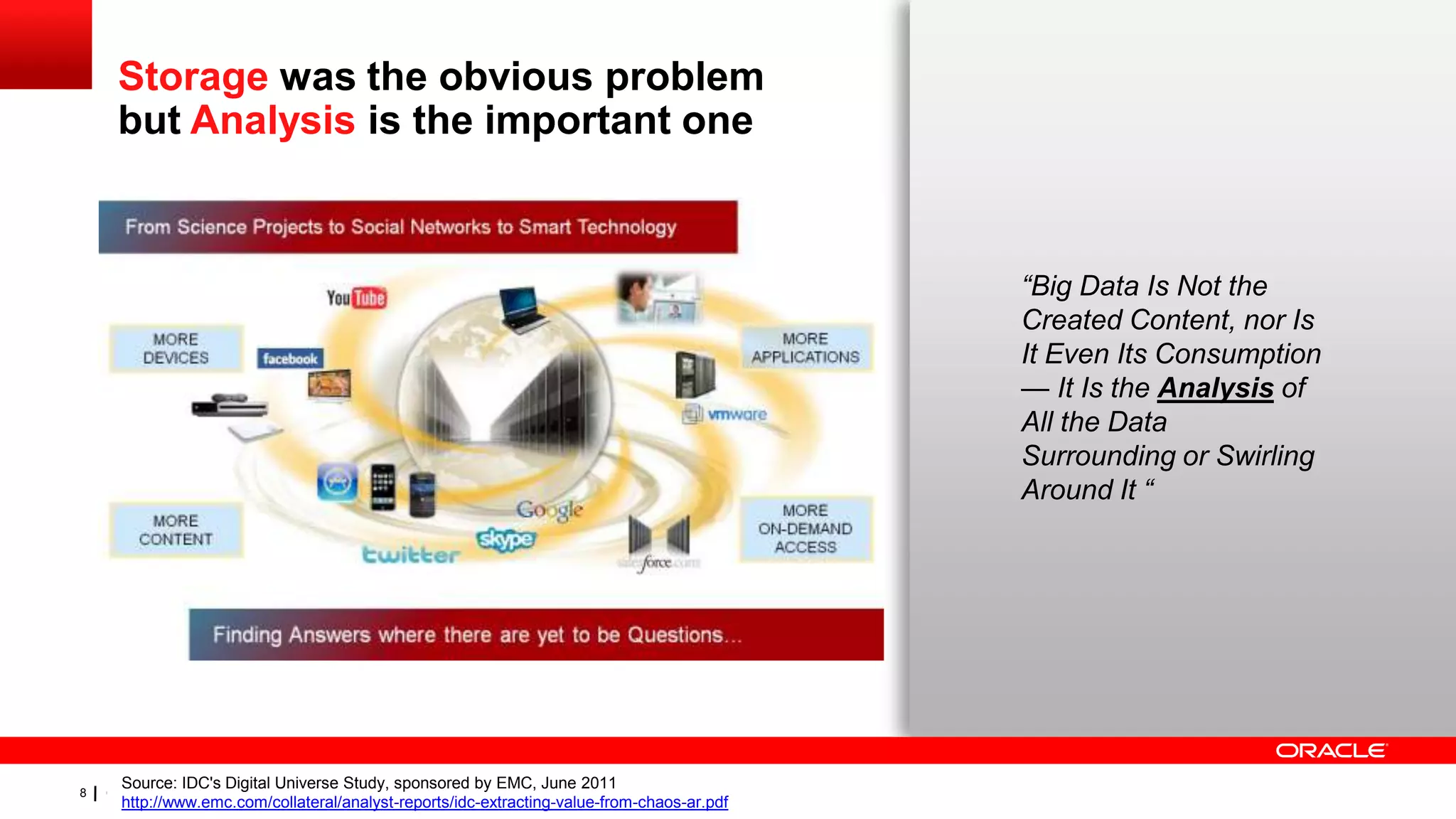

Storage was the obvious problem
but Analysis is the important one

Storage is the first obvious “Big Data Is Not the
Created Content, nor Is
problem. It Even Its Consumption
Analysis is next. — It Is the Analysis of
All the Data
Surrounding or Swirling
Around It “

Source: IDC's Digital Universe Study, sponsored by EMC, June 2011
8 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 13
http://www.emc.com/collateral/analyst-reports/idc-extracting-value-from-chaos-ar.pdf

Companies have realized that there is competitive
advantage in this information and that now is the time
to put this data to work.

An Architect’s Guide to Big Data
An Oracle White Paper in Enterprise Architecture
http://www.oracle.com/technetwork/topics/entarch/articles/oea-big-data-guide-1522052.pdf

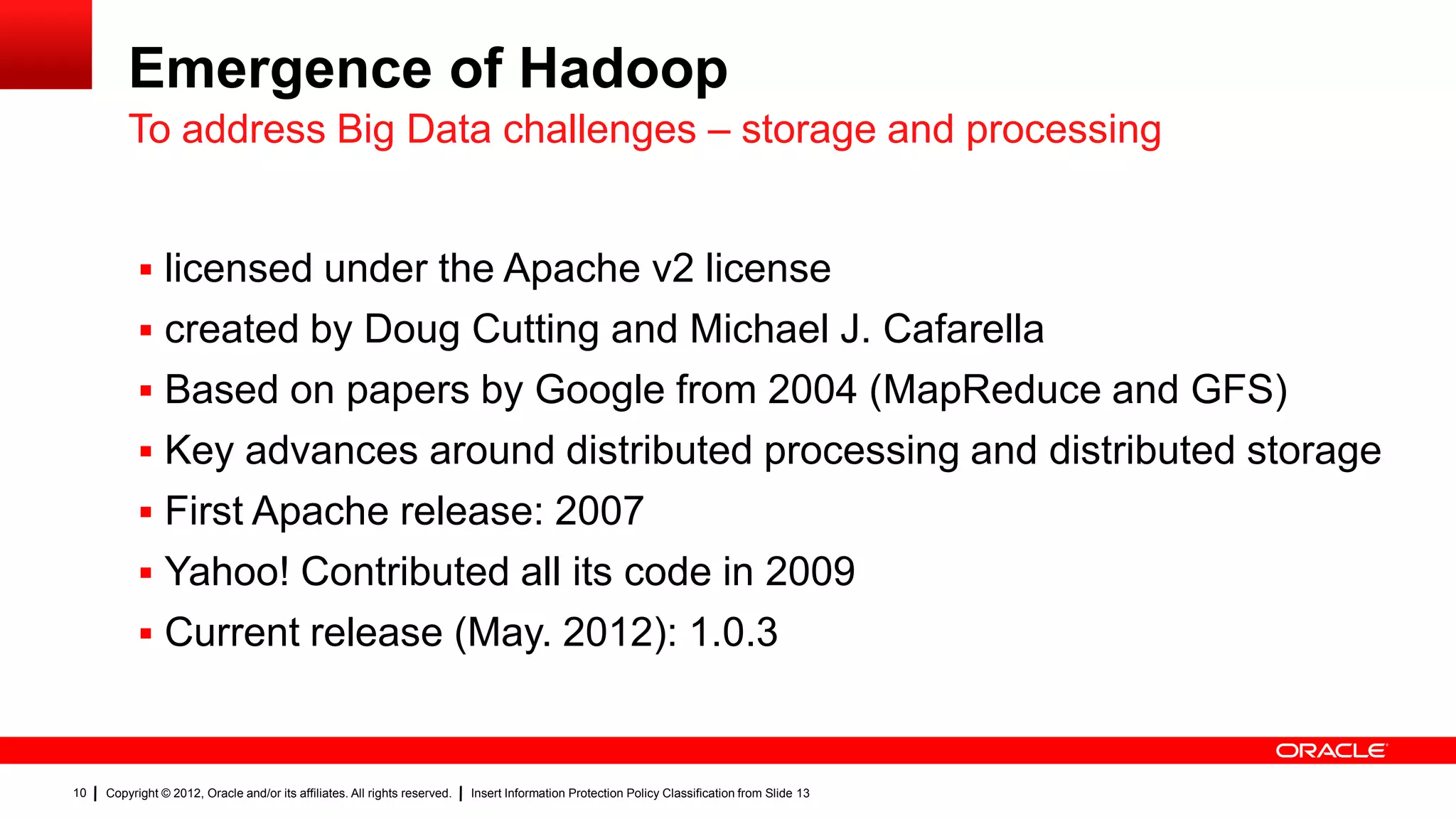

Emergence of Hadoop
To address Big Data challenges – storage and processing

 licensed under the Apache v2 license
 created by Doug Cutting and Michael J. Cafarella
 Based on papers by Google from 2004 (MapReduce and GFS)
 Key advances around distributed processing and distributed storage
 First Apache release: 2007
 Yahoo! Contributed all its code in 2009
 Current release (May. 2012): 1.0.3

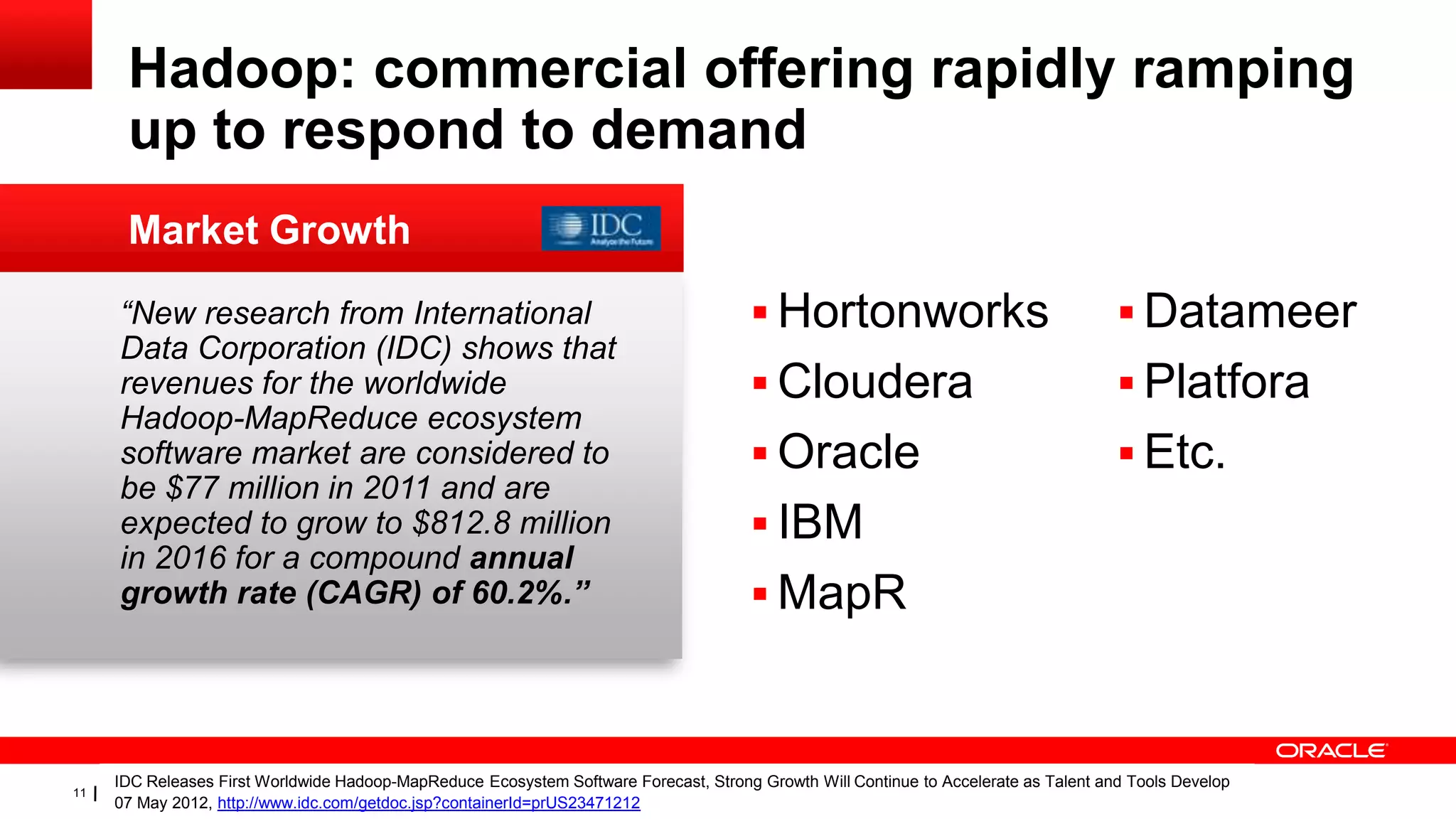

Hadoop: commercial offering rapidly ramping
up to respond to demand
Market Growth
“New research from International  Hortonworks  Datameer
Data Corporation (IDC) shows that
revenues for the worldwide  Cloudera  Platfora
Hadoop-MapReduce ecosystem
software market are considered to  Oracle  Etc.
be $77 million in 2011 and are
expected to grow to $812.8 million  IBM
in 2016 for a compound annual
growth rate (CAGR) of 60.2%.”  MapR

IDC Releases First Worldwide Hadoop-MapReduce Ecosystem Software Forecast, Strong Growth Will Continue to Accelerate as Talent and Tools Develop
11 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.
Insert Information Protection Policy Classification from Slide 13
07 May 2012, http://www.idc.com/getdoc.jsp?containerId=prUS23471212

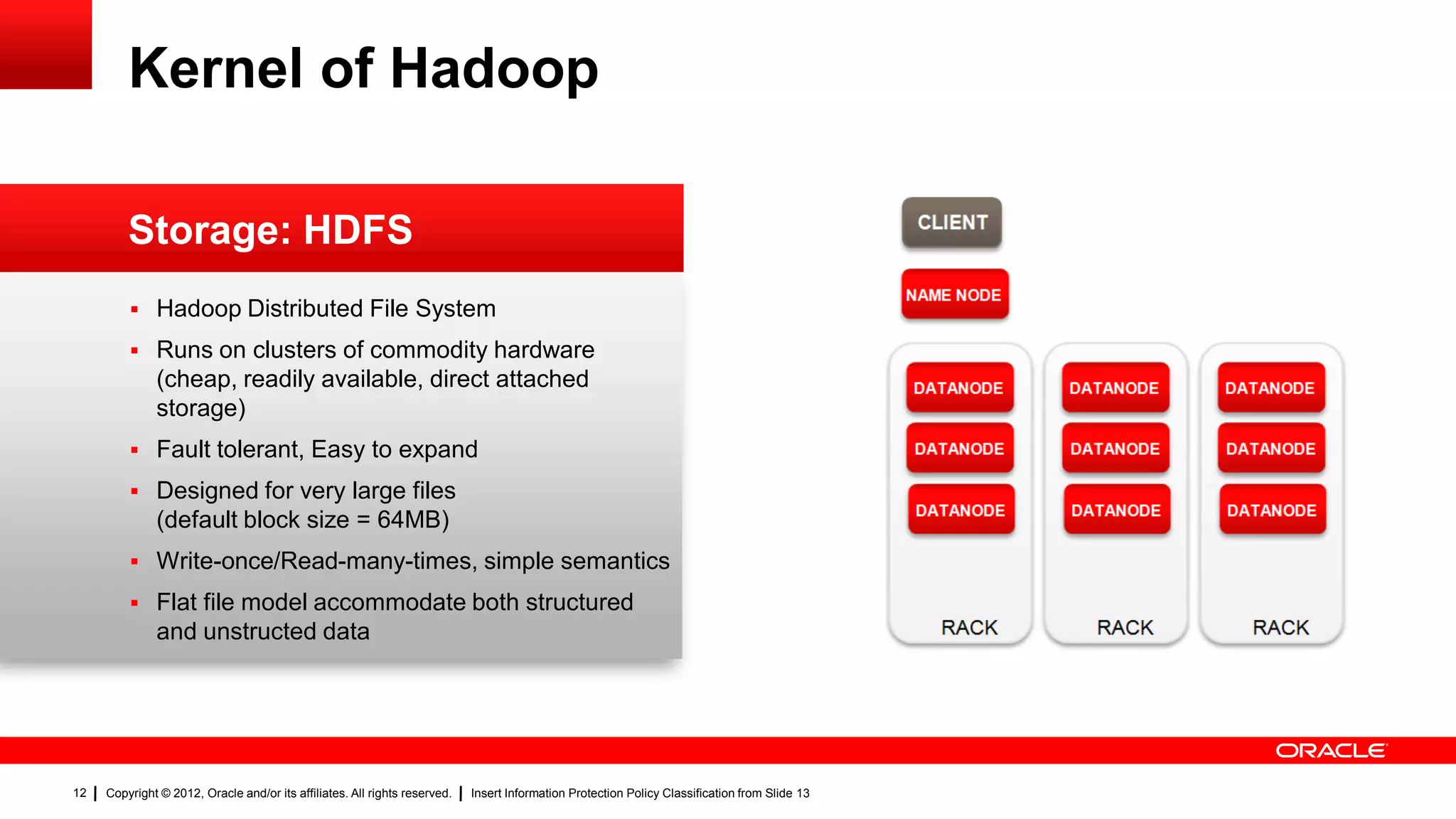

Kernel of Hadoop

CLIENT
Storage: HDFS
NAME NODE
 Hadoop Distributed File System

 Runs on clusters of commodity hardware
(cheap, readily available, direct attached DATANODE DATANODE DATANODE
storage)
 Fault tolerant, Easy to expand DATANODE DATANODE DATANODE

 Designed for very large files
DATANODE DATANODE DATANODE
(default block size = 64MB)
 Write-once/Read-many-times, simple semantics
 Flat file model accommodate both structured
and unstructed data RACK RACK RACK

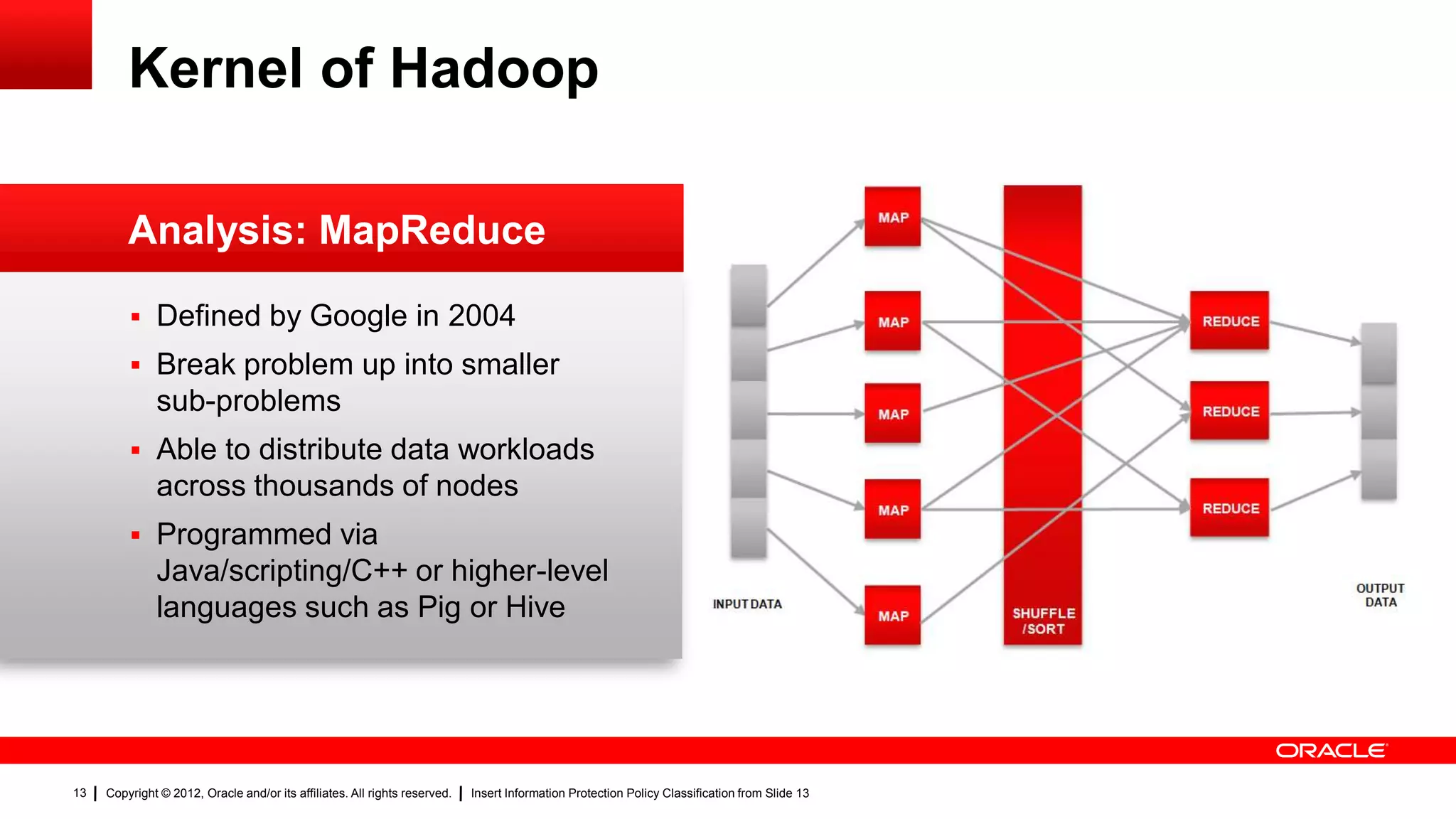

Kernel of Hadoop

MAP
Analysis: MapReduce

 Defined by Google in 2004 MAP REDUCE

 Break problem up into smaller
sub-problems MAP REDUCE

 Able to distribute data workloads
across thousands of nodes
MAP REDUCE
 Programmed via
Java/scripting/C++ or higher-level
OUTPUT
languages such as Pig or Hive INPUT DATA
SHUFFLE
DATA
MAP
/SORT

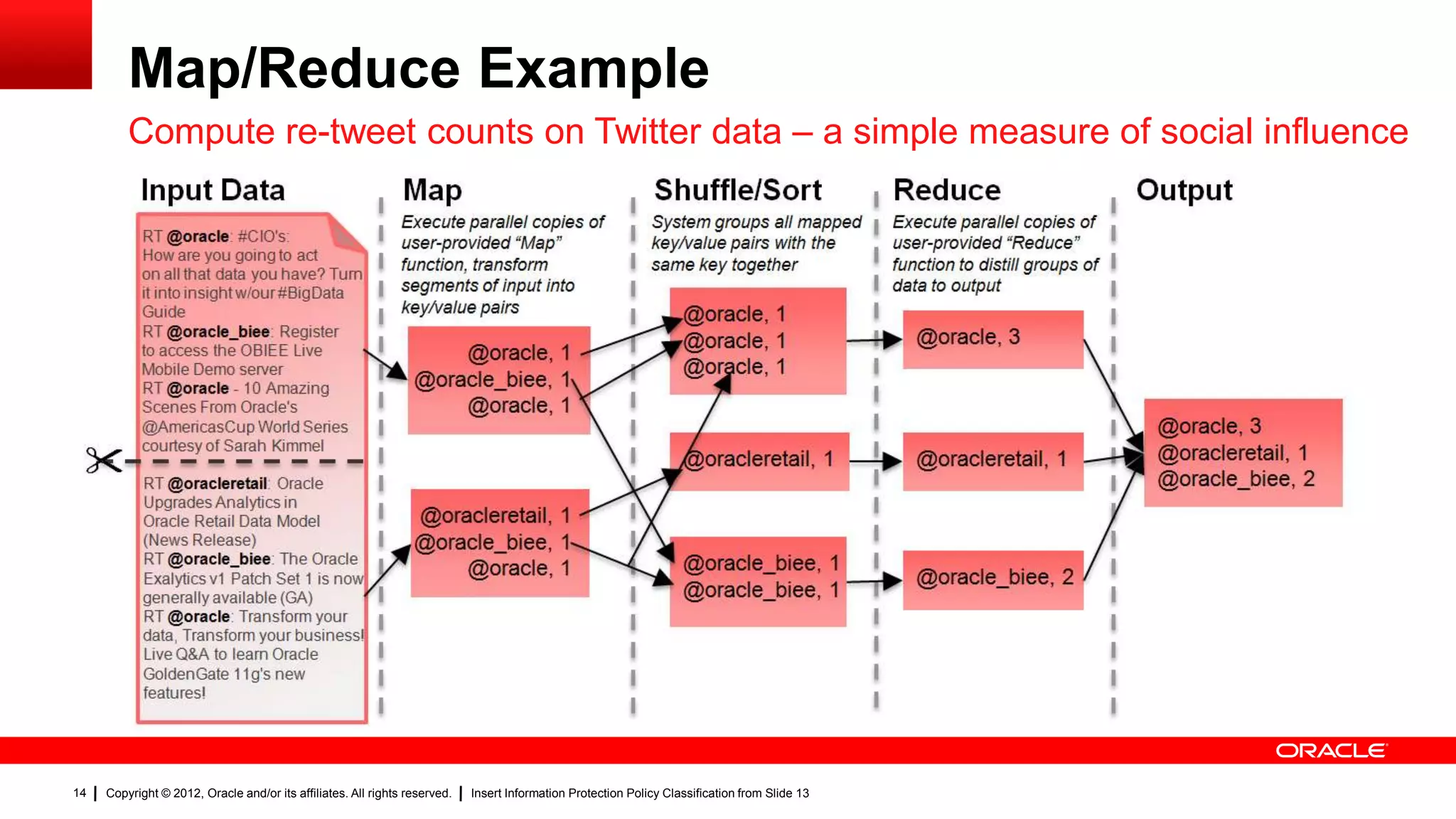

Map/Reduce Example
Compute re-tweet counts on Twitter data – a simple measure of social influence
Input Data Map Shuffle/Sort Reduce Output
Execute parallel copies of System groups all mapped Execute parallel copies of
RT @oracle: #CIO's: user-provided “Map” key/value pairs with the user-provided “Reduce”
How are you going to act
function, transform same key together function to distill groups of
on all that data you have? Turn
it into insight w/our #BigData segments of input into data to output
Guide key/value pairs @oracle, 1
RT @oracle_biee: Register @oracle, 3
@oracle, 1
to access the OBIEE Live @oracle, 1
Mobile Demo server @oracle, 1
RT @oracle - 10 Amazing @oracle_biee, 1
Scenes From Oracle's @oracle, 1
@AmericasCup World Series @oracle, 3
courtesy of Sarah Kimmel
 RT @oracleretail: Oracle
@oracleretail, 1 @oracleretail, 1 @oracleretail, 1
@oracle_biee, 2
Upgrades Analytics in
Oracle Retail Data Model @oracleretail, 1
(News Release) @oracle_biee, 1
RT @oracle_biee: The Oracle @oracle_biee, 1
Exalytics v1 Patch Set 1 is now @oracle, 1 @oracle_biee, 2
generally available (GA) @oracle_biee, 1
RT @oracle: Transform your
data, Transform your business!
Live Q&A to learn Oracle
GoldenGate 11g's new
features!

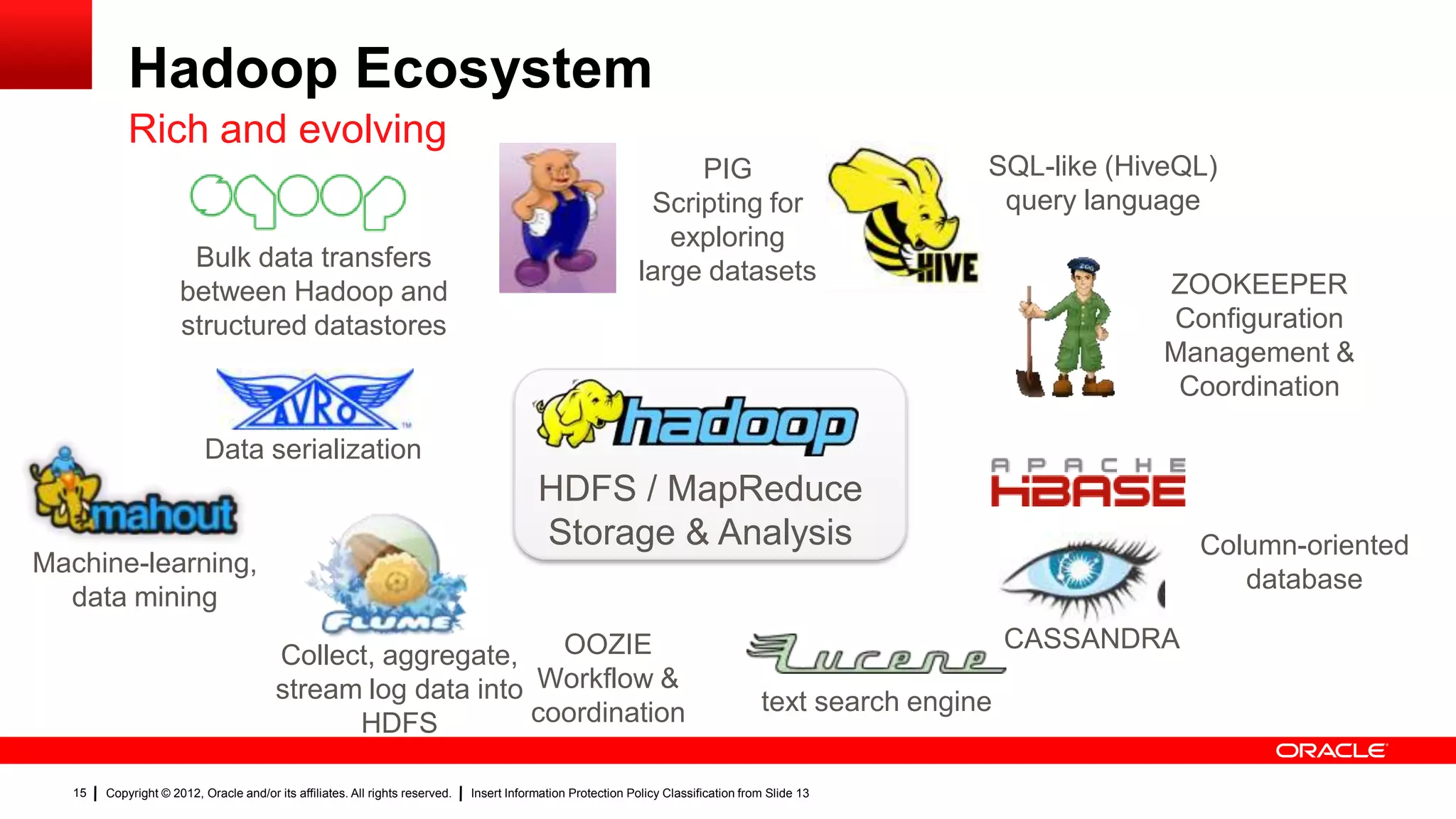

Hadoop Ecosystem
Rich and evolving
PIG SQL-like (HiveQL)
Scripting for query language
exploring
Bulk data transfers large datasets
between Hadoop and ZOOKEEPER
structured datastores Configuration
Management &
Coordination

Data serialization
HDFS / MapReduce
Storage & Analysis Column-oriented
Machine-learning,
database
data mining
OOZIE CASSANDRA
Collect, aggregate,
stream log data into Workflow & text search engine
HDFS coordination


What does SOA have to do
with Big Data?

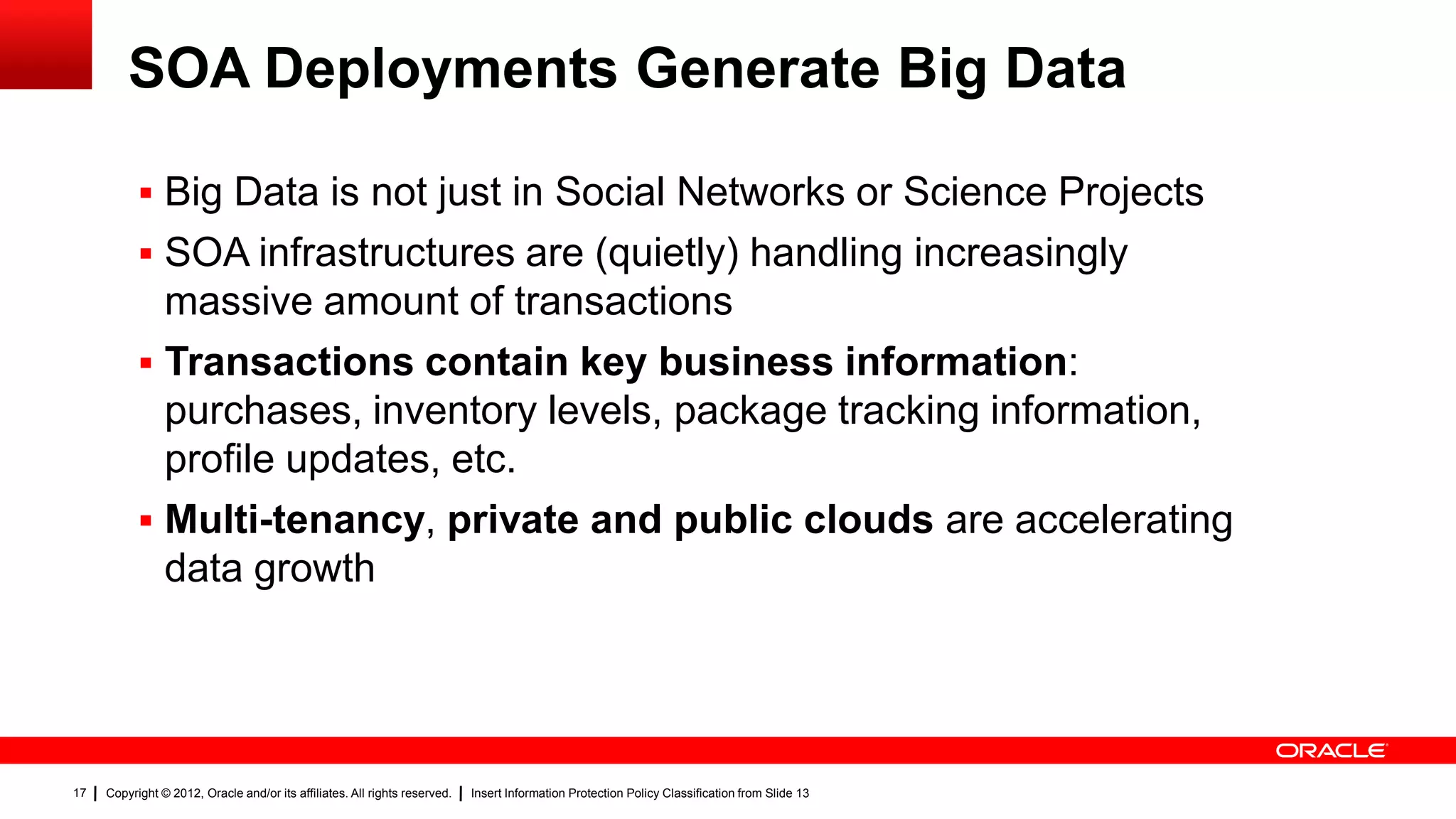

SOA Deployments Generate Big Data

 Big Data is not just in Social Networks or Science Projects
 SOA infrastructures are (quietly) handling increasingly
massive amount of transactions
 Transactions contain key business information:
purchases, inventory levels, package tracking information,
profile updates, etc.
 Multi-tenancy, private and public clouds are accelerating
data growth

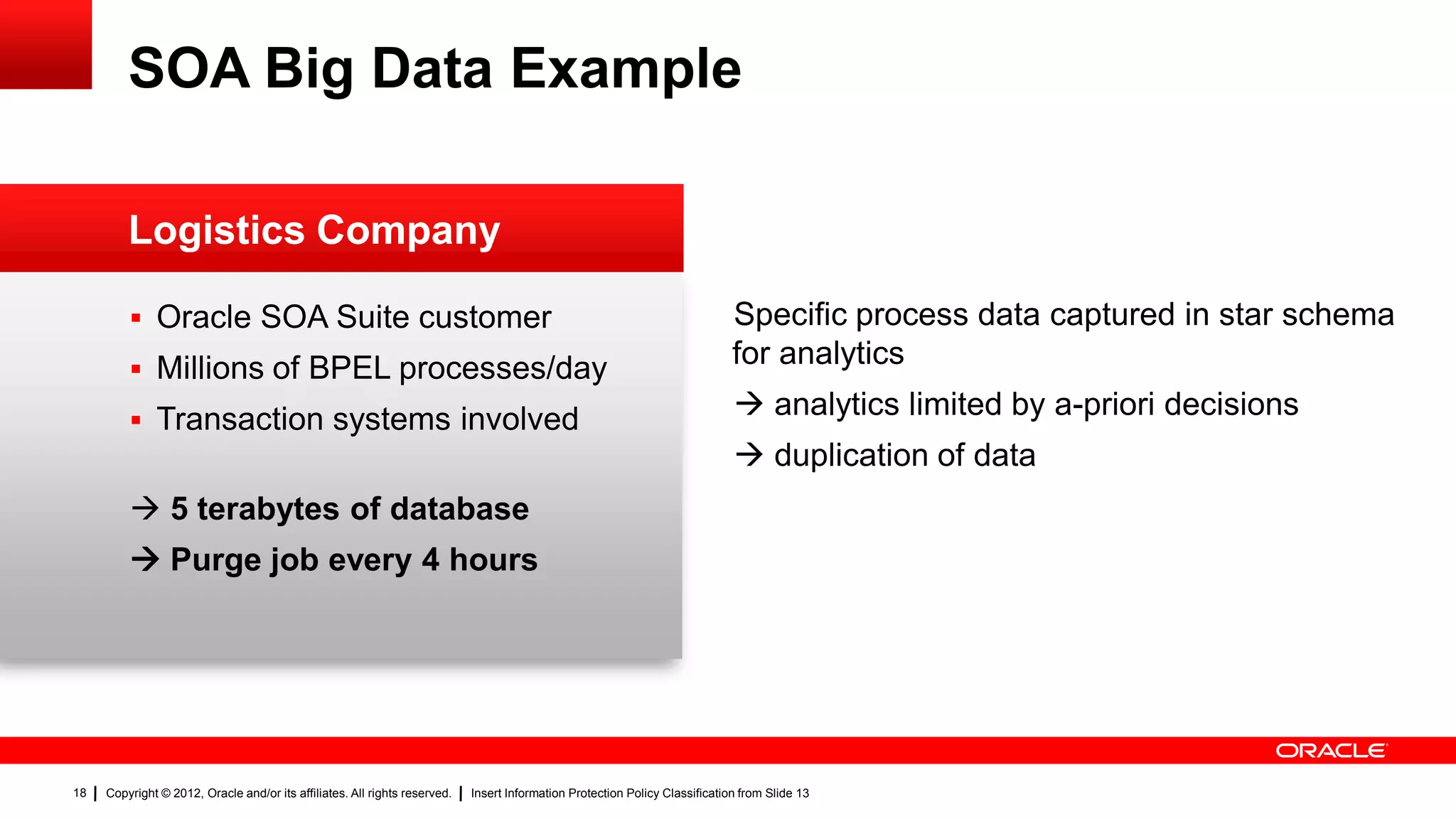

SOA Big Data Example

Logistics Company

 Oracle SOA Suite customer Specific process data captured in star schema
 Millions of BPEL processes/day
for analytics

 Transaction systems involved
 analytics limited by a-priori decisions
 duplication of data
 5 terabytes of database
 Purge job every 4 hours

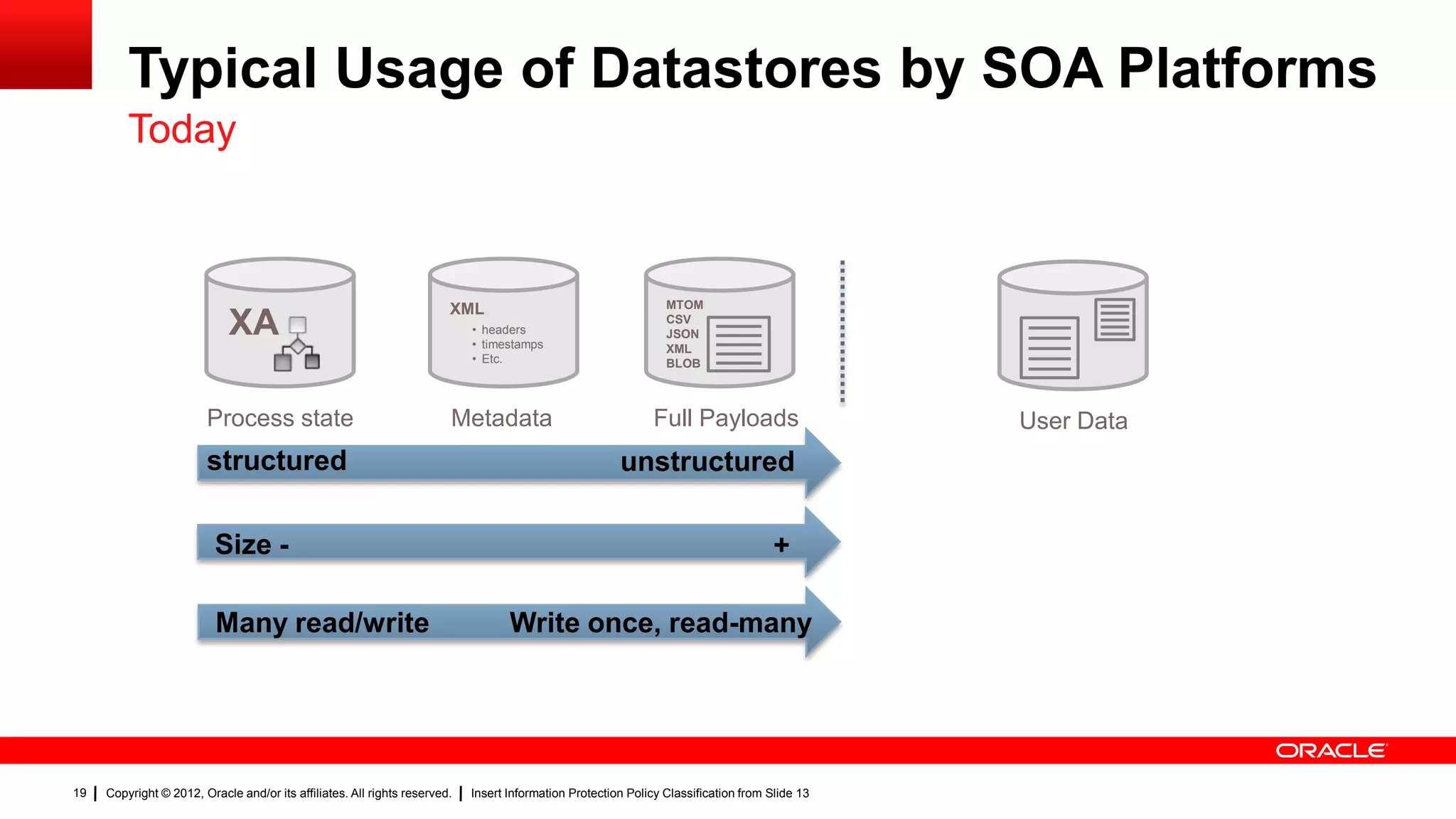

Typical Usage of Datastores by SOA Platforms
Today

XML MTOM

XA • headers
• timestamps
CSV
JSON
XML
• Etc. BLOB

Process state Metadata Full Payloads User Data
structured unstructured

Size - +

Many read/write Write once, read-many

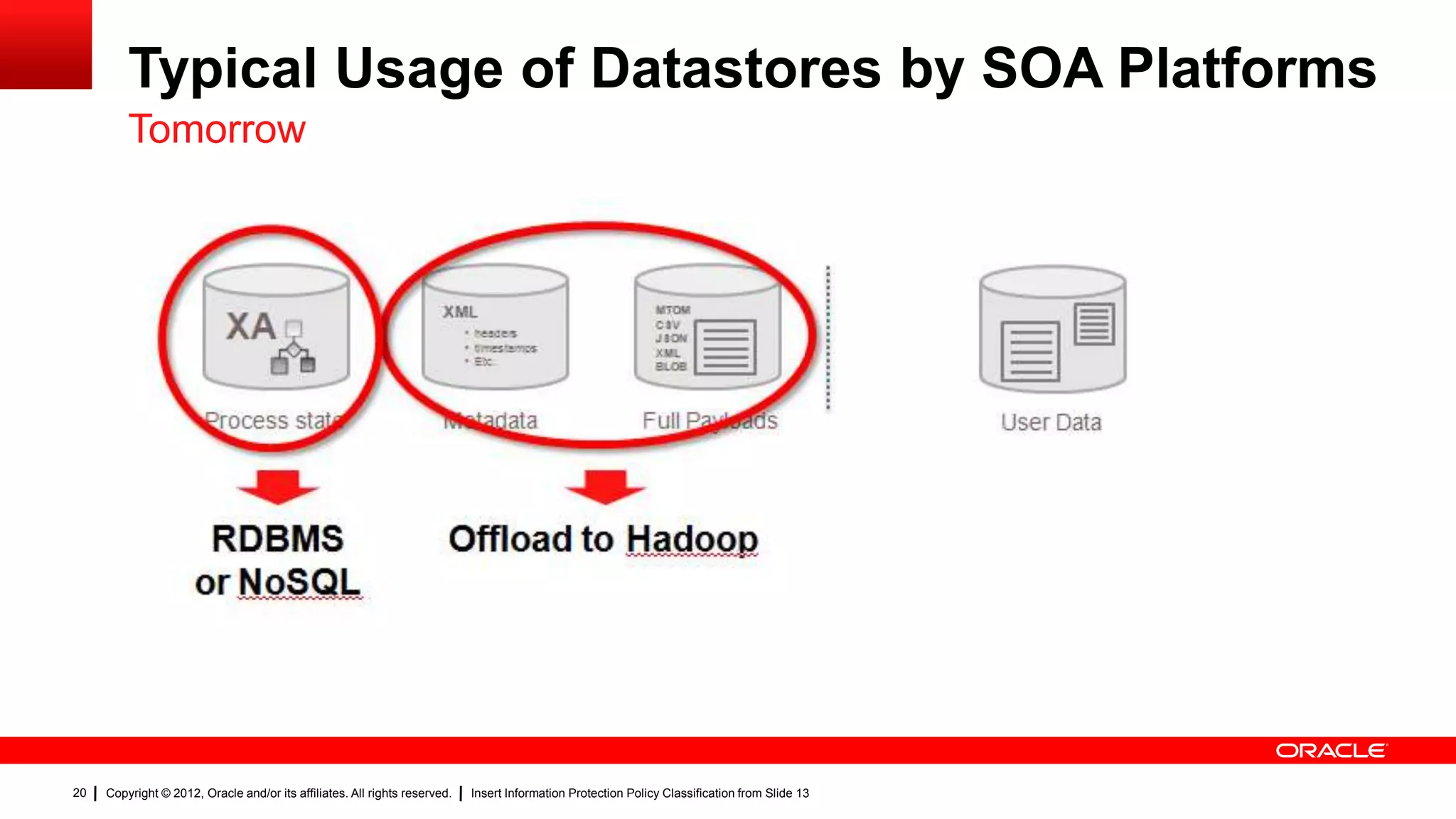

Typical Usage of Datastores by SOA Platforms
Tomorrow

XML MTOM

XA • headers
• timestamps
CSV
JSON
XML
• Etc. BLOB

Process state Metadata Full Payloads User Data

RDBMS Offload to Hadoop
or NoSQL

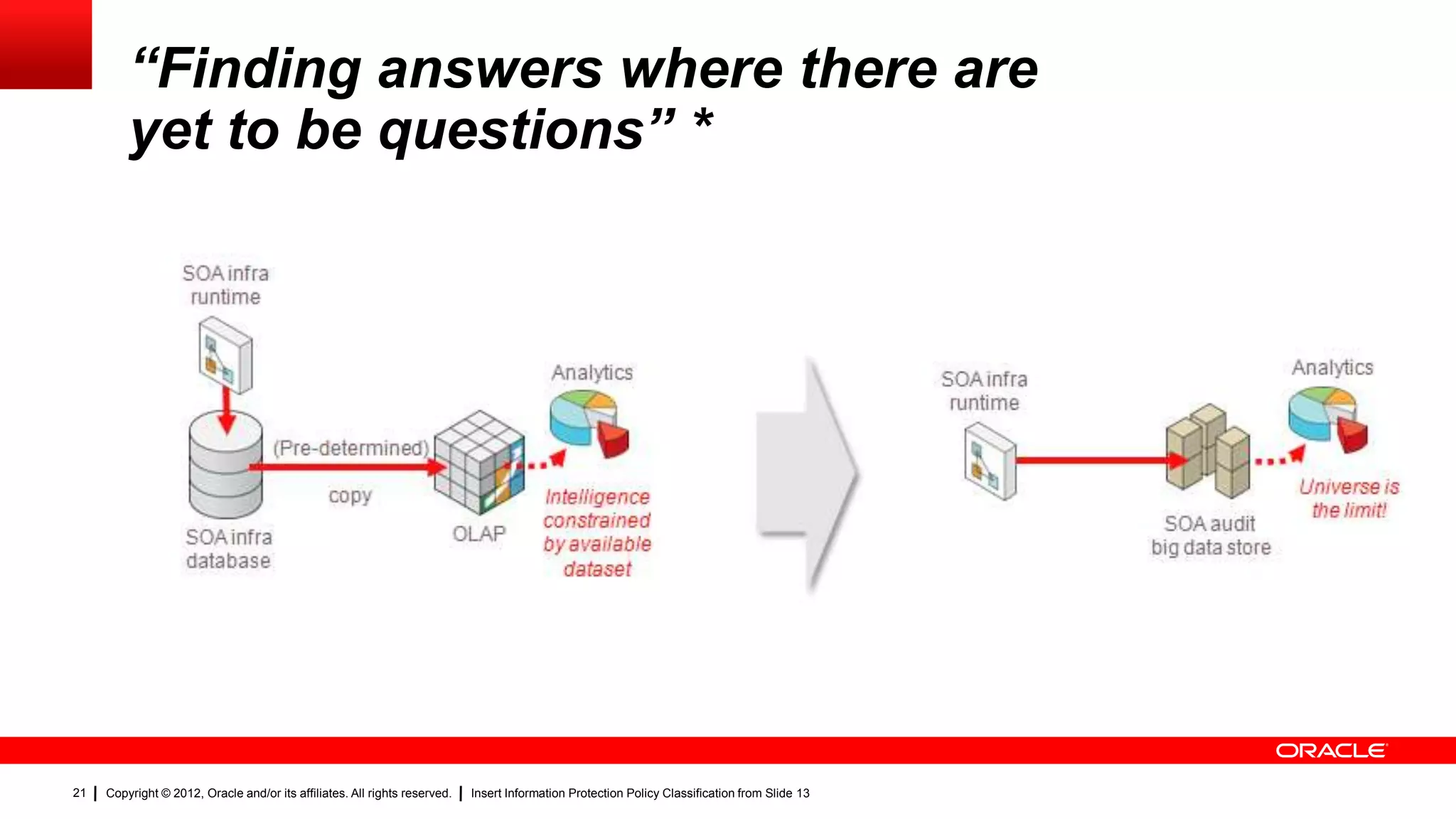

“Finding answers where there are
yet to be questions” *

SOA infra
runtime

Analytics Analytics
SOA infra
runtime

(Pre-determined)
Universe is
copy Intelligence
the limit!
constrained SOA audit
SOA infra OLAP
by available big data store
database dataset


Impact of Big Data:
New Integration Patterns

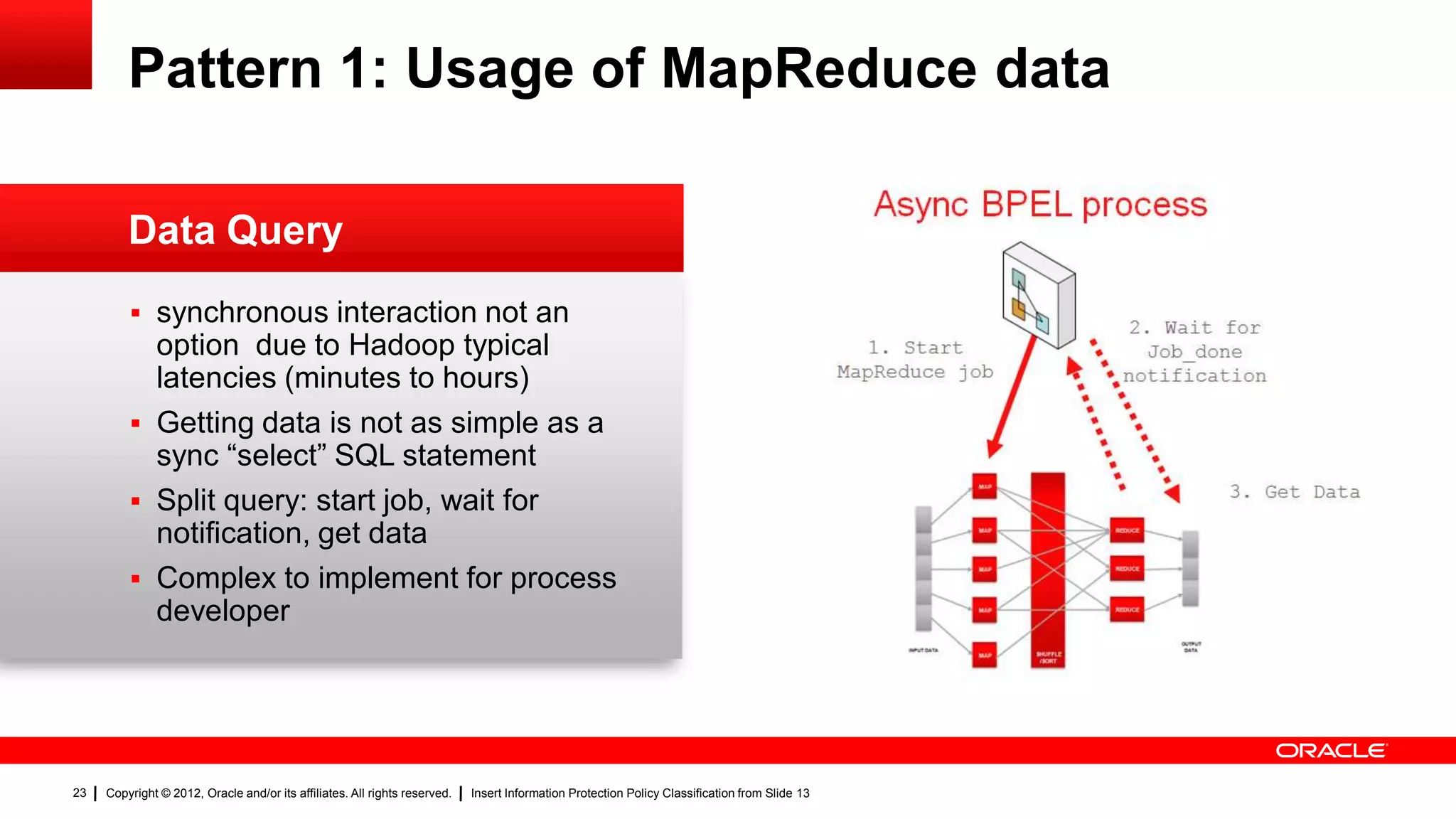

Pattern 1: Usage of MapReduce data

Async BPEL process
Data Query
 synchronous interaction not an
2. Wait for
option due to Hadoop typical 1. Start Job_done
latencies (minutes to hours) MapReduce job notification

 Getting data is not as simple as a
sync “select” SQL statement
 Split query: start job, wait for 3. Get Data
notification, get data
 Complex to implement for process
developer

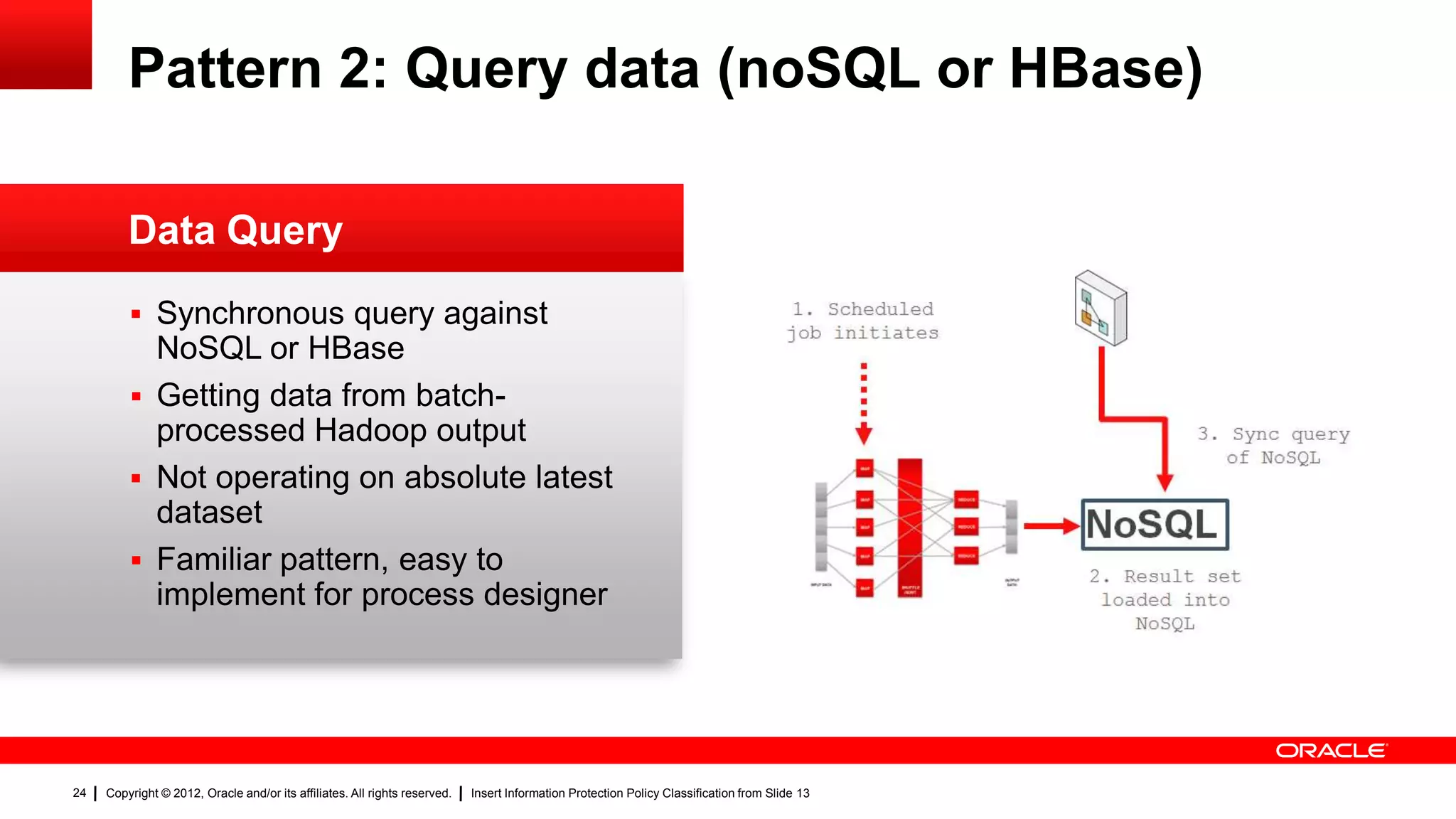

Pattern 2: Query data (noSQL or HBase)

Data Query
 Synchronous query against 1. Scheduled
job initiates
NoSQL or HBase
 Getting data from batch-
processed Hadoop output 3. Sync query
of NoSQL
 Not operating on absolute latest
dataset
NoSQL
 Familiar pattern, easy to
2. Result set
implement for process designer loaded into
NoSQL

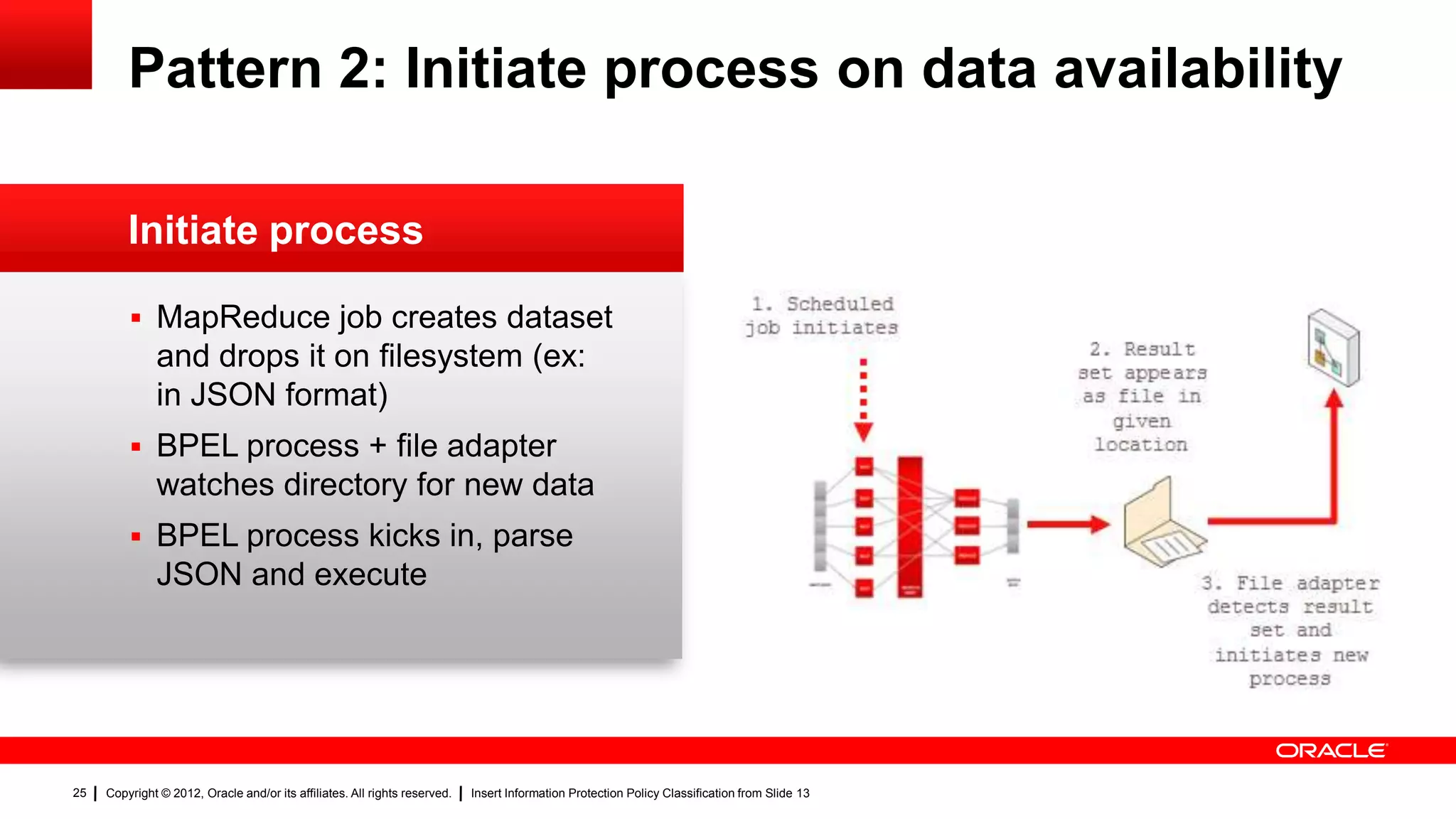

Pattern 2: Initiate process on data availability

Initiate process
1. Scheduled
 MapReduce job creates dataset job initiates
and drops it on filesystem (ex: 2. Result
set appears
in JSON format) as file in
given
 BPEL process + file adapter location
watches directory for new data
 BPEL process kicks in, parse
JSON and execute 3. File adapter
detects result
set and
initiates new
process


Fast Data
Get Ahead of the Curve

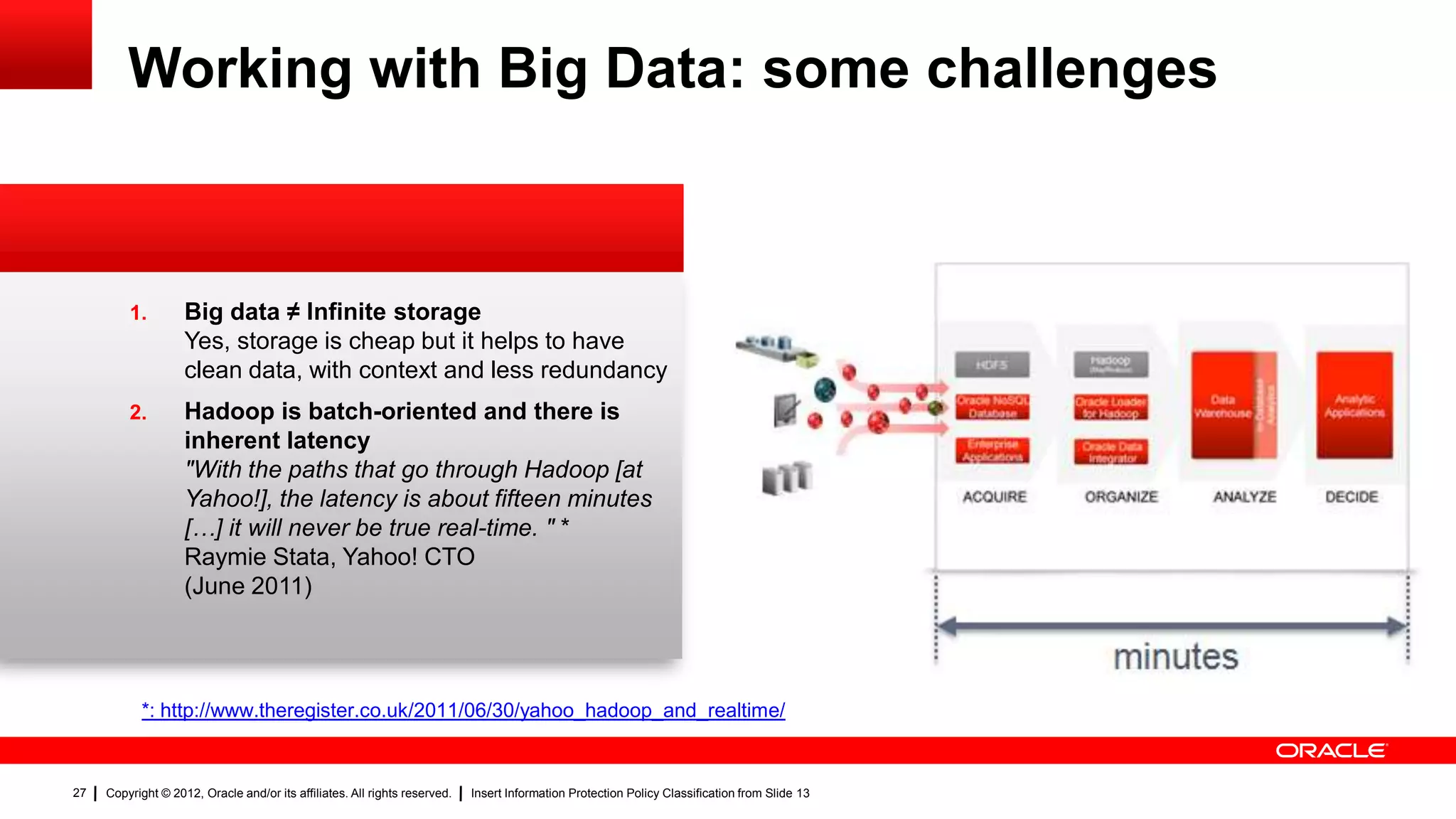

Working with Big Data: some challenges

1. Big data ≠ Infinite storage
Yes, storage is cheap but it helps to have
clean data, with context and less redundancy
2. Hadoop is batch-oriented and there is
inherent latency
"With the paths that go through Hadoop [at
Yahoo!], the latency is about fifteen minutes
[…] it will never be true real-time. " *
Raymie Stata, Yahoo! CTO
(June 2011)

minutes
*: http://www.theregister.co.uk/2011/06/30/yahoo_hadoop_and_realtime/

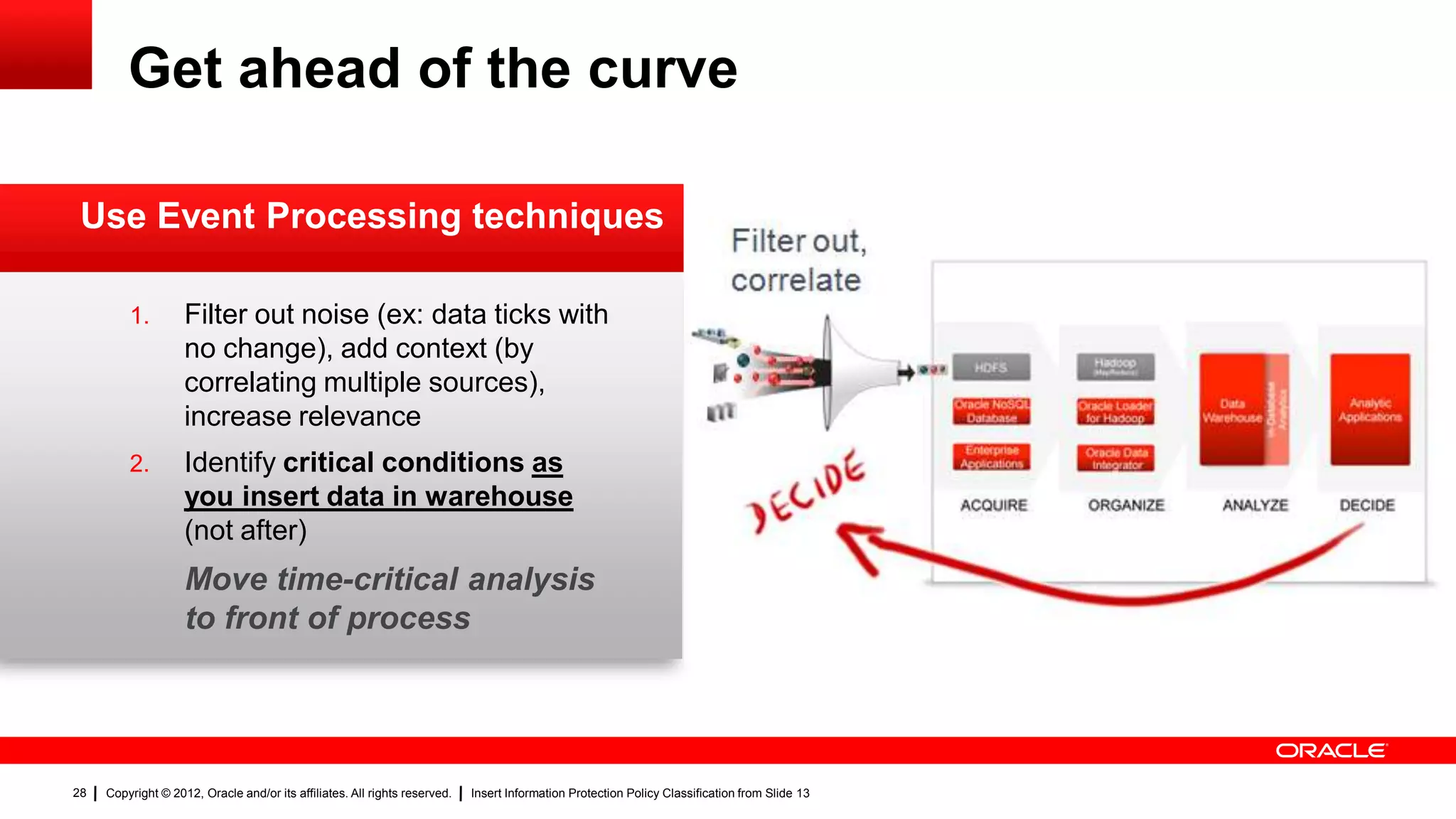

Get ahead of the curve

Use Event Processing techniques
Filter out,
correlate
1. Filter out noise (ex: data ticks with
no change), add context (by
correlating multiple sources),
increase relevance
2. Identify critical conditions as
you insert data in warehouse
(not after)
Move time-critical analysis
to front of process

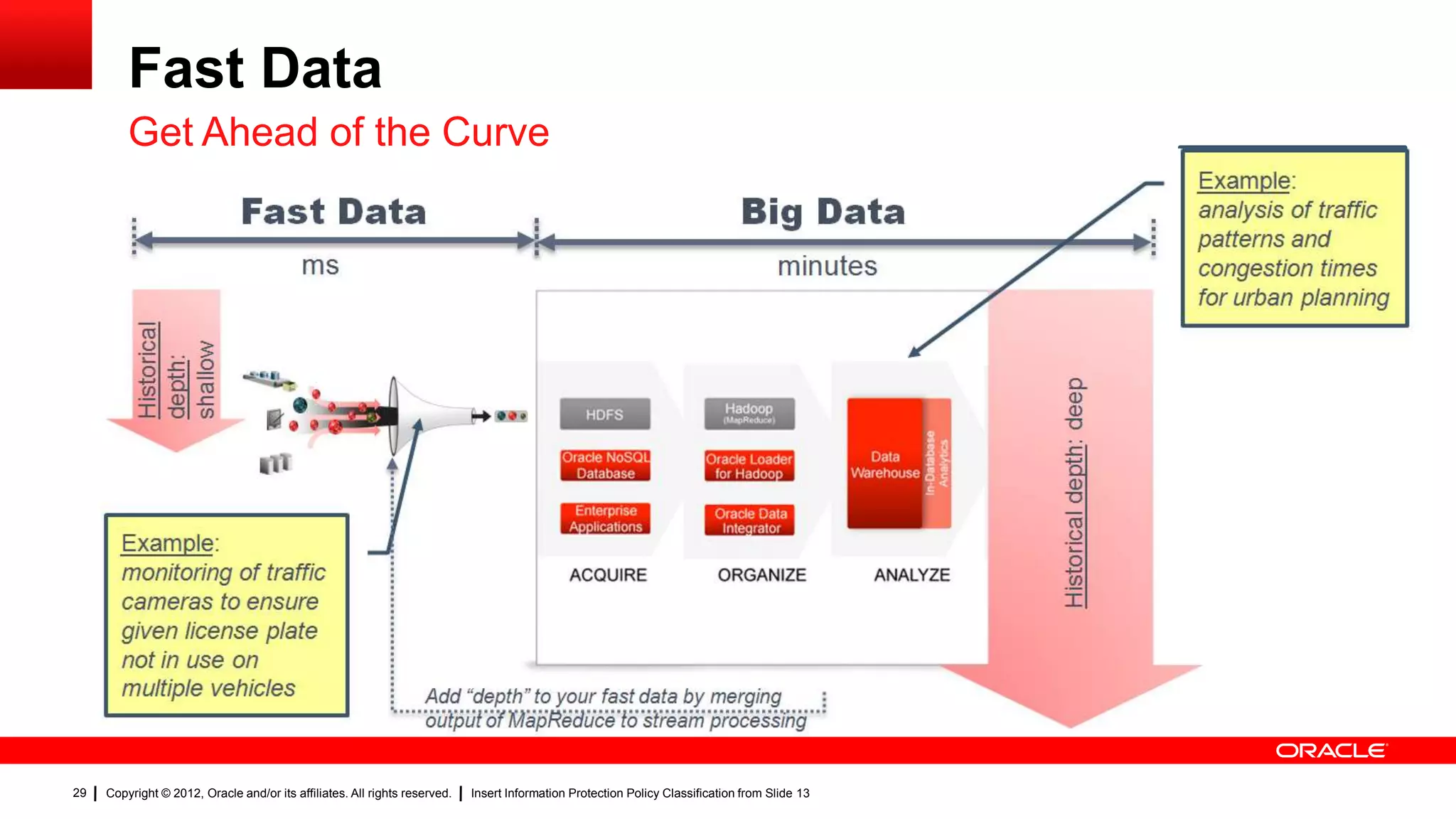

Fast Data
Get Ahead of the Curve
Example:
Fast Data Big Data analysis of traffic
patterns and
ms minutes congestion times
for urban planning
Historical

shallow
depth:

Historical depth: deep
Example:
monitoring of traffic
cameras to ensure
given license plate
not in use on
multiple vehicles Add “depth” to your fast data by merging
output of MapReduce to stream processing

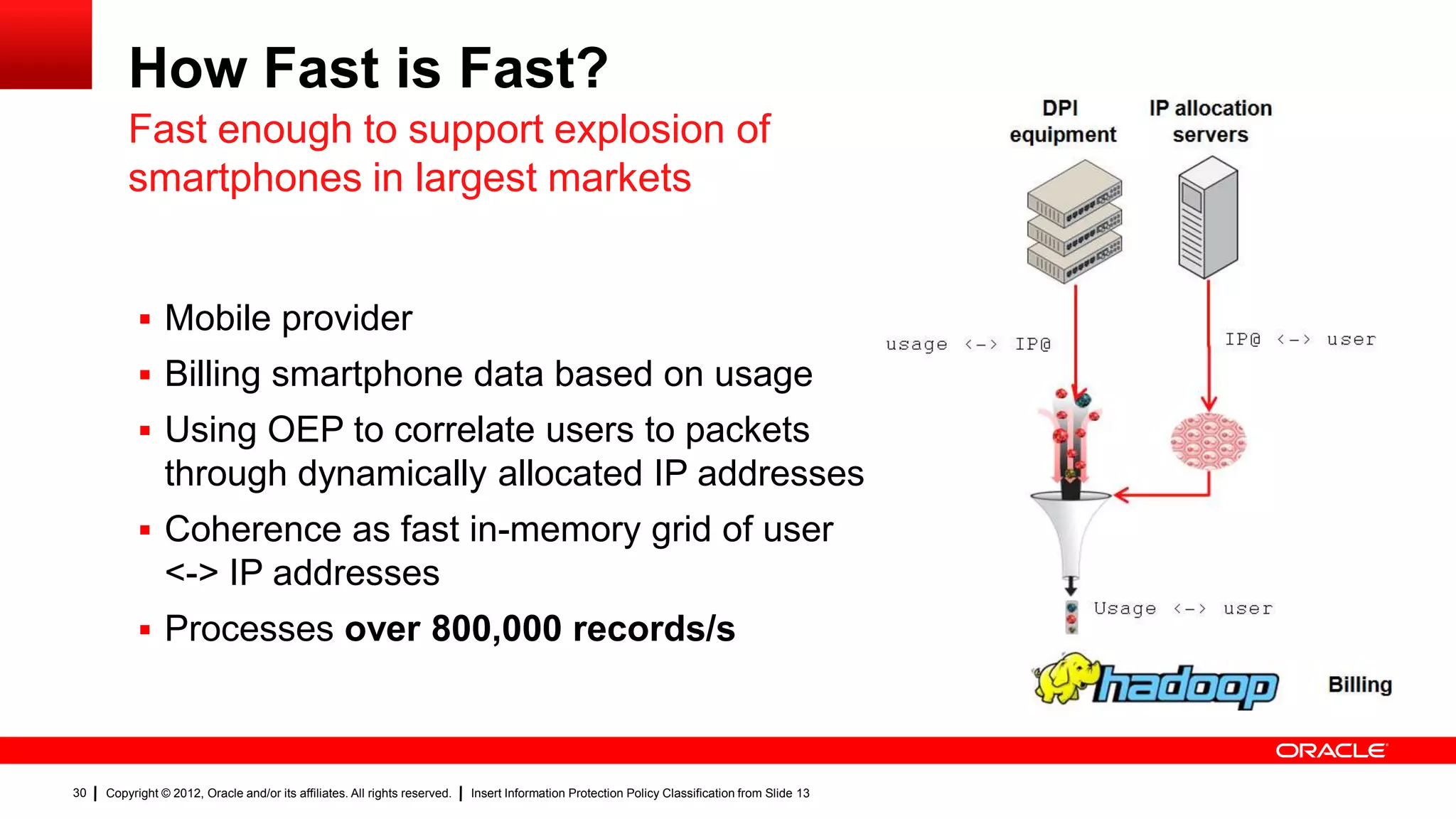

How Fast is Fast? DPI
equipment
IP allocation
servers
Fast enough to support explosion of
smartphones in largest markets

 Mobile provider usage <-> IP@ IP@ <-> user

 Billing smartphone data based on usage
 Using OEP to correlate users to packets
through dynamically allocated IP addresses
 Coherence as fast in-memory grid of user
<-> IP addresses
Usage <-> user
 Processes over 800,000 records/s
Billing


Putting it all together
Big Data, Fast Data & SOA

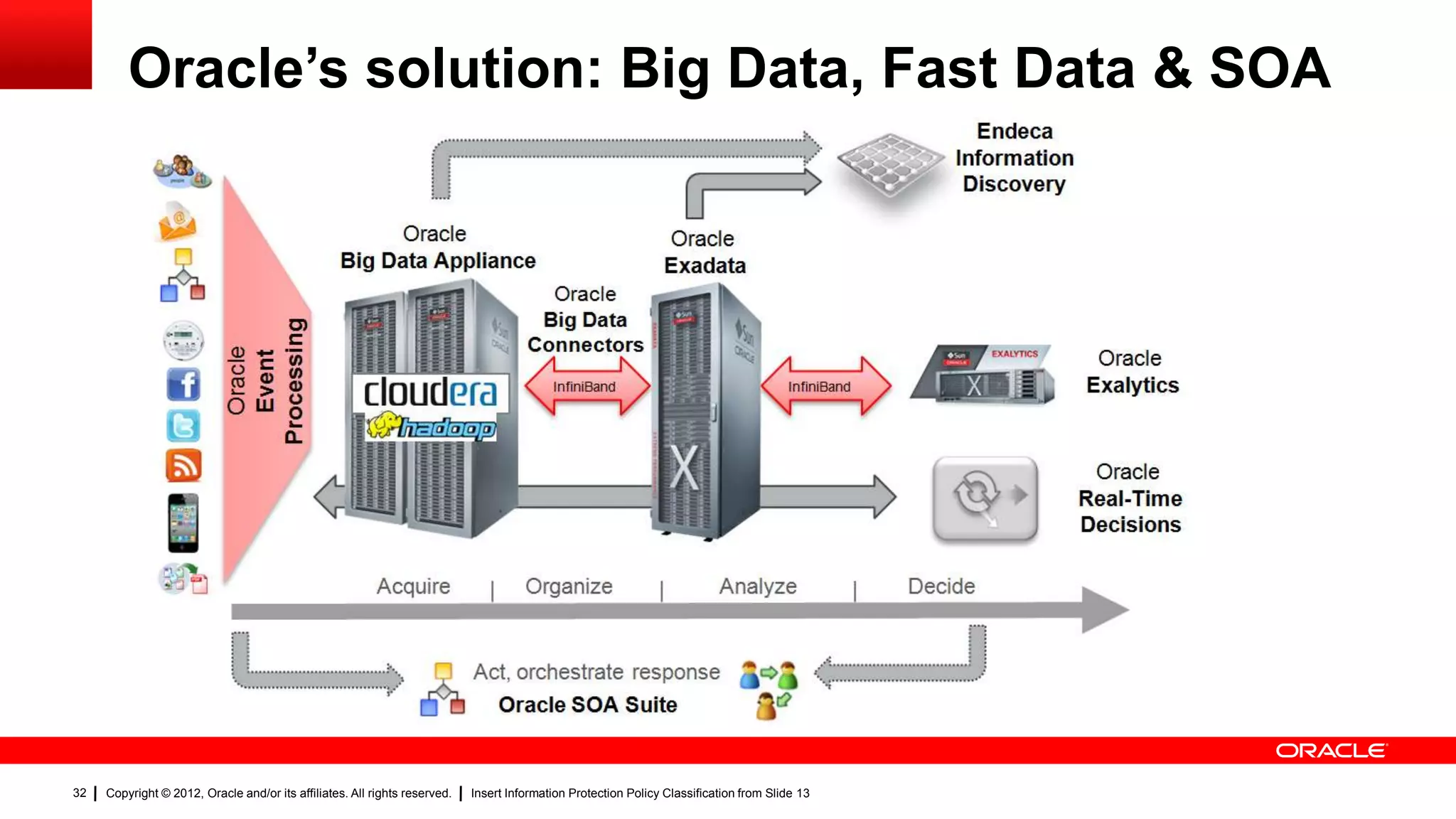

Oracle’s solution: Big Data, Fast Data & SOA
Endeca
Information
Discovery

Oracle Oracle
Big Data Appliance Exadata
Oracle
Big Data
Processing

Connectors
Oracle
Event

Oracle
InfiniBand InfiniBand Exalytics

Oracle
Real-Time
Decisions

Acquire Organize Analyze Decide

Act, orchestrate response
Oracle SOA Suite


Oracle’s solution: Big Data, Fast Data & SOA
Endeca
Example: Information Example:
monitoring of traffic Discovery search for last
cameras to ensure sighting of
Oracle
given license plate Oracle specific vehicles
not in use Appliance
Big Dataon Exadata
multiple vehicles Oracle
Big Data Example:
Processing

Connectors analysis of traffic
Oracle
Event

Oracle
patterns and
InfiniBand InfiniBand Exalytics
congestion times
for urban planning
Oracle
Real-Time
Example: Decisions
Example: coordinate Police
display real-time and Emergency Example:
situation using Acquire Organize Analyze Decide
response using traffic rerouting
BAM BPEL & Human suggestions
Workflow
Act, orchestrate response
Oracle SOA Suite

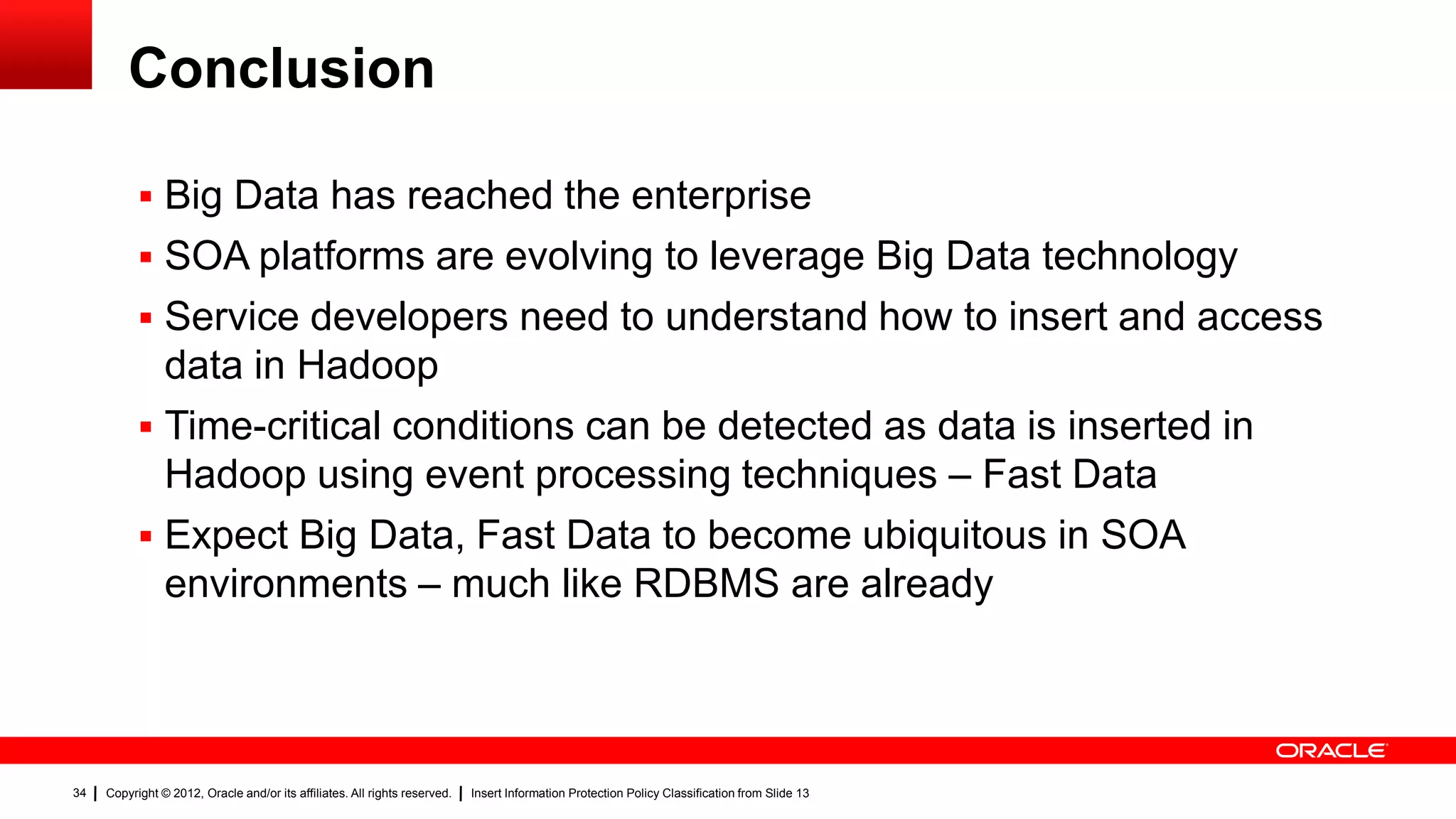

Conclusion

 Big Data has reached the enterprise
 SOA platforms are evolving to leverage Big Data technology
 Service developers need to understand how to insert and access
data in Hadoop
 Time-critical conditions can be detected as data is inserted in
Hadoop using event processing techniques – Fast Data
 Expect Big Data, Fast Data to become ubiquitous in SOA
environments – much like RDBMS are already


Big data and its impact on SOA

More Related Content

What's hot

Similar to Big data and its impact on SOA

Big data and its impact on SOA

Editor's Notes
