Sharding using MySQL and PHP

Sharding using PHP
Insert Picture Here

Mats Kindahl (Senior Principal Software Developer)

2Copyright © 2012, Oracle and/or its affiliates. All rights reserved. Insert Information Protection Policy Classification from Slide 12

About the Presentation

After this presentation you should know what sharding
is and the basic caveats surrounding sharding. You
should also have an idea of what is needed to develop
a sharding solution.

3 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

Program Agenda

 Why do we shard
 Introduction to sharding
 High-level sharding architecture
 Elements of a sharding solution
 Sharding planning


What is sharding?
Splintering

Horizontal
Partitioning

● Slice your database into independent data “shards”
● Queries execute only on one shard
● Shards can be stored on different servers


Sharding for locality

“B
ig
D
at
a
”
cl
os
e
to
us
er

Sharding for performance

Reduced working set

Database vs. cache

Parallel processing


Sharding Limitations

● Auto-increment
– Composite key
– Distributed key generation
– UUID?
● Cross-shard joins
– Very expensive: avoid them
– Federated tables?


Developing a
Sharding Solution


High-level Architecture

● Broker
– Distributes queries
● Sharding Database
– Information about the shards
– If it goes down, all goes down
– Need to be HA


Running Example: Employees sample database

Table Rows
salaries 2 844 04700
titles 443 30800
employees 300 02400
dept_emp 331 60300
dept_manager 2400
departments 900


Areas to cover

Data Meta-Data

Sharding

Query Operations


Data

Partition Mapping Shard
Data Keys Allocation

Key Columns Range Mapping Single Shard

Dependent Columns Hash Mapping Multiple Shards

Tables to Shard List Mapping


Partitioning the data

Table Rows
titles 44 330 800
employees 30 002 400
dept_emp 33 160 300
dept_manager 2 400
departments 900


Partitioning the data: sharding column(s)
emp_no birth_date first_name last_name gender hire_date
4711 1989-06-13 John Smith M 2009-12-24
19275 1954-11-12 Sally Smith F 1975-01-01
27593 1477-05-19 Mats Kindahl M 2002-02-27
587003 1830-08-28 Charles Bell M 2003-11-31
● Sharding columns dictated by queries
– Queries should give same result before and after sharding
● One or more columns
– Does not have to be primary key, but easier if it is
● Sharding key is needed for re-sharding

Partitioning the data: sharding column(s)
●
Choice of sharding columns 9 millions

– Distribution SE
US
– Locality
●
Avoid non-unique keys 200 millions

– Difficult to get good distribution
– Avoid: Country
– Prefer: Employee ID


Partitioning the data: dependent columns

? ? Foreign keys
Table Rows

?
titles 44 330 800
dept_emp 33 160 300
dept_manager 2 400

? departments 900


Partitioning the data: dependent columns

SELECT first_name, last_name, salary
FROM salaries JOIN employees
USING (emp_no)
WHERE emp_no = 21012
AND CURRENT_DATE BETWEEN from_date AND to_date;

● Referential Integrity Constraint
– Example query joining salaries and employees
– Same key, same shard
● JOIN within a shard


Partitioning the data: dependent columns find
uer y to
Handy q colum
ns
ent
all d epend
● Referential Integrity mysql> SELECT table_schema, table_name, column_name
-> FROM
-> information_schema.key_column_usage
– Foreign Keys ->
->
JOIN
information_schema.table_constraints
-> USING
● Dependent rows -> (table_schema, table_name, constraint_name)
-> WHERE constraint_type = 'FOREIGN KEY'
-> AND referenced_table_schema = 'employees'
– Same shard ->
->
AND referenced_table_name = 'employees'
AND referenced_column_name = 'emp_no';
+--------------+--------------+-------------+
– Join on equality | table_schema | table_name | column_name |
+--------------+--------------+-------------+
| employees | dept_emp | emp_no |
● Sharding Columns | employees
| employees
| dept_manager | emp_no
| salaries | emp_no
|
|
| employees | titles | emp_no |
– Follow foreign keys +--------------+--------------+-------------+
4 rows in set (0.56 sec)


Partitioning the data: unsharded tables

Table Rows
titles 44 330 800
dept_emp 33 160 300
dept_manager 2 400

?
departments 900



SELECT first_name, last_name, GROUP_CONCAT(dept_name)
FROM employees JOIN dept_emp USING (emp_no)
JOIN departments USING (dept_no)
WHERE emp_no = 21012 GROUP BY emp_no;

● Referential Integrity Constraint
– Join with sharded tables
– Tables dept_emp (and dept_manager) references two tables
● Shard table departments?
– Not necessary: small table
– Difficult to get right: keeping shards of two tables in same location


SELECT first_name, last_name, GROUP_CONCAT(dept_name)
FROM employees JOIN dept_emp USING (emp_no)
JOIN departments USING (dept_no)
WHERE emp_no = 21012 GROUP BY emp_no;

● Solution: do not shard departments
– Keep table on all shards
– Joins will only need to address one shard
● You need to consider
… how to update unsharded table


Data






Mapping Keys to Shards

● Given
– Sharding key value
– Optional other information (tables accessed, RO or RW, etc.)
● Provide the following
– Shard location (host, port)
– Shard identifier (if you have multiple shards for each server)


Mapping Keys to Shards

● Range Mapping: range of values for each shard
– Type-dependent
● Hash Mapping: hash of key to find shard
– Type-independent
– Complicated?
● List Mapping: list of keys for each shard
– Does not offer good distribution


Data






Shard Allocation: Single Shard per Server

● Idea: there is only one shard on each server
● Advantage: Cross-database queries does not require rewrite
● Disadvantage: Expensive to balance server load
… moving hot data from server requires re-sharding

SELECT first_name, last_name
FROM
employees.employees JOIN expenses.reciepts USING (emp_no)
WHERE
currency = 'USD'


Shard Allocation: Multiple Shards per Server

● Idea: Keep several “virtual shards” on each server
● Advantages
– Easier to balance load of servers
… move hot virtual shards to other server
– Improves performance
– Increases availability



● Disadvantage: cross-database queries require rewrite
– Error-prone
– Expensive?
● Queries that go to one database not a problem
FROM
employees.employees JOIN expenses.reciepts USING (emp_no)
WHERE
currency = 'USD'



● Idea: Add suffix to database name (optionally table name)
employees_N.employees
employees_N.employees_N
● Idea: Keep substitution pattern in query string
FROM
{employees.employees} JOIN {expenses.reciepts} USING (emp_no)
WHERE
currency = 'USD'



class my_mysqli extends mysqli {
  var $shard_id;

  public function query($query,
                        $resultmode = MYSQLI_STORE_RESULT)
  {
    $real_query = preg_replace('/{(w+).(w+)}/',
                               “$1_{$this>shard_id}.$2”,
                               $query);
    return parent::query($real_query, $resultmode);
  }
}

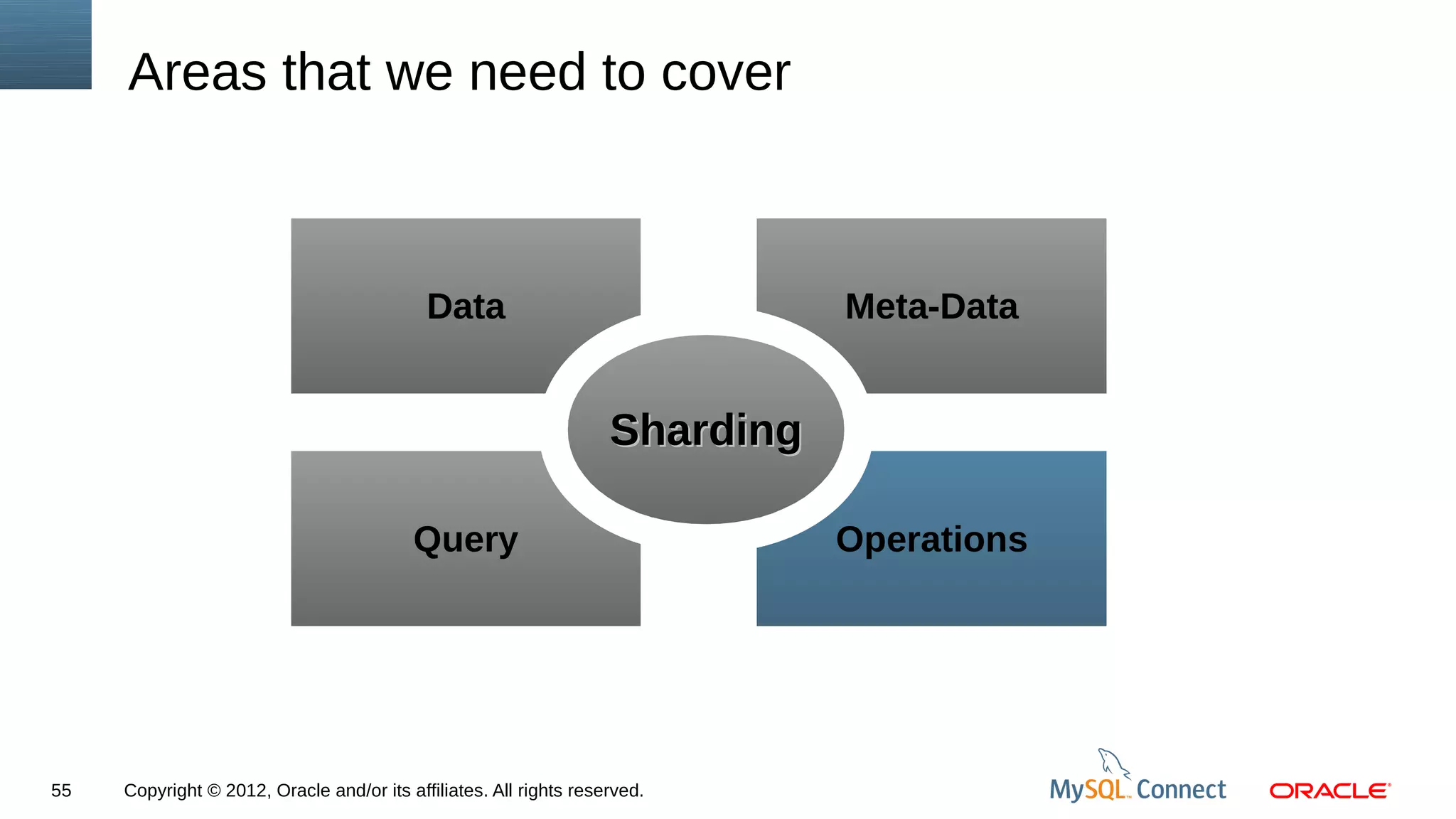

Areas that we need to cover

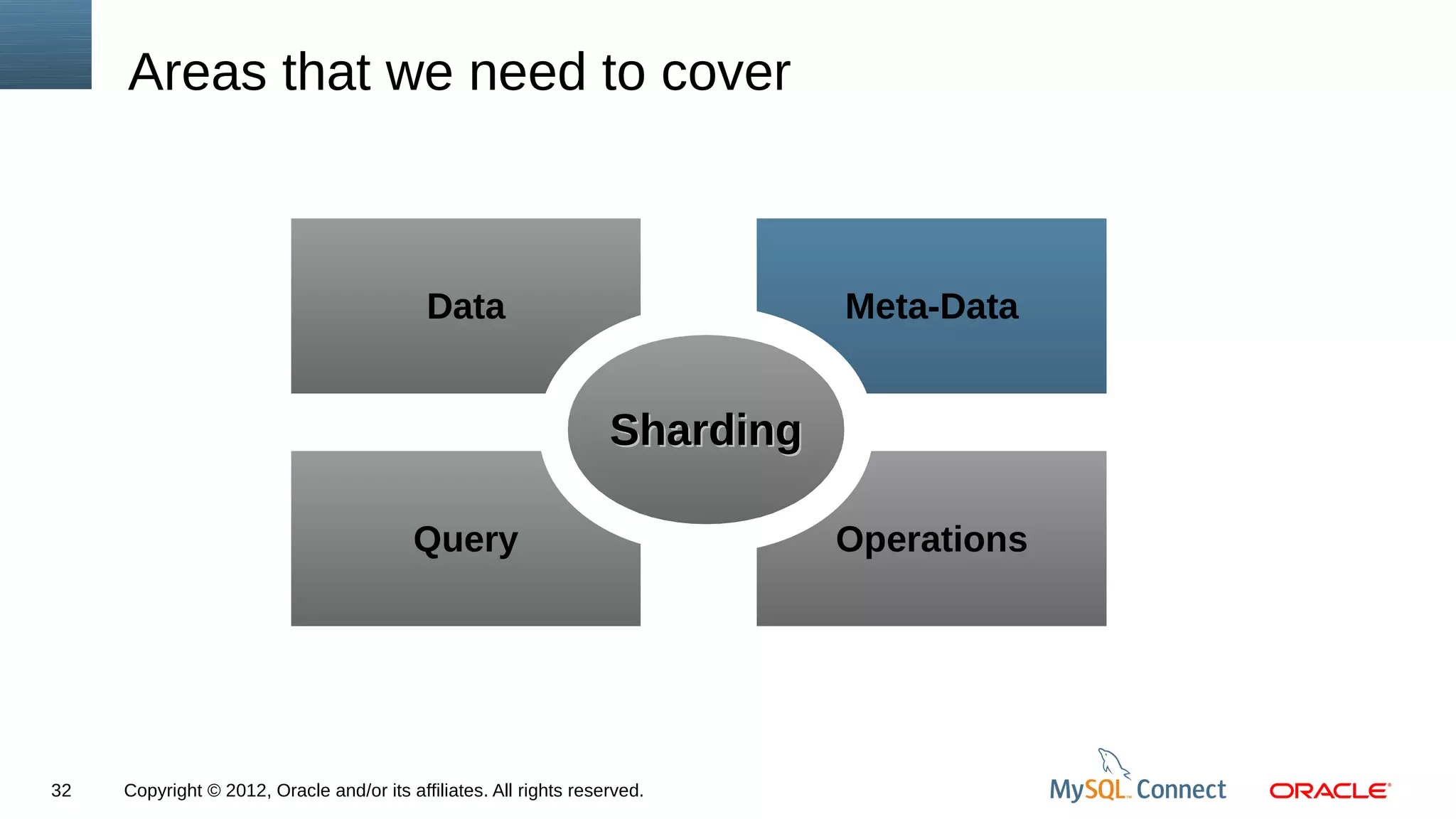

Data Meta-Data

Sharding

Query Operations


Meta Data

Mapping Shard Mapping
Methods Information Schemes

Static Sharding Shard ID Range Mapping

Dynamic Sharding Shard Host Hash Mapping

Shard Specifics* List Mapping

*
If you use multiple shards per server


Mapping Methods: Static Sharding

● Idea: Compute shard statically
● Advantages
– Simple
– No extra lookups
– No single point of failure
● Disadvantage
– Lack of flexibility

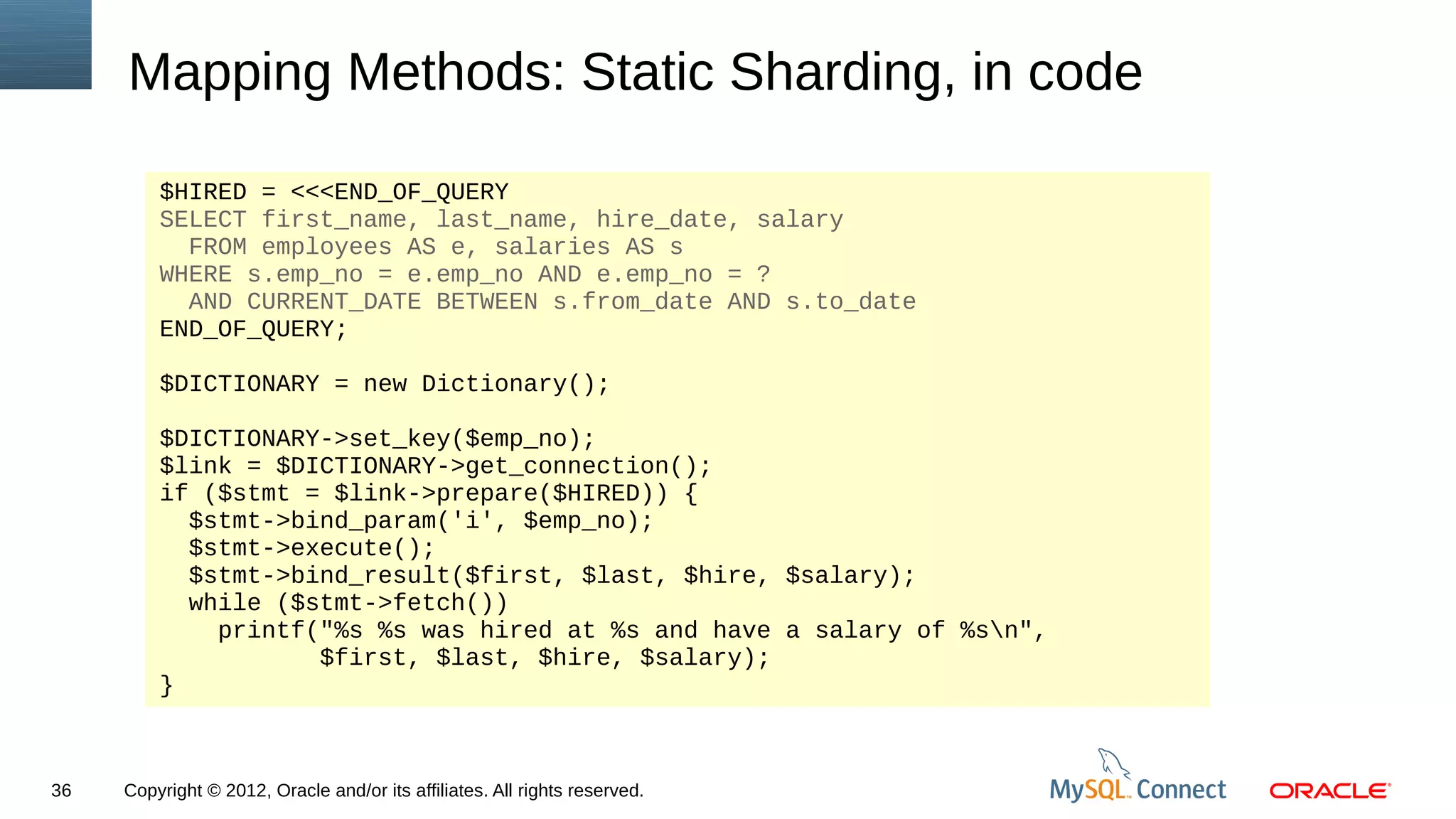

Mapping Methods: Static Sharding, in code

● Dictionary class
● Input: sharding key
● Output: connection
class Dictionary {
private $emp_no;
public function __construct() { ... }
public function set_key($emp_no) { $this->emp_no = $emp_no; }

public function get_connection() {
$i = $this->shardinfo[$this->emp_no % count($this->shards)];
return new mysqli("p:{$i->host}", $i->user, $i->passwd, $i->db, $i->port);
}
}


Mapping Methods: Static Sharding, in code

$HIRED = <<<END_OF_QUERY
SELECT first_name, last_name, hire_date, salary
FROM employees AS e, salaries AS s
WHERE s.emp_no = e.emp_no AND e.emp_no = ?
AND CURRENT_DATE BETWEEN s.from_date AND s.to_date
END_OF_QUERY;

$DICTIONARY = new Dictionary();

$DICTIONARY->set_key($emp_no);
$link = $DICTIONARY->get_connection();
if ($stmt = $link->prepare($HIRED)) {
$stmt->bind_param('i', $emp_no);
$stmt->execute();
$stmt->bind_result($first, $last, $hire, $salary);
while ($stmt->fetch())
printf("%s %s was hired at %s and have a salary of %sn",
$first, $last, $hire, $salary);
}


Mapping Methods: Dynamic Sharding

● Idea: use a sharding database to keep track of shard locations
● Advantages:
– Easy to migrate shards
– Easy to re-shard
● Disadvantages:
– Complex
● Performance?


Dynamic sharding, in code
$FETCH_SHARD = <<<END_OF_QUERY
shard selection query
END_OF_QUERY;

class Dictionary {
var $dict; var $emp_no;

public function __construct() {
$this->dict = new mysqli('shardinfo.example.com', ...);
}

public set_key($emp_no) { $this->emp_no = $emp_no; }

public function get_connection() {
$stmt = $this->dict->prepare($FETCH_SHARD))
$stmt->bind_param('i', $this->emp_no);
$stmt->execute();
$stmt->bind_result($no, $host, $user, $passwd, $db, $port);
$stmt->fetch();
return new mysqli("p:{$host}", $user, $passwd, $db, $port);
}
}

Meta Data

Mapping Shard Mapping
Methods Information Schemes

Static Sharding Shard ID Range Mapping

Dynamic Sharding Shard Host Hash Mapping

Shard Specifics* List Mapping

*
If you use multiple shards per server


Mapping Schemes: Range Mapping

● Most basic scheme Shard ID Lower
● One row for each range
0 0
● Just store lower bound 1 20000
2 50000

SELECT shard_id, hostname, port
FROM shard_ranges JOIN shard_locations USING (shard_id)
WHERE key_id = 1 AND 2345 >= shard_ranges.lower_bound
ORDER BY shard_ranges.lower_bound LIMIT 1;


Mapping Schemes: Regular Hashing

● Computing a hash from the key
ShardID = SHA1(key) mod N
● Adding (or removing) a shard
… can require moving rows between many shards
… often a lot of rows


Mapping Schemes: Regular Hashing
emp_no=20101 emp_no=43210 emp_no=23456 emp_no=36912

N

N+1

0 1 2 3 4
HASH(key) mod N


Mapping Schemes: Consistent Hashing

● Computing a hash from the key Shard ID Hash
SHA1(key) 6 08b1286ad1bebe6...
● Adding (or removing) a shard 2 1c2d4132144211a...
4 9893238ed75cfc9...
… only require moving rows
from one shard to the new 1 989bb9d2bc381f4...
shard 5 cab8c76b85c4e24...
3 eccf30f69fe850f...


Mapping Schemes: Consistent Hashing
shard1
emp_no=20101
emp_no=36912

shard4 Hash
Ring shard2

emp_no=43210
emp_no=23456
shard5
shard3



Data Meta-Data

Sharding

Query Operations


Query
Handling

Query Connector Sharding
Dispatch Caches Key

Mechanism Time (TTL) Parsing
Single/Multi Cast On Error Application
Handling Reads Explicit provided
Handling Updates
Transaction Handling


Query Dispatch: Mechanism

● Proxy
– Sharding key extracted from query
– Requires extra hop
● Application level
– Application provides sharding key
– No extra hop


Query Dispatch: Query Type

● Read Query
– How do you ensure that it is executing on the right shard?
– How do you ensure that it is not cross-shard?
● Update Query
– Updating an unsharded table – think about consistency


Query Dispatch: Handling Transactions

● All statements of a transaction should go to the same session
– Sharding key on start of transaction?
– Is it a read-only or read-write transaction?
● Statements for different transactions can go to different sessions
– How to detect transaction boundaries
● Maintaining the session state


Query Dispatch: Handling Transactions
Hmm... looks like Sharding key? Ah, there it is!
a read transaction
Session state?

BEGIN
SELECT salary INTO @s FROM salaries WHERE emp_no = 20101;
SET @s = 1.1 * @s;
INSERT INTO salaries VALUES (20101, @s);
COMMIT Oops.. it was a
BEGIN write transaction!
INSERT INTO ...
COMMIT Transaction done!
Clear session state?

New transaction! Different connection?


Query
Handling

Query Connector Sharding
Dispatch Caches Key

Mechanism Time (TTL) Parsing
Single/Multi Cast On Error Application
Handling Reads Explicit provided
Handling Updates
Transaction Handling


Extracting Sharding Key

● Parsing the query
– Locating the key
– Handling Transactions
● Application-provided sharding key
– Annotating queries
– Separate function in connector

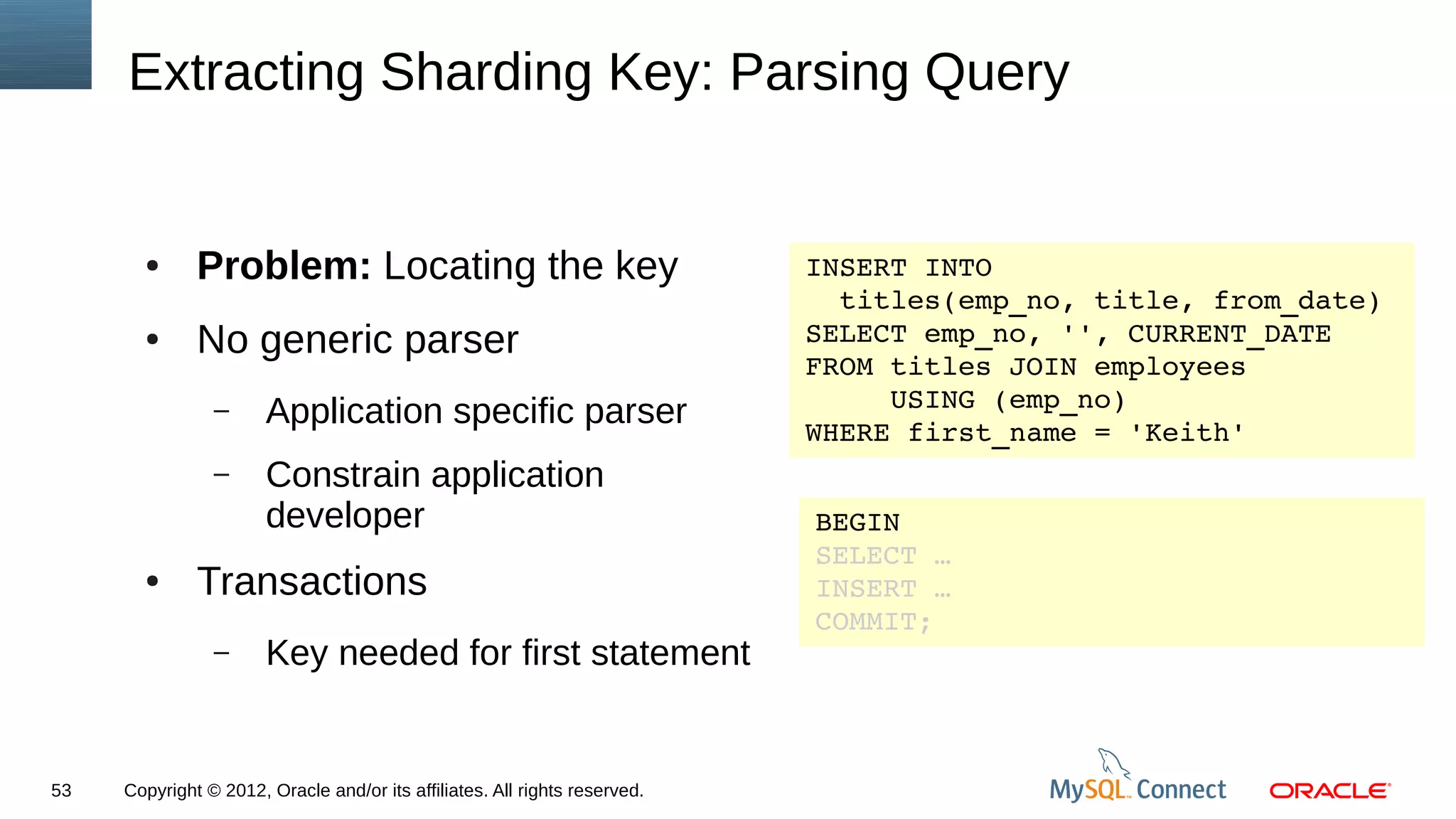

Extracting Sharding Key: Parsing Query

● Problem: Locating the key INSERT INTO
titles(emp_no, title, from_date)
● No generic parser SELECT emp_no, '', CURRENT_DATE
FROM titles JOIN employees
USING (emp_no)
– Application specific parser WHERE first_name = 'Keith'
– Constrain application
developer BEGIN
SELECT …
● Transactions INSERT …
COMMIT;
– Key needed for first statement


Extracting Sharding Key: Application Provided

● Idea: Provide key explicitly /* emp_no=20101 */ BEGIN;
SELECT …
● Annotate the statement INSERT …
COMMIT;
● Extend connection manager
– Demonstrated previously
…
$DICT>set_key($key);
$link = $DICT>get_connection();
…



Data Meta-Data

Sharding

Query Operations


Operations: Monitoring the System

● Monitor load of each node
… to see if any node get an unfair number of queries
● Monitor load of each shard (multiple shards per node)
… to see if a shard gets an unfair number of queries


Operations: Re-balancing the System

● If a instance is hot:
– Move Shard: Move one shard to another instance
● If a shard is hot:
– Split Shard: Split the shard into multiple shards
– Move Shard: Move one of the shards to another instance
● If a shard is cold:
– Merge Shard: Merge a shard with other shards
● Avoid it – very difficult to do on-line


Operations: Moving a Shard

● Offline (trivial)
– Bring source and target nodes down
– Copy shard from source to target
– Update dictionary
● Online (tricky)
– We go through it on the following slides


Operations: Online Move of Shard

Application

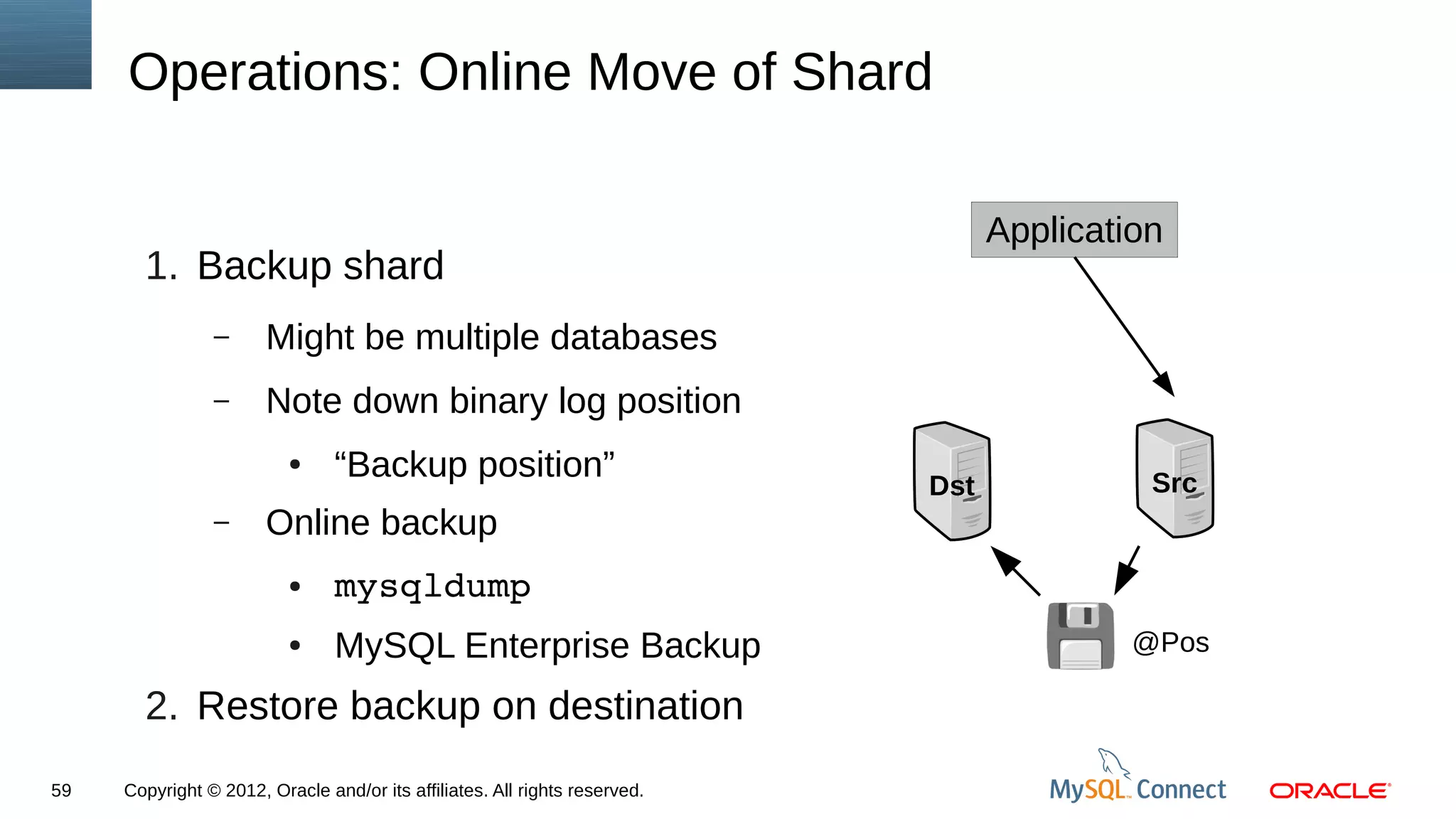

1. Backup shard
– Might be multiple databases
– Note down binary log position
● “Backup position” Src
Dst
– Online backup
● mysqldump
● MySQL Enterprise Backup @Pos

2. Restore backup on destination


Application
3. Start replication
– Source to target
– Start replication from backup
position
Dst Src
– Only replicate shard?
replicatewilddotable=db_1.*

@Pos



Application
4. Wait until destination is close
enough
5. Write lock on source
LOCK TABLES Dst Src

6. Note binary log position
– “Catch-up Position” @Pos



Application
7. Wait for destination to reach
catch-up position
START SLAVE UNTIL
MASTER_POS_WAIT Dst Src

@Pos



Application

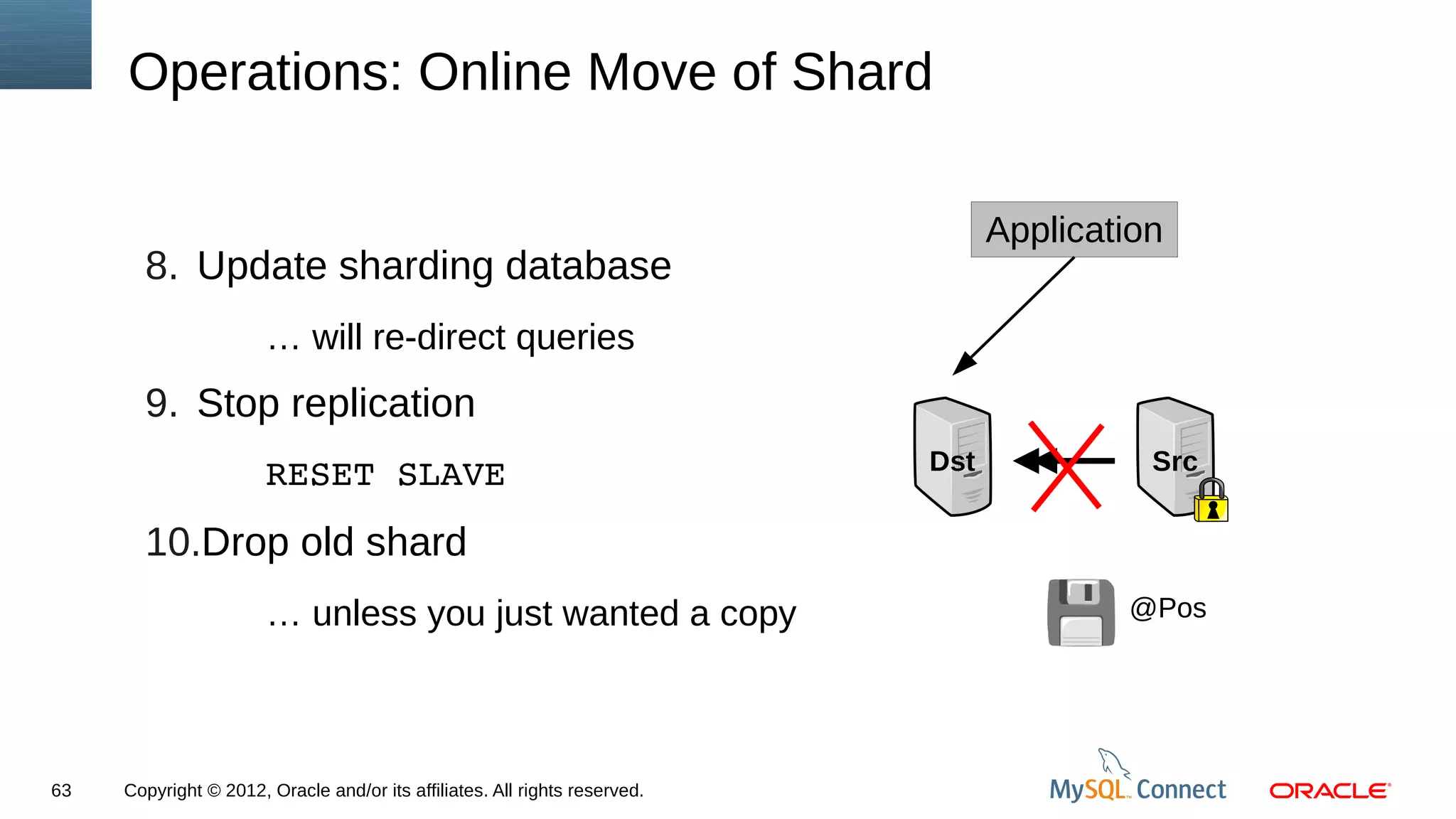

8. Update sharding database
… will re-direct queries
9. Stop replication
Dst Src
RESET SLAVE
10.Drop old shard
… unless you just wanted a copy @Pos


Operations: Splitting a Shard

● Application dependent
– Change sharding key?
– Change sharding scheme?
● Can be expensive
● You will have to do it
… eventually


Operations: Splitting a Shard

one.example.com two.example.com

1. Copy shard to new location
1
– Use on-line move described on 3 3
previous slides
2. Update sharding database
– Will re-direct queries
3. Remove rows from both shards 2
– Remove rows that do not
belong to the shard


Great!
Wait a
Let's Shard!
minute...


When to shard?

● Inherently more complex
– Requires careful planning
– Application design?
● Alternatives?
– Functional partitioning?
– Archiving old data?


Preparations for sharding

● Monitor the system
– Types of queries
● What are the join queries
– Access patterns
● What tables are accessed
● Find natural partition keys
– Robust and easy to implement
– Watch out for cross-shard joins


Summary

● What are your goals?
● Do your homework
● Don't be too eager
● Plan
● Develop sharding solution
● Revise the plans


Thanks for attending!

● Questions? Comments?
● Download MySQL!
http://dev.mysql.com
● Read our book!
– Covers replication, sharding, scale-out, and much
much more


Sharding using MySQL and PHP

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Sharding using MySQL and PHP

Similar to Sharding using MySQL and PHP (20)

More from Mats Kindahl

More from Mats Kindahl (10)

Sharding using MySQL and PHP
