1. CLOUD DEPLOYMENT
​ Miodrag Lazarevic

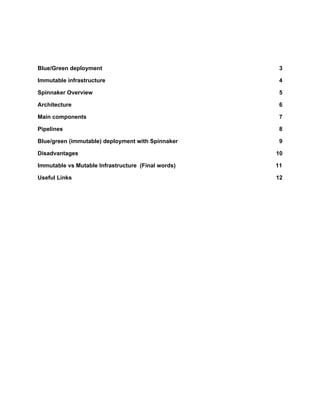

2. Blue/Green deployment 3
Immutable infrastructure 4
Spinnaker Overview 5
Architecture 6
Main components 7
Pipelines 8
Blue/green (immutable) deployment with Spinnaker 9
Disadvantages 10
Immutable vs Mutable Infrastructure (Final words) 11
Useful Links 12

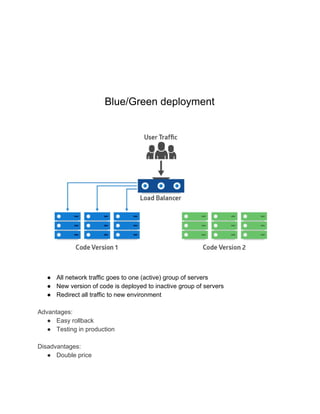

3. Blue/Green deployment
● All network traffic goes to one (active) group of servers
● New version of code is deployed to inactive group of servers
● Redirect all traffic to new environment
Advantages:
● Easy rollback
● Testing in production
Disadvantages:
● Double price

4. Immutable infrastructure
● “You want to deploy new version of code?
Build new machine image! “
● Instead of updating, replace completly your
infrastructure with new set of machines
● Scaling automation
● Safer and repeatable deployments

5. Spinnaker Overview
● open source
● multi-region and multi-cloud continuous delivery
platform
● developed by Netflix
● Microservice architecture
Core features:
● Application deployment
● Application management (resize, disable clusters..)

6. Architecture
● Composed of 11 independent microservices
● Halyard - Manages all other microservices
● Igor - provides integrations with CI servers(Jenkins,
Travis CI ...)
● Rosco - ​ produces immutable VM images (uses
HashiCorp Packer)

7. Main components
Application​:
● Load balancer
● Firewall
● Server group
Every application can conist of multiple Load balancers/server
groups/firewalls.
All resources can be grouped into stack (e.g qa LB/ qa firewall/ qa
server group)

8. Pipelines
● Sequence of stages provided by Spinnaker
● Can be started both manually and automatically (e.g. after jenkins job
is finished)
● Most common stages:
○ Jenkins (executes jenkins job)
○ Bake (build virtual machine or Docker image)
○ Manual judgement(further pipeline execution depends on user
input)
○ Deploy(you can choose deployment strategy here)

9. Blue/green (immutable) deployment with Spinnaker
Steps (After baking phase):
● Destroy old (inactive server group)
● Spin up new server group with new version of code
● Enable (new server group)
● Disable current server group(group that serves traffic)

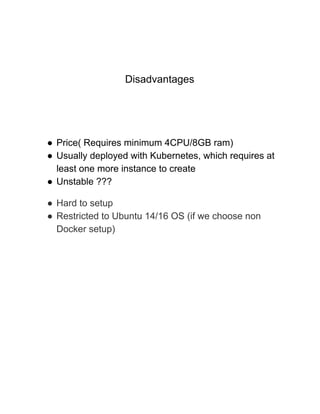

10. Disadvantages
● Price( Requires minimum 4CPU/8GB ram)
● Usually deployed with Kubernetes, which requires at
least one more instance to create
● Unstable ???
● Hard to setup
● Restricted to Ubuntu 14/16 OS (if we choose non
Docker setup)

11. Immutable vs Mutable Infrastructure (Final
words)
● Mutable infrastructure is good for configuration/deployment
to small clusters(application with small number of users)
● Mutable infrastructure is bad for deployment to large
clusters(it’ s hard to keep all instances consisted)
● Immutable infrastructure is bad for small clusters
( deployment/plaform maintaining should not cost more than
production environment !!! )
● Immutable infrastructure is great for scalability and large
enterprises (Every machine in the cluster is literally same)
● Great for safe and repatable deployments (Netflix performs
4000 deployments per day)

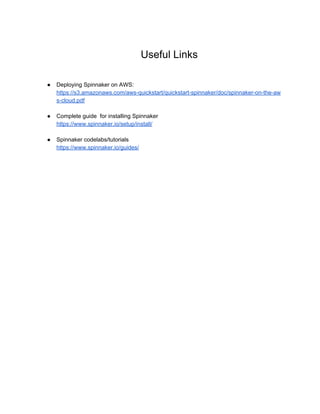

12. Useful Links
● Deploying Spinnaker on AWS:
https://s3.amazonaws.com/aws-quickstart/quickstart-spinnaker/doc/spinnaker-on-the-aw
s-cloud.pdf
● Complete guide for installing Spinnaker
https://www.spinnaker.io/setup/install/
● Spinnaker codelabs/tutorials
https://www.spinnaker.io/guides/
