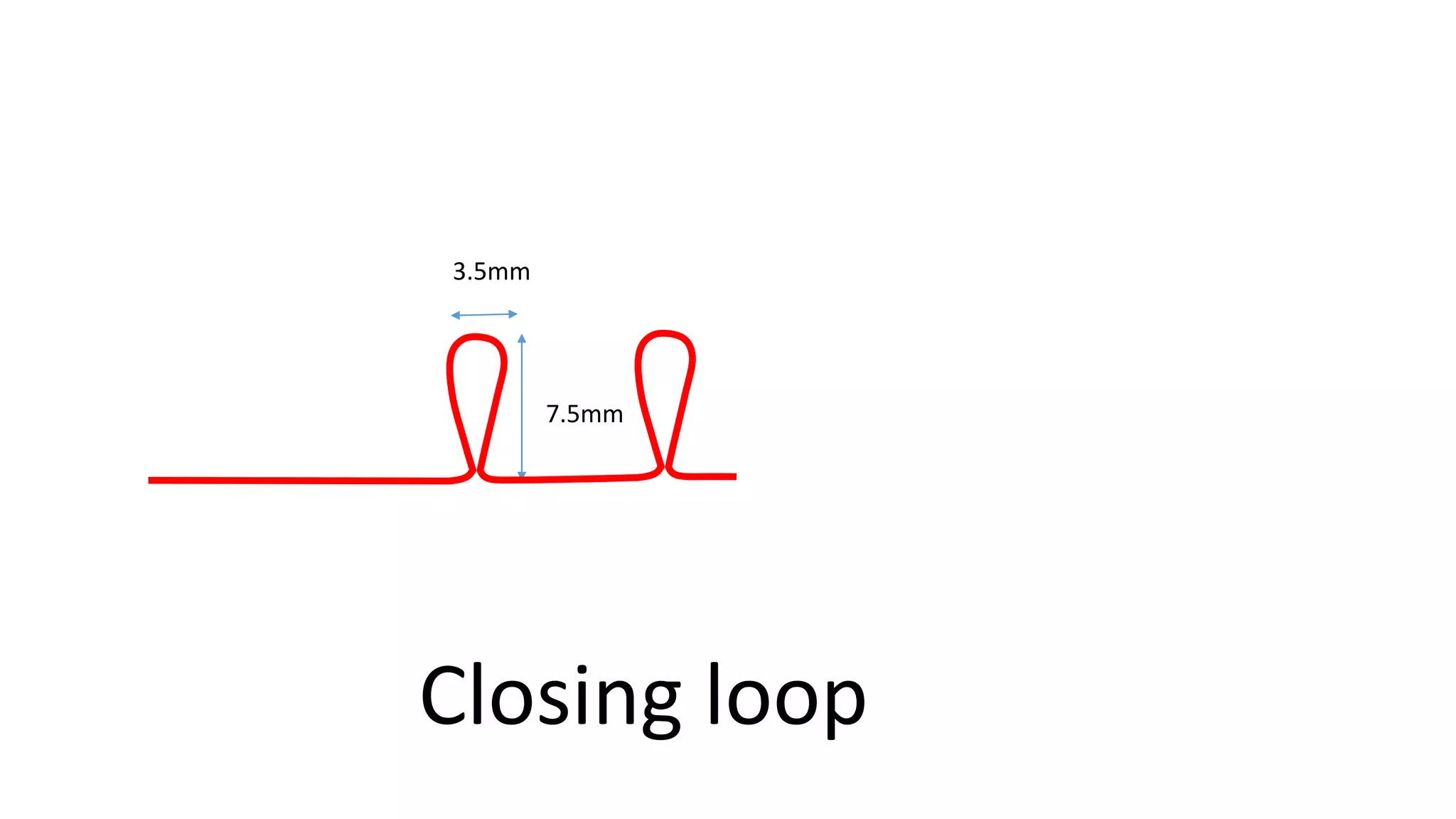

3.5mm
7.5mm
Closing loop

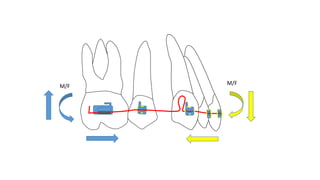

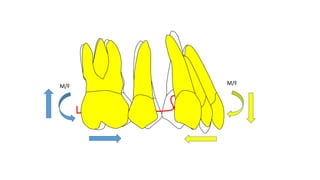

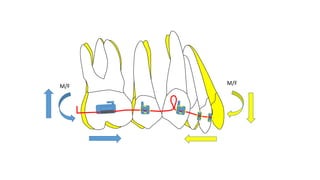

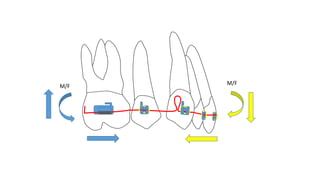

M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F
M/F

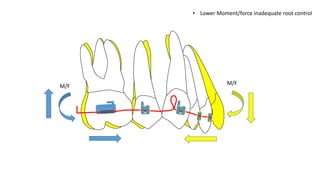

• Lower Moment/force inadequate root control
M/F
M/F
M/F
M/F

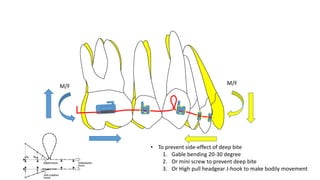

• To prevent side-effect of deep bite
1. Gable bending 20-30 degree
2. Or mini screw to prevent deep bite
3. Or High pull headgear J-hook to make bodily movement
• To prevent side-effect of deep bite
1. Gable bending 20-30 degree
2. Or mini screw to prevent deep bite
3. Or High pull headgear J-hook to make bodily movement
M/F
M/F
• Horizontal force (HF) and load/deflection ratio (L/D)
produce strongly influenced by the metal alloy stainless
steel than beta titanium.
• Optimal force and an M/F ratio for the retraction of anterior
teeth, and is applicable in a 0.022-in slot system.
• M/F ratio of 9.3
• Inadequate root control
• Vertical force could lead to deep overbite relationship
• If closing loop is placed off-center between center and
posterior, short section create moment, encouraging
root tipping. Longer section smaller moment encourage
translation.
• The beta-titanium loops produced lower amounts of
horizontal force and load/deflection ratio than the stainless
steel loops.
• The stainless steel loops generated high load/deflection
proportions, and consequently provided higher levels of
horizontal force during their deactivation.
• We should consider for alternative treatment
M/F
M/F

More Related Content

More from Chhom Karath

Control tipping.pptx
Control tipping.pptxControl tipping.pptx
Control tipping.pptx
Chhom Karath

Bulbous loop.pptx
Bulbous loop.pptxBulbous loop.pptx
Bulbous loop.pptx
Chhom Karath

brush teeth.pptx
brush teeth.pptxbrush teeth.pptx
brush teeth.pptx
Chhom Karath

bracket size.pptx
bracket size.pptxbracket size.pptx
bracket size.pptx
Chhom Karath

arch form KORI copy.pptx
arch form KORI copy.pptxarch form KORI copy.pptx
arch form KORI copy.pptx
Chhom Karath

Bracket size
Bracket sizeBracket size
Bracket size
Chhom Karath

Couple
CoupleCouple
Couple
Chhom Karath

ច្បាប់ញូតុនទី៣
ច្បាប់ញូតុនទី៣ច្បាប់ញូតុនទី៣
ច្បាប់ញូតុនទី៣
Chhom Karath

Game1
Game1Game1
Shoe horn loop
Shoe horn loopShoe horn loop
Shoe horn loop
Chhom Karath

Opus loop
Opus loopOpus loop
Opus loop
Chhom Karath

V bend
V bendV bend
V bend
Chhom Karath

Maxillary arch form
Maxillary arch formMaxillary arch form
Maxillary arch form
Chhom Karath

Front face analysis
Front face analysisFront face analysis
Front face analysis
Chhom Karath

Lateral profile measurement
Lateral profile measurementLateral profile measurement
Lateral profile measurement
Chhom Karath

Occlusal view study
Occlusal view studyOcclusal view study
Occlusal view study
Chhom Karath

Micro esthetic
Micro estheticMicro esthetic
Micro esthetic
Chhom Karath

Torque 1 in orthodontics
Torque 1 in orthodonticsTorque 1 in orthodontics
Torque 1 in orthodontics
Chhom Karath

អ័ក្សធ្មេញលើ Maxillary arch form making
អ័ក្សធ្មេញលើ Maxillary arch form making អ័ក្សធ្មេញលើ Maxillary arch form making
អ័ក្សធ្មេញលើ Maxillary arch form making
Chhom Karath

Upper canine evaluation score
Upper canine evaluation scoreUpper canine evaluation score
Upper canine evaluation score
Chhom Karath


More from Chhom Karath (20)

Control tipping.pptx
Control tipping.pptxControl tipping.pptx
Control tipping.pptx

Bulbous loop.pptx
Bulbous loop.pptxBulbous loop.pptx
Bulbous loop.pptx

brush teeth.pptx
brush teeth.pptxbrush teeth.pptx
brush teeth.pptx

bracket size.pptx
bracket size.pptxbracket size.pptx
bracket size.pptx

arch form KORI copy.pptx
arch form KORI copy.pptxarch form KORI copy.pptx
arch form KORI copy.pptx

Bracket size
Bracket sizeBracket size
Bracket size

Couple
CoupleCouple
Couple

ច្បាប់ញូតុនទី៣
ច្បាប់ញូតុនទី៣ច្បាប់ញូតុនទី៣
ច្បាប់ញូតុនទី៣

Game1
Game1Game1
Game1

Shoe horn loop
Shoe horn loopShoe horn loop
Shoe horn loop

Opus loop
Opus loopOpus loop
Opus loop

V bend
V bendV bend
V bend

Maxillary arch form
Maxillary arch formMaxillary arch form
Maxillary arch form

Front face analysis
Front face analysisFront face analysis
Front face analysis

Lateral profile measurement
Lateral profile measurementLateral profile measurement
Lateral profile measurement

Occlusal view study
Occlusal view studyOcclusal view study
Occlusal view study

Micro esthetic
Micro estheticMicro esthetic
Micro esthetic

Torque 1 in orthodontics
Torque 1 in orthodonticsTorque 1 in orthodontics
Torque 1 in orthodontics

អ័ក្សធ្មេញលើ Maxillary arch form making
អ័ក្សធ្មេញលើ Maxillary arch form making អ័ក្សធ្មេញលើ Maxillary arch form making
អ័ក្សធ្មេញលើ Maxillary arch form making

Upper canine evaluation score
Upper canine evaluation scoreUpper canine evaluation score
Upper canine evaluation score


Recently uploaded

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
siemaillard

Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345
beazzy04

Digital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and ResearchDigital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and Research
Vikramjit Singh

How to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPHow to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERP
Celine George

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...
Sandy Millin

Model Attribute Check Company Auto Property
Model Attribute  Check Company Auto PropertyModel Attribute  Check Company Auto Property
Model Attribute Check Company Auto Property
Celine George

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
MysoreMuleSoftMeetup

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials
Excellence Foundation for South Sudan

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf
Thiyagu K

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx
RaedMohamed3

The French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free downloadThe French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free download
Vivekanand Anglo Vedic Academy

How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17
Celine George

Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
AzmatAli747758

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
TechSoup

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips
GeoBlogs

Sectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdfSectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdf
Vivekanand Anglo Vedic Academy

1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx
JosvitaDsouza2

TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
EugeneSaldivar

Overview on Edible Vaccine: Pros & Cons with Mechanism
Overview on Edible Vaccine: Pros & Cons with MechanismOverview on Edible Vaccine: Pros & Cons with Mechanism
Overview on Edible Vaccine: Pros & Cons with Mechanism
DeeptiGupta154

MARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptxMARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptx
bennyroshan06


Recently uploaded (20)

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345Sha'Carri Richardson Presentation 202345
Sha'Carri Richardson Presentation 202345

Digital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and ResearchDigital Tools and AI for Teaching Learning and Research
Digital Tools and AI for Teaching Learning and Research

How to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPHow to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERP

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...

Model Attribute Check Company Auto Property
Model Attribute  Check Company Auto PropertyModel Attribute  Check Company Auto Property
Model Attribute Check Company Auto Property

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46
Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx

The French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free downloadThe French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free download

How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17How to Make a Field invisible in Odoo 17
How to Make a Field invisible in Odoo 17

Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...Cambridge International AS  A Level Biology Coursebook - EBook (MaryFosbery J...
Cambridge International AS A Level Biology Coursebook - EBook (MaryFosbery J...

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf

Fish and Chips - have they had their chips
Fish and Chips - have they had their chipsFish and Chips - have they had their chips
Fish and Chips - have they had their chips

Sectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdfSectors of the Indian Economy - Class 10 Study Notes pdf
Sectors of the Indian Economy - Class 10 Study Notes pdf

1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx1.4 modern child centered education - mahatma gandhi-2.pptx
1.4 modern child centered education - mahatma gandhi-2.pptx

TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...TESDA TM1 REVIEWER  FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...
TESDA TM1 REVIEWER FOR NATIONAL ASSESSMENT WRITTEN AND ORAL QUESTIONS WITH A...

Overview on Edible Vaccine: Pros & Cons with Mechanism
Overview on Edible Vaccine: Pros & Cons with MechanismOverview on Edible Vaccine: Pros & Cons with Mechanism
Overview on Edible Vaccine: Pros & Cons with Mechanism

MARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptxMARUTI SUZUKI- A Successful Joint Venture in India.pptx
MARUTI SUZUKI- A Successful Joint Venture in India.pptx


Closing loop

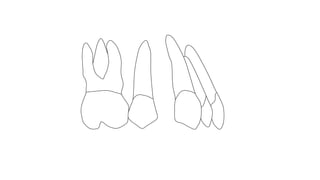

  • 2.
  • 3.
  • 4.
  • 5.
  • 6.

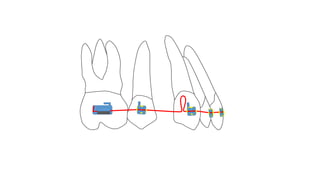

  • 7.
  • 8.

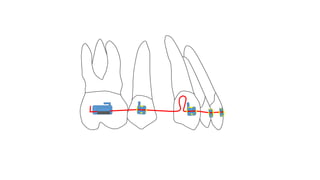

  • 9.
  • 15.

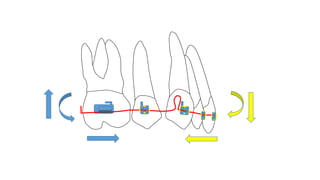

  • 16.
  • 17.

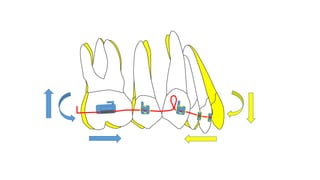

  • 18.
  • 22. • Lower Moment/force inadequate root control M/F M/F
  • 23. M/F M/F • To prevent side-effect of deep bite 1. Gable bending 20-30 degree 2. Or mini screw to prevent deep bite 3. Or High pull headgear J-hook to make bodily movement
  • 24. • To prevent side-effect of deep bite 1. Gable bending 20-30 degree 2. Or mini screw to prevent deep bite 3. Or High pull headgear J-hook to make bodily movement M/F M/F
  • 25. • Horizontal force (HF) and load/deflection ratio (L/D) produce strongly influenced by the metal alloy stainless steel than beta titanium. • Optimal force and an M/F ratio for the retraction of anterior teeth, and is applicable in a 0.022-in slot system. • M/F ratio of 9.3 • Inadequate root control • Vertical force could lead to deep overbite relationship • If closing loop is placed off-center between center and posterior, short section create moment, encouraging root tipping. Longer section smaller moment encourage translation. • The beta-titanium loops produced lower amounts of horizontal force and load/deflection ratio than the stainless steel loops. • The stainless steel loops generated high load/deflection proportions, and consequently provided higher levels of horizontal force during their deactivation. • We should consider for alternative treatment M/F M/F
