Climbing the Abstract Syntax Tree (Bulgaria PHP 2016)

1.
@asgrim Climbing the Abstract SyntaxTree James Titcumb Bulgaria PHP Conference 2016

2.
Who is thisguy? James Titcumb www.jamestitcumb.com www.roave.com www.phphants.co.uk www.phpsouthcoast.co.uk @asgrim

3.
@asgrim How PHP works PHPcode OpCache Execute (VM) Lexer + Parser Compiler

4.
@asgrim The PHP Lexer zend_language_scanner.l

5.

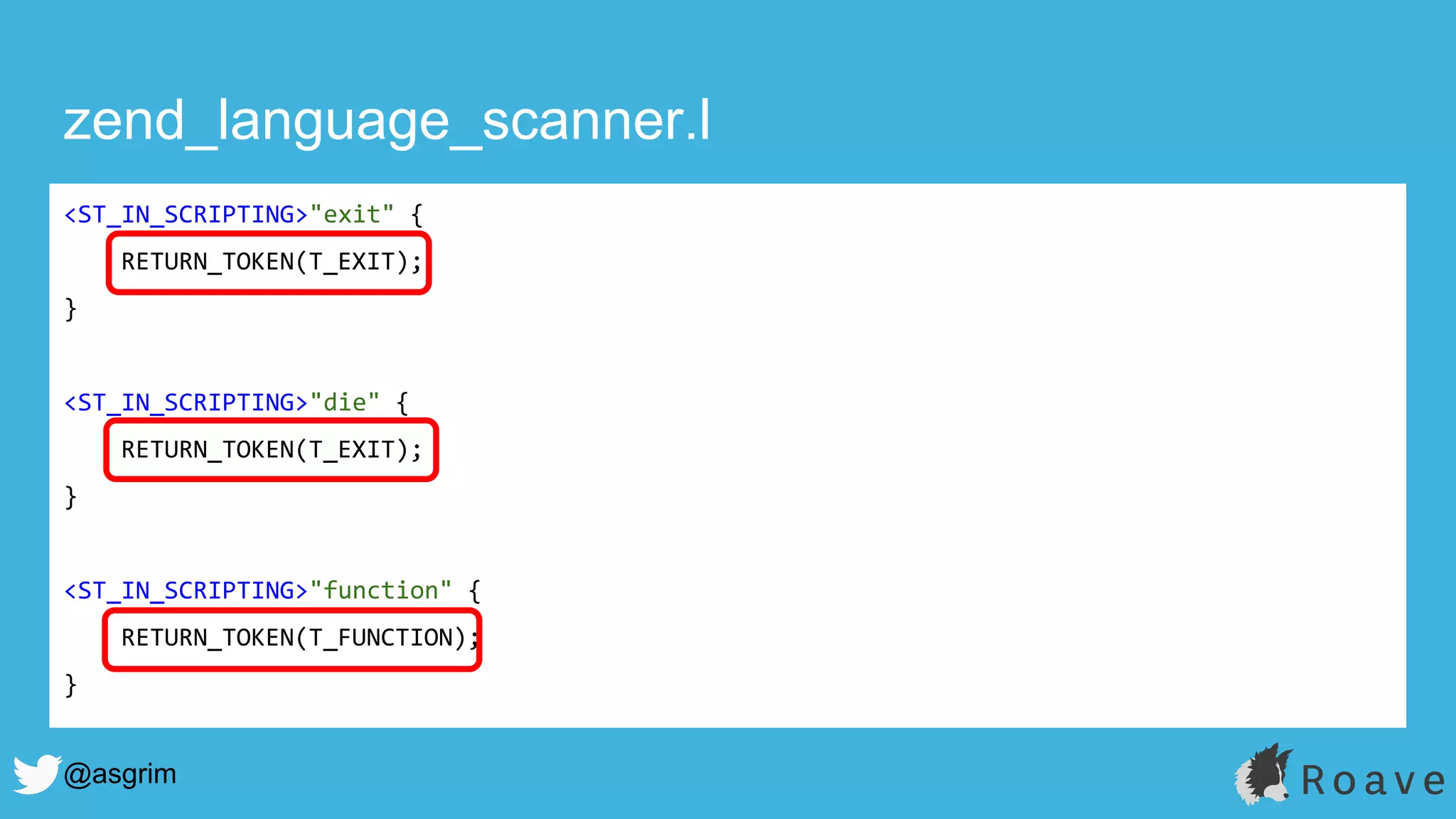

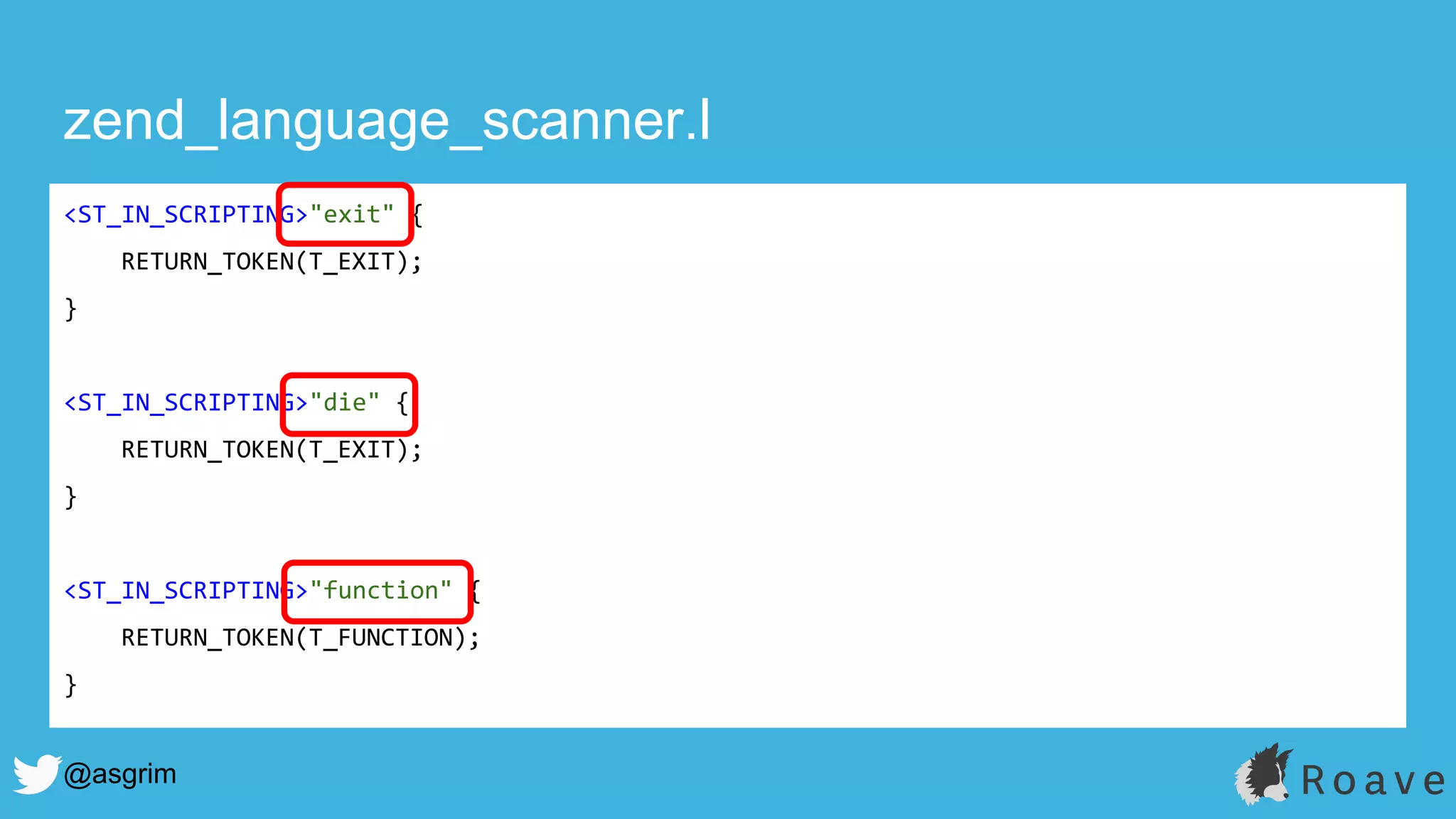

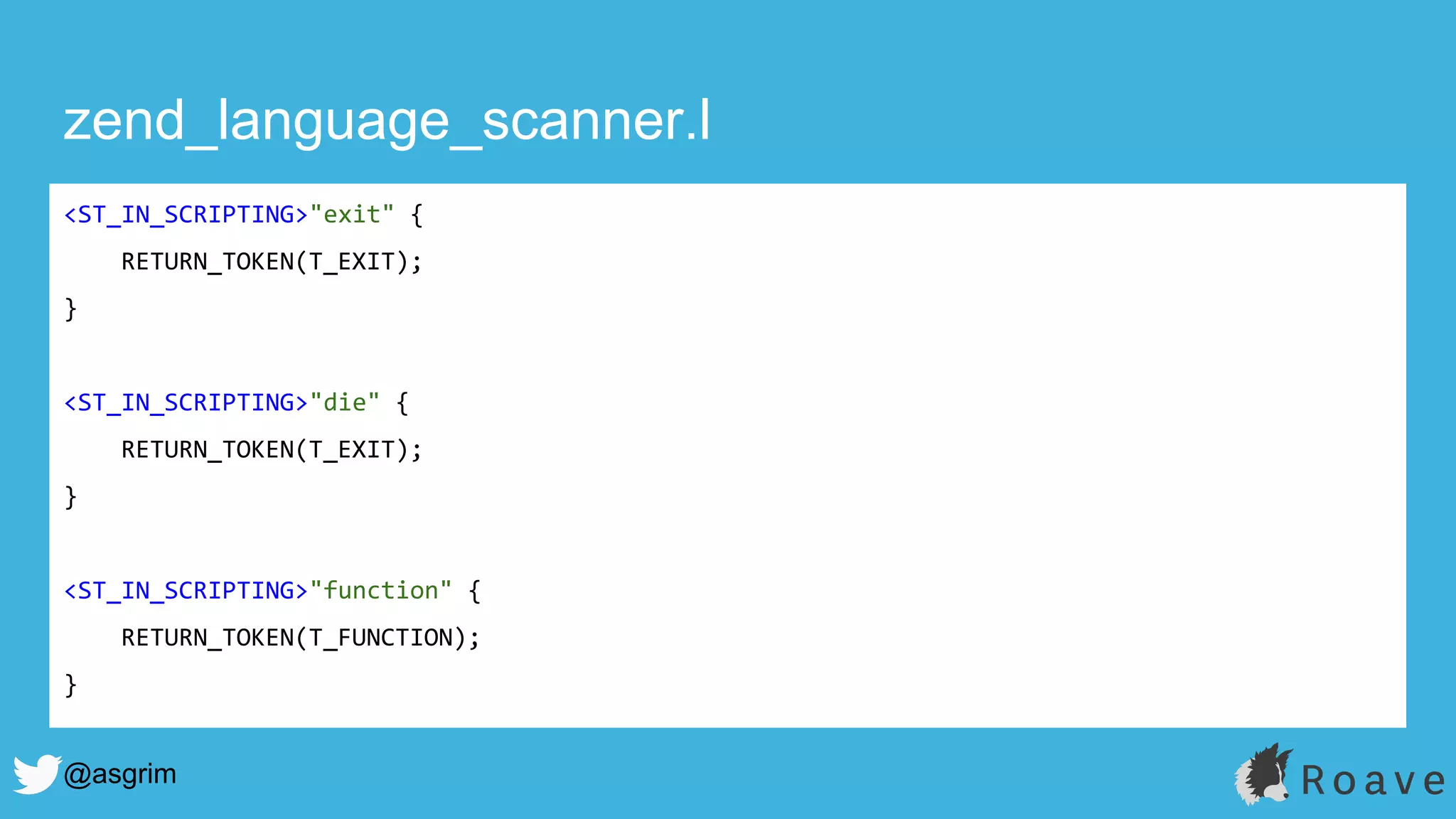

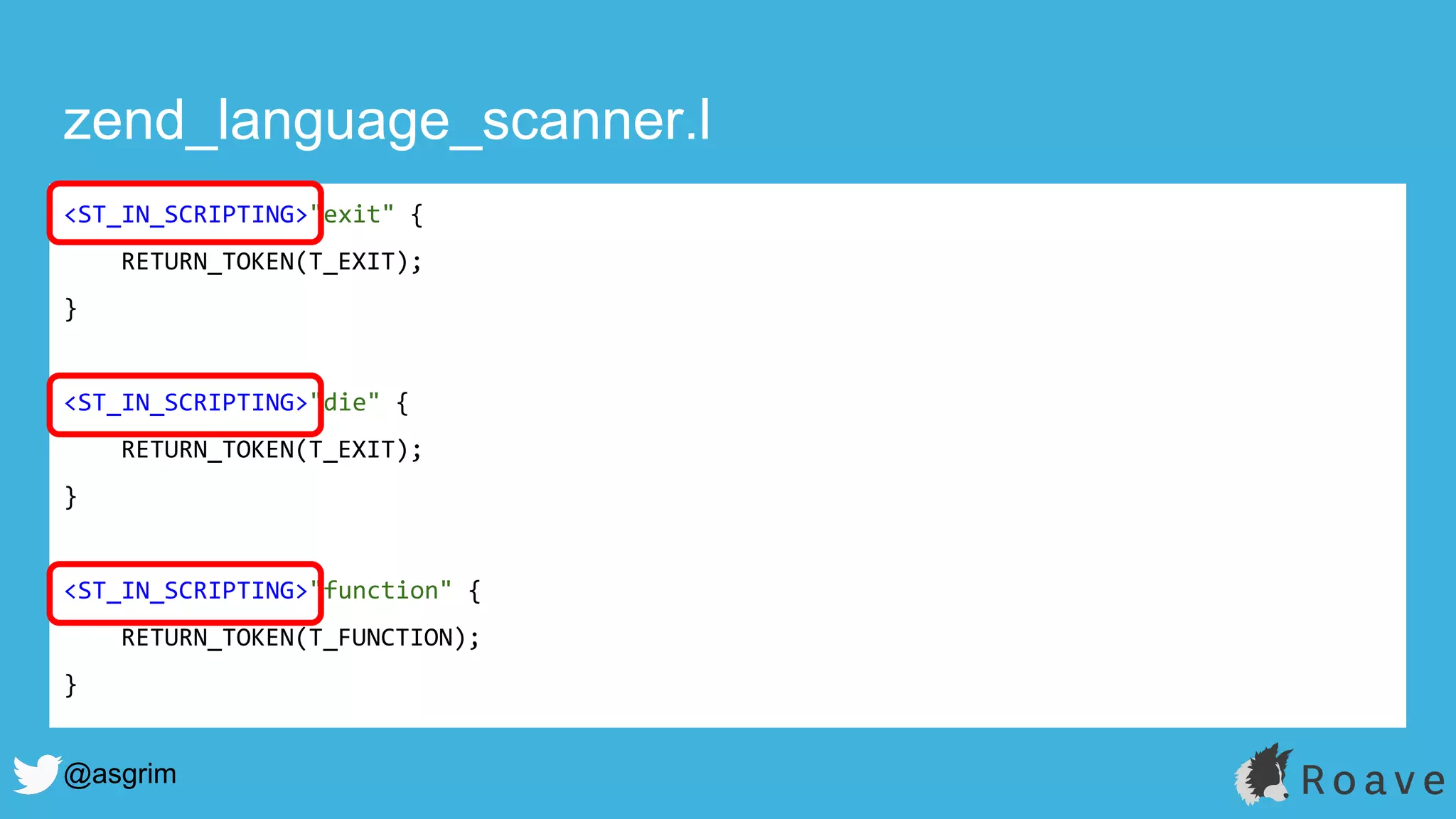

@asgrim zend_language_scanner.l <ST_IN_SCRIPTING>"exit" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"die" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"function"{ RETURN_TOKEN(T_FUNCTION); }

6.

7.

8.

9.

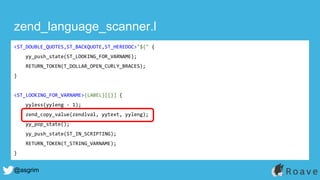

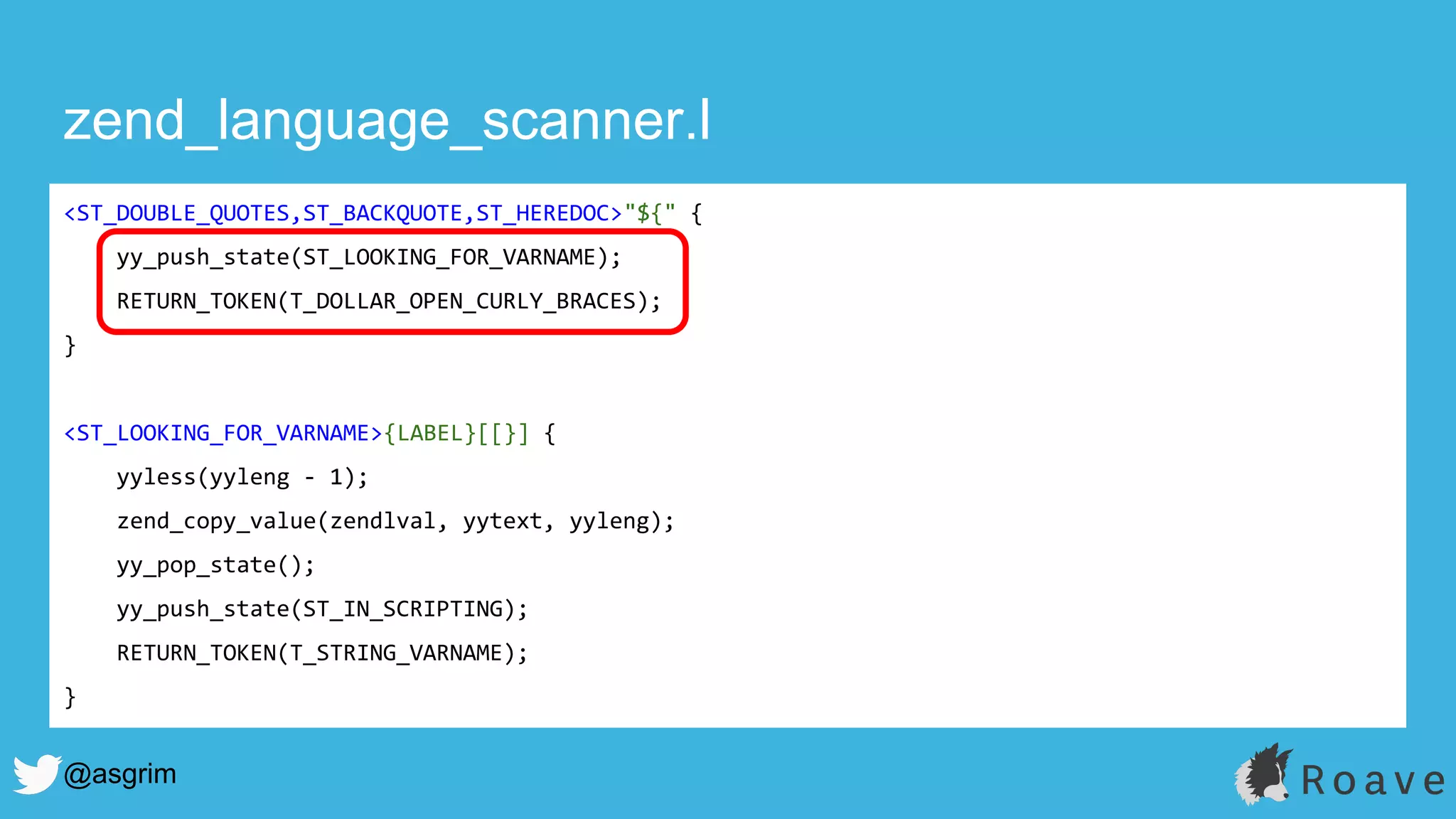

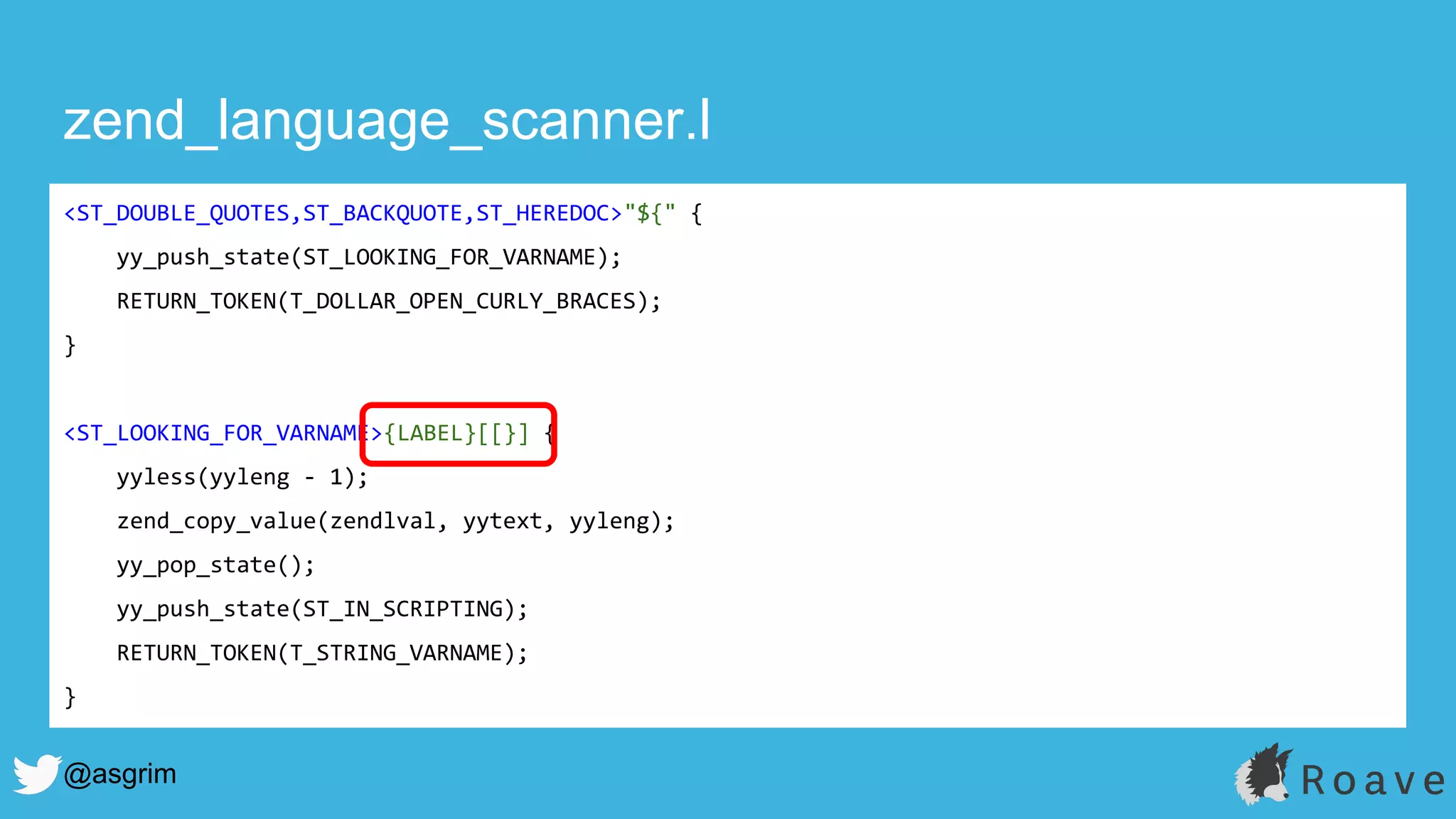

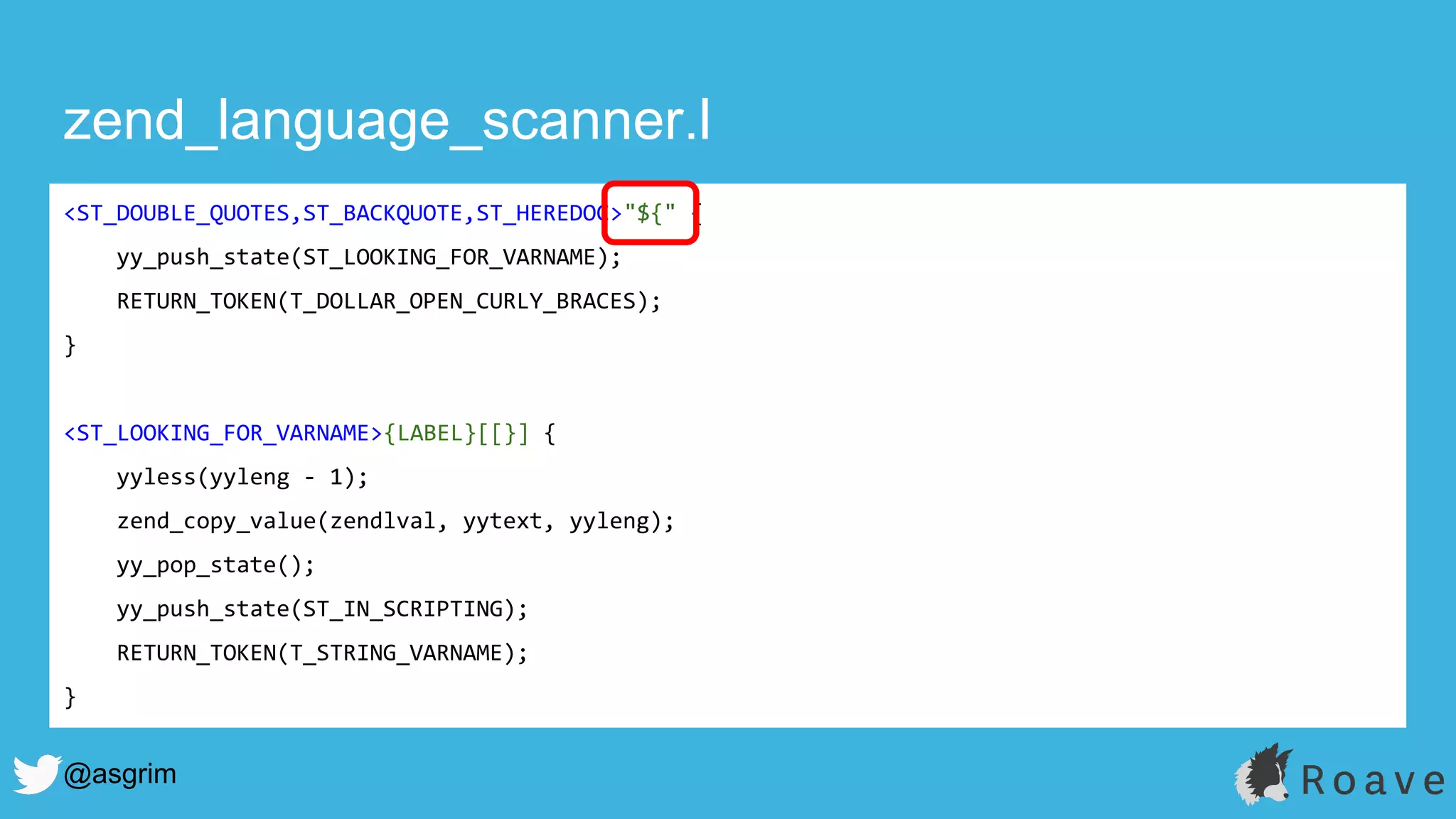

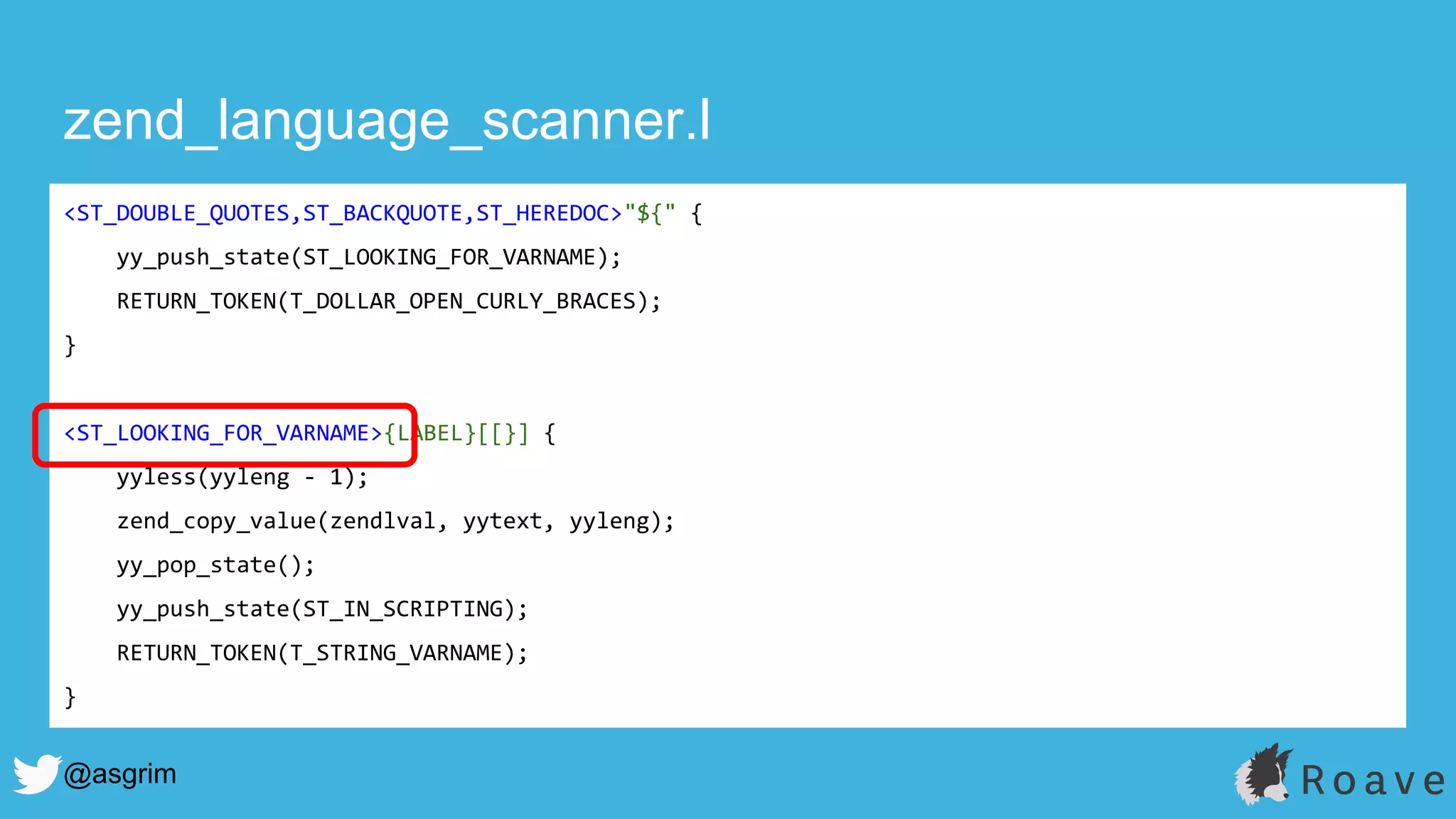

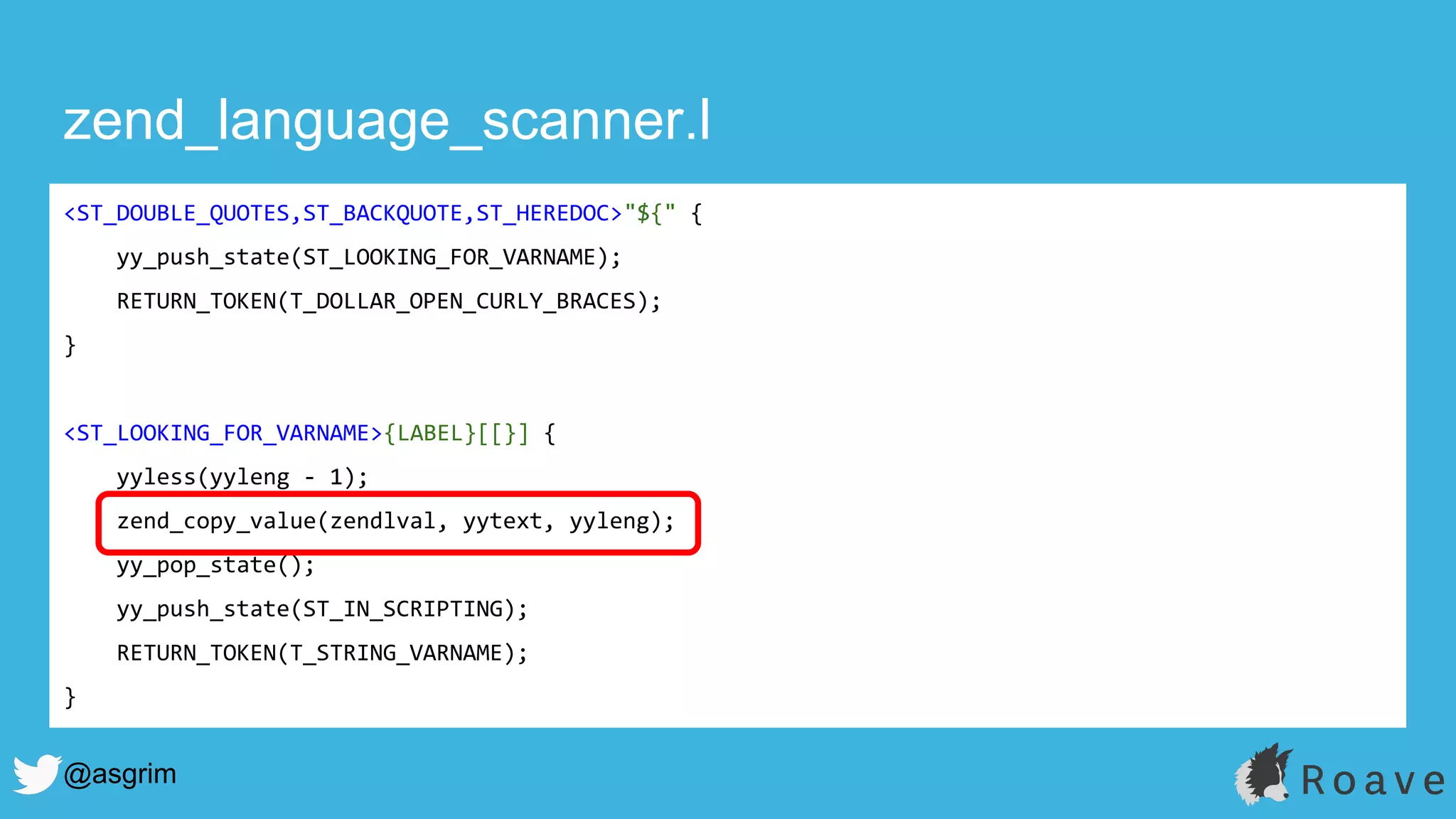

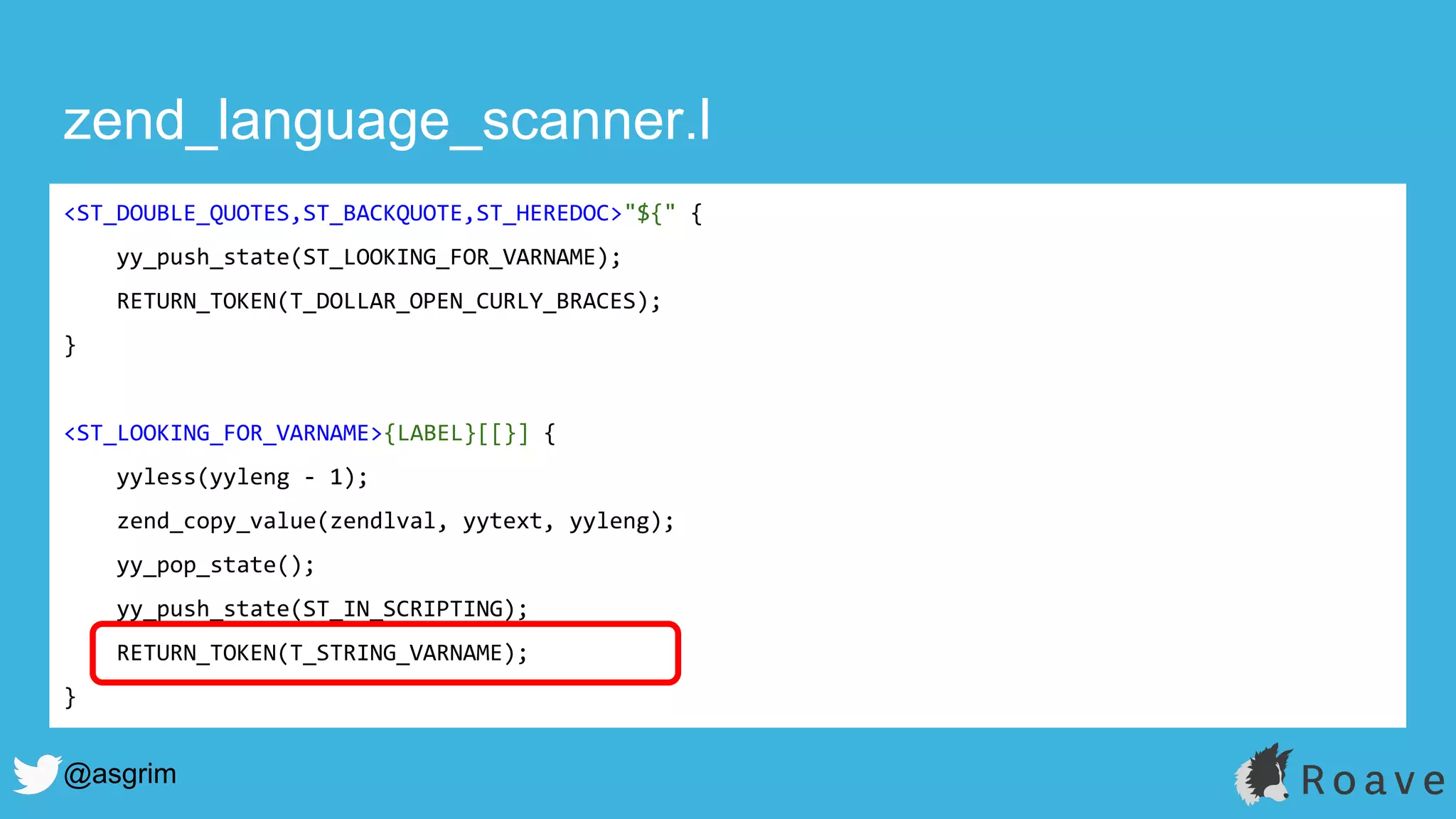

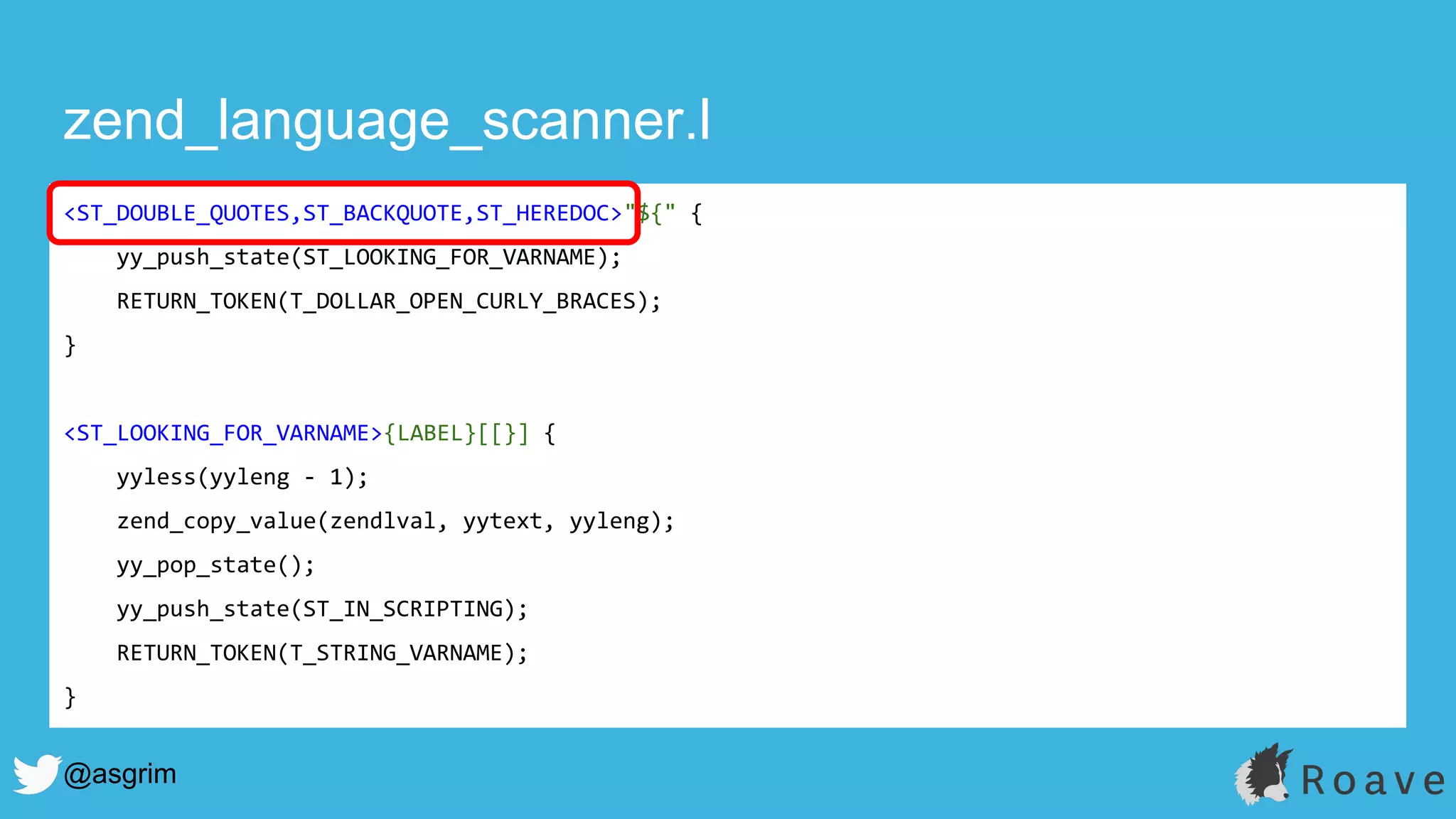

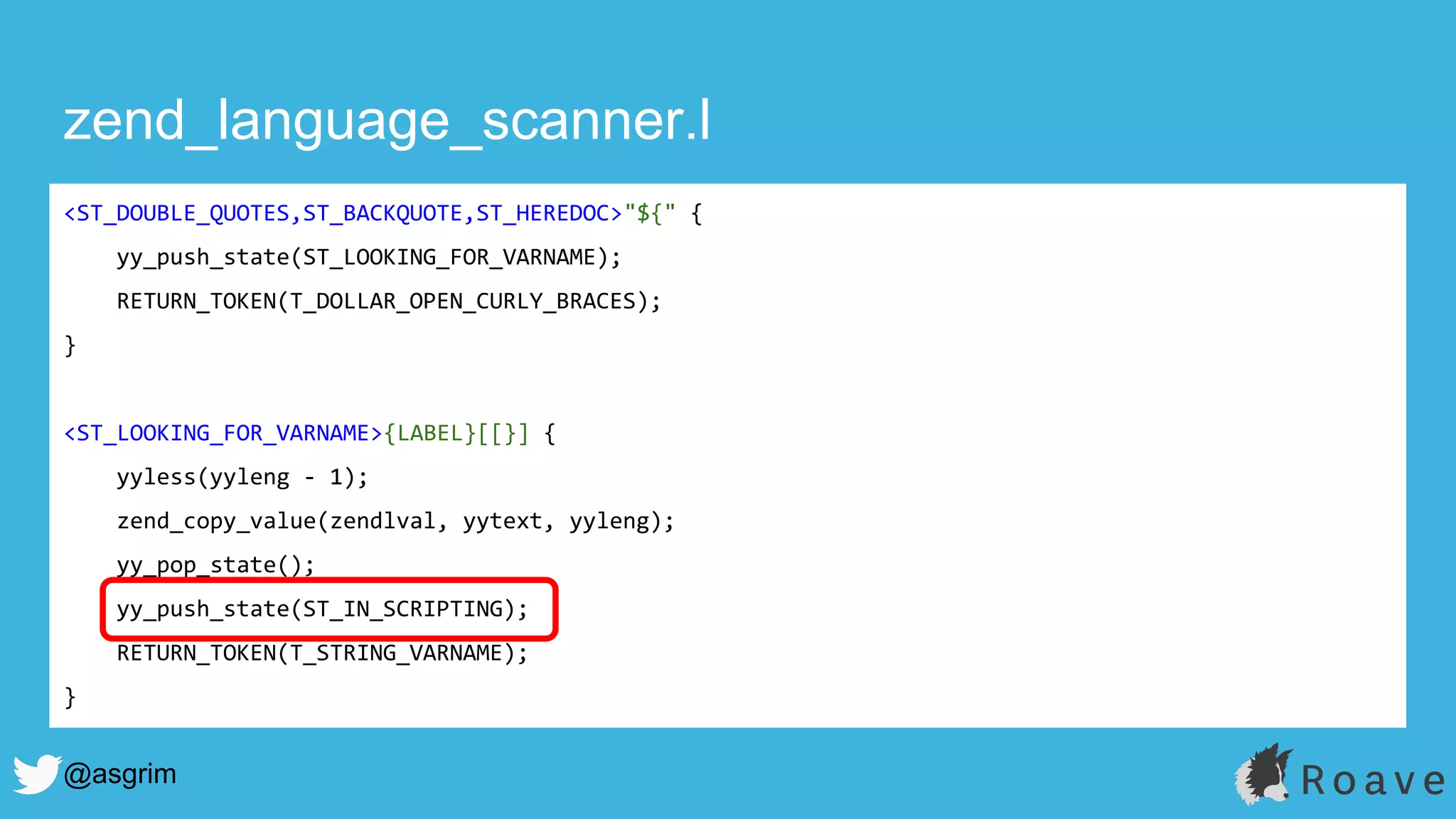

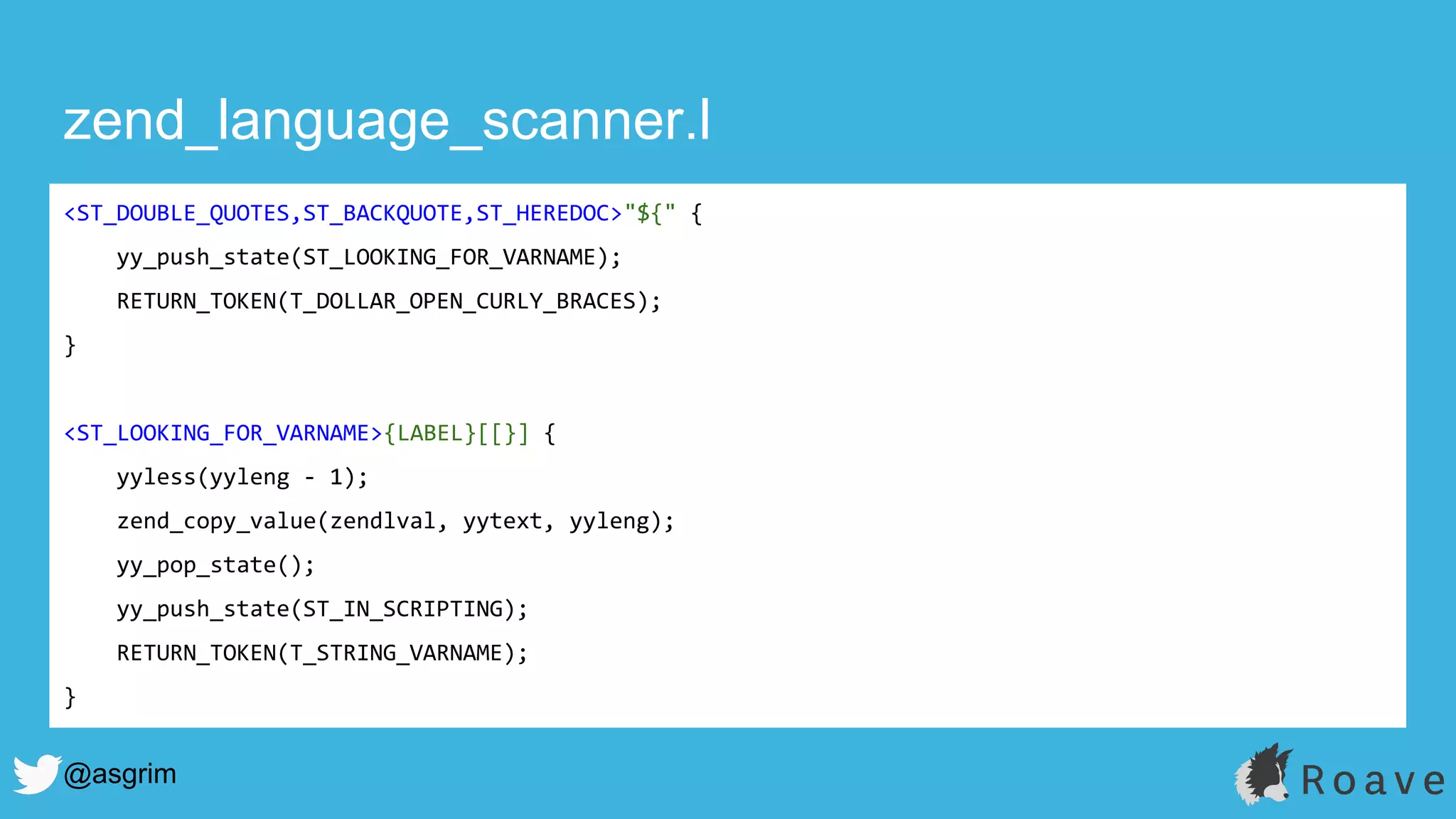

@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng- 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }

10.

11.

12.

13.

14.

15.

16.

17.

18.

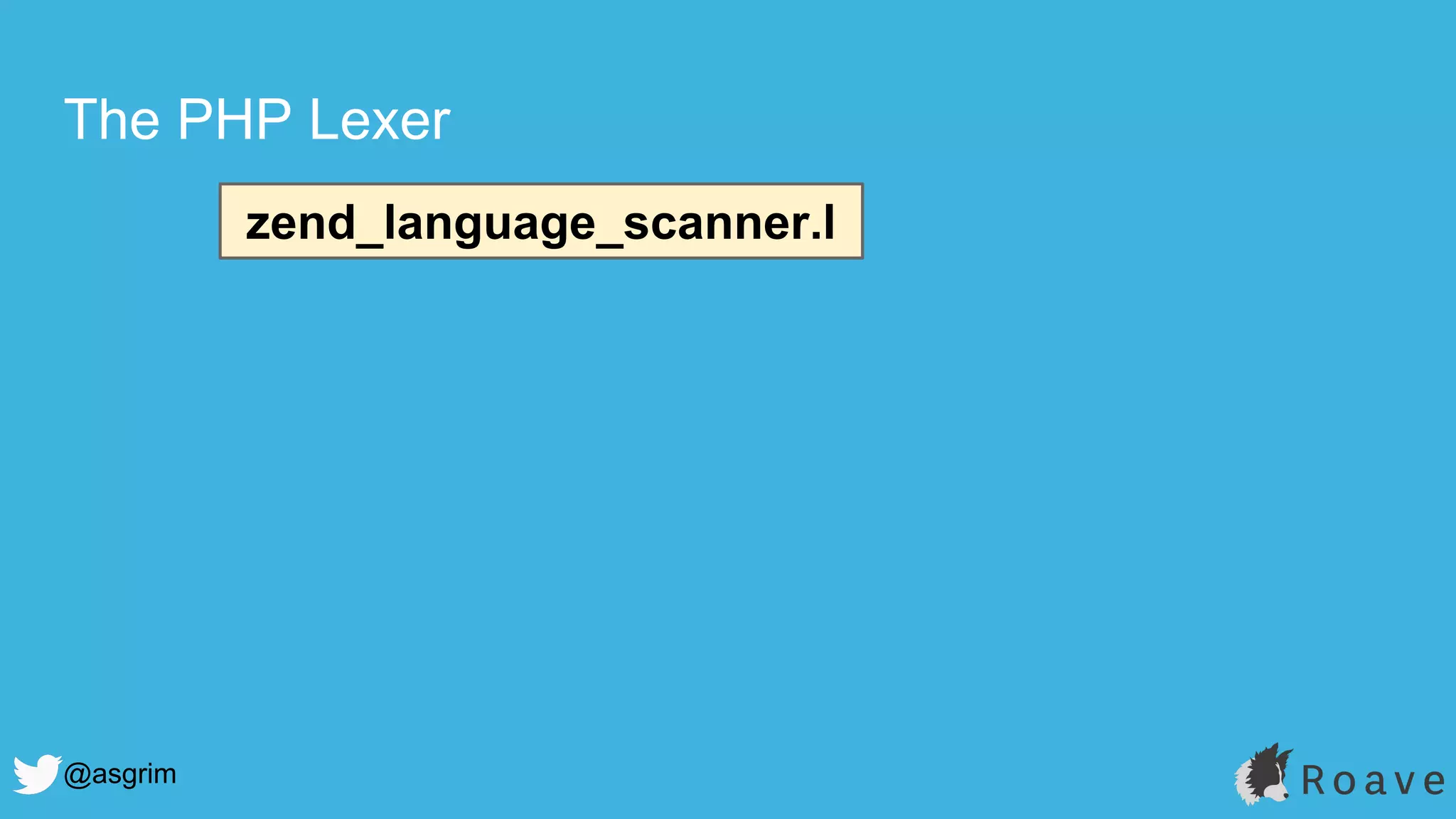

@asgrim The PHP Lexer zend_language_scanner.l

19.

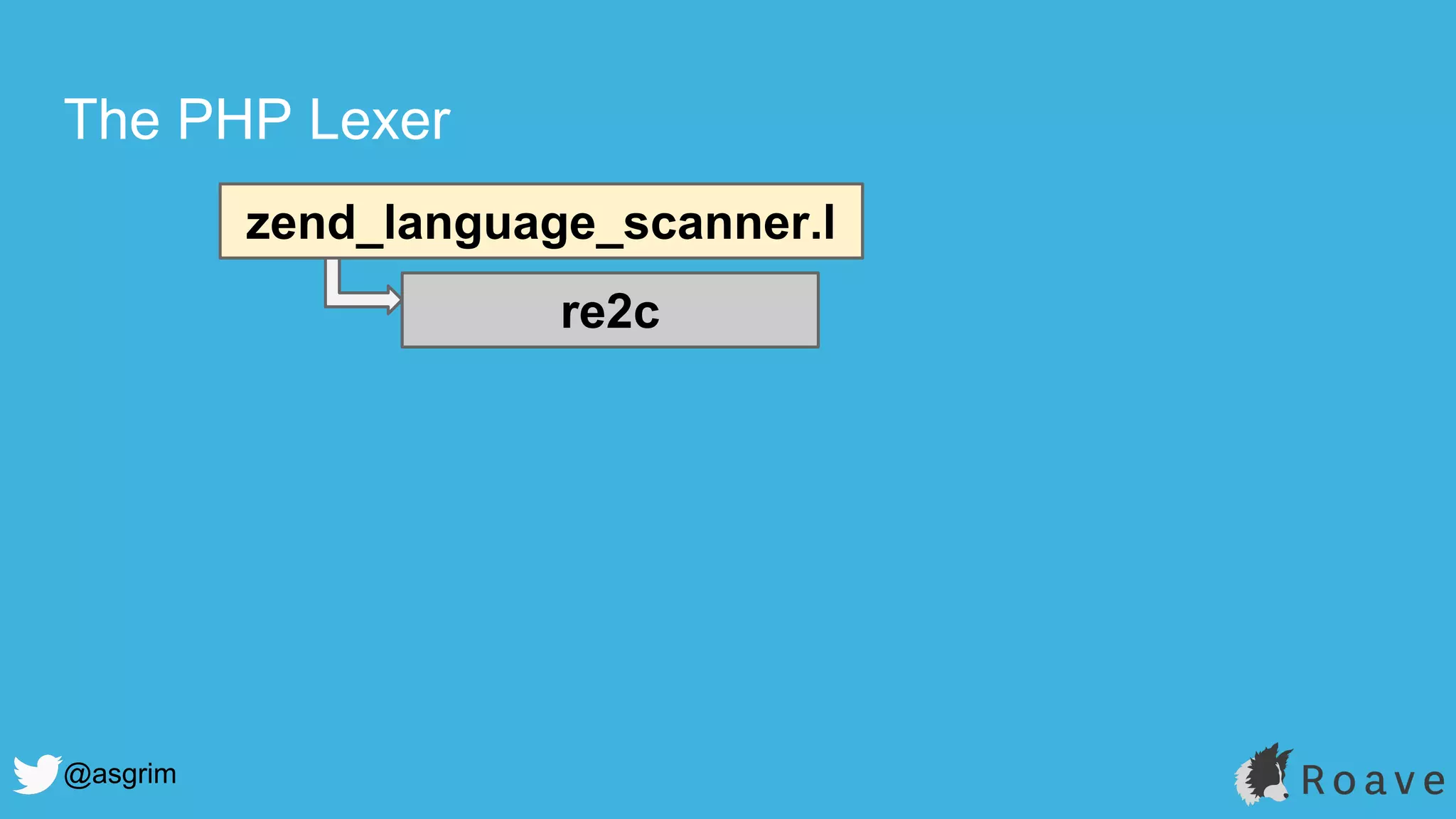

@asgrim The PHP Lexer zend_language_scanner.l re2c

20.

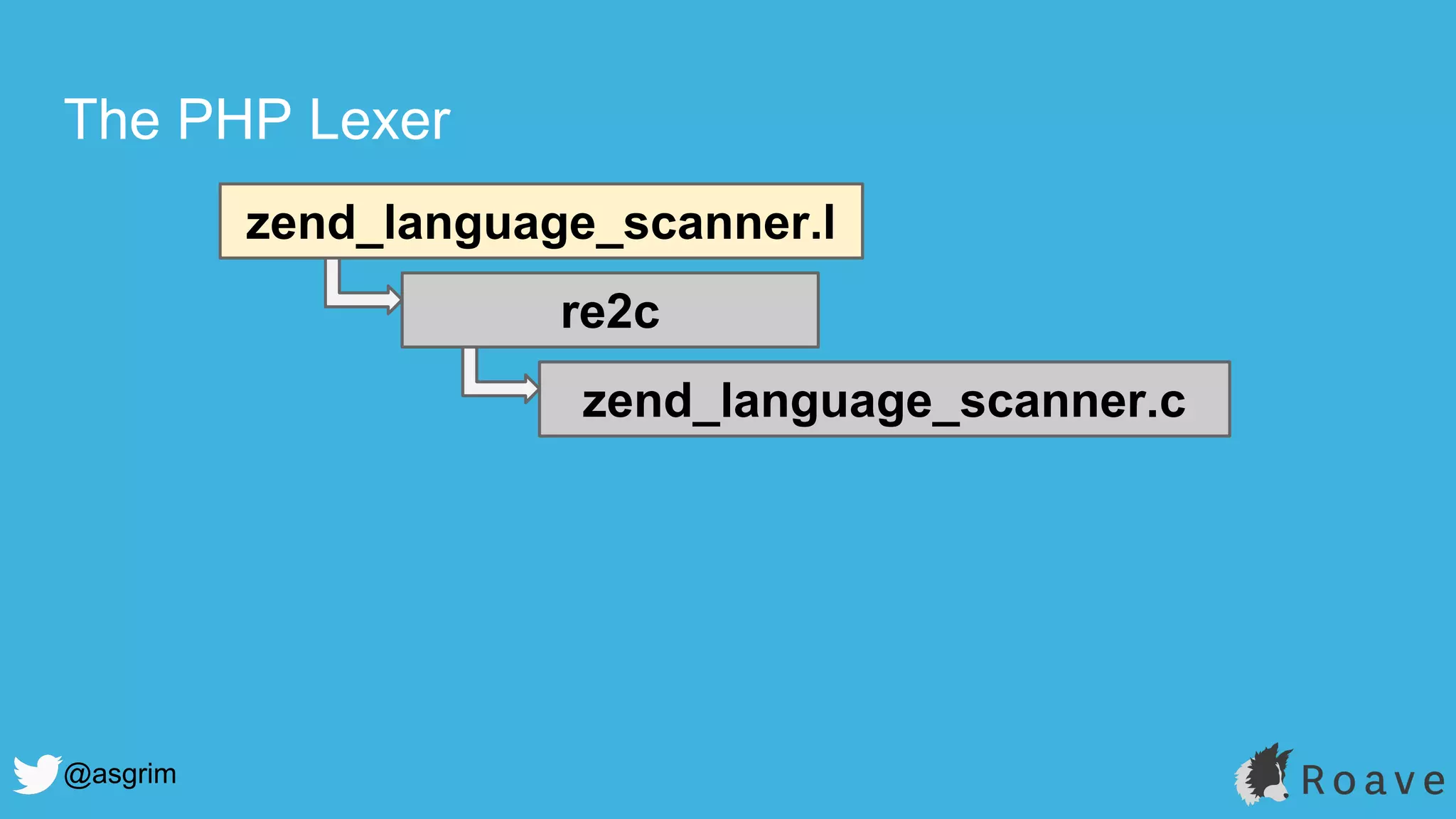

@asgrim The PHP Lexer zend_language_scanner.l re2c zend_language_scanner.c

21.
@asgrim The PHP Parser zend_language_parser.y

22.

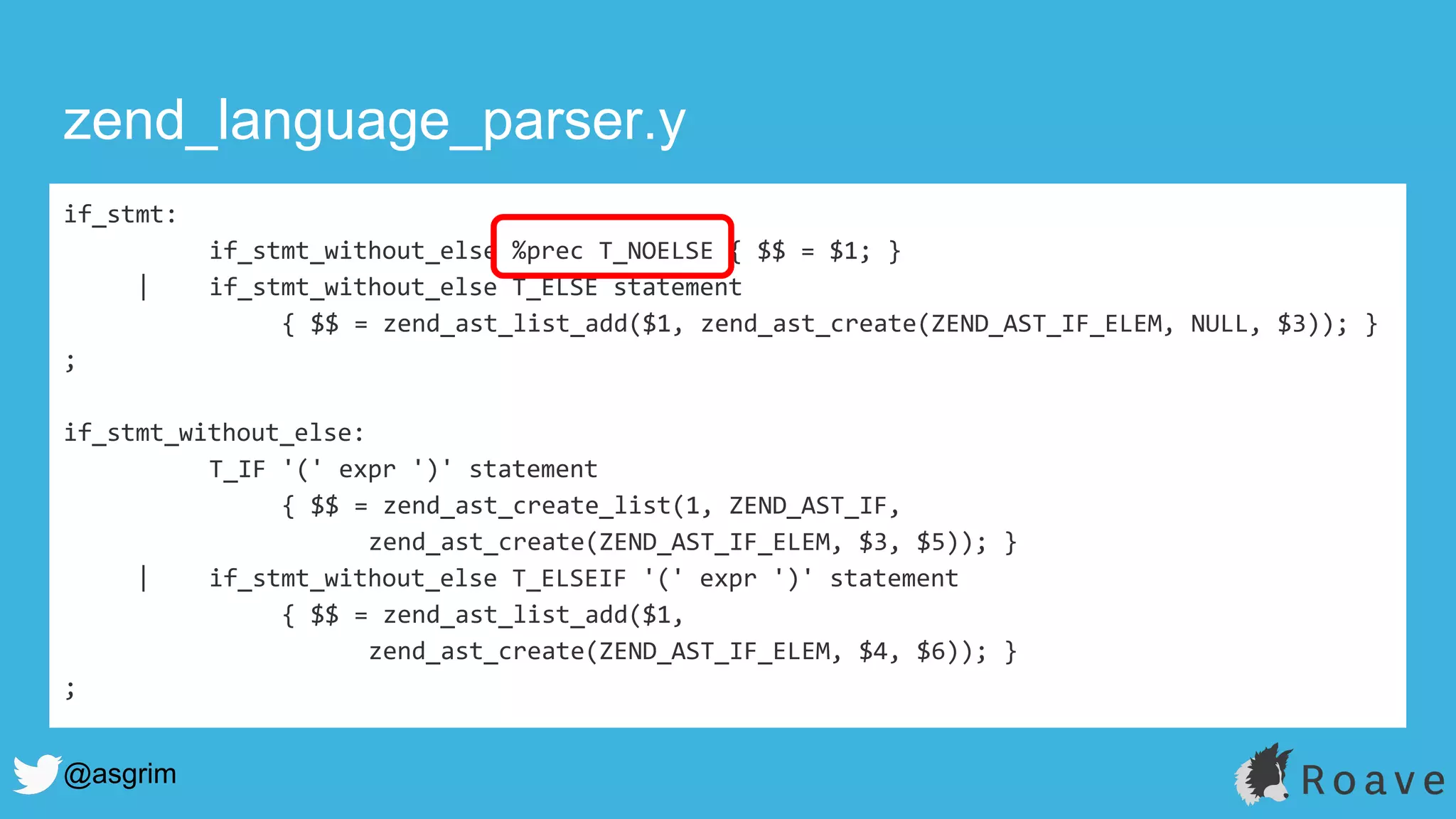

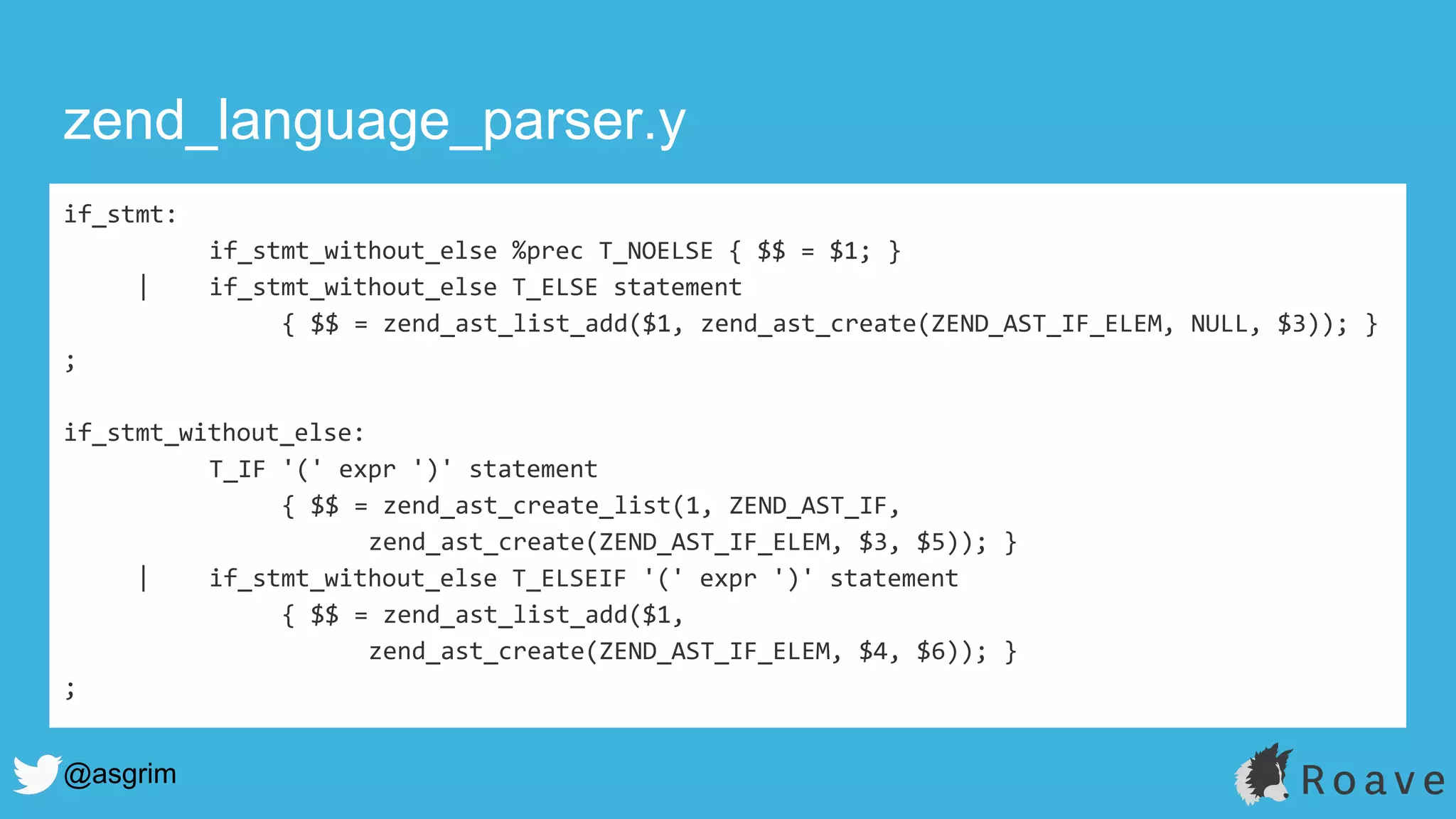

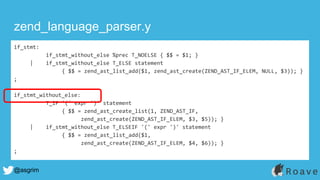

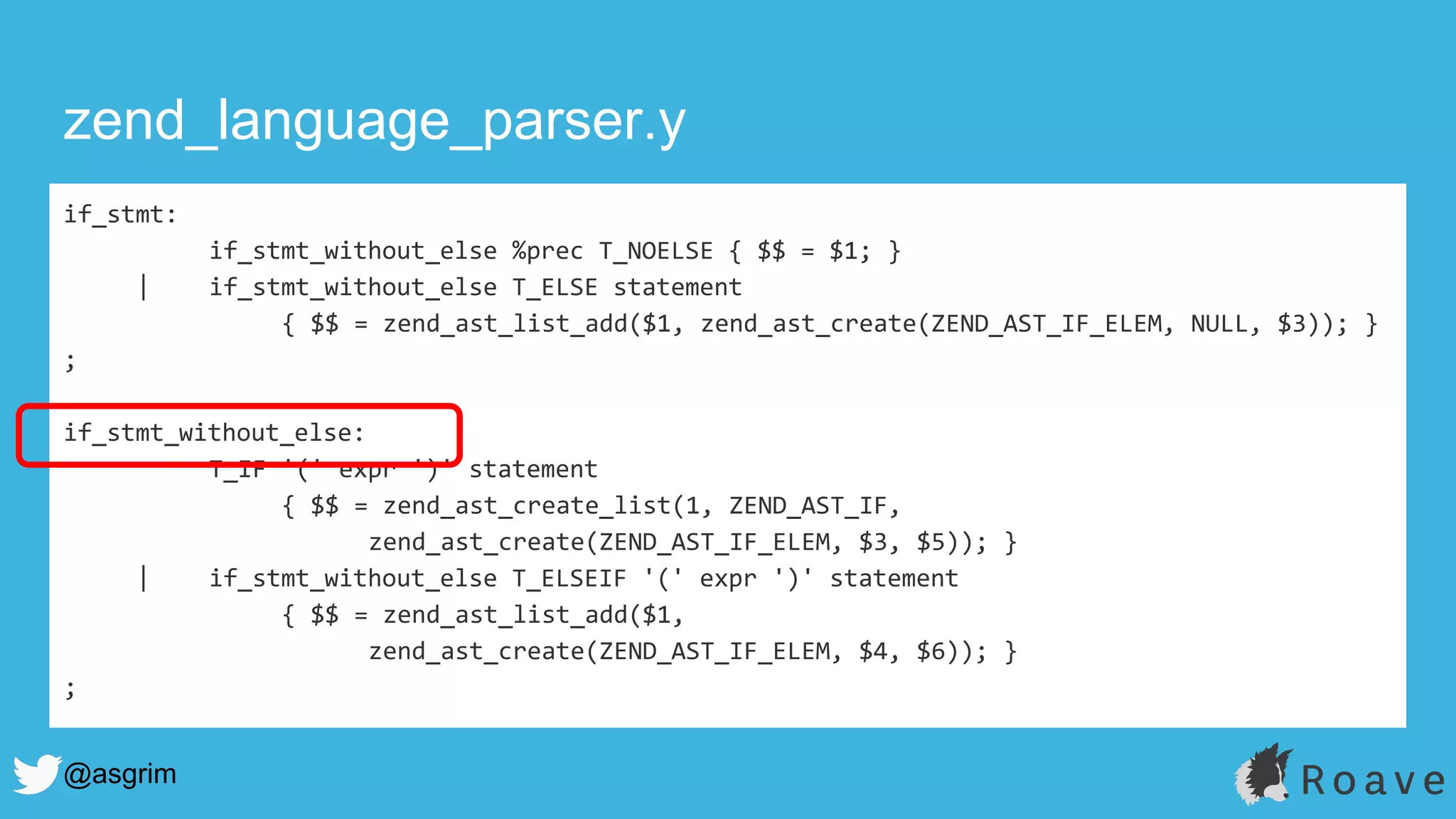

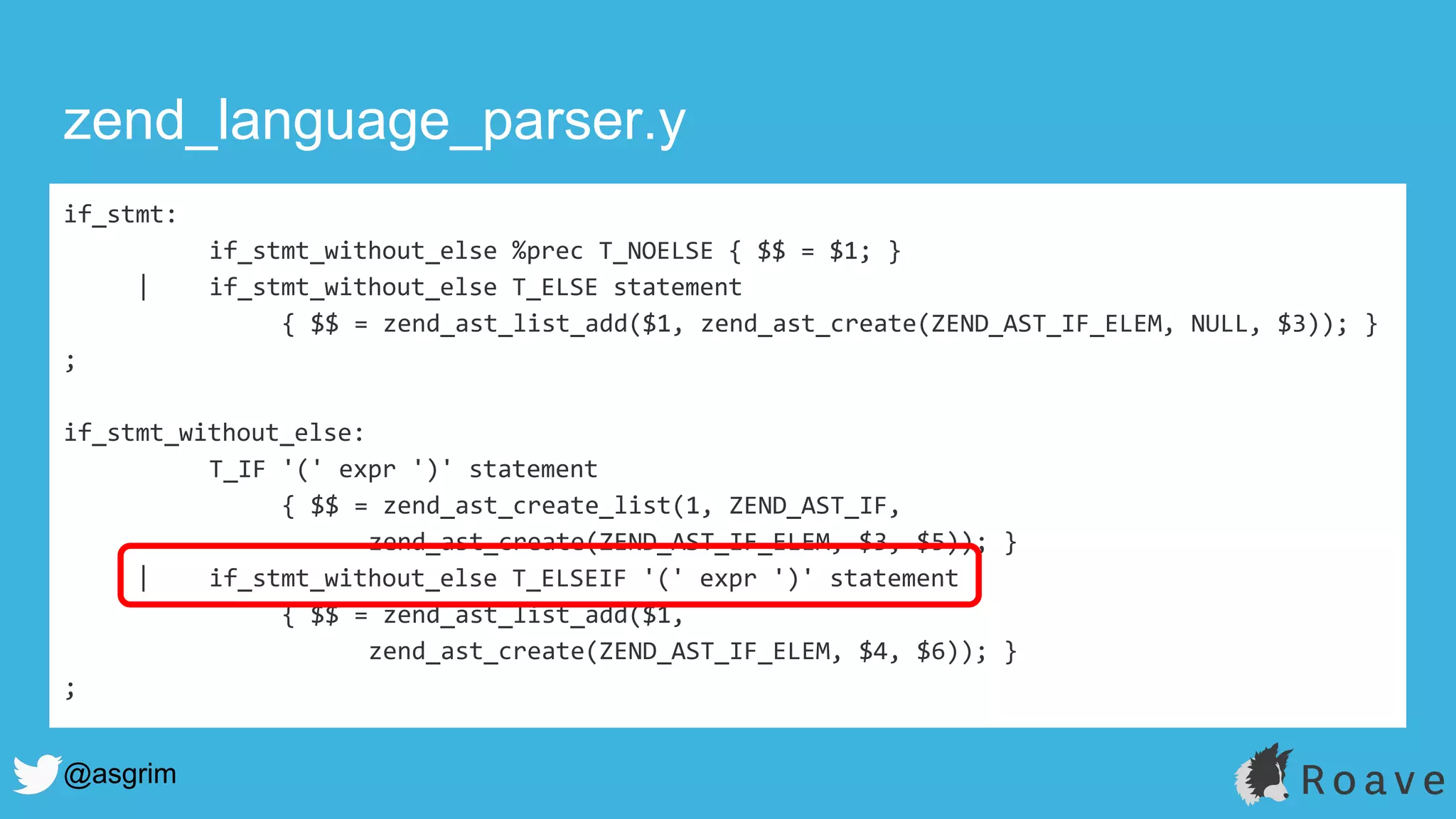

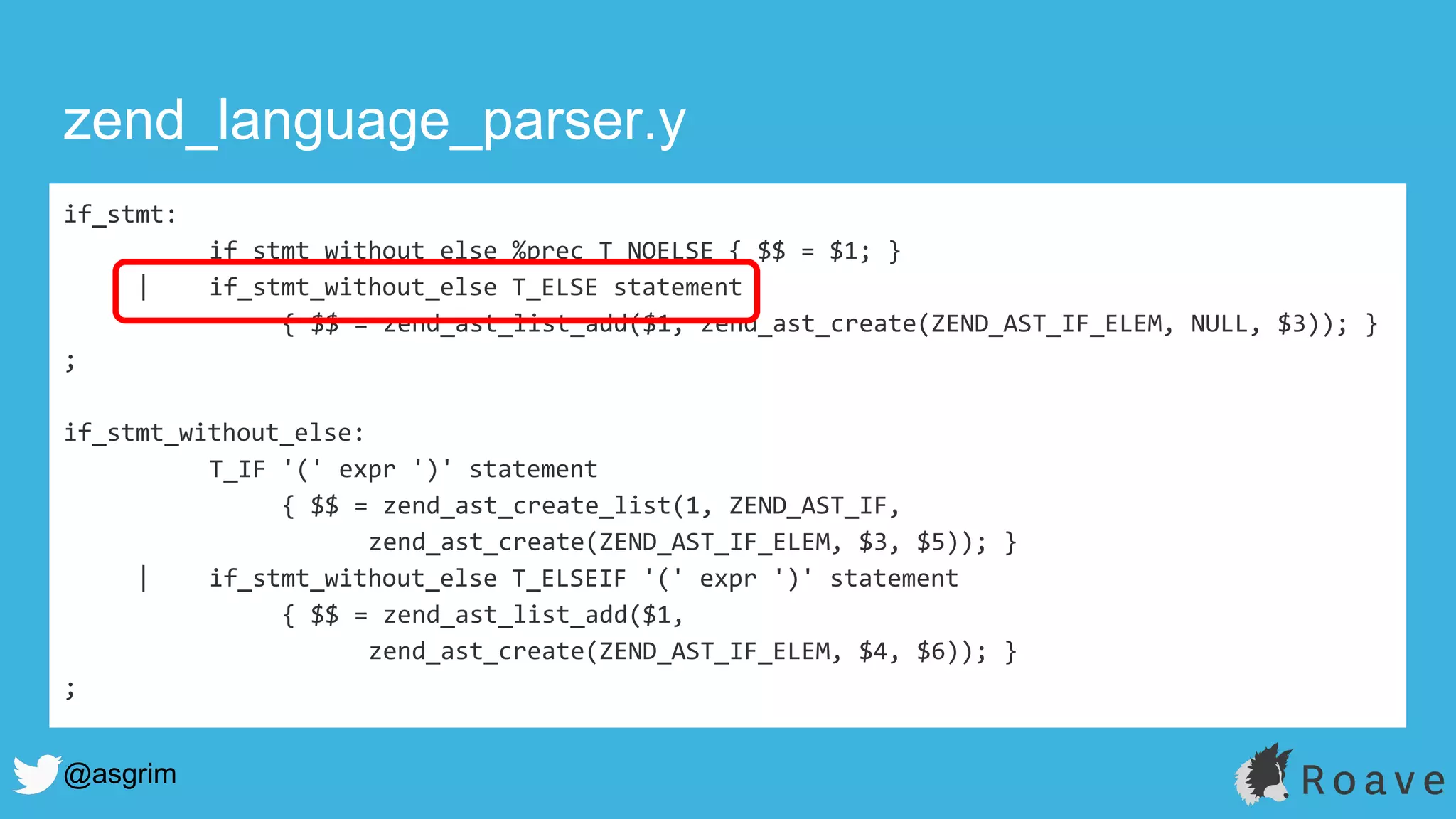

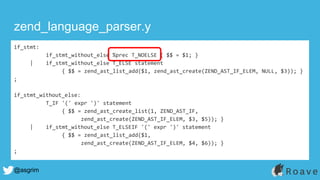

@asgrim zend_language_parser.y if_stmt: if_stmt_without_else %prec T_NOELSE{ $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ;

23.

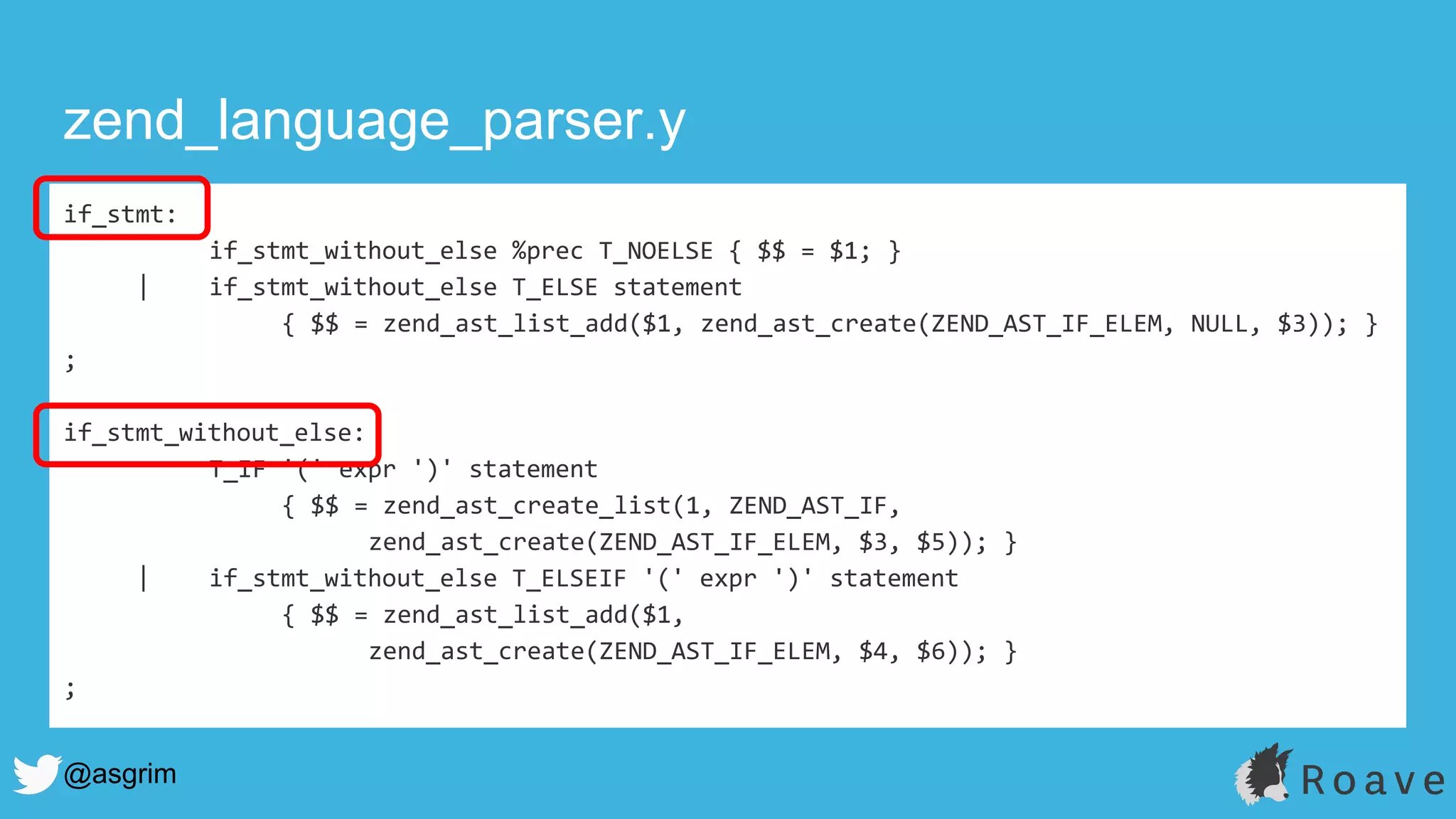

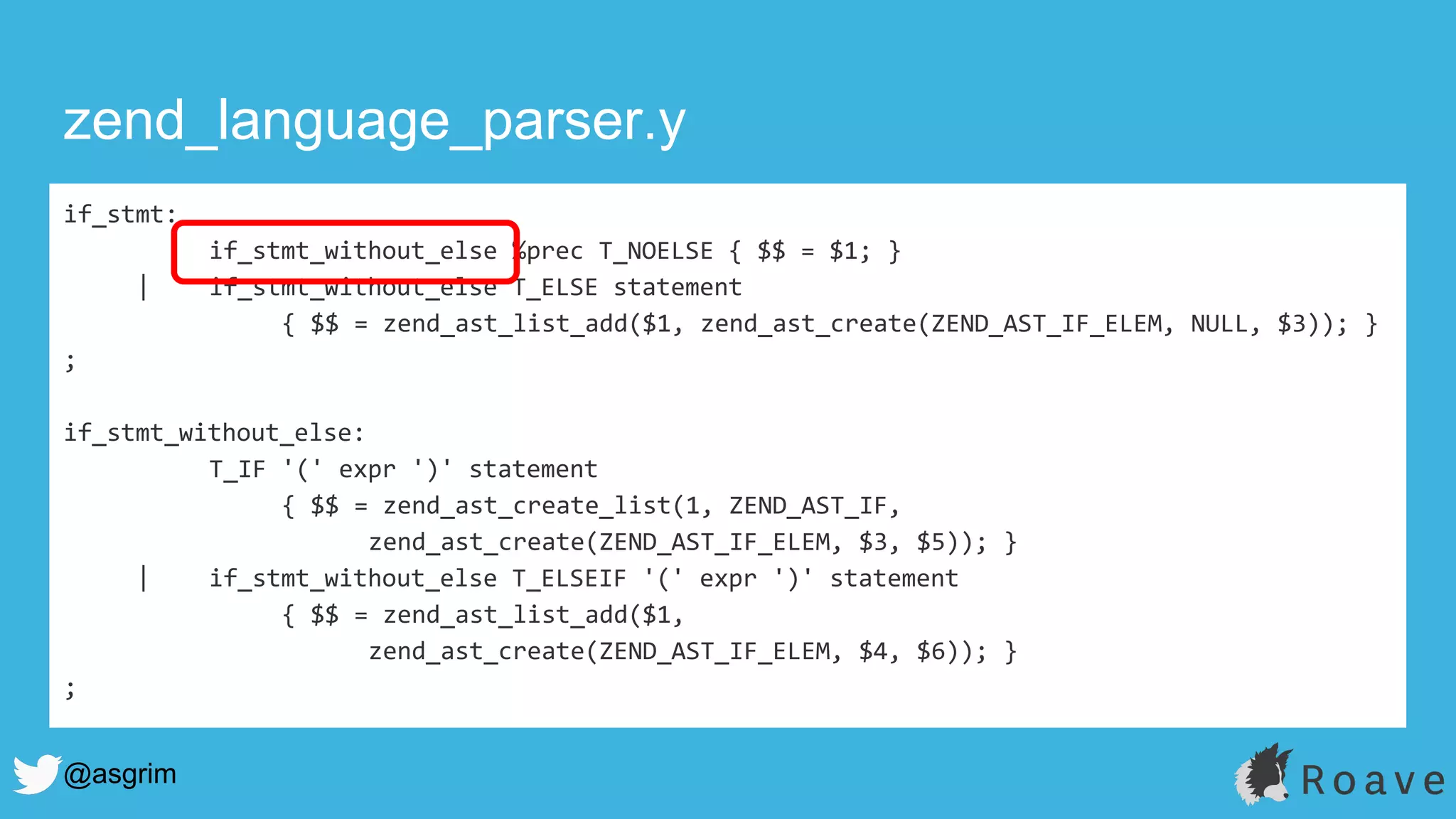

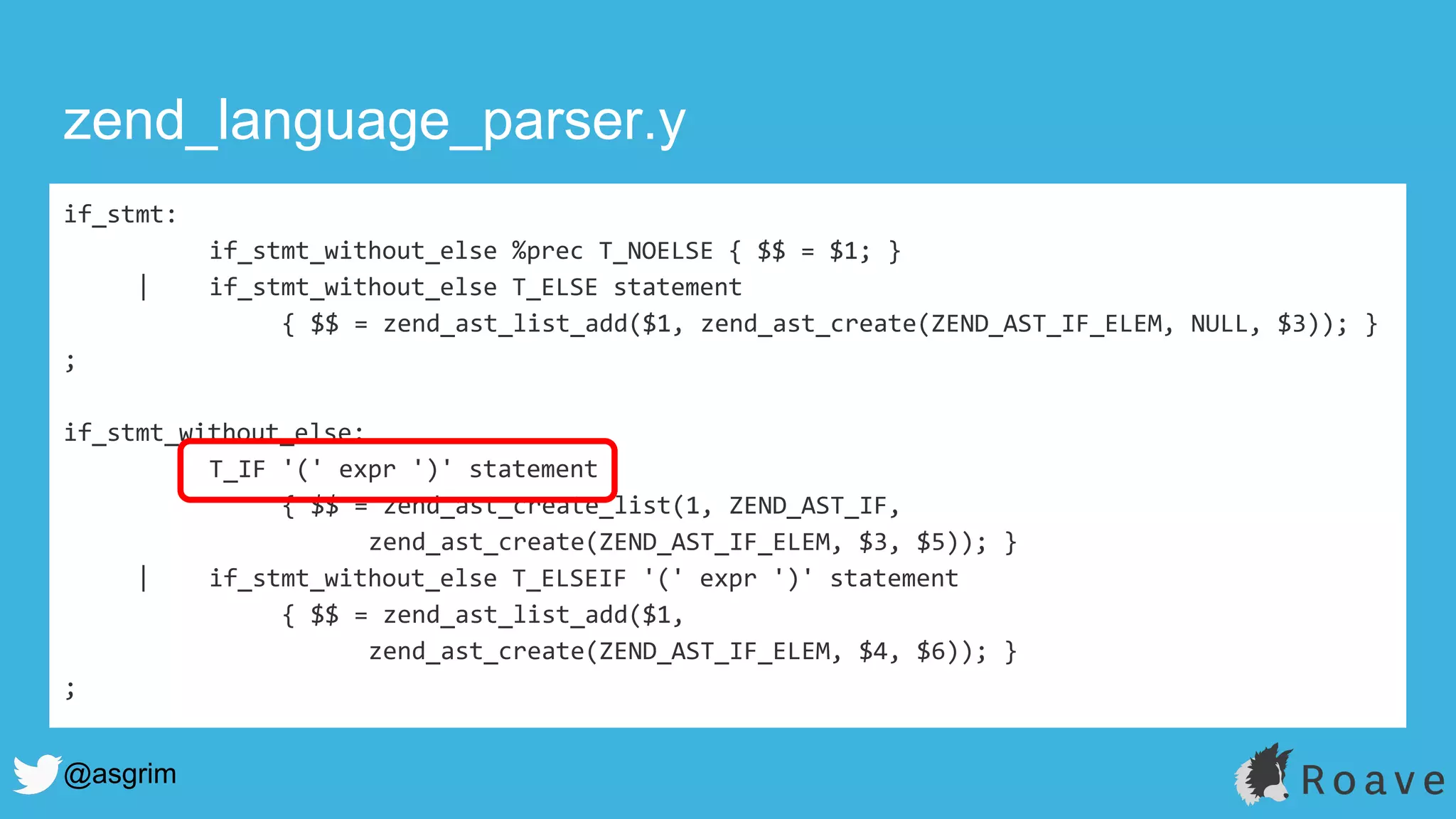

@asgrim if_stmt: if_stmt_without_else %prec T_NOELSE{ $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ; zend_language_parser.y

24.

25.

26.

27.

28.

29.

30.

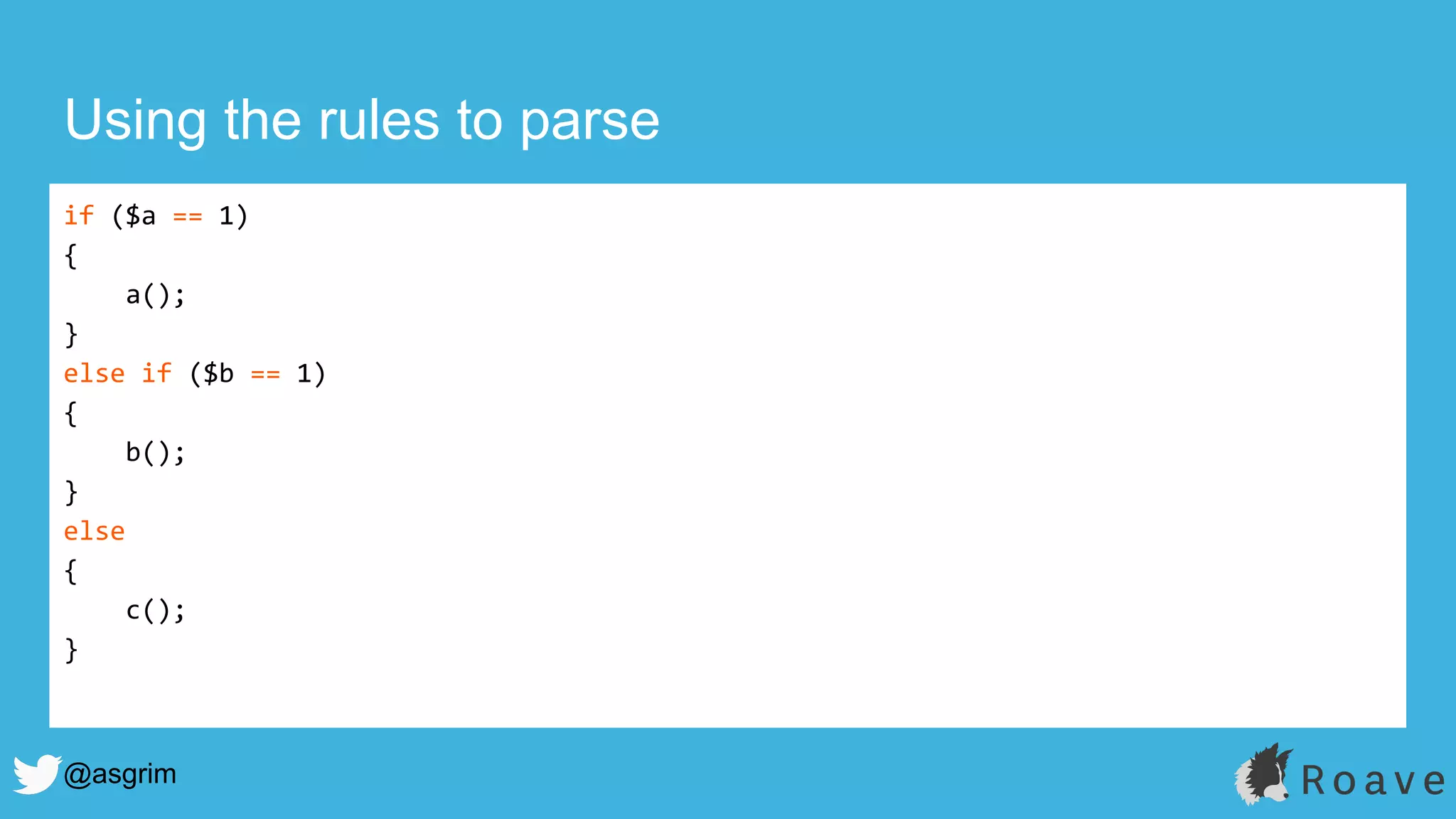

@asgrim if ($a ==1) { a(); } else if ($b == 1) { b(); } else { c(); } Using the rules to parse

31.

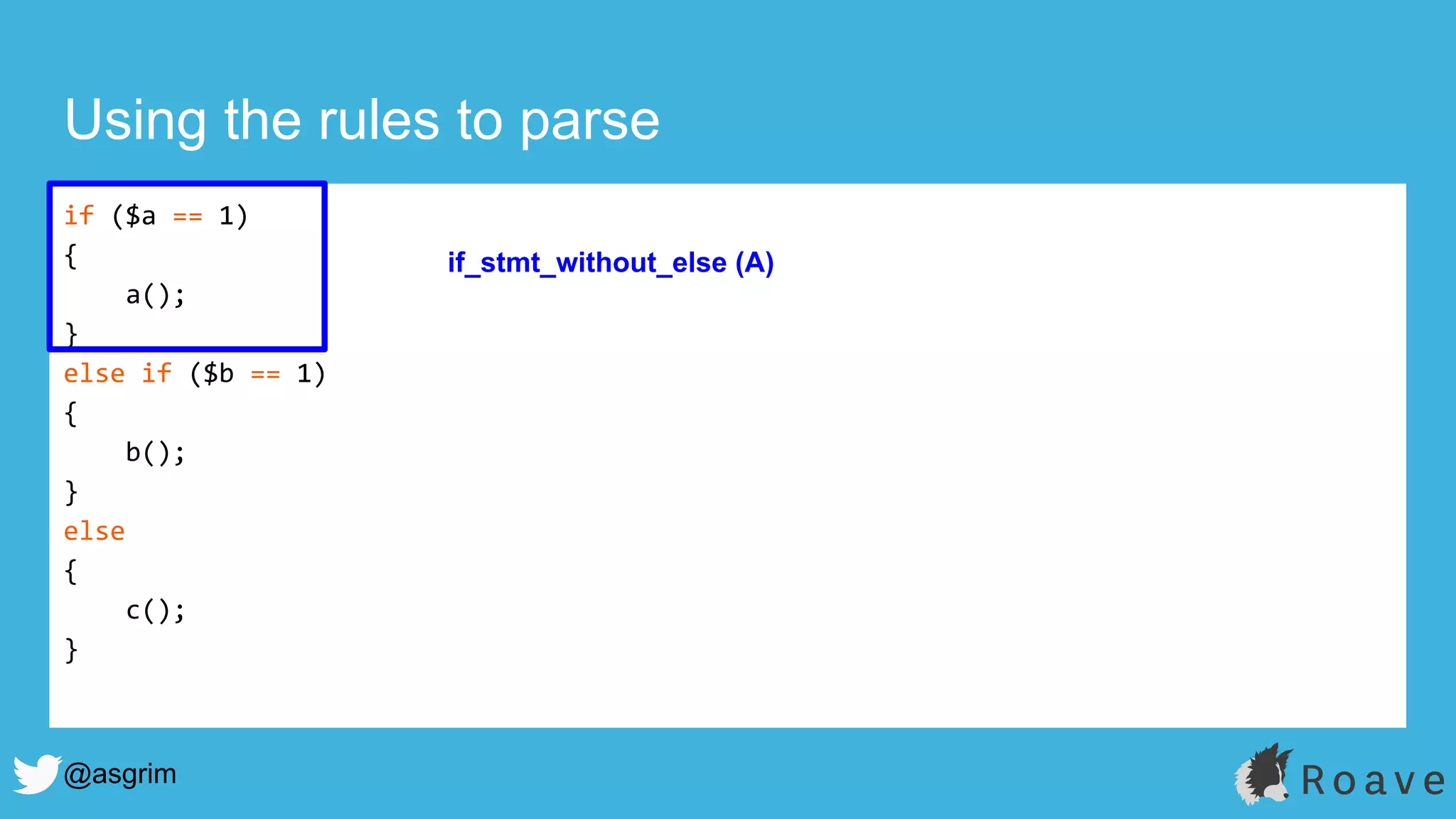

@asgrim if ($a ==1) { a(); } else if ($b == 1) { b(); } else { c(); } Using the rules to parse if_stmt_without_else (A)

32.

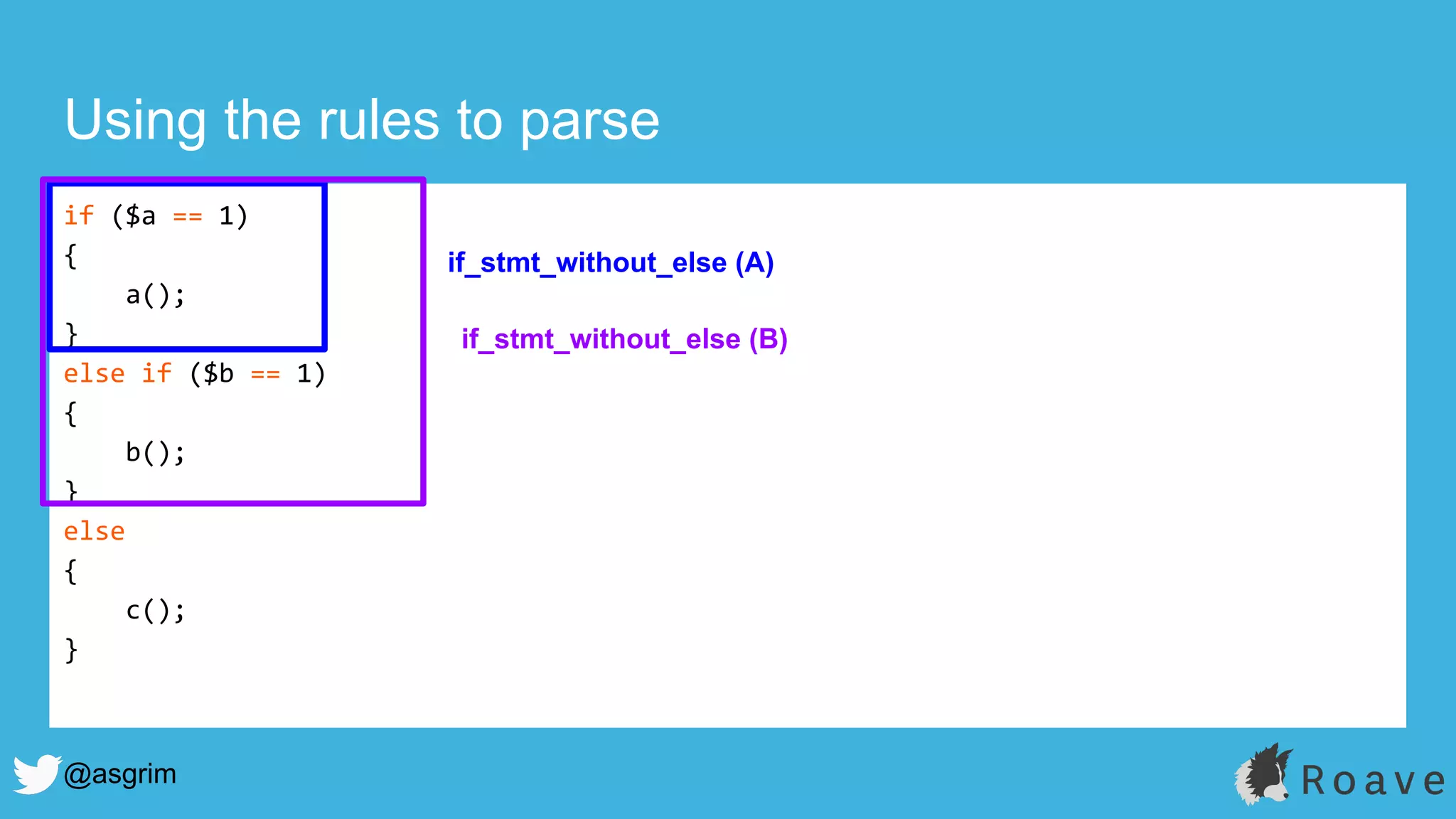

@asgrim if ($a ==1) { a(); } else if ($b == 1) { b(); } else { c(); } Using the rules to parse if_stmt_without_else (A) if_stmt_without_else (B)

33.

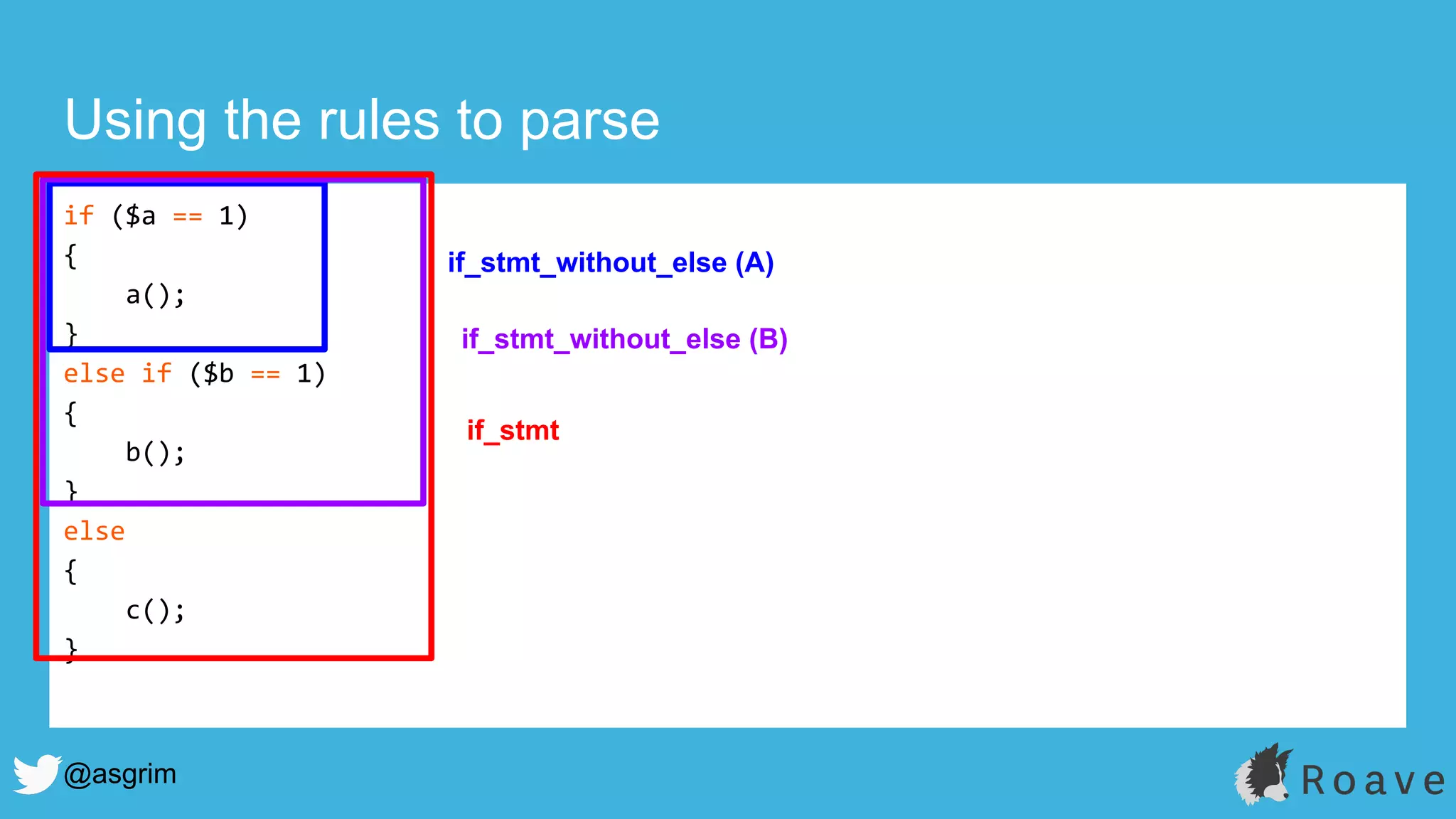

@asgrim if ($a ==1) { a(); } else if ($b == 1) { b(); } else { c(); } Using the rules to parse if_stmt_without_else (A) if_stmt_without_else (B) if_stmt

34.

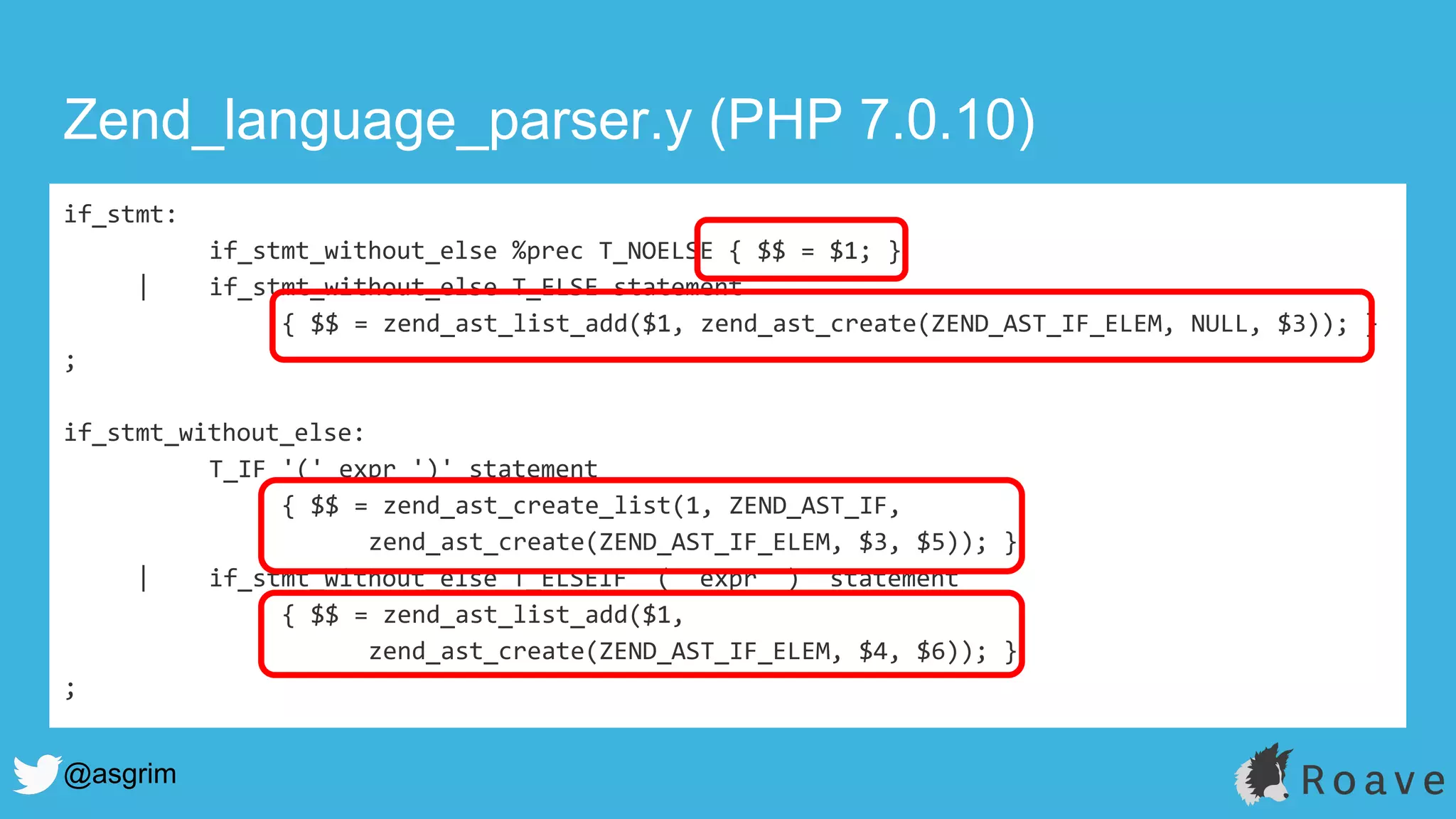

@asgrim Zend_language_parser.y (PHP 7.0.10) if_stmt: if_stmt_without_else%prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ;

35.

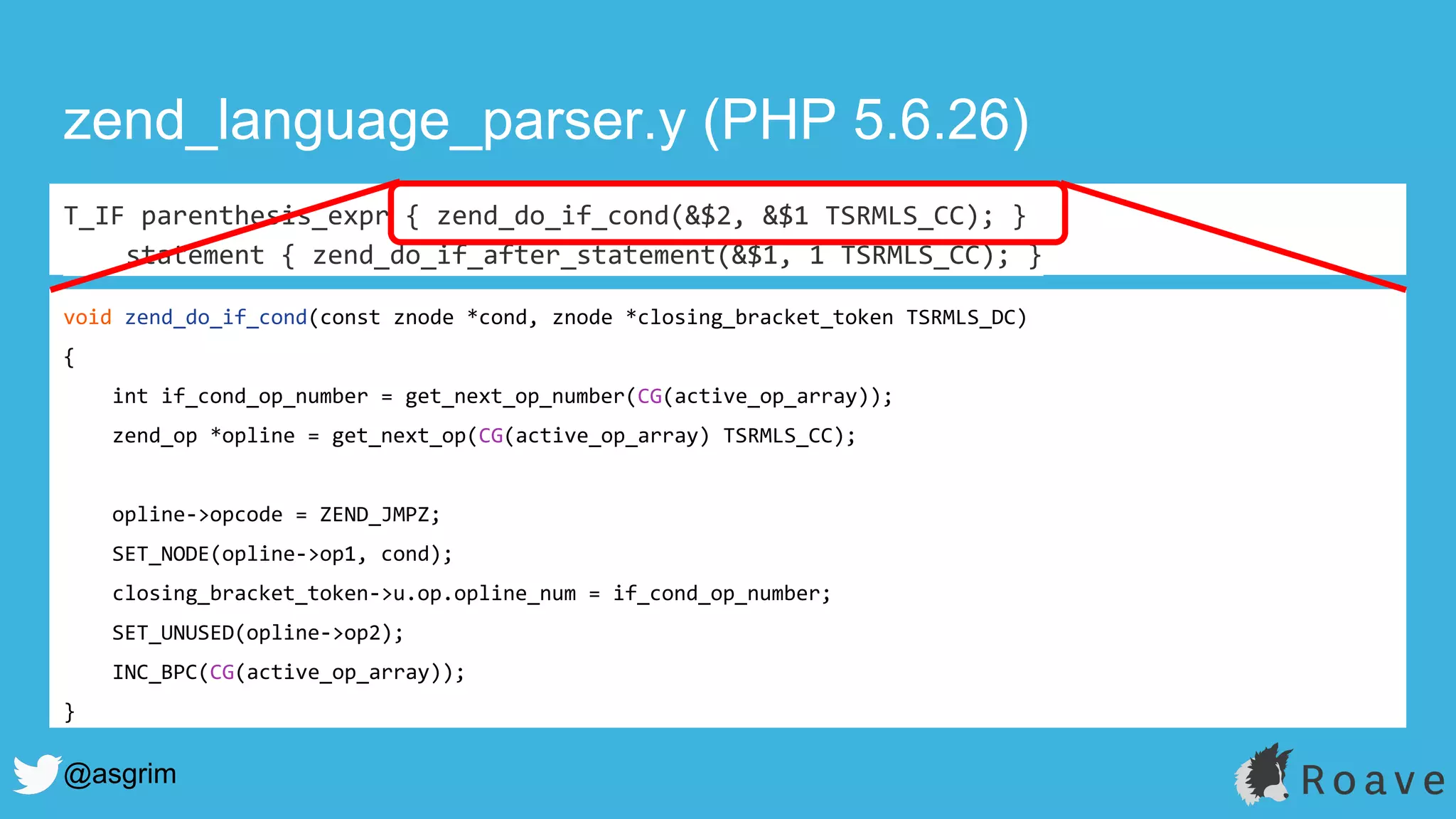

@asgrim zend_language_parser.y (PHP 5.6.26) T_IFparenthesis_expr { zend_do_if_cond(&$2, &$1 TSRMLS_CC); } statement { zend_do_if_after_statement(&$1, 1 TSRMLS_CC); } void zend_do_if_cond(const znode *cond, znode *closing_bracket_token TSRMLS_DC) { int if_cond_op_number = get_next_op_number(CG(active_op_array)); zend_op *opline = get_next_op(CG(active_op_array) TSRMLS_CC); opline->opcode = ZEND_JMPZ; SET_NODE(opline->op1, cond); closing_bracket_token->u.op.opline_num = if_cond_op_number; SET_UNUSED(opline->op2); INC_BPC(CG(active_op_array)); }

36.
@asgrim AST is newin PHP 7+

37.

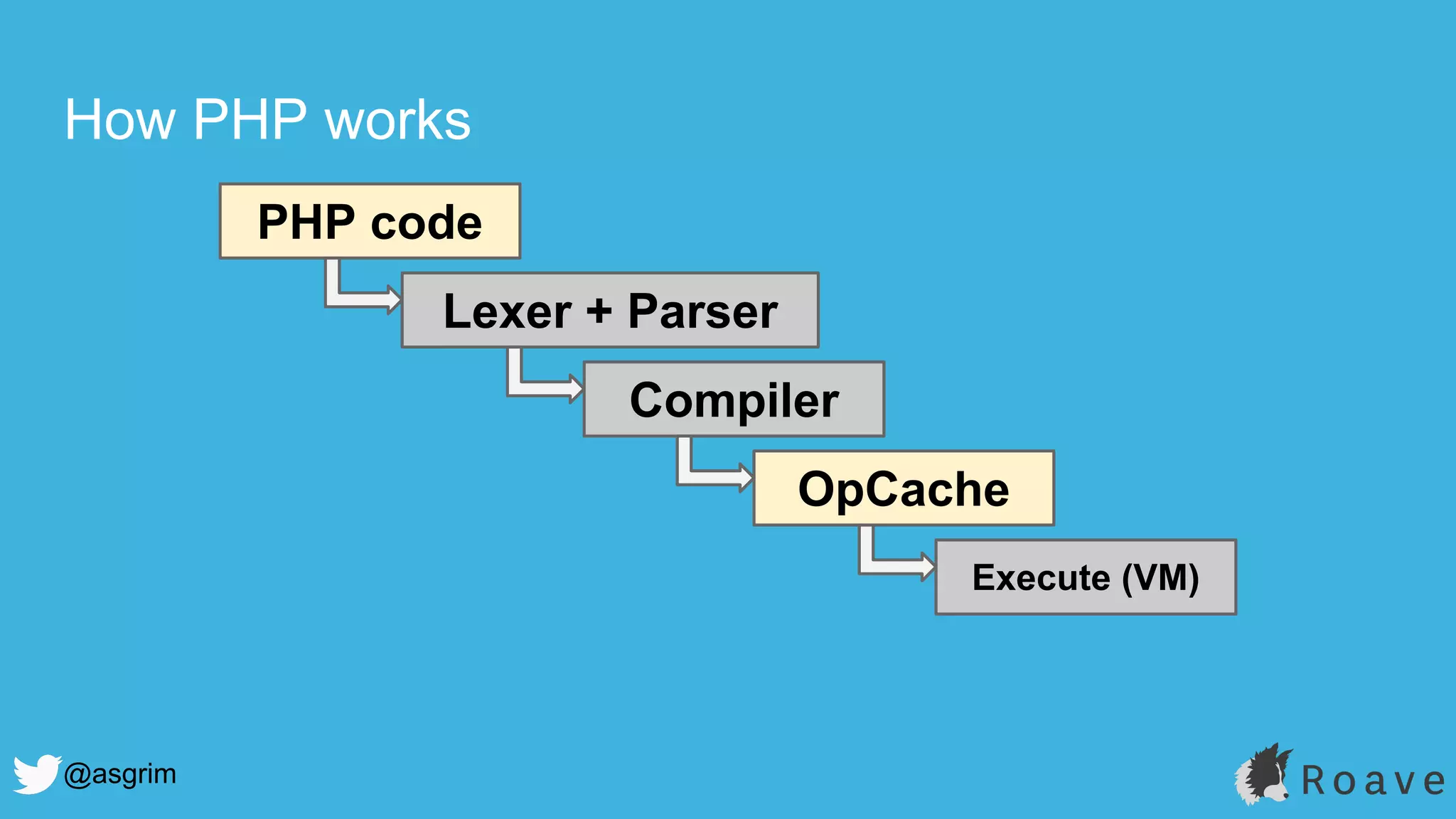

@asgrim How PHP works PHPcode OpCache Execute (VM) Lexer + Parser Compiler

38.
@asgrim Let’s simplify!

39.
@asgrim First… WTF isAST?

40.
@asgrim AST is justa data structure

41.

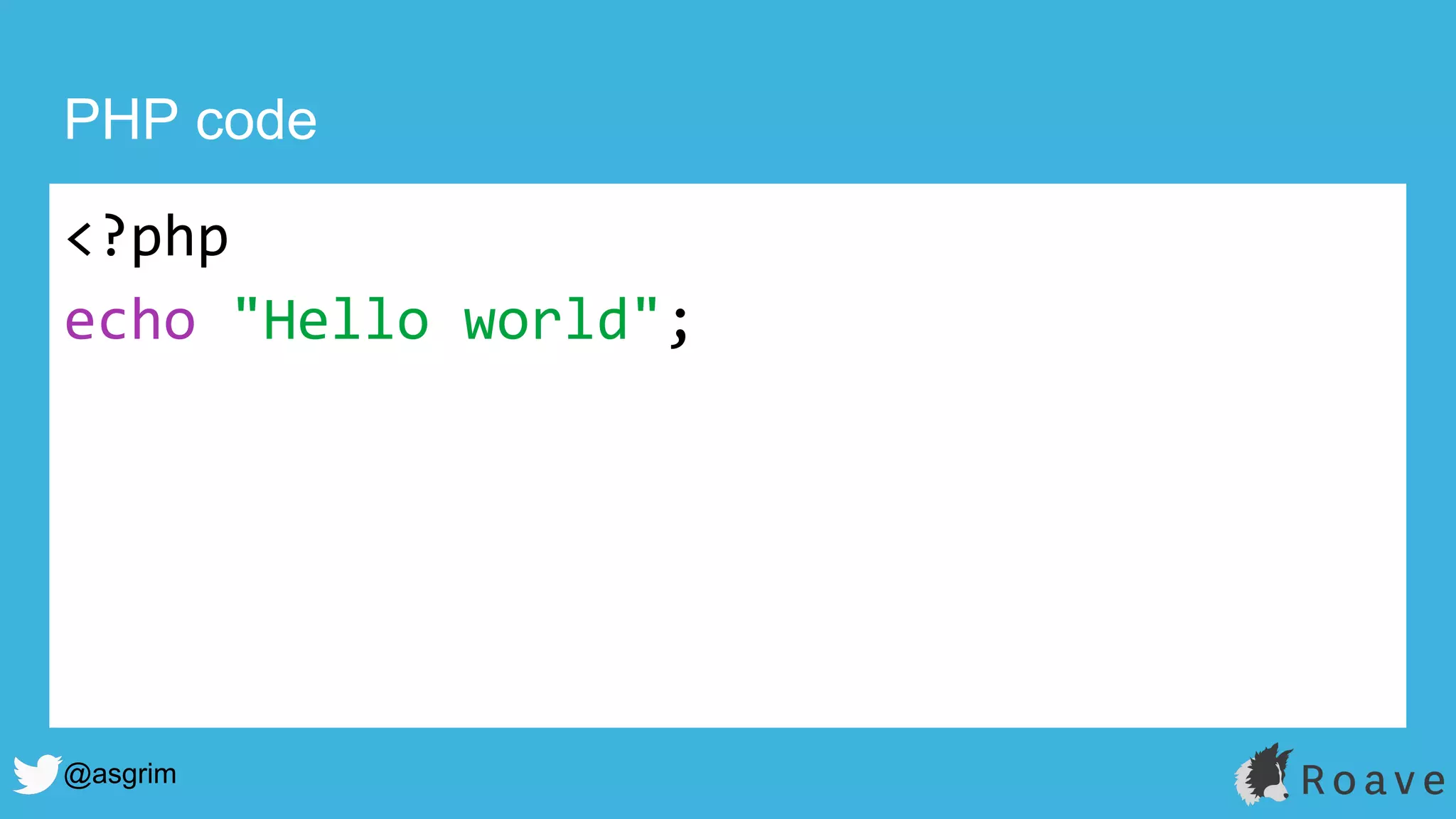

@asgrim PHP code <?php echo "Helloworld";

42.

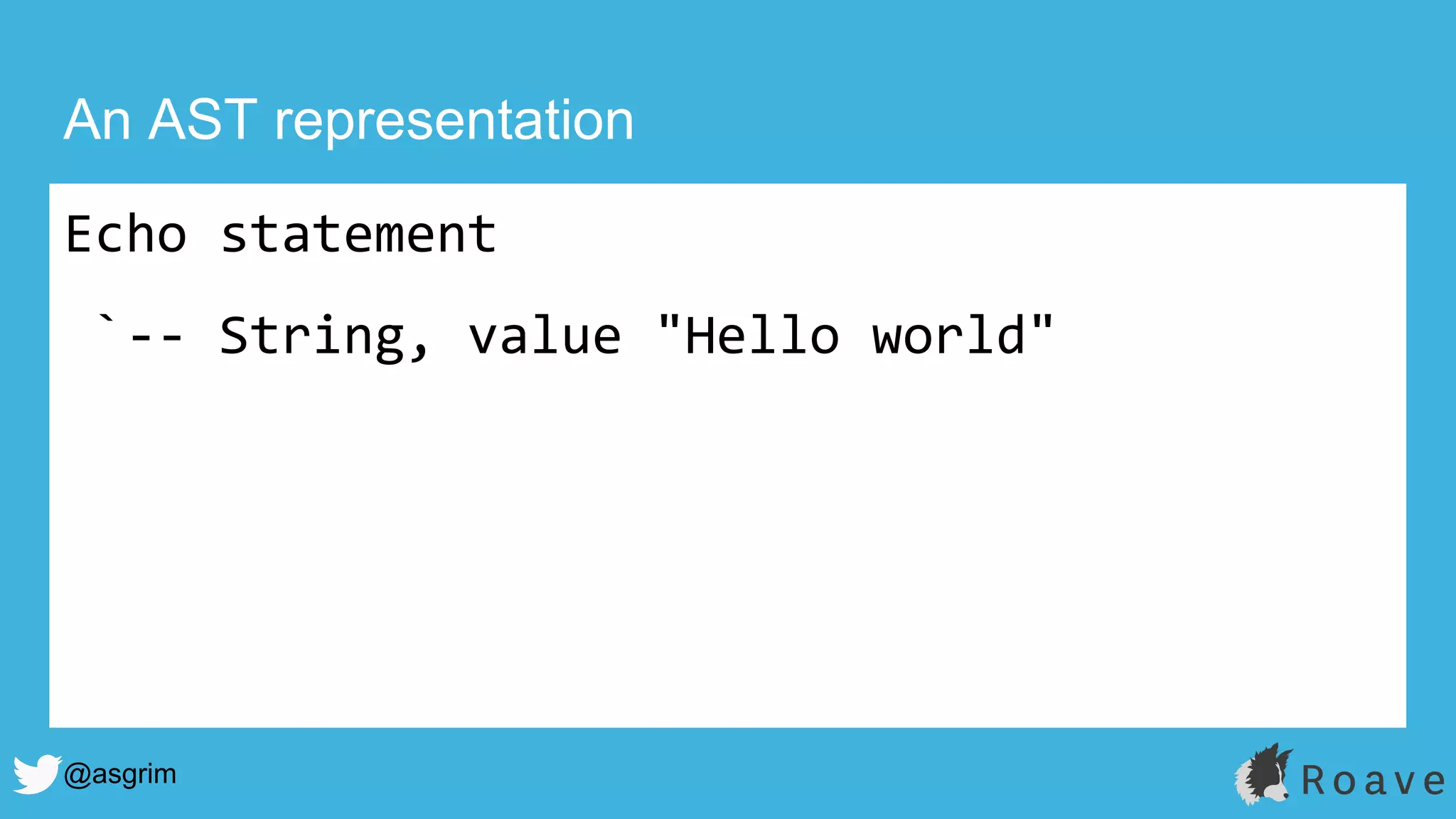

@asgrim An AST representation Echostatement `-- String, value "Hello world"

43.

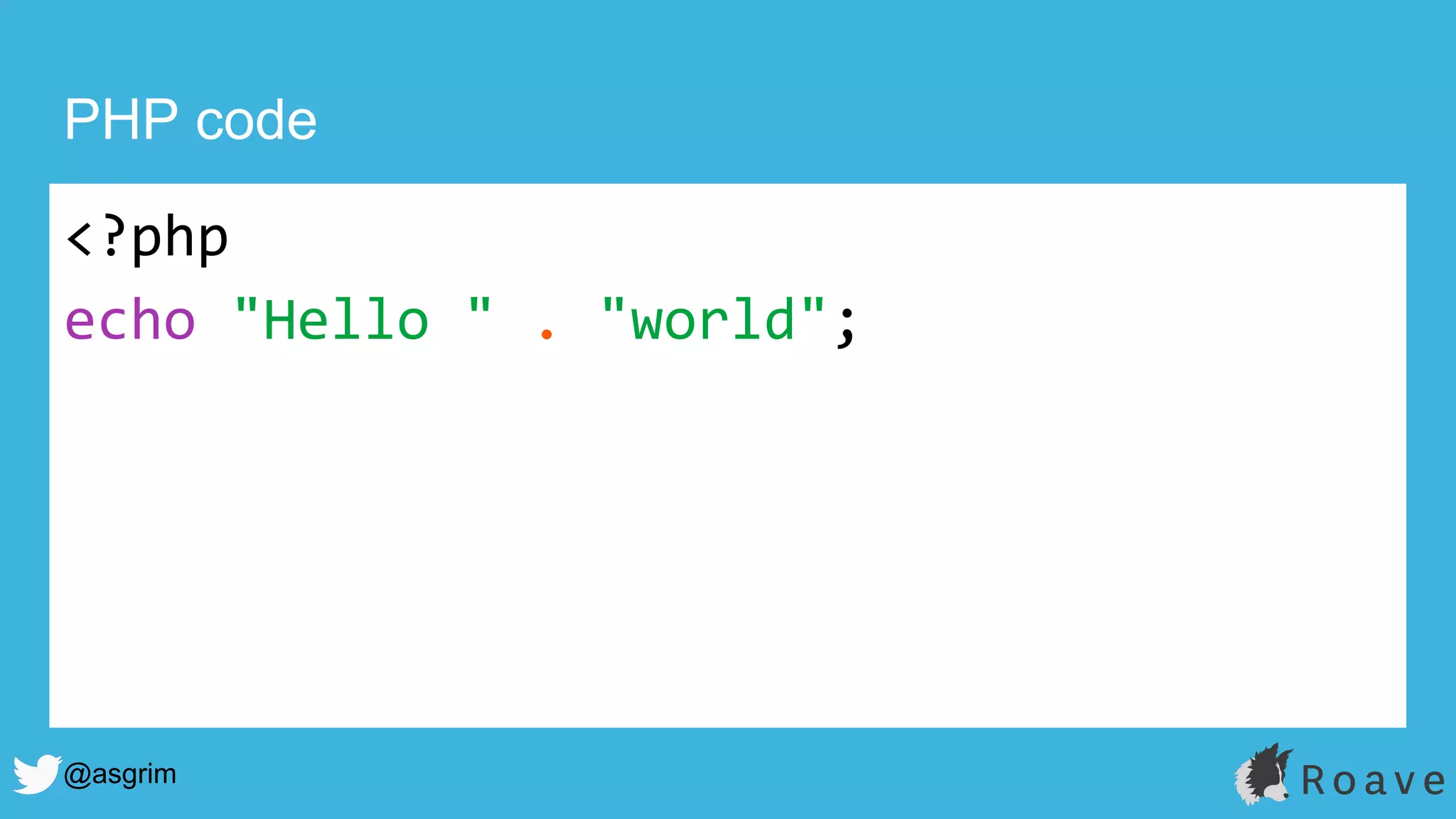

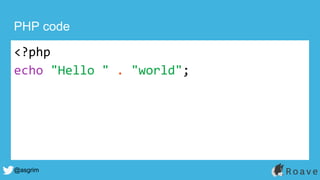

@asgrim PHP code <?php echo "Hello" . "world";

44.

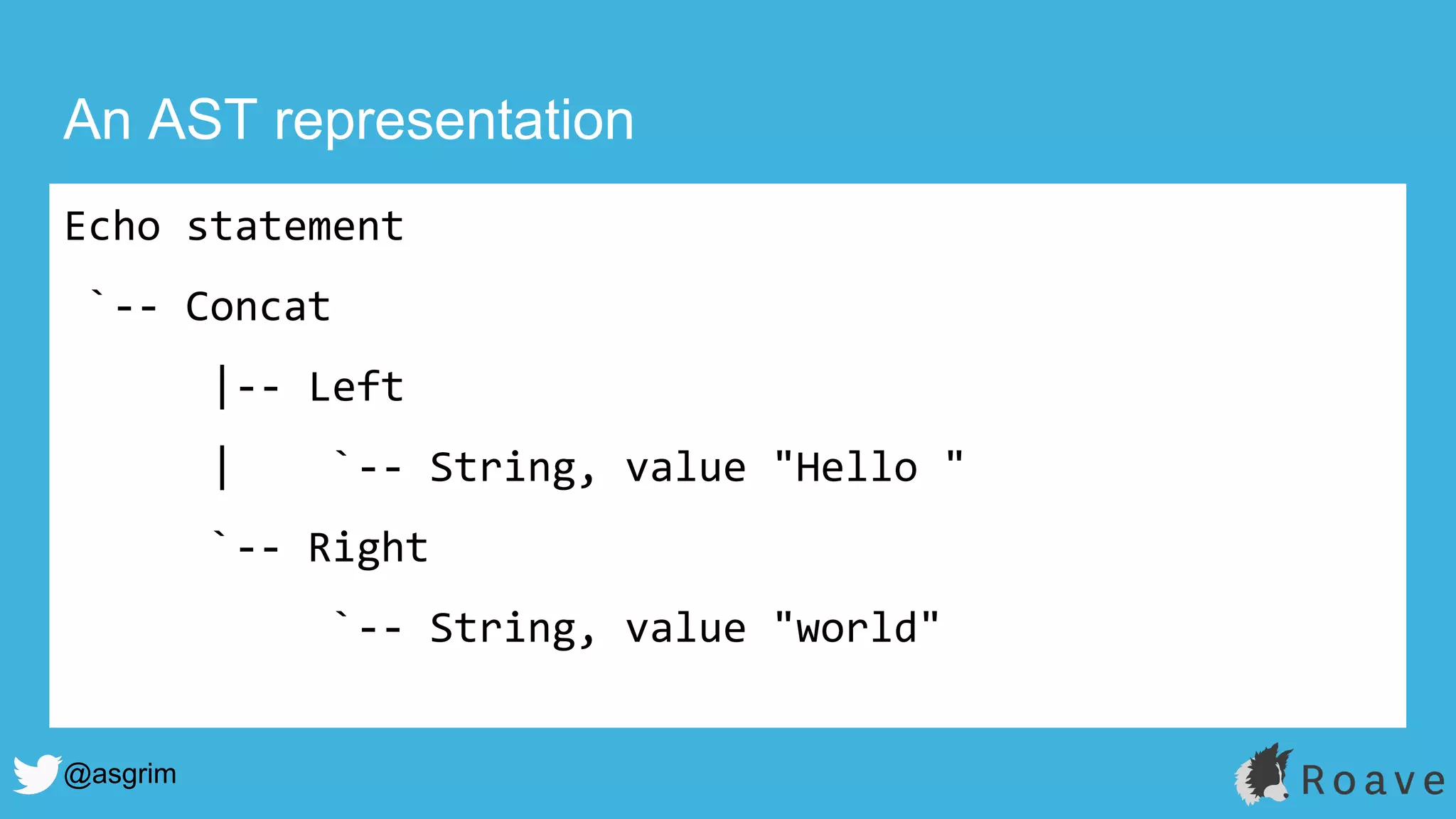

@asgrim An AST representation Echostatement `-- Concat |-- Left | `-- String, value "Hello " `-- Right `-- String, value "world"

45.

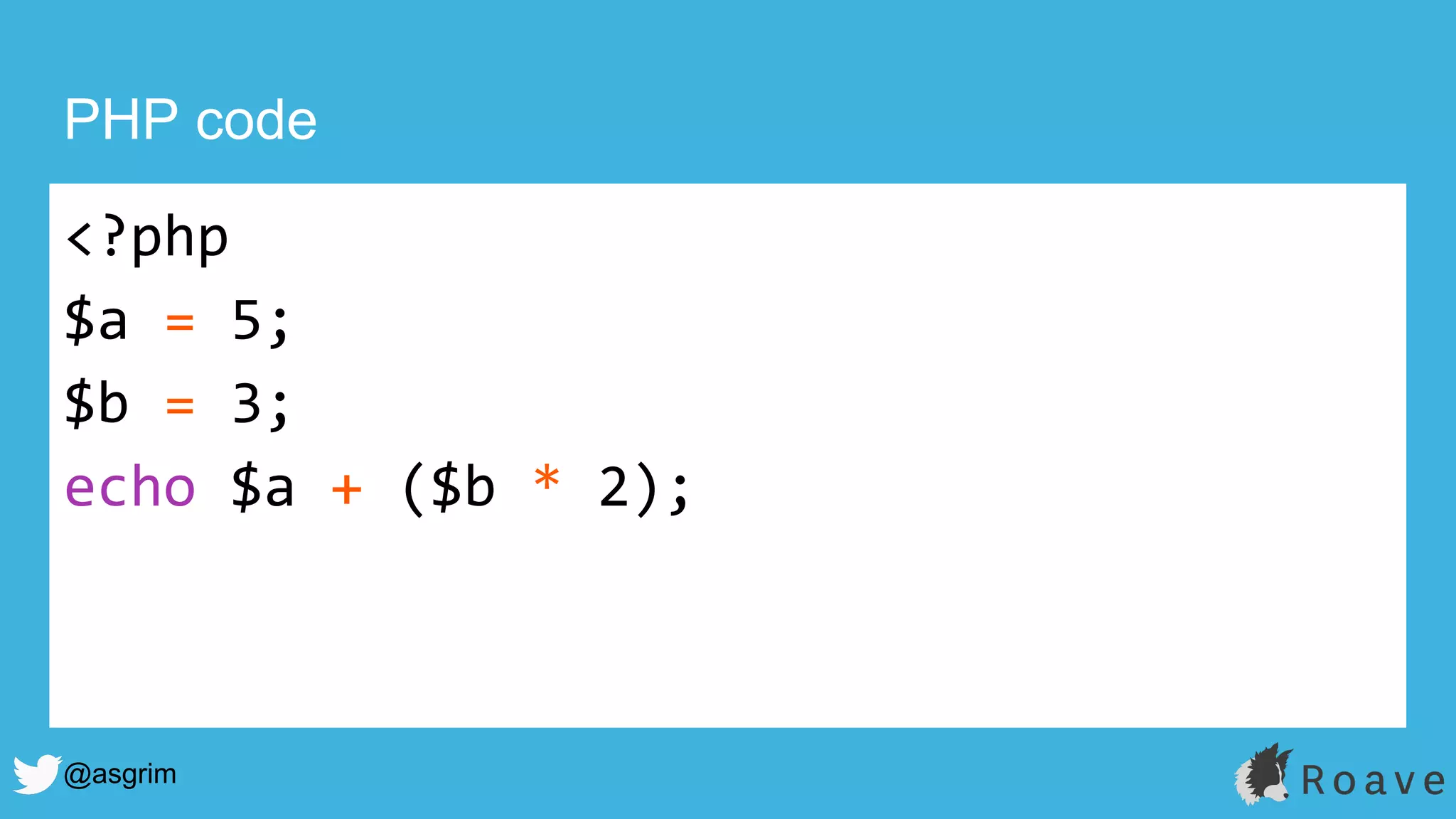

@asgrim PHP code <?php $a =5; $b = 3; echo $a + ($b * 2);

47.

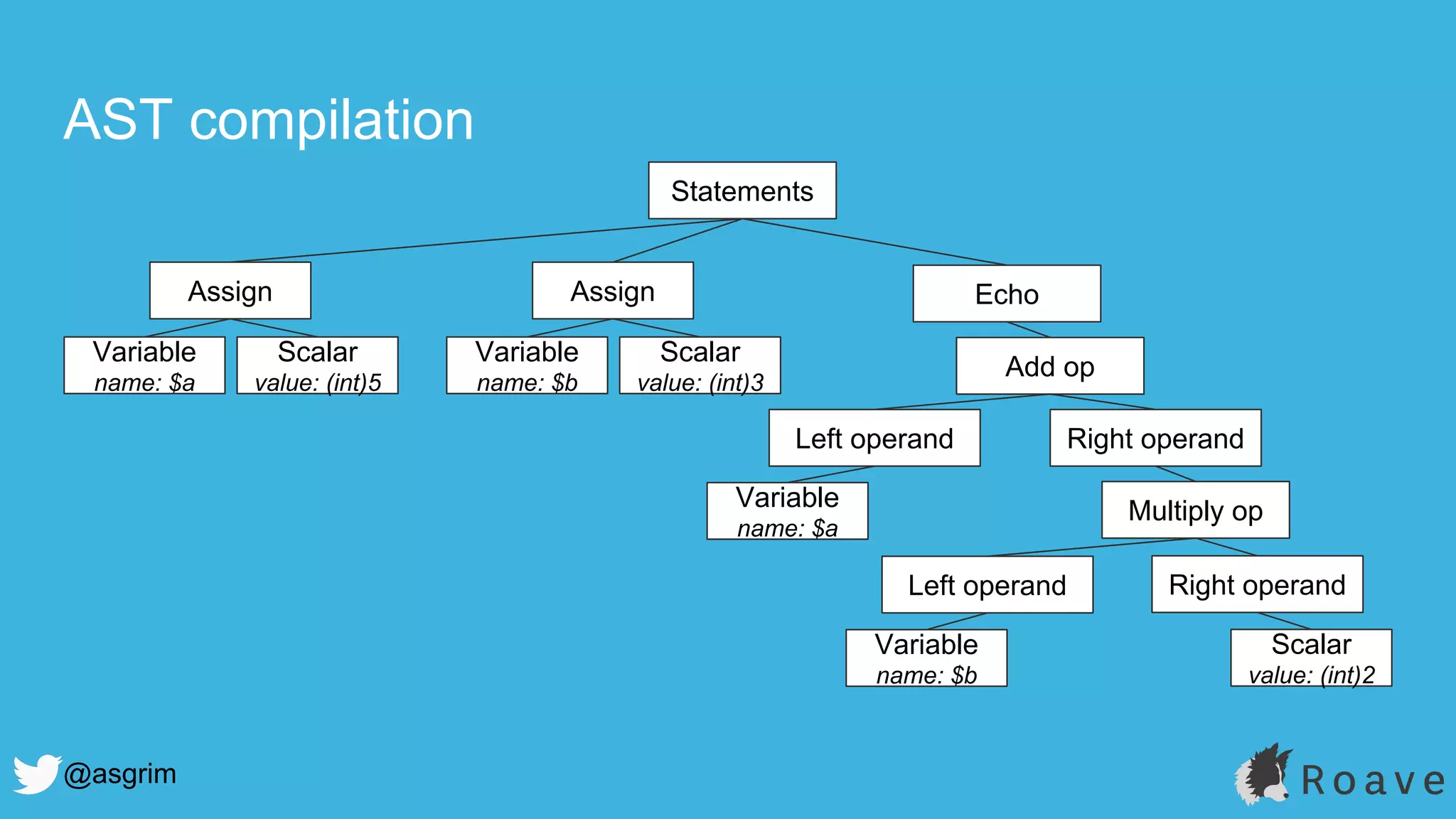

@asgrim AST compilation Statements EchoAssign Scalar value: (int)5 Variable name:$a Assign Scalar value: (int)3 Variable name: $b Add op Right operandLeft operand Variable name: $a Multiply op Right operandLeft operand Variable name: $b Scalar value: (int)2

48.

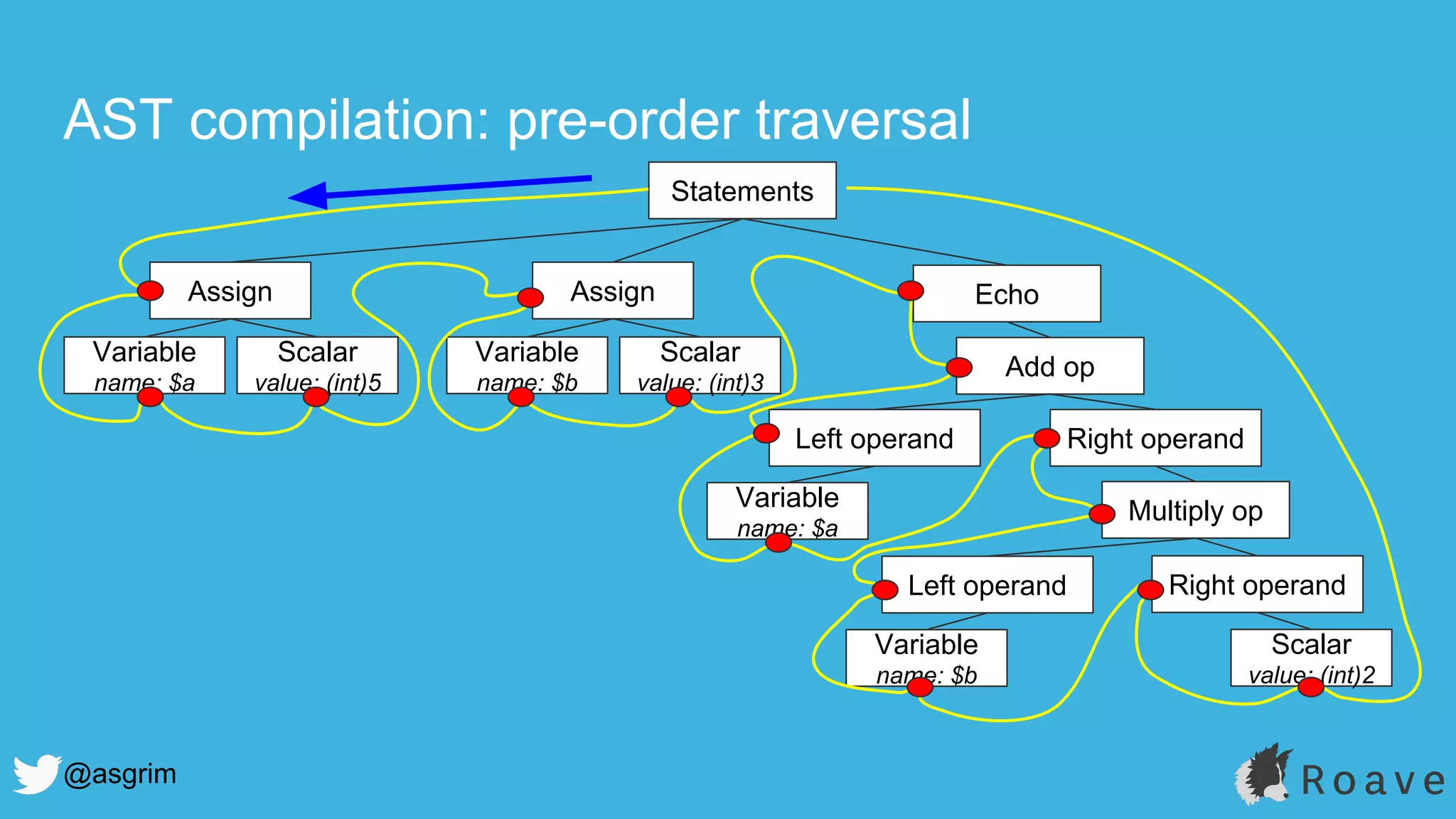

@asgrim AST compilation: pre-ordertraversal Statements EchoAssign Scalar value: (int)5 Variable name: $a Assign Scalar value: (int)3 Variable name: $b Add op Right operandLeft operand Variable name: $a Multiply op Right operandLeft operand Variable name: $b Scalar value: (int)2

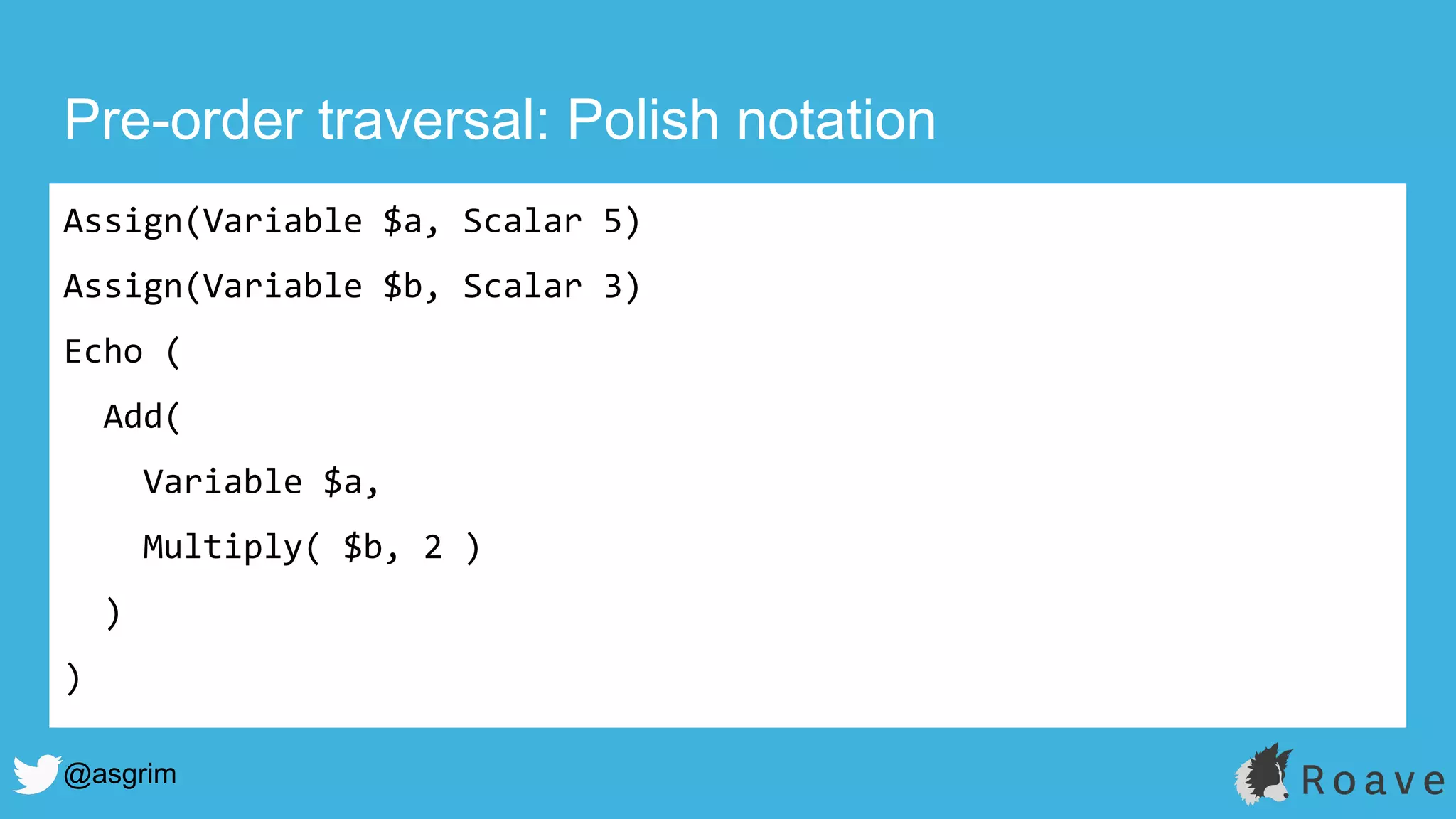

49.
@asgrim Pre-order traversal: Polishnotation Assign(Variable $a, Scalar 5) Assign(Variable $b, Scalar 3) Echo ( Add( Variable $a, Multiply( $b, 2 ) ) )

50.

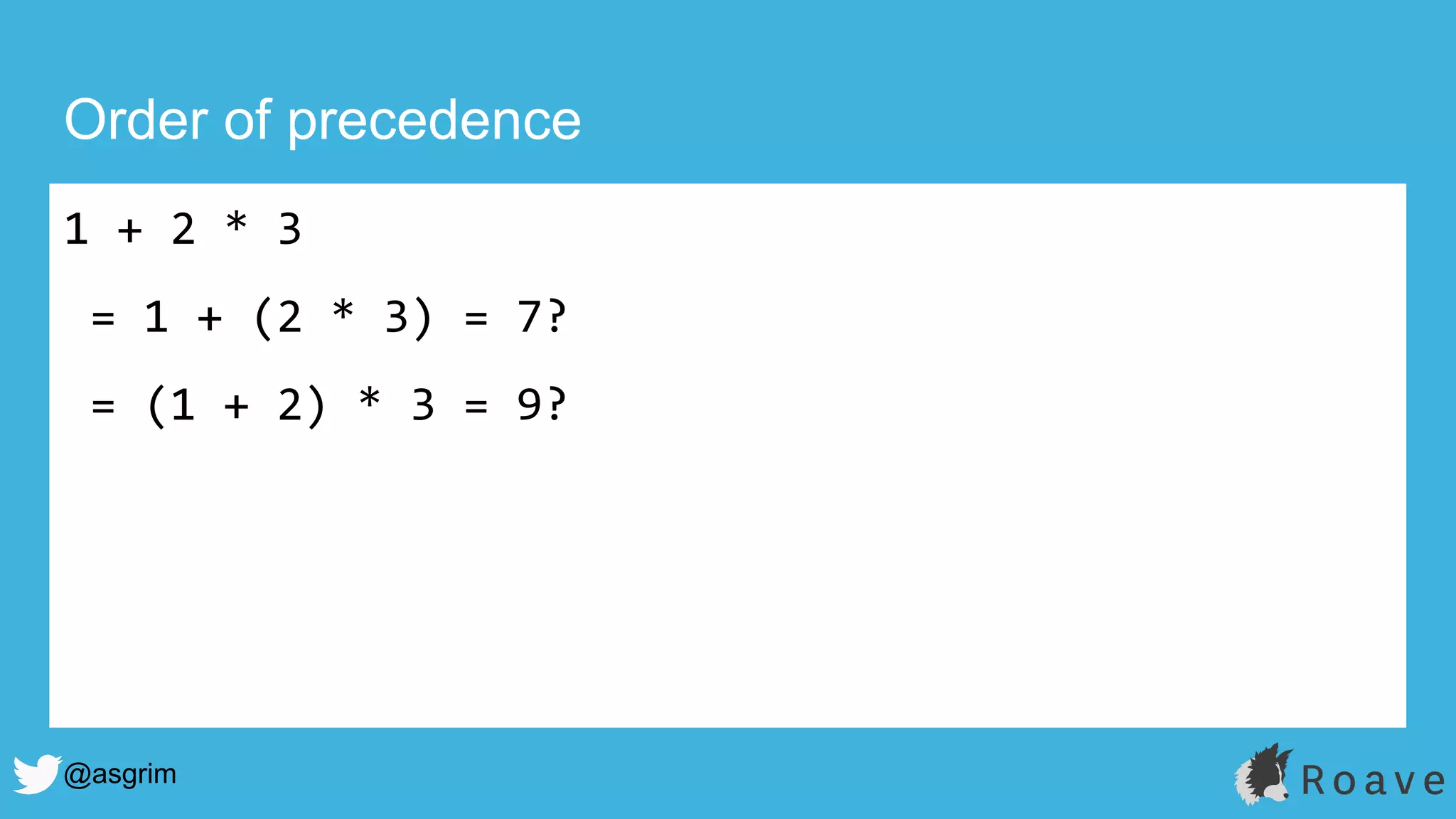

@asgrim Order of precedence 1+ 2 * 3 = 1 + (2 * 3) = 7? = (1 + 2) * 3 = 9?

51.

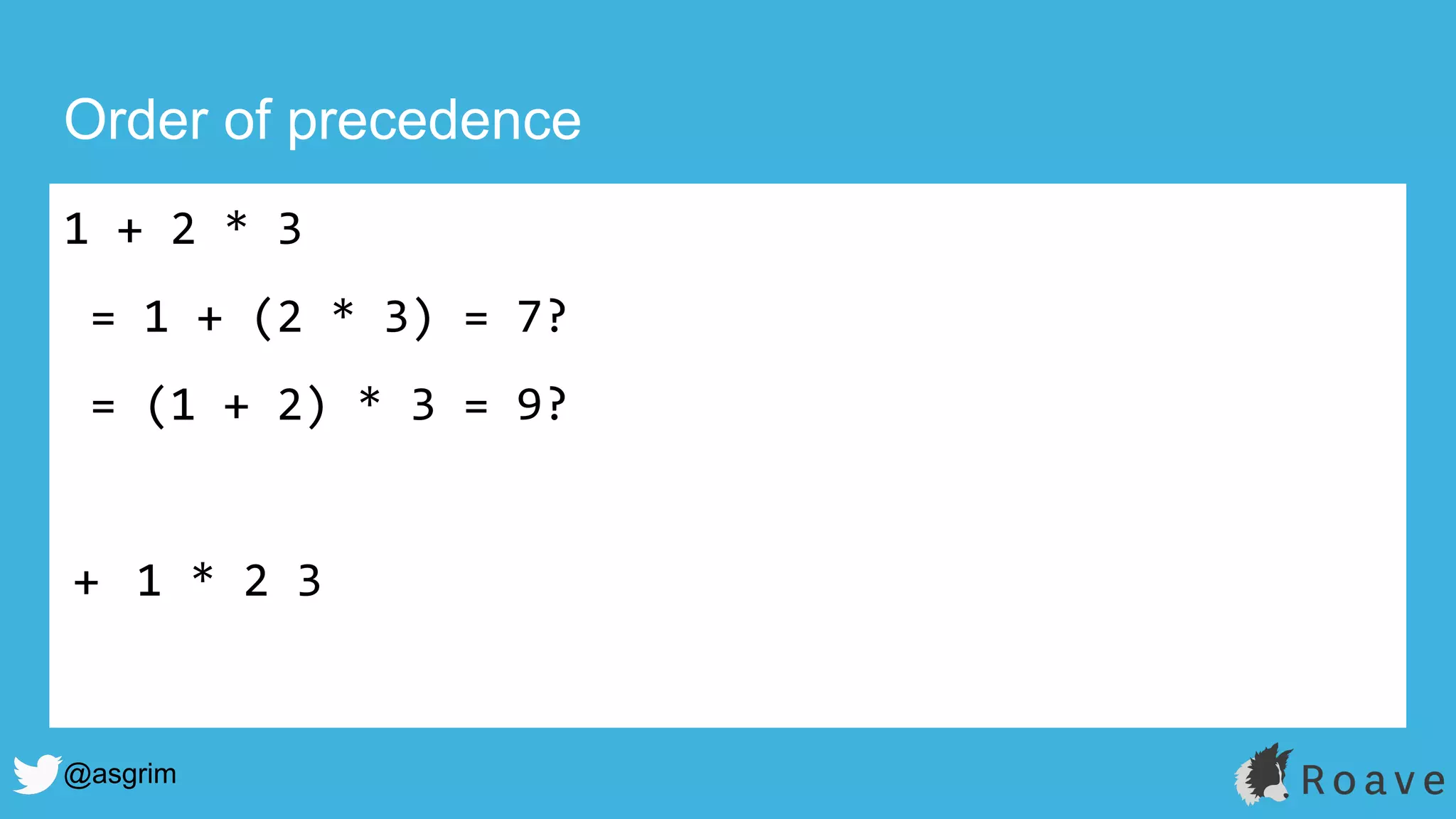

@asgrim Order of precedence 1+ 2 * 3 = 1 + (2 * 3) = 7? = (1 + 2) * 3 = 9? + 1 * 2 3

52.

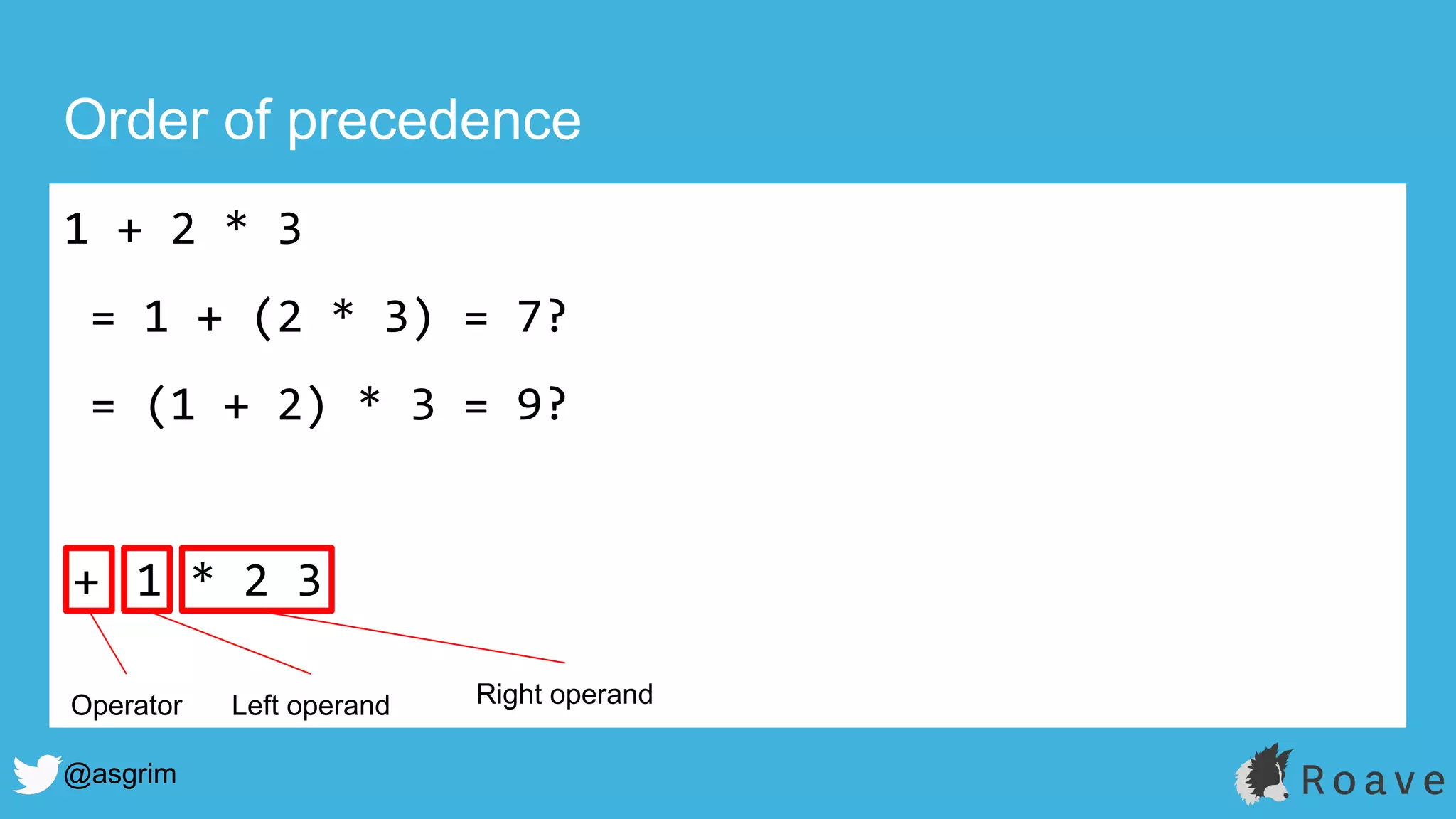

@asgrim Order of precedence 1+ 2 * 3 = 1 + (2 * 3) = 7? = (1 + 2) * 3 = 9? + 1 * 2 3 Operator Left operand Right operand

53.

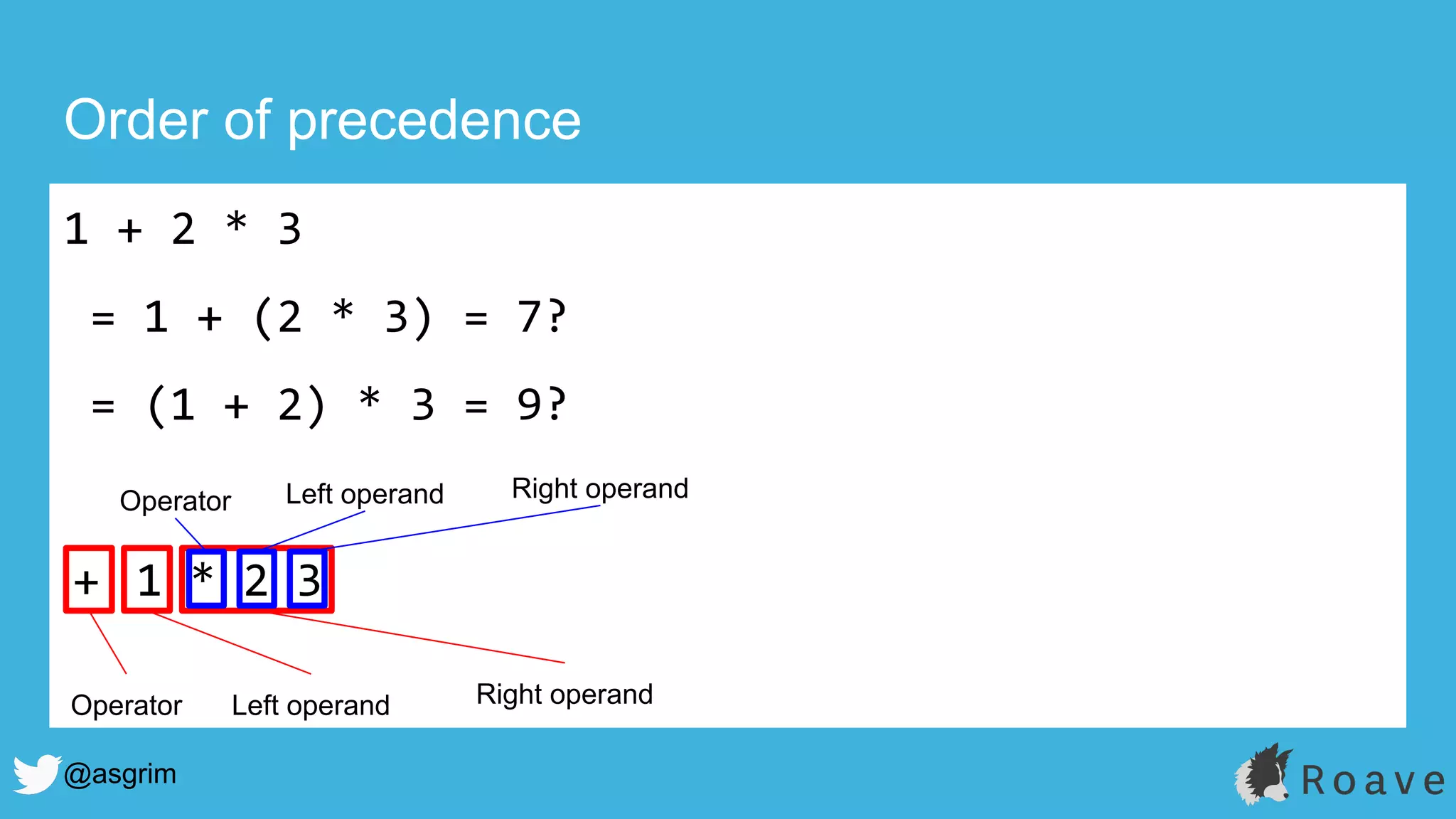

@asgrim Order of precedence 1+ 2 * 3 = 1 + (2 * 3) = 7? = (1 + 2) * 3 = 9? + 1 * 2 3 Operator Left operand Right operand Operator Left operand Right operand

54.

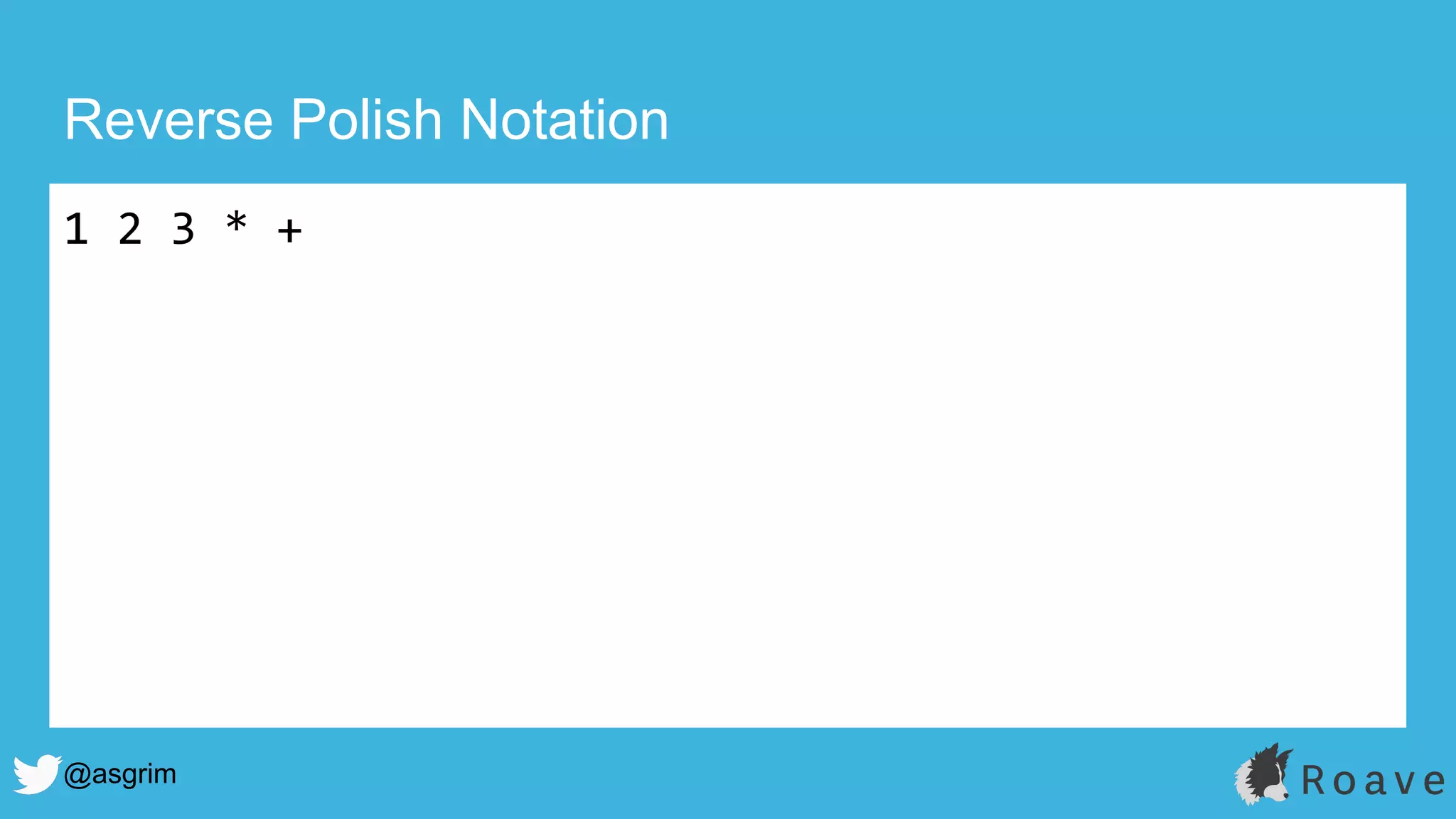

@asgrim Reverse Polish Notation 12 3 * +

55.

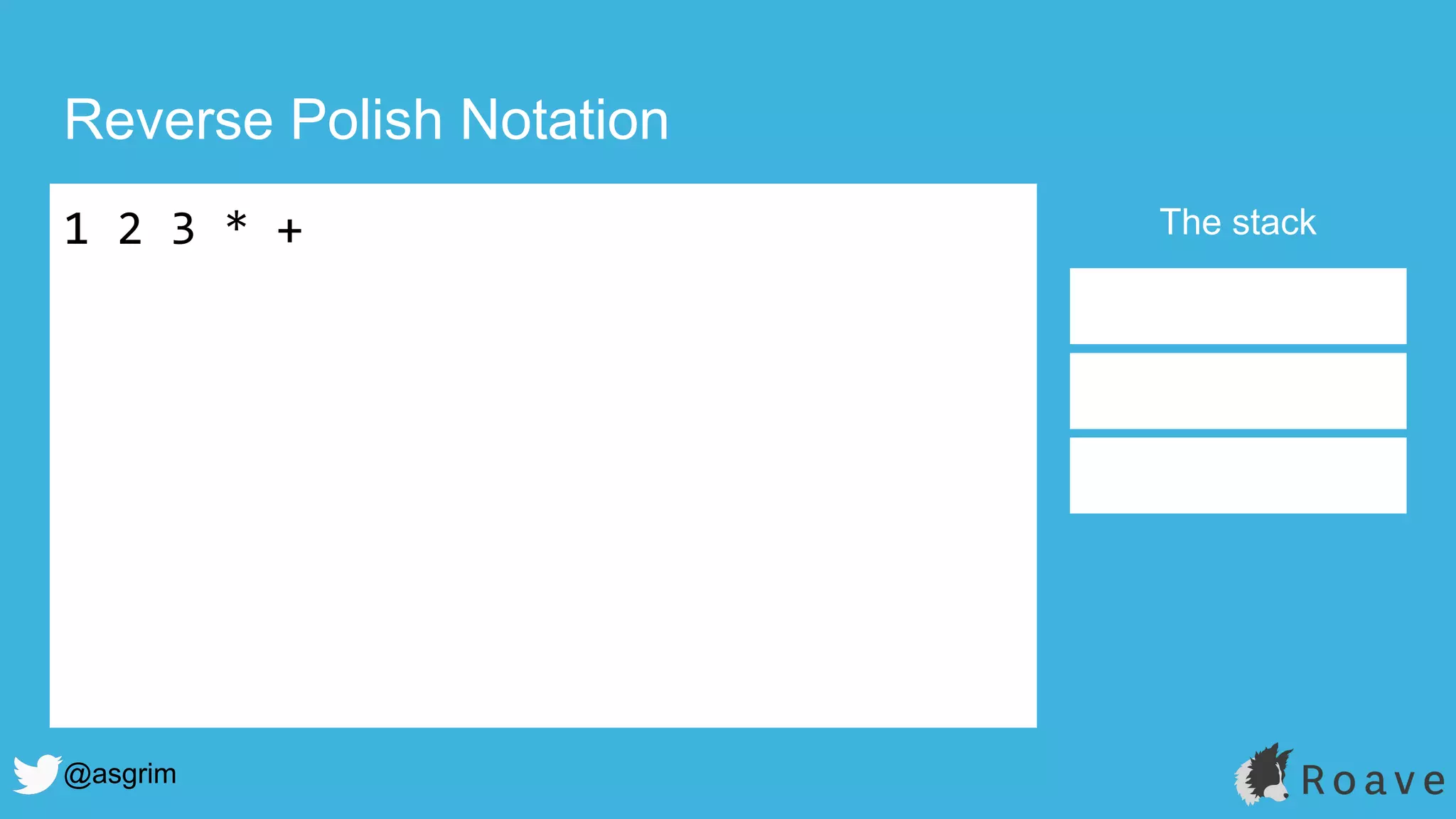

@asgrim Reverse Polish Notation 12 3 * + The stack

56.

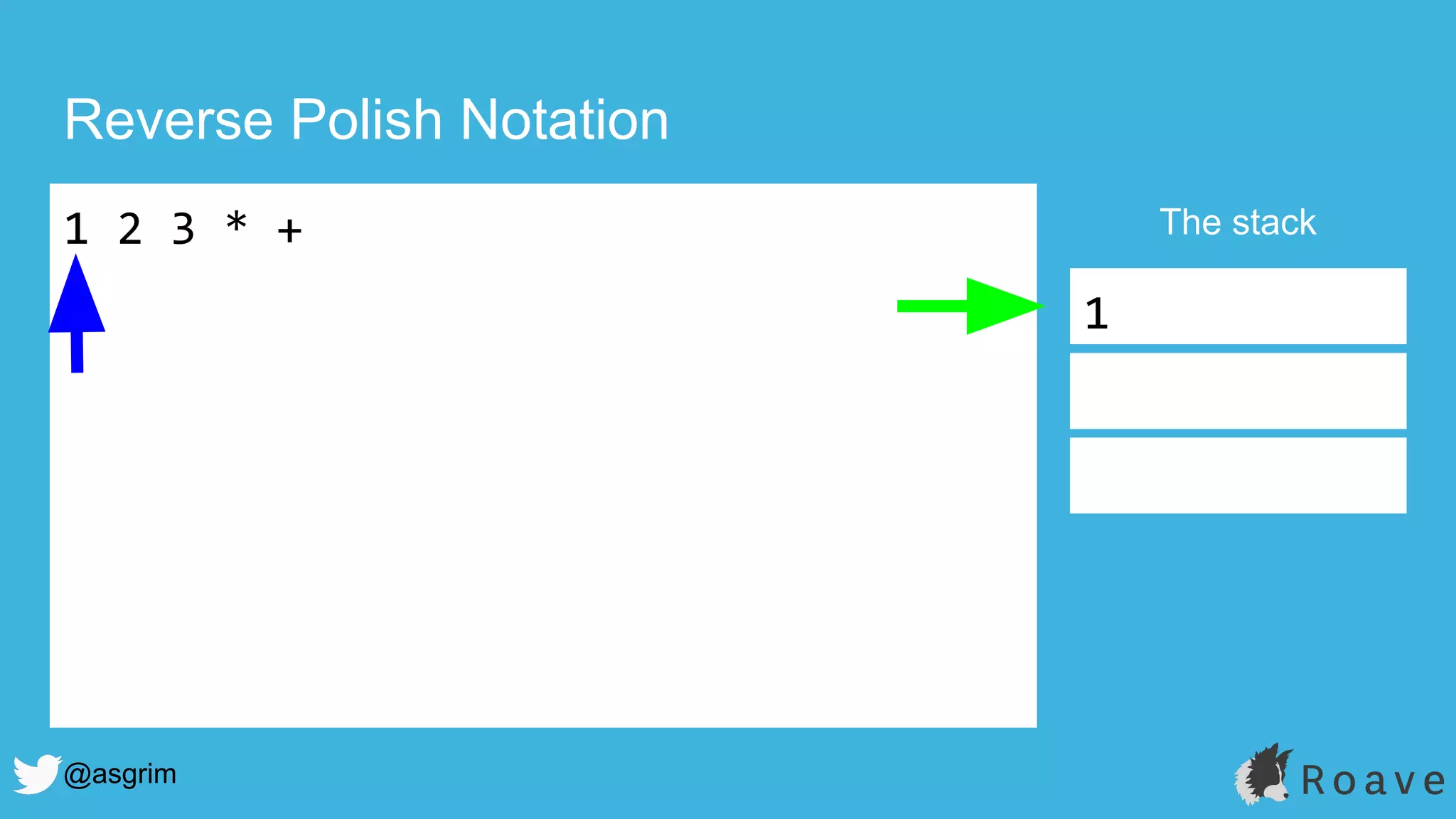

@asgrim Reverse Polish Notation 12 3 * + The stack 1

57.

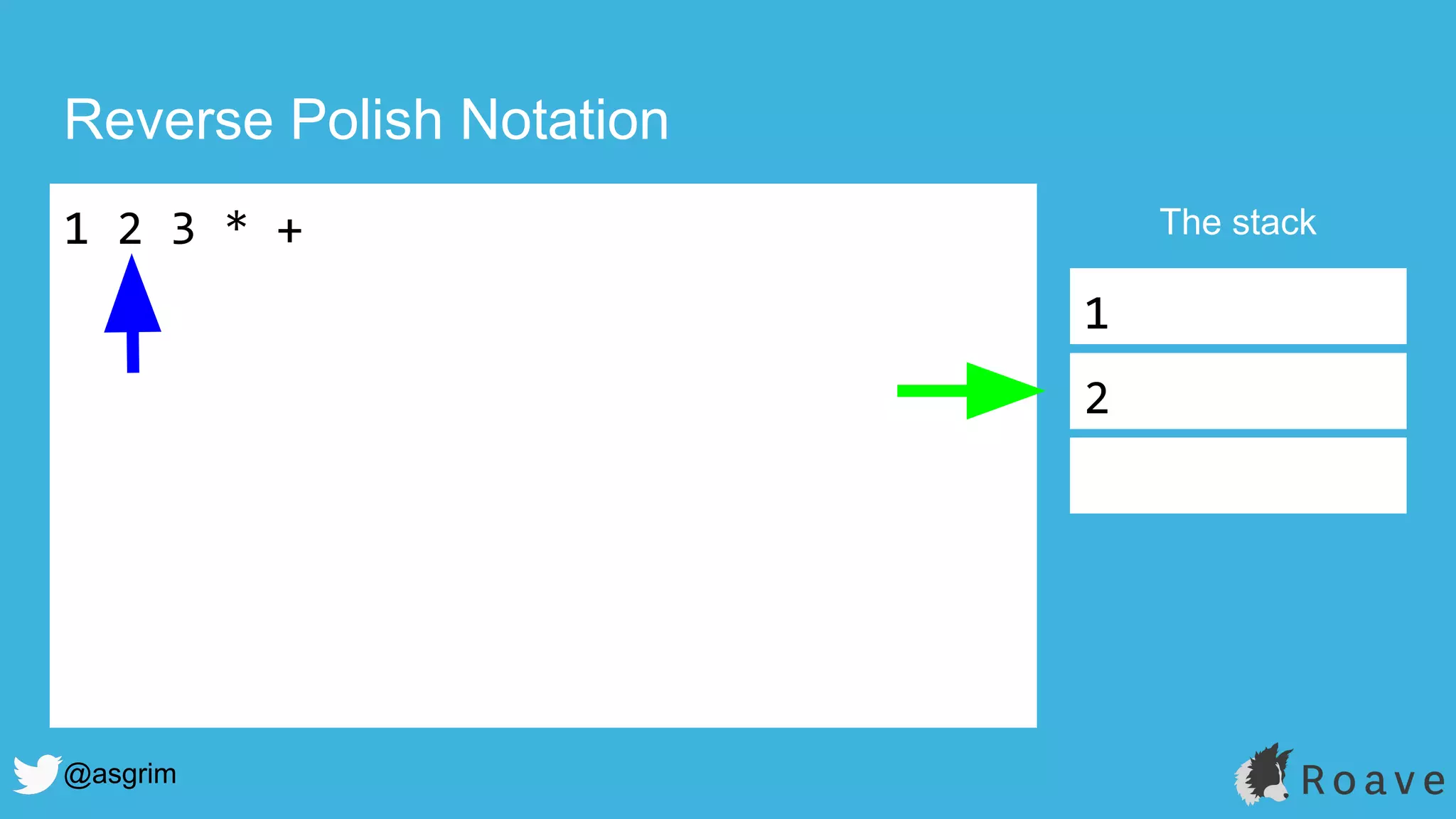

@asgrim Reverse Polish Notation 12 3 * + The stack 1 2

58.

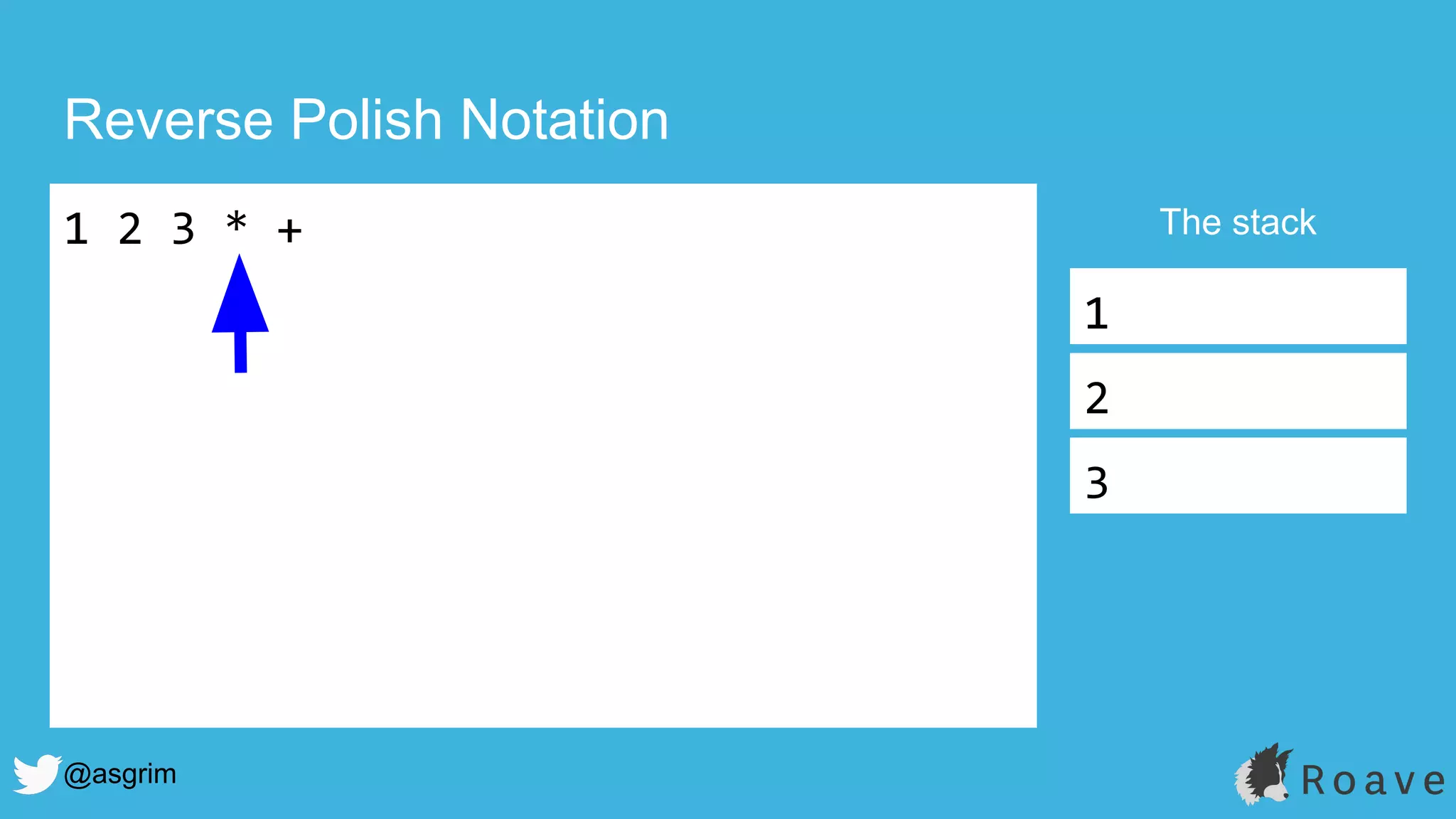

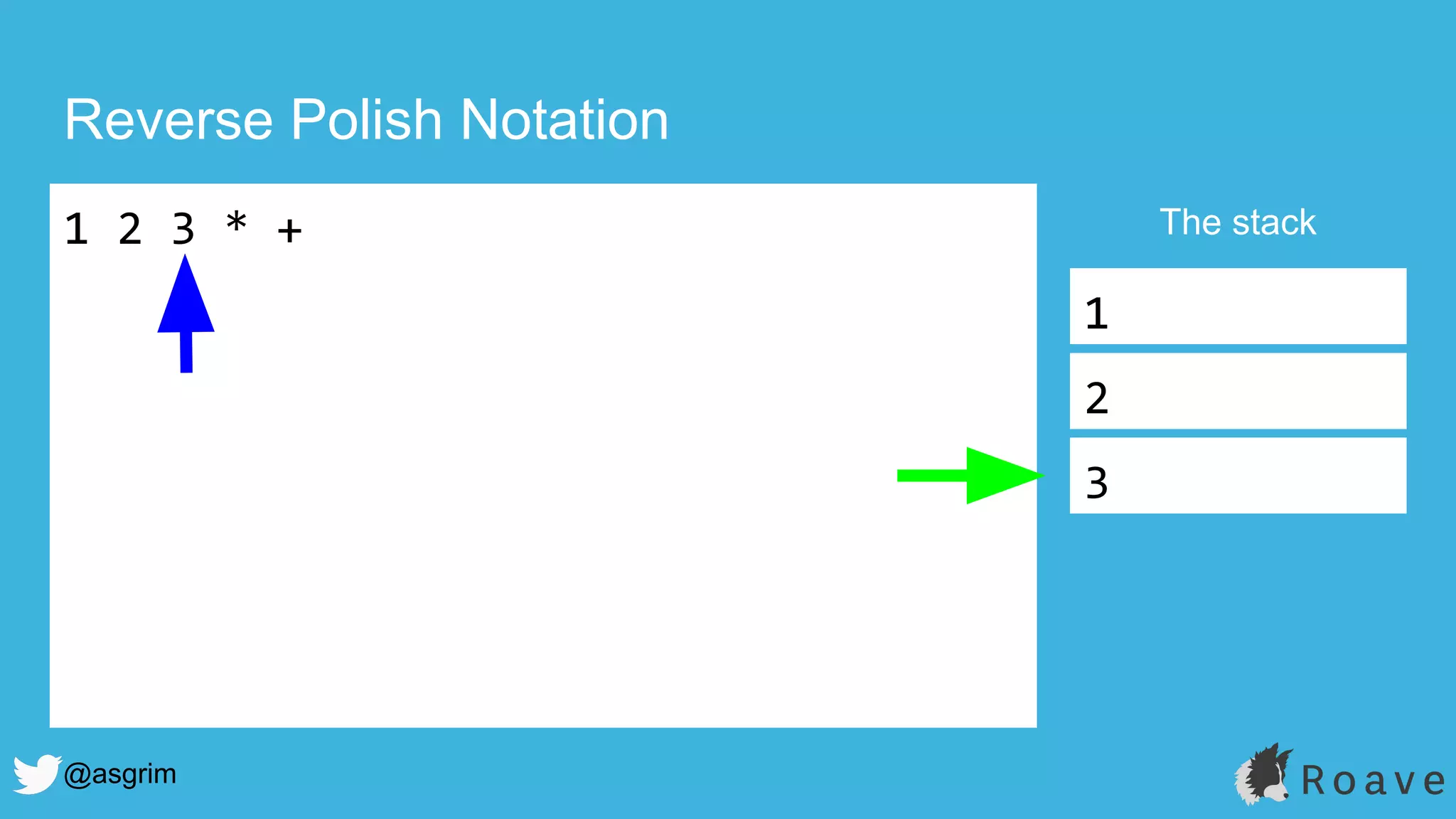

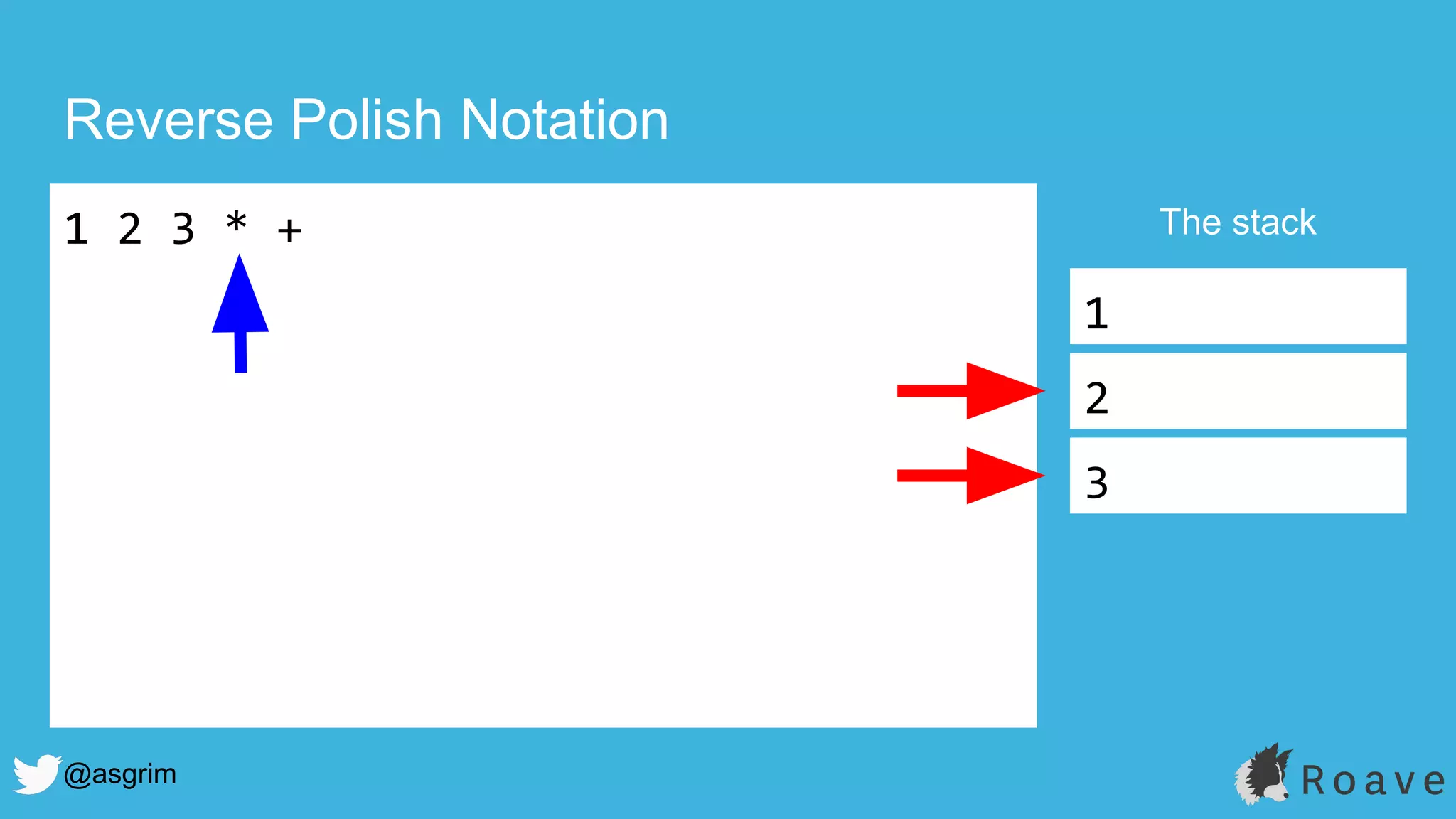

@asgrim Reverse Polish Notation 12 3 * + The stack 1 2 3

59.

60.

61.

62.

63.

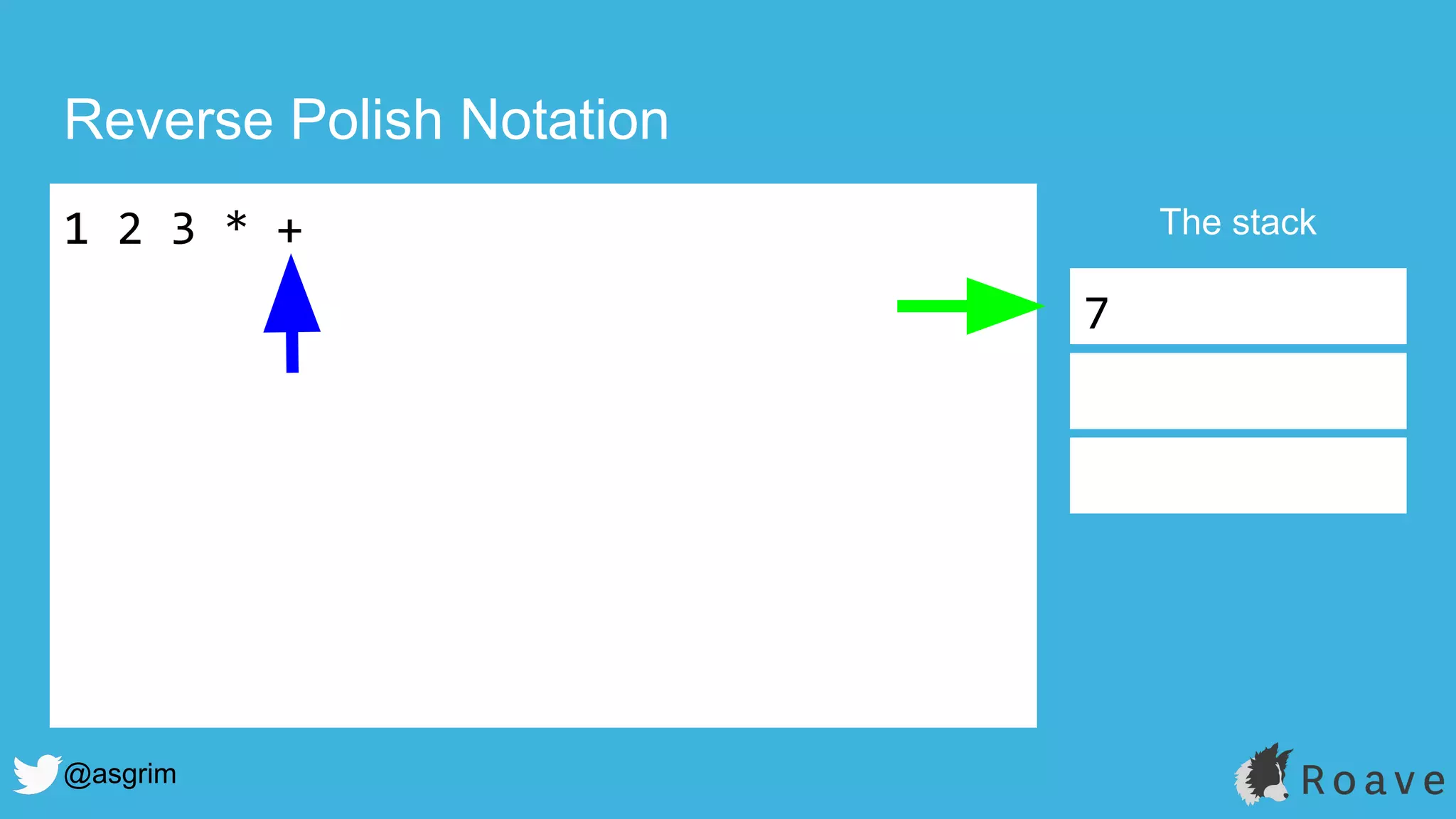

@asgrim Reverse Polish Notation 12 3 * + The stack 7

64.
@asgrim Let’s write acompiler (!!!) In three easy steps…

65.
@asgrim Warning: do notuse in production

66.
@asgrim View > Source https://github.com/asgrim/basic-maths-compiler

67.

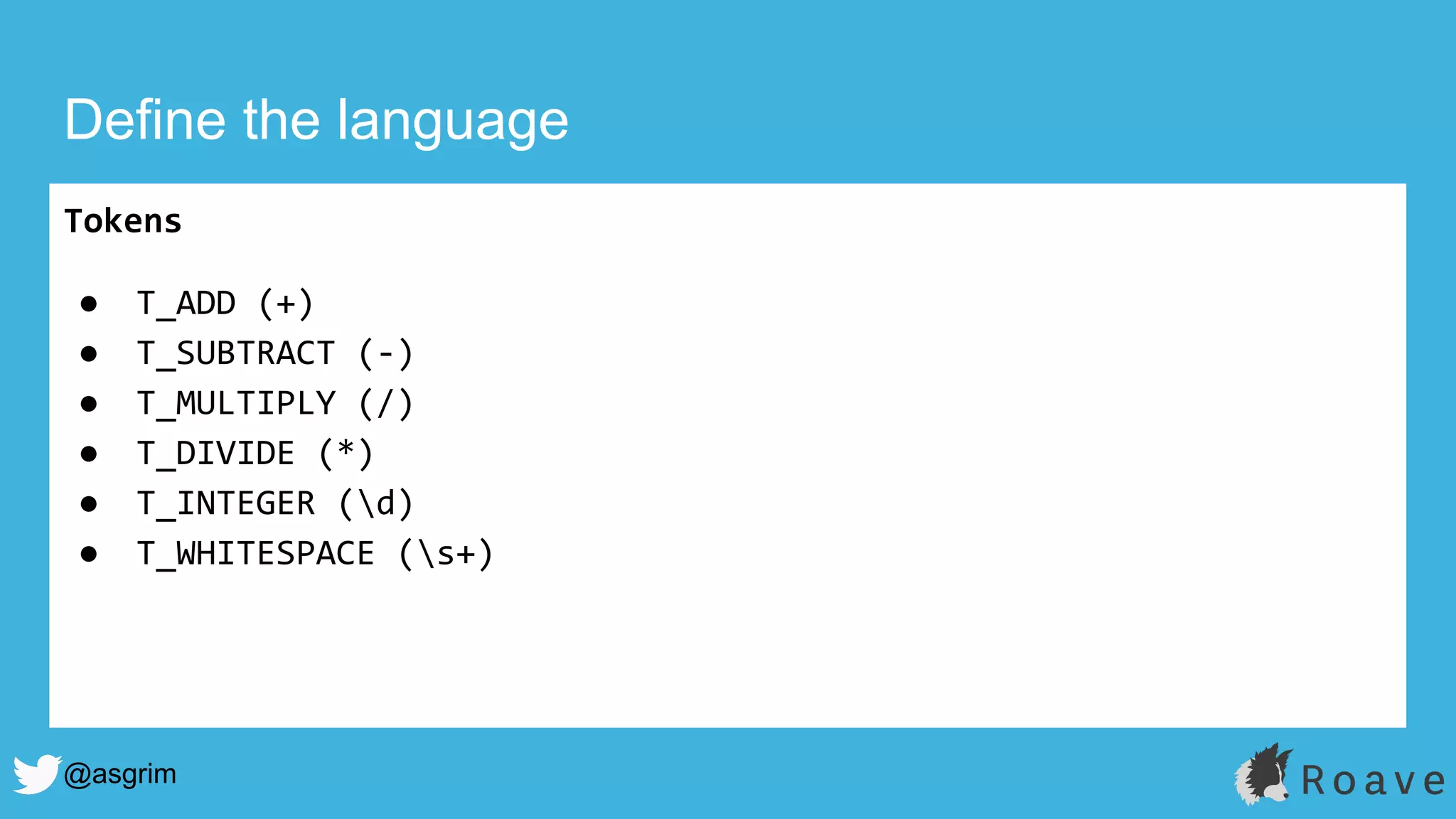

@asgrim Define the language Tokens ●T_ADD (+) ● T_SUBTRACT (-) ● T_MULTIPLY (/) ● T_DIVIDE (*) ● T_INTEGER (d) ● T_WHITESPACE (s+)

68.
@asgrim Step 1: Writinga simple lexer

69.

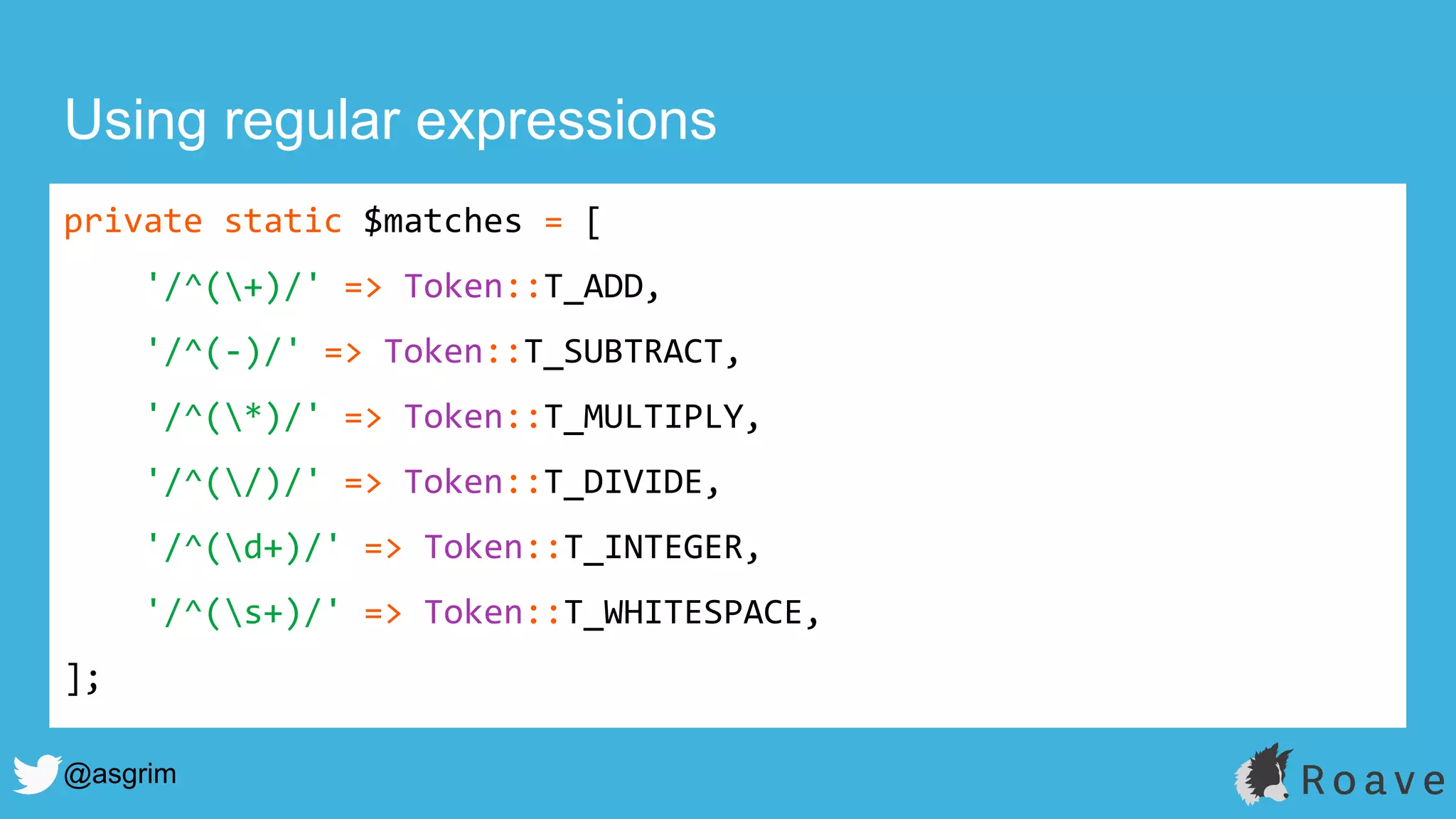

@asgrim Using regular expressions privatestatic $matches = [ '/^(+)/' => Token::T_ADD, '/^(-)/' => Token::T_SUBTRACT, '/^(*)/' => Token::T_MULTIPLY, '/^(/)/' => Token::T_DIVIDE, '/^(d+)/' => Token::T_INTEGER, '/^(s+)/' => Token::T_WHITESPACE, ];

70.

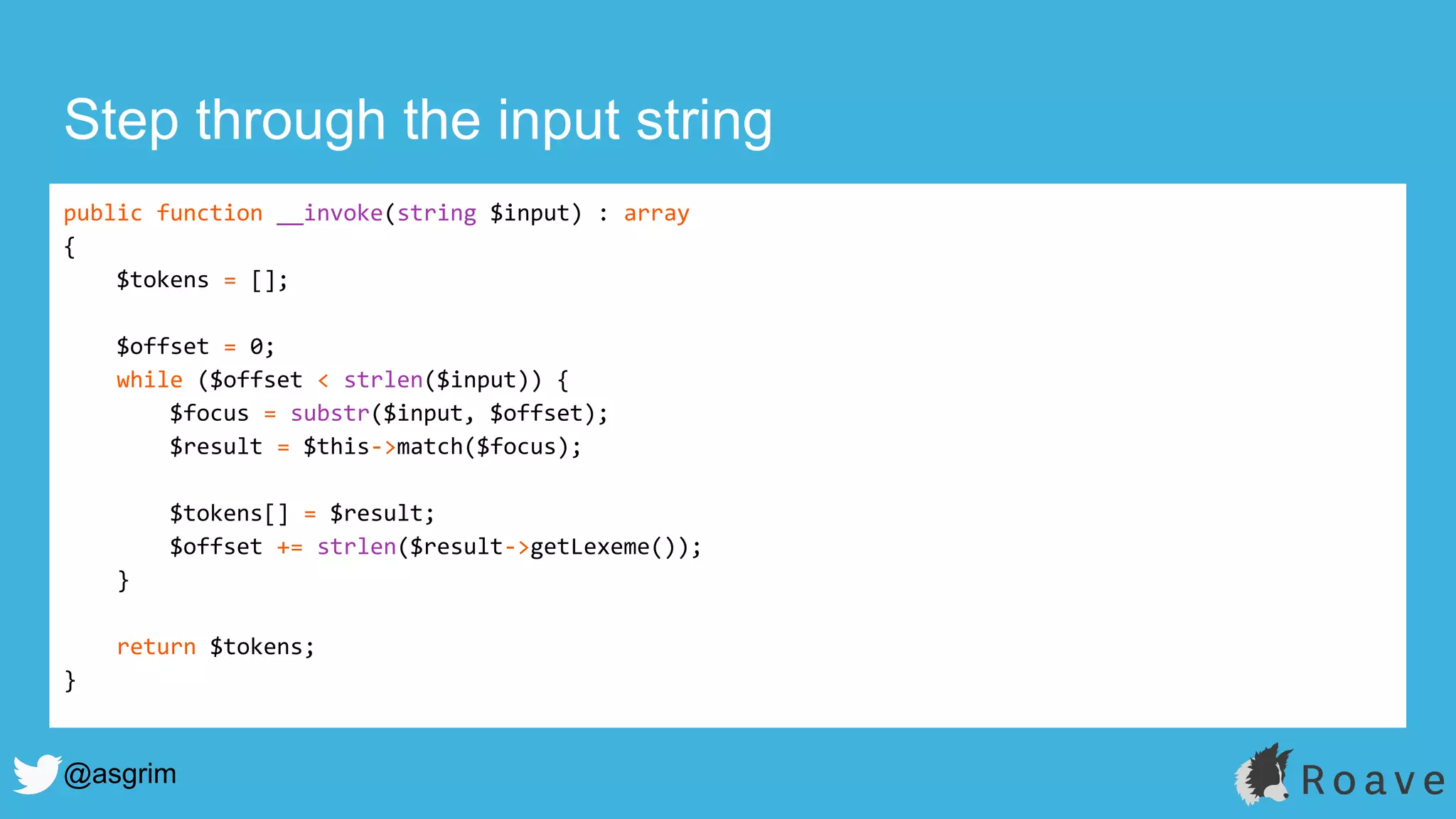

@asgrim Step through theinput string public function __invoke(string $input) : array { $tokens = []; $offset = 0; while ($offset < strlen($input)) { $focus = substr($input, $offset); $result = $this->match($focus); $tokens[] = $result; $offset += strlen($result->getLexeme()); } return $tokens; }

71.

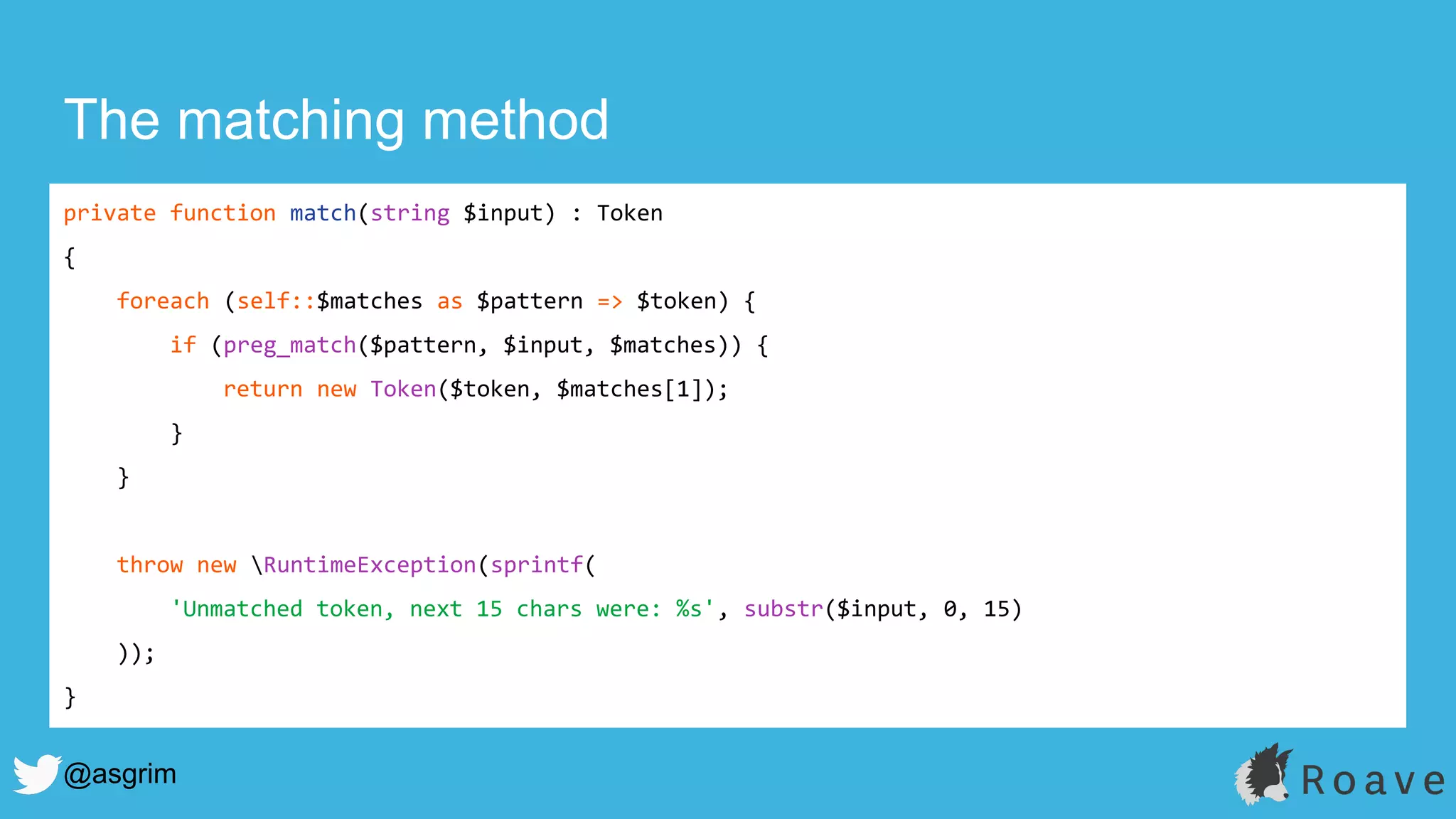

@asgrim The matching method privatefunction match(string $input) : Token { foreach (self::$matches as $pattern => $token) { if (preg_match($pattern, $input, $matches)) { return new Token($token, $matches[1]); } } throw new RuntimeException(sprintf( 'Unmatched token, next 15 chars were: %s', substr($input, 0, 15) )); }

72.
@asgrim Step 2: Parsingthe tokens

73.

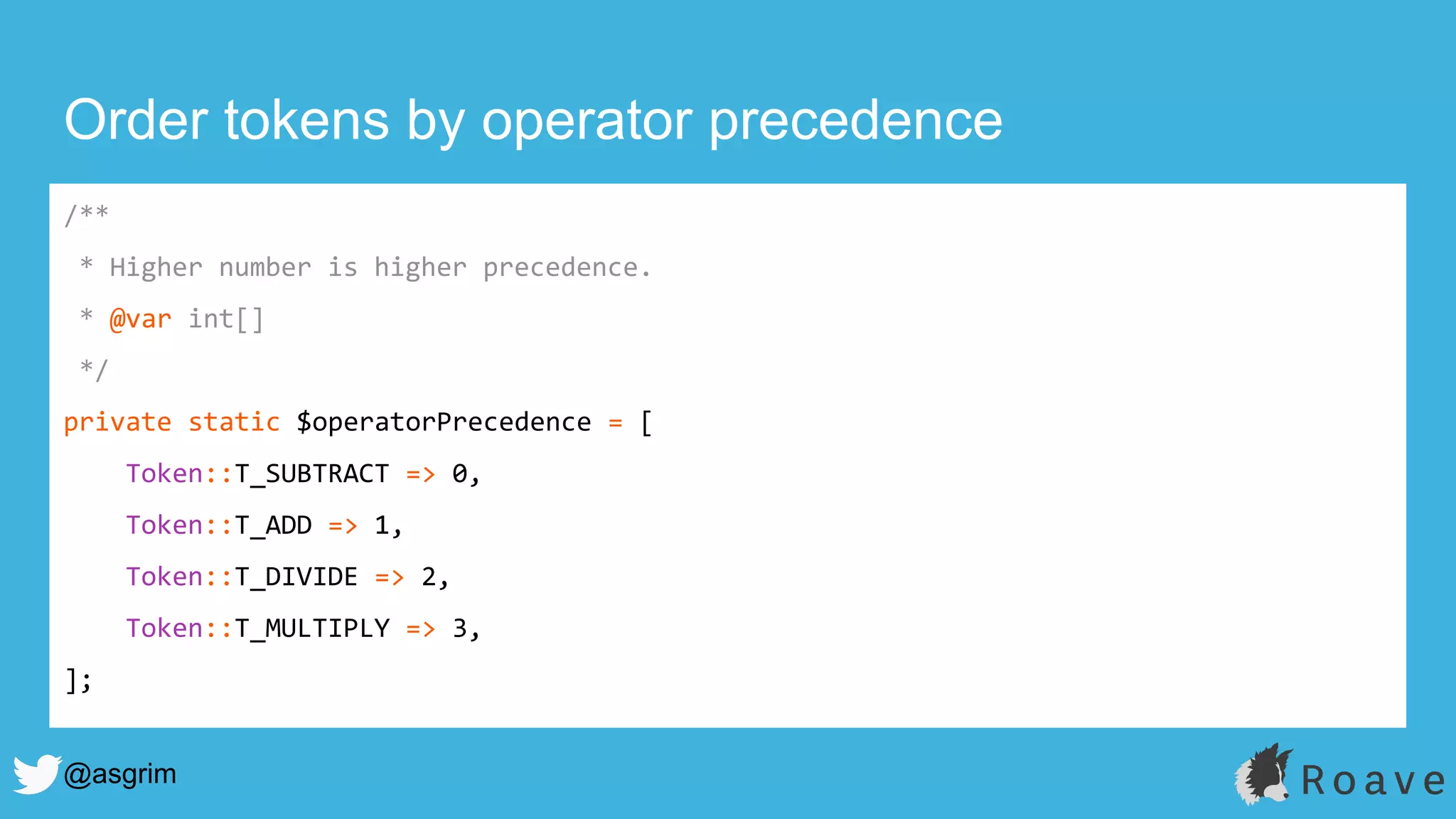

@asgrim Order tokens byoperator precedence /** * Higher number is higher precedence. * @var int[] */ private static $operatorPrecedence = [ Token::T_SUBTRACT => 0, Token::T_ADD => 1, Token::T_DIVIDE => 2, Token::T_MULTIPLY => 3, ];

74.

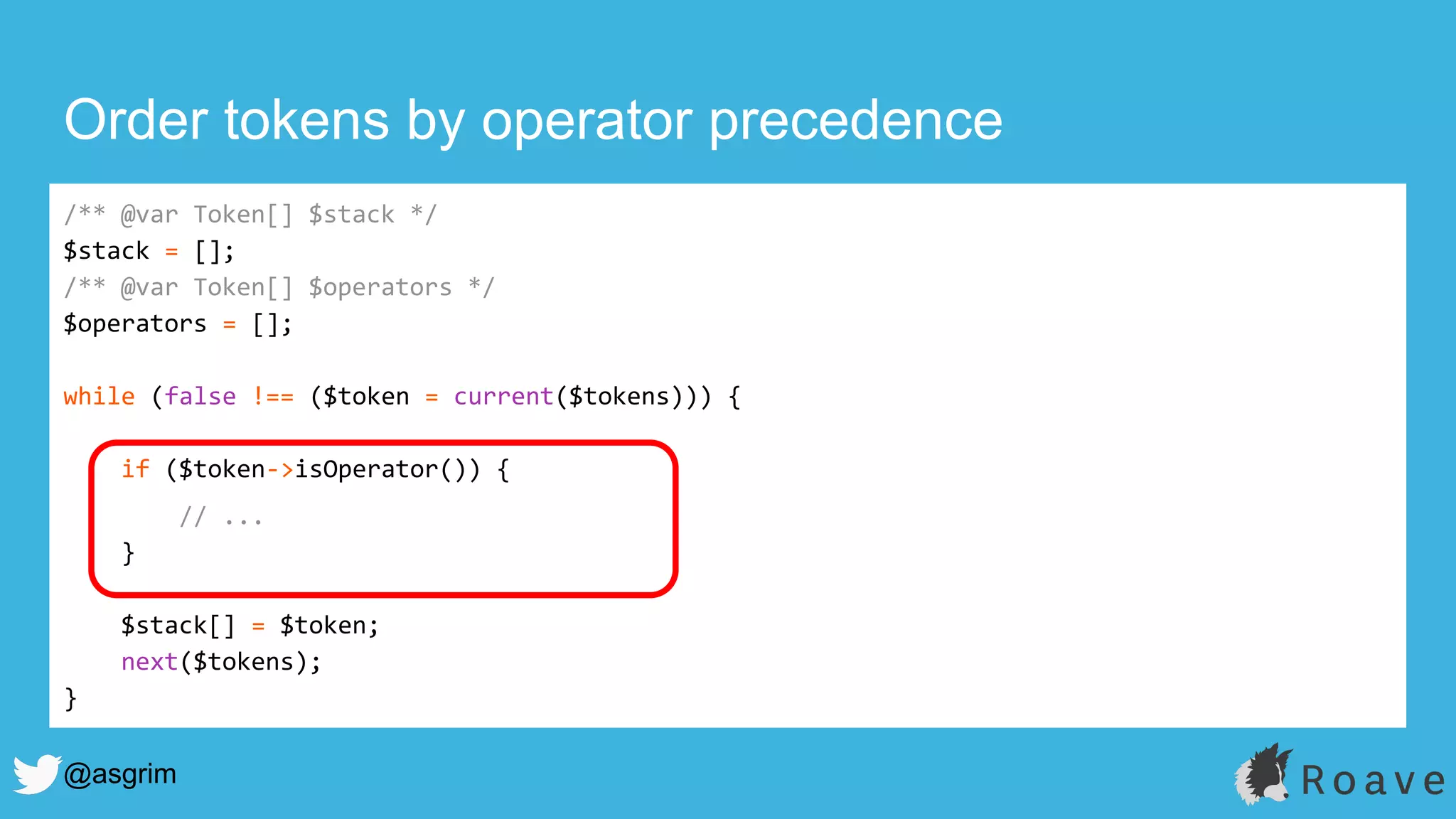

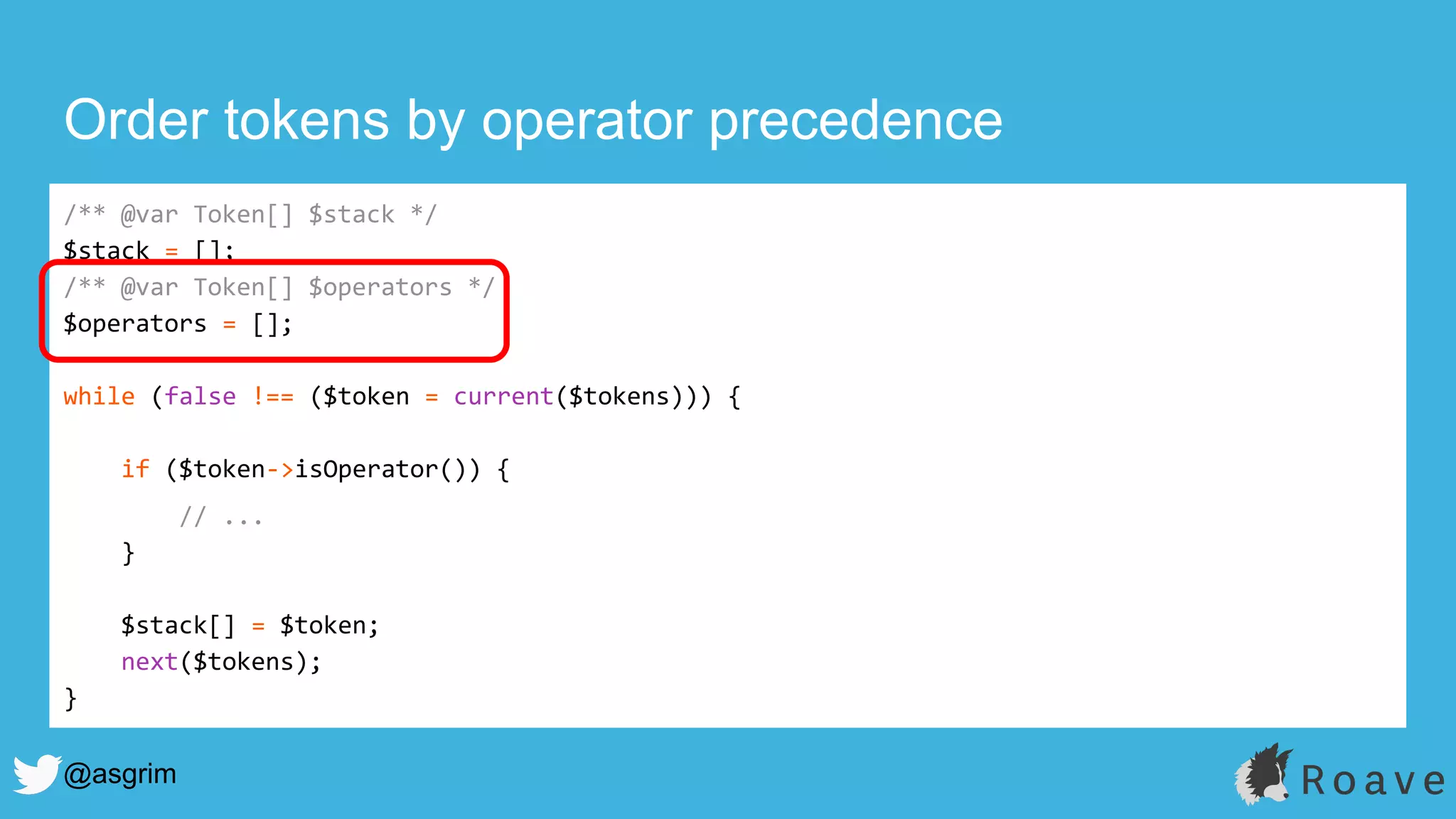

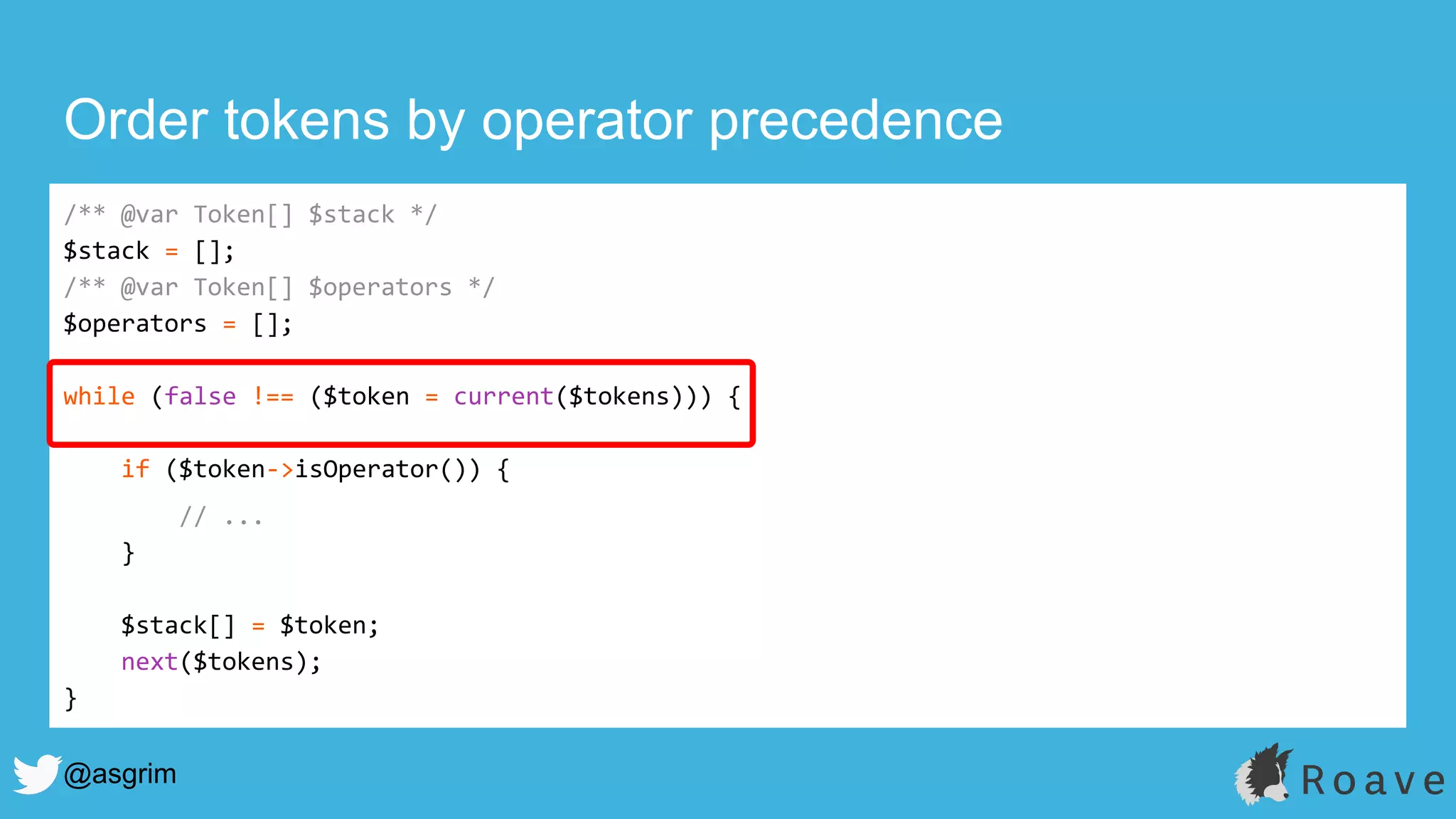

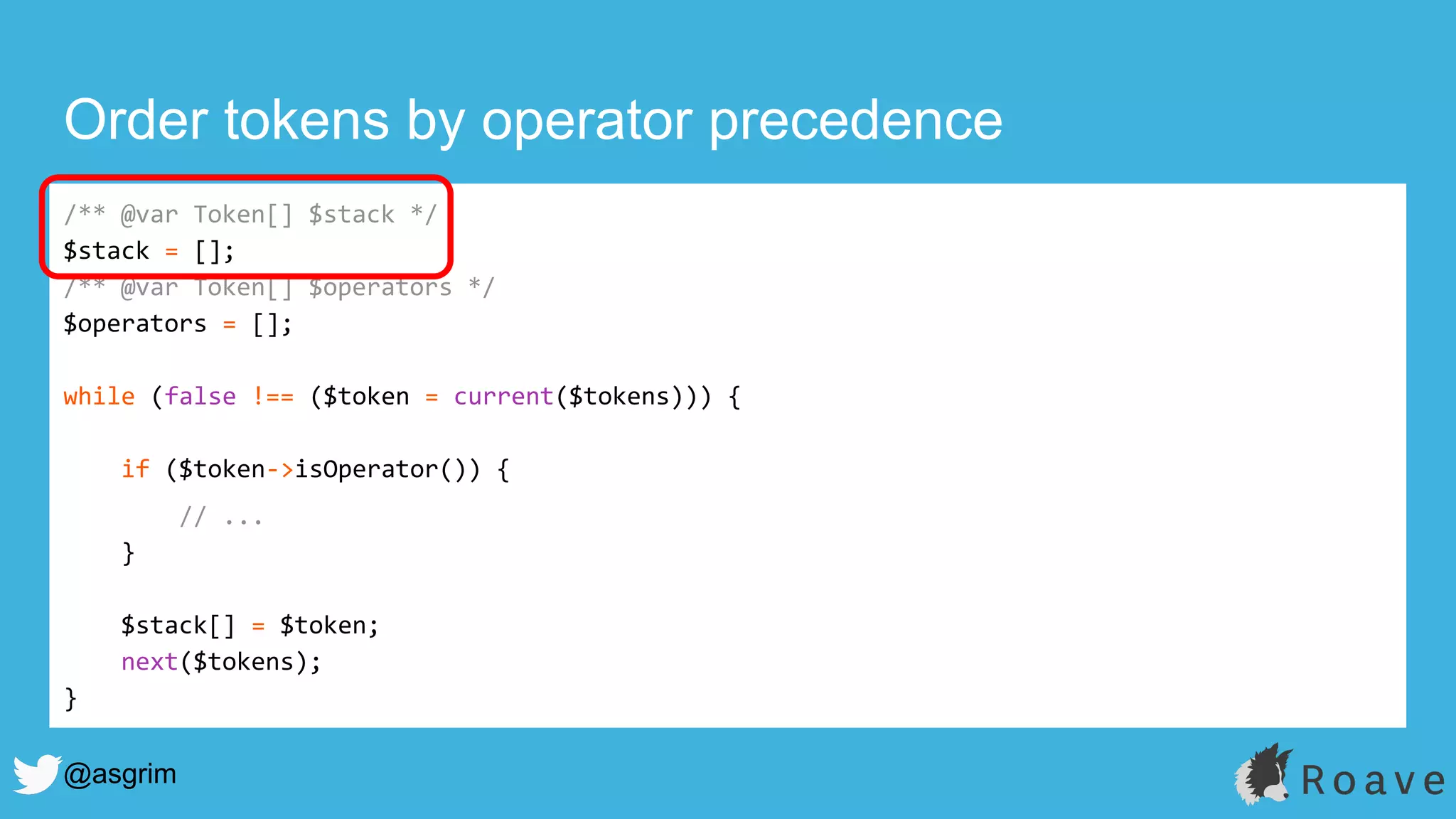

@asgrim Order tokens byoperator precedence /** @var Token[] $stack */ $stack = []; /** @var Token[] $operators */ $operators = []; while (false !== ($token = current($tokens))) { if ($token->isOperator()) { // ... } $stack[] = $token; next($tokens); }

75.

76.

77.

78.

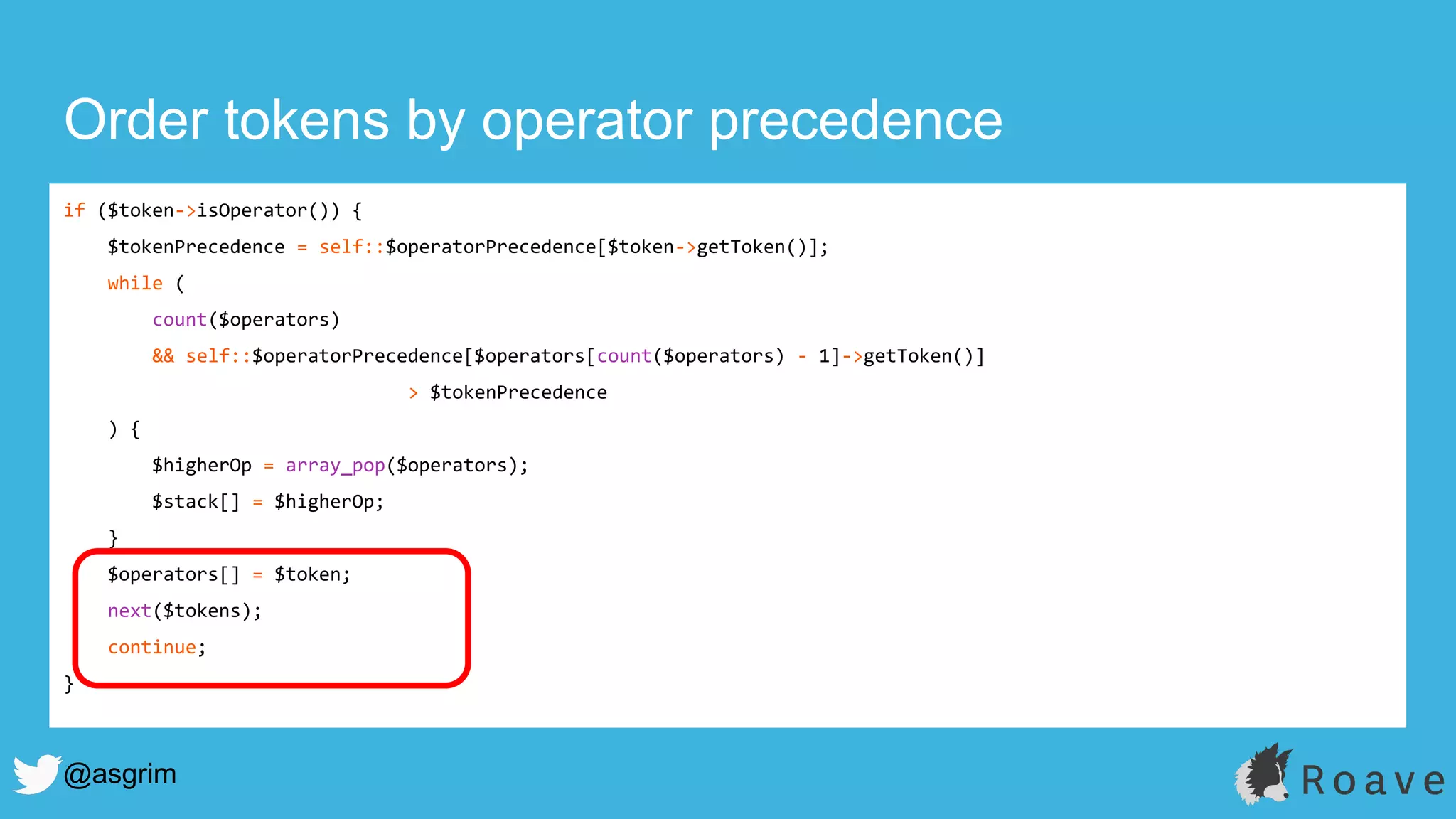

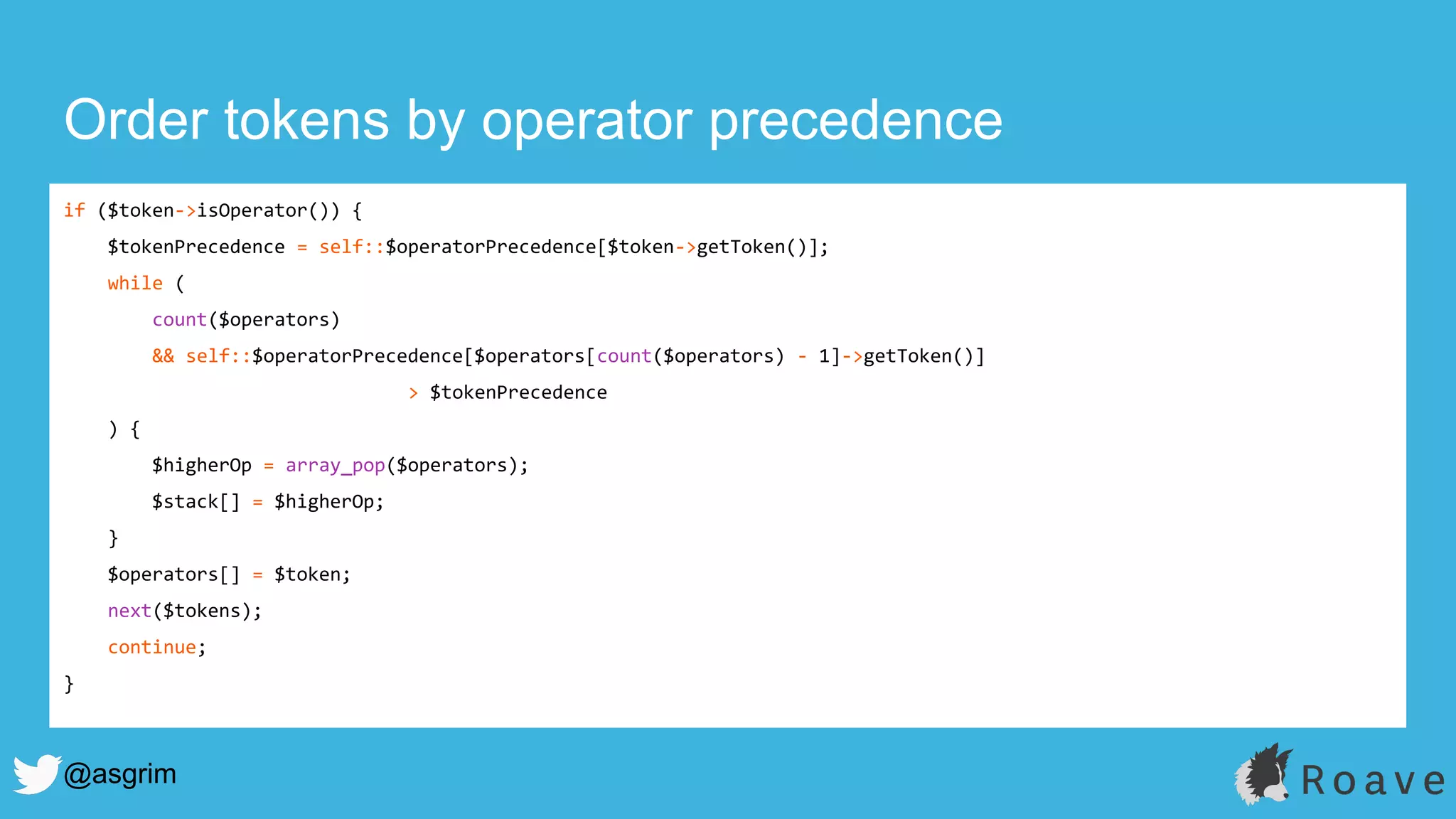

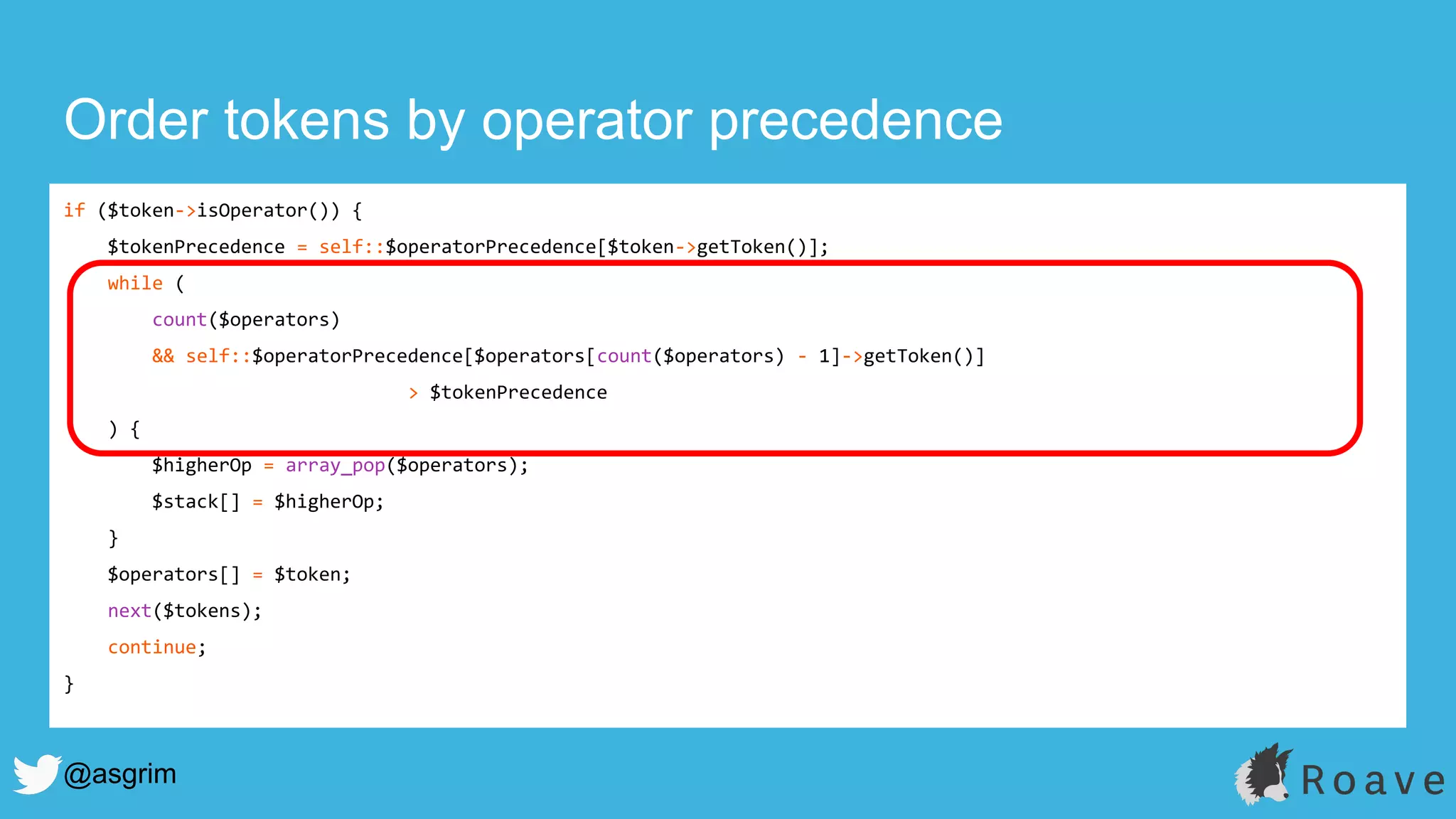

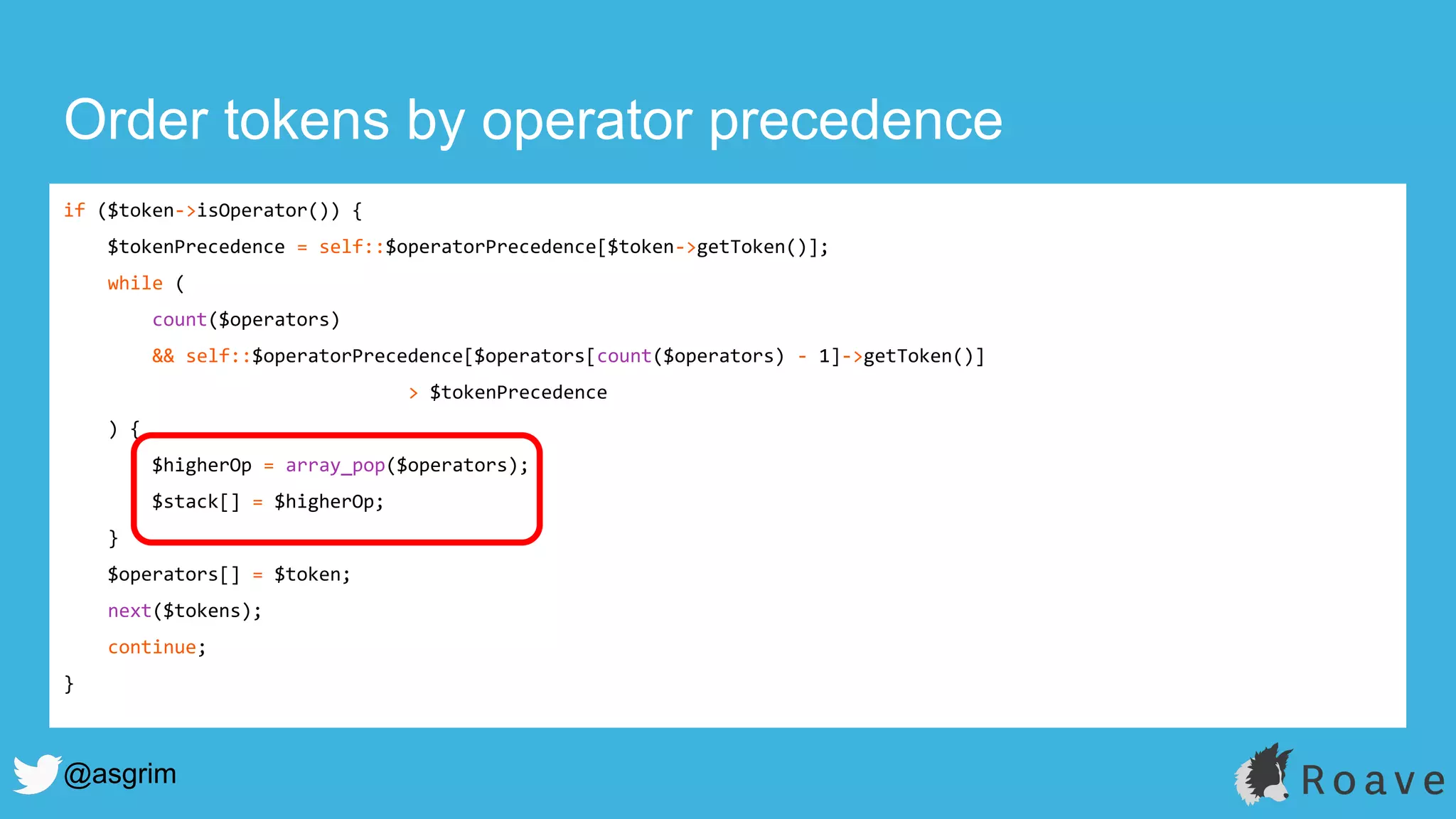

@asgrim Order tokens byoperator precedence if ($token->isOperator()) { $tokenPrecedence = self::$operatorPrecedence[$token->getToken()]; while ( count($operators) && self::$operatorPrecedence[$operators[count($operators) - 1]->getToken()] > $tokenPrecedence ) { $higherOp = array_pop($operators); $stack[] = $higherOp; } $operators[] = $token; next($tokens); continue; }

79.

80.

81.

82.

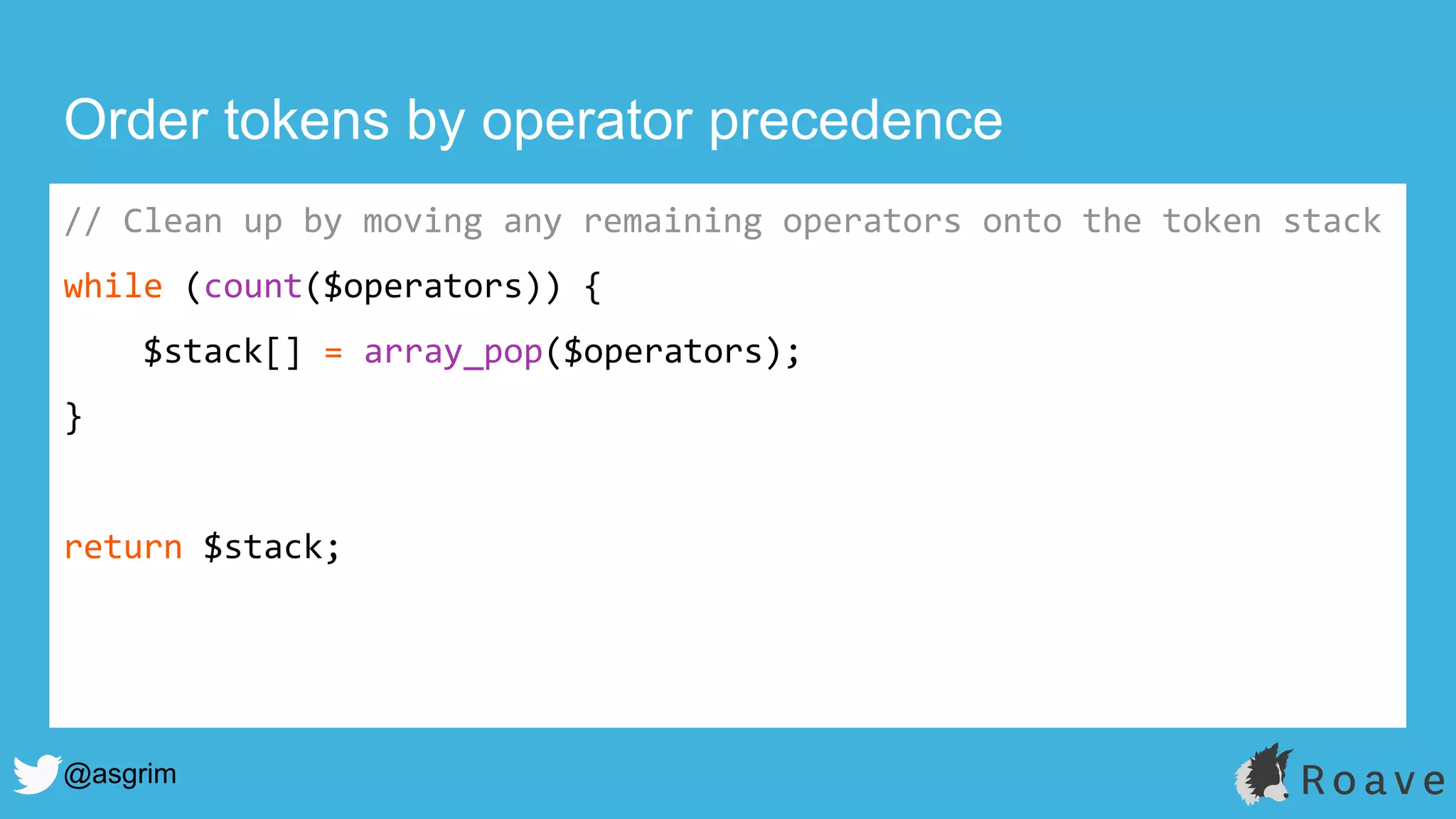

@asgrim Order tokens byoperator precedence // Clean up by moving any remaining operators onto the token stack while (count($operators)) { $stack[] = array_pop($operators); } return $stack;

83.

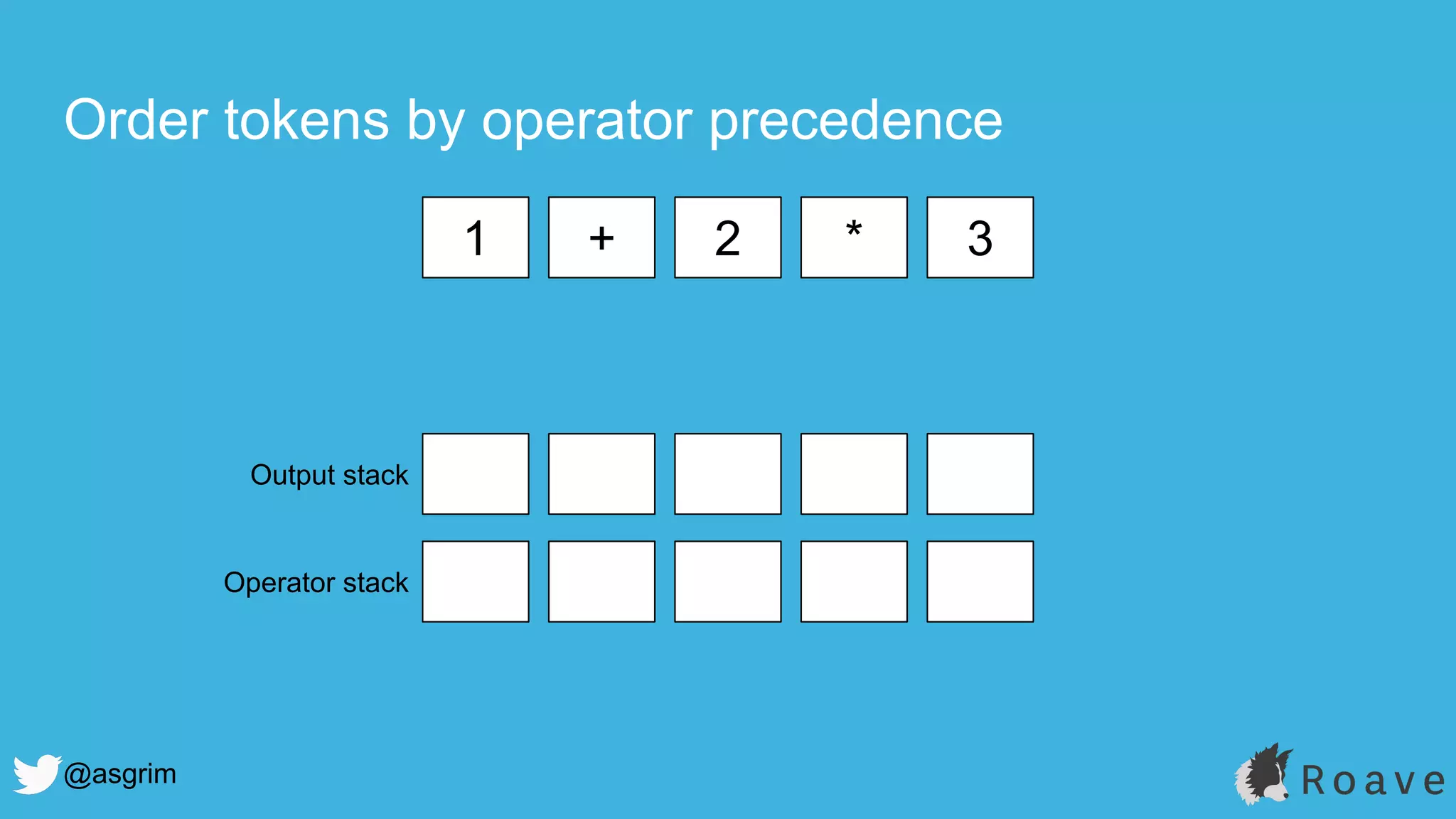

@asgrim Order tokens byoperator precedence 1 + 2 * 3 Output stack Operator stack

84.

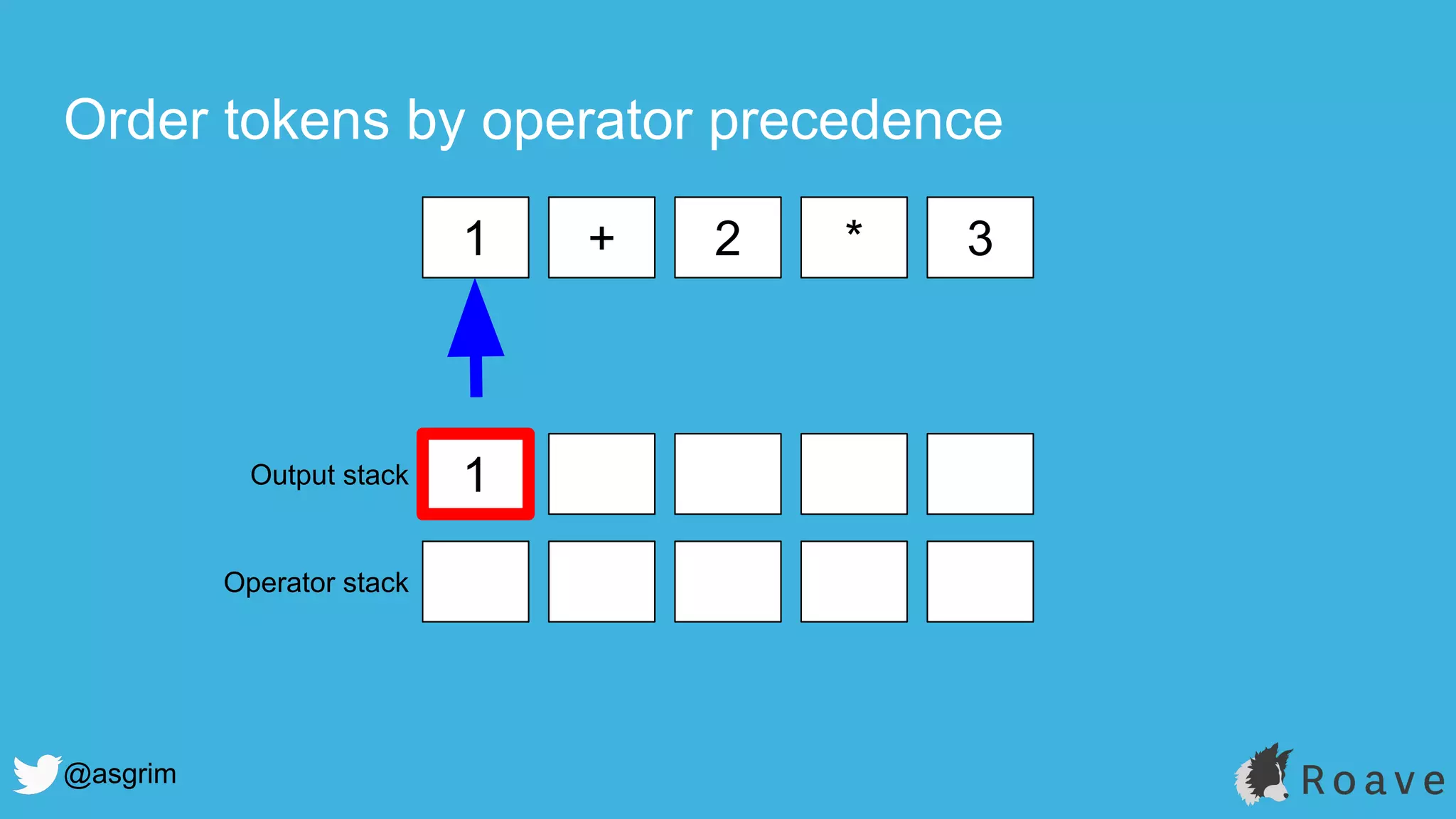

@asgrim Order tokens byoperator precedence 1 + 2 * 3 1Output stack Operator stack

85.

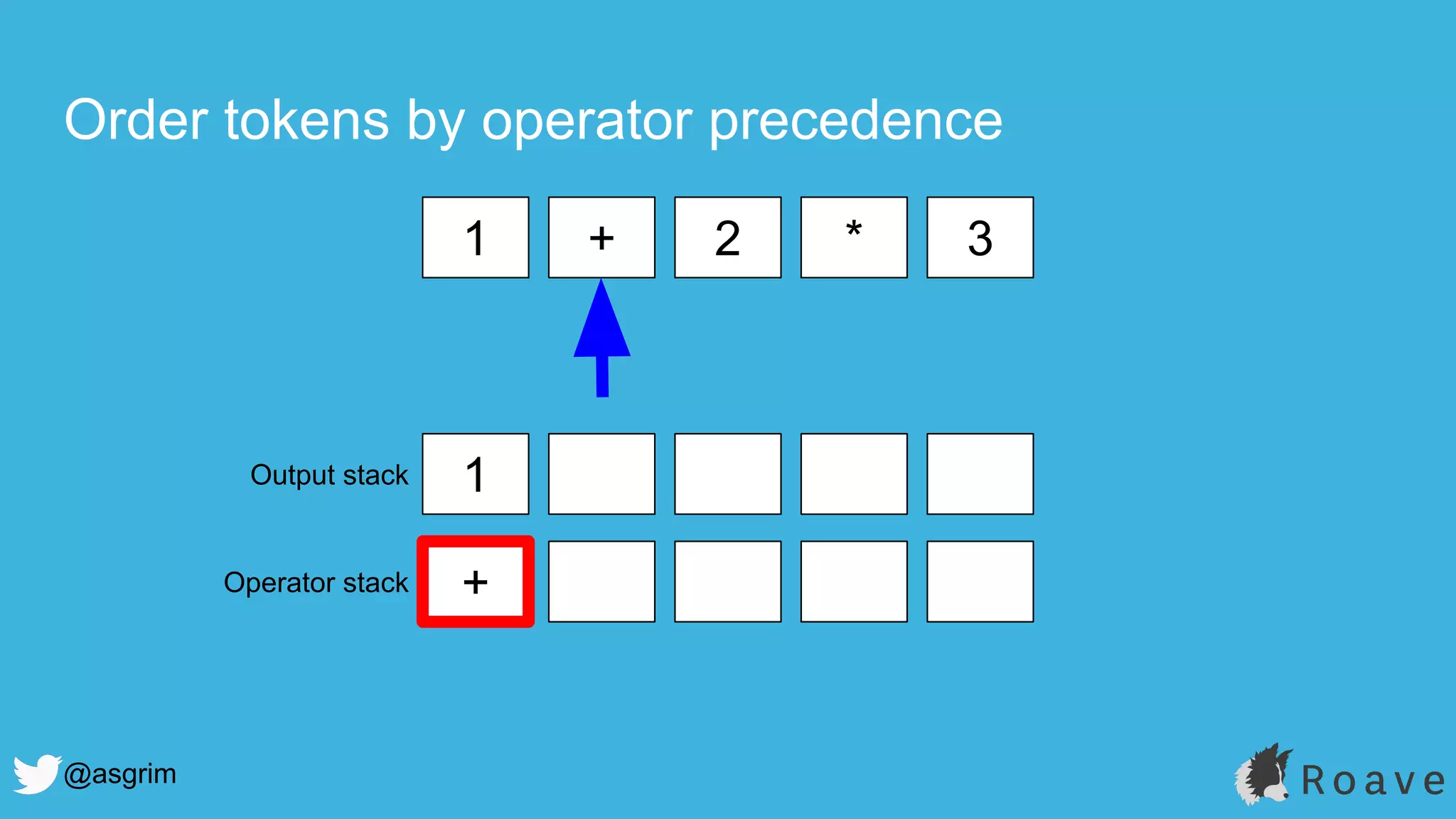

@asgrim Order tokens byoperator precedence 1 + 2 * 3 1 + Output stack Operator stack

86.

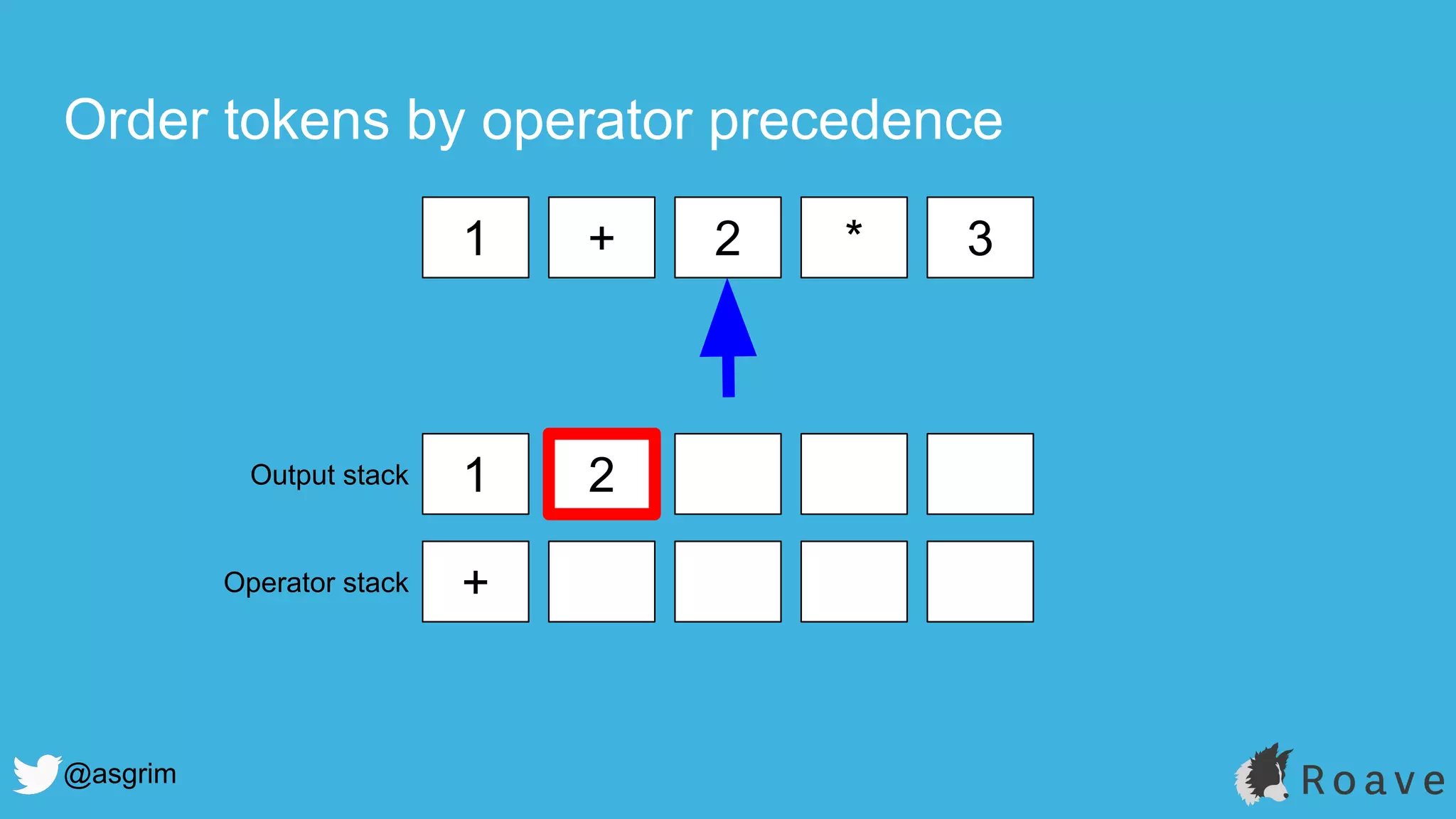

@asgrim Order tokens byoperator precedence 1 + 2 * 3 1 2 + Output stack Operator stack

87.

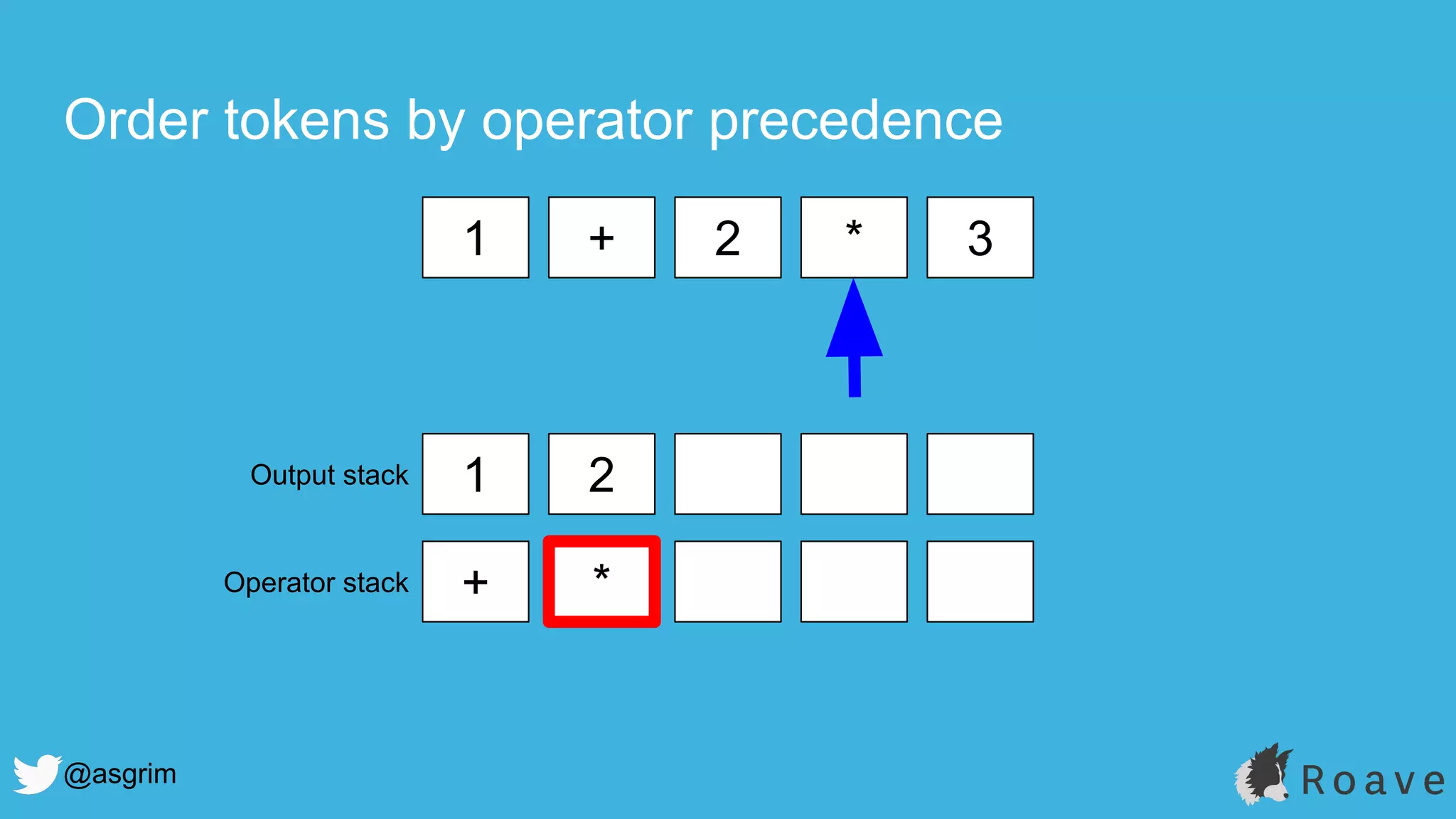

@asgrim Order tokens byoperator precedence 1 + 2 * 3 1 2 + * Output stack Operator stack

88.

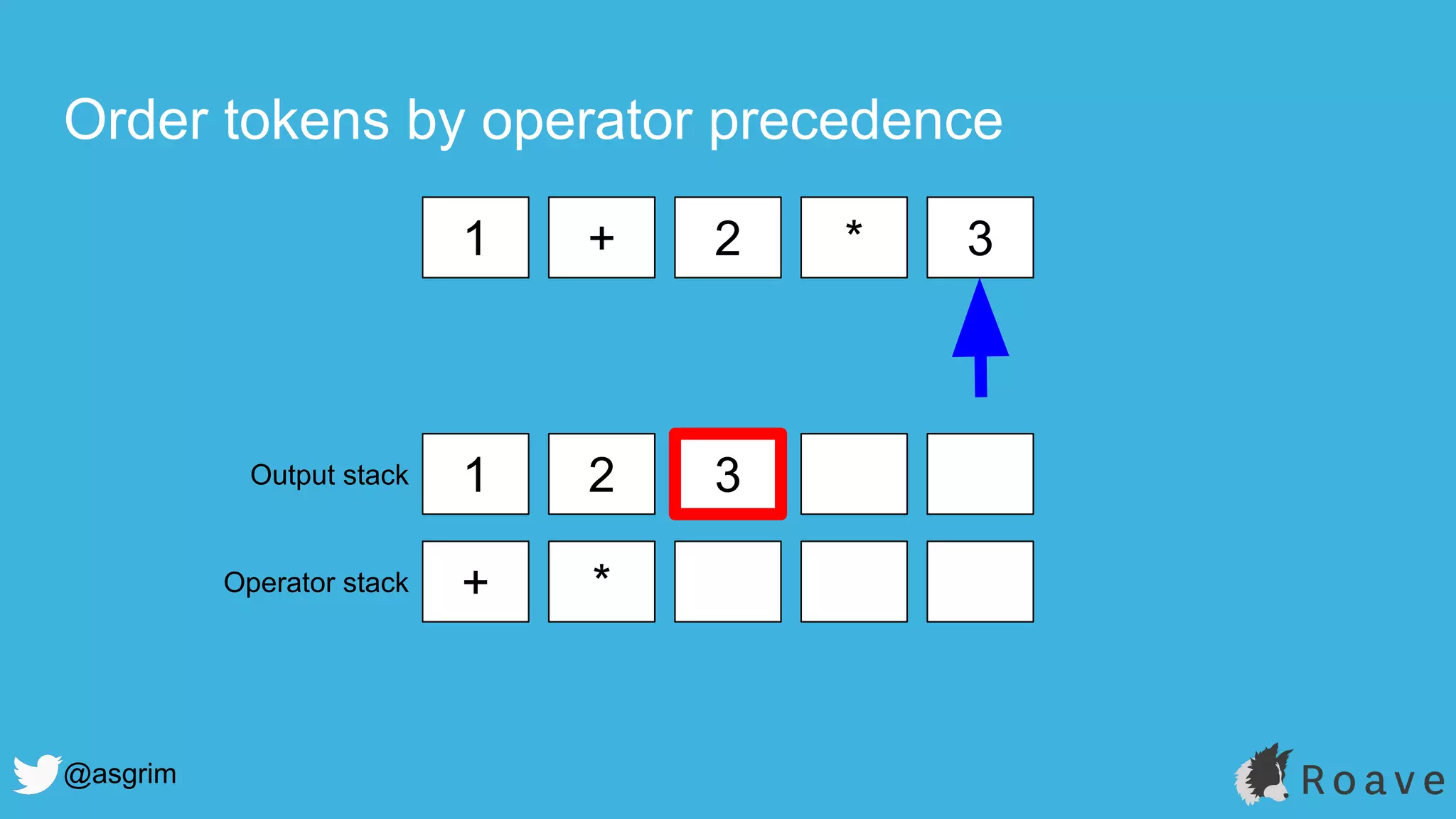

@asgrim Order tokens byoperator precedence 1 + 2 * 3 1 2 3 + * Output stack Operator stack

89.

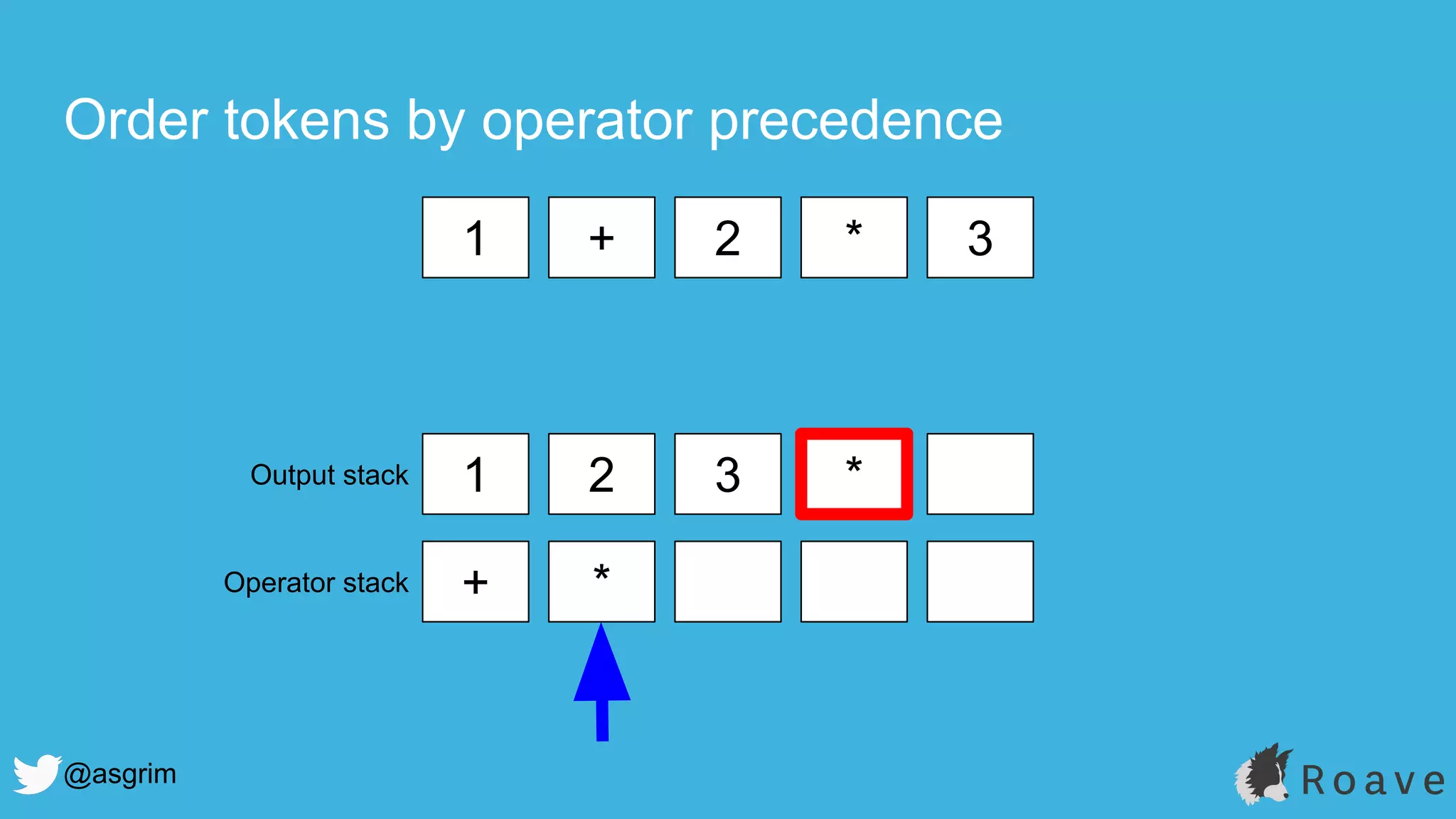

@asgrim Order tokens byoperator precedence 1 + 2 * 3 1 2 3 * + * Output stack Operator stack

90.

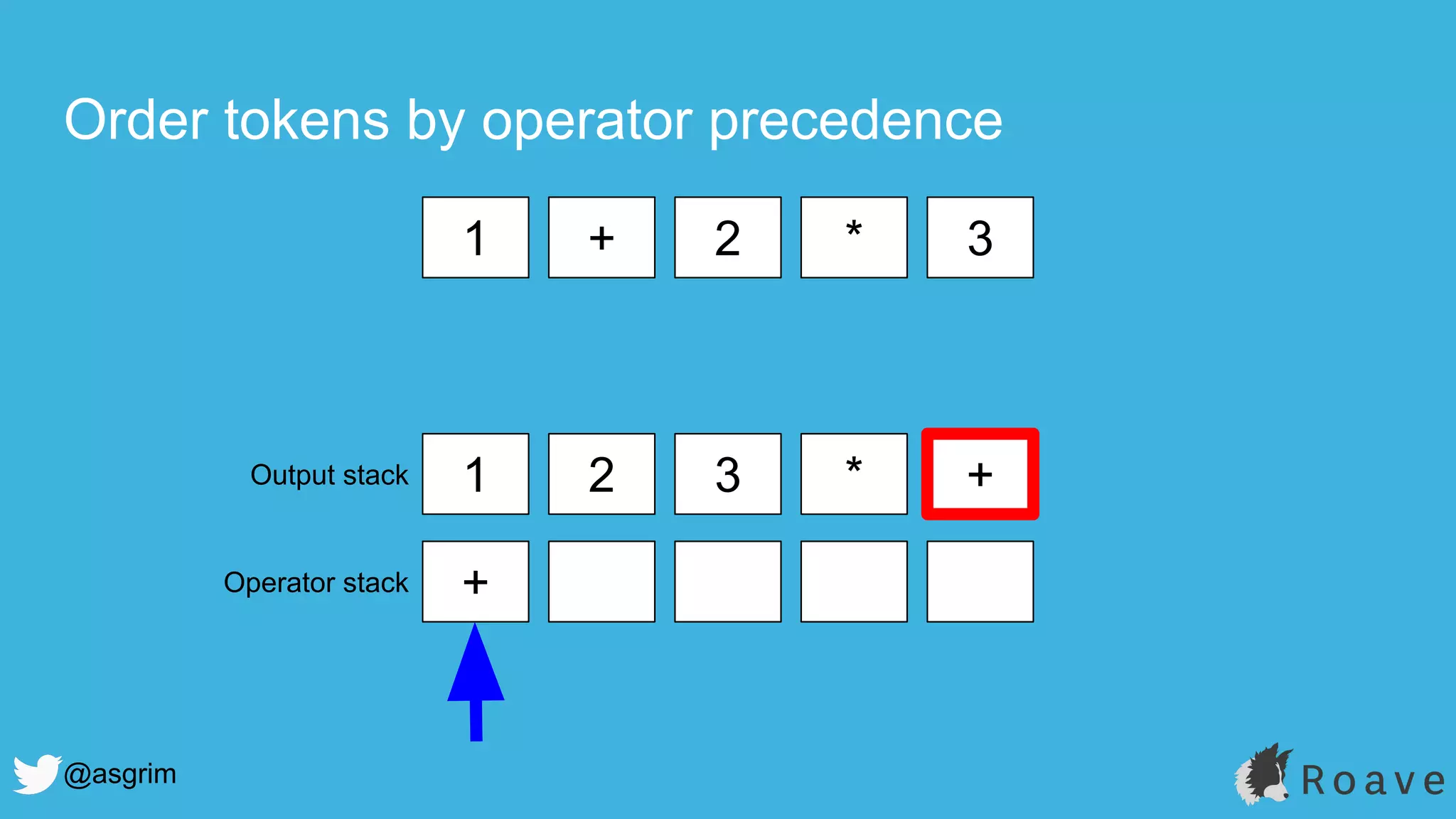

@asgrim Order tokens byoperator precedence 1 + 2 * 3 1 2 3 * + + Output stack Operator stack

91.

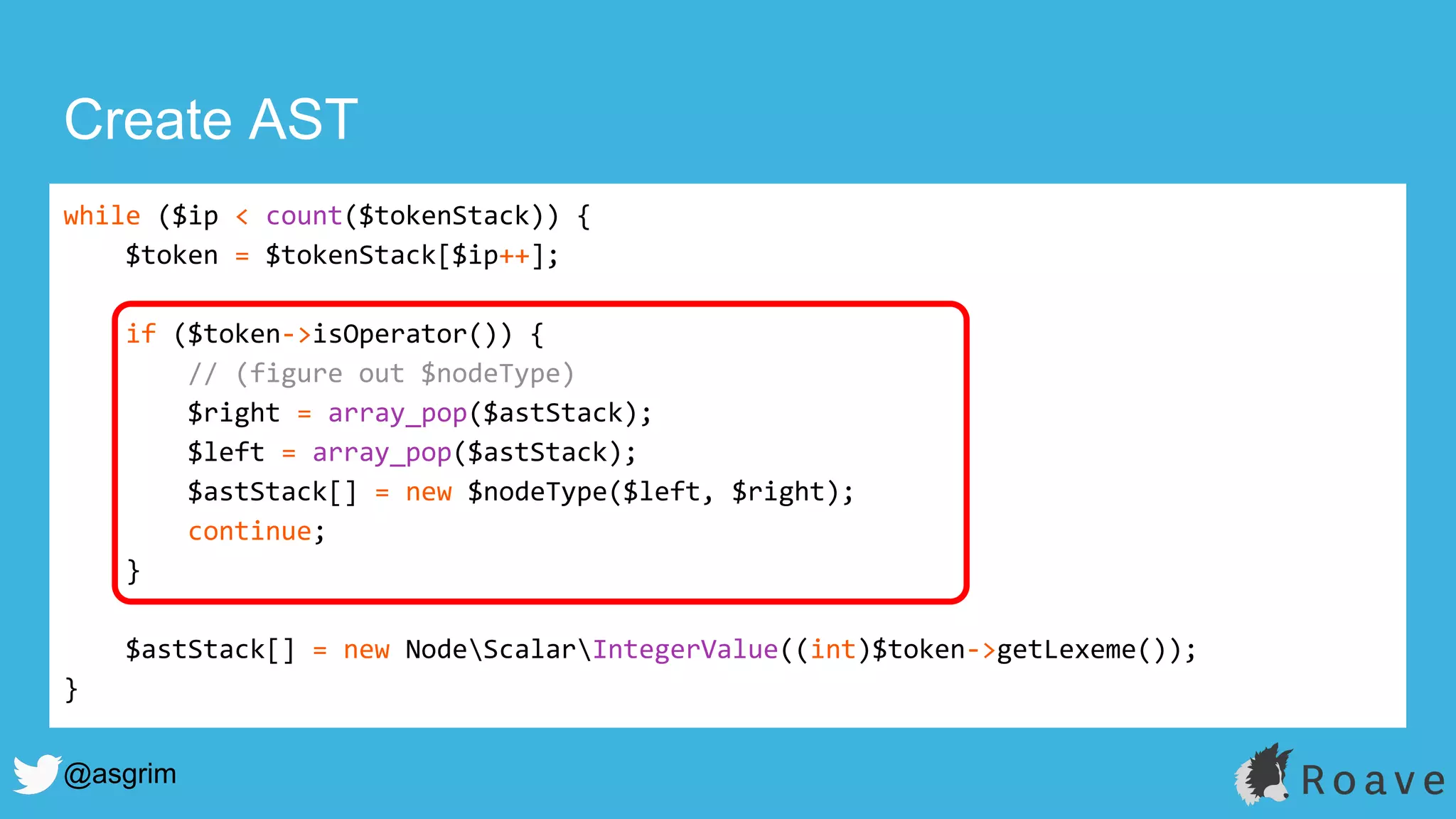

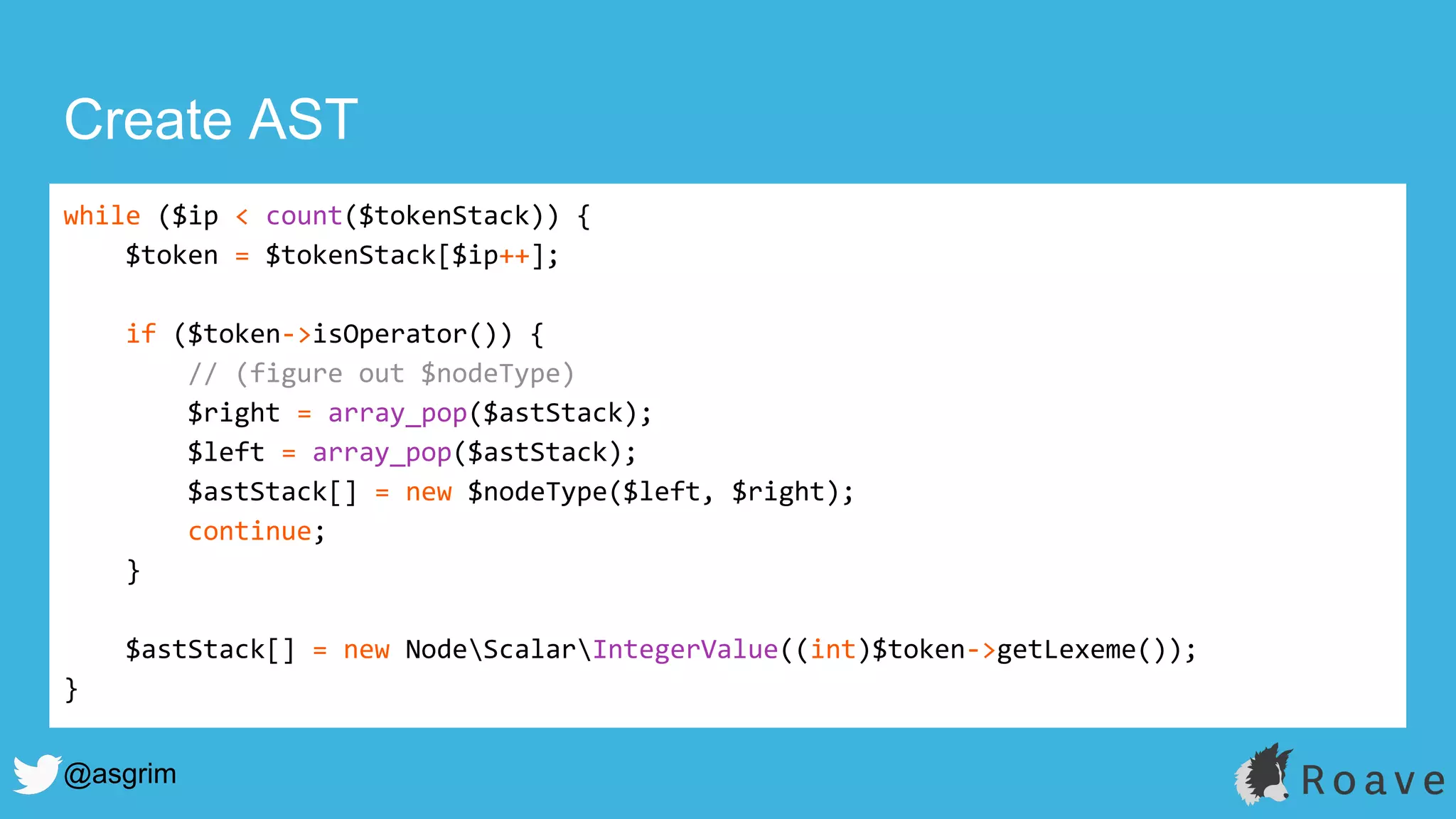

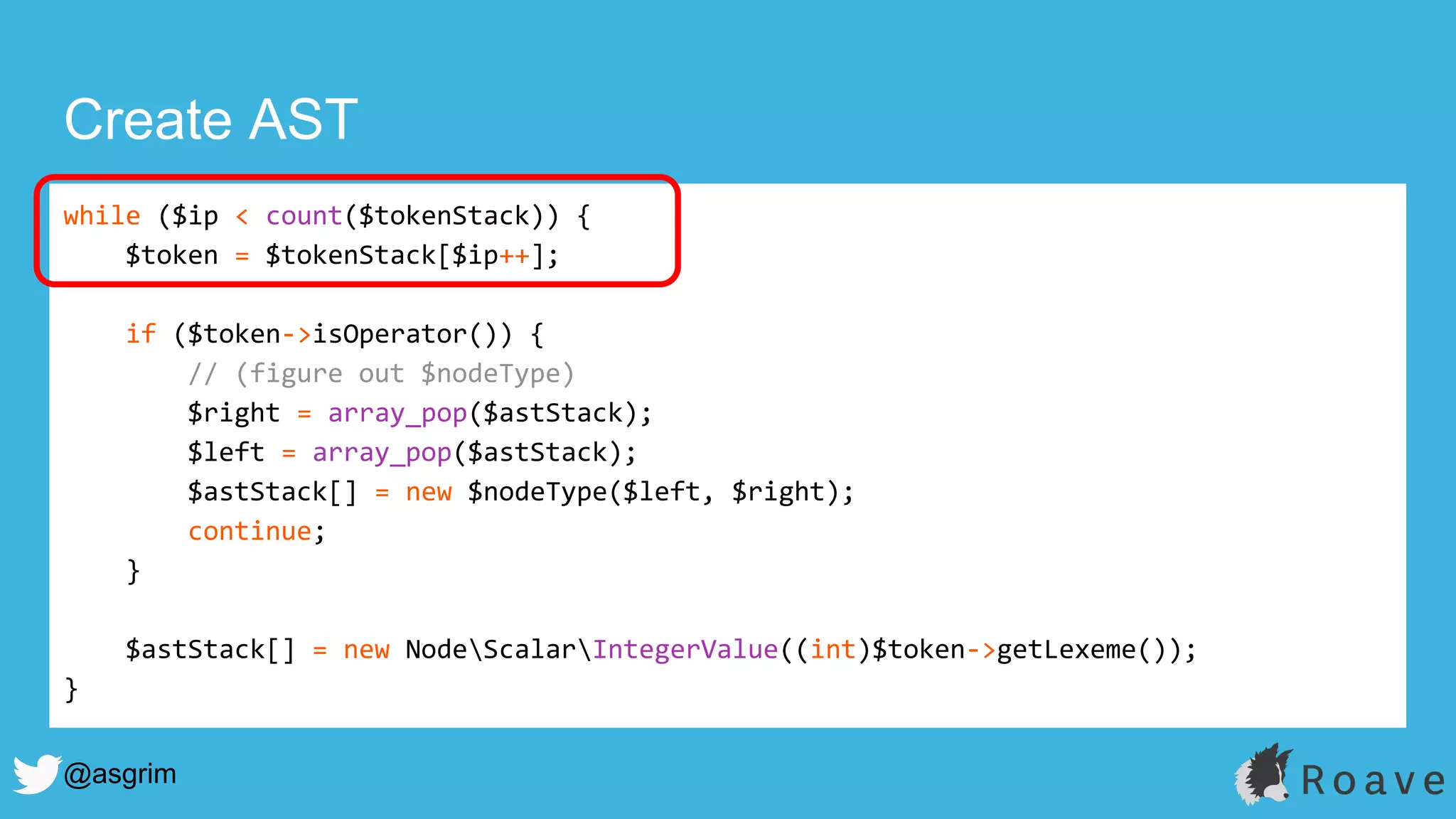

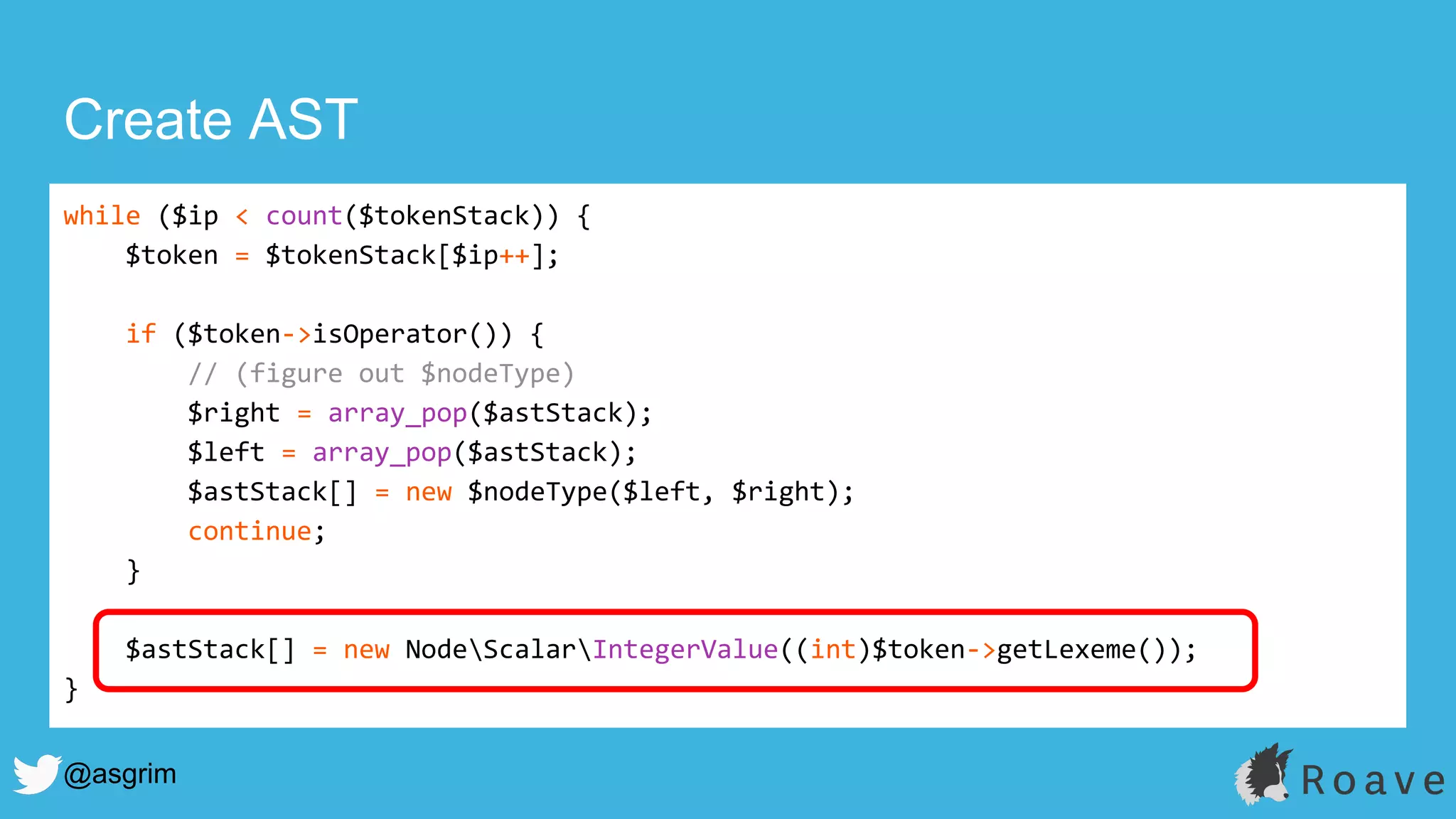

@asgrim Create AST while ($ip< count($tokenStack)) { $token = $tokenStack[$ip++]; if ($token->isOperator()) { // (figure out $nodeType) $right = array_pop($astStack); $left = array_pop($astStack); $astStack[] = new $nodeType($left, $right); continue; } $astStack[] = new NodeScalarIntegerValue((int)$token->getLexeme()); }

92.

93.

94.

95.

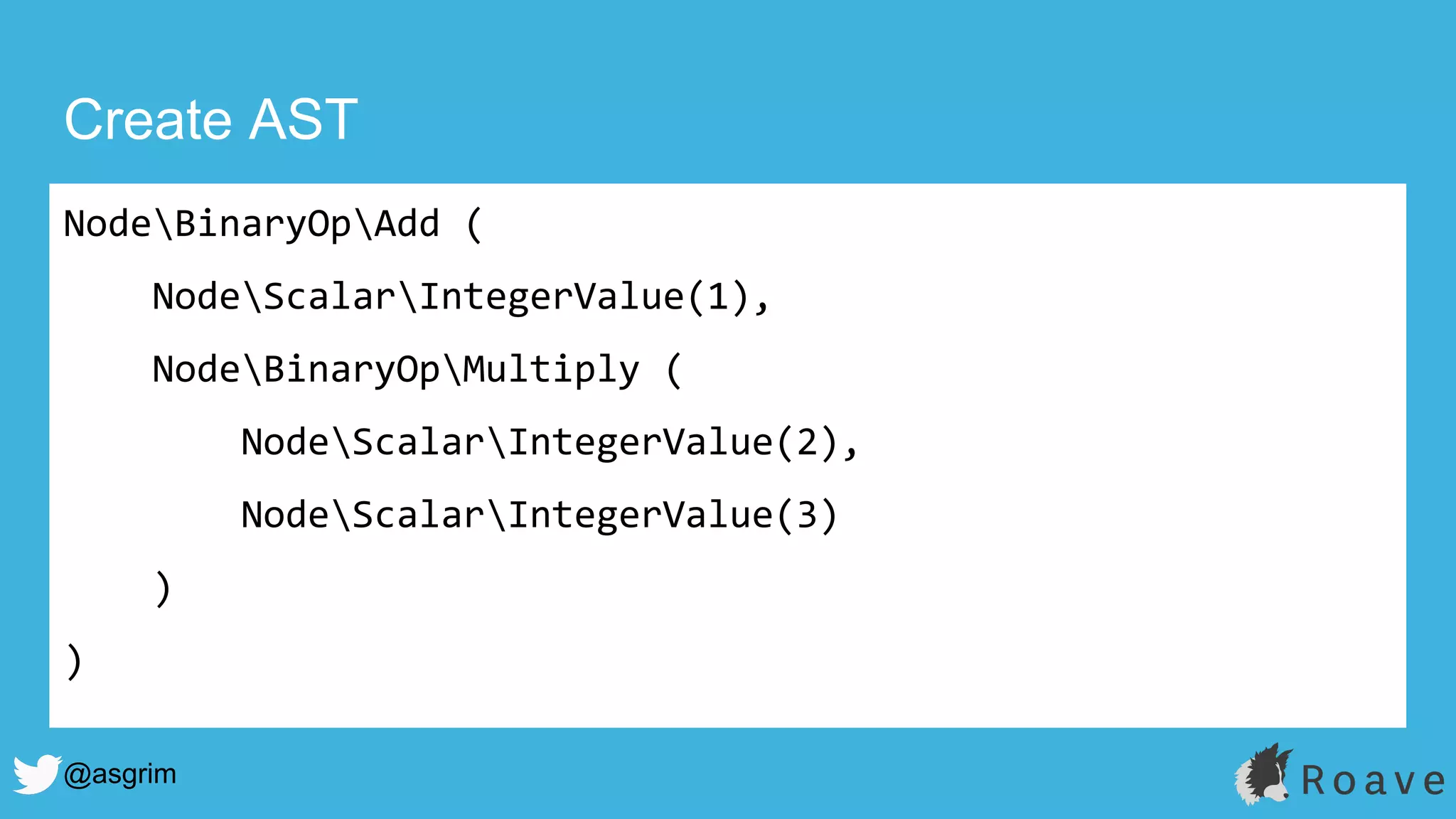

@asgrim Create AST NodeBinaryOpAdd ( NodeScalarIntegerValue(1), NodeBinaryOpMultiply( NodeScalarIntegerValue(2), NodeScalarIntegerValue(3) ) )

96.
@asgrim Step 3: Executingthe AST

97.

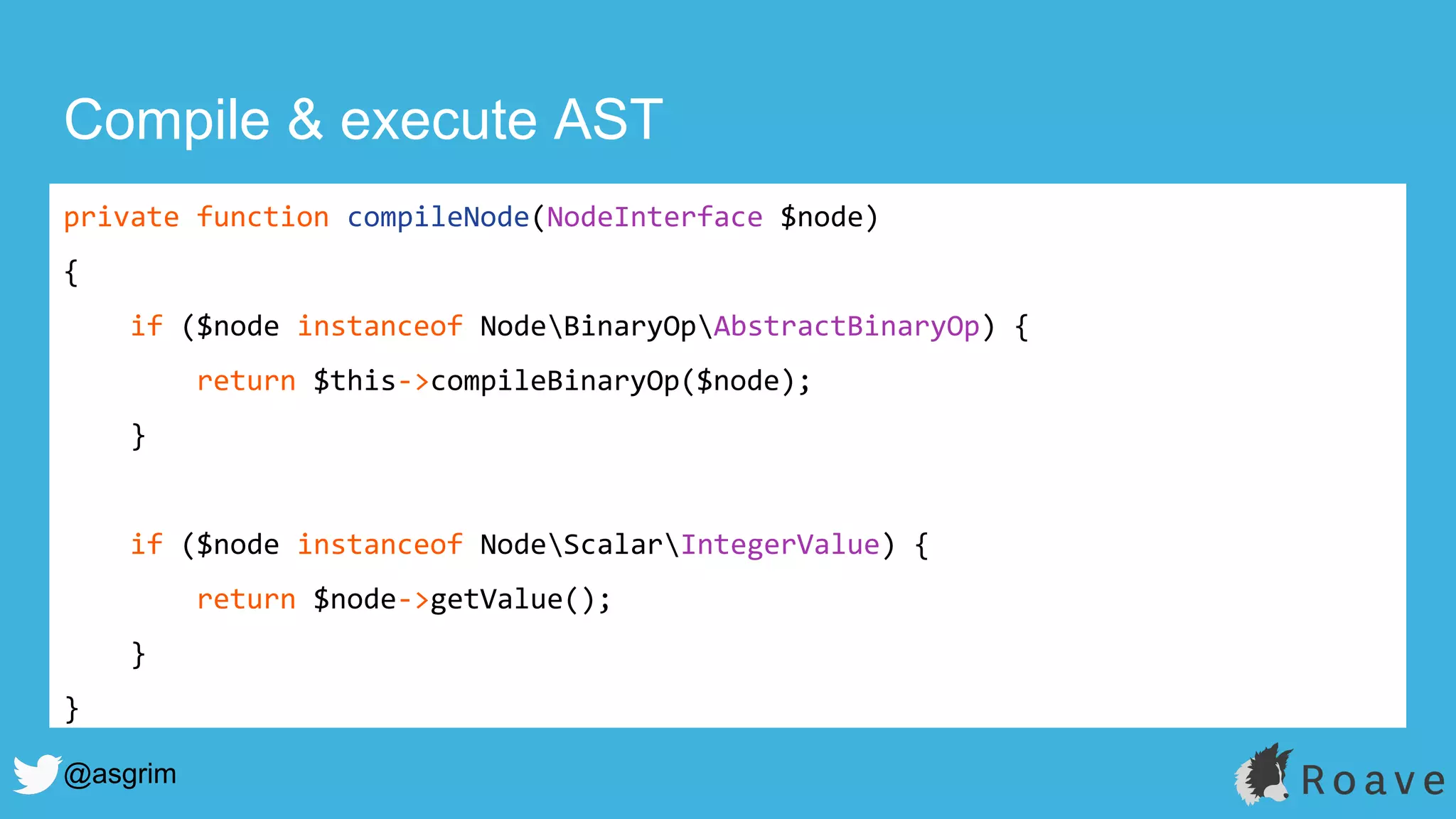

@asgrim Compile & executeAST private function compileNode(NodeInterface $node) { if ($node instanceof NodeBinaryOpAbstractBinaryOp) { return $this->compileBinaryOp($node); } if ($node instanceof NodeScalarIntegerValue) { return $node->getValue(); } }

98.

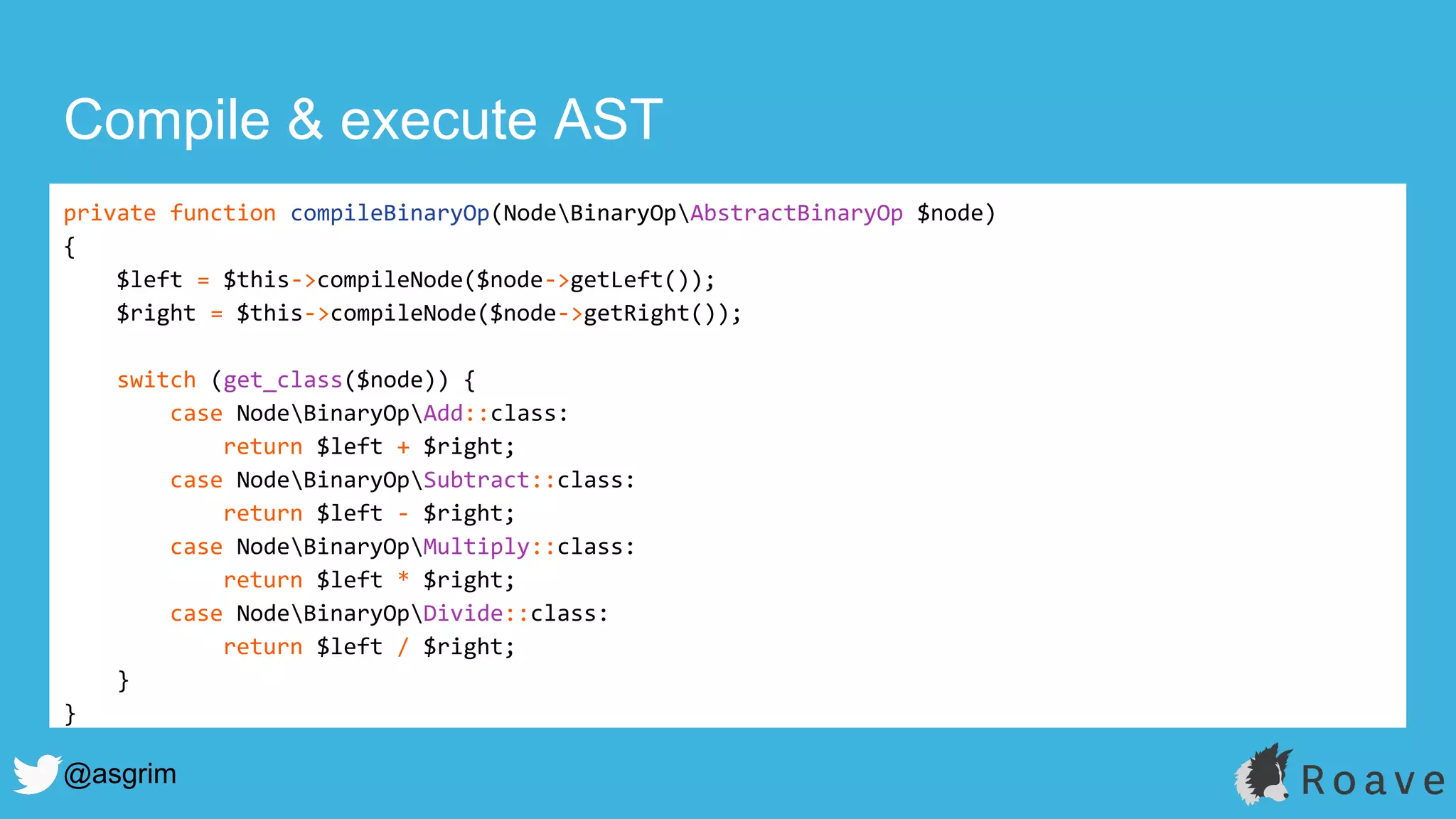

@asgrim Compile & executeAST private function compileBinaryOp(NodeBinaryOpAbstractBinaryOp $node) { $left = $this->compileNode($node->getLeft()); $right = $this->compileNode($node->getRight()); switch (get_class($node)) { case NodeBinaryOpAdd::class: return $left + $right; case NodeBinaryOpSubtract::class: return $left - $right; case NodeBinaryOpMultiply::class: return $left * $right; case NodeBinaryOpDivide::class: return $left / $right; } }

99.
@asgrim AST in userland

100.

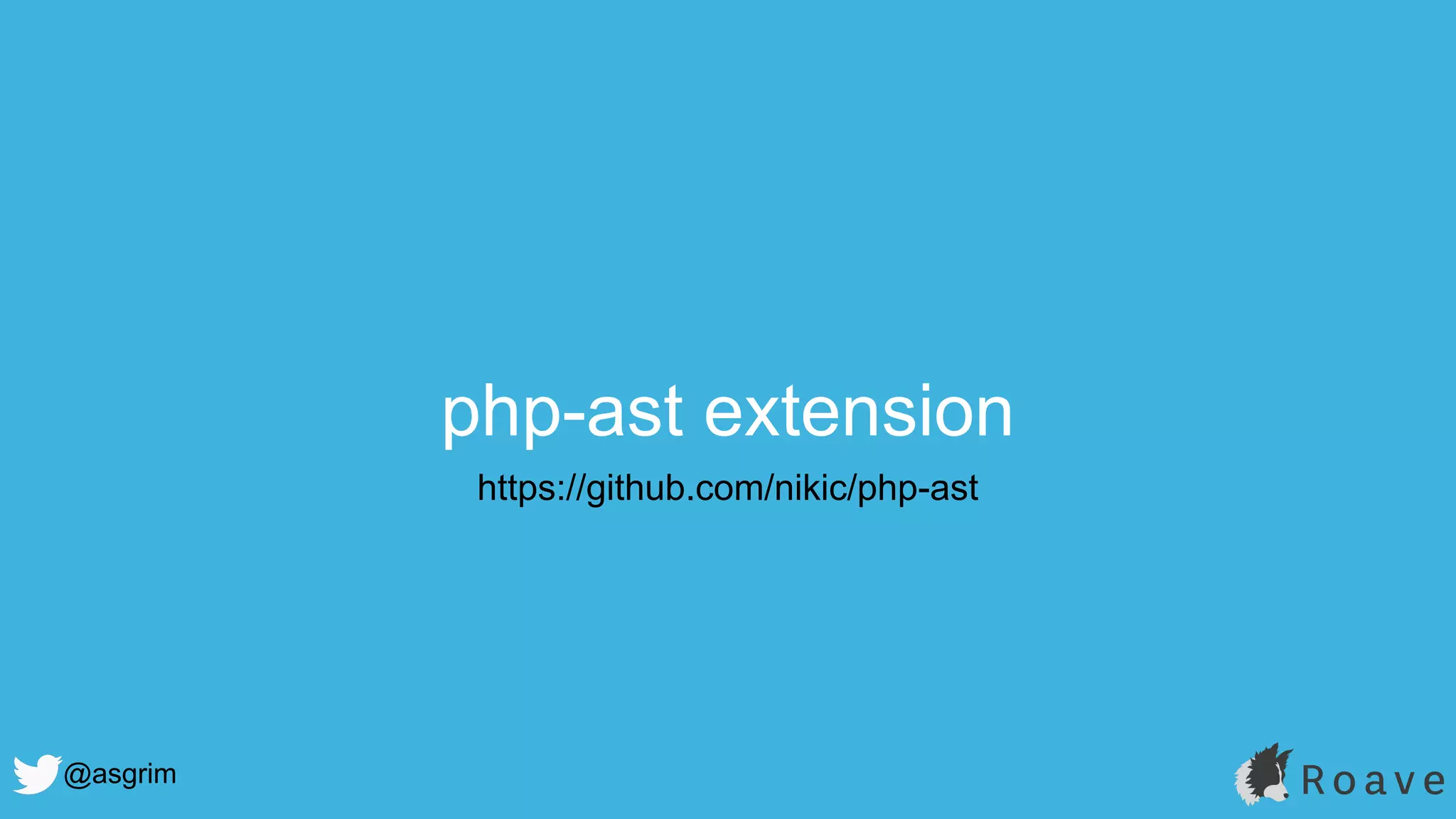

@asgrim php-ast extension https://github.com/nikic/php-ast

101.

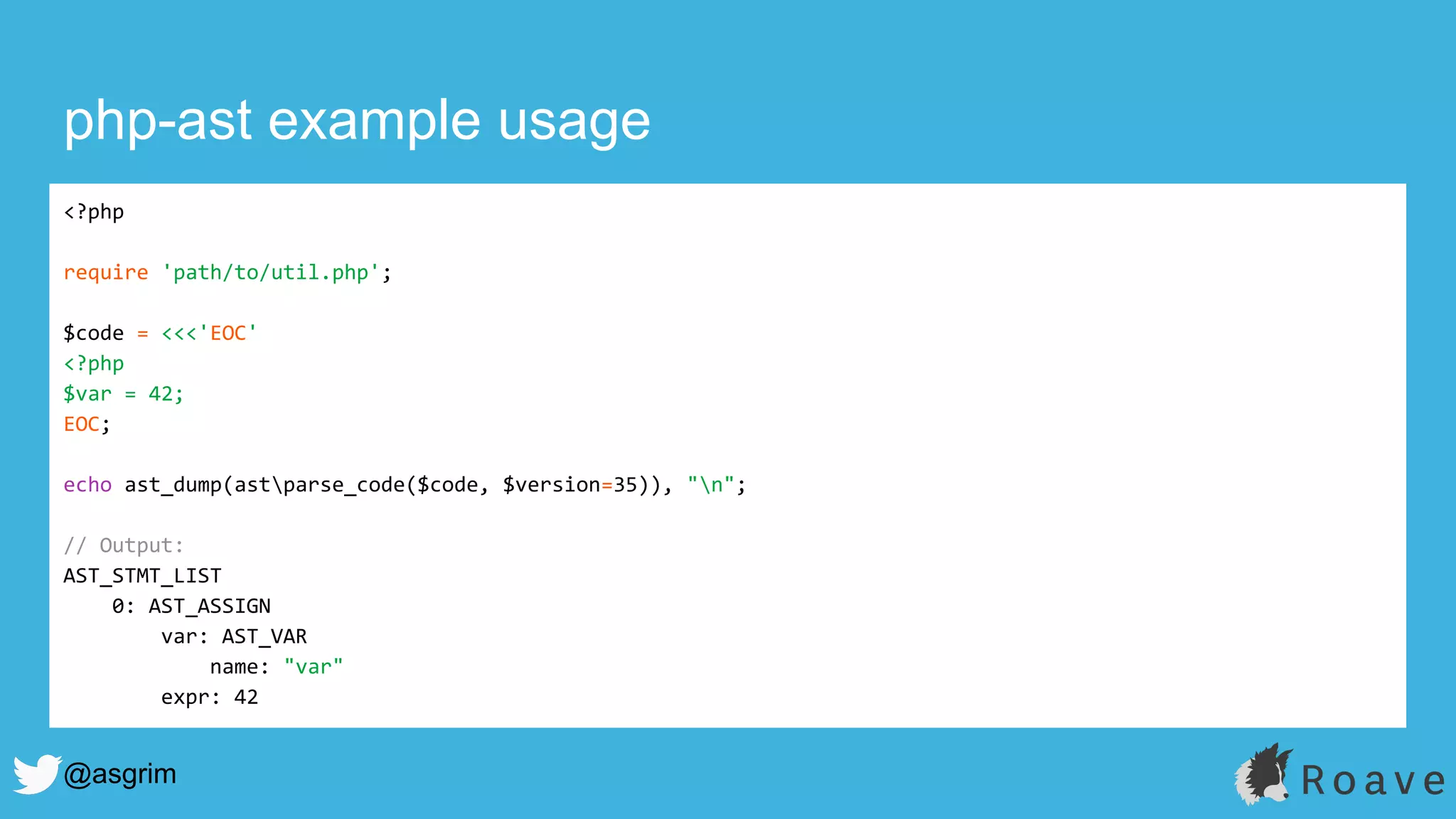

@asgrim php-ast example usage <?php require'path/to/util.php'; $code = <<<'EOC' <?php $var = 42; EOC; echo ast_dump(astparse_code($code, $version=35)), "n"; // Output: AST_STMT_LIST 0: AST_ASSIGN var: AST_VAR name: "var" expr: 42

102.
@asgrim astkit https://github.com/sgolemon/astkit

103.

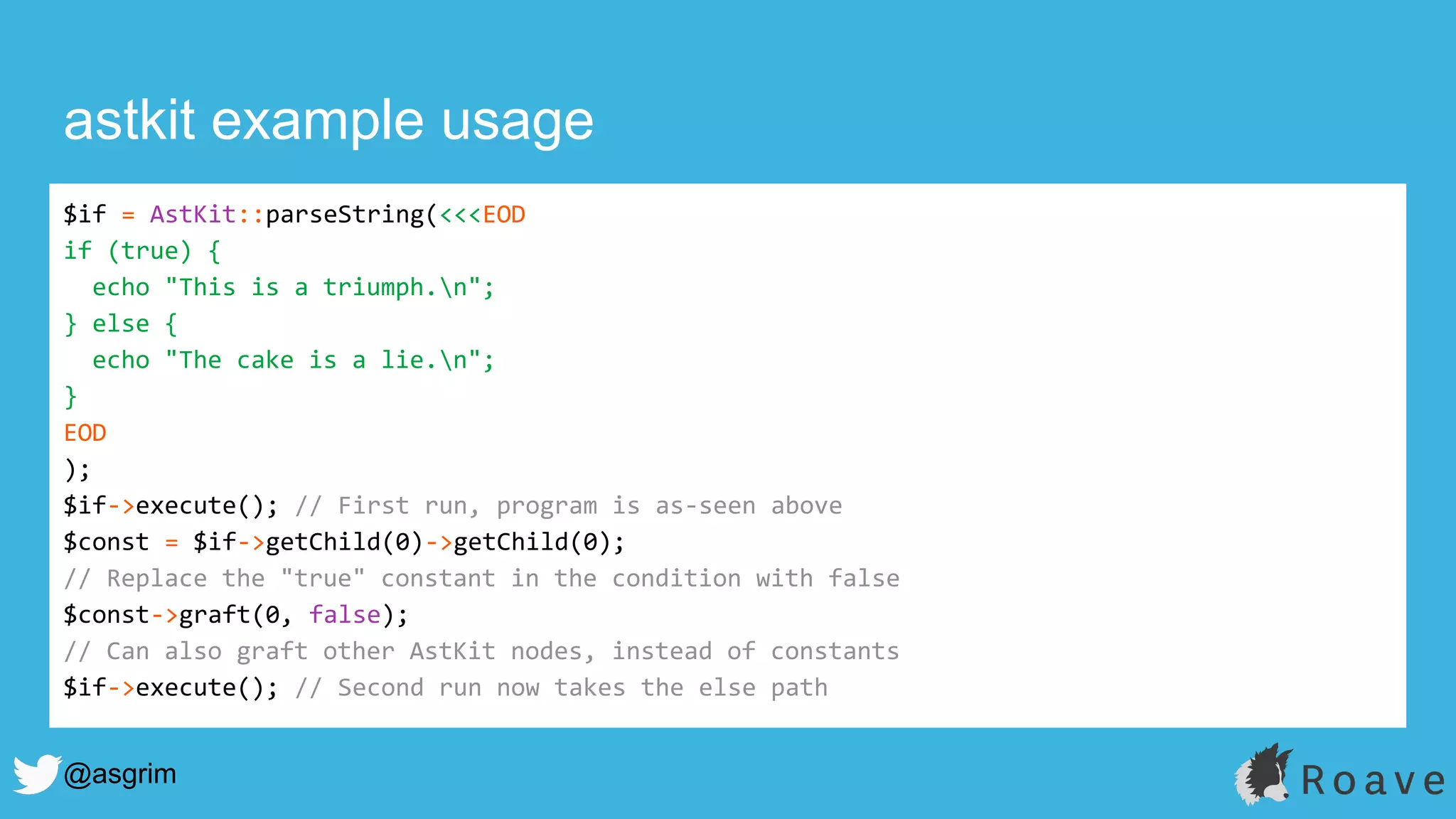

@asgrim astkit example usage $if= AstKit::parseString(<<<EOD if (true) { echo "This is a triumph.n"; } else { echo "The cake is a lie.n"; } EOD ); $if->execute(); // First run, program is as-seen above $const = $if->getChild(0)->getChild(0); // Replace the "true" constant in the condition with false $const->graft(0, false); // Can also graft other AstKit nodes, instead of constants $if->execute(); // Second run now takes the else path

104.

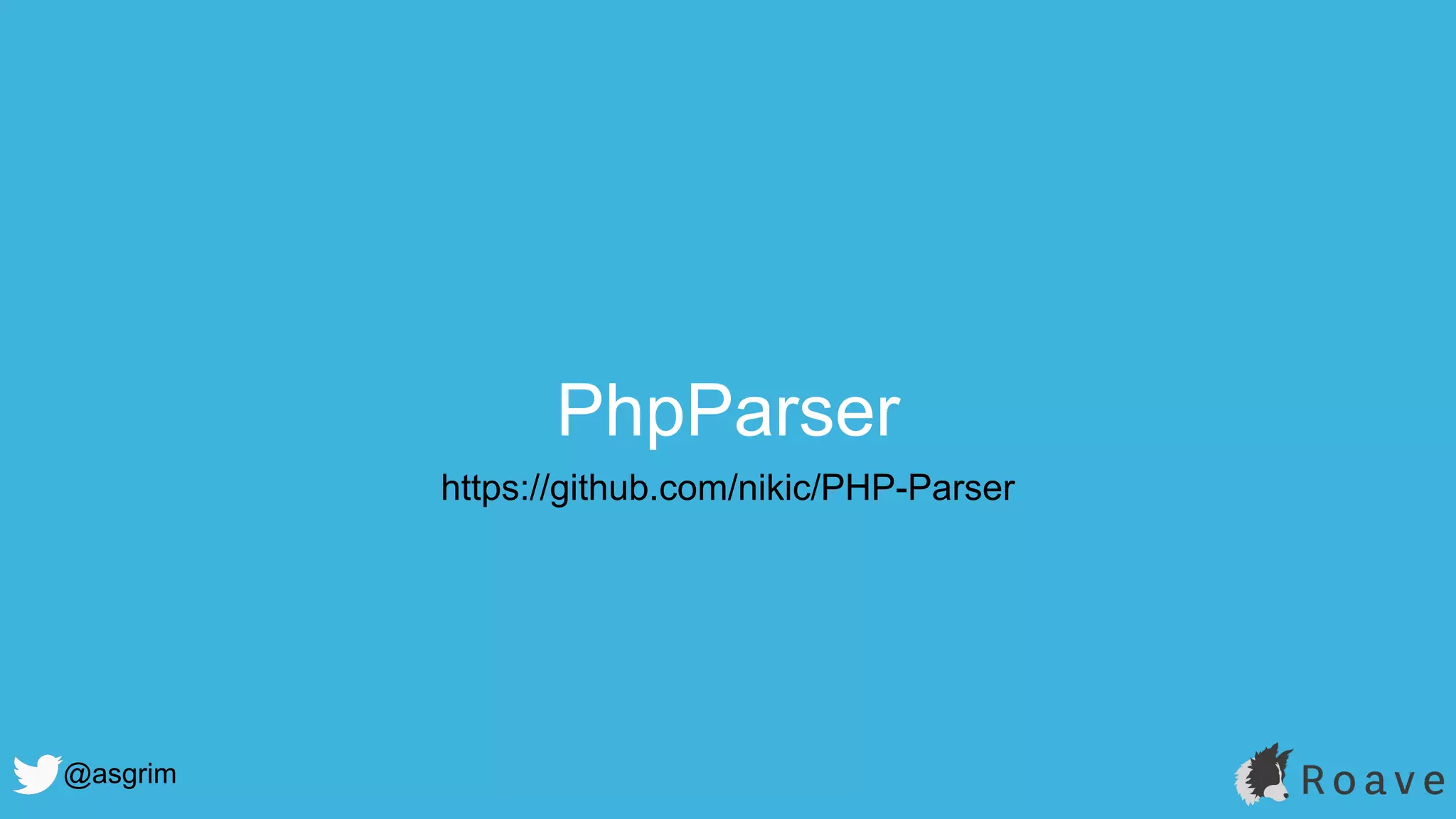

@asgrim PhpParser https://github.com/nikic/PHP-Parser

105.

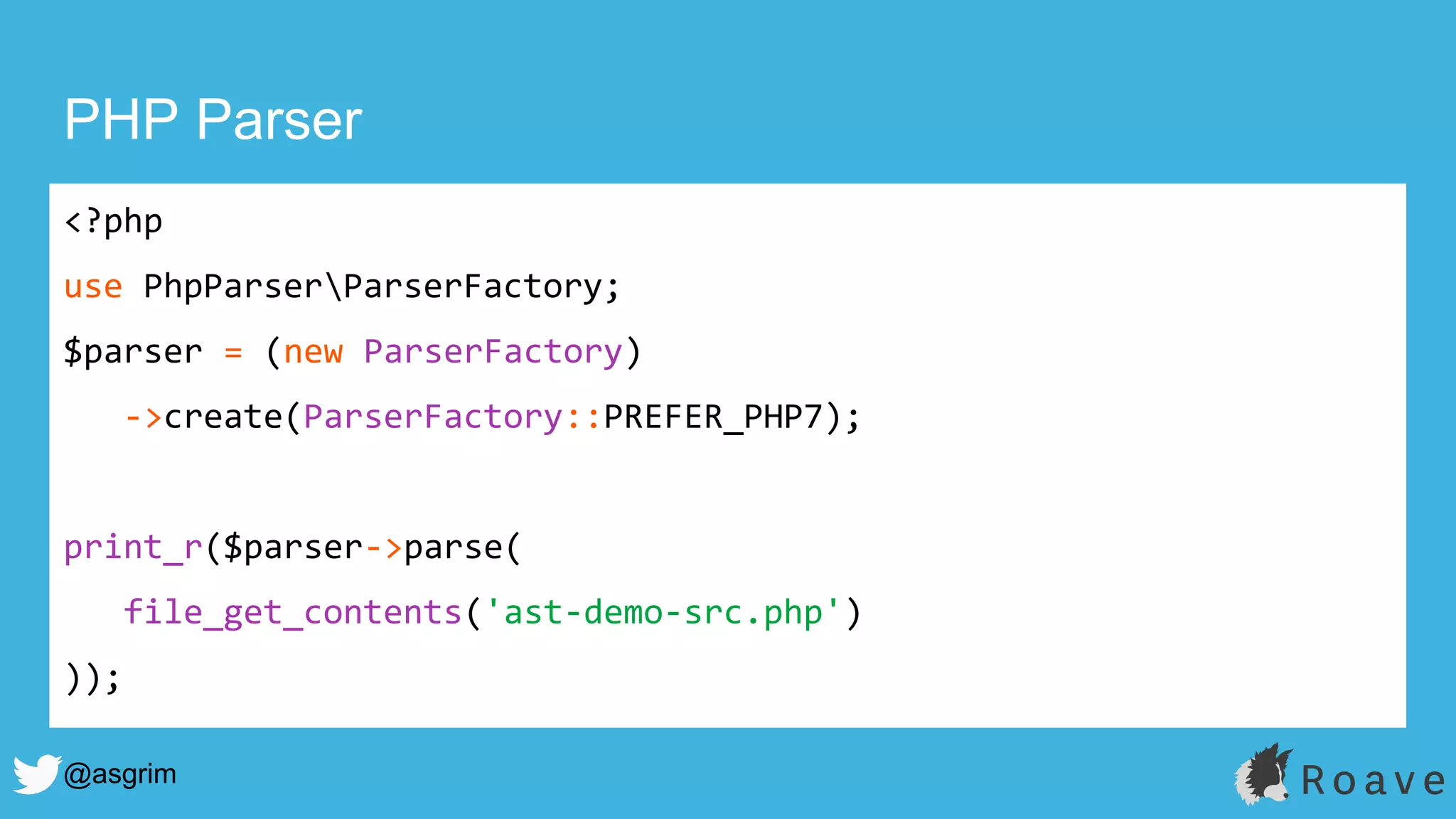

@asgrim PHP Parser <?php use PhpParserParserFactory; $parser= (new ParserFactory) ->create(ParserFactory::PREFER_PHP7); print_r($parser->parse( file_get_contents('ast-demo-src.php') ));

106.
@asgrim Better Reflection https://github.com/Roave/BetterReflection

107.

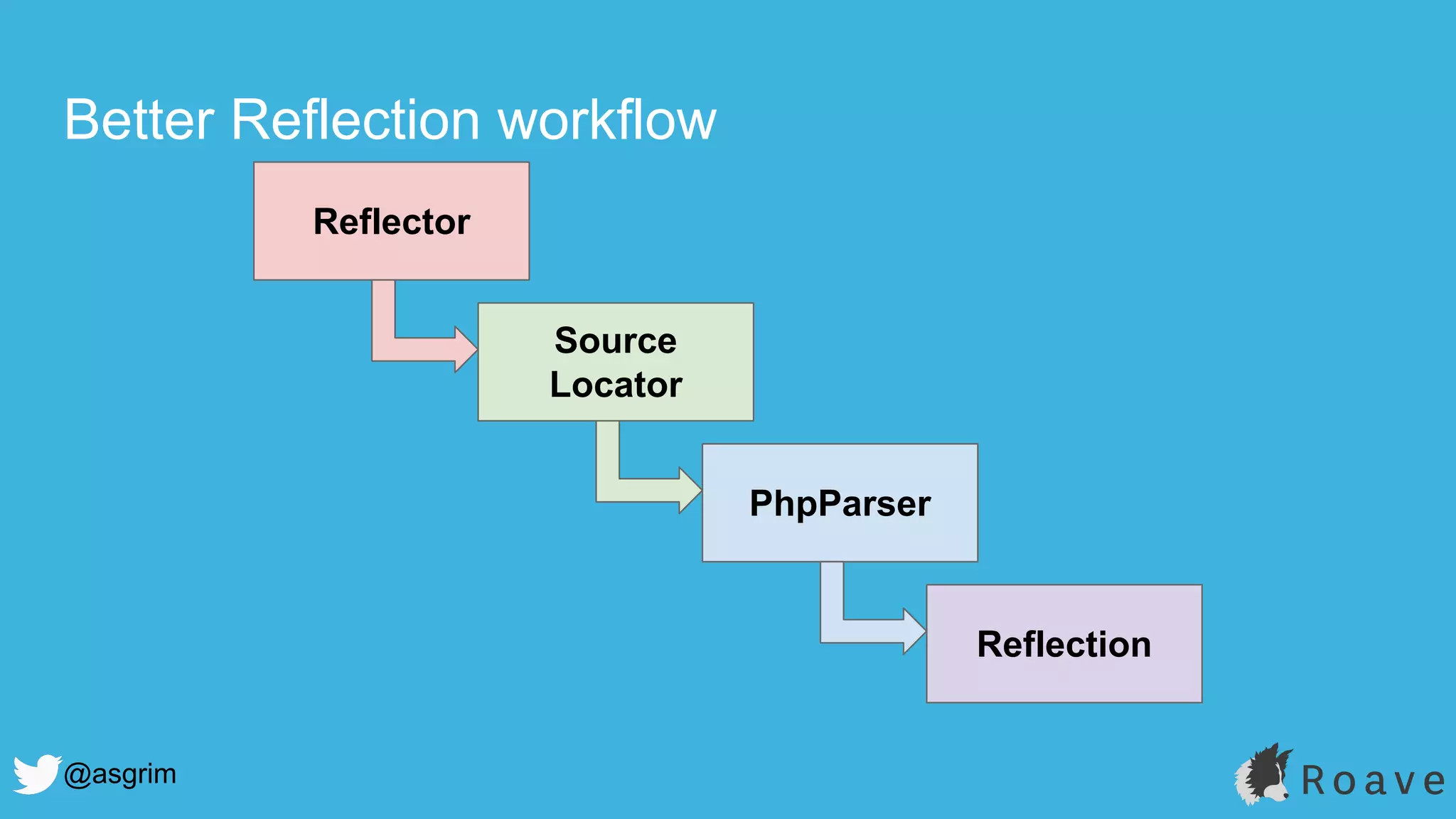

@asgrim Better Reflection workflow Reflector Source Locator PhpParser Reflection

108.

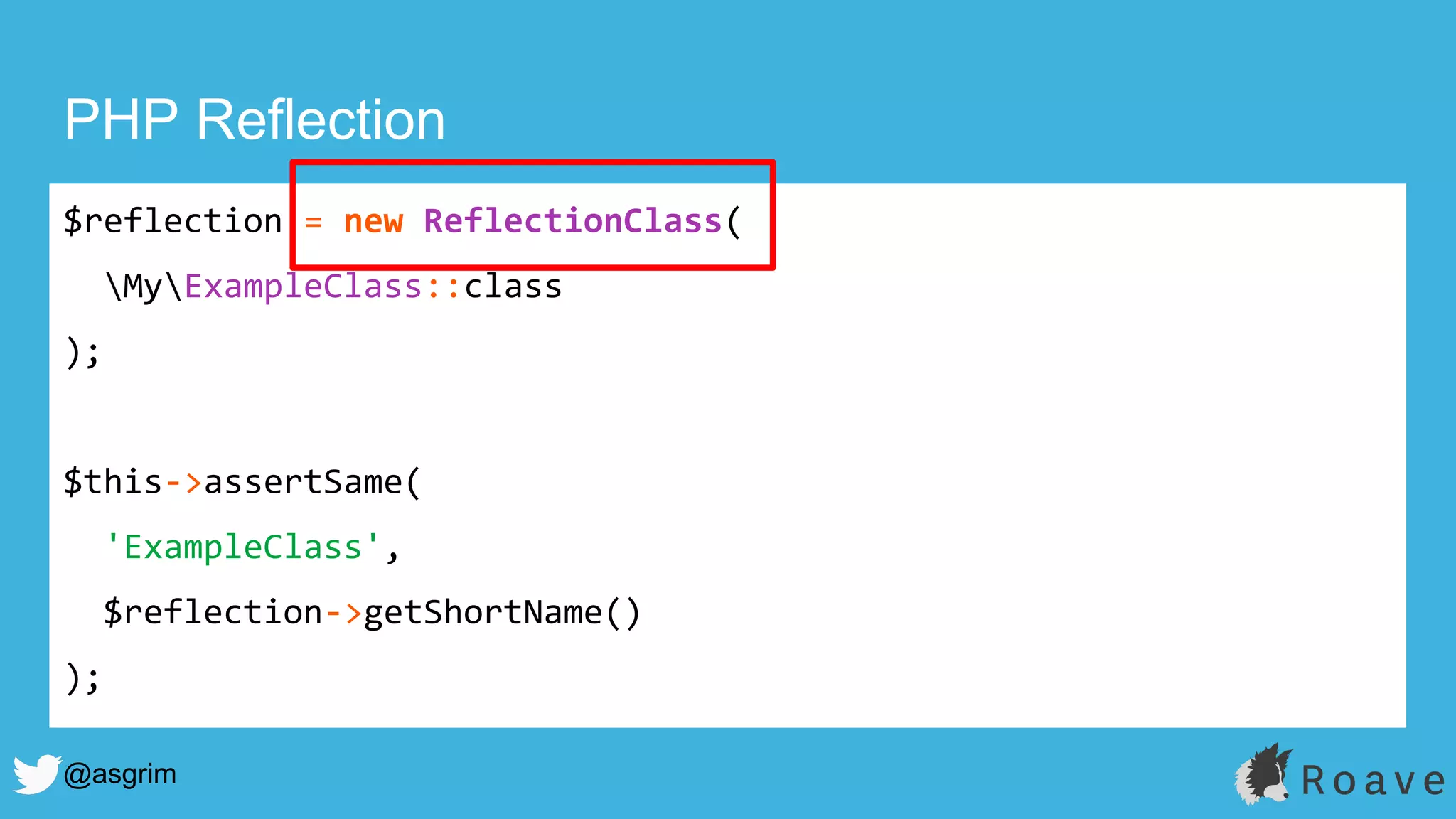

@asgrim PHP Reflection $reflection =new ReflectionClass( MyExampleClass::class ); $this->assertSame( 'ExampleClass', $reflection->getShortName() );

109.

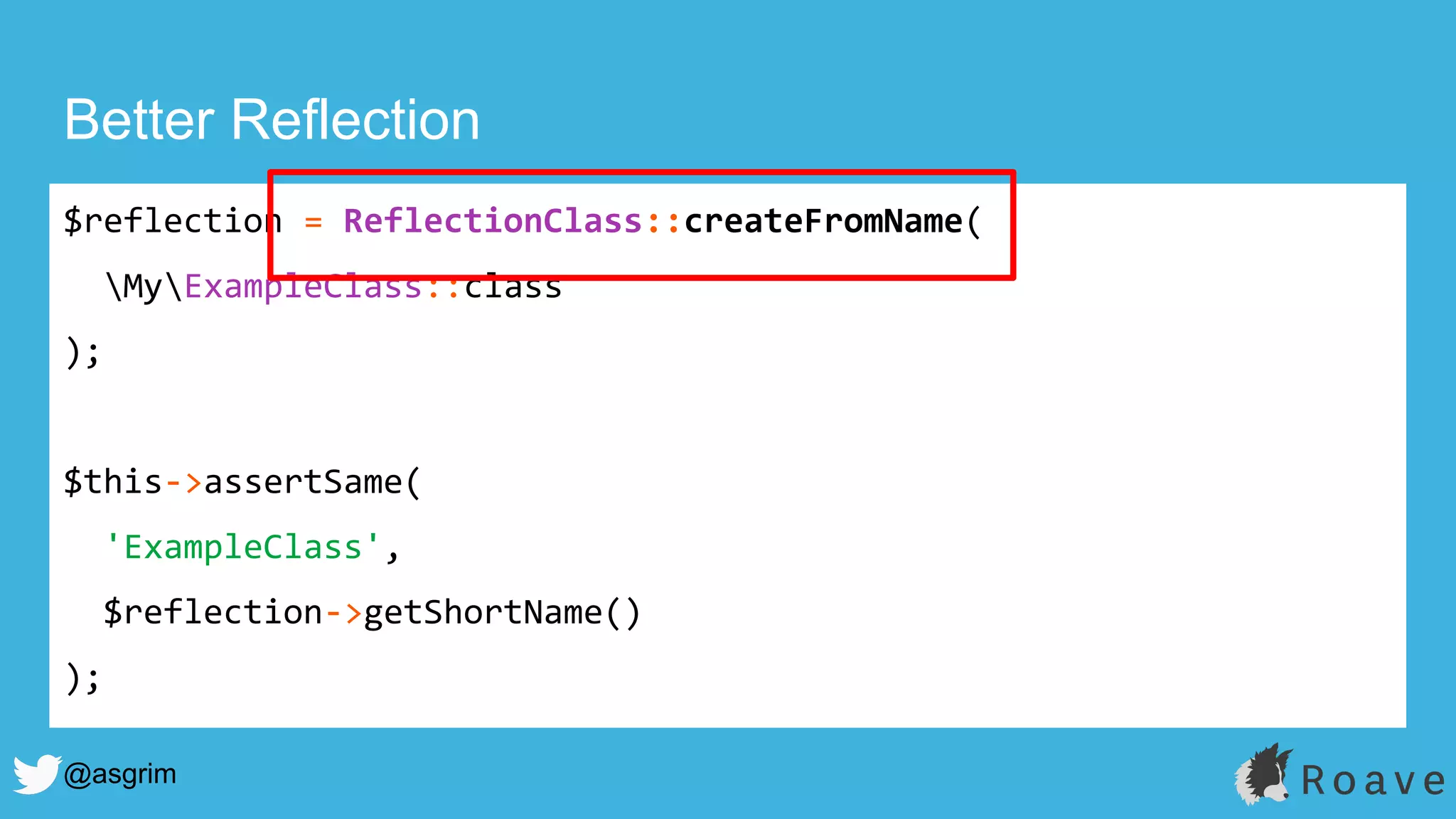

@asgrim Better Reflection $reflection =ReflectionClass::createFromName( MyExampleClass::class ); $this->assertSame( 'ExampleClass', $reflection->getShortName() );

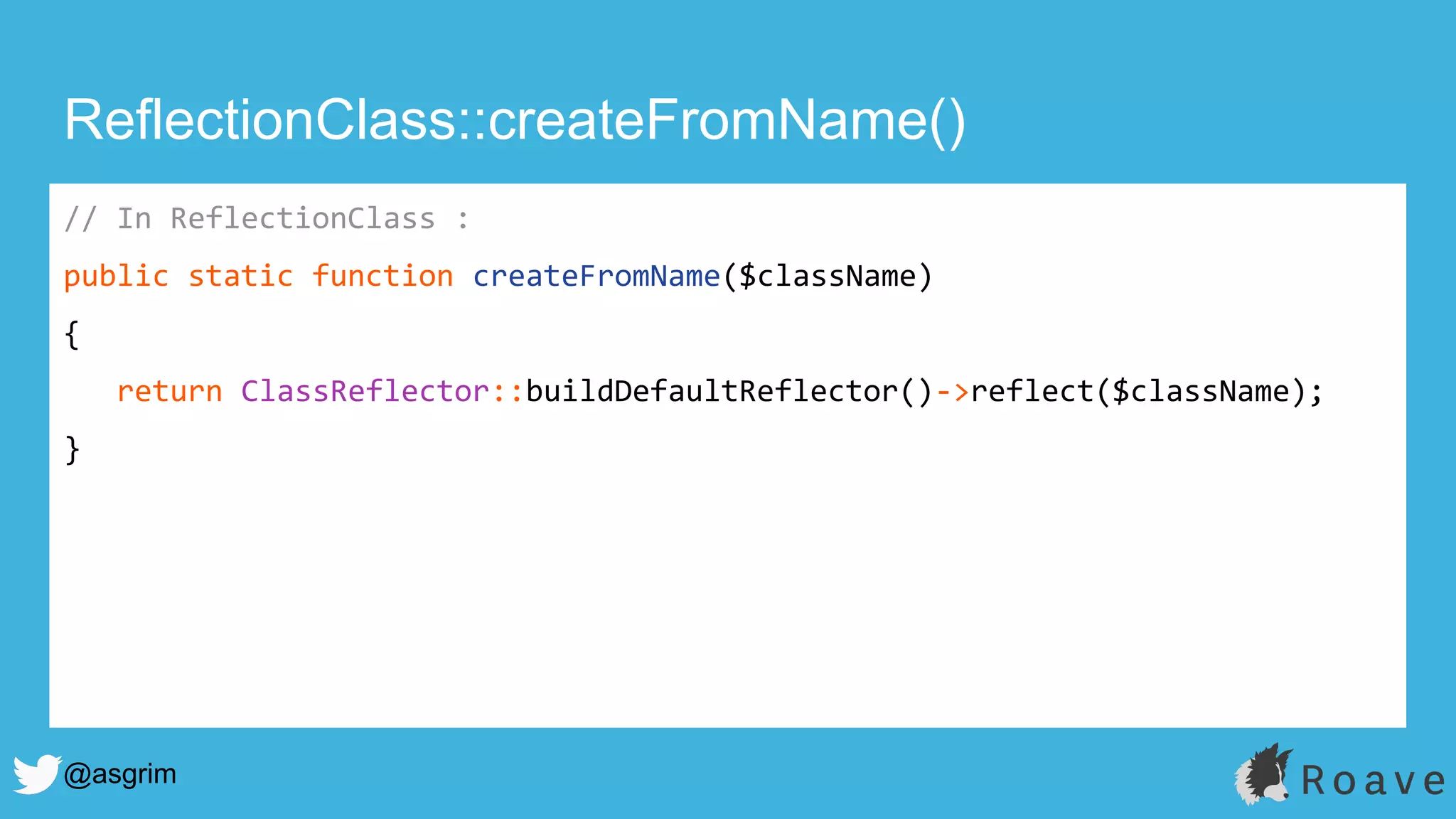

110.

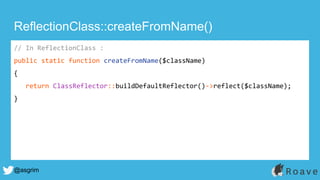

@asgrim ReflectionClass::createFromName() // In ReflectionClass: public static function createFromName($className) { return ClassReflector::buildDefaultReflector()->reflect($className); }

111.

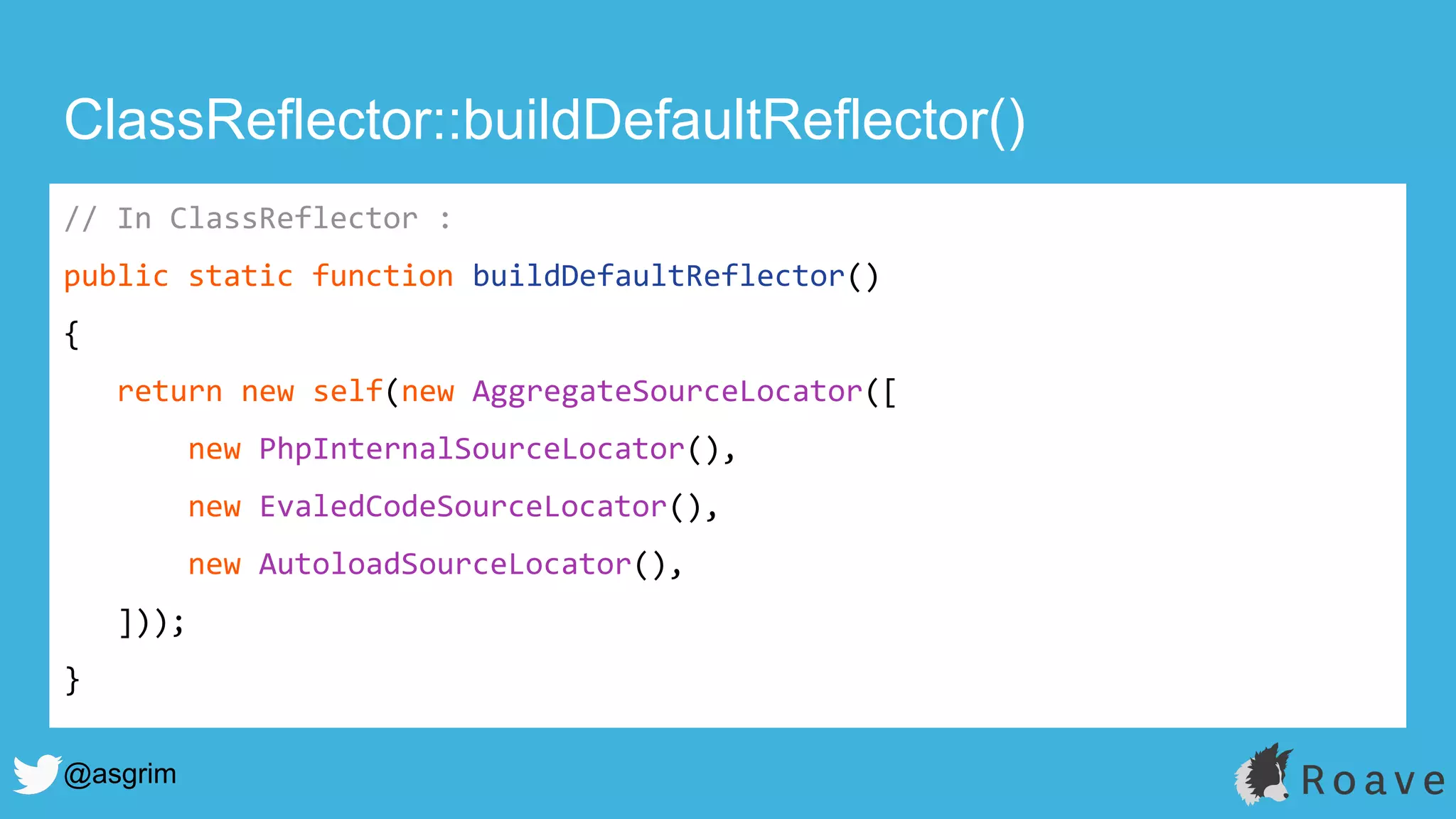

@asgrim ClassReflector::buildDefaultReflector() // In ClassReflector: public static function buildDefaultReflector() { return new self(new AggregateSourceLocator([ new PhpInternalSourceLocator(), new EvaledCodeSourceLocator(), new AutoloadSourceLocator(), ])); }

112.

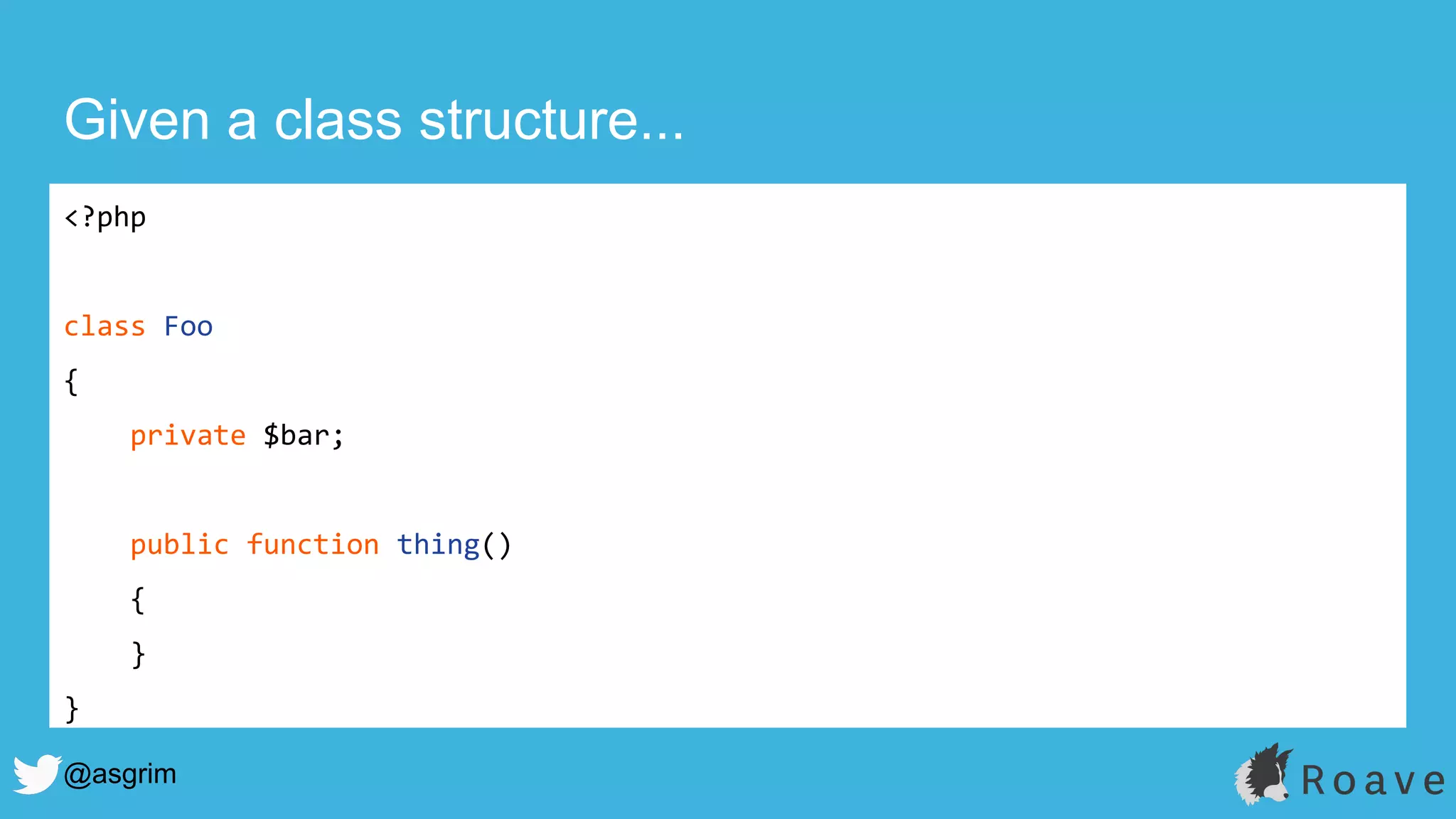

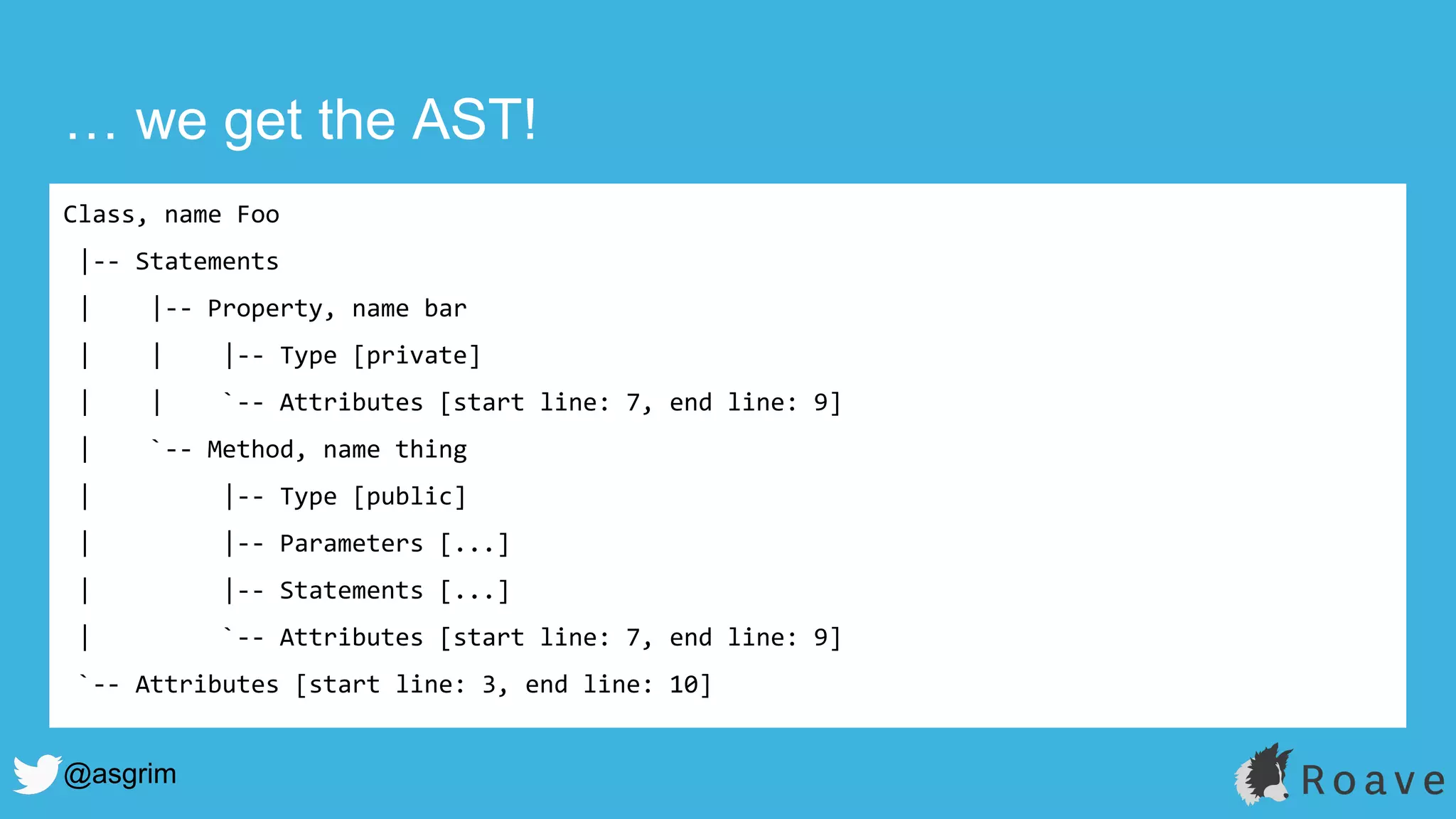

@asgrim Given a classstructure... <?php class Foo { private $bar; public function thing() { } }

114.
Any questions? https://joind.in/talk/513ad James Titcumb@asgrim
