This document describes building a single page application for authentication against multiple third party services like Facebook and Windows Live using OAuth2 and without page reloads. It discusses using an OAuth adapter and service-specific adapters to handle the different OAuth grant types and flows. Key parts of the implementation include injecting a session service, opening authentication as a promise, handling the redirect flow with a popup window, and reading the access token from the hash fragment or popup message.

1. Hi. I’m Matthew.

2. @mixonic
httP://madhatted.com
matt.beale@madhatted.com

3. 201 Created
We build õ-age apps with Ember.js. We take
teams from £ to • in no time flat.

4. http://bit.ly/ember-toronto-edge

5. authentication

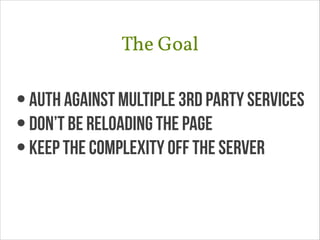

6. The Goal
•Auth against multiple 3rd party services
•Don’t be reloading the page
•keep the complexity off the server

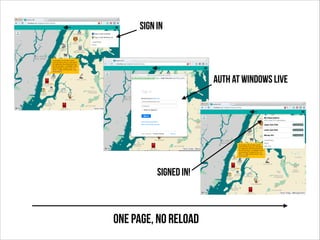

7. One page, no reload
Sign In
Auth at Windows Live
Signed In!

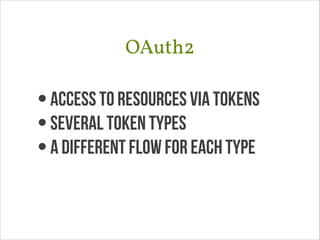

8. OAuth2
•access to resources via tokens
•Several token types
•a different flow for each type

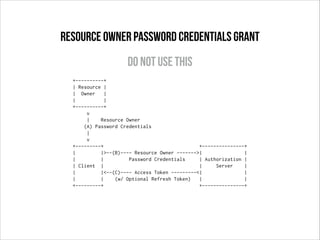

9. +----------+
| Resource |
| Owner |
| |
+----------+
v
| Resource Owner
(A) Password Credentials
|
v
+---------+ +---------------+
| |>--(B)---- Resource Owner ------->| |
| | Password Credentials | Authorization |
| Client | | Server |
| |<--(C)---- Access Token ---------<| |
| | (w/ Optional Refresh Token) | |
+---------+ +---------------+
resource owner password credentials grant
Do not use this

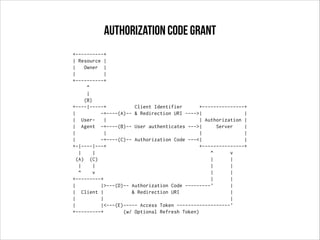

10. +----------+
| Resource |
| Owner |
| |
+----------+
^
|
(B)
+----|-----+ Client Identifier +---------------+
| -+----(A)-- & Redirection URI ---->| |
| User- | | Authorization |
| Agent -+----(B)-- User authenticates --->| Server |
| | | |
| -+----(C)-- Authorization Code ---<| |
+-|----|---+ +---------------+
| | ^ v
(A) (C) | |
| | | |
^ v | |
+---------+ | |
| |>---(D)-- Authorization Code ---------' |
| Client | & Redirection URI |
| | |
| |<---(E)----- Access Token -------------------'
+---------+ (w/ Optional Refresh Token)
Authorization code grant

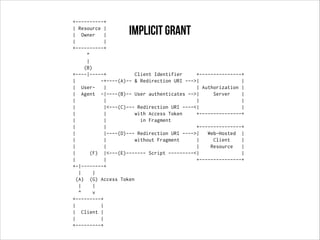

11. +----------+
| Resource |
| Owner |
| |
+----------+
^
|
(B)
+----|-----+ Client Identifier +---------------+
| -+----(A)-- & Redirection URI --->| |
| User- | | Authorization |
| Agent -|----(B)-- User authenticates -->| Server |
| | | |
| |<---(C)--- Redirection URI ----<| |
| | with Access Token +---------------+
| | in Fragment
| | +---------------+
| |----(D)--- Redirection URI ---->| Web-Hosted |
| | without Fragment | Client |
| | | Resource |
| (F) |<---(E)------- Script ---------<| |
| | +---------------+
+-|--------+
| |
(A) (G) Access Token
| |
^ v
+---------+
| |
| Client |
| |
+---------+
implicit grant

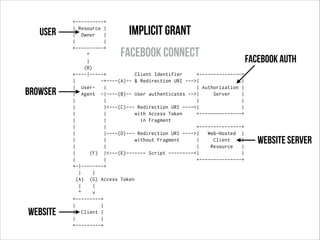

12. +----------+
| Resource |
| Owner |
| |
+----------+
^
|
(B)
+----|-----+ Client Identifier +---------------+
| -+----(A)-- & Redirection URI --->| |
| User- | | Authorization |
| Agent -|----(B)-- User authenticates -->| Server |
| | | |
| |<---(C)--- Redirection URI ----<| |
| | with Access Token +---------------+
| | in Fragment
| | +---------------+
| |----(D)--- Redirection URI ---->| Web-Hosted |
| | without Fragment | Client |
| | | Resource |
| (F) |<---(E)------- Script ---------<| |
| | +---------------+
+-|--------+
| |
(A) (G) Access Token
| |
^ v
+---------+
| |
| Client |
| |
+---------+
implicit grant
browser
Facebook Auth
website server
website
User
Facebook connect

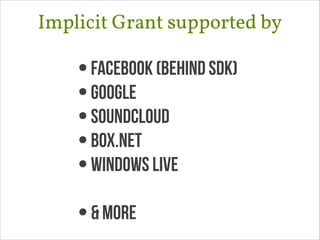

13. Implicit Grant supported by
•facebook (behind sdk)
•google
•soundcloud
•box.net
•windows live
!
•& more

14. Building it!

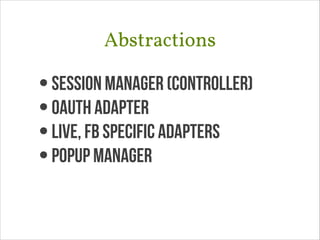

15. Abstractions
•session manager (controller)
•Oauth adapter
•live, FB specific adapters
•popup manager

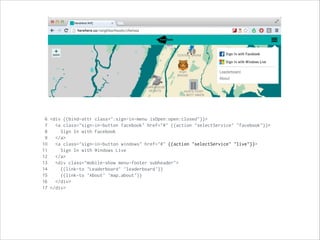

16. 6 <div {{bind-attr class=":sign-in-menu isOpen:open:closed"}}>
7 <a class="sign-in-button facebook" href="#" {{action "selectService" "facebook"}}>
8 Sign In with Facebook
9 </a>
10 <a class="sign-in-button windows" href="#" {{action "selectService" "live"}}>
11 Sign In with Windows Live
12 </a>
13 <div class="mobile-show menu-footer subheader">
14 {{link-to 'Leaderboard' 'leaderboard'}}
15 {{link-to 'About' 'map.about'}}
16 </div>
17 </div>

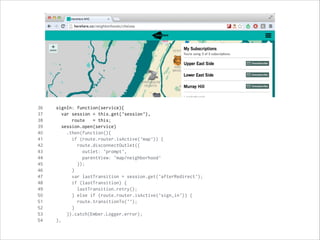

17. 36 signIn: function(service){
37 var session = this.get('session'),
38 route = this;
39 session.open(service)
40 .then(function(){
41 if (route.router.isActive('map')) {
42 route.disconnectOutlet({
43 outlet: 'prompt',
44 parentView: 'map/neighborhood'
45 });
46 }
47 var lastTransition = session.get('afterRedirect');
48 if (lastTransition) {
49 lastTransition.retry();
50 } else if (route.router.isActive('sign_in')) {
51 route.transitionTo('');
52 }
53 }).catch(Ember.Logger.error);
54 },

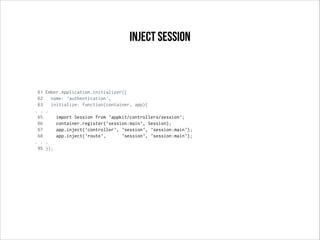

18. 61 Ember.Application.initializer({
62 name: 'authentication',
63 initialize: function(container, app){
. . .
65 import Session from 'appkit/controllers/session';
66 container.register('session:main', Session);
67 app.inject('controller', 'session', 'session:main');
68 app.inject('route', 'session', 'session:main');
. . .
95 });
inject session

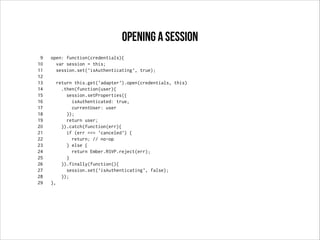

19. 9 open: function(credentials){
10 var session = this;
11 session.set('isAuthenticating', true);
12
13 return this.get('adapter').open(credentials, this)
14 .then(function(user){
15 session.setProperties({
16 isAuthenticated: true,
17 currentUser: user
18 });
19 return user;
20 }).catch(function(err){
21 if (err === 'canceled') {
22 return; // no-op
23 } else {
24 return Ember.RSVP.reject(err);
25 }
26 }).finally(function(){
27 session.set('isAuthenticating', false);
28 });
29 },
opening a session

20. 61 Ember.Application.initializer({
62 name: 'authentication',
63 initialize: function(container, app){
. . .
70 import Auth from 'appkit/models/auth';
71 container.register('session:adapter', Auth);
72 app.inject('session:adapter', 'store', 'store:main');
73 app.inject('session:main', 'adapter', 'session:adapter');
. . .
95 });
Inject Auth adapter

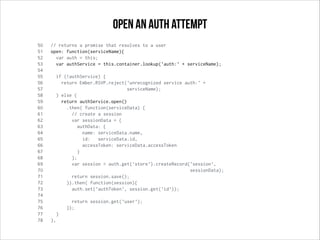

21. 50 // returns a promise that resolves to a user
51 open: function(serviceName){
52 var auth = this;
53 var authService = this.container.lookup('auth:' + serviceName);
54
55 if (!authService) {
56 return Ember.RSVP.reject('unrecognized service auth:' +
57 serviceName);
58 } else {
59 return authService.open()
60 .then( function(serviceData) {
61 // create a session
62 var sessionData = {
63 authData: {
64 name: serviceData.name,
65 id: serviceData.id,
66 accessToken: serviceData.accessToken
67 }
68 };
69 var session = auth.get('store').createRecord('session',
70 sessionData);
71 return session.save();
72 }).then( function(session){
73 auth.set('authToken', session.get('id'));
74
75 return session.get('user');
76 });
77 }
78 },
open an auth attempt

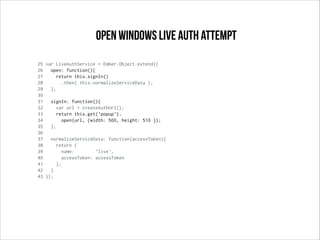

22. 25 var LiveAuthService = Ember.Object.extend({
26 open: function(){
27 return this.signIn()
28 .then( this.normalizeServiceData );
29 },
30
31 signIn: function(){
32 var url = createAuthUrl();
33 return this.get('popup').
34 open(url, {width: 500, height: 510 });
35 },
36
37 normalizeServiceData: function(accessToken){
38 return {
39 name: 'live',
40 accessToken: accessToken
41 };
42 }
43 });
open windows live auth attempt

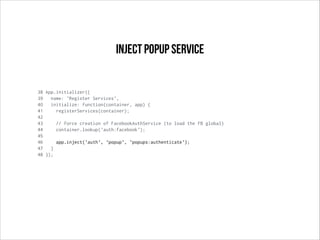

23. 38 App.initializer({
39 name: 'Register Services',
40 initialize: function(container, app) {
41 registerServices(container);
42
43 // force creation of FacebookAuthService (to load the FB global)
44 container.lookup('auth:facebook');
45
46 app.inject('auth', 'popup', 'popups:authenticate');
47 }
48 });
Inject popup service

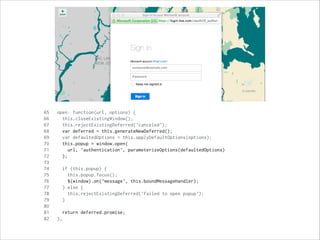

24. 65 open: function(url, options) {
66 this.closeExistingWindow();
67 this.rejectExistingDeferred('canceled');
68 var deferred = this.generateNewDeferred();
69 var defaultedOptions = this.applyDefaultOptions(options);
70 this.popup = window.open(
71 url, 'authentication', parameterizeOptions(defaultedOptions)
72 );
73
74 if (this.popup) {
75 this.popup.focus();
76 $(window).on('message', this.boundMessageHandler);
77 } else {
78 this.rejectExistingDeferred('failed to open popup');
79 }
80
81 return deferred.promise;
82 },

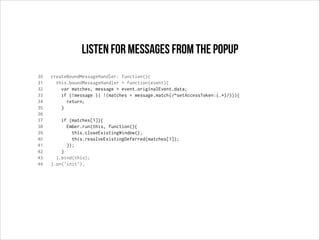

25. 30 createBoundMessageHandler: function(){
31 this.boundMessageHandler = function(event){
32 var matches, message = event.originalEvent.data;
33 if (!message || !(matches = message.match(/^setAccessToken:(.*)/))){
34 return;
35 }
36
37 if (matches[1]){
38 Ember.run(this, function(){
39 this.closeExistingWindow();
40 this.resolveExistingDeferred(matches[1]);
41 });
42 }
43 }.bind(this);
44 }.on('init'),
Listen for messages from the popup

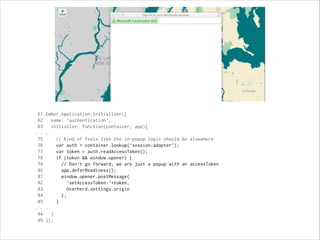

26. Upon load, look for tokens
61 Ember.Application.initializer({
62 name: 'authentication',
63 initialize: function(container, app){
. . .
75 // Kind of feels like the in-popup logic should be elsewhere
76 var auth = container.lookup('session:adapter');
77 var token = auth.readAccessToken();
78 if (token && window.opener) {
79 // Don't go forward, we are just a popup with an accessToken
80 app.deferReadiness();
81 window.opener.postMessage(
82 'setAccessToken:'+token,
83 Overherd.settings.origin
84 );
85 }
. . .
94 }
95 });

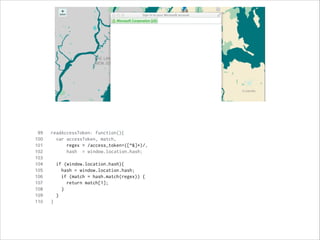

27. Upon load, look for tokens
99 readAccessToken: function(){
100 var accessToken, match,
101 regex = /access_token=([^&]*)/,
102 hash = window.location.hash;
103
104 if (window.location.hash){
105 hash = window.location.hash;
106 if (match = hash.match(regex)) {
107 return match[1];
108 }
109 }
110 }

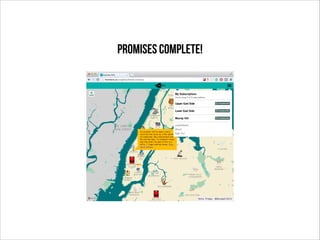

28. promises complete!

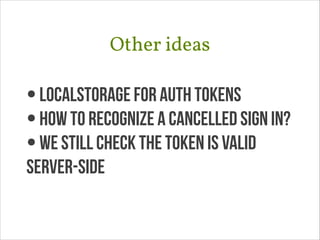

29. Other ideas
•localstorage for auth tokens
•how to recognize a cancelled sign in?
•we still check the token is valid
server-side

30. Try it
HereHere.co

31. Thanks!
@mixonic
httP://madhatted.com
matt.beale@madhatted.com
