1. Clean architecture: Android
Michał Szczepanik

2. WroDroid

3. 3

4. 4

5. 5

6. 6
I have a Dream...

7. 7
What a Terrible Failure!

8. 8
What is Architecture?

9. 9

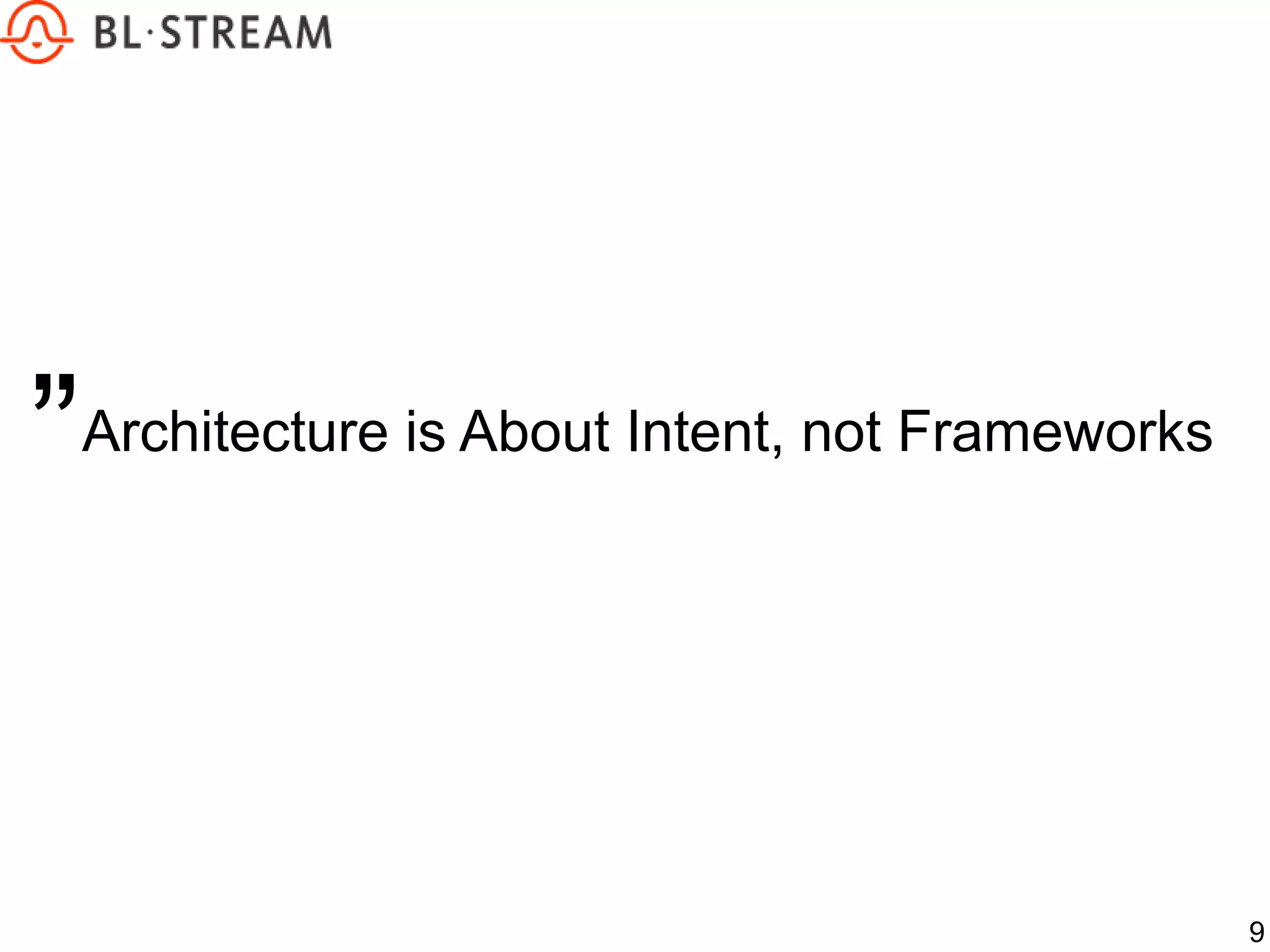

Architecture is About Intent, not Frameworks
„

10. 10

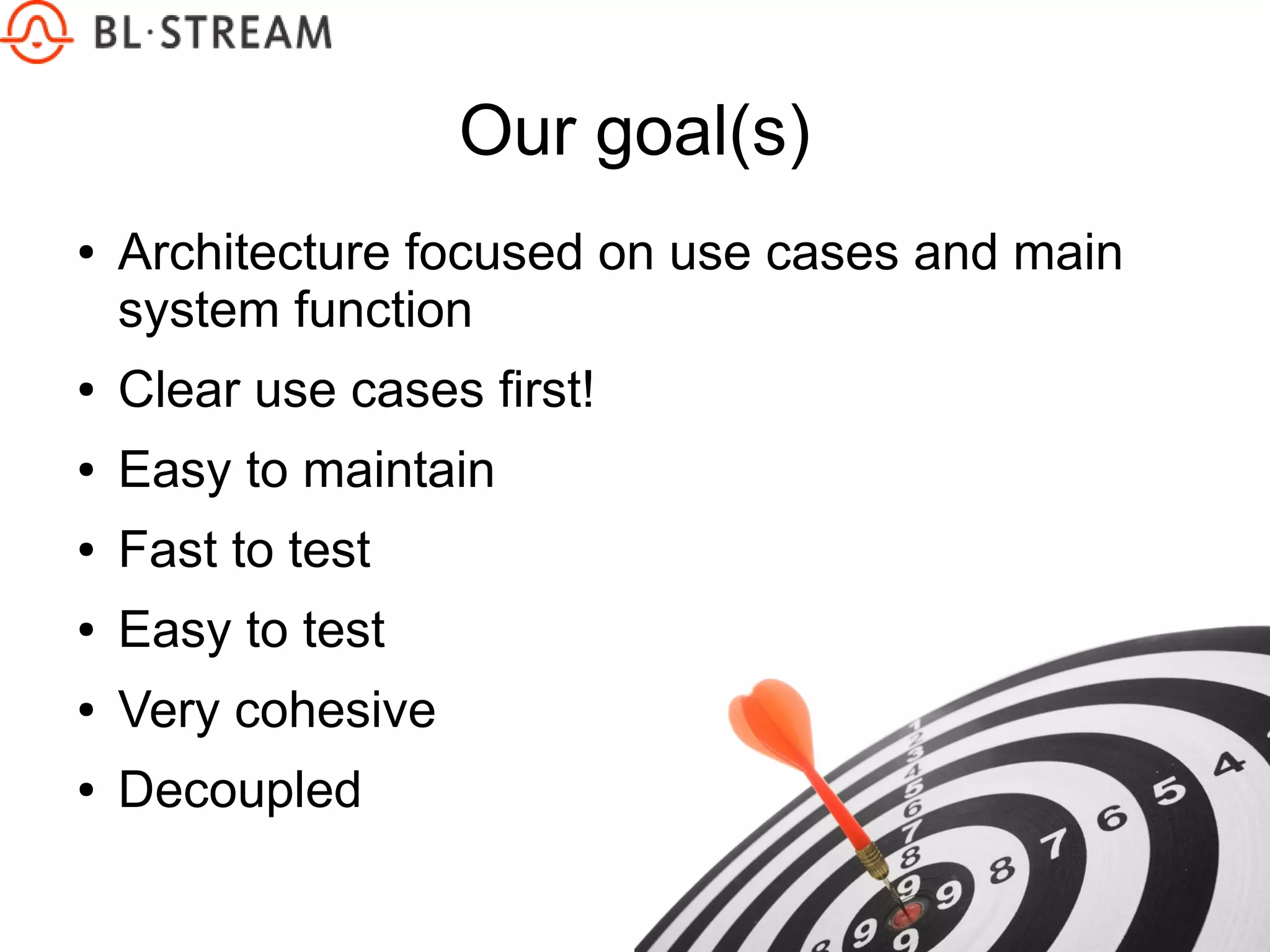

Our goal(s)
● Architecture focused on use cases and main
system function
● Clear use cases first!
● Easy to maintain
● Fast to test
● Easy to test
● Very cohesive
● Decoupled

11. 11
Step 0 (setup?)

12. 12
Architect role

13. 13
Team Role

14. 14

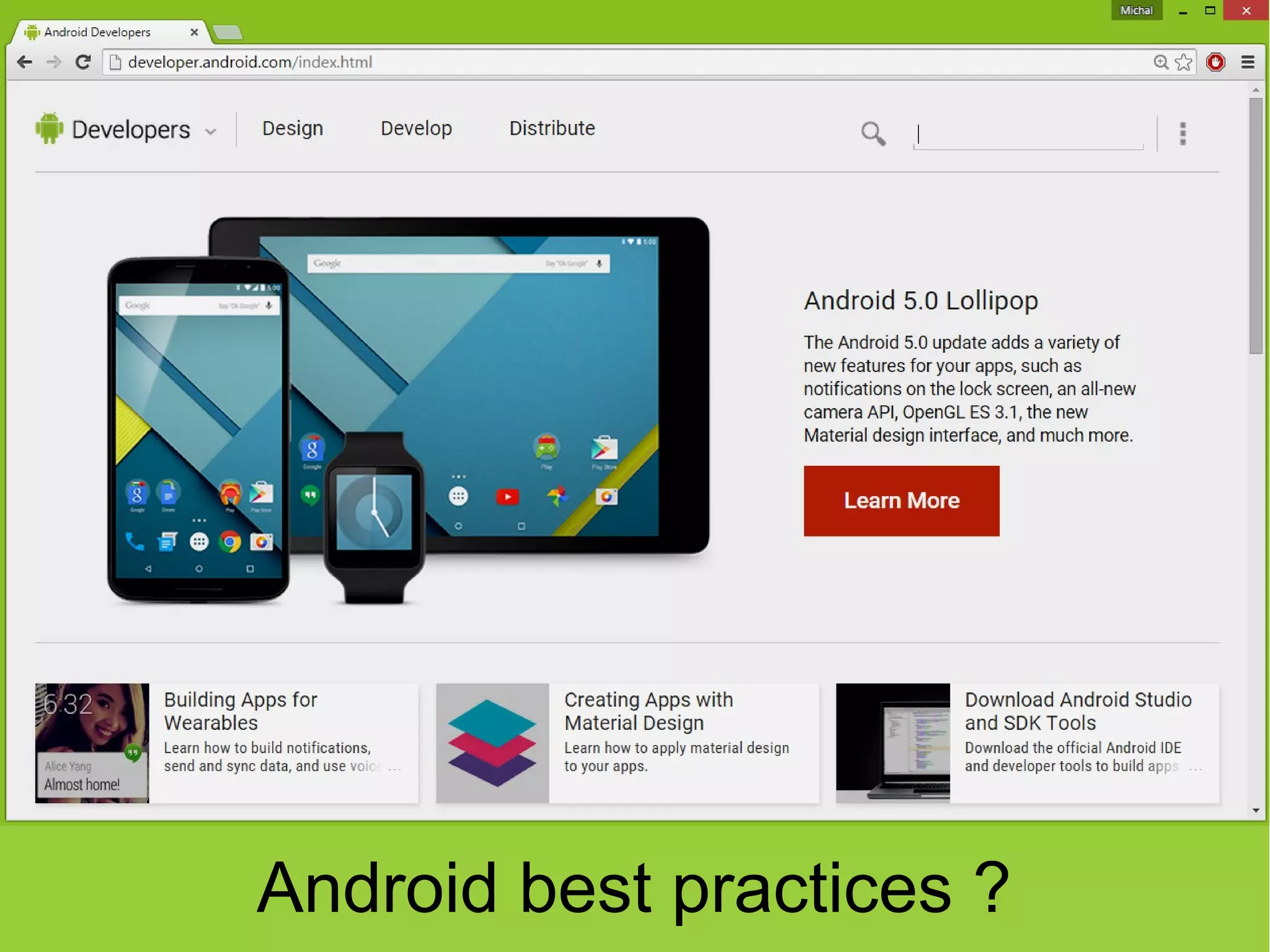

Android best practices ?

15. 15

16. 16

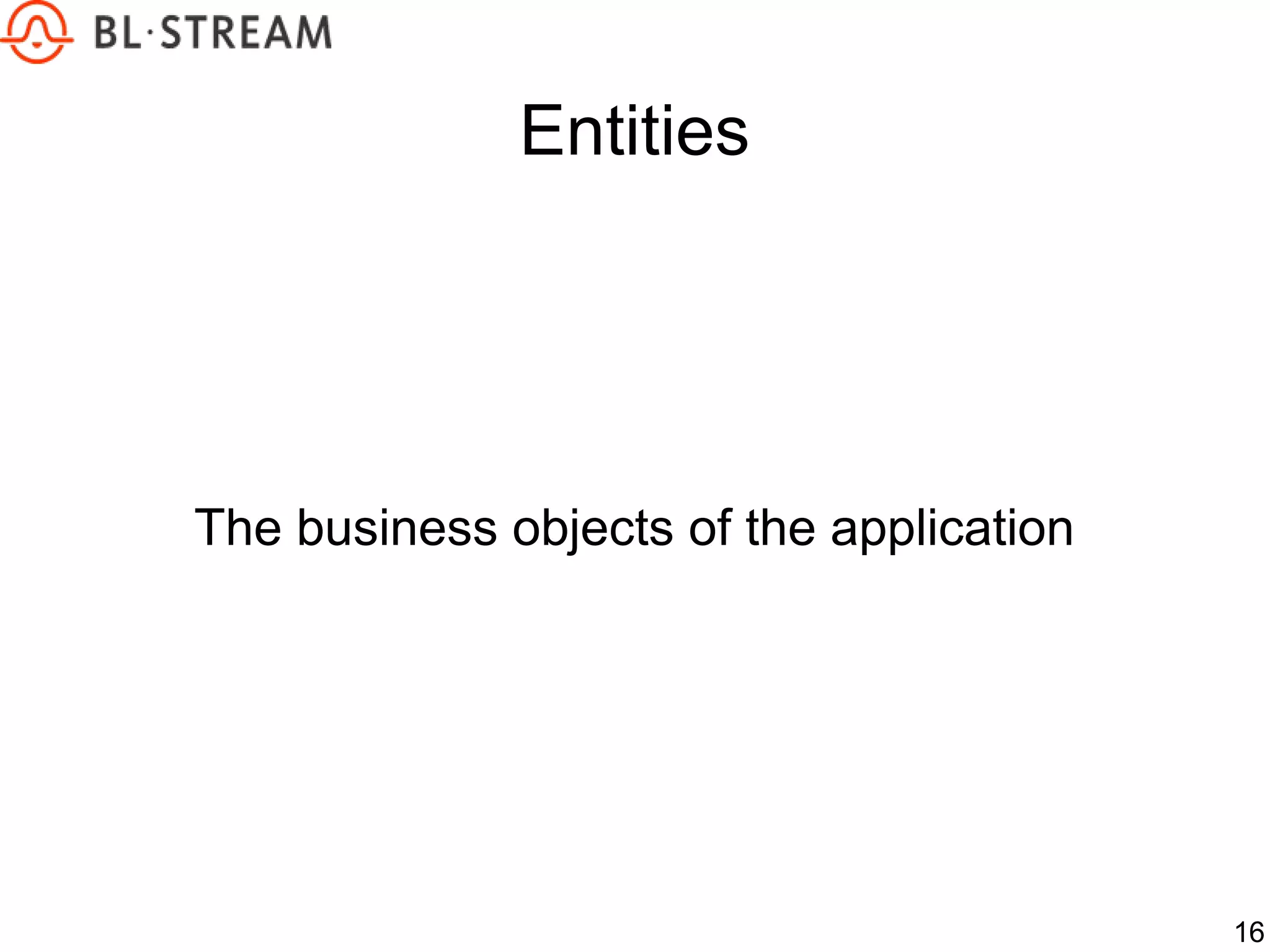

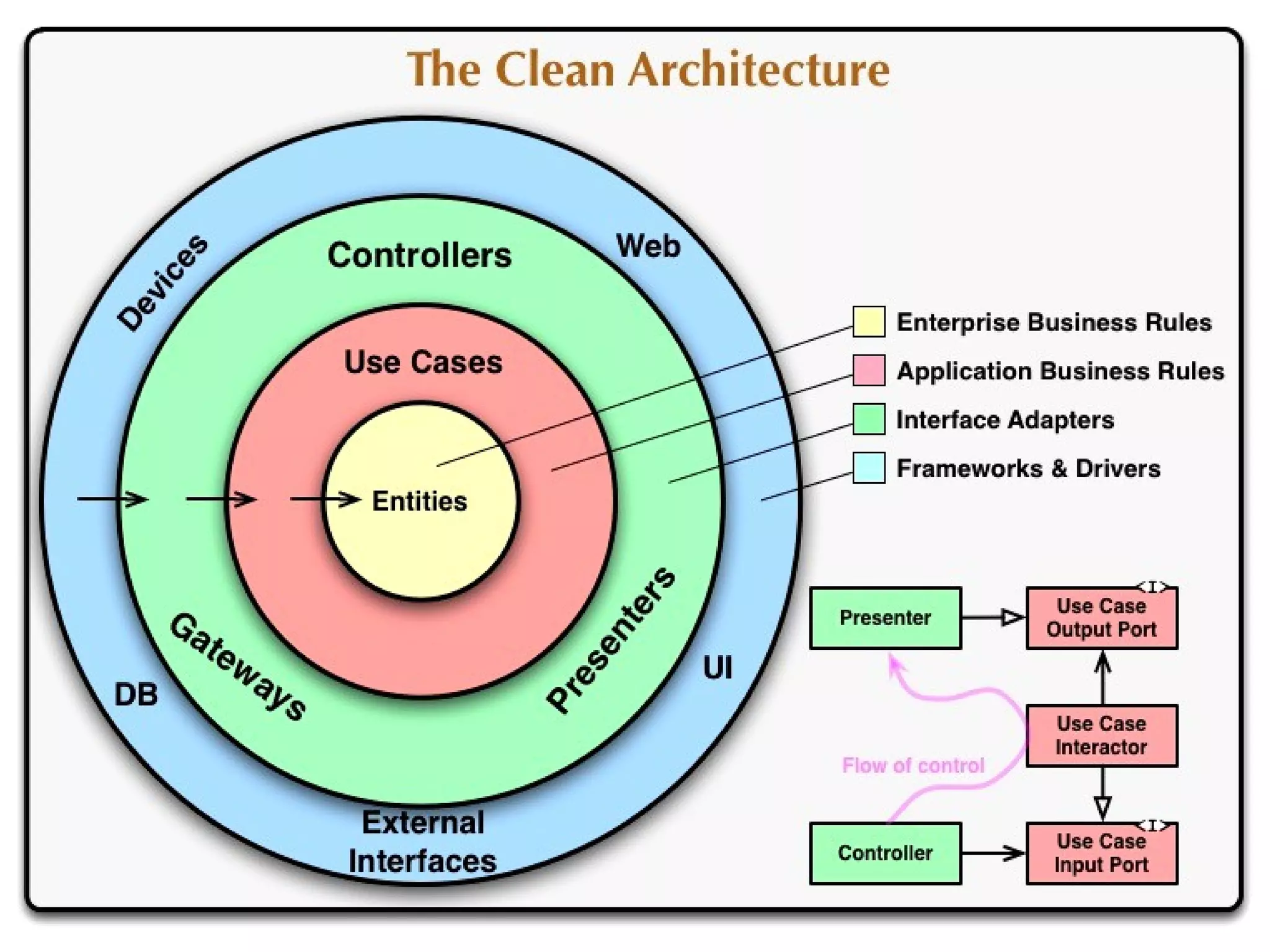

Entities
The business objects of the application

17. 17

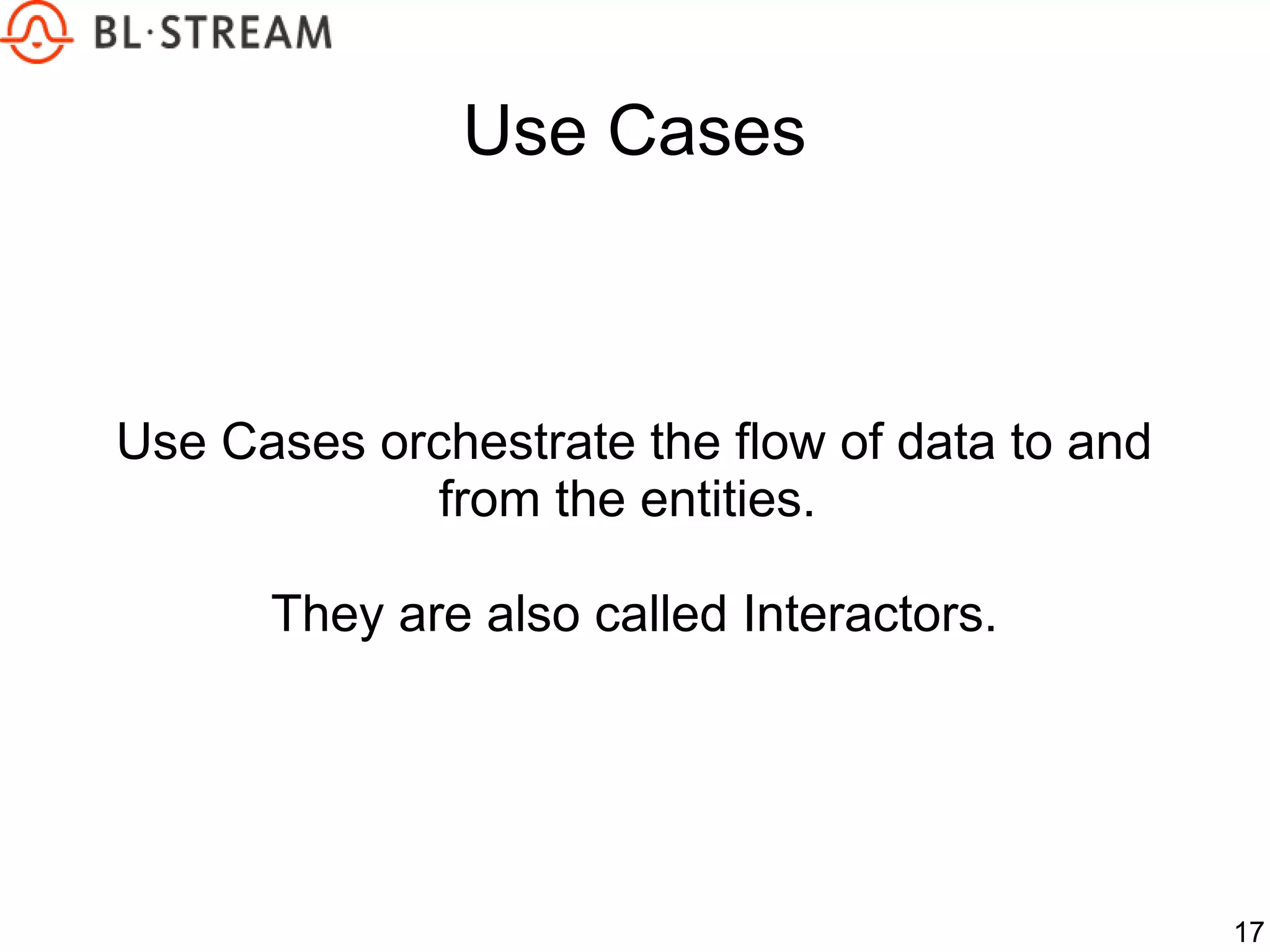

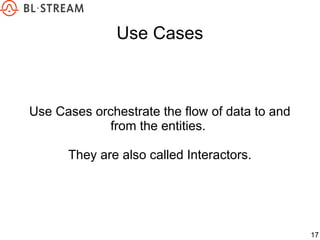

Use Cases
Use Cases orchestrate the flow of data to and
from the entities.
They are also called Interactors.

18. 18

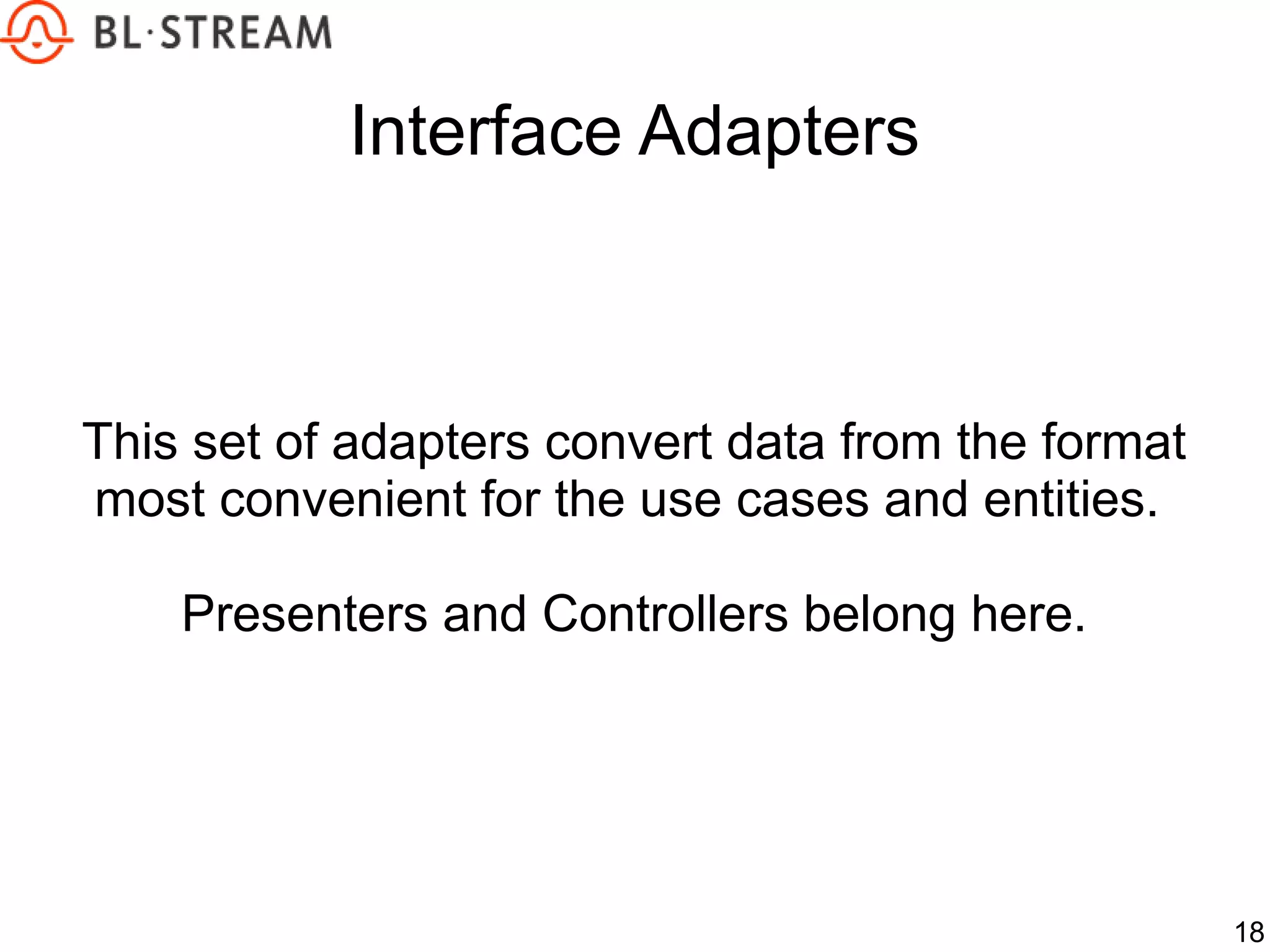

Interface Adapters
This set of adapters convert data from the format
most convenient for the use cases and entities.
Presenters and Controllers belong here.

19. 19

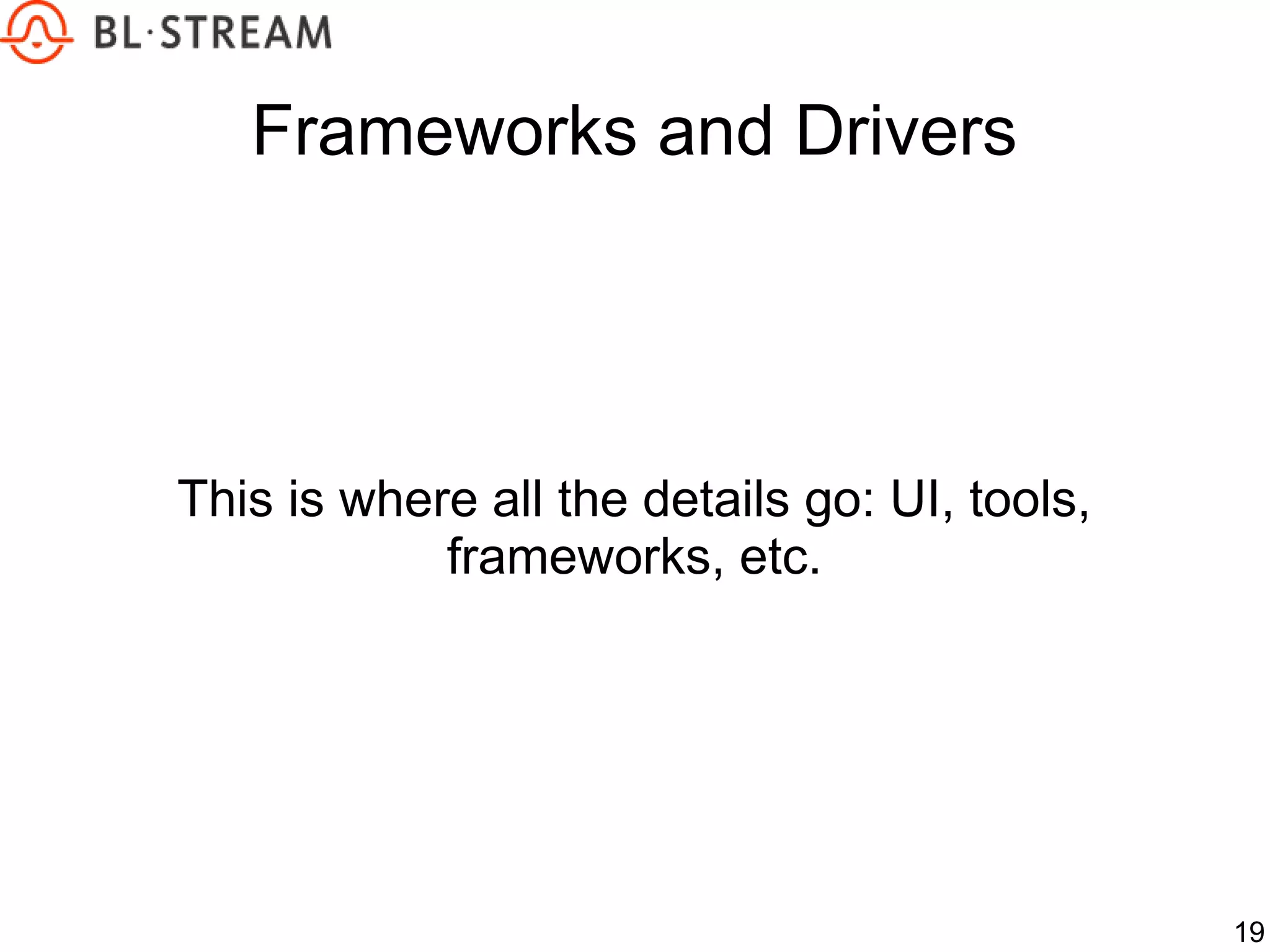

Frameworks and Drivers
This is where all the details go: UI, tools,
frameworks, etc.

20. 20

21. 21
How to be clean ?

22. 22

23. 23

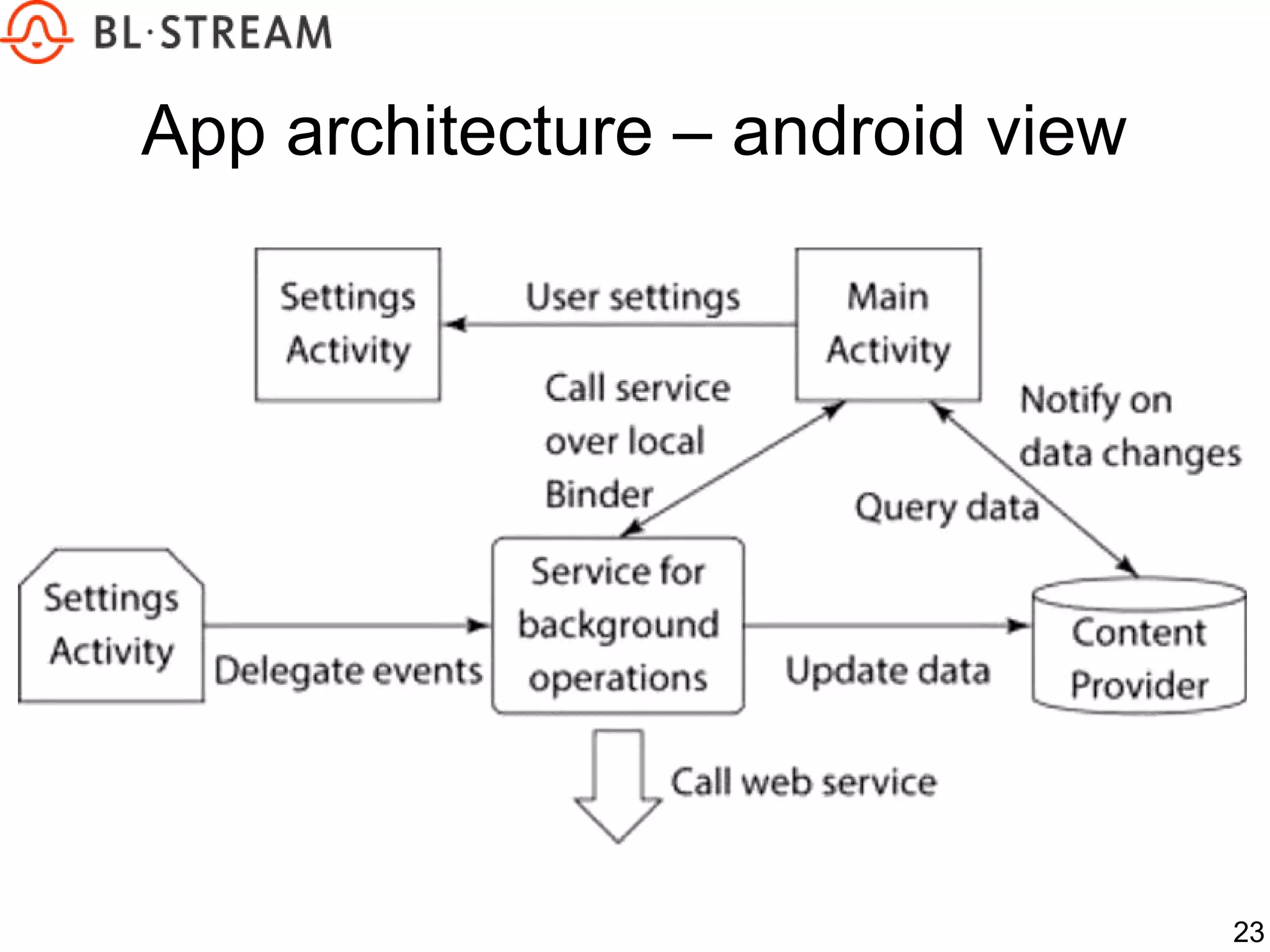

App architecture – android view

24. 24

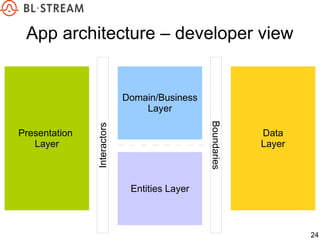

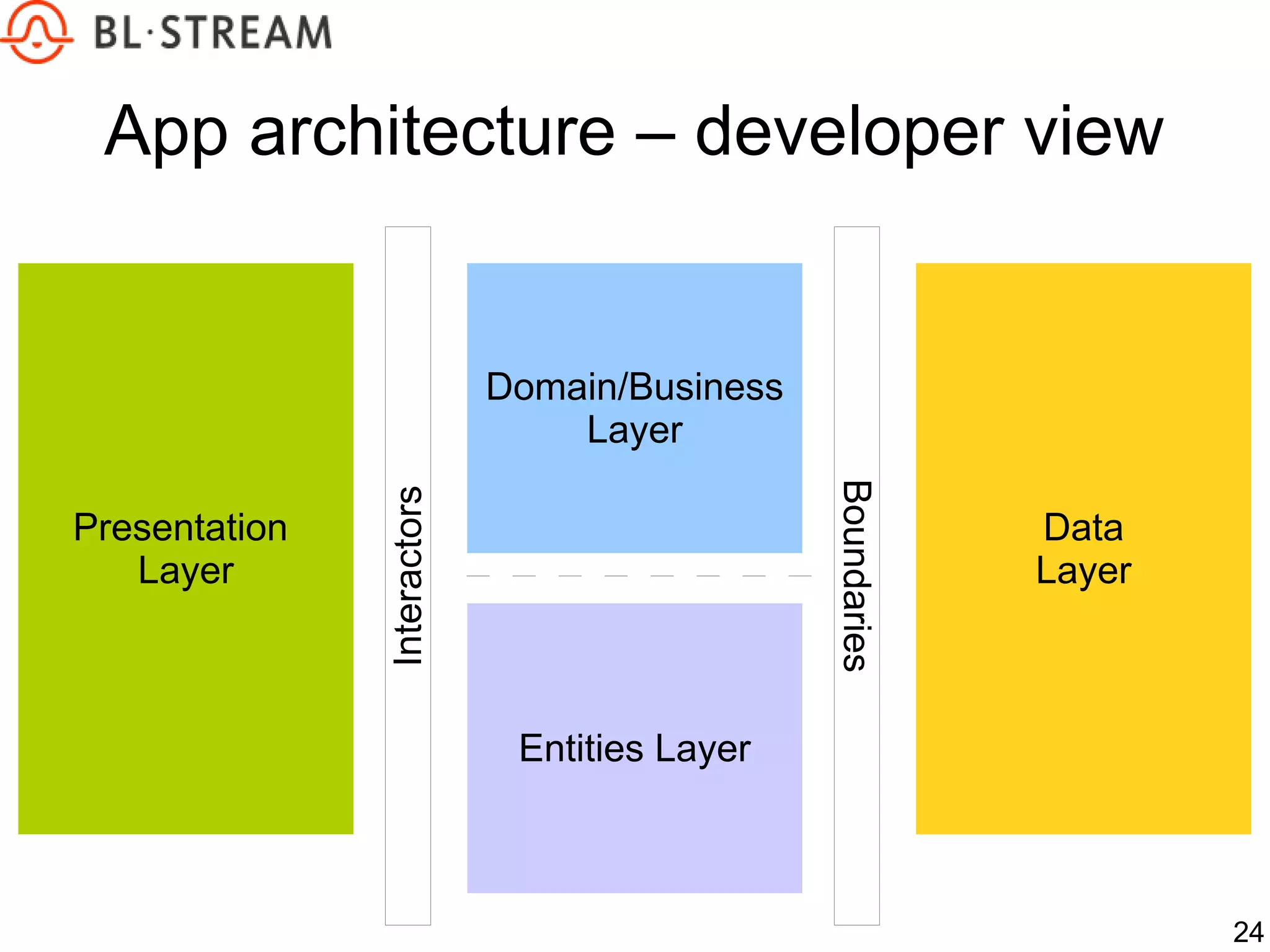

App architecture – developer view
Presentation
Layer
Domain/Business
Layer
Data
Layer
Entities Layer
Interactors
Boundaries

25. 25

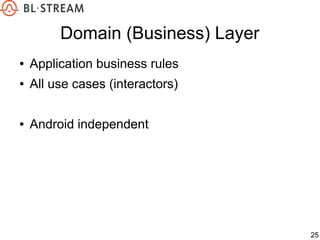

Domain (Business) Layer
● Application business rules
● All use cases (interactors)
● Android independent

26. 26

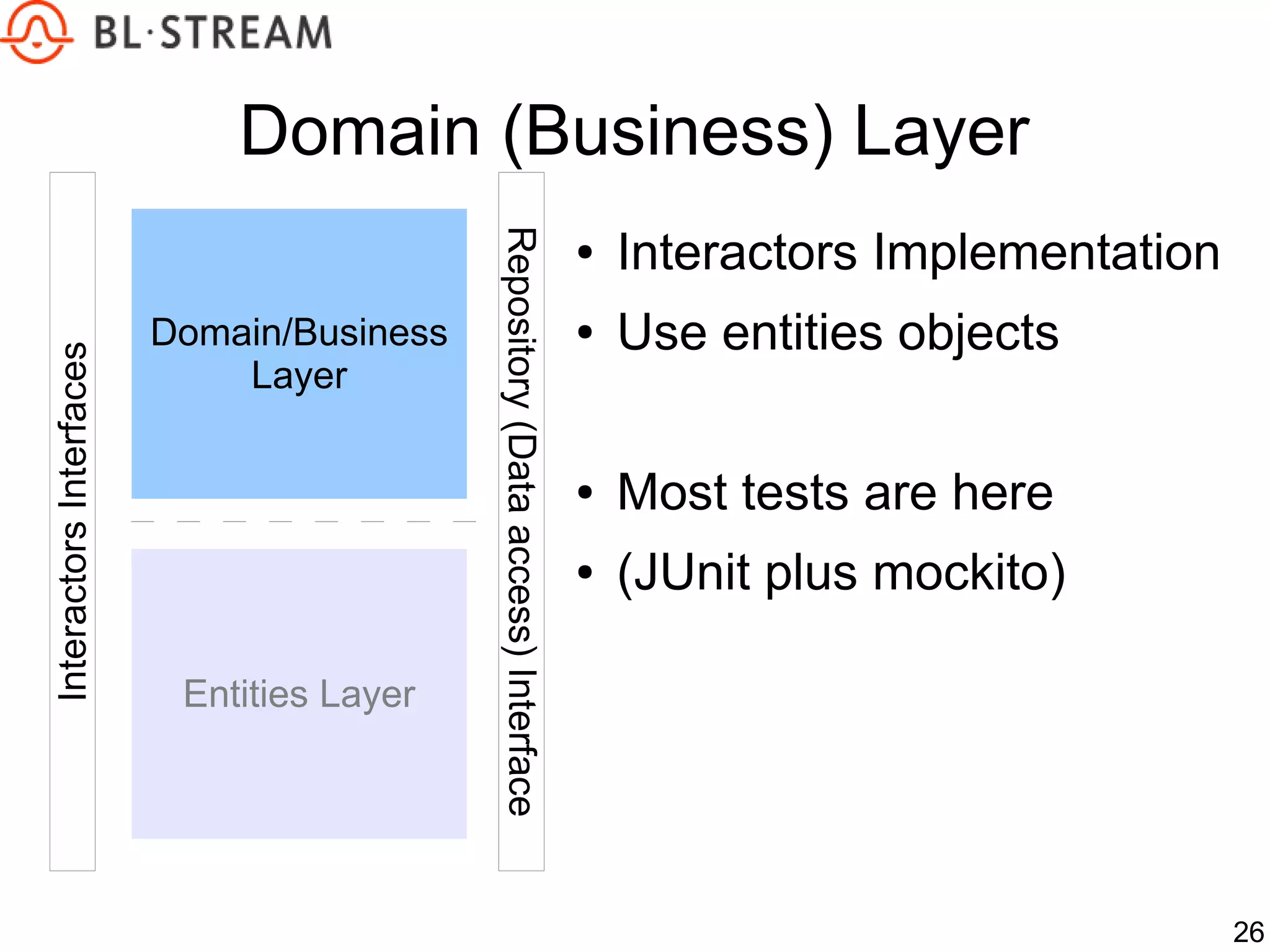

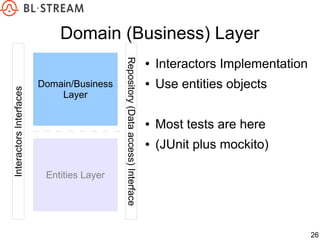

Domain (Business) Layer
Domain/Business
Layer
Entities Layer
InteractorsInterfaces
Repository(Dataaccess)Interface
● Interactors Implementation
● Use entities objects
● Most tests are here
● (JUnit plus mockito)

27. 27

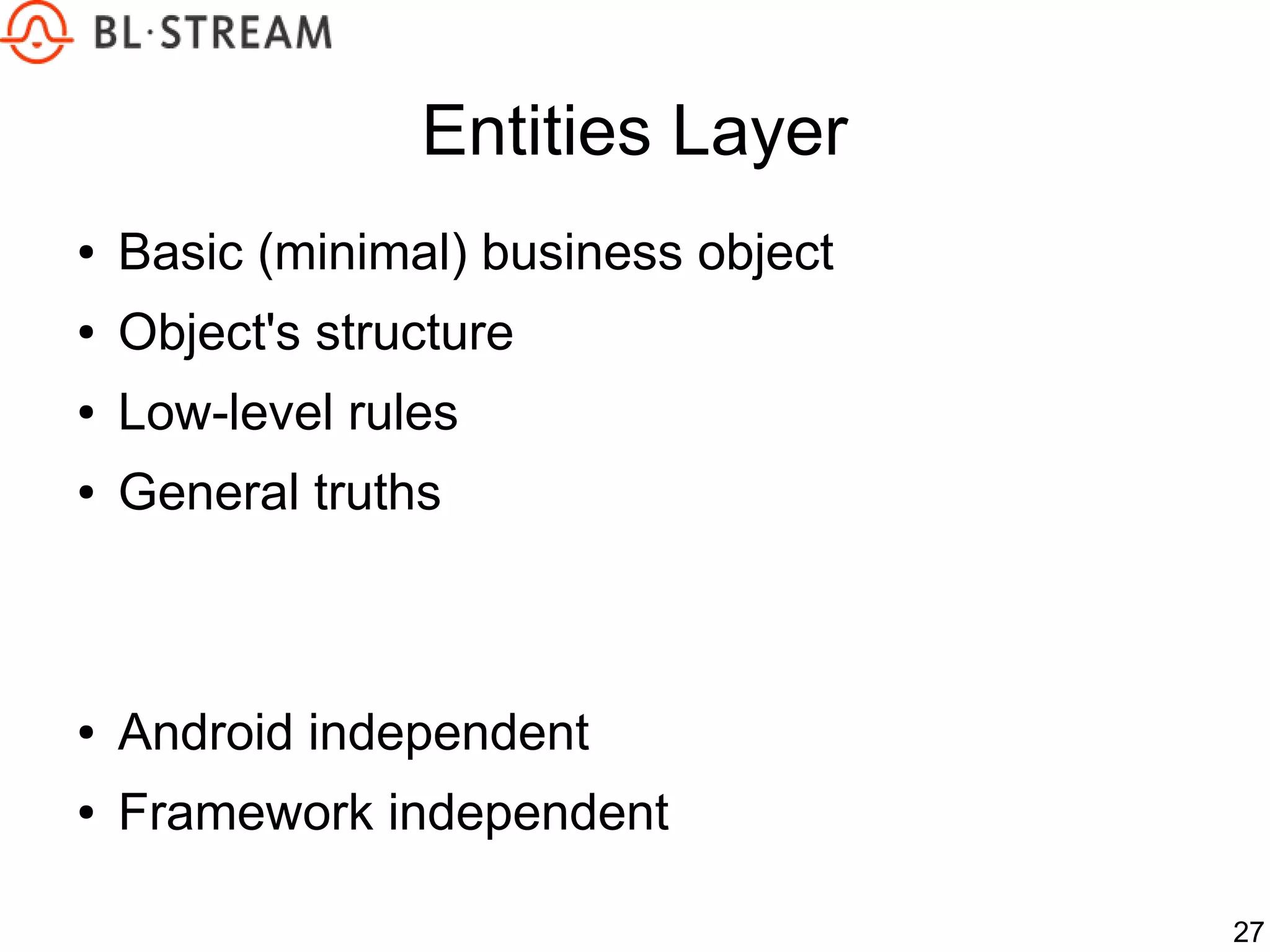

Entities Layer
● Basic (minimal) business object
● Object's structure
● Low-level rules
● General truths
● Android independent
● Framework independent

28. 28

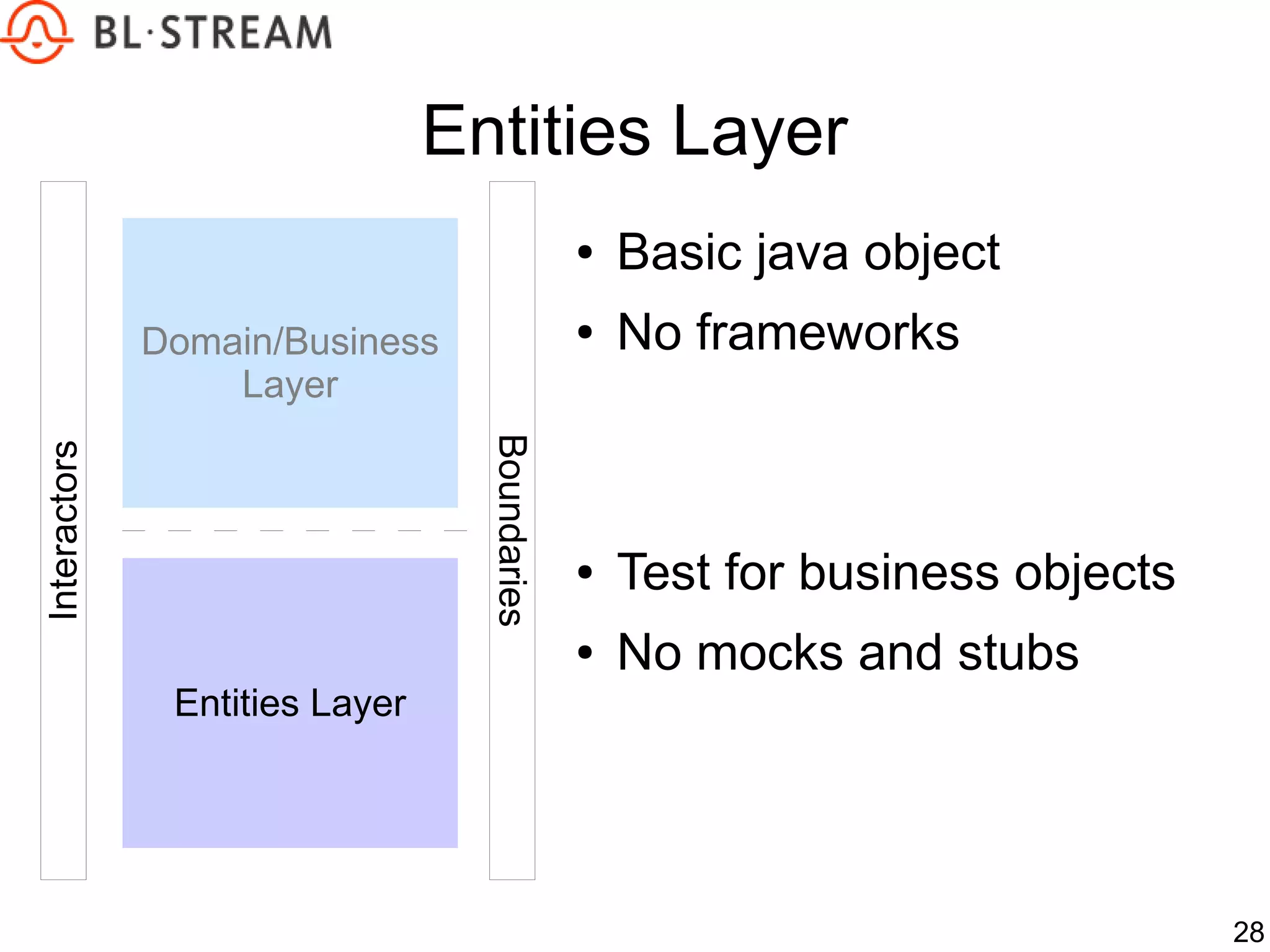

Entities Layer
● Basic java object
● No frameworks
● Test for business objects
● No mocks and stubs
Domain/Business
Layer
Entities Layer
Interactors
Boundaries

29. 29

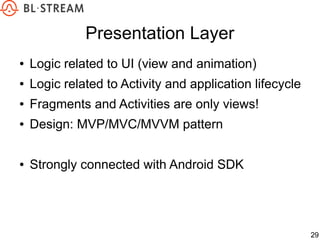

Presentation Layer
● Logic related to UI (view and animation)
● Logic related to Activity and application lifecycle
● Fragments and Activities are only views!
● Design: MVP/MVC/MVVM pattern
● Strongly connected with Android SDK

30. 30

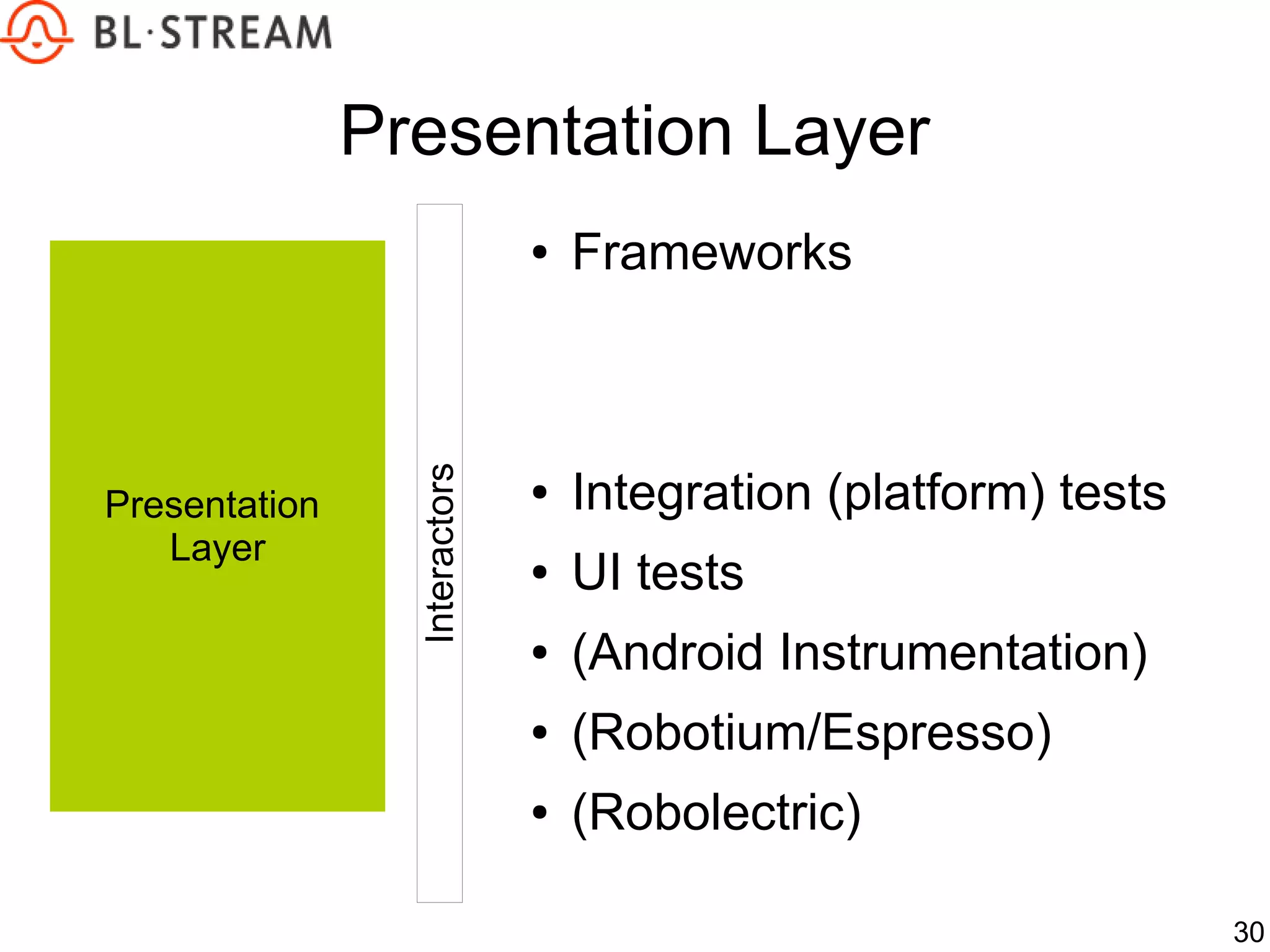

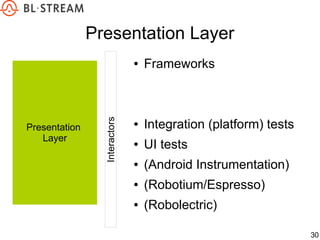

Presentation Layer
● Frameworks
● Integration (platform) tests
● UI tests
● (Android Instrumentation)
● (Robotium/Espresso)
● (Robolectric)
Presentation
Layer
Interactors

31. 31

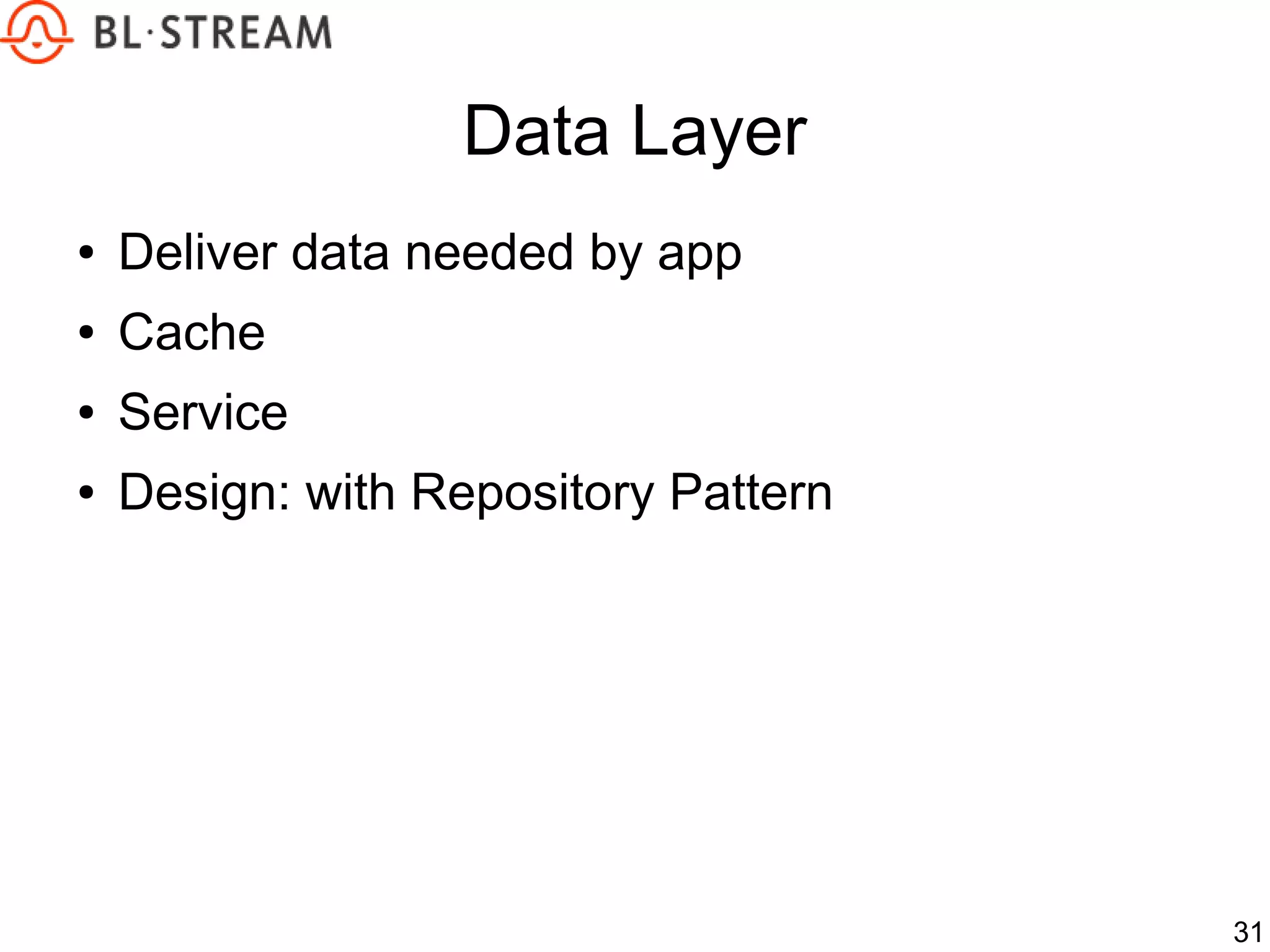

Data Layer
● Deliver data needed by app
● Cache
● Service
● Design: with Repository Pattern

32. 32

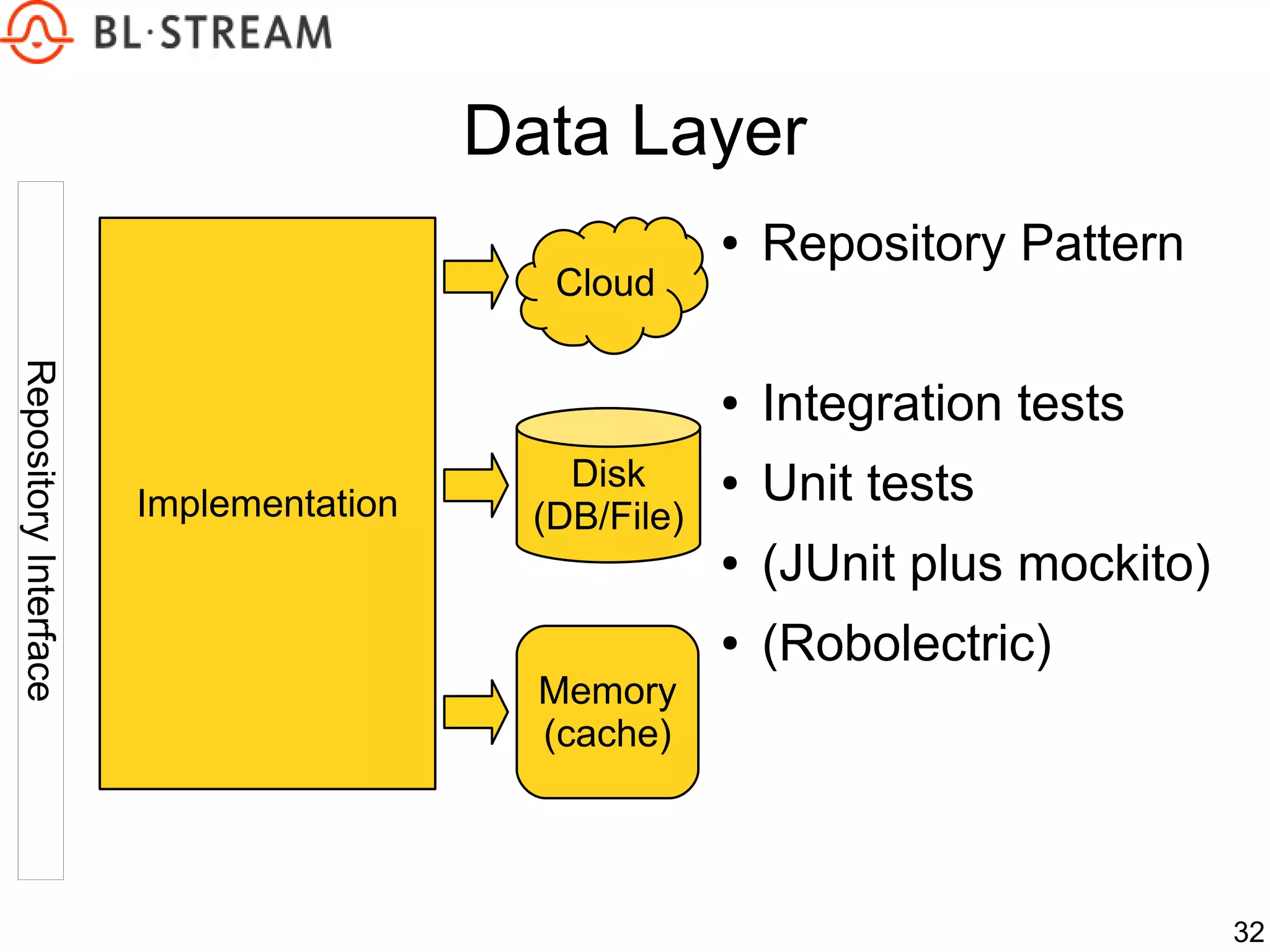

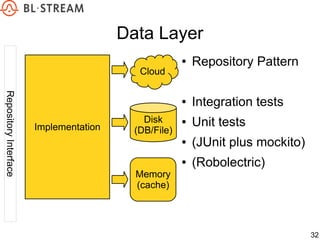

Data Layer
● Repository Pattern
● Integration tests
● Unit tests
● (JUnit plus mockito)
● (Robolectric)
Implementation
RepositoryInterface
Memory
(cache)
Disk
(DB/File)
Cloud

33. 33

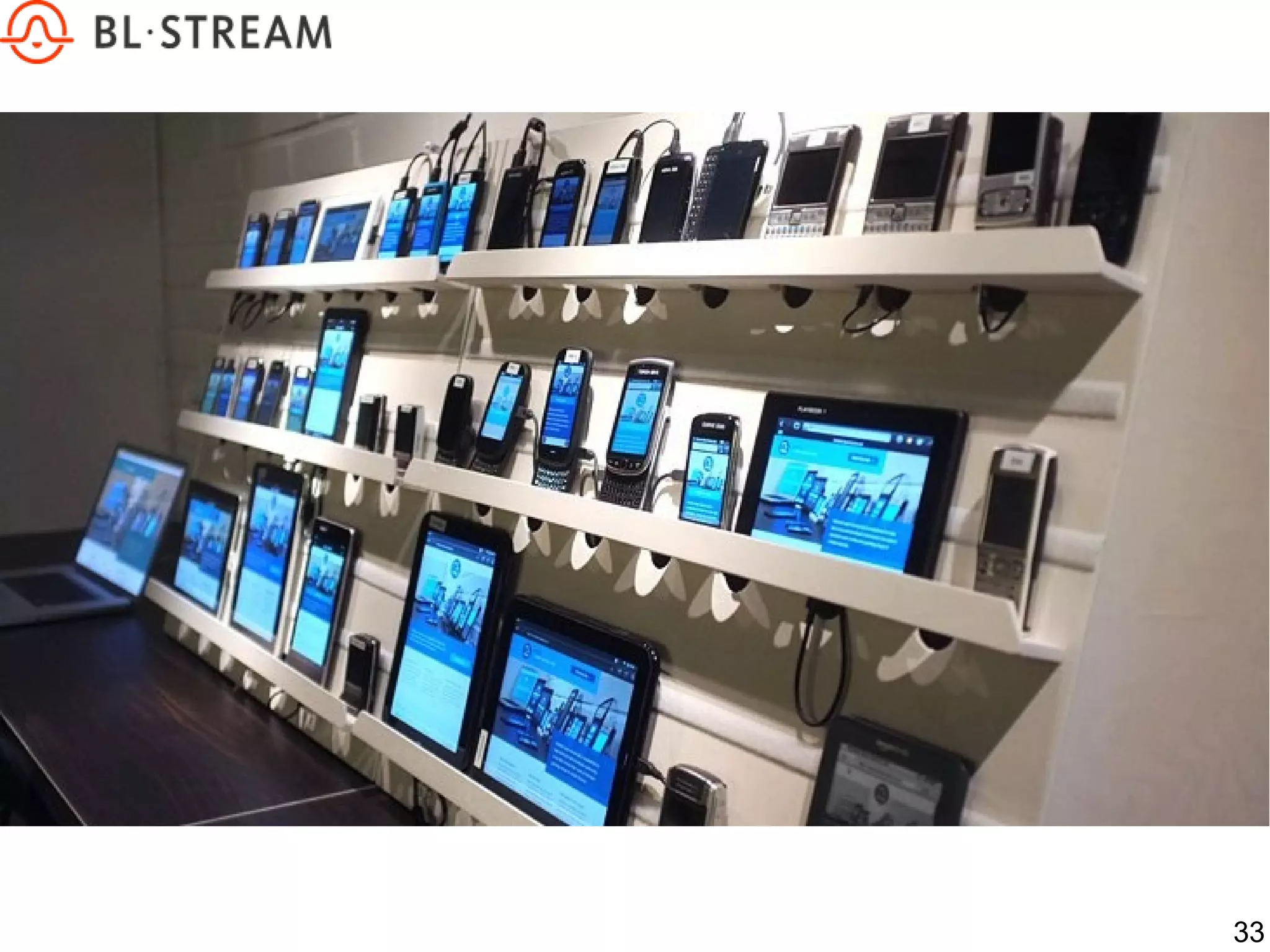

34. 34

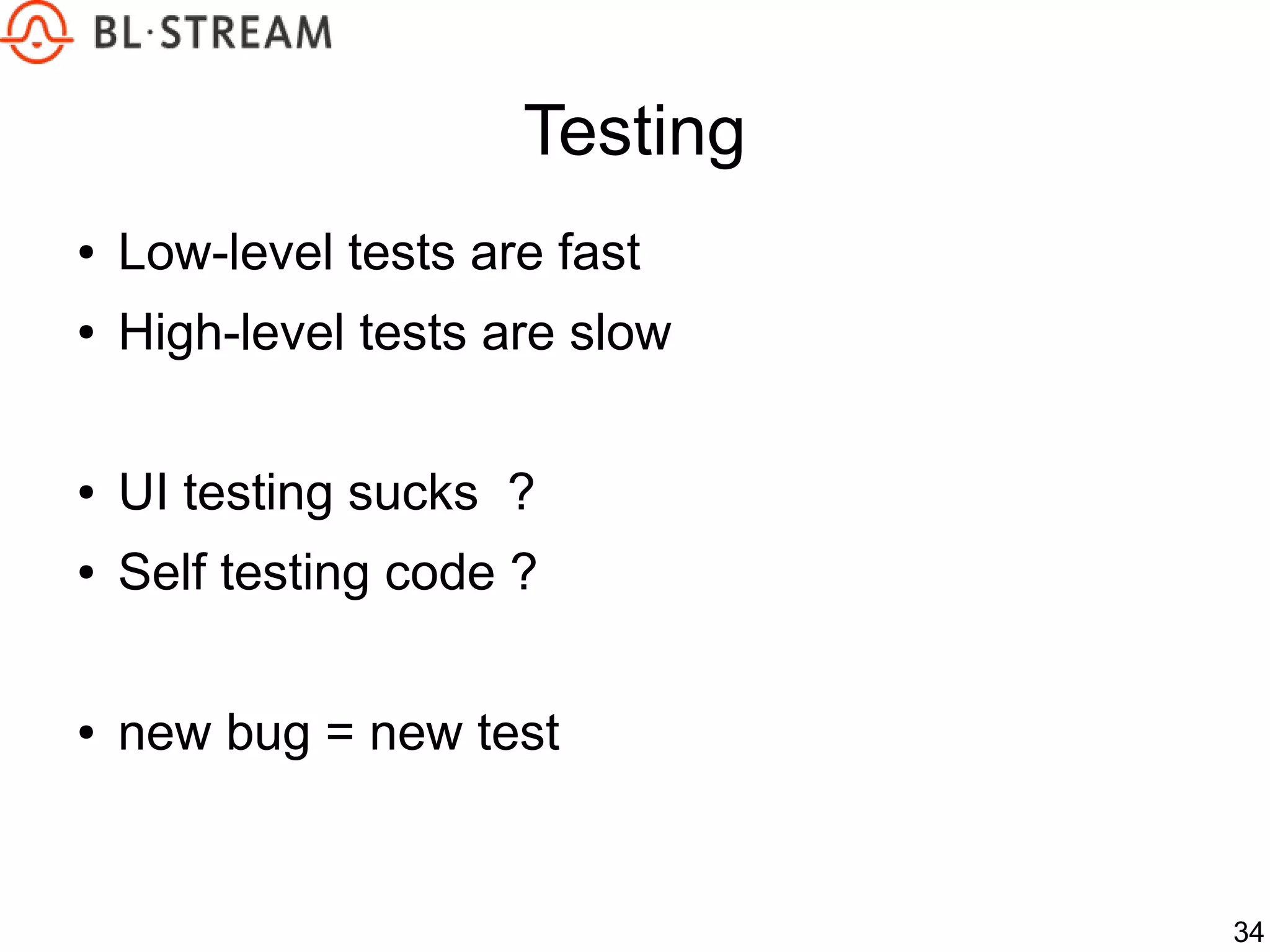

Testing
● Low-level tests are fast
● High-level tests are slow
● UI testing sucks ?
● Self testing code ?
● new bug = new test

35. 35

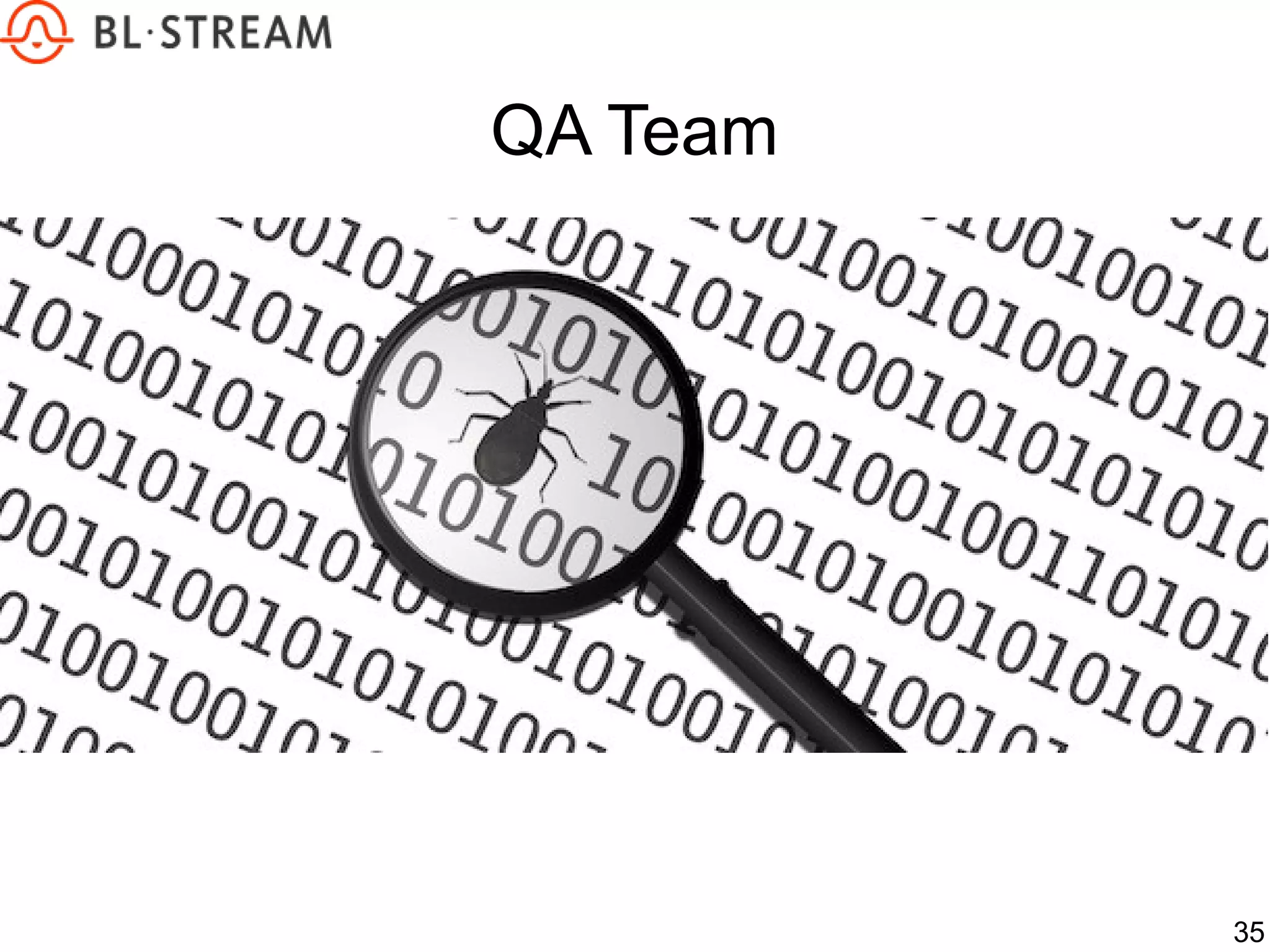

QA Team

36. 36
Monkey
adb shell monkey [options] <event-count>
-s <seed>
-v <verbosity level>

37. 37
Android Tips

38. 38

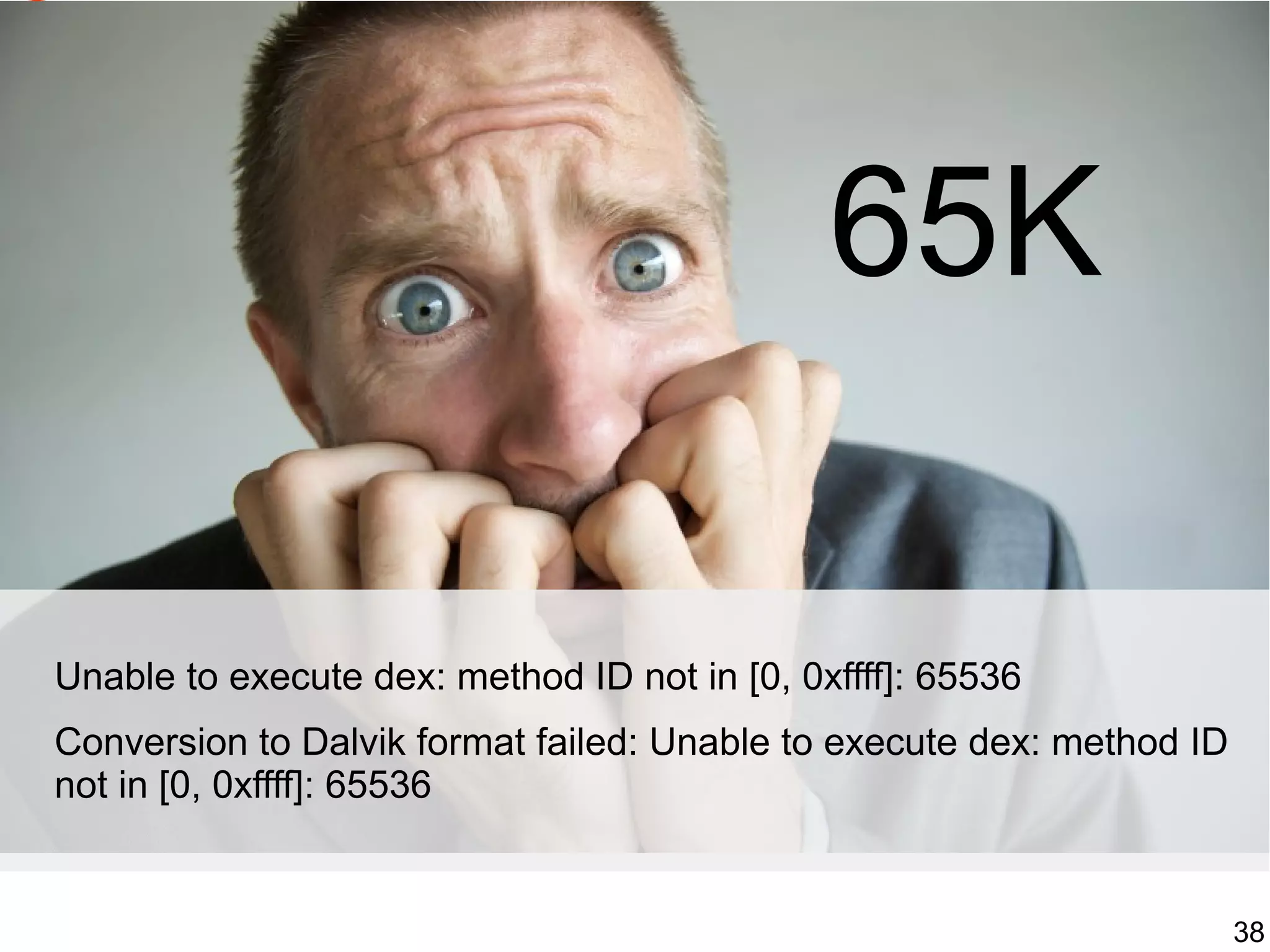

65K
Unable to execute dex: method ID not in [0, 0xffff]: 65536
Conversion to Dalvik format failed: Unable to execute dex: method ID
not in [0, 0xffff]: 65536

39. 39

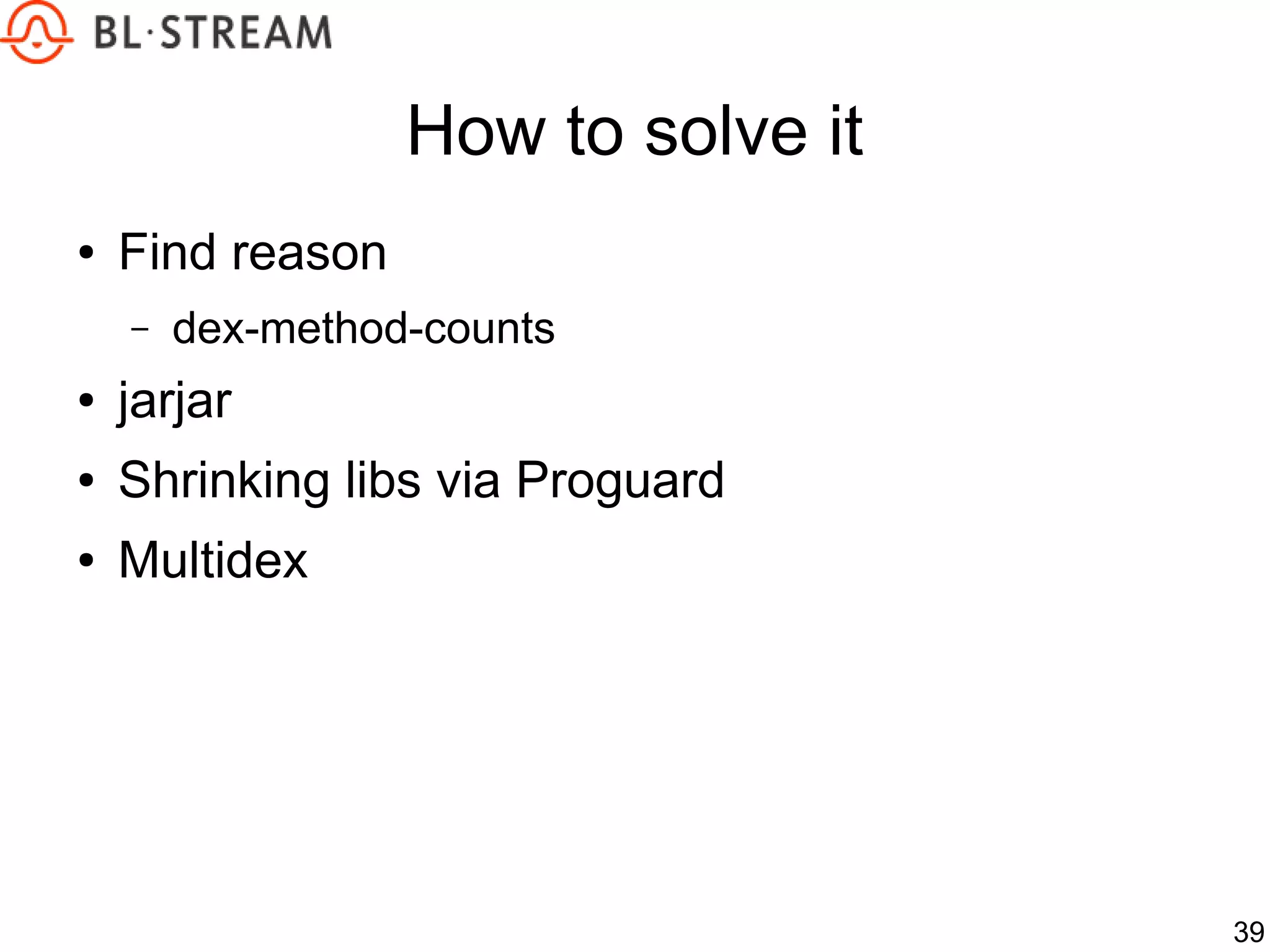

How to solve it
● Find reason
– dex-method-counts
● jarjar
● Shrinking libs via Proguard
● Multidex

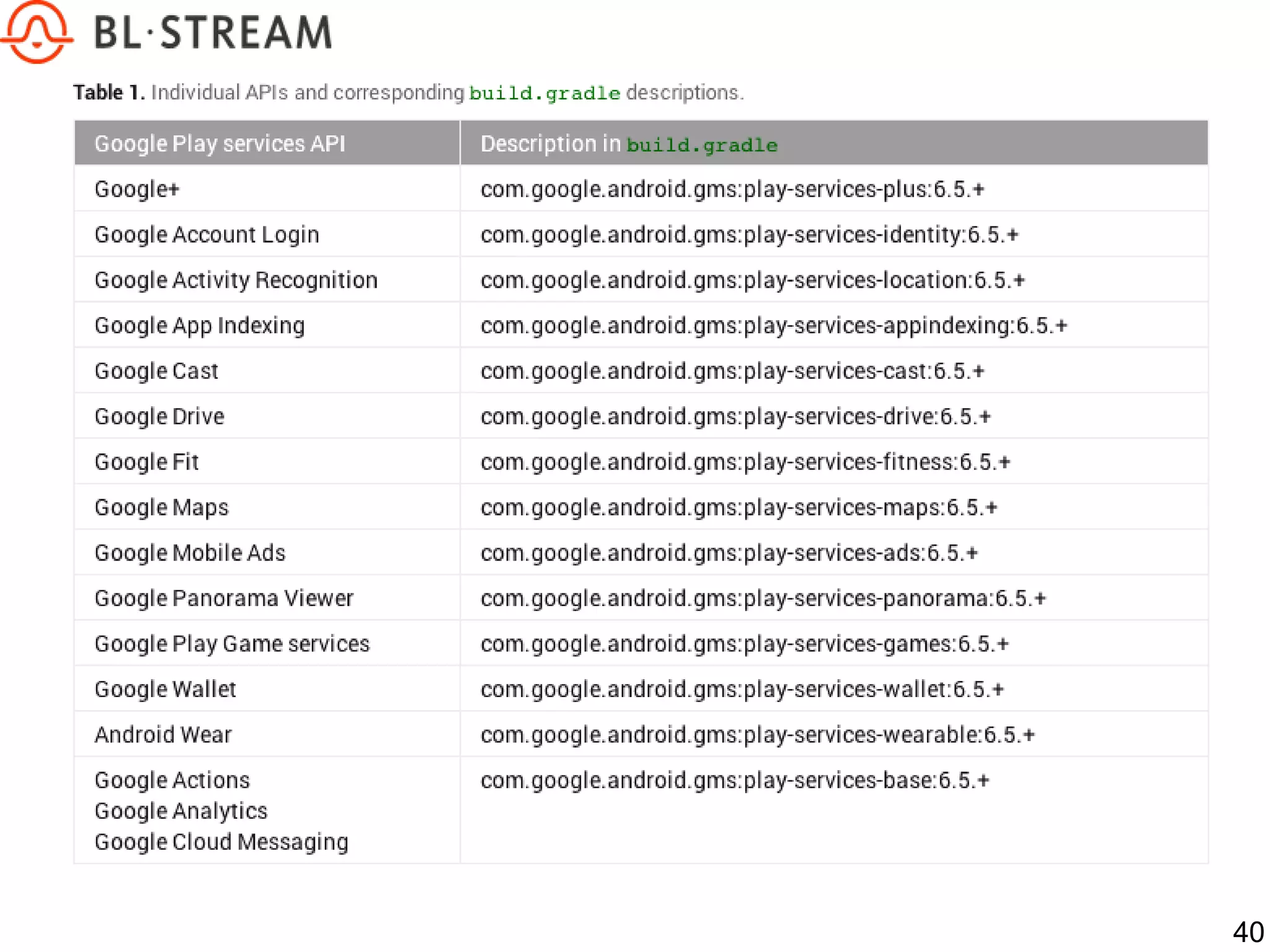

40. 40

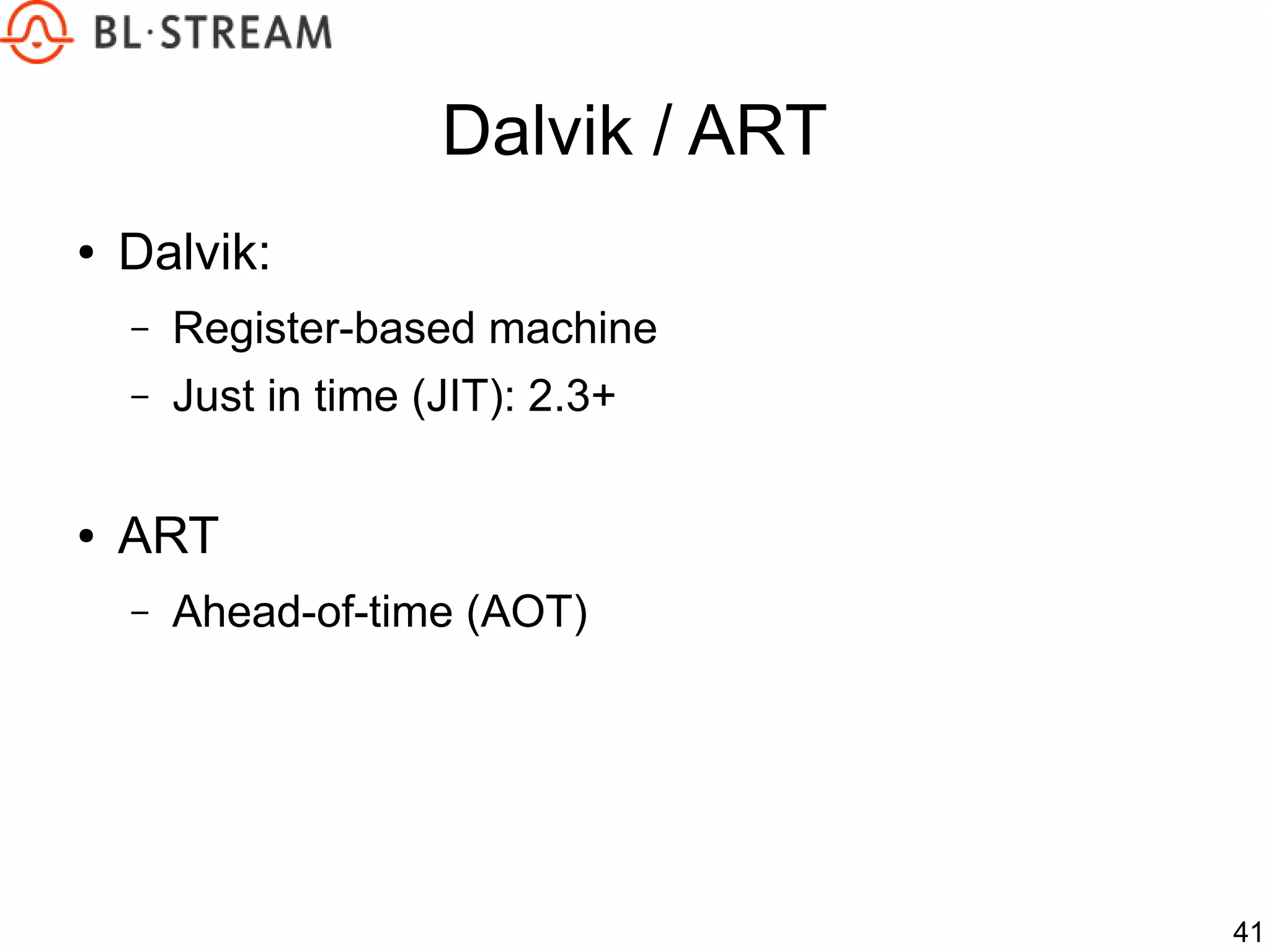

41. 41
Dalvik / ART
● Dalvik:
– Register-based machine
– Just in time (JIT): 2.3+
● ART
– Ahead-of-time (AOT)

42. 42
Tools?

43. 43

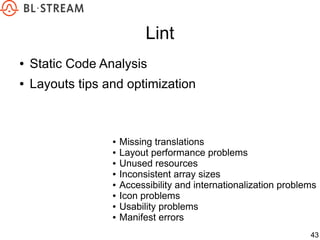

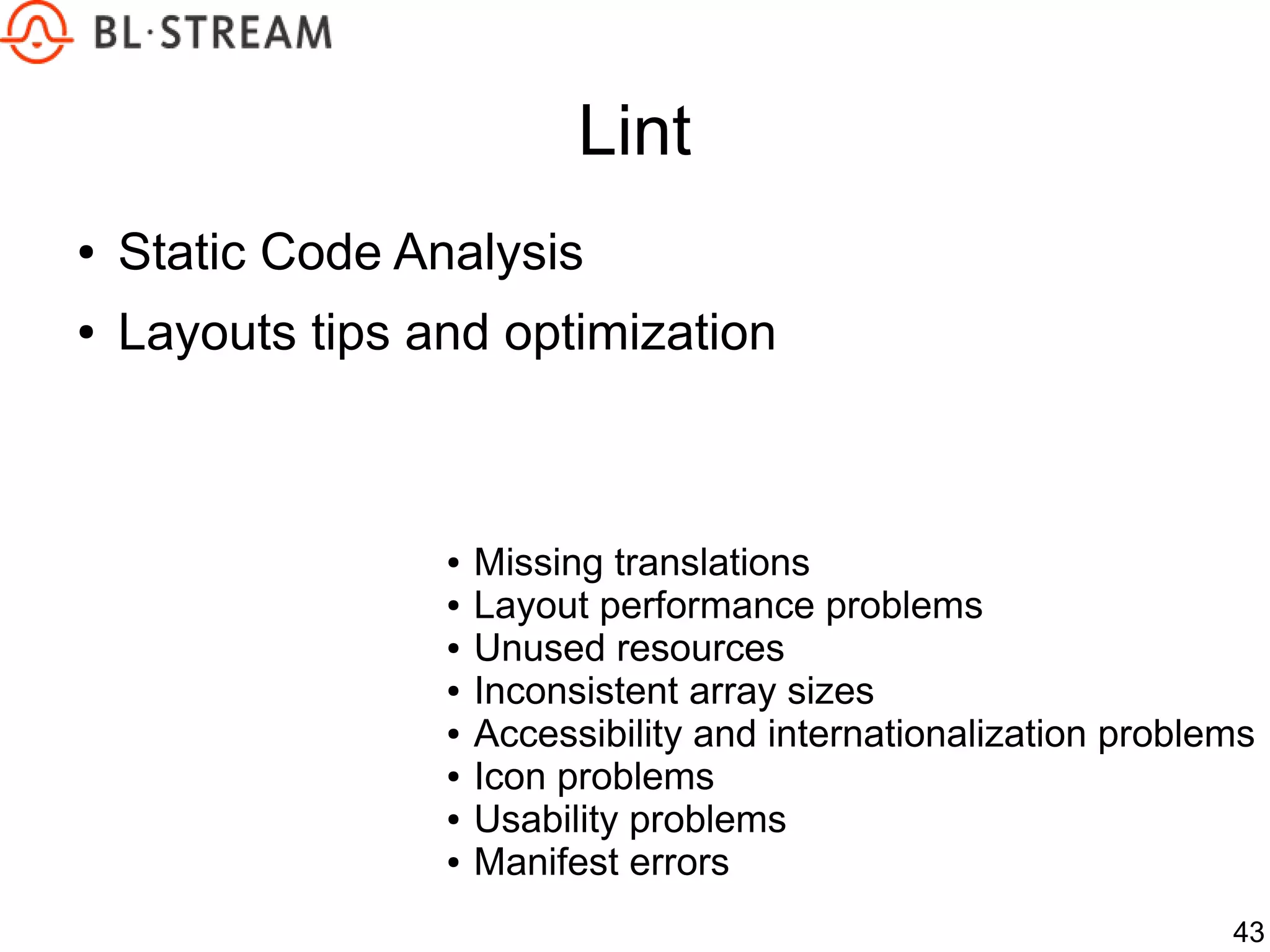

Lint
● Static Code Analysis
● Layouts tips and optimization
● Missing translations
● Layout performance problems
● Unused resources
● Inconsistent array sizes
● Accessibility and internationalization problems
● Icon problems
● Usability problems
● Manifest errors

44. 44

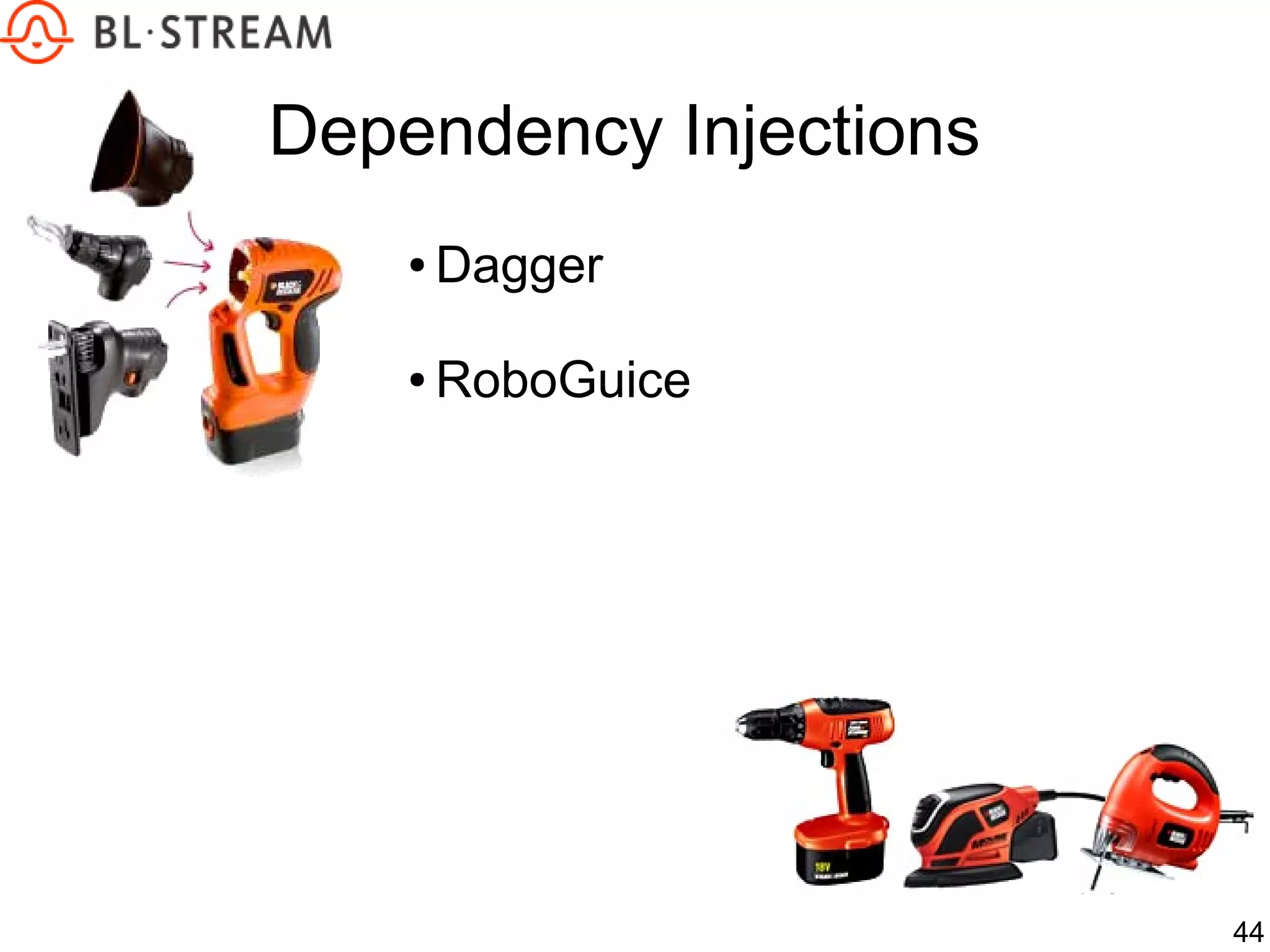

Dependency Injections
● Dagger
● RoboGuice

45. 45
Injections
● ButterKnife
● AndroidAnnotations

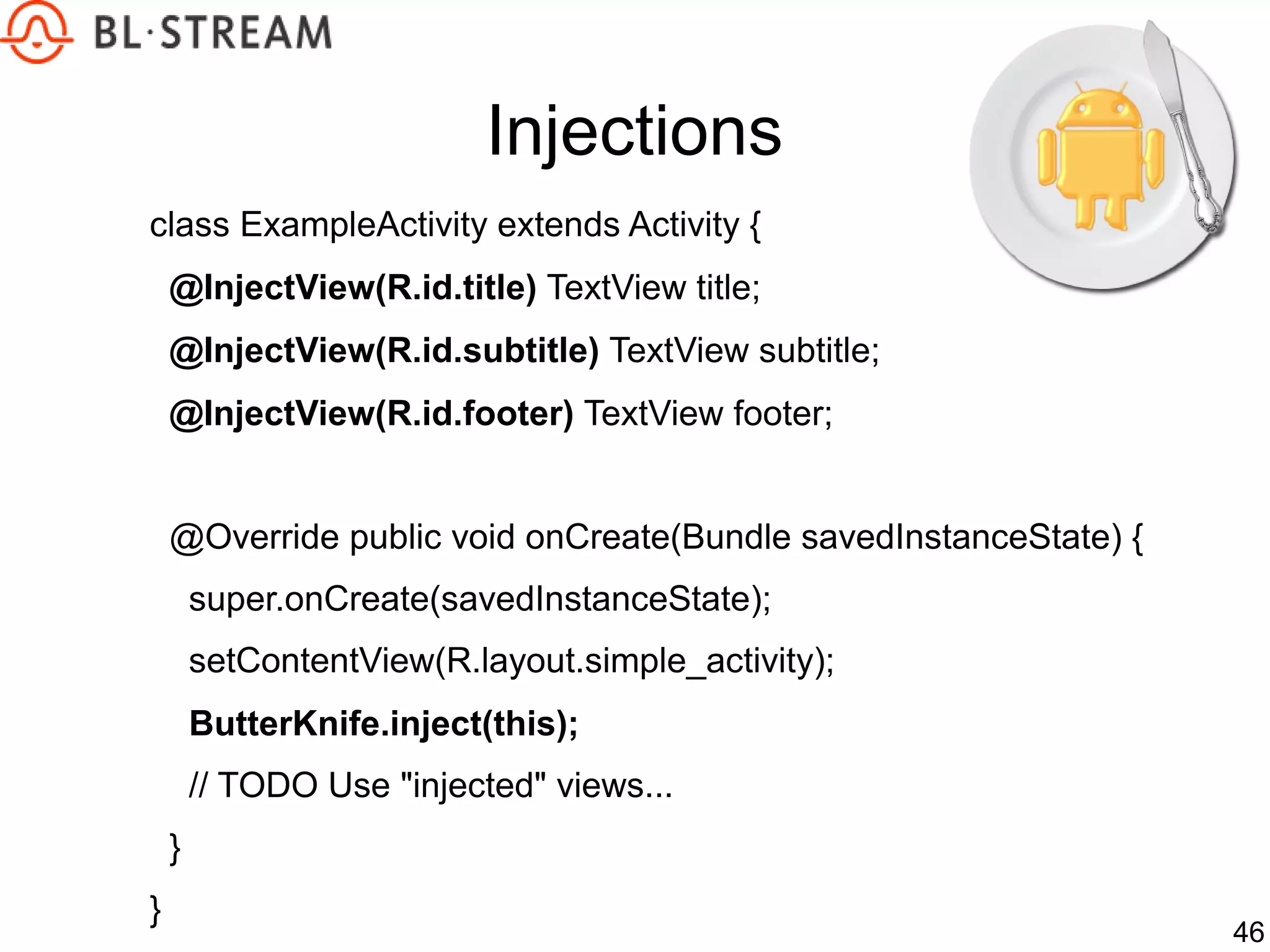

46. 46
Injections
class ExampleActivity extends Activity {
@InjectView(R.id.title) TextView title;
@InjectView(R.id.subtitle) TextView subtitle;
@InjectView(R.id.footer) TextView footer;
@Override public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.simple_activity);
ButterKnife.inject(this);
// TODO Use "injected" views...
}
}

47. 47

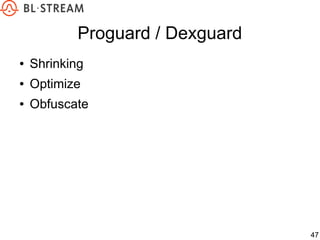

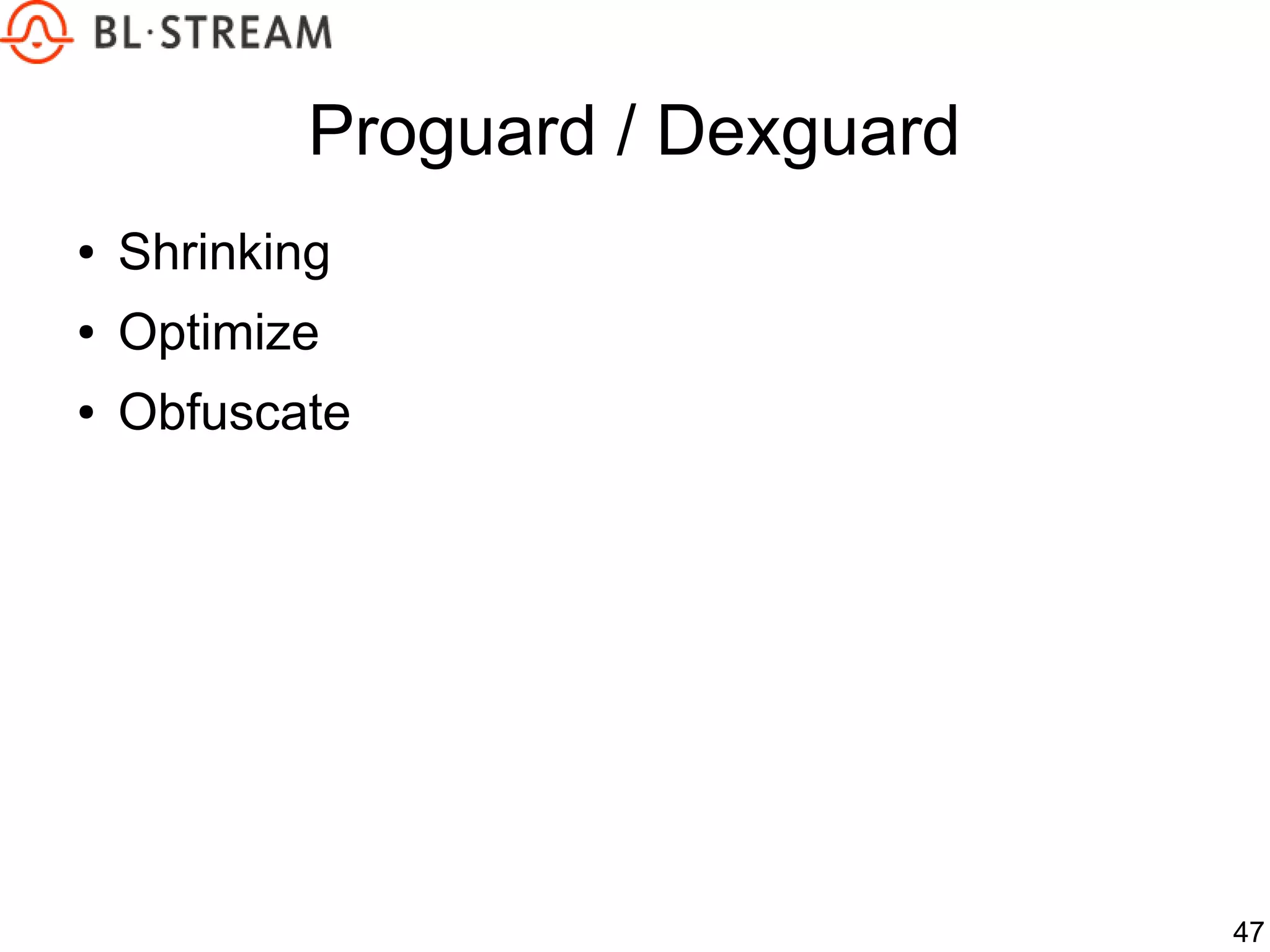

Proguard / Dexguard
● Shrinking
● Optimize
● Obfuscate

48. 48

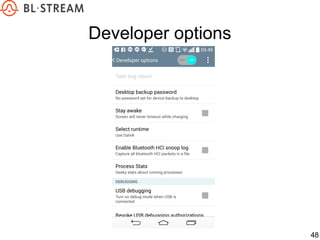

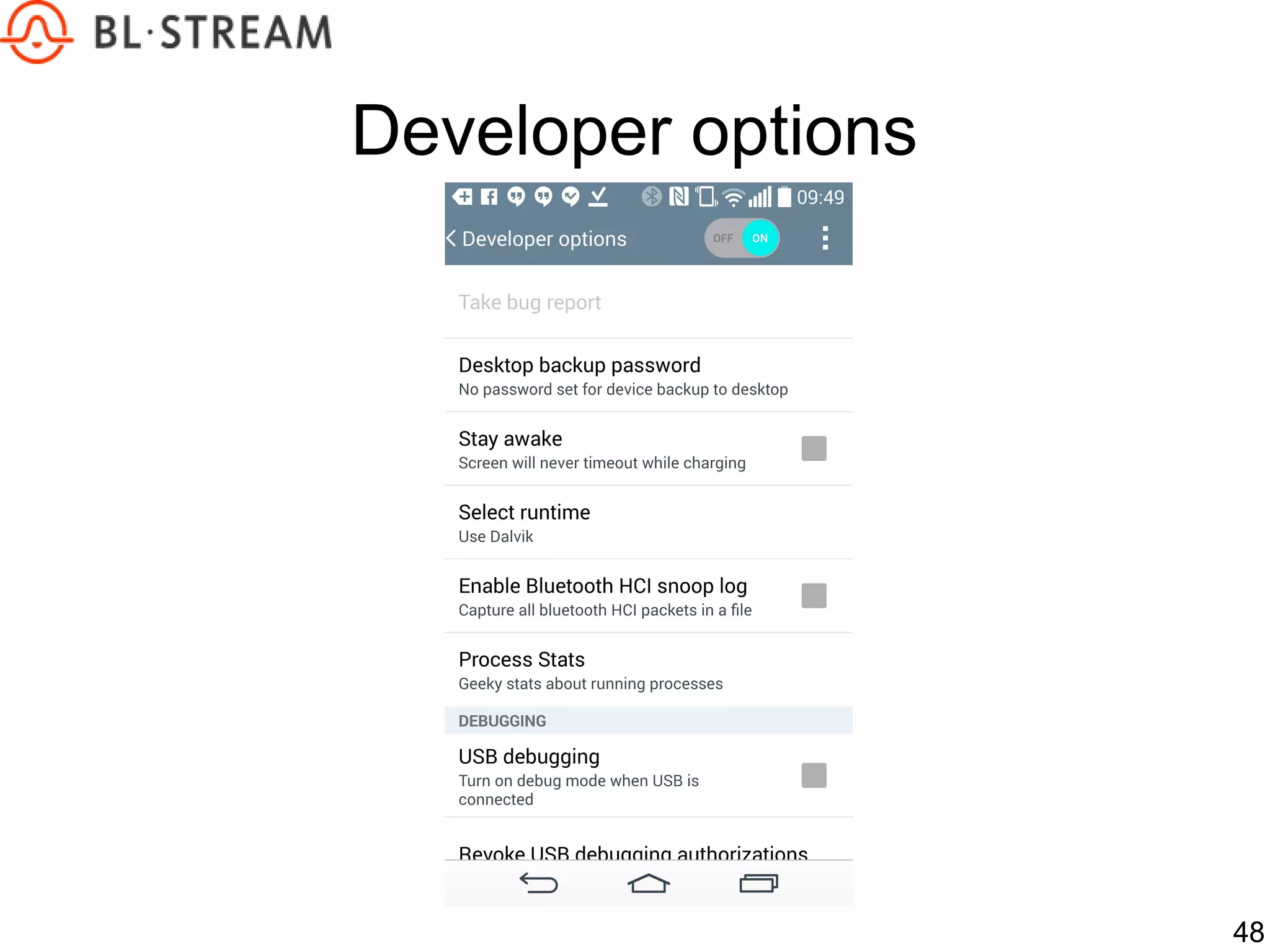

Developer options

49. 49

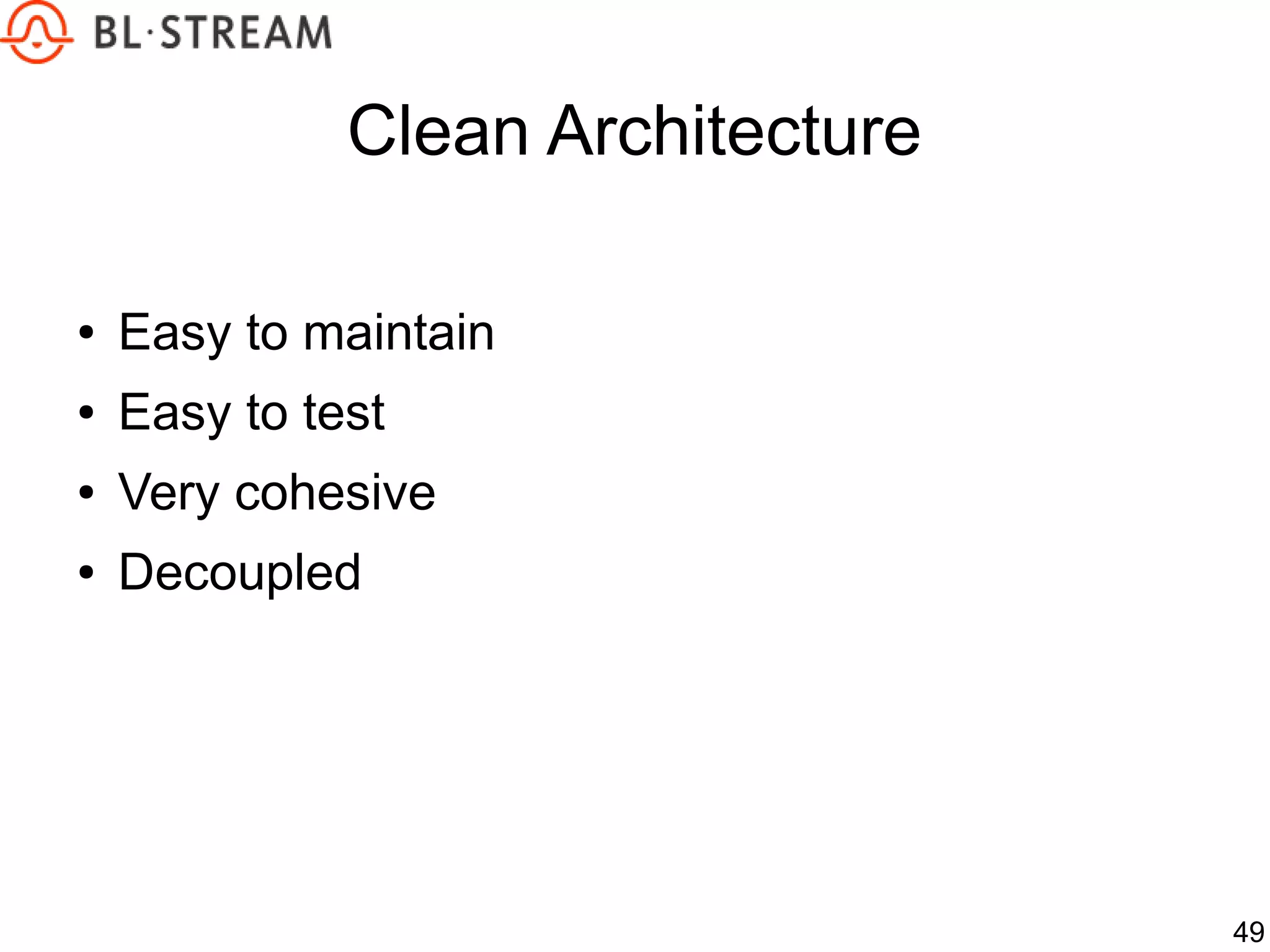

Clean Architecture
● Easy to maintain
● Easy to test
● Very cohesive
● Decoupled

50. 50

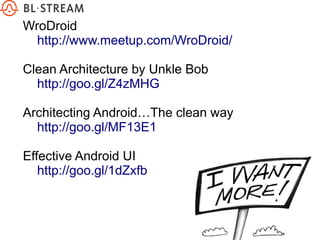

WroDroid
http://www.meetup.com/WroDroid/
Clean Architecture by Unkle Bob
http://goo.gl/Z4zMHG
Architecting Android…The clean way
http://goo.gl/MF13E1
Effective Android UI
http://goo.gl/1dZxfb

51. 51
Thank you for your attention

52. 52
Questions ?
