Class and object in C++ By Pawan Thakur

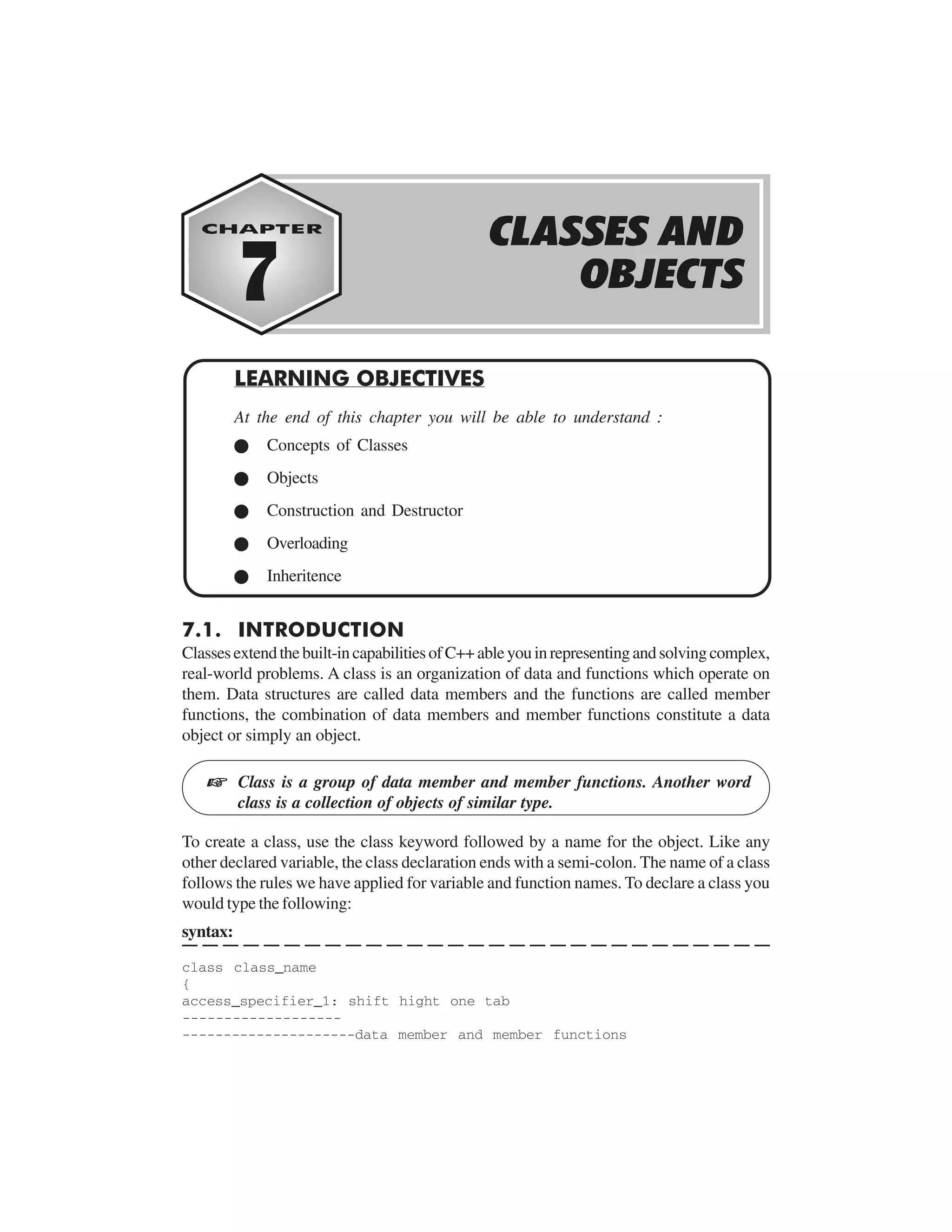

7.1. INTRODUCTION
Classesextendthebuilt-incapabilitiesofC++ableyouinrepresentingandsolvingcomplex,
real-world problems. A class is an organization of data and functions which operate on
them. Data structures are called data members and the functions are called member
functions, the combination of data members and member functions constitute a data
object or simply an object.
Class is a group of data member and member functions. Another word
class is a collection of objects of similar type.
To create a class, use the class keyword followed by a name for the object. Like any
other declared variable, the class declaration ends with a semi-colon. The name of a class
follows the rules we have applied for variable and function names. To declare a class you
would type the following:
syntax:
class class_name
{
access_specifier_1: shift hight one tab
-------------------
---------------------data member and member functions
LEARNING OBJECTIVES
At the end of this chapter you will be able to understand :
Concepts of Classes
Objects
Construction and Destructor
Overloading
Inheritence
L

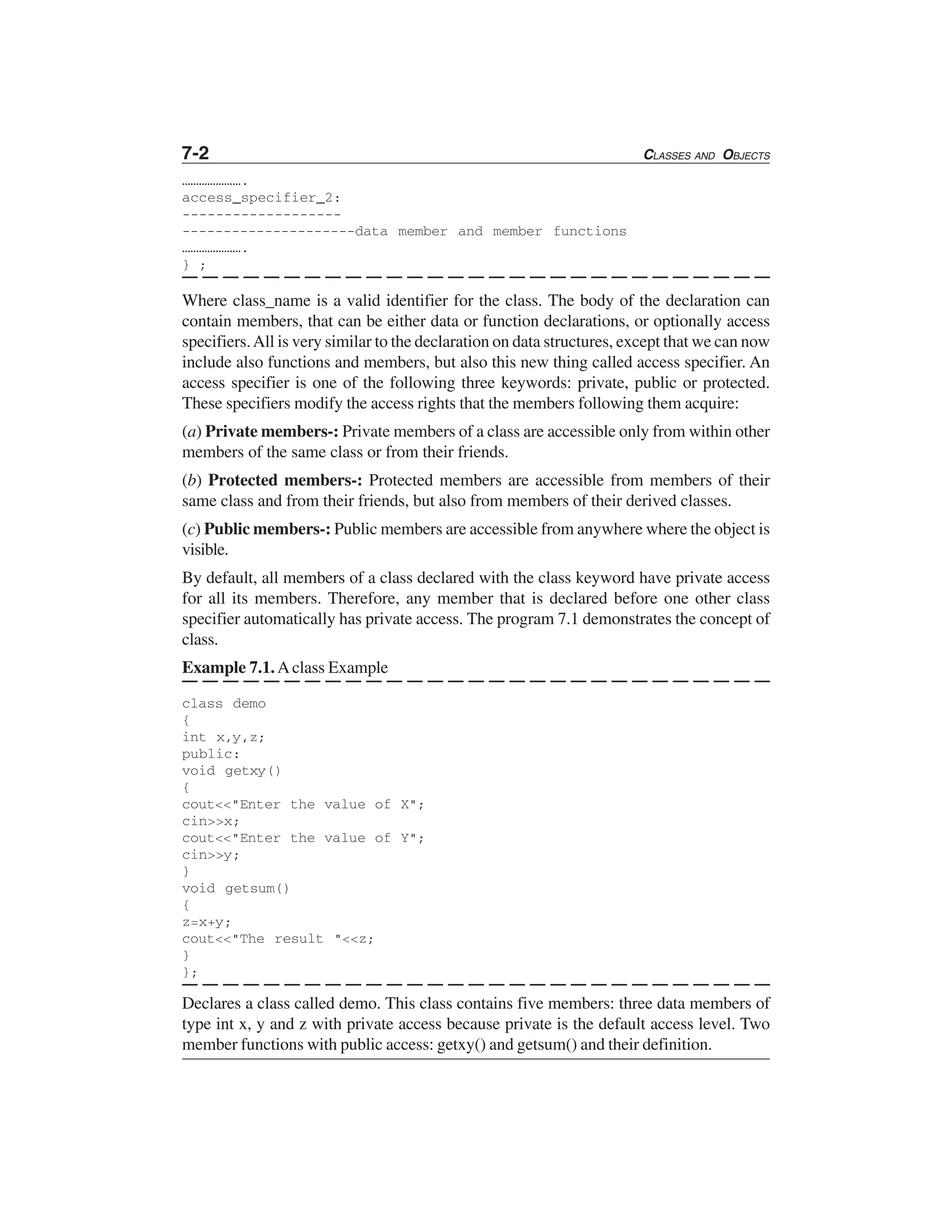

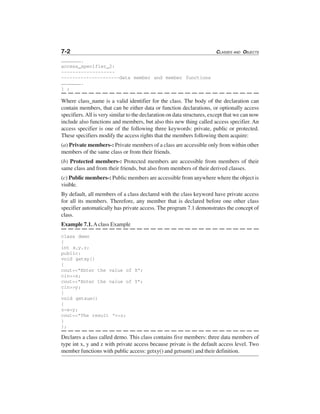

7-2 CLASSES AND OBJECTS
………………….
access_specifier_2:
-------------------
---------------------data member and member functions
………………….
} ;
Where class_name is a valid identifier for the class. The body of the declaration can
contain members, that can be either data or function declarations, or optionally access
specifiers.All is very similar to the declaration on data structures, except that we can now
include also functions and members, but also this new thing called access specifier. An
access specifier is one of the following three keywords: private, public or protected.
These specifiers modify the access rights that the members following them acquire:
(a) Private members-: Private members of a class are accessible only from within other
members of the same class or from their friends.
(b) Protected members-: Protected members are accessible from members of their
same class and from their friends, but also from members of their derived classes.
(c) Public members-: Public members are accessible from anywhere where the object is
visible.
By default, all members of a class declared with the class keyword have private access
for all its members. Therefore, any member that is declared before one other class
specifier automatically has private access. The program 7.1 demonstrates the concept of
class.
Example 7.1.Aclass Example
class demo
{
int x,y,z;
public:
void getxy()
{
cout<<"Enter the value of X";
cin>>x;
cout<<"Enter the value of Y";
cin>>y;
}
void getsum()
{
z=x+y;
cout<<"The result "<<z;
}
};
Declares a class called demo. This class contains five members: three data members of
type int x, y and z with private access because private is the default access level. Two
member functions with public access: getxy() and getsum() and their definition.

CLASSES AND OBJECTS 7-3

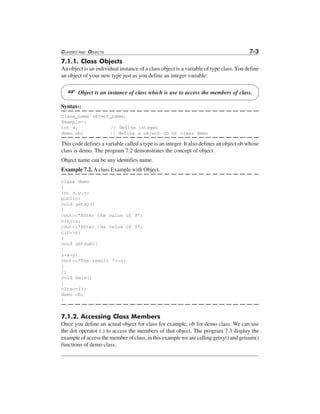

7.1.1. Class Objects
An object is an individual instance of a class object is a variable of type class. You define
an object of your new type just as you define an integer variable:
L Object is an instance of class which is use to access the members of class.
Syntax-:
Class_name object_name;
Example-:
int a; // define integer
demo ob; // define a object ob of class demo
This code defines a variable called a type is an integer. It also defines an object ob whose
class is demo. The program 7.2 demonstrates the concept of object.
Object name can be any identifies name.
Example 7.2. A class Example with Object.
class demo
{
int x,y,z;
public:
void getxy()
{
cin>>x;
cin>>y;
}
void getsum()
{
z=x+y;
}
};
void main()
{
clrscr();
demo ob;
}
7.1.2. Accessing Class Members
Once you define an actual object for class for example, ob for demo class. We can use
the dot operator (.) to access the members of that object. The program 7.3 display the
example of access the member of class, in this example we are calling getxy() and getsum()
functions of demo class.

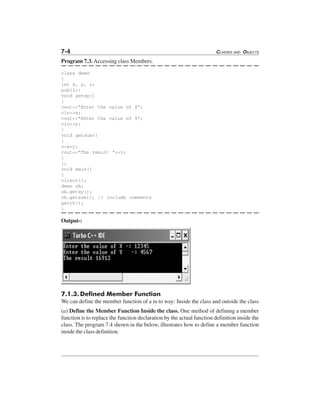

Program 7.3. Accessing class Members.
class demo
{
int x, y, z;
public:
void getxy()
{
cin>>x;
cin>>y;
}
void getsum()
{
z=x+y;
}
};
void main()
{
clrscr();
demo ob;
ob.getxy();
ob.getsum(); // include comments
getch();
}
Output-:
7.1.3.Defined Member Function
We can define the member function of a in to way: Inside the class and outside the class
(a) Define the Member Function Inside the class. One method of defining a member
function is to replace the function declaration by the actual function definition inside the
class. The program 7.4 shown in the below, illustrates how to define a member function
inside the class definition.

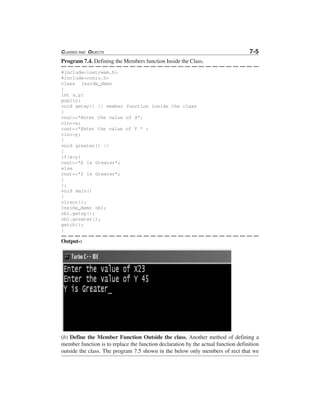

Program 7.4. Defining the Members function Inside the Class.
#include<iostream.h>
#include<conio.h>
class Inside_demo
{
int x,y;
public:
void getxy() // member function inside the class
{
cin>>x;
cout<<"Enter the value of Y " ;
cin>>y;
}
void greater() //
{
if(x>y)
cout<<"X is Greater";
else
cout<<"Y is Greater";
}
};
void main()
{
clrscr();
Inside_demo ob1;
ob1.getxy();
ob1.greater();
getch();
}
Output-:

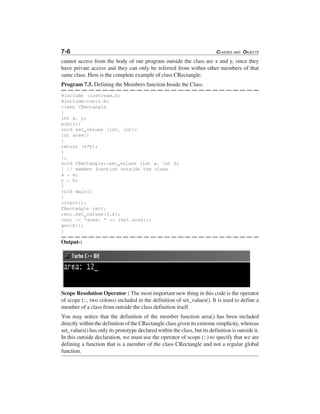

(b) Define the Member Function Outside the class. Another method of defining a
member function is to replace the function declaration by the actual function definition
outside the class. The program 7.5 shown in the below only members of rect that we

cannot access from the body of our program outside the class are x and y, since they
have private access and they can only be referred from within other members of that
same class. Here is the complete example of class CRectangle:
Program 7.5. Defining the Members function Inside the Class.
#include <iostream.h>
#include<conio.h>
class CRectangle
{
int x, y;
public:
void set_values (int, int);
int area()
{
return (x*y);
}
};
void CRectangle::set_values (int a, int b)
{ // member function outside the class
x = a;
y = b;
}
void main()
{
clrscr();
CRectangle rect;
rect.set_values(3,4);
cout << "area: " << rect.area();
getch();
}
Output-:
Scope Resolution Operator : The most important new thing in this code is the operator
of scope (::, two colons) included in the definition of set_values(). It is used to define a
member of a class from outside the class definition itself.
You may notice that the definition of the member function area() has been included
directly within the definition of the CRectangle class given its extreme simplicity, whereas
set_values() has only its prototype declared within the class, but its definition is outside it.
In this outside declaration, we must use the operator of scope (::) to specify that we are
defining a function that is a member of the class CRectangle and not a regular global
function.

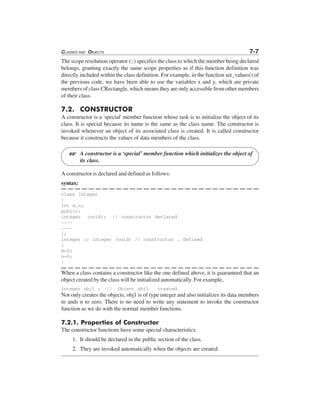

The scope resolution operator (::) specifies the class to which the member being declared
belongs, granting exactly the same scope properties as if this function definition was
directly included within the class definition. For example, in the function set_values() of
the previous code, we have been able to use the variables x and y, which are private
members of class CRectangle, which means they are only accessible from other members
of their class.
7.2. CONSTRUCTOR
A constructor is a 'special' member function whose task is to initialize the object of its
class. It is special because its name is the same as the class name. The constructor is
invoked whenever an object of its associated class is created. It is called constructor
because it constructs the values of data members of the class.
A constructor is a ‘special’ member function which initializes the object of
its class.
A constructor is declared and defined as follows:
syntax:
class integer
{
int m,n;
public:
integer (void); // constructor declared
----
----
};
integer :: integer (void) // constructor . defined
{
m=0;
n=0;
}
When a class contains a constructor like the one defined above, it is guaranteed that an
object created by the class will be initialized automatically. For example,
integer obj1 ; // Object obj1 created
Not only creates the objects, obj1 is of type integer and also initializes its data members
m ands n to zero. There is no need to write any statement to invoke the constructor
function as we do with the normal member functions.
7.2.1. Properties of Constructor
The constructor functions have some special characteristics.
1. It should be declared in the public section of the class.
2. They are invoked automatically when the objects are created.
L

3. They do not have return types, not even void. Therefore, they cannot return
values.
4. They cannot be inherited, though a derived class can call the base class constructor.
5. Like other C++ functions, they can have default arguments.
6. Constructor alone have the same name as class.

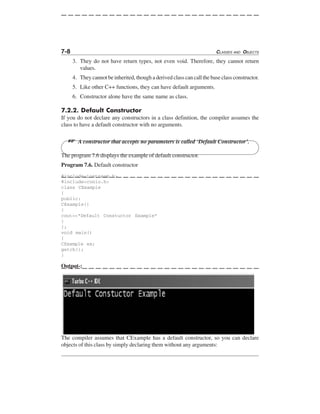

7.2.2. Default Constructor
If you do not declare any constructors in a class definition, the compiler assumes the
class to have a default constructor with no arguments.
L A constructor that accepts no parameters is called ‘Default Constructor’.
The program 7.6 displays the example of default constructor.
Program 7.6. Default constructor
#include<conio.h>
class CExample
{
public:
CExample()
{
cout<<"Default Constuctor Example"
}
};
void main()
{
CExample ex;
getch();
}
Output-:
The compiler assumes that CExample has a default constructor, so you can declare
objects of this class by simply declaring them without any arguments:

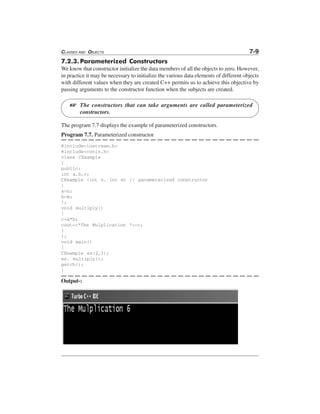

7.2.3.Parameterized Constructors
We know that constructor initialize the data members of all the objects to zero. However,
in practice it may be necessary to initialize the various data elements of different objects
with different values when they are created C++ permits us to achieve this objective by
passing arguments to the constructor function when the subjects are created.
The constructors that can take arguments are called parameterized
constructors.
The program 7.7 displays the example of parameterized constructors.
Program 7.7. Parameterized constructor
#include<conio.h>
class CExample
{
public:
int a,b,c;
CExample (int n, int m) // parameterized constructor
{
a=n;
b=m;
};
void multiply()
{
c=a*b;
cout<<"The Mulplication "<<c;
}
};
void main()
{
CExample ex(2,3);
ex. multiply();
getch();
}
Output-:
L

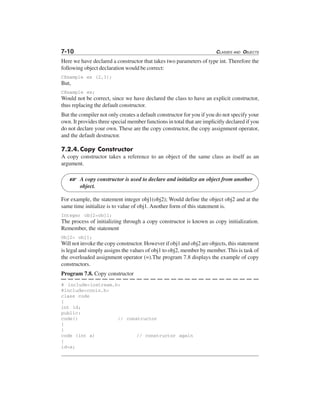

Here we have declared a constructor that takes two parameters of type int. Therefore the
following object declaration would be correct:
CExample ex (2,3);
But,
CExample ex;
Would not be correct, since we have declared the class to have an explicit constructor,
thus replacing the default constructor.
But the compiler not only creates a default constructor for you if you do not specify your
own. It provides three special member functions in total that are implicitly declared if you
do not declare your own. These are the copy constructor, the copy assignment operator,
and the default destructor.
7.2.4.Copy Constructor
A copy constructor takes a reference to an object of the same class as itself as an
argument.
A copy constructor is used to declare and initialize an object from another
object.
For example, the statement integer obj1(obj2); Would define the object obj2 and at the
same time initialize is to value of obj1. Another form of this statement is.
Integer obj2=obj1;
The process of initializing through a copy constructor is known as copy initialization.
Remember, the statement
Obj2= obj1;
Will not invoke the copy constructor. However if obj1 and obj2 are objects, this statement
is legal and simply assigns the values of obj1 to obj2, member by member. This is task of
the overloaded assignment operator (=).The program 7.8 displays the example of copy
constructors.

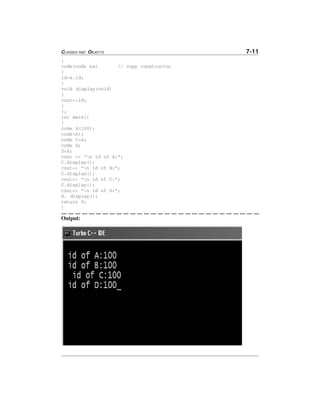

Program 7.8. Copy constructor
# include<iostream.h>
#include<conio.h>
class code
{
int id;
public:
code() // constructor
{
}
code (int a) // constructor again
{
id=a;
L

}
code(code &x) // copy constructor
{
id=x.id;
}
void display(void)
{
cout<<id;
}
};
int main()
{
code A(100);
code(A);
code C=A;
code D;
D=A;
cout << "n id of A:";
C.display();
cout<< "n id of B:";
C.display();
cout<< "n id of C:";
C.display();
cout<< "n id of D:";
D. display();
return 0;
}
Output:

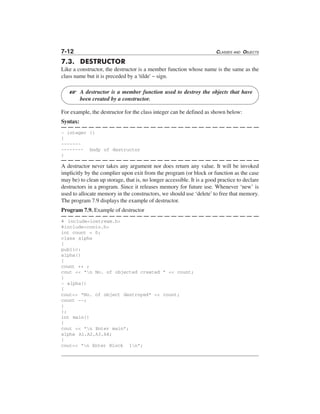

7.3. DESTRUCTOR
Like a constructor, the destructor is a member function whose name is the same as the
class name but it is preceded by a 'tilde' ~ sign.
A destructor is a member function used to destroy the objects that have
been created by a constructor.
For example, the destructor for the class integer can be defined as shown below:
Syntax:
~ integer ()
{
-------
-------- body of destructor
}
A destructor never takes any argument nor does return any value. It will be invoked
implicitly by the complier upon exit from the program (or block or function as the case
may be) to clean up storage, that is, no longer accessible. It is a good practice to declare
destructors in a program. Since it releases memory for future use. Whenever ‘new’ is
used to allocate memory in the constructors, we should use ‘delete’to free that memory.
The program 7.9 displays the example of destructor.
Program 7.9. Example of destructor
# include<iostream.h>
#include<conio.h>
int count = 0;
class alpha
{
public:
alpha()
{
count ++ ;
cout << "n No. of objected created " << count;
}
~ alpha()
{
cout<< "No. of object destroyed" << count;
count --;
}
};
int main()
{
cout << "n Enter main";
alpha A1,A2,A3,A4;
{
cout<< "n Enter Block 1n";
L

alpha A5 ;
}
cout << "n enter block 2n";
alpha A6;
getch();
}

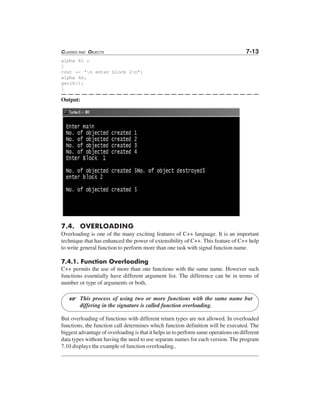

Output:
7.4. OVERLOADING
Overloading is one of the many exciting features of C++ language. It is an important
technique that has enhanced the power of extensibility of C++. This feature of C++ help
to write general function to perform more than one task with signal function name.
7.4.1. Function Overloading
C++ permits the use of more than one functions with the same name. However such
functions essentially have different argument list. The difference can be in terms of
number or type of arguments or both.
This process of using two or more functions with the same name but
differing in the signature is called function overloading.
But overloading of functions with different return types are not allowed. In overloaded
functions, the function call determines which function definition will be executed. The
biggest advantage of overloading is that it helps us to perform same operations on different
data types without having the need to use separate names for each version. The program
7.10 displays the example of function overloading..
L

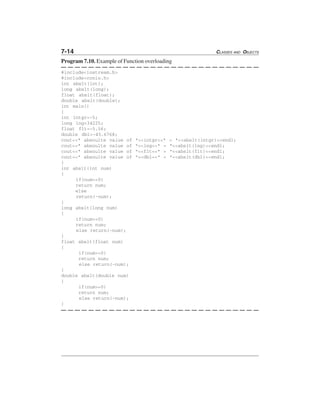

Program 7.10. Example of Function overloading
#include<conio.h>
int abslt(int);
long abslt(long);
float abslt(float);
double abslt(double);
int main()
{
int intgr=-5;
long lng=34225;
float flt=-5.56;
double dbl=-45.6768;
cout<<" absoulte value of "<<intgr<<" = "<<abslt(intgr)<<endl;
cout<<" absoulte value of "<<lng<<" = "<<abslt(lng)<<endl;
cout<<" absoulte value of "<<flt<<" = "<<abslt(flt)<<endl;
cout<<" absoulte value of "<<dbl<<" = "<<abslt(dbl)<<endl;
}
int abslt(int num)
{
if(num>=0)
return num;
else
return(-num);
}
long abslt(long num)
{
if(num>=0)
return num;
else return(-num);
}
float abslt(float num)
{
if(num>=0)
return num;
else return(-num);
}
double abslt(double num)
{
if(num>=0)
return num;
else return(-num);
}

Output:
The above function finds the absolute value of any number int, long, float ,double. In C,
the above is implemented as a set of different function abs()-for int, fabs()-for double,
labs()-for long.
7.4.2.Operator Overloading
We know that C++ tries to make the user defined data types behave in much the same
way as the built in types. For instance, C++ permits us to add two variables of user-
defined types with the same syntax that is applied to the basic types. This means that
C++ has the ability to prove the operator with a special meaning for a data type.
The mechanism of giving such special meaning to an operator is known
as “Operator overloading”.
We can overload all the C++ operators except the following.
(a) Class member access operators (. , *)
(b) Scope resolution operator ( : : )
(c) Size operator (sizeof)
(d) Conditional operator (?: )
7.4.3. Rules for Operator Overloading
Although it looks simple to redefine the operators, there are certain restrictions and
limitations in overloading them. Some of them are listed below: -
(1) Only existing operator can be overloaded. New operator cannot be created.
(2) The overloaded operator must have at least one operands that is of user defined
type.
(3) We cannot change the basic meaning of an operator. That is to say, we cannot
redefine the plus (+) operator to subtract one value from the other.
(4) There are some operators that can not overloaded like ., *, ::, ? :
L

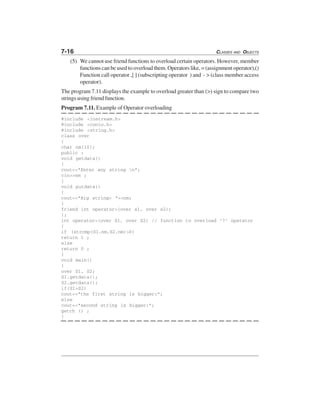

(5) We cannot use friend functions to overload certain operators. However, member
functions can be used to overload them. Operators like, = (assignment operator),()
Function call operator ,[ ] (subscripting operator ) and - > (class member access
operator).
The program 7.11 displays the example to overload greater than (>) sign to compare two
strings using friend function.
Program 7.11. Example of Operator overloading
#include <iostream.h>
#include <conio.h>
#include <string.h>
class over
{
char nm[10];
public :
void getdata()
{
cout<<"Enter any string n";
cin>>nm ;
}
void putdata()
{
cout<<"Big string= "<<nm;
}
friend int operator>(over s1, over s2);
};
int operator>(over S1, over S2) // function to overload ‘7’ operator
{
if (strcmp(S1.nm,S2.nm)>0)
return 1 ;
else
return 0 ;
}
void main()
{
over S1, S2;
S1.getdata();
S2.getdata();
if(S1>S2)
cout<<"the first string is bigger:";
else
cout<<"second string is bigger:";
getch () ;
}

Output-:

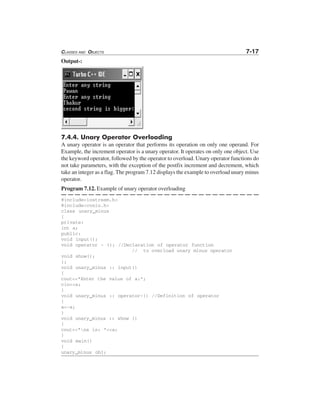

7.4.4. Unary Operator Overloading
A unary operator is an operator that performs its operation on only one operand. For
Example, the increment operator is a unary operator. It operates on only one object. Use
the keyword operator, followed by the operator to overload. Unary operator functions do
not take parameters, with the exception of the postfix increment and decrement, which
take an integer as a flag. The program 7.12 displays the example to overload unary minus
operator.
Program 7.12. Example of unary operator overloading
#include<conio.h>
class unary_minus
{
private:
int a;
public:
void input();
void operator - (); //Declaration of operator function
// to overload unary minus operator
void show();
};
void unary_minus :: input()
{
cout<<"Enter the value of a:";
cin>>a;
}
void unary_minus :: operator-() //Definition of operator
{
a=-a;
}
void unary_minus :: show ()
{
cout<<"na is: "<<a;
}
void main()
{
unary_minus obj;

clrscr();
obj.input();
cout<<"nBefore overloadingn";
obj.show();
-obj; //Calling operator function
cout<<"nAfter overloadingn";
obj.show();
getch();
}

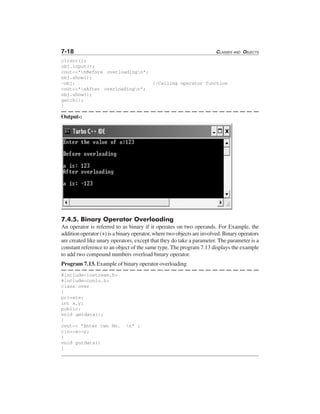

Output-:
7.4.5. Binary Operator Overloading
An operator is referred to as binary if it operates on two operands. For Example, the
addition operator (+) is a binary operator, where two objects are involved. Binary operators
are created like unary operators, except that they do take a parameter. The parameter is a
constant reference to an object of the same type. The program 7.13 displays the example
to add two compound numbers overload binary operator.
Program 7.13. Example of binary operator overloading
#include<conio.h>
class over
{
private:
int x,y;
public:
void getdata();
{
cout<< "Enter two No. n" ;
cin>>x>>y;
}
void putdata()
{

cout<<"n<<x<<"t"<<y;
}
friend operator +(overa1, overa2)
{
over temp ;
temp.x= a1.x+a1.y;
temp.y = a2.y+a2.y;
return temp ;
}
};
void main()
{
over a1,a2,a3;
clrscr();
a1.getdata();
a2.getdata();
a3=a1+a2; // overloading
getch() ;
}
7.5. DERIVED CLASS DECLARATION
Derived classes are supersets of their base classes. Typically, a base class will have more
than one derived class. Classes that are derived from others inherit all the accessible
members of the base class. That means if a base class includes a member A and we
derive it to another class with another member called B, the derived class will contain
both members A and B.
In order to derive a class from another, we use a colon (:) in the declaration of the derived
class using the following format:
Syntax:
Class derived-class-name: accessibility-mode base-class-name
{
member data
…………. //
member function
};
The colon indicates that the derived class name is derived from the base-class name. The
accessibility mode is optional and, if present, may be either private or public. The default
accessibility mode is private. Accessibility mode specifies whether the features of the
base class are privately derived or publicly derived. The program 7.14 displays the example
of derived class.
Program 7.14. Example of derived class
#inclue<iostream.h>
#include<conio.h>

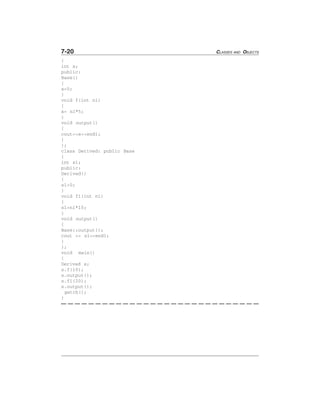

class Base

{
int x;
public:
Base()
{
x=0;
}
void f(int n1)
{
x= n1*5;
}
void output()
{
cout<<x<<endl;
}
};
class Derived: public Base
{
int s1;
public:
Derived()
{
s1=0;
}
void f1(int n1)
{
s1=n1*10;
}
void output()
{
Base::output();
cout << s1<<endl;
}
};
void main()
{
Derived s;
s.f(10);
s.output();
s.f1(20);
s.output();
getch();
}

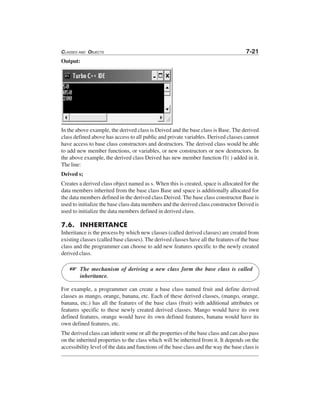

Output:
In the above example, the derived class is Deived and the base class is Base. The derived
class defined above has access to all public and private variables. Derived classes cannot
have access to base class constructors and destructors. The derived class would be able
to add new member functions, or variables, or new constructors or new destructors. In
the above example, the derived class Deived has new member function f1( ) added in it.
The line:
Deived s;
Creates a derived class object named as s. When this is created, space is allocated for the
data members inherited from the base class Base and space is additionally allocated for
the data members defined in the derived class Deived. The base class constructor Base is
used to initialize the base class data members and the derived class constructor Deived is
used to initialize the data members defined in derived class.
7.6. INHERITANCE
Inheritance is the process by which new classes (called derived classes) are created from
existing classes (called base classes). The derived classes have all the features of the base
class and the programmer can choose to add new features specific to the newly created
derived class.
The mechanism of deriving a new class form the base class is called
inheritance.
For example, a programmer can create a base class named fruit and define derived
classes as mango, orange, banana, etc. Each of these derived classes, (mango, orange,
banana, etc.) has all the features of the base class (fruit) with additional attributes or
features specific to these newly created derived classes. Mango would have its own
defined features, orange would have its own defined features, banana would have its
own defined features, etc.
The derived class can inherit some or all the properties of the base class and can also pass
on the inherited properties to the class which will be inherited from it. It depends on the
accessibility level of the data and functions of the base class and the way the base class is
L

inherited. The accessibility levels and the way of derivation can be- Private, Protected
and Public.
Fig. 7.1. Type of accessibility Modes.
From the above Fig. 7.1 it is clear that only the Protected and Public members are
inherited and not the Private members. And inherited members will be available for
further inheritance only if they are inherited in public way or protected way otherwise
not.
7.6.1. Features or Advantages of Inheritance
(a) Reusability. Inheritance helps the code to be reused in many situations. The base
class is defined and once it is compiled, it need not be reworked. Using the concept of
inheritance, the programmer can create as many derived classes from the base class as
needed while adding specific features to each derived class as needed.
(b) Saves Time and Effort. The above concept of reusability achieved by inheritance
saves the programmer time and effort. Since the main code written can be reused in
various situations as needed.
(c) Reliability. Increases Program Structure which results in greater reliability.
7.6.2. Types OF Inheritance
There are five forms of Inheritance:
1. Single Inheritance
2. Multiple Inheritance
3. Multi- Level Inheritance
4. Hierarchical Inheritance
5. Hybrid Inheritance
1. Single inheritance. The process of deriving only one new class from single base class
is called single inheritance as shown in Fig. 7.2.

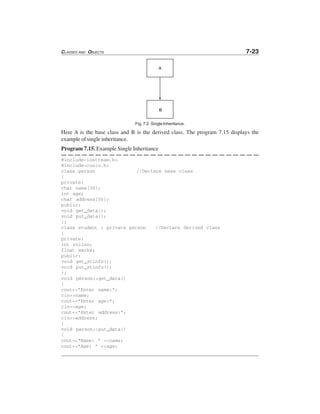

Fig. 7.2. Single Inheritance.
Here A is the base class and B is the derived class. The program 7.15 displays the
example of single inheritance.
Program 7.15. Example Single Inheritance
#include<conio.h>
class person //Declare base class
{
private:
char name[30];
int age;
char address[50];
public:
void get_data();
void put_data();
};
class student : private person //Declare derived class
{
private:
int rollno;
float marks;
public:
void get_stinfo();
void put_stinfo();
};
void person::get_data()
{
cout<<"Enter name:";
cin>>name;
cout<<"Enter age:";
cin>>age;
cout<<"Enter address:";
cin>>address;
}
void person::put_data()
{
cout<<"Name: " <<name;
cout<<"Age: " <<age;

cout<<"Address: " <<address;
}
void student::get_stinfo()
{
get_data();
cout<<"Enter roll number:";
cin>>rollno;
cout<<"Enter marks:";
cin>>marks;
}
void student::put_stinfo()
{
put_data();
cout<<"Roll Number:"<<rollno;
cout<<"Marks:"<<marks;
}
void main()
{
student ob;
clrscr();
ob.get_stinfo();
ob.put_stinfo();
getch();
}

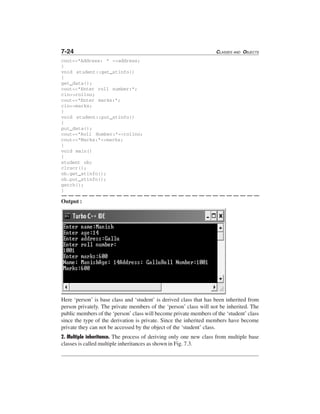

Output :
Here ‘person’ is base class and ‘student’ is derived class that has been inherited from
person privately. The private members of the ‘person’ class will not be inherited. The
public members of the ‘person’ class will become private members of the ‘student’ class
since the type of the derivation is private. Since the inherited members have become
private they can not be accessed by the object of the ‘student’ class.
2. Multiple inheritance. The process of deriving only one new class from multiple base
classes is called multiple inheritances as shown in Fig. 7.3.

Fig. 7.3. Multiple Inheritance.
Here B1, B2 and B3 are the base classes and D is the derived class. The program 7.16
displays the example of Multiple inheritance.
Program 7.16. Example Multiple Inheritance
#include<conio.h>
class A
{
protected:
int x;
};
class B
{
protected:
int y;
};
class C
{
protected:
int z;
};
class D : private A, private B, private C
{
private:
int sum;
public:
void get_data()
{
cout<<"Enter data:";
cin>>x>>y>>z;
}
void add()
{
sum=x+y+z;
cout<<"nThe sum is:"<<sum;
}
};
void main()

{
D ob;
clrscr();
ob.get_data();
ob.add();
getch();
}
Here ‘B1’, ‘B2’ and ‘B3’ are base classes and ‘D’ is derived class that has been inherited
from all three classes privately. The members of the base classes have been declared as
protected. They will become private members of the ‘D’ class since the type of the
derivation is private. Since the inherited members have become private they can not be
accessed by the object of the ‘D’ class.

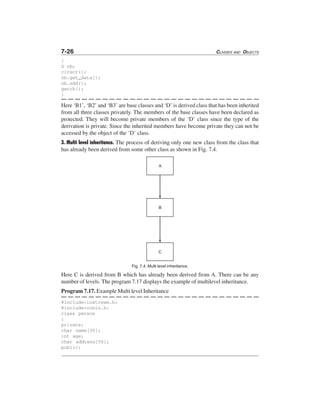

3. Multi level inheritance. The process of deriving only one new class from the class that
has already been derived from some other class as shown in Fig. 7.4.
Fig. 7.4. Multi level inheritance.
Here C is derived from B which has already been derived from A. There can be any
number of levels. The program 7.17 displays the example of multilevel inheritance.
Program 7.17. Example Multi level Inheritance
#include<conio.h>
class person
{
private:
char name[30];
int age;
char address[50];
public:

void get_pdata()
{
cin>>name;
cout<<"nEnter age:";
cin>>age;
cout<<"nEnter address:";
cin>>address;
}
void put_pdata()
{
cout<<"nName: "<<name;
cout<<"nAge: "<<age;
cout<<"nAddress: "<<address;
}
};
class student : public person
{
private:
int rollno;
char course[10];
public:
void get_stdata()
{
cout<<"nEnter roll number:";
cin>>rollno;
cout<<"nEnter course:";
cin>>course;
}
void put_stdata()
{
cout<<"nRoll Number:"<<rollno;
cout<<"nCourse:"<<course;
}
};
class performance : public student
{
private:
float test1,test2,test3,per;
public:
void input()
{
cout<<"nEnter marks of test 1:";
cin>>test1;
cin>>test2;
cin>>test3;
}
void calc()
{
per=((test1+test2+test3)/30)*100;

}
void show()
{
cout<<"nPercentage of the student is:"<<per;
}
};
void main()
{
performance ob;
clrscr();
ob.get_pdata();
ob.get_stdata();
ob.input();
ob.calc();
ob.put_pdata();
ob.put_stdata();
ob.show();
getch();
}

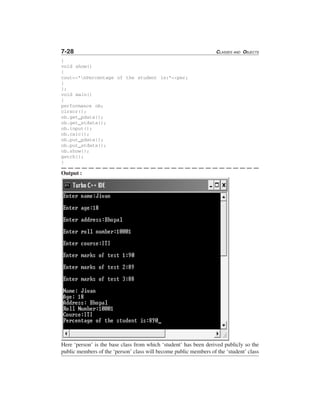

Output :
Here ‘person’ is the base class from which ‘student’ has been derived publicly so the
public members of the ‘person’ class will become public members of the ‘student’ class

and can further be inherited. Then the ‘student’ class is inherited by the ‘performance’
class publicly so the public members of ‘student’ class will become public members of
the ‘performance’ class. These members will include those public members of the ‘student’
class which are of its own and also those which it has inherited from ‘person’ class. So all
these members will be inherited by the ‘performance’ class. But the private members will
not be inherited.

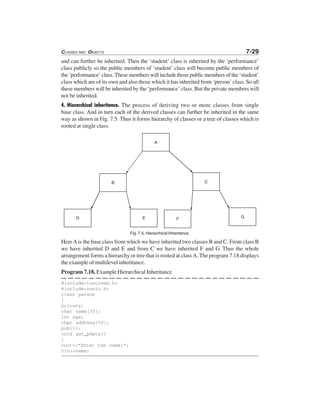

4. Hierarchical inheritance. The process of deriving two or more classes from single
base class. And in turn each of the derived classes can further be inherited in the same
way as shown in Fig. 7.5. Thus it forms hierarchy of classes or a tree of classes which is
rooted at single class.
Fig. 7.5. Hierarchical Inheritance.
HereAis the base class from which we have inherited two classes B and C. From class B
we have inherited D and E and from C we have inherited F and G. Thus the whole
arrangement forms a hierarchy or tree that is rooted at classA. The program 7.18 displays
the example of multilevel inheritance.
Program 7.18. Example Hierarchical Inheritance
#include<conio.h>
class person
{
private:
char name[30];
int age;
char address[50];
public:
void get_pdata()
{
cout<<"Enter the name:";
cin>>name;

cout<<"nEnter the address:";
cin>>address;
}
void put_pdata()
{
cout<<"Name: "<<name;
cout<<"nAddress: "<<address;
}
};
class student : private person
{
private:
int rollno;
float marks;
public:
void get_stdata()
{
get_pdata();
cin>>rollno;
cout<<"nEnter marks:";
cin>>marks;
}
void put_stdata()
{
put_pdata();
cout<<"nRoll Number: "<<rollno;
cout<<"nMarks: "<<marks;
}
};
class faculty : private person
{
private:
char dept[20];
float salary;
public:
void get_fdata()
{
get_pdata();
cout<<"nEnter department:";
cin>>dept;
cout<<"nEnter salary:";
cin>>salary;
}
void put_fdata()
{
put_pdata();
cout<<"nDepartment: "<<dept;
cout<<"nSalary: "<<salary;
}
};
void main()

{
student st;
faculty fac;
clrscr();
cout<<"Enter the details of the student:n";
st.get_stdata();
cout<<"nEnter the details of the faculty member:n";
fac.get_fdata();
cout<<"nStudent info is:n";
st.put_stdata();
cout<<"nFaculty Member info is:n";
fac.put_fdata();
getch();
}

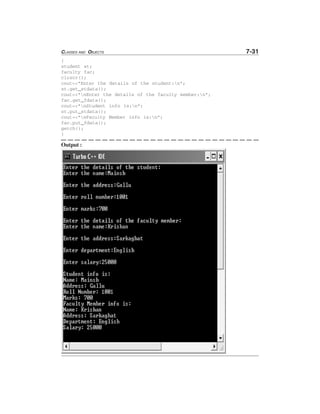

Output :

Here ‘person’ is the base class from which ‘student’ and ‘faculty’ classes have been
derived privately so the public members of the ‘person’ class will become private members
of the ‘student’ class and ‘faculty’ class. But the private members will not be inherited.

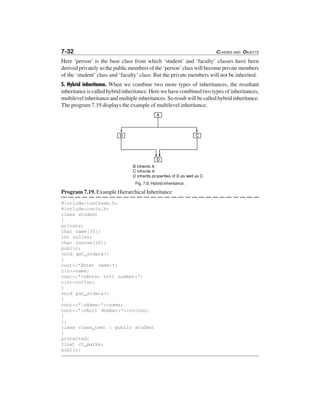

5. Hybrid inheritance. When we combine two more types of inheritances, the resultant
inheritance is called hybrid inheritance. Here we have combined two types of inheritances,
multilevel inheritance and multiple inheritances. So result will be called hybrid inheritance.
The program 7.19 displays the example of multilevel inheritance.
Fig. 7.6. Hybrid inheritance.
Program 7.19. Example Hierarchical Inheritance
#include<conio.h>
class student
{
private:
char name[30];
int rollno;
char course[10];
public:
void get_stdata()
{
cin>>name;
cin>>rollno;
}
void put_stdata()
{
cout<<"nName:"<<name;
cout<<"nRoll Number:"<<rollno;
}
};
class class_test : public student
{
protected:
float ct_marks;
public:

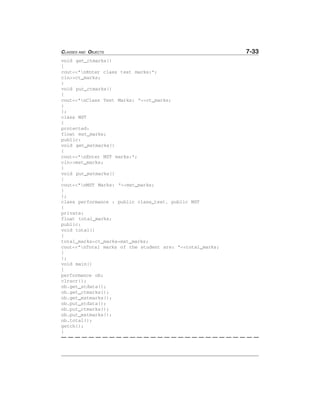

void get_ctmarks()
{
cout<<"nEnter class test marks:";
cin>>ct_marks;
}
void put_ctmarks()
{
cout<<"nClass Test Marks: "<<ct_marks;
}
};
class MST
{
protected:
float mst_marks;
public:
void get_mstmarks()
{
cout<<"nEnter MST marks:";
cin>>mst_marks;
}
void put_mstmarks()
{
cout<<"nMST Marks: "<<mst_marks;
}
};
class performance : public class_test, public MST
{
private:
float total_marks;
public:
void total()
{
total_marks=ct_marks+mst_marks;
cout<<"nTotal marks of the student are: "<<total_marks;
}
};
void main()
{
performance ob;
clrscr();
ob.get_stdata();
ob.get_ctmarks();
ob.get_mstmarks();
ob.put_stdata();
ob.put_ctmarks();
ob.put_mstmarks();
ob.total();
getch();
}

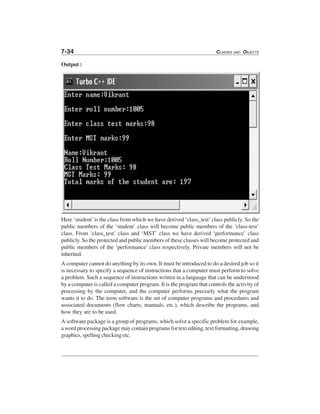

Output :
Here ‘student’is the class from which we have derived ‘class_test’class publicly. So the
public members of the ‘student’ class will become public members of the ‘class-test’
class. From ‘class_test’ class and ‘MST’ class we have derived ‘performance’ class
publicly. So the protected and public members of these classes will become protected and
public members of the ‘performance’ class respectively. Private members will not be
inherited.
A computer cannot do anything by its own. It must be introduced to do a desired job so it
is necessary to specify a sequence of instructions that a computer must perform to solve
a problem. Such a sequence of instructions written in a language that can be understood
by a computer is called a computer program. It is the program that controls the activity of
processing by the computer, and the computer performs precisely what the program
wants it to do. The term software is the set of computer programs and procedures and
associated documents (flow charts, manuals, etc.), which describe the programs, and
how they are to be used.
A software package is a group of programs, which solve a specific problem for example,
a word processing package may contain programs for text editing, text formatting, drawing
graphics, spelling checking etc.

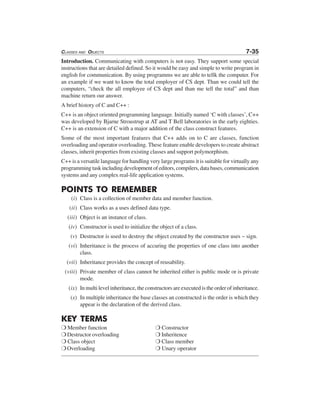

Introduction. Communicating with computers is not easy. They support some special
instructions that are detailed defined. So it would be easy and simple to write program in
english for communication. By using programms we are able to tellk the computer. For
an example if we want to know the total employer of CS dept. Than we could tell the
computers, “check the all employee of CS dept and than me tell the total” and than
machine return our answer.
A brief history of C and C++ :
C++ is an object oriented programming language. Initially named ‘C with classes’, C++
was developed by Bjarne Stroustrup at AT and T Bell laboratories in the early eighties.
C++ is an extension of C with a major addition of the class construct features.
Some of the most important features that C++ adds on to C are classes, function
overloading and operator overloading. These feature enable developers to create abstract
classes, inherit properties from existing classes and support polymorphism.
C++ is a versatile language for handling very large programs it is suitable for virtually any
programming task including development of editors, compilers, data bases, communication
systems and any complex real-life application systems.
POINTS TO REMEMBER
(i) Class is a collection of member data and member function.
(ii) Class works as a uses defined data type.
(iii) Object is an instance of class.
(iv) Constructor is used to initialize the object of a class.
(v) Destructor is used to destroy the object created by the constructor uses ~ sign.
(vi) Inheritance is the process of accuring the properties of one class into another
class.
(vii) Inheritance provides the concept of reusability.
(viii) Private member of class cannot be inherited either is public mode or is private
mode.
(ix) In multi level inheritance, the constructors are executed is the order of inheritance.
(x) In multiple inheritance the base classes an constructed is the order is which they
appear is the declaration of the derived class.
KEY TERMS
❍ Member function ❍ Constructor
❍ Destructor overloading ❍ Inheritence
❍ Class object ❍ Class member
❍ Overloading ❍ Unary operator

MULTIPLE CHOICE QUESTIONS
1. To giving such special meaning to an operator is known as
(a) Operator precedence (b) Operator overloading
(c) (a) and (b) (d) None of above
2. We can overload all the C++ operators except the class member access operators
(a) Scope resolution operator and Size of operator
(b) Conditional operator
(c) (a) and (b)
(d) Assignment operator
3. Friend function will have only one argument for
(a) Unary operators (b) Binary operators
(c) A and B (d) None of above
4. Friend function will have two argument for
5. A member function has one argument for
(c) Conditional operators (d) None of above
6. A binary operator is an operator that performs its operation on
(a) One operand (b) Two operand
7. The addition operator (+) is an example of
(a) Binary operators (b) Unary operators
8. The keyword followed by the operator to overload operator is
(a) Operator (b) Load
(c) ~ (d) ++
9. In inheritance the new classes called derived classes are created from existing
classes called.
(a) Base classes (b) Old class
(c) Parent class (d) All of above
10. The accessibility levels and the way of derivation can be
(a) Private (b) Protected and Public
11. The default accessibility mode is
(a) Private (b) Protected and Public

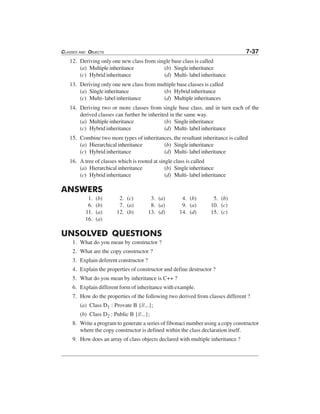

12. Deriving only one new class from single base class is called
(a) Multiple inheritance (b) Single inheritance
(c) Hybrid inheritance (d) Multi- label inheritance
13. Deriving only one new class from multiple base classes is called
(a) Single inheritance (b) Hybrid inheritance
(c) Multi- label inheritance (d) Multiple inheritances
14. Deriving two or more classes from single base class. and in turn each of the
derived classes can further be inherited in the same way.
(a) Multiple inheritance (b) Single inheritance
15. Combine two more types of inheritances, the resultant inheritance is called
(a) Hierarchical inheritance (b) Single inheritance
16. A tree of classes which is rooted at single class is called
(a) Hierarchical inheritance (b) Single inheritance
ANSWERS
1. (b) 2. (c) 3. (a) 4. (b) 5. (b)
6. (b) 7. (a) 8. (a) 9. (a) 10. (c)
11. (a) 12. (b) 13. (d) 14. (d) 15. (c)
16. (a)
UNSOLVED QUESTIONS
1. What do you mean by constructor ?
2. What are the copy constructor ?
3. Explain deferent constructor ?
4. Explain the properties of constructor and define destructor ?
5. What do you mean by inheritance is C++ ?
6. Explain different form of inheritance with example.
7. How do the properties of the following two derived from classes different ?
(a) Class D1 : Provate B {//...};
(b) Class D2 : Public B {//...};
8. Write a program to generate a series of fibonaci number using a copy constructor
where the copy constructor is defined within the class declaration itself.
9. How does an array of class objects declared with multiple inheritance ?

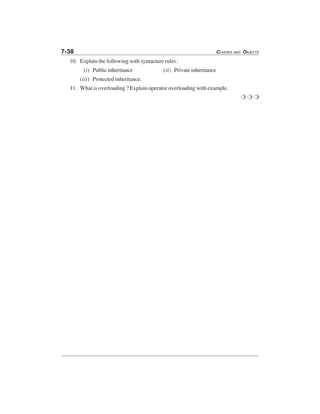

10. Explain the following with syntacture rules :
(i) Public inheritance (ii) Private inheritance
(iii) Protected inheritance.
11. What is overloading ? Explain operator overloading with example.
❍ ❍ ❍

Class and object in C++ By Pawan Thakur

More Related Content

What's hot

Viewers also liked

Similar to Class and object in C++ By Pawan Thakur

More from Govt. P.G. College Dharamshala

Recently uploaded

Class and object in C++ By Pawan Thakur
