1. CISCO ROUTERS
Presented by:
Shoaib Iqbal
IT Engineer
ODSI
Date: 11-02-2014

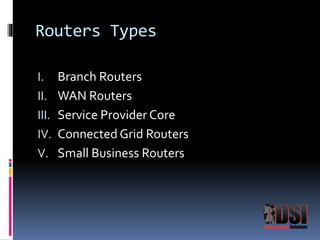

2. Routers Types
I. Branch Routers
II. WAN Routers
III. Service Provider Core
IV. Connected Grid Routers
V. Small Business Routers

3. I. Branch Routers
 Cisco 800 Series Routers
 Cisco 1900 Series Integrated Services Routers
 Cisco 2900 Series Integrated Services Routers
 Cisco 3900 Series Integrated Services Routers

4. Branch Routers/800 Series
 Ideal for small offices and teleworkers, or to
service providers to deploy as part of their
managed network services
 Delivers data, security, wireless, third-generation
wireless, Survivable Remote Site
Telephony (SRST), and Cisco Unified Border
Element (CUBE)
 Provides for highly scalable true zero touch
deployments

5. Ports Description 800 series
1 2 3 4 5 6
1 WAN port 2 LAN ports
3 Console port 4 USB port
5 Power Connector 6 Security Lock

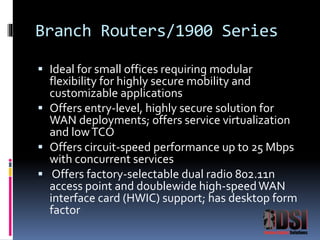

6. Branch Routers/1900 Series
 Ideal for small offices requiring modular
flexibility for highly secure mobility and
customizable applications
 Offers entry-level, highly secure solution for
WAN deployments; offers service virtualization
and low TCO
 Offers circuit-speed performance up to 25 Mbps
with concurrent services
 Offers factory-selectable dual radio 802.11n
access point and doublewide high-speed WAN
interface card (HWIC) support; has desktop form
factor

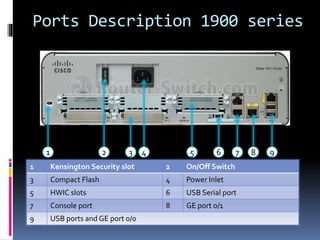

7. Ports Description 1900 series
1 2 3 4 5 6 7 8 9
1 Kensington Security slot 2 On/Off Switch
3 Compact Flash 4 Power Inlet
5 HWIC slots 6 USB Serial port
7 Console port 8 GE port 0/1
9 USB ports and GE port 0/0

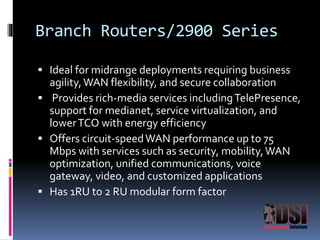

8. Branch Routers/2900 Series
 Ideal for midrange deployments requiring business
agility, WAN flexibility, and secure collaboration
 Provides rich-media services including TelePresence,
support for medianet, service virtualization, and
lower TCO with energy efficiency
 Offers circuit-speed WAN performance up to 75
Mbps with services such as security, mobility, WAN
optimization, unified communications, voice
gateway, video, and customized applications
 Has 1RU to 2 RU modular form factor

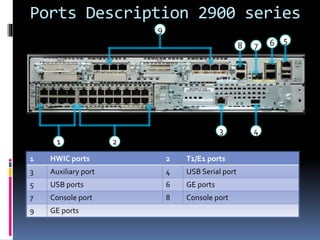

9. Ports Description 2900 series
1
6 5 8 7
9
3 4
2
1 HWIC ports 2 T1/E1 ports
3 Auxiliary port 4 USB Serial port
5 USB ports 6 GE ports
7 Console port 8 Console port
9 GE ports

10. Branch Routers/3900 Series
 Ideal for high-end deployments requiring business
continuity, WAN flexibility, WAN optimization, superior
collaboration capabilities, and investment protection
 Delivers scalable rich-media services including
TelePresence, support for medianet, highest density of
service virtualization, and lowest total cost of ownership
(TCO) with energy efficiency
 Offers field-upgradeable motherboard, circuit-speed WAN
performance up to 350 Mbps with services such as security,
mobility, WAN optimization, unified communications,
video, and customized applications
 Has three rack unit (3RU) modular form factor

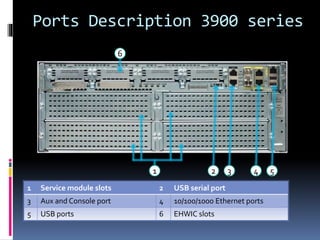

11. Ports Description 3900 series
1 2 3 4 5
6
1 Service module slots 2 USB serial port
3 Aux and Console port 4 10/100/1000 Ethernet ports
5 USB ports 6 EHWIC slots

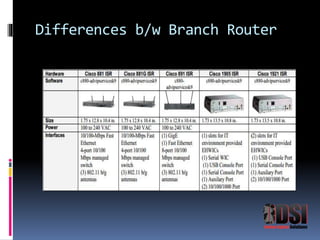

12. Differences b/w Branch Router

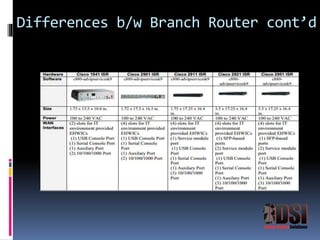

13. Differences b/w Branch Router cont’d

14. Differences b/w Branch Router cont’d

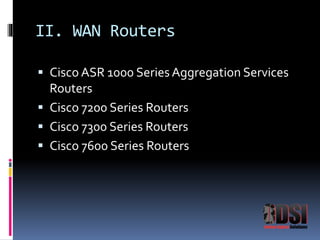

15. II. WAN Routers
 Cisco ASR 1000 Series Aggregation Services
Routers
 Cisco 7200 Series Routers
 Cisco 7300 Series Routers
 Cisco 7600 Series Routers

16. WAN Routers/ASR 1000 Series
 Ideal for medium-sized to large enterprises and service
providers
 Industry-leading performance, service capabilities,
reliability, and efficiencies in a compact form factor
supporting up to 40 Gbps
 Highly secure, high-performance and integrated hardware-based
services without the need for additional hardware
modules
 Extends network as a platform for cloud computing to help
conserve resources and optimize performance
 Cisco Unified Border Element support for SIP trunking;
lowers total communications costs, optimizes network
interconnections and enables rich collaboration
applications.

17. Ports Description 1000 series
1 2 3 4 5 6
1 LEDs 2 LAN ports
3 Expansion card slots 4 WAN port
5 Aux and Console port 6 Expansion card slot

18. Differences b/w ASR 1000 series

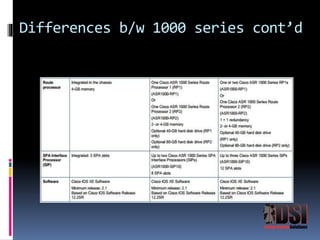

19. Differences b/w 1000 series cont’d

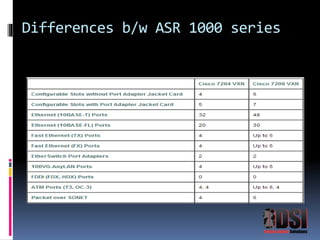

20. Differences b/w ASR 1000 series

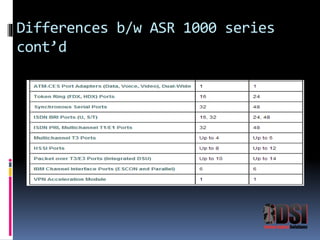

21. Differences b/w ASR 1000 series
cont’d

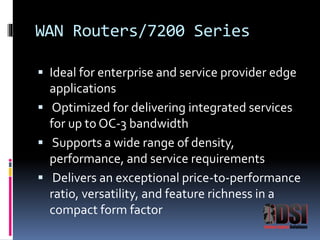

22. WAN Routers/7200 Series
 Ideal for enterprise and service provider edge
applications
 Optimized for delivering integrated services
for up to OC-3 bandwidth
 Supports a wide range of density,
performance, and service requirements
 Delivers an exceptional price-to-performance
ratio, versatility, and feature richness in a
compact form factor

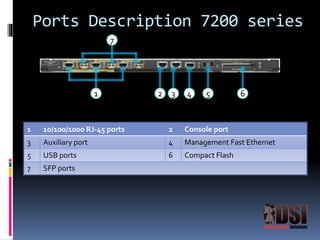

23. Ports Description 7200 series
7
1 2 3 4 5 6
1 10/100/1000 RJ-45 ports 2 Console port
3 Auxiliary port 4 Management Fast Ethernet
5 USB ports 6 Compact Flash
7 SFP ports

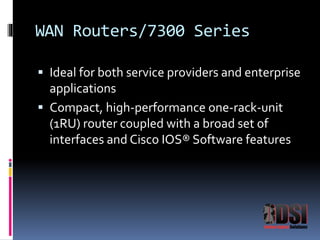

24. WAN Routers/7300 Series
 Ideal for both service providers and enterprise
applications
 Compact, high-performance one-rack-unit
(1RU) router coupled with a broad set of
interfaces and Cisco IOS® Software features

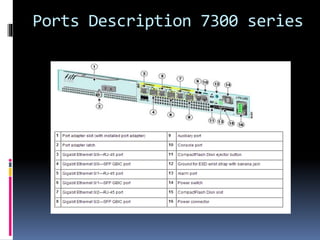

25. Ports Description 7300 series

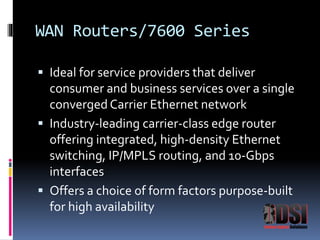

26. WAN Routers/7600 Series
 Ideal for service providers that deliver
consumer and business services over a single
converged Carrier Ethernet network
 Industry-leading carrier-class edge router
offering integrated, high-density Ethernet
switching, IP/MPLS routing, and 10-Gbps
interfaces
 Offers a choice of form factors purpose-built
for high availability

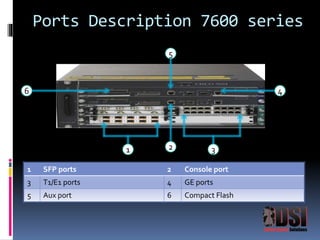

27. 6
Ports Description 7600 series
5
4
1 2 3
1 SFP ports 2 Console port
3 T1/E1 ports 4 GE ports
5 Aux port 6 Compact Flash

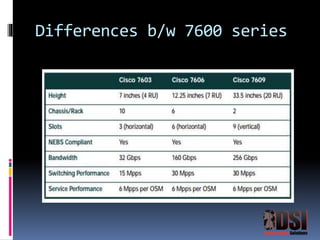

28. Differences b/w 7600 series

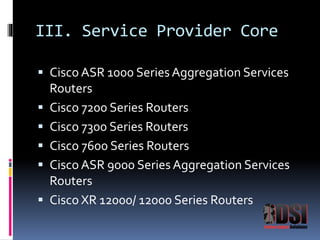

29. III. Service Provider Core
 Cisco ASR 1000 Series Aggregation Services
Routers
 Cisco 7200 Series Routers
 Cisco 7300 Series Routers
 Cisco 7600 Series Routers
 Cisco ASR 9000 Series Aggregation Services
Routers
 Cisco XR 12000/ 12000 Series Routers

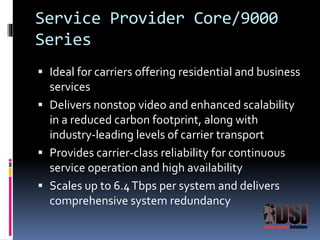

30. Service Provider Core/9000
Series
 Ideal for carriers offering residential and business
services
 Delivers nonstop video and enhanced scalability
in a reduced carbon footprint, along with
industry-leading levels of carrier transport
 Provides carrier-class reliability for continuous
service operation and high availability
 Scales up to 6.4 Tbps per system and delivers
comprehensive system redundancy

31. Ports Description 9000 series
1
8 7
2 3 4 5 6
1 Redundant power supplies 2 GPS interface
3 BITS 4 Console and Aux Management
5 EOBC ports 6 SFP ports
7 Sub-slot 1 8 Sub-slot 0

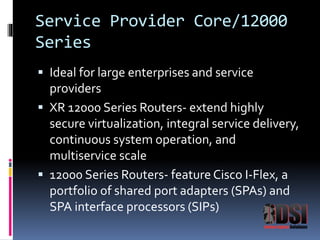

32. Service Provider Core/12000
Series
 Ideal for large enterprises and service
providers
 XR 12000 Series Routers- extend highly
secure virtualization, integral service delivery,
continuous system operation, and
multiservice scale
 12000 Series Routers- feature Cisco I-Flex, a
portfolio of shared port adapters (SPAs) and
SPA interface processors (SIPs)

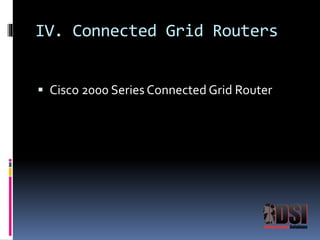

33. IV. Connected Grid Routers
 Cisco 2000 Series Connected Grid Router

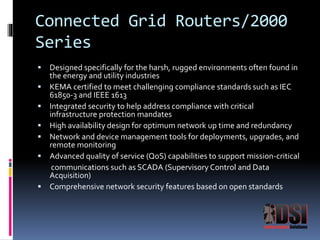

34. Connected Grid Routers/2000
Series
 Designed specifically for the harsh, rugged environments often found in
the energy and utility industries
 KEMA certified to meet challenging compliance standards such as IEC
61850-3 and IEEE 1613
 Integrated security to help address compliance with critical
infrastructure protection mandates
 High availability design for optimum network up time and redundancy
 Network and device management tools for deployments, upgrades, and
remote monitoring
 Advanced quality of service (QoS) capabilities to support mission-critical
communications such as SCADA (Supervisory Control and Data
Acquisition)
 Comprehensive network security features based on open standards

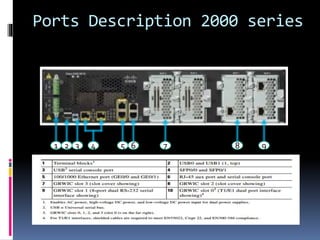

35. Ports Description 2000 series
1 2 3 4 5 6 7 8 9

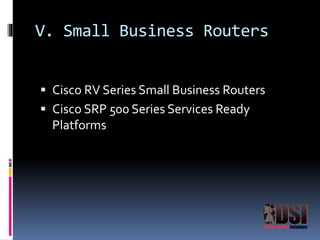

36. V. Small Business Routers
 Cisco RV Series Small Business Routers
 Cisco SRP 500 Series Services Ready
Platforms

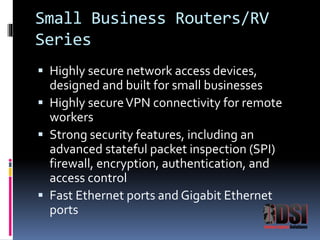

37. Small Business Routers/RV
Series
 Highly secure network access devices,
designed and built for small businesses
 Highly secure VPN connectivity for remote
workers
 Strong security features, including an
advanced stateful packet inspection (SPI)
firewall, encryption, authentication, and
access control
 Fast Ethernet ports and Gigabit Ethernet
ports

38. Ports Description RV series
3
1 2
1 10/100 Fast Ethernet ports 2 10/100 Fast Ethernet WAN
3 External Antennas

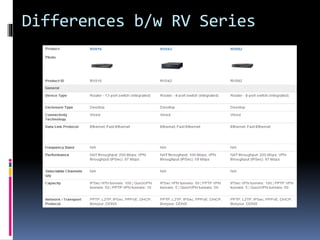

39. Differences b/w RV Series

40. Differences b/w RV Series cont’d

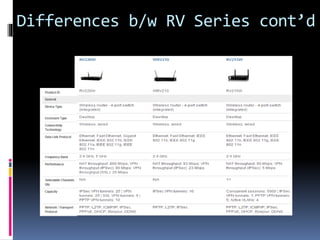

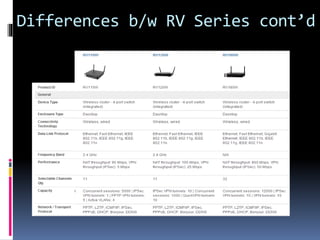

41. Differences b/w RV Series cont’d

42. Small Business Routers/SRP
500 Series
 Help enable service providers to deliver
differentiated, converged service offers that
increase bandwidth usage and average revenue
per user while reducing customer churn
 Fixed-configuration customer premises
equipment (CPE) to enable service providers to
create, provision, and deploy premium revenue-generating
services to small businesses
 Support a variety of high-quality voice, data,
security, wireless, and application services.

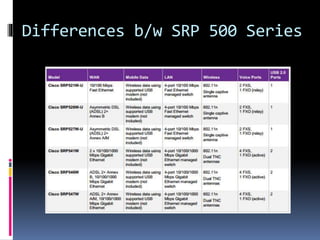

43. Differences b/w SRP 500 Series

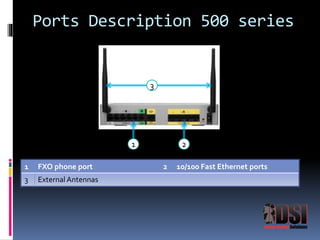

44. Ports Description 500 series
1
3
2
1 FXO phone port 2 10/100 Fast Ethernet ports
3 External Antennas
