This document outlines steps for implementing a continuous integration workflow including code driven development, automated testing environments, and continuous deployment. It discusses problems with current development processes and how continuous integration addresses these by merging code daily and enabling deployment every day. It then provides 14 steps for transitioning to this workflow, covering tools like Git, Bitbucket, Jenkins, Vagrant, and scripts for provisioning servers and deploying code between environments.

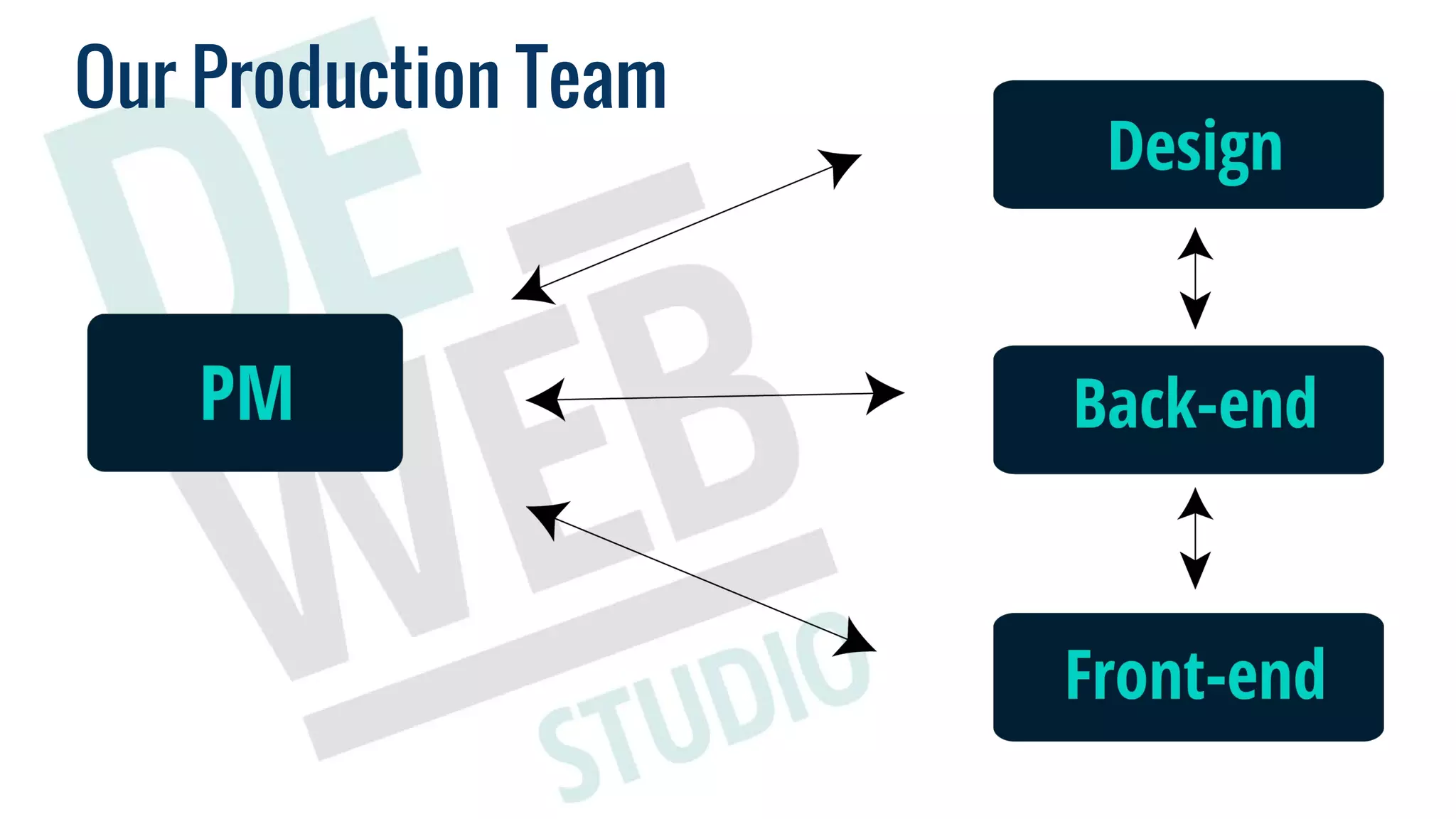

2. Development Team StructureOur Production Team

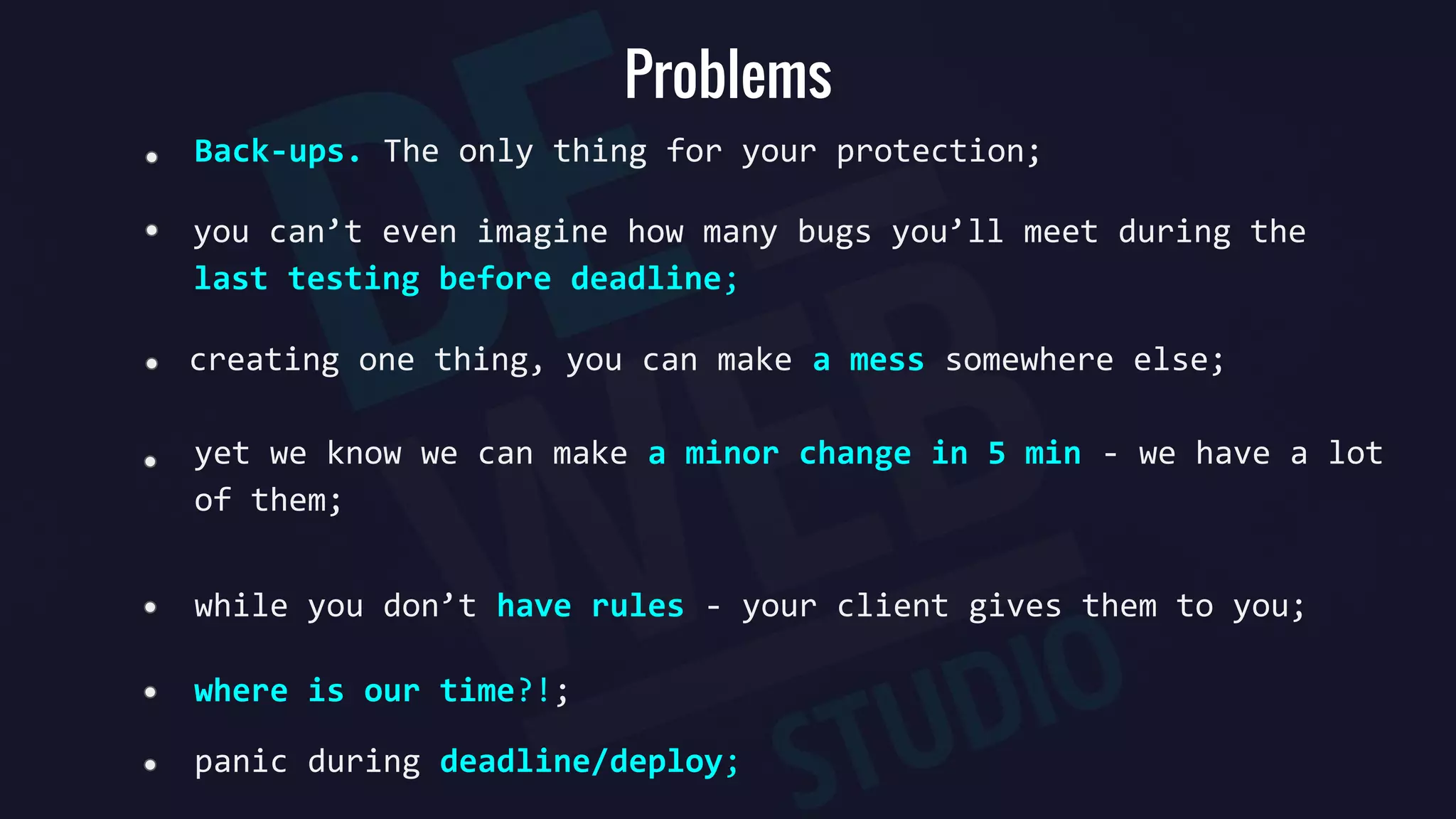

3. Problems
Back-ups. The only thing for your protection;
creating one thing, you can make a mess somewhere else;
yet we know we can make a minor change in 5 min - we have a lot
of them;
you can’t even imagine how many bugs you’ll meet during the
last testing before deadline;
where is our time?!;
while you don’t have rules - your client gives them to you;
panic during deadline/deploy;

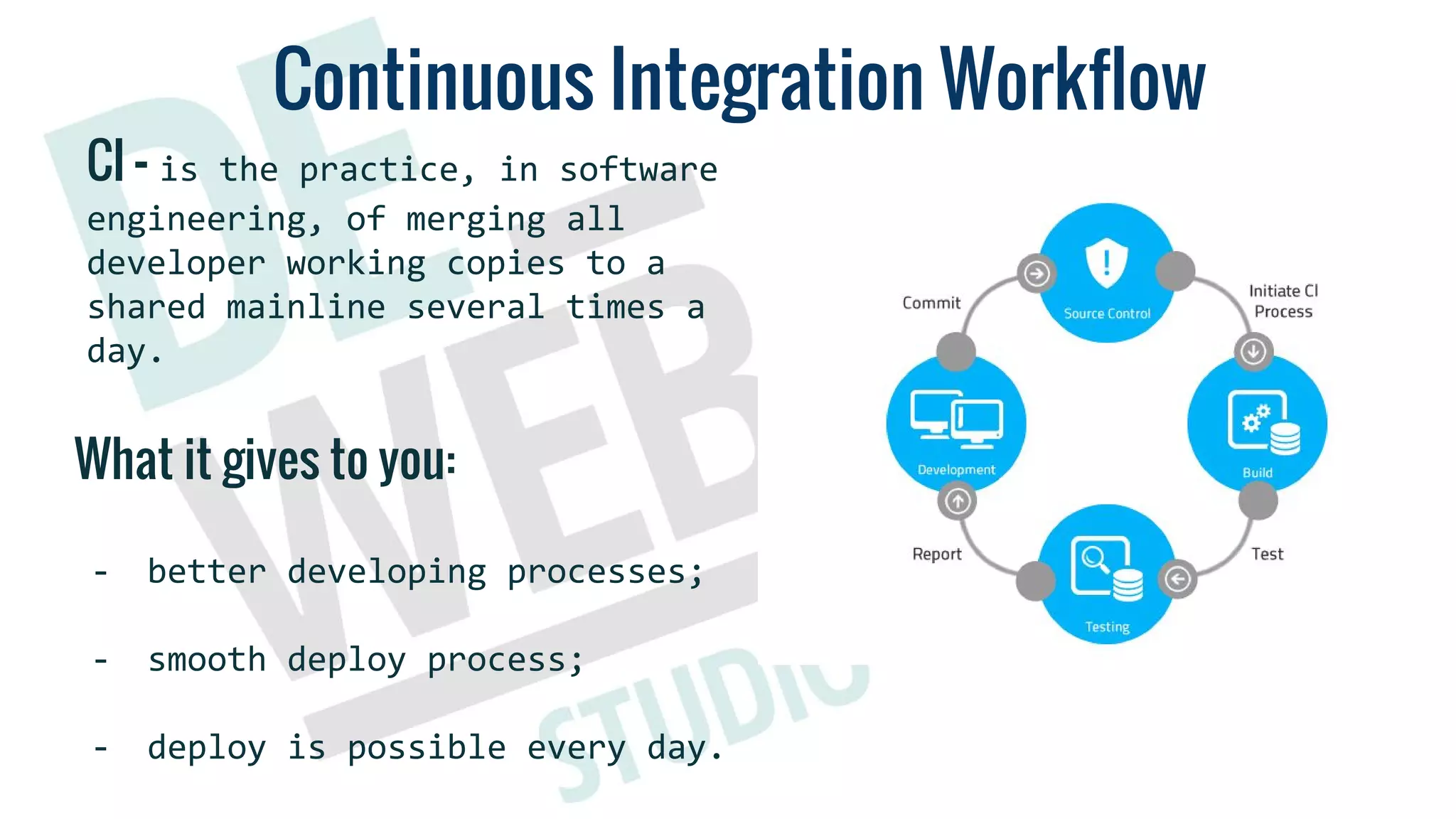

4. Continuous Integration Workflow
CI - is the practice, in software
engineering, of merging all
developer working copies to a
shared mainline several times a
day.
What it gives to you:
- better developing processes;
- smooth deploy process;
- deploy is possible every day.

5. Continuous Integration Workflow

7. Step 1. Code Driven Development

8. Step 2. Understanding of how it works

9. CI-BOX

10. CI-BOX DevOps

11. BACK-END part

13. Principles
Be lazy
Be productive

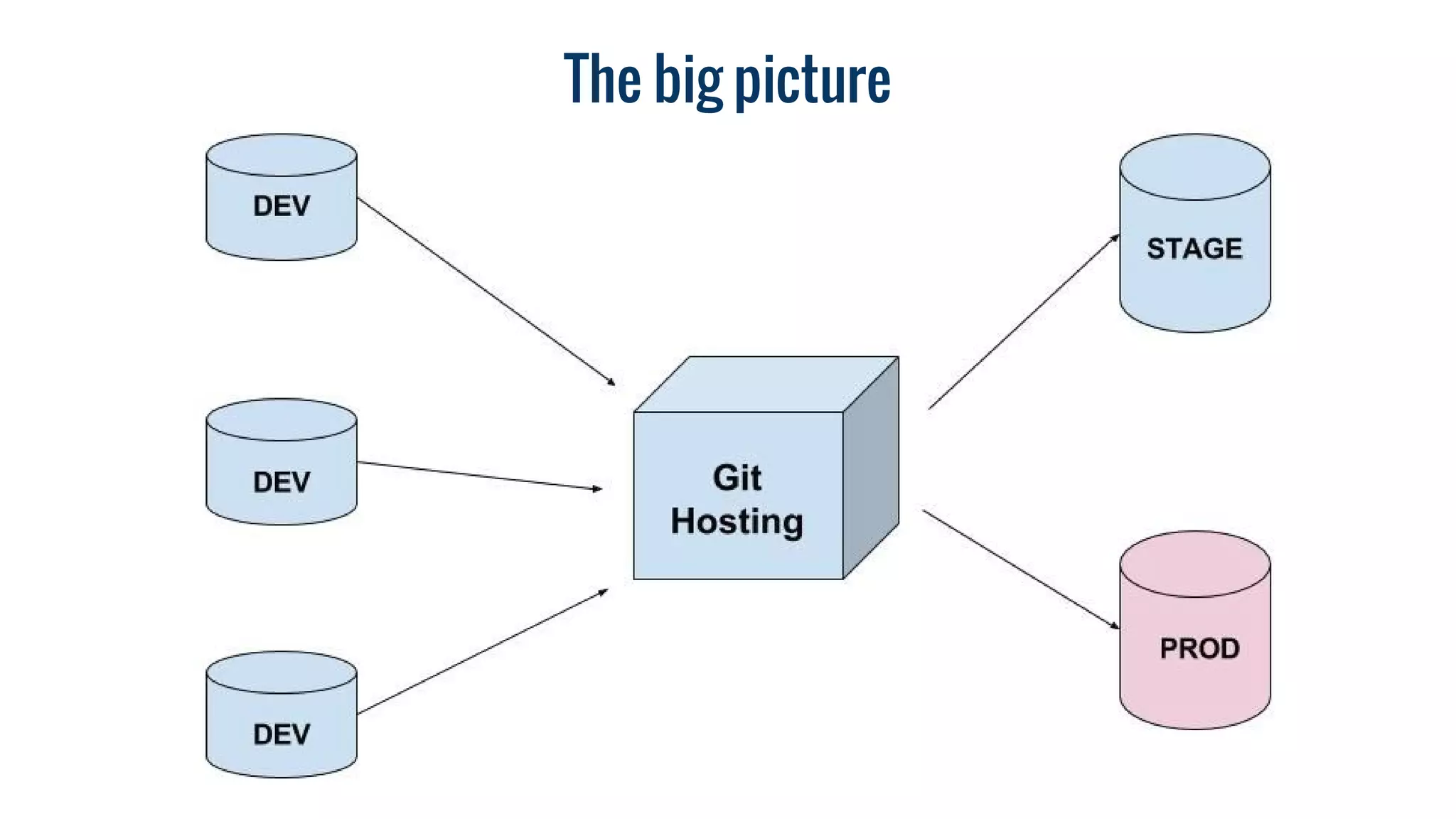

14. The big picture

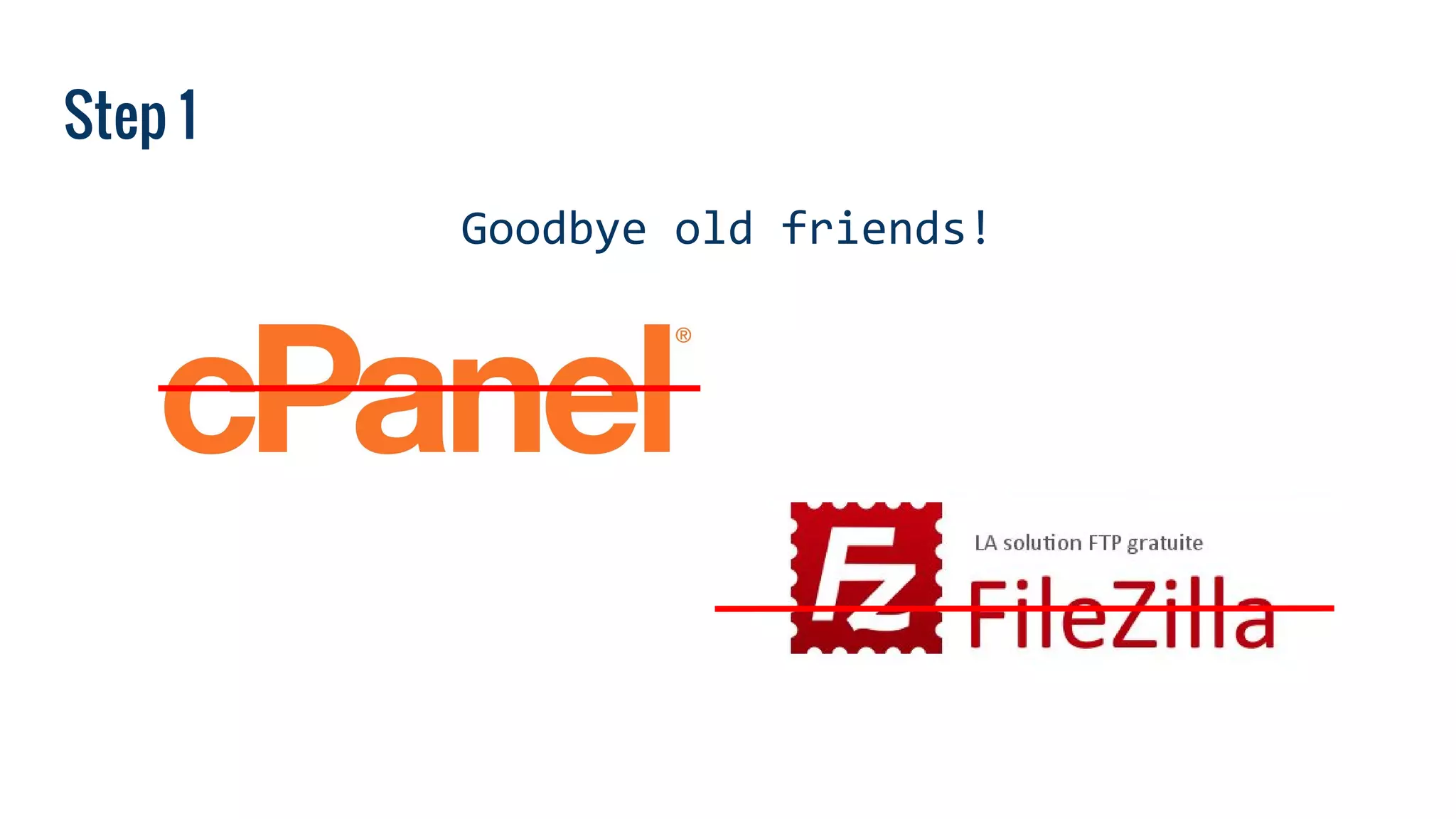

15. Step 1
Goodbye old friends!

16. Step 2
Start working with Console, Learn SSH

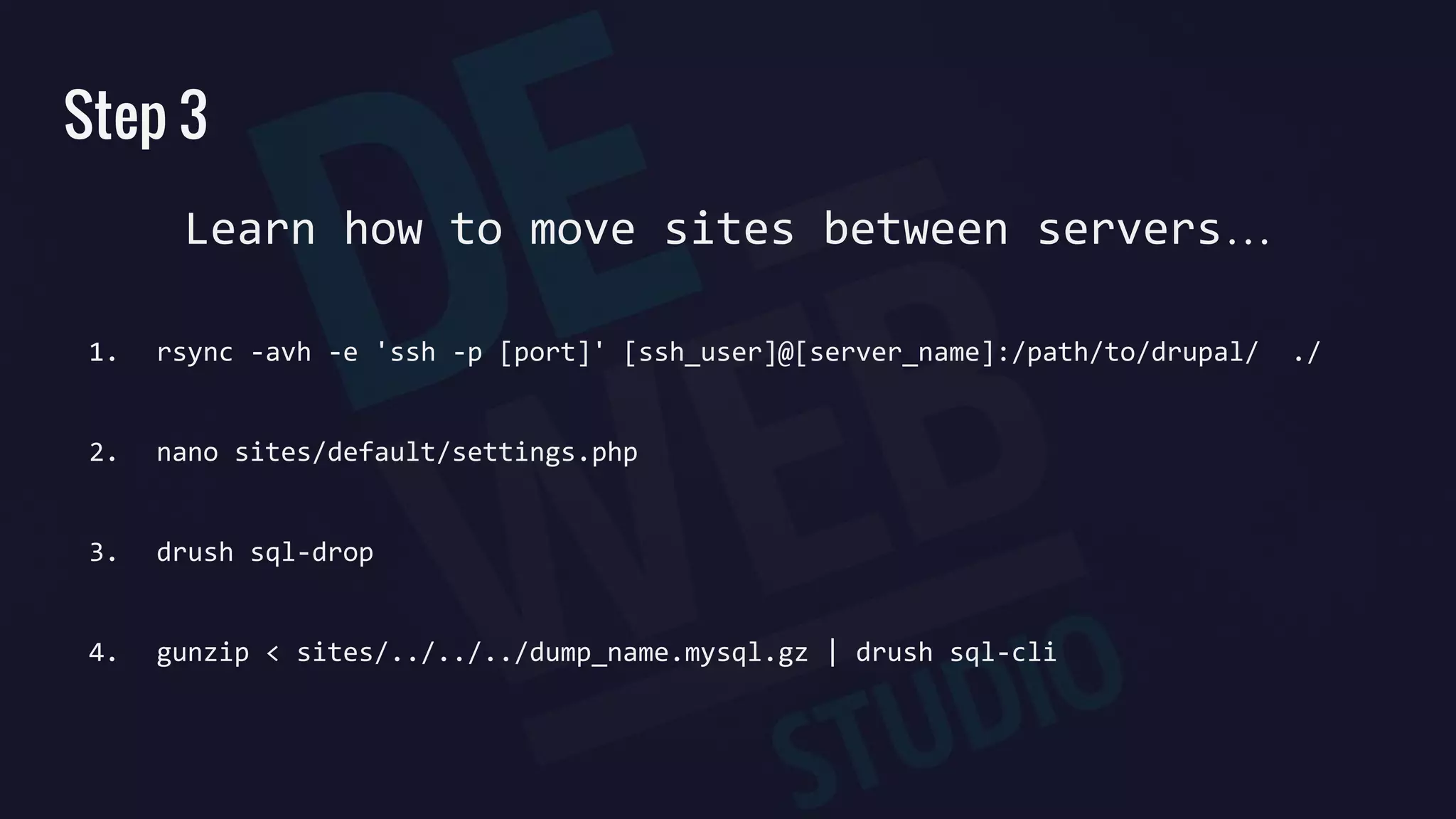

17. Step 3
Learn how to move sites between servers…
1. rsync -avh -e 'ssh -p [port]' [ssh_user]@[server_name]:/path/to/drupal/ ./
2. nano sites/default/settings.php
3. drush sql-drop
4. gunzip < sites/../../../dump_name.mysql.gz | drush sql-cli

18. Learn how to automate server provisioning
Step 4

19. Step 5
Learn about Vagrant

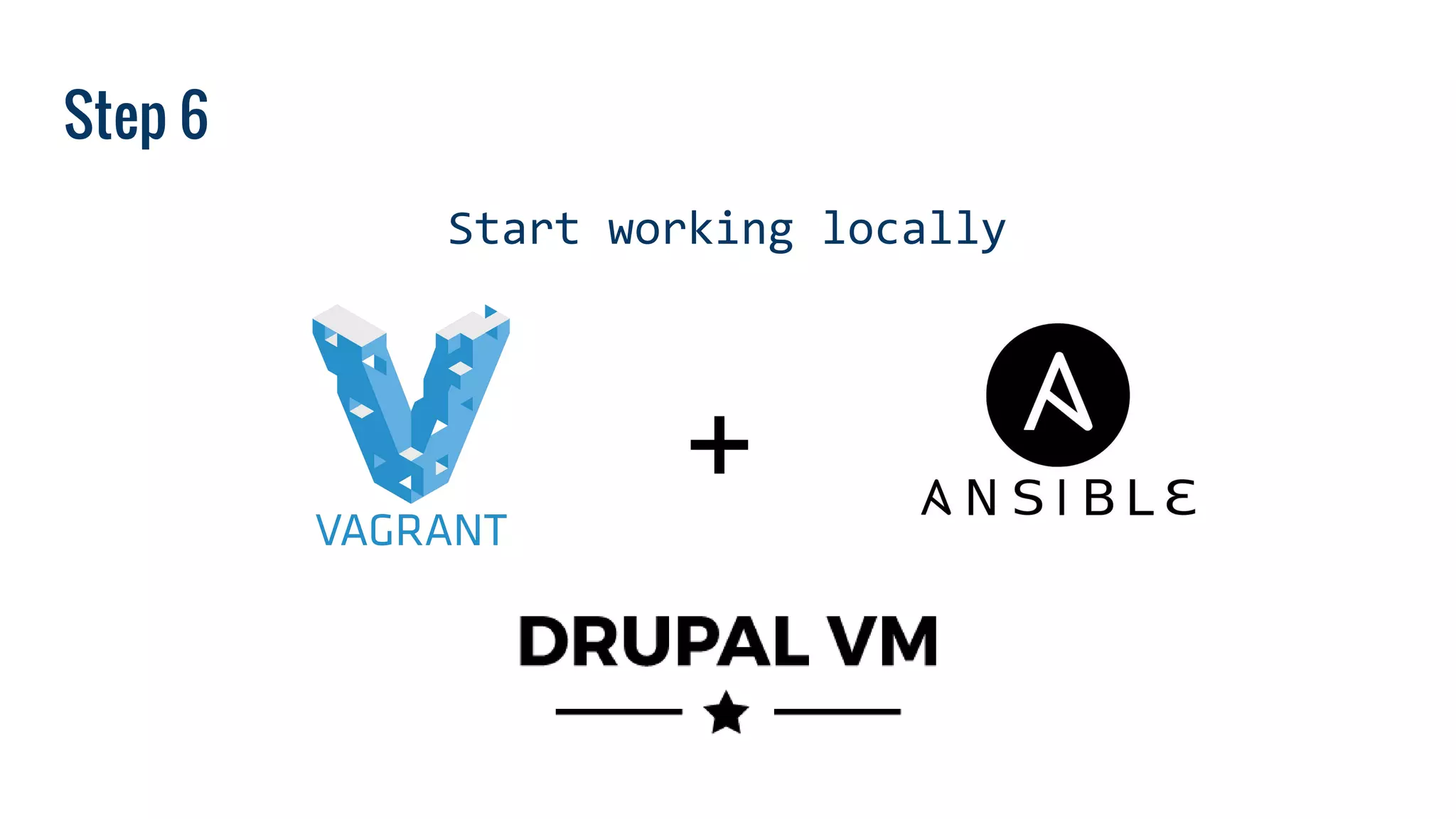

20. Step 6
Start working locally
+

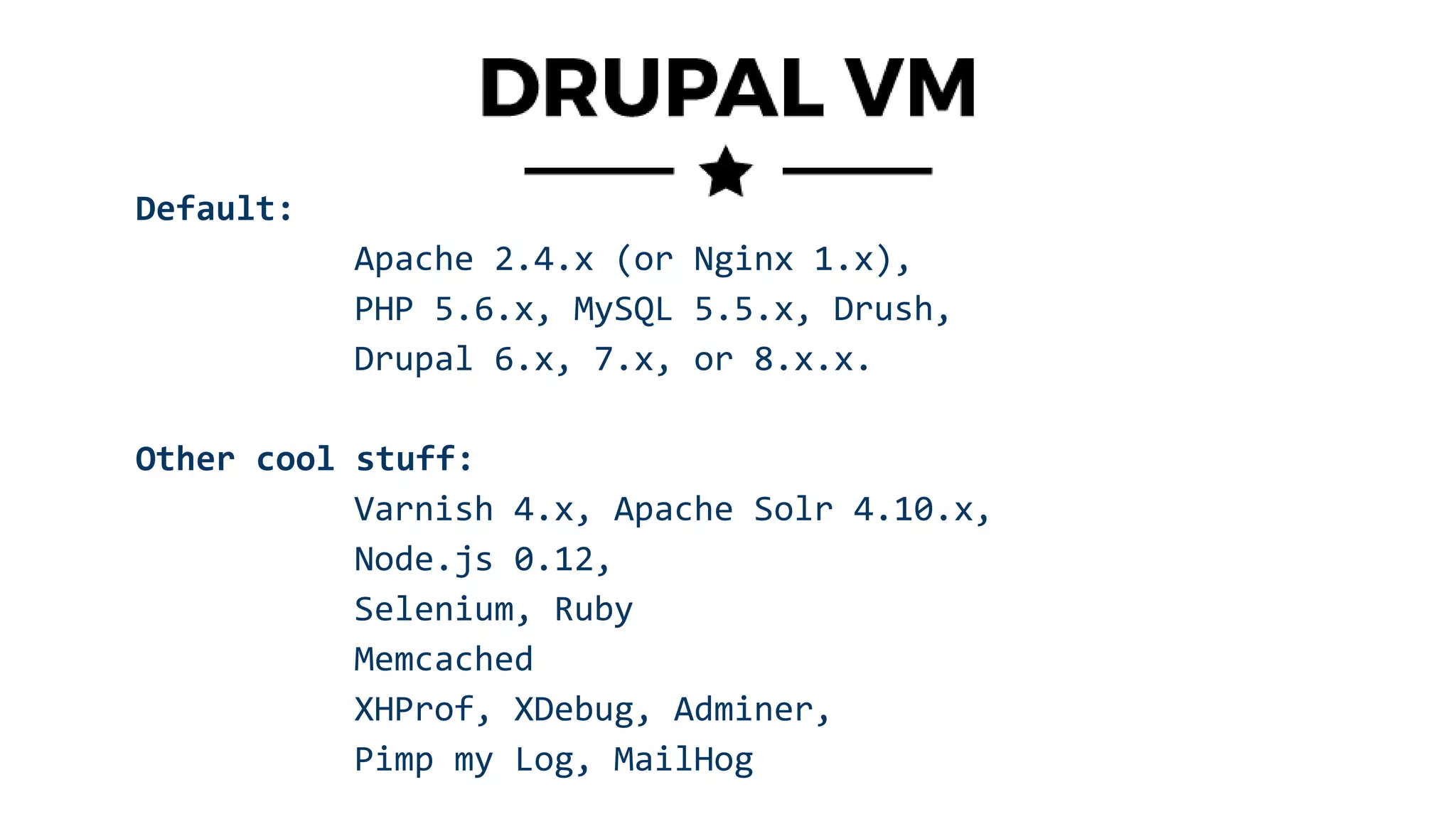

21. Default:
Apache 2.4.x (or Nginx 1.x),
PHP 5.6.x, MySQL 5.5.x, Drush,
Drupal 6.x, 7.x, or 8.x.x.
Other cool stuff:
Varnish 4.x, Apache Solr 4.10.x,
Node.js 0.12,
Selenium, Ruby
Memcached
XHProf, XDebug, Adminer,
Pimp my Log, MailHog

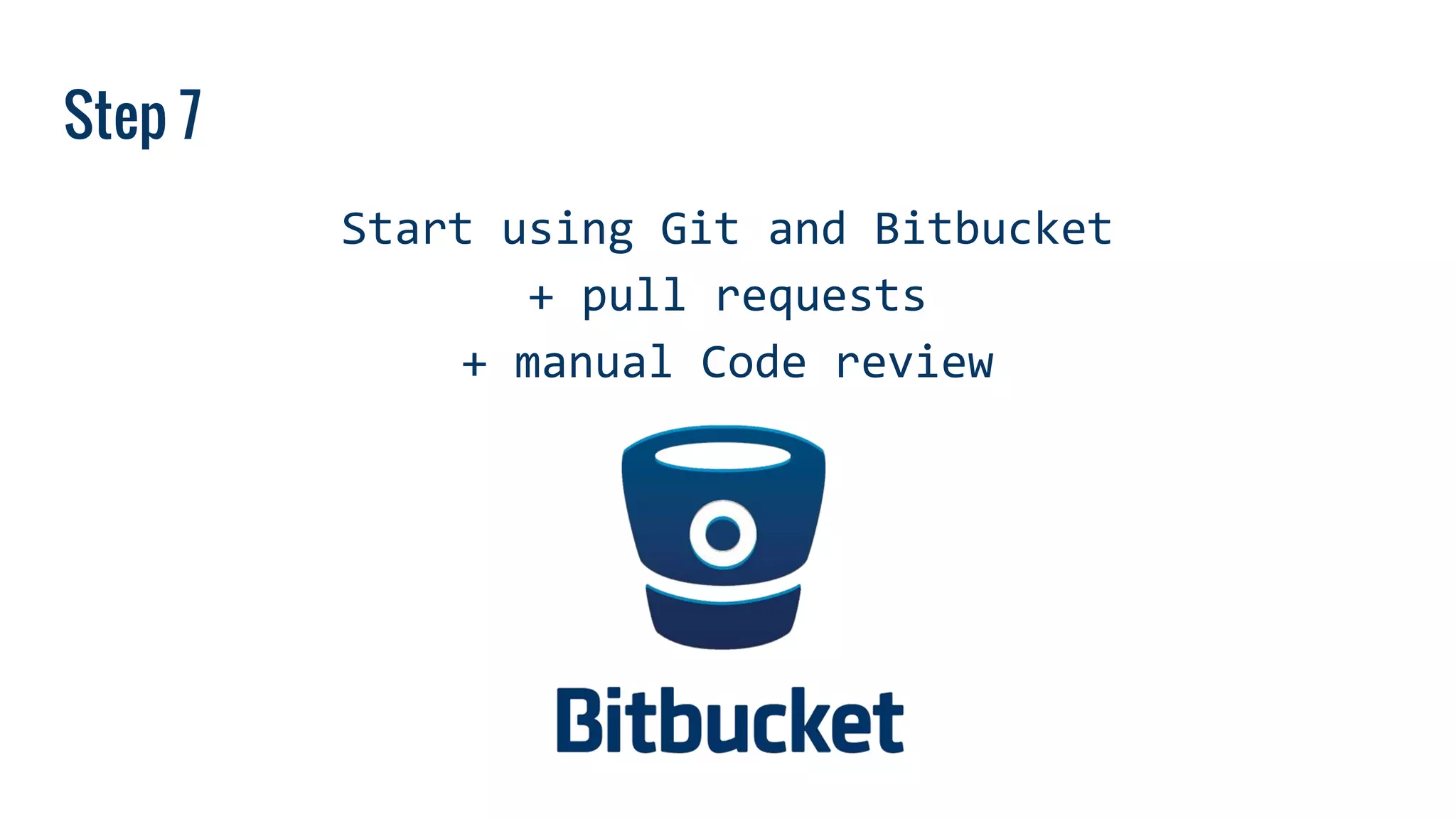

22. Step 7
Start using Git and Bitbucket
+ pull requests
+ manual Code review

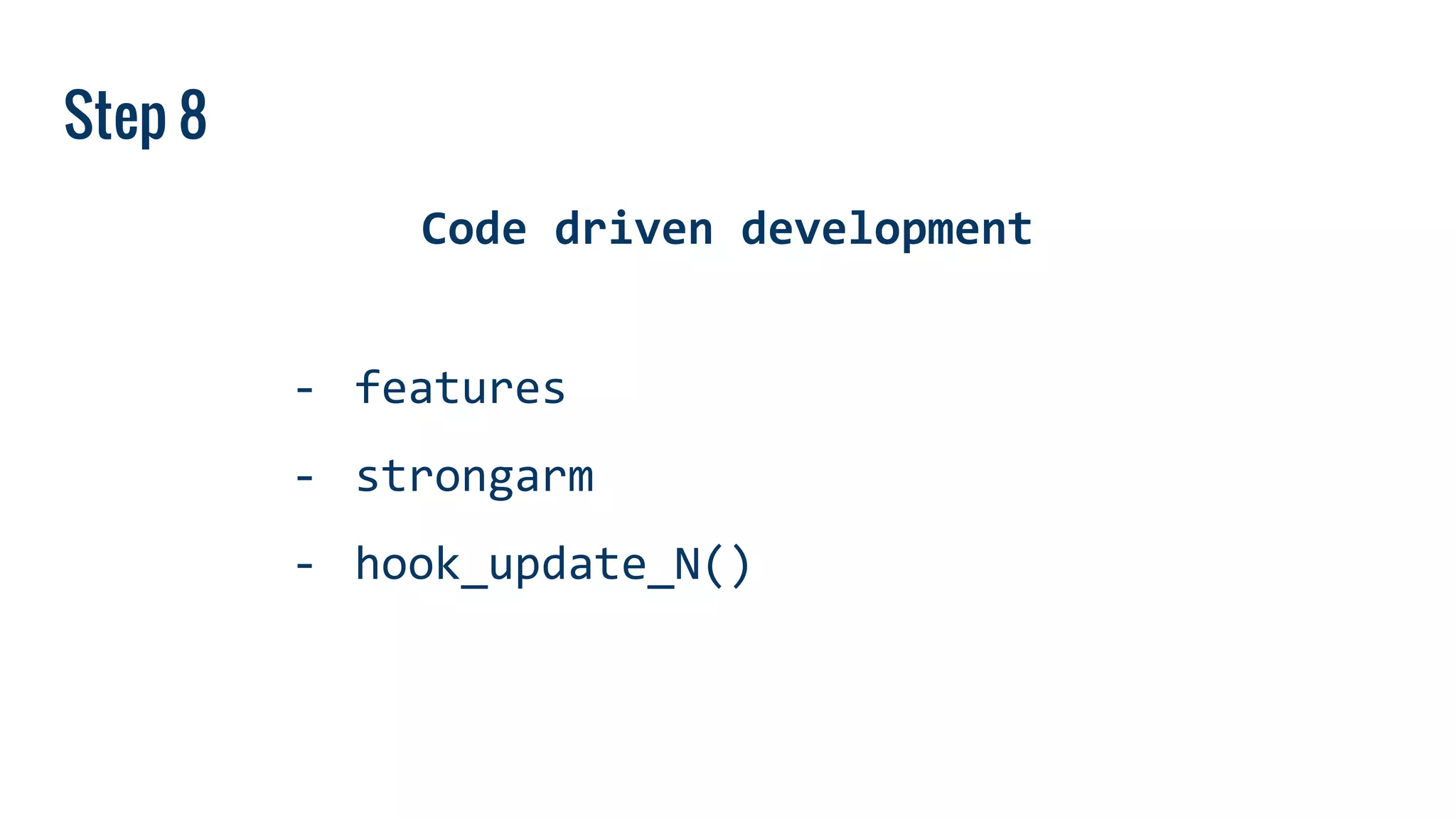

23. Step 8
Code driven development
- features
- strongarm
- hook_update_N()

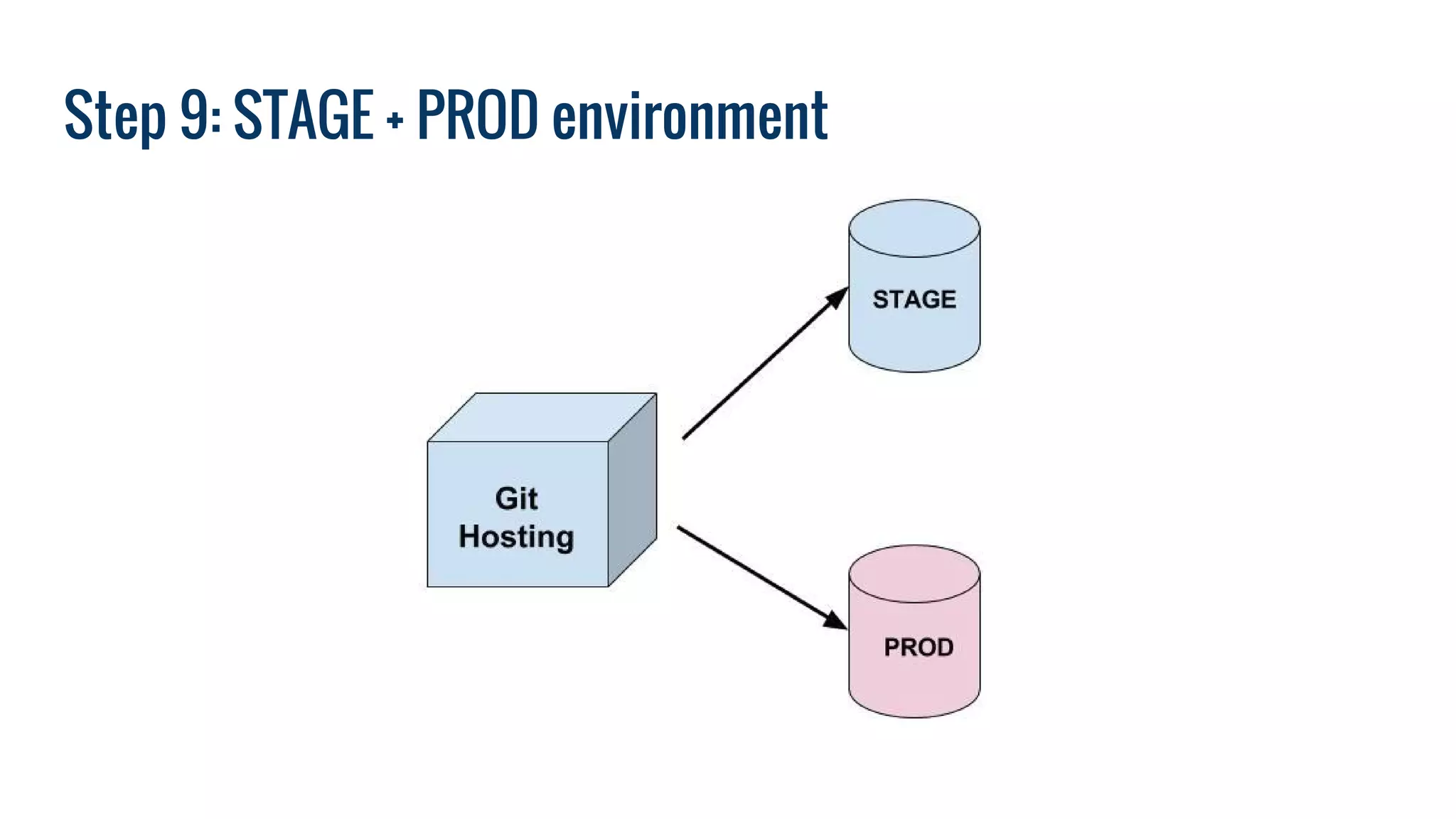

24. Step 9: STAGE + PROD environment

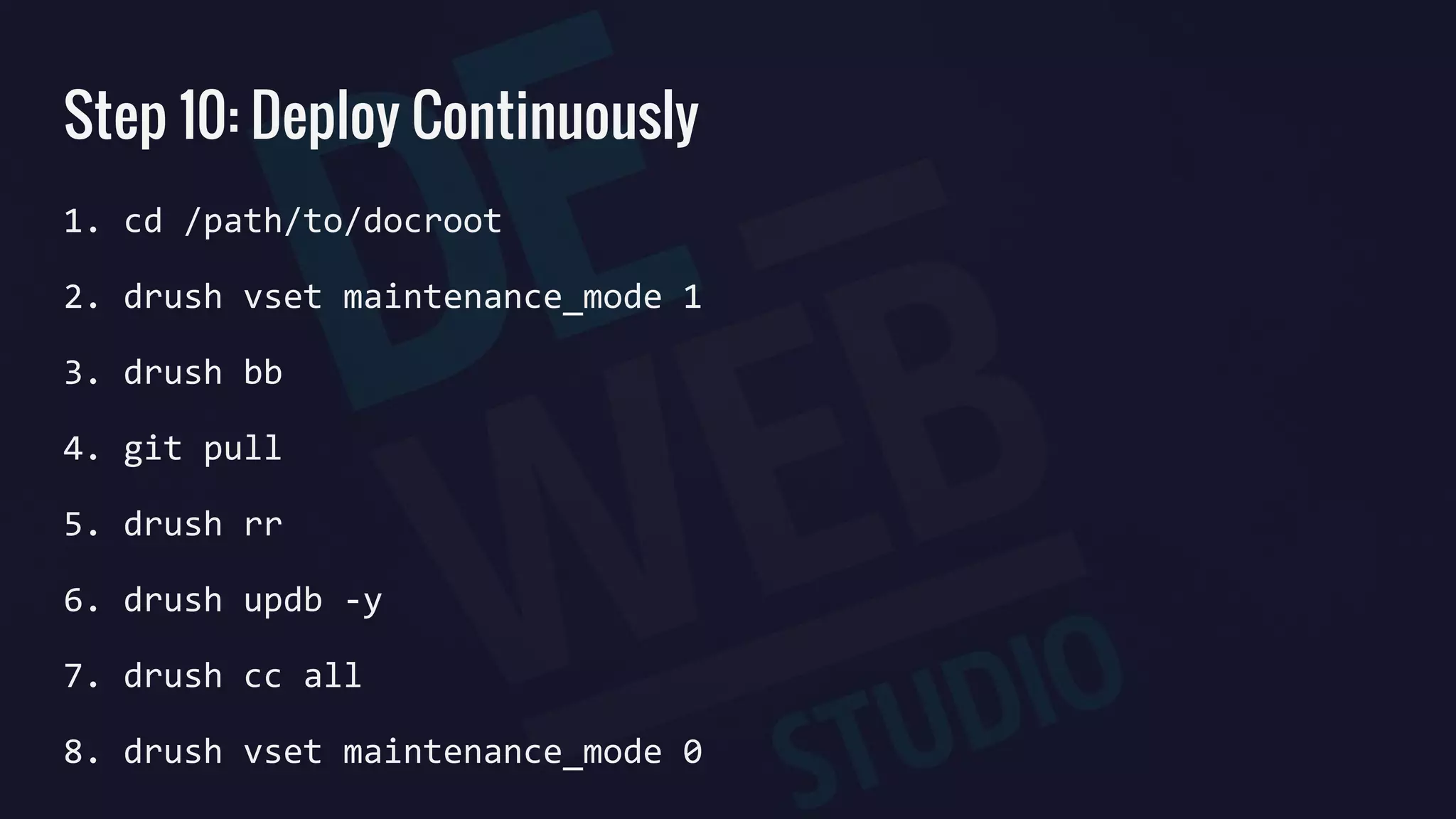

25. Step 10: Deploy Continuously
1. cd /path/to/docroot
2. drush vset maintenance_mode 1
3. drush bb
4. git pull
5. drush rr
6. drush updb -y
7. drush cc all
8. drush vset maintenance_mode 0

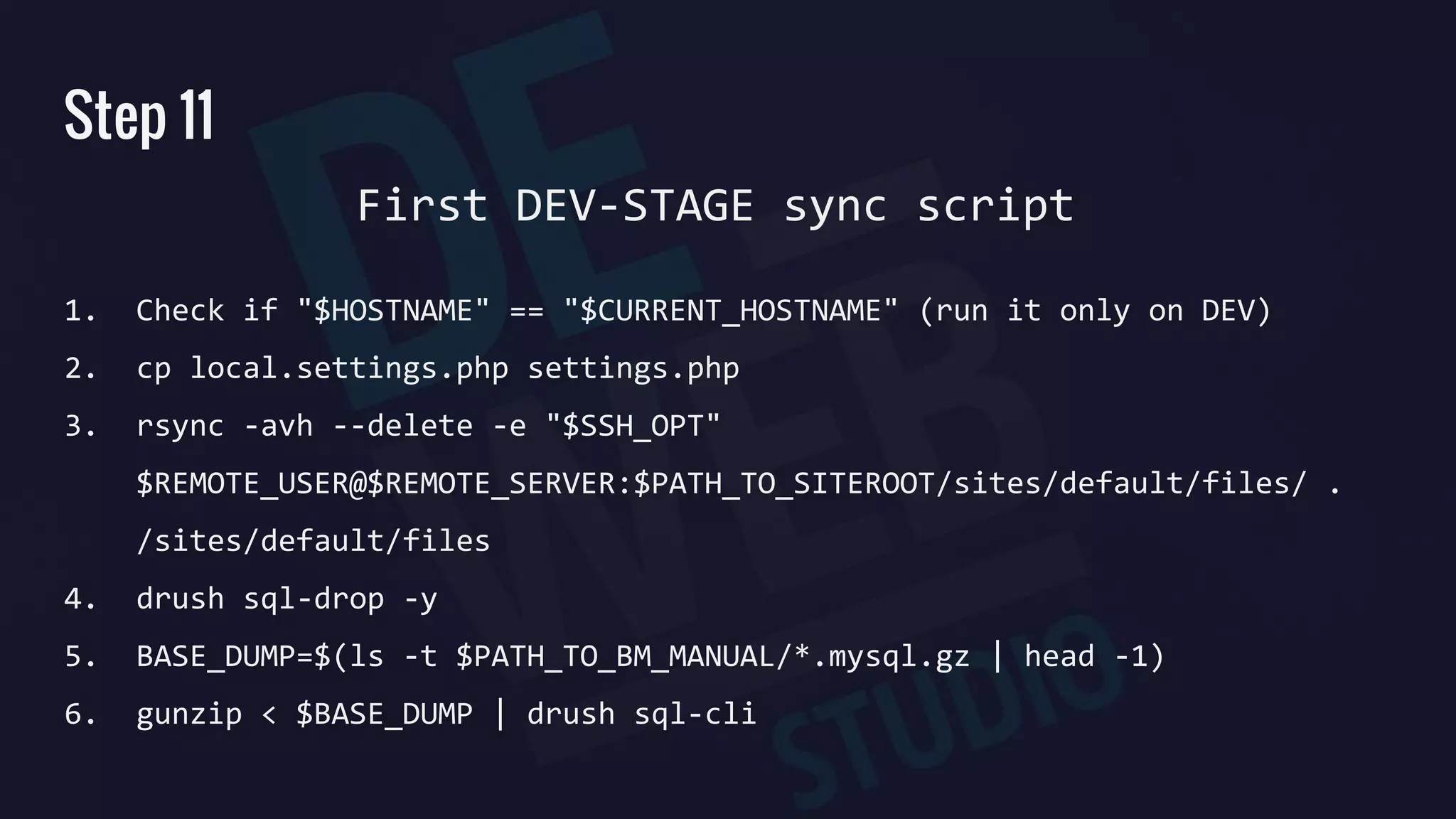

26. Step 11
1. Check if "$HOSTNAME" == "$CURRENT_HOSTNAME" (run it only on DEV)
2. cp local.settings.php settings.php
3. rsync -avh --delete -e "$SSH_OPT"
$REMOTE_USER@$REMOTE_SERVER:$PATH_TO_SITEROOT/sites/default/files/ .
/sites/default/files
4. drush sql-drop -y
5. BASE_DUMP=$(ls -t $PATH_TO_BM_MANUAL/*.mysql.gz | head -1)
6. gunzip < $BASE_DUMP | drush sql-cli
First DEV-STAGE sync script

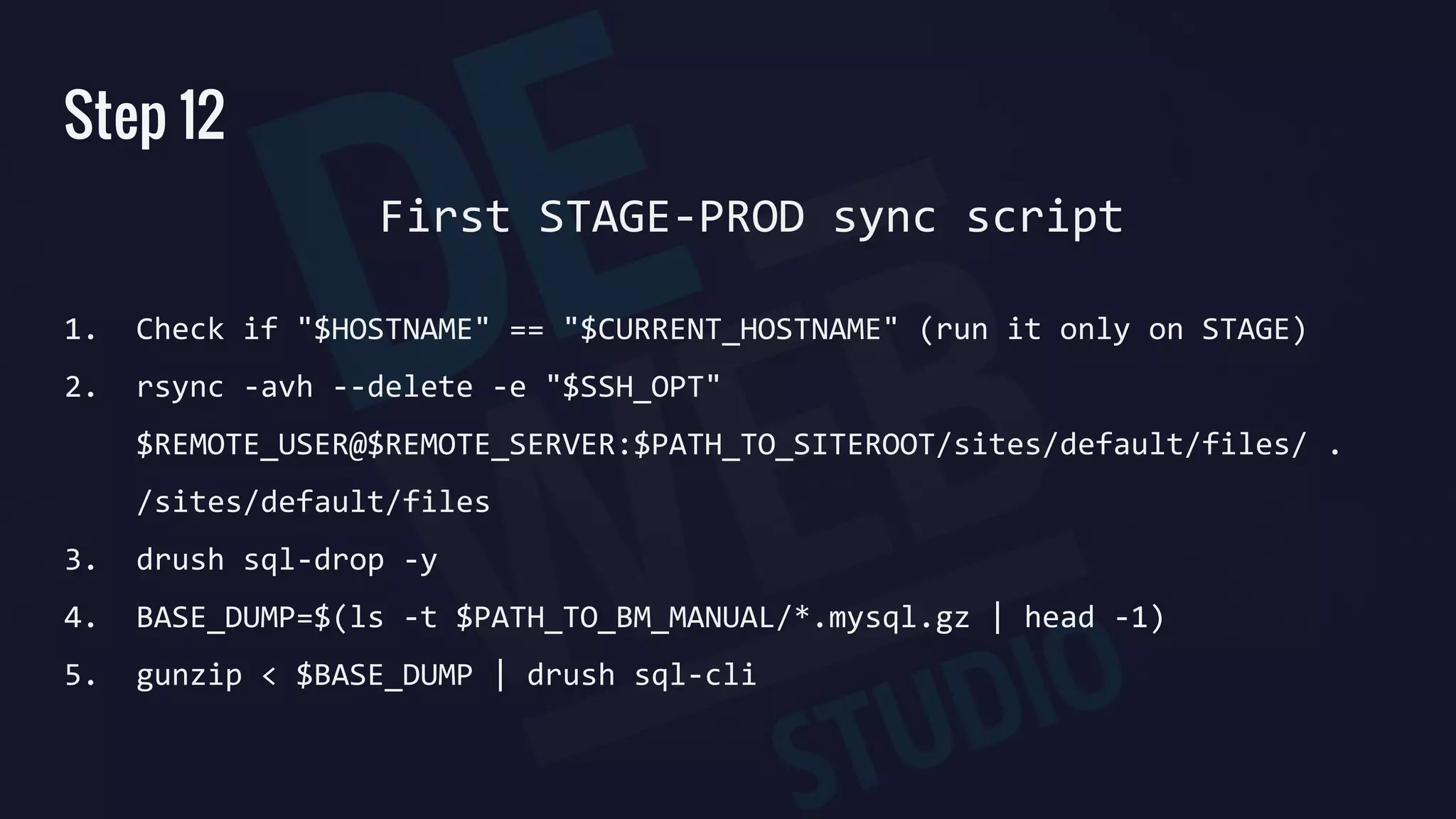

27. Step 12
1. Check if "$HOSTNAME" == "$CURRENT_HOSTNAME" (run it only on STAGE)
2. rsync -avh --delete -e "$SSH_OPT"
$REMOTE_USER@$REMOTE_SERVER:$PATH_TO_SITEROOT/sites/default/files/ .
/sites/default/files
3. drush sql-drop -y
4. BASE_DUMP=$(ls -t $PATH_TO_BM_MANUAL/*.mysql.gz | head -1)
5. gunzip < $BASE_DUMP | drush sql-cli
First STAGE-PROD sync script

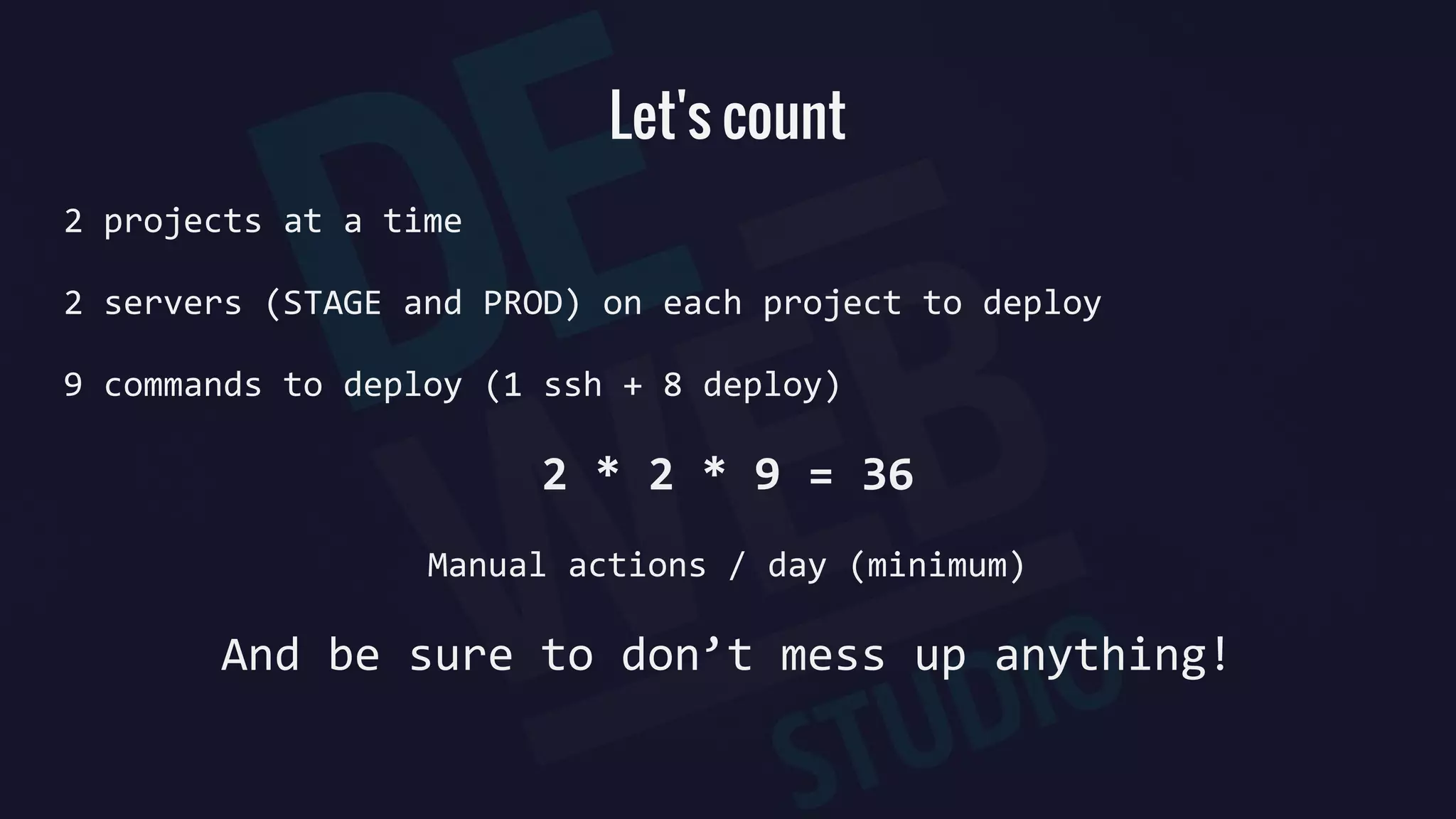

28. Let's count
2 projects at a time
2 servers (STAGE and PROD) on each project to deploy
9 commands to deploy (1 ssh + 8 deploy)
2 * 2 * 9 = 36
Manual actions / day (minimum)
And be sure to don’t mess up anything!

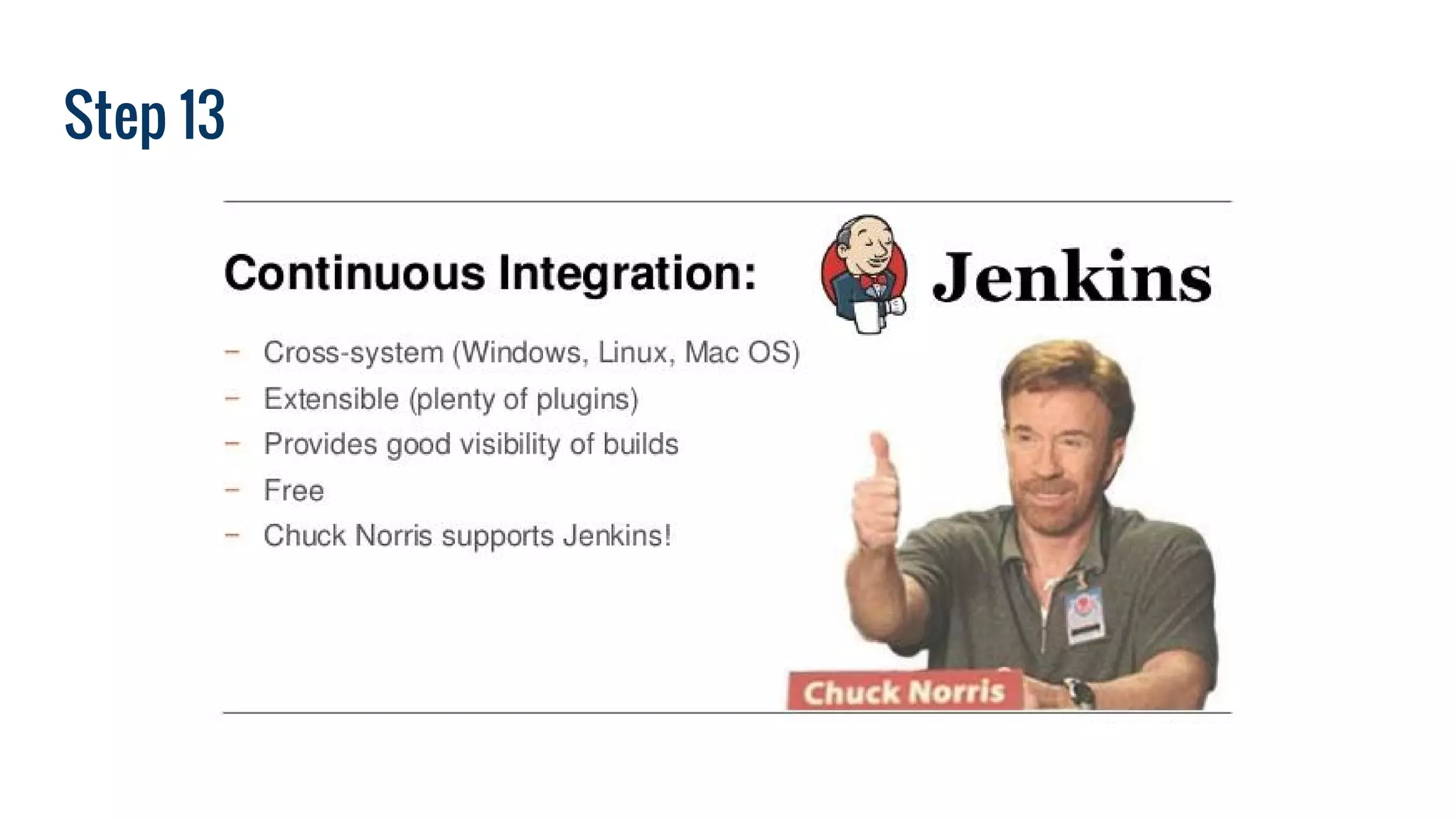

29. Step 13

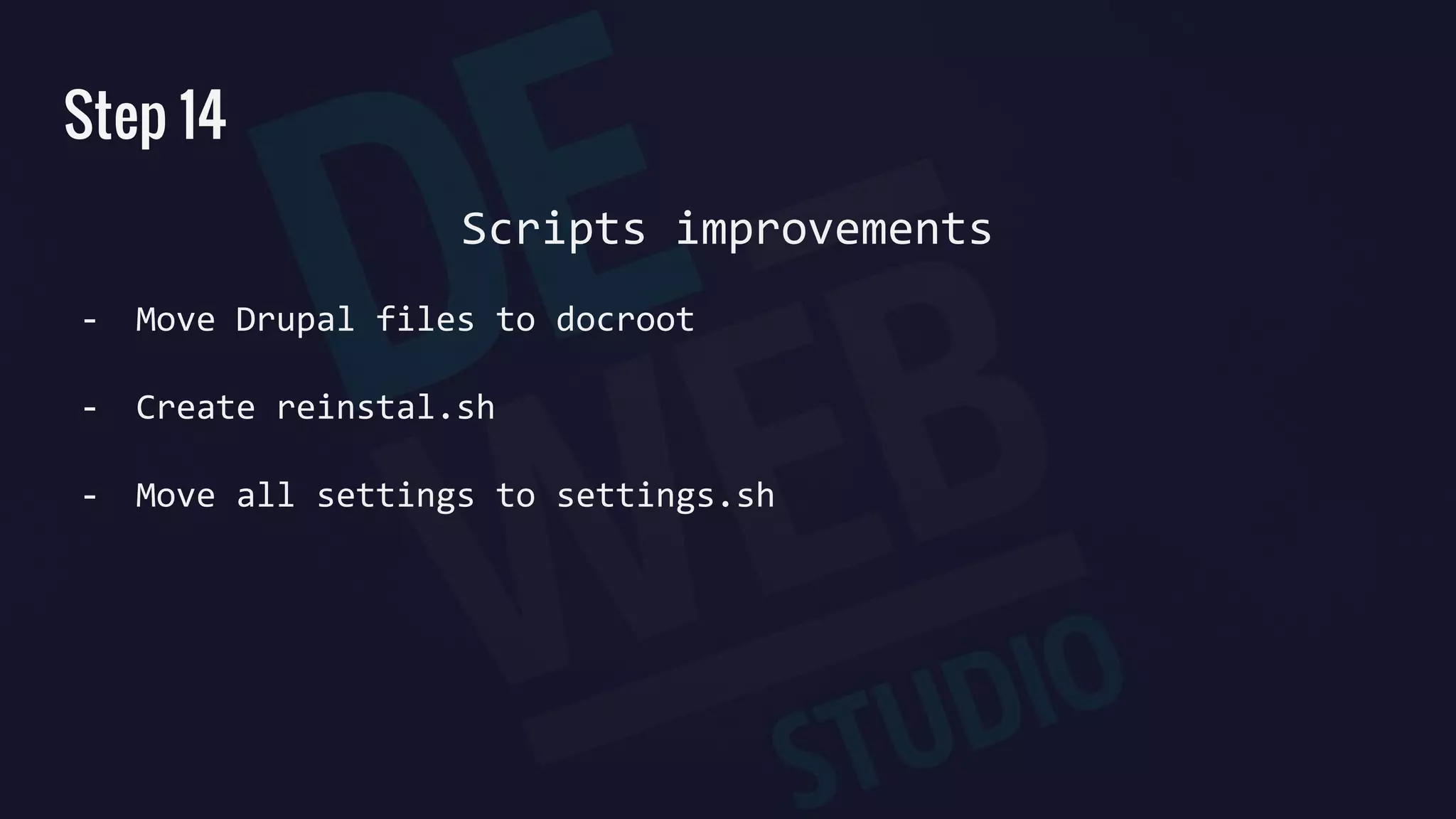

34. Step 14
Scripts improvements
- Move Drupal files to docroot
- Create reinstal.sh
- Move all settings to settings.sh

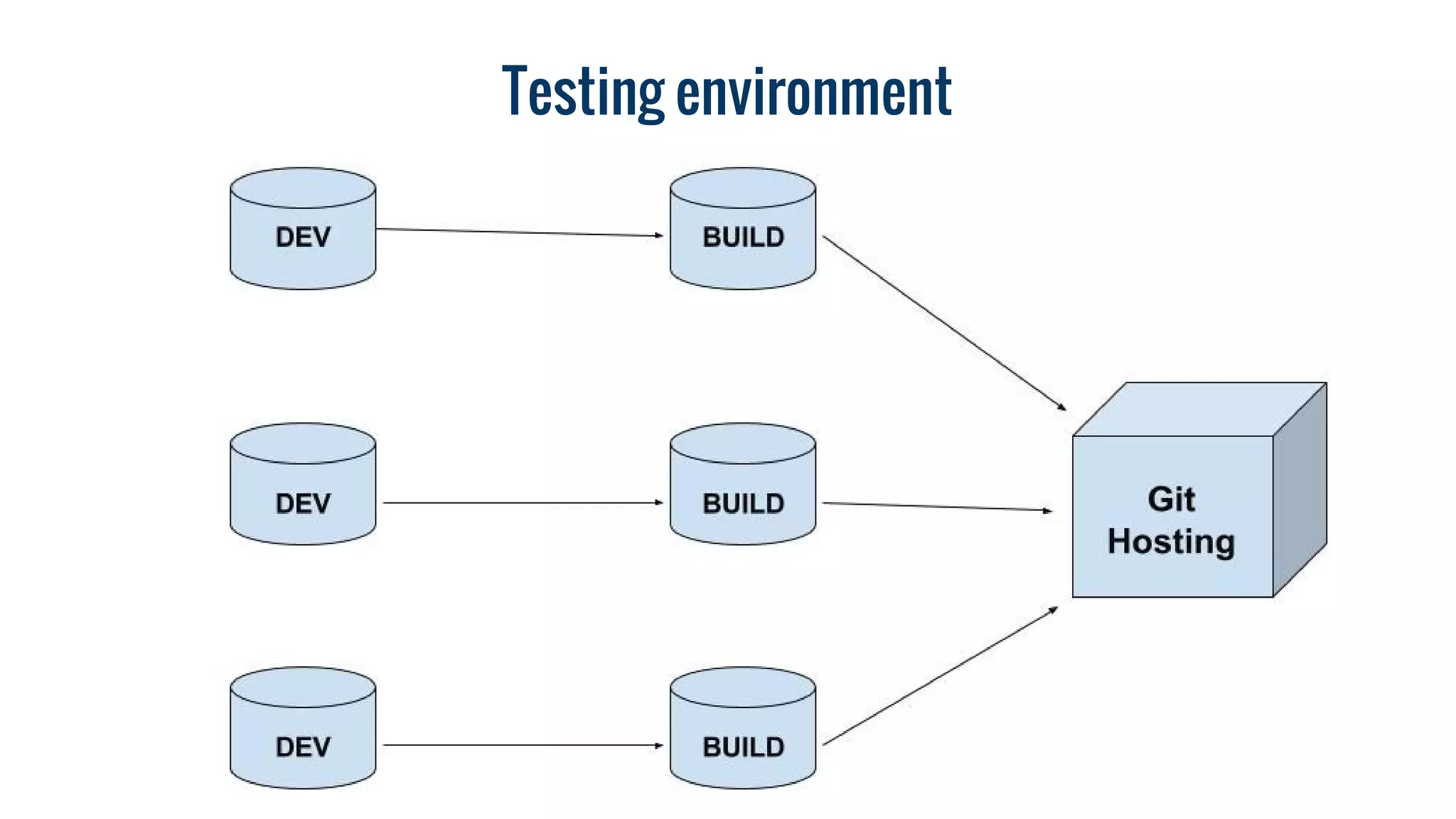

37. Testing environment

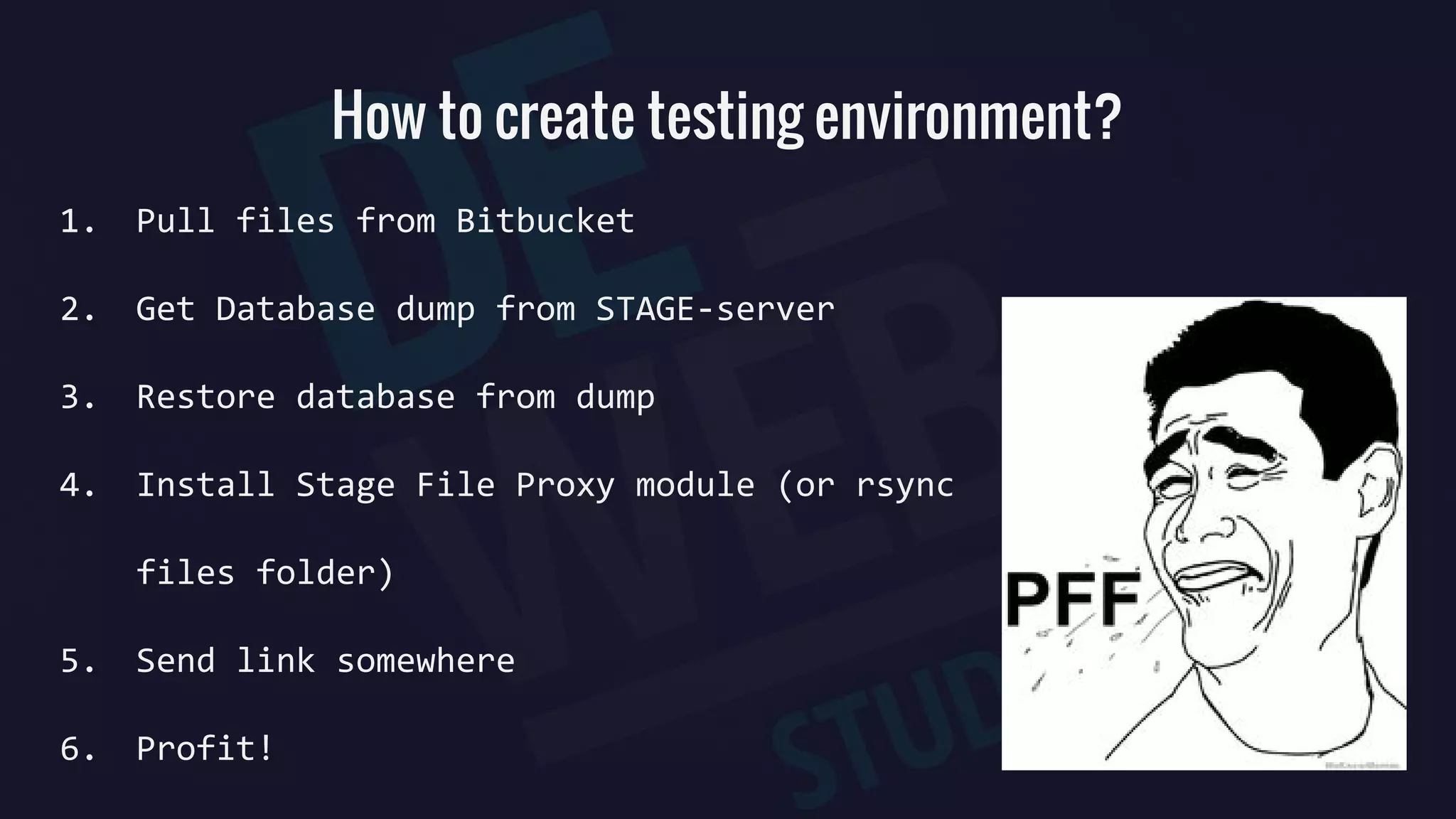

38. How to create testing environment?
1. Pull files from Bitbucket
2. Get Database dump from STAGE-server
3. Restore database from dump
4. Install Stage File Proxy module (or rsync
files folder)
5. Send link somewhere
6. Profit!

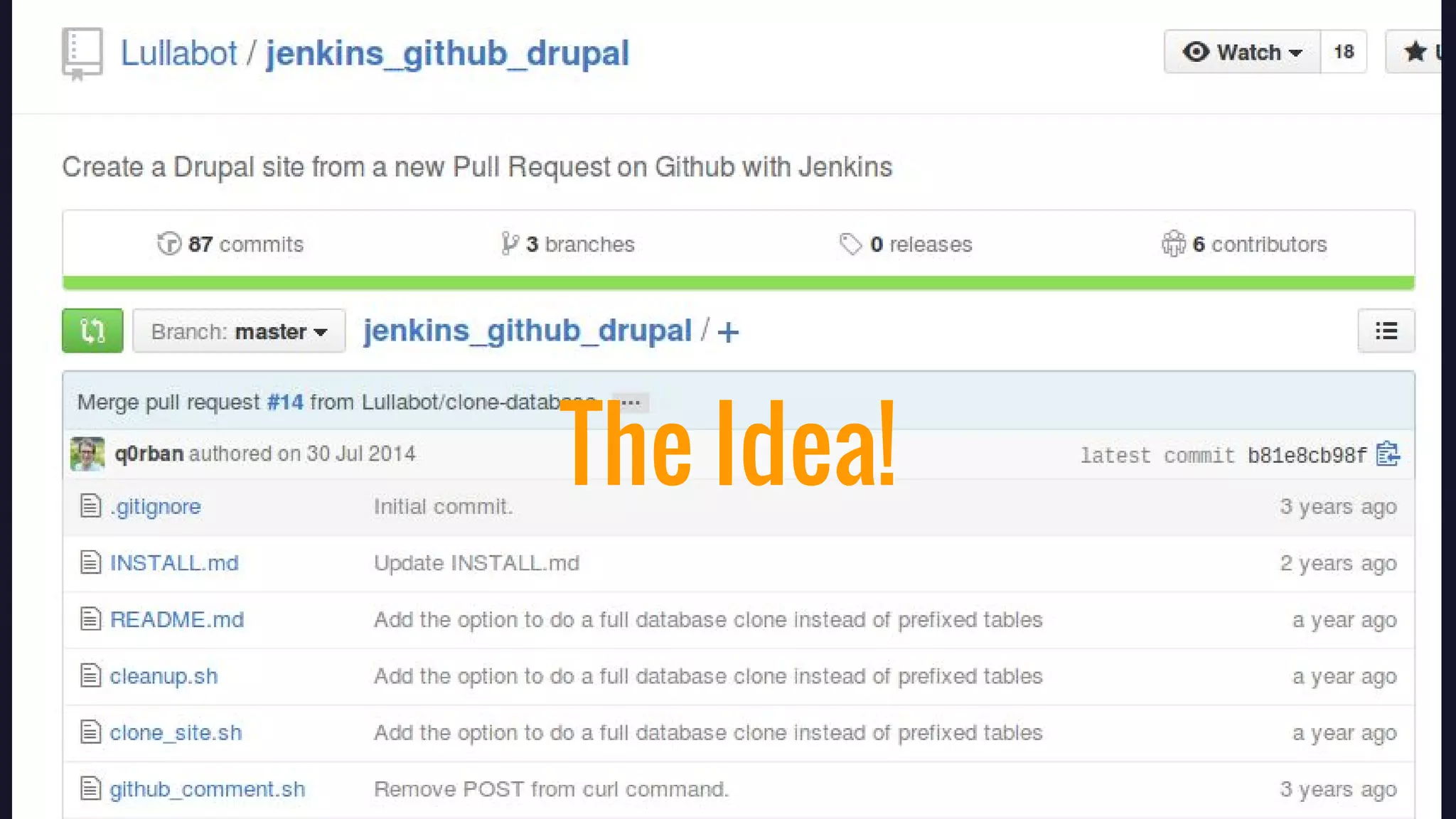

40. The Idea!

41. Step N
Create script to create testing environments

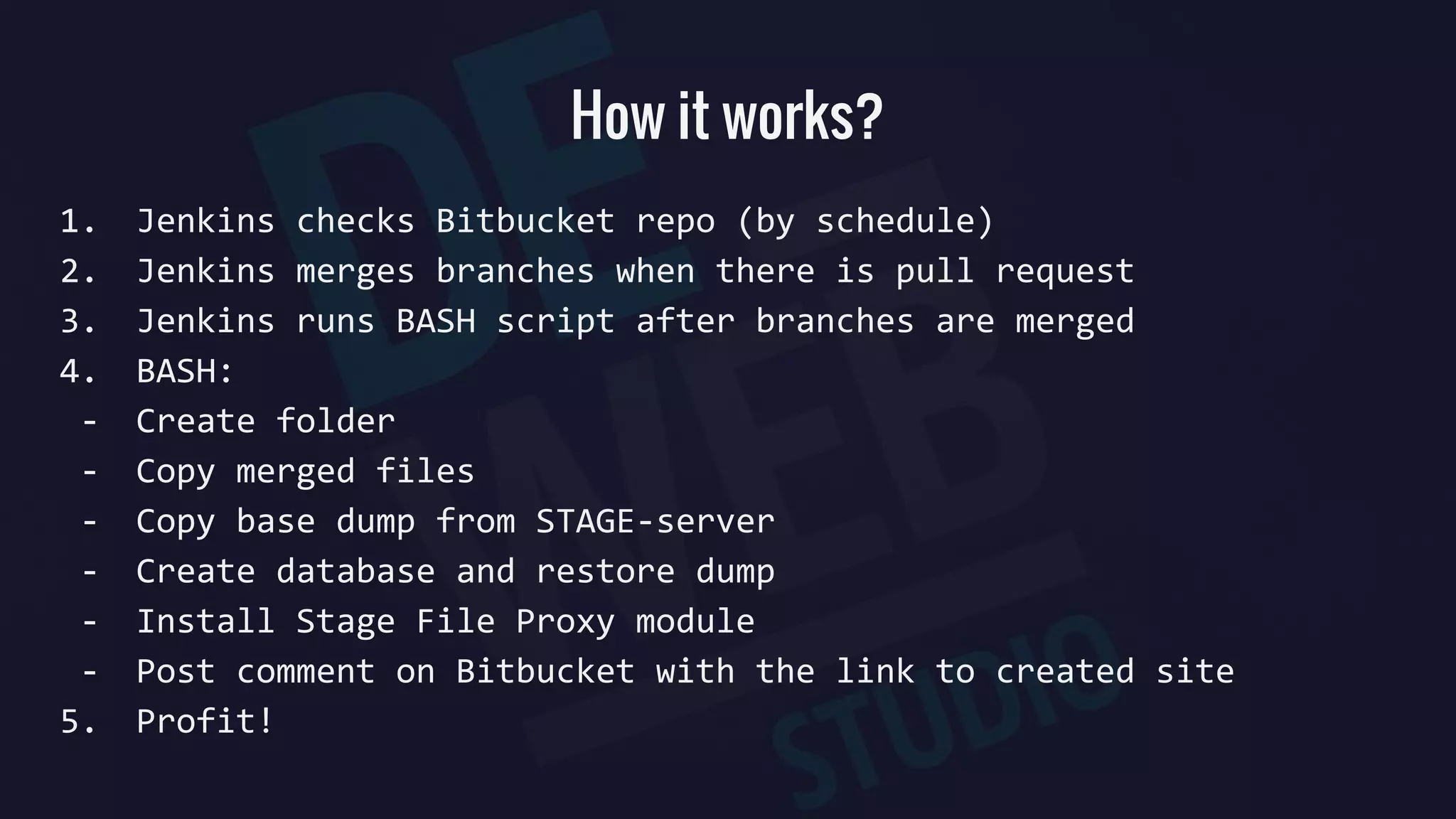

42. How it works?
1. Jenkins checks Bitbucket repo (by schedule)
2. Jenkins merges branches when there is pull request
3. Jenkins runs BASH script after branches are merged
4. BASH:
- Create folder
- Copy merged files
- Copy base dump from STAGE-server
- Create database and restore dump
- Install Stage File Proxy module
- Post comment on Bitbucket with the link to created site
5. Profit!

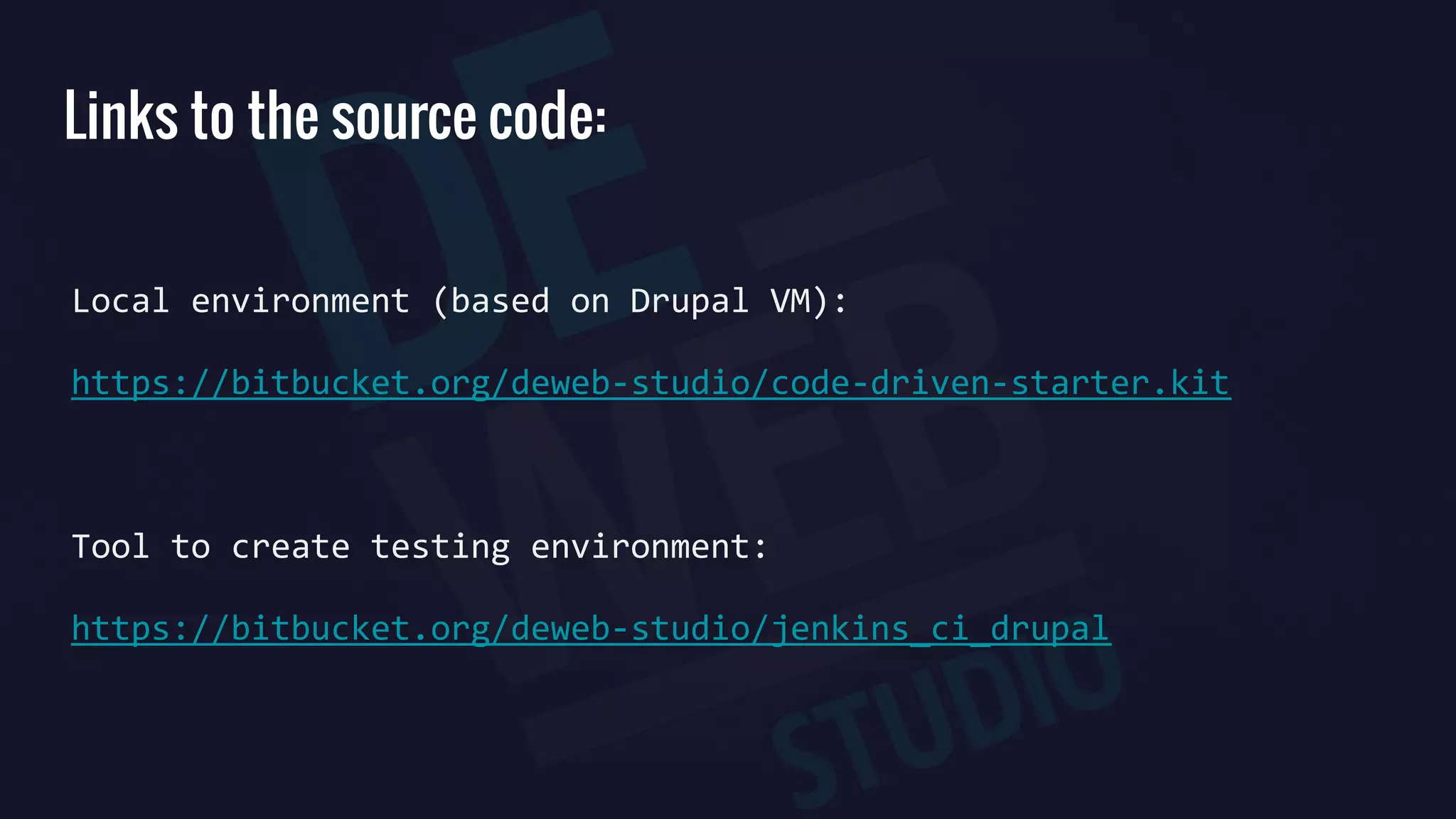

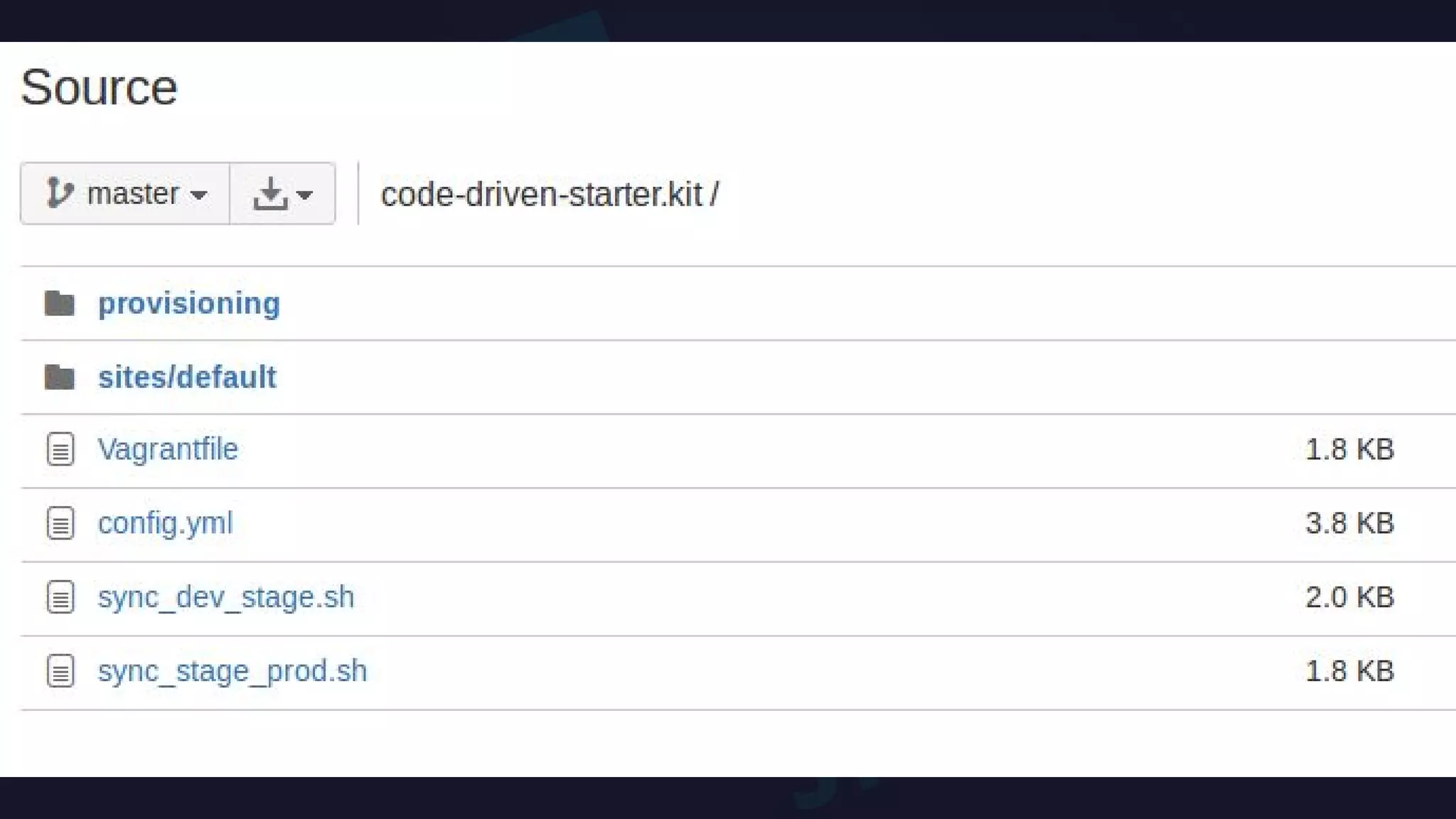

44. Links to the source code:

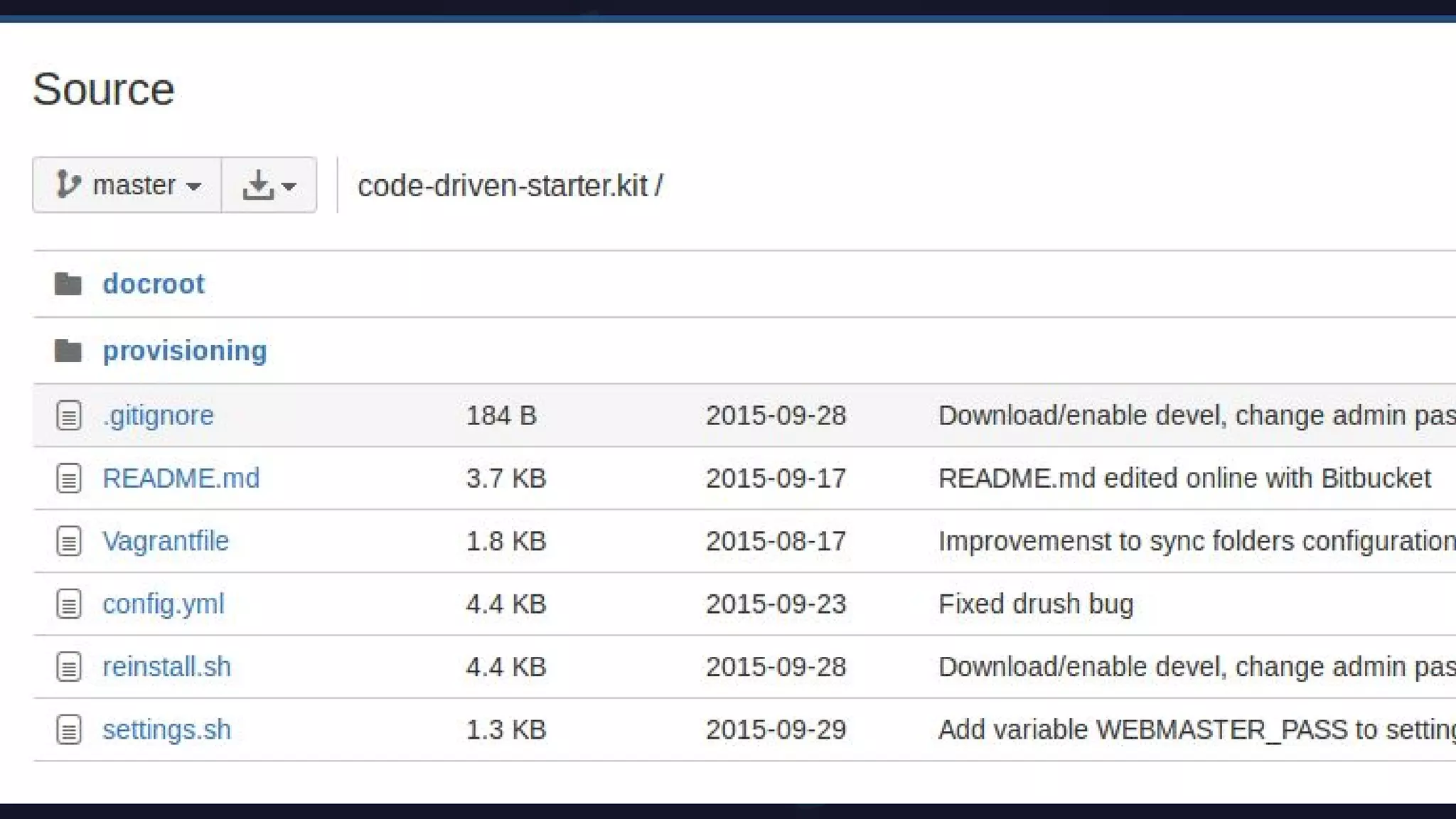

Local environment (based on Drupal VM):
https://bitbucket.org/deweb-studio/code-driven-starter.kit
Tool to create testing environment:
https://bitbucket.org/deweb-studio/jenkins_ci_drupal
