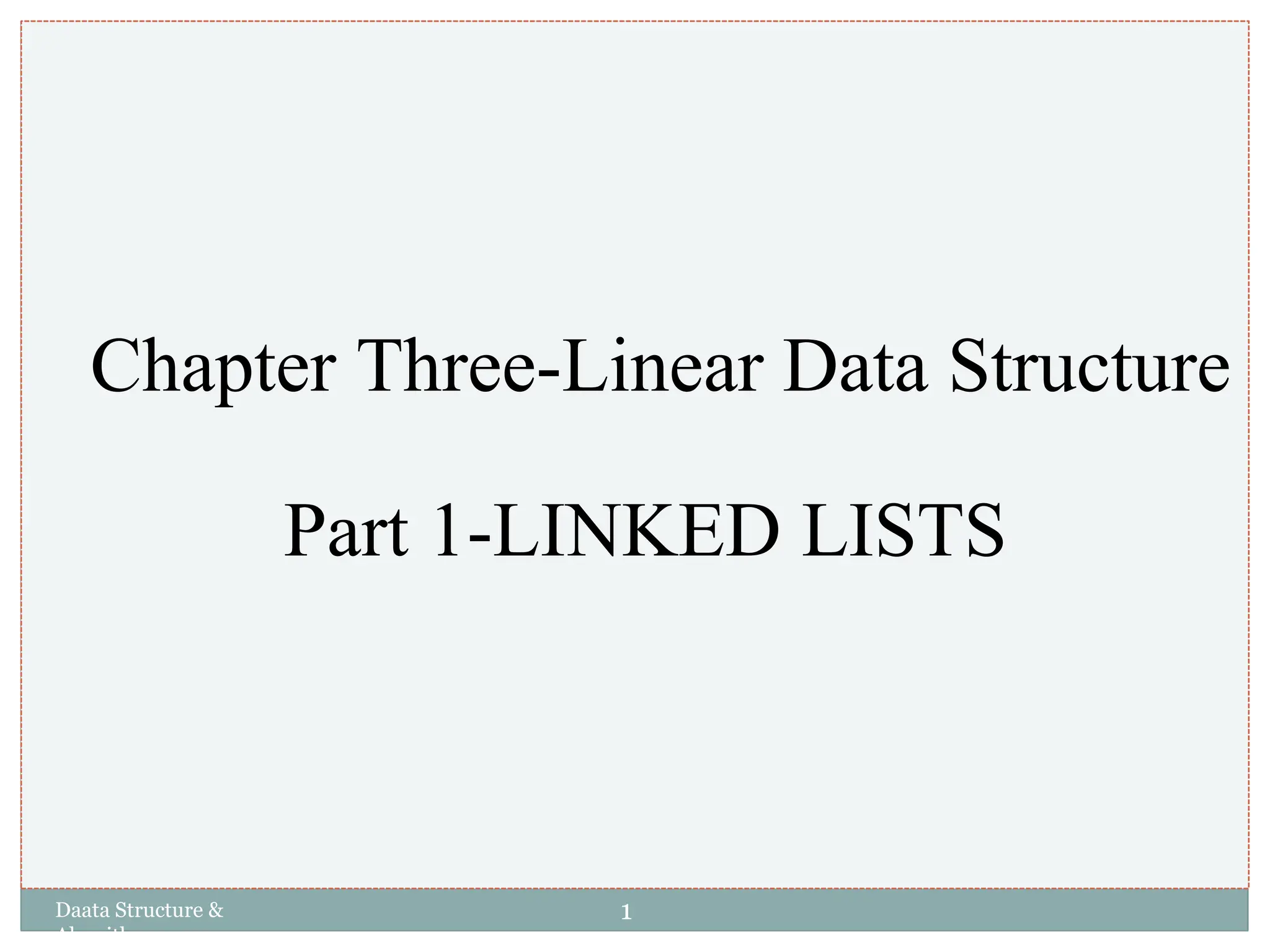

Part 1-LINKED LISTS

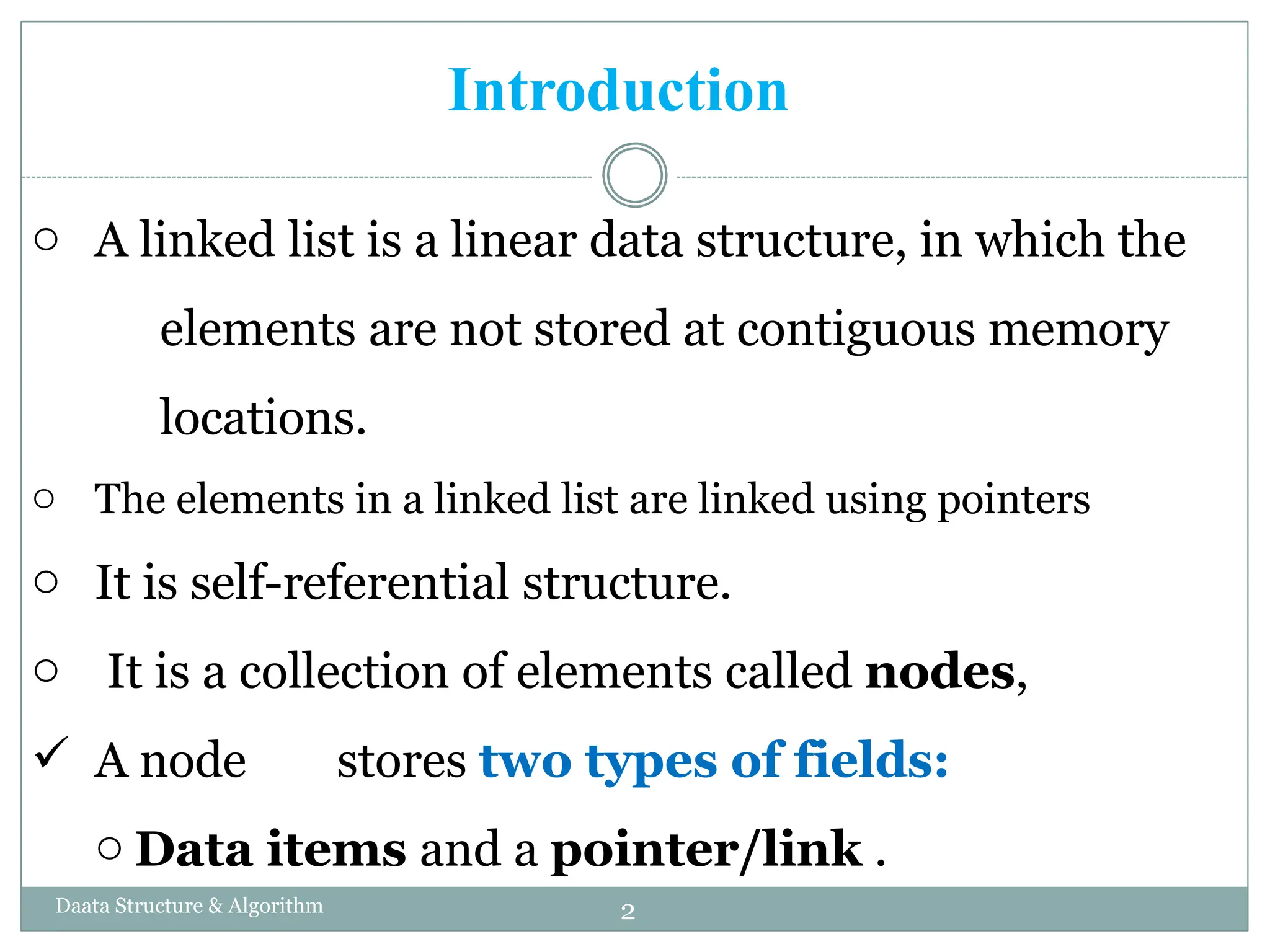

o A linked list is a linear data structure, in which the
elements are not stored at contiguous memory
locations.
o The elements in a linked list are linked using pointers
o It is self-referential structure.
o It is a collection of elements called nodes,
 A node stores two types of fields:
o Data items and a pointer/link .
2
Daata Structure & Algorithm
Introduction

o The data field holds the actual elements on the list
o The pointer field contains the address of the next
node in the list- Singly linked list
o The pointer field contains the address of the
previous node in the list - doubly linked list
Cont
’
3

o Let’s Store 12, 34, 40 and 56 using linked list
o First Create four different nodes then create link
How to access the first element?
Cont
’
100 300 400
12 300 34 400 40 500 56 NULL
500
100 head
4

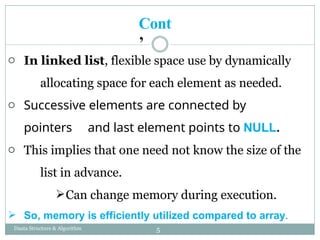

o In linked list, flexible space use by dynamically
allocating space for each element as needed.
o Successive elements are connected by
pointers and last element points to NULL.
o This implies that one need not know the size of the
list in advance.
Can change memory during execution.
 So, memory is efficiently utilized compared to array.
5
Cont
’

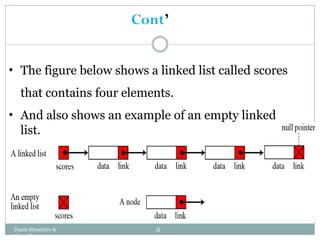

• The figure below shows a linked list called scores
that contains four elements.
• And also shows an example of an empty linked
list.
6
Daata Structure &
Algorithm

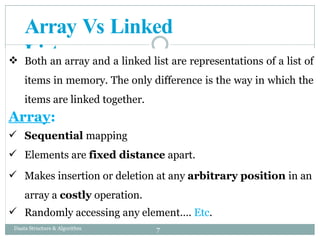

Array Vs Linked
List
 Both an array and a linked list are representations of a list of
items in memory. The only difference is the way in which the
items are linked together.
Array:
 Sequential mapping
 Elements are fixed distance apart.
 Makes insertion or deletion at any arbitrary position in an
array a costly operation.
 Randomly accessing any element…. Etc.
7

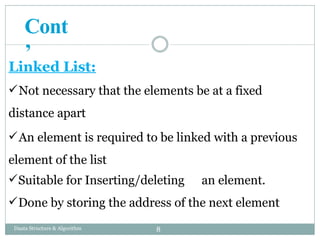

Linked List:
Not necessary that the elements be at a fixed
distance apart
An element is required to be linked with a previous
element of the list
Suitable for Inserting/deleting an element.
Done by storing the address of the next element
8
Cont
’

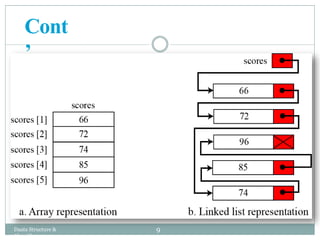

Cont
’
9
Daata Structure &
Algorithm

Cont
’
 Like array a linked list must have a name.
 The name of a linked list is the name of the head pointer
that points to the first node of the list.
10

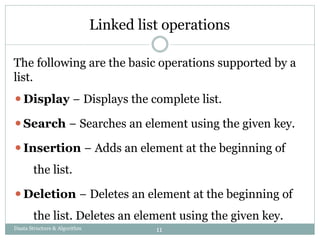

Linked list operations
The following are the basic operations supported by a
list.
⚫Display − Displays the complete list.
⚫Search − Searches an element using the given key.
⚫Insertion − Adds an element at the beginning of
the list.
⚫Deletion − Deletes an element at the beginning of
the list. Deletes an element using the given key.
Daata Structure & Algorithm 11

Revision on Pointers
Data structures&Algorithms
12

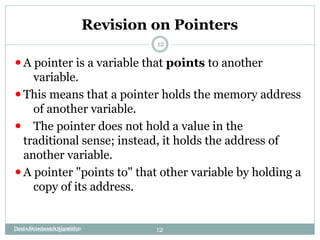

⚫A pointer is a variable that points to another
variable.
⚫This means that a pointer holds the memory address
of another variable.
⚫ The pointer does not hold a value in the
traditional sense; instead, it holds the address of
another variable.
⚫A pointer "points to" that other variable by holding a
copy of its address.

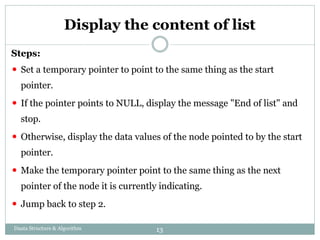

Display the content of list
Steps:
⚫ Set a temporary pointer to point to the same thing as the start
pointer.
⚫ If the pointer points to NULL, display the message "End of list" and
stop.
⚫ Otherwise, display the data values of the node pointed to by the start
pointer.
⚫ Make the temporary pointer point to the same thing as the next
pointer of the node it is currently indicating.
⚫ Jump back to step 2.

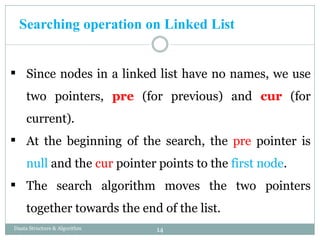

Searching operation on Linked List
14
 Since nodes in a linked list have no names, we use
two pointers, pre (for previous) and cur (for
current).
 At the beginning of the search, the pre pointer is
null and the cur pointer points to the first node.
 The search algorithm moves the two pointers
together towards the end of the list.

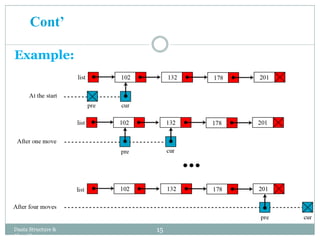

Example:
15
Daata Structure &
Algorithm
Cont’

Inserting

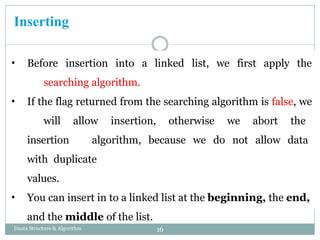

• Before insertion into a linked list, we first apply the
searching algorithm.
• If the flag returned from the searching algorithm is false, we
will allow insertion, otherwise we abort the
insertion algorithm, because we do not allow data
with duplicate
values.
• You can insert in to a linked list at the beginning, the end,
and the middle of the list.
16

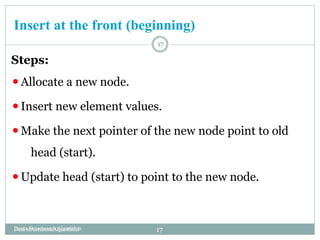

Insert at the front (beginning)
17
Steps:
⚫Allocate a new node.
⚫Insert new element values.
⚫Make the next pointer of the new node point to old
head (start).
⚫Update head (start) to point to the new node.

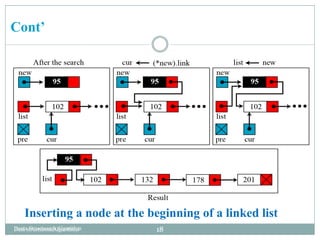

Inserting a node at the beginning of a linked list
Cont’
Data structures&Algorithms 18

Inserting at the End
Steps
⚫Allocate a new node.
⚫Set the node data values and make the next pointer
of the new node point to NULL.
⚫Make old last node’s next pointer point to the new
node.
⚫Update end to point to the new node.
19

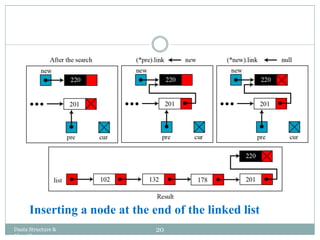

Inserting a node at the end of the linked list
20
Daata Structure &
Algorithm

Deleting
21
 Before deleting, we apply the search algorithm.
 If the flag returned from the search algorithm is
true (the node is found), we can delete the node
from the linked list. However, deletion is simpler than
insertion.
 We have only two cases: deleting the first node and
deleting any other node.
 Deletion of the last and the middle nodes can be done

Deleting the first node of a linked list
Cont’
22

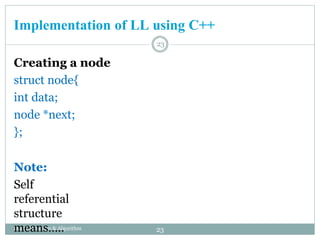

Implementation of LL using C++
Creating a node
struct node{
int data;
node *next;
};
Note:
Self
referential
structure
means…..
23
23

Cont…
24

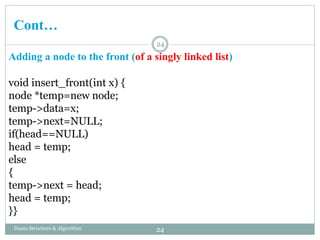

Adding a node to the front (of a singly linked list)
void insert_front(int x) {
node *temp=new node;
temp->data=x;
temp->next=NULL;
if(head==NULL)
head = temp;
else
{
temp->next = head;
head = temp;
}}
24

Cont…
Adding a node to the end (of a singly linked list)
void insert_end(int x) {
node *temp=new node;
temp->data=x;
temp->next=NULL;
if(head==NULL)
head = temp;
else
node *temp2 = head;
while(temp2->next!=NULL) {
temp2 = temp2->next; }
temp2->next = temp; }
25
25

Cont…

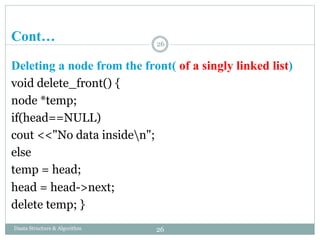

Deleting a node from the front( of a singly linked list)
void delete_front() {
node *temp;
if(head==NULL)
cout <<"No data insiden";
else
temp = head;
head = head->next;
delete temp; }
26
26

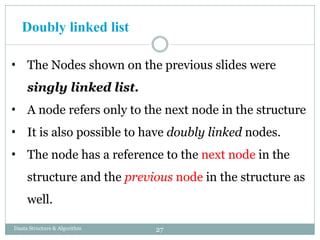

• The Nodes shown on the previous slides were
singly linked list.
• A node refers only to the next node in the structure
• It is also possible to have doubly linked nodes.
• The node has a reference to the next node in the
structure and the previous node in the structure as
well.
27

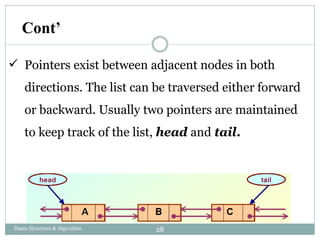

Doubly linked list

 Pointers exist between adjacent nodes in both
directions. The list can be traversed either forward
or backward. Usually two pointers are maintained
to keep track of the list, head and tail.
Cont’
28

Circular Linked List

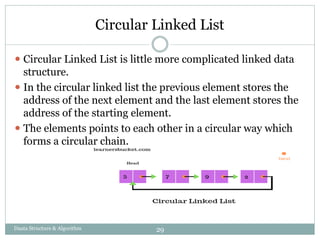

⚫ Circular Linked List is little more complicated linked data
structure.
⚫ In the circular linked list the previous element stores the
address of the next element and the last element stores the
address of the starting element.
⚫ The elements points to each other in a circular way which
forms a circular chain.

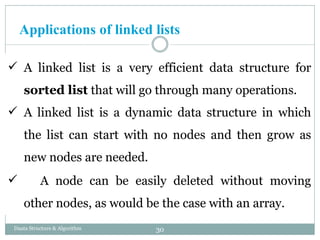

Applications of linked lists
 A linked list is a very efficient data structure for
sorted list that will go through many operations.
 A linked list is a dynamic data structure in which
the list can start with no nodes and then grow as
new nodes are needed.
 A node can be easily deleted without moving
other nodes, as would be the case with an array.
30

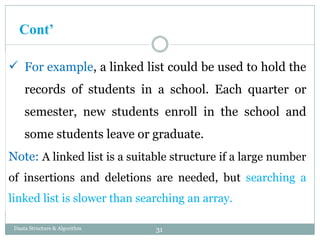

 For example, a linked list could be used to hold the
records of students in a school. Each quarter or
semester, new students enroll in the school and
some students leave or graduate.
Note: A linked list is a suitable structure if a large number
of insertions and deletions are needed, but searching a
linked list is slower than searching an array.
31
Cont’

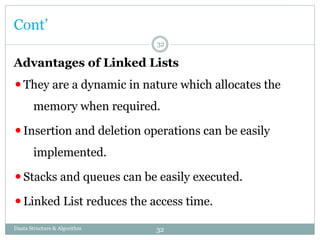

Advantages of Linked Lists
⚫They are a dynamic in nature which allocates the
memory when required.
⚫Insertion and deletion operations can be easily
implemented.
⚫Stacks and queues can be easily executed.
⚫Linked List reduces the access time.
Cont’
32
32

Disadvantages of Linked Lists
⚫the memory is wasted as pointers require extra
memory for storage.
⚫No element can be accessed randomly; it has to
access each node sequentially.
⚫Reverse Traversing is difficult in linked list.
Cont’
33
33

34

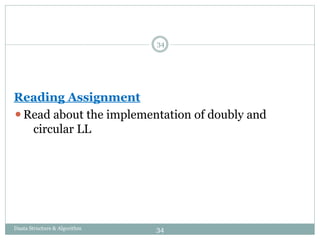

Reading Assignment
⚫Read about the implementation of doubly and
circular LL
34

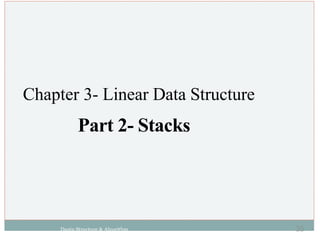

Chapter 3- Linear Data Structure
Part 2- Stacks
35

Introduction
Daata Structure &
Algorithm
2

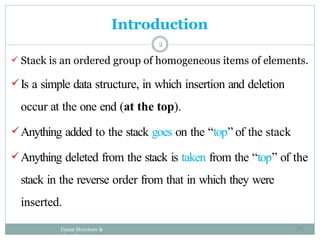

 Stack is an ordered group of homogeneous items of elements.
Is a simple data structure, in which insertion and deletion
occur at the one end (at the top).
Anything added to the stack goes on the “top” of the stack
Anything deleted from the stack is taken from the “top” of the
stack in the reverse order from that in which they were
inserted.
36

Cont’
3

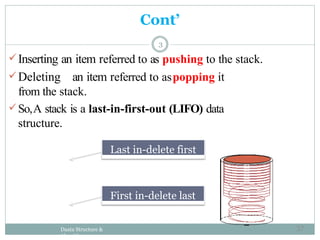

Inserting an item referred to as pushing to the stack.
Deleting an item referred to aspopping it
from the stack.
 So,A stack is a last-in-first-out (LIFO) data
structure.
Last in-delete first
First in-delete last
Daata Structure &
Algorithm
37

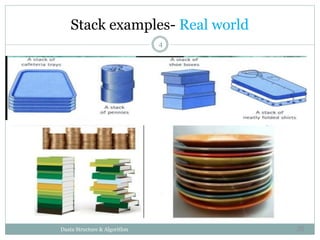

Stack examples- Real world
4

Stack Representation on computer memory
5

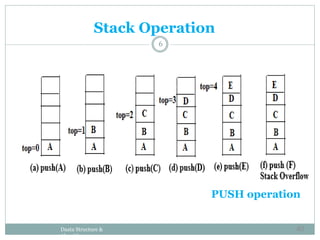

Stack Operation
6
PUSH operation
Daata Structure &
Algorithm
40

Cont’

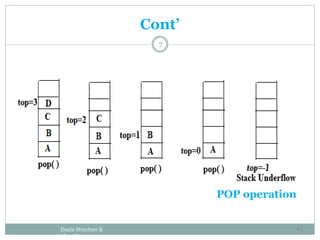

POP operation
Daata Structure &
Algorithm
7
41

8
Cont’

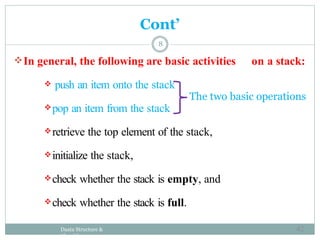

In general, the following are basic activities on a stack:
 push an item onto the stack
The two basic operations
pop an item from the stack
retrieve the top element of the stack,
initialize the stack,
check whether the stack is empty, and
check whether the stack is full.
Daata Structure &
Algorithm
42

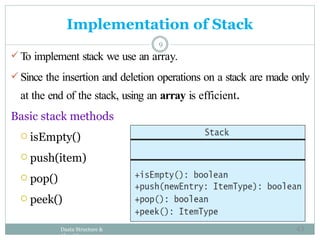

Implementation of Stack
9
 To implement stack we use an array.
 Since the insertion and deletion operations on a stack are made only
at the end of the stack, using an array is efficient.
Basic stack methods
 isEmpty()
 push(item)
 pop()
 peek()
Daata Structure &
Algorithm
43

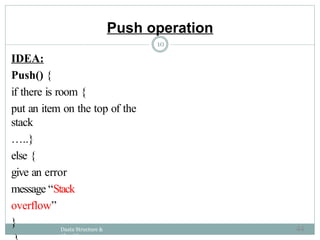

IDEA:
Push() {
if there is room {
put an item on the top of the
stack
…..}
else {
give an error
message “Stack
overflow”
} Daata Structure &
Algorithm
Push operation
10
44

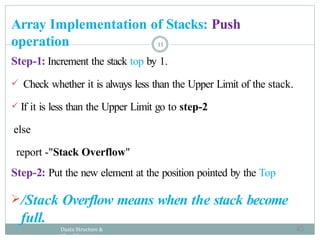

Array Implementation of Stacks: Push
operation
Daata Structure &
Algorithm
Step-1: Increment the stack top by 1.
 Check whether it is always less than the Upper Limit of the stack.
 If it is less than the Upper Limit go to step-2
else
report -"Stack Overflow"
Step-2: Put the new element at the position pointed by the Top
/Stack Overflow means when the stack become
full.
11
45

Algorithm
Daata Structure &
Algorithm
int stack[upper_limit];
int top= -1; /*stack is empty*/
….
main()
{… push(item);
…..}
push(int item){
top = top + 1;
if(top < upper_limit)
stack[top] = item; /*step-1 &
2*/ else
cout<<"Stack
Overflow"; }
12
46

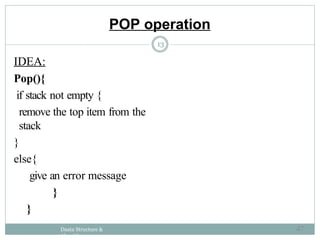

IDEA:
Pop(){
if stack not empty {
remove the top item from the
stack
}
else{
give an error message
}
}
Daata Structure &
Algorithm
13
POP operation
47

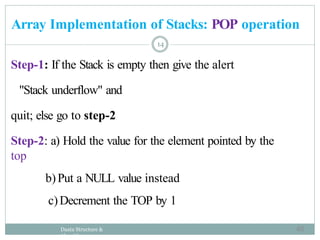

Step-1: If the Stack is empty then give the alert
"Stack underflow" and
quit; else go to step-2
Step-2: a) Hold the value for the element pointed by the
top
b)Put a NULL value instead
c)Decrement the TOP by 1
Daata Structure &
Algorithm
14
Array Implementation of Stacks: POP operation
48

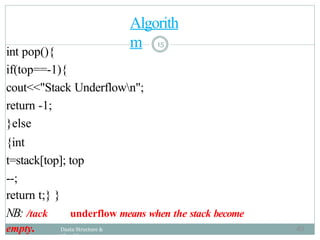

int pop(){
if(top==-1){
Daata Structure &
Algorithm
cout<<"Stack Underflown";
return -1;
}else
{int
t=stack[top]; top
--;
return t;} }
NB: /tack underflow means when the stack become
empty.
Algorith
m 15
49

16

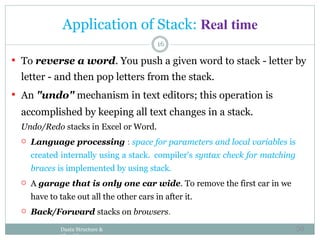

 To reverse a word. You push a given word to stack - letter by
letter - and then pop letters from the stack.
 An "undo" mechanism in text editors; this operation is
accomplished by keeping all text changes in a stack.
Undo/Redo stacks in Excel or Word.
 Language processing : space for parameters and local variables is
created internally using a stack. compiler's syntax check for matching
braces is implemented by using stack.
 A garage that is only one car wide. To remove the first car in we
have to take out all the other cars in after it.
 Back/Forward stacks on browsers.
Daata Structure &
Algorithm
Application of Stack: Real time
50

17

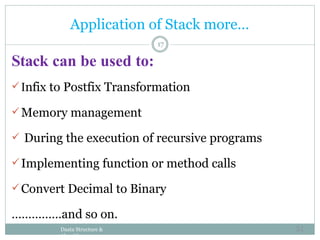

Stack can be used to:
Infix to Postfix Transformation
Memory management
 During the execution of recursive programs
Implementing function or method calls
Convert Decimal to Binary
……………and so on.
Daata Structure &
Algorithm
Application of Stack more…
51

Infix to Postfix
Conversion
Daata Structure &
Algorithm
18
Revision on expression
⚫Expressions have operators (+, -, *, /, etc) and
operands (numbers, variables)
⚫In everyday use, we write the operators
in between the operands like
“4 + 5” means “add 4 and 5”…. called infix notation
⚫No reason why we couldn’t write the two operands
first,
then the operator like
“4 5 +” would mean “add 4 and 5”…called postfix 52

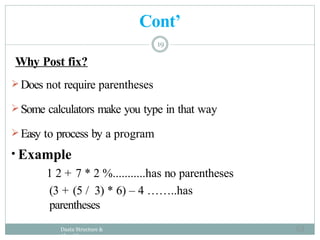

Why Post fix?
Does not require parentheses
Some calculators make you type in that way
Easy to process by a program
• Example
1 2 + 7 * 2 %...........has no parentheses
(3 + (5 / 3) * 6) – 4 ……..has
parentheses
Daata Structure &
Algorithm
Cont’
19
53

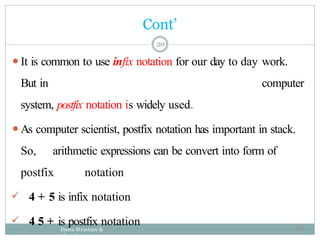

⚫It is common to use infix notation for our day to day work.
But in computer
system, postfix notation is widely used.
⚫As computer scientist, postfix notation has important in stack.
So, arithmetic expressions can be convert into form of
postfix notation
 4 + 5 is infix notation
 4 5 + is postfix notation
Daata Structure &
Algorithm
20
Cont’
54

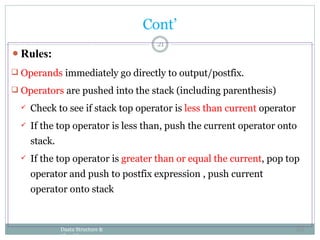

⚫Rules:
 Operands immediately go directly to output/postfix.
 Operators are pushed into the stack (including parenthesis)
 Check to see if stack top operator is less than current operator
 If the top operator is less than, push the current operator onto
stack.
 If the top operator is greater than or equal the current, pop top
operator and push to postfix expression , push current
operator onto stack
Daata Structure &
Algorithm
21
Cont’
55

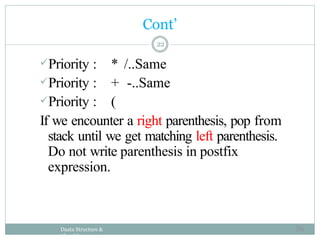

Priority : * /..Same
Priority : + -..Same
Priority : (
If we encounter a right parenthesis, pop from
stack until we get matching left parenthesis.
Do not write parenthesis in postfix
expression.
Daata Structure &
Algorithm
22
Cont’
56

Check: 3 + 2 * 4=?
23
ab c * +
a +b
ab +
a + b *c
ab + c *
Daata Structure &
Algorithm
a * b +c
ab * c +
(a + b )
*c
Eg1:Infix ExpressionEquivalent Postfix
Expression
57

24
((A + B) * C) / (D - E)
C
A B
D E
*
+
/
-
C
A B
D E
*
+
/
-
A B + C * D E-/
Daata Structure &
Algorithm
Eg-2: Convert this into postfix
expression
58

25

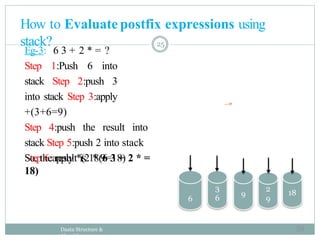

Eg-3: 6 3 + 2 * = ?
Step 1:Push 6 into
stack Step 2:push 3
into stack Step 3:apply
+(3+6=9)
Step 4:push the result into
stack Step 5:push 2 into stack
Step 6:apply *(2 * 9=18)
So, the result is 18(6 3 + 2 * =
18)
6
3
6
2
9
18
9
How to Evaluate postfix expressions using
stack?
Daata Structure &
Algorithm
59

Infix
Daata Structure &
Algorithm

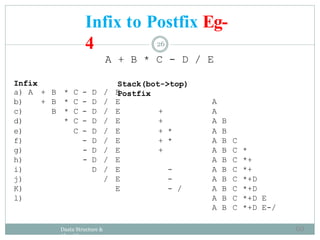

a) A + B * C - D / E
b) + B * C - D / E A
c) B * C - D / E + A
d) * C - D / E + A B
e) C - D / E + * A B
f) - D / E + * A B C
g) - D / E + A B C *
h) - D / E A B C *+
i) D / E - A B C *+
j) / E - A B C *+D
K) E - / A B C *+D
l) A B C *+D E
A B C *+D E-/
Infix to Postfix Eg-
4 26
A + B * C - D / E
Stack(bot->top)
Postfix
60

Memory management
Daata Structure &
Algorithm
27
⚫ The assignment of memory takes place in contiguous memory blocks.
⚫ We call this stack memory allocation because the assignment takes place
in the function call stack.
⚫ The size of the memory to be allocated is known to the compiler.
⚫ When a function is called, its variables get memory allocated on the stack.
⚫ When the function call is completed, the memory for the variables is
released.
⚫ All this happens with the help of some predefined routines in the compiler.
61

Chapter 3-Linear Data Structure
part 3- Queues

Definition

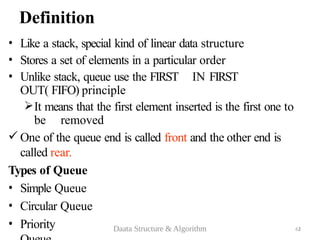

• Like a stack, special kind of linear data structure
• Stores a set of elements in a particular order
• Unlike stack, queue use the FIRST IN FIRST
OUT( FIFO) principle
It means that the first element inserted is the first one to
be removed
 One of the queue end is called front and the other end is
called rear.
Types of Queue
• Simple Queue
• Circular Queue
• Priority 2

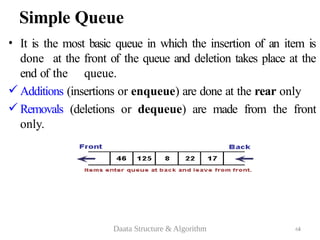

Simple Queue
• It is the most basic queue in which the insertion of an item is
done at the front of the queue and deletion takes place at the
end of the queue.
 Additions (insertions or enqueue) are done at the rear only
 Removals (deletions or dequeue) are made from the front
only.
3

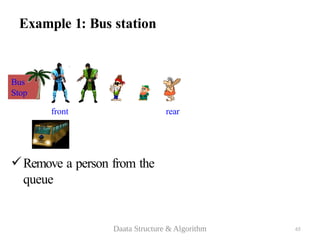

Example 1: Bus station
Remove a person from the
queue
Bus
Stop
front
rear
rear rear rear rear

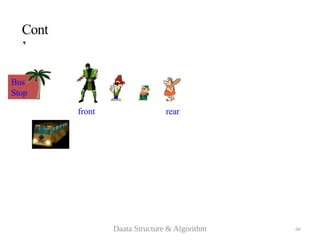

Bus
Stop
front
rear
rear rear
Cont
’

Cont
’

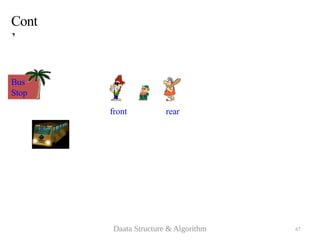

Bus
Stop
front
rear
rear

Cont
’
Add a person to the queue
A queue is a FIFO (First-In, First-Out)
list.
Bus
Stop
Front
rear
Rear

Example-
2

70
Other examples

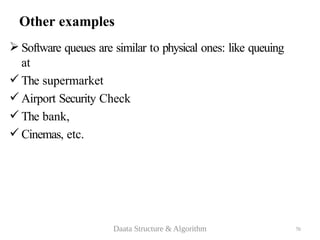

 Software queues are similar to physical ones: like queuing
at
 The supermarket
 Airport Security Check
 The bank,
 Cinemas, etc.

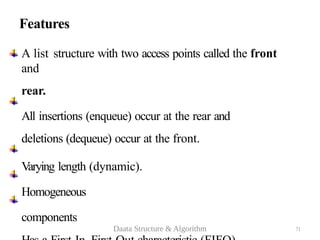

Features
A list structure with two access points called the front
and
rear.
All insertions (enqueue) occur at the rear and
deletions (dequeue) occur at the front.
Varying length (dynamic).
Homogeneous
components
71

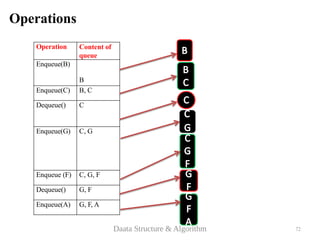

Operations
Operation Content of
queue
Enqueue(B)
B
Enqueue(C) B, C
Dequeue() C
Enqueue(G) C, G
Enqueue (F) C, G, F
Dequeue() G, F
Enqueue(A) G, F, A
B
B
C
C
C
G
C
G
F
G
F
G
F
A

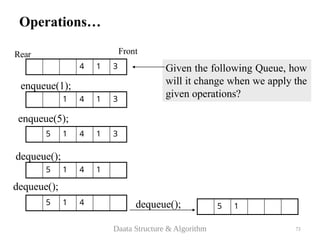

Operations…
4 1 3
1 4 1 3
5 1 4 1 3
5 1 4
5 1 4 1
5 1
enqueue(1);
enqueue(5);
dequeue();
dequeue();
dequeue();
Rear Front
Given the following Queue, how
will it change when we apply the
given operations?
73

Circular
Queue

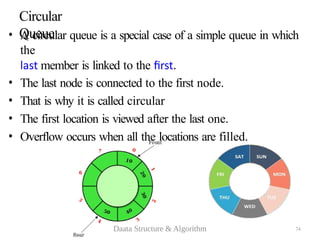

• A circular queue is a special case of a simple queue in which
the
last member is linked to the first.
• The last node is connected to the first node.
• That is why it is called circular
• The first location is viewed after the last one.
• Overflow occurs when all the locations are filled.
74

75
Operations

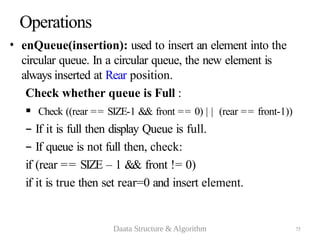

• enQueue(insertion): used to insert an element into the
circular queue. In a circular queue, the new element is
always inserted at Rear position.
Check whether queue is Full :
 Check ((rear == SIZE-1 && front == 0) | | (rear == front-1))
– If it is full then display Queue is full.
– If queue is not full then, check:
if (rear == SIZE – 1 && front != 0)
if it is true then set rear=0 and insert element.

76
Cont
…

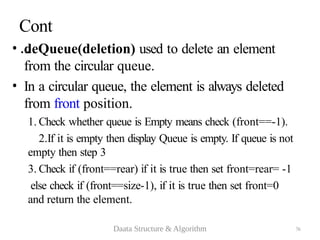

• deQueue(deletion) used to delete an element
from the circular queue.
• In a circular queue, the element is always deleted
from front position.
1. Check whether queue is Empty means check (front==-1).
2.If it is empty then display Queue is empty. If queue is not
empty then step 3
3. Check if (front==rear) if it is true then set front=rear= -1
else check if (front==size-1), if it is true then set front=0
and return the element.

77
Priority
Queue

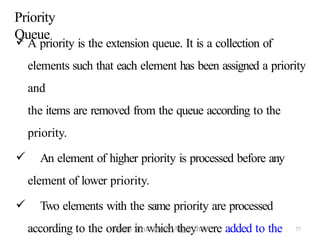

 A priority is the extension queue. It is a collection of
elements such that each element has been assigned a priority
and
the items are removed from the queue according to the
priority.
 An element of higher priority is processed before any
element of lower priority.
 Two elements with the same priority are processed
according to the order in which they were added to the

Cont
’

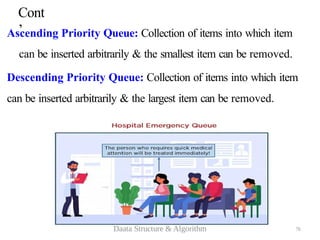

Ascending Priority Queue: Collection of items into which item
can be inserted arbitrarily & the smallest item can be removed.
Descending Priority Queue: Collection of items into which item
can be inserted arbitrarily & the largest item can be removed.
78

79
Queue
Applications

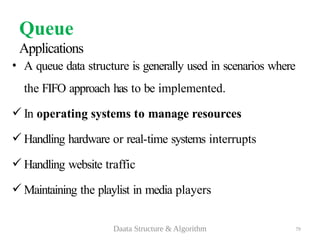

• A queue data structure is generally used in scenarios where
the FIFO approach has to be implemented.
 In operating systems to manage resources
 Handling hardware or real-time systems interrupts
 Handling website traffic
 Maintaining the playlist in media players

80
Cont
’

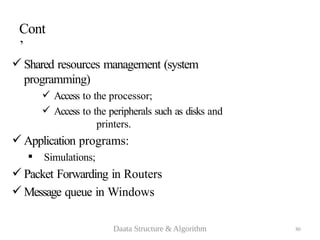

 Shared resources management (system
programming)
 Access to the processor;
 Access to the peripherals such as disks and
printers.
 Application programs:
 Simulations;
 Packet Forwarding in Routers
 Message queue in Windows

81
Cont
…

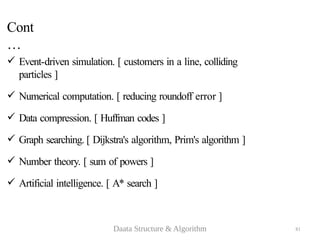

 Event-driven simulation. [ customers in a line, colliding
particles ]
 Numerical computation. [ reducing roundoff error ]
 Data compression. [ Huffman codes ]
 Graph searching. [ Dijkstra's algorithm, Prim's algorithm ]
 Number theory. [ sum of powers ]
 Artificial intelligence. [ A* search ]

82
Cont…

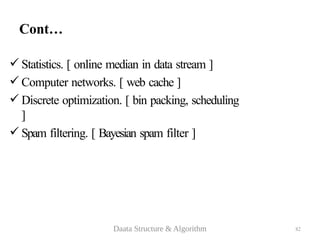

 Statistics. [ online median in data stream ]
 Computer networks. [ web cache ]
 Discrete optimization. [ bin packing, scheduling
]
 Spam filtering. [ Bayesian spam filter ]

83

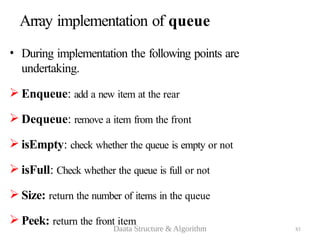

Array implementation of queue
• During implementation the following points are
undertaking.
 Enqueue: add a new item at the rear
 Dequeue: remove a item from the front
 isEmpty: check whether the queue is empty or not
 isFull: Check whether the queue is full or not
 Size: return the number of items in the queue
 Peek: return the front item

84

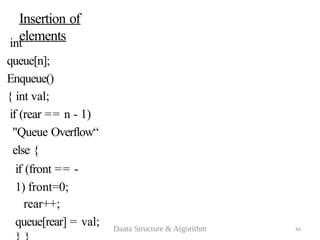

Insertion of
elements
int
queue[n];
Enqueue()
{ int val;
if (rear == n - 1)
"Queue Overflow“
else {
if (front == -
1) front=0;
rear++;
queue[rear] = val; Daata Structure & Algorithm

85

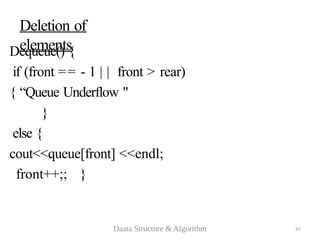

Deletion of
elements
Dequeue() {
if (front == - 1 | | front > rear)
{ “Queue Underflow "
}
else {
cout<<queue[front] <<endl;
front++;; }

86
Chcek the status of the queue
• Check whether the queue is empty
boolean isEmpty()
{
return (rear == front);//front=rear=-1
}
• check whether the queue is full
boolean isFull() {
return size() == queue.length-1;// queue size =maximum
size
}

87

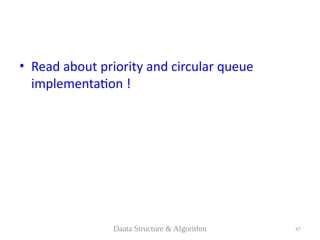

• Read about priority and circular queue
implementation !

Thank you!
Daata Structure &
Algorithm
28
88

Chapter 3- Linear Data Structure (linked list stack,queue).pptx

More Related Content

Similar to Chapter 3- Linear Data Structure (linked list stack,queue).pptx

More from WondimuBantihun1

Recently uploaded

Chapter 3- Linear Data Structure (linked list stack,queue).pptx
