Challenge Industrial Co., Ltd. – also known as CIC – specializes in the manufacture, supply, and distribution of indoor and outdoor current transformers and potential transformers (voltage transformer), as well as distribution transformers, electrical reactors, resin insulators/bushings, electronic energy meters, and EV chargers. Empowered by advanced technology transferred from Germany, CIC operates an accredited testing laboratory and multiple factories, where it uses only highest-quality materials to manufacture its products, all of which backed by CIC's technical support and satisfaction guarantee. CIC products have been widely used in revenue and switchboard applications by power companies as well as major engineering and construction firms in the United States, Canada, Russia, Japan, and other countries. With more than 40 years of product application experience, CIC is able to provide customers worldwide with expert advice, together with optimal and cost-effective solutions. One of the most trusted and respected brands in the electronics and electrical power markets, CIC also welcomes requests for OEM/ODM services. Visit us at http://www.cic-ltd.com.tw/en/index.html Contact our sales team at <jean.fang@cic-ltd.com.tw>

1. 1

2. OUTLINE
I. CIC Company Introduction
II. Products
1. CT/VT
2. Transformer
3. Bushing & Insulator
4. Reactor
5. Capacitor
6. Electrical meter & relay
III. Advanced Electricity Laboratory
2

3. 3
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved. 3
⚫ Company: Challenge Industrial Co., Ltd. (CIC)
⚫ Chairman & CEO: Mike Huang
⚫ Founded: 1974
⚫ Capital: USD7.9 Million
⚫ Number of employees: 200
COMPANY PROFILE
⚫ 2019 Revenue: USD12.7 Million
⚫ 2020 Revenue (forecast):
USD15 Million

4. 4
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved. 4
Challenge Electric
(Jiaxing) Co.
2004 (Subsidiary)
(China)
Challenge
Industrial Co.
Malaysia Sdn.
1995 (Joint Venture)
(Malaysia)
(Taiwan)
Challenge
Industrial Co., Ltd.
Taoyuan Factory
(Taiwan)
Challenge
Industrial Co., Ltd.
Zhongli Factory
(Taiwan)
Advanced
Electricity Lab.
2004
(Taiwan)
Youwon Enterprise
1995 (Subsidiary)
(Taiwan)
Sales department
of
Power & Electric
(Taiwan)
Aplus Power
Solution
2016 (Subsidiary)
(Philippine)

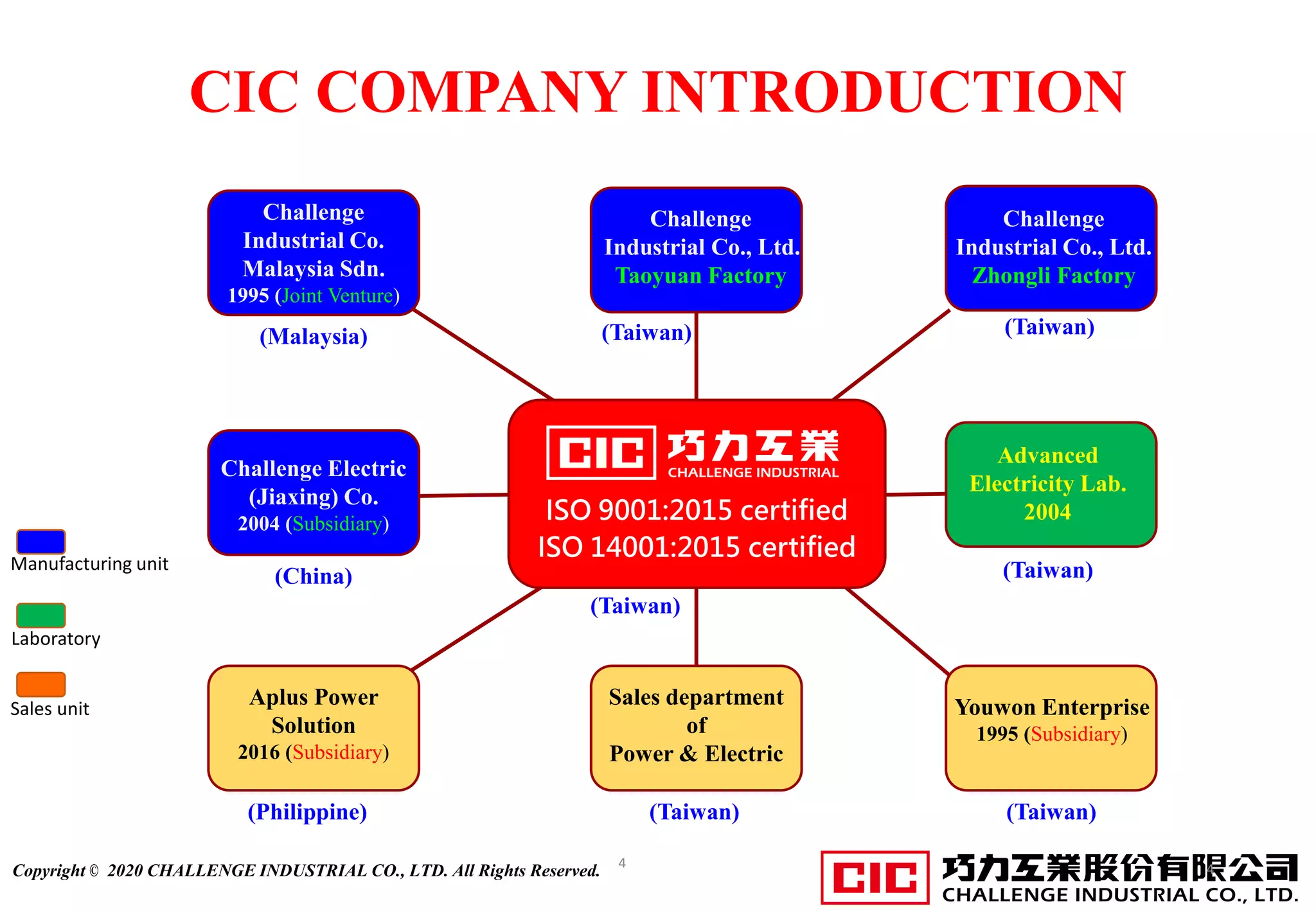

CIC COMPANY INTRODUCTION
Manufacturing unit
Laboratory
Sales unit
ISO 9001:2015 certified
ISO 14001:2015 certified

5. 5

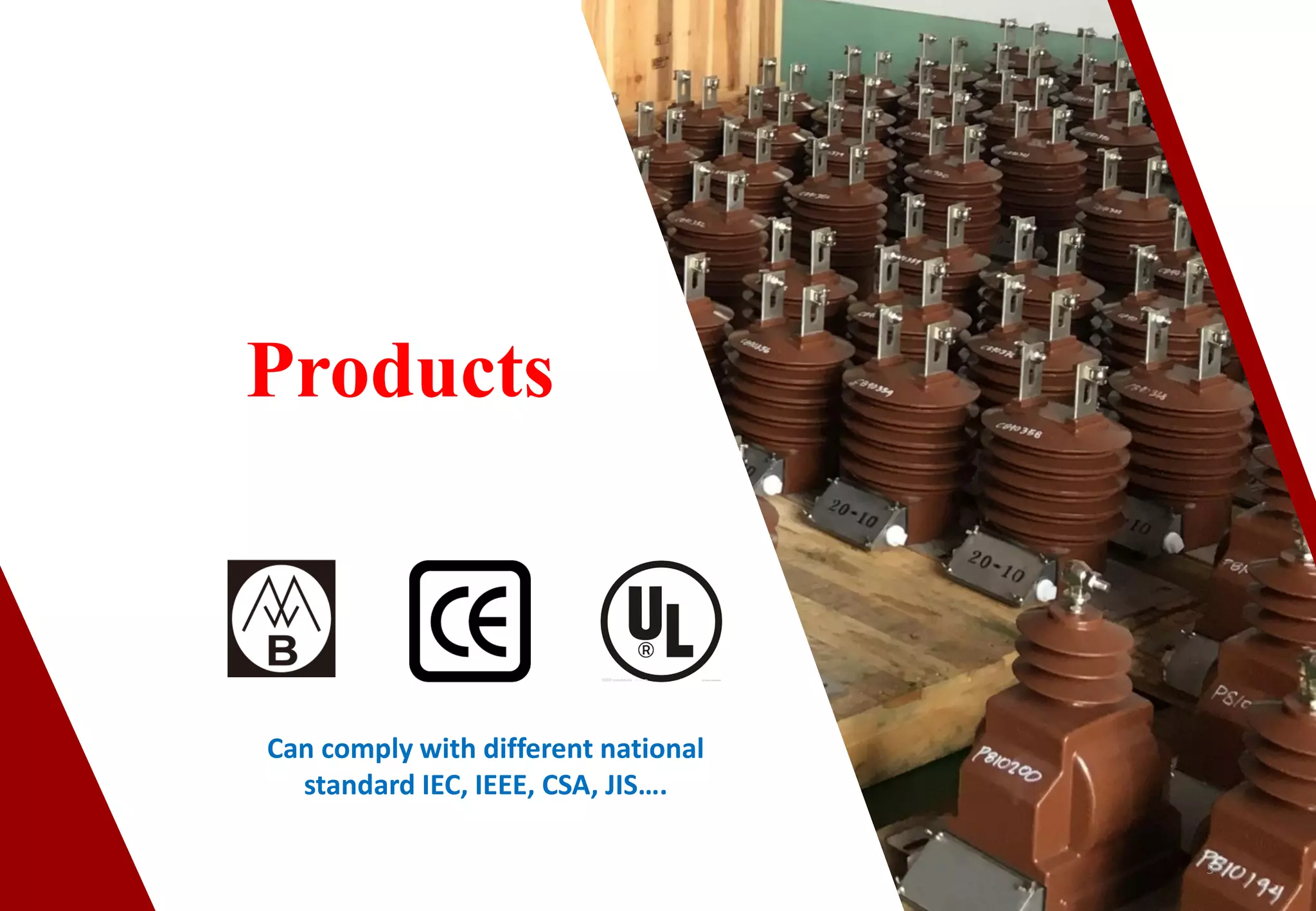

Products
Can comply with different national
standard IEC, IEEE, CSA, JIS….

6. 6
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

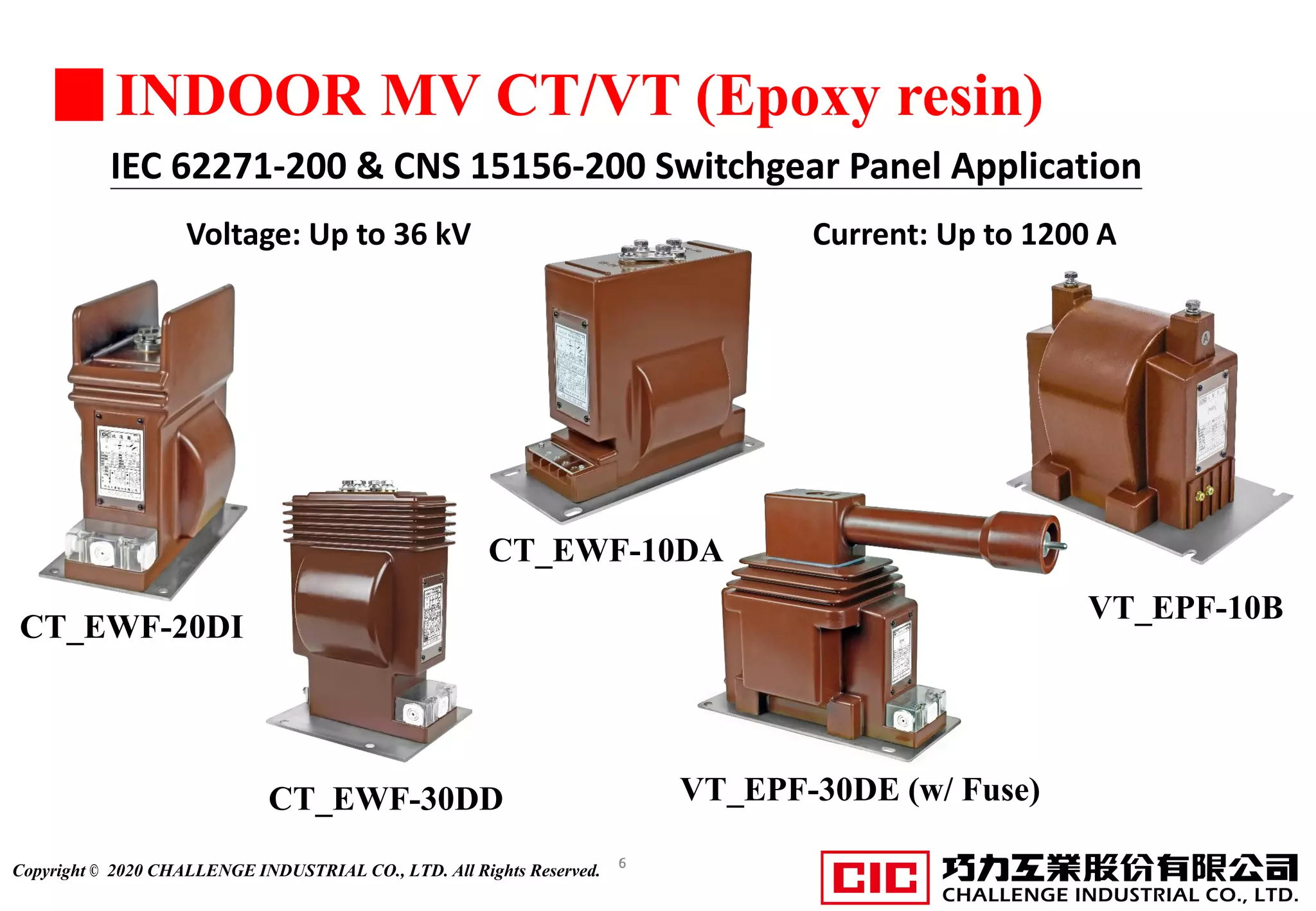

CT_EWF-10DA
VT_EPF-10B
CT_EWF-20DI
INDOOR MV CT/VT (Epoxy resin)
6
IEC 62271-200 & CNS 15156-200 Switchgear Panel Application
Voltage: Up to 36 kV Current: Up to 1200 A
CT_EWF-30DD VT_EPF-30DE (w/ Fuse)

7. 7
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

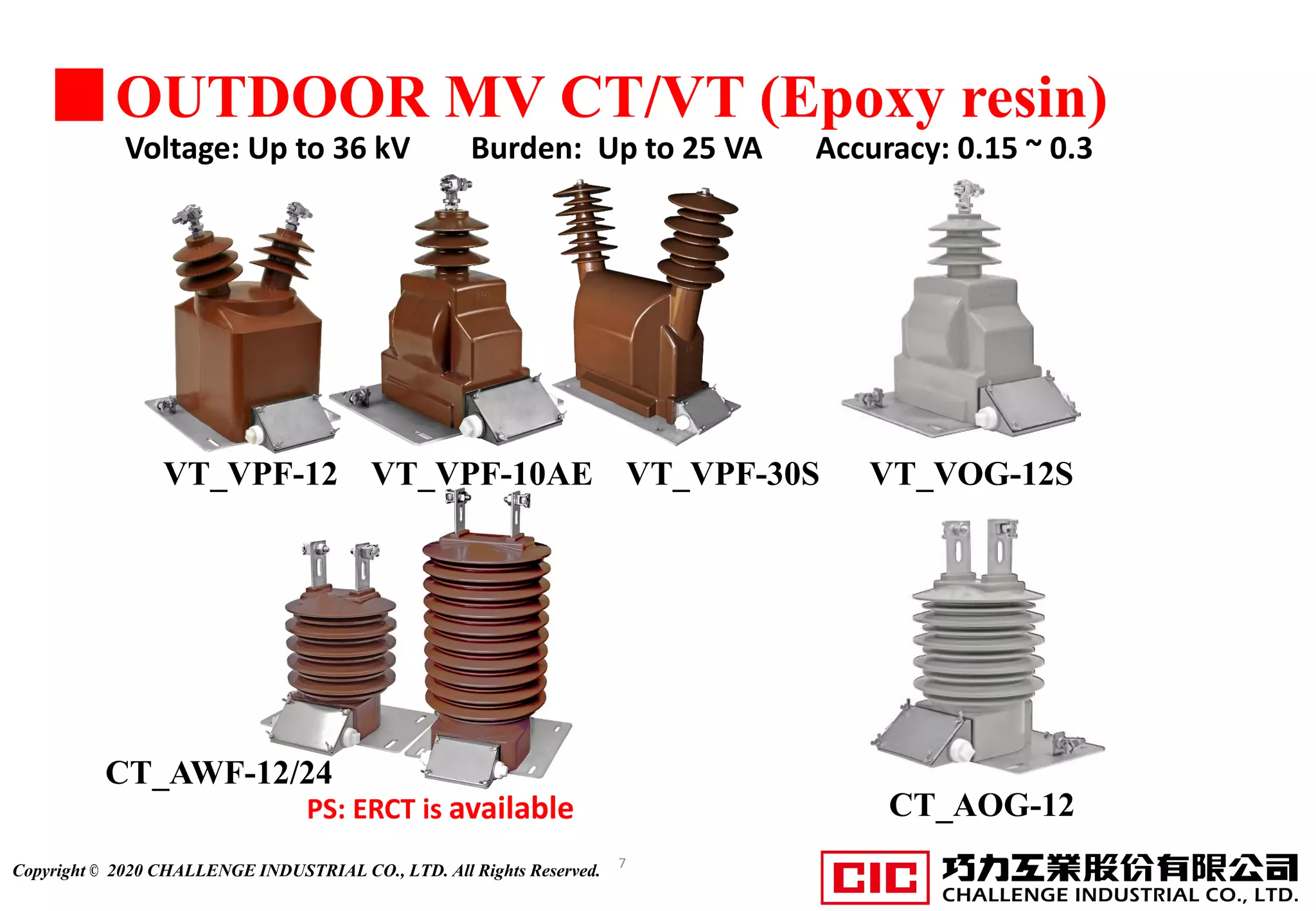

OUTDOOR MV CT/VT (Epoxy resin)
Voltage: Up to 36 kV Burden: Up to 25 VA Accuracy: 0.15 ~ 0.3
PS: ERCT is available
CT_AWF-12/24
CT_AOG-12
VT_VPF-12 VT_VPF-10AE VT_VPF-30S VT_VOG-12S

8. 8
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

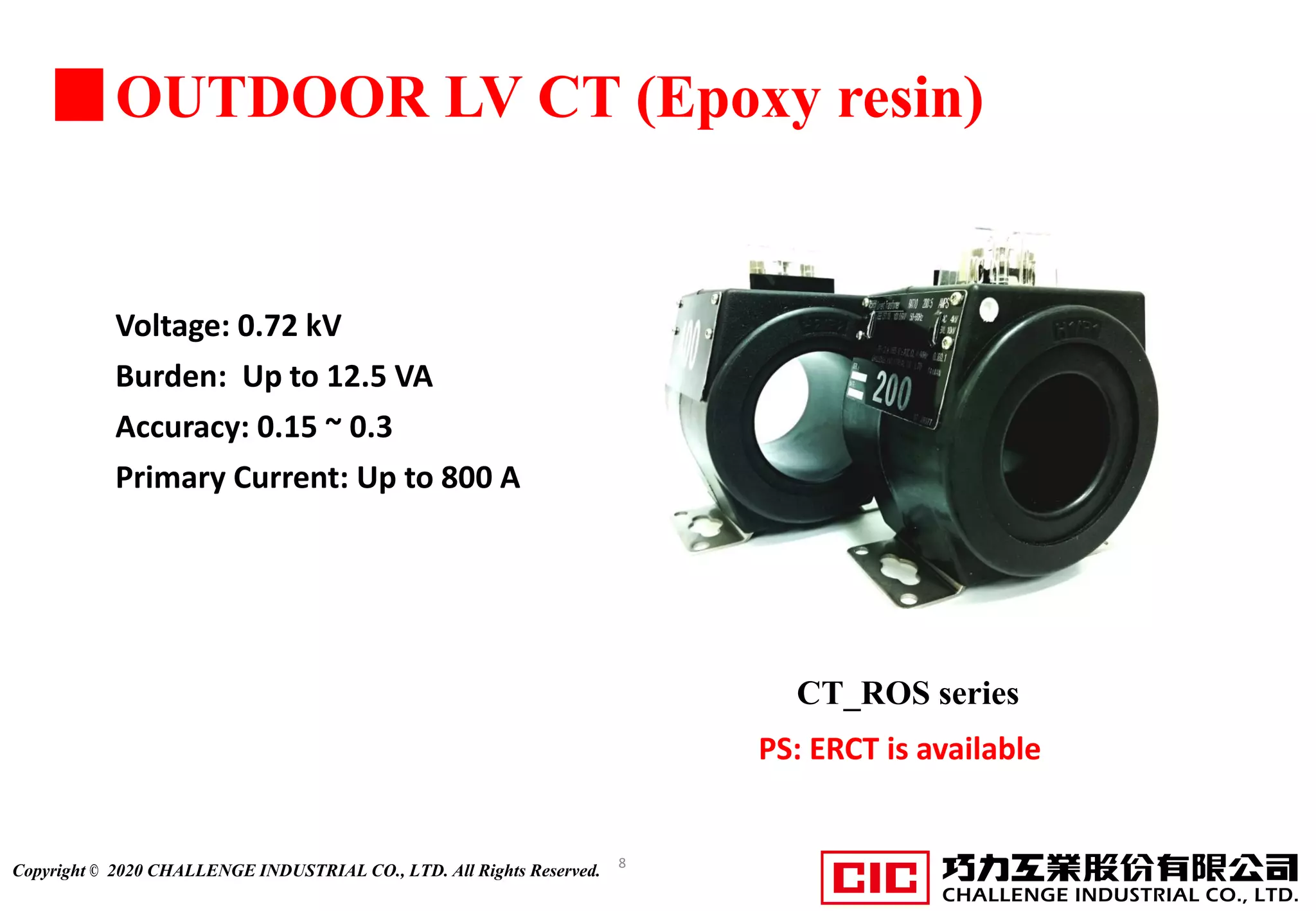

OUTDOOR LV CT (Epoxy resin)
Voltage: 0.72 kV
Burden: Up to 12.5 VA
Accuracy: 0.15 ~ 0.3
Primary Current: Up to 800 A
PS: ERCT is available
CT_ROS series

9. 9
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

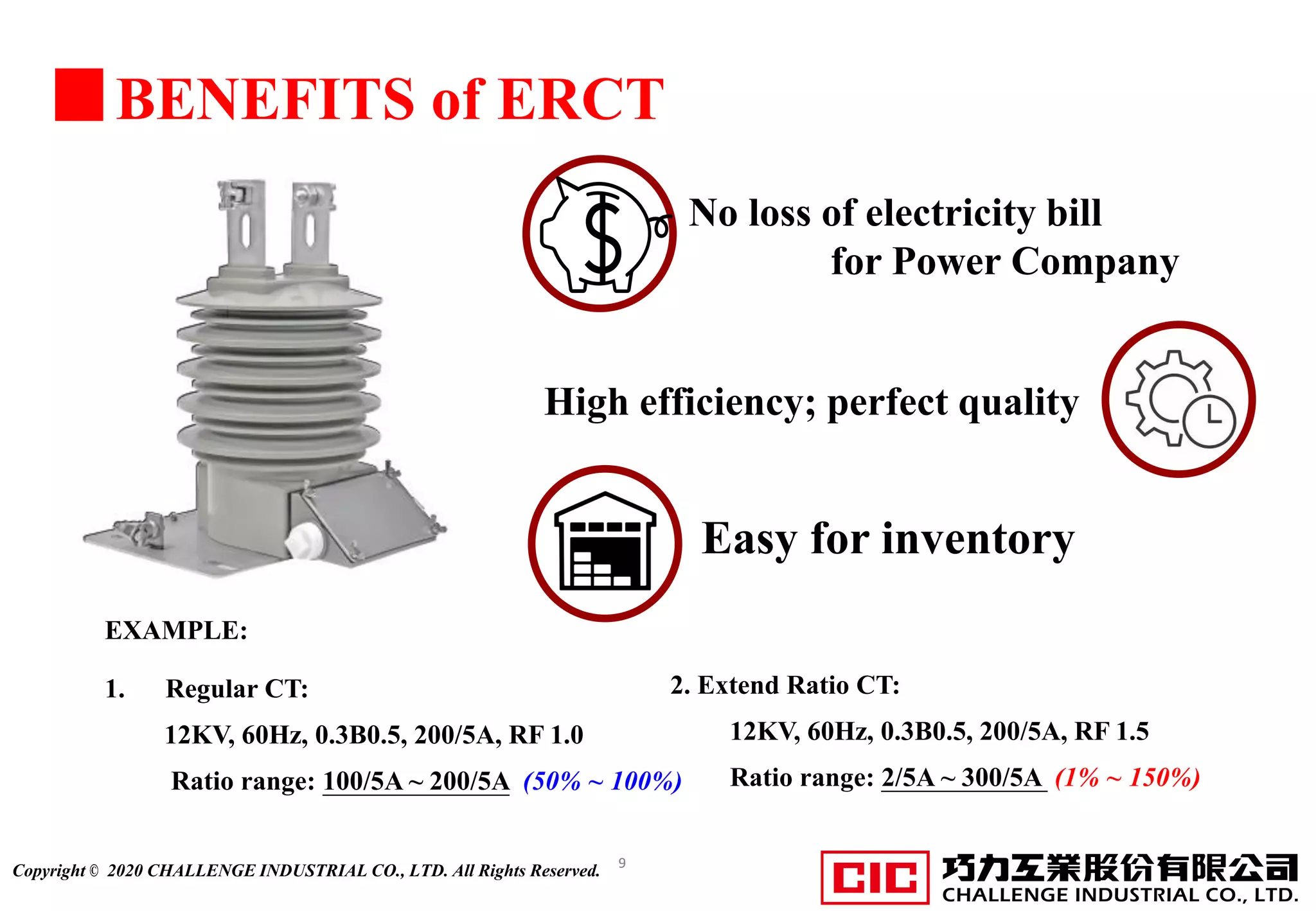

BENEFITS of ERCT
EXAMPLE:
1. Regular CT:
12KV, 60Hz, 0.3B0.5, 200/5A, RF 1.0
Ratio range: 100/5A ~ 200/5A (50% ~ 100%)
9
No loss of electricity bill
for Power Company
Easy for inventory
2. Extend Ratio CT:
12KV, 60Hz, 0.3B0.5, 200/5A, RF 1.5
Ratio range: 2/5A ~ 300/5A (1% ~ 150%)
High efficiency; perfect quality

10. 10
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

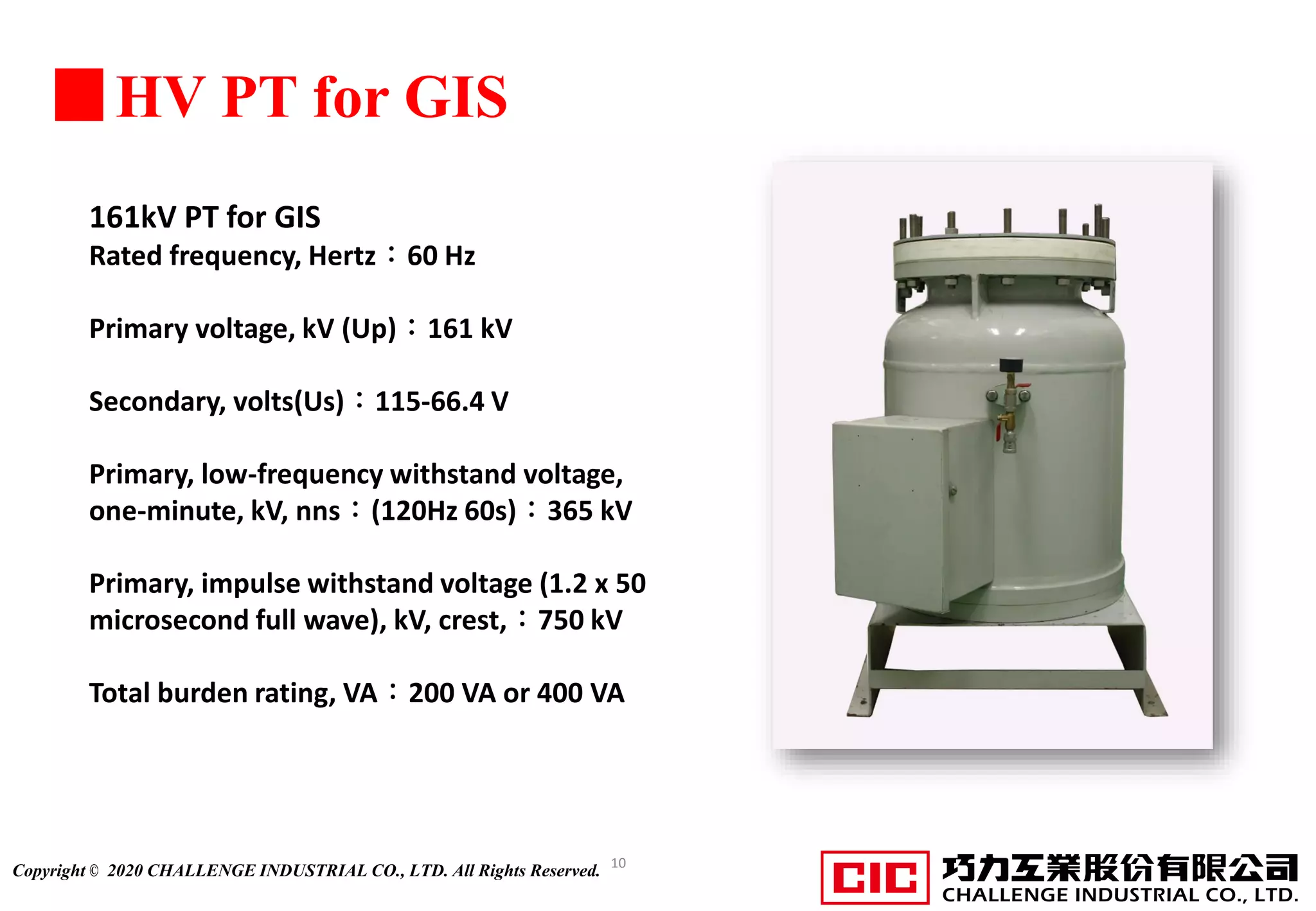

HV PT for GIS
161kV PT for GIS
Rated frequency, Hertz：60 Hz
Primary voltage, kV (Up)：161 kV
Secondary, volts(Us)：115-66.4 V
Primary, low-frequency withstand voltage,
one-minute, kV, nns：(120Hz 60s)：365 kV
Primary, impulse withstand voltage (1.2 x 50
microsecond full wave), kV, crest,：750 kV
Total burden rating, VA：200 VA or 400 VA

11. 11
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

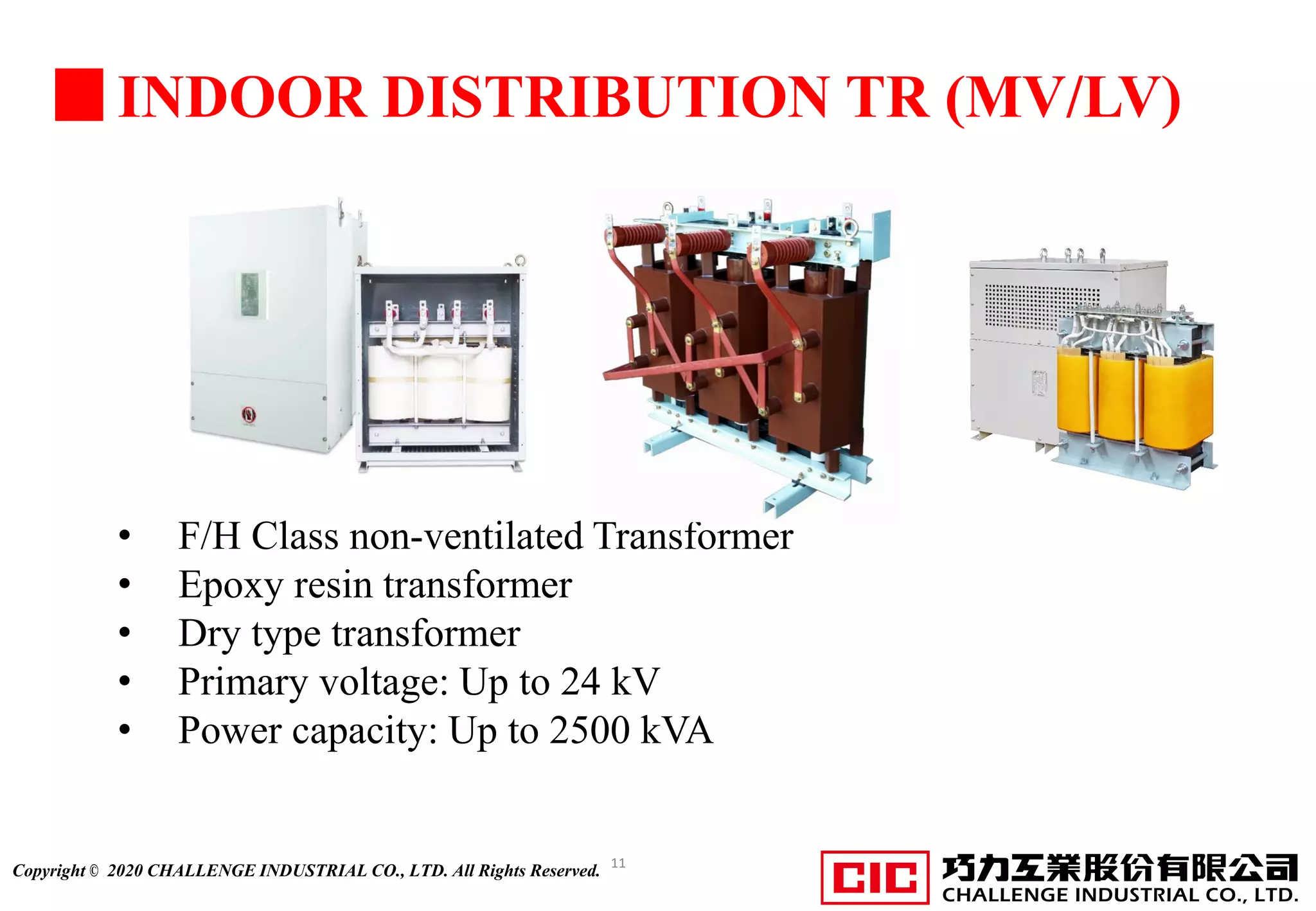

INDOOR DISTRIBUTION TR (MV/LV)
• F/H Class non-ventilated Transformer
• Epoxy resin transformer
• Dry type transformer
• Primary voltage: Up to 24 kV
• Power capacity: Up to 2500 kVA

12. 12
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

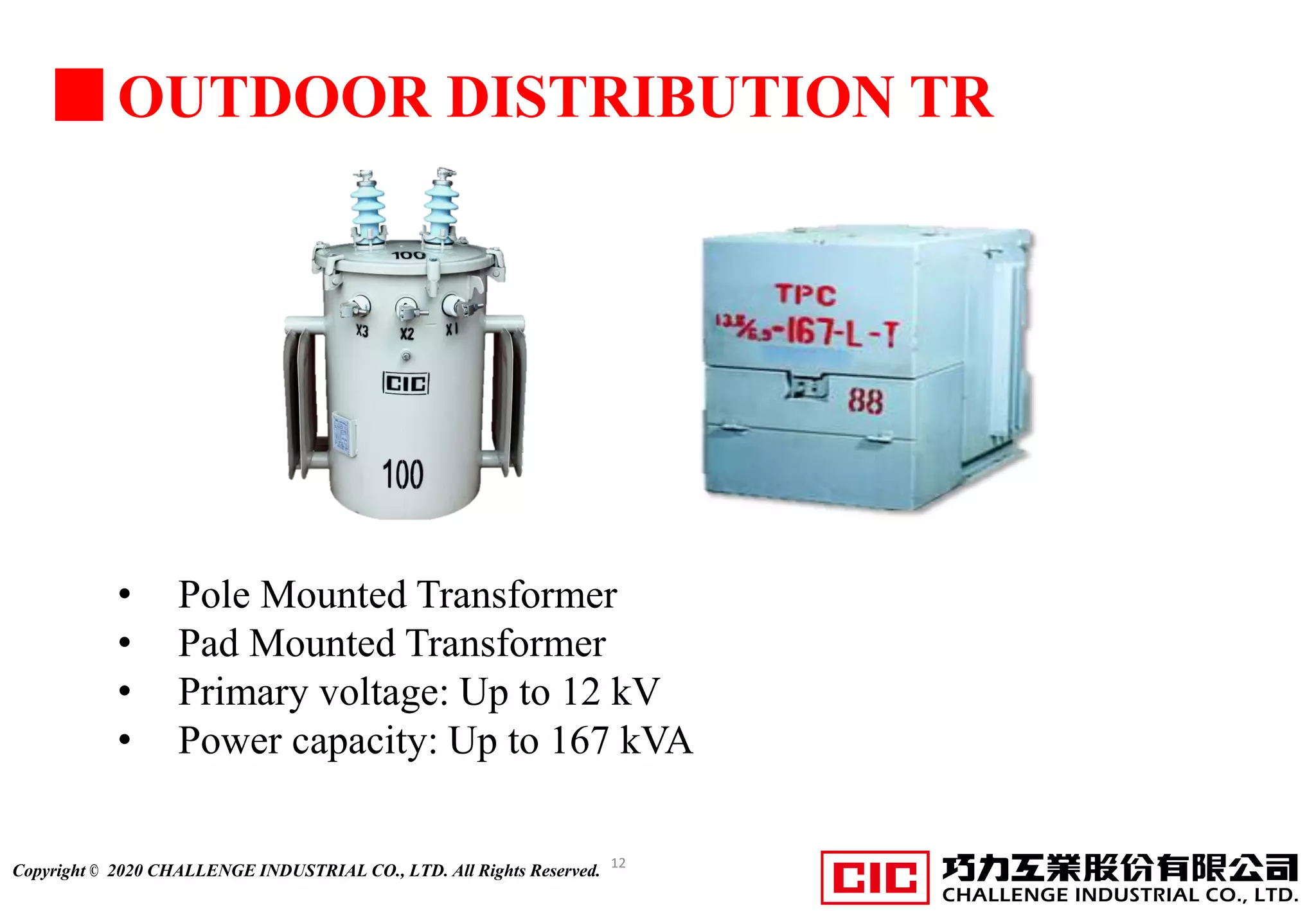

OUTDOOR DISTRIBUTION TR
• Pole Mounted Transformer
• Pad Mounted Transformer
• Primary voltage: Up to 12 kV
• Power capacity: Up to 167 kVA

13. 13
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

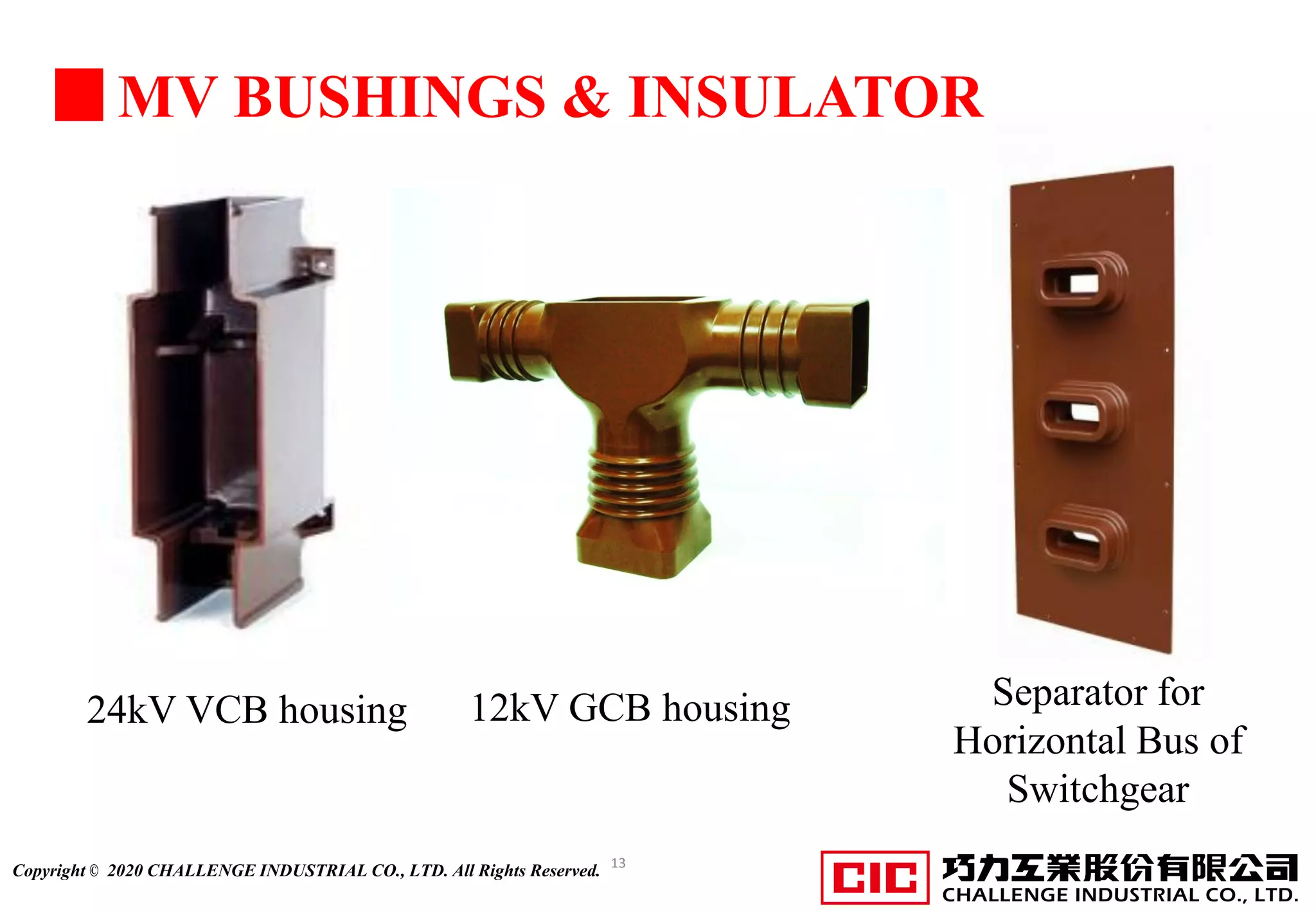

MV BUSHINGS & INSULATOR
12kV GCB housing24kV VCB housing Separator for
Horizontal Bus of
Switchgear

14. 14
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

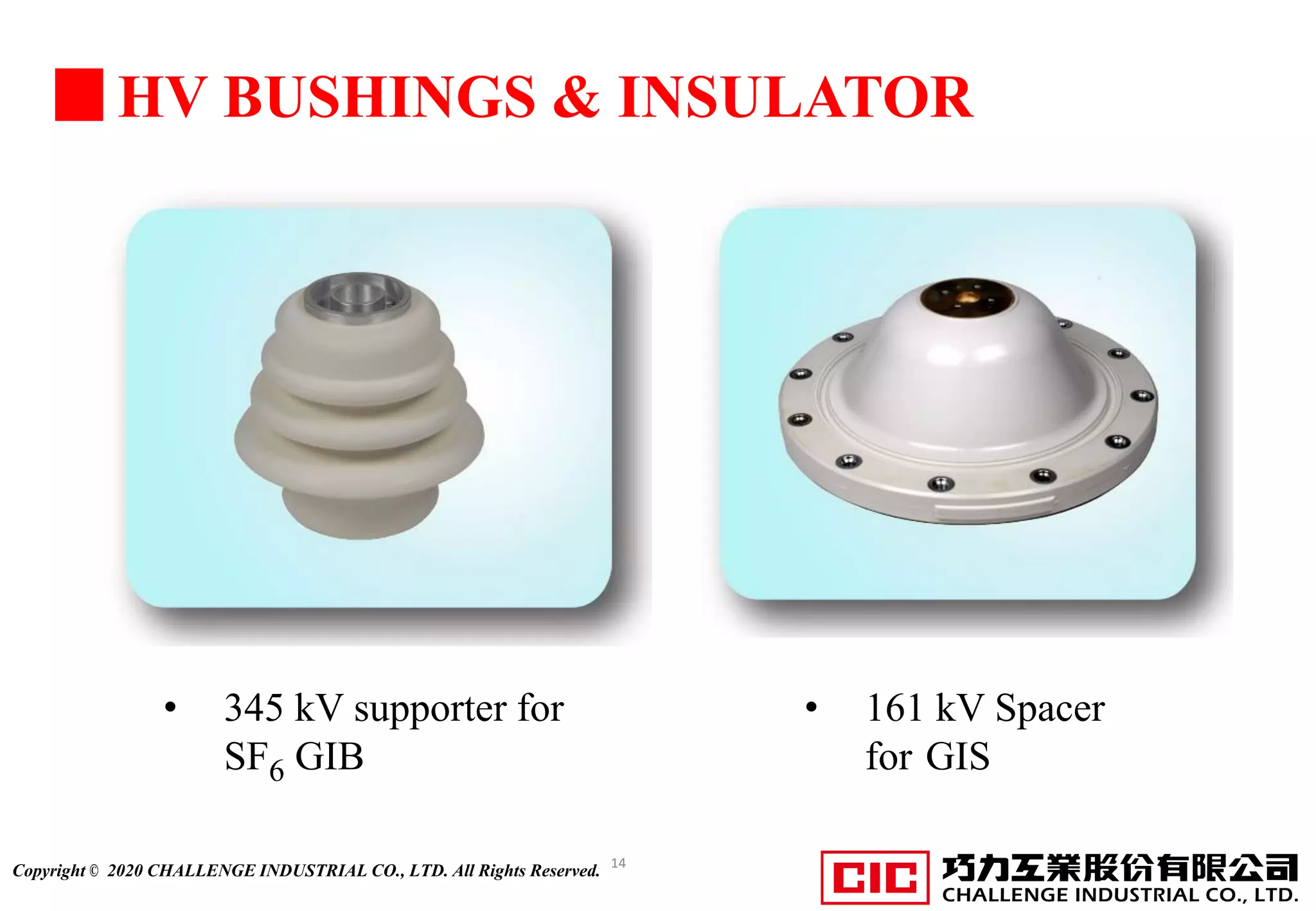

HV BUSHINGS & INSULATOR
• 345 kV supporter for
SF6 GIB
• 161 kV Spacer
for GIS

15. 15
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

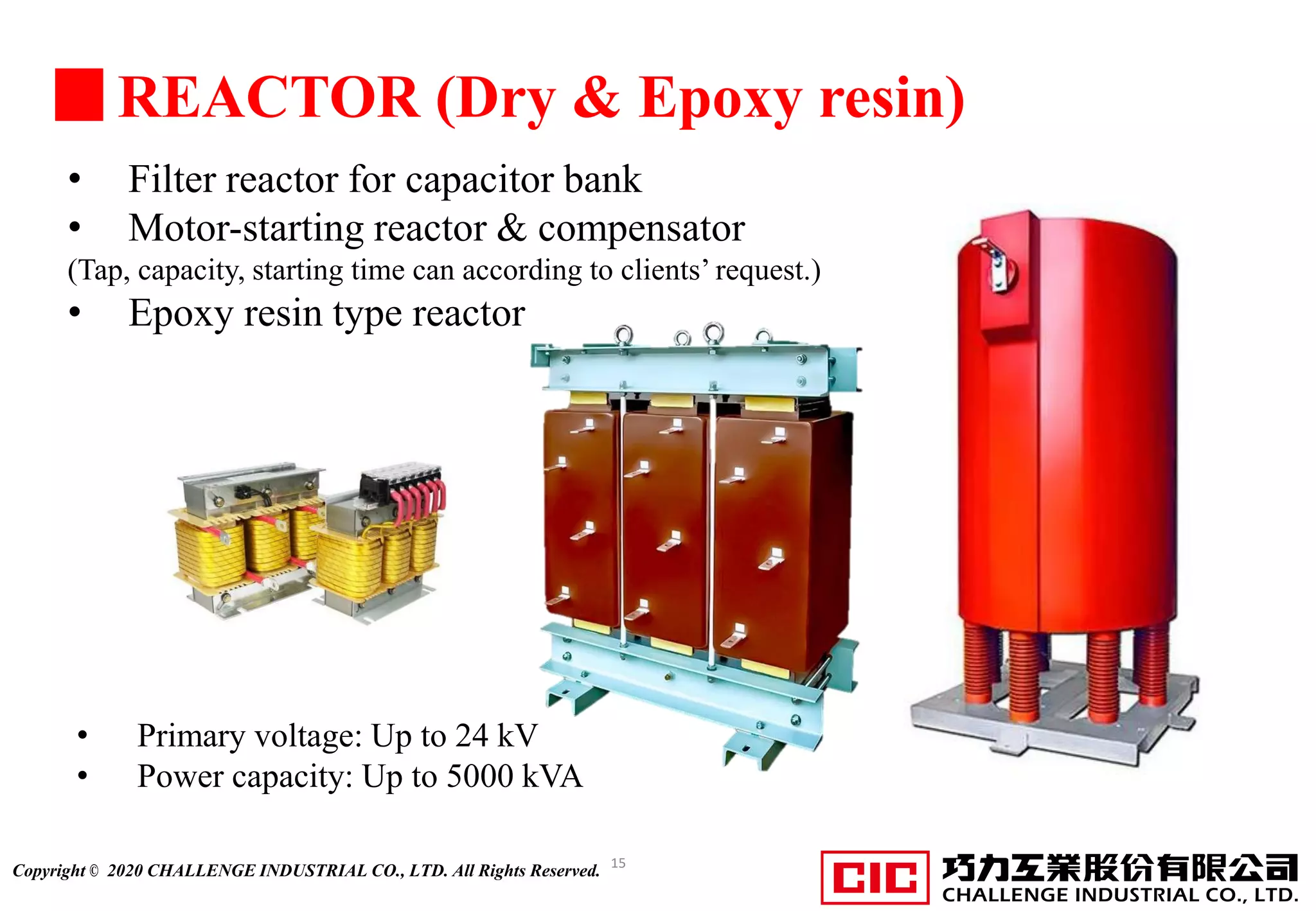

REACTOR (Dry & Epoxy resin)
• Primary voltage: Up to 24 kV
• Power capacity: Up to 5000 kVA
• Filter reactor for capacitor bank
• Motor-starting reactor & compensator
(Tap, capacity, starting time can according to clients’ request.)
• Epoxy resin type reactor

16. 16
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

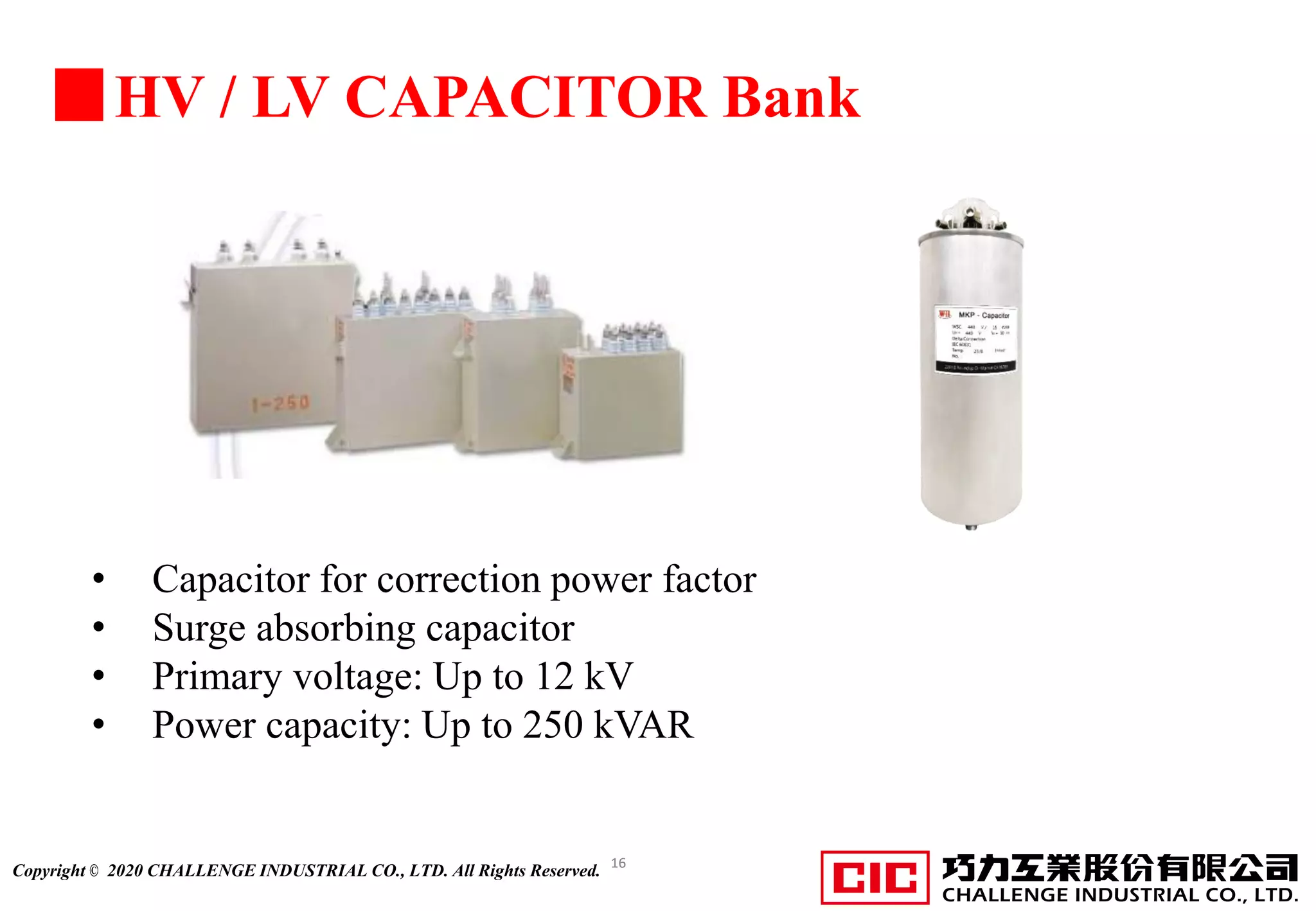

HV / LV CAPACITOR Bank
16
• Capacitor for correction power factor
• Surge absorbing capacitor
• Primary voltage: Up to 12 kV
• Power capacity: Up to 250 kVAR

17. 17
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

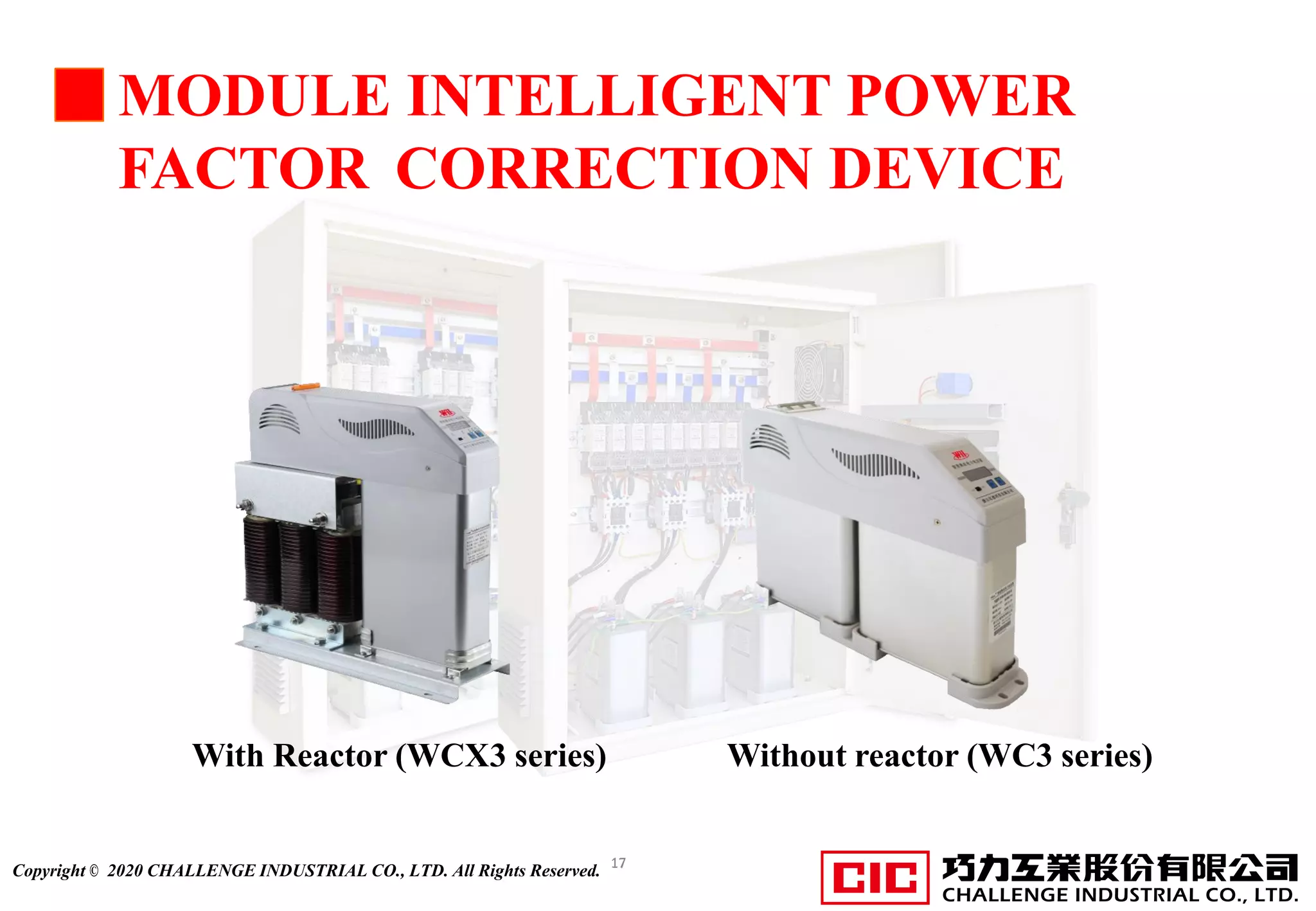

Without reactor (WC3 series)With Reactor (WCX3 series)
MODULE INTELLIGENT POWER
FACTOR
17
CORRECTION DEVICE

18. 18
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

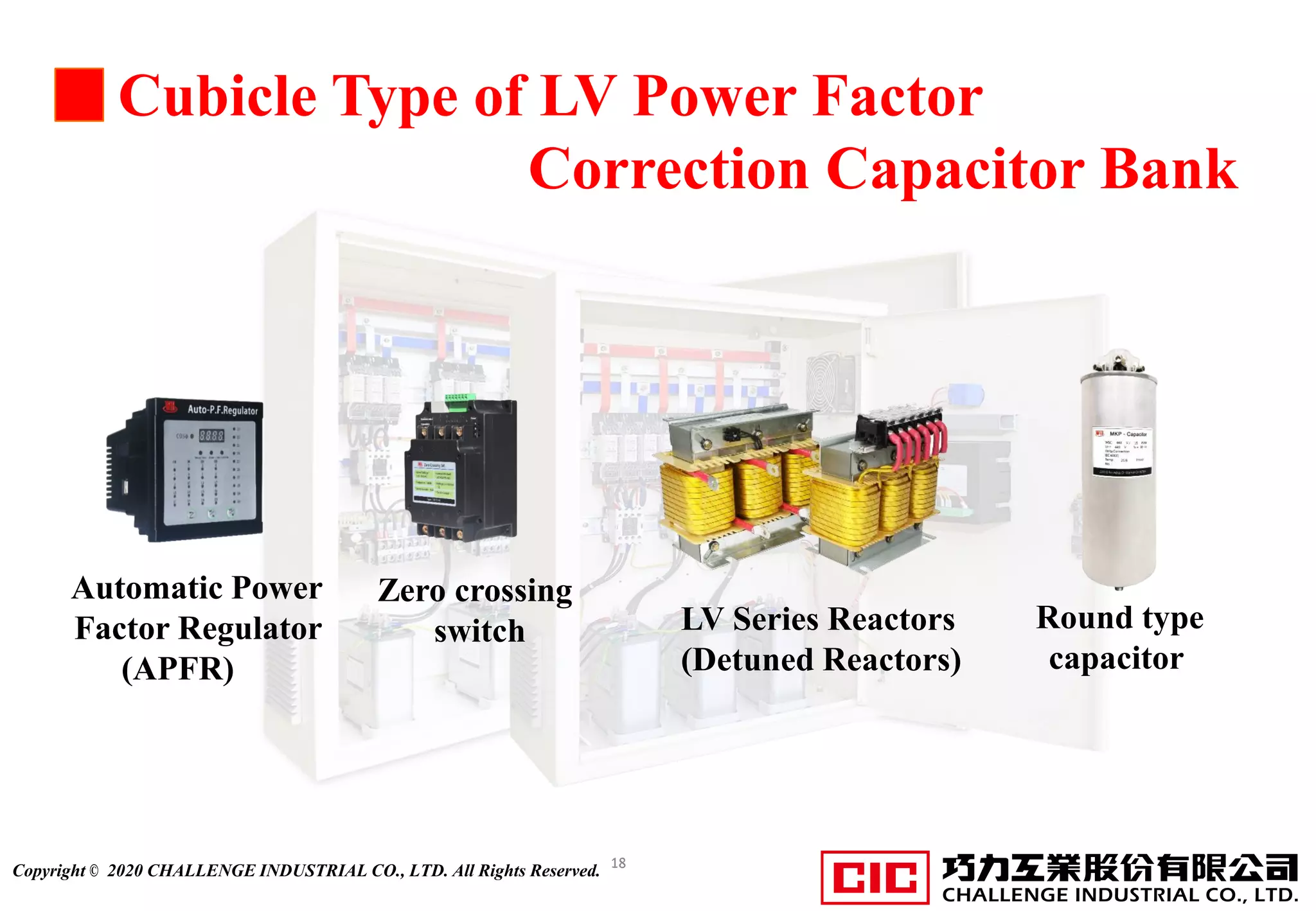

Cubicle Type of LV Power Factor
Correction Capacitor Bank
Round type
capacitor
Automatic Power
Factor Regulator
(APFR)
Zero crossing
switch
18
LV Series Reactors
(Detuned Reactors)

19. 19
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

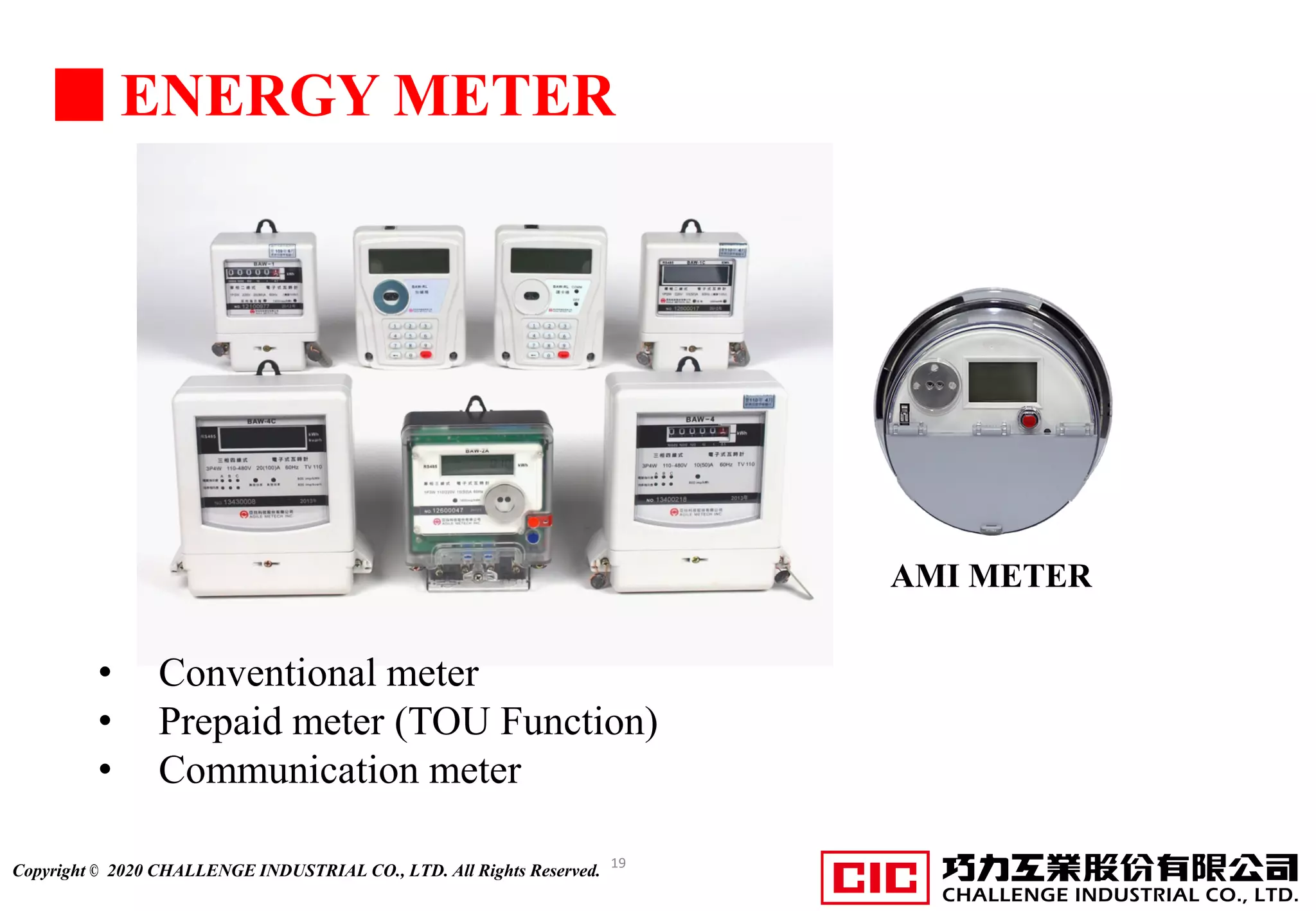

ENERGY METER
• Conventional meter
• Prepaid meter (TOU Function)
• Communication meter
AMI METER

20. 20
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

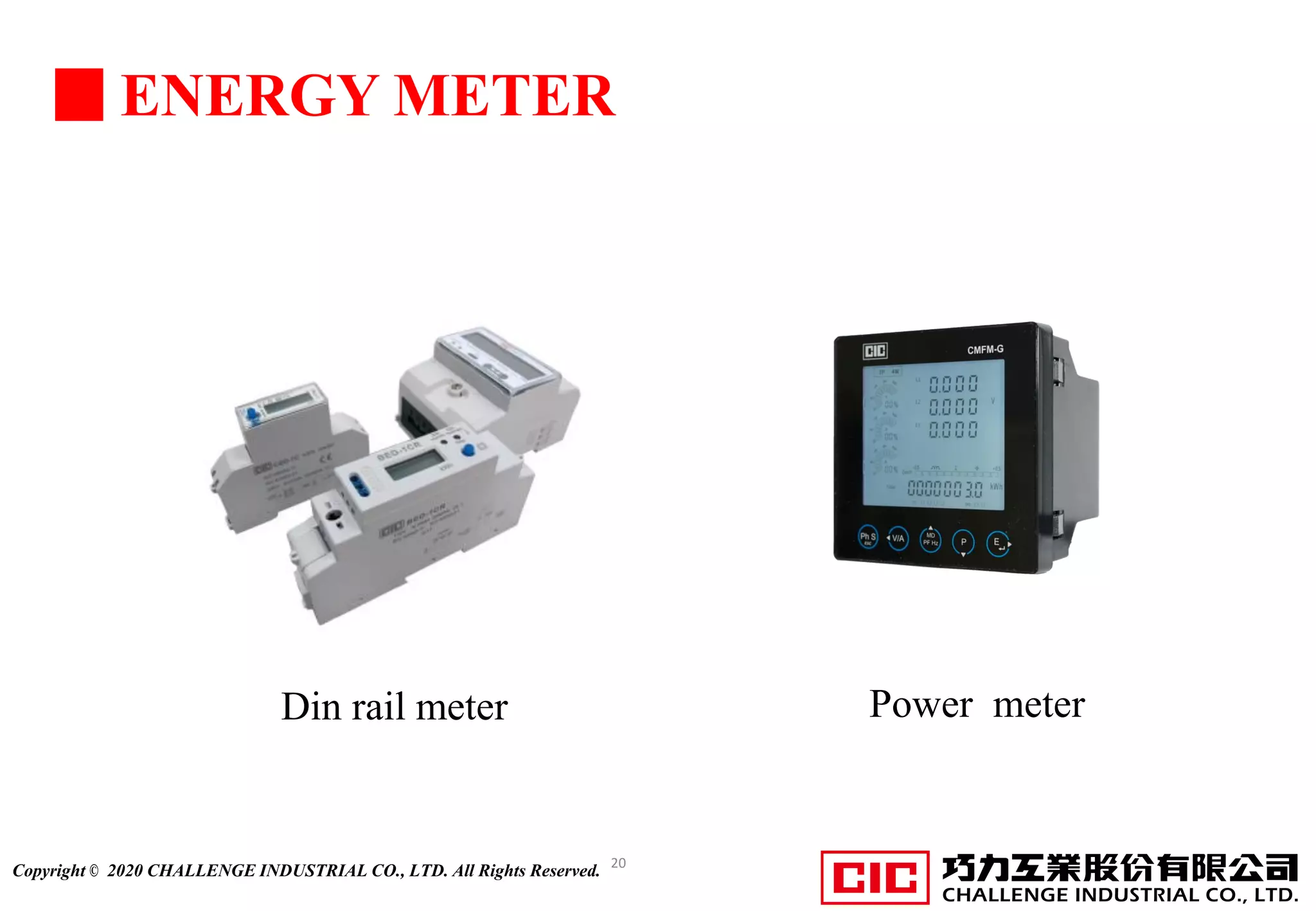

ENERGY METER
Power meterDin rail meter

21. 21
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved. 21

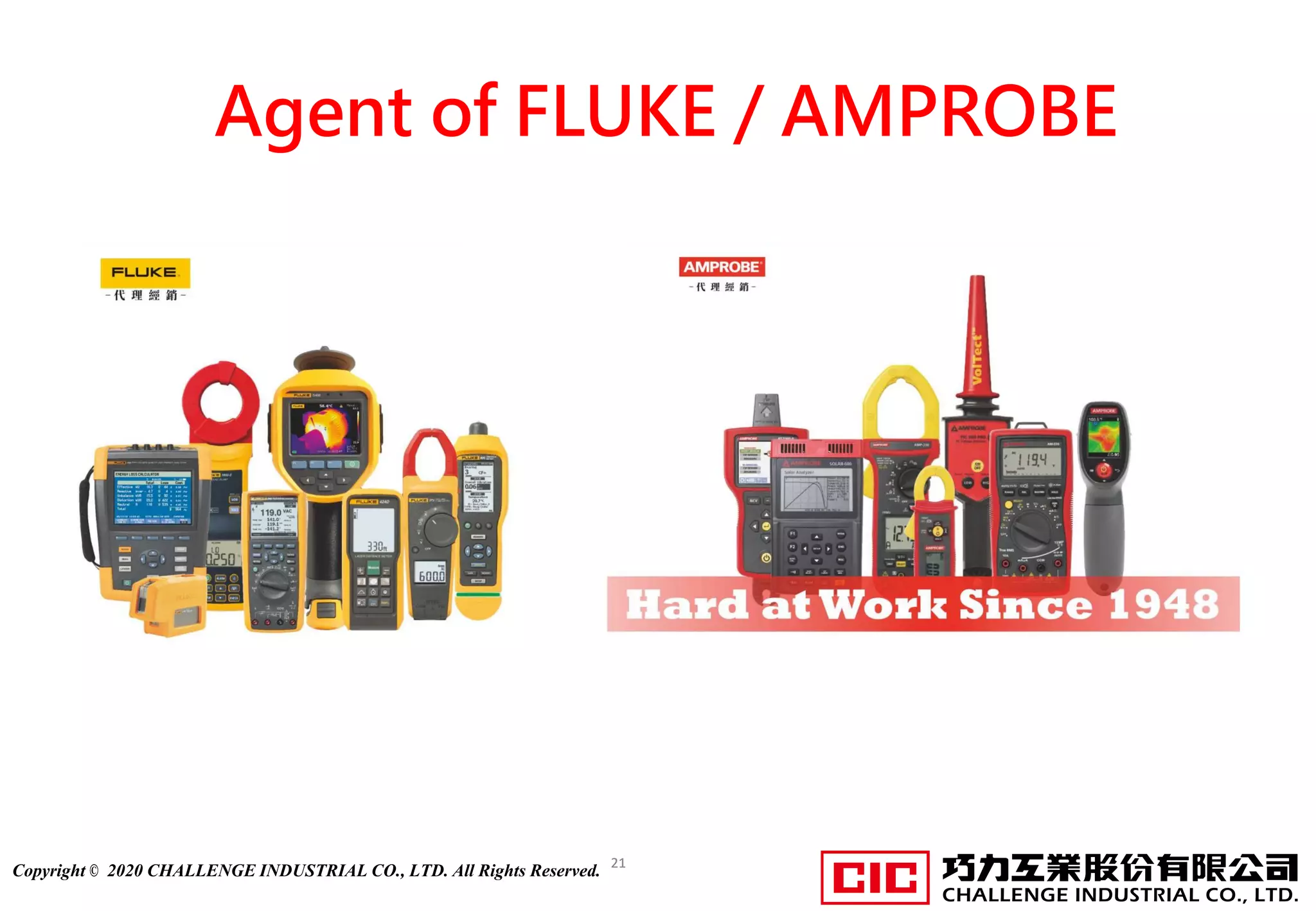

Agent of FLUKE / AMPROBE

22. 22
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved. 22

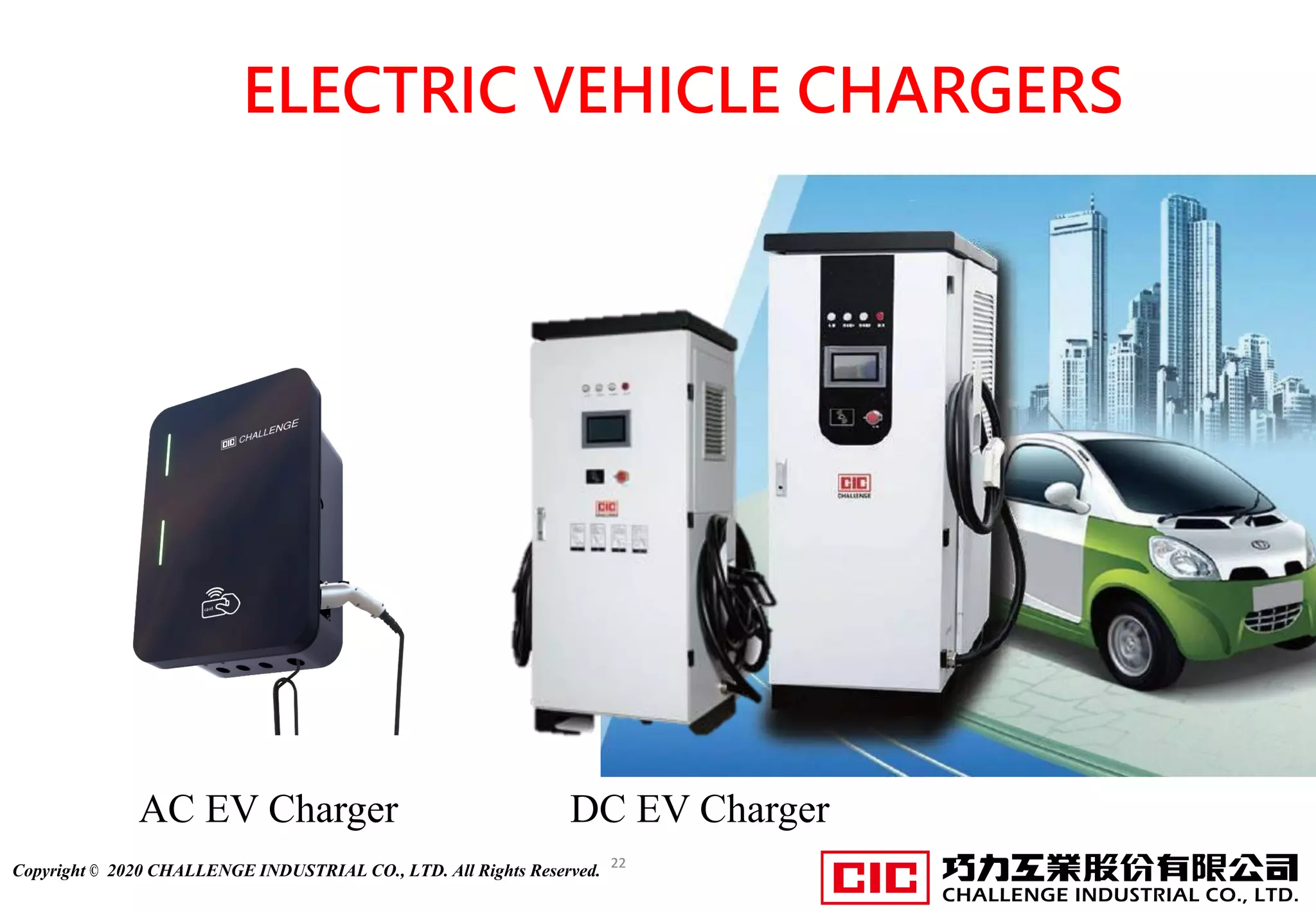

ELECTRIC VEHICLE CHARGERS
AC EV Charger DC EV Charger

23. 2323

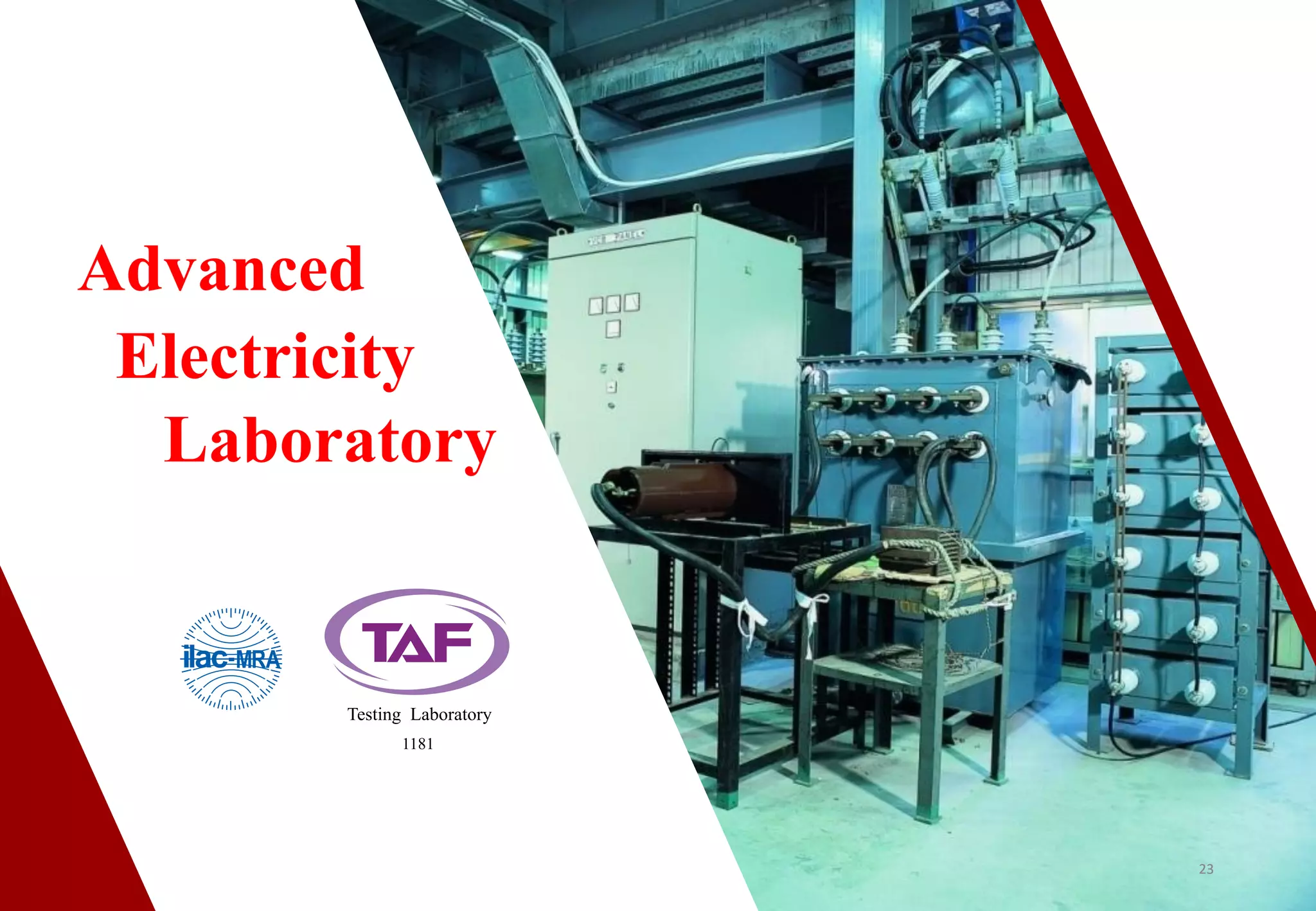

Advanced
Laboratory
Electricity

24. 24
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

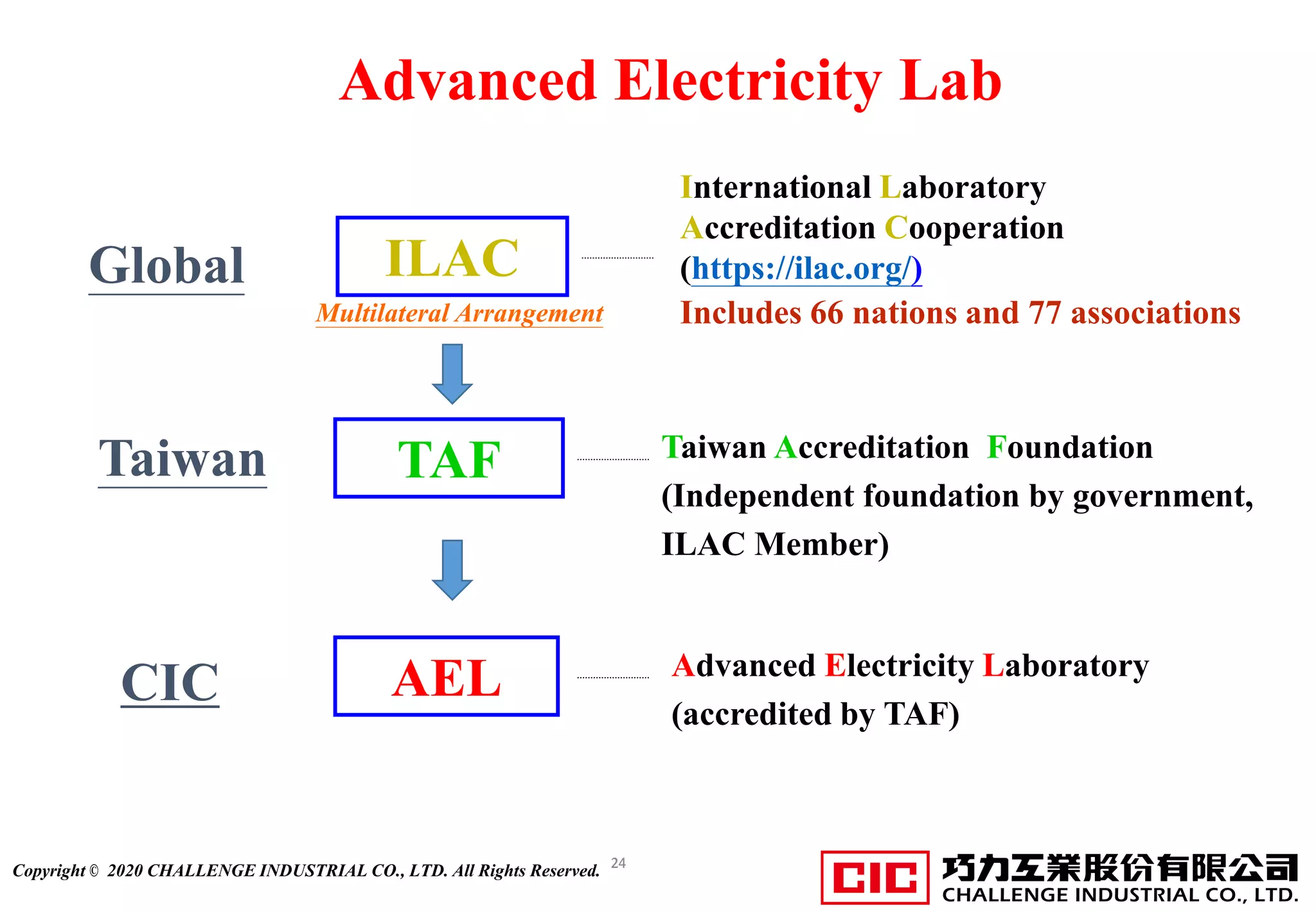

AEL Advanced Electricity Laboratory
(accredited by TAF)
CIC
TAF Taiwan Accreditation Foundation
(Independent foundation by government,
ILAC Member)
Taiwan
ILAC
International Laboratory
Accreditation Cooperation
(https://ilac.org/)
Includes 66 nations and 77 associations
Global
Multilateral Arrangement
Advanced Electricity Lab
24

25. 25
Copyright © 2020 CHALLENGE INDUSTRIAL CO., LTD. All Rights Reserved.

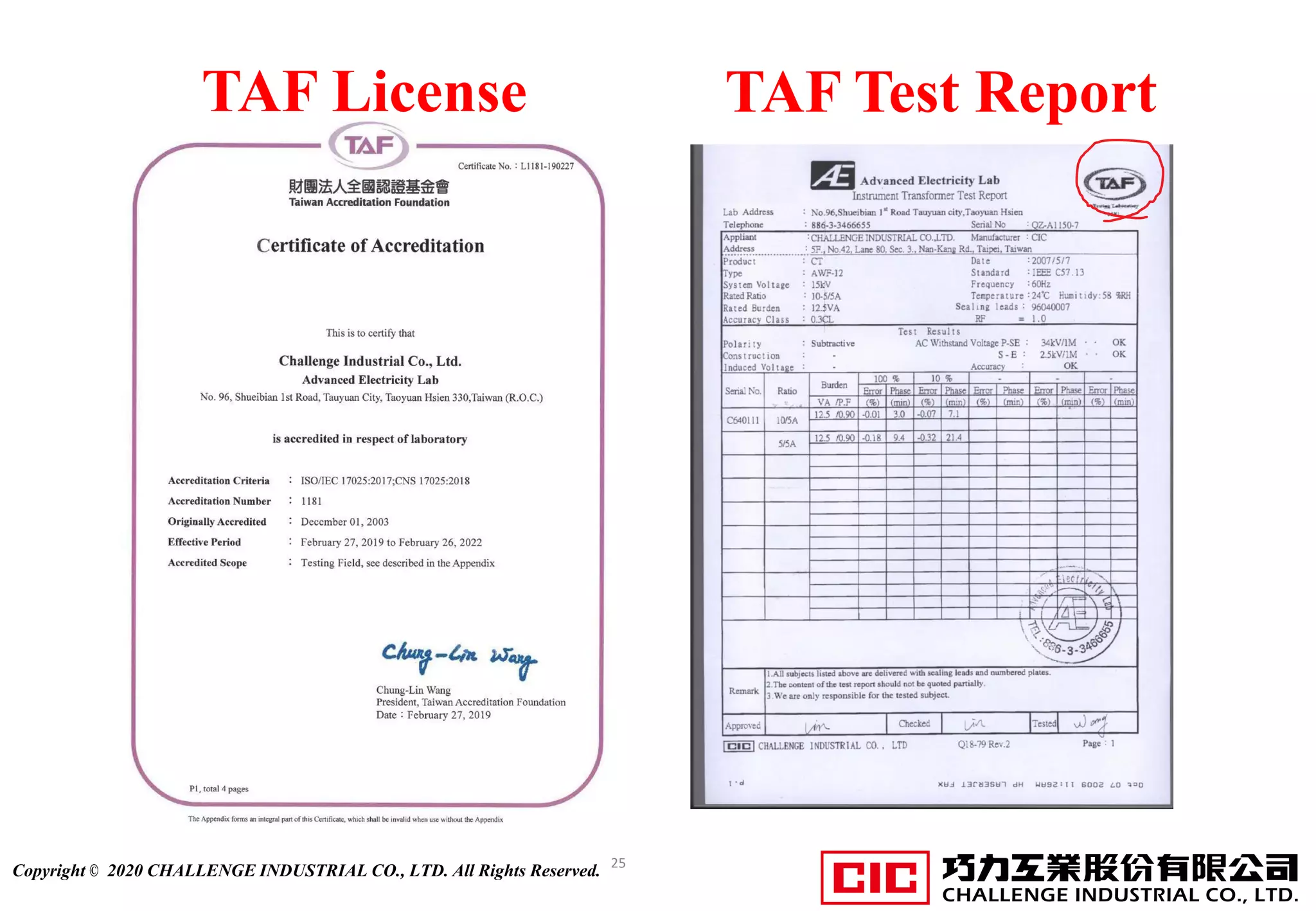

TAF License TAF Test Report

26. 26
• Headquarters: No. 46, Lane 80, Sec. 3,
Nan-Kang Road, Taipei, Taiwan.
• Tel No.: +886-2-2788-3368
• Fax No.: +886-2-2788-3244
• E-mail Jean at
<jean.fang@cic-ltd.com.tw>
• Web: www.cic-ltd.com.tw
Contact Information
