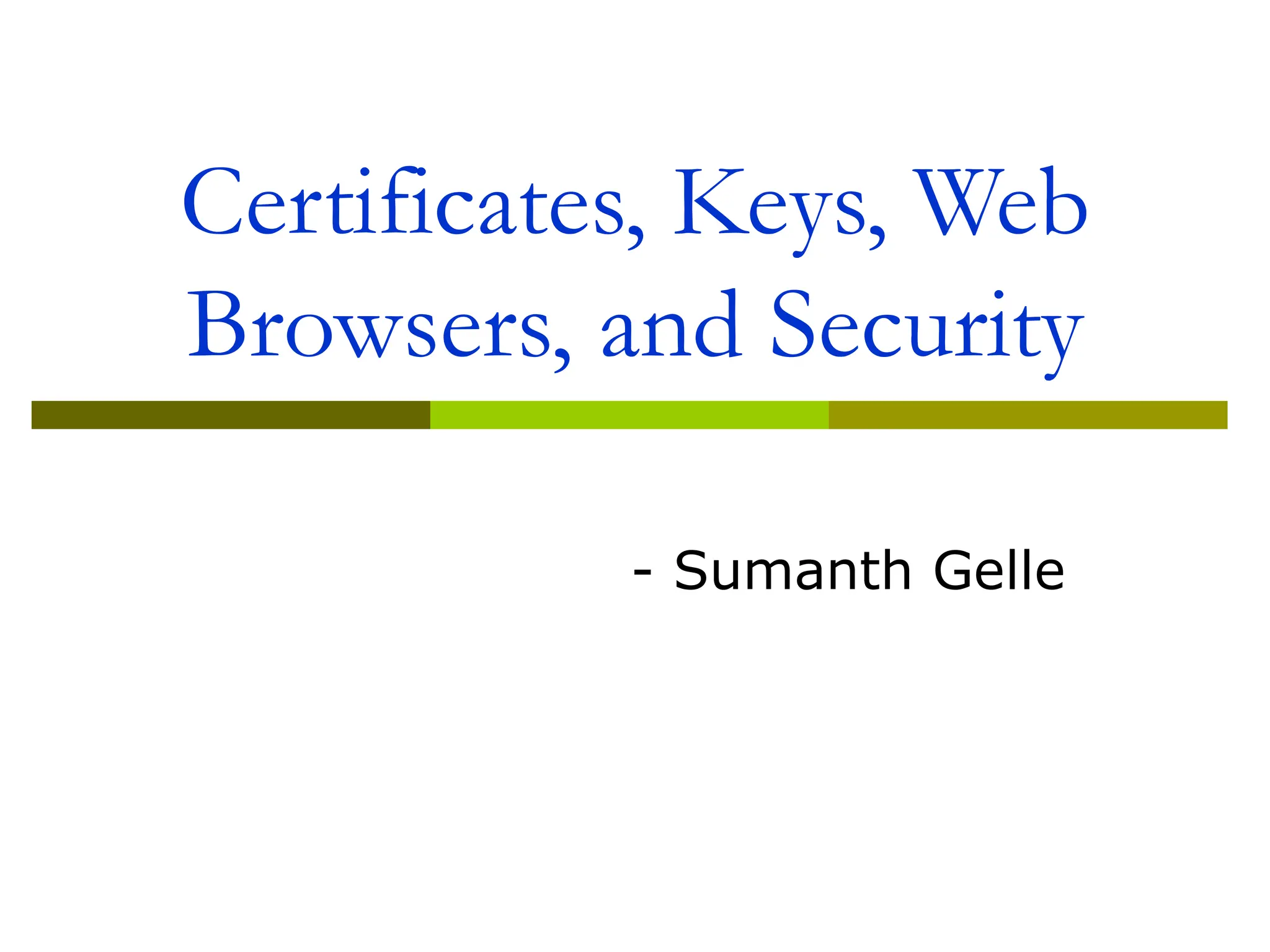

This document provides an overview of cryptography concepts including keys, symmetric encryption, asymmetric encryption, certificates, and how they are used together in a public key infrastructure (PKI) to provide security features like confidentiality, integrity, and authentication on the web. It describes how certificates contain a public key and are used to verify identity through digital signatures. It also gives steps for setting up SSL on a web server and configuring browsers and clients to use certificates for authentication and secure communication.

1. Certificates, Keys, Web
Browsers, and Security
- Sumanth Gelle

2. Contents:
 Keys
 Symmetric Encryption
 Asymmetric Encryption
 Hybrid Encryption
 Certificate
 What does Certificate contain
 Authentication with certificate
 How to set up SSL on a web server
 Certificate Revocation Lists
 Browser
 Internet Explorer

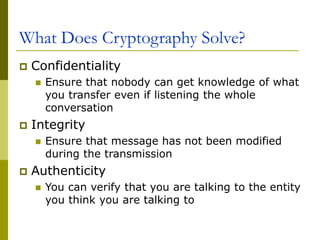

3. What Does Cryptography Solve?
 Confidentiality
 Ensure that nobody can get knowledge of what
you transfer even if listening the whole
conversation
 Integrity
 Ensure that message has not been modified
during the transmission
 Authenticity
 You can verify that you are talking to the entity
you think you are talking to

4.  Confidentiality---
Encryption is the answer
 Integrity---
Hashing is the answer
 Authentication---
Digital Certificate is the answer
 Cryptography is key management

5. Keys

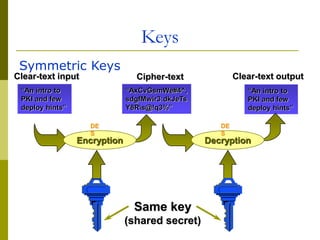

Symmetric Keys
“An intro to
PKI and few
deploy hints”
“AxCvGsmWe#4^,
sdgfMwir3:dkJeTs
Y8Rs@!q3%”
“An intro to
PKI and few
deploy hints”
Clear-text input Clear-text output
Cipher-text
Same key
(shared secret)
Encryption Decryption
DE
S
DE
S

6. Symmetric Encryption
 Symmetric algorithms require the creation of a key and an
initialization vector (IV) that must be kept secret from
anyone who should not decrypt your data.
TripleDESCryptoServiceProvider TDES = new
TripleDESCryptoServiceProvider();
TDES.GenerateIV();
TDES.GenerateKey();
When the previous code is executed, a key and IV are
generated when the new instance of
TripleDESCryptoServiceProvider is made. Another key
and IV are created when the GenerateKey and
GenerateIV methods are called.

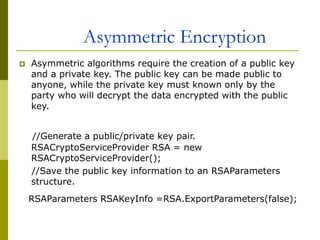

7. Asymmetric Encryption
 Asymmetric algorithms require the creation of a public key
and a private key. The public key can be made public to
anyone, while the private key must known only by the
party who will decrypt the data encrypted with the public
key.
//Generate a public/private key pair.
RSACryptoServiceProvider RSA = new
RSACryptoServiceProvider();
//Save the public key information to an RSAParameters
structure.
RSAParameters RSAKeyInfo =RSA.ExportParameters(false);

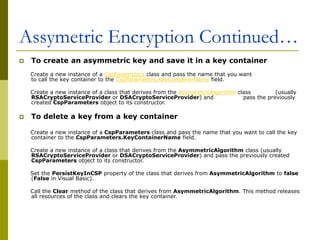

8. Assymetric Encryption Continued…
 To create an asymmetric key and save it in a key container
Create a new instance of a CspParameters class and pass the name that you want
to call the key container to the CspParameters.KeyContainerName field.
Create a new instance of a class that derives from the AsymmetricAlgorithm class (usually
RSACryptoServiceProvider or DSACryptoServiceProvider) and pass the previously
created CspParameters object to its constructor.
 To delete a key from a key container
Create a new instance of a CspParameters class and pass the name that you want to call the key
container to the CspParameters.KeyContainerName field.
Create a new instance of a class that derives from the AsymmetricAlgorithm class (usually
RSACryptoServiceProvider or DSACryptoServiceProvider) and pass the previously created
CspParameters object to its constructor.
Set the PersistKeyInCSP property of the class that derives from AsymmetricAlgorithm to false
(False in Visual Basic).
Call the Clear method of the class that derives from AsymmetricAlgorithm. This method releases
all resources of the class and clears the key container.

9. Example: SSL
Priv
pub Priv
pub
Clear text
Encrypt
Cipher 1
Encrypt
Cipher 2
Transmission over the public network
Cipher 2
Cipher 1
Decrypt
Clear text
Decrypt
pub
 Ensures confidentiality
 And integrity if digitally
signed
 depending on how public
key are exchanged
 Authenticity, Identity,
Non-repudiation
pub

10. Real World: Hybrid Encryption
(typical for encrypted file storage)
Clear-text
message
Randomly-Generated
symmetric “session” key
Symmetrically
Encrypted
message
Symmetric
Encryption
Digital
Envelope
Recipient’s
public key
Asymmetric
Encryption
of session key
Repeat as necessary Digital
Envelope
Public key of
other recipient
or recovery agent
Asymmetric
Encryption
of session key
ENCRYPTED
DOCUMENT

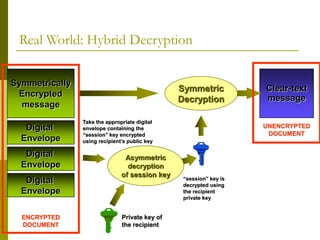

11. Real World: Hybrid Decryption
Symmetrically
Encrypted
message
Clear-text
message
Symmetric
Decryption
Digital
Envelope
ENCRYPTED
DOCUMENT
Digital
Envelope
Digital
Envelope
Asymmetric
decryption
of session key
Private key of
the recipient
Take the appropriate digital
envelope containing the
“session” key encrypted
using recipient’s public key
“session” key is
decrypted using
the recipient
private key
UNENCRYPTED
DOCUMENT

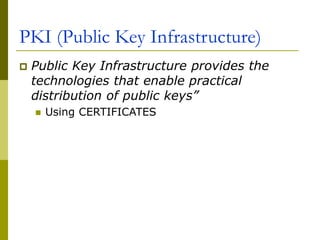

12. PKI (Public Key Infrastructure)
 Public Key Infrastructure provides the
technologies that enable practical
distribution of public keys”
 Using CERTIFICATES

13. Certificates

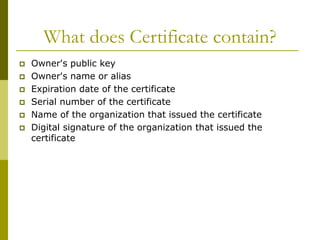

14. What does Certificate contain?
 Owner's public key
 Owner's name or alias
 Expiration date of the certificate
 Serial number of the certificate
 Name of the organization that issued the certificate
 Digital signature of the organization that issued the
certificate

15. Authentication with Certificates
 Owning a Certificate of Gianni does not mean
that you are Gianni
 Owning a Certificate does not imply you are
authenticated
 How would you verify that the person who
comes to you pretending to be Gianni and
showing you a certificate of Gianni is really
Gianni ?
 You have to challenge him !
 Only the real Gianni has the private key that goes in
pair with the public key in the certificate.

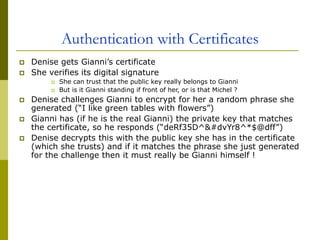

16. Authentication with Certificates
 Denise gets Gianni’s certificate
 She verifies its digital signature
 She can trust that the public key really belongs to Gianni
 But is it Gianni standing if front of her, or is that Michel ?
 Denise challenges Gianni to encrypt for her a random phrase she
generated (“I like green tables with flowers”)
 Gianni has (if he is the real Gianni) the private key that matches
the certificate, so he responds (“deRf35D^&#dvYr8^*$@dff”)
 Denise decrypts this with the public key she has in the certificate
(which she trusts) and if it matches the phrase she just generated
for the challenge then it must really be Gianni himself !

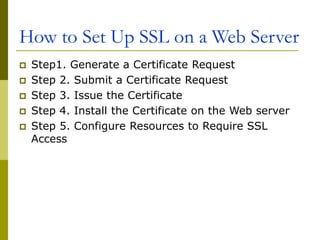

17. How to Set Up SSL on a Web Server
 Step1. Generate a Certificate Request
 Step 2. Submit a Certificate Request
 Step 3. Issue the Certificate
 Step 4. Install the Certificate on the Web server
 Step 5. Configure Resources to Require SSL
Access

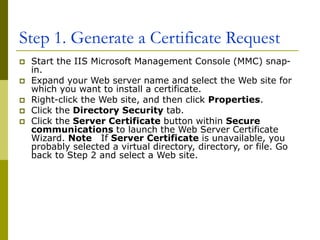

18. Step 1. Generate a Certificate Request
 Start the IIS Microsoft Management Console (MMC) snap-
in.
 Expand your Web server name and select the Web site for
which you want to install a certificate.
 Right-click the Web site, and then click Properties.
 Click the Directory Security tab.
 Click the Server Certificate button within Secure
communications to launch the Web Server Certificate
Wizard. Note If Server Certificate is unavailable, you
probably selected a virtual directory, directory, or file. Go
back to Step 2 and select a Web site.

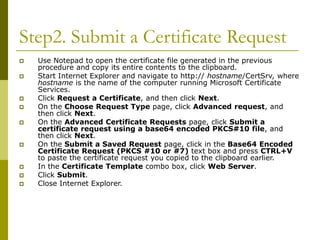

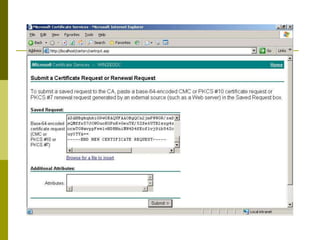

19. Step2. Submit a Certificate Request
 Use Notepad to open the certificate file generated in the previous
procedure and copy its entire contents to the clipboard.

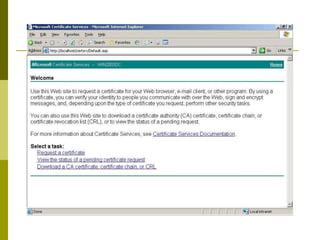

 Start Internet Explorer and navigate to http:// hostname/CertSrv, where
hostname is the name of the computer running Microsoft Certificate
Services.

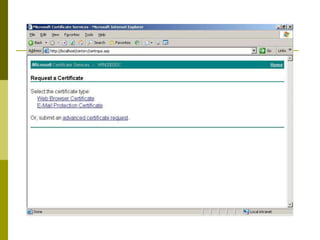

 Click Request a Certificate, and then click Next.

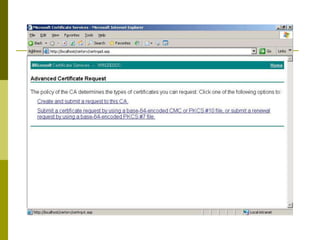

 On the Choose Request Type page, click Advanced request, and
then click Next.
 On the Advanced Certificate Requests page, click Submit a
certificate request using a base64 encoded PKCS#10 file, and
then click Next.
 On the Submit a Saved Request page, click in the Base64 Encoded
Certificate Request (PKCS #10 or #7) text box and press CTRL+V
to paste the certificate request you copied to the clipboard earlier.
 In the Certificate Template combo box, click Web Server.
 Click Submit.
 Close Internet Explorer.

25. Step3. Issue the Certificate
 Start the Certification Authority tool from the
Administrative Tools program group.
 Expand your certificate authority, and then select the
Pending Requests folder.
 Select the certificate request you just submitted.
 On the Action menu, point to All Tasks, and then click
Issue.
 Confirm that the certificate is displayed in the Issued
Certificates folder, and then double-click it to view it.
 On the Details tab, click Copy to File, and save the
certificate as a Base-64 encoded X.509 certificate.
 Close the properties window for the certificate.
 Close the Certificate Authority tool.

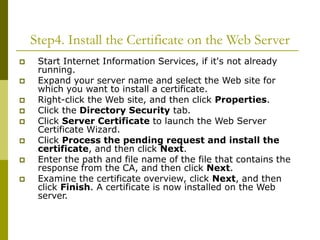

26. Step4. Install the Certificate on the Web Server
 Start Internet Information Services, if it's not already
running.
 Expand your server name and select the Web site for
which you want to install a certificate.
 Right-click the Web site, and then click Properties.
 Click the Directory Security tab.
 Click Server Certificate to launch the Web Server
Certificate Wizard.
 Click Process the pending request and install the
certificate, and then click Next.
 Enter the path and file name of the file that contains the
response from the CA, and then click Next.
 Examine the certificate overview, click Next, and then
click Finish. A certificate is now installed on the Web
server.

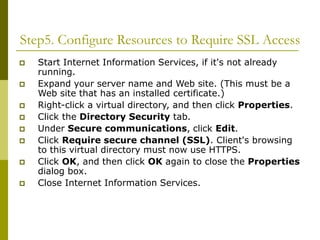

27. Step5. Configure Resources to Require SSL Access
 Start Internet Information Services, if it's not already
running.
 Expand your server name and Web site. (This must be a
Web site that has an installed certificate.)
 Right-click a virtual directory, and then click Properties.
 Click the Directory Security tab.
 Under Secure communications, click Edit.
 Click Require secure channel (SSL). Client's browsing
to this virtual directory must now use HTTPS.
 Click OK, and then click OK again to close the Properties
dialog box.
 Close Internet Information Services.

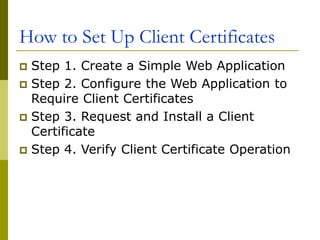

28. How to Set Up Client Certificates
 Step 1. Create a Simple Web Application
 Step 2. Configure the Web Application to
Require Client Certificates
 Step 3. Request and Install a Client
Certificate
 Step 4. Verify Client Certificate Operation

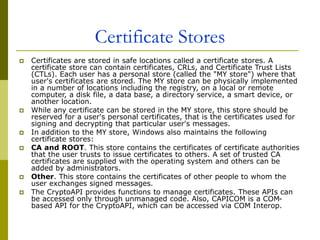

29. Certificate Stores
 Certificates are stored in safe locations called a certificate stores. A
certificate store can contain certificates, CRLs, and Certificate Trust Lists
(CTLs). Each user has a personal store (called the "MY store") where that
user's certificates are stored. The MY store can be physically implemented
in a number of locations including the registry, on a local or remote
computer, a disk file, a data base, a directory service, a smart device, or
another location.
 While any certificate can be stored in the MY store, this store should be
reserved for a user's personal certificates, that is the certificates used for
signing and decrypting that particular user's messages.
 In addition to the MY store, Windows also maintains the following
certificate stores:
 CA and ROOT. This store contains the certificates of certificate authorities
that the user trusts to issue certificates to others. A set of trusted CA
certificates are supplied with the operating system and others can be
added by administrators.
 Other. This store contains the certificates of other people to whom the
user exchanges signed messages.
 The CryptoAPI provides functions to manage certificates. These APIs can
be accessed only through unmanaged code. Also, CAPICOM is a COM-
based API for the CryptoAPI, which can be accessed via COM Interop.

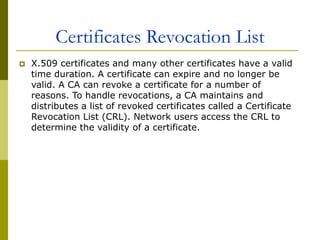

30. Certificates Revocation List
 X.509 certificates and many other certificates have a valid
time duration. A certificate can expire and no longer be
valid. A CA can revoke a certificate for a number of
reasons. To handle revocations, a CA maintains and
distributes a list of revoked certificates called a Certificate
Revocation List (CRL). Network users access the CRL to
determine the validity of a certificate.

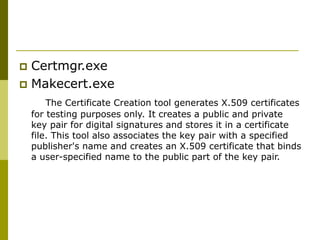

31.  Certmgr.exe
 Makecert.exe
The Certificate Creation tool generates X.509 certificates
for testing purposes only. It creates a public and private
key pair for digital signatures and stores it in a certificate
file. This tool also associates the key pair with a specified
publisher's name and creates an X.509 certificate that binds
a user-specified name to the public part of the key pair.

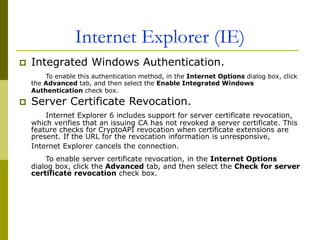

32. Internet Explorer (IE)
 Integrated Windows Authentication.
To enable this authentication method, in the Internet Options dialog box, click
the Advanced tab, and then select the Enable Integrated Windows
Authentication check box.
 Server Certificate Revocation.
Internet Explorer 6 includes support for server certificate revocation,
which verifies that an issuing CA has not revoked a server certificate. This
feature checks for CryptoAPI revocation when certificate extensions are
present. If the URL for the revocation information is unresponsive,
Internet Explorer cancels the connection.
To enable server certificate revocation, in the Internet Options
dialog box, click the Advanced tab, and then select the Check for server
certificate revocation check box.

34. Installing and Removing Trusted
Certificates
 On the Tools menu, click Internet Options, and then click the Content tab.
 Click Certificates.
 Click one of the following tabbed categories for the type of certificates you want to
install or remove:
•Personal. Certificates in the Personal category have an associated private key.
Information signed by using personal certificates is identified by the user's private key
data. By default, Internet Explorer places all certificates that will identify the user (with
a private key) in the Personal category.
•Other People. Certificates in the Other People category use public key cryptography to
authenticate identity, based on a matching private key that is used to sign the
information. By default, this category includes all certificates that are not in the Personal
category (the user does not have a private key) and are not from CAs.
•Intermediate Certification Authorities. This category contains all certificates for CAs
that are not root certificates.
•Trusted Root Certification Authorities. This category includes only self-signed
certificates in the root store. When a CA's root certificate is listed in this category, you
are trusting content from sites, people, and publishers with credentials issued by the CA.
•Trusted Publishers. This category contains only certificates from trusted publishers
whose content can be downloaded without user intervention, unless downloading active
content is disabled in the settings for a specific security zone. Downloading active
content is not enabled by default. For each available security zone, users can choose an
appropriate set of ActiveX security preferences

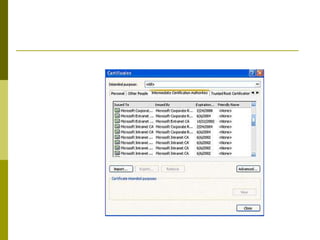

36.  4.In the Intended Purpose box, select the filter for
the types of certificates that you want to be
displayed in the list.
 5.Work with particular certificates through one of
the following methods:
•To add other certificates to the list, click Import. The
Certificate Manager Import Wizard steps you through the
process of adding a certificate.
•To export certificates from the list, click Export. The
Certificate Manager Export Wizard steps you through the
process of exporting a certificate.

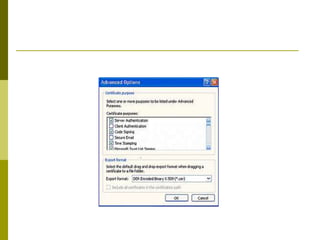

•To specify the default drag-and-drop export file format
(when the user drags a certificate from the Certificate
Manager and drops it into a folder), click Advanced.

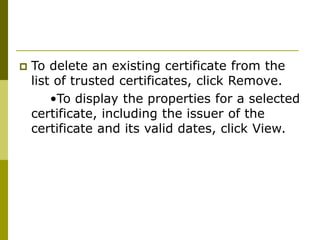

38.  To delete an existing certificate from the
list of trusted certificates, click Remove.
•To display the properties for a selected
certificate, including the issuer of the
certificate and its valid dates, click View.

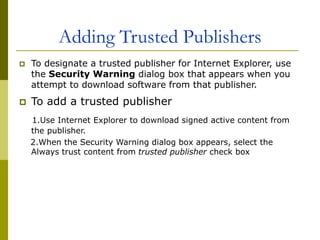

39. Adding Trusted Publishers
 To designate a trusted publisher for Internet Explorer, use
the Security Warning dialog box that appears when you
attempt to download software from that publisher.
 To add a trusted publisher
1.Use Internet Explorer to download signed active content from
the publisher.
2.When the Security Warning dialog box appears, select the
Always trust content from trusted publisher check box

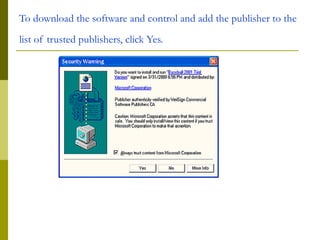

40. To download the software and control and add the publisher to the
list of trusted publishers, click Yes.

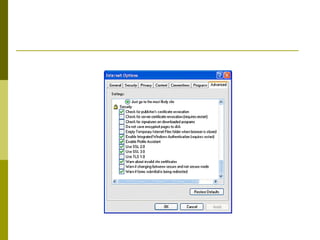

41.  Configuring Advanced Security Options for Certificate and
Authentication Features
 You can easily configure options for certificate and
authentication features that your users might need.
 To configure advanced security options for certificates
1.On the Tools menu, click Internet Options, and then
click the Advanced tab.
2.In the Security area, review the selected options.
3.Depending on the needs of your organization and its
users, select or clear the appropriate check boxes. For
example, to enable SSL 3.0, select the Use SSL 3.0 check
box.

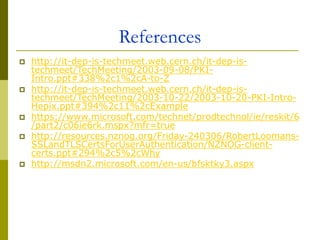

43. References
 http://it-dep-is-techmeet.web.cern.ch/it-dep-is-
techmeet/TechMeeting/2003-09-08/PKI-
Intro.ppt#338%2c1%2cA-to-Z
 http://it-dep-is-techmeet.web.cern.ch/it-dep-is-
techmeet/TechMeeting/2003-10-22/2003-10-20-PKI-Intro-
Hepix.ppt#394%2c11%2cExample
 https://www.microsoft.com/technet/prodtechnol/ie/reskit/6
/part2/c06ie6rk.mspx?mfr=true
 http://resources.nznog.org/Friday-240306/RobertLoomans-
SSLandTLSCertsForUserAuthentication/NZNOG-client-
certs.ppt#294%2c5%2cWhy
 http://msdn2.microsoft.com/en-us/bfsktky3.aspx
