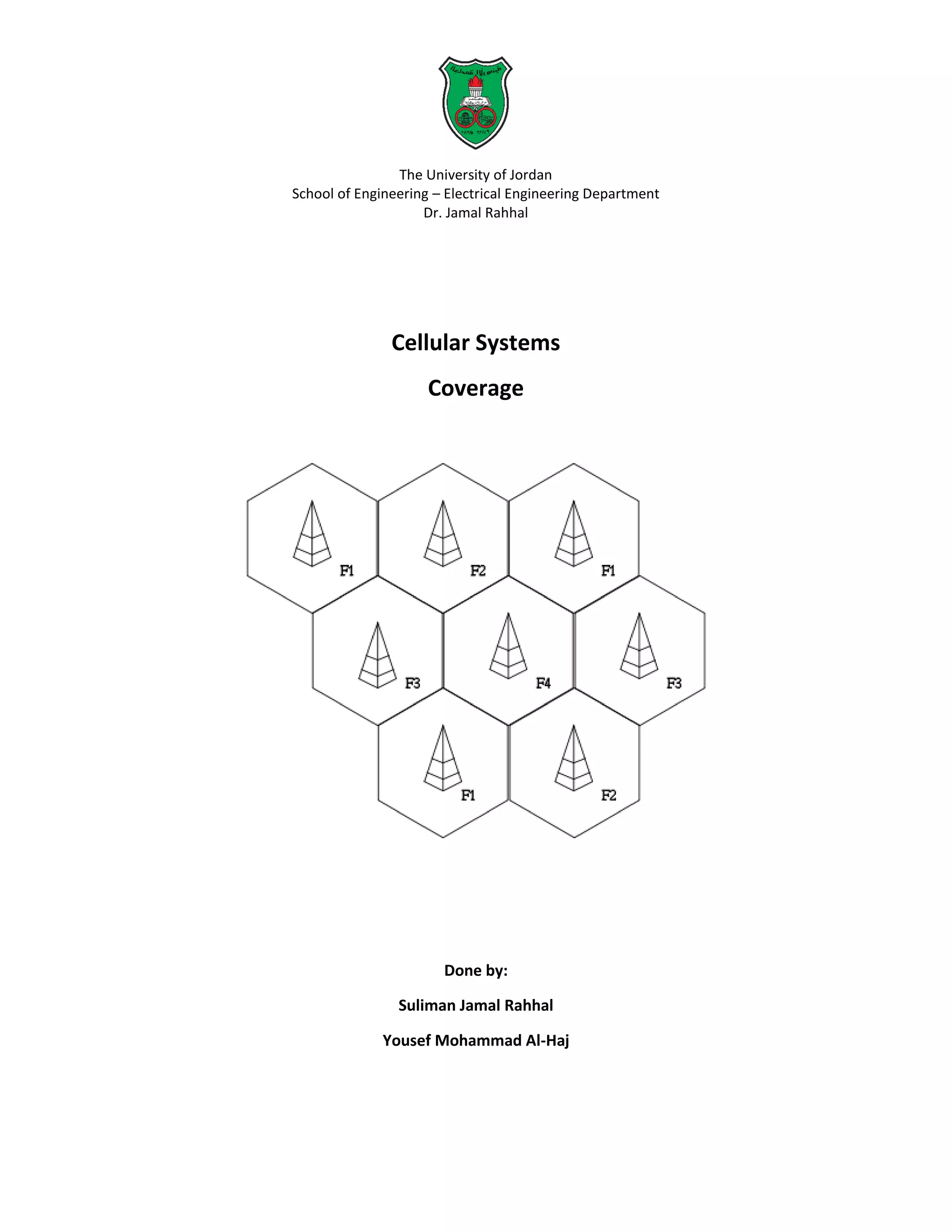

1. The University of Jordan
School of Engineering – Electrical Engineering Department
Dr. Jamal Rahhal
Cellular Systems
Coverage
Done by:
Suliman Jamal Rahhal
Yousef Mohammad Al-Haj

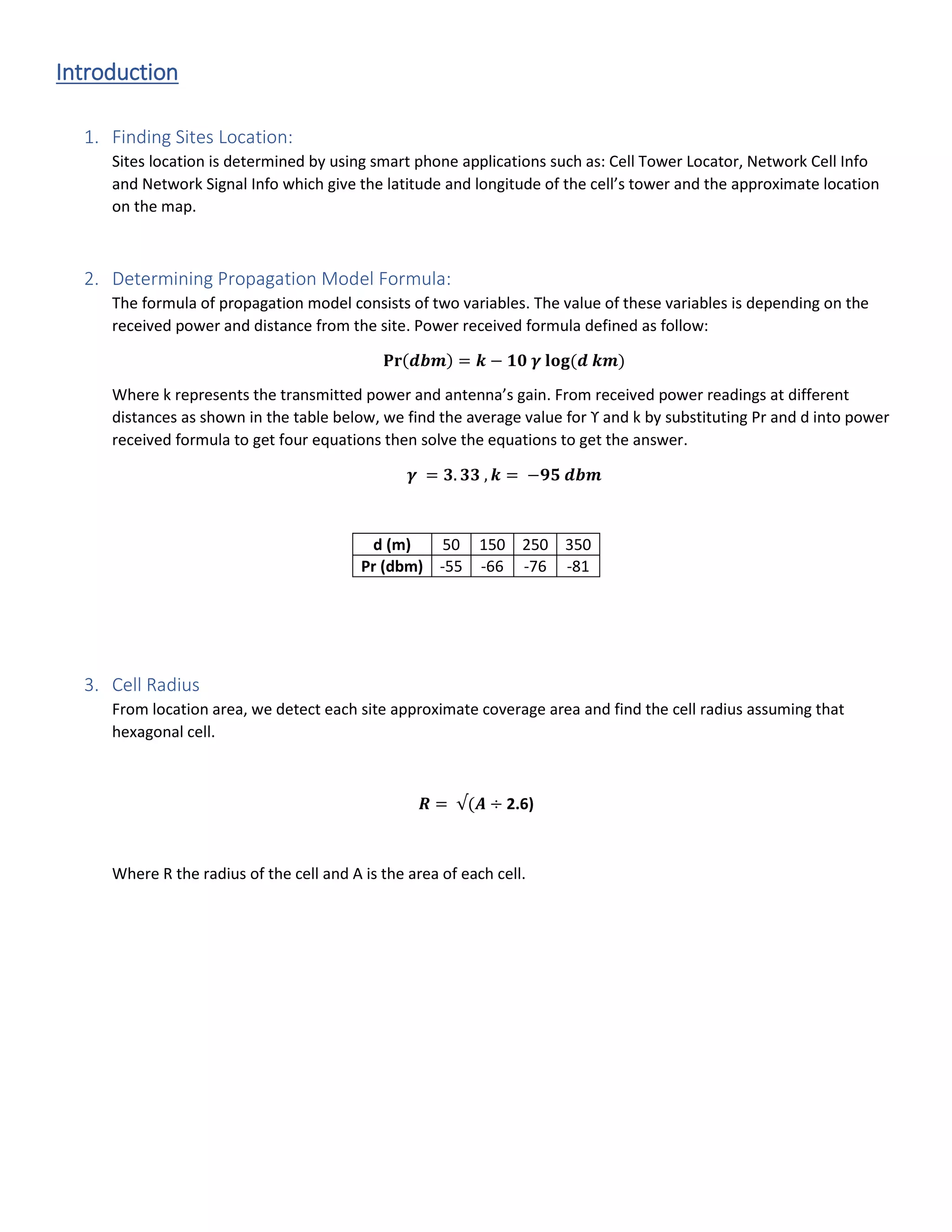

2. Introduction
1. Finding Sites Location:
Sites location is determined by using smart phone applications such as: Cell Tower Locator, Network Cell Info
and Network Signal Info which give the latitude and longitude of the cell’s tower and the approximate location
on the map.
2. Determining Propagation Model Formula:
The formula of propagation model consists of two variables. The value of these variables is depending on the
received power and distance from the site. Power received formula defined as follow:
𝐏𝐫(𝒅𝒃𝒎) = 𝒌 − 𝟏𝟎 𝜸 𝐥𝐨𝐠(𝒅 𝒌𝒎)
Where k represents the transmitted power and antenna’s gain. From received power readings at different
distances as shown in the table below, we find the average value for ϒ and k by substituting Pr and d into power
received formula to get four equations then solve the equations to get the answer.
𝜸 = 𝟑. 𝟑𝟑 , 𝒌 = −𝟗𝟓 𝒅𝒃𝒎
3. Cell Radius
From location area, we detect each site approximate coverage area and find the cell radius assuming that
hexagonal cell.
𝑹 = √(𝑨 ÷ 2.6)
Where R the radius of the cell and A is the area of each cell.
d (m) 50 150 250 350
Pr (dbm) -55 -66 -76 -81

3. System Specification
• Network operator: Umniah
• Network mode: GSM only
• Mobile network code (MNC): 03
• Mobile country code (MCC): 416
• Primary scrambling code (PSC): -1
• Local Area code (LAC): 750
• Location: The University of Jordan
• Area: 1.2 km2
• Cell type: Hexagonal cell
Atoll Simulation Specification
• Propagation Model: WLL Model
• HCS Layer: Macro layer
• Antenna position: Relative to site
• Transmitter type: Intra-network (Server and interfere)
• Transmission: Relative to power (dbm)
• Antenna model: 65 deg. 17 dBi 6Tilt 1800MHz
• Cell type: Macro cell 1800
• Relevant frequency band: GSM 1800
• TRX type: BCCH
• Coverage type: Coverage by transmitter (DL)
WLL Model Properties
• Transmitter clearance (m): 20
• Default receiver clearance (m): 20
• Diffraction multiplying factor: 1
• Formula: 𝑘 + 20 log(𝑓) + 33 log(𝑑)

4. Sites
Site 1
Location and
Sectors direction
Cell ID 11982
Cell Radius 0.68 Km
Latitude
Longitude
32.0104°
35.8712°
Tower Height
Building Height
4 m
16 m
Site 1 Coverage
Before enhancement After enhancement

5. Site 2 Coverage
Before enhancement After enhancement
Site 2
Location and
Sectors direction
Cell ID 10771
Cell Radius 0.68 Km
Latitude
Longitude
32.0155°
35.8679°
Tower Height
Building Height
5 m
19 m

6. Site 3
Location and
Sectors direction
Cell ID 12802
Cell Radius 0.68 Km
Latitude
Longitude
32.0207°
35.8718°
Tower Height
Building Height
7 m
17 m
Site 3 Coverage
Before enhancement After enhancement

7. Site 4
Location and
Sectors direction
Cell ID 12692
Cell Radius 0.68 Km
Latitude
Longitude
32.0171°
35.8771°
Tower Height
Building Height
7 m
13 m
Site 4 Coverage
Before enhancement After enhancement

8. Site 5
Location and
Sectors direction
Cell ID 11542
Cell Radius 0.68 Km
Latitude
Longitude
32.0125°
35.8772°
Tower Height
Building Height
6 m
16 m
Site 5 Coverage
Before enhancement After enhancement

9. Site 6
Location and
Sectors direction
Cell ID 11893
Cell Radius 0.68 Km
Latitude
Longitude
32.0057°
35.8777°
Tower Height
Building Height
6 m
15 m
Site 6 Coverage
Before enhancement After enhancement

10. All Sites
Full Coverage
Before enhancement After enhancement
