This document contains elevation drawings for a coffered ceiling design for a ground floor den. The ceiling features wood dividers forming square coffers. Cornices made of teak plywood and veneer with garnet inlay trim the coffers. Dimensions are provided for the ceiling layout and individual coffers.

1. AC SYSTEMCOLD AIR OUT
DT 1
3"3"
17
8"
3"
DT 1
DT 1
DT 1 DT 1
DT 2DT 2DT 2
DT 2
3"
12 MM GARNET
TEAK PLY
4 MM GARNET NATURAL
TEAK VENEER
3" HIGH CORNICE
DIVIDER
35
8" 17
8"
3" HIGH CORNICE
12 MM GARNET TEAK PLY
4 MM GARNET NATURAL
TEAK VENEER
3" HIGH CORNICE
WOODEN DIVIDER
13
4"17
8" 17
8"
10'-31
2"
10'-01
2"

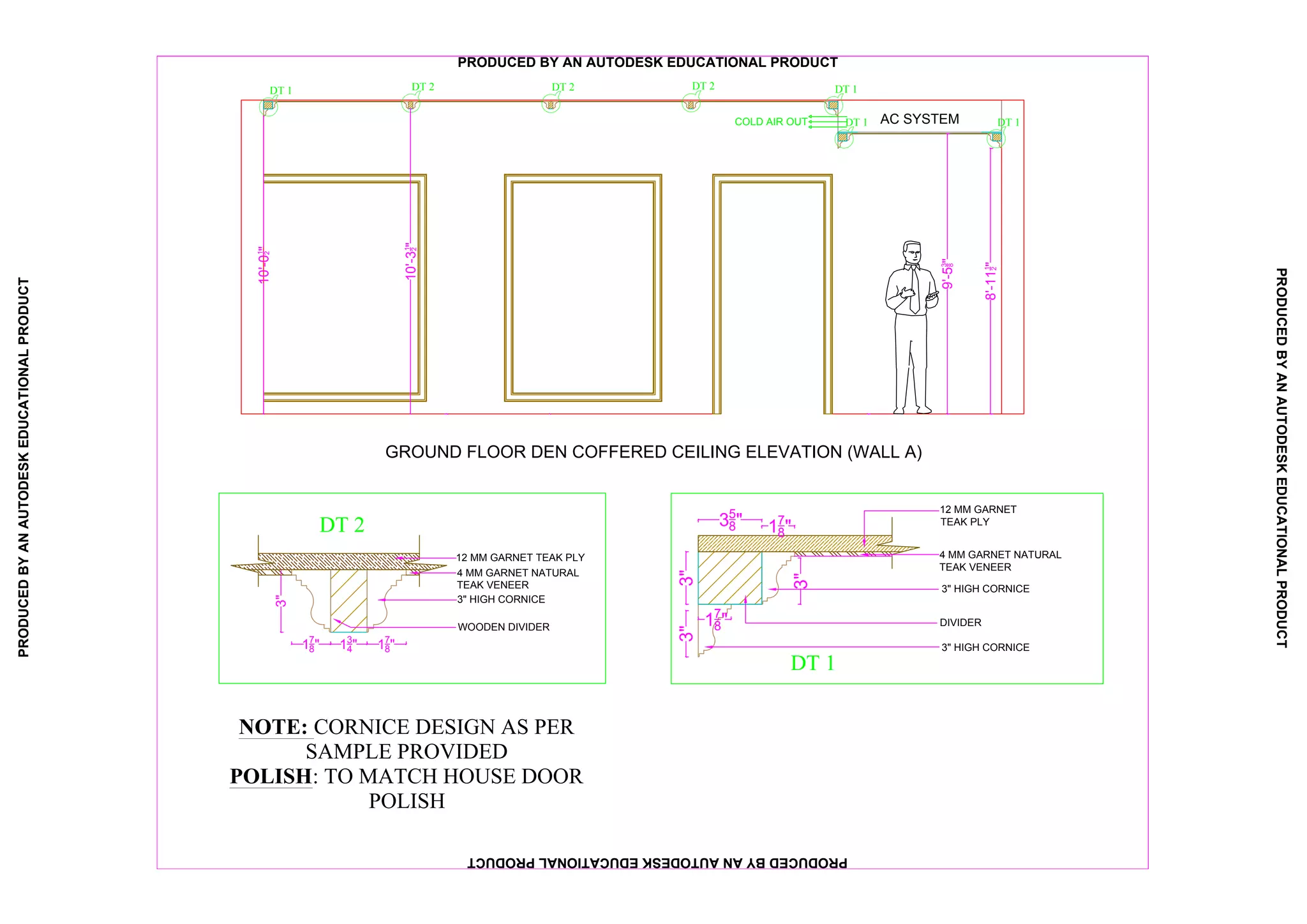

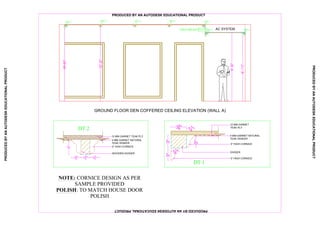

GROUND FLOOR DEN COFFERED CEILING ELEVATION (WALL A)
NOTE: CORNICE DESIGN AS PER
SAMPLE PROVIDED
POLISH: TO MATCH HOUSE DOOR
POLISH
9'-53
8"
8'-111
2"
