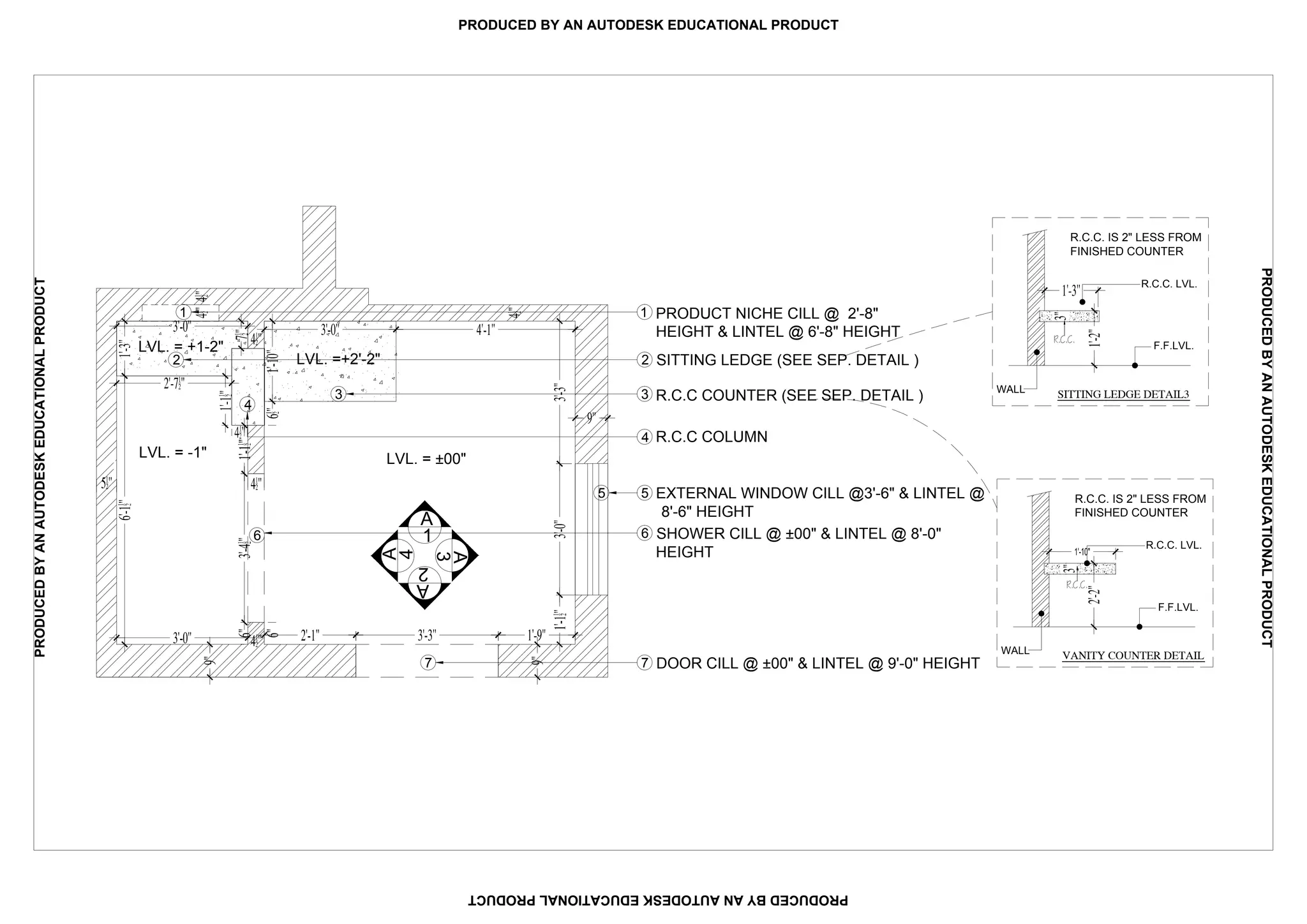

This document provides details for constructing reinforced concrete structures including a counter, sitting ledge, product niche, external window, cill and lintel. Dimensions are given for level heights and component placement including notes that the concrete counter will be 2 inches less than the finished counter height.

1. R.C.C. IS 2" LESS FROM
FINISHED COUNTER
R.C.C. LVL.
F.F.LVL.
WALL
R.C.C. IS 2" LESS FROM
FINISHED COUNTER
R.C.C. LVL.
F.F.LVL.
WALL
LVL. = -1"
1
A
LVL. =+2'-2"
LVL. = +1-2"
1
2
3
6
5
7
4
1
2
3
4
5
6
7
PRODUCT NICHE CILL @ 2'-8"
HEIGHT & LINTEL @ 6'-8" HEIGHT
R.C.C COUNTER (SEE SEP. DETAIL )
SITTING LEDGE (SEE SEP. DETAIL )
EXTERNAL WINDOW CILL @3'-6" & LINTEL @
8'-6" HEIGHT
R.C.C COLUMN
HEIGHT
