8th ON FORDYCE - Walmer
April 2018
2018/04/01
location

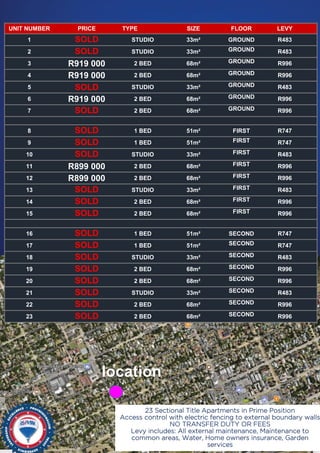

UNIT NUMBER PRICE TYPE SIZE FLOOR LEVY
1 SOLD STUDIO 33m² GROUND R483
2 SOLD STUDIO 33m² GROUND R483
3 R919 000 2 BED 68m² GROUND R996
4 R919 000 2 BED 68m² GROUND R996
5 SOLD STUDIO 33m² GROUND R483
6 R919 000 2 BED 68m² GROUND R996
7 SOLD 2 BED 68m² GROUND R996
8 SOLD 1 BED 51m² FIRST R747
9 SOLD 1 BED 51m² FIRST R747
10 SOLD STUDIO 33m² FIRST R483
11 R899 000 2 BED 68m² FIRST R996
12 R899 000 2 BED 68m² FIRST R996
13 SOLD STUDIO 33m² FIRST R483
14 SOLD 2 BED 68m² FIRST R996
15 SOLD 2 BED 68m² FIRST R996
16 SOLD 1 BED 51m² SECOND R747
17 SOLD 1 BED 51m² SECOND R747
18 SOLD STUDIO 33m² SECOND R483
19 SOLD 2 BED 68m² SECOND R996
20 SOLD 2 BED 68m² SECOND R996
21 SOLD STUDIO 33m² SECOND R483
22 SOLD 2 BED 68m² SECOND R996
23 SOLD 2 BED 68m² SECOND R996
23 Sectional Title Apartments in Prime Position
Access control with electric fencing to external boundary walls
NO TRANSFER DUTY OR FEES
Levy includes: All external maintenance, Maintenance to
common areas, Water, Home owners insurance, Garden
services
R577 000

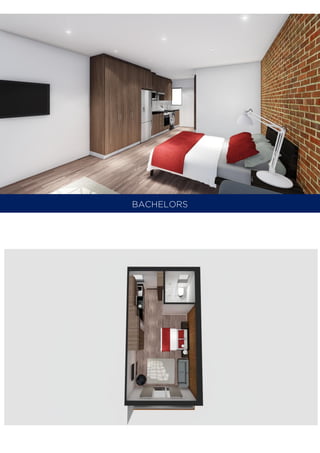

BACHELORS

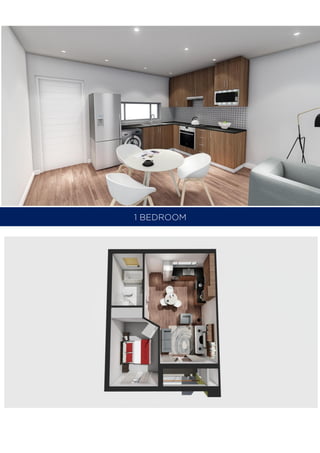

1 BEDROOM

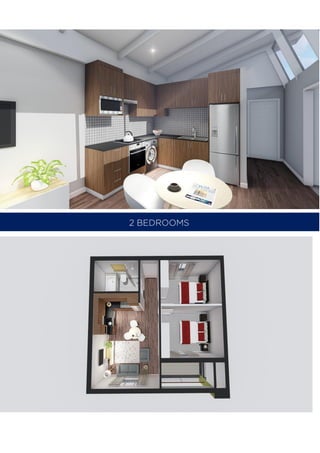

2 BEDROOMS

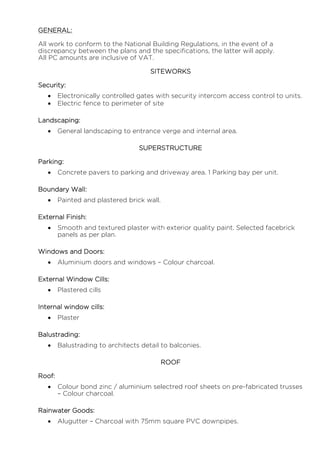

GENERAL:
All work to conform to the National Building Regulations, in the event of a
discrepancy between the plans and the specifications, the latter will apply.
All PC amounts are inclusive of VAT.
SITEWORKS
Security:
 Electronically controlled gates with security intercom access control to units.
 Electric fence to perimeter of site
Landscaping:
 General landscaping to entrance verge and internal area.
SUPERSTRUCTURE
Parking:
 Concrete pavers to parking and driveway area. 1 Parking bay per unit.
Boundary Wall:
 Painted and plastered brick wall.
External Finish:
 Smooth and textured plaster with exterior quality paint. Selected facebrick
panels as per plan.
Windows and Doors:
 Aluminium doors and windows – Colour charcoal.
External Window Cills:
 Plastered cills
Internal window cills:
 Plaster
Balustrading:
 Balustrading to architects detail to balconies.
ROOF
Roof:
 Colour bond zinc / aluminium selectred roof sheets on pre-fabricated trusses
– Colour charcoal.
Rainwater Goods:
 Alugutter – Charcoal with 75mm square PVC downpipes.

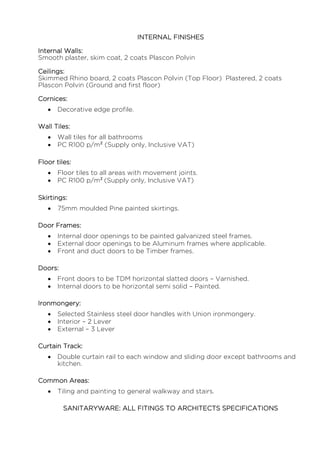

INTERNAL FINISHES
Internal Walls:
Smooth plaster, skim coat, 2 coats Plascon Polvin
Ceilings:
Skimmed Rhino board, 2 coats Plascon Polvin (Top Floor) Plastered, 2 coats
Plascon Polvin (Ground and first floor)
Cornices:
 Decorative edge profile.
Wall Tiles:
 Wall tiles for all bathrooms
 PC R100 p/m² (Supply only, Inclusive VAT)
Floor tiles:
 Floor tiles to all areas with movement joints.
 PC R100 p/m² (Supply only, Inclusive VAT)
Skirtings:
 75mm moulded Pine painted skirtings.
Door Frames:
 Internal door openings to be painted galvanized steel frames.
 External door openings to be Aluminum frames where applicable.
 Front and duct doors to be Timber frames.
Doors:
 Front doors to be TDM horizontal slatted doors – Varnished.
 Internal doors to be horizontal semi solid – Painted.
Ironmongery:
 Selected Stainless steel door handles with Union ironmongery.
 Interior – 2 Lever
 External – 3 Lever
Curtain Track:
 Double curtain rail to each window and sliding door except bathrooms and
kitchen.
Common Areas:
 Tiling and painting to general walkway and stairs.
SANITARYWARE: ALL FITINGS TO ARCHITECTS SPECIFICATIONS

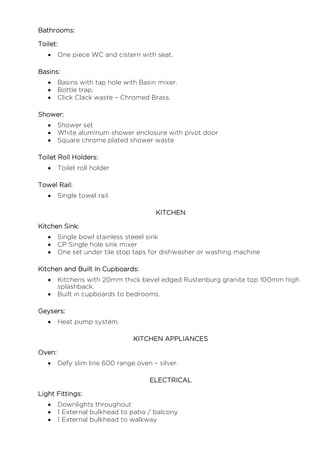

Bathrooms:
Toilet:
 One piece WC and cistern with seat.
Basins:
 Basins with tap hole with Basin mixer.
 Bottle trap.
 Click Clack waste – Chromed Brass.
Shower:
 Shower set
 White aluminum shower enclosure with pivot door
 Square chrome plated shower waste
Toilet Roll Holders:
 Toilet roll holder
Towel Rail:
 Single towel rail.
KITCHEN
Kitchen Sink:
 Single bowl stainless steeel sink
 CP Single hole sink mixer
 One set under tile stop taps for dishwasher or washing machine
Kitchen and Built In Cupboards:
 Kitchens with 20mm thick bevel edged Rustenburg granite top 100mm high
splashback.
 Built in cupboards to bedrooms.
Geysers:
 Heat pump system.
KITCHEN APPLIANCES
Oven:
 Defy slim line 600 range oven – silver.
ELECTRICAL
Light Fittings:
 Downlights throughout
 1 External bulkhead to patio / balcony
 1 External bulkhead to walkway

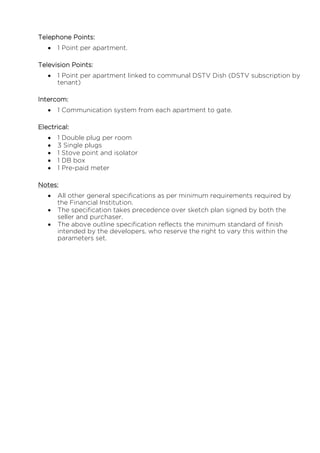

Telephone Points:
 1 Point per apartment.
Television Points:
 1 Point per apartment linked to communal DSTV Dish (DSTV subscription by
tenant)
Intercom:
 1 Communication system from each apartment to gate.
Electrical:
 1 Double plug per room
 3 Single plugs
 1 Stove point and isolator
 1 DB box
 1 Pre-paid meter
Notes:
 All other general specifications as per minimum requirements required by
the Financial Institution.
 The specification takes precedence over sketch plan signed by both the
seller and purchaser.
 The above outline specification reflects the minimum standard of finish
intended by the developers, who reserve the right to vary this within the
parameters set.

More Related Content

What's hot

Rochester product-guide-6-20
Rochester product-guide-6-20Rochester product-guide-6-20
Rochester product-guide-6-20
Zach Rhodes

Elite specs 5 7-2016
Elite specs 5 7-2016Elite specs 5 7-2016
Elite specs 5 7-2016
Executive Construction Homes

Merged
MergedMerged
Merged
Chenyi Teo

JP Slide Show
JP Slide ShowJP Slide Show
JP Slide Showscassidy

Brett Macdonald House
Brett Macdonald HouseBrett Macdonald House
Brett Macdonald HouseGrant Hepburn

Sarjapura Road Apartmetns 2BHK 3BHK Prelaunch Properties
Sarjapura Road Apartmetns 2BHK 3BHK Prelaunch Properties Sarjapura Road Apartmetns 2BHK 3BHK Prelaunch Properties
Sarjapura Road Apartmetns 2BHK 3BHK Prelaunch Properties
brencorporation

SIMFONI WEST 2018
SIMFONI WEST 2018SIMFONI WEST 2018
SIMFONI WEST 2018
AMizan Ahmad

MARK THORNTON ISO CORNER SECTION DETAIL
MARK THORNTON ISO CORNER SECTION DETAILMARK THORNTON ISO CORNER SECTION DETAIL
MARK THORNTON ISO CORNER SECTION DETAILMark Thornton

THE BREEZE LAKEHOME
THE BREEZE LAKEHOME THE BREEZE LAKEHOME
THE BREEZE LAKEHOME
AMizan Ahmad

Sections and details
Sections and detailsSections and details
Sections and details
Aden Saitabau Kumary

St Angela's College General Arrangment Drawings
St Angela's College General Arrangment DrawingsSt Angela's College General Arrangment Drawings
St Angela's College General Arrangment Drawings
Jonathan Flanagan

Luxury Flats in Balewadi - Park Grandeur
Luxury Flats in Balewadi - Park Grandeur Luxury Flats in Balewadi - Park Grandeur
Luxury Flats in Balewadi - Park Grandeur
Pride Purple Properties

Pazen Portfolio
Pazen PortfolioPazen Portfolio
Pazen Portfolio
guest6fe719


What's hot (16)

Rochester product-guide-6-20
Rochester product-guide-6-20Rochester product-guide-6-20
Rochester product-guide-6-20

Elite specs 5 7-2016
Elite specs 5 7-2016Elite specs 5 7-2016
Elite specs 5 7-2016

Merged
MergedMerged
Merged

JP Slide Show
JP Slide ShowJP Slide Show
JP Slide Show

8 months work
8 months work8 months work
8 months work

Brett Macdonald House
Brett Macdonald HouseBrett Macdonald House
Brett Macdonald House

Sarjapura Road Apartmetns 2BHK 3BHK Prelaunch Properties
Sarjapura Road Apartmetns 2BHK 3BHK Prelaunch Properties Sarjapura Road Apartmetns 2BHK 3BHK Prelaunch Properties
Sarjapura Road Apartmetns 2BHK 3BHK Prelaunch Properties

SIMFONI WEST 2018
SIMFONI WEST 2018SIMFONI WEST 2018
SIMFONI WEST 2018

MARK THORNTON ISO CORNER SECTION DETAIL
MARK THORNTON ISO CORNER SECTION DETAILMARK THORNTON ISO CORNER SECTION DETAIL
MARK THORNTON ISO CORNER SECTION DETAIL

THE BREEZE LAKEHOME
THE BREEZE LAKEHOME THE BREEZE LAKEHOME
THE BREEZE LAKEHOME

Sections and details
Sections and detailsSections and details
Sections and details

St Angela's College General Arrangment Drawings
St Angela's College General Arrangment DrawingsSt Angela's College General Arrangment Drawings
St Angela's College General Arrangment Drawings

Luxury Flats in Balewadi - Park Grandeur
Luxury Flats in Balewadi - Park Grandeur Luxury Flats in Balewadi - Park Grandeur
Luxury Flats in Balewadi - Park Grandeur

Pazen Portfolio
Pazen PortfolioPazen Portfolio
Pazen Portfolio

Byers KE sept 18
Byers KE sept 18Byers KE sept 18
Byers KE sept 18

Range
RangeRange
Range


Similar to SOLD OUT - 8th on Fordyce Development

Graceland Gardens Development
Graceland Gardens DevelopmentGraceland Gardens Development
Graceland Gardens Development
CraigFensham

Varun Manian - Radiance lakefront
Varun Manian - Radiance lakefrontVarun Manian - Radiance lakefront
Varun Manian - Radiance lakefront
Varun Manian

Collins house material specifications
Collins house material specificationsCollins house material specifications
Collins house material specifications
Alicia Koo

958 sector 14 PPT.pdf
958 sector 14 PPT.pdf958 sector 14 PPT.pdf
958 sector 14 PPT.pdf
KartikChopra25

House Plan For Robert Ledwaba
House Plan For Robert LedwabaHouse Plan For Robert Ledwaba
House Plan For Robert LedwabaJan Malesela

Simonds elpis brochures_floor_plan
Simonds elpis brochures_floor_planSimonds elpis brochures_floor_plan
Simonds elpis brochures_floor_plan
newsgprop

Mantri espana
Mantri espanaMantri espana
Mantri espana
Bangalore Prj

dual-key units: liv twice the excitement
dual-key units: liv twice the excitementdual-key units: liv twice the excitement
dual-key units: liv twice the excitementHuttons Asia Pte Ltd

Leisure Centre
Leisure CentreLeisure Centre
Leisure CentreEdel Fox

Bailey spec sheet 2
Bailey spec sheet 2Bailey spec sheet 2
Bailey spec sheet 2bluemcgowan

Block estimate.ppt (1)
Block estimate.ppt (1)Block estimate.ppt (1)
Block estimate.ppt (1)
kumud singh

Sun Optima
Sun OptimaSun Optima
Sun Optima
Sun Builders Group

Apartments in sarjapur road-Peopletree Realty Solutions @ Bren Imperia
Apartments in sarjapur road-Peopletree Realty Solutions @ Bren ImperiaApartments in sarjapur road-Peopletree Realty Solutions @ Bren Imperia
Apartments in sarjapur road-Peopletree Realty Solutions @ Bren Imperia
Peopletreerealty Solutions

Shilpitha Sunflower
Shilpitha SunflowerShilpitha Sunflower
Shilpitha Sunflower
maithridevelopers

Luxury is Amrapali Centurian Park Greater Noida!
Luxury is Amrapali Centurian Park Greater Noida! Luxury is Amrapali Centurian Park Greater Noida!
Luxury is Amrapali Centurian Park Greater Noida! vserve

Mapsko Casa Bella, Sector 82, Gurgaon
Mapsko Casa Bella, Sector 82, GurgaonMapsko Casa Bella, Sector 82, Gurgaon
Mapsko Casa Bella, Sector 82, Gurgaon
ABC Buildcon Private Limited

Cybergreens Subdivision in Dasmarinas Cavite,house and lot for sale
Cybergreens Subdivision in Dasmarinas Cavite,house and lot for saleCybergreens Subdivision in Dasmarinas Cavite,house and lot for sale
Cybergreens Subdivision in Dasmarinas Cavite,house and lot for sale
Eric Iguico


Similar to SOLD OUT - 8th on Fordyce Development (20)

Graceland Gardens Development
Graceland Gardens DevelopmentGraceland Gardens Development
Graceland Gardens Development

Varun Manian - Radiance lakefront
Varun Manian - Radiance lakefrontVarun Manian - Radiance lakefront
Varun Manian - Radiance lakefront

Collins house material specifications
Collins house material specificationsCollins house material specifications
Collins house material specifications

958 sector 14 PPT.pdf
958 sector 14 PPT.pdf958 sector 14 PPT.pdf
958 sector 14 PPT.pdf

House Plan For Robert Ledwaba
House Plan For Robert LedwabaHouse Plan For Robert Ledwaba
House Plan For Robert Ledwaba

Greenbanks
GreenbanksGreenbanks
Greenbanks

Simonds elpis brochures_floor_plan
Simonds elpis brochures_floor_planSimonds elpis brochures_floor_plan
Simonds elpis brochures_floor_plan

Mantri espana
Mantri espanaMantri espana
Mantri espana

dual-key units: liv twice the excitement
dual-key units: liv twice the excitementdual-key units: liv twice the excitement
dual-key units: liv twice the excitement

Leisure Centre
Leisure CentreLeisure Centre
Leisure Centre

goa property for sale
goa property for salegoa property for sale
goa property for sale

Bailey spec sheet 2
Bailey spec sheet 2Bailey spec sheet 2
Bailey spec sheet 2

Block estimate.ppt (1)
Block estimate.ppt (1)Block estimate.ppt (1)
Block estimate.ppt (1)

Rivergreen Residences
Rivergreen ResidencesRivergreen Residences
Rivergreen Residences

Sun Optima
Sun OptimaSun Optima
Sun Optima

Apartments in sarjapur road-Peopletree Realty Solutions @ Bren Imperia
Apartments in sarjapur road-Peopletree Realty Solutions @ Bren ImperiaApartments in sarjapur road-Peopletree Realty Solutions @ Bren Imperia
Apartments in sarjapur road-Peopletree Realty Solutions @ Bren Imperia

Shilpitha Sunflower
Shilpitha SunflowerShilpitha Sunflower
Shilpitha Sunflower

Luxury is Amrapali Centurian Park Greater Noida!
Luxury is Amrapali Centurian Park Greater Noida! Luxury is Amrapali Centurian Park Greater Noida!
Luxury is Amrapali Centurian Park Greater Noida!

Mapsko Casa Bella, Sector 82, Gurgaon
Mapsko Casa Bella, Sector 82, GurgaonMapsko Casa Bella, Sector 82, Gurgaon
Mapsko Casa Bella, Sector 82, Gurgaon

Cybergreens Subdivision in Dasmarinas Cavite,house and lot for sale
Cybergreens Subdivision in Dasmarinas Cavite,house and lot for saleCybergreens Subdivision in Dasmarinas Cavite,house and lot for sale
Cybergreens Subdivision in Dasmarinas Cavite,house and lot for sale


Recently uploaded

Killer Referans Bahcesehir Catalog Listing Turkey
Killer Referans Bahcesehir Catalog Listing TurkeyKiller Referans Bahcesehir Catalog Listing Turkey
Killer Referans Bahcesehir Catalog Listing Turkey
Listing Turkey

Sense Levent Kagithane Catalog - Listing Turkey
Sense Levent Kagithane Catalog - Listing TurkeySense Levent Kagithane Catalog - Listing Turkey
Sense Levent Kagithane Catalog - Listing Turkey
Listing Turkey

Green Homes, Islamabad Presentation .pdf
Green Homes, Islamabad Presentation .pdfGreen Homes, Islamabad Presentation .pdf
Green Homes, Islamabad Presentation .pdf
ticktoktips

Hawthorn Module 1 Coverted to Slide Show - 04.06.2024.docx
Hawthorn Module 1 Coverted to Slide Show - 04.06.2024.docxHawthorn Module 1 Coverted to Slide Show - 04.06.2024.docx
Hawthorn Module 1 Coverted to Slide Show - 04.06.2024.docx
anothershaneroberts

BricknBolt Understanding Load-Bearing Walls and Their Structural Support in H...
BricknBolt Understanding Load-Bearing Walls and Their Structural Support in H...BricknBolt Understanding Load-Bearing Walls and Their Structural Support in H...
BricknBolt Understanding Load-Bearing Walls and Their Structural Support in H...
BrickAndBolt

Presentation to Windust Meadows HOA Board of Directors June 4, 2024: Focus o...
Presentation to Windust Meadows HOA Board of Directors June 4, 2024:  Focus o...Presentation to Windust Meadows HOA Board of Directors June 4, 2024:  Focus o...
Presentation to Windust Meadows HOA Board of Directors June 4, 2024: Focus o...
Joseph Lewis Aguirre

Deutsche EuroShop | Company Presentation | 06/24
Deutsche EuroShop | Company Presentation | 06/24Deutsche EuroShop | Company Presentation | 06/24
Deutsche EuroShop | Company Presentation | 06/24
Deutsche EuroShop AG

One20 North Vancouver Floor Plans by Three Shores Development.
One20 North Vancouver Floor Plans by Three Shores Development.One20 North Vancouver Floor Plans by Three Shores Development.
One20 North Vancouver Floor Plans by Three Shores Development.
VickyAulakh1

How to keep your Home naturally Cool and Warm
How to keep your Home naturally Cool and WarmHow to keep your Home naturally Cool and Warm
How to keep your Home naturally Cool and Warm
Vinra Construction

The KA Housing - Catalogue - Listing Turkey
The KA Housing - Catalogue - Listing TurkeyThe KA Housing - Catalogue - Listing Turkey
The KA Housing - Catalogue - Listing Turkey
Listing Turkey

Torun Center Residences Istanbul - Listing Turkey
Torun Center Residences Istanbul - Listing TurkeyTorun Center Residences Istanbul - Listing Turkey
Torun Center Residences Istanbul - Listing Turkey
Listing Turkey

Rixos Tersane Istanbul Residences Brochure_May2024_ENG.pdf
Rixos Tersane Istanbul Residences Brochure_May2024_ENG.pdfRixos Tersane Istanbul Residences Brochure_May2024_ENG.pdf
Rixos Tersane Istanbul Residences Brochure_May2024_ENG.pdf
Listing Turkey

Simpolo Company Profile & Corporate Logo
Simpolo Company Profile & Corporate LogoSimpolo Company Profile & Corporate Logo
Simpolo Company Profile & Corporate Logo
simpolosparkteam

Optimizing Your MCA Lead Capture Process for Better Results
Optimizing Your MCA Lead Capture Process for Better ResultsOptimizing Your MCA Lead Capture Process for Better Results
Optimizing Your MCA Lead Capture Process for Better Results
Lead Generation Media

2BHK-3BHK NEW FLAT FOR SALE IN TUPUDANA,RANCHI.
2BHK-3BHK NEW FLAT FOR SALE IN TUPUDANA,RANCHI.2BHK-3BHK NEW FLAT FOR SALE IN TUPUDANA,RANCHI.
2BHK-3BHK NEW FLAT FOR SALE IN TUPUDANA,RANCHI.
aashiyanastardevelop

Brigade Insignia at Yelahanka Brochure.pdf
Brigade Insignia at Yelahanka Brochure.pdfBrigade Insignia at Yelahanka Brochure.pdf
Brigade Insignia at Yelahanka Brochure.pdf
SachinChauhan191

Architectural & Interior design portfolio.pdf
Architectural & Interior design portfolio.pdfArchitectural & Interior design portfolio.pdf
Architectural & Interior design portfolio.pdf
susantebinum

Biography and career about Lixin Azarmehr
Biography and career about Lixin AzarmehrBiography and career about Lixin Azarmehr
Biography and career about Lixin Azarmehr
Lixin Azarmehr

Omaxe Sports City Dwarka A Comprehensive Guide
Omaxe Sports City Dwarka A Comprehensive GuideOmaxe Sports City Dwarka A Comprehensive Guide
Omaxe Sports City Dwarka A Comprehensive Guide
omaxesportscitydwark

One FNG by Group 108 Sector 142 Noida Construction Update
One FNG by Group 108 Sector 142 Noida Construction UpdateOne FNG by Group 108 Sector 142 Noida Construction Update
One FNG by Group 108 Sector 142 Noida Construction Update
One FNG


Recently uploaded (20)

Killer Referans Bahcesehir Catalog Listing Turkey
Killer Referans Bahcesehir Catalog Listing TurkeyKiller Referans Bahcesehir Catalog Listing Turkey
Killer Referans Bahcesehir Catalog Listing Turkey

Sense Levent Kagithane Catalog - Listing Turkey
Sense Levent Kagithane Catalog - Listing TurkeySense Levent Kagithane Catalog - Listing Turkey
Sense Levent Kagithane Catalog - Listing Turkey

Green Homes, Islamabad Presentation .pdf
Green Homes, Islamabad Presentation .pdfGreen Homes, Islamabad Presentation .pdf
Green Homes, Islamabad Presentation .pdf

Hawthorn Module 1 Coverted to Slide Show - 04.06.2024.docx
Hawthorn Module 1 Coverted to Slide Show - 04.06.2024.docxHawthorn Module 1 Coverted to Slide Show - 04.06.2024.docx
Hawthorn Module 1 Coverted to Slide Show - 04.06.2024.docx

BricknBolt Understanding Load-Bearing Walls and Their Structural Support in H...
BricknBolt Understanding Load-Bearing Walls and Their Structural Support in H...BricknBolt Understanding Load-Bearing Walls and Their Structural Support in H...
BricknBolt Understanding Load-Bearing Walls and Their Structural Support in H...

Presentation to Windust Meadows HOA Board of Directors June 4, 2024: Focus o...
Presentation to Windust Meadows HOA Board of Directors June 4, 2024:  Focus o...Presentation to Windust Meadows HOA Board of Directors June 4, 2024:  Focus o...
Presentation to Windust Meadows HOA Board of Directors June 4, 2024: Focus o...

Deutsche EuroShop | Company Presentation | 06/24
Deutsche EuroShop | Company Presentation | 06/24Deutsche EuroShop | Company Presentation | 06/24
Deutsche EuroShop | Company Presentation | 06/24

One20 North Vancouver Floor Plans by Three Shores Development.
One20 North Vancouver Floor Plans by Three Shores Development.One20 North Vancouver Floor Plans by Three Shores Development.
One20 North Vancouver Floor Plans by Three Shores Development.

How to keep your Home naturally Cool and Warm
How to keep your Home naturally Cool and WarmHow to keep your Home naturally Cool and Warm
How to keep your Home naturally Cool and Warm

The KA Housing - Catalogue - Listing Turkey
The KA Housing - Catalogue - Listing TurkeyThe KA Housing - Catalogue - Listing Turkey
The KA Housing - Catalogue - Listing Turkey

Torun Center Residences Istanbul - Listing Turkey
Torun Center Residences Istanbul - Listing TurkeyTorun Center Residences Istanbul - Listing Turkey
Torun Center Residences Istanbul - Listing Turkey

Rixos Tersane Istanbul Residences Brochure_May2024_ENG.pdf
Rixos Tersane Istanbul Residences Brochure_May2024_ENG.pdfRixos Tersane Istanbul Residences Brochure_May2024_ENG.pdf
Rixos Tersane Istanbul Residences Brochure_May2024_ENG.pdf

Simpolo Company Profile & Corporate Logo
Simpolo Company Profile & Corporate LogoSimpolo Company Profile & Corporate Logo
Simpolo Company Profile & Corporate Logo

Optimizing Your MCA Lead Capture Process for Better Results
Optimizing Your MCA Lead Capture Process for Better ResultsOptimizing Your MCA Lead Capture Process for Better Results
Optimizing Your MCA Lead Capture Process for Better Results

2BHK-3BHK NEW FLAT FOR SALE IN TUPUDANA,RANCHI.
2BHK-3BHK NEW FLAT FOR SALE IN TUPUDANA,RANCHI.2BHK-3BHK NEW FLAT FOR SALE IN TUPUDANA,RANCHI.
2BHK-3BHK NEW FLAT FOR SALE IN TUPUDANA,RANCHI.

Brigade Insignia at Yelahanka Brochure.pdf
Brigade Insignia at Yelahanka Brochure.pdfBrigade Insignia at Yelahanka Brochure.pdf
Brigade Insignia at Yelahanka Brochure.pdf

Architectural & Interior design portfolio.pdf
Architectural & Interior design portfolio.pdfArchitectural & Interior design portfolio.pdf
Architectural & Interior design portfolio.pdf

Biography and career about Lixin Azarmehr
Biography and career about Lixin AzarmehrBiography and career about Lixin Azarmehr
Biography and career about Lixin Azarmehr

Omaxe Sports City Dwarka A Comprehensive Guide
Omaxe Sports City Dwarka A Comprehensive GuideOmaxe Sports City Dwarka A Comprehensive Guide
Omaxe Sports City Dwarka A Comprehensive Guide

One FNG by Group 108 Sector 142 Noida Construction Update
One FNG by Group 108 Sector 142 Noida Construction UpdateOne FNG by Group 108 Sector 142 Noida Construction Update
One FNG by Group 108 Sector 142 Noida Construction Update


SOLD OUT - 8th on Fordyce Development

  • 1. 8th ON FORDYCE - Walmer April 2018
  • 2. 2018/04/01 location UNIT NUMBER PRICE TYPE SIZE FLOOR LEVY 1 SOLD STUDIO 33m² GROUND R483 2 SOLD STUDIO 33m² GROUND R483 3 R919 000 2 BED 68m² GROUND R996 4 R919 000 2 BED 68m² GROUND R996 5 SOLD STUDIO 33m² GROUND R483 6 R919 000 2 BED 68m² GROUND R996 7 SOLD 2 BED 68m² GROUND R996 8 SOLD 1 BED 51m² FIRST R747 9 SOLD 1 BED 51m² FIRST R747 10 SOLD STUDIO 33m² FIRST R483 11 R899 000 2 BED 68m² FIRST R996 12 R899 000 2 BED 68m² FIRST R996 13 SOLD STUDIO 33m² FIRST R483 14 SOLD 2 BED 68m² FIRST R996 15 SOLD 2 BED 68m² FIRST R996 16 SOLD 1 BED 51m² SECOND R747 17 SOLD 1 BED 51m² SECOND R747 18 SOLD STUDIO 33m² SECOND R483 19 SOLD 2 BED 68m² SECOND R996 20 SOLD 2 BED 68m² SECOND R996 21 SOLD STUDIO 33m² SECOND R483 22 SOLD 2 BED 68m² SECOND R996 23 SOLD 2 BED 68m² SECOND R996 23 Sectional Title Apartments in Prime Position Access control with electric fencing to external boundary walls NO TRANSFER DUTY OR FEES Levy includes: All external maintenance, Maintenance to common areas, Water, Home owners insurance, Garden services

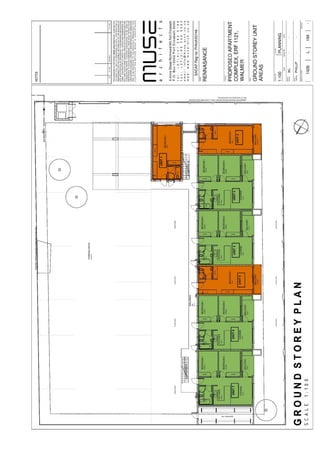

  • 6.

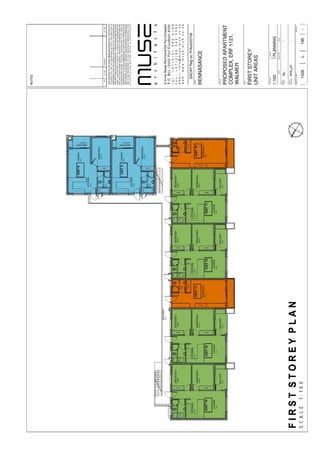

  • 7.

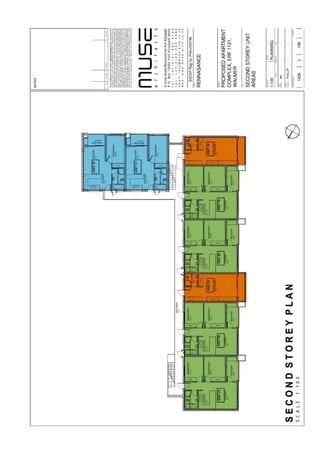

  • 8.

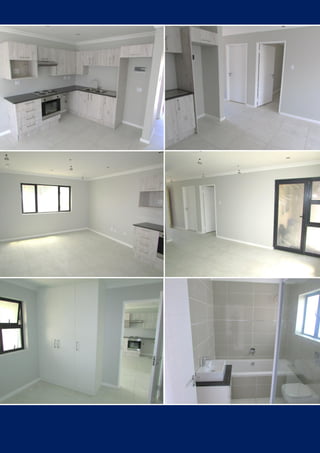

  • 9.
  • 10. GENERAL: All work to conform to the National Building Regulations, in the event of a discrepancy between the plans and the specifications, the latter will apply. All PC amounts are inclusive of VAT. SITEWORKS Security:  Electronically controlled gates with security intercom access control to units.  Electric fence to perimeter of site Landscaping:  General landscaping to entrance verge and internal area. SUPERSTRUCTURE Parking:  Concrete pavers to parking and driveway area. 1 Parking bay per unit. Boundary Wall:  Painted and plastered brick wall. External Finish:  Smooth and textured plaster with exterior quality paint. Selected facebrick panels as per plan. Windows and Doors:  Aluminium doors and windows – Colour charcoal. External Window Cills:  Plastered cills Internal window cills:  Plaster Balustrading:  Balustrading to architects detail to balconies. ROOF Roof:  Colour bond zinc / aluminium selectred roof sheets on pre-fabricated trusses – Colour charcoal. Rainwater Goods:  Alugutter – Charcoal with 75mm square PVC downpipes.
  • 11. INTERNAL FINISHES Internal Walls: Smooth plaster, skim coat, 2 coats Plascon Polvin Ceilings: Skimmed Rhino board, 2 coats Plascon Polvin (Top Floor) Plastered, 2 coats Plascon Polvin (Ground and first floor) Cornices:  Decorative edge profile. Wall Tiles:  Wall tiles for all bathrooms  PC R100 p/m² (Supply only, Inclusive VAT) Floor tiles:  Floor tiles to all areas with movement joints.  PC R100 p/m² (Supply only, Inclusive VAT) Skirtings:  75mm moulded Pine painted skirtings. Door Frames:  Internal door openings to be painted galvanized steel frames.  External door openings to be Aluminum frames where applicable.  Front and duct doors to be Timber frames. Doors:  Front doors to be TDM horizontal slatted doors – Varnished.  Internal doors to be horizontal semi solid – Painted. Ironmongery:  Selected Stainless steel door handles with Union ironmongery.  Interior – 2 Lever  External – 3 Lever Curtain Track:  Double curtain rail to each window and sliding door except bathrooms and kitchen. Common Areas:  Tiling and painting to general walkway and stairs. SANITARYWARE: ALL FITINGS TO ARCHITECTS SPECIFICATIONS
  • 12. Bathrooms: Toilet:  One piece WC and cistern with seat. Basins:  Basins with tap hole with Basin mixer.  Bottle trap.  Click Clack waste – Chromed Brass. Shower:  Shower set  White aluminum shower enclosure with pivot door  Square chrome plated shower waste Toilet Roll Holders:  Toilet roll holder Towel Rail:  Single towel rail. KITCHEN Kitchen Sink:  Single bowl stainless steeel sink  CP Single hole sink mixer  One set under tile stop taps for dishwasher or washing machine Kitchen and Built In Cupboards:  Kitchens with 20mm thick bevel edged Rustenburg granite top 100mm high splashback.  Built in cupboards to bedrooms. Geysers:  Heat pump system. KITCHEN APPLIANCES Oven:  Defy slim line 600 range oven – silver. ELECTRICAL Light Fittings:  Downlights throughout  1 External bulkhead to patio / balcony  1 External bulkhead to walkway
  • 13. Telephone Points:  1 Point per apartment. Television Points:  1 Point per apartment linked to communal DSTV Dish (DSTV subscription by tenant) Intercom:  1 Communication system from each apartment to gate. Electrical:  1 Double plug per room  3 Single plugs  1 Stove point and isolator  1 DB box  1 Pre-paid meter Notes:  All other general specifications as per minimum requirements required by the Financial Institution.  The specification takes precedence over sketch plan signed by both the seller and purchaser.  The above outline specification reflects the minimum standard of finish intended by the developers, who reserve the right to vary this within the parameters set.
