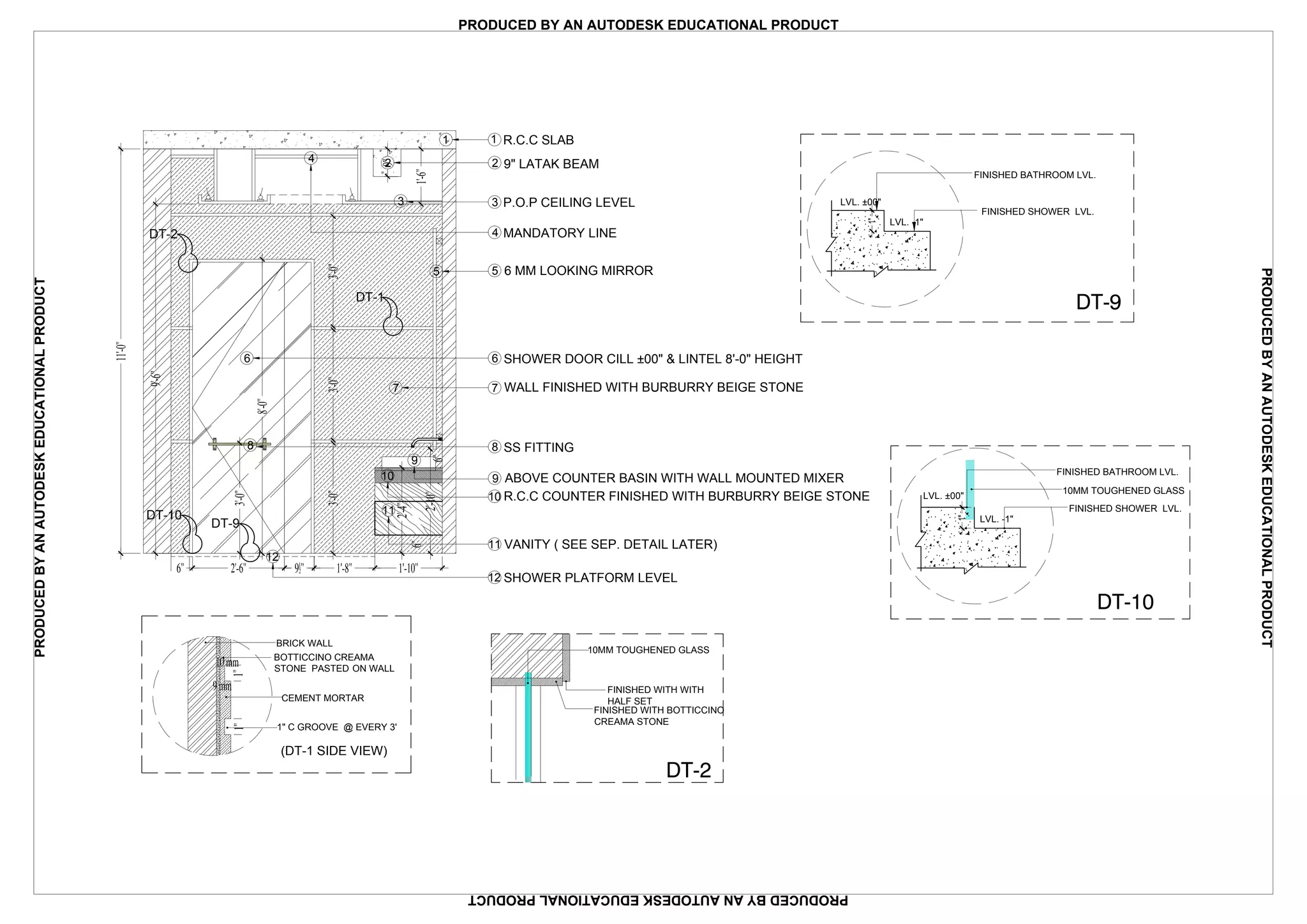

The document contains technical specifications and details for bathroom construction including references to RCC slab, 9" latak beam, POP ceiling level, stone wall finishes, SS fittings, vanity details, shower platform level, looking mirror, wall mounted basin and mixer, and RCC stone counter. It also includes references to construction details DT-1 through DT-10 and material finishes like Botticcino Crema stone and 10mm toughened glass.

1. 1
24
3
5
6
8
9
10
11
7
12
2
4
3
6
7
8
11
12
R.C.C SLAB
9" LATAK BEAM
P.O.P CEILING LEVEL
MANDATORY LINE
WALL FINISHED WITH BURBURRY BEIGE STONE
SS FITTING
VANITY ( SEE SEP. DETAIL LATER)
SHOWER PLATFORM LEVEL
1
5 6 MM LOOKING MIRROR
9 ABOVE COUNTER BASIN WITH WALL MOUNTED MIXER
10 R.C.C COUNTER FINISHED WITH BURBURRY BEIGE STONE
DT-2
DT-10
DT-9
DT-1
FINISHED SHOWER LVL.
FINISHED BATHROOM LVL.
DT-10
LVL. -1"
10MM TOUGHENED GLASS
FINISHED SHOWER LVL.
FINISHED BATHROOM LVL.
LVL. -1"
DT-9
FINISHED WITH BOTTICCINO
CREAMA STONE
10MM TOUGHENED GLASS
DT-2
FINISHED WITH WITH
HALF SET
(DT-1 SIDE VIEW)
BRICK WALL
BOTTICCINO CREAMA
STONE PASTED ON WALL
1" C GROOVE @ EVERY 3'
CEMENT MORTAR
