- 1. MILKWELL MILKING SYSTEMS EQUIPMENTS &PARTS Milkwell Milking Systems Kachwa Road, Pal Nagar Near Pundrak Bus Stop Karnal-132001 Haryana,India Mobile: 9896033221, 9896333556, 9896333557 Telephone : +91-184-2290044 USE ORIGINAL MILKWELL PARTS ENGINEERED BY MILKWELL MILKING SYSTEMS , INDIA ENGINEERS , MANUFACTURER AND PROJECT CONSULTANTS

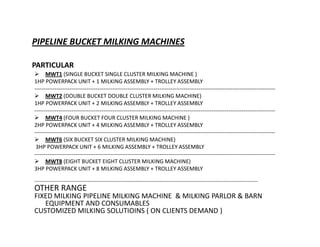

- 2. PIPELINE BUCKET MILKINGMACHINES PARTICULAR MWT1 (SINGLE BUCKET SINGLE CLUSTER MILKING MACHINE ) 1HP POWERPACK UNIT + 1 MILKING ASSEMBLY + TROLLEY ASSEMBLY --------------------------------------------------------------------------------------------------------------------------------- MWT2 (DOUBLE BUCKET DOUBLE CLUSTER MILKING MACHINE) 1HP POWERPACK UNIT + 2 MILKING ASSEMBLY + TROLLEY ASSEMBLY --------------------------------------------------------------------------------------------------------------------------------- MWT4 (FOUR BUCKET FOUR CLUSTER MILKING MACHINE ) 2HP POWERPACK UNIT + 4 MILKING ASSEMBLY + TROLLEY ASSEMBLY2HP POWERPACK UNIT + 4 MILKING ASSEMBLY + TROLLEY ASSEMBLY --------------------------------------------------------------------------------------------------------------------------------- MWT6 (SIX BUCKET SIX CLUSTER MILKING MACHINE) 3HP POWERPACK UNIT + 6 MILKING ASSEMBLY + TROLLEY ASSEMBLY --------------------------------------------------------------------------------------------------------------------------------- MWT8 (EIGHT BUCKET EIGHT CLUSTER MILKING MACHINE) 3HP POWERPACK UNIT + 8 MILKING ASSEMBLY + TROLLEY ASSEMBLY ---------------------------------------------------------------------------------------------------------------------------------- OTHER RANGE FIXED MILKING PIPELINE MILKING MACHINE & MILKING PARLOR & BARN EQUIPMENT AND CONSUMABLES CUSTOMIZED MILKING SOLUTIOINS ( ON CLIENTS DEMAND )
- 3. MODEL MWT1 MILKING MACHINEMODEL MWT1 • SINGLE CAN SINGLE CLUSTER MILKING MACHINE • FOR MILKING OF ONE COW AT A TIME --------------------------------------------------------------------------- PACKAGING • LENGTH • WIDTH • BREADTH • WEIGHT ( UNPACKED ) • GROSS WEIGHT ( PACKED ) --------------------------------------------------------------------------- POWER PACK UNIT • ELCTRIC MOTOR 1 HP• ELCTRIC MOTOR 1 HP • VACUUM PUMP FLOW RATE 260 LPM • VACUUM PUMP TYPE OIL RECIRCULTORY • ROTATION 1440 RPM • VOLTAGE 230 VOLTS 50 HZ • VACCUM TANK CAPACITY 220 LITER --------------------------------------------------------------------------- MILKING ASSEMBLY • STAINLESS STEEL 304 BUCKET • CAPACITY 40 LITER • CLUSTER WEIGHT (GR ) 2800 GR • MILK CLAW VOLUME 300 ML • MILK HOSE 16 MM X 26 MM (250 MM) • VACUUM HOSE 14 MM X 24 MM (100 MM) • VACUUM PULSE HOSE 7 MM X 14 MM ( 250 MM)

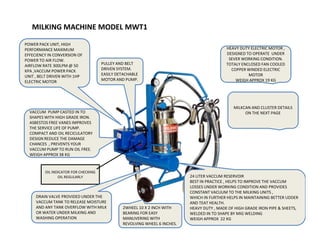

- 4. MILKING MACHINE MODELMWT1 HEAVY DUTY ELECTRIC MOTOR , DESIGNED TO OPERATE UNDER SEVER WORKING CONDITION. TOTALY ENCLOSED FAN COOLED COPPER WINDED ELECTRIC MOTOR WEIGH APPROX 19 KG VACCUM PUMP CASTED IN TO SHAPES WITH HIGH GRADE IRON. ASBESTOS FREE VANES IMPROVES PULLEY AND BELT DRIVEN SYSTEM. EASILY DETACHABLE MOTOR AND PUMP. POWER PACK UNIT, HIGH PERFORMANCE MAXIMUM EFFECIENCY IN CONVERSION OF POWER TO AIR FLOW. AIRFLOW RATE 300LPM @ 50 KPA ,VACCUM POWER PACK UNIT , BELT DRIVEN WITH 1HP ELECTRIC MOTOR MILKCAN AND CLUSTER DETAILS ON THE NEXT PAGE ASBESTOS FREE VANES IMPROVES THE SERVICE LIFE OF PUMP. COMPACT AND OIL RECICULATORY DESIGN REDUCE THE DAMAGE CHANCES , PREVENTS YOUR VACCUM PUMP TO RUN OIL FREE. WEIGH APPROX 38 KG 24 LITER VACCUM RESERVOIR BEST IN PRACTICE , HELPS TO IMPROVE THE VACCUM LOSSES UNDER WORKING CONDITION AND PROVIDES CONSTANT VACUUM TO THE MILKING UNITS , WHICH IN FURTHER HELPS IN MAINTAINING BETTER UDDER AND TEAT HEALTH. HEAVY DUTY , MADE OF HIGH GRADE IRON PIPE & SHEETS, WELDED IN TO SHAPE BY MIG WELDING WEIGH APPROX 22 KG OIL INDICATOR FOR CHECKING OIL REGULARLY DRAIN VALVE PROVIDED UNDER THE VACCUM TANK TO RELEASE MOISTURE AND ANY TANK OVERFLOW WITH MILK OR WATER UNDER MILKING AND WASHING OPERATION 2WHEEL 10 X 2 INCH WITH BEARING FOR EASY MANUVERING WITH REVOLVING WHEEL 6 INCHES.

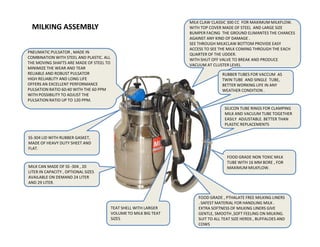

- 5. MILKING ASSEMBLY MILK CLAWCLASSIC 300 CC FOR MAXIMUM MILKFLOW. WITH TOP COVER MADE OF STEEL AND LARGE SIZE BUMPER FACING THE GROUND ELIMANTES THE CHANCES AGAINST ANY KIND OF DAMAGE . SEE THROUGH MILKCLAW BOTTOM PROVIDE EASY ACCESS TO SEE THE MILK COMING THROUGH THE EACH QUARTER OF THE UDDER. WITH SHUT OFF VALVE TO BREAK AND PRODUCE VACUUM AT CLUSTER LEVEL SILICON TUBE RINGS FOR CLAMPING MILK AND VACUUM TUBE TOGETHER EASILY ADJUSTABLE. BETTER THAN PLASTIC REPLACEMENTS RUBBER TUBES FOR VACCUM AS TWIN TUBE AND SINGLE TUBE, BETTER WORKING LIFE IN ANY WEATHER CONDITION . PNEUMATIC PULSATOR , MADE IN COMBINATION WITH STEEL AND PLASTIC. ALL THE MOVING SHAFTS ARE MADE OF STEEL TO MINIMIZE THE WEAR AND TEAR RELIABLE AND ROBUST PULSATOR HIGH RELIABLITY AND LONG LIFE OFFERS AN EXCELLENT PERFORMANCE PULSATION RATIO 60:40 WITH THE 60 PPM WITH POSSIBILITY TO ADJUST THE PULSATION RATIO UP TO 120 PPM. FOOD GRADE NON TOXIC MILK TUBE WITH 16 MM BORE , FOR MAXIMUM MILKFLOW. PLASTIC REPLACEMENTS MILK CAN MADE OF SS -304 , 20 LITER IN CAPACITY , OPTIONAL SIZES AVAILABLE ON DEMAND 24 LITER AND 29 LITER. SS-304 LID WITH RUBBER GASKET, MADE OF HEAVY DUTY SHEET AND FLAT. FOOD GRADE , PTHALATE FREE MILKING LINERS . SAFEST MATERIAL FOR HANDLING MILK . EXTRA SOFTNESS OF MILKING LINERS GIVE GENTLE, SMOOTH ,SOFT FEELING ON MILKING. SUIT TO ALL TEAT SIZE HERDS , BUFFALOES AND COWS TEAT SHELL WITH LARGER VOLUME TO MILK BIG TEAT SIZES
- 6. MILKWELL MILKING SYSTEMS OFFICES 01.SWASTIK ENTERPRISES, 78/3B , R.K.PURAM , KUNJPURA ROAD , KARNAL , PIN CODE 132001 HARYANA 02. MILKWELL MILKING SYSTEMS NEAR BUS STOP PUNDRAK, KACHWA ROAD ,PALNAGARNEAR BUS STOP PUNDRAK, KACHWA ROAD ,PALNAGAR KARNAL ,PIN CODE 132001 HARYANA 03. MILKWELL MILKING SYSTEMS 77/146 109, VARDAN COMPLEX , LATOUCH ROAD, KANPUR NAGAR -208001, UTTARPARDESH
- 7. CUTOMER CARE/FEEDBACK /SUGGESTIONS info@milkwell.in callus +91-184-2290044 +91-9896033557 ORDERS & SPAREPARTS sales@milkwell.in call us +91-9896033556+91-9896033556 +91-9416003826
