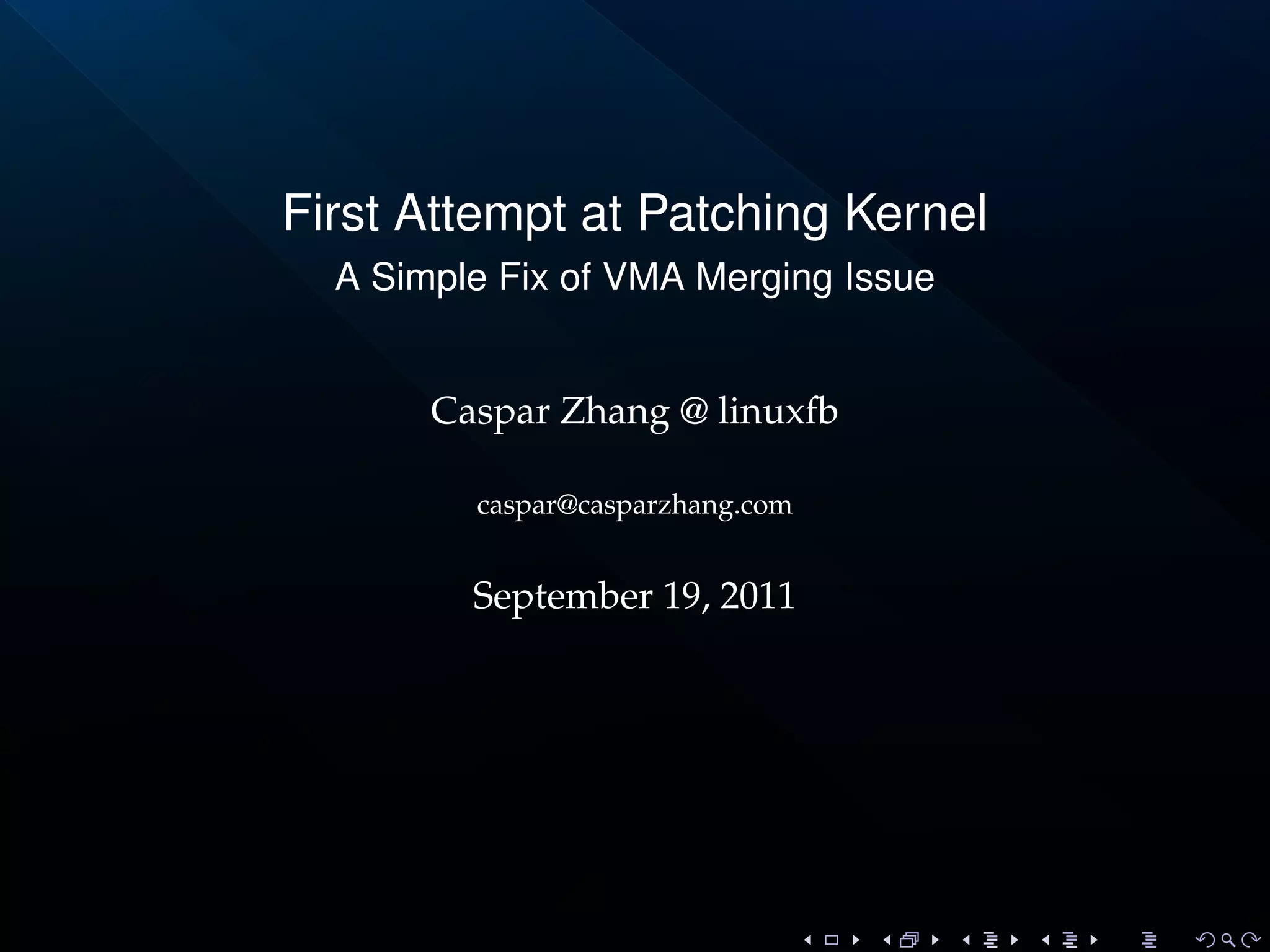

1. First Attempt at Patching Kernel
A Simple Fix of VMA Merging Issue
Caspar Zhang @ linuxfb
caspar@casparzhang.com
September 19, 2011

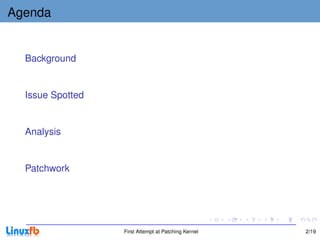

2. Agenda
Background
Issue Spotted
Analysis
Patchwork
First Attempt at Patching Kernel 2/19

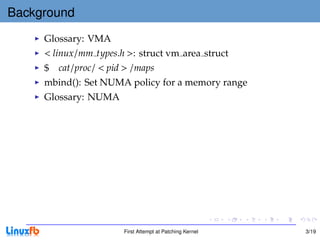

3. Background
Glossary: VMA
< linux/mm types.h >: struct vm area struct
$ cat/proc/ < pid > /maps
mbind(): Set NUMA policy for a memory range
Glossary: NUMA
First Attempt at Patching Kernel 3/19

4. Issue Spotted
An upstream commit with reproducer.
commit 9d8cebd4bcd7c3878462fdfda34bbcdeb4df7ef4
Author: KOSAKI Motohiro < kosaki.motohiro@jp. f u jitsu.com >
Date: Fri Mar 5 13:41:57 2010 -0800
mm: fix mbind vma merge problem
Strangely, current mbind() doesn’t merge vma with neighbor vma
although it’s possible.
Unfortunately, many vma can reduce performance...
This patch fixes it.
reproduced program
...
First Attempt at Patching Kernel 4/19

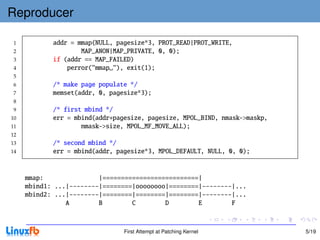

5. Reproducer
1 addr = mmap(NULL, pagesize*3, PROT_READ|PROT_WRITE,
2 MAP_ANON|MAP_PRIVATE, 0, 0);
3 if (addr == MAP_FAILED)
4 perror("mmap "), exit(1);
5
6 /* make page populate */
7 memset(addr, 0, pagesize*3);
8
9 /* first mbind */
10 err = mbind(addr+pagesize, pagesize, MPOL_BIND, nmask->maskp,
11 nmask->size, MPOL_MF_MOVE_ALL);
12
13 /* second mbind */
14 err = mbind(addr, pagesize*3, MPOL_DEFAULT, NULL, 0, 0);
mmap: |==========================|
mbind1: ...|--------|========|oooooooo|========|--------|...
mbind2: ...|--------|========|========|========|--------|...
A B C D E F
First Attempt at Patching Kernel 5/19

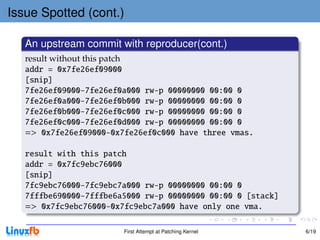

6. Issue Spotted (cont.)
An upstream commit with reproducer(cont.)
result without this patch
addr = 0x7fe26ef09000
[snip]
7fe26ef09000-7fe26ef0a000 rw-p 00000000 00:00 0
7fe26ef0a000-7fe26ef0b000 rw-p 00000000 00:00 0
7fe26ef0b000-7fe26ef0c000 rw-p 00000000 00:00 0
7fe26ef0c000-7fe26ef0d000 rw-p 00000000 00:00 0
=> 0x7fe26ef09000-0x7fe26ef0c000 have three vmas.
result with this patch
addr = 0x7fc9ebc76000
[snip]
7fc9ebc76000-7fc9ebc7a000 rw-p 00000000 00:00 0
7fffbe690000-7fffbe6a5000 rw-p 00000000 00:00 0 [stack]
=> 0x7fc9ebc76000-0x7fc9ebc7a000 have only one vma.
First Attempt at Patching Kernel 6/19

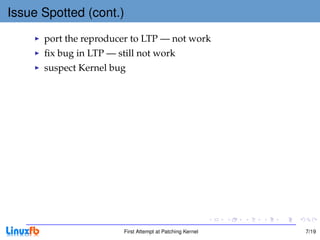

7. Issue Spotted (cont.)
port the reproducer to LTP — not work
fix bug in LTP — still not work
suspect Kernel bug
First Attempt at Patching Kernel 7/19

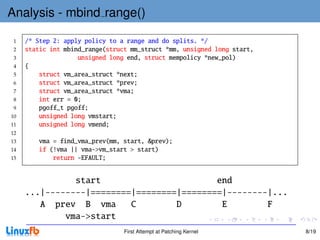

8. Analysis - mbind range()
1 /* Step 2: apply policy to a range and do splits. */
2 static int mbind_range(struct mm_struct *mm, unsigned long start,
3 unsigned long end, struct mempolicy *new_pol)
4 {
5 struct vm_area_struct *next;
6 struct vm_area_struct *prev;
7 struct vm_area_struct *vma;
8 int err = 0;
9 pgoff_t pgoff;
10 unsigned long vmstart;
11 unsigned long vmend;
12
13 vma = find_vma_prev(mm, start, &prev);
14 if (!vma || vma->vm_start > start)
15 return -EFAULT;
start end
...|--------|========|========|========|--------|...
A prev B vma C D E F
vma->start
First Attempt at Patching Kernel 8/19

9. Analysis - loop
1 for (; vma && vma->vm_start < end; prev = vma, vma = next) {
2 next = vma->vm_next;
3 vmstart = max(start, vma->vm_start);
4 vmend = min(end, vma->vm_end);
5
6 pgoff = vma->vm_pgoff + ((start - vma->vm_start) >> PAGE_SHIFT);
7 prev = vma_merge(mm, prev, vmstart, vmend, vma->vm_flags,
8 vma->anon_vma, vma->vm_file, pgoff, new_pol);
9 if (prev) {
10 vma = prev;
11 next = vma->vm_next;
12 continue;
13 }
14 [snip]
15 }
start end
...|--------|========|========|========|--------|...
A prev B vma C D E F
vma->start
First Attempt at Patching Kernel 9/19

10. Analysis - snip part
split if merged out of range:
1 vmstart = max(start, vma->vm_start);
2 vmend = min(end, vma->vm_end);
3 ...
4
5 if (vma->vm_start != vmstart) {
6 err = split_vma(vma->vm_mm, vma, vmstart, 1);
7 if (err)
8 goto out;
9 }
10 if (vma->vm_end != vmend) {
11 err = split_vma(vma->vm_mm, vma, vmend, 0);
12 if (err)
13 goto out;
14 }
15 err = policy_vma(vma, new_pol);
16 if (err)
17 goto out;
First Attempt at Patching Kernel 10/19

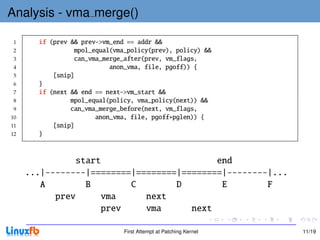

11. Analysis - vma merge()
1 if (prev && prev->vm_end == addr &&
2 mpol_equal(vma_policy(prev), policy) &&
3 can_vma_merge_after(prev, vm_flags,
4 anon_vma, file, pgoff)) {
5 [snip]
6 }
7 if (next && end == next->vm_start &&
8 mpol_equal(policy, vma_policy(next)) &&
9 can_vma_merge_before(next, vm_flags,
10 anon_vma, file, pgoff+pglen)) {
11 [snip]
12 }
start end
...|--------|========|========|========|--------|...
A B C D E F
prev vma next
prev vma next
First Attempt at Patching Kernel 11/19

12. Analysis - can vma merge before()
1 static int
2 can_vma_merge_before(struct vm_area_struct *vma, unsigned long vm_flags,
3 struct anon_vma *anon_vma, struct file *file, pgoff_t vm_pgoff)
4 {
5 if (is_mergeable_vma(vma, file, vm_flags) &&
6 is_mergeable_anon_vma(anon_vma, vma->anon_vma, vma)) {
7 if (vma->vm_pgoff == vm_pgoff)
8 return 1;
9 }
10 return 0;
11 }
start end
...|--------|========|========|========|--------|...
A B C vma D E F
ˆvm_pgoff
vma_merge(): (vma) (next)
vma_merge():ˆpgoff
vma_merge():|-pglen -|
First Attempt at Patching Kernel 12/19

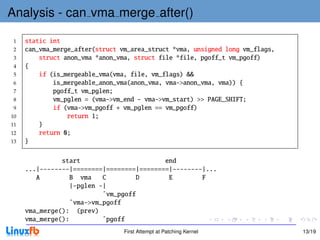

13. Analysis - can vma merge after()
1 static int
2 can_vma_merge_after(struct vm_area_struct *vma, unsigned long vm_flags,
3 struct anon_vma *anon_vma, struct file *file, pgoff_t vm_pgoff)
4 {
5 if (is_mergeable_vma(vma, file, vm_flags) &&
6 is_mergeable_anon_vma(anon_vma, vma->anon_vma, vma)) {
7 pgoff_t vm_pglen;
8 vm_pglen = (vma->vm_end - vma->vm_start) >> PAGE_SHIFT;
9 if (vma->vm_pgoff + vm_pglen == vm_pgoff)
10 return 1;
11 }
12 return 0;
13 }
start end
...|--------|========|========|========|--------|...
A B vma C D E F
|-pglen -|
ˆvm_pgoff
ˆvma->vm_pgoff
vma_merge(): (prev)
vma_merge(): ˆpgoff
First Attempt at Patching Kernel 13/19

14. Analysis - tracing

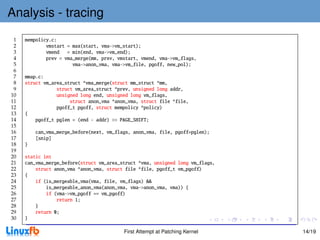

1 mempolicy.c:
2 vmstart = max(start, vma->vm_start);
3 vmend = min(end, vma->vm_end);
4 prev = vma_merge(mm, prev, vmstart, vmend, vma->vm_flags,
5 vma->anon_vma, vma->vm_file, pgoff, new_pol);
6
7 mmap.c:
8 struct vm_area_struct *vma_merge(struct mm_struct *mm,
9 struct vm_area_struct *prev, unsigned long addr,
10 unsigned long end, unsigned long vm_flags,
11 struct anon_vma *anon_vma, struct file *file,
12 pgoff_t pgoff, struct mempolicy *policy)
13 {
14 pgoff_t pglen = (end - addr) >> PAGE_SHIFT;
15
16 can_vma_merge_before(next, vm_flags, anon_vma, file, pgoff+pglen);
17 [snip]
18 }
19
20 static int
21 can_vma_merge_before(struct vm_area_struct *vma, unsigned long vm_flags,
22 struct anon_vma *anon_vma, struct file *file, pgoff_t vm_pgoff)
23 {
24 if (is_mergeable_vma(vma, file, vm_flags) &&
25 is_mergeable_anon_vma(anon_vma, vma->anon_vma, vma)) {
26 if (vma->vm_pgoff == vm_pgoff)
27 return 1;
28 }
29 return 0;
30 }
First Attempt at Patching Kernel 14/19

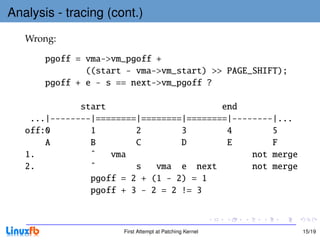

15. Analysis - tracing (cont.)
Wrong:
pgoff = vma->vm_pgoff +
((start - vma->vm_start) >> PAGE_SHIFT);
pgoff + e - s == next->vm_pgoff ?
start end
...|--------|========|========|========|--------|...
off:0 1 2 3 4 5
A B C D E F
1. ˆ vma not merge
2. ˆ s vma e next not merge
pgoff = 2 + (1 - 2) = 1
pgoff + 3 - 2 = 2 != 3
First Attempt at Patching Kernel 15/19

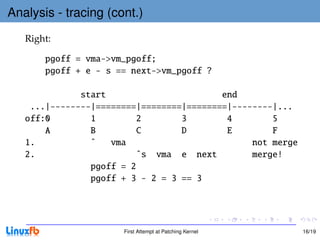

16. Analysis - tracing (cont.)
Right:
pgoff = vma->vm_pgoff;
pgoff + e - s == next->vm_pgoff ?
start end
...|--------|========|========|========|--------|...
off:0 1 2 3 4 5
A B C D E F
1. ˆ vma not merge
2. ˆs vma e next merge!
pgoff = 2
pgoff + 3 - 2 = 3 == 3
First Attempt at Patching Kernel 16/19

17. Patchwork
1 diff --git a/mm/mempolicy.c b/mm/mempolicy.c
2 index 8b57173..b1f70d6 100644
3 --- a/mm/mempolicy.c
4 +++ b/mm/mempolicy.c
5 @@ -636,7 +636,6 @@ static int mbind_range(struct mm_struct *mm, unsigned long start,
6 struct vm_area_struct *prev;
7 struct vm_area_struct *vma;
8 int err = 0;
9 - pgoff_t pgoff;
10 unsigned long vmstart;
11 unsigned long vmend;
12
13 @@ -649,9 +648,9 @@ static int mbind_range(struct mm_struct *mm, unsigned long start,
14 vmstart = max(start, vma->vm_start);
15 vmend = min(end, vma->vm_end);
16
17 - pgoff = vma->vm_pgoff + ((start - vma->vm_start) >> PAGE_SHIFT);
18 prev = vma_merge(mm, prev, vmstart, vmend, vma->vm_flags,
19 - vma->anon_vma, vma->vm_file, pgoff, new_pol);
20 + vma->anon_vma, vma->vm_file, vma->vm_pgoff,
21 + new_pol);
22 if (prev) {
23 vma = prev;
24 next = vma->vm_next;
First Attempt at Patching Kernel 17/19

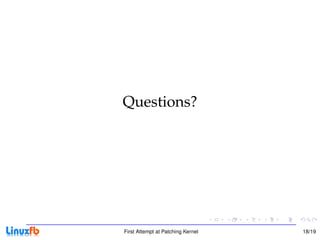

18. Questions?
First Attempt at Patching Kernel 18/19

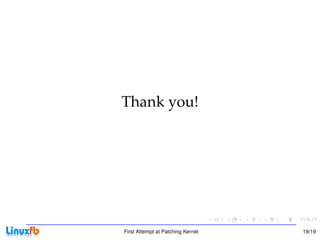

19. Thank you!
First Attempt at Patching Kernel 19/19
