The document outlines the successful installation of a Hamworthy Masterflue system at St. Bernard’s RC School in Birmingham by Airtherm Engineering Limited. The flue system, installed in August 2012, included a 5m horizontal and a 12m vertical run, designed to efficiently evacuate unwanted condensate while meeting a tight deadline for the school's reopening. The project was completed on schedule in collaboration with the consultant and M&E contractor.

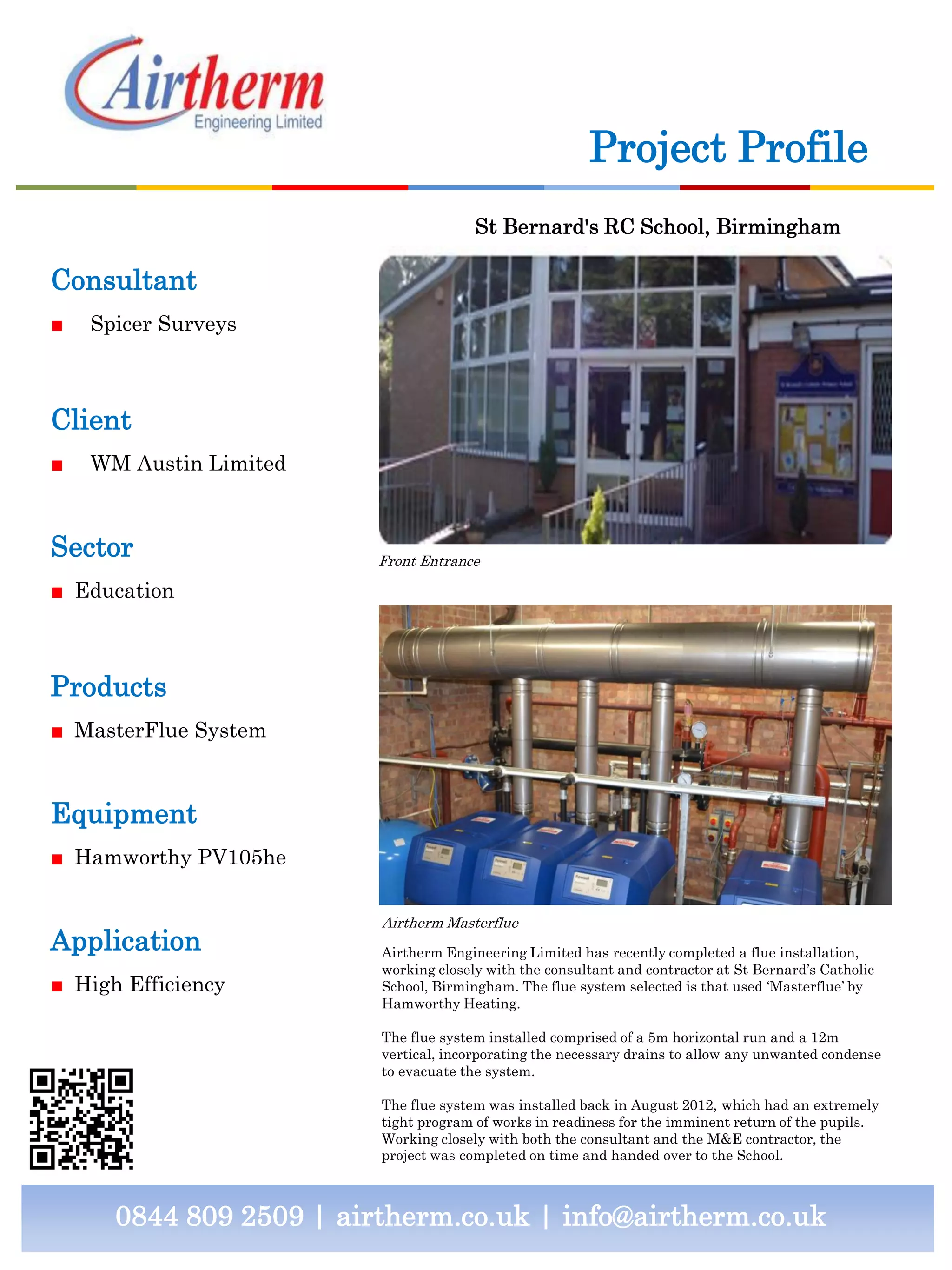

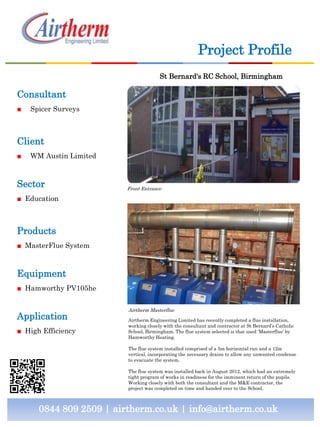

1. Project Profile
St Bernard's RC School, Birmingham
Consultant
■ Spicer Surveys
Client
■ WM Austin Limited
Sector Front Entrance
■ Education
Products
■ MasterFlue System
Equipment
■ Hamworthy PV105he
Airtherm Masterflue
Application Airtherm Engineering Limited has recently completed a flue installation,
working closely with the consultant and contractor at St Bernard’s Catholic
■ High Efficiency School, Birmingham. The flue system selected is that used ‘Masterflue’ by
Hamworthy Heating.
The flue system installed comprised of a 5m horizontal run and a 12m
vertical, incorporating the necessary drains to allow any unwanted condense
to evacuate the system.
The flue system was installed back in August 2012, which had an extremely
tight program of works in readiness for the imminent return of the pupils.
Working closely with both the consultant and the M&E contractor, the
project was completed on time and handed over to the School.
0844 809 2509 | airtherm.co.uk | info@airtherm.co.uk

2. Product Solution
• Boilers: Hanmworthy
• Model: Modumax HE Variheat PV105
• Application: Chimney / Flue system
• Operating mode: Dry / Wet
• Pressure: Negative / positive pressure
• Working pressure: 200 Pa (product will operate 1000pa max)
• Inner wall: 316L1.4404/1.457 thickness ≤ Ø250 0,4 mm, ≥ Ø300 0,5 mm
• Outer wall: AISI 304/ 1.4301 thickness 0,5 / 0,6 mm
• Insulation: 25mm thick Rockwool insulation
• Sealant : tri-lip 'o' type silicone ring
Airtherm Masterflue • Fuel type: Gas/Oil/Coal/Wood
• Other Application METALOTERM MasterFlue
• Condensing boilers
• Atmospheric gas-fired boilers
• Gas blown boilers
• Industrial ovens, large-scale establishments
• Wood-fired stoves
MasterFlue
Contact Details: • Other Advantages METALOTERM MasterFlue
Airtherm Engineering Ltd • No terminal bridges, better heat protection
Ventilation House • High-temperature silicone sealing ring
Pedmore
• Fast-build system without the need of sealants
Stoubridge
• High quality insulation uninterrupted from base plate to top stub
West Midlands
DY9 0DS
Tel: 0844 8092509
Fax: 01562 887312
