Digital ip network audio system brochure
This document describes several digital IP network audio system solutions from ITC-PA including: - A 500W, 4-zone system using a T-6701 adapter, T-6500 amplifier, and various speakers to upgrade an existing analog system. - Lower power single and multi-zone systems using T-67120, T-6704, and T-6705(A) devices that integrate streaming decoders and amplifiers. - All solutions distribute audio over an existing LAN network from a central PC software and allow remote paging to speaker zones.
Digital ip network audio system brochure
- 1. Page 1 of5 Digital IP Network Audio System Solution by T-6701 www.itc-pa.com.cn, info@itc-pa.com.cn LAN HUB T-6702 T-6700R with PC T-6701 T-6500 T-105 T-105 Bill of Material • 1×T-6700R, IP Network Audio System Software • 1×T-6702, IP Network Paging Microphone • 1×T-6701, IP Network Audio Adapter (IP Network Mixer Pre-Amplifier ) • 1×T-6500, 500W Power Amplifier, 100V • 66×T-105, Ceiling Speaker, 100V, 5", 6W System Feature • IP addressable network audio 500W streaming system. • Distribute and manage music or program from PC to each zone. • Remote paging microphone capacity to make speech to each selected speaker zone. • Ideal solution to upgrade existing analog sound system into digital IP network audio system. • T-6701 can decode digital signal into analog one to feed in any low impedance and high impedance amplifier. • The system can be built-up over existing LAN network.
- 2. Page 2 of5 Digital IP Network Audio System Solution By T-67120 www.itc-pa.com.cn, info@itc-pa.com.cn LAN HUB T-6702 T-6700R with PC T-67120 T-105 T-105 Bill of Material • 1×T-6700R, IP Network Audio System Software • 1×T-6702, IP Network Paging Microphone • 1×T-67120, IP Network Audio Amplifier, 120W • 16×T-105, Ceiling Speaker, 100V, 5", 6W System Feature • IP addressable network audio 120W streaming system. • Distribute and manage music or program from PC to each zone. • Remote paging microphone capacity to make speech to each selected speaker zone. • Compact solution for small area sound and speech system. • T-67120 is built-in streaming decoder and amplifier. • The system can be built-up over existing LAN network.

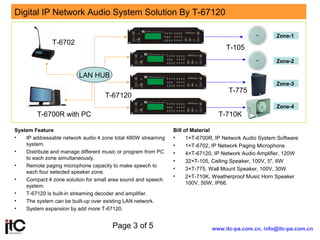

- 3. Page 3 of5 Digital IP Network Audio System Solution By T-67120 www.itc-pa.com.cn, info@itc-pa.com.cn LAN HUB T-6702 T-6700R with PC T-67120 Zone-1 T-105 Bill of Material • 1×T-6700R, IP Network Audio System Software • 1×T-6702, IP Network Paging Microphone • 4×T-67120, IP Network Audio Amplifier, 120W • 32×T-105, Ceiling Speaker, 100V, 5", 6W • 3×T-775, Wall Mount Speaker, 100V, 30W • 2×T-710K, Weatherproof Music Horn Speaker 100V, 50W, IP66. System Feature • IP addressable network audio 4 zone total 480W streaming system. • Distribute and manage different music or program from PC to each zone simultaneously. • Remote paging microphone capacity to make speech to each four selected speaker zone. • Compact 4 zone solution for small area sound and speech system. • T-67120 is built-in streaming decoder and amplifier. • The system can be built-up over existing LAN network. • System expansion by add more T-67120. Zone-2 Zone-3 Zone-4 T-775 T-710K
- 4. Page 4 of5 Digital IP Network Audio System Solution By T-6704 www.itc-pa.com.cn, info@itc-pa.com.cn LAN HUB T-6702 T-6700R with PC T-6704 Zone-1 T-105 Bill of Material • 1×T-6700R, IP Network Audio System Software • 1×T-6702, IP Network Paging Microphone • 1×T-6704, IP Network 4 Channel Audio Adapter (IP Network 4 Channel Mixer Pre-Amplifier ) • 1×T-4S120B, 4×120W Power Amplifier, 100V • 32×T-105, Ceiling Speaker, 100V, 5", 6W • 3×T-775, Wall Mount Speaker, 100V, 30W • 2×T-710K, Weatherproof Music Horn Speaker 100V, 50W, IP66. System Feature • IP addressable network audio 4 zone total 480W streaming system. • Distribute and manage different music or program from PC to each zone simultaneously. • Remote paging microphone capacity to make speech to each four selected speaker zone. • Compact 4 zone solution for small area sound and speech system. • T-6704 is built-in four different IP addressable streaming decoders. • The system can be built-up over existing LAN network. Zone-2 Zone-3 Zone-4 T-775 T-710K T-4S120B
- 5. Page 5 of5 Digital IP Network Audio System Solution By T-6705(A) www.itc-pa.com.cn, info@itc-pa.com.cn LAN HUB T-6702 T-6700R with PC T-6705(A) Zone-1 T-105 Bill of Material • 1×T-6700R, IP Network Audio System Software • 1×T-6702, IP Network Paging Microphone • 4×T-6705(A), IP Network Audio Amplifier, 4Ω,15W • 4×T-105, Ceiling Speaker, 8Ω, 5", 6W • 4×T-774P, Wall Mount Speaker, 8Ω, 5W System Feature • IP addressable network audio 4 zone total 60W streaming system. • Distribute and manage different music or program from PC to each zone simultaneously. • Remote paging microphone capacity to make speech to each four selected speaker zone. • Compact 4 zone solution for small area sound and speech system. • T-6705(A) is built-in streaming decoder and amplifier, each amplifier for one small room. • The system can be built-up over existing LAN network. • System expansion by add more T-6705(A). Zone-2 Zone-3 Zone-4 T-774P
- 6. Page 5 of5 Digital IP Network Audio System Solution By T-6705(A) www.itc-pa.com.cn, info@itc-pa.com.cn LAN HUB T-6702 T-6700R with PC T-6705(A) Zone-1 T-105 Bill of Material • 1×T-6700R, IP Network Audio System Software • 1×T-6702, IP Network Paging Microphone • 4×T-6705(A), IP Network Audio Amplifier, 4Ω,15W • 4×T-105, Ceiling Speaker, 8Ω, 5", 6W • 4×T-774P, Wall Mount Speaker, 8Ω, 5W System Feature • IP addressable network audio 4 zone total 60W streaming system. • Distribute and manage different music or program from PC to each zone simultaneously. • Remote paging microphone capacity to make speech to each four selected speaker zone. • Compact 4 zone solution for small area sound and speech system. • T-6705(A) is built-in streaming decoder and amplifier, each amplifier for one small room. • The system can be built-up over existing LAN network. • System expansion by add more T-6705(A). Zone-2 Zone-3 Zone-4 T-774P
