1) The document shows the steps taken to call a function (_function) from another function (_main) by pushing the return address onto the stack and jumping to _function. 2) _function sets the value in eax to 99 and returns by popping the return address off the stack and jumping to it. 3) Control returns to _main, which prints the value in eax, cleans up, and exits.

1. Calling functions by Pushing and Jumping
callReturnExploration.s

2. LC0:
.ascii "%dn0"
.text
.globl _function
_function::
movl $99, %eax
# ret
popl %ecx
jmp *%ecx
.globl _main
_main::

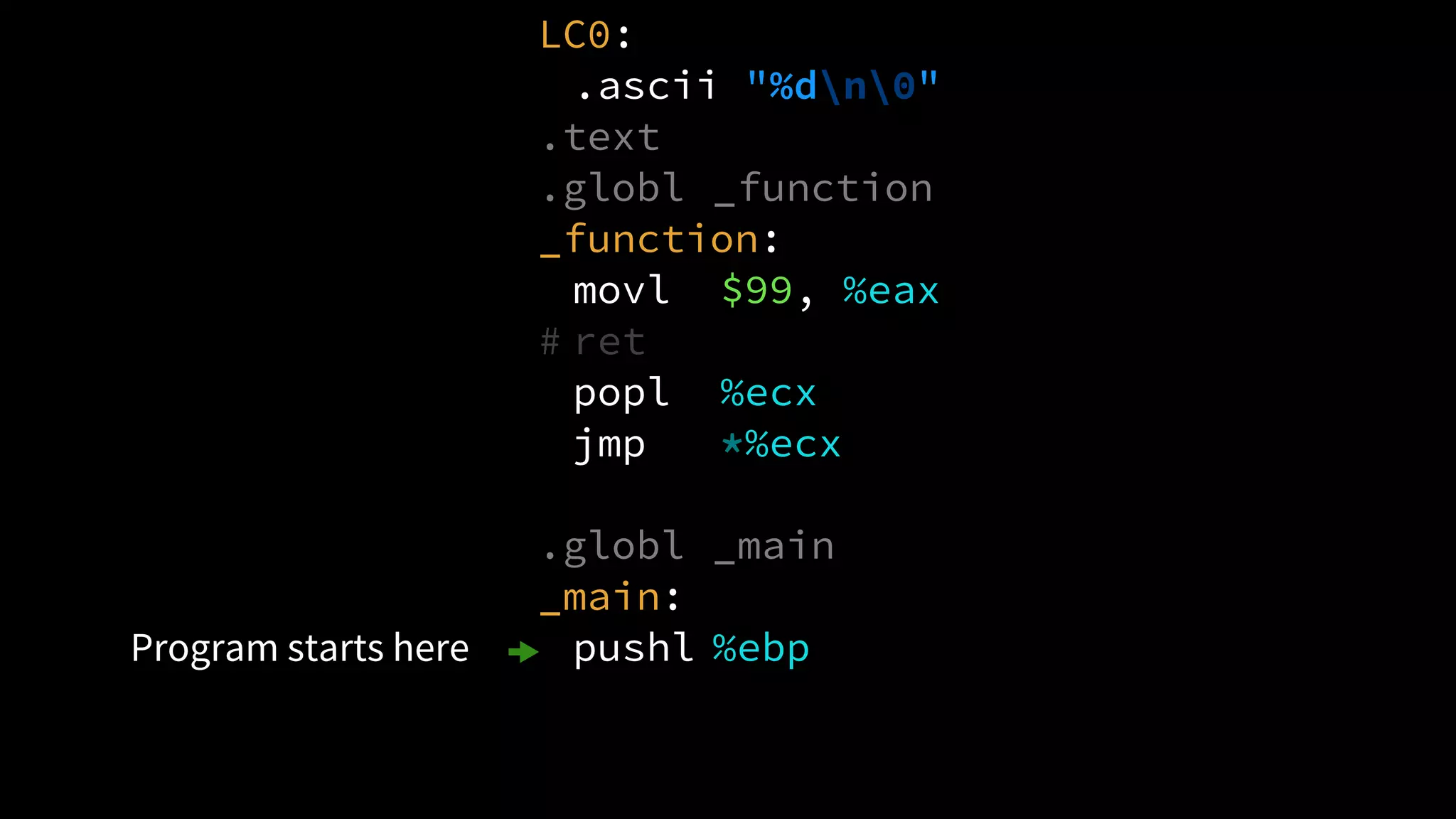

pushl %ebpProgram starts here

3. LC0:
.ascii "%dn0"
.text
.globl _function
_function::
movl $99, %eax
# ret
popl %ecx
jmp *%ecx
.globl _main
_main::
pushl %ebp
8(%esp) argv
4(%esp) argc
(%esp) return addr
%esp 28ff2c %ebp old %ebp %eax $0

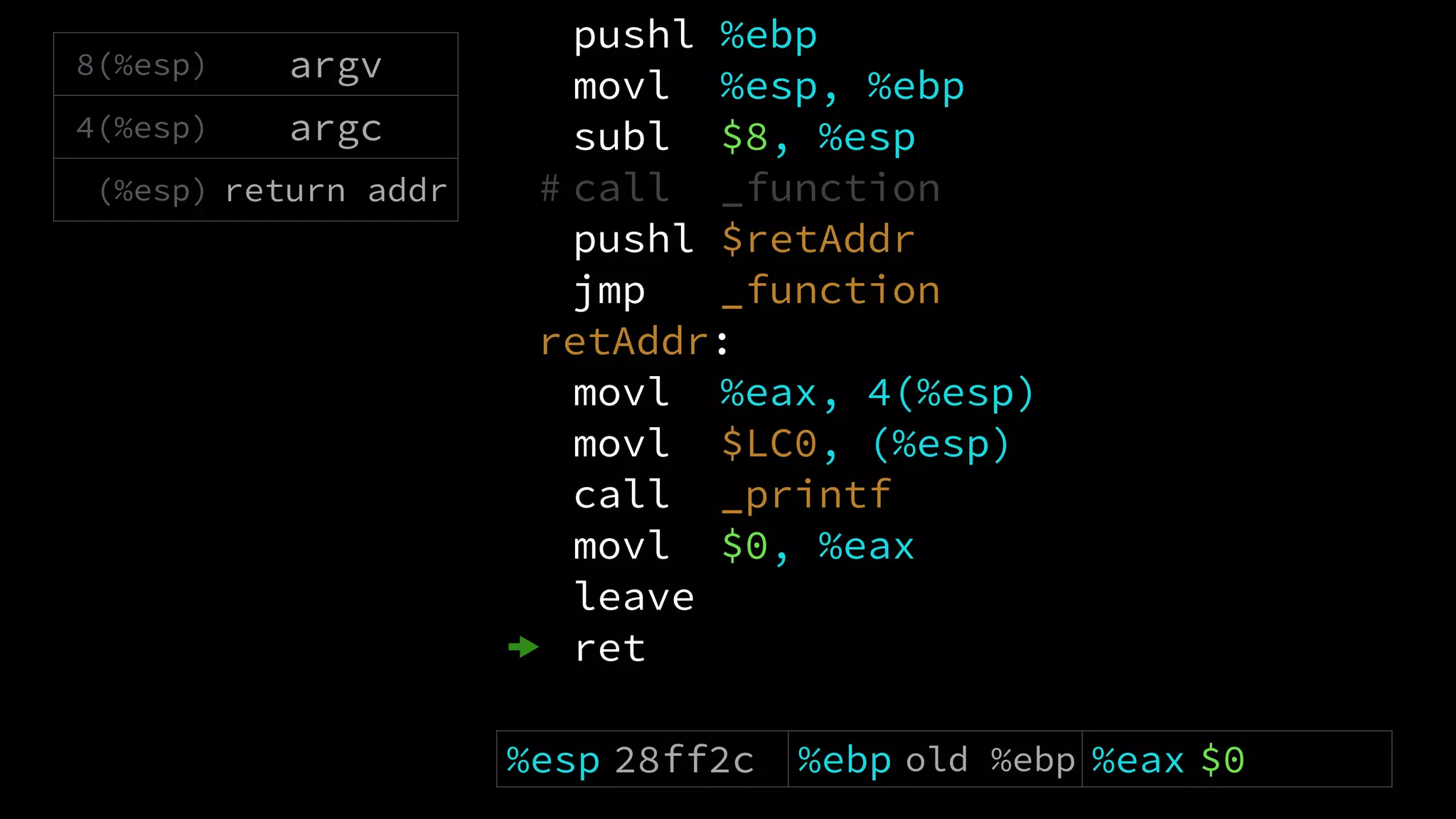

4. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
8(%esp) argv
4(%esp) argc
(%esp) return addr
%esp 28ff2c %ebp old %ebp %eax $0

5. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff28 %ebp old %ebp %eax $0
12(%esp) argv
8(%esp) argc
4(%esp) return addr
(%esp) old %ebp

6. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff28 %ebp old %ebp %eax $0
12(%esp) argv
8(%esp) argc
4(%esp) return addr
(%esp) old %ebp

7. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff28 %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp

8. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff28 %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp

9. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff20 %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp)
(%esp)

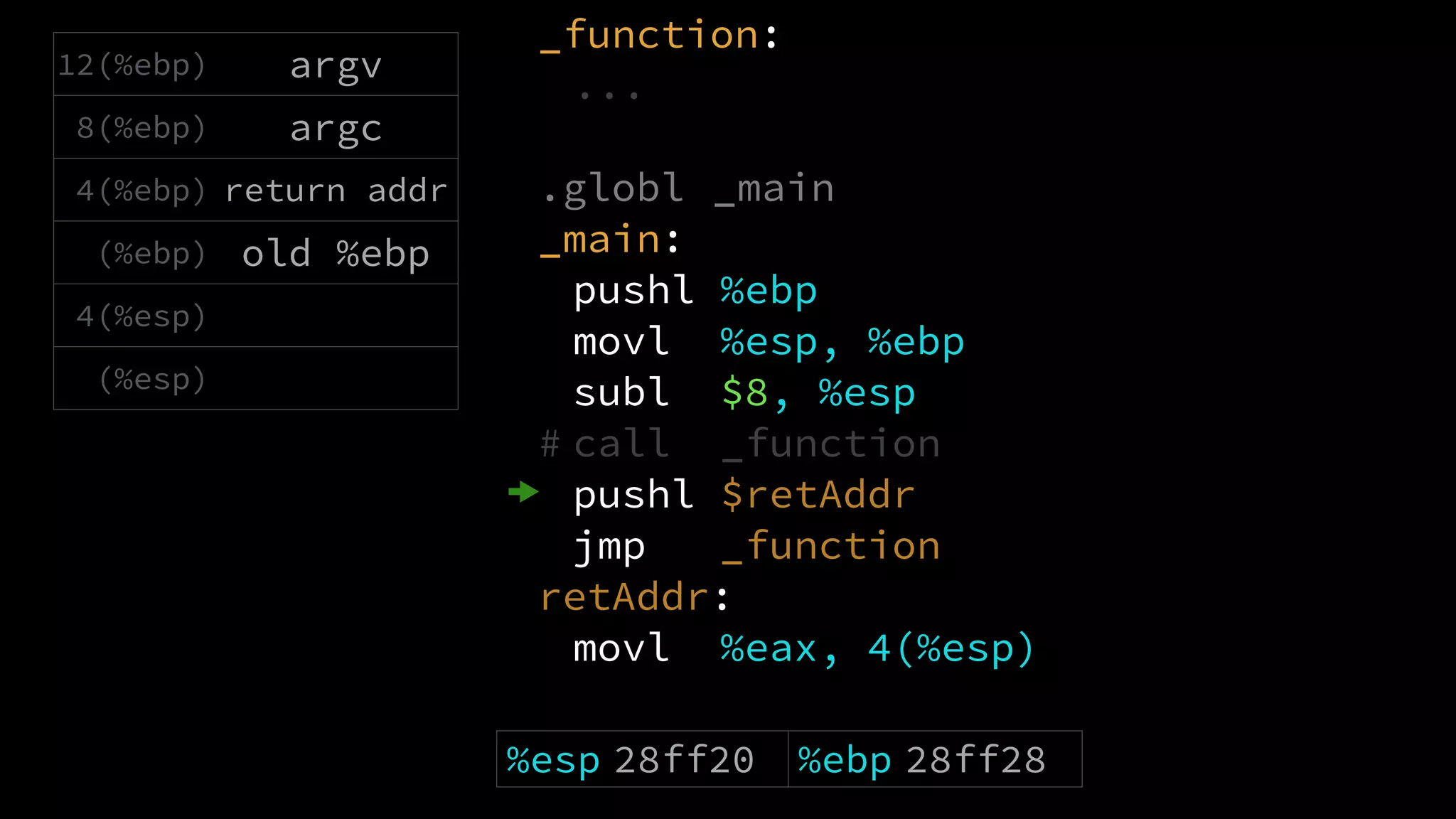

10. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff20 %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp)
(%esp)

11. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff1c %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp)
4(%esp)
(%esp) $retAddr

12. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff1c %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp)
4(%esp)
(%esp) $retAddr

13. _function::
...
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
%esp 28ff1c %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp)
4(%esp)
(%esp) $retAddr

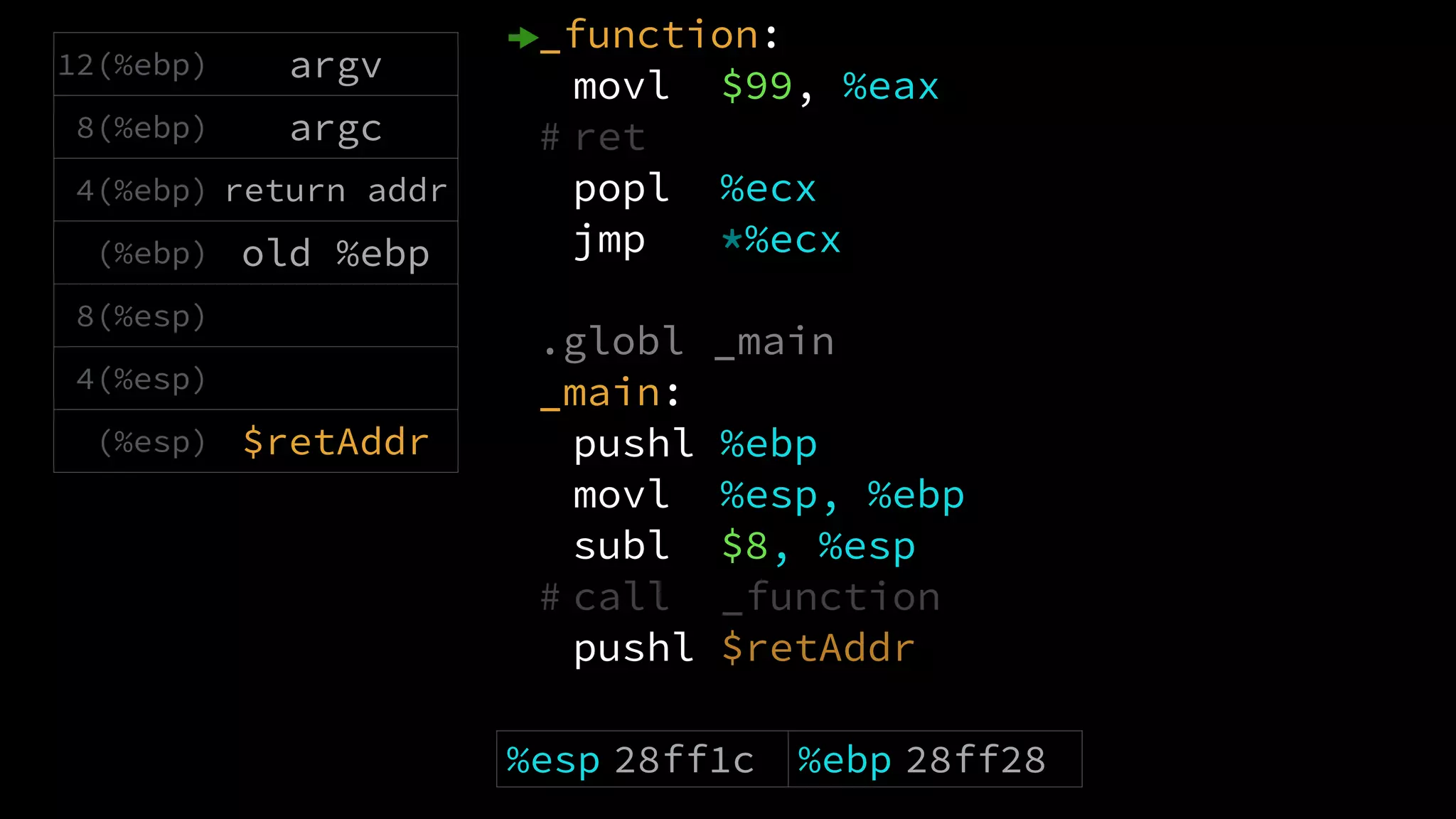

14. _function::
movl $99, %eax
# ret
popl %ecx
jmp *%ecx
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
%esp 28ff1c %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp)
4(%esp)
(%esp) $retAddr

15. _function::
movl $99, %eax
# ret
popl %ecx
jmp *%ecx
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
%esp 28ff1c %ebp 28ff28 %eax $0
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp)
4(%esp)
(%esp) $retAddr

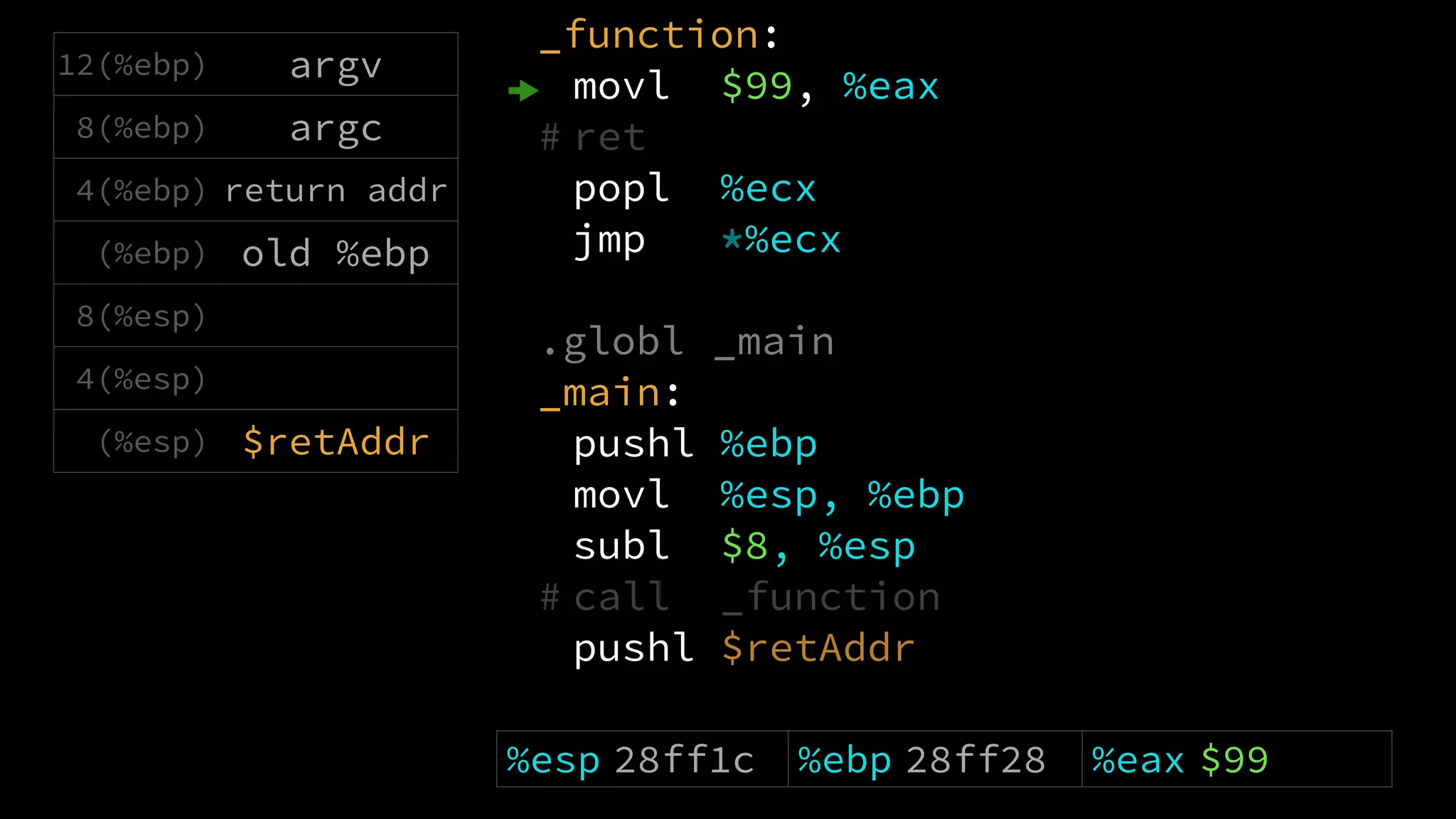

16. _function::
movl $99, %eax
# ret
popl %ecx
jmp *%ecx
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp)
4(%esp)
(%esp) $retAddr
%esp 28ff1c %ebp 28ff28 %eax $99

17. _function::
movl $99, %eax
# ret
popl %ecx
jmp *%ecx
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp)
4(%esp)
(%esp) $retAddr
%esp 28ff1c %ebp 28ff28 %eax $99

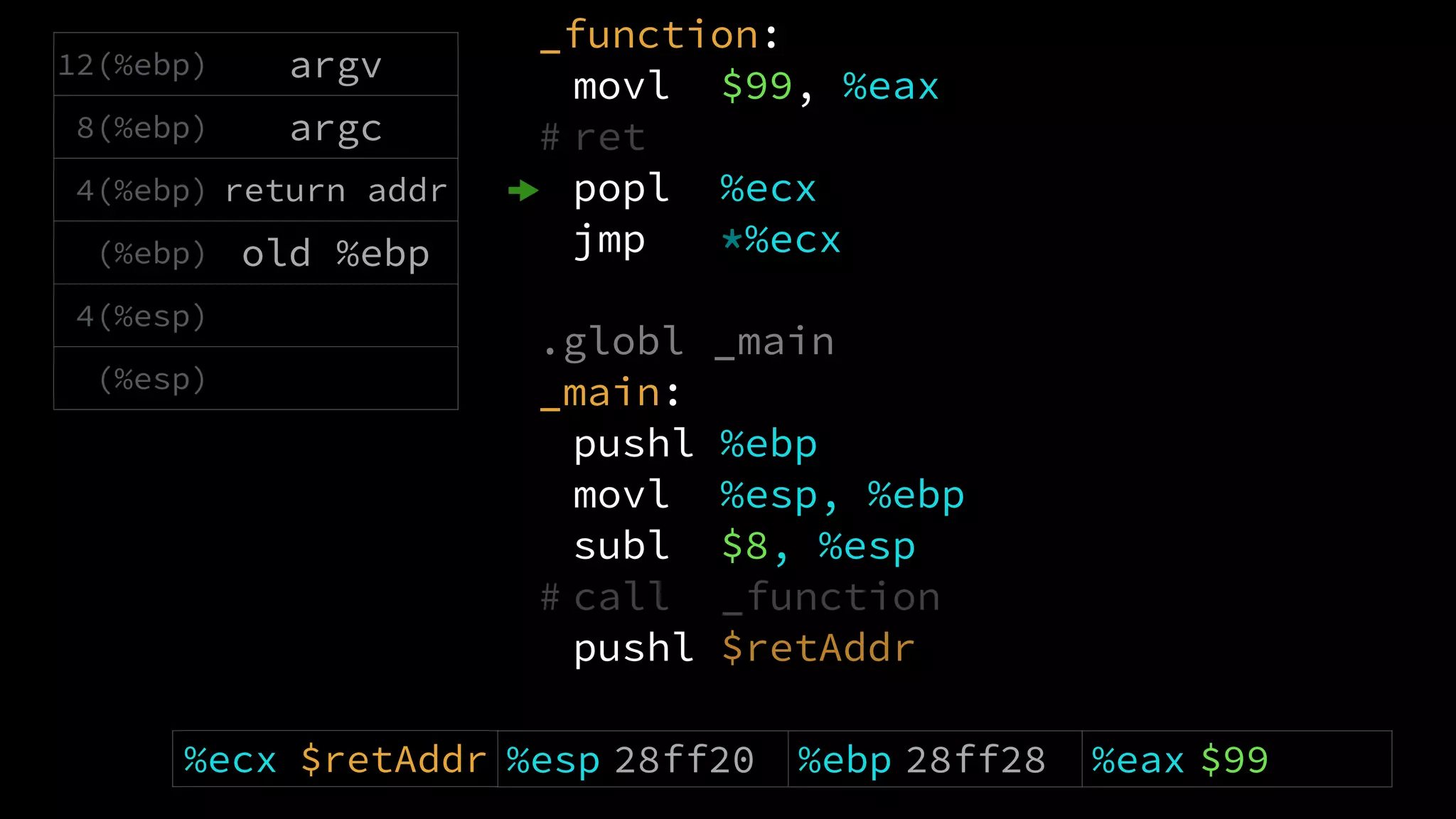

18. _function::
movl $99, %eax
# ret
popl %ecx
jmp *%ecx
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp)
(%esp)
%esp 28ff20 %ebp 28ff28 %eax $99%ecx $retAddr

19. _function::
movl $99, %eax
# ret
popl %ecx
jmp *%ecx
.globl _main
_main::
pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp)
(%esp)
%esp 28ff20 %ebp 28ff28 %eax $99%ecx $retAddr

20. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp)
(%esp)
%esp 28ff20 %ebp 28ff28 %eax $99%ecx $retAddr

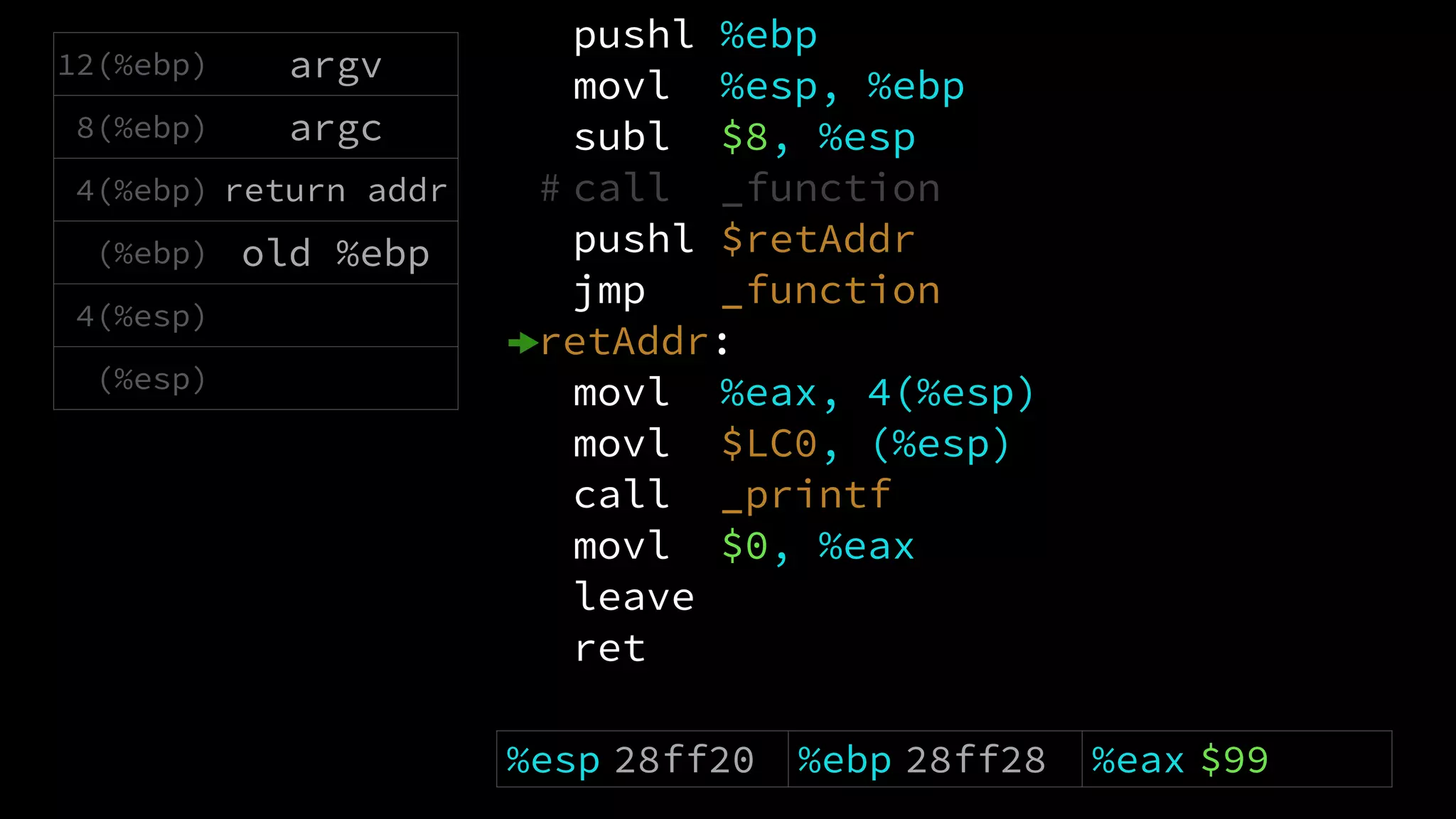

21. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp)
(%esp)
%esp 28ff20 %ebp 28ff28 %eax $99

22. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp)
(%esp)
%esp 28ff20 %ebp 28ff28 %eax $99

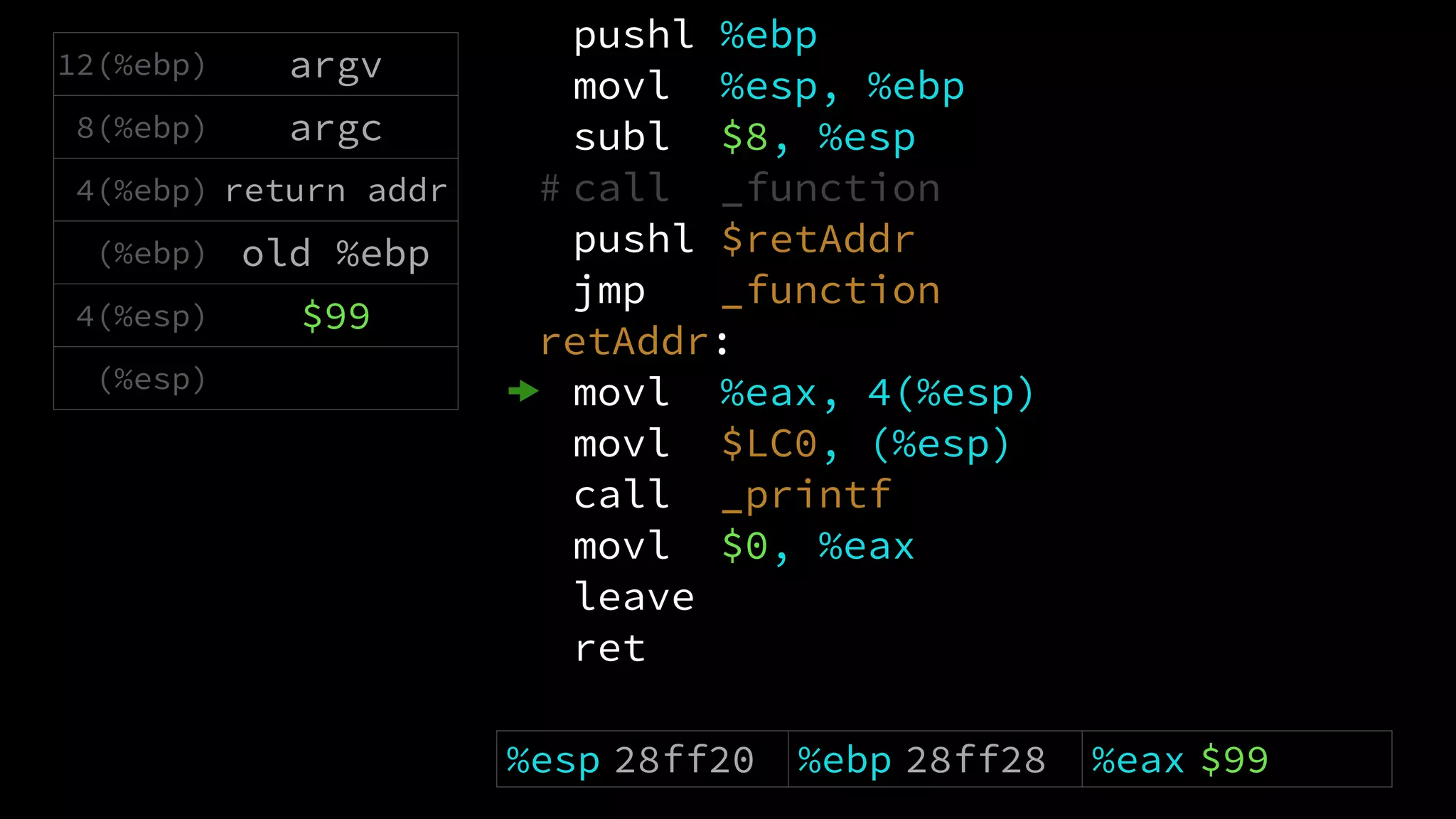

23. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp) $99
(%esp)
%esp 28ff20 %ebp 28ff28 %eax $99

24. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp) $99
(%esp)
%esp 28ff20 %ebp 28ff28 %eax $99

25. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp) $99
(%esp) $LC0
%esp 28ff20 %ebp 28ff28 %eax $99

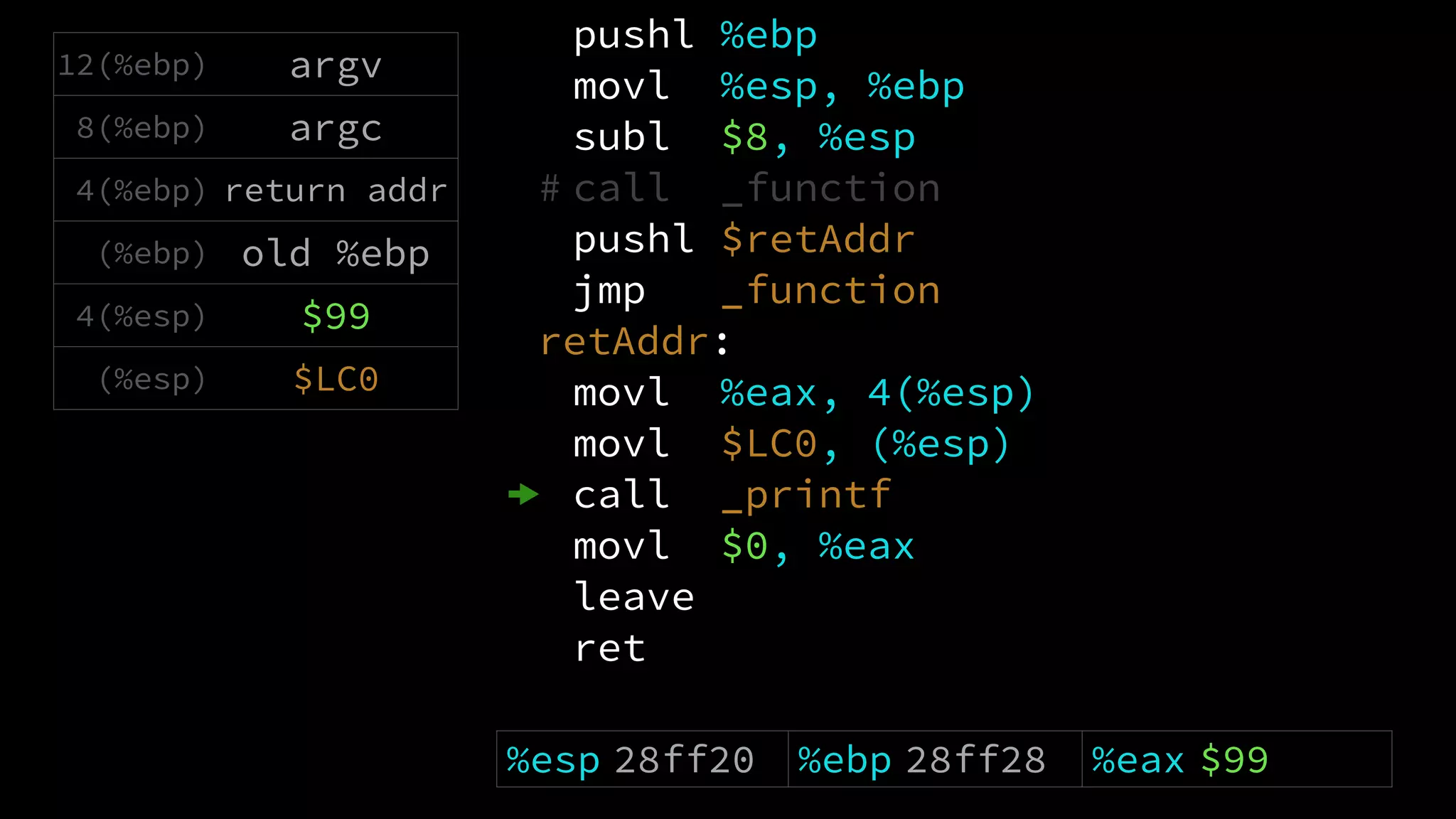

26. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp) $99
(%esp) $LC0
%esp 28ff20 %ebp 28ff28 %eax $99

27. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
%esp 28ff1c %ebp 28ff28 %eax $99
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp) $99
4(%esp) $LC0
(%esp)
address of
next instruction

28. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
%esp 28ff1c %ebp 28ff28 %eax $99
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp) $99
4(%esp) $LC0
(%esp)
address of
next instruction
We push the address of the next
instruction to the stack.

29. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
%esp 28ff1c %ebp 28ff28 %eax $99
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp) $99
4(%esp) $LC0
(%esp)
address of
next instruction
We push the address of the next
instruction to the stack.
We jump to _printf and do our
business

30. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
%esp 28ff1c %ebp 28ff28 %eax $99
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
8(%esp) $99
4(%esp) $LC0
(%esp)
address of
next instruction
We push the address of the next
instruction to the stack.
We jump to _printf and do our
business
When finished, _printf jumps to our
next instruction

31. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp) $99
(%esp) $LC0
%esp 28ff20 %ebp 28ff28 %eax $99

32. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp) $99
(%esp) $LC0
%esp 28ff20 %ebp 28ff28 %eax $99

33. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp) $99
(%esp) $LC0
%esp 28ff20 %ebp 28ff28 %eax $0

34. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
12(%ebp) argv
8(%ebp) argc
4(%ebp) return addr
(%ebp) old %ebp
4(%esp) $99
(%esp) $LC0
%esp 28ff20 %ebp 28ff28 %eax $0

35. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
8(%esp) argv
4(%esp) argc
(%esp) return addr
%esp 28ff2c %ebp old %ebp %eax $0

36. pushl %ebp
movl %esp, %ebp
subl $8, %esp
# call _function
pushl $retAddr
jmp _function
retAddr:
movl %eax, 4(%esp)
movl $LC0, (%esp)
call _printf
movl $0, %eax
leave
ret
8(%esp) argv
4(%esp) argc
(%esp) return addr
%esp 28ff2c %ebp old %ebp %eax $0

37. Calling functions by Pushing and Jumping
This presentation by Pat Hawks is licensed under a
Creative Commons Attribution 4.0 International License
callReturnExploration.s
