This document outlines the process for creating and managing supplemental drawings to document revisions to construction documents. It discusses that supplemental drawings are graphic deliverables that identify revisions and are included with documentation describing the revision. It also describes the sheet formats, naming conventions, and Revit process for creating supplemental drawings.

1. Supplemental Drawings
p r e s e n t a t i o n
April 18, 2007 eu:a eppstein uhen architects 1

2. Presentation Outline
 Supplemental Drawings
 ADT Process
 Revit Demonstration
 Construction Bulletins
April 18, 2007 eu:a eppstein uhen architects 2

3. Supplemental Drawings
Supplemental Drawings:
 The graphic deliverable to identify revisions.
 Included with front-end documentation which
describes the revision.
Revisions:
 Modifications, clarifications, or interpretations made
to the Construction Documents
 Bidding Phase:
 Addendum
 Construction Administration:
 Construction Bulletin (CB)
April 18, 2007 eu:a eppstein uhen architects 3

4. Revision Work Flow
Incorporated in
GC & Contract Change Order
Subs
Const Docs Bidding Construction
DESIGN ADDENDUM CB
TEAM
CONTRACT
April 18, 2007 eu:a eppstein uhen architects 4

5. Supplemental Drawings
Sheet Formats
8.5” x 11”
 TB - CA 8.5 x 11 (Landscape)
 TB - CA 8.5 x 11 (Portrait)
11” x 17”
 TB - CA 11 x 17 (Landscape)
 TB - CA 11 x 17 (Portrait)
April 18, 2007 eu:a eppstein uhen architects 5

6. Sheet Formats
April 18, 2007 eu:a eppstein uhen architects 6

7. Supplemental Sheet Info
Construction Set
or
Bid Set #1
MM/DD/YY
e.g. 04/18/07
Per Vision
April 18, 2007 eu:a eppstein uhen architects 7

8. Supplemental Sheet Info
Acme Warehouse
1234 Main Street
Anywhere, WI
54321
April 18, 2007 eu:a eppstein uhen architects 8

9. Supplemental Sheet Info
Abbreviation + Number
Construction Bulletin CB #000
Addendum ADD #00
Request for Information RFI #000
April 18, 2007 eu:a eppstein uhen architects 9

10. Supplemental Sheet Info
Date of Revision
Different from “ISSUANCE DATE”
Date of CB or Addendum or RFI
April 18, 2007 eu:a eppstein uhen architects 10

11. Supplemental Sheet Info
Axxx : Sheet Number
•A105 5th Flr Plan
•A200 Exterior Elevations
X01 : Consecutive Revision
•X01 1st Revision
•X15 15th Revision
April 18, 2007 eu:a eppstein uhen architects 11

12. Nomenclature: Supplemental Dwgs
CD sheet + Dash + X suffix + (2) Sequential Numbers
A0000-X00 A1001-X01
A00-X00 A201-X13
A0-X00 A5-X02
Naming convention:
Modifications :
a. Construction Bulletin CB #000
b. Construction Change Directive CCD #000
c. Proposal Request PR #000
Clarifications
a. Addendum ADD #00
b. Architectural Supplemental Information ASI #000
c. Field Directives FD #000
Interpretations
a. Request for Information RFI #000
April 18, 2007 eu:a eppstein uhen architects 12

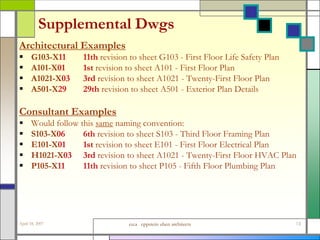

13. Supplemental Dwgs
Architectural Examples
 G103-X11 11th revision to sheet G103 - First Floor Life Safety Plan
 A101-X01 1st revision to sheet A101 - First Floor Plan
 A1021-X03 3rd revision to sheet A1021 - Twenty-First Floor Plan
 A501-X29 29th revision to sheet A501 - Exterior Plan Details
Consultant Examples
 Would follow this same naming convention:
 S103-X06 6th revision to sheet S103 - Third Floor Framing Plan
 E101-X01 1st revision to sheet E101 - First Floor Electrical Plan
 H1021-X03 3rd revision to sheet A1021 - Twenty-First Floor HVAC Plan
 P105-X11 11th revision to sheet P105 - Fifth Floor Plumbing Plan
April 18, 2007 eu:a eppstein uhen architects 13

14. ADT Process
 Cloud the revision in the MS (model space) of the source
drawing (plan, elevation, section, etc) on layer A-Anno-Revs
 Open the sheet affected (GXXX.dwg, AXXX.dwg, etc)
 Copy view from the “Main” Sheet tab into a Supplemental
Sheets’ tab.
 Resize the view to fit the page.
 Print Supplemental Sheet to PDF (AXXX-00.pdf)
 Save to 00000-00DocumentsCAConstruction Bulletins
 Once CB’s itemized proposal has been received & accepted:
Bluebeam Staple all associated PDF’s into a single PDF (CB-000)
Copy Supplemental Drawing PDF’s (only!) into:
Record DocumentsContract DrawingsSupplemental Dwgs
April 18, 2007 eu:a eppstein uhen architects 14

15. Revit Demonstration
April 18, 2007 eu:a eppstein uhen architects 15

16. Conclusion
Questions???
Comments???
Concerns???
Suggestions???
April 18, 2007 eu:a eppstein uhen architects 16
