![public class Target {
public void foo() {
System.out.println("foo!");
}
public static void main(String[] args) {
new Target().foo();
}
}
Target Class
#oc1bcm32](https://image.slidesharecdn.com/oraclecodeone2018-181024065519/85/Bytecode-Manipulation-with-a-Java-Agent-and-Byte-Buddy-32-320.jpg)
![public static void premain(String args,
Instrumentation inst) {
inst.addTransformer(
new ClassFileTransformer() {
@Override
public byte[] transform(...) {
premain()
#oc1bcm44](https://image.slidesharecdn.com/oraclecodeone2018-181024065519/85/Bytecode-Manipulation-with-a-Java-Agent-and-Byte-Buddy-44-320.jpg)
![public byte[] transform(ClassLoader loader,
String className,
Class<?> classBeingRedefined,
ProtectionDomain protectionDomain,
byte[] classfileBuffer) {
// Call ByteBuddy
}
transform()
#oc1bcm45](https://image.slidesharecdn.com/oraclecodeone2018-181024065519/85/Bytecode-Manipulation-with-a-Java-Agent-and-Byte-Buddy-45-320.jpg)
![public byte[] transform(ClassLoader loader,
String className,
Class<?> classBeingRedefined,
ProtectionDomain protectionDomain,
byte[] classfileBuffer)
• className – Class name to be loaded
• classfileBuffer – Class file content
transform()
#oc1bcm46](https://image.slidesharecdn.com/oraclecodeone2018-181024065519/85/Bytecode-Manipulation-with-a-Java-Agent-and-Byte-Buddy-46-320.jpg)

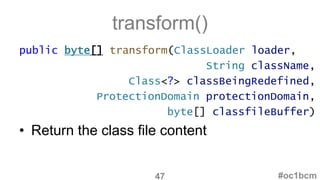

![public byte[] transform(ClassLoader loader,
String className,
Class<?> classBeingRedefined,
ProtectionDomain protectionDomain,
byte[] classfileBuffer)
• Return the class file content
transform()
#oc1bcm47](https://image.slidesharecdn.com/oraclecodeone2018-181024065519/85/Bytecode-Manipulation-with-a-Java-Agent-and-Byte-Buddy-47-320.jpg)
Uploaded byKoichi Sakata
Bytecode Manipulation with a Java Agent and Byte Buddy
The document provides an overview of bytecode manipulation using Java, specifically focusing on the Byte Buddy library. It explains the process, use cases, and technical details of creating Java agents for runtime modifications, alongside demonstrations and sample code links. The content is tailored for beginners looking to understand and implement bytecode manipulation techniques.
More Related Content
Similar to Bytecode Manipulation with a Java Agent and Byte Buddy
More from Koichi Sakata
![Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/apachesparkgettingstarted-260203175547-8361bcc3-thumbnail.jpg?width=640&height=640&fit=bounds)
Bytecode Manipulation with a Java Agent and Byte Buddy
- 1. Koichi Sakata PONOS Corporation BytecodeManipulation with a Java Agent and Byte Buddy
- 2. About Me • KoichiSakata (阪田 浩一) • KanJava JUG Leader • Java Champion • PONOS Corporation #oc1bcm2

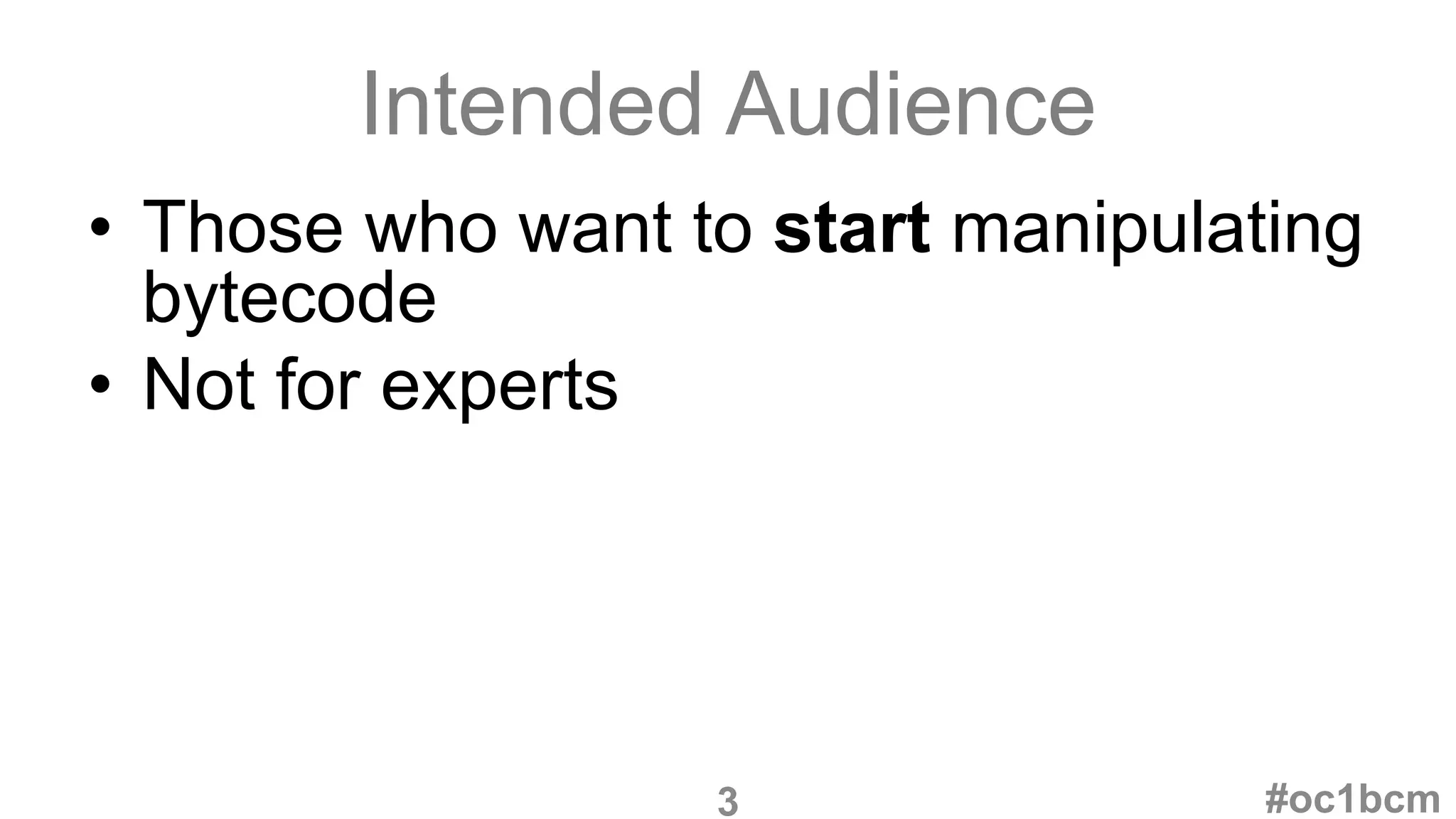

- 3. Intended Audience • Thosewho want to start manipulating bytecode • Not for experts #oc1bcm3

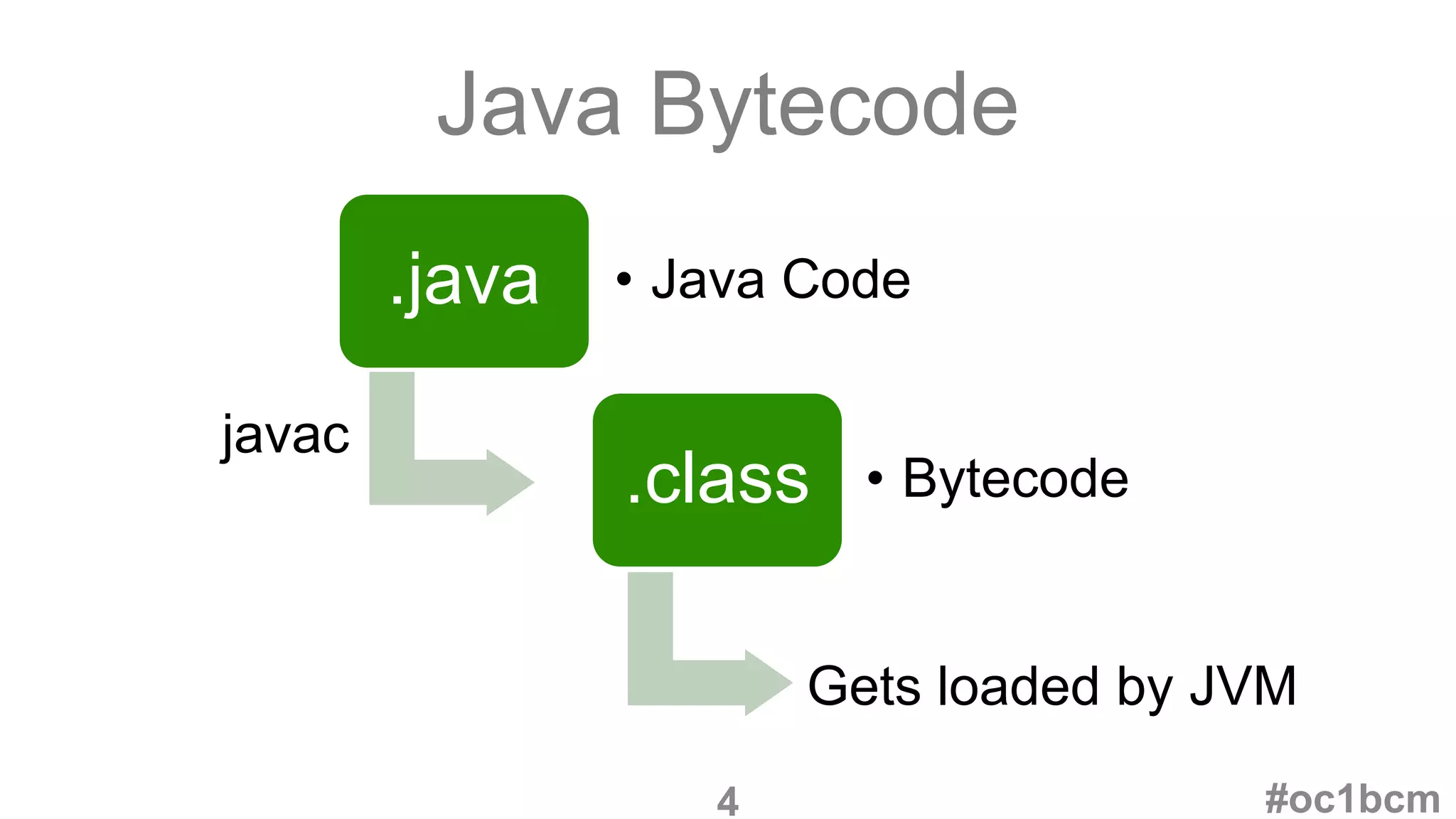

- 4. javac Java Bytecode #oc1bcm .java •Java Code .class • Bytecode Gets loaded by JVM 4

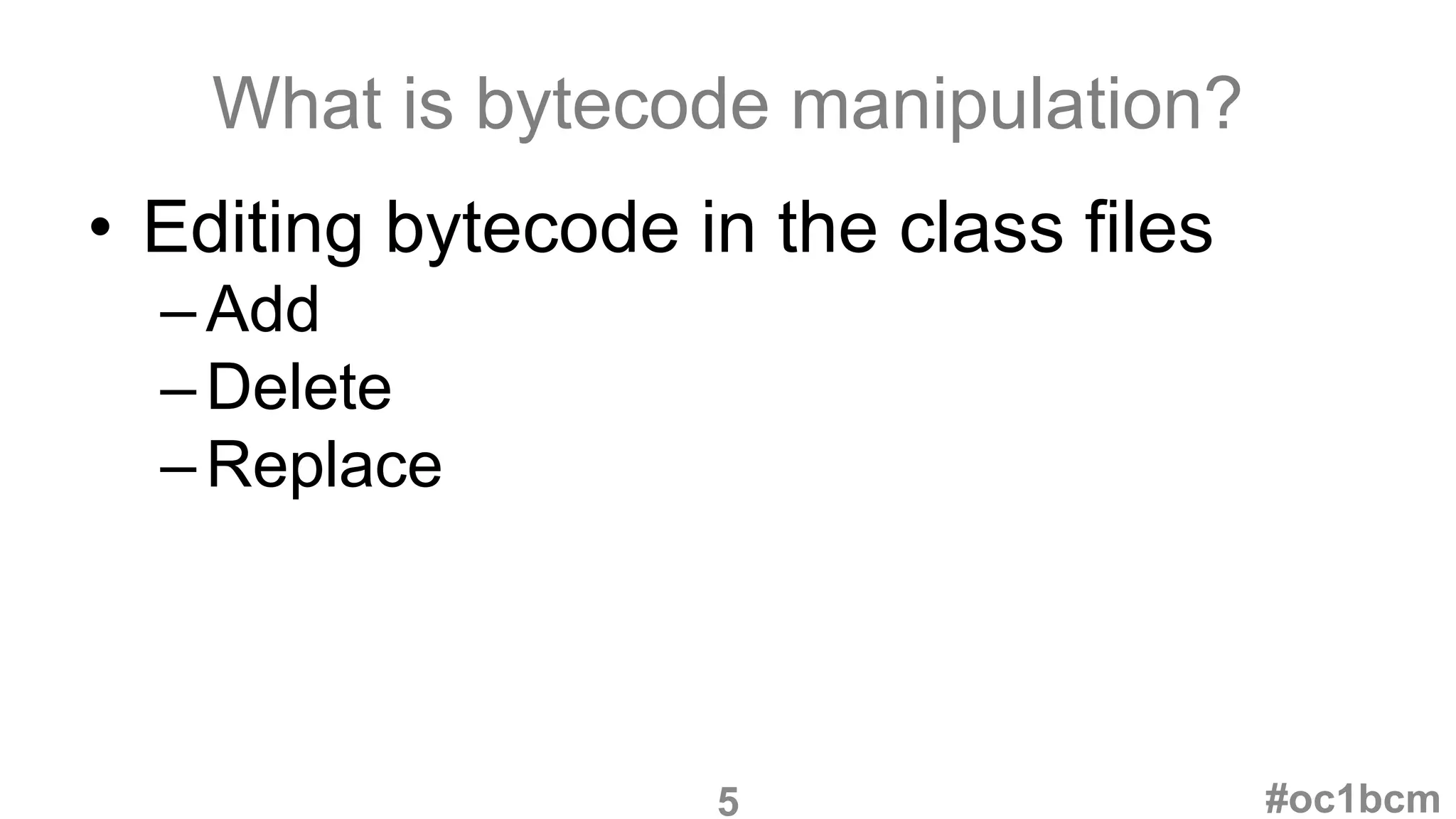

- 5. What is bytecodemanipulation? • Editing bytecode in the class files –Add –Delete –Replace #oc1bcm5

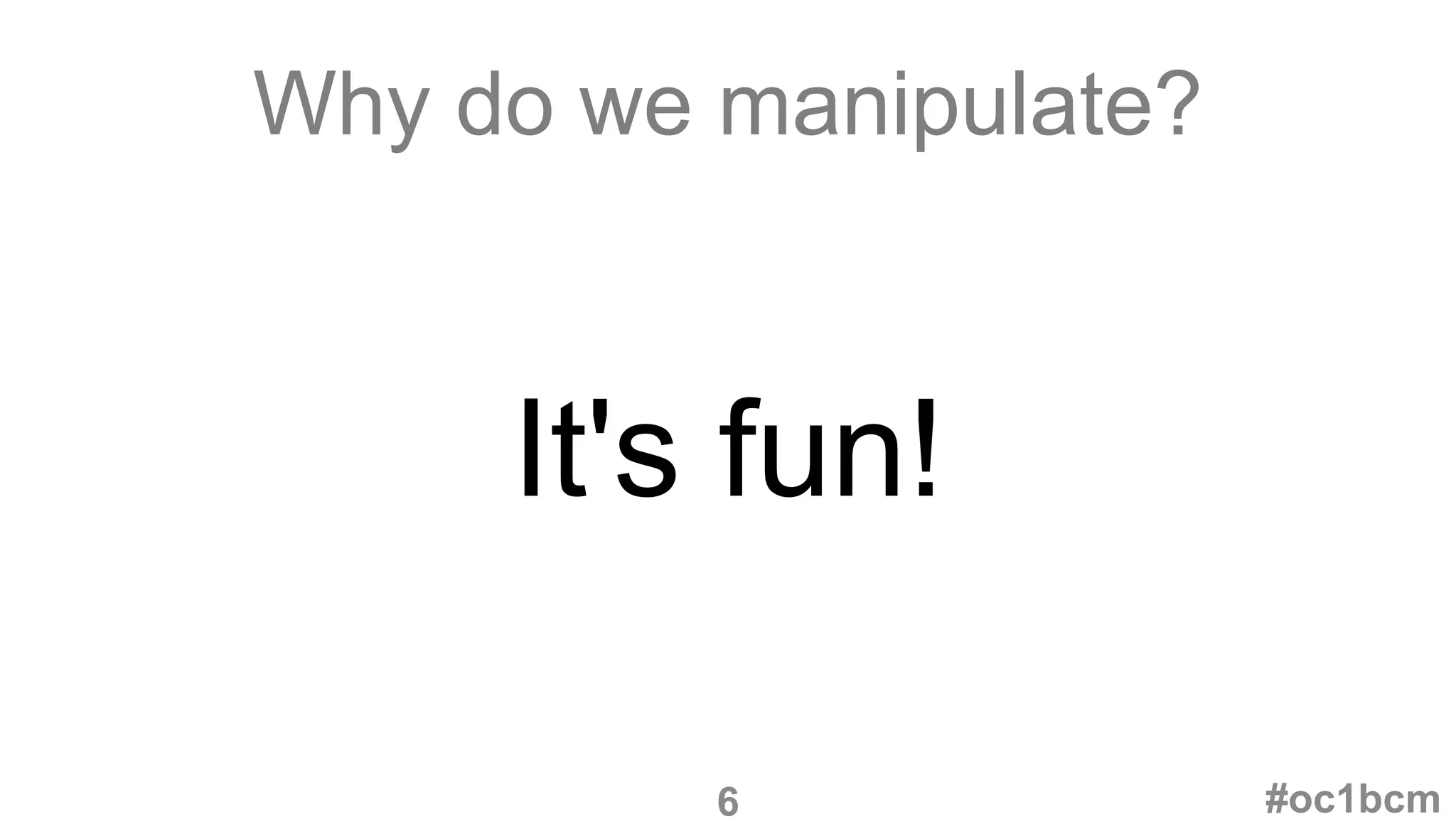

- 6. Why do wemanipulate? It's fun! #oc1bcm6

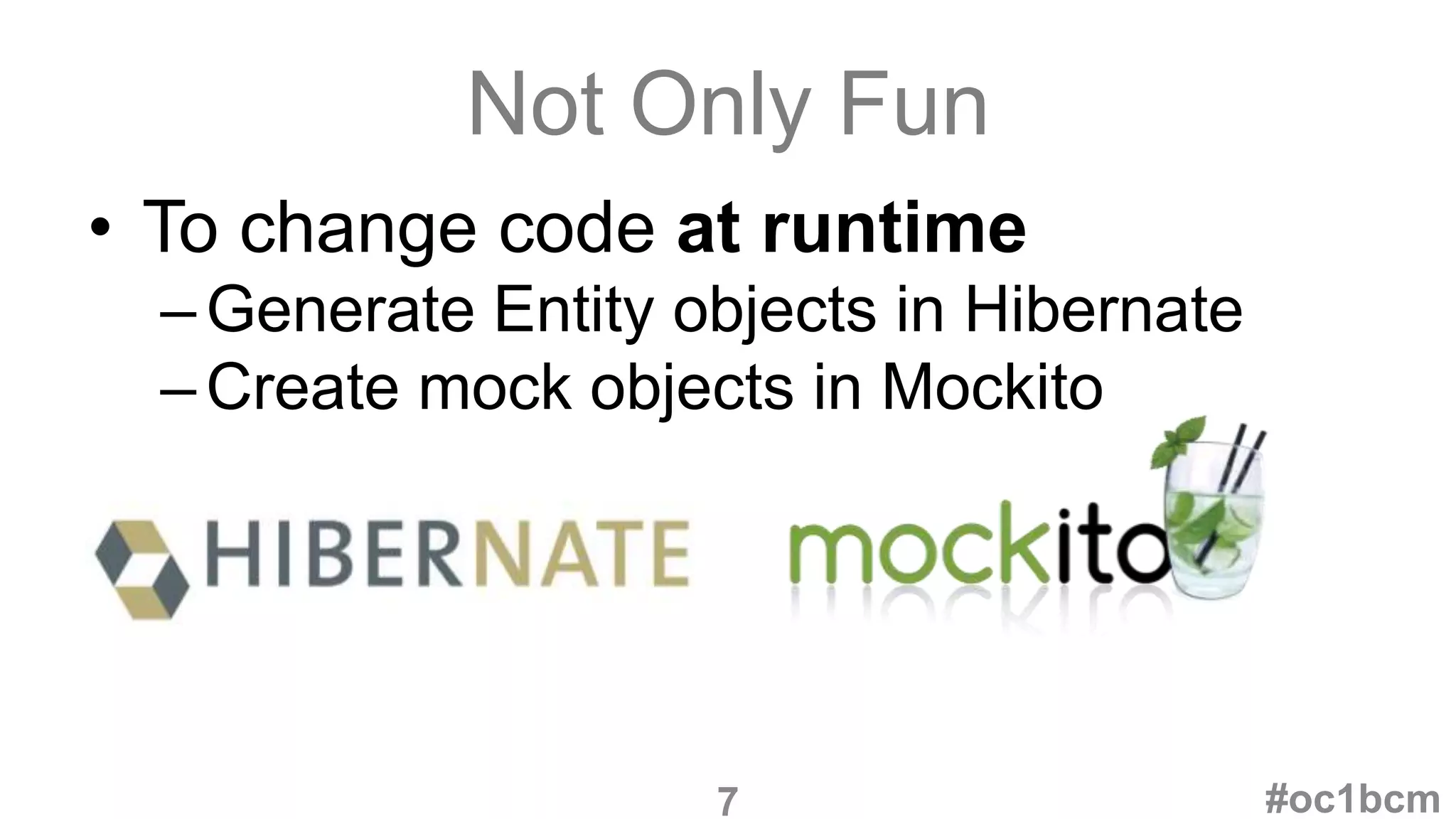

- 7. Not Only Fun •To change code at runtime –Generate Entity objects in Hibernate –Create mock objects in Mockito #oc1bcm7

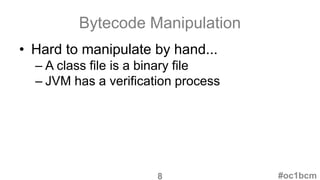

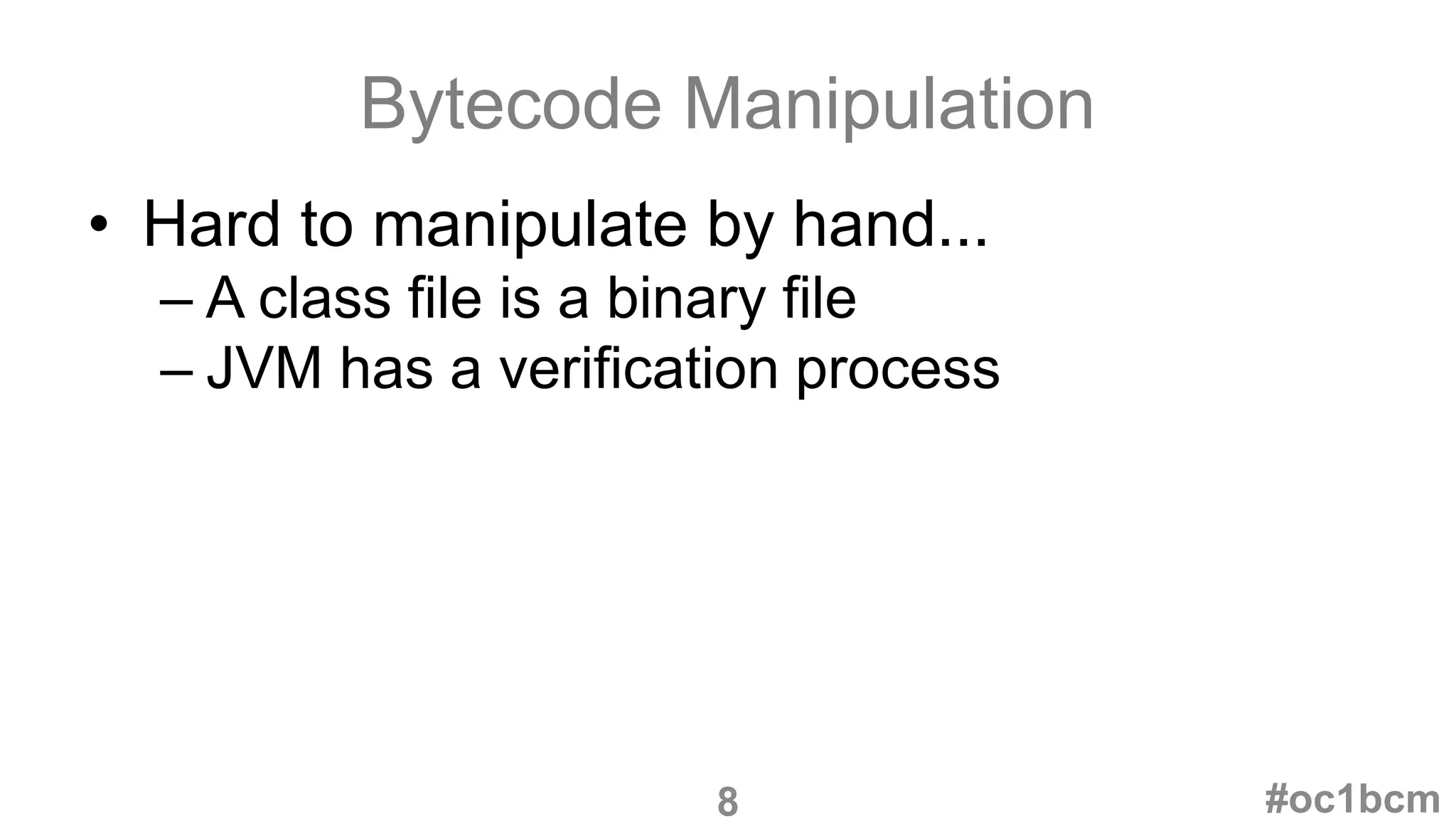

- 8. Bytecode Manipulation • Hardto manipulate by hand... – A class file is a binary file – JVM has a verification process #oc1bcm8

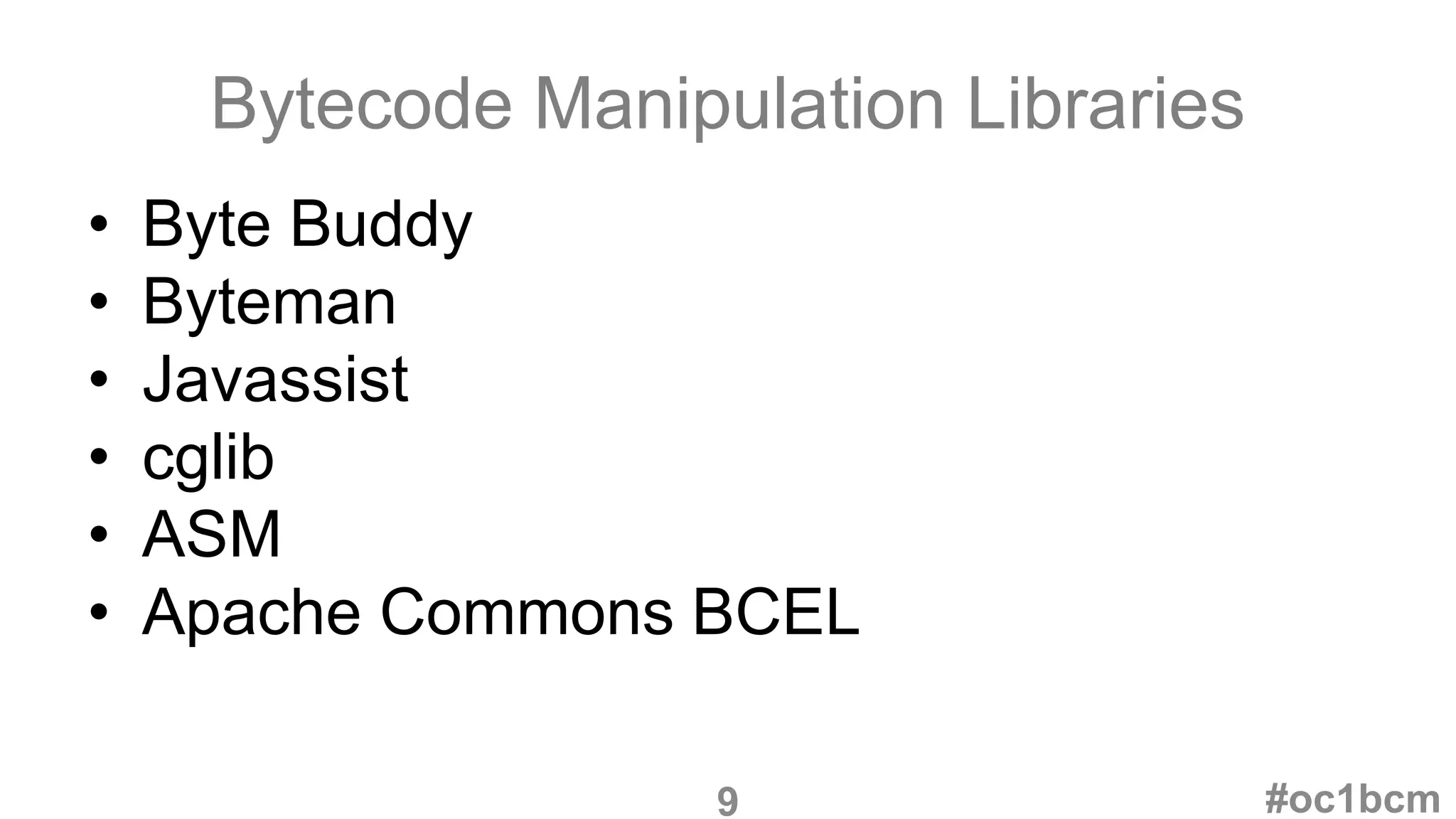

- 9. Bytecode Manipulation Libraries •Byte Buddy • Byteman • Javassist • cglib • ASM • Apache Commons BCEL #oc1bcm9

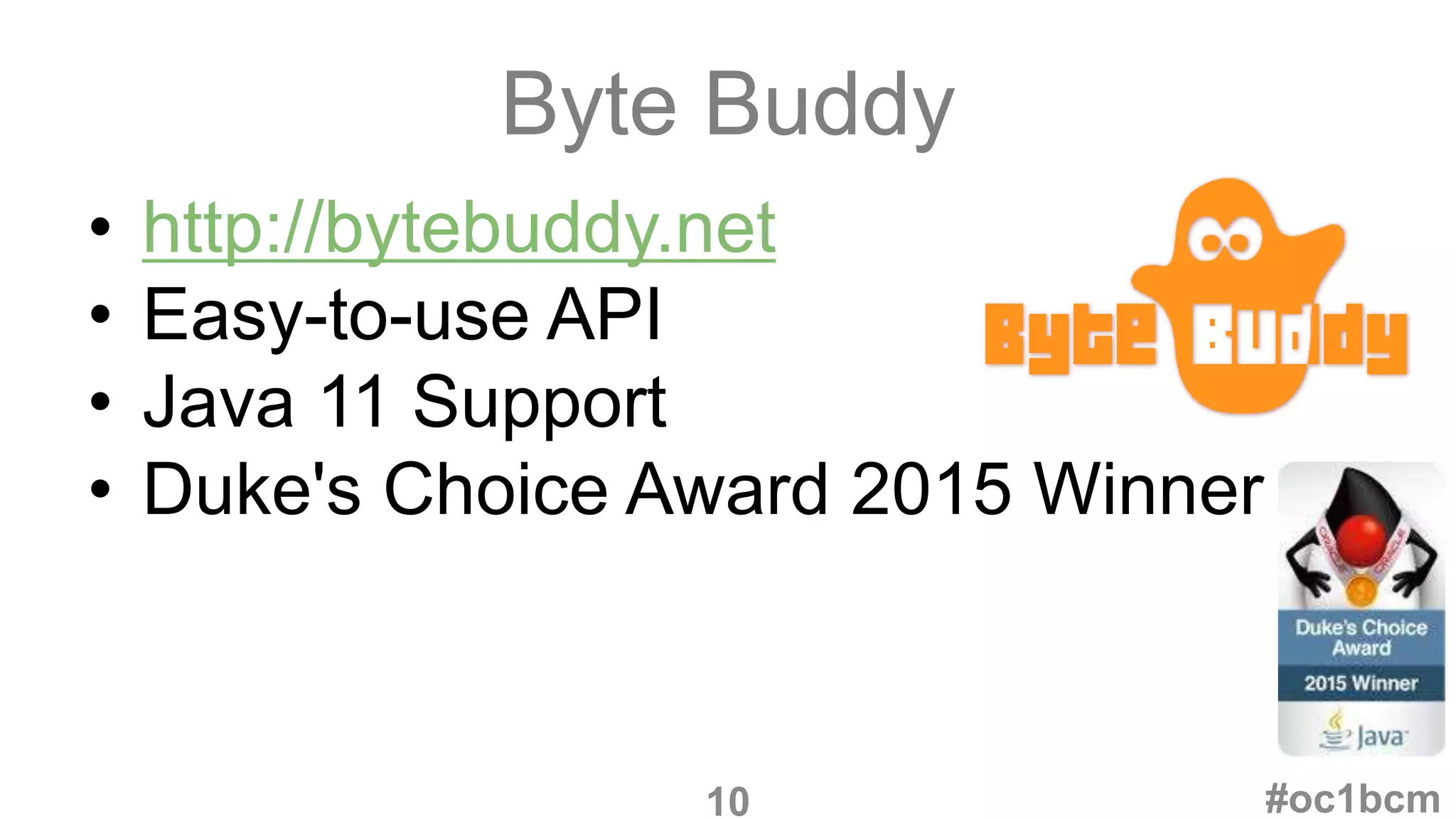

- 10. Byte Buddy • http://bytebuddy.net •Easy-to-use API • Java 11 Support • Duke's Choice Award 2015 Winner #oc1bcm10

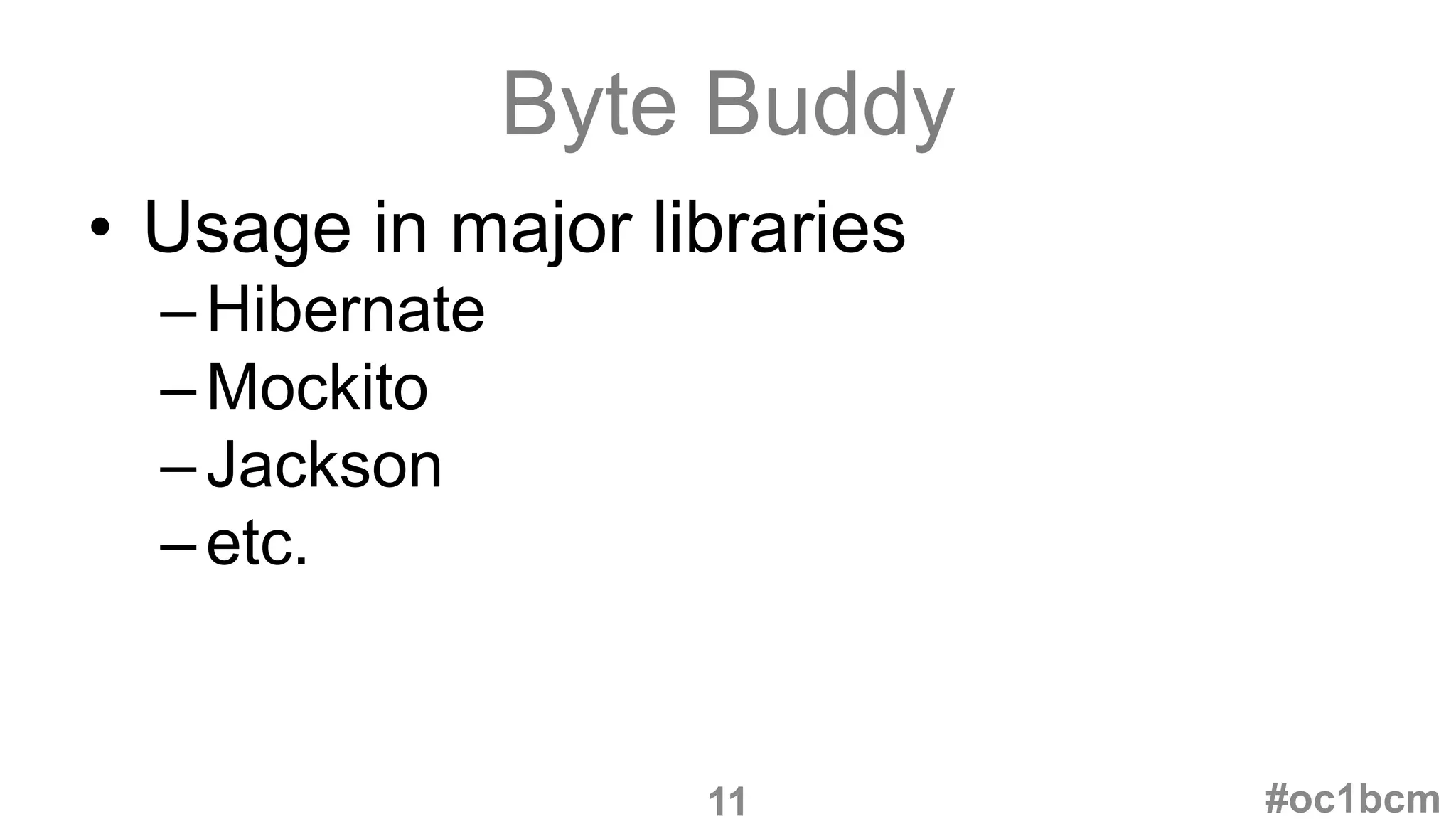

- 11. Byte Buddy • Usagein major libraries –Hibernate –Mockito –Jackson –etc. #oc1bcm11

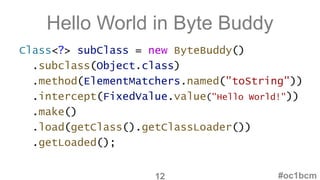

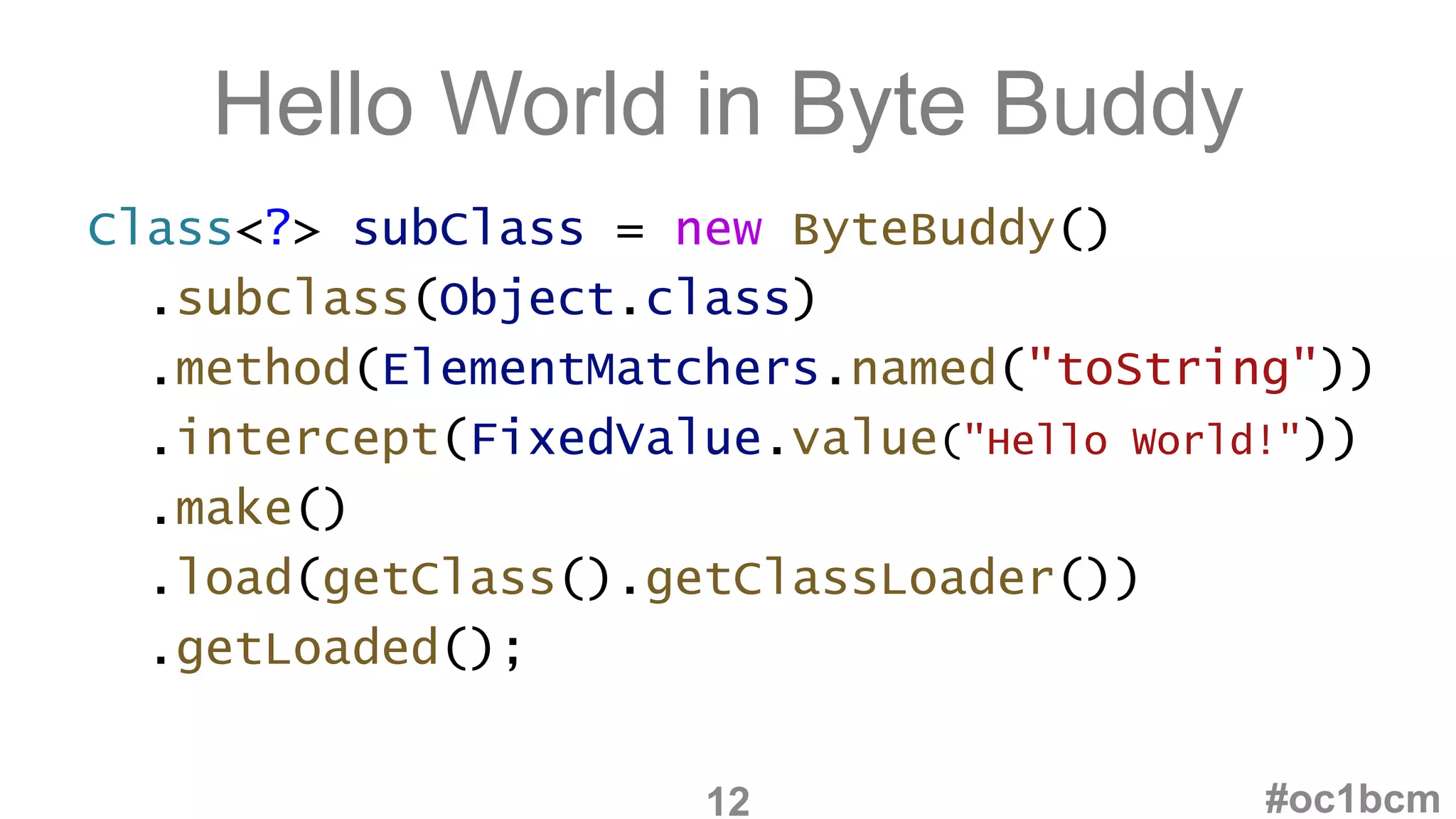

- 12. Class<?> subClass =new ByteBuddy() .subclass(Object.class) .method(ElementMatchers.named("toString")) .intercept(FixedValue.value("Hello World!")) .make() .load(getClass().getClassLoader()) .getLoaded(); Hello World in Byte Buddy #oc1bcm12

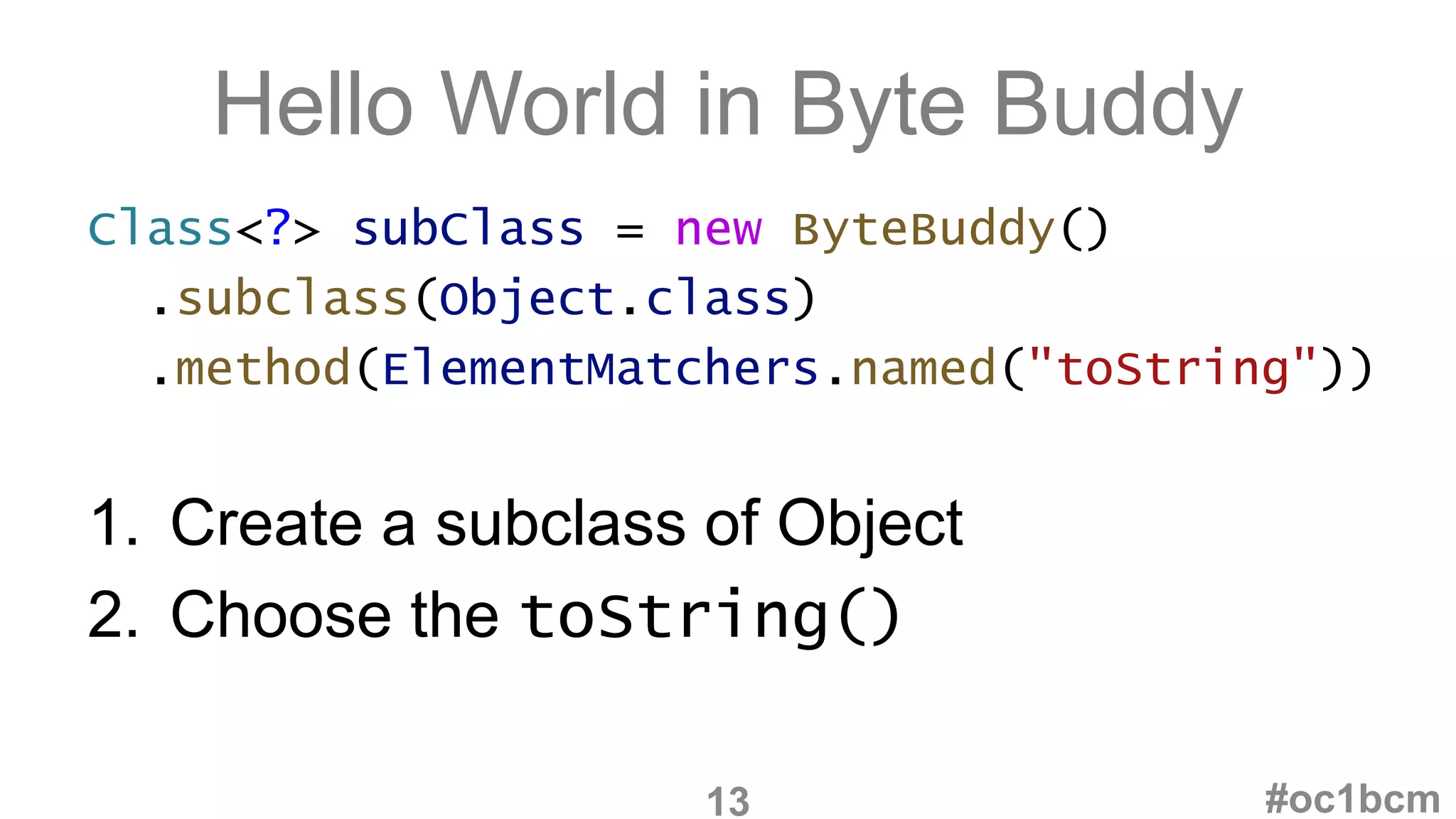

- 13. Class<?> subClass =new ByteBuddy() .subclass(Object.class) .method(ElementMatchers.named("toString")) 1. Create a subclass of Object 2. Choose the toString() Hello World in Byte Buddy #oc1bcm13

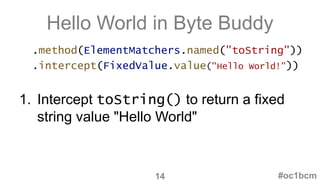

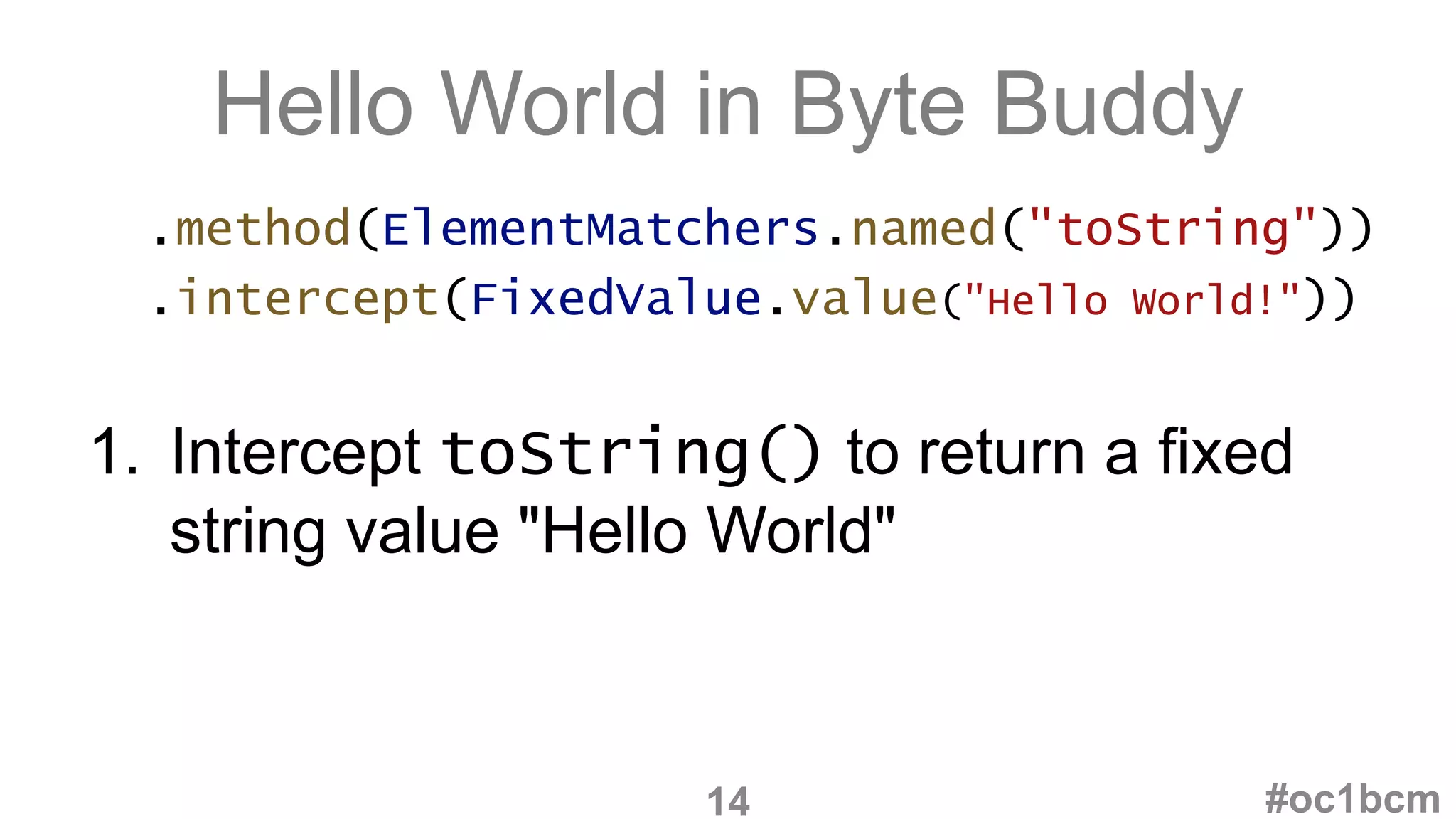

- 14. .method(ElementMatchers.named("toString")) .intercept(FixedValue.value("Hello World!")) 1. IntercepttoString() to return a fixed string value "Hello World" Hello World in Byte Buddy #oc1bcm14

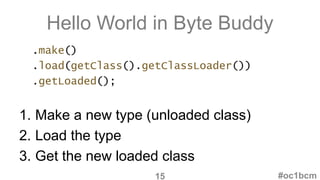

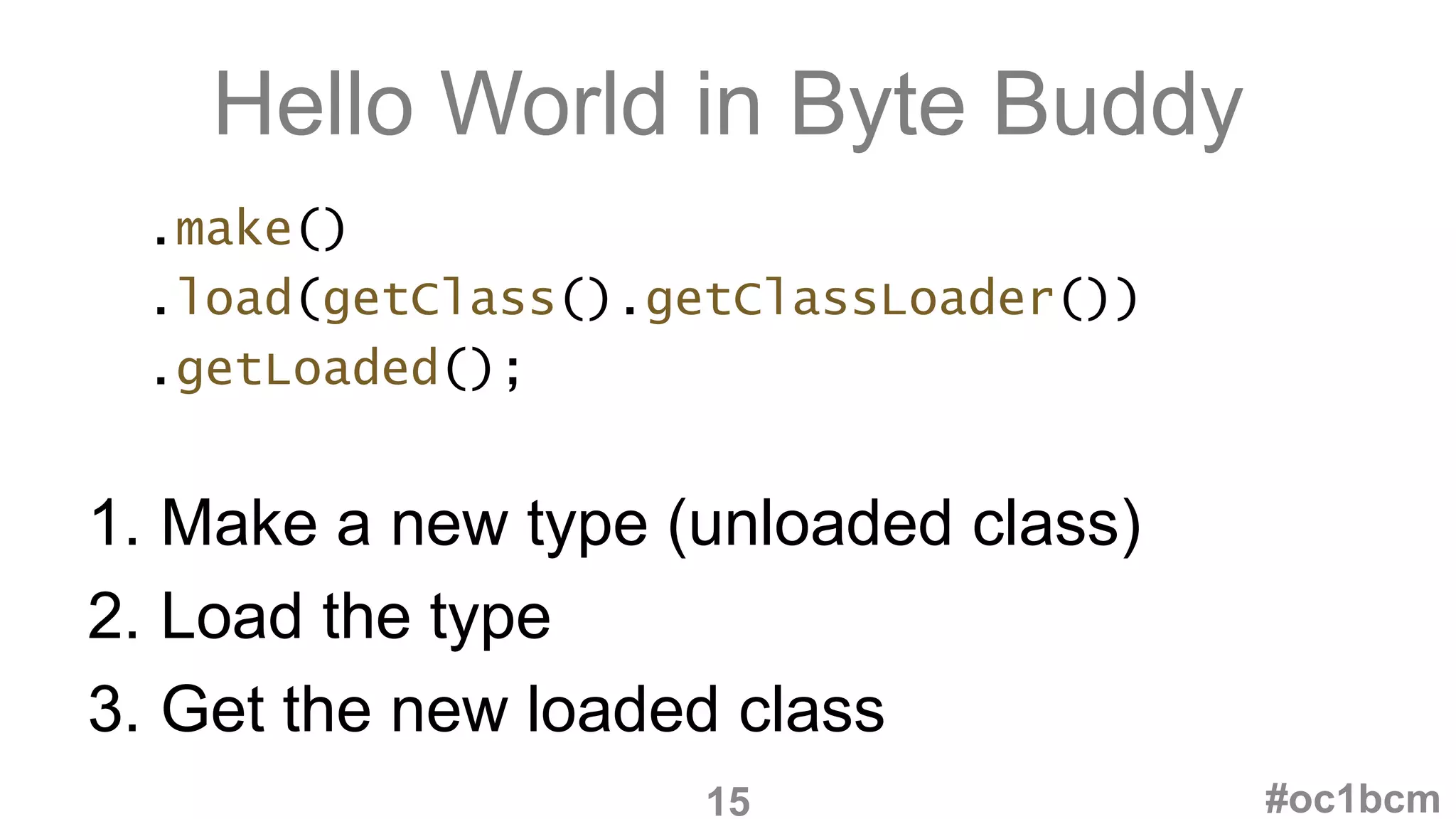

- 15. .make() .load(getClass().getClassLoader()) .getLoaded(); 1. Make anew type (unloaded class) 2. Load the type 3. Get the new loaded class Hello World in Byte Buddy #oc1bcm15

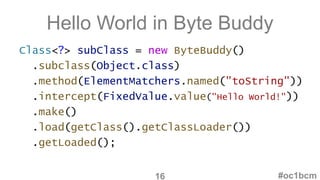

- 16. Class<?> subClass =new ByteBuddy() .subclass(Object.class) .method(ElementMatchers.named("toString")) .intercept(FixedValue.value("Hello World!")) .make() .load(getClass().getClassLoader()) .getLoaded(); Hello World in Byte Buddy #oc1bcm16

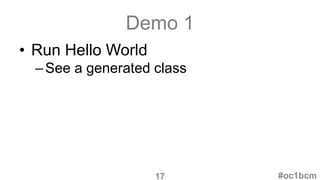

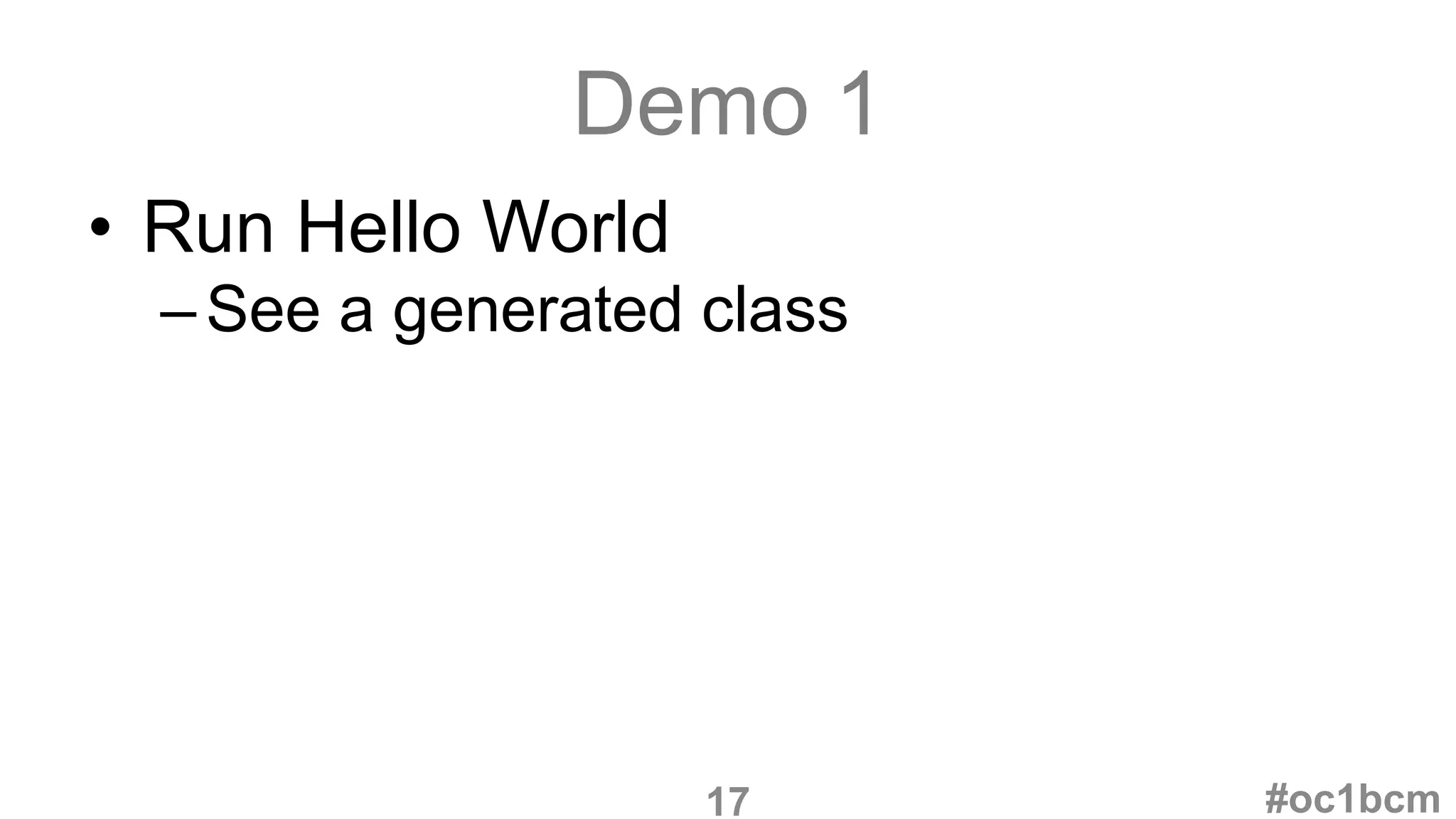

- 17. Demo 1 • RunHello World –See a generated class #oc1bcm17

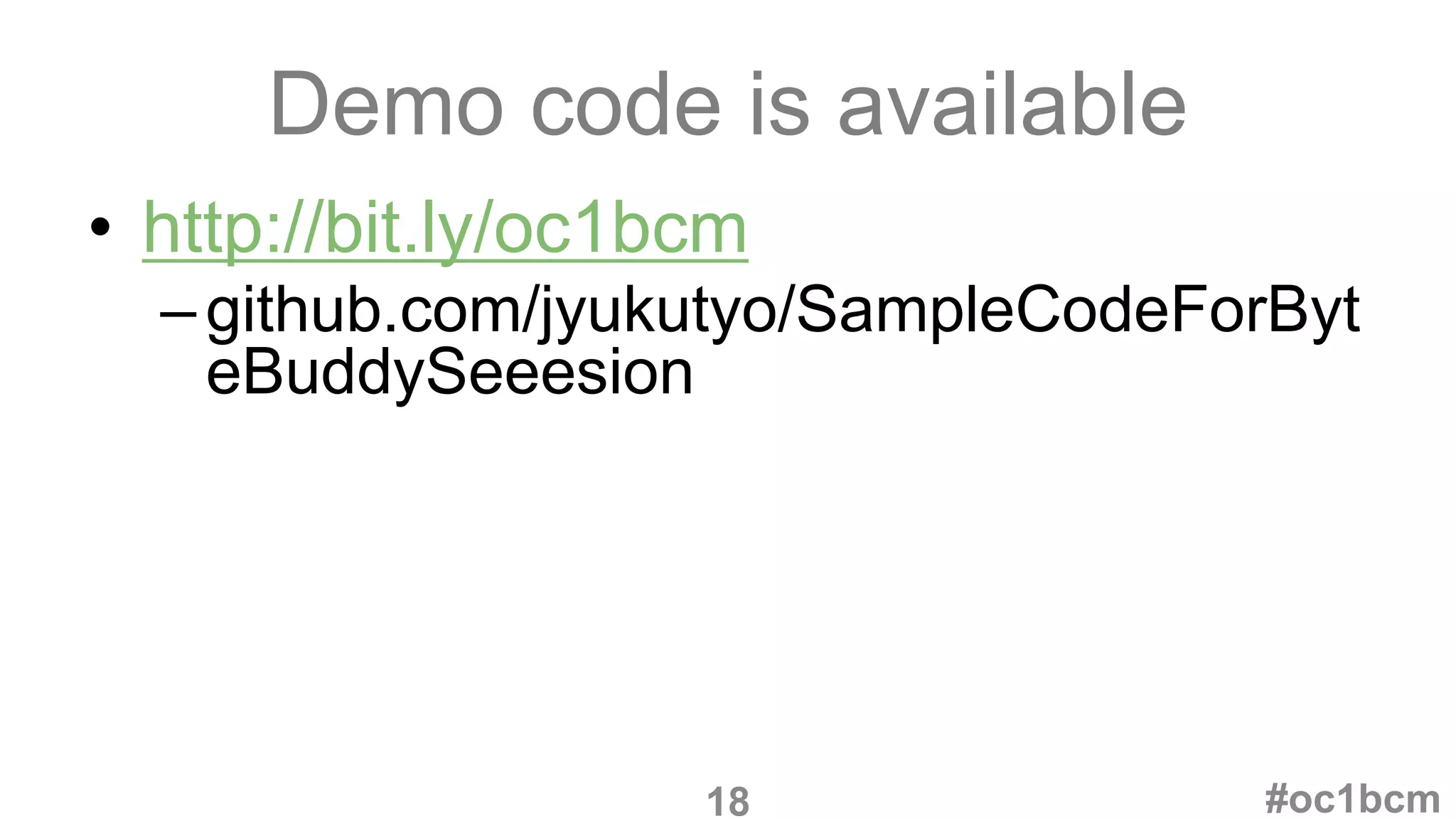

- 18. Demo code isavailable • http://bit.ly/oc1bcm –github.com/jyukutyo/SampleCodeForByt eBuddySeeesion #oc1bcm18

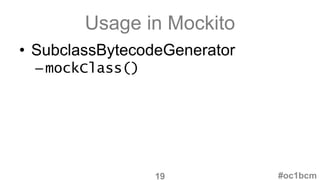

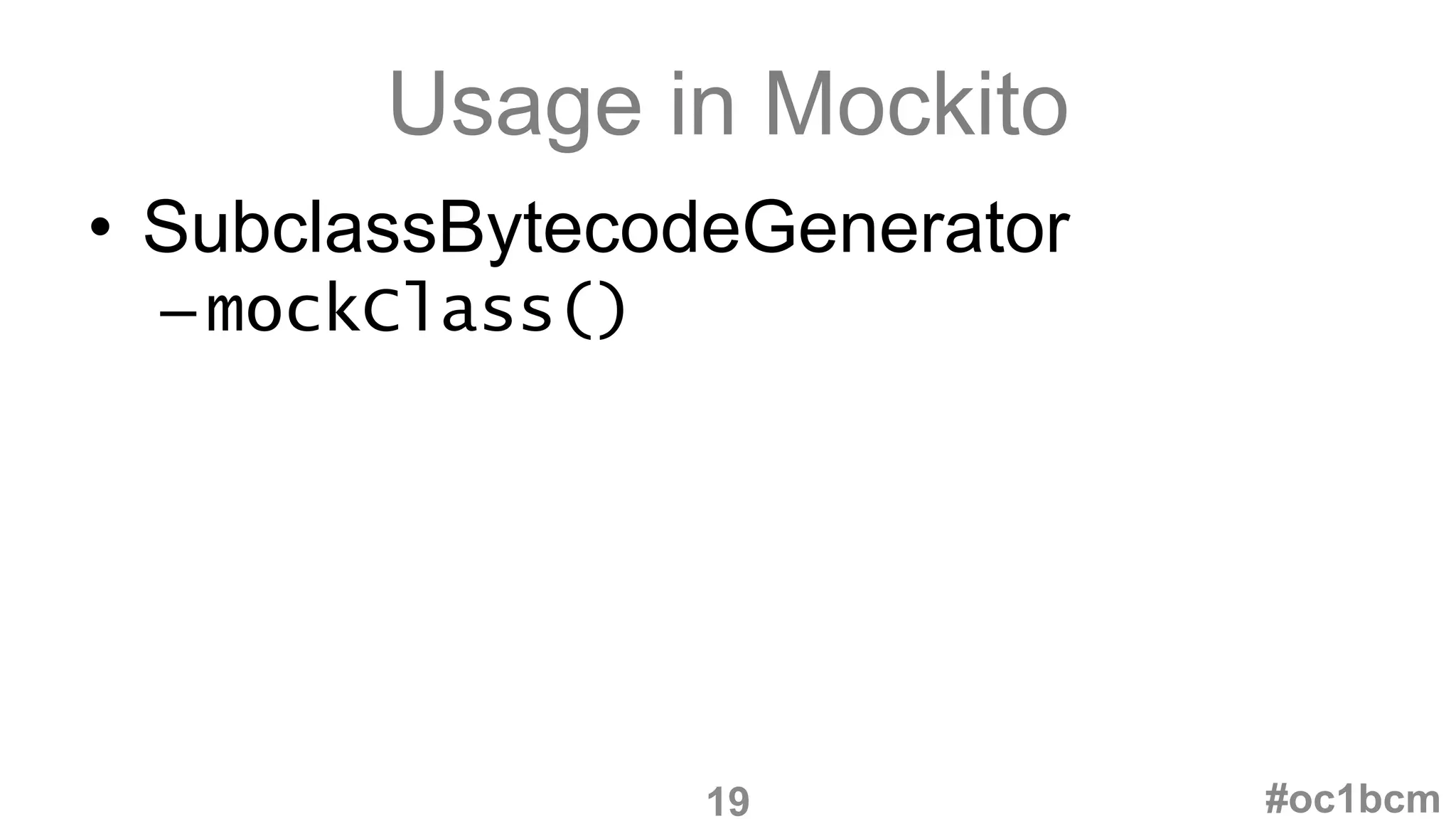

- 19. Usage in Mockito •SubclassBytecodeGenerator –mockClass() #oc1bcm19

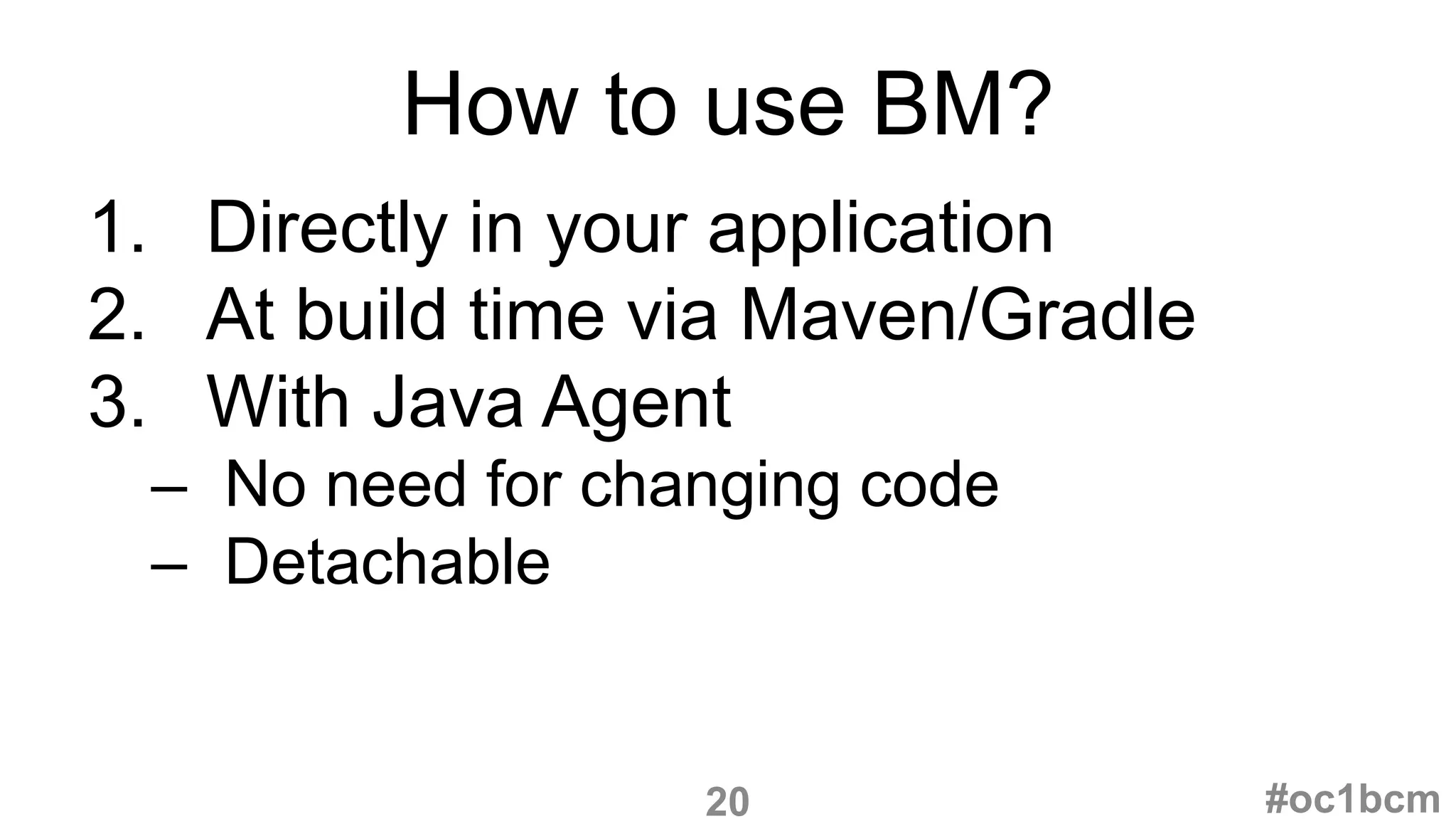

- 20. How to useBM? 1. Directly in your application 2. At build time via Maven/Gradle 3. With Java Agent – No need for changing code – Detachable #oc1bcm20

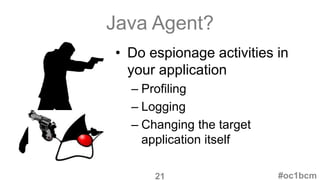

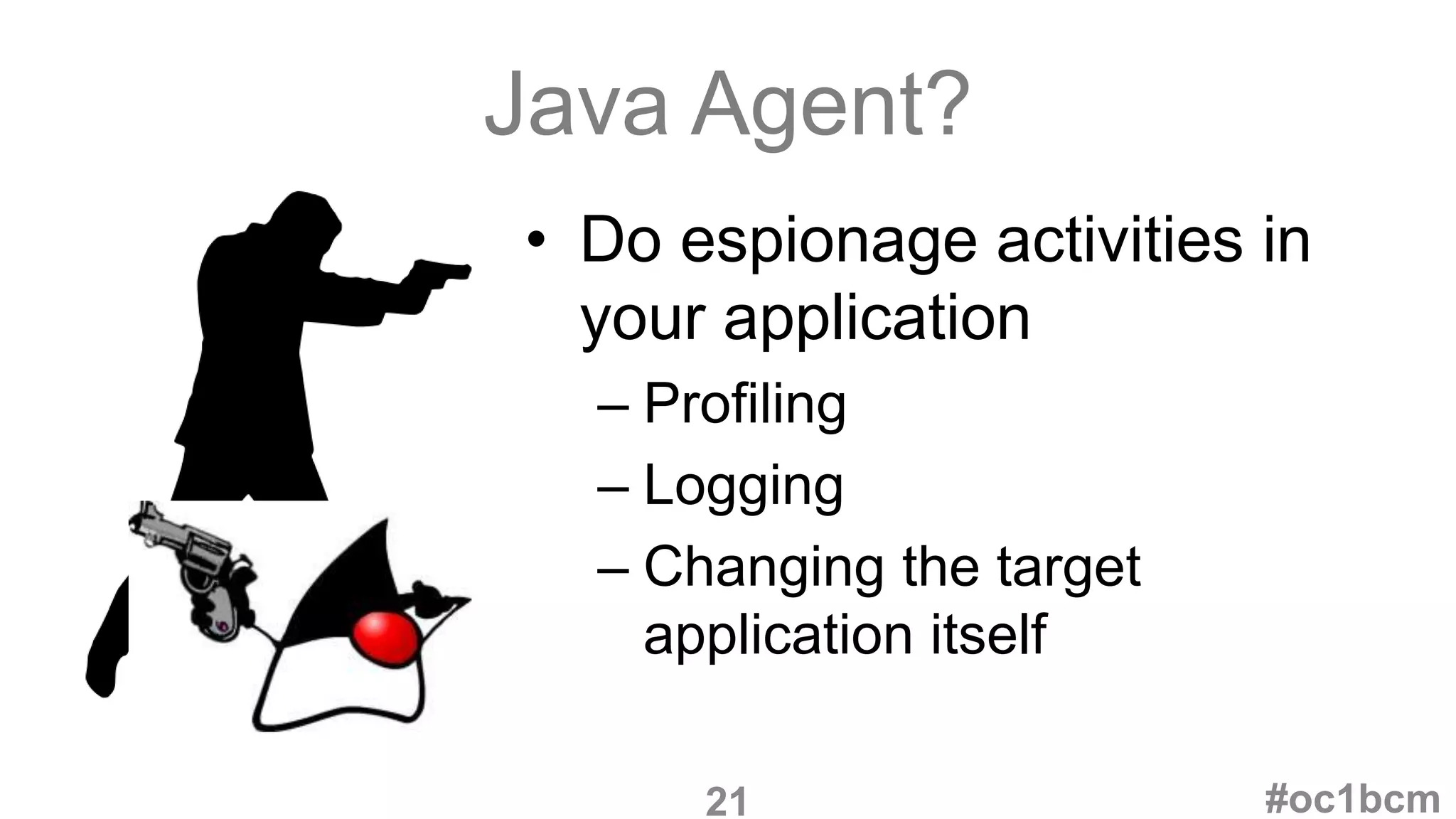

- 21. Java Agent? • Doespionage activities in your application – Profiling – Logging – Changing the target application itself #oc1bcm21

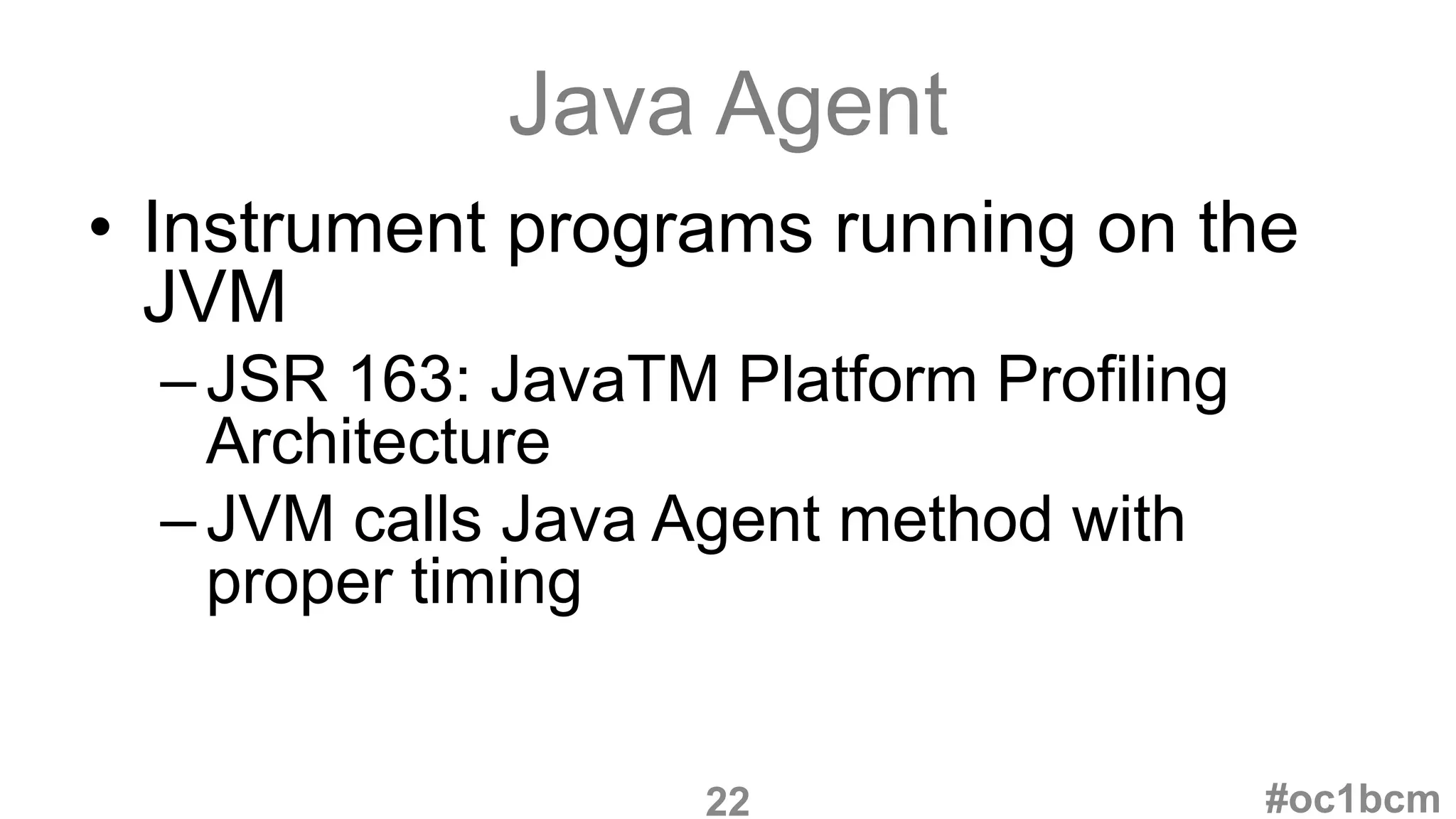

- 22. Java Agent • Instrumentprograms running on the JVM –JSR 163: JavaTM Platform Profiling Architecture –JVM calls Java Agent method with proper timing #oc1bcm22

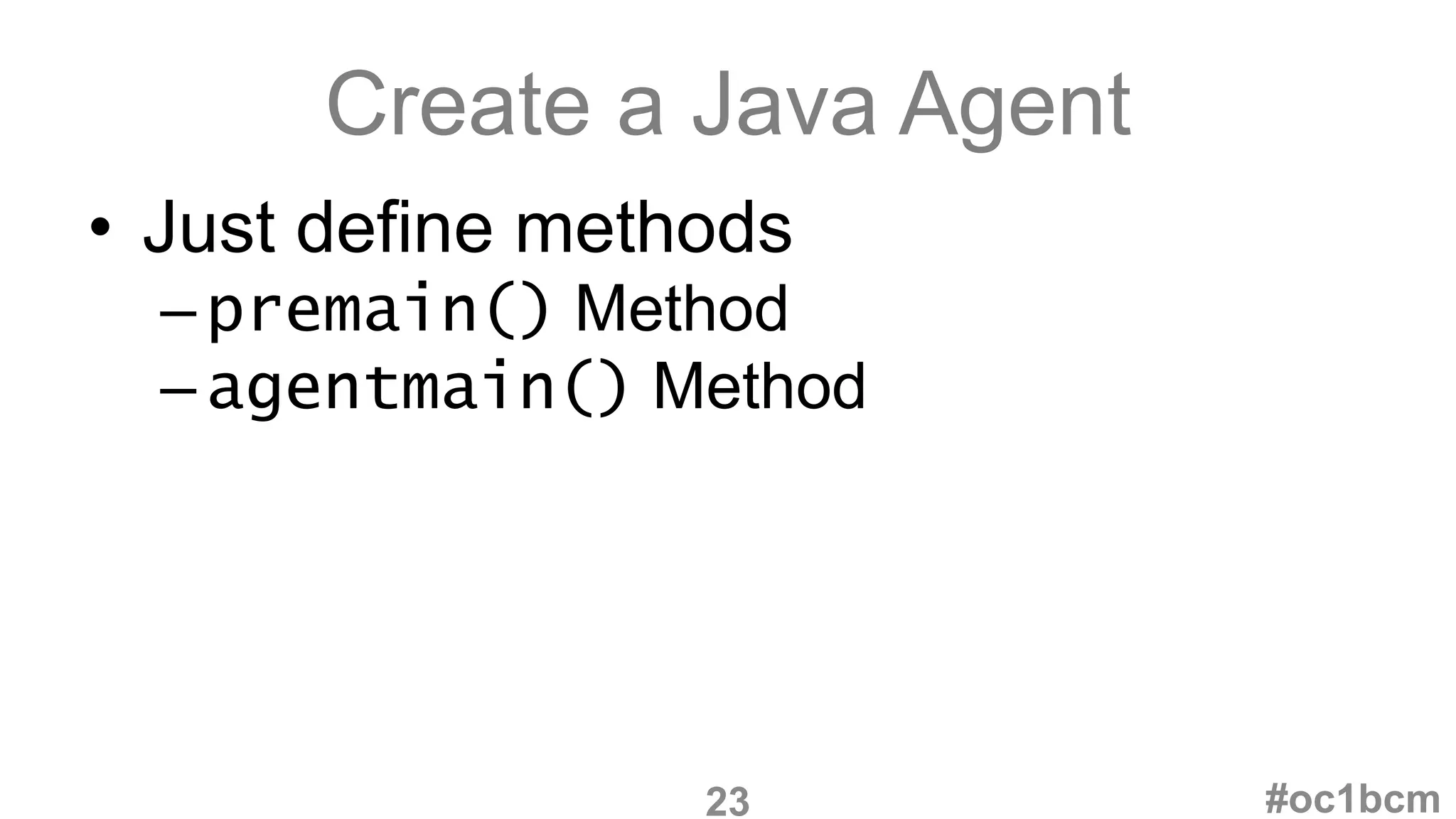

- 23. Create a JavaAgent • Just define methods –premain() Method –agentmain() Method #oc1bcm23

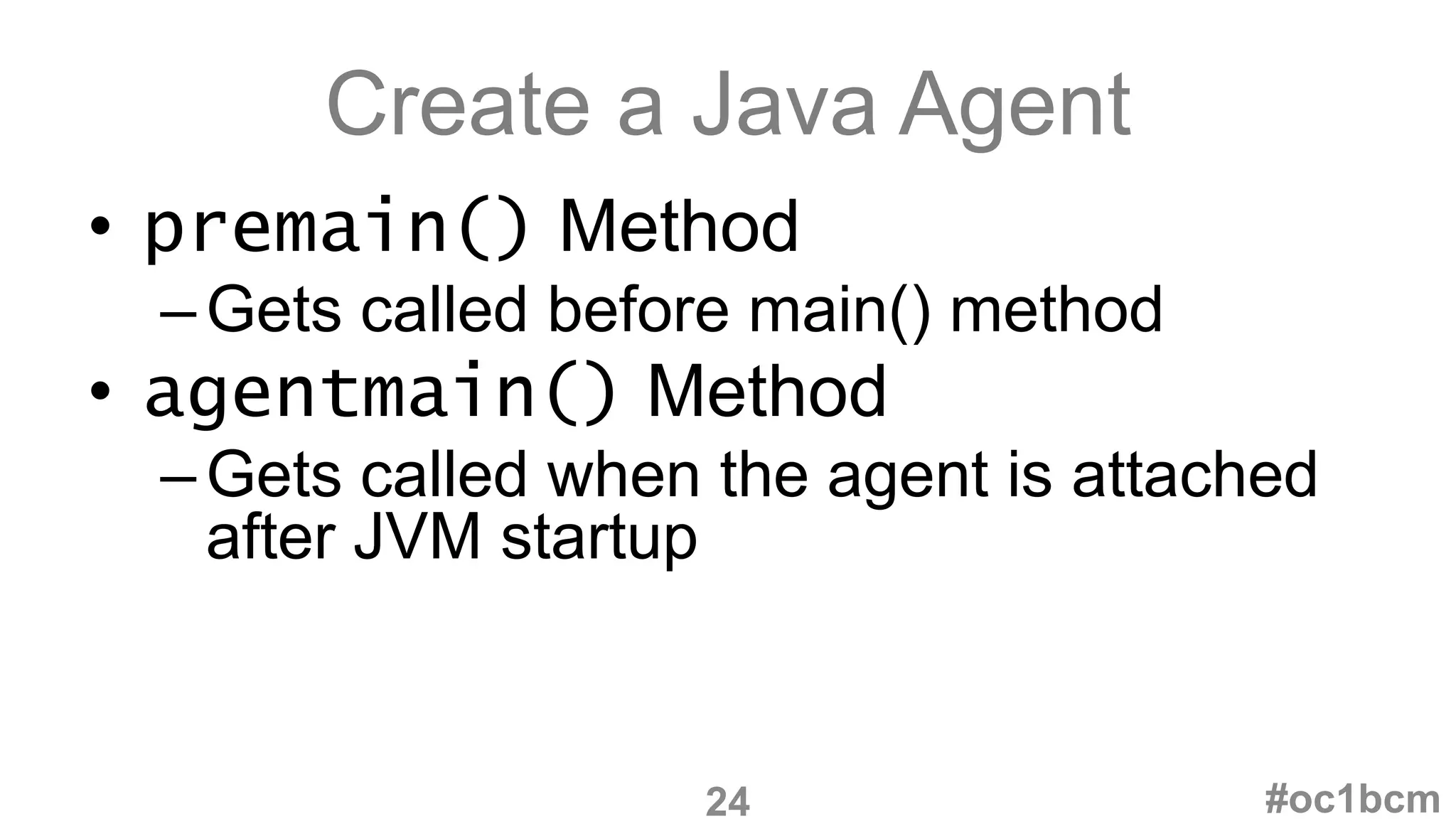

- 24. Create a JavaAgent • premain() Method –Gets called before main() method • agentmain() Method –Gets called when the agent is attached after JVM startup #oc1bcm24

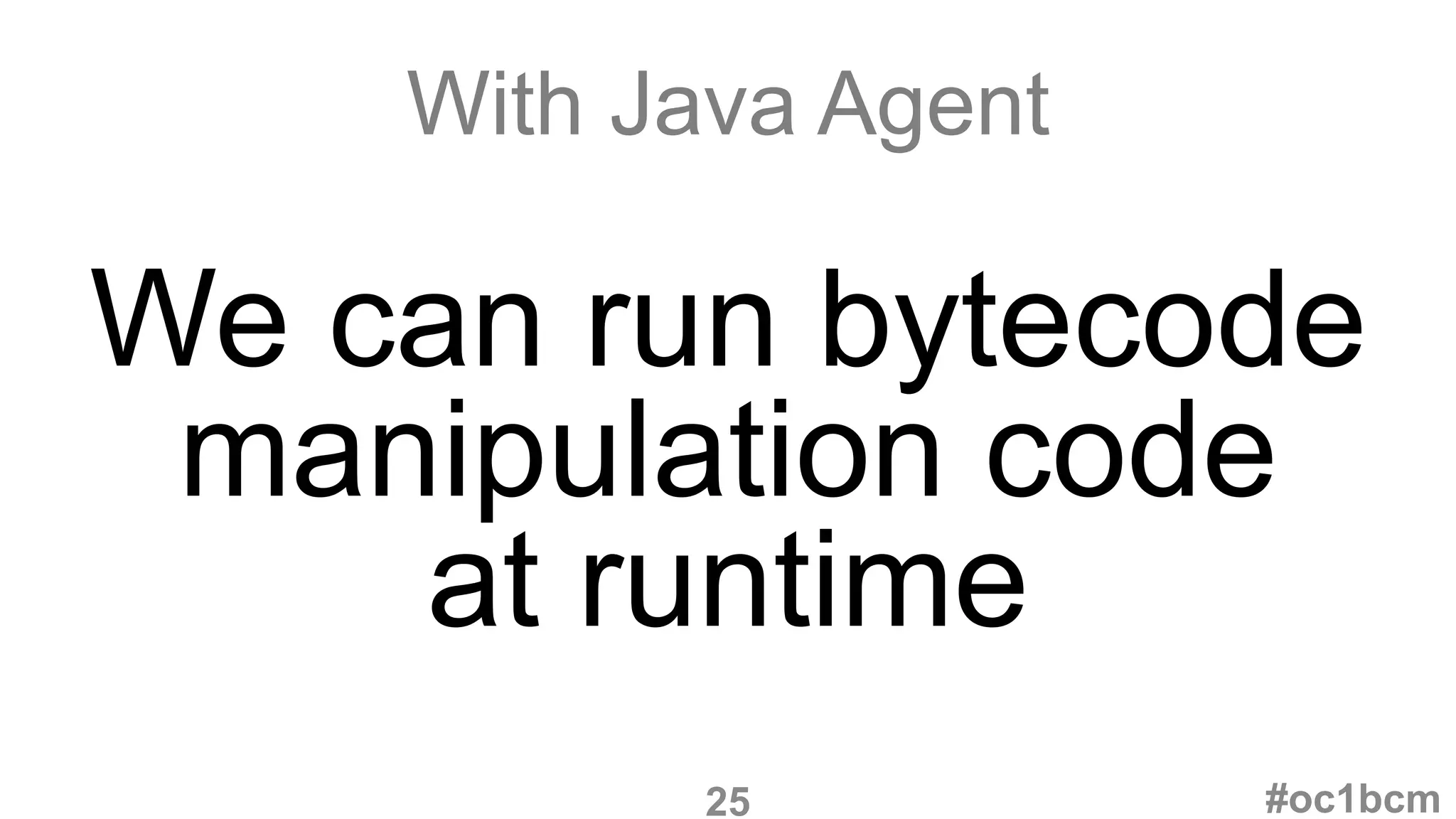

- 25. With Java Agent Wecan run bytecode manipulation code at runtime #oc1bcm25
- 26.

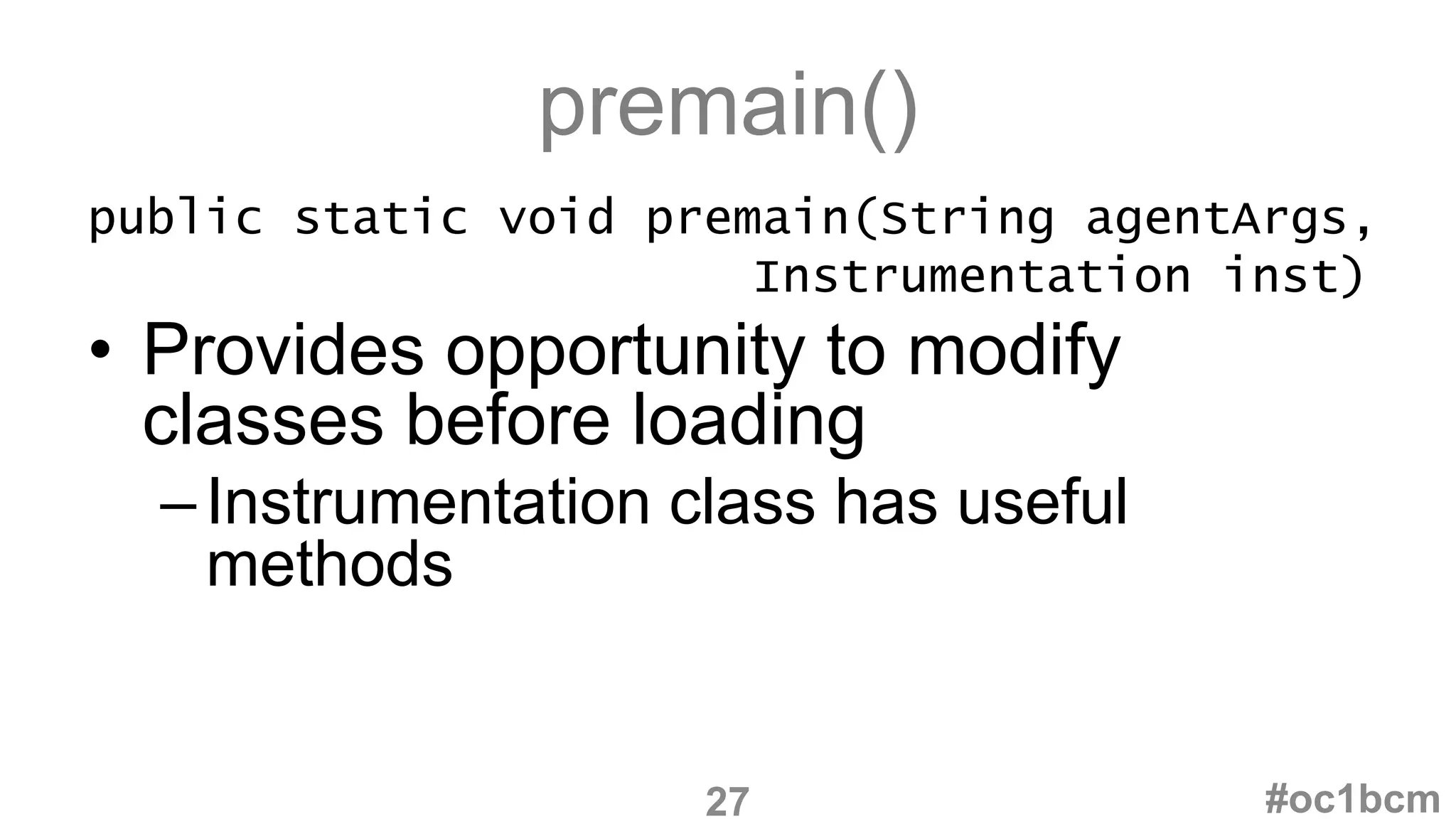

- 27. premain() public static voidpremain(String agentArgs, Instrumentation inst) • Provides opportunity to modify classes before loading –Instrumentation class has useful methods #oc1bcm27
- 28.

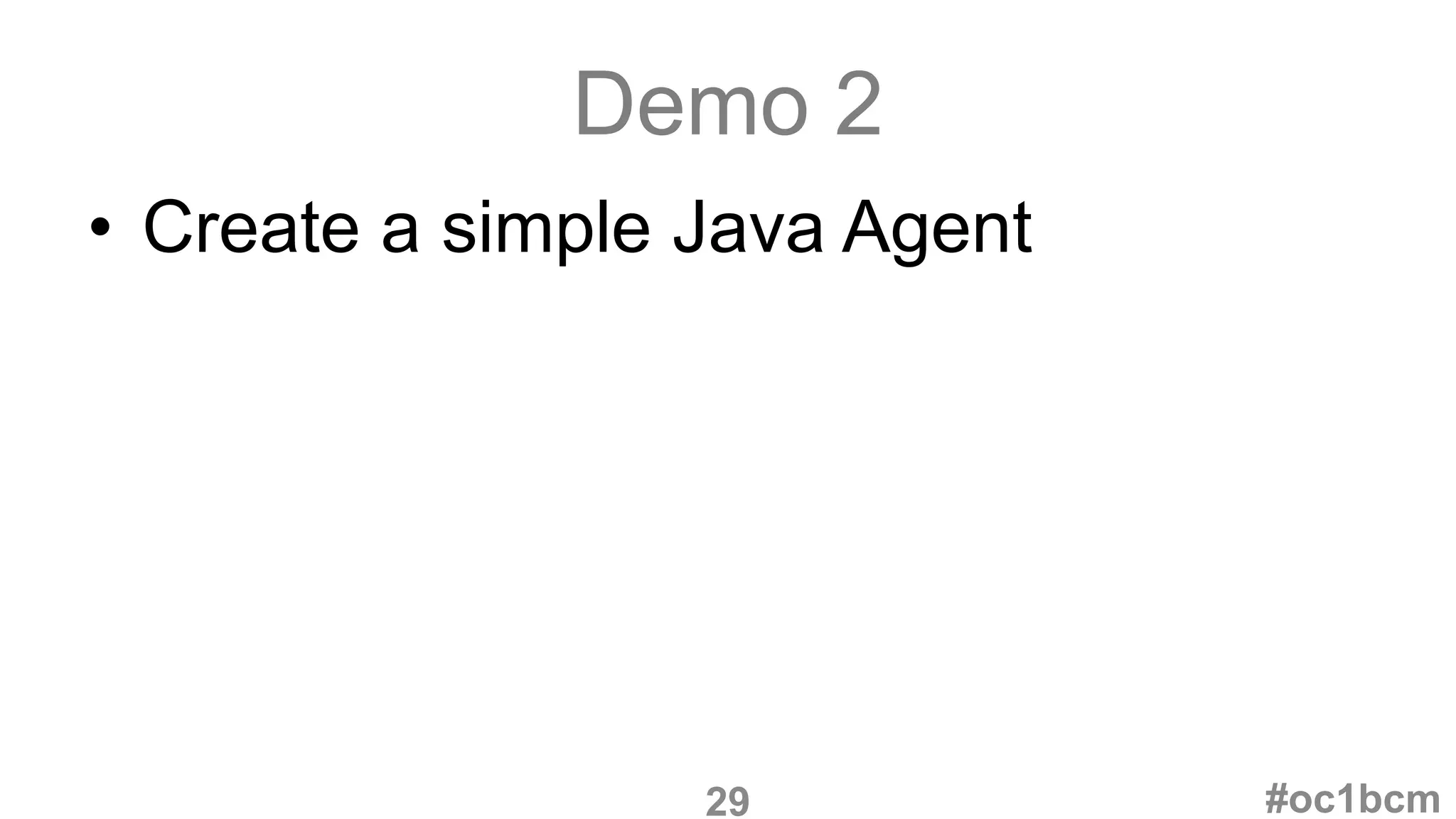

- 29. Demo 2 • Createa simple Java Agent #oc1bcm29

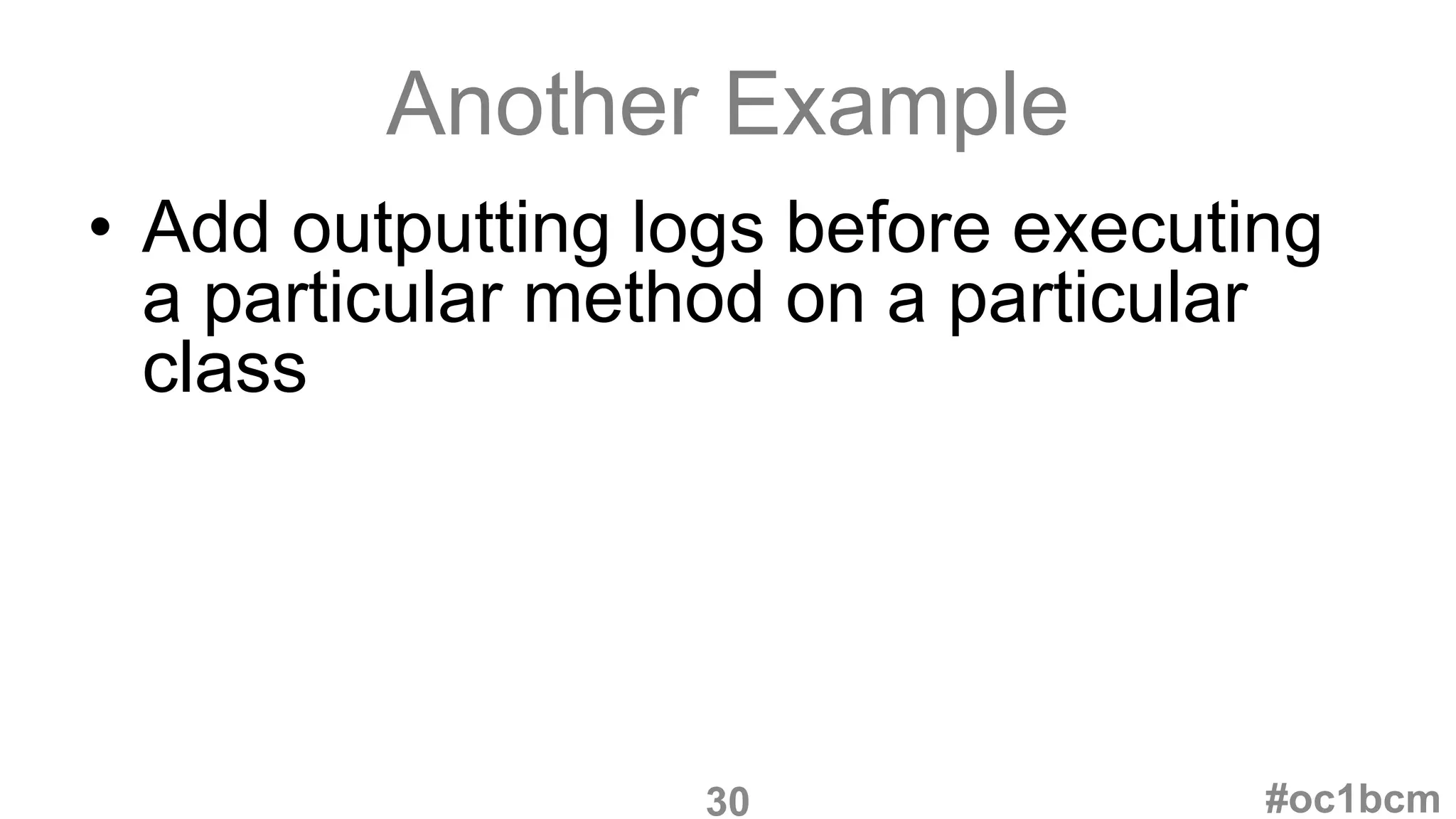

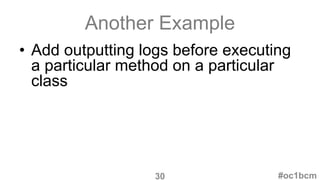

- 30. Another Example • Addoutputting logs before executing a particular method on a particular class #oc1bcm30

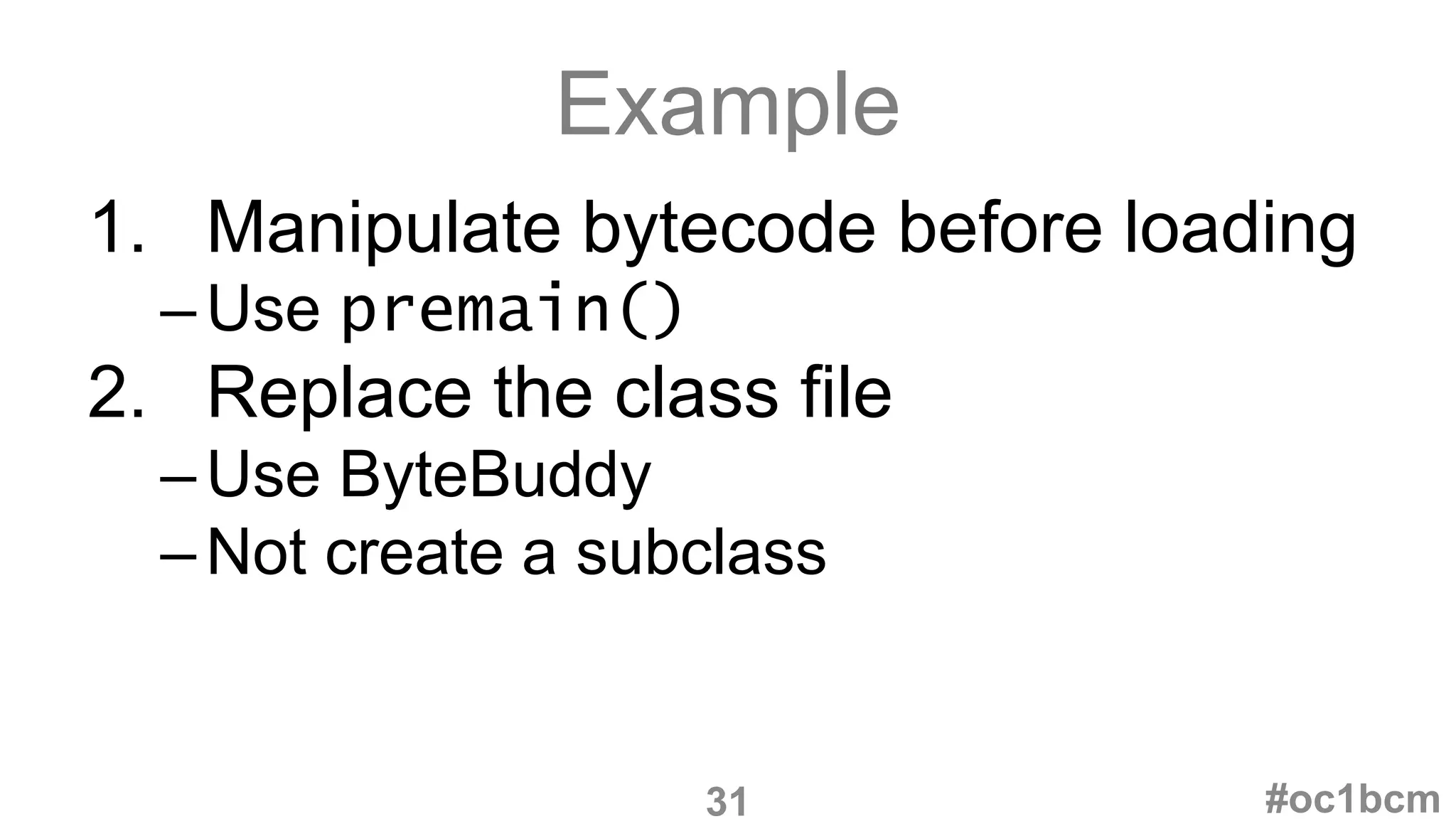

- 31. Example 1. Manipulate bytecodebefore loading –Use premain() 2. Replace the class file –Use ByteBuddy –Not create a subclass #oc1bcm31

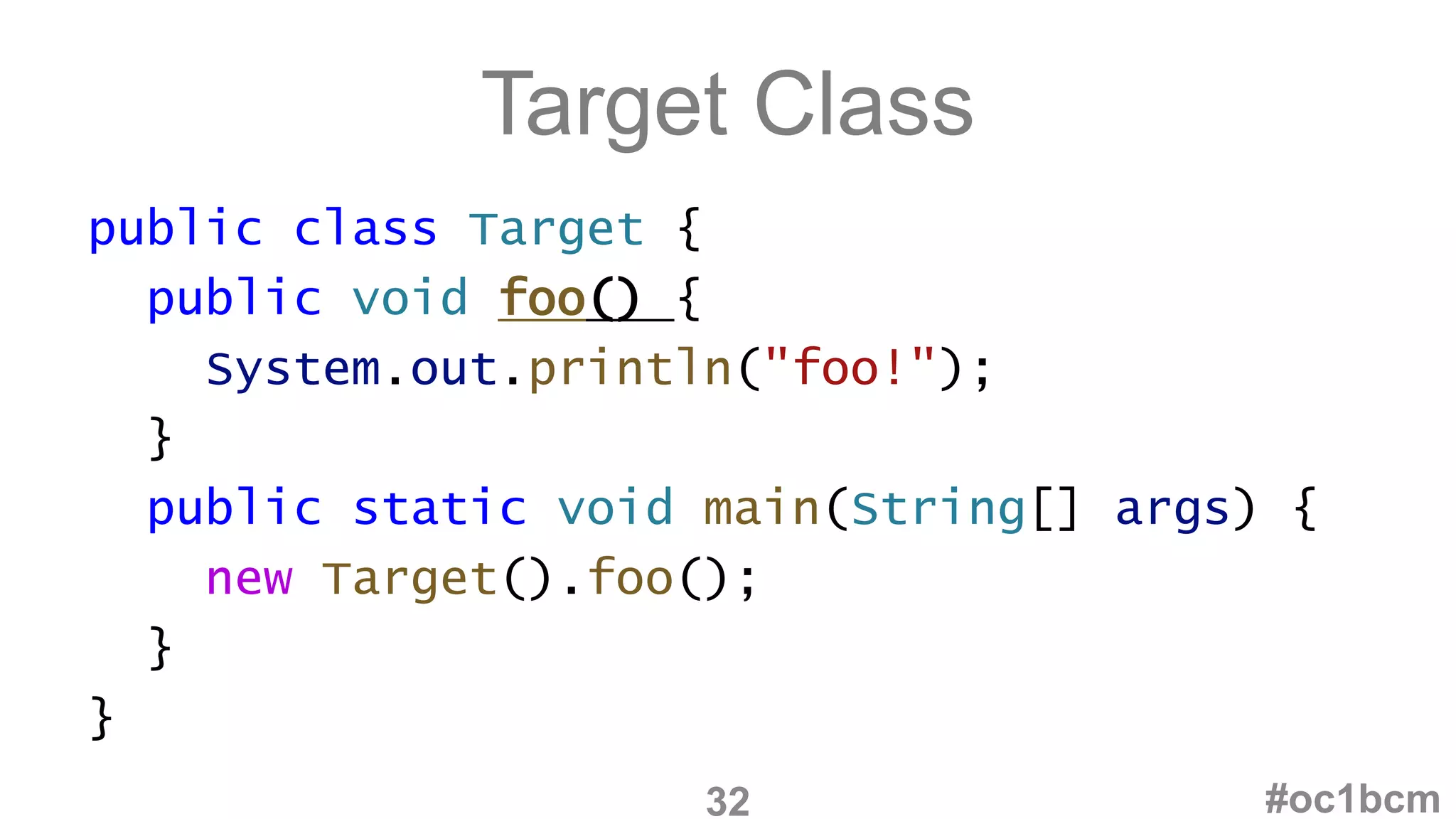

- 32. public class Target{ public void foo() { System.out.println("foo!"); } public static void main(String[] args) { new Target().foo(); } } Target Class #oc1bcm32

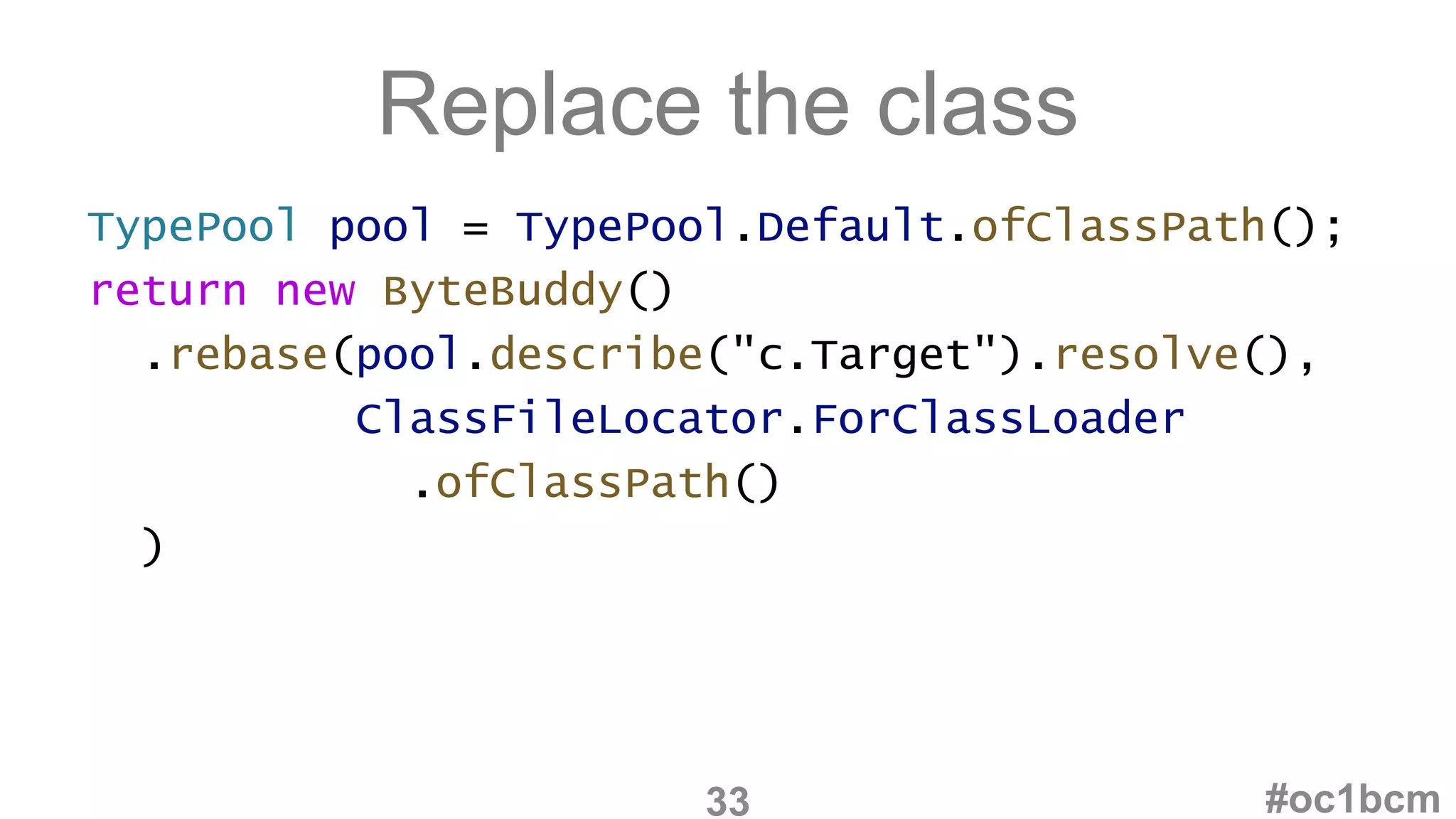

- 33. TypePool pool =TypePool.Default.ofClassPath(); return new ByteBuddy() .rebase(pool.describe("c.Target").resolve(), ClassFileLocator.ForClassLoader .ofClassPath() ) Replace the class #oc1bcm33

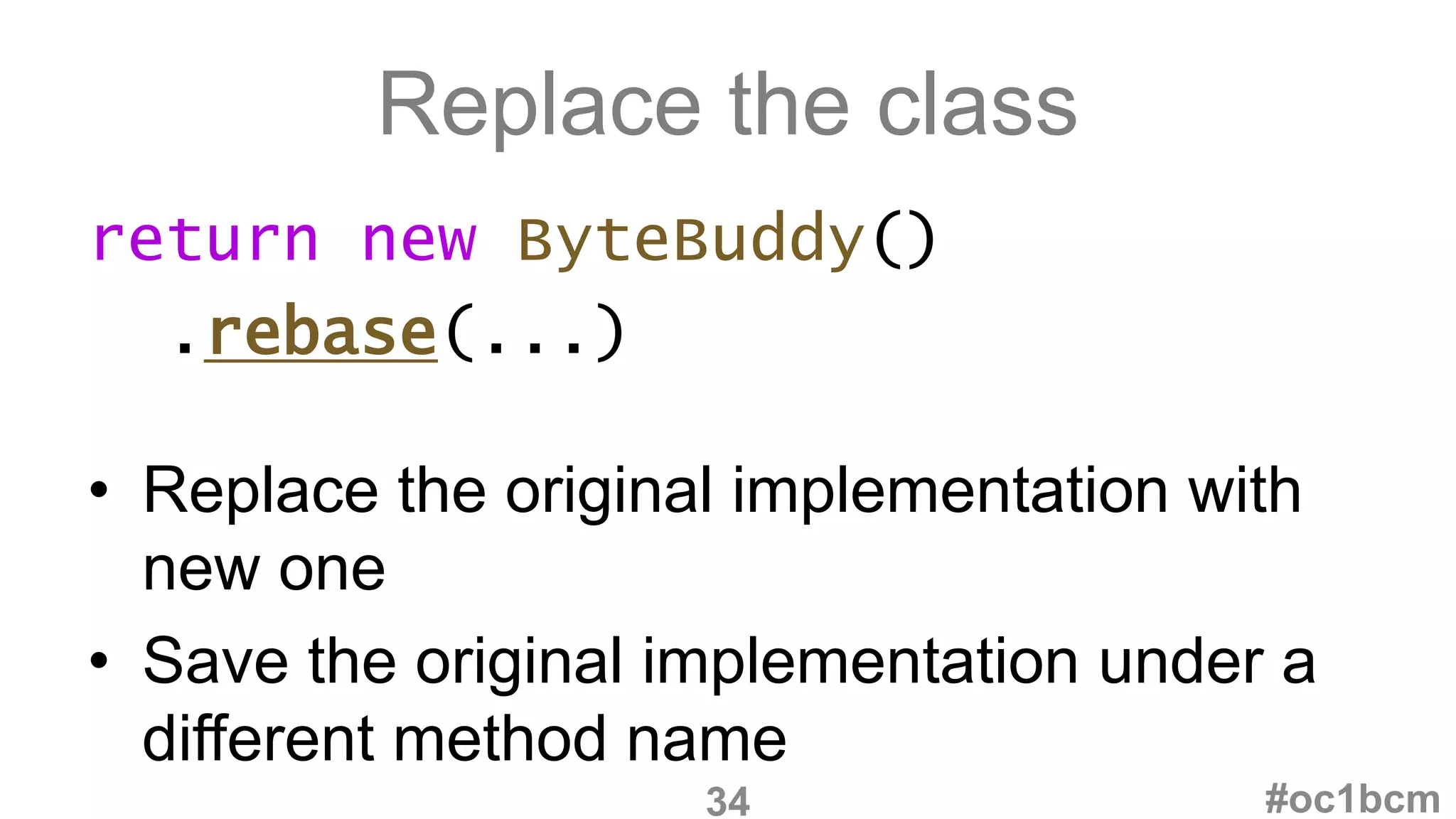

- 34. return new ByteBuddy() .rebase(...) •Replace the original implementation with new one • Save the original implementation under a different method name Replace the class #oc1bcm34

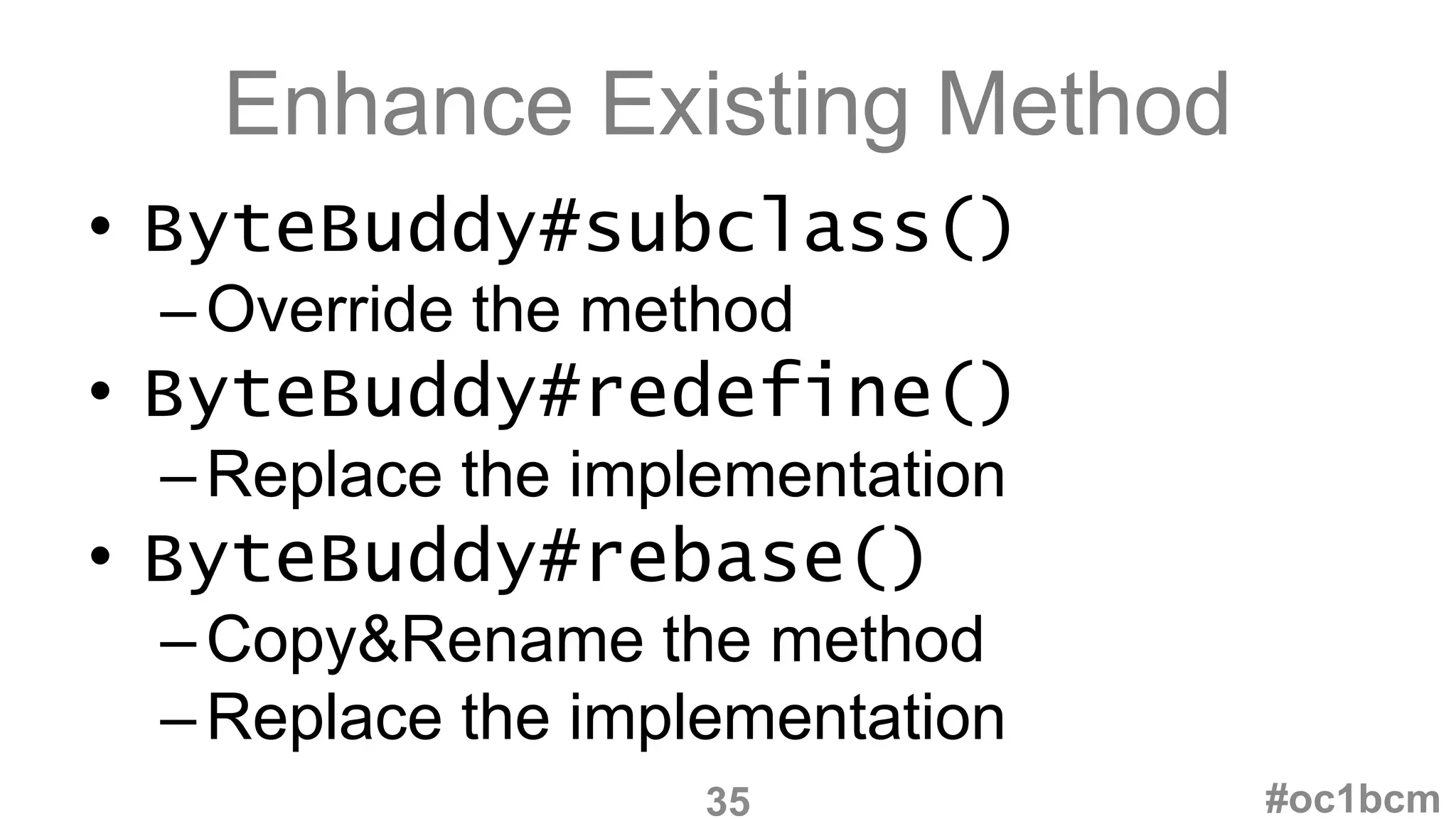

- 35. Enhance Existing Method •ByteBuddy#subclass() –Override the method • ByteBuddy#redefine() –Replace the implementation • ByteBuddy#rebase() –Copy&Rename the method –Replace the implementation #oc1bcm35

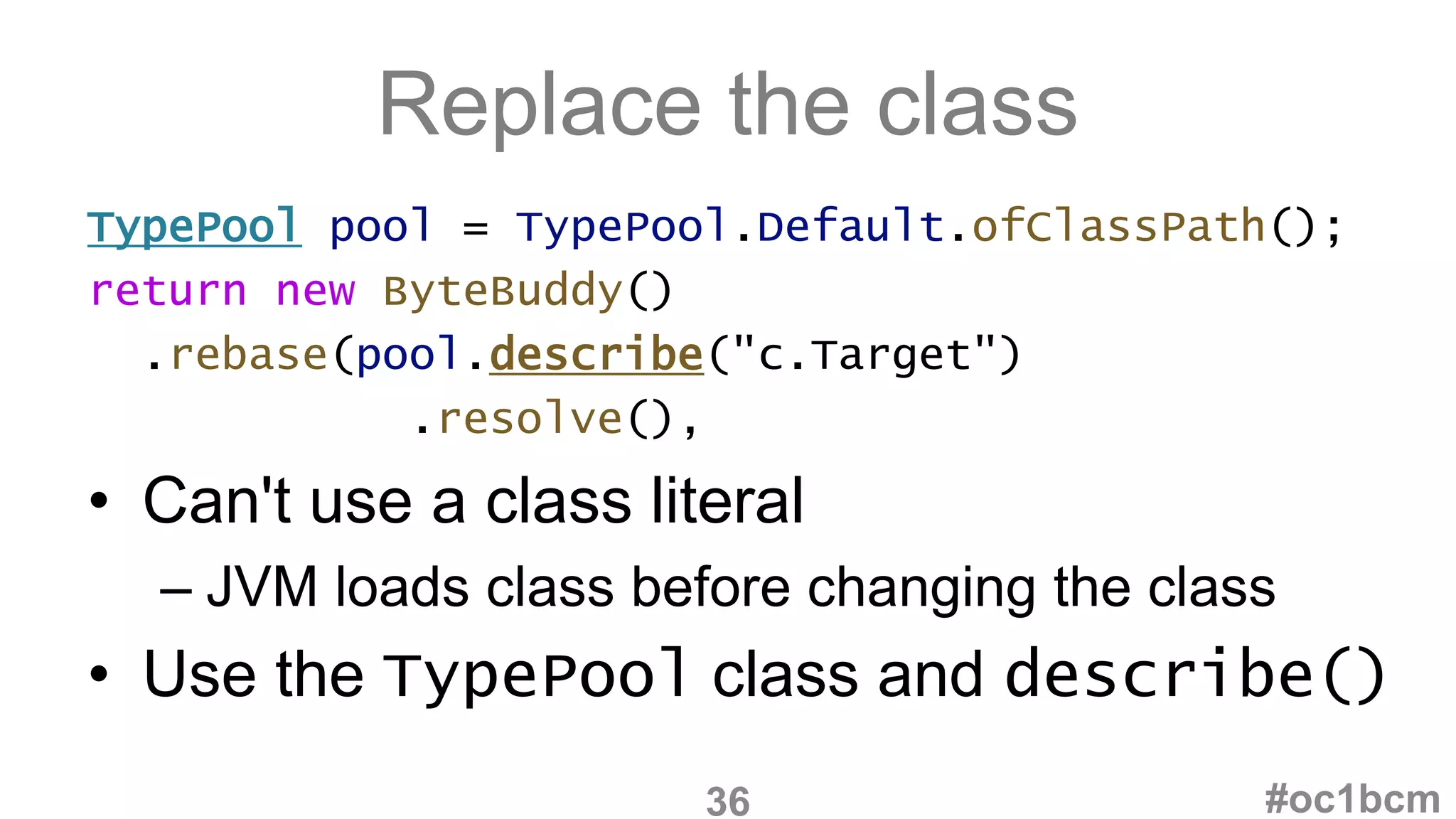

- 36. TypePool pool =TypePool.Default.ofClassPath(); return new ByteBuddy() .rebase(pool.describe("c.Target") .resolve(), • Can't use a class literal – JVM loads class before changing the class • Use the TypePool class and describe() Replace the class #oc1bcm36

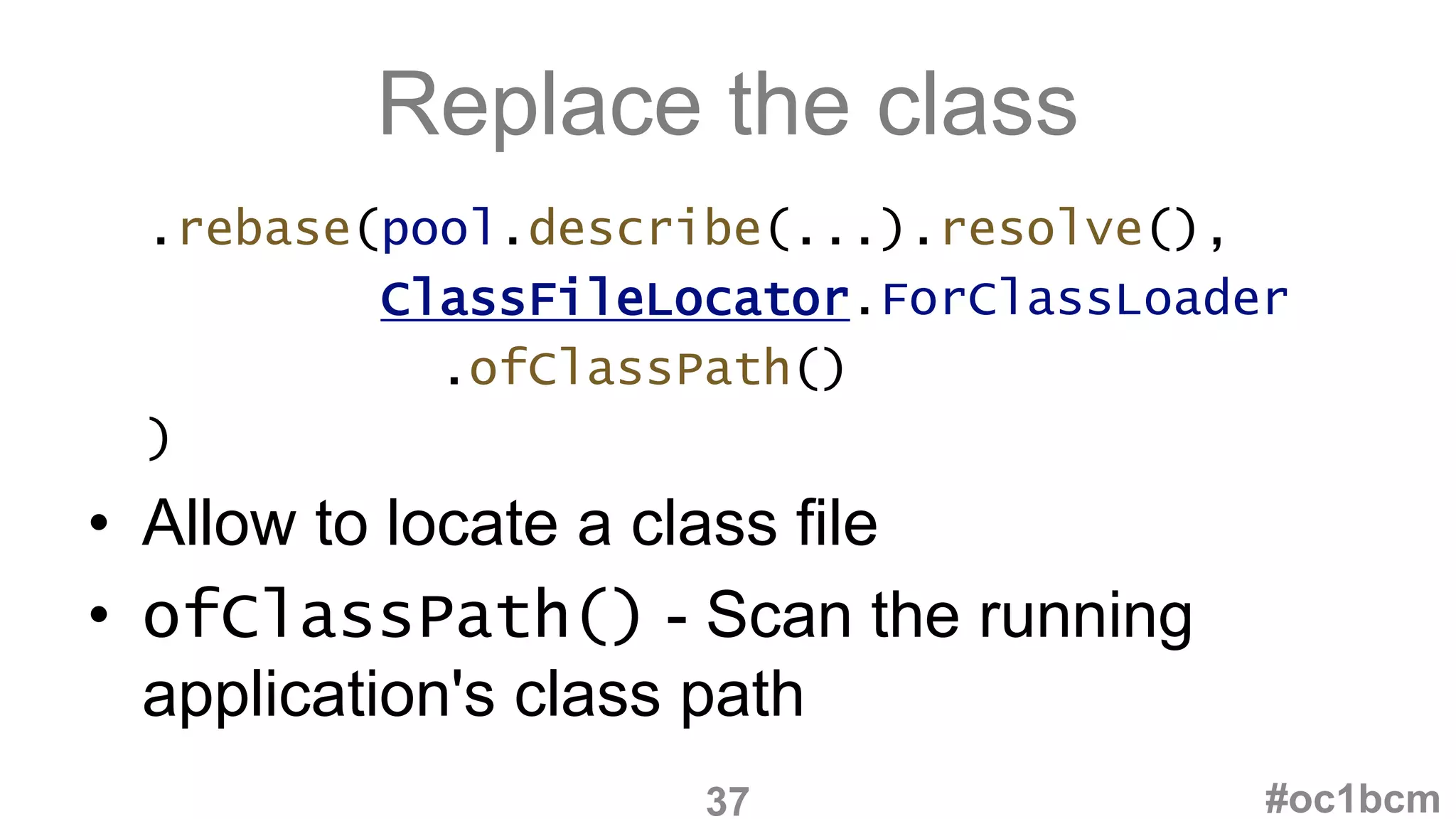

- 37. .rebase(pool.describe(...).resolve(), ClassFileLocator.ForClassLoader .ofClassPath() ) • Allow tolocate a class file • ofClassPath() - Scan the running application's class path Replace the class #oc1bcm37
- 38.

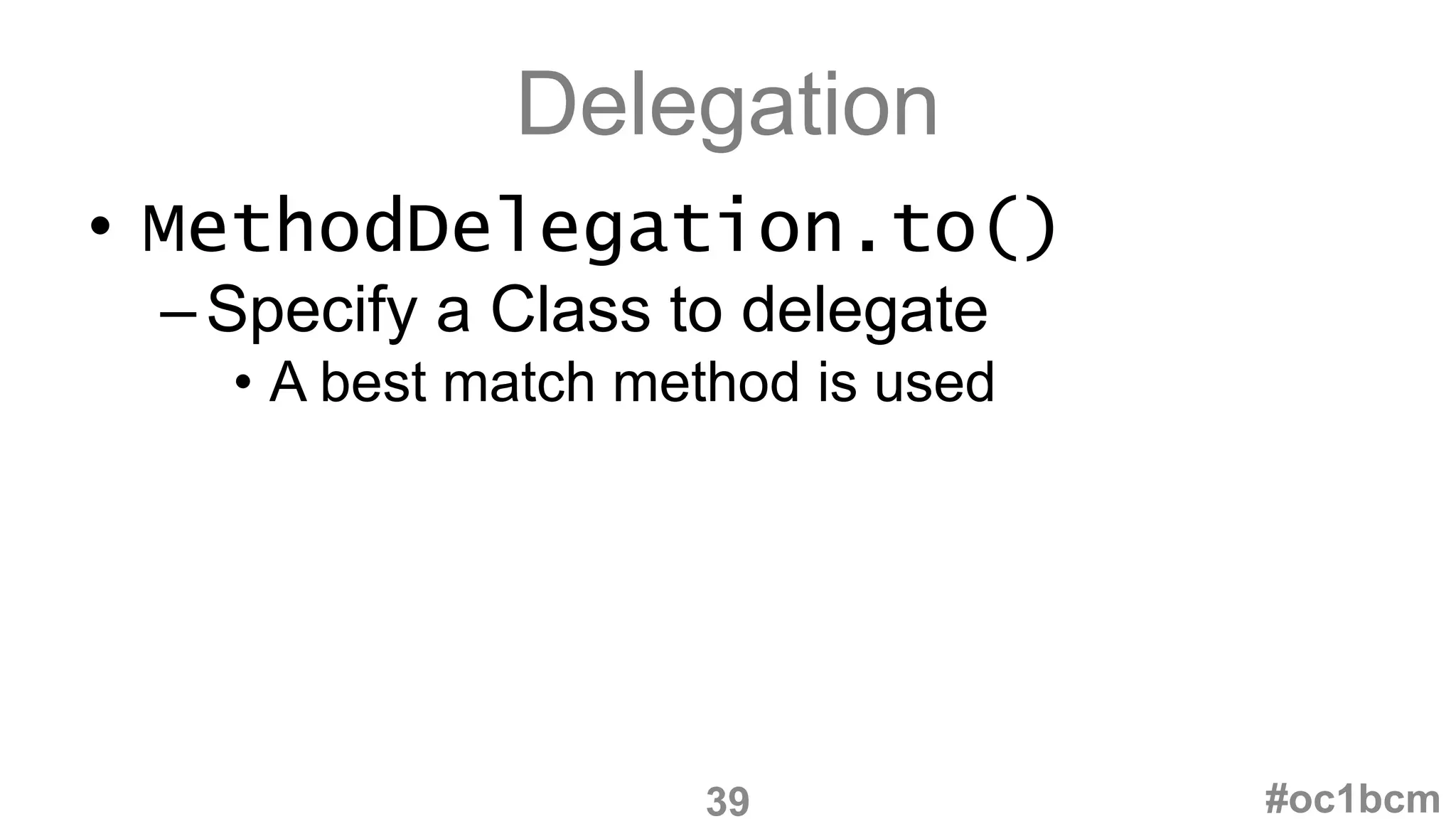

- 39. Delegation • MethodDelegation.to() –Specify aClass to delegate • A best match method is used #oc1bcm39

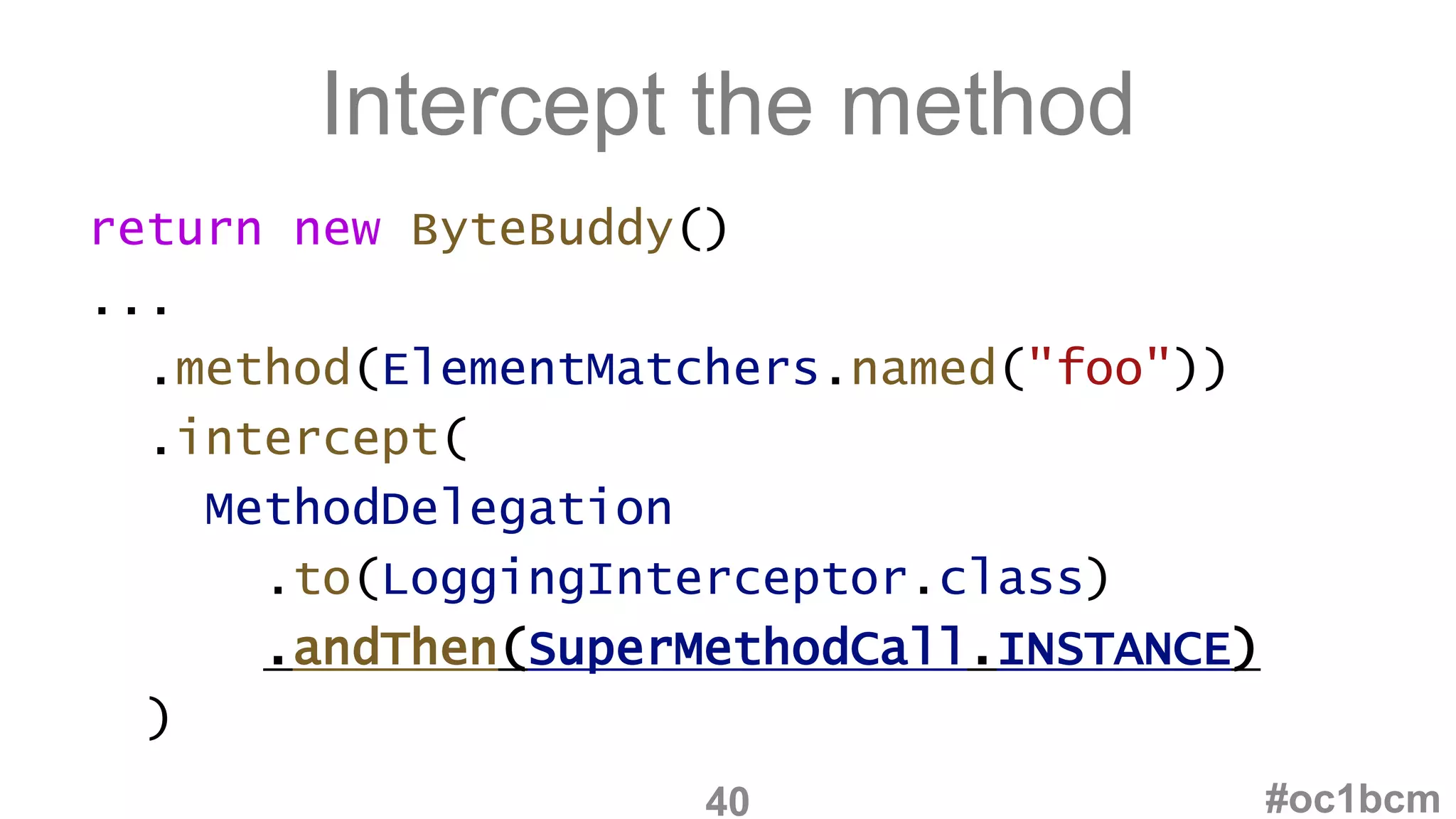

- 40.

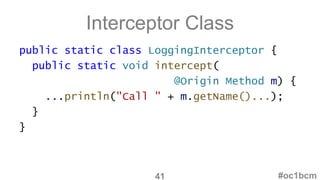

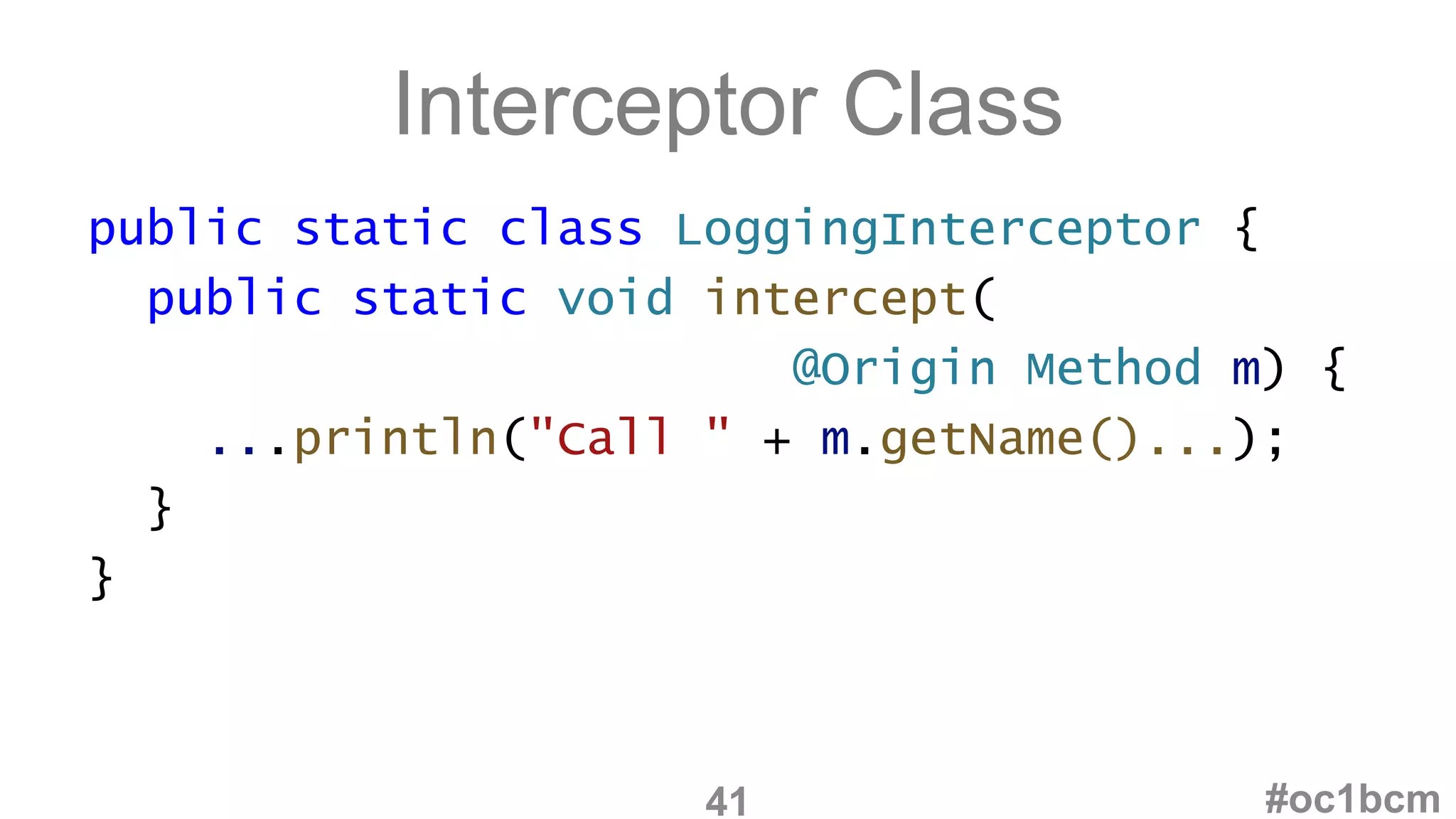

- 41. public static classLoggingInterceptor { public static void intercept( @Origin Method m) { ...println("Call " + m.getName()...); } } Interceptor Class #oc1bcm41

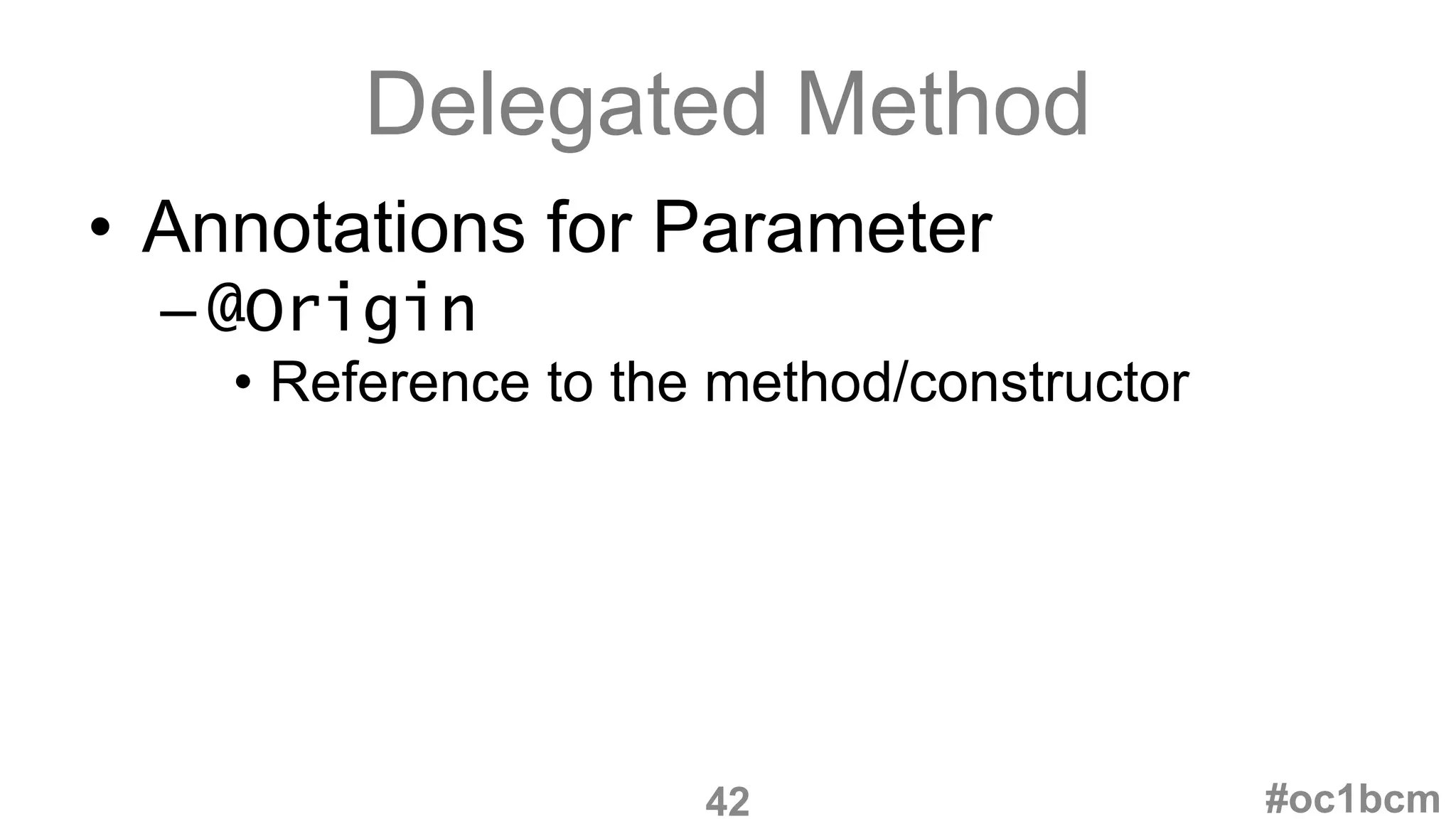

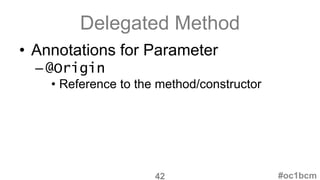

- 42. Delegated Method • Annotationsfor Parameter –@Origin • Reference to the method/constructor #oc1bcm42

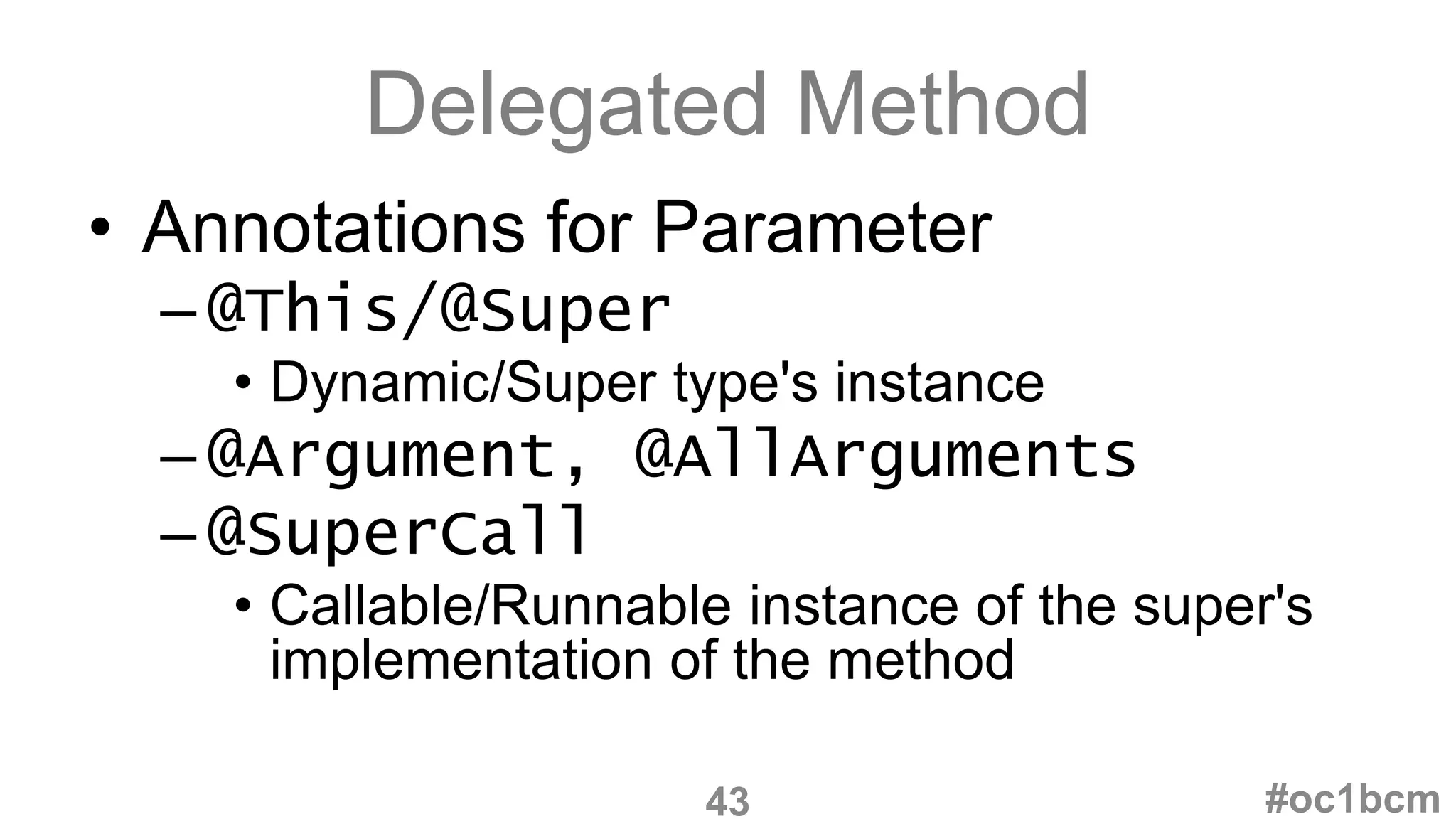

- 43. Delegated Method • Annotationsfor Parameter –@This/@Super • Dynamic/Super type's instance –@Argument, @AllArguments –@SuperCall • Callable/Runnable instance of the super's implementation of the method #oc1bcm43

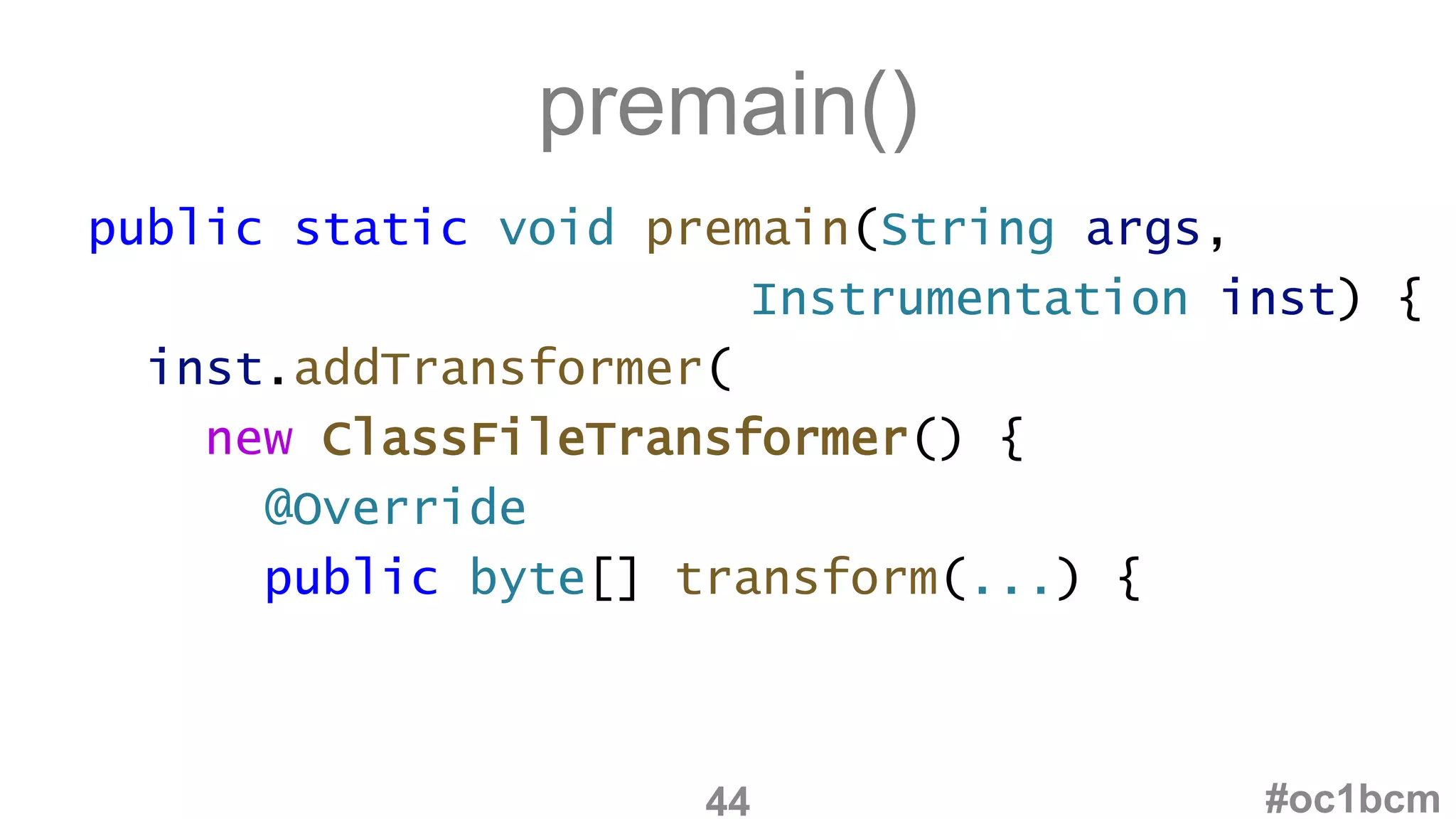

- 44. public static voidpremain(String args, Instrumentation inst) { inst.addTransformer( new ClassFileTransformer() { @Override public byte[] transform(...) { premain() #oc1bcm44

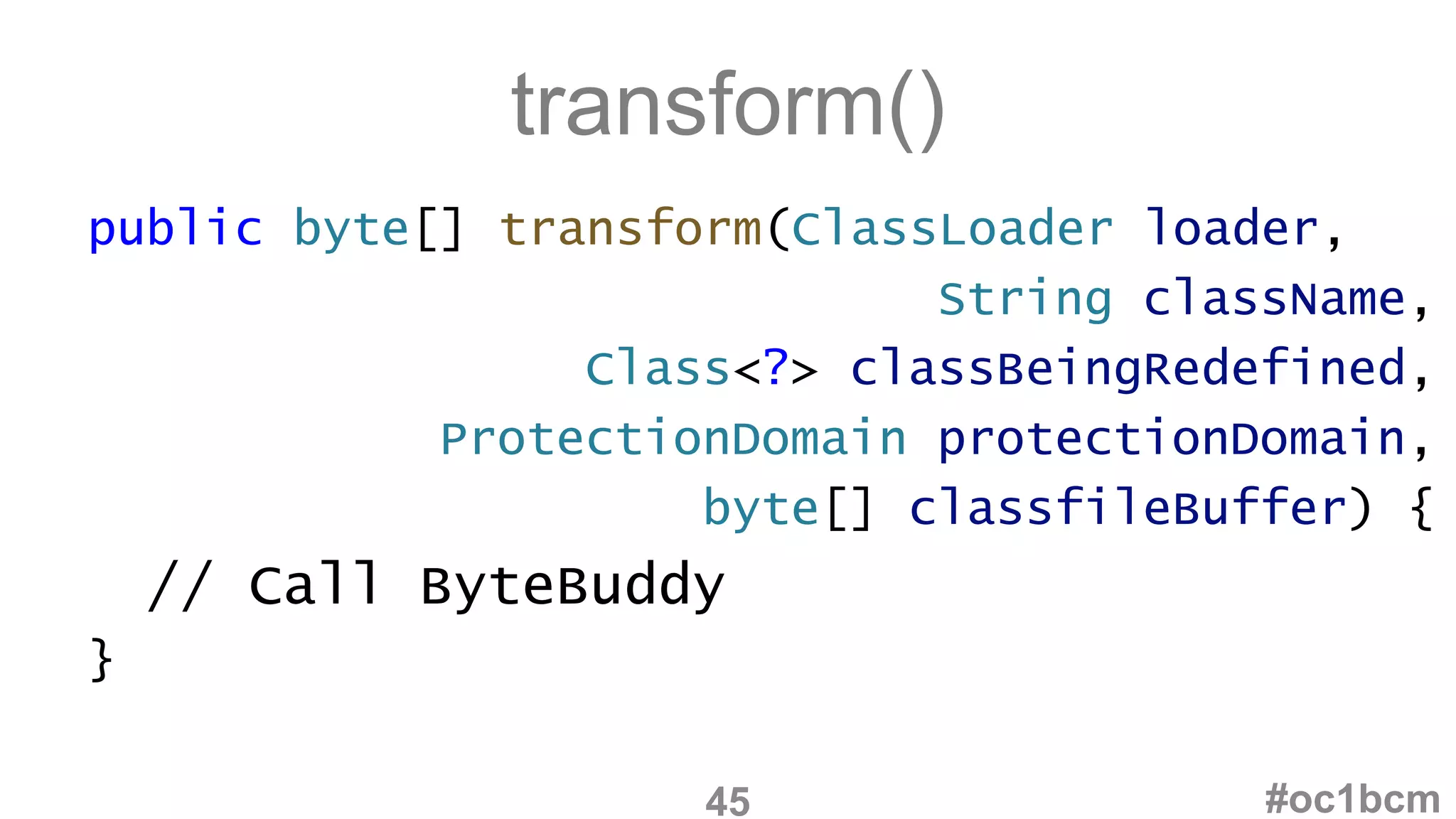

- 45. public byte[] transform(ClassLoaderloader, String className, Class<?> classBeingRedefined, ProtectionDomain protectionDomain, byte[] classfileBuffer) { // Call ByteBuddy } transform() #oc1bcm45

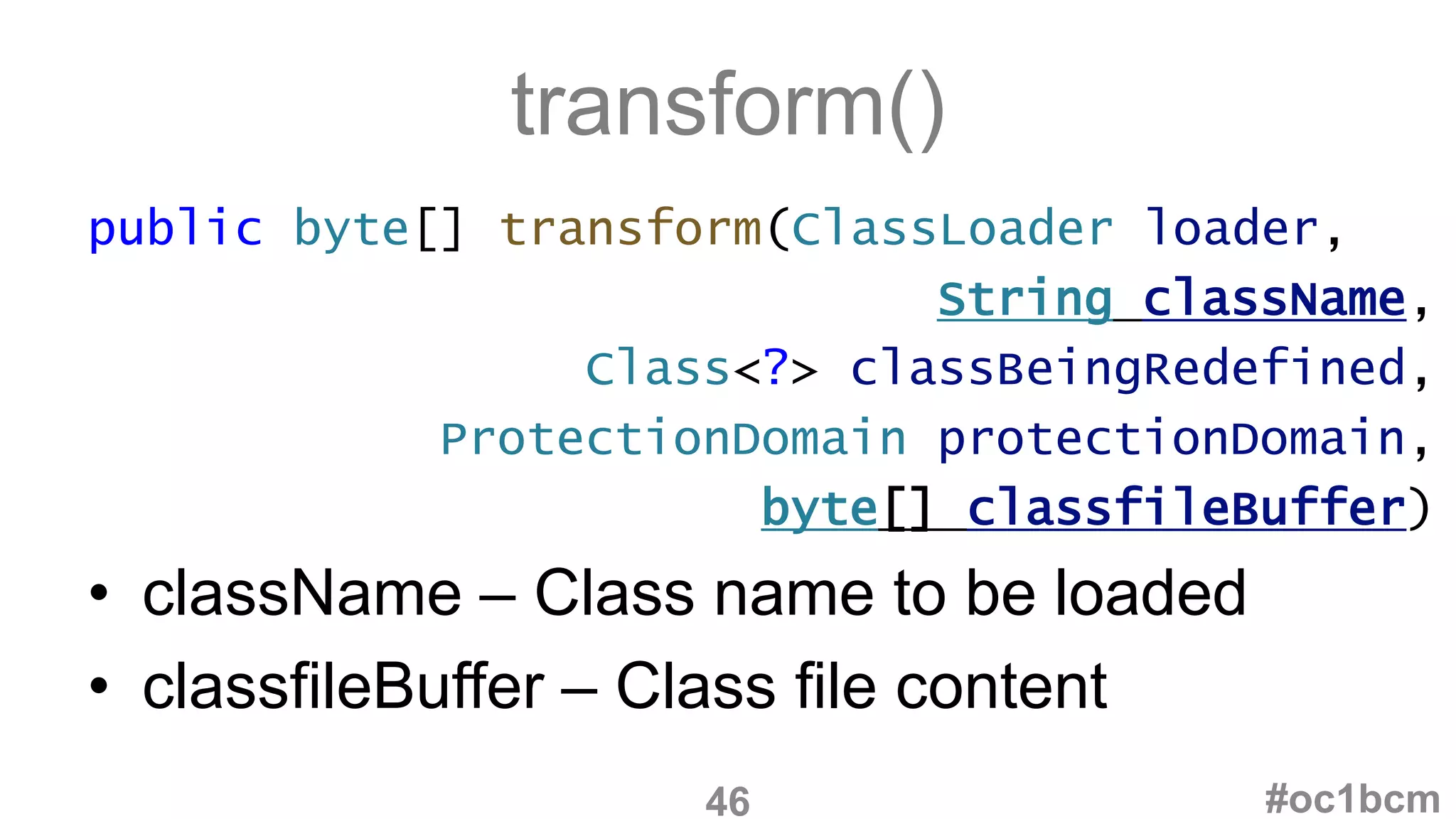

- 46. public byte[] transform(ClassLoaderloader, String className, Class<?> classBeingRedefined, ProtectionDomain protectionDomain, byte[] classfileBuffer) • className – Class name to be loaded • classfileBuffer – Class file content transform() #oc1bcm46

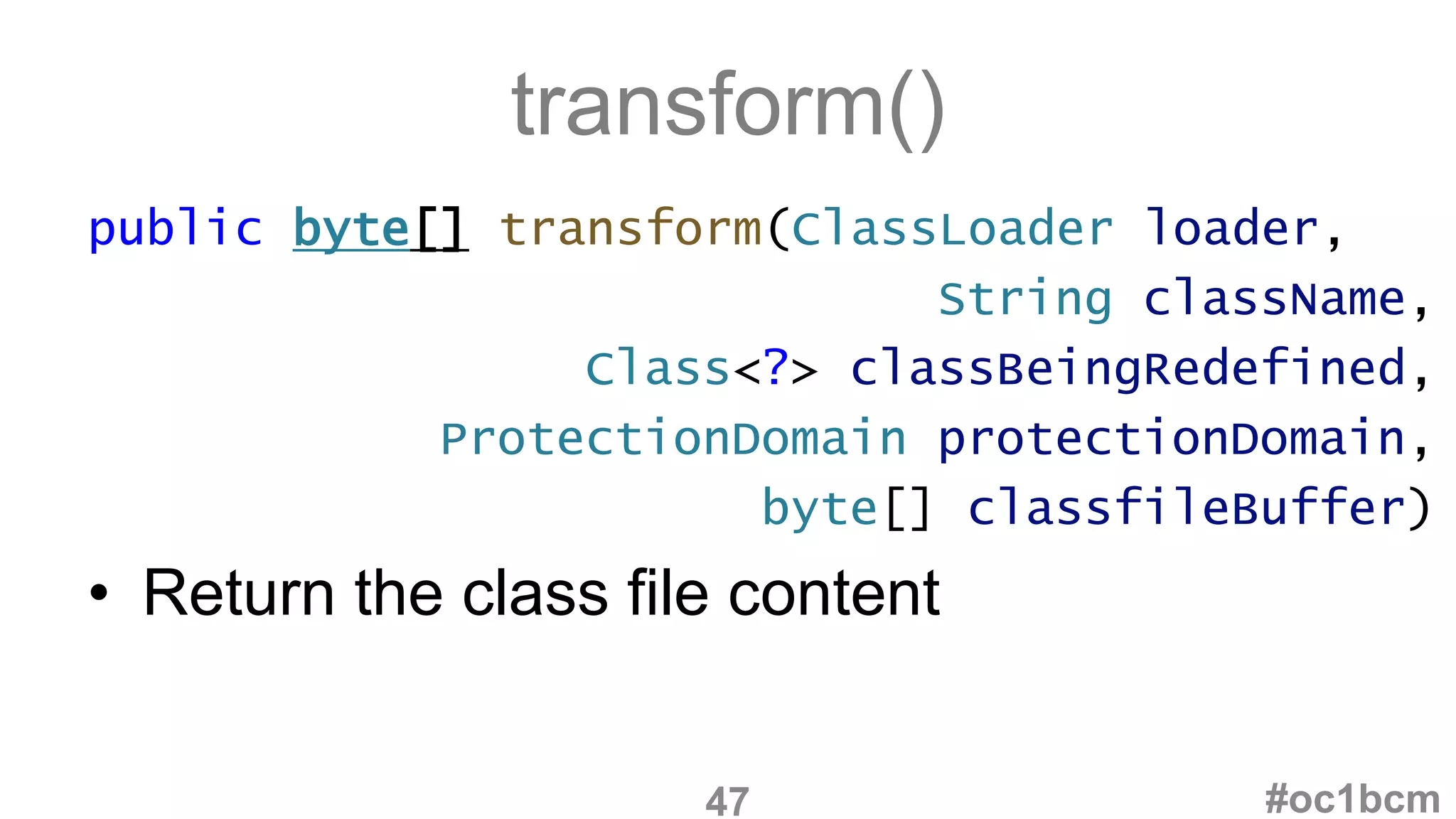

- 47. public byte[] transform(ClassLoaderloader, String className, Class<?> classBeingRedefined, ProtectionDomain protectionDomain, byte[] classfileBuffer) • Return the class file content transform() #oc1bcm47

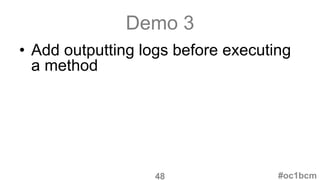

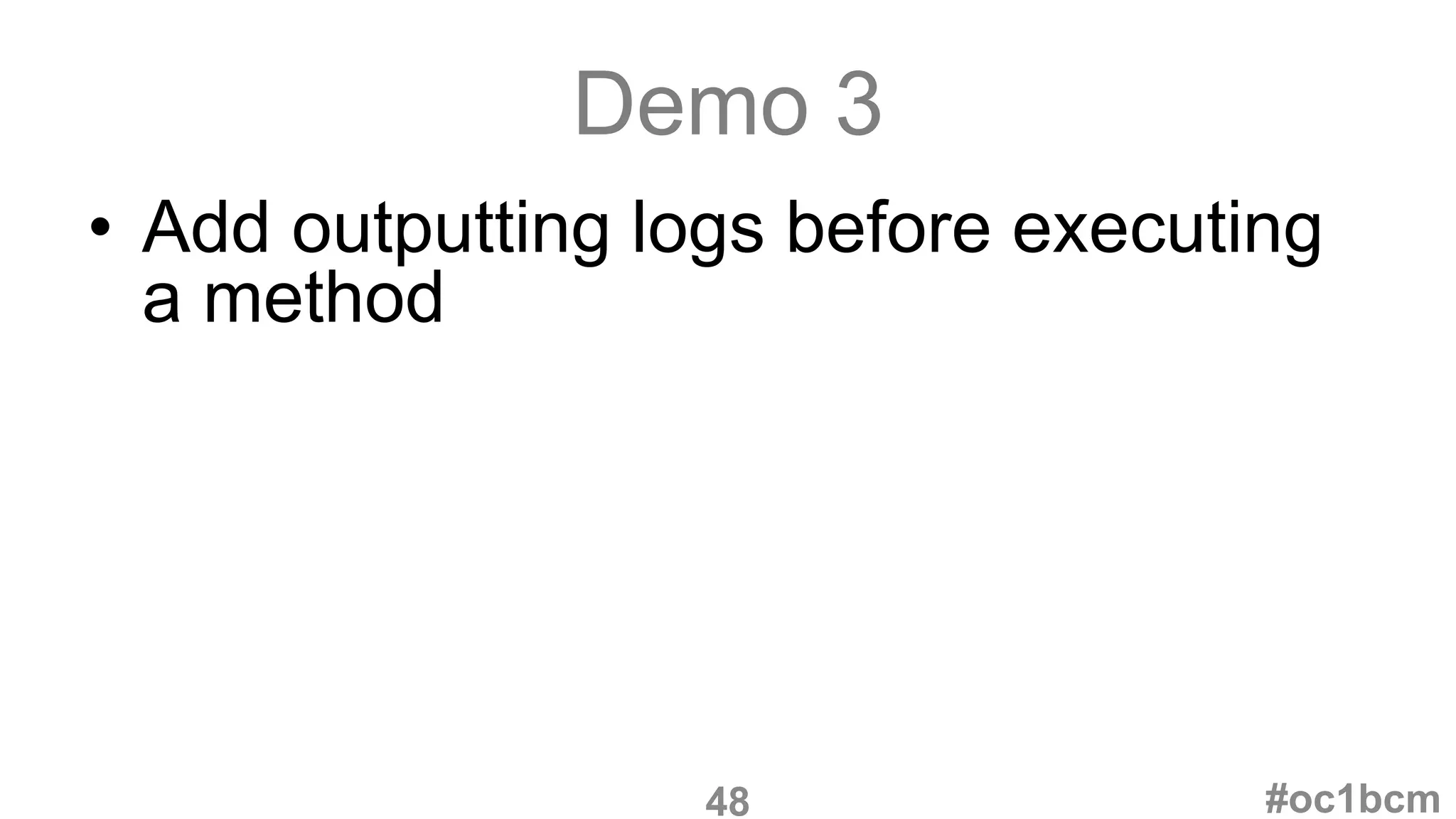

- 48. Demo 3 • Addoutputting logs before executing a method #oc1bcm48
- 49.

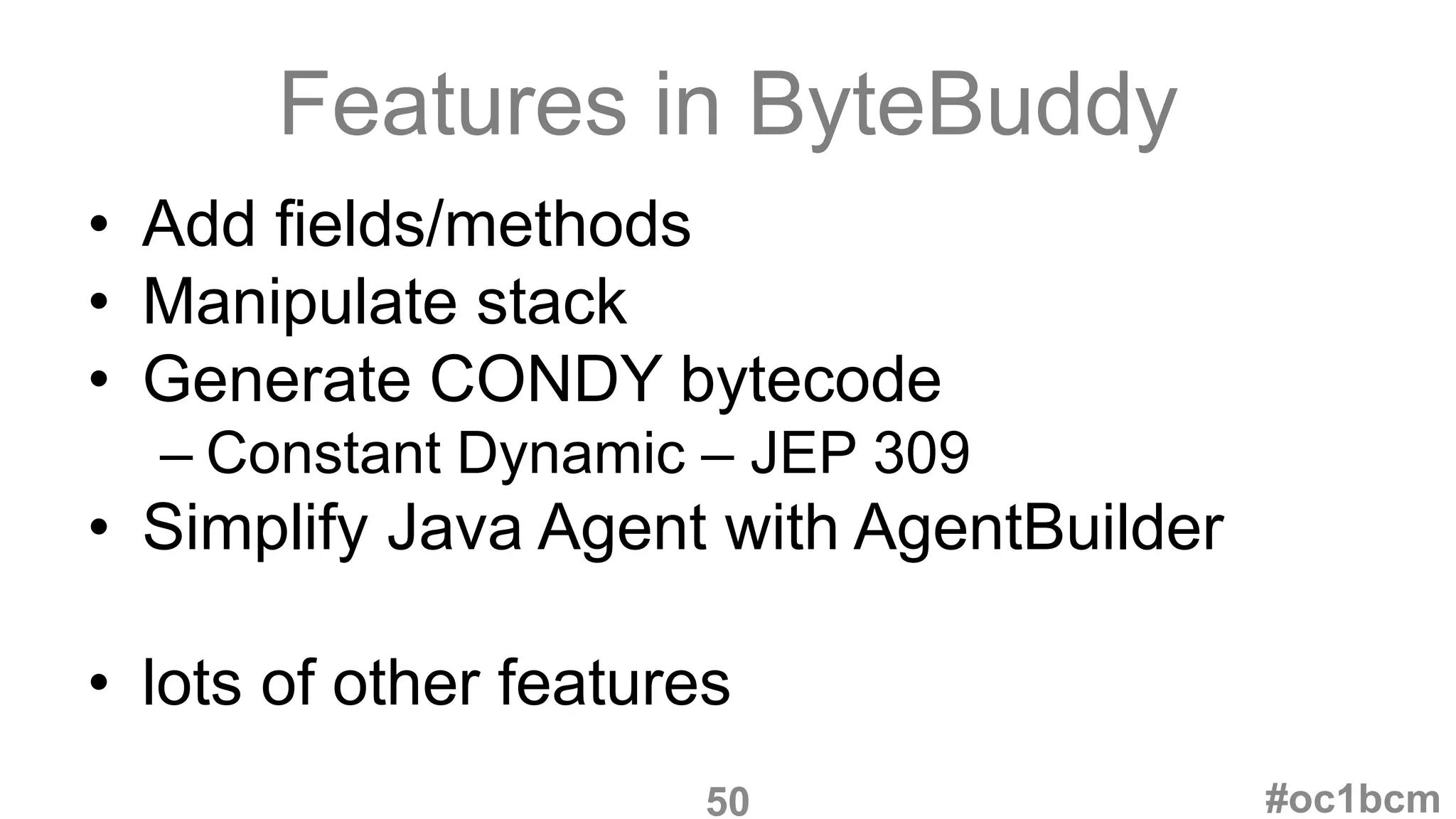

- 50. Features in ByteBuddy •Add fields/methods • Manipulate stack • Generate CONDY bytecode – Constant Dynamic – JEP 309 • Simplify Java Agent with AgentBuilder • lots of other features #oc1bcm50

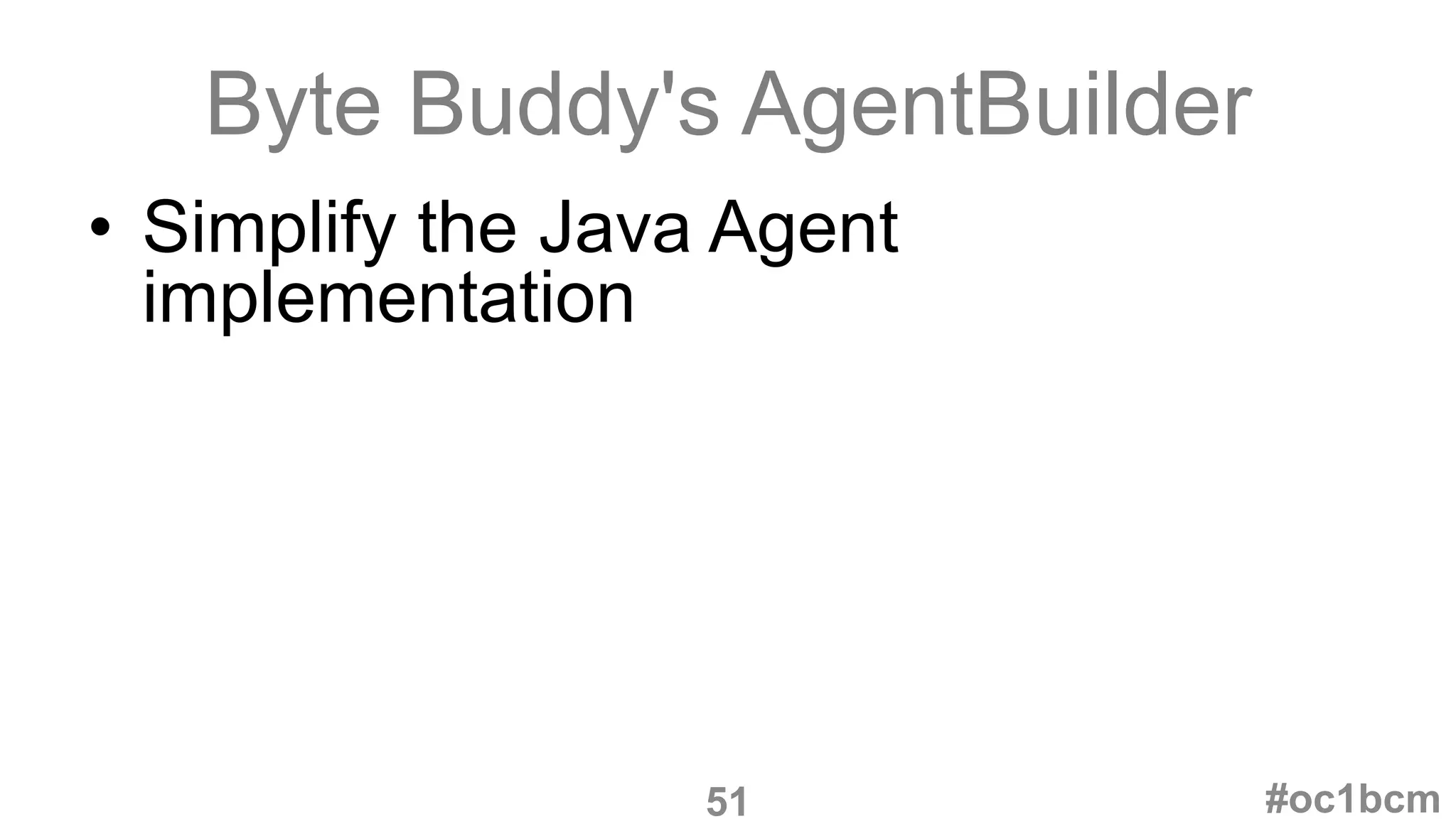

- 51. Byte Buddy's AgentBuilder •Simplify the Java Agent implementation #oc1bcm51

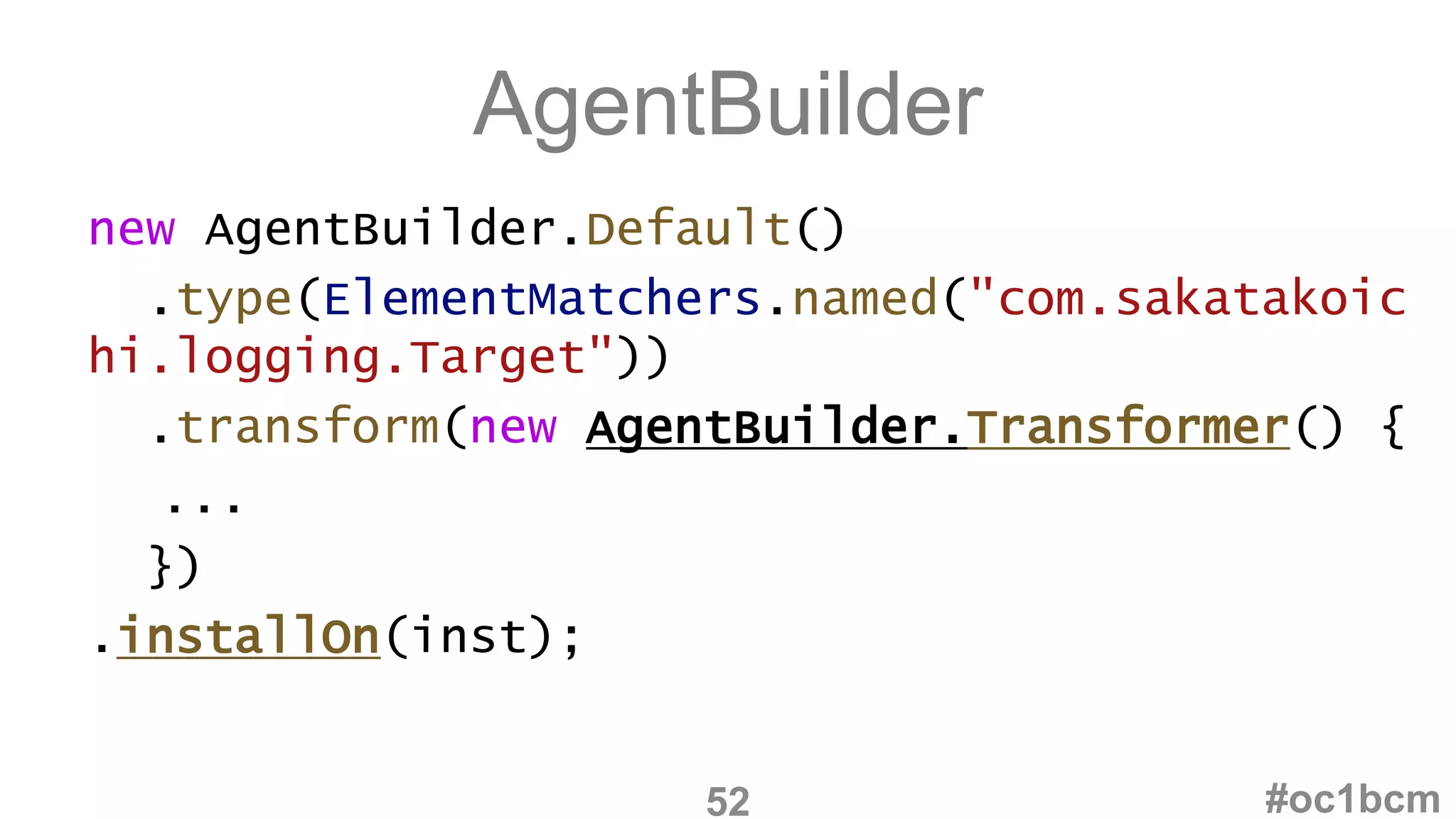

- 52. new AgentBuilder.Default() .type(ElementMatchers.named("com.sakatakoic hi.logging.Target")) .transform(new AgentBuilder.Transformer(){ ... }) .installOn(inst); AgentBuilder #oc1bcm52

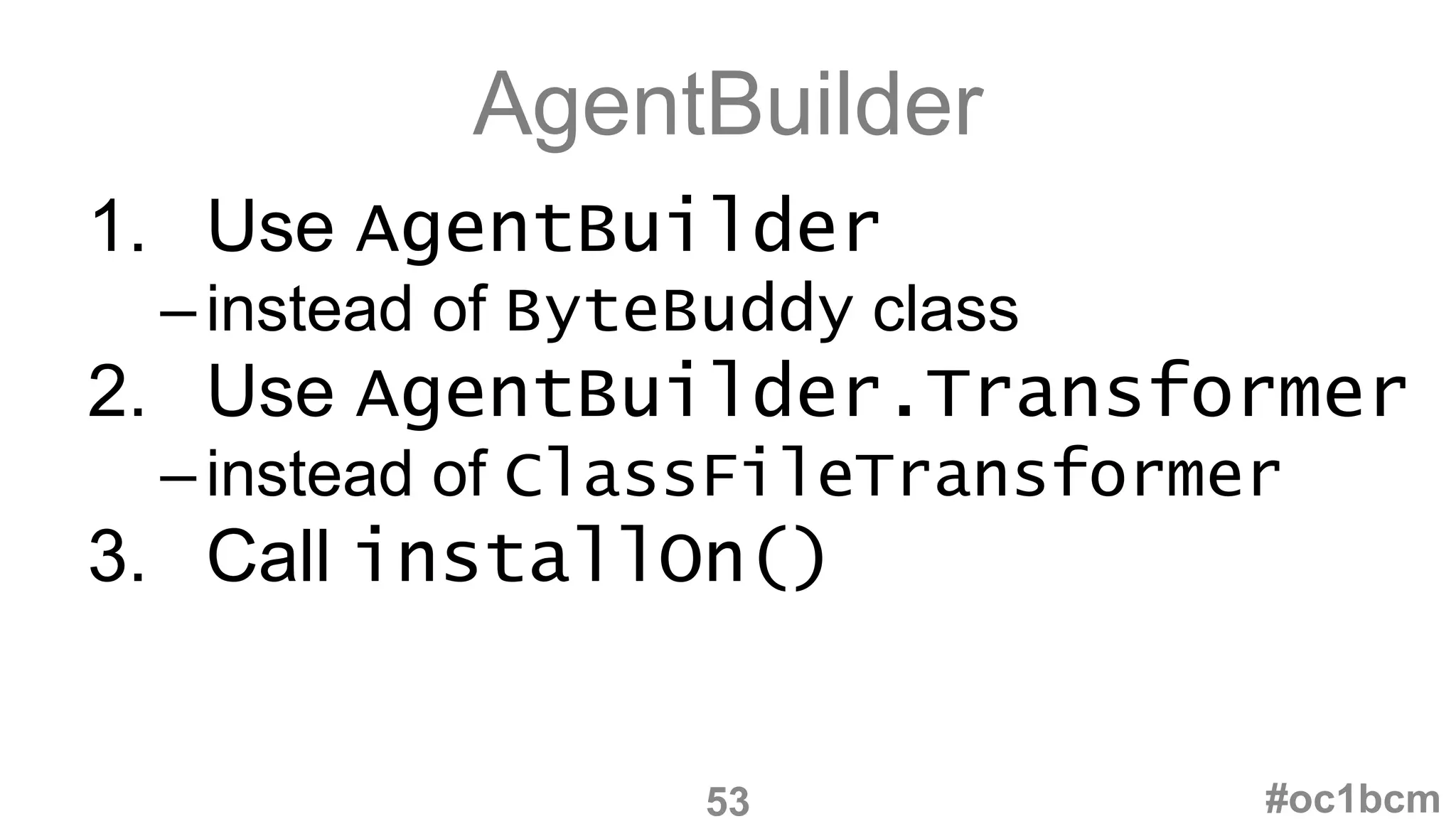

- 53. AgentBuilder 1. Use AgentBuilder –insteadof ByteBuddy class 2. Use AgentBuilder.Transformer –instead of ClassFileTransformer 3. Call installOn() #oc1bcm53

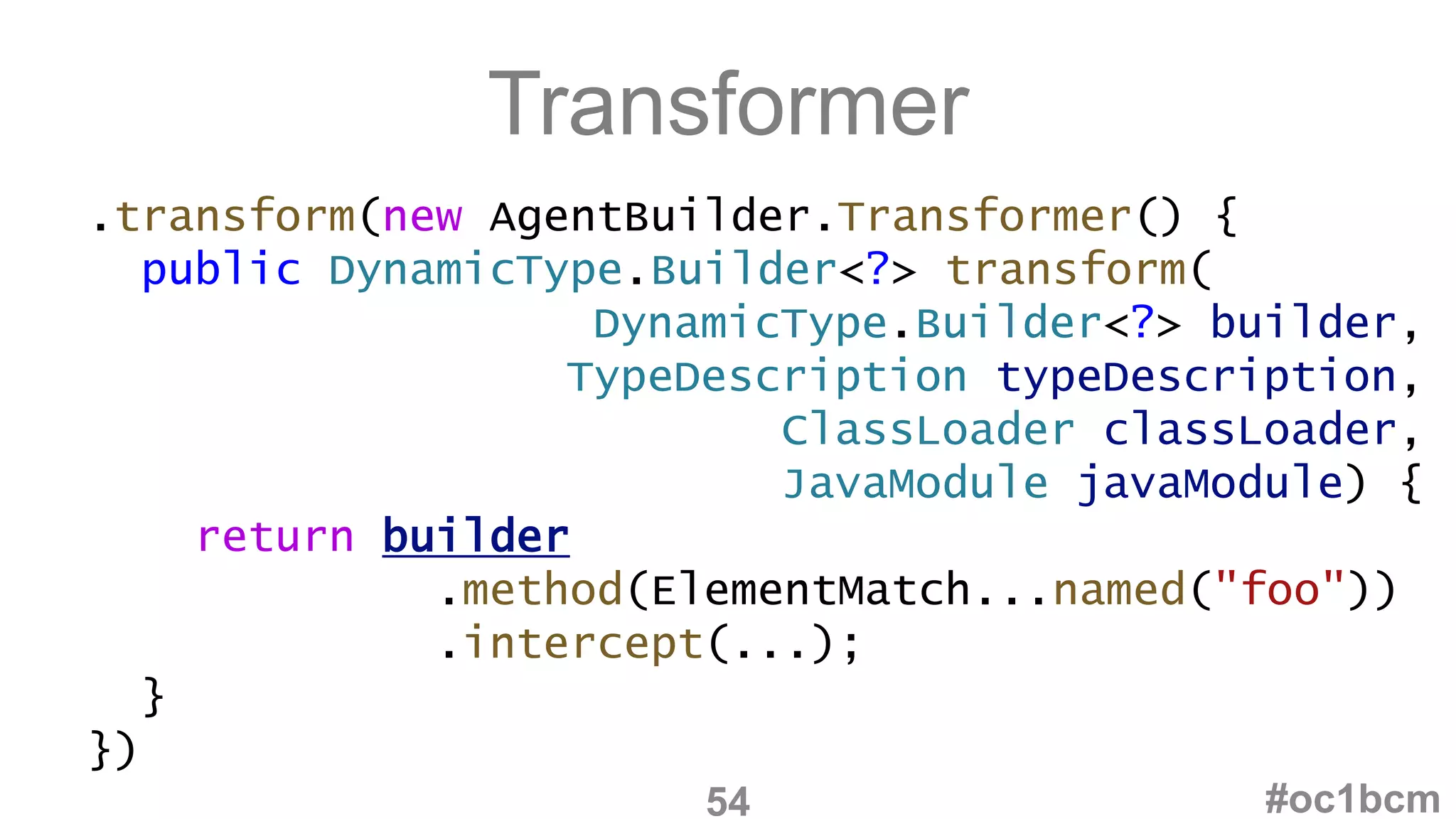

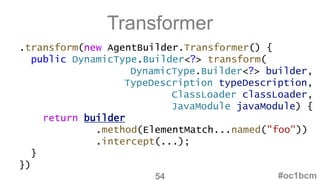

- 54. .transform(new AgentBuilder.Transformer() { publicDynamicType.Builder<?> transform( DynamicType.Builder<?> builder, TypeDescription typeDescription, ClassLoader classLoader, JavaModule javaModule) { return builder .method(ElementMatch...named("foo")) .intercept(...); } }) Transformer #oc1bcm54

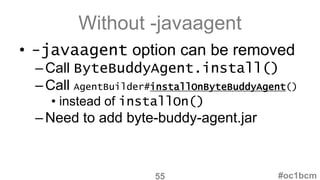

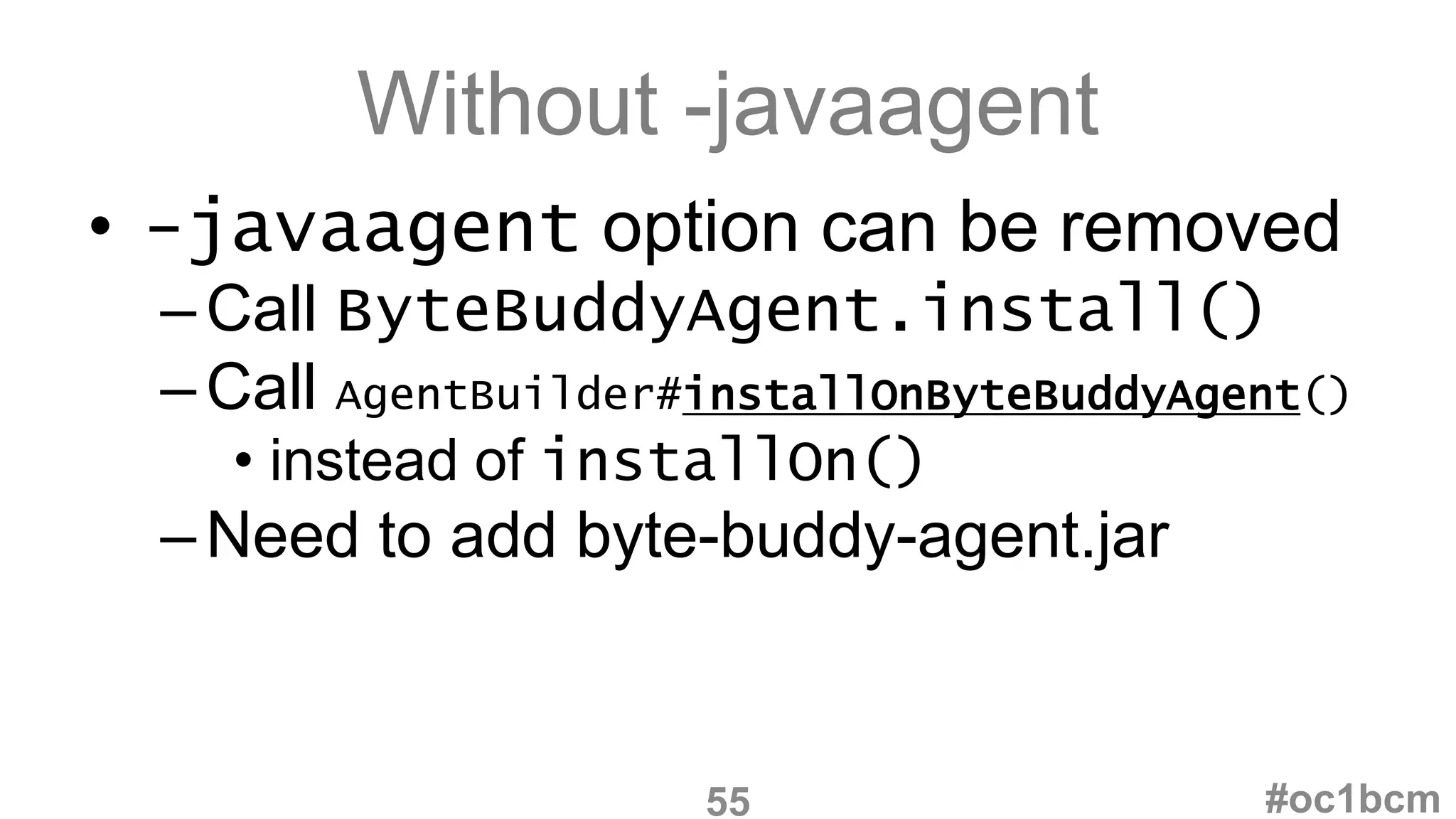

- 55. Without -javaagent • -javaagentoption can be removed –Call ByteBuddyAgent.install() –Call AgentBuilder#installOnByteBuddyAgent() • instead of installOn() –Need to add byte-buddy-agent.jar #oc1bcm55

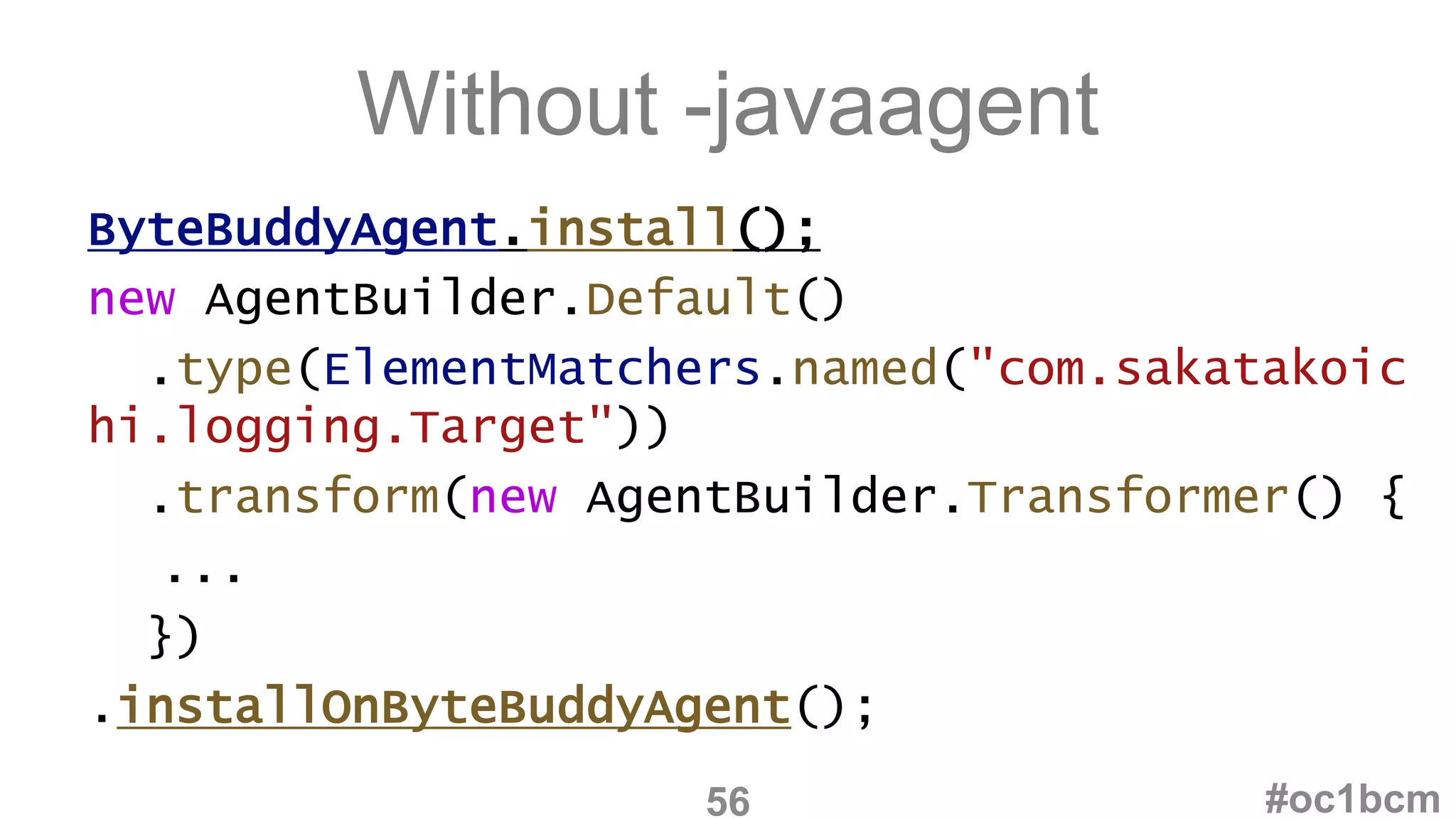

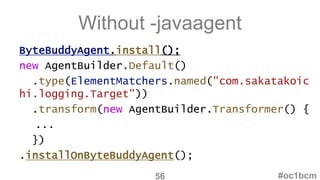

- 56. ByteBuddyAgent.install(); new AgentBuilder.Default() .type(ElementMatchers.named("com.sakatakoic hi.logging.Target")) .transform(new AgentBuilder.Transformer(){ ... }) .installOnByteBuddyAgent(); Without -javaagent #oc1bcm56

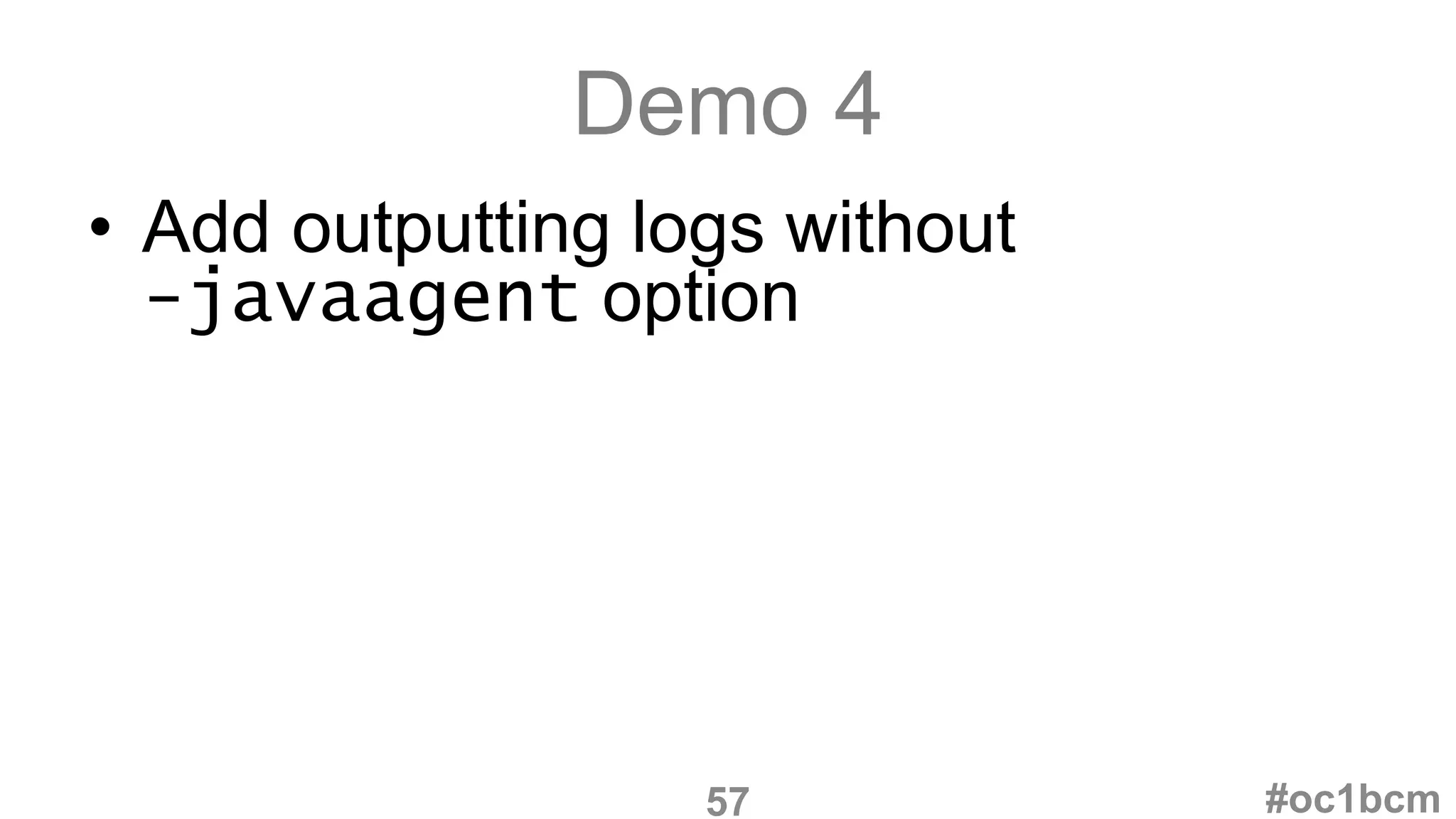

- 57. Demo 4 • Addoutputting logs without -javaagent option #oc1bcm57

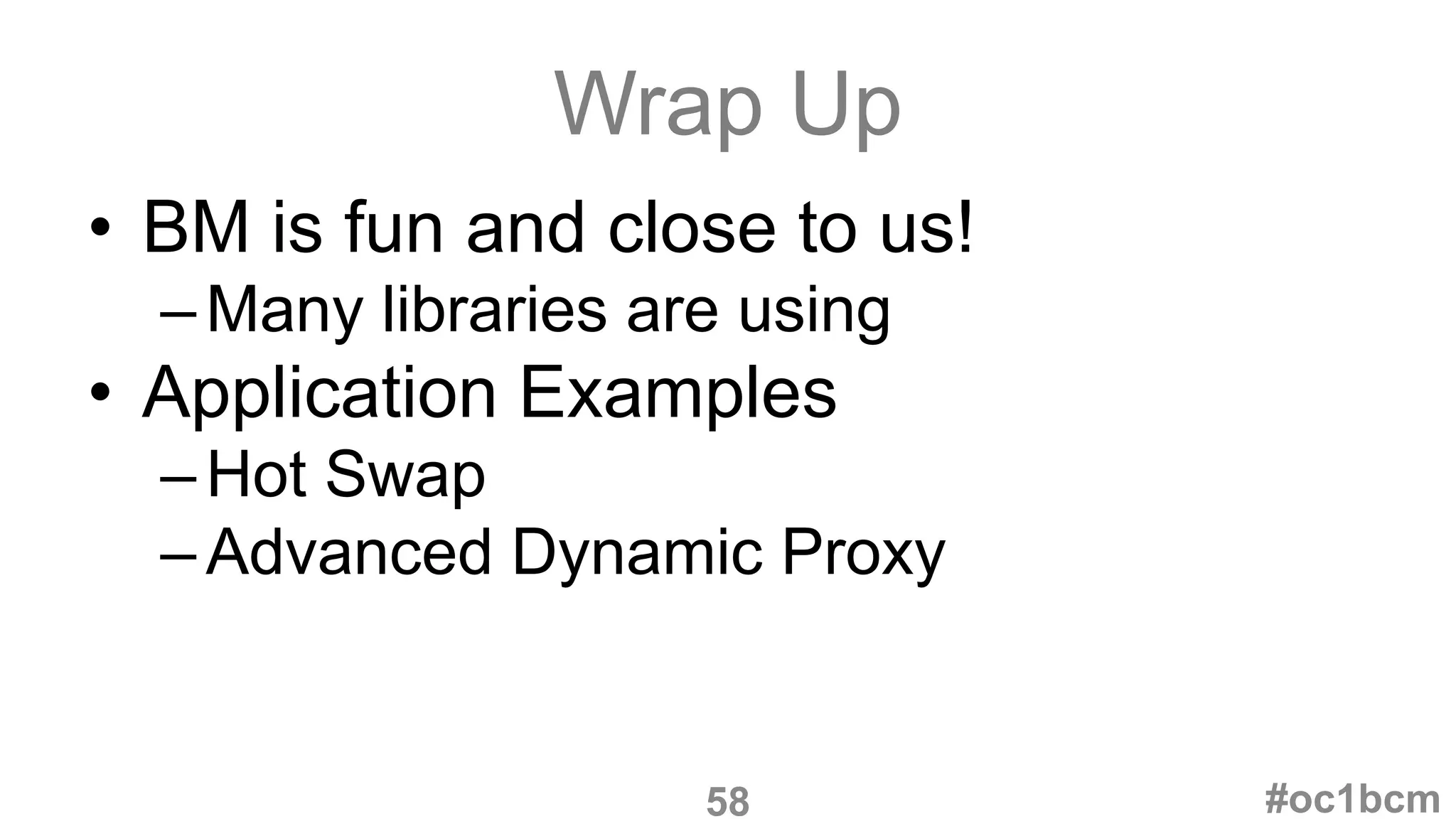

- 58. Wrap Up • BMis fun and close to us! –Many libraries are using • Application Examples –Hot Swap –Advanced Dynamic Proxy #oc1bcm58
Editor's Notes
- #2 Hello, everyone! Today, I'd like to talk about manipulating Java bytecode. I'll introduce Java Agent and a library called Byte Buddy.
- #3 Let me briefly introduce myself. I'm Koichi Sakata. I'm a KanJava JUG leader. Kan means Kansai region in Japan. It includes Kyoto. Do you know Kyoto? Kyoto is visited by many tourists. I became a Java champion this year. I work at PONOS Corporation, that is a mobile game company.
- #4 This session is for beginners, not for experts.
- #5 Moving on to our main topic. Java bytecode is generated by the javac compiler. It's in a class file. It's an intermediate representation of Java programs. We can visualize bytecode with javap command.
- #6 What is bytecode manipulation? It's to edit bytecode, such as add, delete and replace bytecode.
- #7 Why do we manipulate bytecode? Because it's fun!
- #8 But not only fun. It's also useful to change code at runtime. For example, Hibernate uses bytecode manipulation to generate entity objects, and Mockito uses it to create mock objects. Of course at runtime.
- #9 It's hard to change bytecode by hand. Because a class file is a binary file and JVM has a verification process for a class file.
- #10 So there are many libraries for bytecode manipulation. Byte Buddy, Byteman, Javassist, cglib, ASM and BCEL. Today I'll introduce Byte Buddy.
- #11 Why Byte Buddy? Byte Buddy has a Easy-to-use API, supports Java 11 already and won a Duke's Choice Award.
- #12 Many major libraries are using Byte Buddy, such as Hibernate, Mockito, Jackson, etc.
- #13 This is a hello world program with Byte Buddy. It creates a new class that extends Object class, and overrides toString() method to return "Hello World". I'll explain the details of this code.
- #14 First, we create a subclass of the Object class and choose the toString() method.
- #15 Next, we intercept the metod to return a fixed string value "Hello World".
- #16 Make method builds a new type. The new type isn't loaded by a classloader yet, so the type is an unloaded class. Then the classloader loads the type. Finally we can get the new loaded class object. It's easy to manipulate bytecode with Byte Buddy. That's the reason why Byte Buddy is so popular.
- #17 OK, I explained all parts of this code.
- #18 Let's run the hello world. This code is a bit different from the previous code. I'll save a generated class to a file and outputs the method return. (run HelloWorld) Let's see the generated file. It is in a temp directory. Byte Buddy names the dynamic class randomly.
- #19 By the way, the demo code used today is available on GitHub. Just access "bitly/oc1bcm"
- #20 Now I'd like to show code in Mockito. Mockito is a famous mocking framework. This method creates a mock class. As you can see, it's similar to our hello world example.
- #21 How to use? You can run bytecode manipulation code directly in your application. But you need to change your code. When you choose the second option, you need to rebuild. So I'd like to introduce Java Agent. It doesn't require the change. It's also detachable.
- #22 What is Java Agent? The word "Agent" invokes the "Mission: Impossible" spy series. Java Agent do espionage activities in your application, like profiling, logging and even changing the behavior of the application itself.
- #23 Java Agent can instrument programs running on the JVM. It's defined as JSR 163. The JVM calls Java Agent methods with proper timing.
- #24 To create a Java Agent, just define one of the these methods or both, premain() and agentmain().
- #25 Premain() method is called by the JVM before the application's main method(). Agentmain() is called when the agent is attached after the JVM has started.

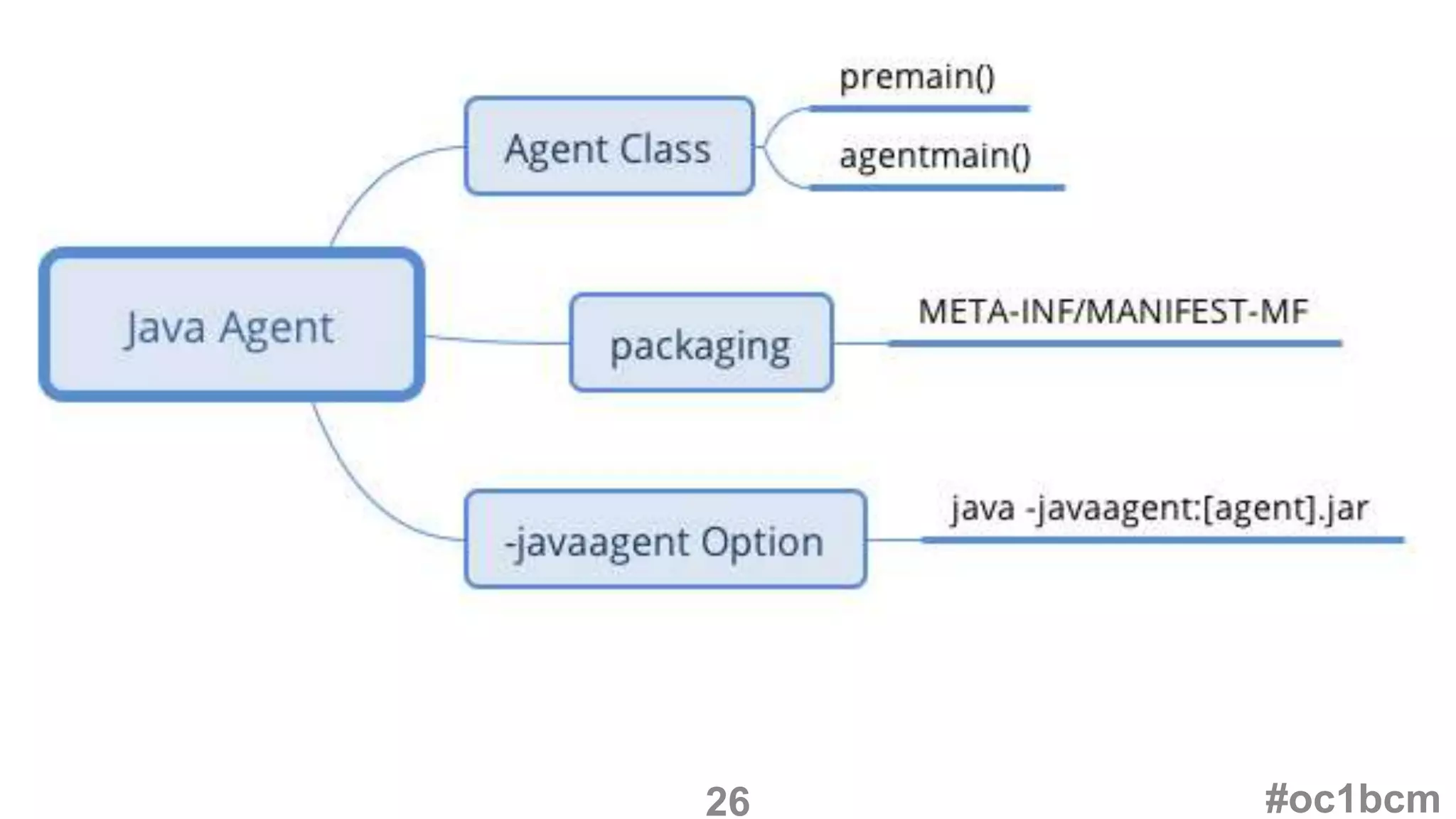

- #26 So with Java Agent, we can run bytecode manipulation code at runtime.
- #27 To create a Java Agent, first, define the Agent Class method. Second, write a MANIFEST.MF file. Third, package the Agent class to a JAR file. Finally, run java command with javaagent option.
- #28 A signature of premain() is "public static void premain()". We can have an opportunity to modify classes before the class is loaded. Instrumentation class in method parameters provides useful methods to modify classes.

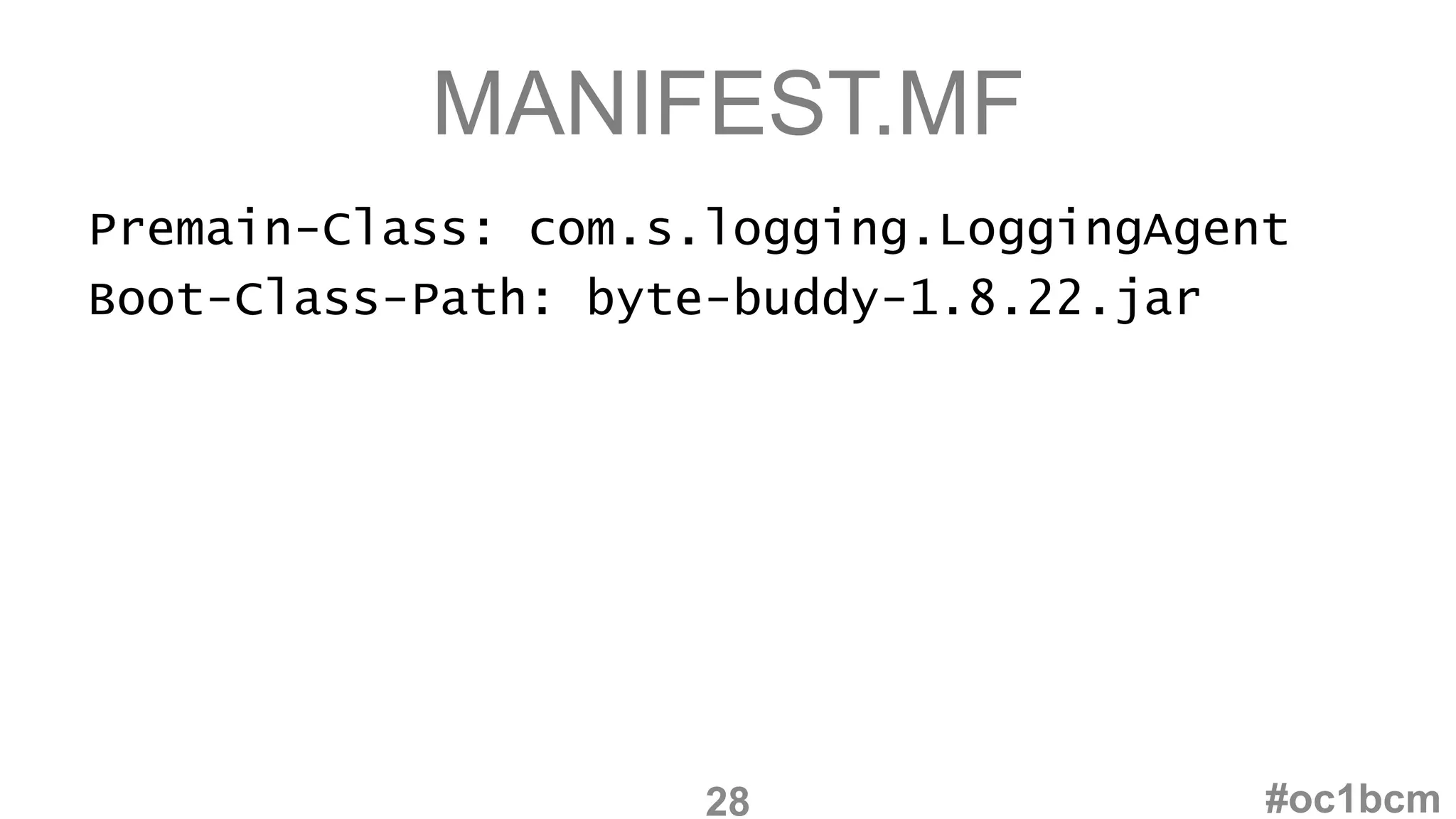

- #29 In the manifest file, we specify the Agent class and set the path to the Byte Buddy's JAR file.
- #30 Let's create a simple Java Agent. The Agent class is a Java agent class. It has the premain() method. This is the Main class. Run the main() method with javaagent option. As you can see, premain() executed before main method.
- #31 Let's combine Java Agent with Byte Buddy. I'll show another example. It adds outputting logs before executing a particular method on a particular class.
- #32 I'll do two things. First, define the premain() method in a class. Second, write code in premain() method to replace the class file to output a log. Note that I don't create a subclass.
- #33 This is the Target class. We want to output a log when foo() method is called.
- #34 Next, replace the class with Byte Buddy. Let me explain the details of this code.
- #35 This code uses rebase() method, instead of previous subclass() method. Rebase() method doesn't create a subclass. It replaces the original implementation with new one and saves it under a different method name.
- #36 Byte Buddy provides three method to enhance existing methods. Subclass() creates a subclass and overrides the method. Redefine() replaces the implementation with new one. Rebase() also replaces it and saves the original implementation.
- #37 Note that we can't use a class literal. If we use a class literal for the Target class, the JVM will load the class before changing the class. We can use the TypePool class and its describe() method, to represent the class without the class literal.
- #38 Also, note that when using unloaded classes, we need to specify a ClassFileLocator. It allows to locate a class file. In this example, we simply create a class file locator with ofClassPath() method. It scans the running application's class path for class files.

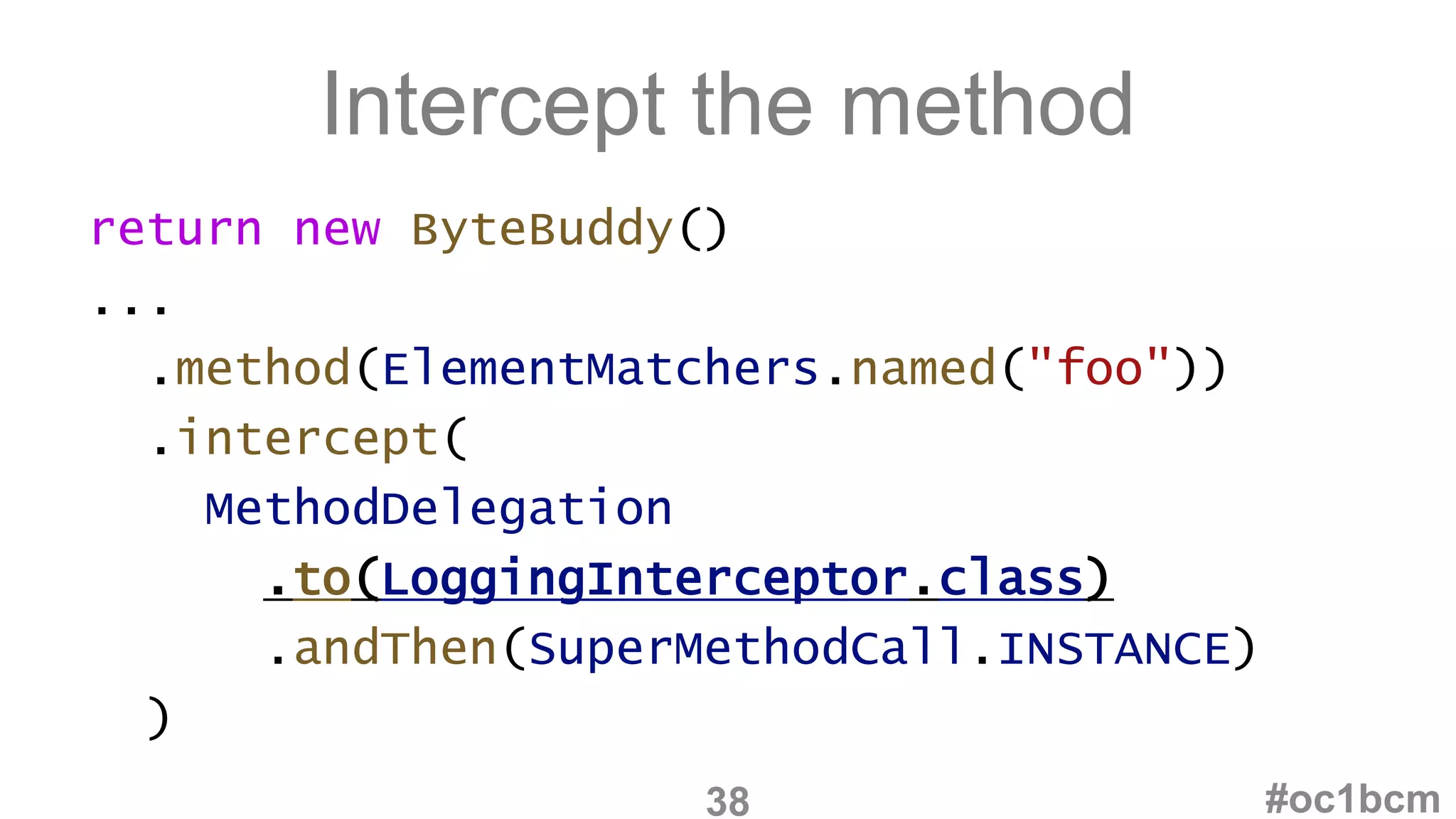

- #39 This time I'd like to delegate outputting to another class, LoggingInterceptor class.
- #40 To do so, We can use MethodDelegation.to() method. We simply specify a class to delegate. A best match method is chosen automatically by Byte Buddy.
- #41 After the method is invoked, the original call will continue, thanks to andThen() method with SuperMethodCall.INSTANCE. SuperMethodCall.INSTANCE represents the original method.
- #42 This is the interceptor class. This code outputs the intecepted method name.
- #43 In delegated method, various annotations can be used. The Origin annotation is a reference to the original method or constructor. So we can get the method object of the original method.
- #44 Other annotations are shown here. More details can be found in the Byte Buddy's website.
- #45 Go back to the premain(). How do we run that code in Java Agent? Instrument API provides ClassFileTransformer class to change bytecode. To manipulate bytecode in Java Agent, We need to override transform(). Then pass the ClassFileTransformer instance to addTransformer() of the Instrumentation class. The transform() will be called by the JVM before loading.
- #46 Let's go on to the transform() method. We can call the manipulation code in transform() method.
- #47 In parameters, class name is the name to be loaded. Class file buffer is the content of the class file.
- #48 We return the class file content from the transform().

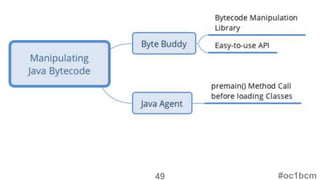

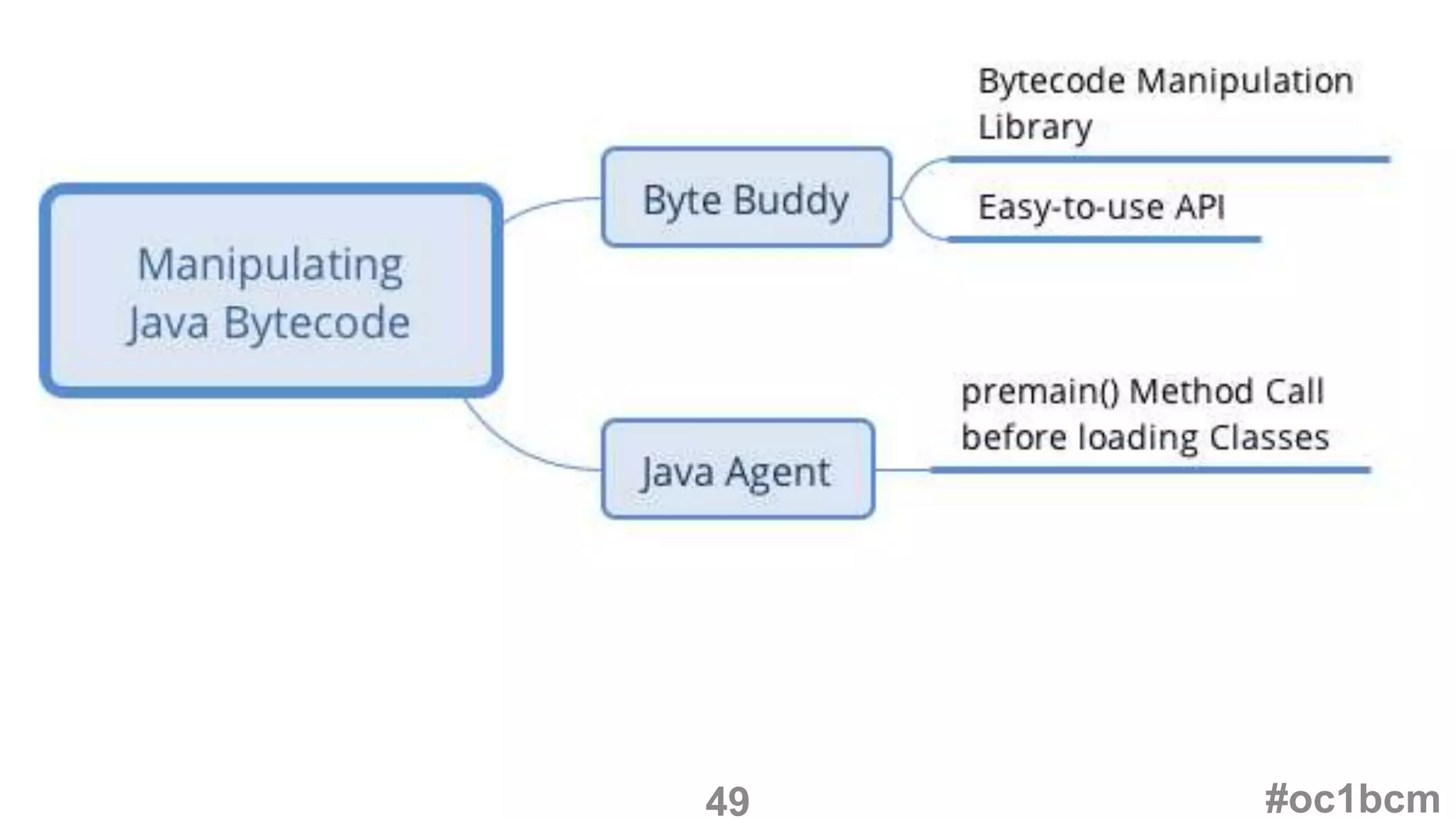

- #49 Finally we can run the demo. Let's see the complete code. (Show LoggingAgent class) (run Target class) OK, foo() is intercepted.
- #50 So we covered the basics of Byte Buddy and Java Agent.
- #51 Of course, there are many features in Byte Buddy. Add fields and methods, manipulate even stacks. Also, we can generate CONDY code with Byte Buddy. Have you ever heard about condy? CONDY means constant dynamic. It defines as JEP 309. It's included from Java 11, but the Java compiler doesn't use CONDY yet. We can try to use CONDY directly with Byte Buddy.
- #52 Acutually Byte Buddy provides AgentBuilder class to simplify Java Agent. We can rewrite the previous Logging Agent with AgentBuilder.
- #53 Just use AgentBuilder class instead of ByteBuddy class, and use AgentBuilder.Transformer instead of ClassFileTransformer. Call install() method at the end.
- #54 Use AgentBuilder, Use AgentBuilder.Transformer and call installOn().
- #55 Then We can use builder object to intercept the method. Let's see the complete code. (show LoggingAgent class) This code is more readable, isn't it? (mvn package & run Target class)
- #56 Additionally, when we use AgentBuilder, we can remove javaagent option. Just call ByteBuddyAgent's install() and AgentBuilder's installOnByteBuddyAgent() instead of installOn() method. To use ByteBuddyAgent, we need to add byte-buddy-agent JAR file to the class path.
- #57 Call ByteBuddyAgent.install() and AgentBuidler's installOnByteBuddyAgent().
- #58 (show LoggingMainWithoutAgent class) Run this code without javaagent option. (run LoggingMainWithoutAgent)
- #59 Let's wrap up. Bytecode manipulation is fun, and it's close to us. I'd like to stress this point. Many famous libraries are using bytecode manipulation. As application examples, there are How Swap, which swap classes at runtime, and advanced dynamic proxy.
