Bulk Containers, Drum, IBCs - DENIOS US
The document outlines a range of storage solutions for aggressive chemicals, including poly and steel drums with various capacities (15, 30, and 55 gallons) and configurations (open and closed top). It provides specifications, pricing, and options for features like bung openings, locking lids, and stackability, catering to compliance and durability needs. Additionally, it includes details on bulk tanks and totes for handling and transportation of liquids and other materials.
More Related Content
Similar to Bulk Containers, Drum, IBCs - DENIOS US
More from DENIOS US, Chemical Storage Buildings and Workplace Safety Products
Bulk Containers, Drum, IBCs - DENIOS US

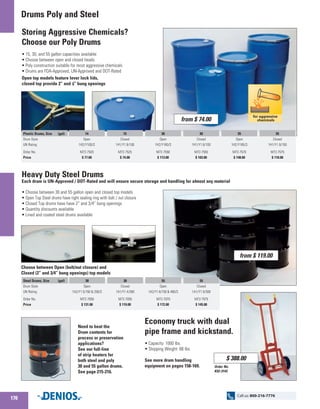

- 1. Storing Aggressive Chemicals? Chooseour Poly Drums • 15, 30, and 55 gallon capacities available • Choose between open and closed heads • Poly construction suitable for most aggressive chemicals • Drums are FDA-Approved, UN-Approved and DOT-Rated Open top models feature lever lock lids, closed top provide 2” and 3 /4” bung openings from $ 119.00 Choose between Open (bolt/nut closure) and Closed (2” and 3/4” bung openings) top models Steel Drums, Size (gal) Drum Style UN Rating Order No. Price 30 Open 1A2/Y1.5/150 250/S M72-7050 $ 131.00 30 Closed 1A1/Y1.4/300 M72-7055 $ 119.00 55 Open 1A2/Y1.8/150 400/S M72-7070 $ 172.00 55 Closed 1A1/Y1.8/300 M72-7075 $ 145.00 14 Open 1H2/Y100/S M72-7520 $ 77.00 15 Closed 1H1/Y1.9/100 M72-7525 $ 74.00 30 Open 1H2/Y180/S M72-7550 $ 113.00 30 Closed 1H1/Y1.8/100 M72-7555 $ 103.00 55 Open 1H2/Y165/S M72-7570 $ 148.00 55 Closed 1H1/Y1.9/150 M72-7575 $ 110.00 Plastic Drums, Size (gal) Drum Style UN Rating Order No. Price from $ 74.00 Heavy Duty Steel Drums Each drum is UN-Approved / DOT-Rated and will ensure secure storage and handling for almost any material • Choose between 30 and 55 gallon open and closed top models • Open Top Steel drums have tight sealing ring with bolt / nut closure • Closed Top drums have have 2” and 3/4” bung openings • Quantity discounts available • Lined and coated steel drums available Economy truck with dual pipe frame and kickstand. • Capacity: 1000 lbs. • Shipping Weight: 68 lbs. See more drum handling equipment on pages 158-169. $ 388.00 Order No. K52-3142 Need to heat the Drum contents for process or preservation applications? See our full-line of strip heaters for both steel and poly 30 and 55 gallon drums. See page 215-216. Drums Poly and Steel 170 Call us: 800-216-7776

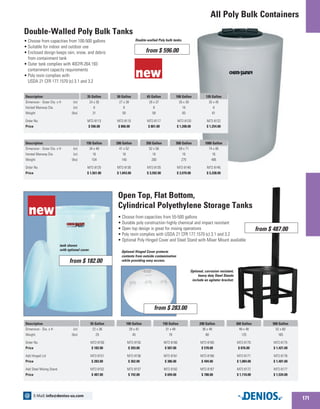

- 2. tank shown with optionalcover. Optional Hinged Cover protects contents from outside contamination while providing easy access. Double-Walled Poly Bulk Tanks • Choose from capacities from 100-500 gallons • Suitable for indoor and outdoor use • Enclosed design keeps rain, snow, and debris from containment tank • Outer tank complies with 40CFR-264.193 containment capacity requirements • Poly resin complies with USDA 21 CFR 177.1570 (c) 3.1 and 3.2 Open Top, Flat Bottom, Cylindrical Polyethylene Storage Tanks • Choose from capacities from 55-500 gallons • Durable poly construction highly chemical and impact resistant • Open top design is great for mixing operations • Poly resin complies with USDA 21 CFR 177.1570 (c) 3.1 and 3.2 • Optional Poly Hinged Cover and Steel Stand with Mixer Mount available from $ 596.00 from $ 283.00 from $ 182.00 Optional, corrosion resistant, heavy duty Steel Stands include an agitator bracket. from $ 487.00 Description Dimension - Dia. x H (in) Weight (lbs) Order No. Price Add Hinged Lid Price Add Steel Mixing Stand Price 55 Gallon 22 x 36 25 M72-8150 $ 182.00 M72-8151 $ 283.00 M72-8152 $ 487.00 100 Gallon 28 x 42 45 M72-8155 $ 393.00 M72-8156 $ 362.00 M72-8157 $ 742.00 150 Gallon 31 x 48 78 M72-8160 $ 507.00 M72-8161 $ 386.00 M72-8162 $ 694.00 200 Gallon 36 x 48 68 M72-8165 $ 578.00 M72-8166 $ 494.00 M72-8167 $ 788.00 360 Gallon 48 x 48 125 M72-8170 $ 876.00 M72-8171 $ 1,084.00 M72-8172 $ 1,110.00 500 Gallon 52 x 60 165 M72-8175 $ 1,421.00 M72-8176 $ 1,401.00 M72-8177 $ 1,534.00 Double-walled Poly bulk tanks. Description Dimension - Outer Dia. x H (in) Vented Manway Dia. (in) Weight (lbs) Order No. Price 35 Gallon 24 x 35 8 31 M72-8113 $ 596.00 50 Gallon 27 x 38 8 50 M72-8115 $ 806.00 65 Gallon 28 x 37 8 58 M72-8117 $ 861.00 100 Gallon 35 x 39 16 83 M72-8120 $ 1,208.00 120 Gallon 33 x 45 8 61 M72-8122 $ 1,254.00 Description Dimension - Outer Dia. x H (in) Vented Manway Dia. (in) Weight (lbs) Order No. Price 150 Gallon 34 x 48 16 104 M72-8125 $ 1,561.00 200 Gallon 41 x 52 16 140 M72-8130 $ 1,843.00 350 Gallon 52 x 56 16 200 M72-8135 $ 3,592.00 500 Gallon 59 x 71 16 275 M72-8140 $ 3,970.00 1000 Gallon 74 x 85 16 495 M72-8145 $ 5,338.00 All Poly Bulk Containers 171 E-Mail: info@denios-us.com@
- 3. Order No. M72-1885 $612.00 Order No. M72-1887 $ 1,490.00 Mobil Mini Bulk Tanks feature fork lift entry for convenient handling. Choose from two capacities/designs. • Designed for the efficient handling and storage of in-plant chemicals. These tanks are molded of linear polyethylene for durability and resistance to hazardous, corrosive chemicals • Translucent for visible content level • Molded in stand pipe locator for 2” pipe • Concaved Bottom to facilitate drainage • 8” vented manway for easy filling • Complies with Federal Spill Containment 40CFR 264-193 requirements Description Dimensions L x D x H (in) Vented Manway Dia. (in) Shipping Weight (lbs) Order No. Price 120 Gallon 38 x 29 8 45 M72-1893 $ 586.00 220 Gallon 42 x 41 8 60 M72-1897 $ 859.00 Description Dimensions L x D x H (in) Vented Manway Dia. (in) Shipping Weight (lbs) Order No. Price 110 Gallon 35 x 36 8 55 M72-1885 $ 612.00 Cone Bottom 175 Gallon 42 x 49 8 95 M72-1887 $ 1,490.00 Mini-Bulk tanks are available in capacities of 120 and 220 gallons. from $ 552.00 Regardless of the type of bulk container you use, DENIOS manufactures the Occupancy Building or Non-Occupancy Building which will provide compliant spill containment. See pages 8-55. Mini / Mobile Bulk Tanks 172 Call us: 800-216-7776

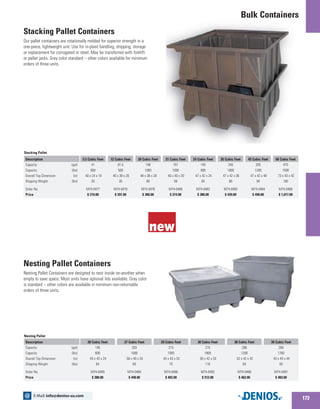

- 4. Bulk Containers Stacking PalletContainers Our pallet containers are rotationally molded for superior strength in a one-piece, lightweight unit. Use for in-plant handling, shipping, storage or replacement for corrugated or steel. May be transferred with forklift or pallet jacks. Grey color standard – other colors available for minimum orders of three units. Nesting Pallet Containers Nesting Pallet Containers are designed to nest inside on-another when empty to save space. Most units have optional lids available. Gray color is standard – other colors are available in minimum non-returnable orders of three units. 173 E-Mail: info@denios-us.com@ Description Capacity (gal) Capacity (lbs) Overall Top Dimension (in) Shipping Weight (lbs) Order No. Price 5.5 Cubic Feet 41 600 40 x 24 x 18 30 M74-0477 $ 219.00 12 Cubic Feet 91.5 500 40 x 39 x 20 35 M74-0479 $ 397.00 20 Cubic Feet 146 1000 48 x 36 x 28 60 M74-0478 $ 380.00 21 Cubic Feet 157 1000 40 x 40 x 30 59 M74-0480 $ 374.00 24 Cubic Feet 145 800 47 x 42 x 24 64 M74-0482 $ 380.00 35 Cubic Feet 240 1000 47 x 42 x 36 80 M74-0483 $ 439.00 45 Cubic Feet 335 1200 47 x 42 x 48 94 M74-0484 $ 490.00 60 Cubic Feet 475 1500 73 x 43 x 42 195 M74-0486 $ 1,017.00 Stacking Pallet Nesting Pallet Description Capacity (gal) Capacity (lbs) Overall Top Dimension (in) Shipping Weight (lbs) Order No. Price 20 Cubic Feet 145 600 43 x 43 x 24 64 M74-0489 $ 380.00 27 Cubic Feet 203 1000 50 x 40 x 33 80 M74-0494 $ 448.00 29 Cubic Feet 215 1000 43 x 43 x 33 75 M74-0490 $ 402.00 30 Cubic Feet 215 1000 50 x 42 x 33 116 M74-0493 $ 512.00 38 Cubic Feet 286 1200 52 x 42 x 42 84 M74-0496 $ 462.00 39 Cubic Feet 290 1200 43 x 43 x 44 93 M74-0491 $ 483.00
- 5. Steel and StainlessSteel Totes Provide Durable Containment for Storage and Transport • Choose between carbon and 304 stainless steel construction • Available in capacities from 250 to 550 gallons • Patented one-piece sloped bottom assures uniform and complete drainage. • 22 1/2” diameter fill opening allows easy dispensing into Tote • Meets and exceeds UN regulations and are authorized for shipment of combustible and flammable liquids per title 49 CFR • Stackable to 3 high, when warehousing only • 1/4” thick combination lift lugs and leg positioners ease shipping and handling • Long service life with minimal maintenance • Patented TranSeal pressure relieving bung plug TRANSTORE® IBCS Equipped with 2” NPS brass or stainless steel outlet assembly • Supplied with cover, EPDM gasket and bolt ring 250 Gallon 42 x 48 x 35 375 330 M72-7905 $ 3,389.00 M72-7910 $ 2,137.00 300 Gallon 42 x 48 x 41 400 360 M72-7915 $ 3,402.00 M72-7920 $ 2,188.00 350 Gallon 42 x 48 x 47 500 460 M72-7925 $ 3,767.00 M72-7930 $ 2,198.00 450 Gallon 42 x 48 x 59 600 545 M72-7935 $ 4,260.00 M72-7940 $ 2,291.00 550 Gallon 42 x 48 x 71 650 630 M72-7945 $ 4,614.00 M72-7950 $ 2,529.00 Description Dimensions L x D x H (in) Shipping Weight- Stainless Steel (lbs) Shipping Weight- Carbon Steel (lbs) Order No. - Stainless Steel Price Order No. - Painted Steel Price Provide spill protection for your totes with our IBC Containment Sumps. See pages 81-88; 122-125. from $ 2,137.00 from $ 3,389.00 IBC Totes Steel 174 Call us: 800-216-7776

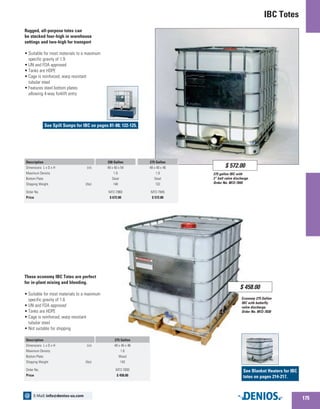

- 6. IBC Totes 275 gallonIBC with 2” ball valve discharge. Order No. M72-7845 $ 572.00 Rugged, all-purpose totes can be stacked four-high in warehouse settings and two-high for transport • Suitable for most materials to a maximum specific gravity of 1.9 • UN and FDA approved • Tanks are HDPE • Cage is reinforced, warp resistant tubular steel • Features steel bottom plates allowing 4-way forklift entry These economy IBC Totes are perfect for in-plant mixing and blending. • Suitable for most materials to a maximum specific gravity of 1.6 • UN and FDA approved • Tanks are HDPE • Cage is reinforced, warp resistant tubular steel • Not suitable for shipping Description Dimensions L x D x H (in) Maximum Density Bottom Plate Shipping Weight (lbs) Order No. Price 330 Gallon 48 x 40 x 54 1.9 Steel 148 M72-7860 $ 672.00 275 Gallon 48 x 40 x 46 1.9 Steel 132 M72-7845 $ 572.00 Description Dimensions L x D x H (in) Maximum Density Bottom Plate Shipping Weight (lbs) Order No. Price 275 Gallon 48 x 40 x 46 1.6 Wood 143 M72-7830 $ 458.00 Economy 275 Gallon IBC with butterfly valve discharge. Order No. M72-7830 $ 458.00 See Spill Sumps for IBC on pages 81-88; 122-125. See Blanket Heaters for IBC totes on pages 214-217. 175 E-Mail: info@denios-us.com@

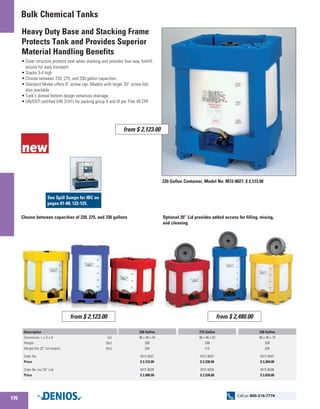

- 7. Heavy Duty Baseand Stacking Frame Protects Tank and Provides Superior Material Handling Benefits • Outer structure protects tank when stacking and provides four-way forklift access for easy transport • Stacks 3-4 high • Choose between 220, 275, and 330 gallon capacities. • Standard Model offers 6” screw cap. Models with larger 20” screw lids also available • Tank’s domed bottom design enhances drainage • UN/DOT certified (UN 31H1) for packing group II and III per Title 49 CFR Optional 20” Lid provides added access for filling, mixing, and cleaning 220 Gallon Container, Model No: M72-8027, $ 2,123.00 Choose between capacities of 220, 275, and 330 gallons Description Dimensions L x D x H (in) Weight (lbs) Weight (for 20” lid models) (lbs) Order No. Price Order No. (w/ 20” Lid) Price 220 Gallon 46 x 46 x 54 268 294 M72-8027 $ 2,123.00 M72-8028 $ 2,480.00 275 Gallon 46 x 46 x 62 289 315 M72-8037 $ 2,230.00 M72-8038 $ 2,538.00 330 Gallon 46 x 46 x 70 309 335 M72-8047 $ 2,369.00 M72-8048 $ 2,659.00 from $ 2,123.00 from $ 2,480.00 from $ 2,123.00 See Spill Sumps for IBC on pages 81-88; 122-125. Bulk Chemical Tanks 176 Call us: 800-216-7776

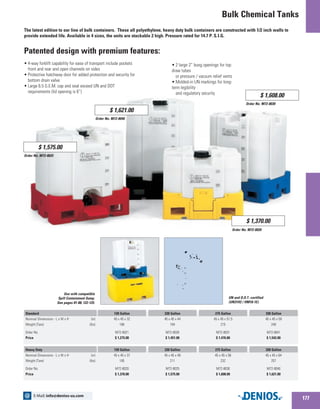

- 8. The latest editionto our line of bulk containers. These all polyethylene, heavy duty bulk containers are constructed with 1/2 inch walls to provide extended life. Available in 4 sizes, the units are stackable 2 high. Pressure rated for 14.7 P. S.I.G. • 2 large 2” bung openings for top draw tubes or pressure / vacuum relief vents • Molded-in UN markings for long- term legibility and regulatory security Patented design with premium features: • 4-way forklift capability for ease of transport include pockets front and rear and open channels on sides • Protective hatchway door for added protection and security for bottom drain valve • Large 6.5 G.E.M. cap and seal exceed UN and DOT requirements (lid opening is 6”) Order No. M72-8025 Use with compatible Spill Containment Sump. See pages 81-88; 122-125. UN and D.O.T.-certified (UN31H2 / HM18-1E). $ 1,575.00 $ 1,370.00 Order No. M72-8040 Order No. M72-8020 $ 1,621.00 120 Gallon 45 x 45 x 32 168 M72-8021 $ 1,275.00 220 Gallon 45 x 45 x 44 184 M72-8026 $ 1,451.00 275 Gallon 45 x 45 x 51.5 215 M72-8031 $ 1,476.00 330 Gallon 45 x 45 x 59 240 M72-8041 $ 1,542.00 Standard Nominal Dimensions - L x W x H (in) Weight (Tare) (lbs) Order No. Price Order No. M72-8030 $ 1,608.00 Bulk Chemical Tanks 120 Gallon 45 x 45 x 37 185 M72-8020 $ 1,370.00 220 Gallon 45 x 45 x 49 211 M72-8025 $ 1,575.00 275 Gallon 45 x 45 x 56 232 M72-8030 $ 1,608.00 330 Gallon 45 x 45 x 64 257 M72-8040 $ 1,621.00 Heavy Duty Nominal Dimensions - L x W x H (in) Weight (Tare) (lbs) Order No. Price 177 E-Mail: info@denios-us.com@
