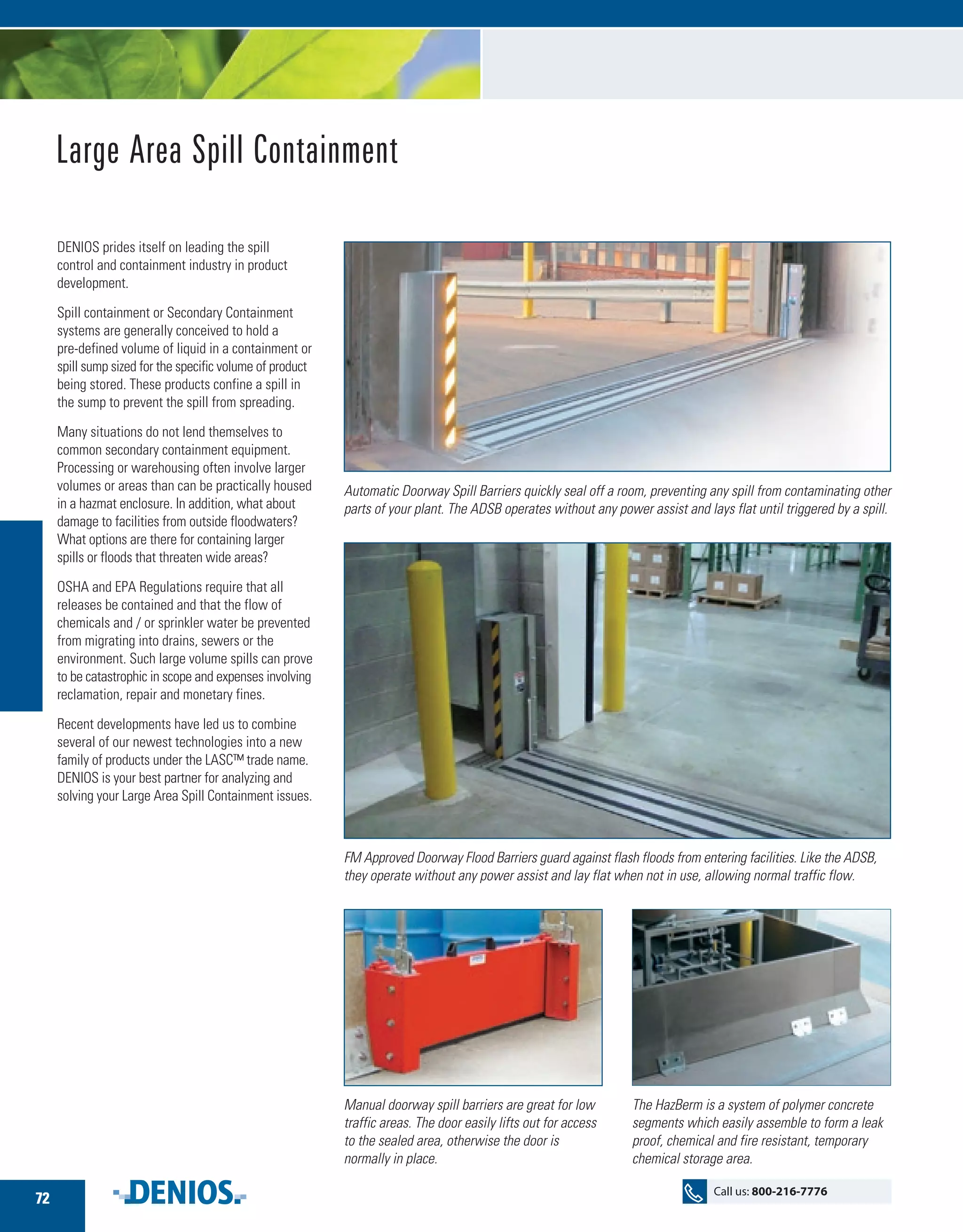

DENIOS prides itself on leading the spill control and containment industry in product development. Spill containment or Secondary Containment systems are generally conceived to hold a pre-defined volume of liquid in a containment or spill sump sized for the specific volume of product being stored.

1. DENIOS prides itself on leading the spill
control and containment industry in product
development.
Spill containment or Secondary Containment
systems are generally conceived to hold a
pre-defined volume of liquid in a containment or
spill sump sized for the specific volume of product
being stored. These products confine a spill in
the sump to prevent the spill from spreading.
Many situations do not lend themselves to
common secondary containment equipment.
Processing or warehousing often involve larger
volumes or areas than can be practically housed
in a hazmat enclosure. In addition, what about
damage to facilities from outside floodwaters?
What options are there for containing larger
spills or floods that threaten wide areas?
OSHA and EPA Regulations require that all
releases be contained and that the flow of
chemicals and / or sprinkler water be prevented
from migrating into drains, sewers or the
environment. Such large volume spills can prove
to be catastrophic in scope and expenses involving
reclamation, repair and monetary fines.
Recent developments have led us to combine
several of our newest technologies into a new
family of products under the LASC™ trade name.
DENIOS is your best partner for analyzing and
solving your Large Area Spill Containment issues.
Large Area Spill Containment
Automatic Doorway Spill Barriers quickly seal off a room, preventing any spill from contaminating other
parts of your plant. The ADSB operates without any power assist and lays flat until triggered by a spill.
The HazBerm is a system of polymer concrete
segments which easily assemble to form a leak
proof, chemical and fire resistant, temporary
chemical storage area.
Manual doorway spill barriers are great for low
traffic areas. The door easily lifts out for access
to the sealed area, otherwise the door is
normally in place.
FM Approved Doorway Flood Barriers guard against flash floods from entering facilities. Like the ADSB,
they operate without any power assist and lay flat when not in use, allowing normal traffic flow.
72
Call us: 800-216-7776

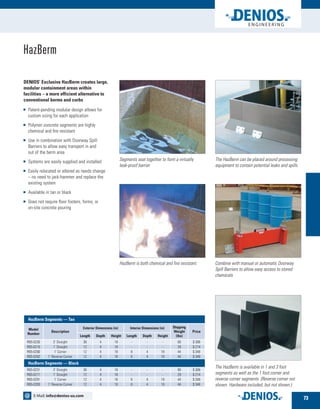

2. DENIOS’ Exclusive HazBerm creates large,
modular containment areas within
facilities – a more efficient alternative to
conventional berms and curbs
Patent-pending modular design allows for
custom sizing for each application
Polymer concrete segments are highly
chemical and fire resistant
Use in combination with Doorway Spill
Barriers to allow easy transport in and
out of the berm area
Systems are easily supplied and installed
Easily relocated or altered as needs change
– no need to jack-hammer and replace the
existing system
Available in tan or black
Does not require floor footers, forms, or
on-site concrete pouring
HazBerm
The HazBerm can be placed around processing
equipment to contain potential leaks and spills
The HazBerm is available in 1 and 3 foot
segments as well as the 1 foot corner and
reverse corner segments. (Reverse corner not
shown. Hardware included, but not shown.)
Segments seal together to form a virtually
leak-proof barrier
Combine with manual or automatic Doorway
Spill Barriers to allow easy access to stored
chemicals
HazBerm is both chemical and fire resistant.
Model
Number
Description
Length Depth Height Length Depth Height
Shipping
Weight
(lbs)
Price
R05-0230 3’ Straight 36 4 18 - - - 90 $ 388
R05-0210 1’ Straight 12 4 18 - - - 29 $ 214
R05-0290 1’ Corner 12 4 18 8 4 18 44 $ 348
R05-0292 1’ Reverse Corner 12 4 18 8 4 18 44 $ 348
Exterior Dimensions (in) Interior Dimensions (in)
HazBerm Segments — Tan
R05-0231 3’ Straight 36 4 18 - - - 90 $ 388
R05-0211 1’ Straight 12 4 18 - - - 29 $ 214
R05-0291 1’ Corner 12 4 18 8 4 18 44 $ 348
R05-0293 1’ Reverse Corner 12 4 18 8 4 18 44 $ 348
HazBerm Segments — Black
73
E-Mail: info@denios-us.com@

3. In cases of catastrophic spills or sprinkler
releases, containing the spill to a single
room or area can limit the costs associated
with clean-up or facility damage.
DENIOS Automatic Doorway Spill Barriers provide
the protection to contain those large spills by
closing off any doorway or opening in the affected
room at the first sign of flowing liquids.
Federal Regulations along with Local Jurisdictions
require that sprinkler water in combination with
regulated or hazardous materials be prevented
from being released into the environment via
sewers, streams, or ground contamination.
When a release occurs, fines and clean-up costs
can be staggering.
NFPA-30 9.13.3
Curbs, scuppers, special drains, or other suitable
means shall be provided to prevent the flow of
liquids under emergency conditions into adjacent
building areas.
IFC-2704.2.2.3 (2009)
Secondary containment for indoor storage
areas shall be designed to contain a spill from
the largest vessel plus the design flow volume
of fire-protection water calculated to discharge
from the fire-extinguishing system over the
minimum required system design area or area
of the room… for a period of 20 minutes.
OSHA 1910.106 (e) (3) (iv) (a)
Emergency drainage systems shall be provided
to direct flammable or combustible liquid leakage
and fire protection water to a safe location.
This may require curbs, scuppers, or special
drainage systems to control the spread of fire.
OSHA 1910.106 (d) (4) (i)
Openings to other rooms or buildings shall be
provided with non-combustible liquid-tight raised
sills or ramps at least 4” in height.
Automatic Doorway Spill Barriers
Barriers prevent spills from reaching storm drains or contaminating ground water
Combine with curbing to effectively cut off and contain liquid storage areas.
74
Call us: 800-216-7776

4. Fully automatic operation ensures
barrier will close even in cases of
power loss
Features of the Automatic Doorway
Spill Barrier Include:
Solid welded stainless steel construction
Self-contained one piece system design
Fully automatic operation, no external power
source or factory compressed air required
Easy installation in existing doorways;
stores horizontally in the floor, permitting
unobstructed vehicular and personnel traffic
until a spill occurs
While laying flat, Barrier provides up to
6.5 tons axle weight capacity
Designed to fit in doorways between 3 and
16 feet, with barrier heights of 12 to 24 inches
(16‘ x 24“ not available)
When not deployed, Barrier door stores flat in floor, eliminating the need for ramps or berms. Automatically closes with introduction of liquid in the built-in
collection sump, creating a liquid tight seal and containing the spill in the room where it originated
Operation – Flow of liquid triggers the Barrier to automatically shut
Automatic Doorway Spill Barriers are often utilized as containment equipment for Flammables Storage
Rooms
Model
Number
Nominal
Width of
Door (ft)
Opening
Span
(In)
Sealed
Width
(In)
R14-0312 3 36 40
R14-0412 4 48 52
R14-0612 6 72 76
R14-0812 8 96 100
R14-1012 10 120 124
R14-1212 12 144 148
R14-1412 14 168 172
R14-1612 16 192 196
Liquid Retention Height — 12-inch
Model
Number
Nominal
Width of
Door (ft)
Opening
Span
(In)
Sealed
Width
(In)
R14-0318 3 36 40
R14-0418 4 48 52
R14-0618 6 72 76
R14-0818 8 96 100
R14-1018 10 120 124
R14-1218 12 144 148
R14-1418 14 168 172
R14-1618 16 192 196
Liquid Retention Height — 18-inch
Model
Number
Nominal
Width of
Door (ft)
Opening
Span
(In)
Sealed
Width
(In)
R14-0324 3 36 40
R14-0424 4 48 52
R14-0624 6 72 76
R14-0824 8 96 100
R14-1024 10 120 124
R14-1224 12 144 148
R14-1424 14 168 172
Liquid Retention Height — 24-inch
75
E-Mail: info@denios-us.com@

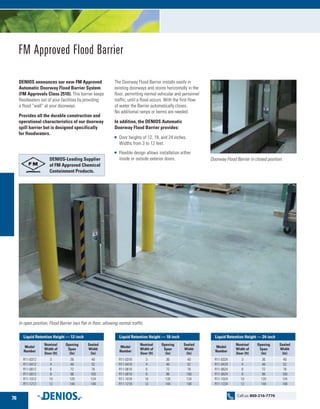

5. FM Approved Flood Barrier
DENIOS announces our new FM Approved
Automatic Doorway Flood Barrier System
(FM Approvals Class 2510). This barrier keeps
floodwaters out of your facilities by providing
a flood “wall” at your doorways.
Provides all the durable construction and
operational characteristics of our doorway
spill barrier but is designed specifically
for floodwaters.
The Doorway Flood Barrier installs easily in
existing doorways and stores horizontally in the
floor, permitting normal vehicular and personnel
traffic, until a flood occurs. With the first flow
of water the Barrier automatically closes.
No additional ramps or berms are needed.
In addition, the DENIOS Automatic
Doorway Flood Barrier provides:
Door heights of 12, 18, and 24 inches.
Widths from 3 to 12 feet.
Flexible design allows installation either
inside or outside exterior doors.
In open position, Flood Barrier lays flat in floor, allowing normal traffic.
Doorway Flood Barrier in closed position.
Model
Number
Nominal
Width of
Door (ft)
Opening
Span
(In)
Sealed
Width
(In)
R11-0324 3 36 40
R11-0424 4 48 52
R11-0624 6 72 76
R11-0824 8 96 100
R11-1024 10 120 124
R11-1224 12 144 148
Liquid Retention Height — 24-inch
Model
Number
Nominal
Width of
Door (ft)
Opening
Span
(In)
Sealed
Width
(In)
R11-0318 3 36 40
R11-0418 4 48 52
R11-0618 6 72 76
R11-0818 8 96 100
R11-1018 10 120 124
R11-1218 12 144 148
Liquid Retention Height — 18-inch
Model
Number
Nominal
Width of
Door (ft)
Opening
Span
(In)
Sealed
Width
(In)
R11-0312 3 36 40
R11-0412 4 48 52
R11-0612 6 72 76
R11-0812 8 96 100
R11-1012 10 120 124
R11-1212 12 144 148
Liquid Retention Height — 12-inch
DENIOS-Leading Supplier
of FM Approved Chemical
Containment Products.
76
Call us: 800-216-7776

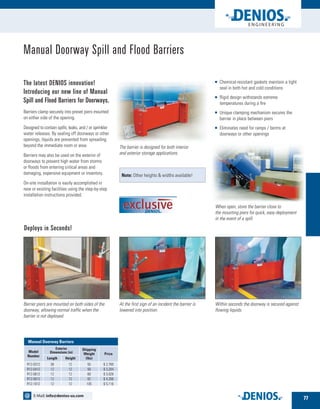

6. The barrier is designed for both interior
and exterior storage applications.
Manual Doorway Spill and Flood Barriers
The latest DENIOS innovation!
Introducing our new line of Manual
Spill and Flood Barriers for Doorways.
Barriers clamp securely into preset piers mounted
on either side of the opening.
Designed to contain spills, leaks, and / or sprinkler
water releases. By sealing off doorways or other
openings, liquids are prevented from spreading
beyond the immediate room or area.
Barriers may also be used on the exterior of
doorways to prevent high water from storms
or floods from entering critical areas and
damaging, expensive equipment or inventory.
On-site installation is easily accomplished in
new or existing facilities using the step-by-step
installation instructions provided.
Chemical-resistant gaskets maintain a tight
seal in both hot and cold conditions
Rigid design withstands extreme
temperatures during a fire
Unique clamping mechanism secures the
barrier in place between piers
Eliminates need for ramps / berms at
doorways or other openings
Deploys in Seconds!
Barrier piers are mounted on both sides of the
doorway, allowing normal traffic when the
barrier is not deployed.
At the first sign of an incident the barrier is
lowered into position.
Within seconds the doorway is secured against
flowing liquids.
Note: Other heights widths available!
When open, store the barrier close to
the mounting piers for quick, easy deployment
in the event of a spill.
Model
Number
Length Height
Shipping
Weight
(lbs)
Price
R12-0312 36 12 55 $ 2,760
R12-0412 12 12 59 $ 3,284
R12-0612 12 12 69 $ 3,026
R12-0812 12 12 82 $ 4,266
R12-1012 12 12 105 $ 5,116
Exterior
Dimensions (in)
Manual Doorway Barriers
77
E-Mail: info@denios-us.com@
