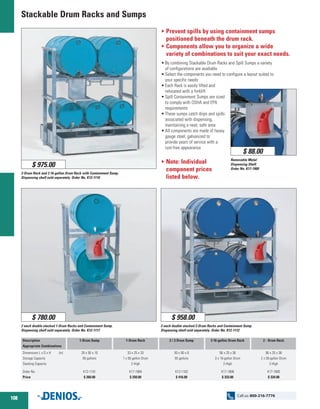

1. Stackable Drum Racks and Sumps
2-Drum Rack and 3 16-gallon Drum Rack with Containment Sump,
Dispensing shelf sold separately. Order No. K12-1110
Removable Metal
Dispensing Shelf.
Order No. K17-1909
O Note: Individual
component prices
listed below.
O Prevent spills by using containment sumps
positioned beneath the drum rack.
O Components allow you to organize a wide
variety of combinations to suit your exact needs.
• By combining Stackable Drum Racks and Spill Sumps a variety
of configurations are available
• Select the components you need to configure a layout suited to
your specific needs
• Each Rack is easily lifted and
relocated with a forklift
• Spill Containment Sumps are sized
to comply with OSHA and EPA
requirements
• These sumps catch drips and spills
associated with dispensing,
maintaining a neat, safe area
• All components are made of heavy
gauge steel, galvanized to
provide years of service with a
rust-free appearance
2 each double stacked 1-Drum Racks and Containment Sump.
Dispensing shelf sold separately. Order No. K12-1117
$ 975.00
$ 780.00
2 each double stacked 2-Drum Racks and Containment Sump.
Dispensing shelf sold separately. Order No. K12-1112
$ 958.00
$ 88.00
Description
Appropriate Combinations
Dimensions L x D x H (in)
Storage Capacity
Stacking Capacity
Order No.
Price
1-Drum Sump
28 x 50 x 10
55 gallons
K12-1101
$ 260.00
1-Drum Rack
33 x 25 x 33
1 x 55-gallon Drum
2-High
K17-1904
$ 250.00
2 / 3 Drum Sump
50 x 50 x 6
55 gallons
K12-1102
$ 416.00
3 16-gallon Drum Rack
56 x 25 x 36
3 x 16-gallon Drum
2-High
K17-1906
$ 333.00
2 - Drum Rack
56 x 25 x 36
2 x 55-gallon Drum
2-High
K17-1905
$ 334.00
108
Call us: 800-216-7776

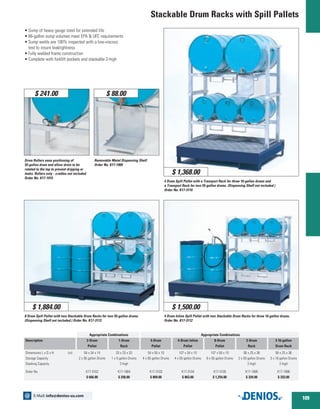

2. Stackable Drum Racks with Spill Pallets­
• Sump of heavy gauge steel for extended life
• 66-gallon sump volumes meet EPA UFC requirements
• Sump welds are 100% inspected with a low-viscous
test to insure leaktightness
• Fully welded frame construction
• Complete with forklift pockets and stackable 2-high
8 Drum Spill Pallet with two Stackable Drum Racks for two 55-gallon drums.
(Dispensing Shelf not included.) Order No. K17-3113
Drum Rollers ease positioning of
55-gallon drum and allow drain to be
rotated to the top to prevent dripping or
leaks. Rollers only - cradles not included.
Order No. K17-1915
4 Drum Inline Spill Pallet with two Stackable Drum Racks for three 16-gallon drums.
Order No. K17-3112
Removable Metal Dispensing Shelf.
Order No. K17-1909
4 Drum Spill Pallet with a Transport Rack for three 16-gallon drums and
a Transport Rack for two 55-gallon drums. (Dispensing Shelf not included.)
Order No. K17-3110
$ 88.00$ 241.00
$ 1,368.00
$ 1,884.00 $ 1,500.00
Appropriate Combinations
Description
Dimensions L x D x H (in)
Storage Capacity
Stacking Capacity
Order No.
Appropriate Combinations
2-Drum
Pallet
54 x 34 x 14
2 x 55 gallon Drums
K17-3102
$ 666.00
1-Drum
Rack
33 x 25 x 33
1 x 5 gallon Drums
2-high
K17-1904
$ 250.00
4-Drum
Pallet
54 x 50 x 10
4 x 55 gallon Drums
K17-3103
$ 809.00
4-Drum Inline
Pallet
107 x 34 x 10
4 x 55 gallon Drums
K17-3104
$ 863.00
8-Drum
Pallet
107 x 50 x 10
8 x 55 gallon Drums
K17-3105
$ 1,254.00
2-Drum
Rack
56 x 25 x 36
2 x 55 gallon Drums
2-high
K17-1905
$ 334.00
3 16-gallon
Drum Rack
56 x 25 x 36
3 x 16 gallon Drums
2-high
K17-1906
$ 333.00
109
E-Mail: info@denios-us.com@

3. Drum Racks with Spill Sumps
Store and dispense 4 drums over containment sump.
Dispensing Shelf sold separately. Order No. K34-1101
O Store and dispense 55-gallon drums in almost
any combination. Combine vertical and horizontal
positioning to optimize your liquid chemical warehousing.
O Storage incorporates compliant spill containment
sumps providing both security and improved
housekeeping!
• Racking and Sumps promote
multi-functional arrangements
• Beams are adjustable in 2”
increments to suit your needs
• Shipped knock-down
Assembly in minutes
• Racking components are selected
for proper load capacities
• Sumps are galvanized to maintain
a like-new appearance
while resisting corrosion
• Rack components are
powder coated enamel
• Horizontal/vertical drum
configurations include
galvanized grating for
sump- purely horizontal
configurations do not
Store 3 drums horizontally with
3 vertically on grating above
the spill sump.
Order No. K34-1109
$ 2,226.00
$ 1,509.00
Description
Rack Dimensions L x D x H (in)
Sump Dimensions L x D (in)
Sump Volume (gal)
Load Capacity (per shelf, uniform) (lbs)
Shipping Weight (lbs)
Order No.
Price
4-Drum Horizontal
66 x 36 x 96
60 x 50
66
2200
355
K34-1101
$ 1,509.00
2-Drum Horizontal / 4 Vertical
66 x 36 x 96
60 x 50
66
2200
373
K34-1103
$ 1,633.00
6-Drum Horizontal
102 x 36 x 96
96 x 50
82
2200
438
K34-1107
$ 1,898.00
3-Drum Horizontal / 6 Vertical
102 x 36 x 96
96 x 50
82
2200
554
K34-1109
$ 2,226.00
Corner Protectors
Grating
Spill Sump
Containment
Cross
Members
Frame
Dispensing
Shelf
Drum Cradle
Drum Roller
Assembly
This exploded view highlights
the components of the Knock-Down
Containment Rack System.
110
Call us: 800-216-7776

4. Drum Racks with Spill Sumps
Accessories:
Metal Dispensing Shelf.
Order No. K17-1909
Drum Roller Assembly eases
positioning of 55-gallon drum and
allows drain to be rotated to the
top to prevent dripping or leaks.
Order No. K17-1915
• Galvanized Steel Grating provides secure platform
for vertical drums
• Poly Sump Liners available for highly corrosive liquids
• Sump volumes meet or exceed
EPA UFC requirements
• Horizontal/vertical drum configurations include galvanized
grating for sump- purely horizontal configurations do not
Store 9 drums horizontally above the spill sump. Dispensing Shelf sold separately.
Order No. K34-1117
$ 2,441.00
Rack for 4 horizontal drums and 2 vertical
drums with extra room for smaller containers.
Order No. K34-1113
$ 2,089.00
$ 241.00 $ 88.00
Description
Rack Dimensions L x D x H (in)
Sump Dimensions L x D (in)
Sump Volume (gal)
Load Capacity (per shelf, uniform) (lbs)
Shipping Weight (lbs)
Order No.
Price
6-Drum Horizontal
66 x 36 x 96
60 x 50
66
2200
334
K34-1111
$ 1,965.00
4-Drum Horizontal / 4 Vertical
66 x 36 x 96
60 x 50
66
2200
407
K34-1113
$ 2,089.00
9-Drum Horizontal
102 x 36 x 96
96 x 50
82
2200
498
K34-1117
$ 2,441.00
6-Drum Horizontal / 6 Vertical
102 x 36 x 96
96 x 50
82
2200
614
K34-1119
$ 2,772.00
111
E-Mail: info@denios-us.com@

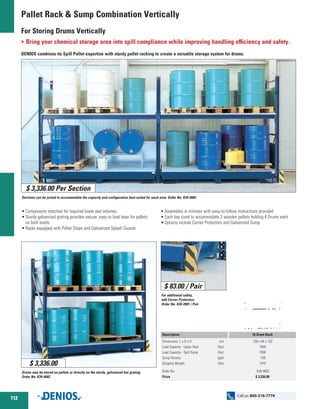

5. Pallet Rack Sump Combination Vertically
For Storing Drums Vertically
O Bring your chemical storage area into spill compliance while improving handling efficiency and safety.
DENIOS combines its Spill Pallet expertise with sturdy pallet racking to create a versatile storage system for drums.
• Components matched for required loads and volumes
• Sturdy galvanized grating provides secure, easy to load base for pallets
on both levels
• Racks equipped with Pallet Stops and Galvanized Splash Guards
• Assembles in minutes with easy-to-follow instructions provided
• Each bay sized to accommodate 2 wooden pallets holding 4 Drums each
• ­Options include Corner Protectors and Galvanized Sump
Sections can be joined to accommodate the capacity and configuration best suited for each area. Order No. K34-4602
For additional safety,
add Corner Protectors.
Order No. K34-3901 / Pair
Drums may be stored on pallets or directly on the sturdy, galvanized bar grating.
Order No. K34-4602
$ 3,336.00 Per Section
$ 3,336.00
$ 83.00 / Pair
Description
Dimensions L x D x H (in)
Load Capacity - Upper Rack (lbs)
Load Capacity - Spill Sump (lbs)
Sump Volume (gal)
Shipping Weight (lbs)
Order No.
Price
16 Drum Rack
126 x 54 x 120
7500
7500
159
1410
K34-4602
$ 3,336.00
112
Call us: 800-216-7776

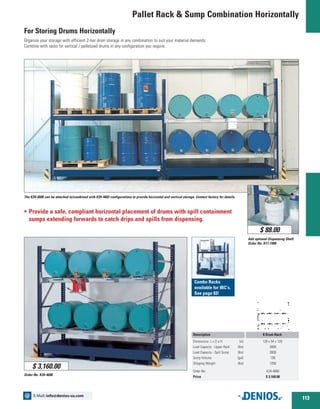

6. Pallet Rack Sump Combination Horizontally
Combo Racks
available for IBC’s.
See page 83!
O Provide a safe, compliant horizontal placement of drums with spill containment
sumps extending forwards to catch drips and spills from dispensing.
$ 3,160.00
Order-No. K34-4608
Add optional Dispensing Shelf.
Order No. K17-1909
$ 88.00
The K34-4608 can be attached to/combined with K34-4602 configurations to provide horizontal and vertical storage. Contact factory for details.
For Storing Drums Horizontally
Organize your storage with efficient 2-tier drum storage in any combination to suit your material demands.
Combine with racks for vertical / palletized drums in any configuration you require.
Description
Dimensions L x D x H (in)
Load Capacity - Upper Rack (lbs)
Load Capacity - Spill Sump (lbs)
Sump Volume (gal)
Shipping Weight (lbs)
Order No.
Price
8 Drum Rack
126 x 54 x 120
3000
3000
159
1050
K34-4608
$ 3,160.00
113
E-Mail: info@denios-us.com@

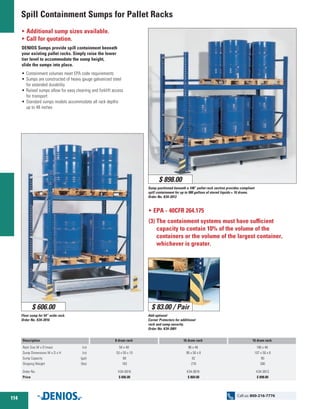

7. Spill Containment Sumps for Pallet Racks
O EPA - 40CFR 264.175
(3) The containment systems must have sufficient
capacity to contain 10% of the volume of the
containers or the volume of the largest container,
whichever is greater.
O Additional sump sizes available.
O Call for quotation.
DENIOS Sumps provide spill containment beneath
your existing pallet racks. Simply raise the lower
tier level to accommodate the sump height,
slide the sumps into place.
• Containment volumes meet EPA code requirements
• Sumps are constructed of heavy gauge galvanized steel
for extended durability
• Raised sumps allow for easy cleaning and forklift access
for transport
• Standard sumps models accommodate all rack depths
up to 48 inches
Add optional
Corner Protectors for additional
rack and sump security.
Order No. K34-3901
Sump positioned beneath a 108” pallet rack section provides compliant
spill containment for up to 900 gallons of stored liquids = 16 drums.
Order No. K34-3913
Floor sump for 54” wide rack.
Order No. K34-3916
$ 898.00
$ 606.00 $ 83.00 / Pair
Description
Rack Size W x D (max) (in)
Sump Dimensions W x D x H (in)
Sump Capacity (gal)
Shipping Weight (Ibs)
Order No.
Price
8 drum rack
54 x 48
53 x 50 x 10
68
183
K34-3916
$ 606.00
16 drum rack
96 x 48
95 x 50 x 8
82
278
K34-3919
$ 869.00
16 drum rack
108 x 48
107 x 50 x 8
90
300
K34-3913
$ 898.00
114
Call us: 800-216-7776

8. Sump Inserts for Pre-Existing Pallet Racks
For custom applications please
provide us your rack dimensions
(A, B, and C as shown) and we
will build to your specifications.
A
B
C
• Pallet Rack Sump inserts
consist of a spill containment sump and
easily removable galvanized steel grating
• Made to fit exact pallet rack
specifications; Sump Inserts provide
economical retrofits
• Sump of heavy duty, corrosion resistant
galvanized steel
• Sump welds are 100% inspected with a
low-viscous test to insure leaktightness
• Load Capacity - 250 psf
• Sump volumes meet EPA requirements
• For Custom Sizes Call For Consultation
O Quickly and easily bring existing pallet rack storage into compliance.
Conveniently sized for standard 36” and 42” wide
rack systems. Sump rests on the rack beams.
In addition to chemical storage application, these racks are great for refrigerated environments
where slight melting/thawing may occur.
FOR RACK DIMENSIONS W X D
Nominal Dimensions A x B x C (in)
Sump Volume (gal)
Load Capacity (psf)
Shipping Weight (lbs)
Order No.
Price
96 x 36
95 x 29 x 42
58
250
335
K38-1140
$ 930.00
108 x 36
107 x 29 x 42
65
250
392
K38-1150
$ 1,044.00
96 x 42
95 x 36 x 50
70
250
387
K38-1160
$ 1,082.00
108 x 42
107 x 36 x 50
79
250
452
K38-1170
$ 1,215.00
115
E-Mail: info@denios-us.com@
