The document describes various models of transport pallets designed for safely moving drums, featuring four-way forklift access and spill containment capabilities to meet EPA and UFC standards. Models include single, double, and quadruple drum pallets with options for stackability, security chains, and separation walls for chemical protection. Prices range from $571.00 to $1,454.00 depending on the configuration and capacity.

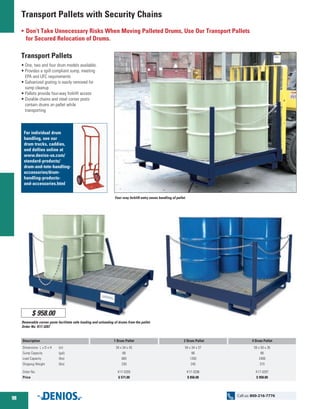

1. Transport Pallets with Security Chains
Four-way forklift entry eases handling of pallet.
Transport Pallets
• One, two and four drum models available.
• Provides a spill compliant sump, meeting
EPA and UFC requirements
• Galvanized grating is easily removed for
sump cleanup
• Pallets provide four-way forklift access
• Durable chains and steel corner posts
contain drums on pallet while
transporting
O Don’t Take Unnecessary Risks When Moving Palleted Drums, Use Our Transport Pallets
for Secured Relocation of Drums.
$ 958.00
Removable corner posts facilitate safe loading and unloading of drums from the pallet.
Order No. K17-3207
Description
Dimensions L x D x H (in)
Sump Capacity (gal)
Load Capacity (lbs)
Shipping Weight (lbs)
Order No.
Price
1 Drum Pallet
34 x 34 x 43
66
600
230
K17-3205
$ 571.00
2 Drum Pallet
54 x 34 x 37
66
1200
245
K17-3206
$ 856.00
4 Drum Pallet
55 x 50 x 35
66
2400
315
K17-3207
$ 958.00
For individual drum
handling, see our
drum trucks, caddies,
and dollies online at
www.denios-us.com/
standard-products/
drum-and-tote-handling-
accessories/drum-
handling-products-
and-accessories.html
98
Call us: 800-216-7776

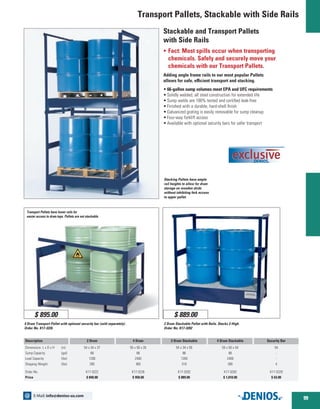

2. Transport Pallets, Stackable with Side Rails
2 Drum Stackable Pallet with Rails. Stacks 2-High.
Order No. K17-3202
Stackable and Transport Pallets
with Side Rails
O Fact: Most spills occur when transporting
chemicals. Safely and securely move your
chemicals with our Transport Pallets.
Adding angle frame rails to our most popular Pallets
allows for safe, efficient transport and stacking.
• 66-gallon sump volumes meet EPA and UFC requirements
• Solidly welded, all steel construction for extended life
• Sump welds are 100% tested and certified leak-free
• Finished with a durable, hard-shell finish
• Galvanized grating is easily removable for sump cleanup
• Four-way forklift access
• Available with optional security bars for safer transport
Stacking Pallets have ample
rail heights to allow for drum
storage on wooden skids
without inhibiting fork access
to upper pallet.
4 Drum Transport Pallet with optional security bar (sold separately).
Order No. K17-3226
Transport Pallets have lower rails for
easier access to drum tops. Pallets are not stackable.
$ 889.00$ 895.00
Description
Dimensions L x D x H (in)
Sump Capacity (gal)
Load Capacity (lbs)
Shipping Weight (lbs)
Order No.
Price
2 Drum
54 x 34 x 37
66
1200
295
K17-3222
$ 840.00
4 Drum
55 x 50 x 35
66
2400
365
K17-3226
$ 958.00
2 Drum Stackable
54 x 34 x 55
66
1200
310
K17-3202
$ 889.00
4 Drum Stackable
55 x 50 x 54
66
2400
385
K17-3203
$ 1,010.00
Security Bar
54
-
-
4
K17-3229
$ 63.00
99
E-Mail: info@denios-us.com@

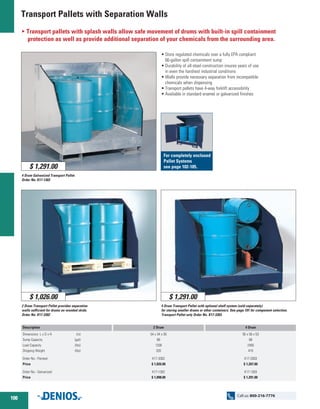

3. Transport Pallets with Separation Walls
4 Drum Galvanized Transport Pallet.
Order No. K17-1303
For completely enclosed
Pallet Systems
see page 102-105.
O Transport pallets with splash walls allow safe movement of drums with built-in spill containment
protection as well as provide additional separation of your chemicals from the surrounding area.
• Store regulated chemicals over a fully EPA compliant
66-gallon spill containment sump
• Durability of all-steel construction insures years of use
in even the harshest industrial conditions
• Walls provide necessary separation from incompatible
chemicals when dispensing
• Transport pallets have 4-way forklift accessibility
• Available in standard enamel or galvanized finishes
$ 1,291.00
2 Drum Transport Pallet provides separation
walls sufficient for drums on wooded skids.
Order No. K17-3302
$ 1,026.00
4 Drum Transport Pallet with optional shelf system (sold separately)
for storing smaller drums or other containers. See page 101 for component selection.
Transport Pallet only Order No. K17-3303.
$ 1,291.00
Description
Dimensions L x D x H (in)
Sump Capacity (gal)
Load Capacity (lbs)
Shipping Weight (lbs)
Order No.- Painted
Price
Order No.- Galvanized
Price
2 Drum
54 x 34 x 55
66
1200
320
K17-3302
$ 1,026.00
K17-1302
$ 1,098.00
4 Drum
55 x 50 x 53
66
2400
410
K17-3303
$ 1,207.00
K17-1303
$ 1,291.00
100
Call us: 800-216-7776

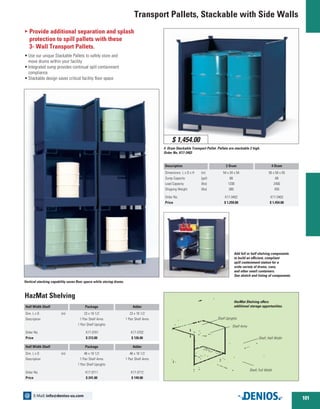

4. Transport Pallets, Stackable with Side Walls
4 Drum Stackable Transport Pallet. Pallets are stackable 2 high.
Order No. K17-3403
Shelf, Full Width
Shelf, Half Width
Shelf Arms
Shelf Uprights
O Provide additional separation and splash
protection to spill pallets with these
3- Wall Transport Pallets.
• Use our unique Stackable Pallets to safely store and
move drums within your facility
• Integrated sump provides continual spill containment
compliance
• Stackable design saves critical facility floor space
Add full or half shelving components
to build an efficient, compliant
spill containment station for a
wide variety of drums, cans,
and other small containers.
See sketch and listing of components.
Vertical stacking capability saves floor space while storing drums.
HazMat Shelving
$ 1,454.00
HazMat Shelving offers
additional storage opportunities.
Description
Dimensions L x D x H (in)
Sump Capacity (gal)
Load Capacity (lbs)
Shipping Weight (lbs)
Order No.
Price
2 Drum
54 x 34 x 54
66
1200
365
K17-3402
$ 1,259.00
4 Drum
55 x 50 x 55
66
2400
455
K17-3403
$ 1,454.00
Half Width Shelf
Dim. L x D (in)
Description
Order No.
Price
Package
23 x 18 1/2
1 Pair Shelf Arms
1 Pair Shelf Uprights
K17-3701
$ 213.00
Adder
23 x 18 1/2
1 Pair Shelf Arms
K17-3702
$ 126.00
Half Width Shelf
Dim. L x D (in)
Description
Order No.
Price
Package
46 x 18 1/2
1 Pair Shelf Arms
1 Pair Shelf Uprights
K17-3711
$ 241.00
Adder
46 x 18 1/2
1 Pair Shelf Arms
K17-3712
$ 149.00
101
