This document provides guidance on reference architecture for a JavaScript application. It discusses topics like solution structure, modules, UI components, localization, logging and optimizations. It recommends separating the solution into logical modules that communicate through events. It also discusses patterns like the module pattern and pub/sub for component communication. Private and public APIs for modules are explained along with best practices for performance like bundling, minification, caching and using a CDN for static assets.

1. Reference architecture GUIDE

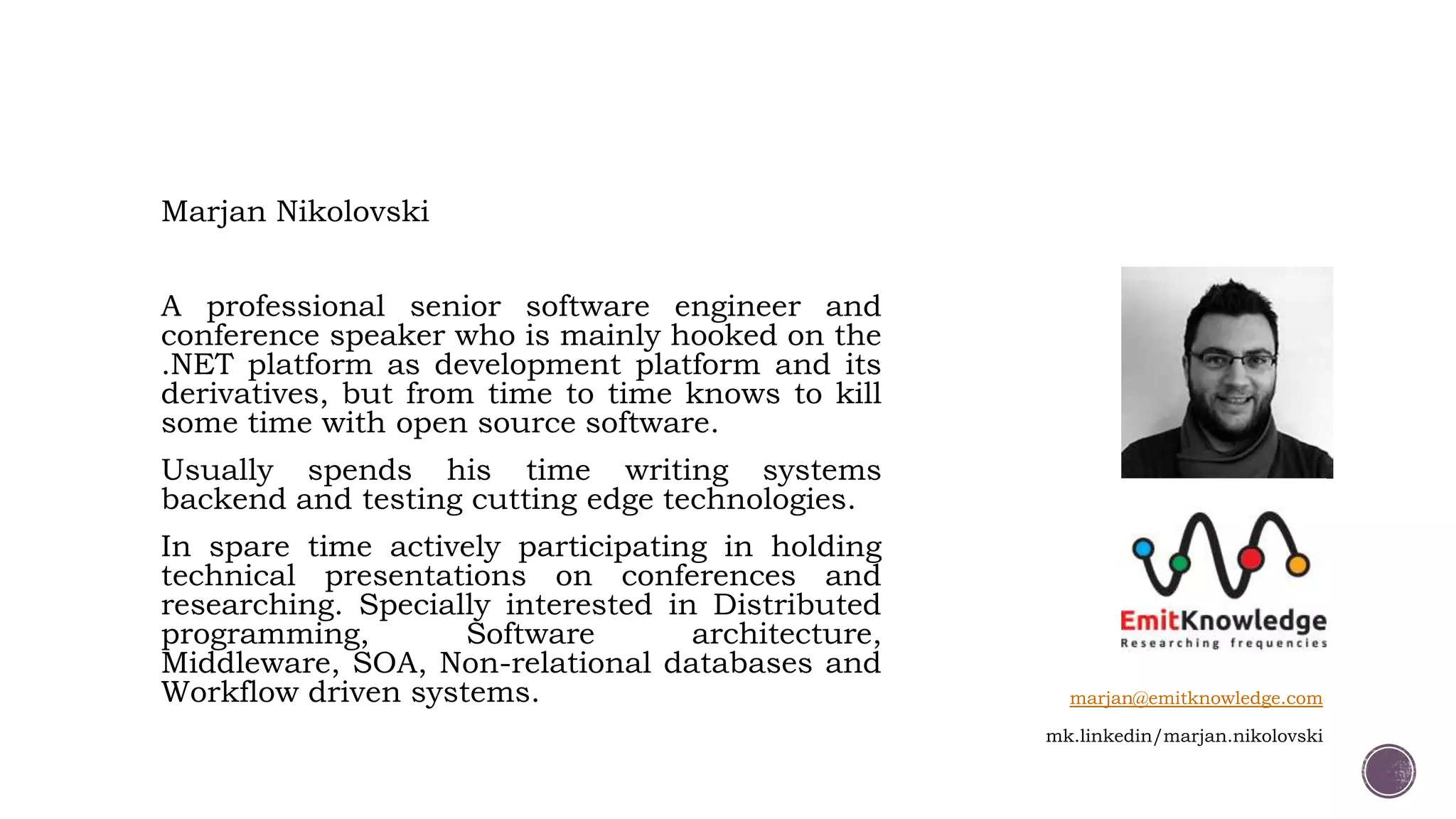

2. marjan@emitknowledge.com
mk.linkedin/marjan.nikolovski
Marjan Nikolovski
A professional senior software engineer and
conference speaker who is mainly hooked on the
.NET platform as development platform and its
derivatives, but from time to time knows to kill
some time with open source software.
Usually spends his time writing systems
backend and testing cutting edge technologies.
In spare time actively participating in holding
technical presentations on conferences and
researching. Specially interested in Distributed
programming, Software architecture,
Middleware, SOA, Non-relational databases and
Workflow driven systems.

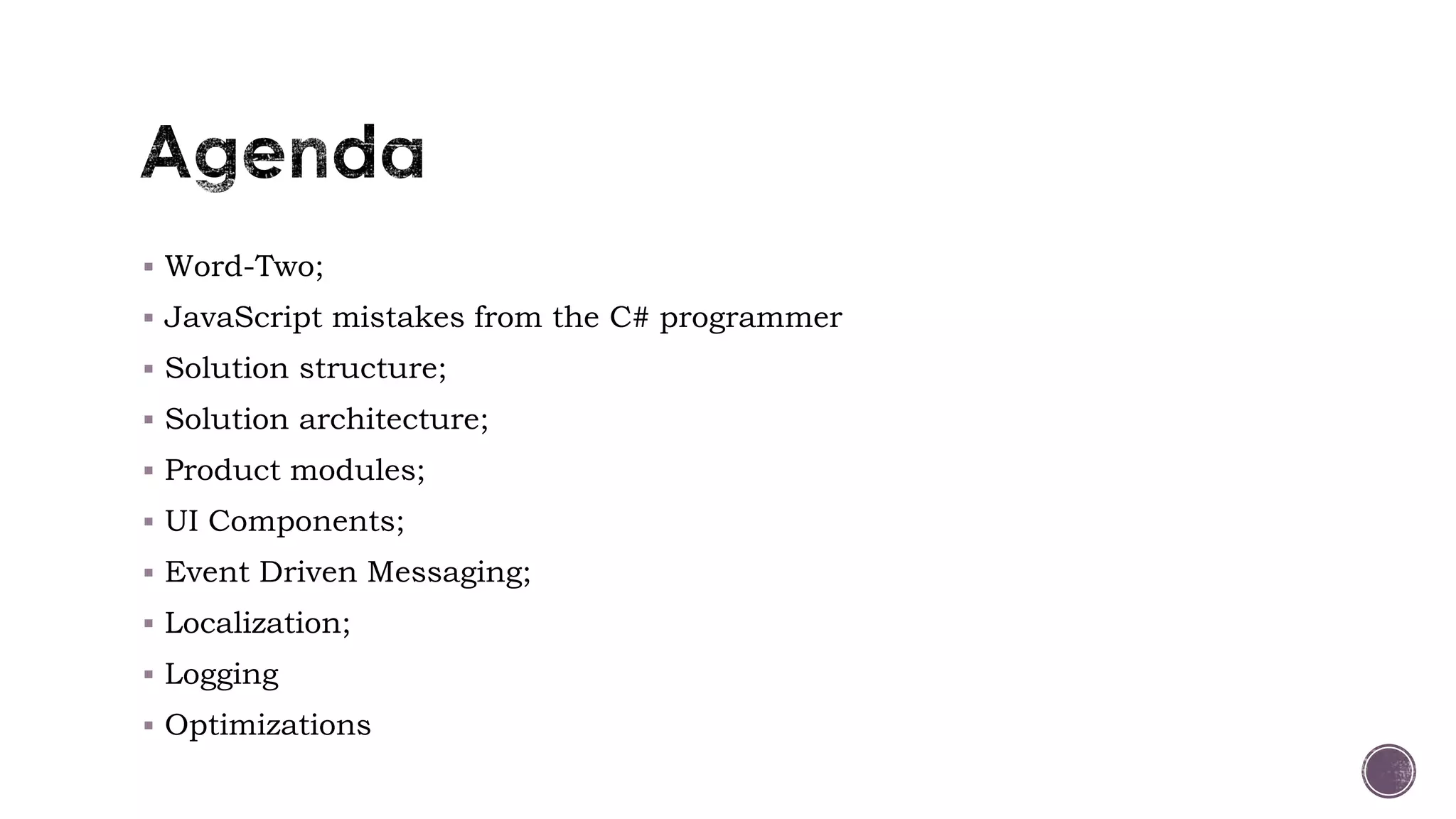

3.  Word-Two;
 JavaScript mistakes from the C# programmer
 Solution structure;
 Solution architecture;
 Product modules;
 UI Components;
 Event Driven Messaging;
 Localization;
 Logging
 Optimizations

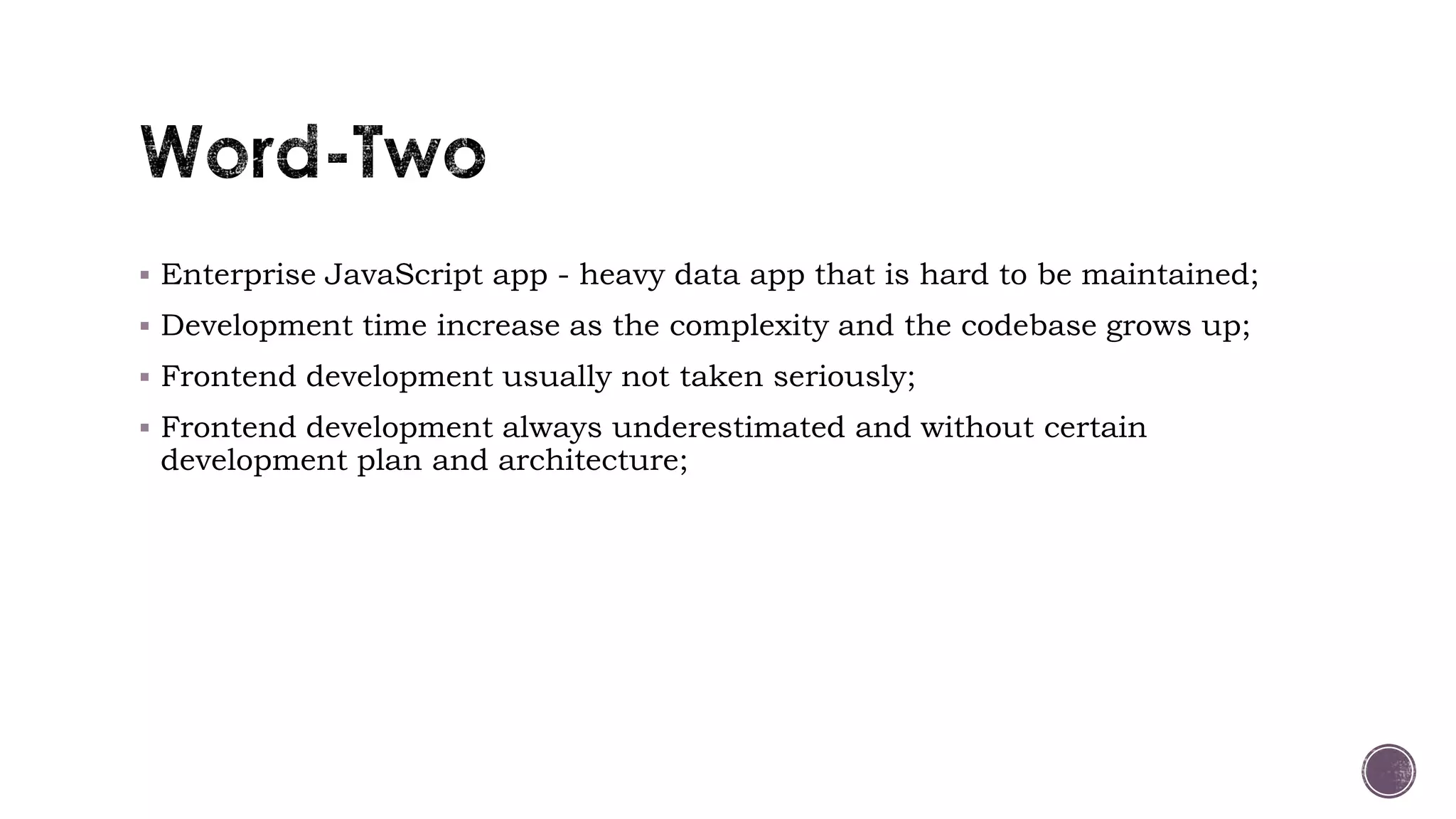

4.  Enterprise JavaScript app - heavy data app that is hard to be maintained;
 Development time increase as the complexity and the codebase grows up;
 Frontend development usually not taken seriously;
 Frontend development always underestimated and without certain
development plan and architecture;

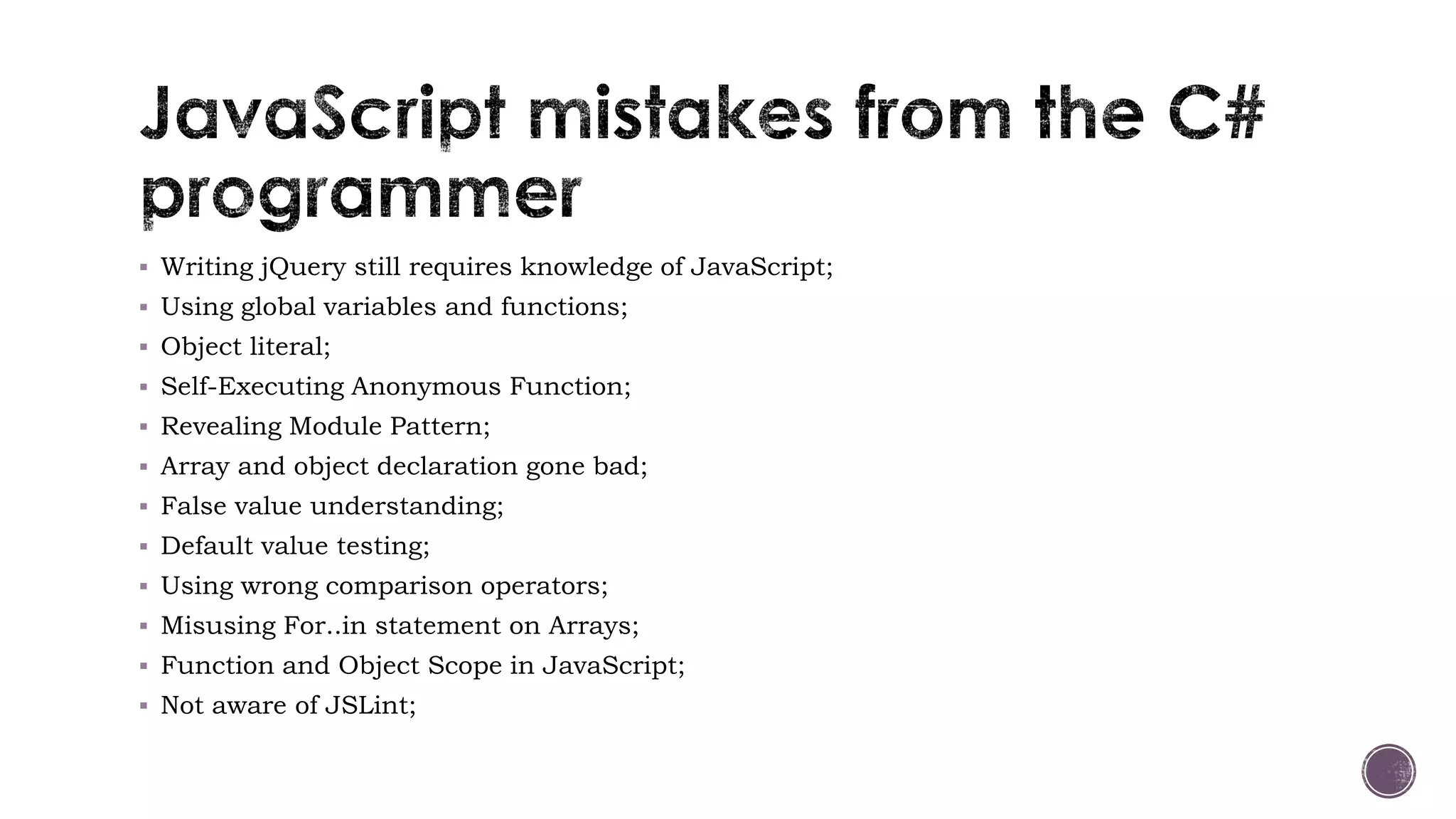

5.  Writing jQuery still requires knowledge of JavaScript;
 Using global variables and functions;
 Object literal;
 Self-Executing Anonymous Function;
 Revealing Module Pattern;
 Array and object declaration gone bad;
 False value understanding;
 Default value testing;
 Using wrong comparison operators;
 Misusing For..in statement on Arrays;
 Function and Object Scope in JavaScript;
 Not aware of JSLint;

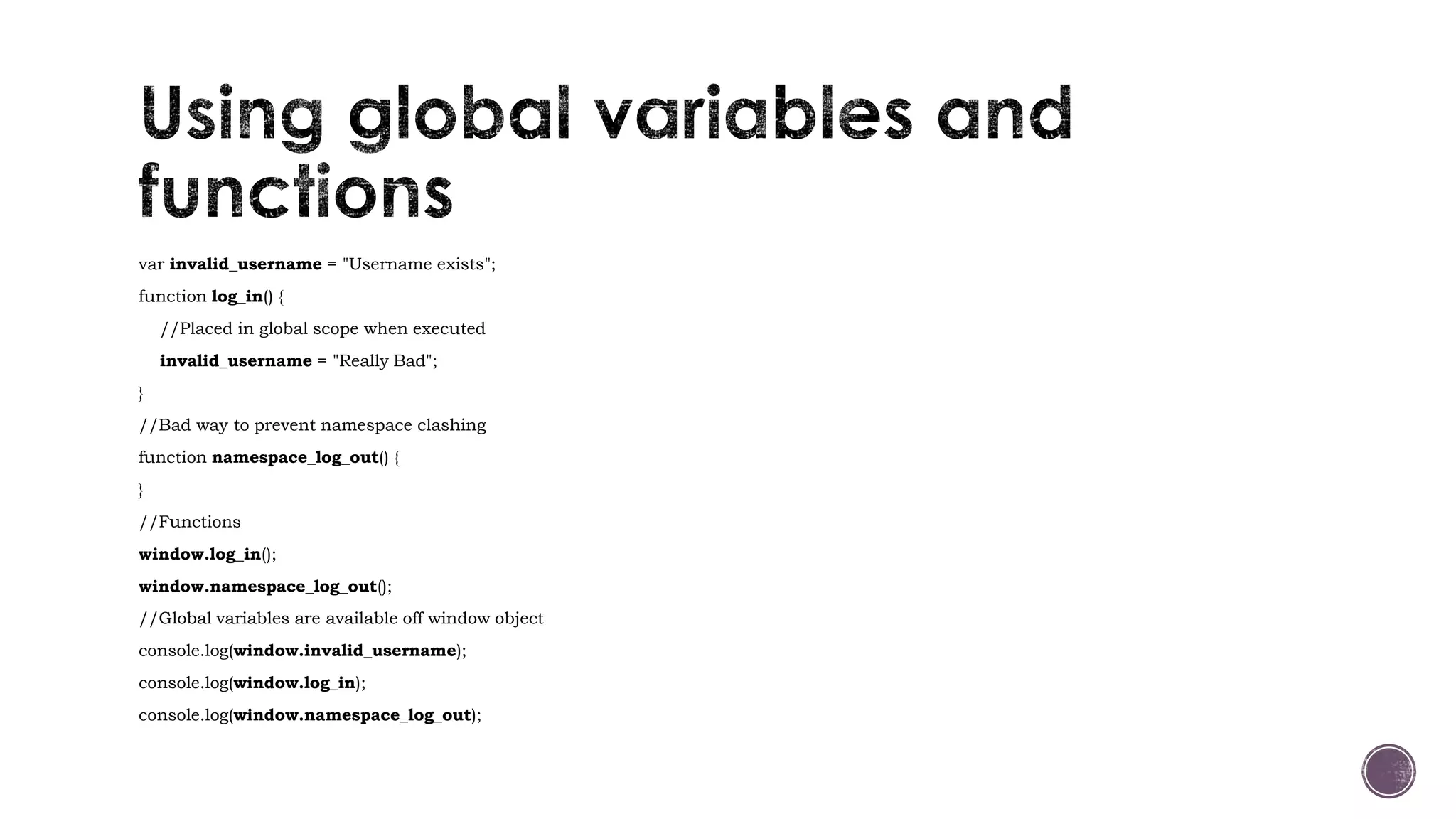

6. var invalid_username = "Username exists";
function log_in() {
//Placed in global scope when executed
invalid_username = "Really Bad";
}
//Bad way to prevent namespace clashing
function namespace_log_out() {
}
//Functions
window.log_in();
window.namespace_log_out();
//Global variables are available off window object
console.log(window.invalid_username);
console.log(window.log_in);
console.log(window.namespace_log_out);

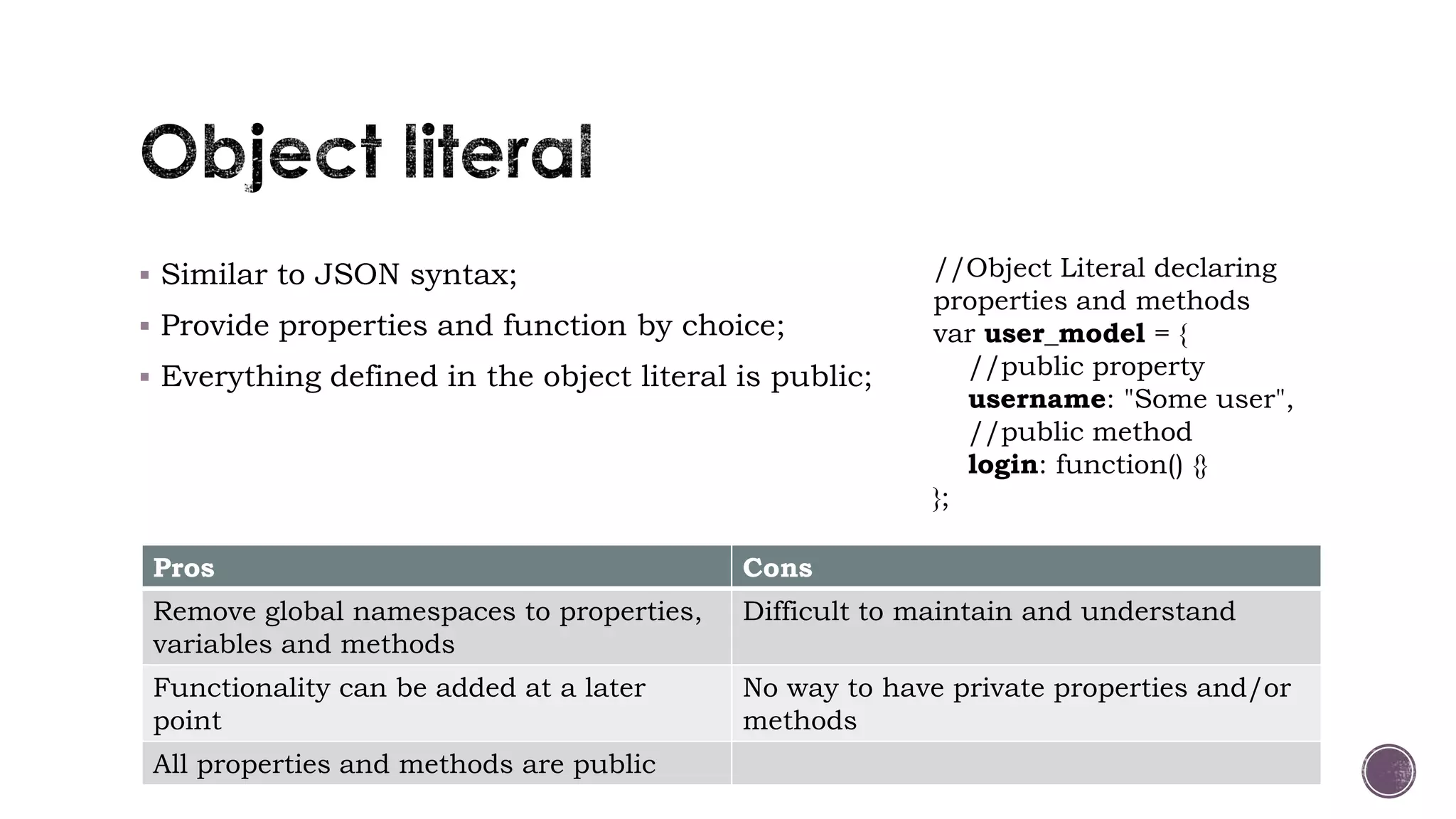

7.  Similar to JSON syntax;
 Provide properties and function by choice;
 Everything defined in the object literal is public;
Pros Cons
Remove global namespaces to properties,
variables and methods
Difficult to maintain and understand
Functionality can be added at a later
point
No way to have private properties and/or
methods
All properties and methods are public
//Object Literal declaring
properties and methods
var user_model = {
//public property
username: "Some user",
//public method
login: function() {}
};

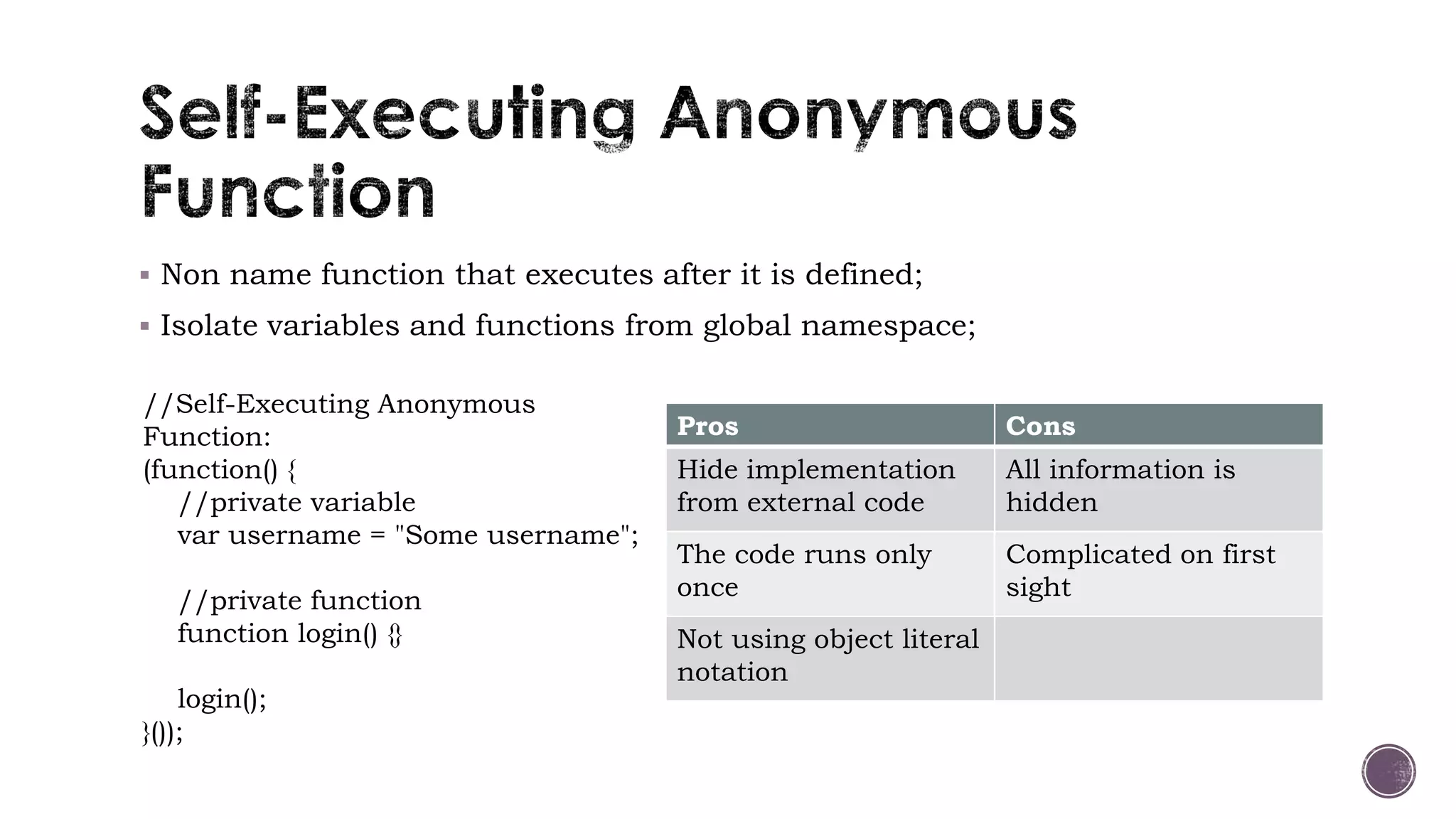

8.  Non name function that executes after it is defined;
 Isolate variables and functions from global namespace;
//Self-Executing Anonymous
Function:
(function() {
//private variable
var username = "Some username";
//private function
function login() {}
login();
}());
Pros Cons
Hide implementation
from external code
All information is
hidden
The code runs only
once
Complicated on first
sight
Not using object literal
notation

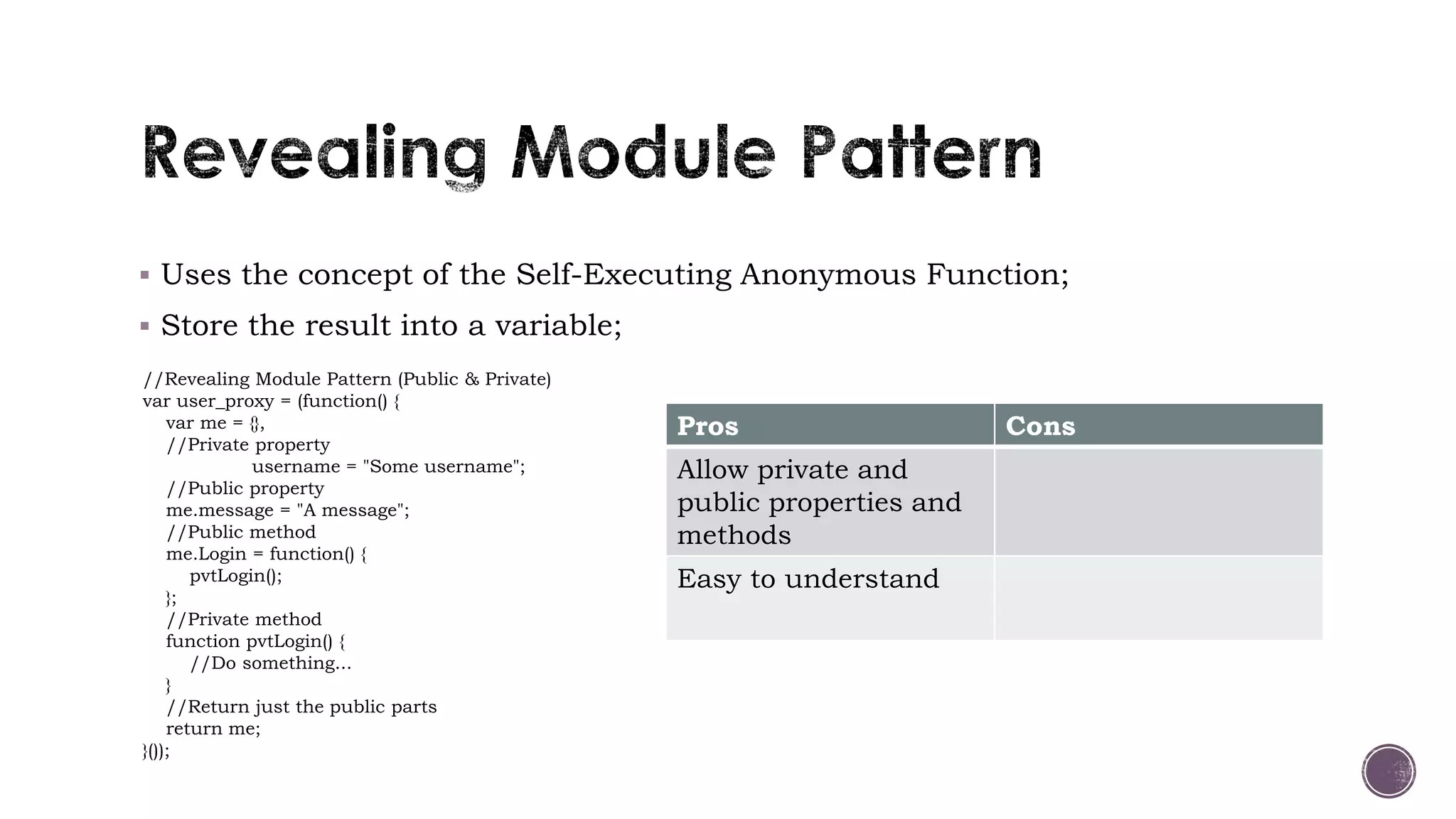

9.  Uses the concept of the Self-Executing Anonymous Function;
 Store the result into a variable;
//Revealing Module Pattern (Public & Private)
var user_proxy = (function() {
var me = {},
//Private property
username = "Some username";
//Public property
me.message = "A message";
//Public method
me.Login = function() {
pvtLogin();
};
//Private method
function pvtLogin() {
//Do something...
}
//Return just the public parts
return me;
}());
Pros Cons
Allow private and
public properties and
methods
Easy to understand

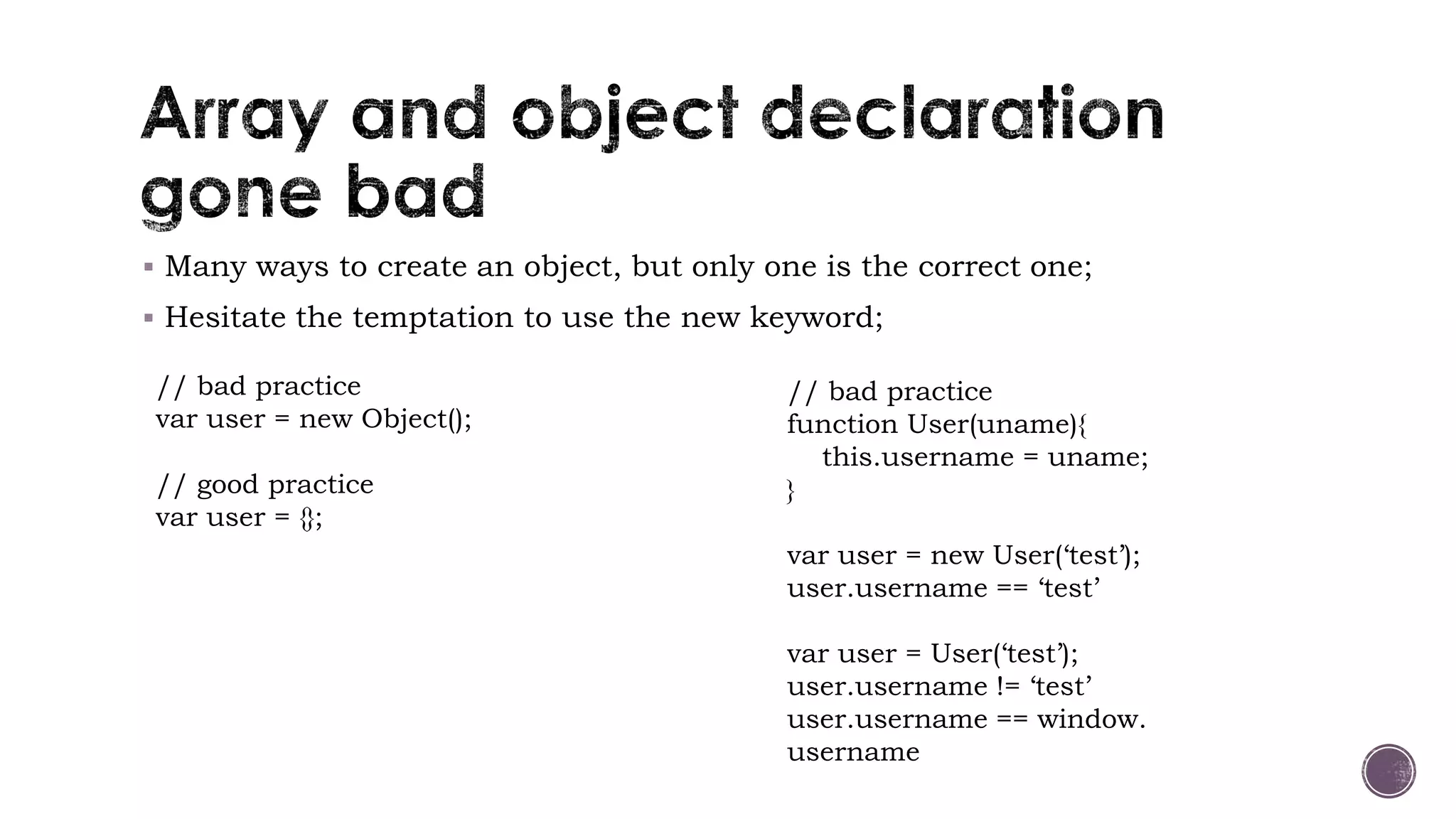

10.  Many ways to create an object, but only one is the correct one;
 Hesitate the temptation to use the new keyword;
// bad practice
var user = new Object();
// good practice
var user = {};
// bad practice
function User(uname){
this.username = uname;
}
var user = new User(‘test’);
user.username == ‘test’
var user = User(‘test’);
user.username != ‘test’
user.username == window.
username

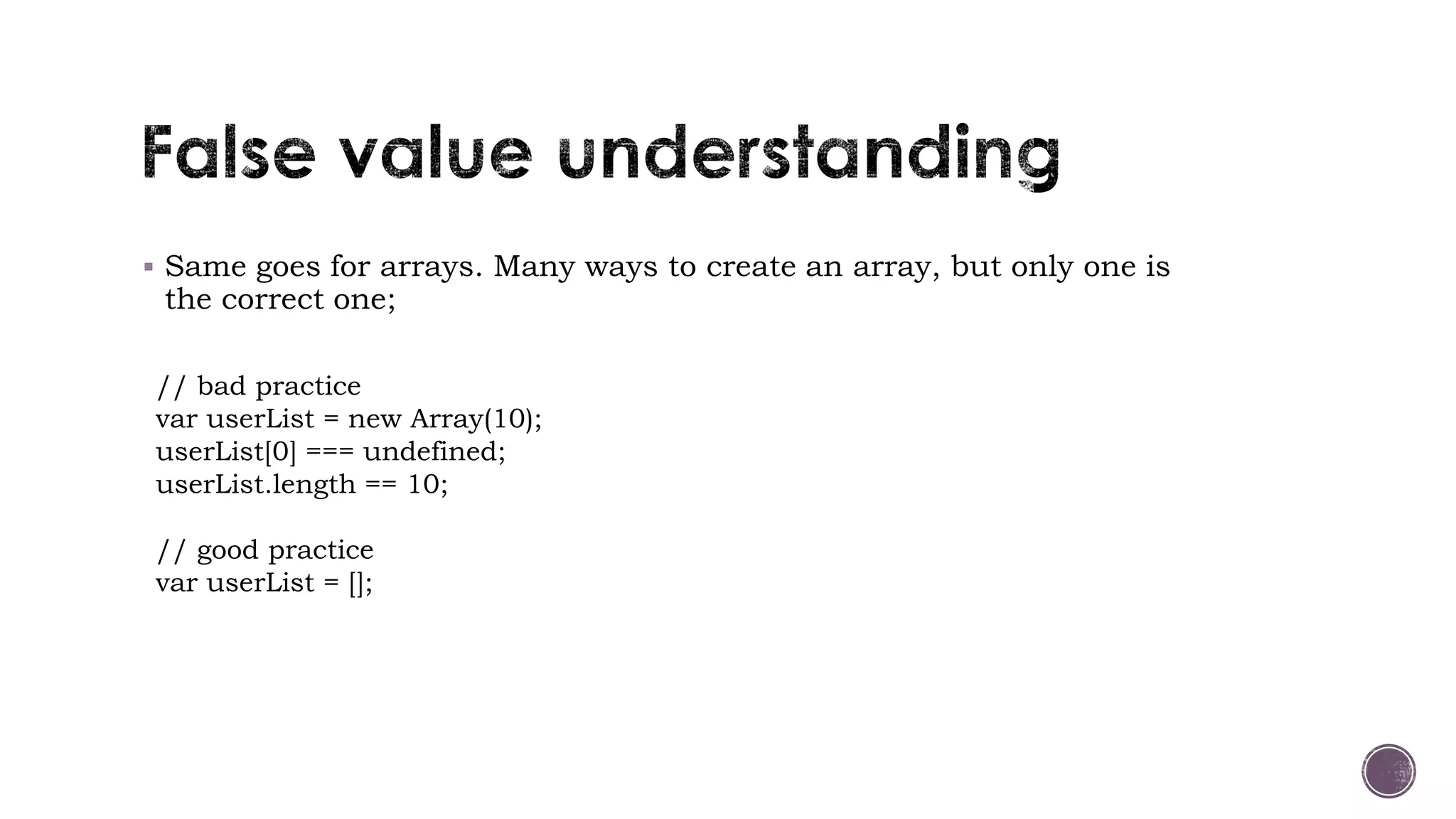

11.  Same goes for arrays. Many ways to create an array, but only one is
the correct one;
// bad practice
var userList = new Array(10);
userList[0] === undefined;
userList.length == 10;
// good practice
var userList = [];

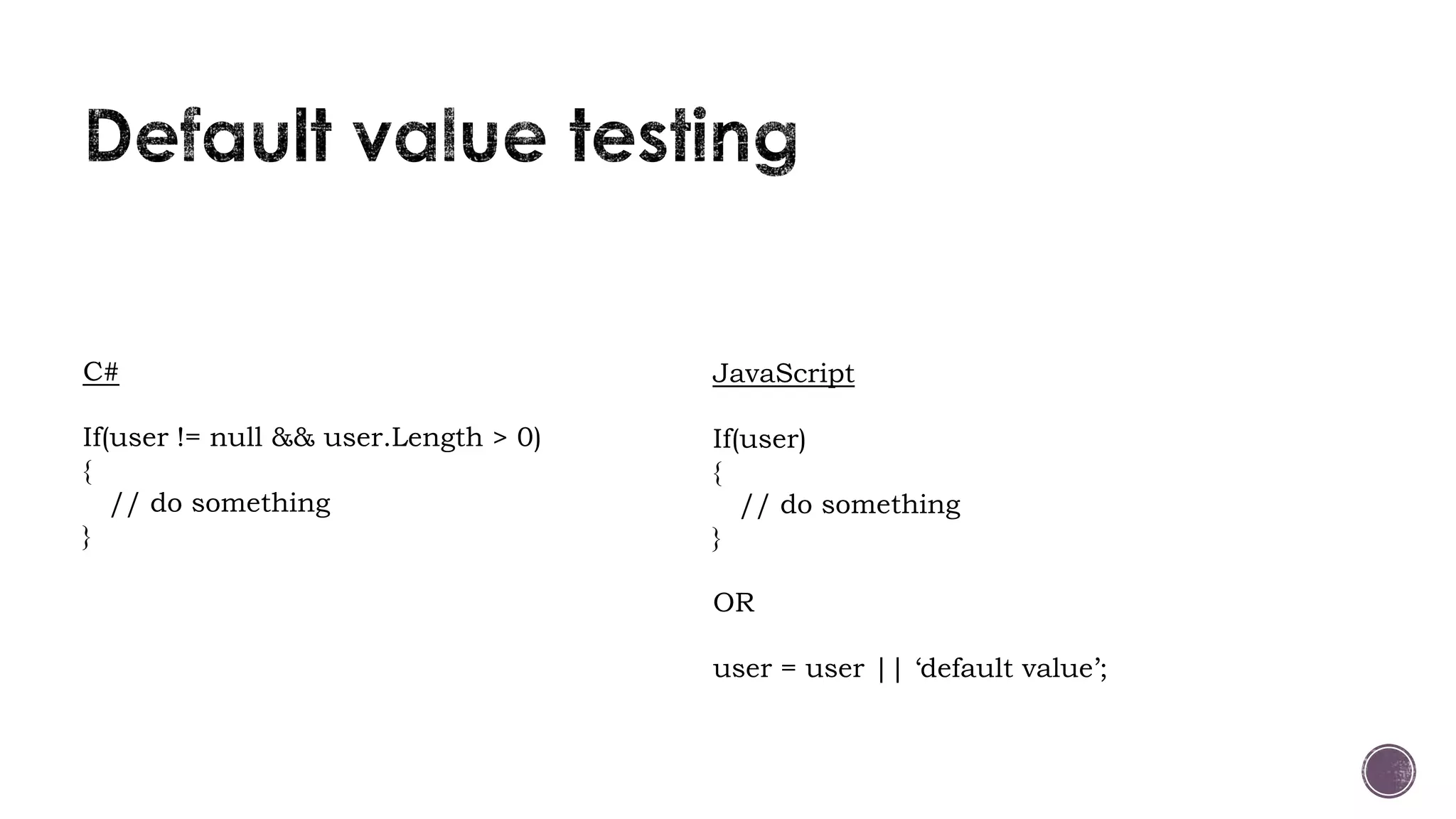

12. C#
If(user != null && user.Length > 0)
{
// do something
}
JavaScript
If(user)
{
// do something
}
OR
user = user || ‘default value’;

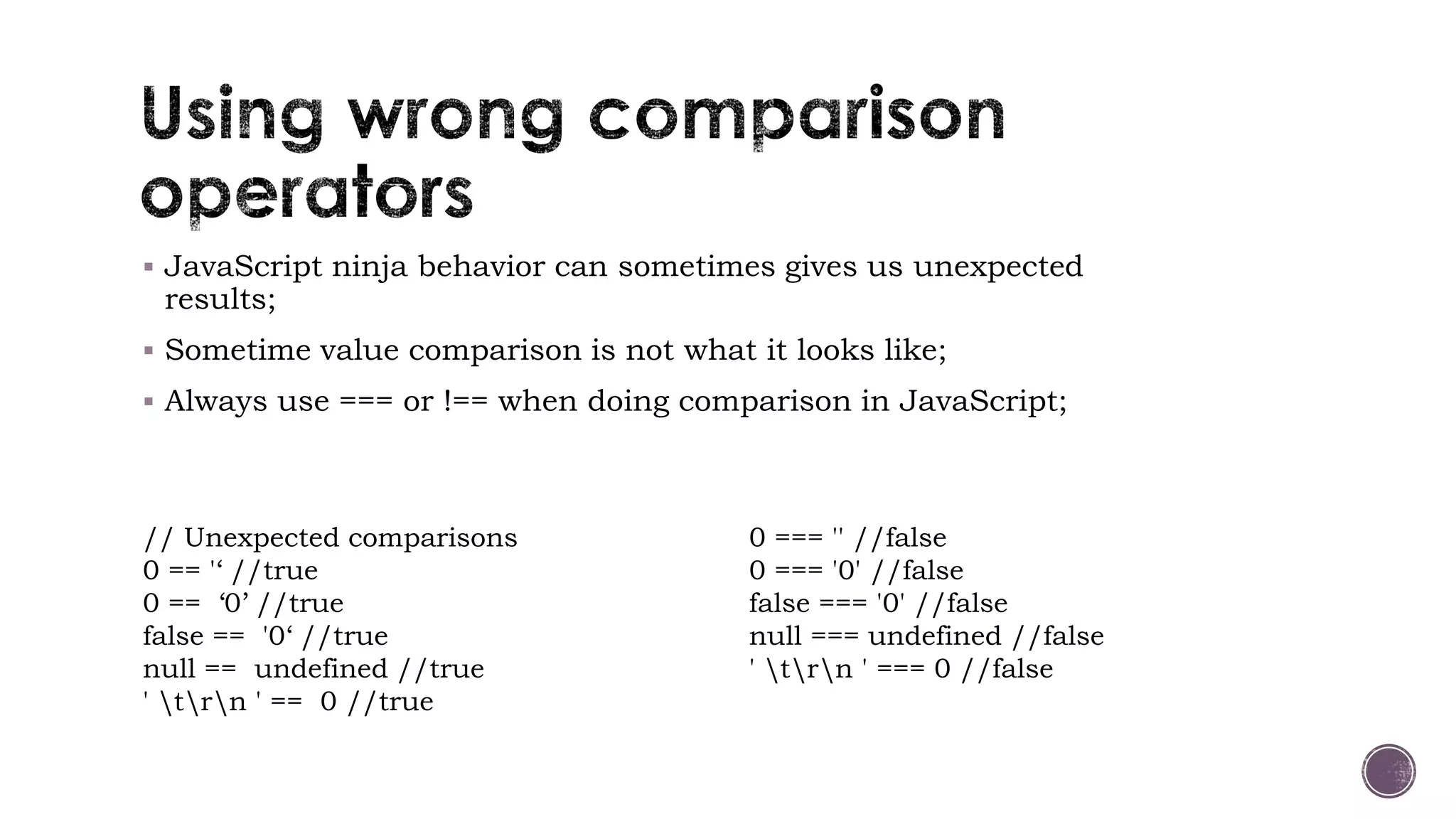

13.  JavaScript ninja behavior can sometimes gives us unexpected
results;
 Sometime value comparison is not what it looks like;
 Always use === or !== when doing comparison in JavaScript;
// Unexpected comparisons
0 == '‘ //true
0 == ‘0’ //true
false == '0‘ //true
null == undefined //true
' trn ' == 0 //true
0 === '' //false
0 === '0' //false
false === '0' //false
null === undefined //false
' trn ' === 0 //false

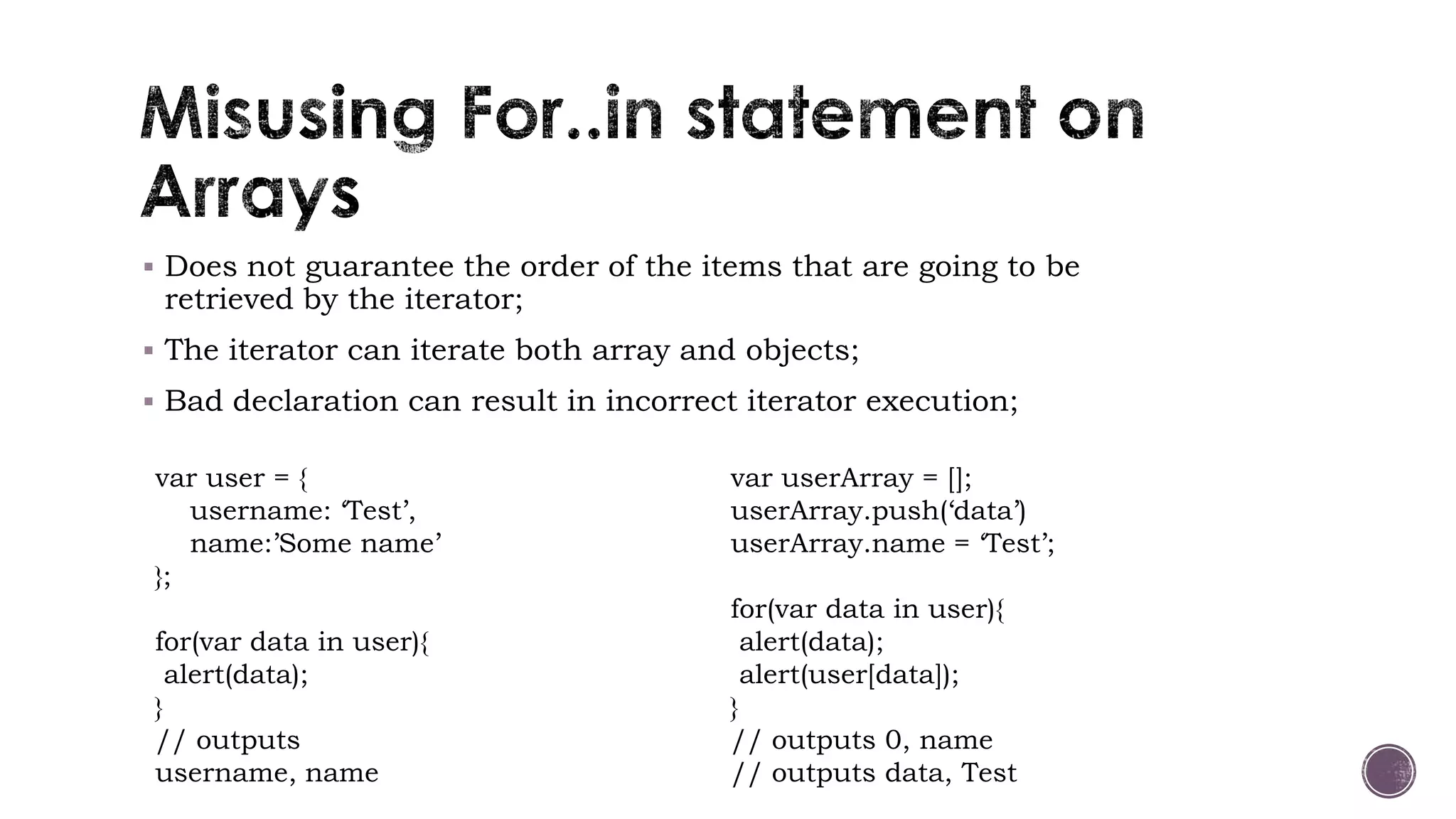

14.  Does not guarantee the order of the items that are going to be
retrieved by the iterator;
 The iterator can iterate both array and objects;
 Bad declaration can result in incorrect iterator execution;
var user = {
username: ‘Test’,
name:’Some name’
};
for(var data in user){
alert(data);
}
// outputs
username, name
var userArray = [];
userArray.push(‘data’)
userArray.name = ‘Test’;
for(var data in user){
alert(data);
alert(user[data]);
}
// outputs 0, name
// outputs data, Test

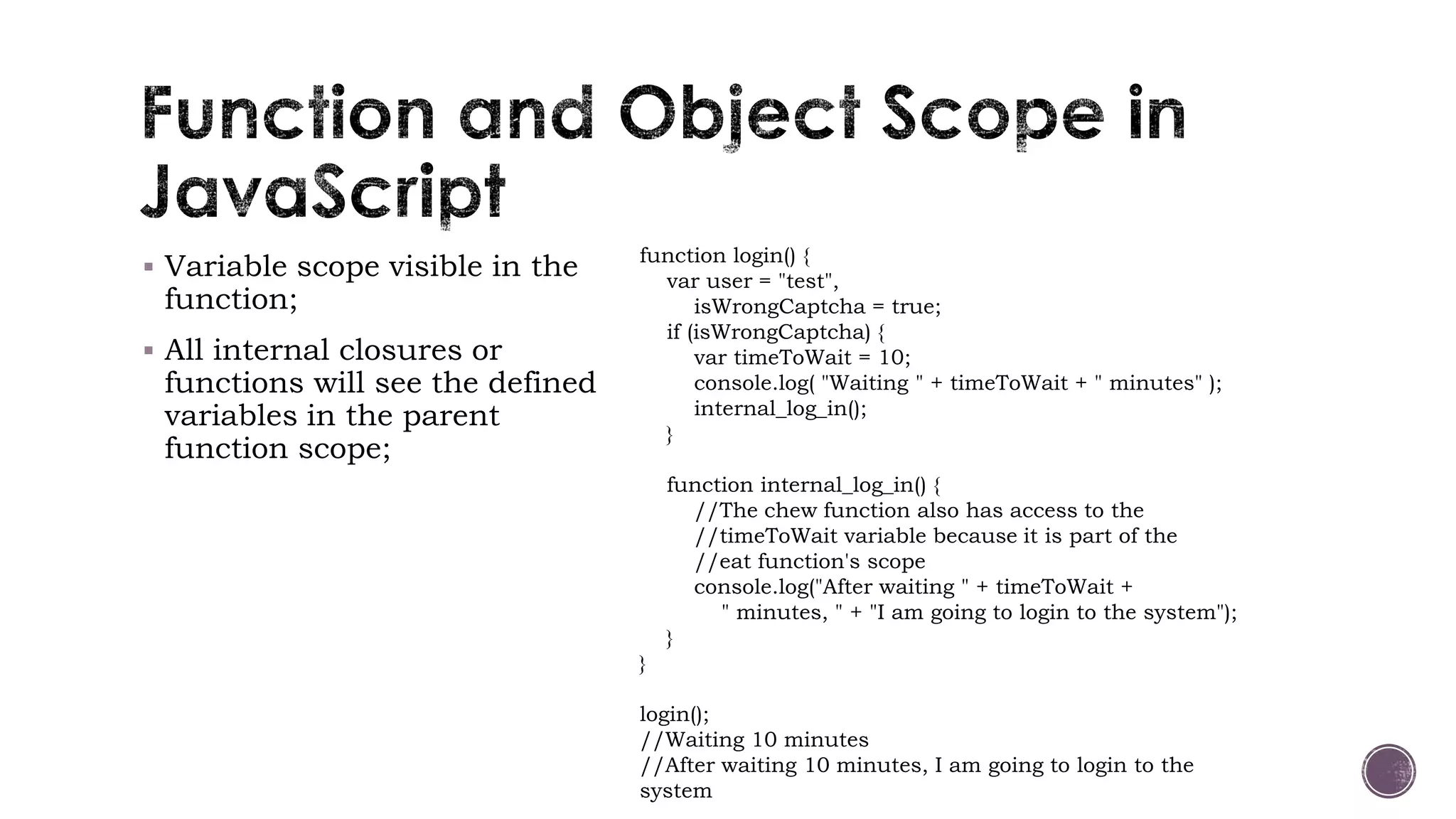

15.  Variable scope visible in the
function;
 All internal closures or
functions will see the defined
variables in the parent
function scope;
function login() {
var user = "test",
isWrongCaptcha = true;
if (isWrongCaptcha) {
var timeToWait = 10;
console.log( "Waiting " + timeToWait + " minutes" );
internal_log_in();
}
function internal_log_in() {
//The chew function also has access to the
//timeToWait variable because it is part of the
//eat function's scope
console.log("After waiting " + timeToWait +
" minutes, " + "I am going to login to the system");
}
}
login();
//Waiting 10 minutes
//After waiting 10 minutes, I am going to login to the
system

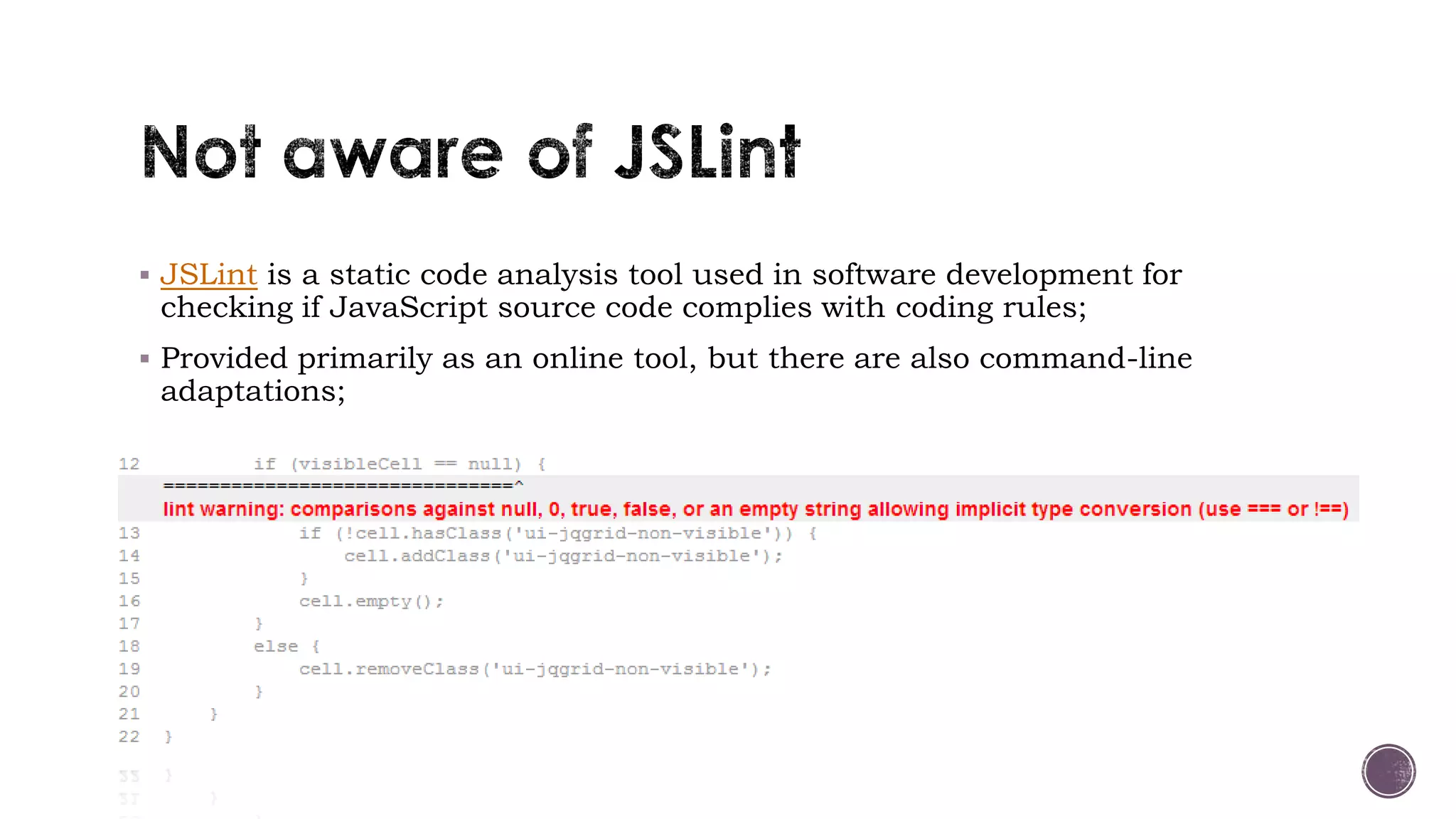

16.  JSLint is a static code analysis tool used in software development for
checking if JavaScript source code complies with coding rules;
 Provided primarily as an online tool, but there are also command-line
adaptations;

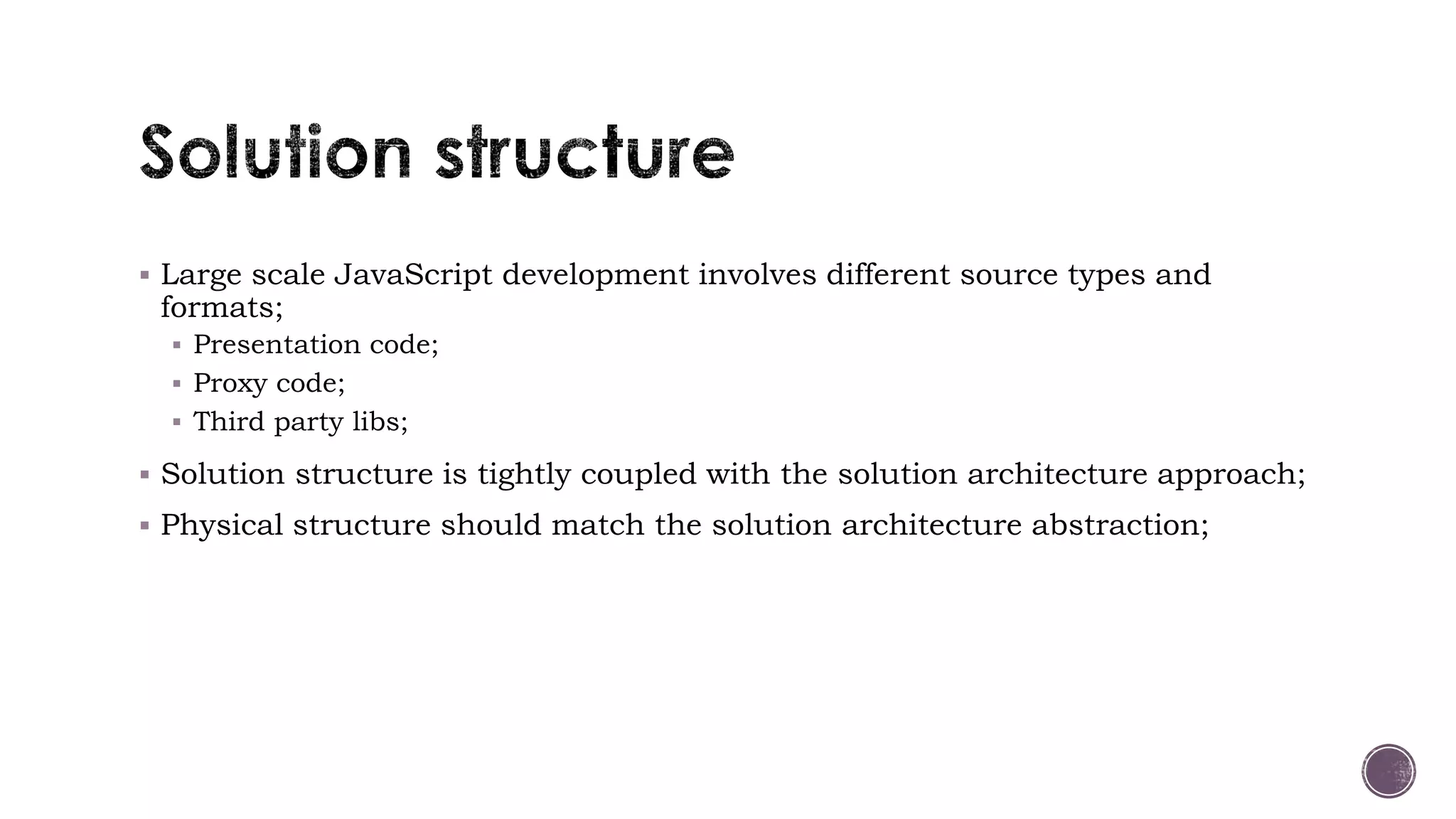

17.  Large scale JavaScript development involves different source types and
formats;
 Presentation code;
 Proxy code;
 Third party libs;
 Solution structure is tightly coupled with the solution architecture approach;
 Physical structure should match the solution architecture abstraction;

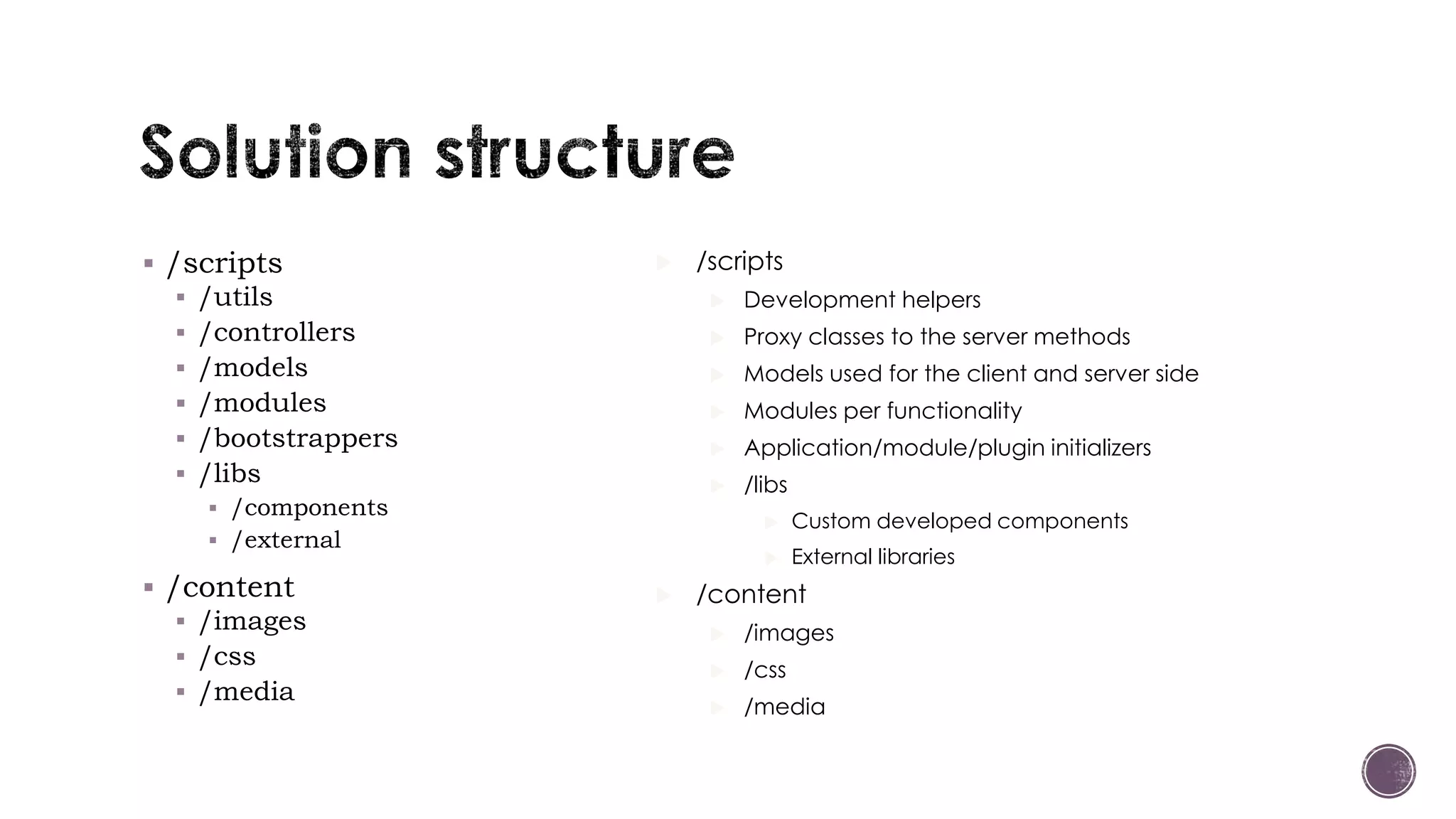

18.  /scripts
 /utils
 /controllers
 /models
 /modules
 /bootstrappers
 /libs
 /components
 /external
 /content
 /images
 /css
 /media
 /scripts
 Development helpers
 Proxy classes to the server methods
 Models used for the client and server side
 Modules per functionality
 Application/module/plugin initializers
 /libs
 Custom developed components
 External libraries
 /content
 /images
 /css
 /media

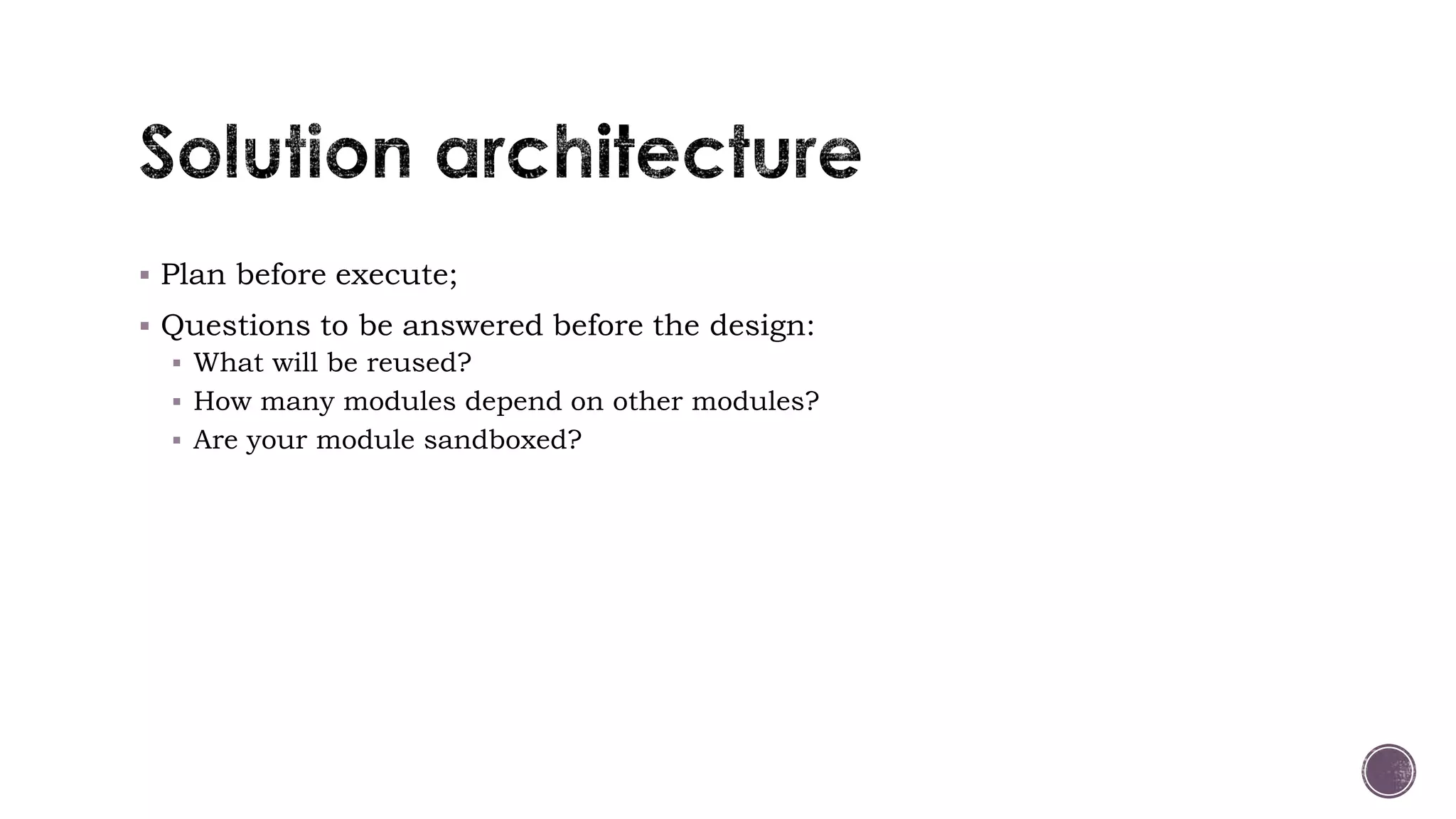

19.  Plan before execute;
 Questions to be answered before the design:
 What will be reused?
 How many modules depend on other modules?
 Are your module sandboxed?

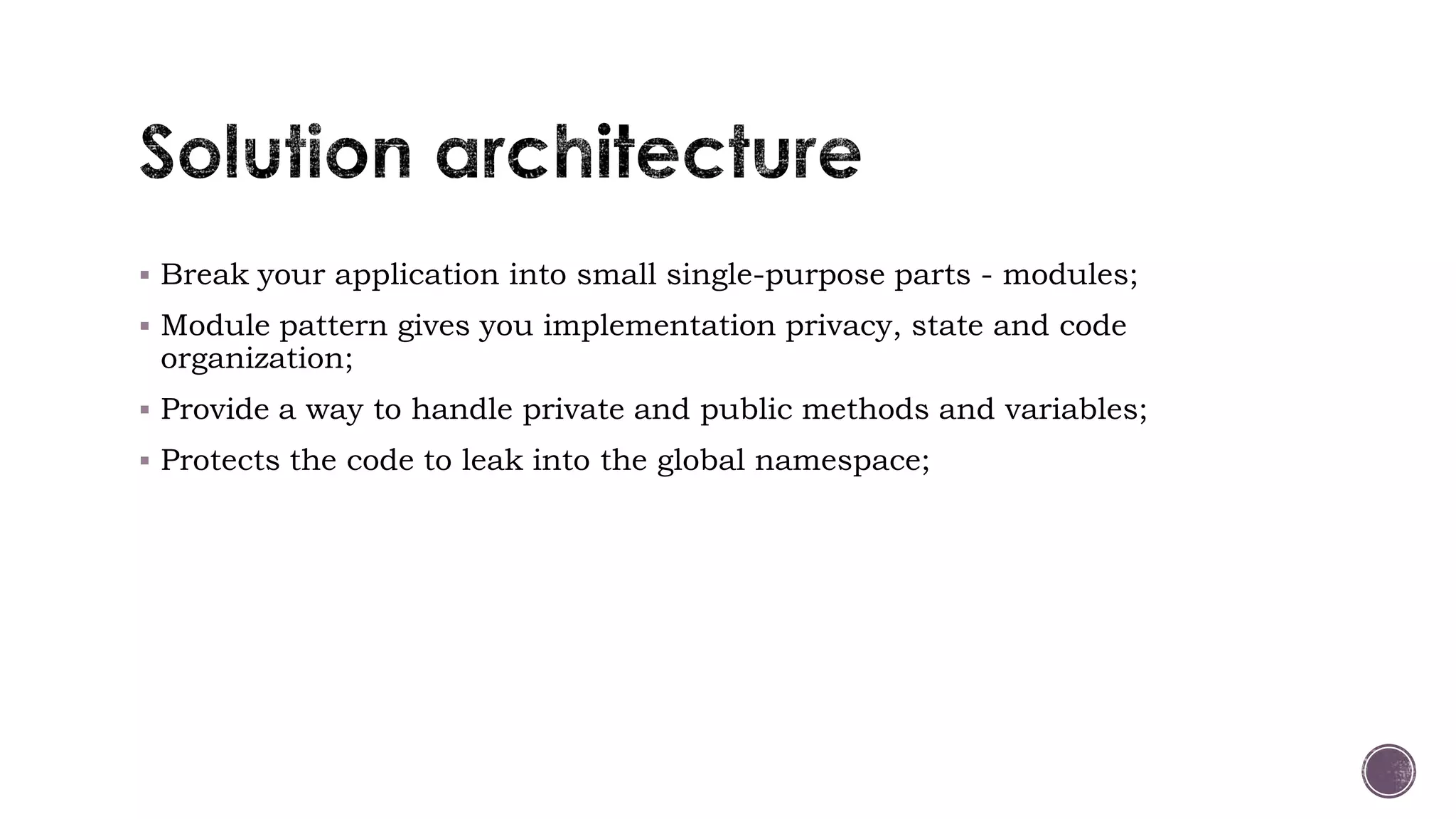

20.  Break your application into small single-purpose parts - modules;
 Module pattern gives you implementation privacy, state and code
organization;
 Provide a way to handle private and public methods and variables;
 Protects the code to leak into the global namespace;

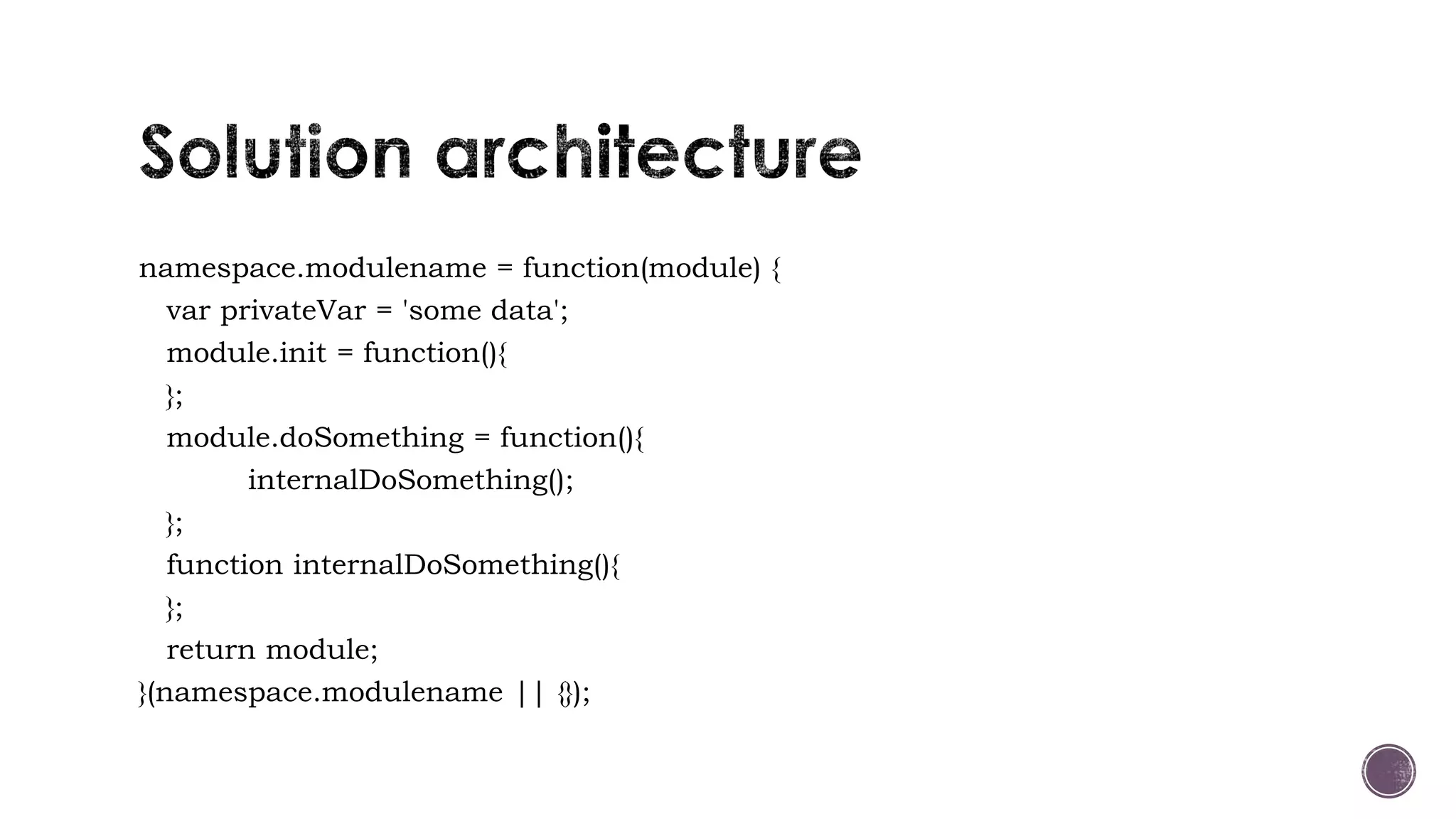

21. namespace.modulename = function(module) {
var privateVar = 'some data';
module.init = function(){
};
module.doSomething = function(){
internalDoSomething();
};
function internalDoSomething(){
};
return module;
}(namespace.modulename || {});

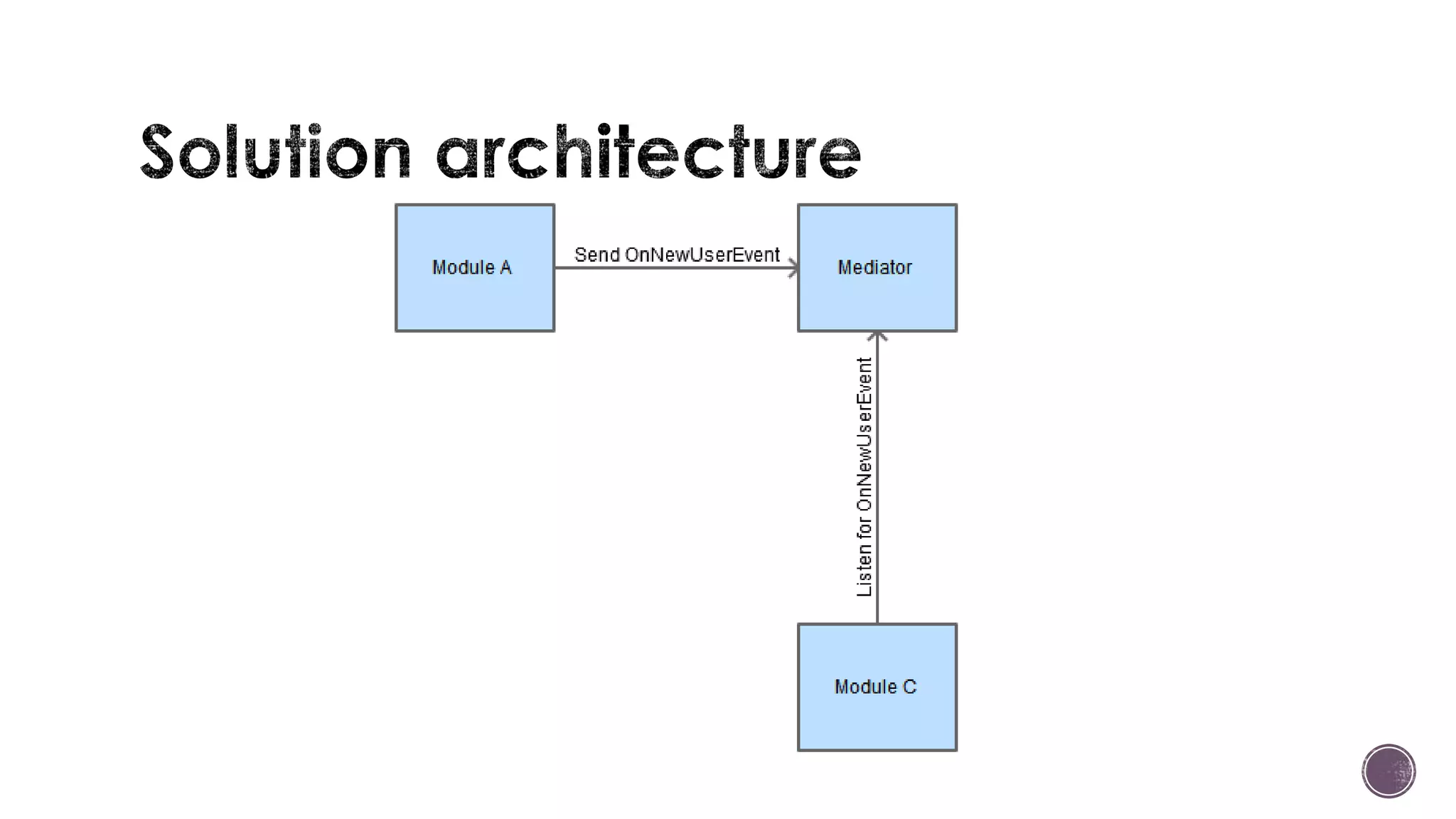

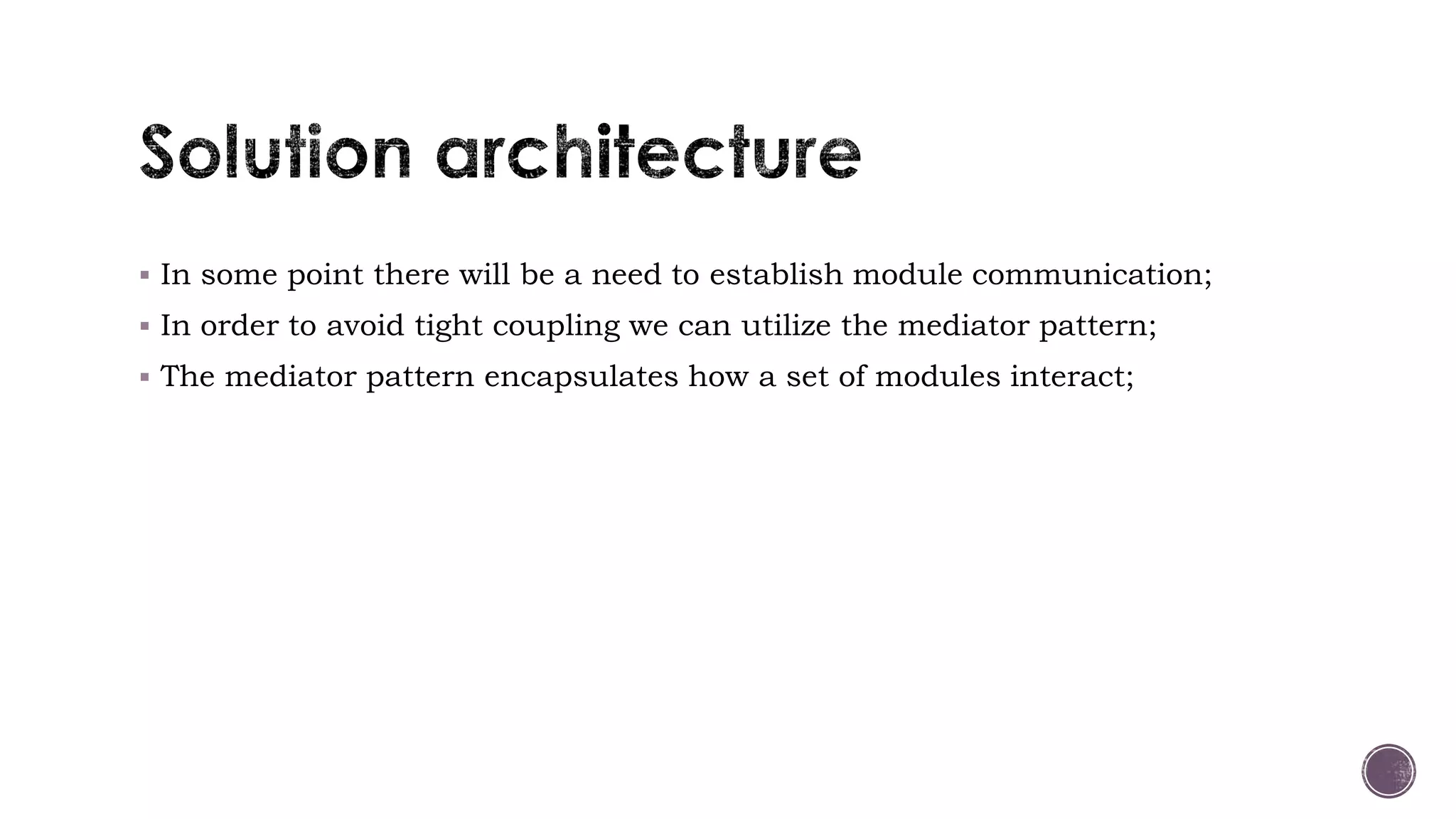

22.  In some point there will be a need to establish module communication;
 In order to avoid tight coupling we can utilize the mediator pattern;
 The mediator pattern encapsulates how a set of modules interact;

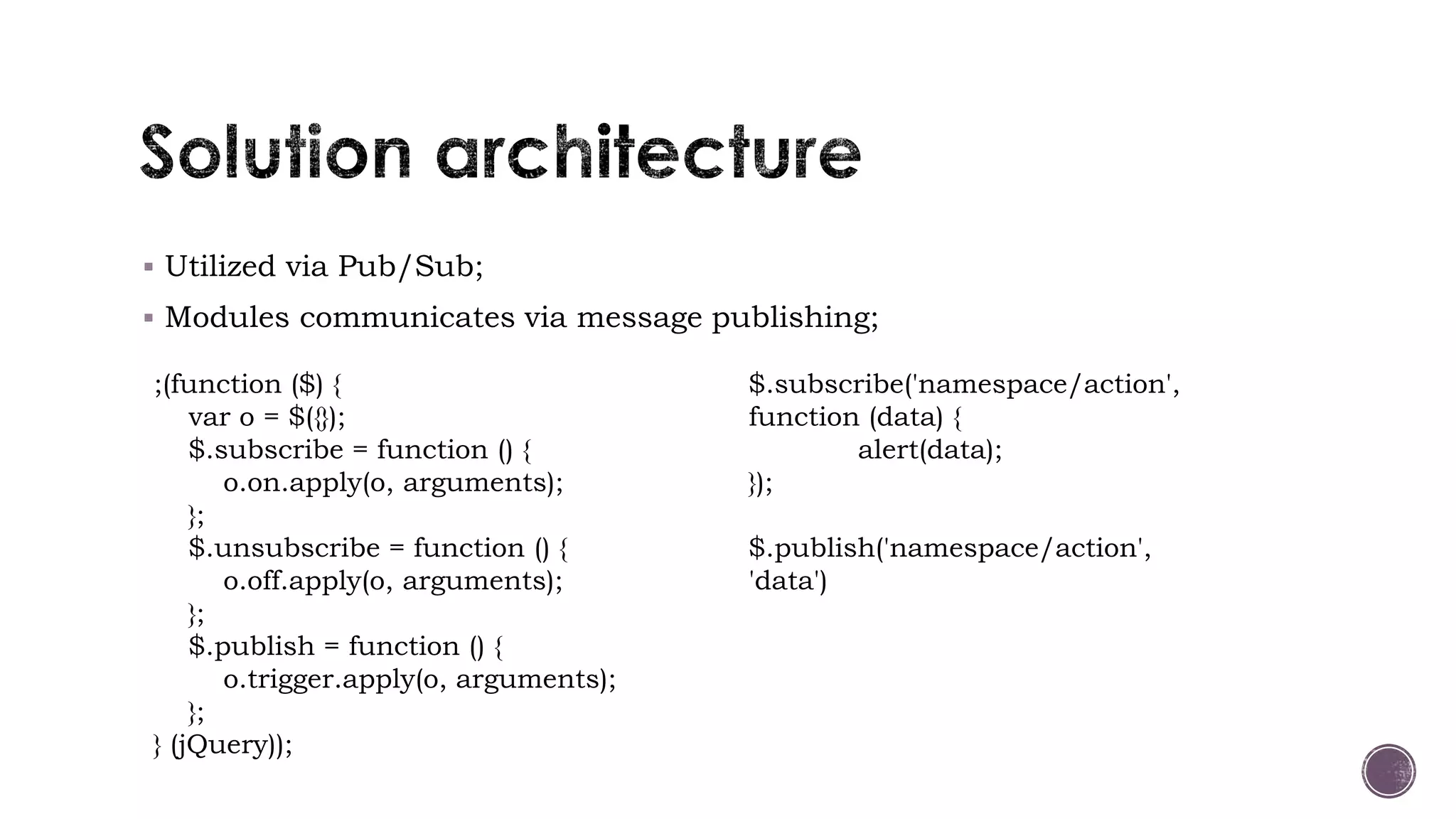

24.  Utilized via Pub/Sub;
 Modules communicates via message publishing;
;(function ($) {
var o = $({});
$.subscribe = function () {
o.on.apply(o, arguments);
};
$.unsubscribe = function () {
o.off.apply(o, arguments);
};
$.publish = function () {
o.trigger.apply(o, arguments);
};
} (jQuery));
$.subscribe('namespace/action',
function (data) {
alert(data);
});
$.publish('namespace/action',
'data')

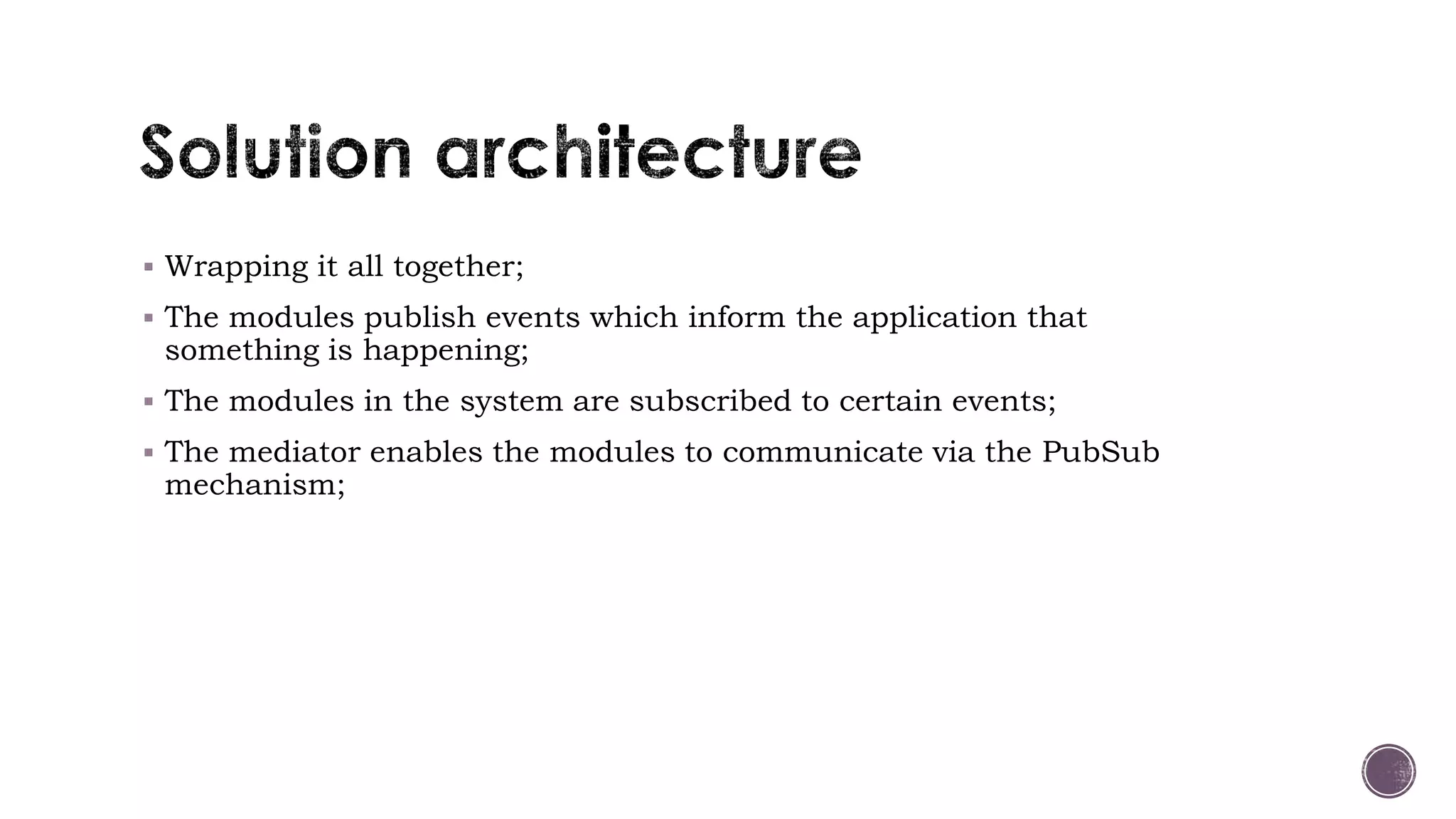

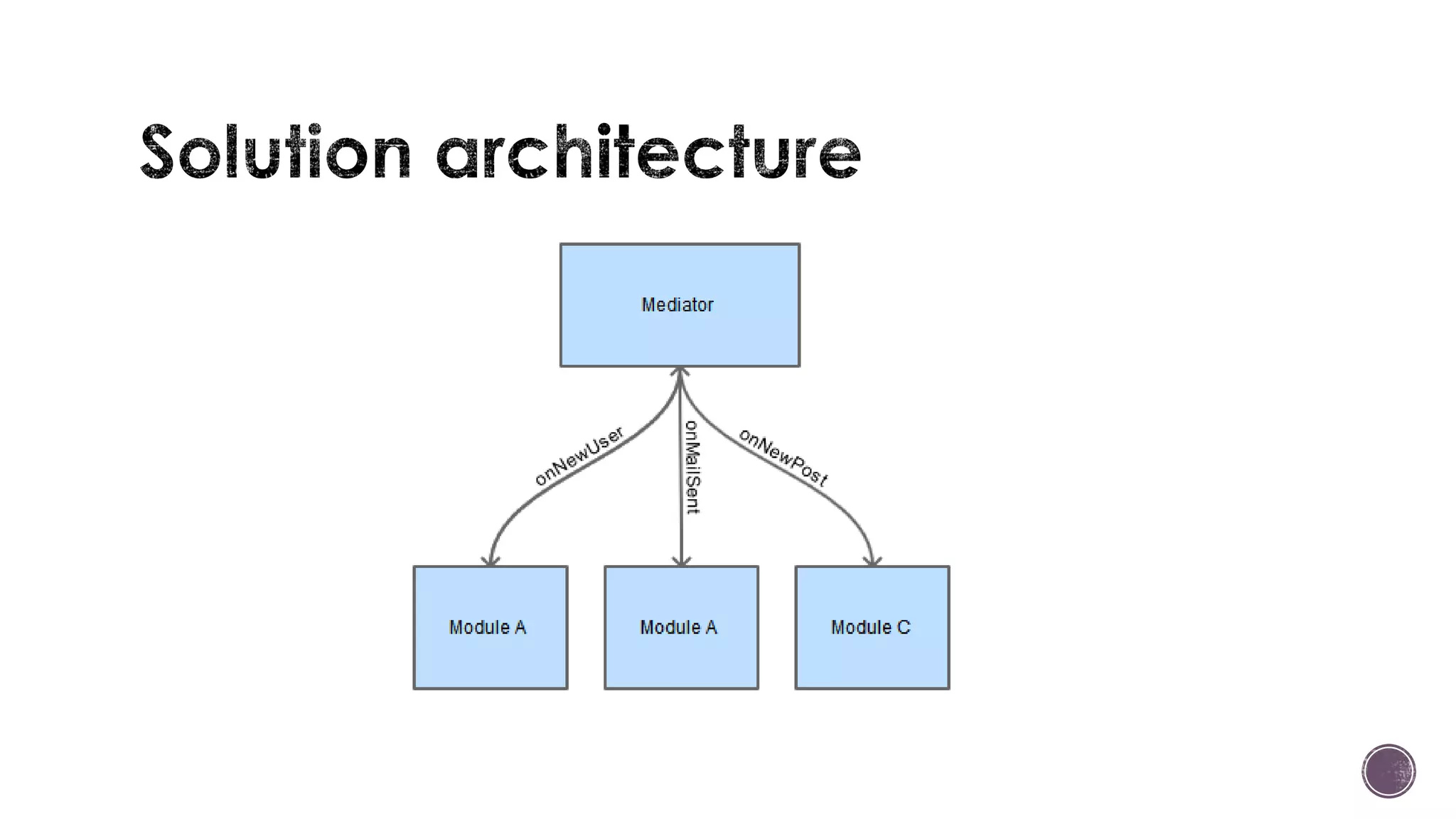

25.  Wrapping it all together;
 The modules publish events which inform the application that
something is happening;
 The modules in the system are subscribed to certain events;
 The mediator enables the modules to communicate via the PubSub
mechanism;

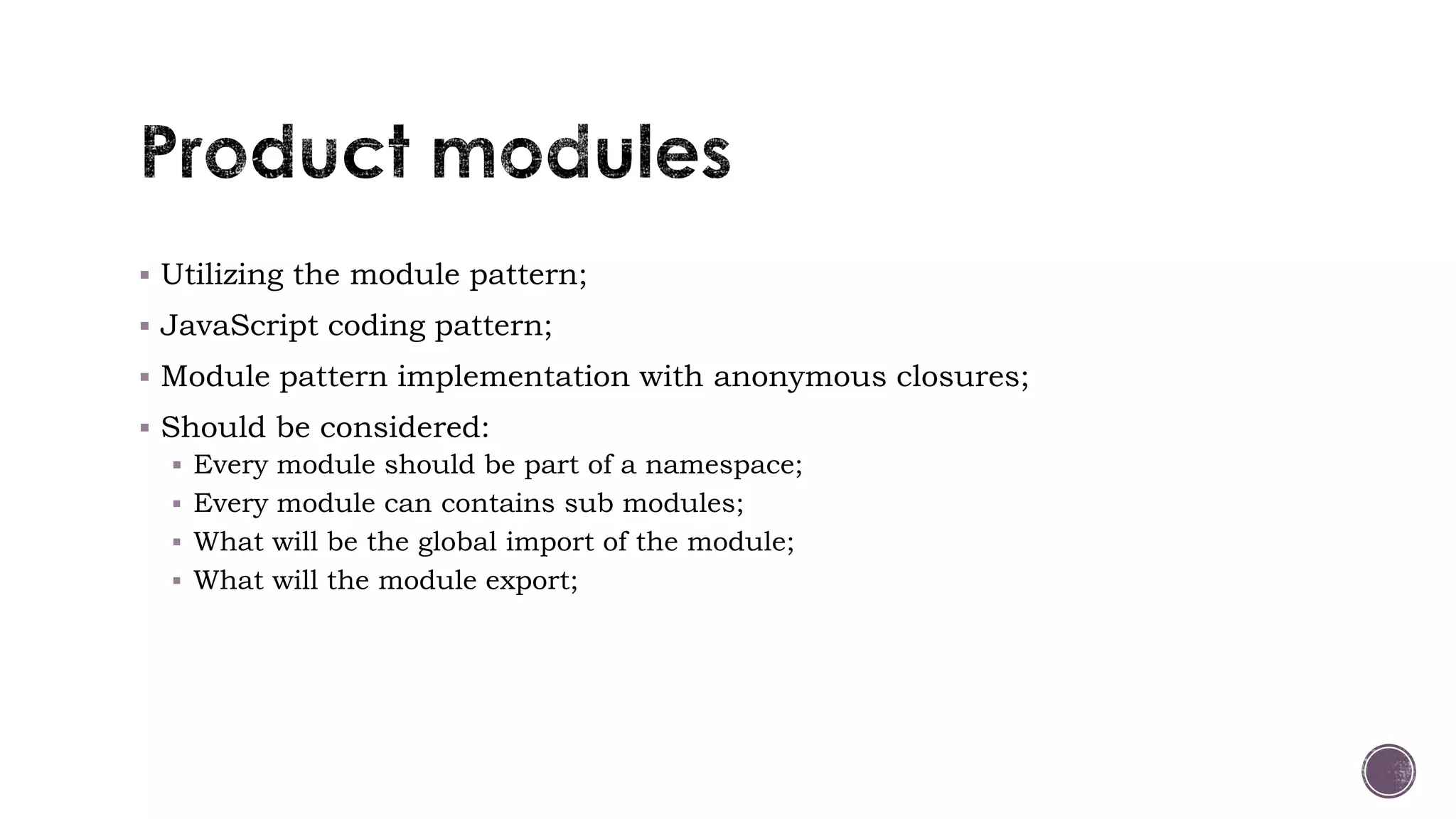

27.  Utilizing the module pattern;
 JavaScript coding pattern;
 Module pattern implementation with anonymous closures;
 Should be considered:
 Every module should be part of a namespace;
 Every module can contains sub modules;
 What will be the global import of the module;
 What will the module export;

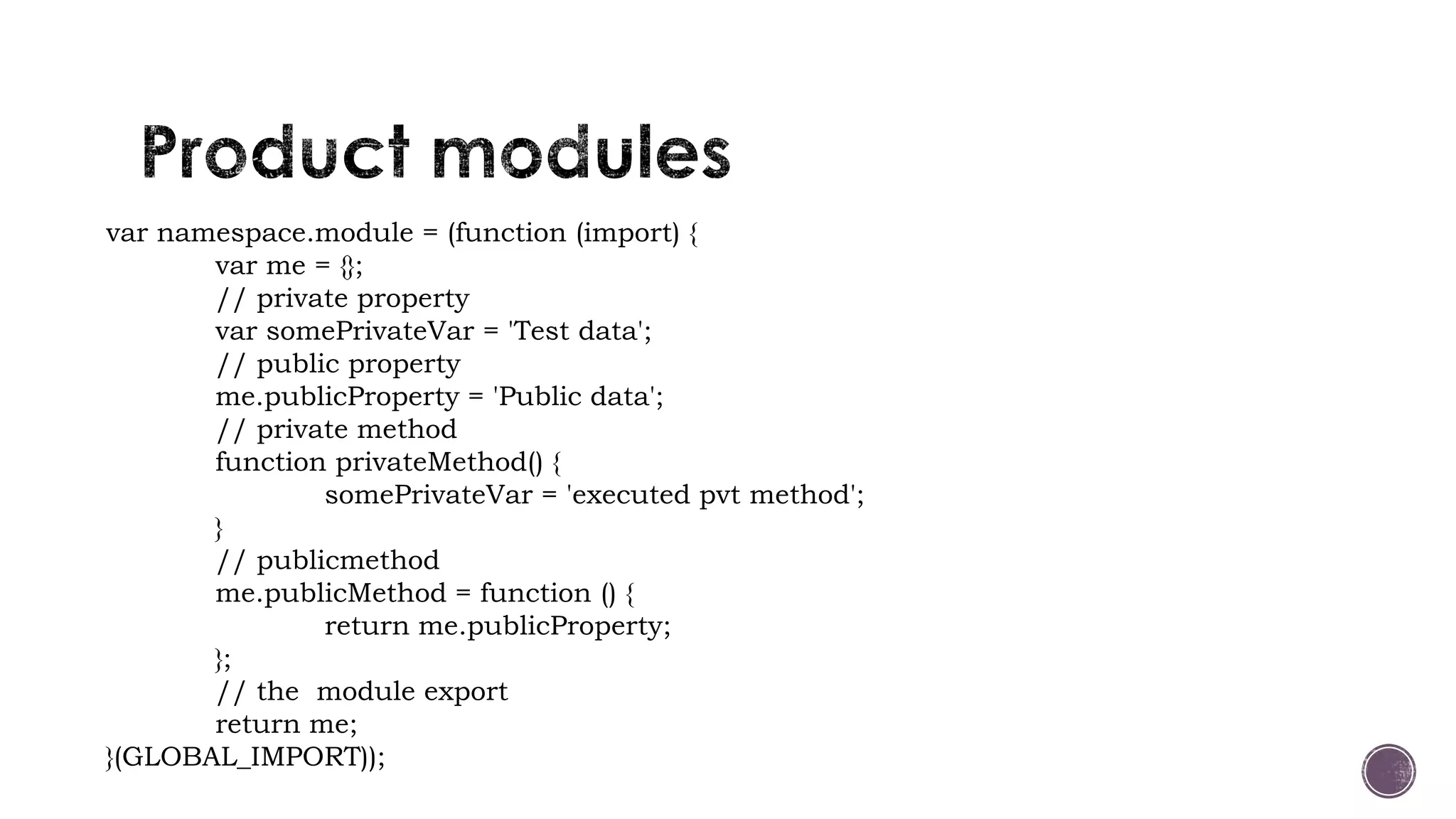

28. var namespace.module = (function (import) {
var me = {};
// private property
var somePrivateVar = 'Test data';
// public property
me.publicProperty = 'Public data';
// private method
function privateMethod() {
somePrivateVar = 'executed pvt method';
}
// publicmethod
me.publicMethod = function () {
return me.publicProperty;
};
// the module export
return me;
}(GLOBAL_IMPORT));

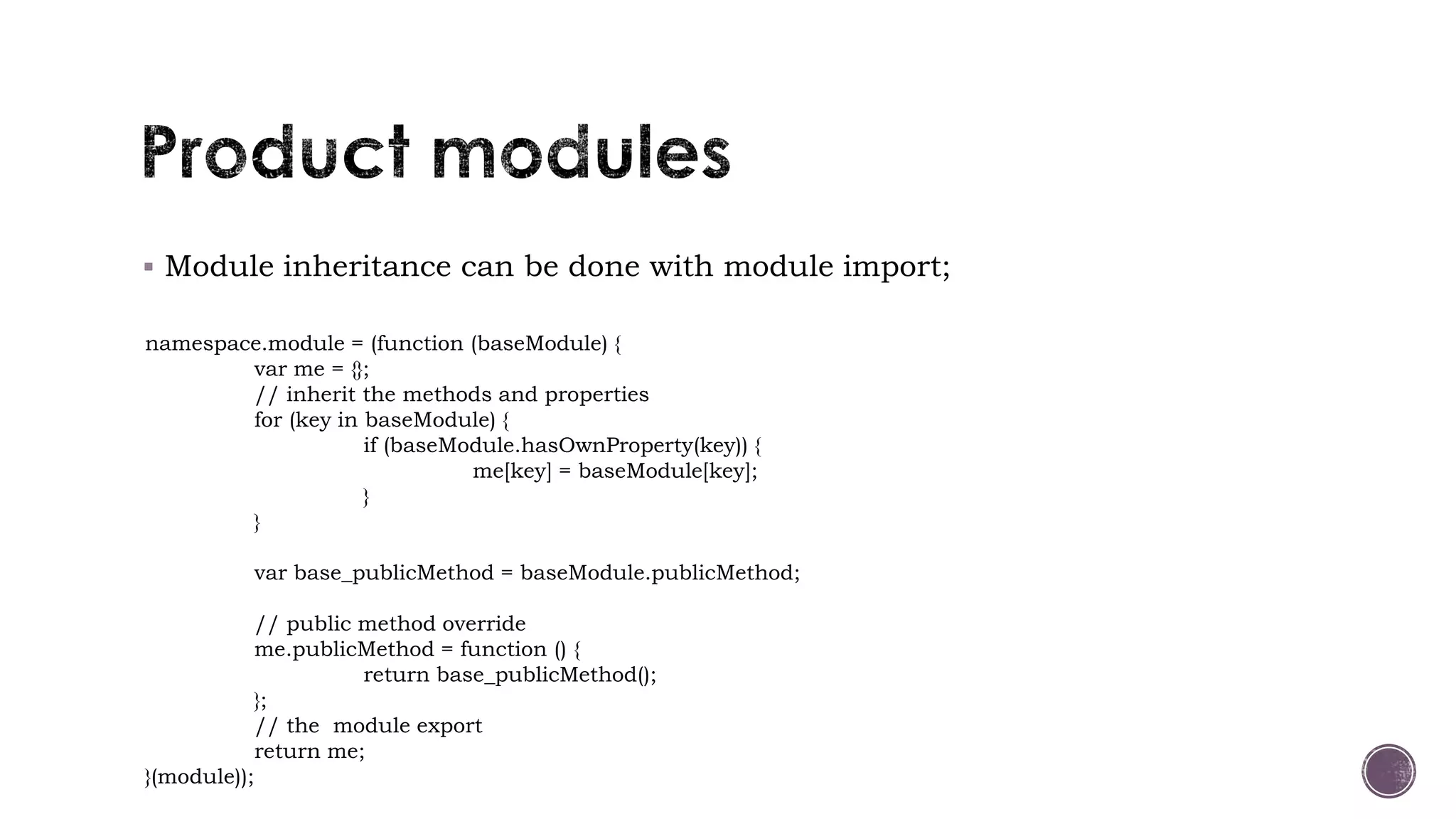

29.  Module inheritance can be done with module import;
namespace.module = (function (baseModule) {
var me = {};
// inherit the methods and properties
for (key in baseModule) {
if (baseModule.hasOwnProperty(key)) {
me[key] = baseModule[key];
}
}
var base_publicMethod = baseModule.publicMethod;
// public method override
me.publicMethod = function () {
return base_publicMethod();
};
// the module export
return me;
}(module));

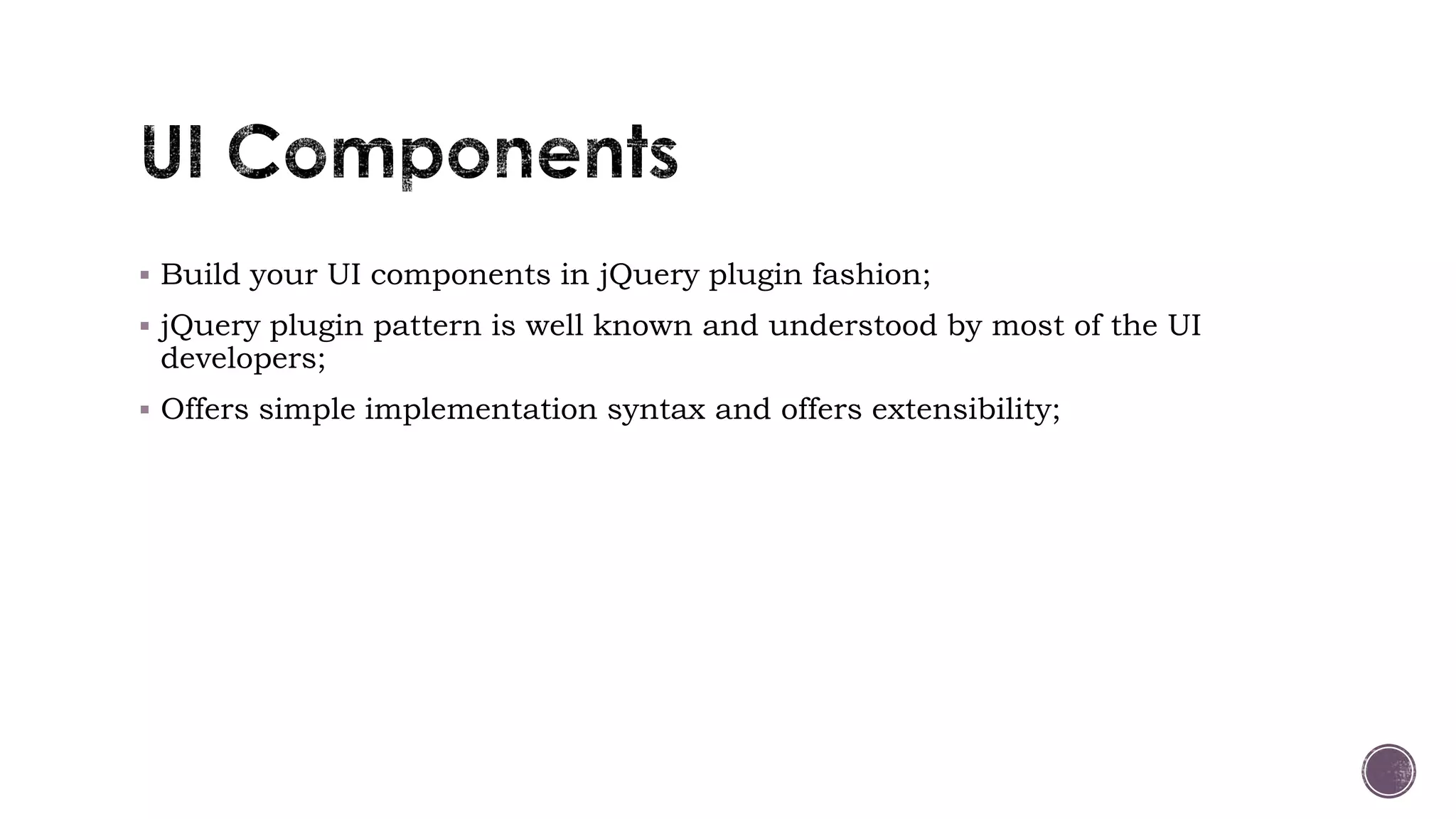

30.  Build your UI components in jQuery plugin fashion;
 jQuery plugin pattern is well known and understood by most of the UI
developers;
 Offers simple implementation syntax and offers extensibility;

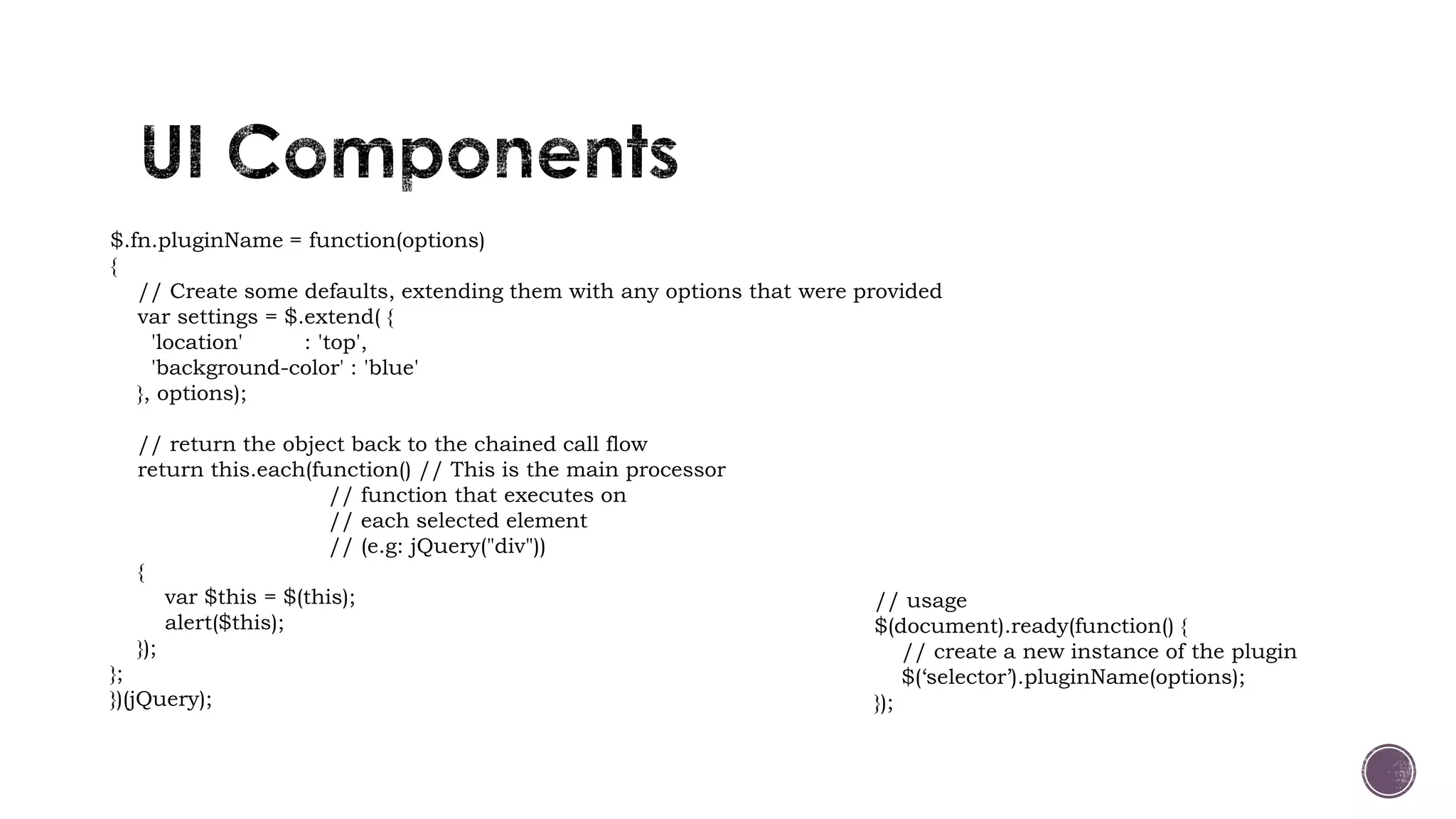

31. $.fn.pluginName = function(options)
{
// Create some defaults, extending them with any options that were provided
var settings = $.extend( {
'location' : 'top',
'background-color' : 'blue'
}, options);
// return the object back to the chained call flow
return this.each(function() // This is the main processor
// function that executes on
// each selected element
// (e.g: jQuery("div"))
{
var $this = $(this);
alert($this);
});
};
})(jQuery);
// usage
$(document).ready(function() {
// create a new instance of the plugin
$(‘selector’).pluginName(options);
});

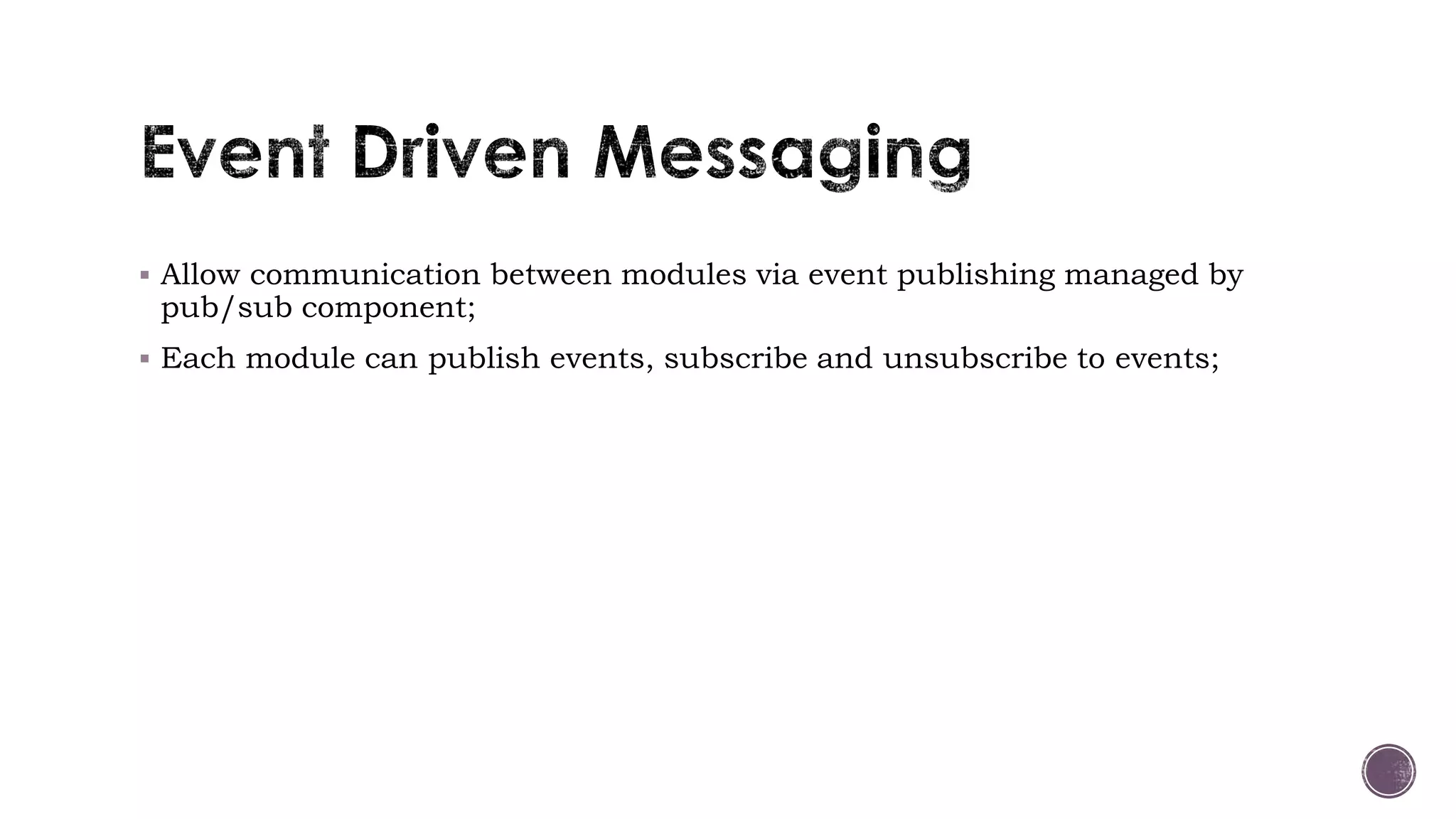

32.  Allow communication between modules via event publishing managed by
pub/sub component;
 Each module can publish events, subscribe and unsubscribe to events;

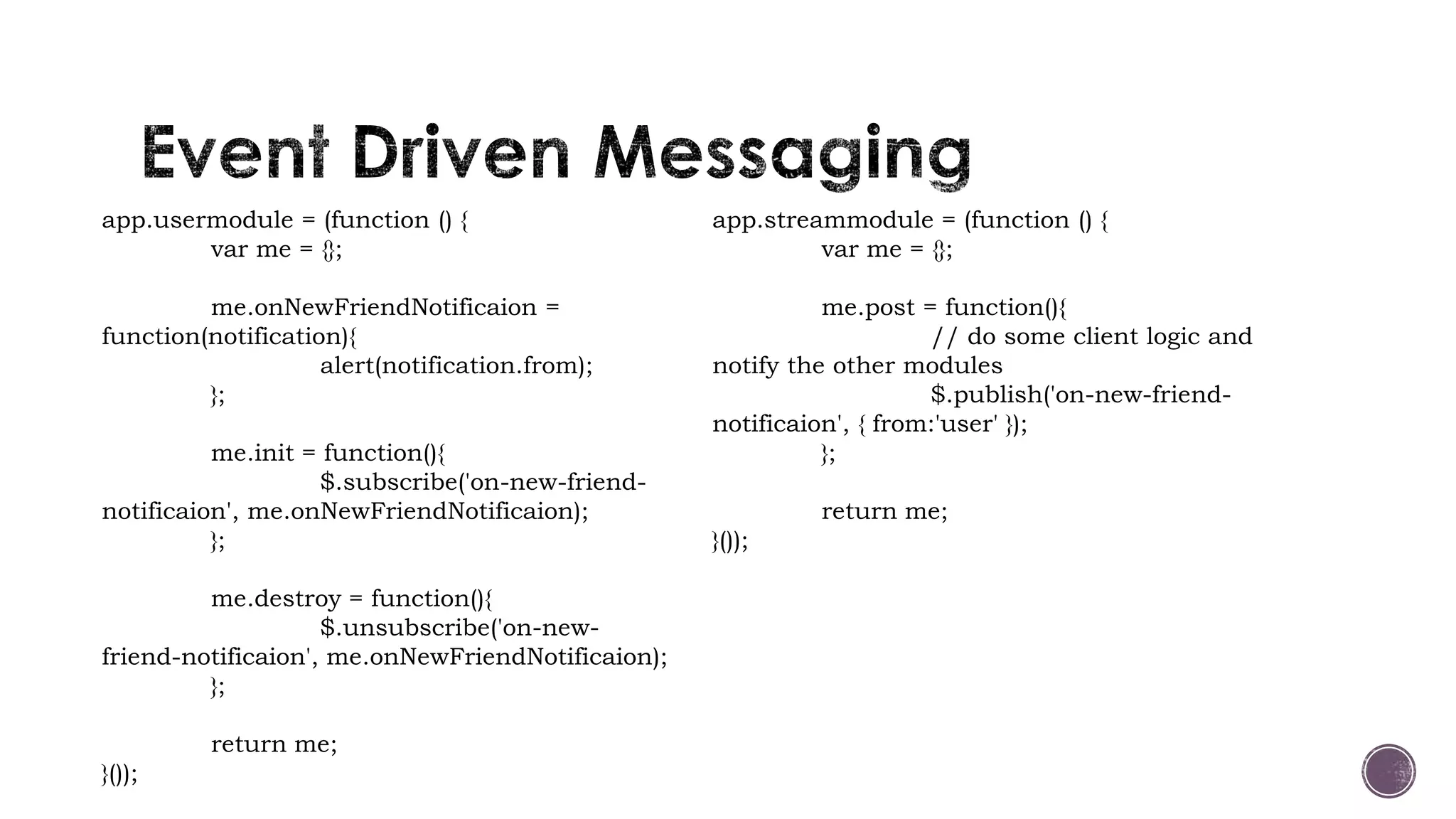

33. app.usermodule = (function () {
var me = {};
me.onNewFriendNotificaion =
function(notification){
alert(notification.from);
};
me.init = function(){
$.subscribe('on-new-friend-
notificaion', me.onNewFriendNotificaion);
};
me.destroy = function(){
$.unsubscribe('on-new-
friend-notificaion', me.onNewFriendNotificaion);
};
return me;
}());
app.streammodule = (function () {
var me = {};
me.post = function(){
// do some client logic and
notify the other modules
$.publish('on-new-friend-
notificaion', { from:'user' });
};
return me;
}());

34.  String localization;
 Dates, times, numbers, and currencies;
 Use jQuery Globalize plugin for Dates, times, numbers, and currencies;

35.  Store string resources in JSON format so they would be native to client;
 Server string resources per culture;
 Build language manager for the string resources;
 Load the JSON resources into the language manager;
 User the language manager to translate plugins, DOM elements and strings;

36.  Useful for tracking modules state, variables and processes while in
development;
 Natively supported in all of the new modern browsers;
 Use an existing logging framework or wrap your logger around the existing
browsers logger;

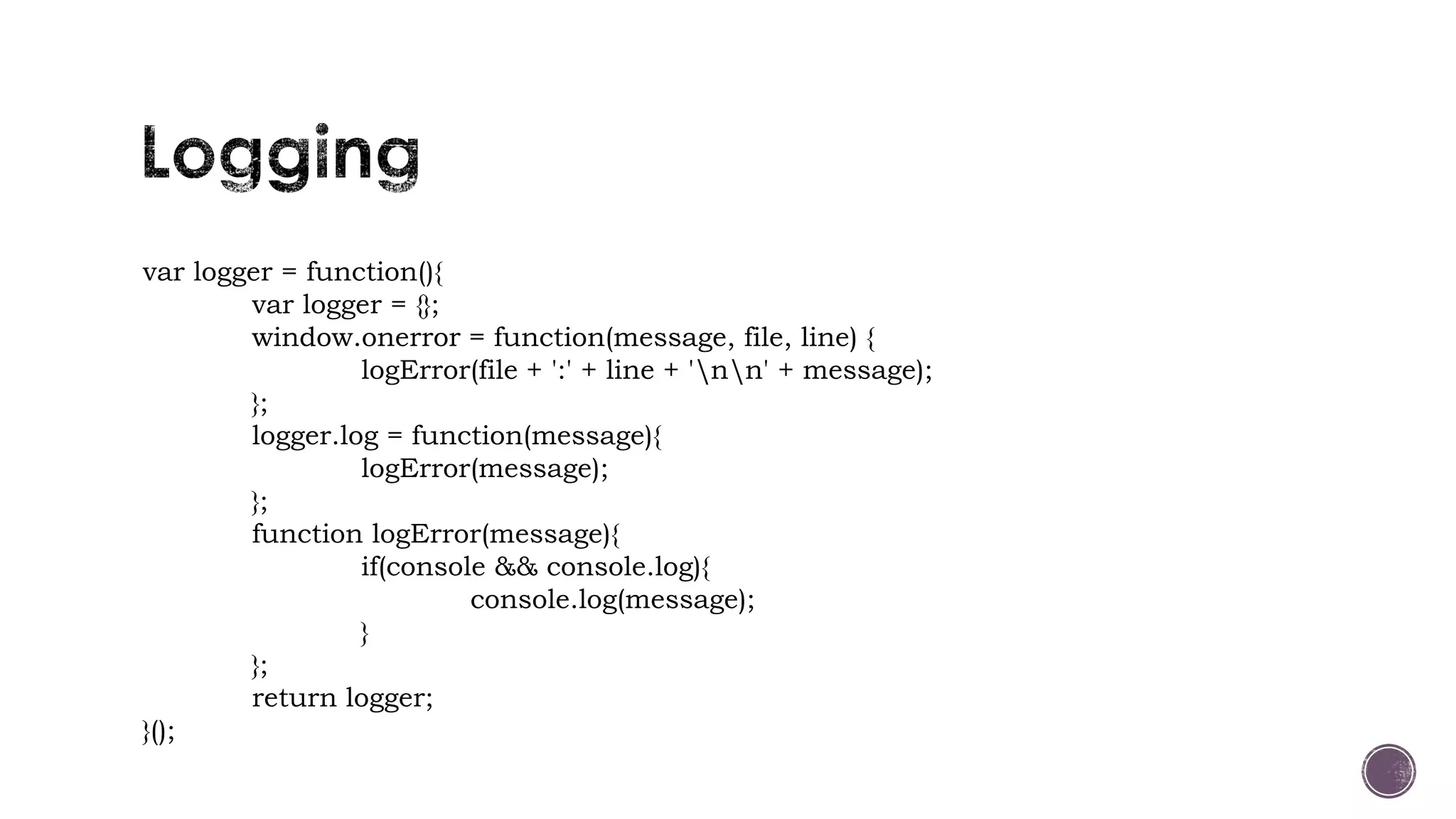

37. var logger = function(){
var logger = {};
window.onerror = function(message, file, line) {
logError(file + ':' + line + 'nn' + message);
};
logger.log = function(message){
logError(message);
};
function logError(message){
if(console && console.log){
console.log(message);
}
};
return logger;
}();

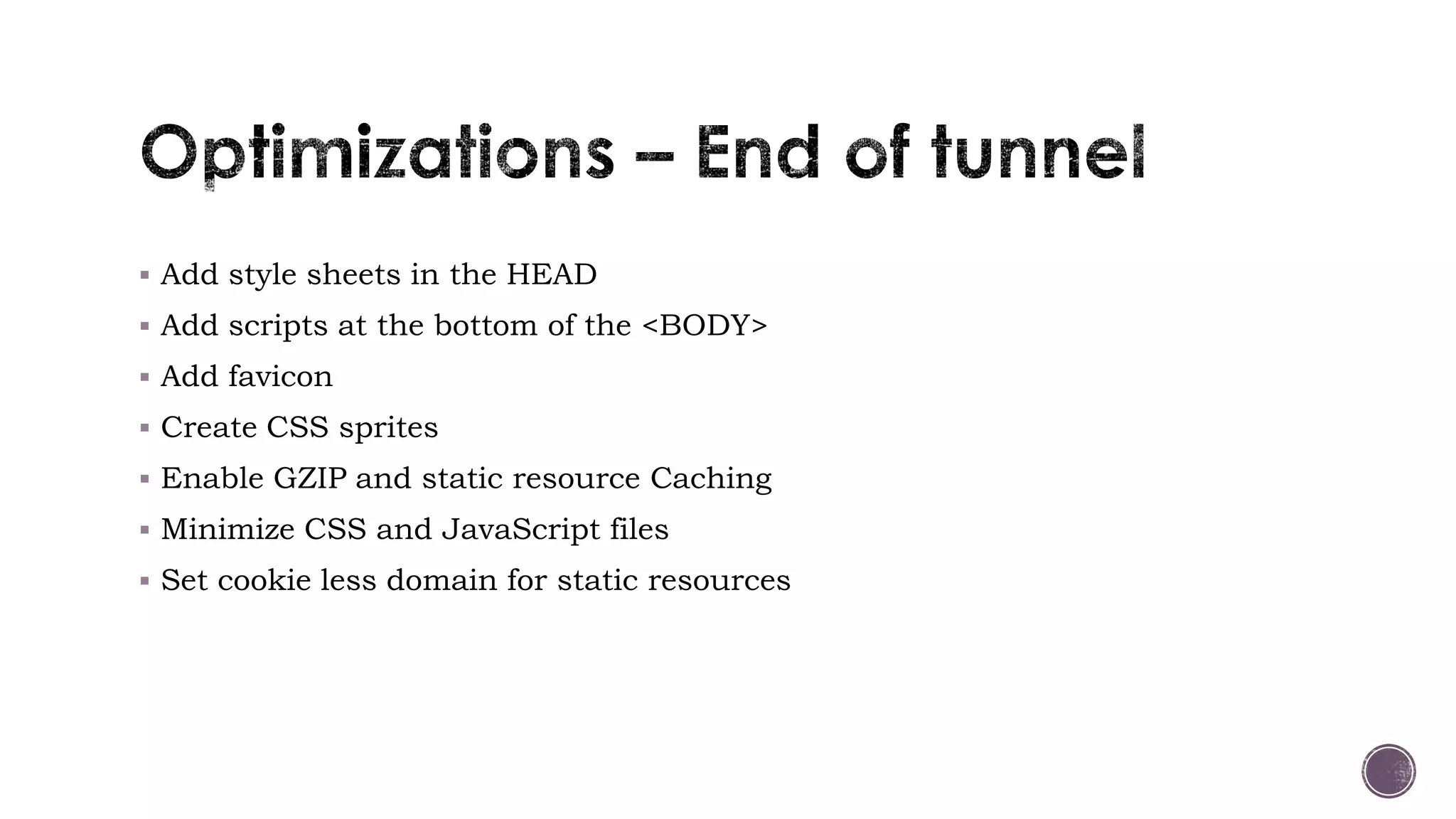

38.  Add style sheets in the HEAD
 Add scripts at the bottom of the <BODY>
 Add favicon
 Create CSS sprites
 Enable GZIP and static resource Caching
 Minimize CSS and JavaScript files
 Set cookie less domain for static resources

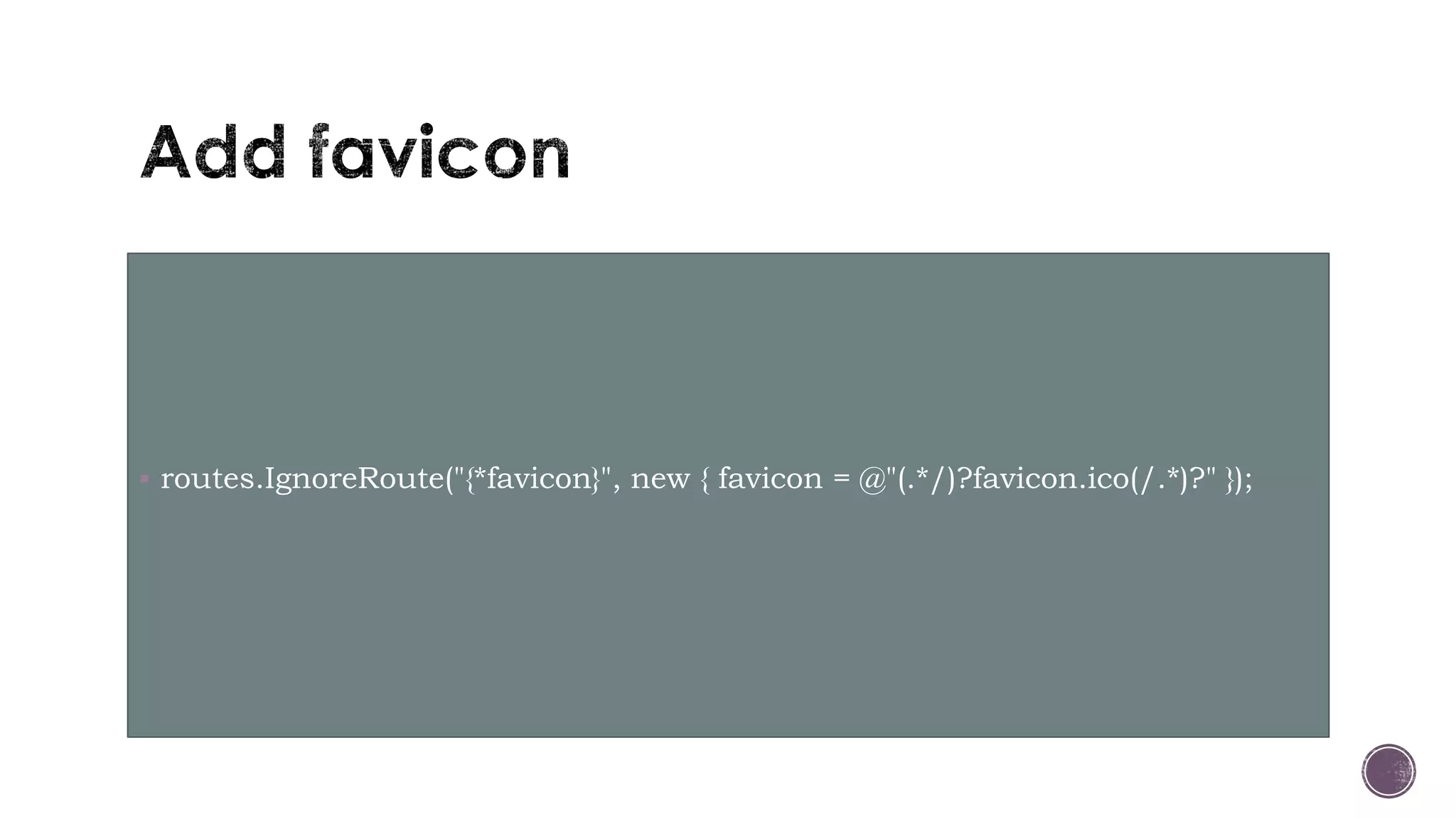

39.  routes.IgnoreRoute("{*favicon}", new { favicon = @"(.*/)?favicon.ico(/.*)?" });

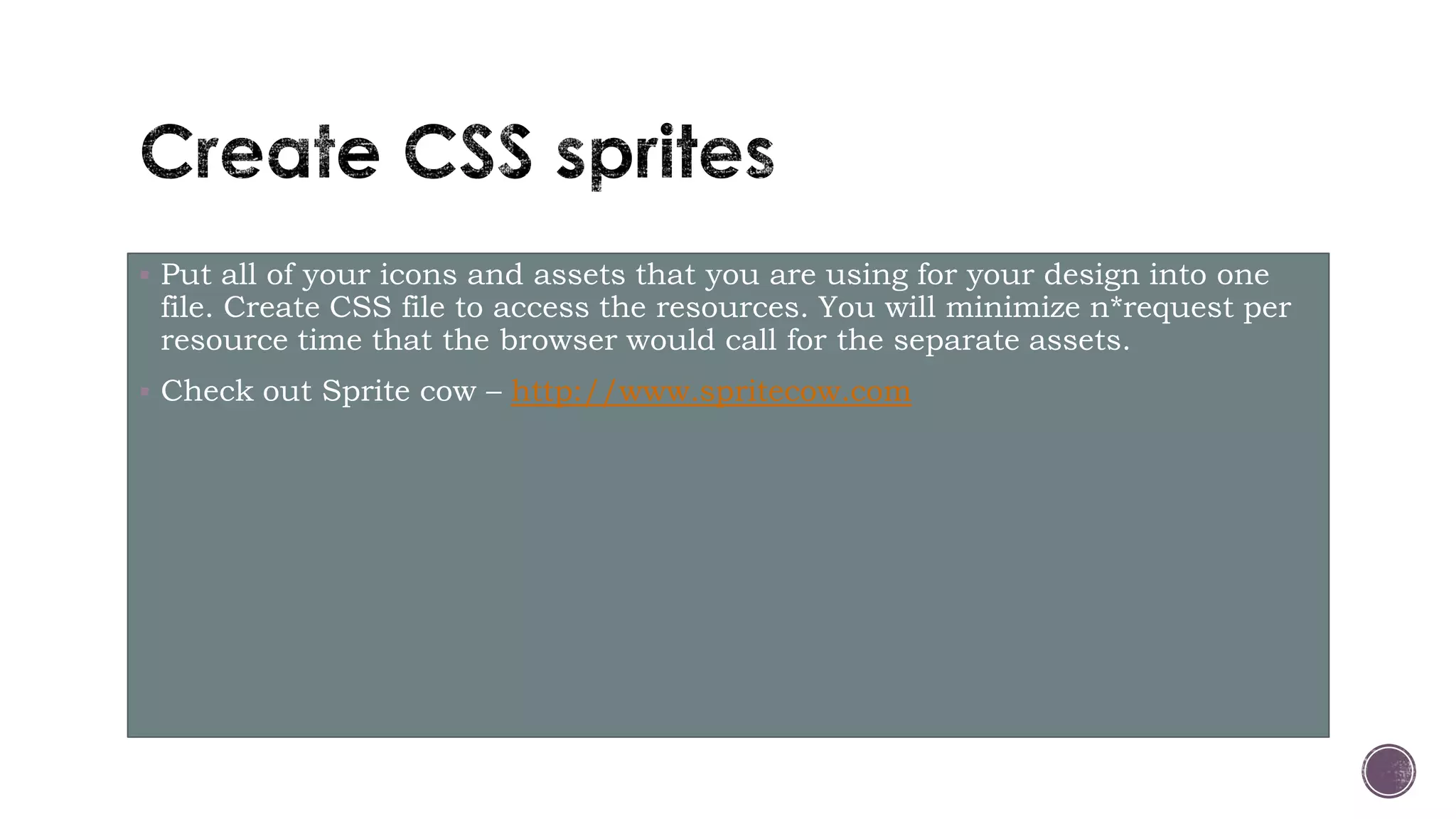

40.  Put all of your icons and assets that you are using for your design into one
file. Create CSS file to access the resources. You will minimize n*request per
resource time that the browser would call for the separate assets.
 Check out Sprite cow – http://www.spritecow.com

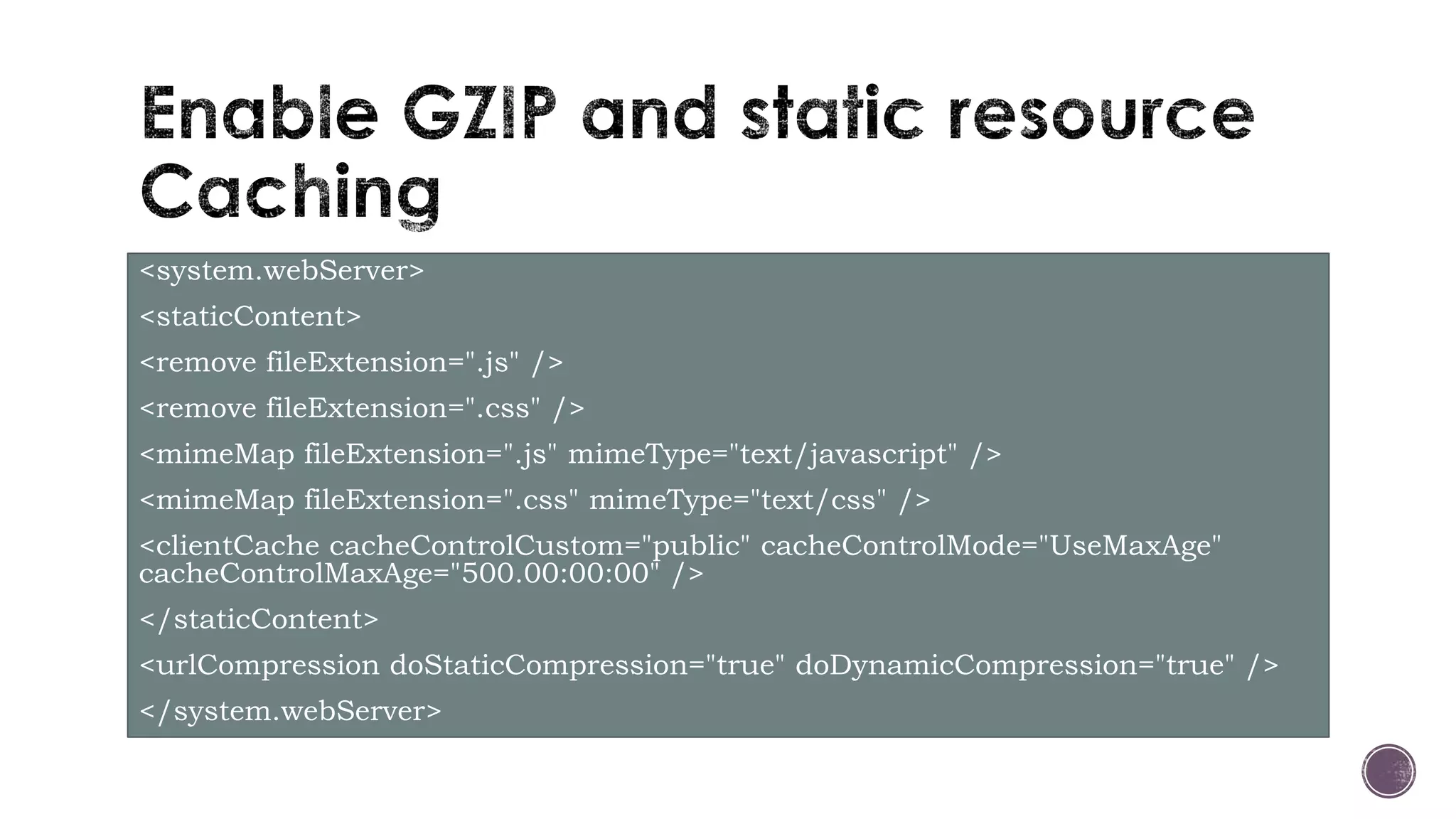

41. <system.webServer>
<staticContent>
<remove fileExtension=".js" />
<remove fileExtension=".css" />
<mimeMap fileExtension=".js" mimeType="text/javascript" />
<mimeMap fileExtension=".css" mimeType="text/css" />
<clientCache cacheControlCustom="public" cacheControlMode="UseMaxAge"
cacheControlMaxAge="500.00:00:00" />
</staticContent>
<urlCompression doStaticCompression="true" doDynamicCompression="true" />
</system.webServer>

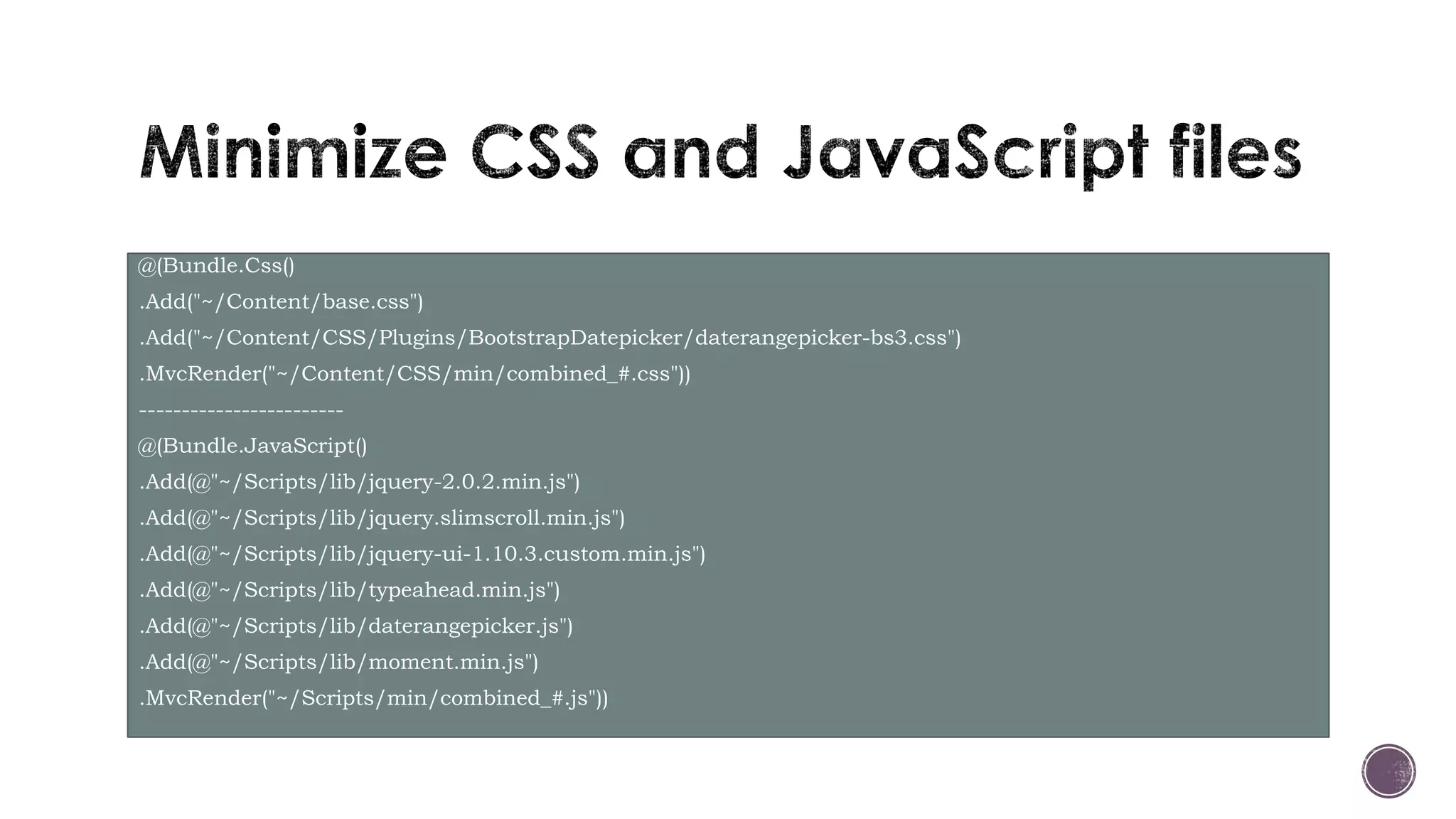

42. @(Bundle.Css()
.Add("~/Content/base.css")
.Add("~/Content/CSS/Plugins/BootstrapDatepicker/daterangepicker-bs3.css")
.MvcRender("~/Content/CSS/min/combined_#.css"))
------------------------
@(Bundle.JavaScript()
.Add(@"~/Scripts/lib/jquery-2.0.2.min.js")
.Add(@"~/Scripts/lib/jquery.slimscroll.min.js")
.Add(@"~/Scripts/lib/jquery-ui-1.10.3.custom.min.js")
.Add(@"~/Scripts/lib/typeahead.min.js")
.Add(@"~/Scripts/lib/daterangepicker.js")
.Add(@"~/Scripts/lib/moment.min.js")
.MvcRender("~/Scripts/min/combined_#.js"))

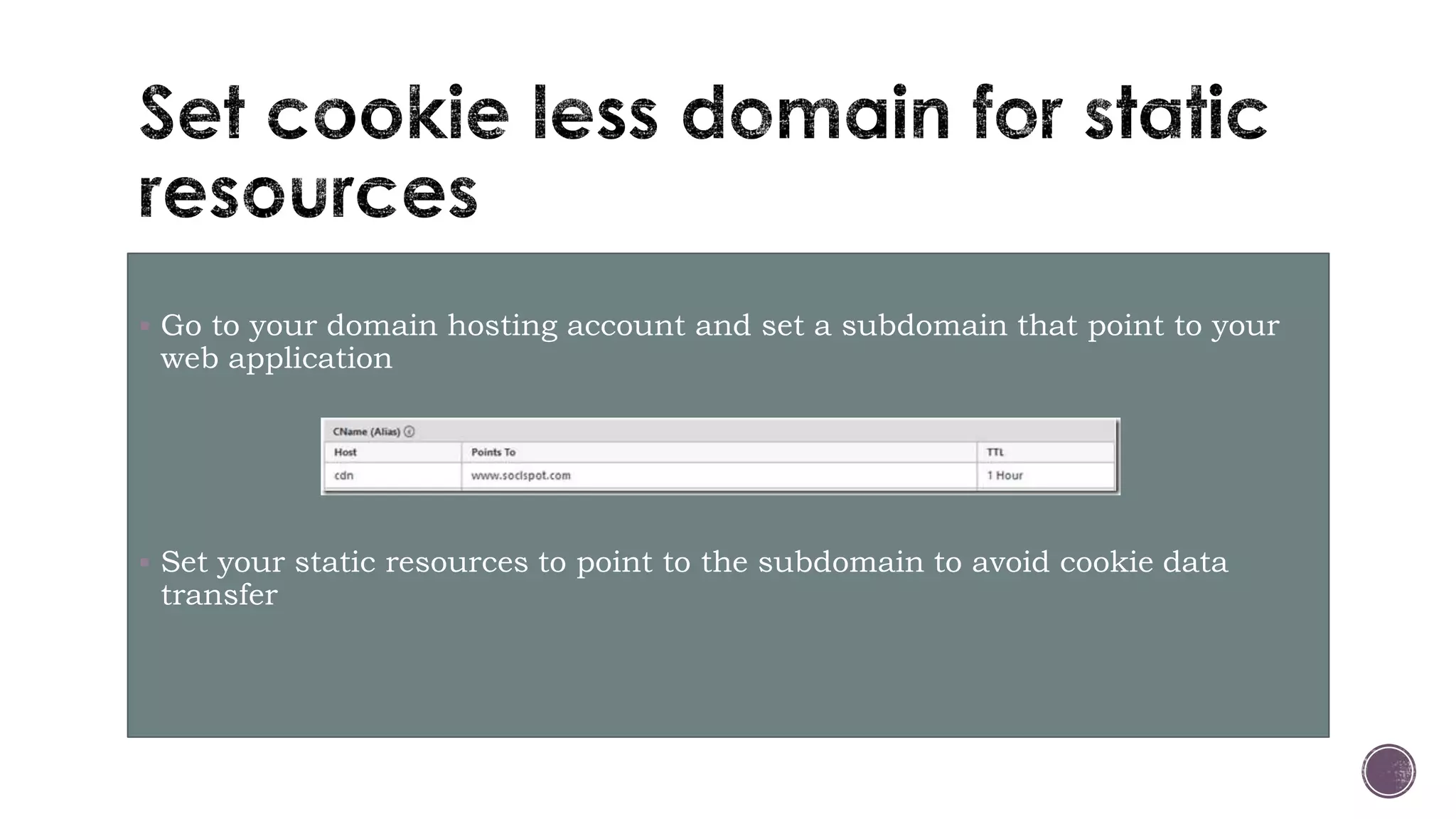

43.  Go to your domain hosting account and set a subdomain that point to your
web application
 Set your static resources to point to the subdomain to avoid cookie data
transfer
