Building robust apps
- 1. Building robust apps: Lessonsfrom functional programming and robotics
- 2.
- 3. Also this guy YOUARE DOING IT COMPLETELY WRONG The Language of the System on youtube
- 4. Match Android team ❏Dheeraj Malik ❏ Aniruddh Bajirao ❏ Abhilash Reddy ❏ Aaron Dancygier ❏ David Brady ❏ Ramanand Reddi ❏ Martin Anderson ❏ Roshan Gupta ❏ Mohit Bhatt ❏ Wasim Ahmad ❏ Charles Neveu

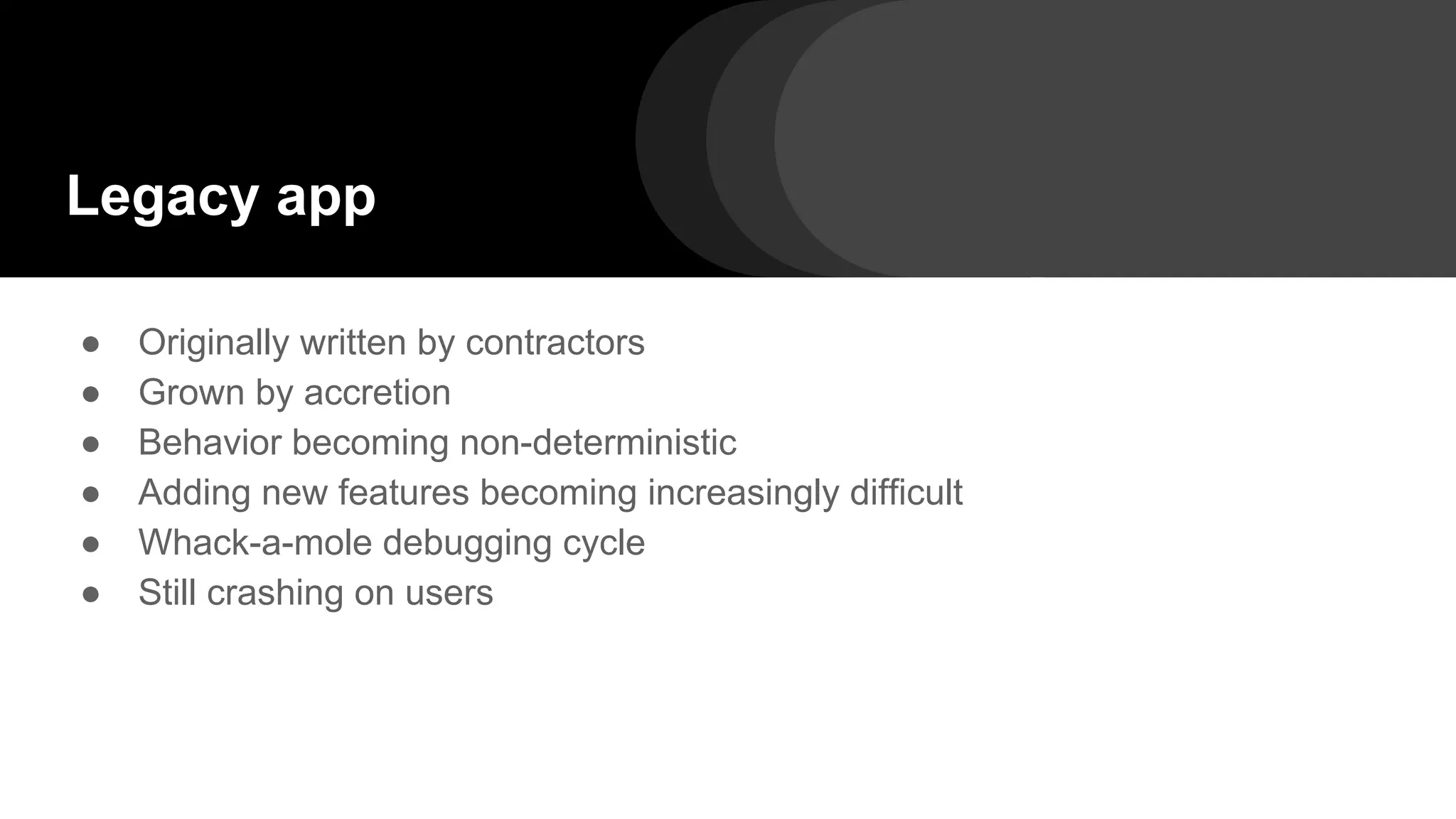

- 5. Legacy app ● Originallywritten by contractors ● Grown by accretion ● Behavior becoming non-deterministic ● Adding new features becoming increasingly difficult ● Whack-a-mole debugging cycle ● Still crashing on users

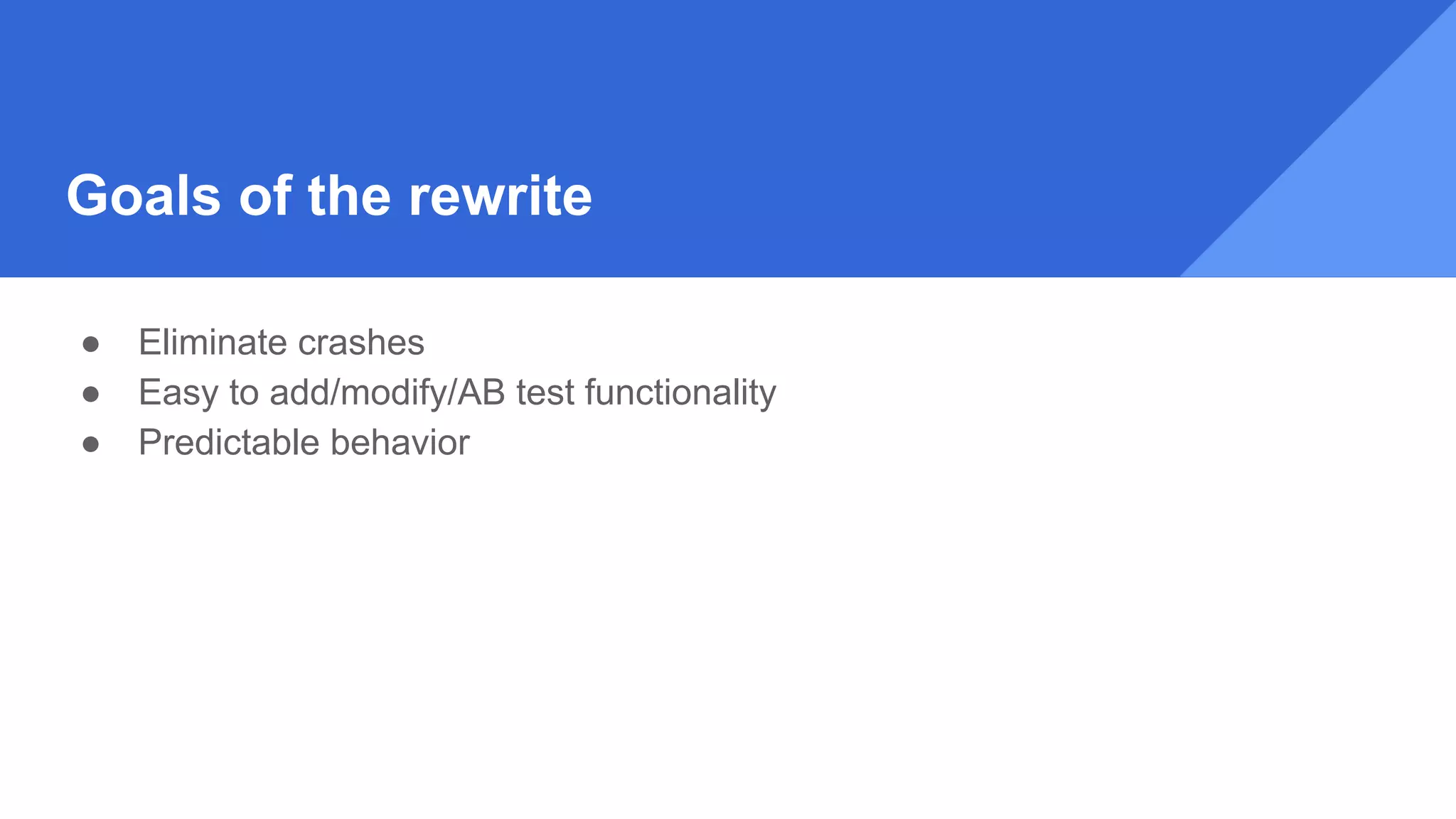

- 6. Goals of therewrite ● Eliminate crashes ● Easy to add/modify/AB test functionality ● Predictable behavior
- 7.

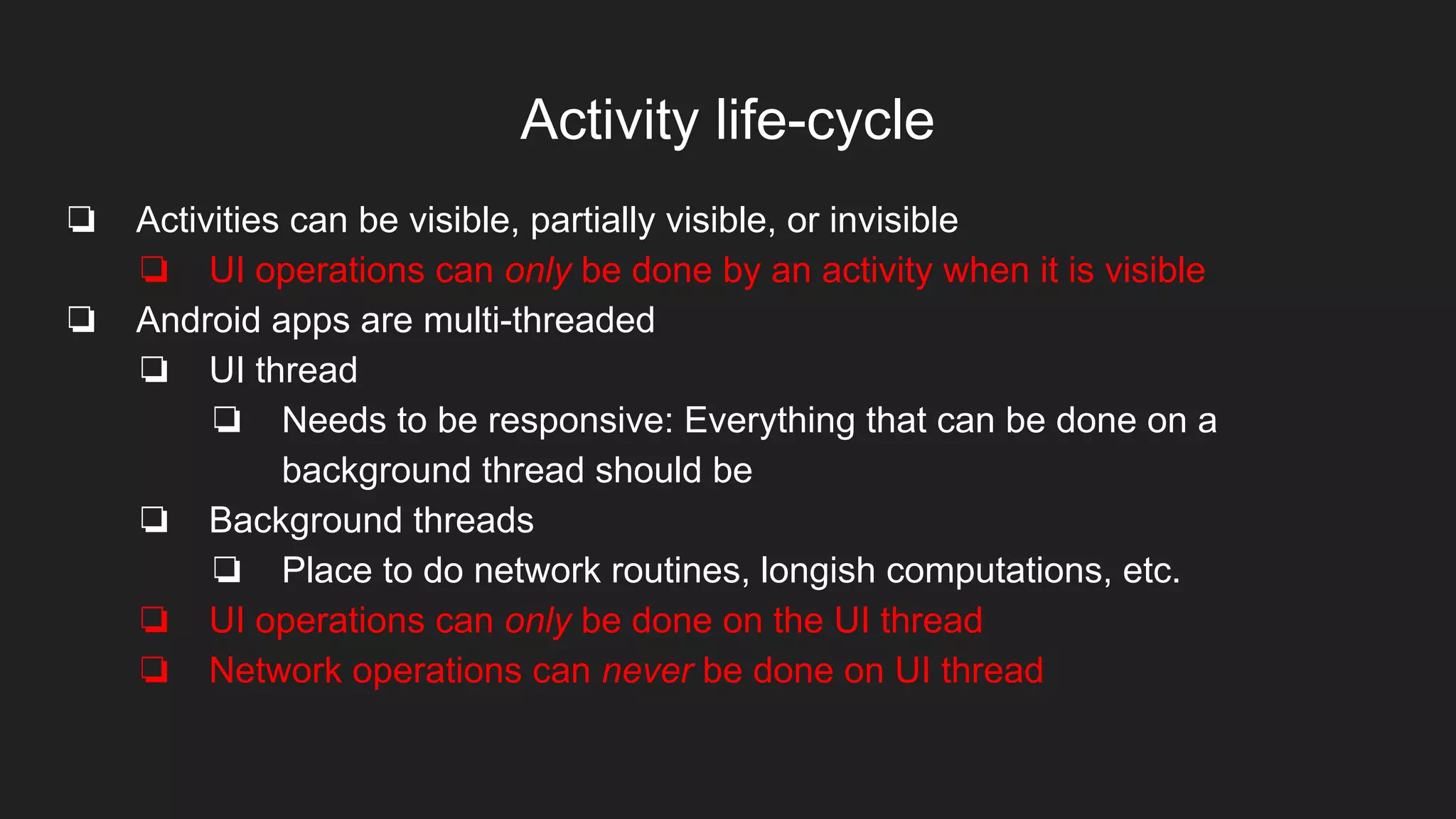

- 8. Activity life-cycle ❏ Activitiescan be visible, partially visible, or invisible ❏ UI operations can only be done by an activity when it is visible ❏ Android apps are multi-threaded ❏ UI thread ❏ Needs to be responsive: Everything that can be done on a background thread should be ❏ Background threads ❏ Place to do network routines, longish computations, etc. ❏ UI operations can only be done on the UI thread ❏ Network operations can never be done on UI thread

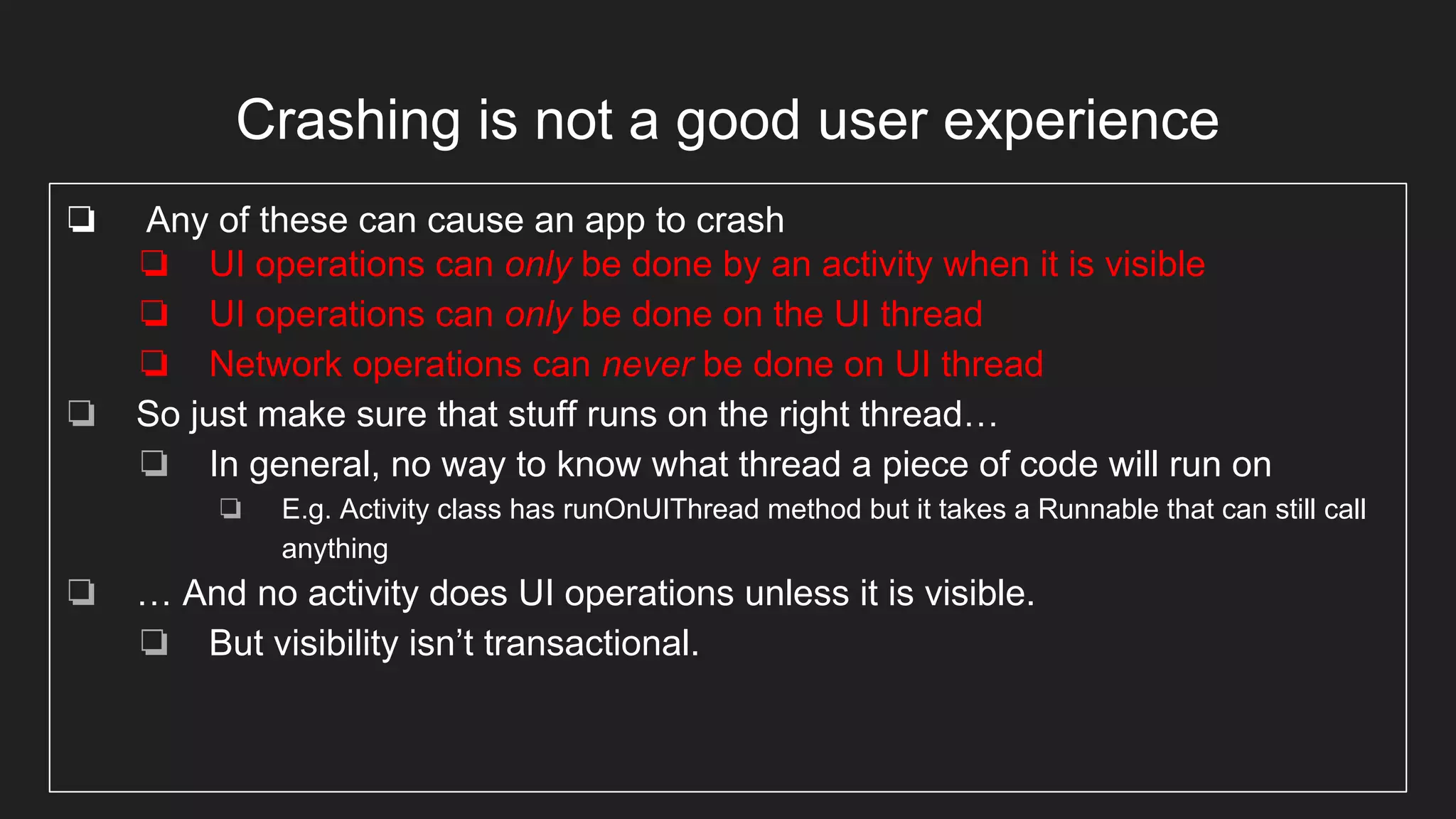

- 9. Crashing is nota good user experience ❏ Any of these can cause an app to crash ❏ UI operations can only be done by an activity when it is visible ❏ UI operations can only be done on the UI thread ❏ Network operations can never be done on UI thread ❏ So just make sure that stuff runs on the right thread… ❏ In general, no way to know what thread a piece of code will run on ❏ E.g. Activity class has runOnUIThread method but it takes a Runnable that can still call anything ❏ … And no activity does UI operations unless it is visible. ❏ But visibility isn’t transactional.

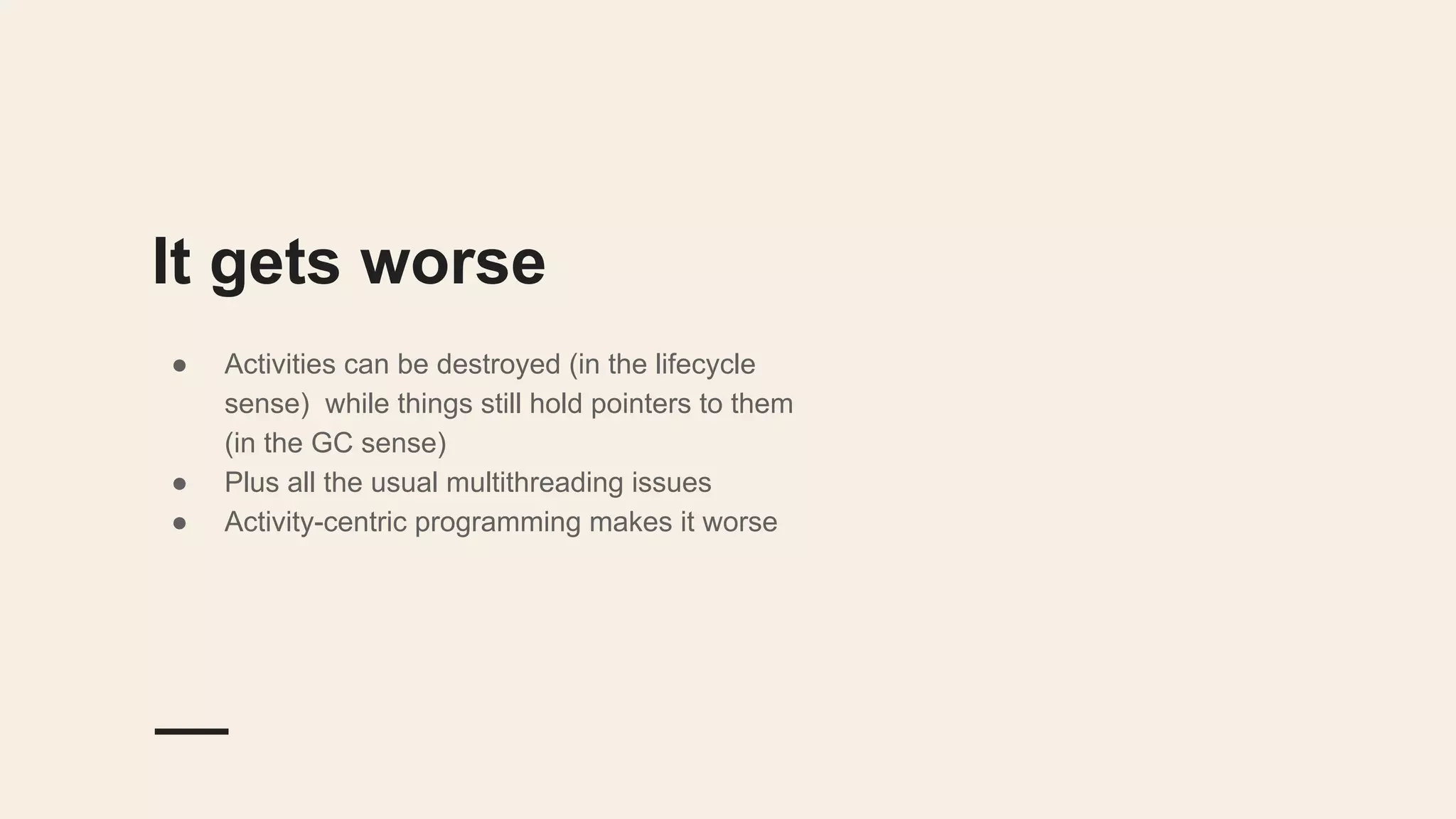

- 10. It gets worse ●Activities can be destroyed (in the lifecycle sense) while things still hold pointers to them (in the GC sense) ● Plus all the usual multithreading issues ● Activity-centric programming makes it worse

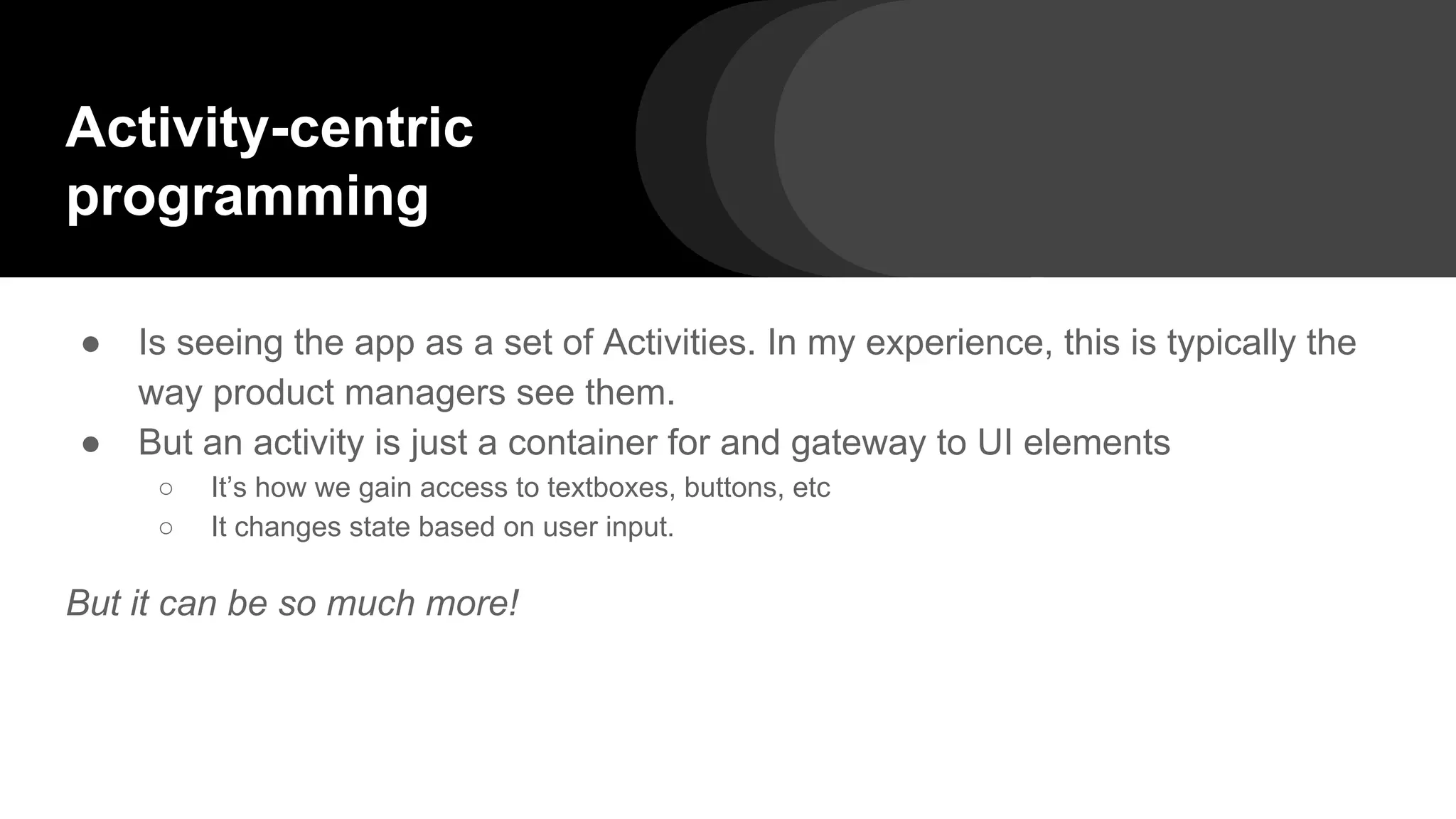

- 11. Activity-centric programming ● Is seeingthe app as a set of Activities. In my experience, this is typically the way product managers see them. ● But an activity is just a container for and gateway to UI elements ○ It’s how we gain access to textboxes, buttons, etc ○ It changes state based on user input. But it can be so much more!
- 12. Activity as GodObject Everybody’s listener! Everybody’s thread manager! Everybody’s Controller! All kinds of state variables! ENGULFS Business logic! Tightly coupled to everything! AND ONLY ITKNOWS WHERE TO GO NEXT!

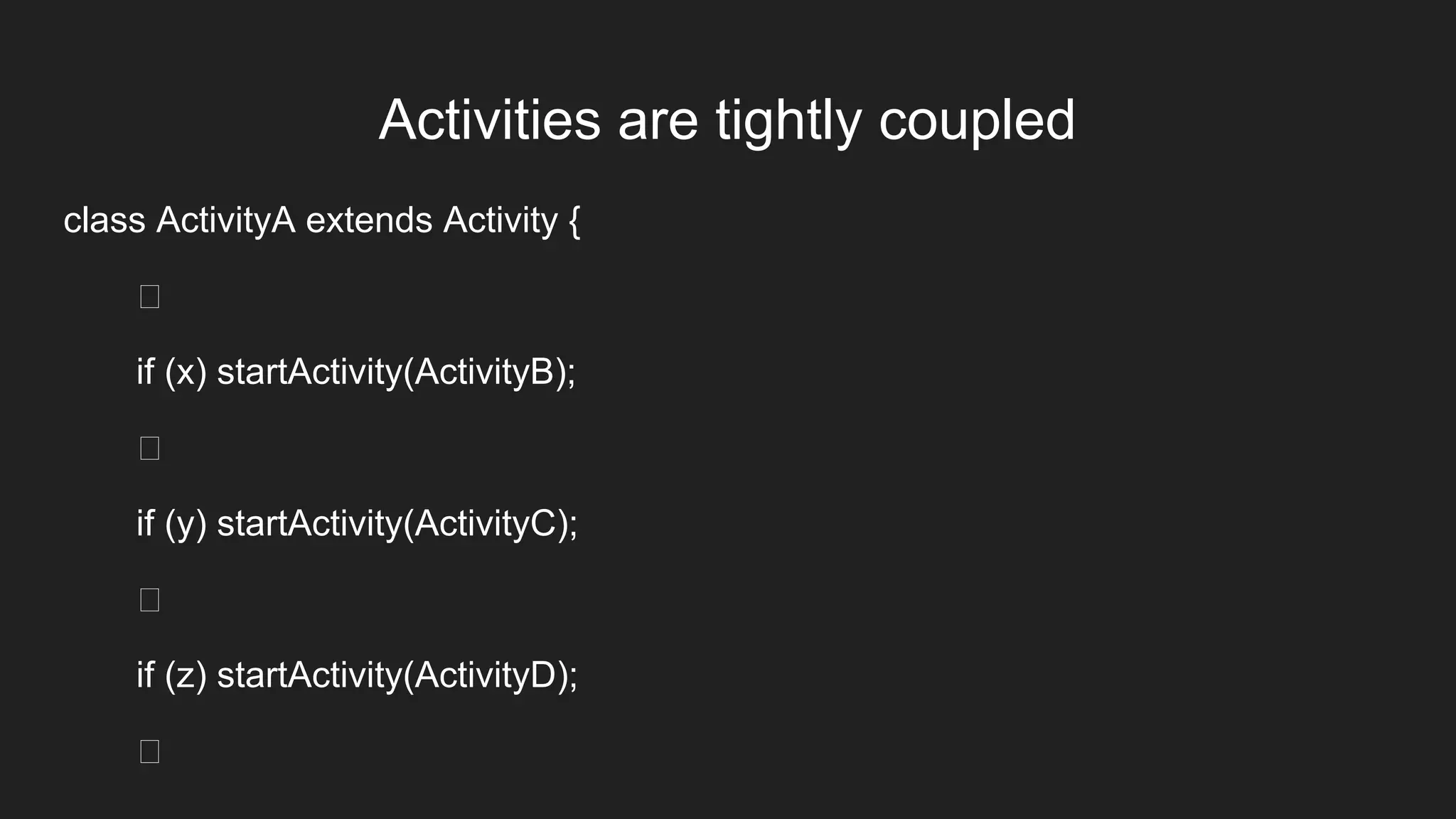

- 13. Activities are tightlycoupled class ActivityA extends Activity { if (x) startActivity(ActivityB); if (y) startActivity(ActivityC); if (z) startActivity(ActivityD);
- 14. An app lookssomething like this

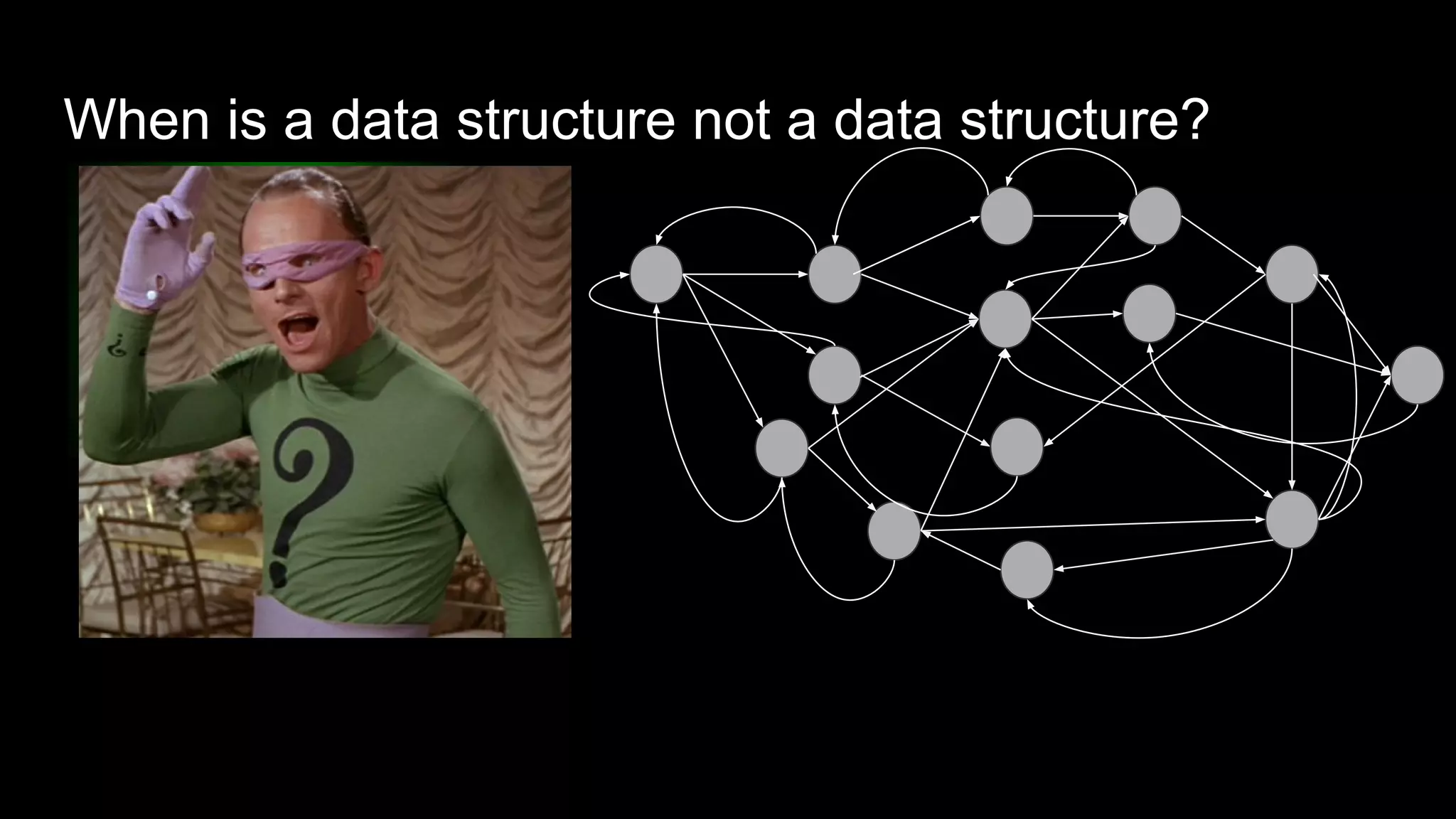

- 15. When is adata structure not a data structure?

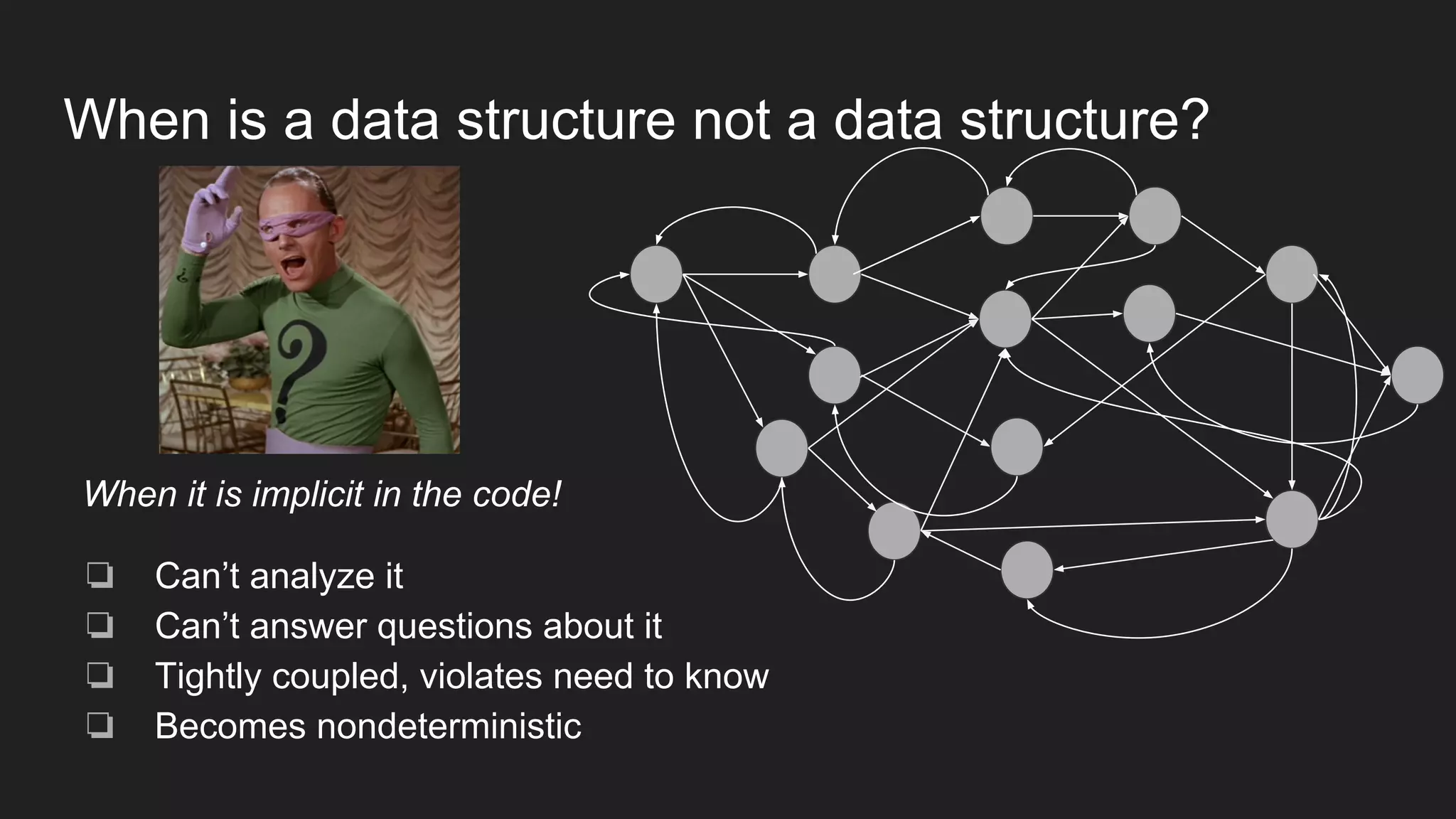

- 16. When is adata structure not a data structure? When it is implicit in the code! ❏ Can’t analyze it ❏ Can’t answer questions about it ❏ Tightly coupled, violates need to know ❏ Becomes nondeterministic

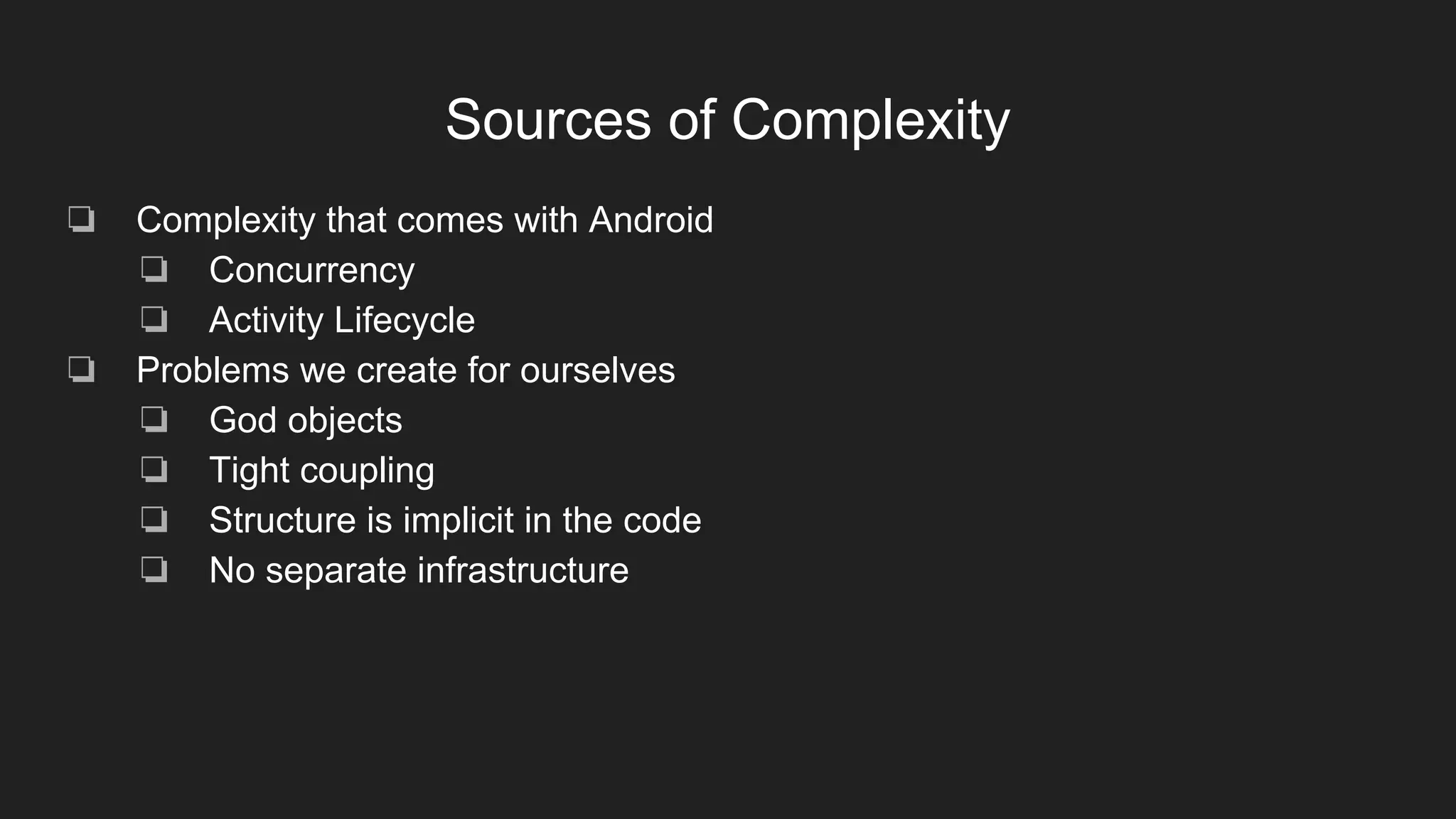

- 17. Sources of Complexity ❏Complexity that comes with Android ❏ Concurrency ❏ Activity Lifecycle ❏ Problems we create for ourselves ❏ God objects ❏ Tight coupling ❏ Structure is implicit in the code ❏ No separate infrastructure

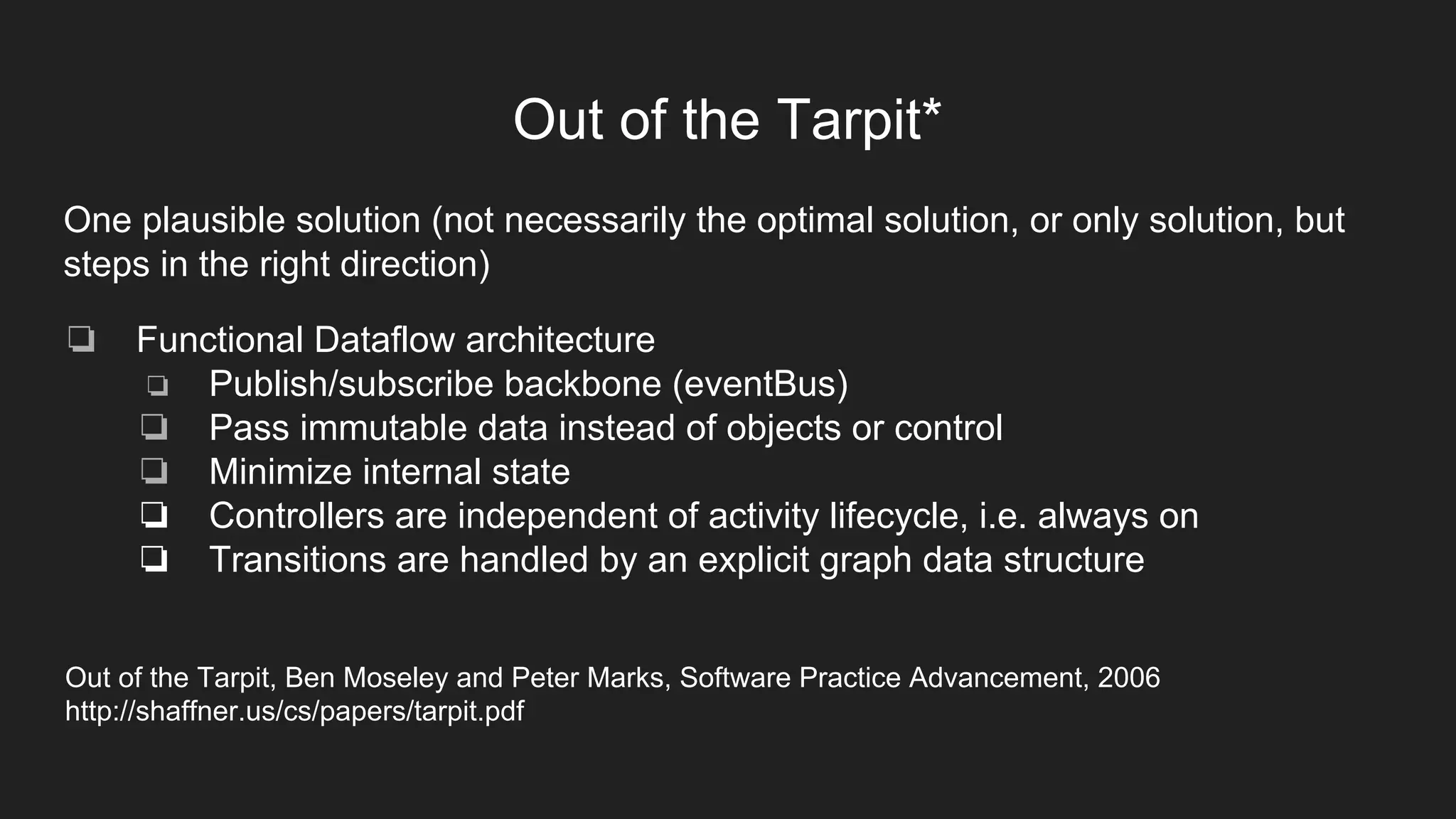

- 18. Out of theTarpit* One plausible solution (not necessarily the optimal solution, or only solution, but steps in the right direction) ❏ Functional Dataflow architecture ❏ Publish/subscribe backbone (eventBus) ❏ Pass immutable data instead of objects or control ❏ Minimize internal state ❏ Controllers are independent of activity lifecycle, i.e. always on ❏ Transitions are handled by an explicit graph data structure Out of the Tarpit, Ben Moseley and Peter Marks, Software Practice Advancement, 2006 http://shaffner.us/cs/papers/tarpit.pdf

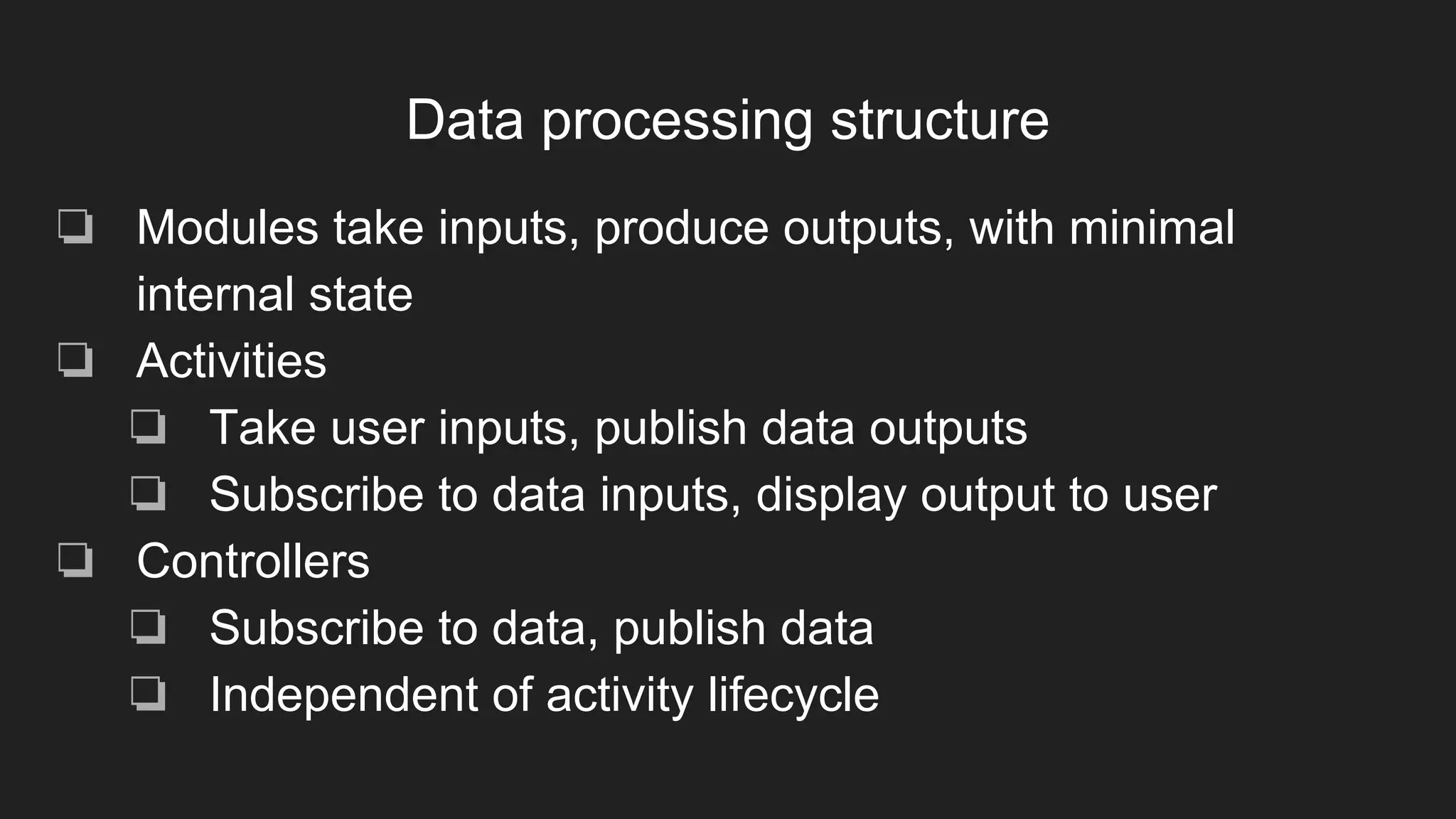

- 19. Data processing structure ❏Modules take inputs, produce outputs, with minimal internal state ❏ Activities ❏ Take user inputs, publish data outputs ❏ Subscribe to data inputs, display output to user ❏ Controllers ❏ Subscribe to data, publish data ❏ Independent of activity lifecycle

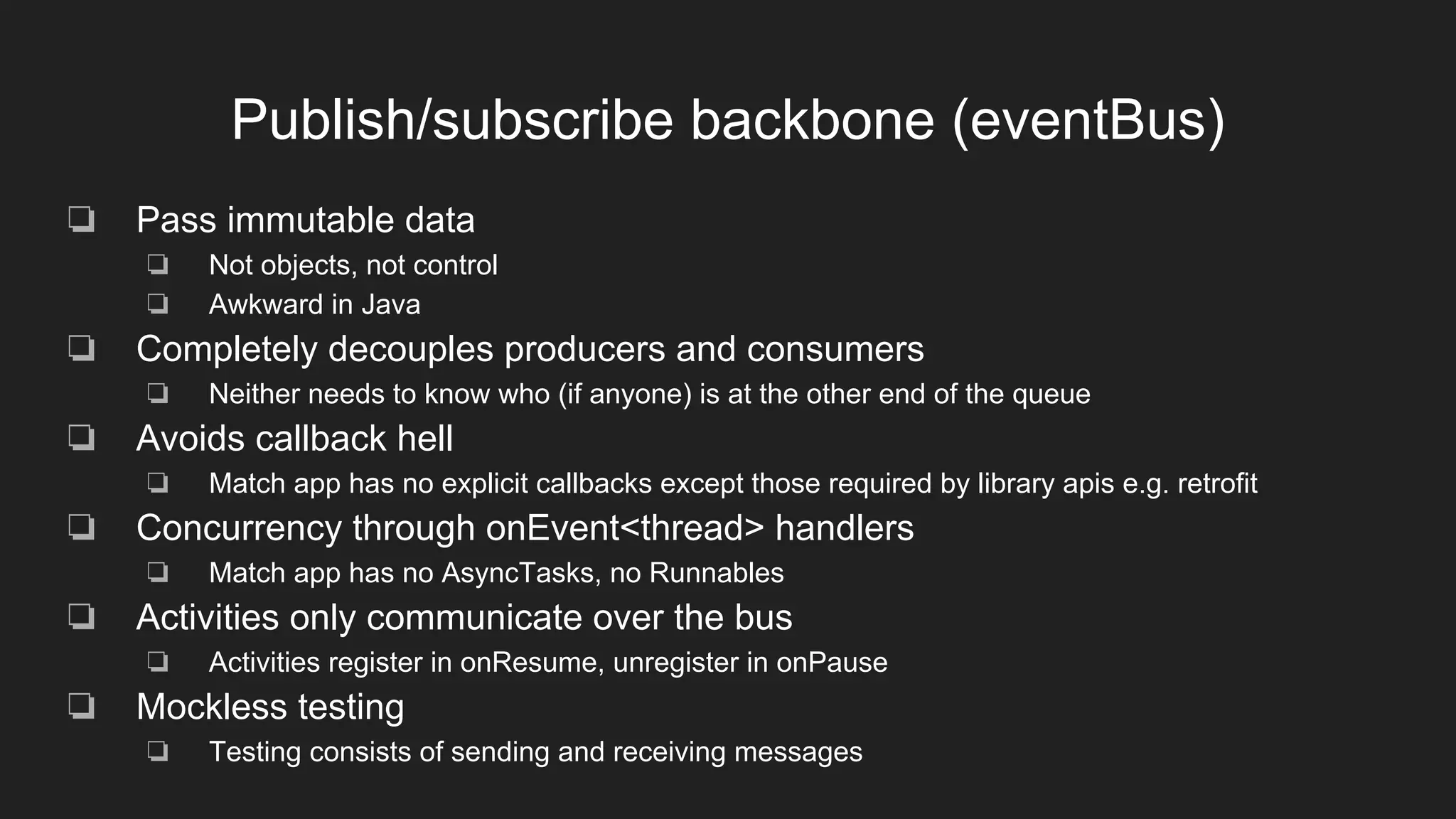

- 20. Publish/subscribe backbone (eventBus) ❏Pass immutable data ❏ Not objects, not control ❏ Awkward in Java ❏ Completely decouples producers and consumers ❏ Neither needs to know who (if anyone) is at the other end of the queue ❏ Avoids callback hell ❏ Match app has no explicit callbacks except those required by library apis e.g. retrofit ❏ Concurrency through onEvent<thread> handlers ❏ Match app has no AsyncTasks, no Runnables ❏ Activities only communicate over the bus ❏ Activities register in onResume, unregister in onPause ❏ Mockless testing ❏ Testing consists of sending and receiving messages

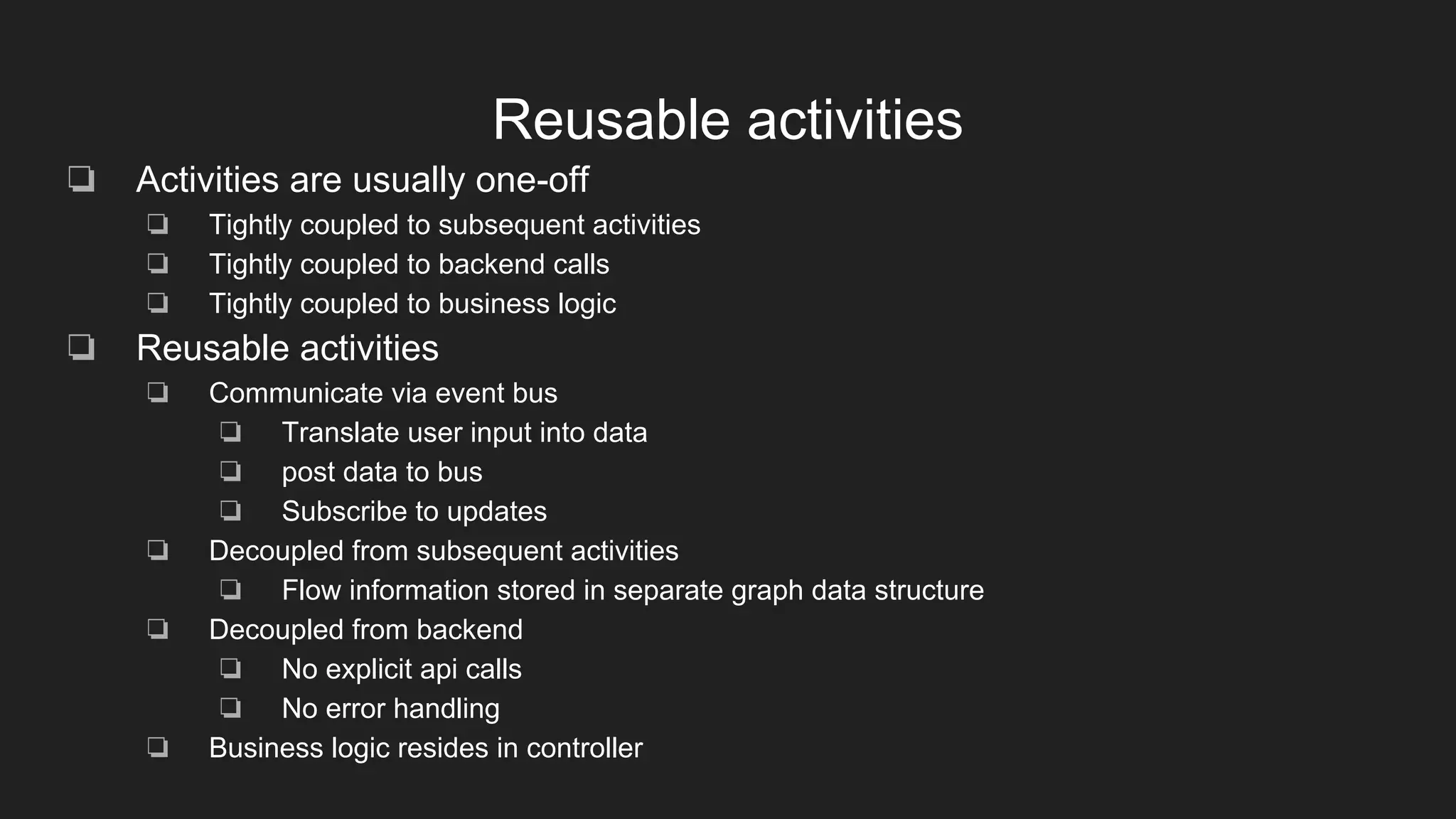

- 21. Reusable activities ❏ Activitiesare usually one-off ❏ Tightly coupled to subsequent activities ❏ Tightly coupled to backend calls ❏ Tightly coupled to business logic ❏ Reusable activities ❏ Communicate via event bus ❏ Translate user input into data ❏ post data to bus ❏ Subscribe to updates ❏ Decoupled from subsequent activities ❏ Flow information stored in separate graph data structure ❏ Decoupled from backend ❏ No explicit api calls ❏ No error handling ❏ Business logic resides in controller

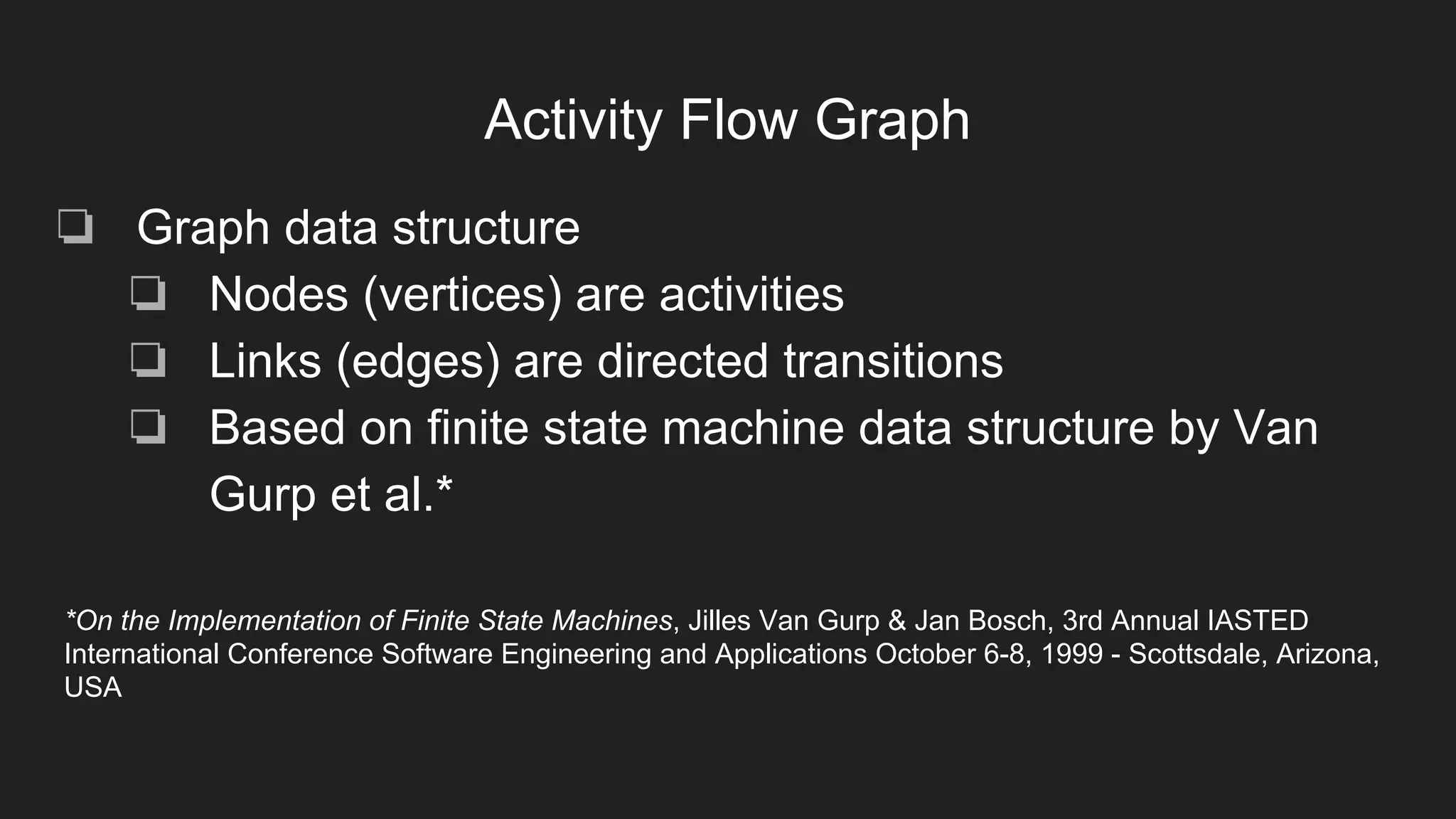

- 22. Activity Flow Graph ❏Graph data structure ❏ Nodes (vertices) are activities ❏ Links (edges) are directed transitions ❏ Based on finite state machine data structure by Van Gurp et al.* *On the Implementation of Finite State Machines, Jilles Van Gurp & Jan Bosch, 3rd Annual IASTED International Conference Software Engineering and Applications October 6-8, 1999 - Scottsdale, Arizona, USA

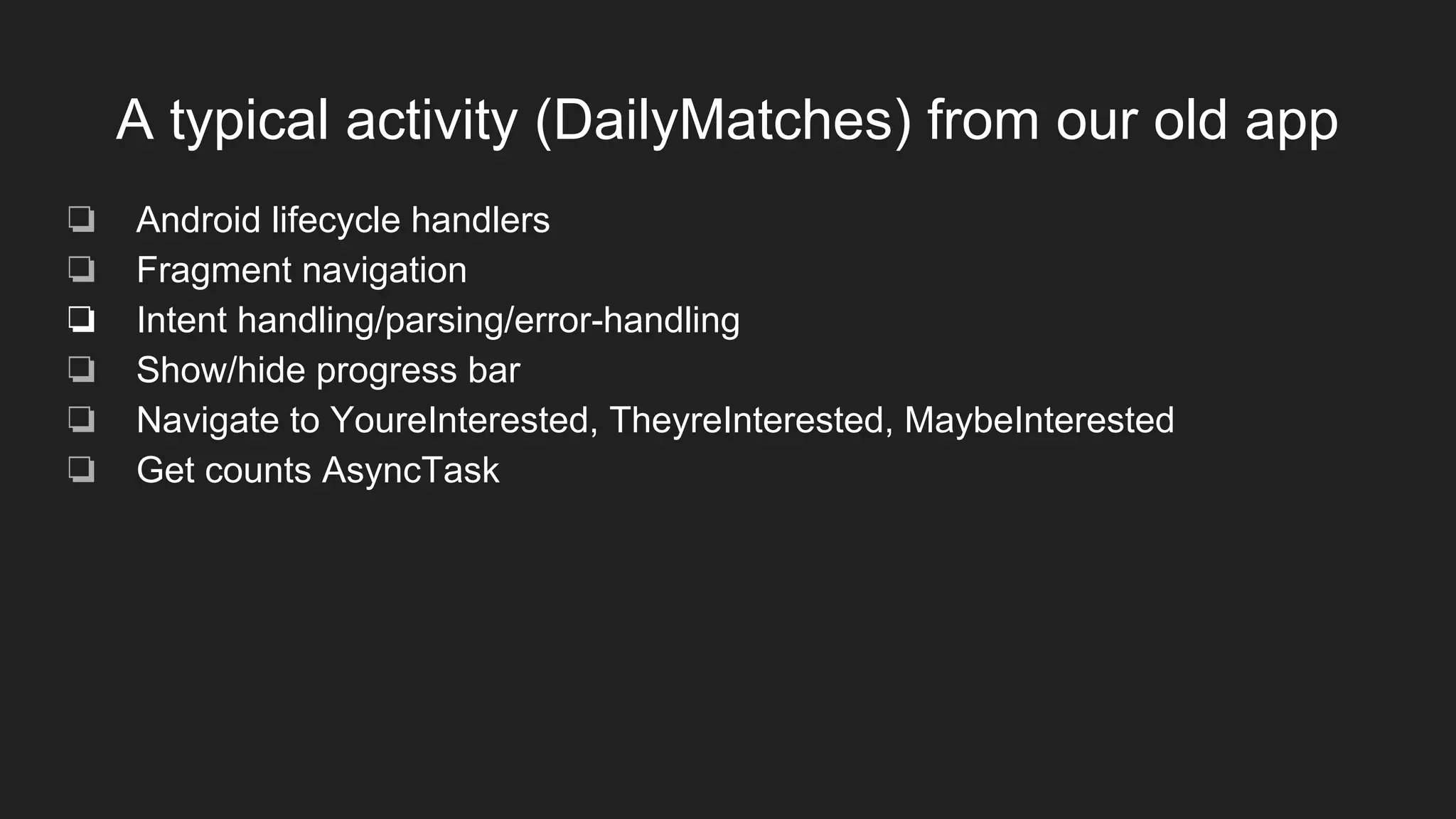

- 23. A typical activity(DailyMatches) from our old app ❏ Android lifecycle handlers ❏ Fragment navigation ❏ Intent handling/parsing/error-handling ❏ Show/hide progress bar ❏ Navigate to YoureInterested, TheyreInterested, MaybeInterested ❏ Get counts AsyncTask

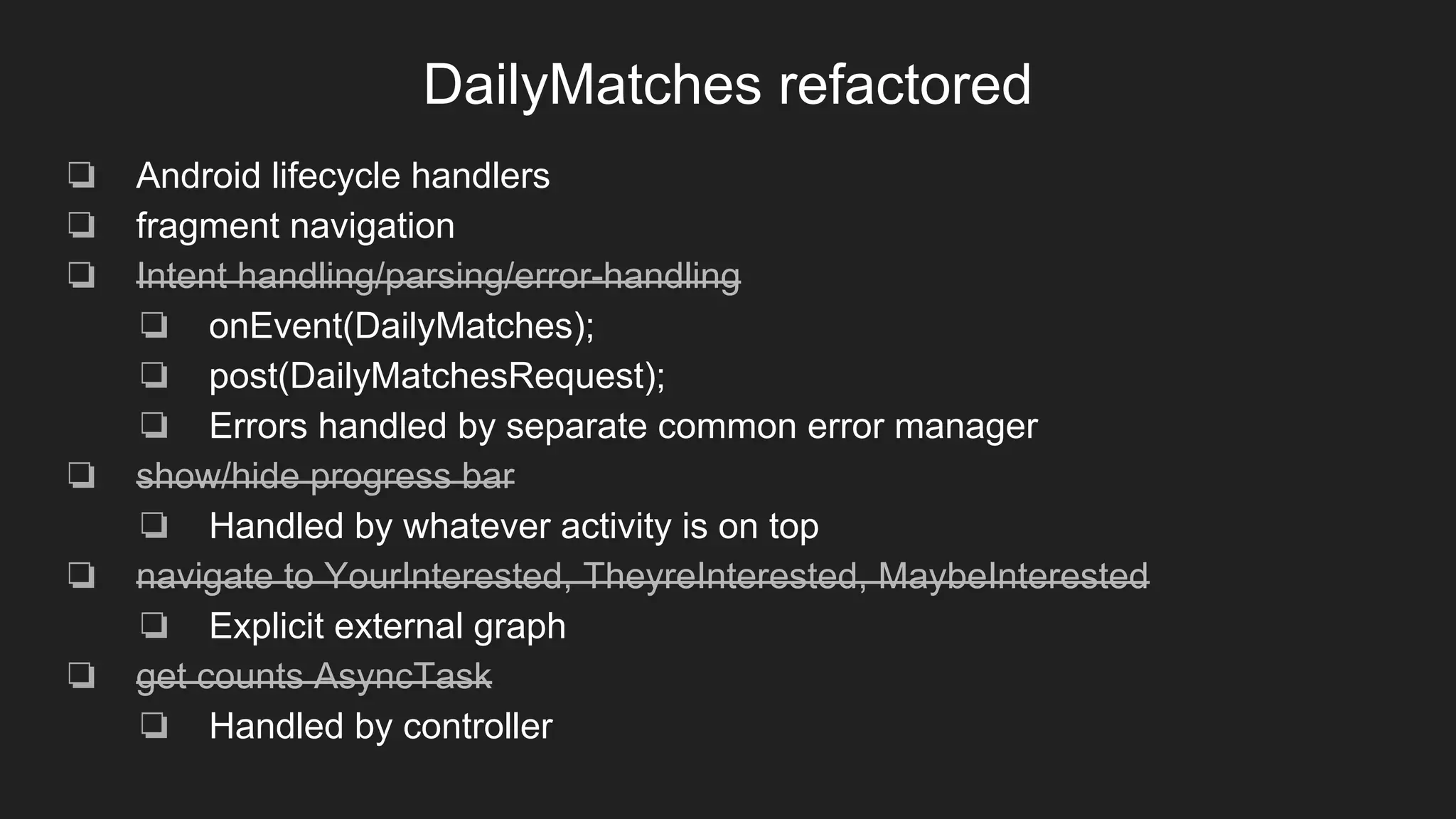

- 24. DailyMatches refactored ❏ Androidlifecycle handlers ❏ fragment navigation ❏ Intent handling/parsing/error-handling ❏ onEvent(DailyMatches); ❏ post(DailyMatchesRequest); ❏ Errors handled by separate common error manager ❏ show/hide progress bar ❏ Handled by whatever activity is on top ❏ navigate to YourInterested, TheyreInterested, MaybeInterested ❏ Explicit external graph ❏ get counts AsyncTask ❏ Handled by controller

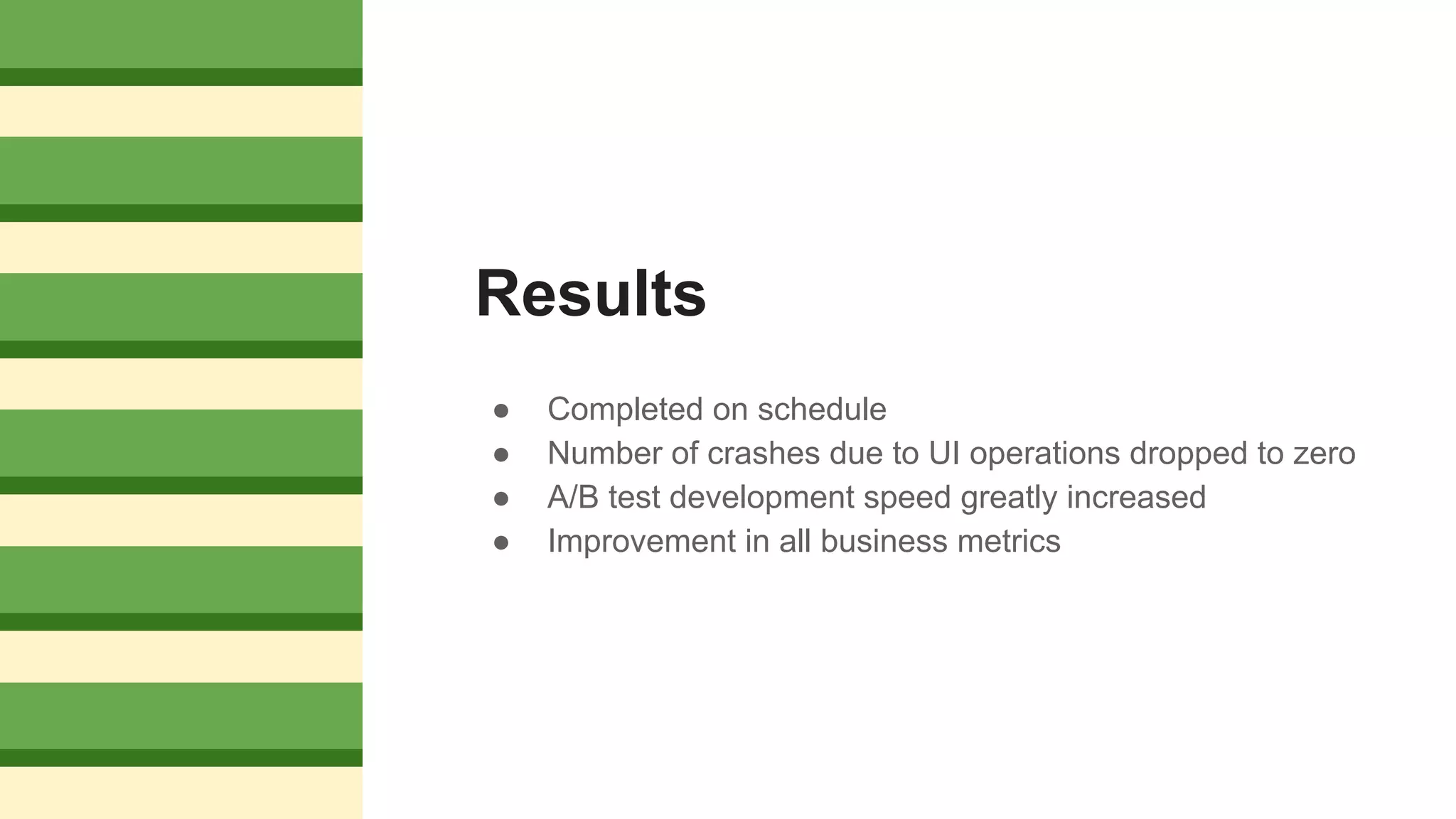

- 25. Results ● Completed onschedule ● Number of crashes due to UI operations dropped to zero ● A/B test development speed greatly increased ● Improvement in all business metrics

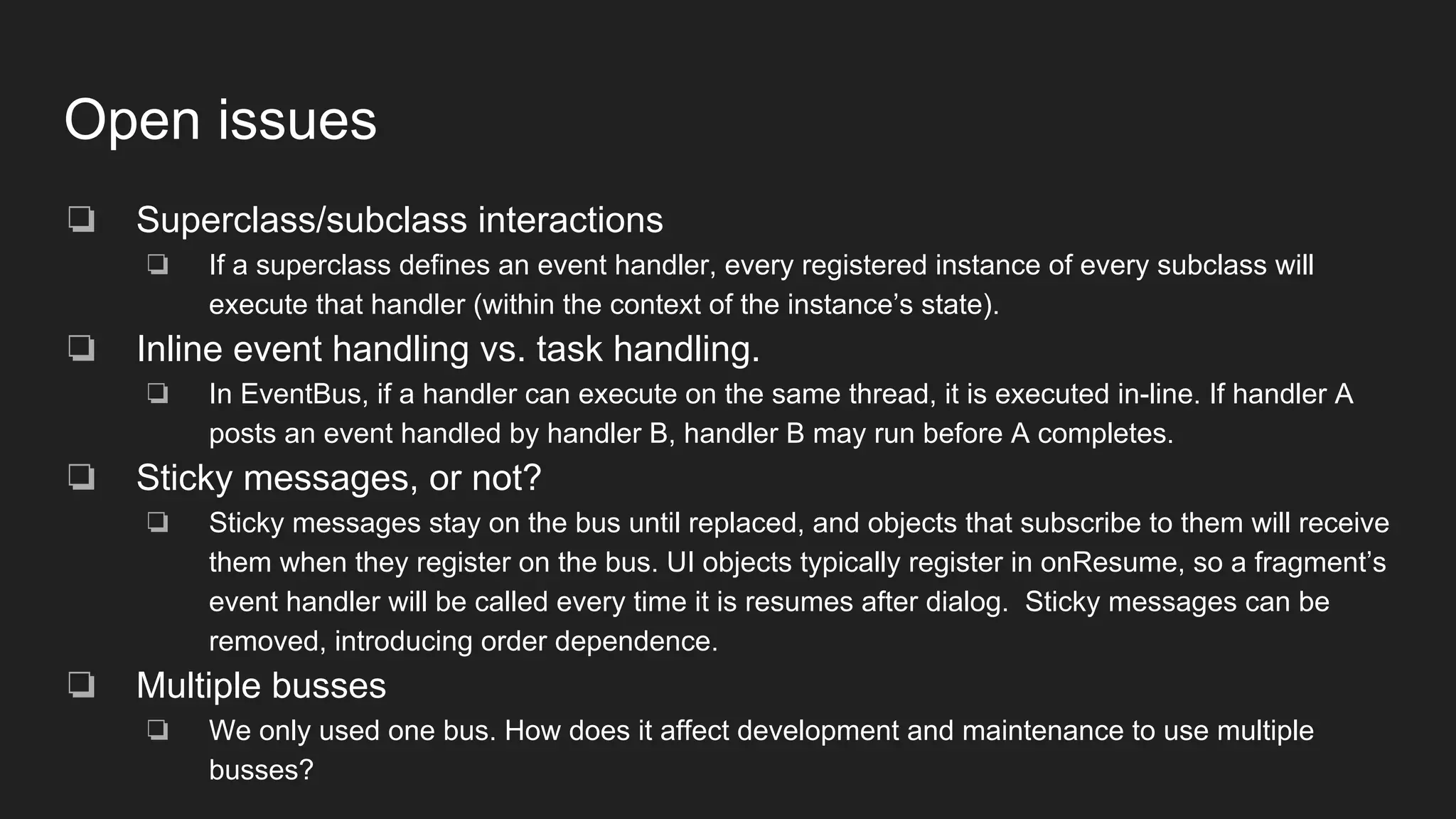

- 26. Open issues ❏ Superclass/subclassinteractions ❏ If a superclass defines an event handler, every registered instance of every subclass will execute that handler (within the context of the instance’s state). ❏ Inline event handling vs. task handling. ❏ In EventBus, if a handler can execute on the same thread, it is executed in-line. If handler A posts an event handled by handler B, handler B may run before A completes. ❏ Sticky messages, or not? ❏ Sticky messages stay on the bus until replaced, and objects that subscribe to them will receive them when they register on the bus. UI objects typically register in onResume, so a fragment’s event handler will be called every time it is resumes after dialog. Sticky messages can be removed, introducing order dependence. ❏ Multiple busses ❏ We only used one bus. How does it affect development and maintenance to use multiple busses?
