This document summarizes a presentation about building native mobile apps using JavaScript with Titanium. The presentation covers Appcelerator and how it allows JavaScript code to be compiled to native iOS and Android apps rather than web views. It also discusses Titanium's SDK and cross-platform APIs, Alloy's MVC framework for Titanium, and Hyperloop which allows accessing any third party APIs from JavaScript. The slides from the presentation will be shared on Twitter the next morning.

1. JavaScript Lab
January 18, 2016
Building Native Mobile Apps using
Javascript with Titanium

2. Fokke Zandbergen
Developer Evangelist
Appcelerator
@FokkeZB

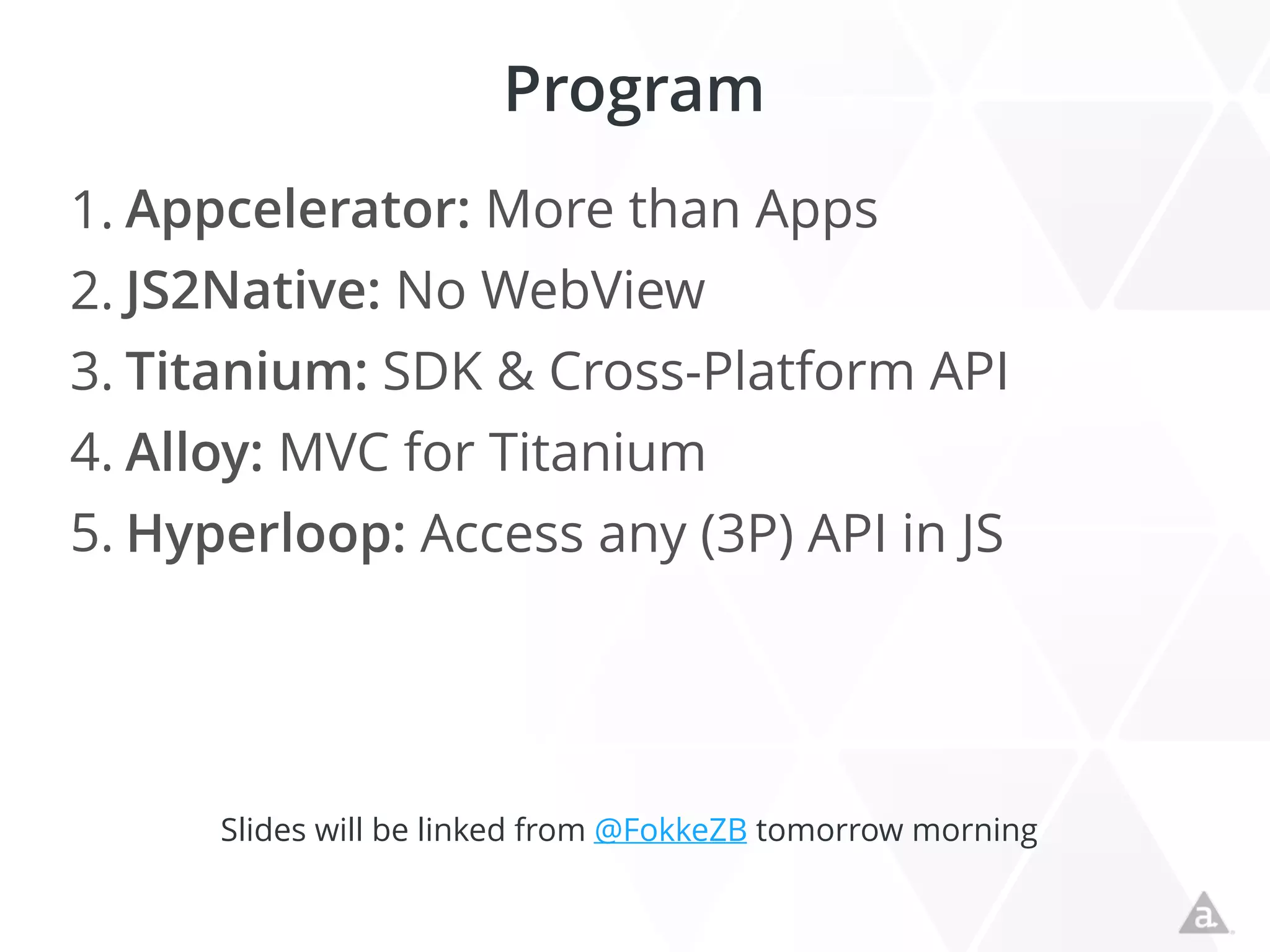

3. Program
1. Appcelerator: More than Apps
2. JS2Native: No WebView
3. Titanium: SDK & Cross-Platform API
4. Alloy: MVC for Titanium
5. Hyperloop: Access any (3P) API in JS
Slides will be linked from @FokkeZB tomorrow morning

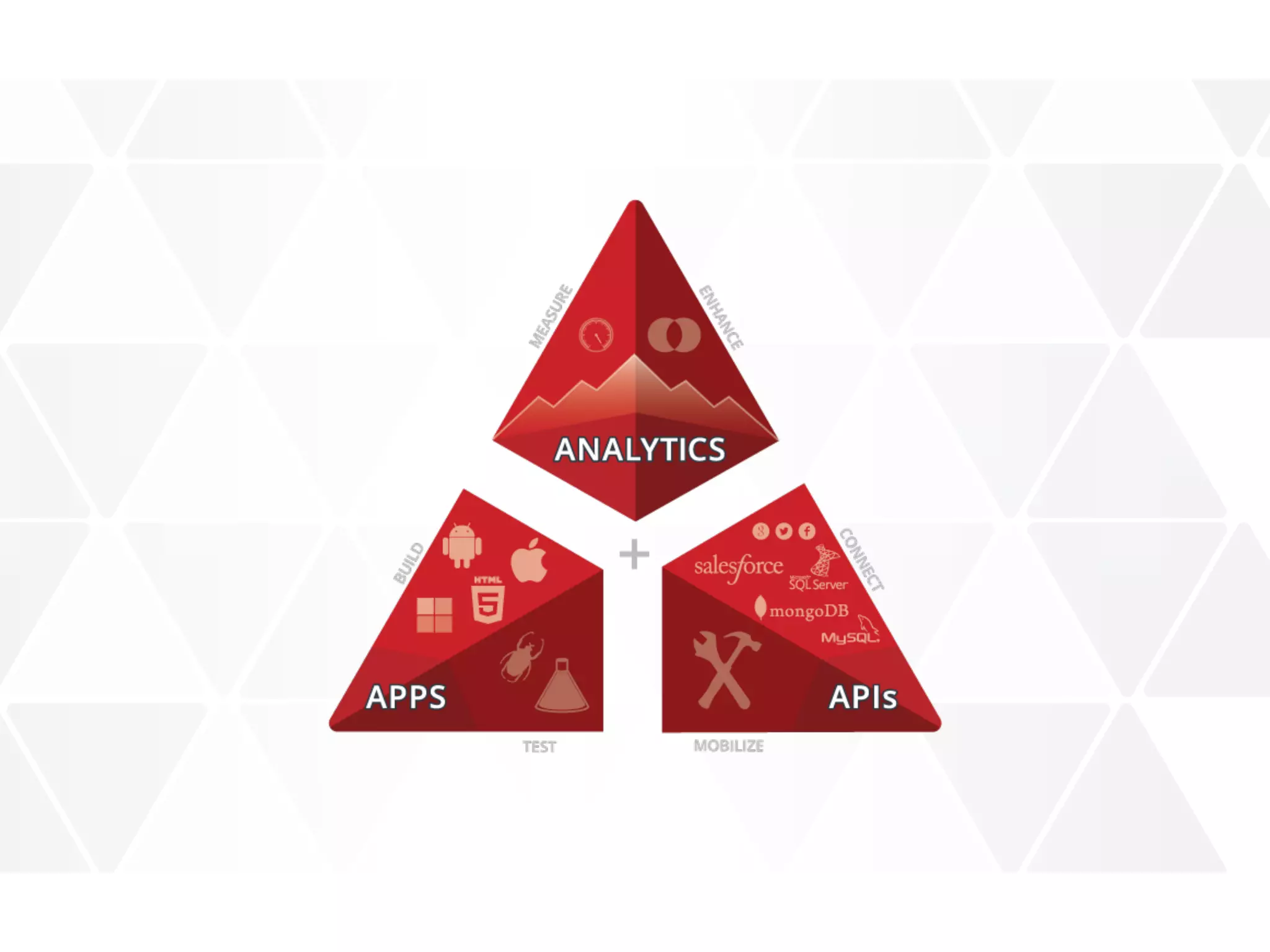

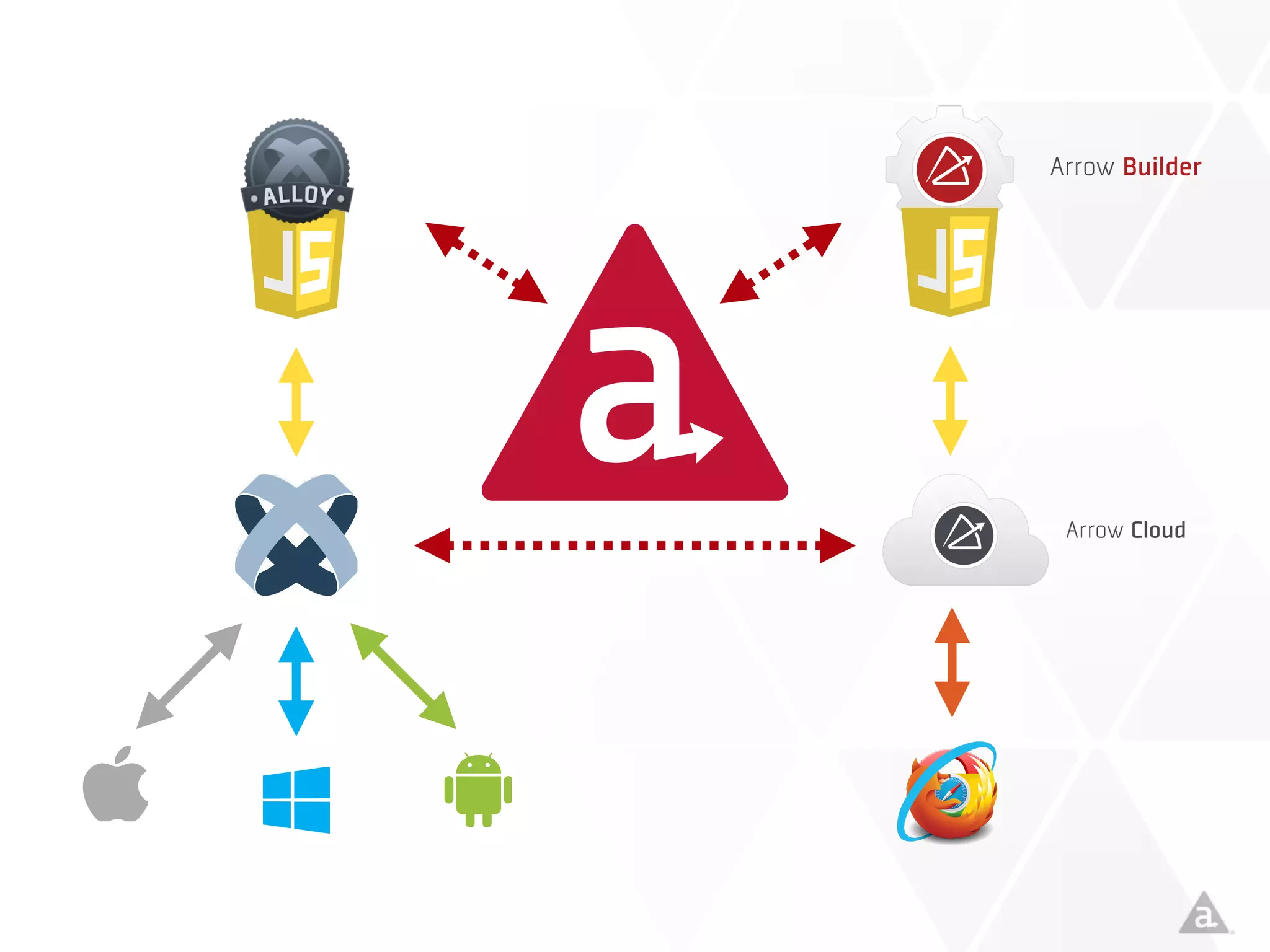

4. Appcelerator: More than Apps

5. And Why This is Great News for All

9. 2 Native

10. NO!

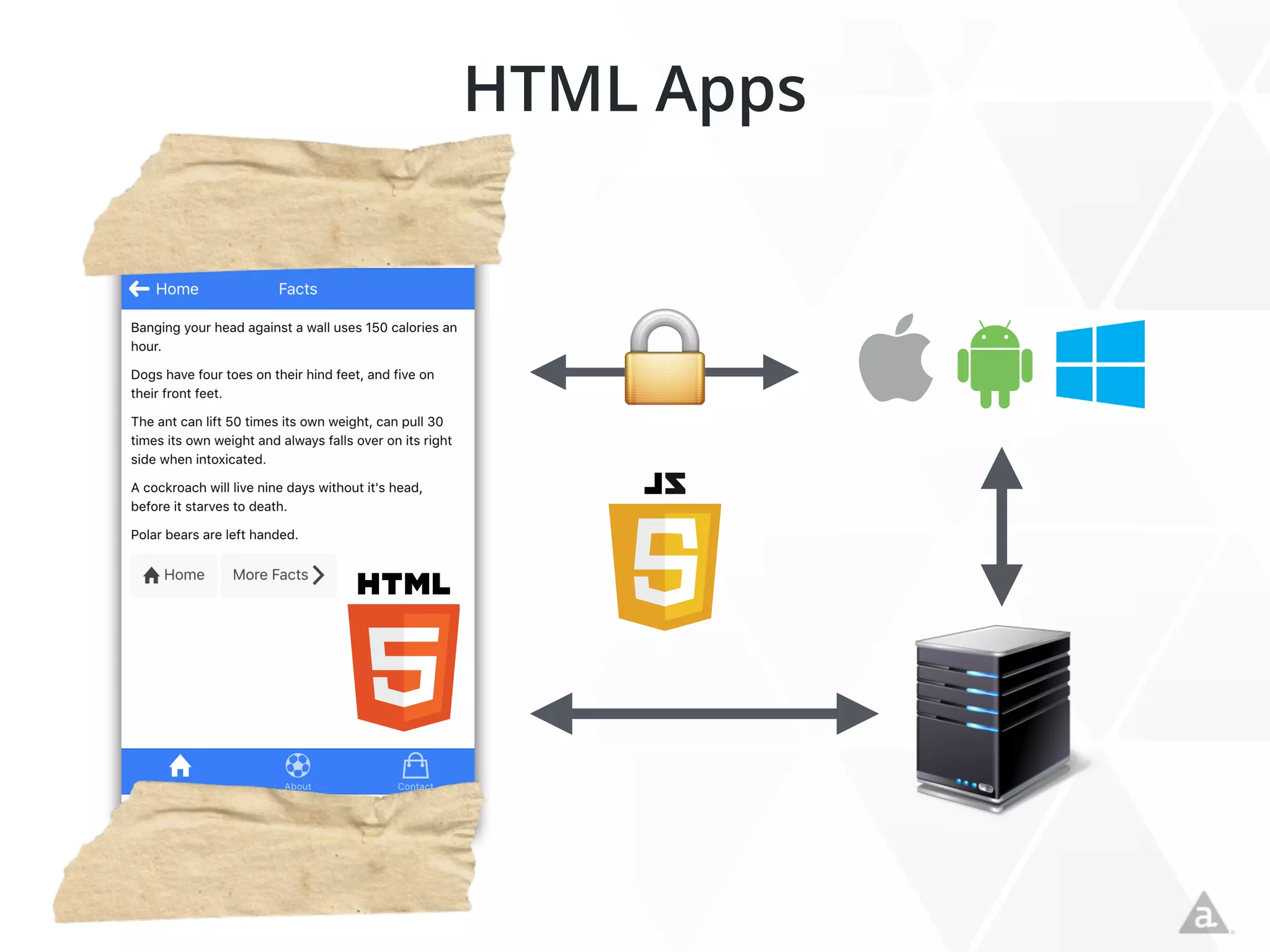

11. HTML Apps
!

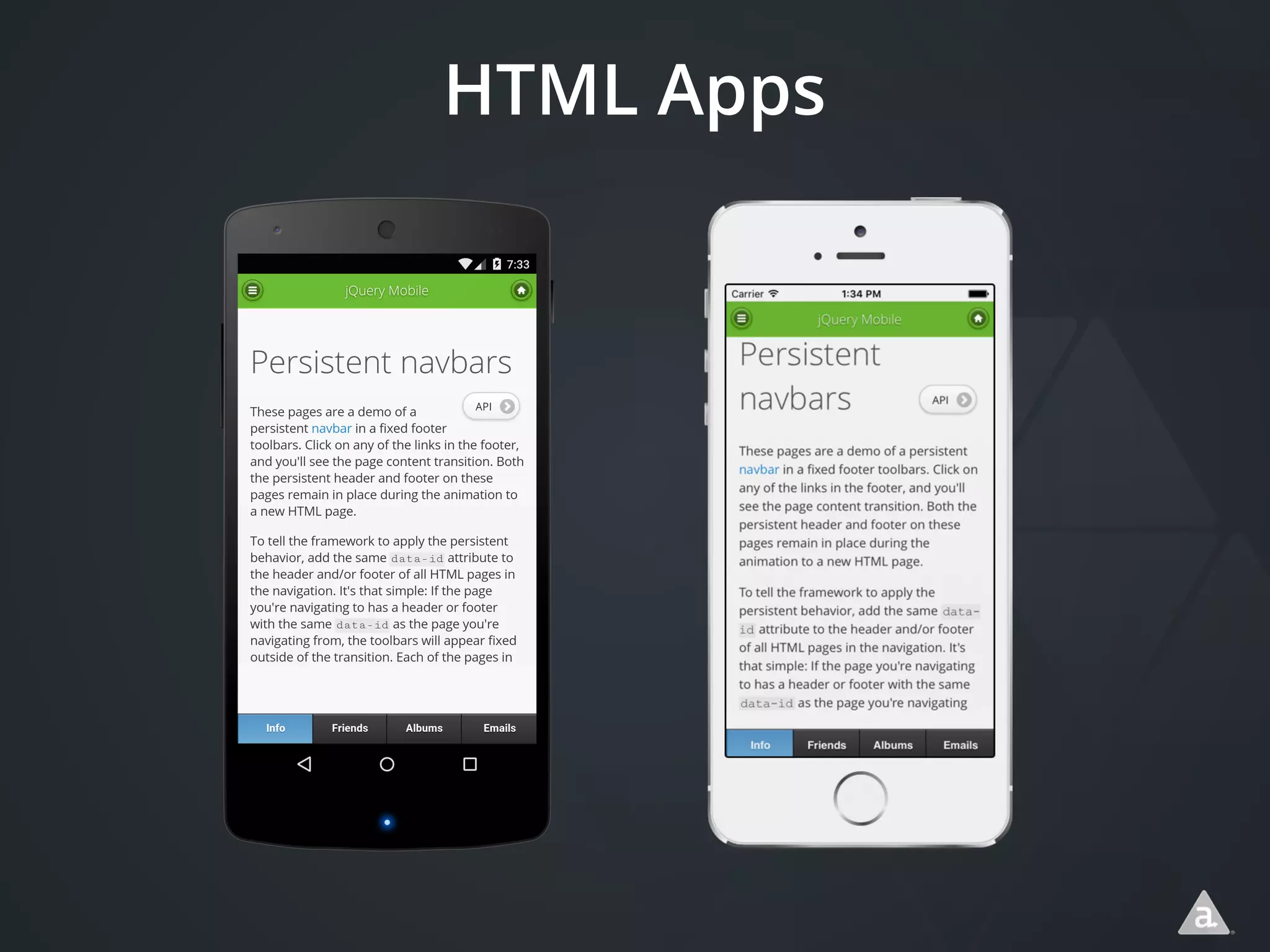

12. HTML Apps

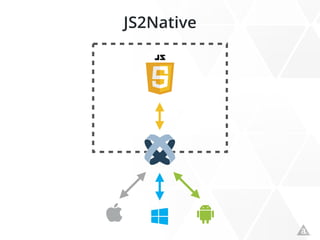

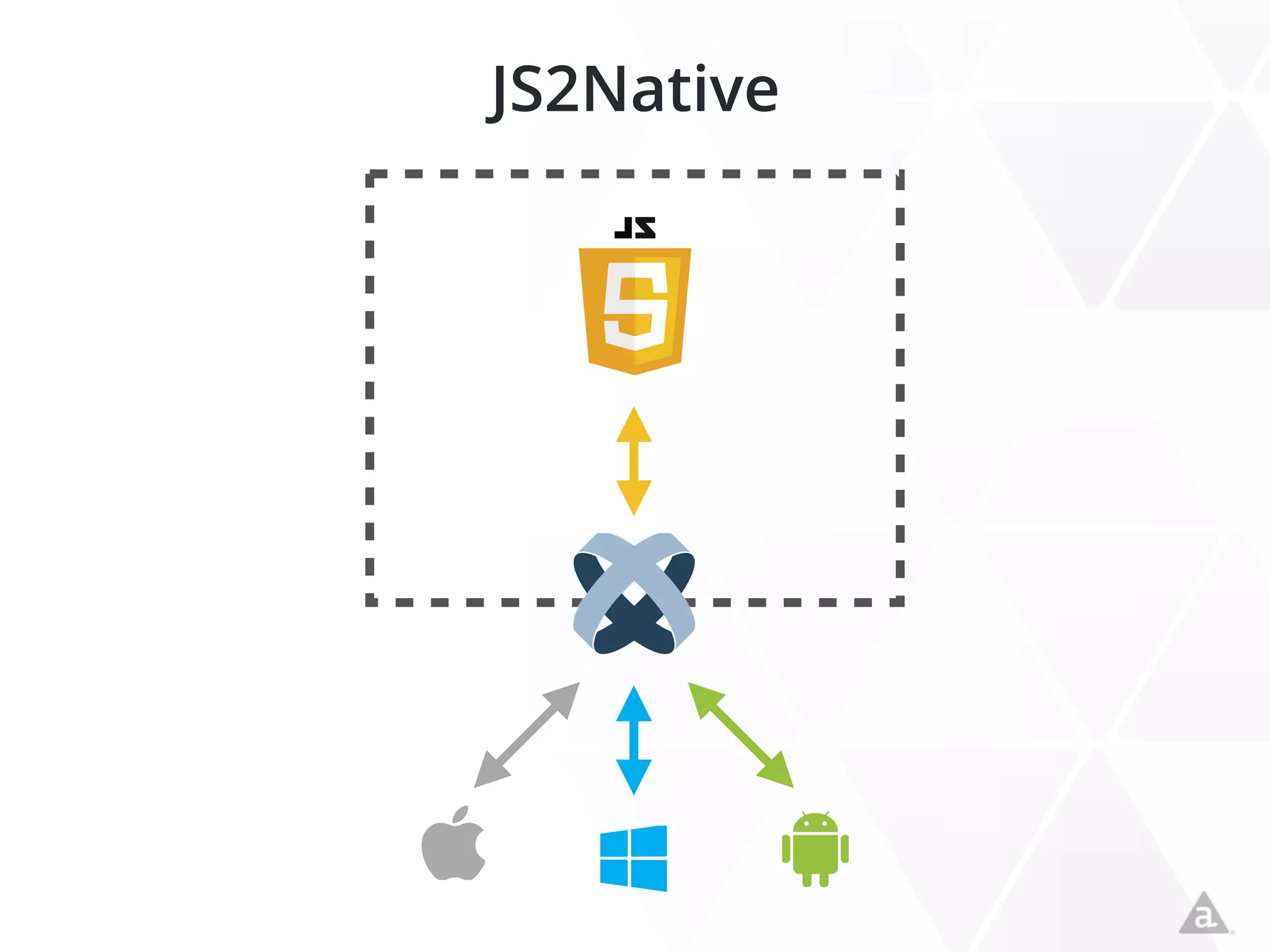

13. JS2Native

14. Titanium

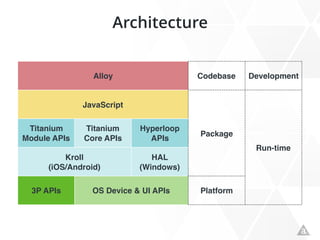

15. Architecture
Alloy Codebase Development
JavaScript
Package
Run-time
Titanium
Module APIs
Titanium
Core APIs
Hyperloop
APIs
Kroll
(iOS/Android)
HAL
(Windows)
3P APIs OS Device & UI APIs Platform

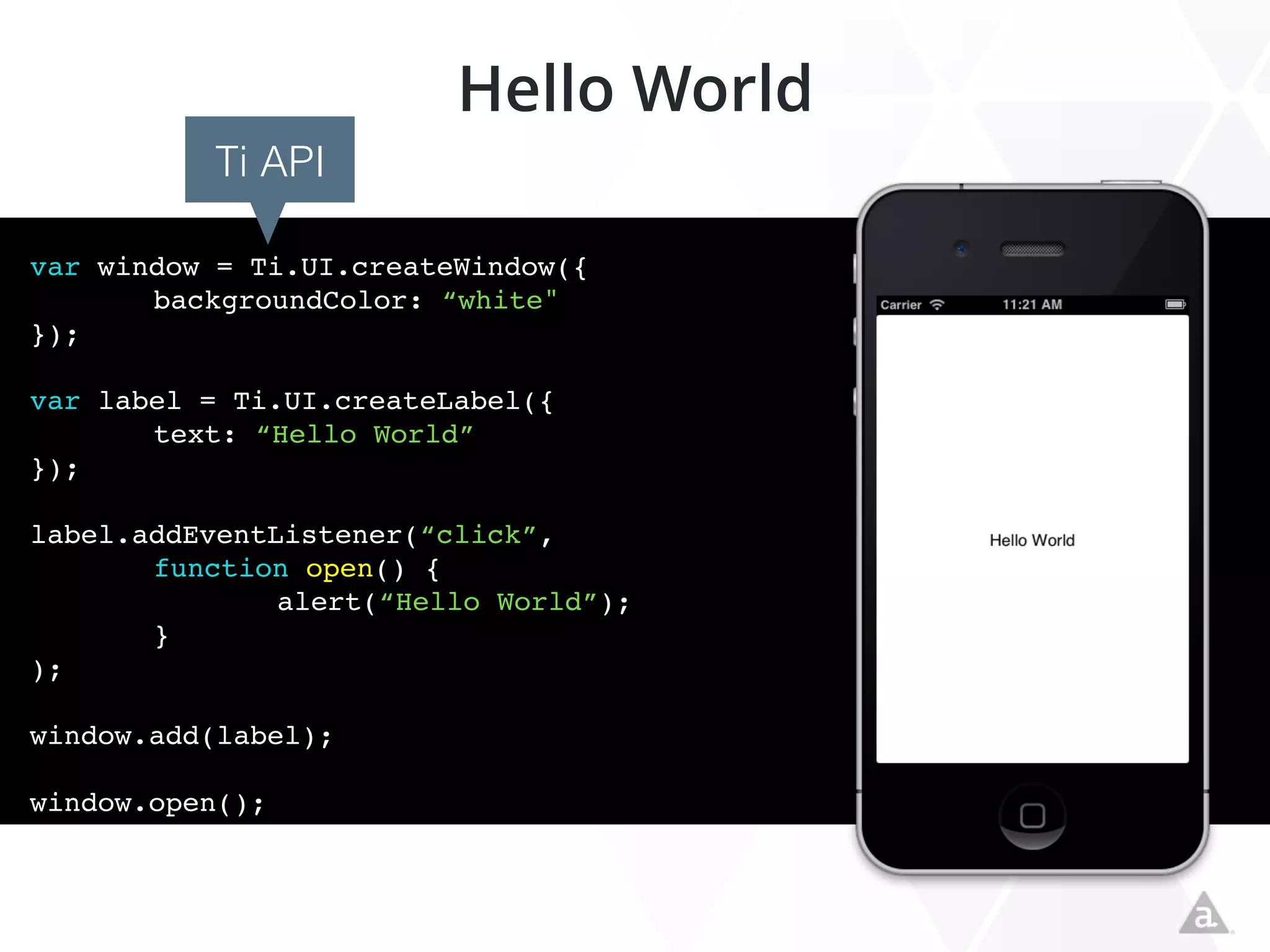

16. Hello World
var window = Ti.UI.createWindow({
backgroundColor: “white"
});
var label = Ti.UI.createLabel({
text: “Hello World”
});
label.addEventListener(“click”,
function open() {
alert(“Hello World”);
}
);
window.add(label);
window.open();
Ti API

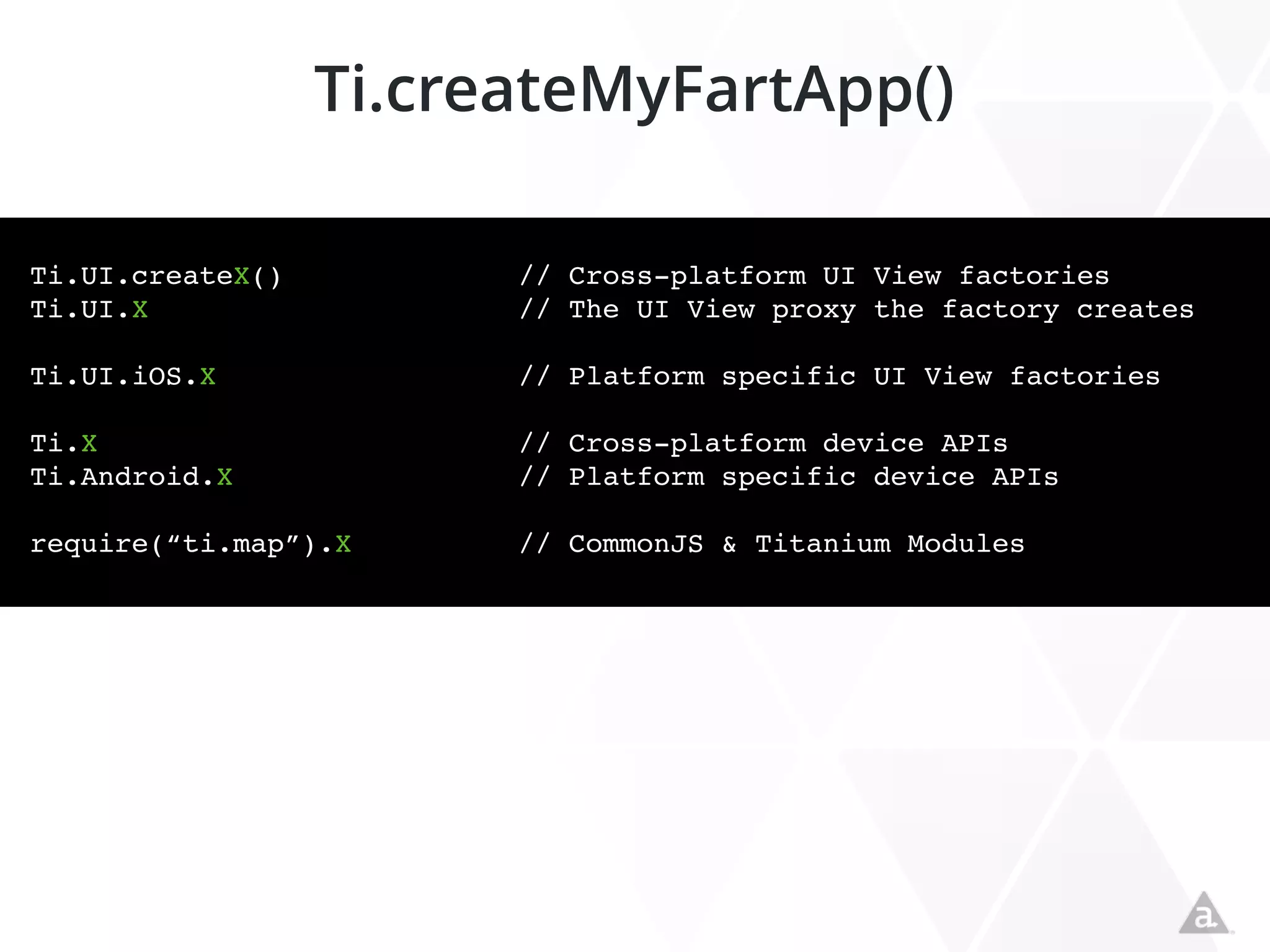

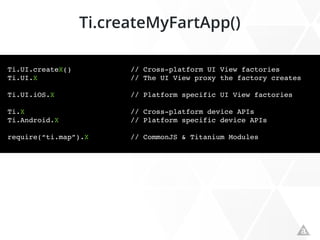

17. Ti.createMyFartApp()
Ti.UI.createX() // Cross-platform UI View factories
Ti.UI.X // The UI View proxy the factory creates
Ti.UI.iOS.X // Platform specific UI View factories
Ti.X // Cross-platform device APIs
Ti.Android.X // Platform specific device APIs
require(“ti.map”).X // CommonJS & Titanium Modules

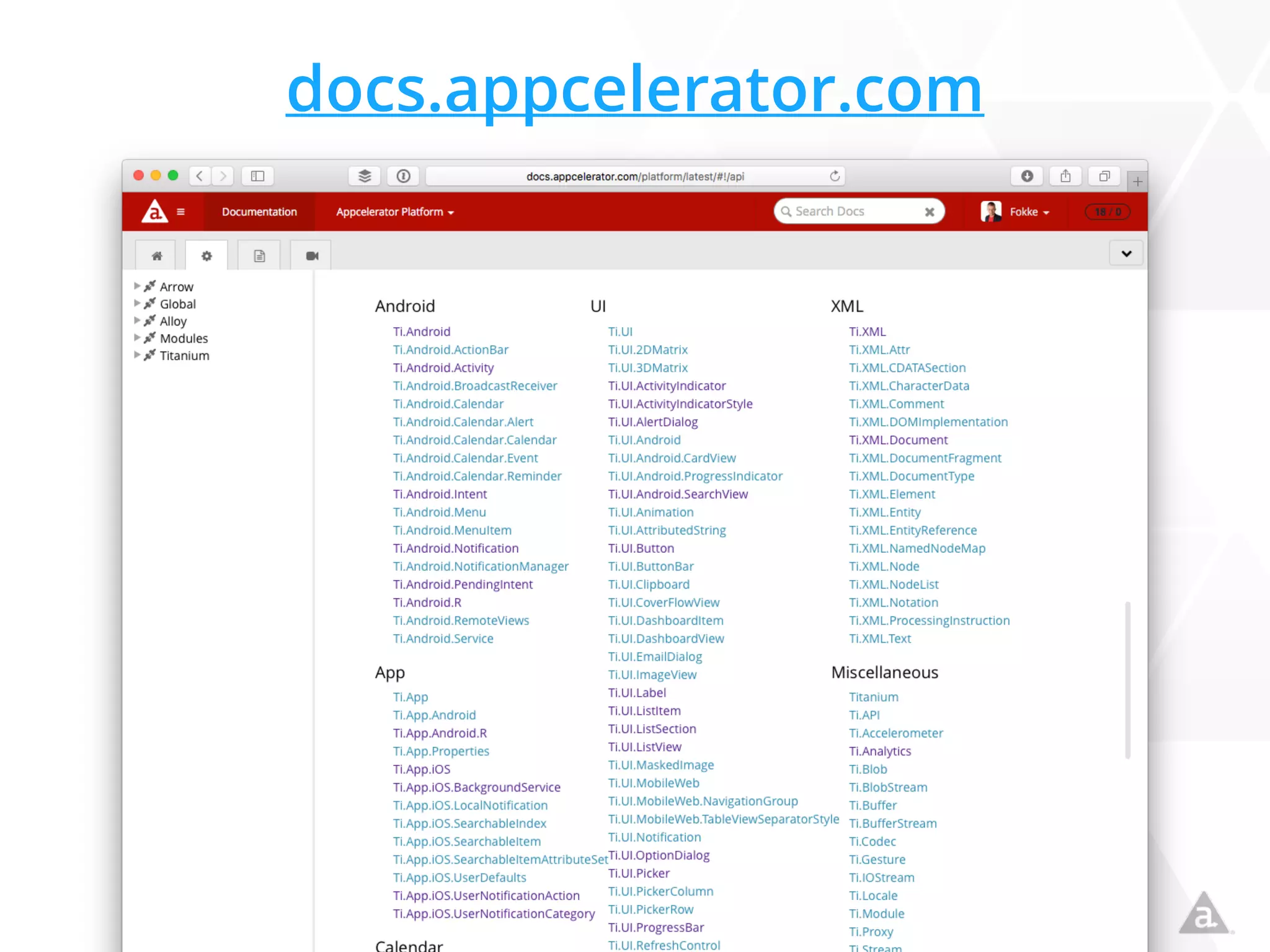

18. docs.appcelerator.com

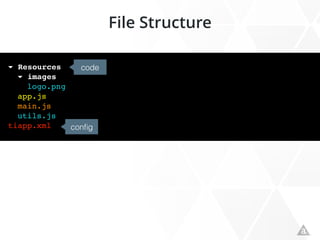

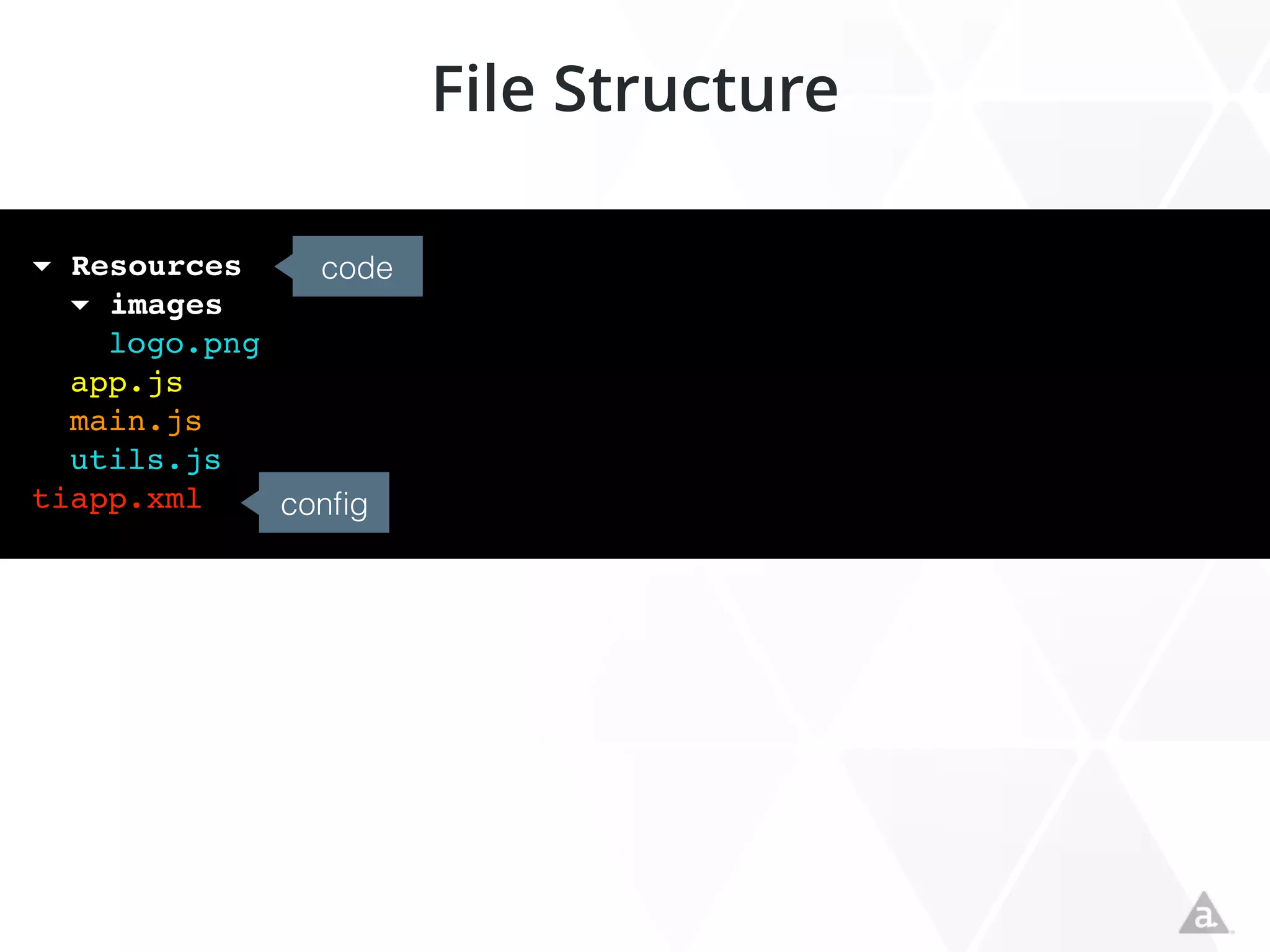

19. File Structure
▾ Resources
▾ images
app.js
main.js
utils.js
tiapp.xml config
code

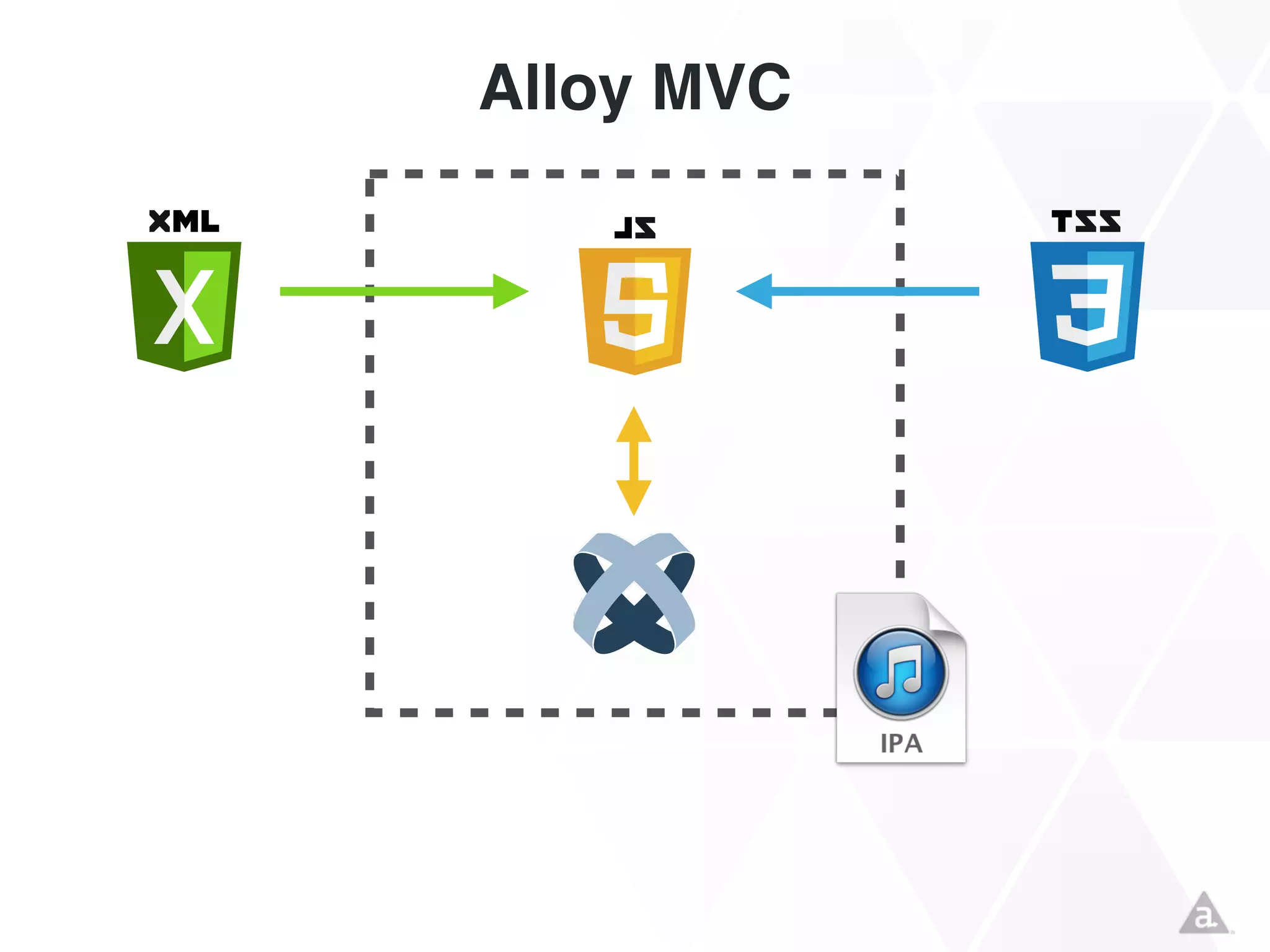

21. Alloy MVC

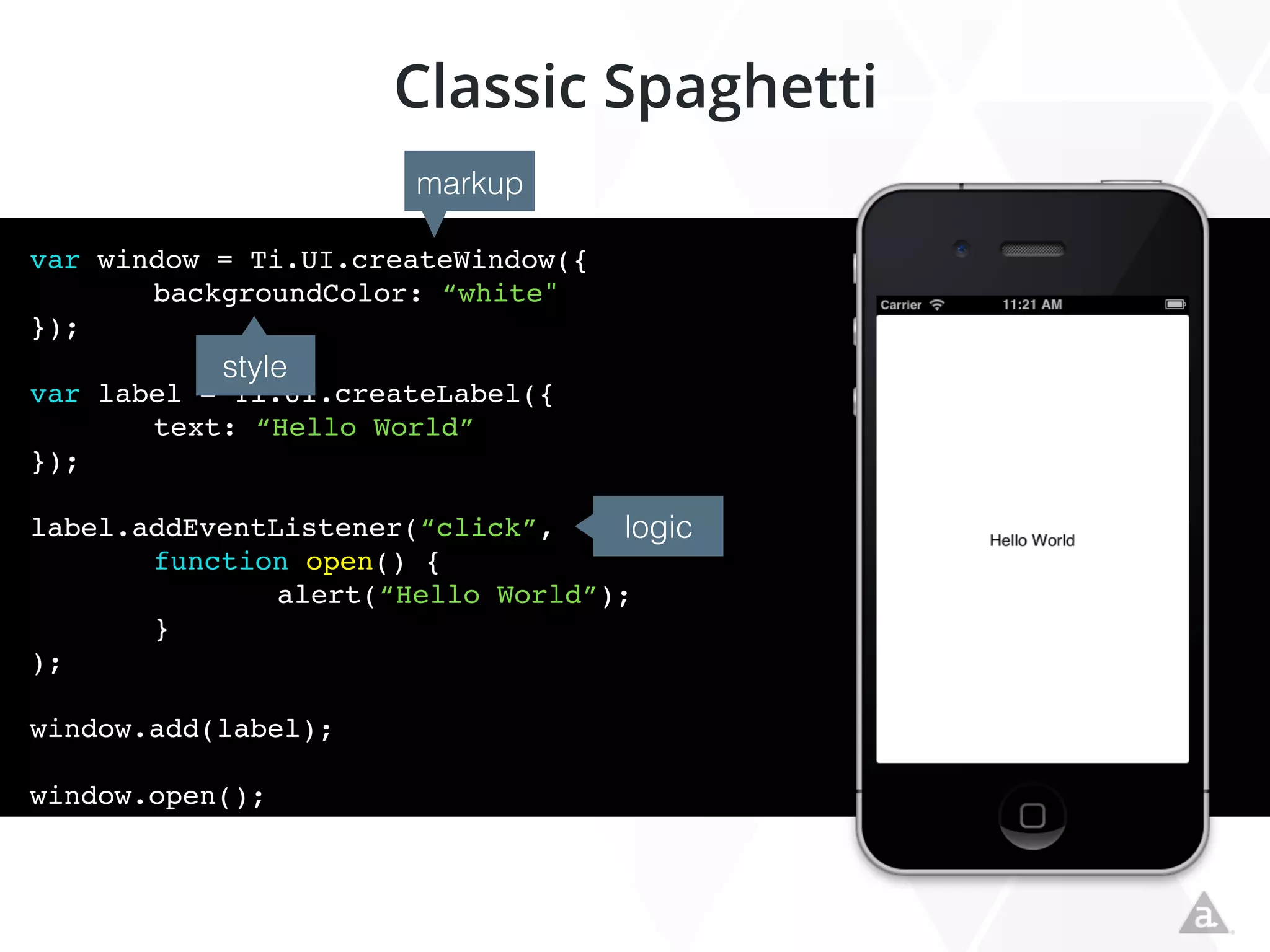

22. Classic Spaghetti
var window = Ti.UI.createWindow({
backgroundColor: “white"
});
var label = Ti.UI.createLabel({
text: “Hello World”
});
label.addEventListener(“click”,
function open() {
alert(“Hello World”);
}
);
window.add(label);
window.open();
style
logic
markup

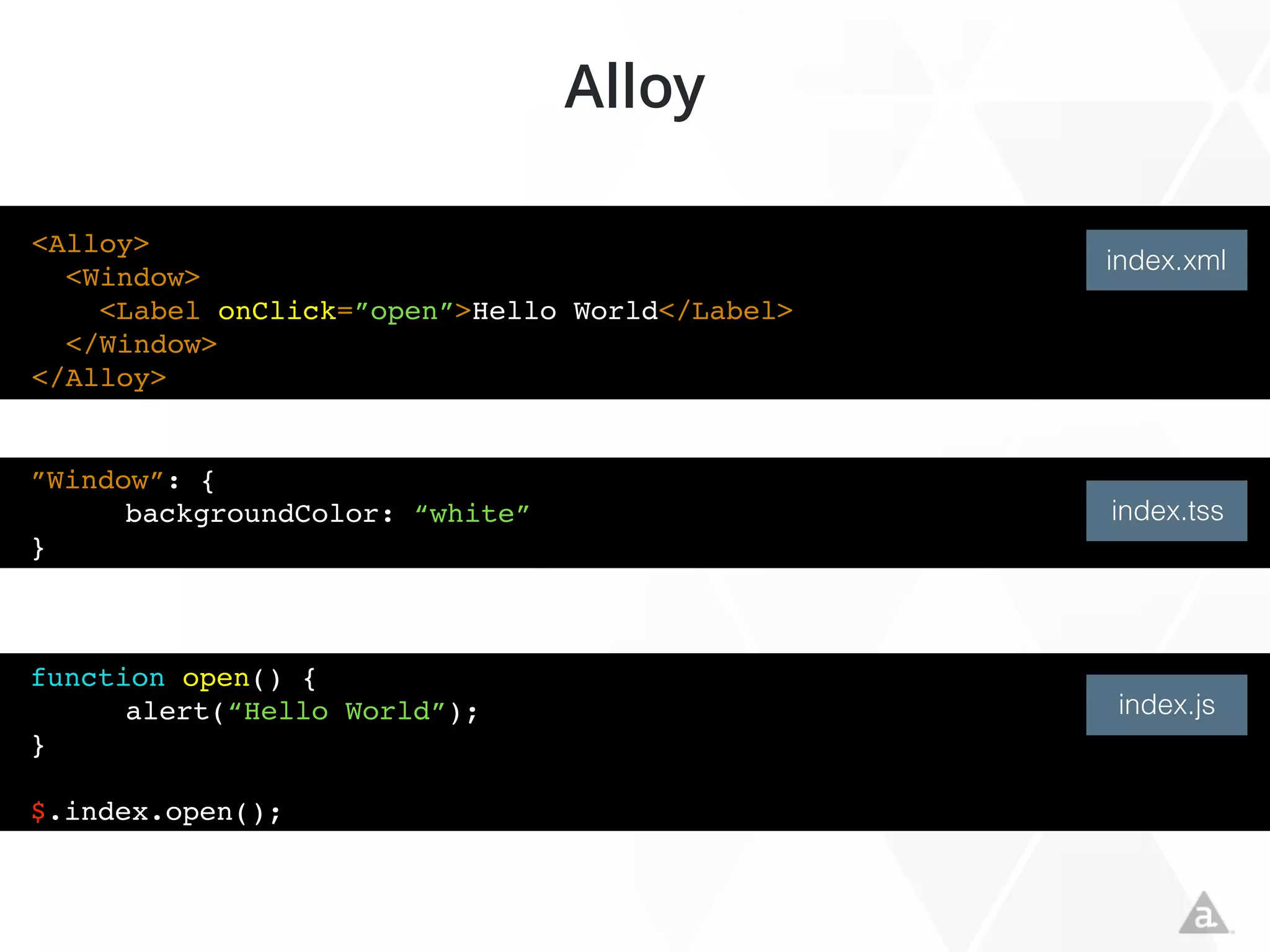

23. <Alloy>
<Window>
<Label onClick=”open”>Hello World</Label>
</Window>
</Alloy>
”Window”: {
backgroundColor: “white”
}
function open() {
alert(“Hello World”);
}
$.index.open();
index.xml
index.tss
index.js
Alloy

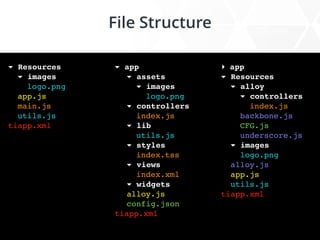

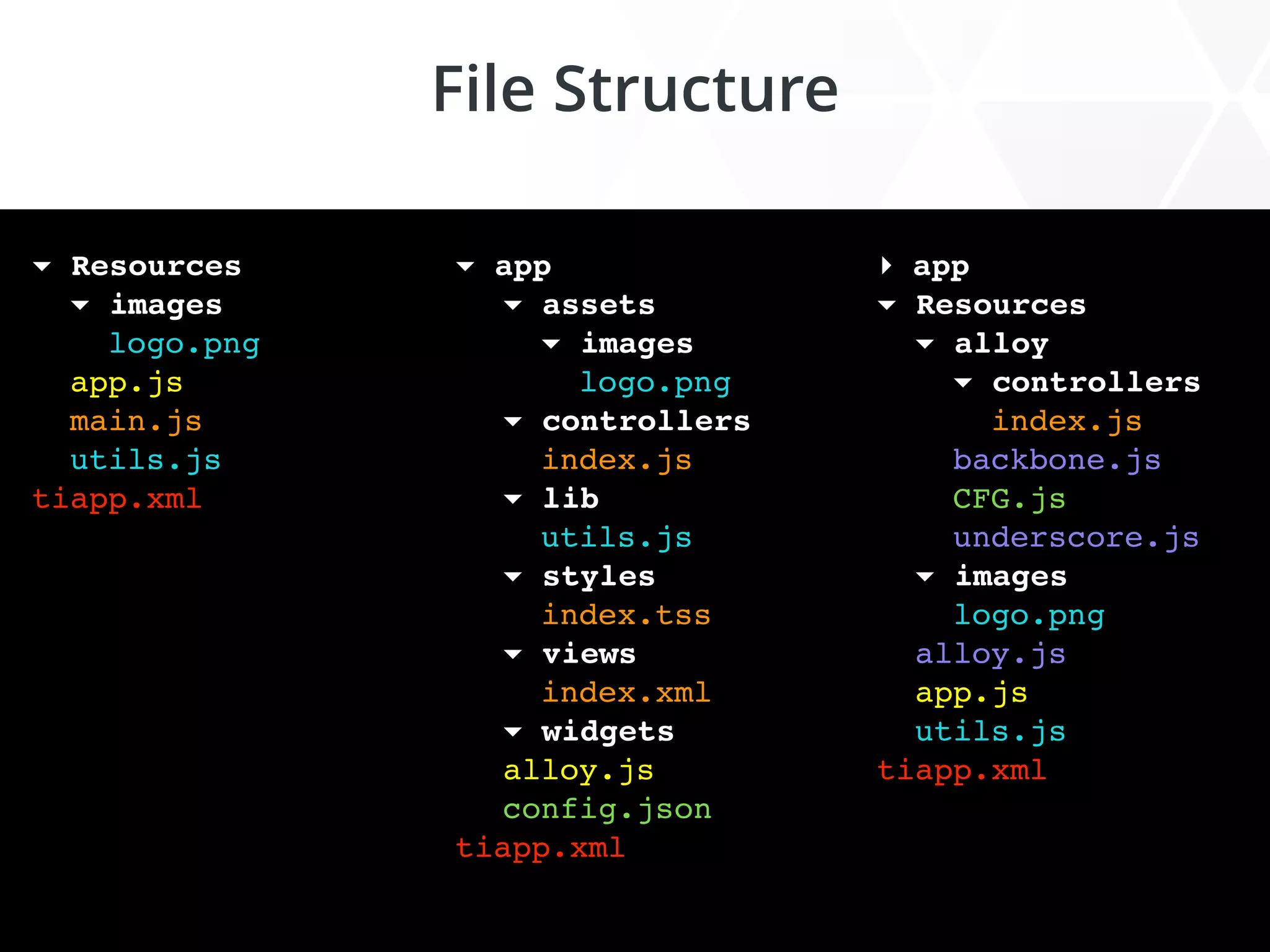

24. ▸ app
▾ Resources
▾ alloy
▾ controllers
index.js
backbone.js
CFG.js
underscore.js
▾ images
alloy.js
app.js
utils.js
tiapp.xml
▾ Resources
▾ images
app.js
main.js
utils.js
tiapp.xml
▾ app
▾ assets
▾ images
▾ controllers
index.js
▾ lib
utils.js
▾ styles
index.tss
▾ views
index.xml
▾ widgets
alloy.js
config.json
tiapp.xml
File Structure

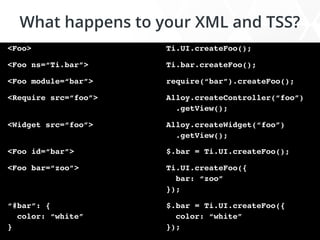

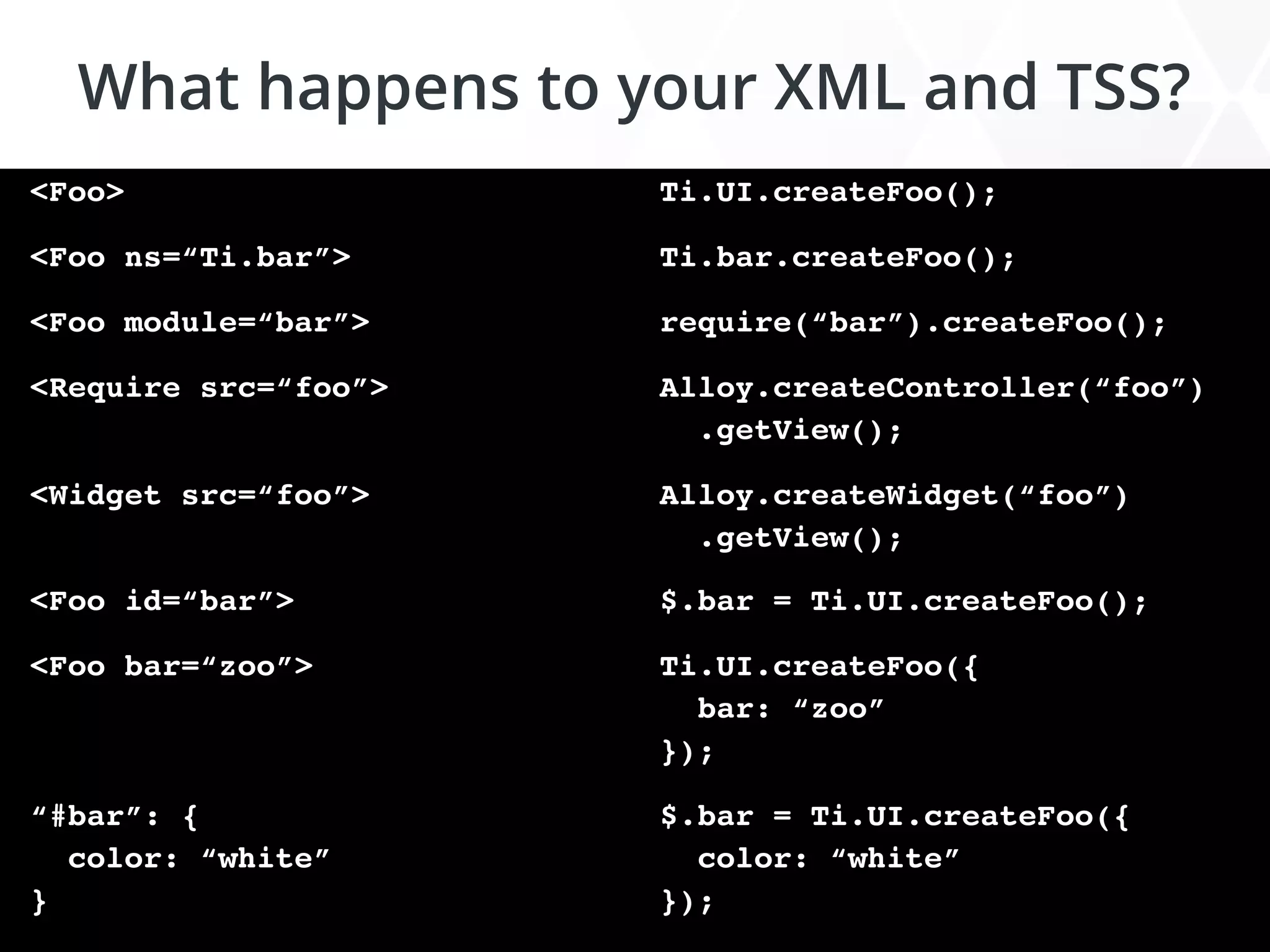

25. What happens to your XML and TSS?
<Foo>
<Foo ns=“Ti.bar”>
<Foo module=“bar”>
<Require src=“foo”>
<Widget src=“foo”>
<Foo id=“bar”>
<Foo bar=“zoo”>
“#bar”: {
color: “white”
}
Ti.UI.createFoo();
Ti.bar.createFoo();
require(“bar”).createFoo();
Alloy.createController(“foo”)
.getView();
Alloy.createWidget(“foo”)
.getView();
$.bar = Ti.UI.createFoo();
Ti.UI.createFoo({
bar: “zoo”
});
$.bar = Ti.UI.createFoo({
color: “white”
});

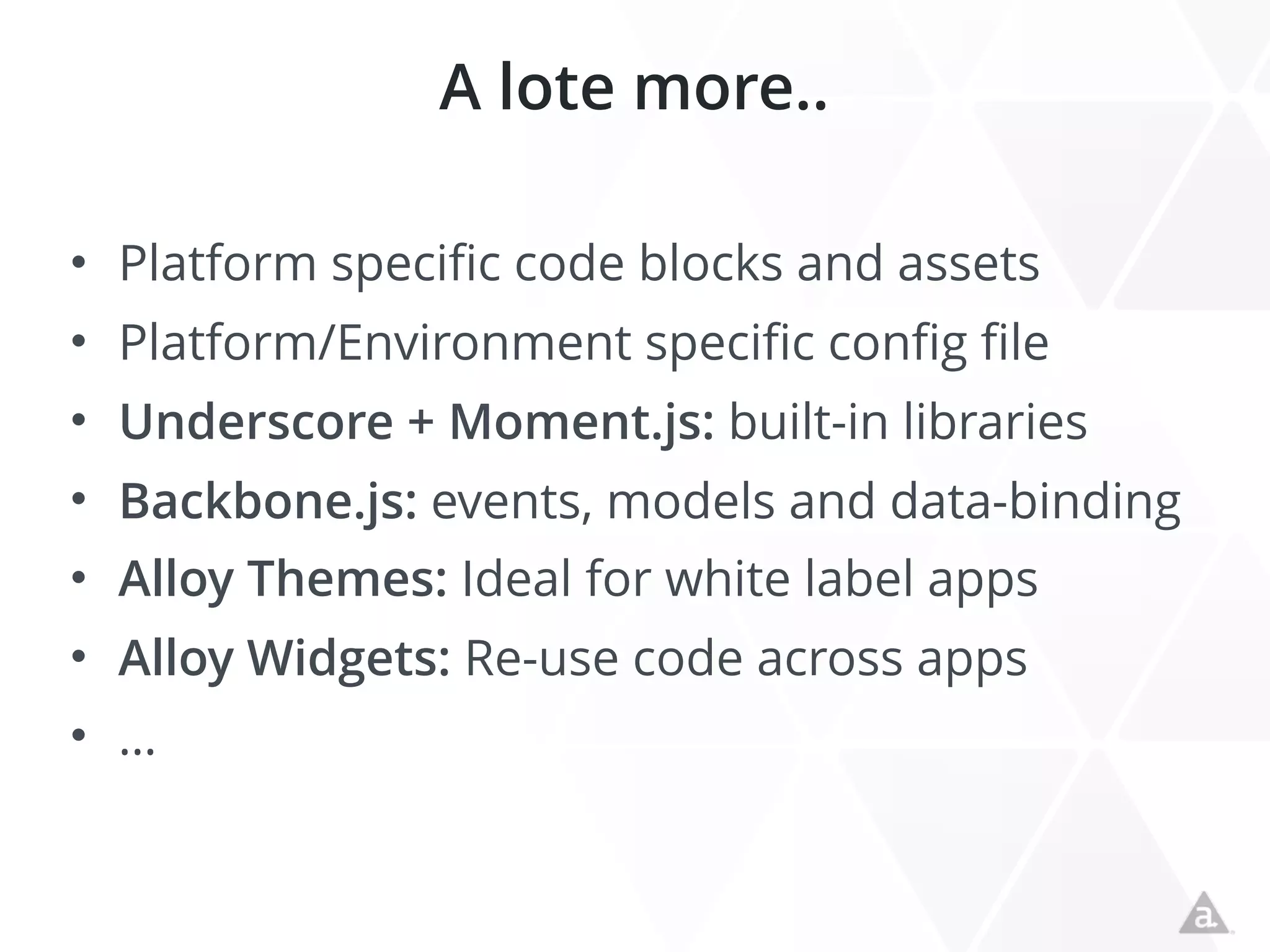

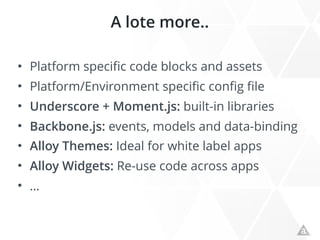

26. A lote more..
• Platform specific code blocks and assets
• Platform/Environment specific config file
• Underscore + Moment.js: built-in libraries
• Backbone.js: events, models and data-binding
• Alloy Themes: Ideal for white label apps
• Alloy Widgets: Re-use code across apps
• …

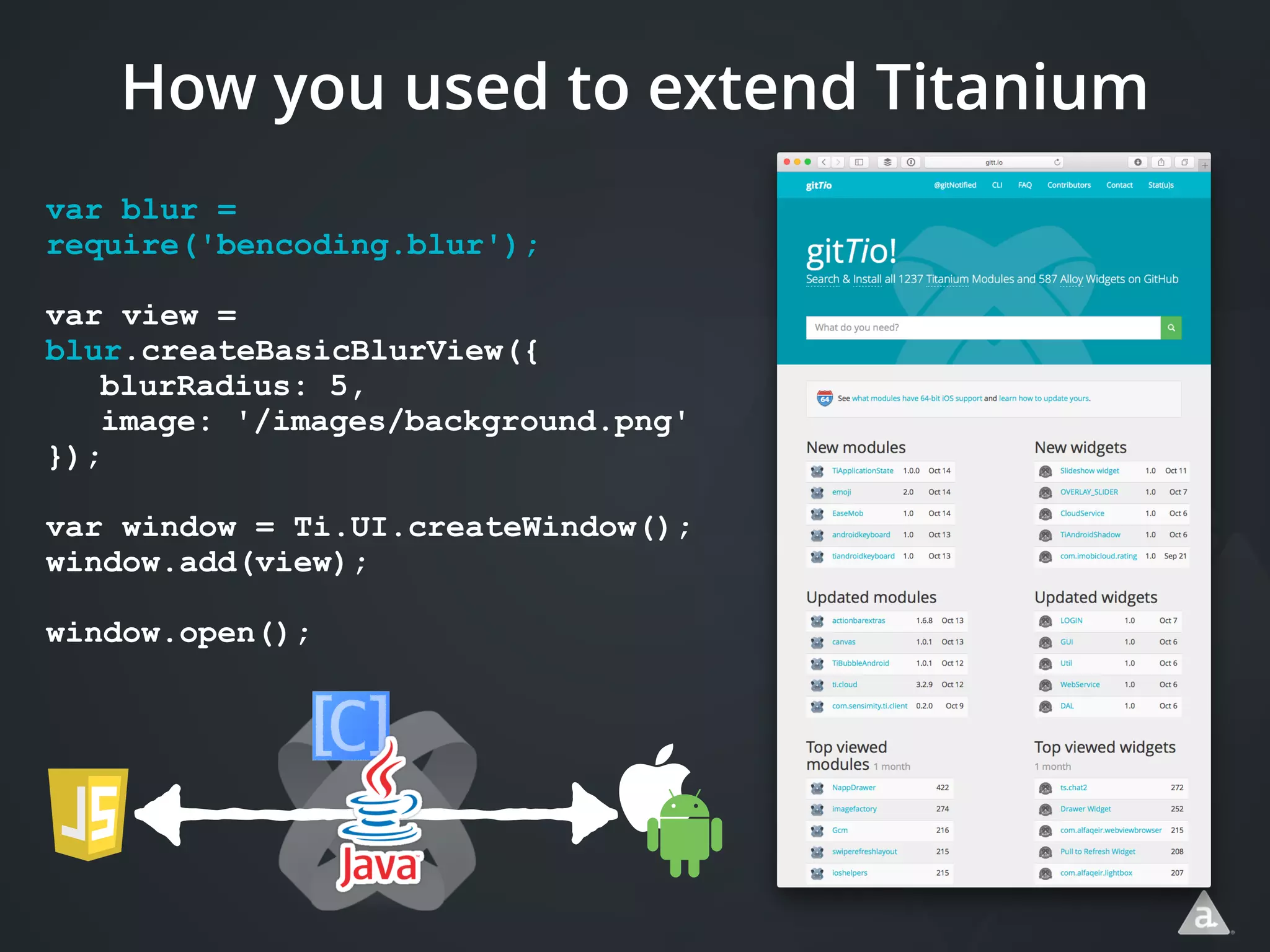

29. 
var blur =
require('bencoding.blur');
var view =
blur.createBasicBlurView({
blurRadius: 5,
image: '/images/background.png'
});
var window = Ti.UI.createWindow();
window.add(view);
window.open();
How you used to extend Titanium

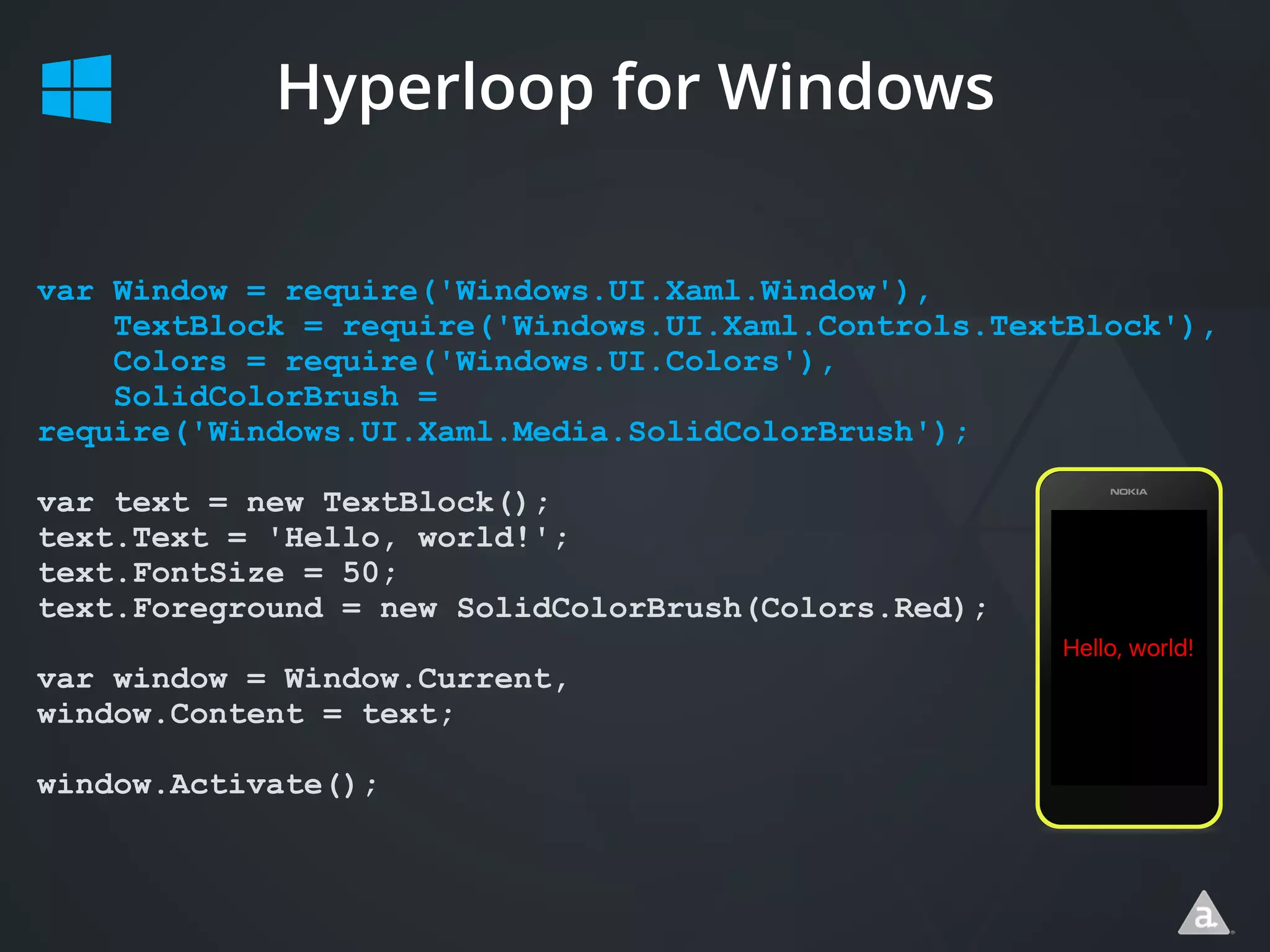

30. Hyperloop for Windows
var Window = require('Windows.UI.Xaml.Window'),
TextBlock = require('Windows.UI.Xaml.Controls.TextBlock'),
Colors = require('Windows.UI.Colors'),
SolidColorBrush =
require('Windows.UI.Xaml.Media.SolidColorBrush');
var text = new TextBlock();
text.Text = 'Hello, world!';
text.FontSize = 50;
text.Foreground = new SolidColorBrush(Colors.Red);
var window = Window.Current,
window.Content = text;
window.Activate();

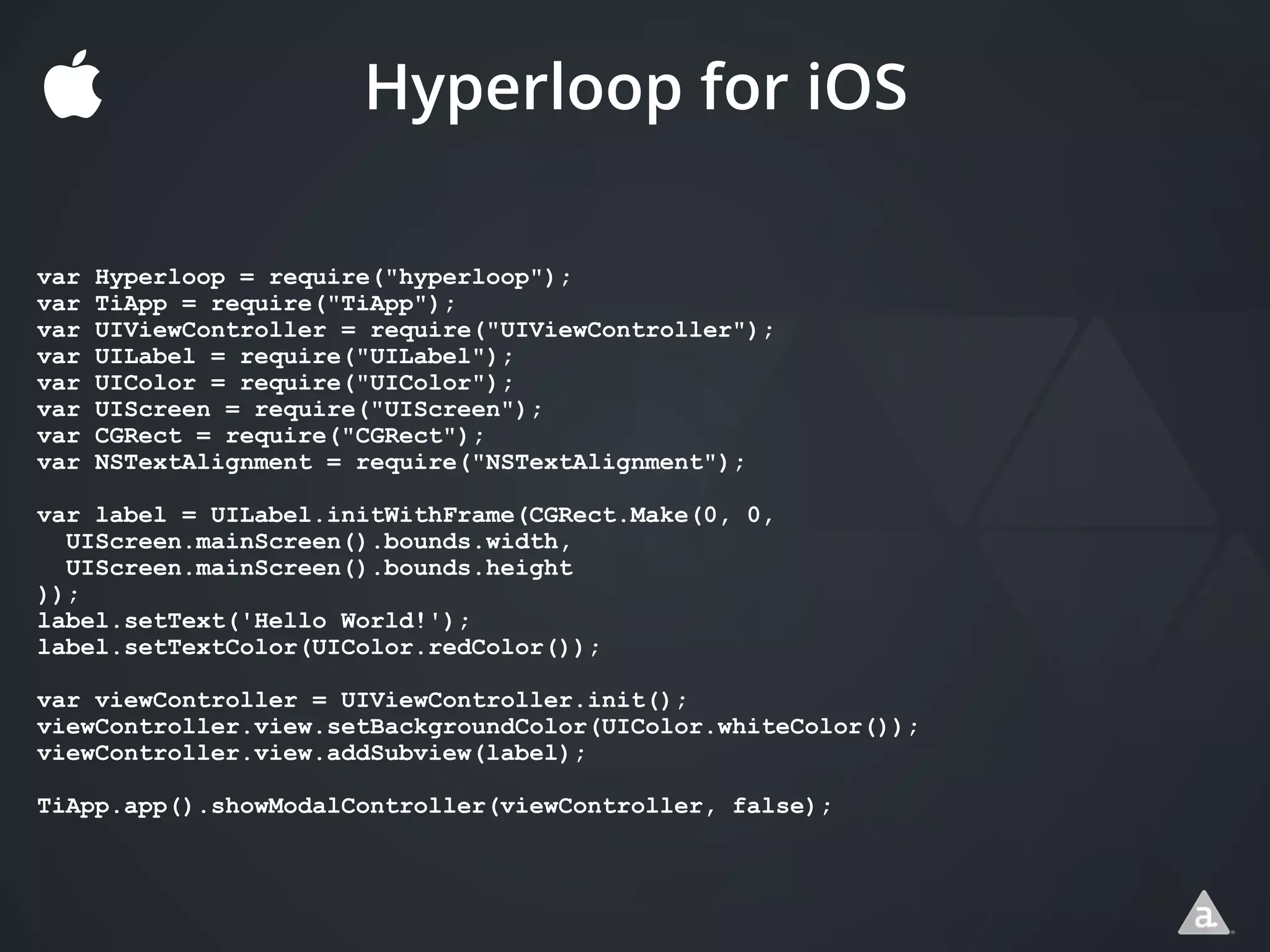

31. 
var Hyperloop = require("hyperloop");
var TiApp = require("TiApp");
var UIViewController = require("UIViewController");
var UILabel = require("UILabel");
var UIColor = require("UIColor");
var UIScreen = require("UIScreen");
var CGRect = require("CGRect");
var NSTextAlignment = require("NSTextAlignment");
var label = UILabel.initWithFrame(CGRect.Make(0, 0,
UIScreen.mainScreen().bounds.width,
UIScreen.mainScreen().bounds.height
));
label.setText('Hello World!');
label.setTextColor(UIColor.redColor());
var viewController = UIViewController.init();
viewController.view.setBackgroundColor(UIColor.whiteColor());
viewController.view.addSubview(label);
TiApp.app().showModalController(viewController, false);
Hyperloop for iOS

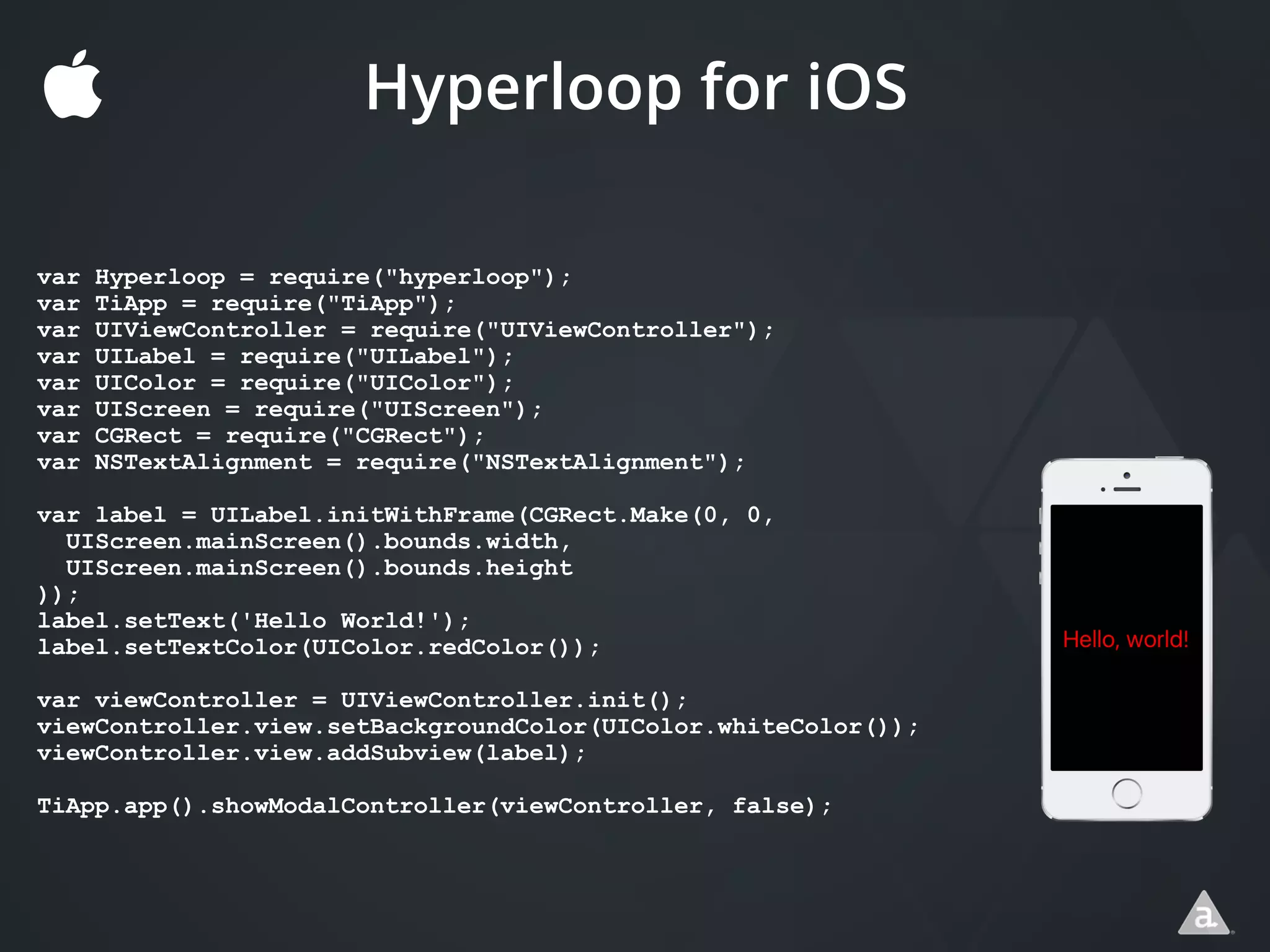

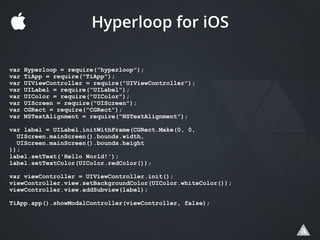

32. 
var Hyperloop = require("hyperloop");
var TiApp = require("TiApp");
var UIViewController = require("UIViewController");
var UILabel = require("UILabel");
var UIColor = require("UIColor");
var UIScreen = require("UIScreen");
var CGRect = require("CGRect");
var NSTextAlignment = require("NSTextAlignment");
var label = UILabel.initWithFrame(CGRect.Make(0, 0,
UIScreen.mainScreen().bounds.width,
UIScreen.mainScreen().bounds.height
));
label.setText('Hello World!');
label.setTextColor(UIColor.redColor());
var viewController = UIViewController.init();
viewController.view.setBackgroundColor(UIColor.whiteColor());
viewController.view.addSubview(label);
TiApp.app().showModalController(viewController, false);
Hyperloop for iOS

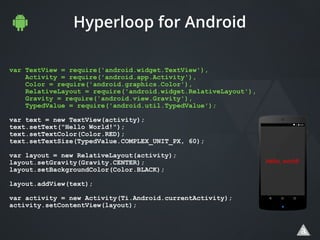

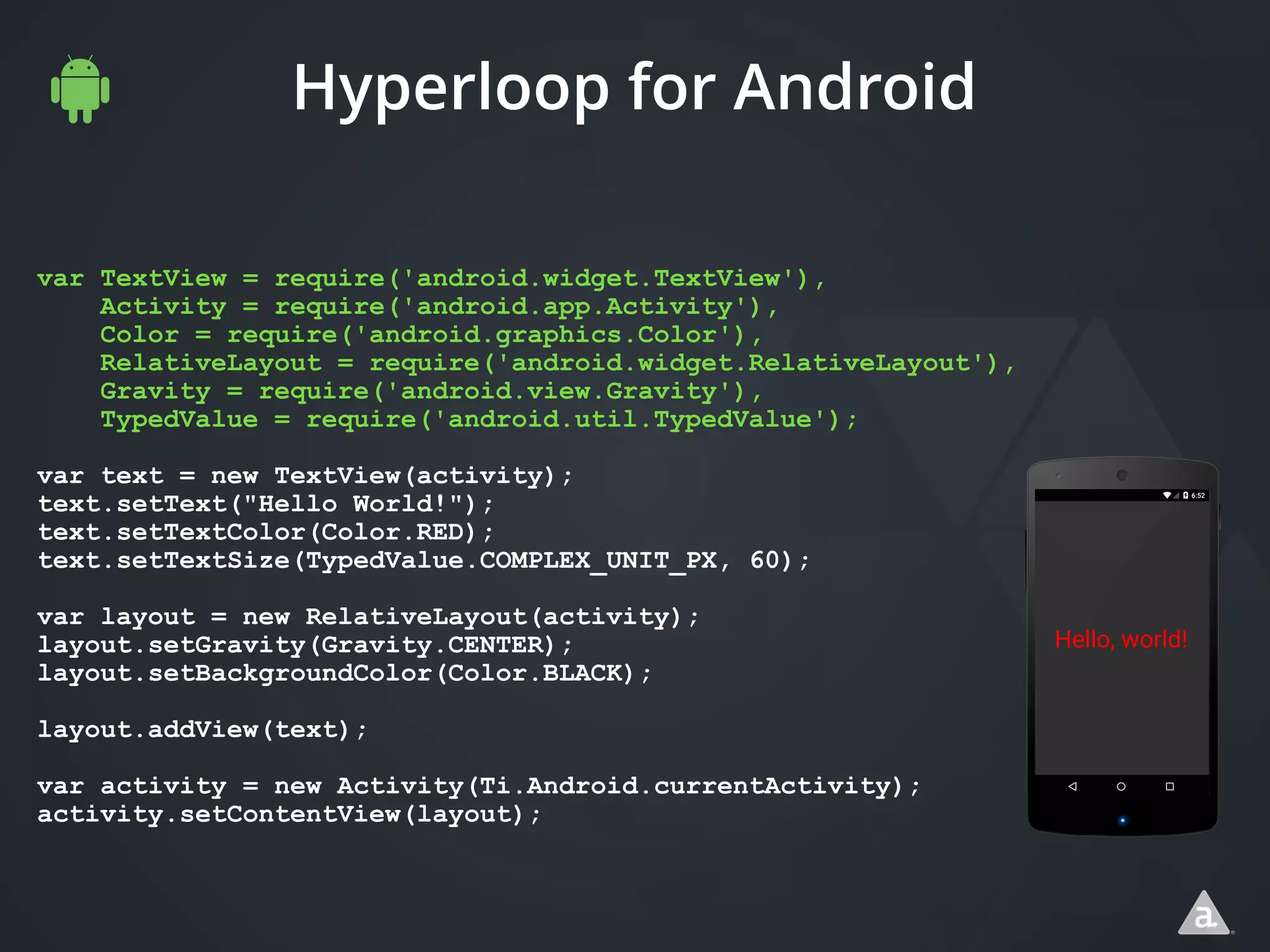

33. Hyperloop for Android
var TextView = require('android.widget.TextView'),
Activity = require('android.app.Activity'),
Color = require('android.graphics.Color'),
RelativeLayout = require('android.widget.RelativeLayout'),
Gravity = require('android.view.Gravity'),
TypedValue = require('android.util.TypedValue');
var text = new TextView(activity);
text.setText("Hello World!");
text.setTextColor(Color.RED);
text.setTextSize(TypedValue.COMPLEX_UNIT_PX, 60);
var layout = new RelativeLayout(activity);
layout.setGravity(Gravity.CENTER);
layout.setBackgroundColor(Color.BLACK);
layout.addView(text);
var activity = new Activity(Ti.Android.currentActivity);
activity.setContentView(layout);

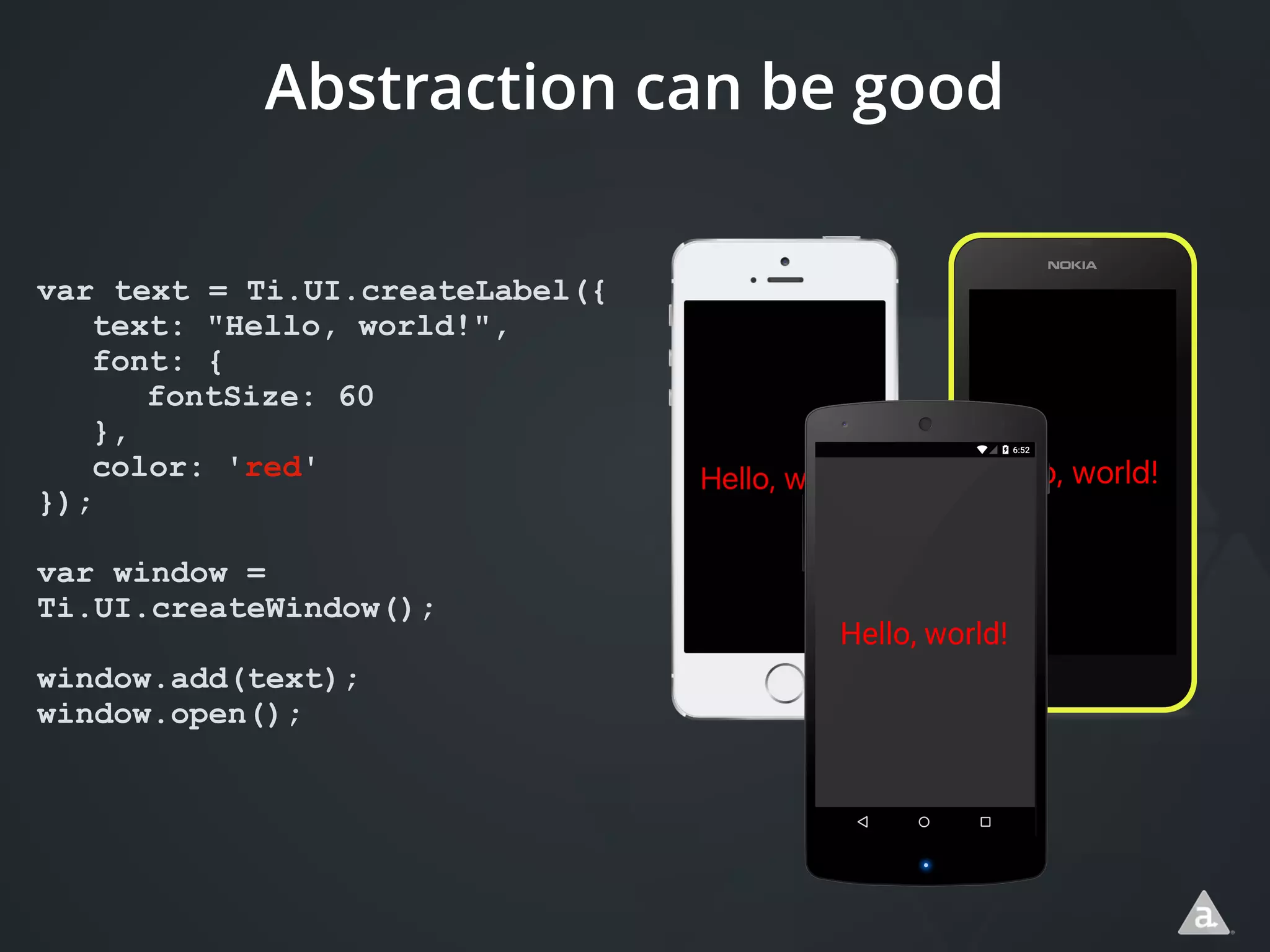

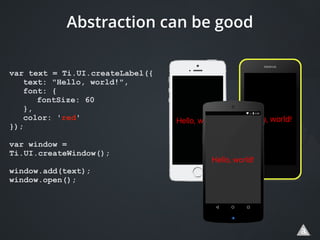

34. var text = Ti.UI.createLabel({
text: "Hello, world!",
font: {
fontSize: 60
},
color: 'red'
});
var window =
Ti.UI.createWindow();
window.add(text);
window.open();
Abstraction can be good

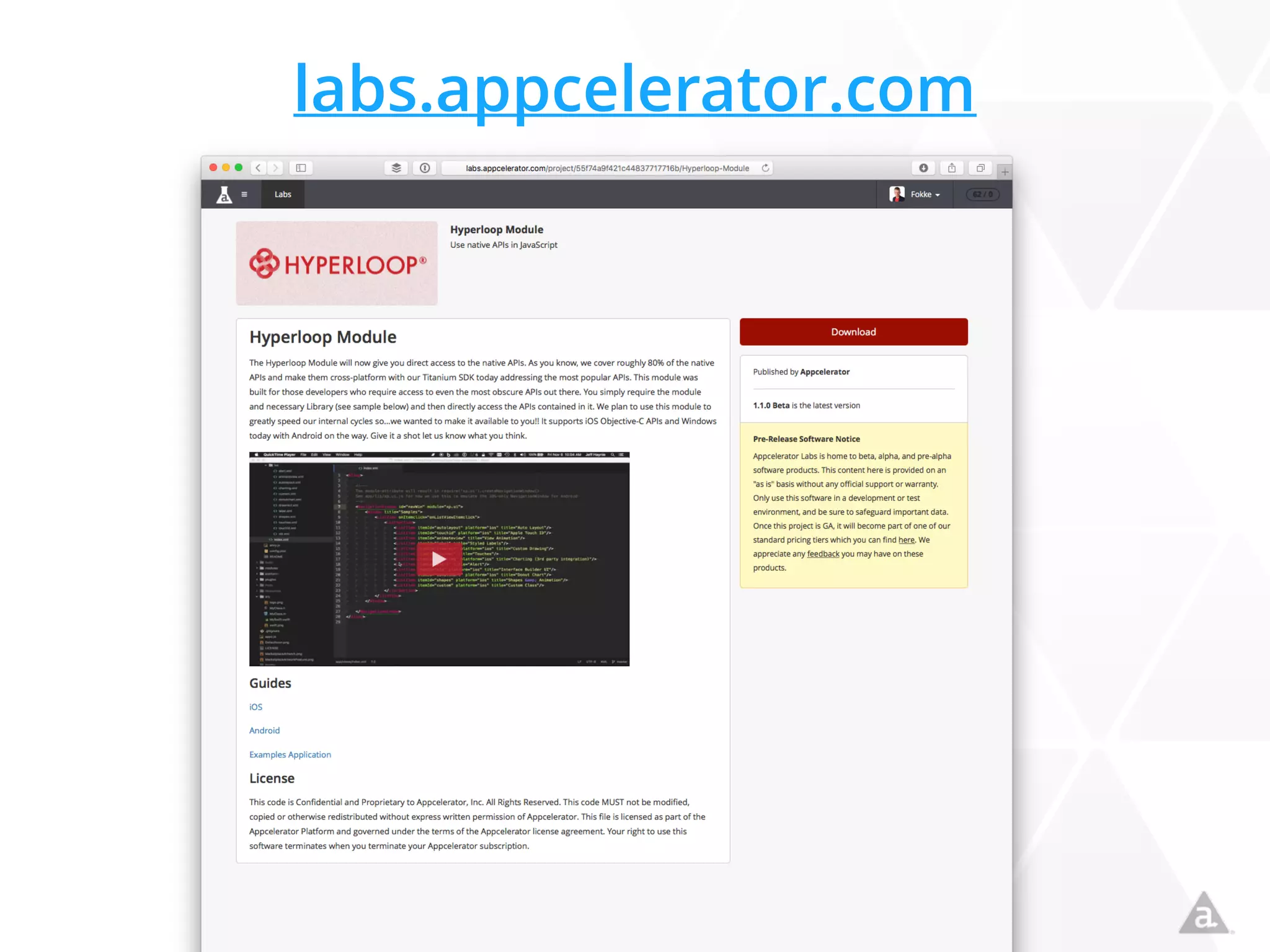

35. labs.appcelerator.com

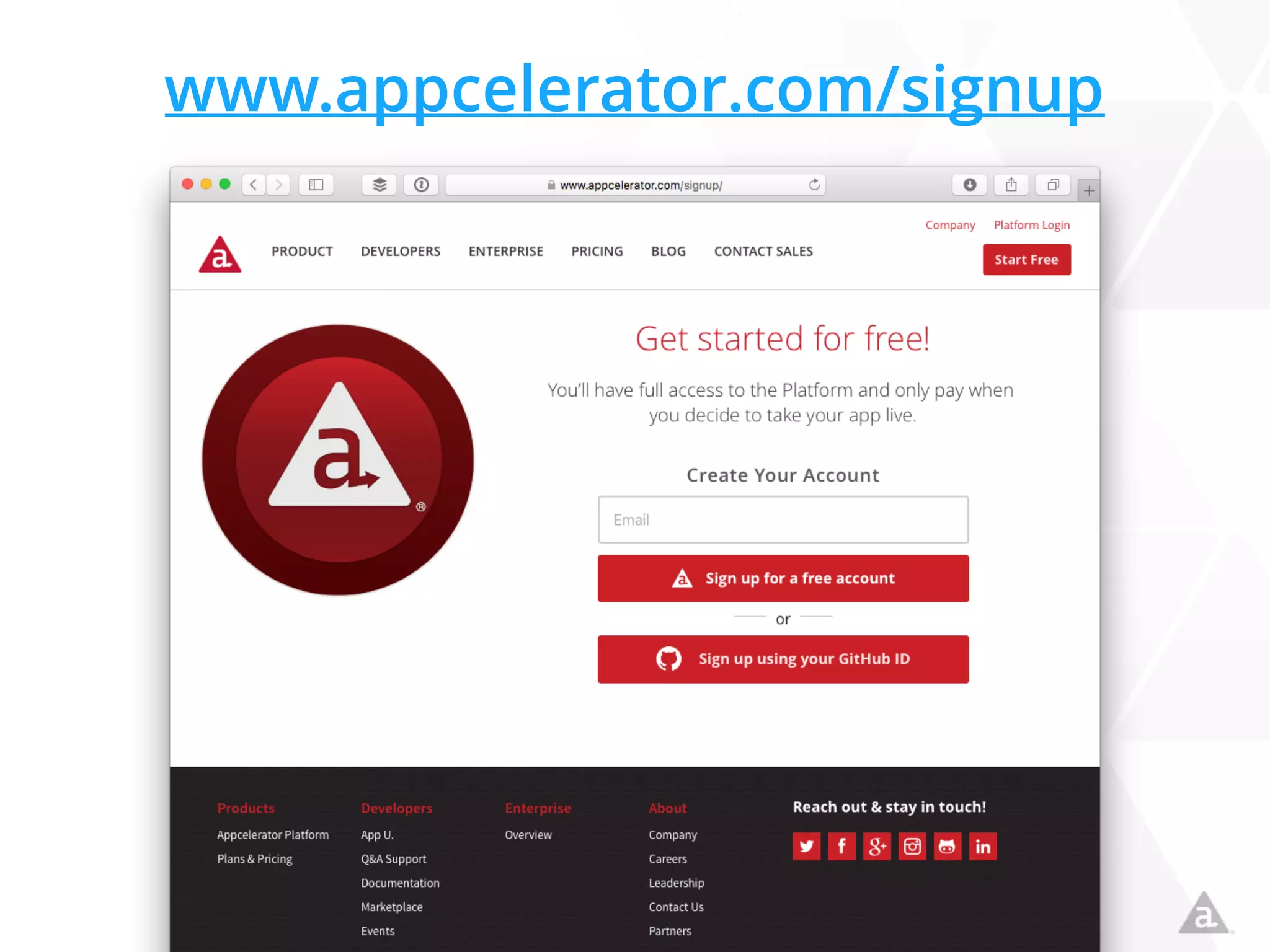

36. www.appcelerator.com/signup

37. Slides will be linked from @FokkeZB tomorrow morning
Thank You !
