The SensorProbe4 is an advanced monitoring device designed for infrastructure protection, featuring an embedded web server, email and SNMP notification capabilities, and customizable alert configurations. It supports a variety of AKCP intelligent sensors for usage in temperature, humidity, security, and environmental monitoring, with a user-friendly web interface for easy management. Additionally, it offers a standalone operation with no external dependencies, lifetime support, and compatibility with leading network management systems.

1. sensorProbe4
Basedon years of Industry experience it's ready to run
right out of the box, simply assign the IPaddress and
connect to the embedded web server.
Ahigh-speed, accurate and intelligent monitoring
device. The sensorProbe4 is a completely
embedded host with a proprietary Linux like OS
which includes TCP/IPstack, a built-in web-server
and full Email and SNMPfunctionality.
sensorProbe4
sensorProbe4
"""""" _5 I"".A.. (_I _c:::C> IVI
) ~!:..~~&~"~.~~KelapaGading.Jakarta 14240 S urabaya602 2
Tel. +62-21-45850618 Tel. +62-31-8421278/8421264
Fax. +62-21-45850619 Fax .+62-31-8421304
Email: siwali@cbn.net.id Email :sby@siwali.com
J'cwcilJ.l
Sensor Control...
Access Control. ..

2. sensorProbe4
vvvvvv_ S IVV~LI_ c:C> IVI
Tenggllls Mejoyo NO.7 Siok Alt43
Surabaya 60292
Tel. +62-31-8421278/8421264
Fax. +62-31-a421304
Email: sby@siwali.eom
Artha Gading Niaga Siok eno
Kelapa Gading. Jakarta 14240
Tel. +62-21-45850618
Fax. +62-21-45850619
Email: siwali@ebn.neLid
• Battery backed time of day clock for an
accurate system date and time.
• A standalone product without any external
hardware and software dependencies.
• Micro code firmware update over the
Internet.
• Customized color configuration for
displaying alerts.
• Network Management System Integration.
• Fully embedded TCP/IP and web-server.
• Built-in notification features - Email and
SNMP traps.
• 4 auto-sense ports for connecting any AKCP
sensors.
• A new improved web-based interface for easy
configuration and monitoring.
• Continuous time feature on every sensor port
to eliminate false warning alerts.
• login for User and Administrator for better
security.
sensorProbe4's Main Features
sensorProbe4 safeguards your infrastructure, resources and investment
from external disaster before it happens.
AKCPsensorscan also be used to detect ACvoltage and measure DCvoltage. Our sensorsinclude an
integrated data collection and graphing package to spot trends in the airflow, temperature and humidity.

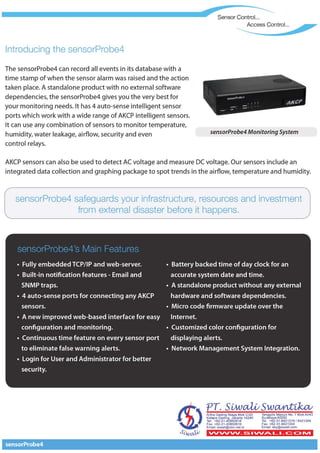

sensorProbe4 Monitoring System
The sensorProbe4 can record all events in its database with a
time stamp of when the sensor alarm was raised and the action
taken place.A standalone product with no external software
dependencies, the sensorProbe4 gives you the very best for
your monitoring needs. It has4 auto-sense intelligent sensor
ports which work with a wide range of AKCPintelligent sensors.
It can useany combination of sensorsto monitor temperature,
humidity, water leakage, airflow, security and even
control relays.
Introducing the sensorProbe4
••••••••••••••••••••••••••• l1li"" Sensor Control. ..
Access Control. ..
....___,
--~~

3. sensorProbe4
c; rope Water Sensor
ropeWater sensorscan be plugged into the RJ-4Sjacks on the sensorProbe4.
This sensor will detect the presence of water anywhere along the rope.
The water detector sensor is an advanced microprocessor based design,
capable of detecting distilled water. This water detector is designed and
manufactured by AKCP.
.... Water Sensors )
Voltage Monitor sensor with an ALARM/NORMALindication in software.
Voltage sensorscan detect the presence or the absence of line voltage.
C;-;oltage Sensors
Temperature sensorscan be plugged into the RJ-4Sjacks on the
sensorProbe4.Temperature sensors (the remote type TMPOO,not fixed one
foot) can be extended with standard CATSenetwork cable up to 1000feet.
c.... Temperature Sensor
------
Security sensor with an ALARM/NORMALindication in software. Security sen-
sors detect doors and windows being opened or closed. SNMPinterface for
alarm/normal status. SNMPtraps sent when critical.
~ .... Security Sensors
Temperature / Humidity sensorscan be plugged into the RJ-4Sjacks on the
sensorProbe4.The Temperature / Humidity sensor comes with 1foot of cable.
The humidity sensor has its own SNMP010 sothat data can be collected over
the network and graphed.
~.... Temperature/Humidity Sensor
VVVVVV_S I VV_LI_ c:: C> IVI
Access Control. ..
............................... ~-----~• Sensor Control...

4. securityProbeSES-X60
vvvvvv_ S IVV~ LI_ c:: C>IVI
Tenggilis Mejoyo No.7 Blok AII43
Surabaya 60292
Tel. +62·31·6421276/6421264
Fax. +82·31-6421304
Email;sby@siwali.com
Artha Gading Niaga Blok eno
Kelapa Gading. Jakarta 14240
Tel. +62·21-45850616
Fax. +62·21-45650619
Email: siwall@cbn.net.id
Support and Warranty
• Full One Year Global Warranty
• Unlimited Lifetime Support.
• Free Firmware Updates.
• Full, Easy to Follow Documentation.
• Castle Rock
• Logalot
• WhatsUp Gold
• HP OpenView
• MRTG
• Computer Associates Unicenter TNG
• AdRem NetCrunch
• IBMTivoli
• SiteScope
• Quest Software - Big Brother
• Loriot Pro
• Somis WebNM and Denika
AKCP offers NMS Integration for leading network management systems such as:
elndustrv Certifications & Netwot'k Managerllellt SysterllS
• Embedded web server displays sensor information.
• Receivenotifications of anomalous events via email, SMS/ MMS,SNMPtraps, and many more.
• Integrates with network management systems via SNMPv1and encrypted SNMPv3.
• Ability to connect external GPRS/GSMmodem, Bluetooth and WiFi USBadapters.
• Usesan embedded Linux operating system for maximum stability and flexibility.
• Virtual SensorsFeature to monitor power, Modbus, network devices, and other SNMPbased
equipment.
• Built-in graphing and data logging, internally or to a remote Pc.
• Platform independent; free firmware upgrades and utilities from AKCP.
• Monitor up to 500 intelligent sensors using expansion modules (E-Opto 16 and E-sensor8)
• Compatible with complete range of AKCPIntelligent sensors
• Full Modbus support: Modbus Master/Slave, Modbus RTU,Modbus over TCP/IP
securityProbe5ES-X60 Features List
Access Control. ..
.................................................... ~ ~

5. sensorProbe4
"""""" _S I"" ~ (_I _c::C> IVI
Tenggllis Meloyo NO.7 Siok AII43
Surabaya 60292
Tel. +62-31-8421278/8421264
Fax. +62-31-&421304
Email: sby@siwali.com
Artha Gadlng Niaga Slok eno
Kelapa Gading. Jakarta 14240
Tel. +62-21-45850618
Fax. +62-21-45850619
Email: siwali@cbn.neUd
Manufactured using highly
integrated, low power surface
mount technology to ensure long
term reliability.
Components
Configurable Output Signals (OVDC/
5VDC) on any of the 4 RJ-45Sensor
Ports
Output
1U Rackmount bracket included
Typical 1.12Watt, O.13A
Power Consumption
Temp: Min. -350 C- Max. +550 C
Humidity: Min. 20% - Max. 80%
(Non-Condensing)
Operating Environment
LEDindication for Power
LEDfor Network Connectivity
LEDfor sensor online and
threshold status
Status Indication
Standard 10 8ase-TEthernet RJ-45
Network Interface
SP4PoEis IEEE802.3af compliant
Power Over Ethernet
4x RJ-45ports for connecting
AKCPsensors
Inputs
Voltage 75 - 9 v
Current>= 1.2Amp
Power Requirements
Size8.5" x 5.43"x 1.80"
1U RackMount Standard
Weight 1.72pounds
MountingDimension
Technical Specifications
