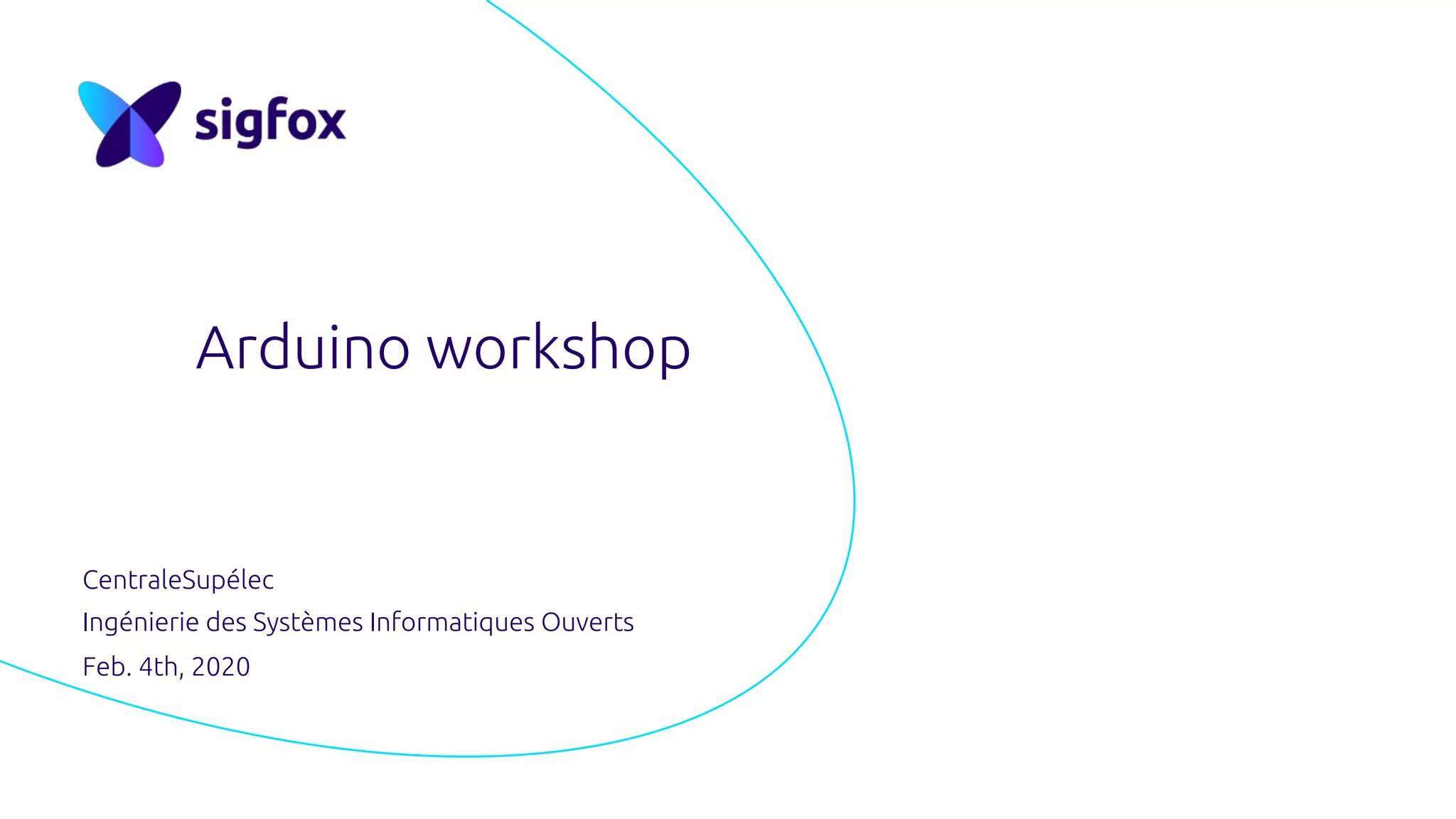

1. Arduino workshop
CentraleSupélec
Ingénierie des Systèmes Informatiques Ouverts
Feb. 4th, 2020

2. About me
Nicolas Lesconnec
Head of Technology Adoption @Sigfox
Email : nicolas.lesconnec@sigfox.com

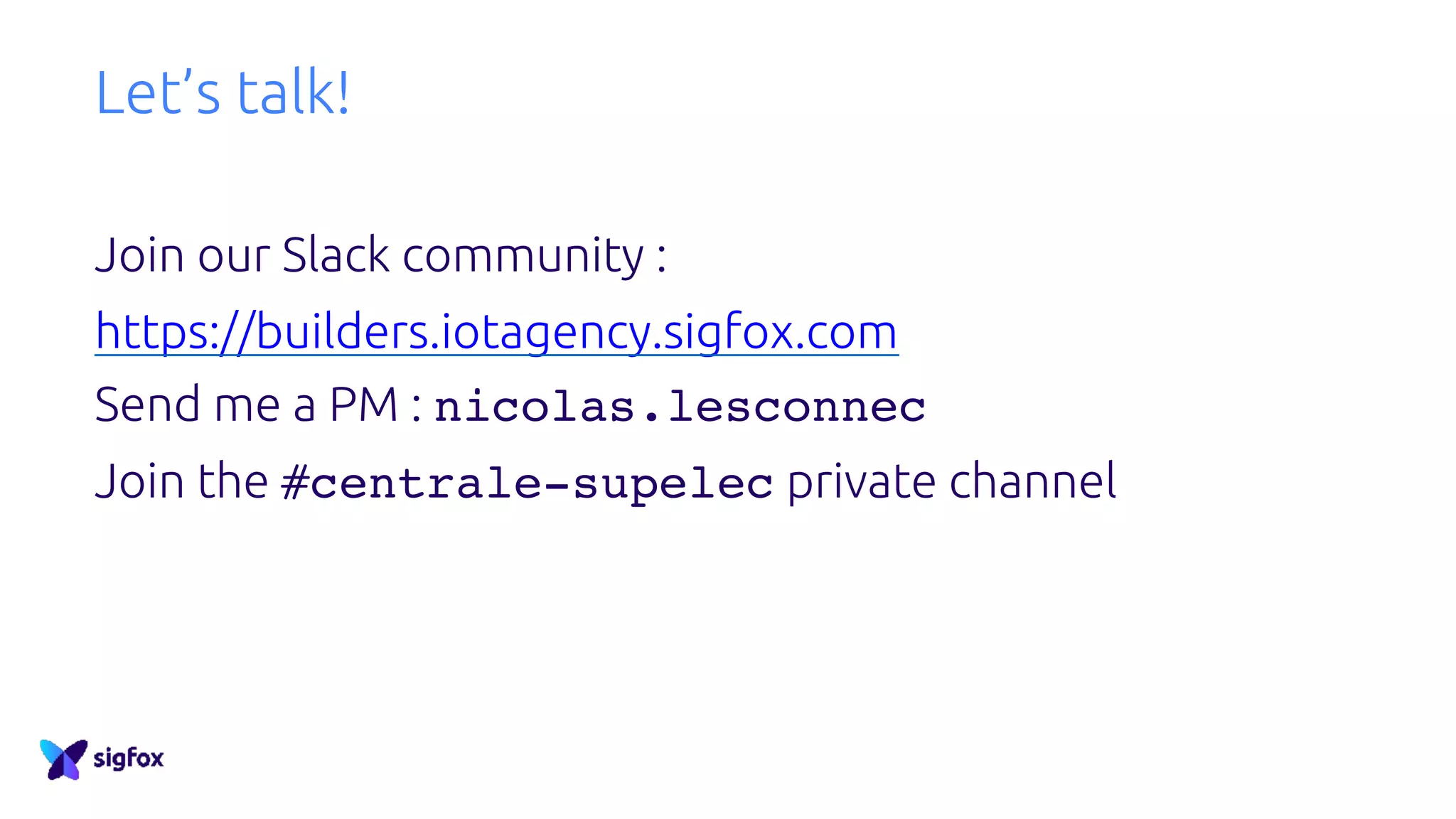

3. Let’s talk!
Join our Slack community :
https://builders.iotagency.sigfox.com
Send me a PM : nicolas.lesconnec
Join the #centrale-supelec private channel

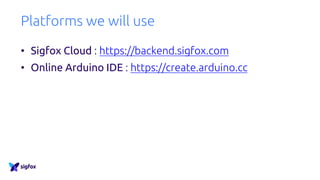

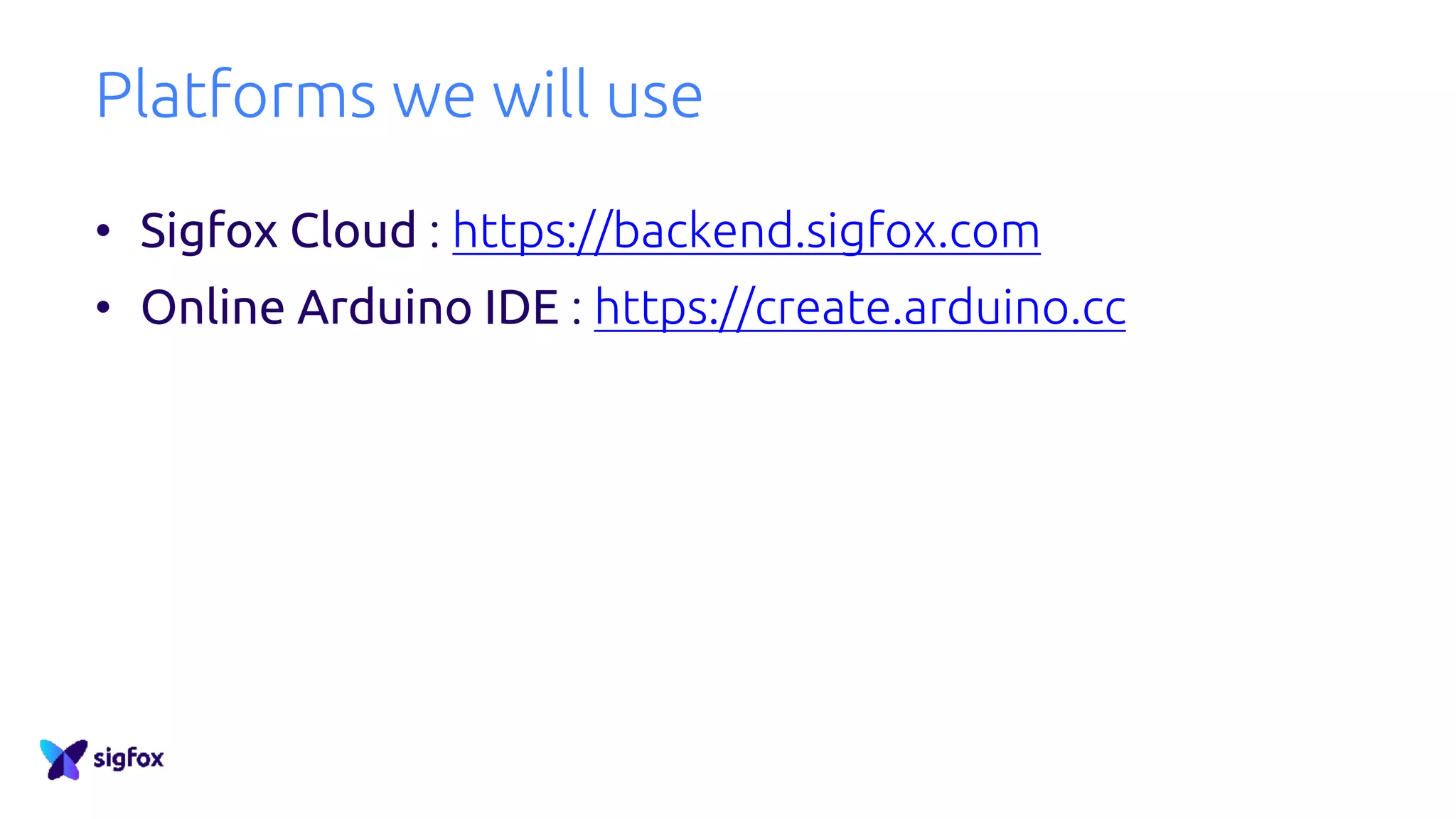

4. Platforms we will use
• Sigfox Cloud : https://backend.sigfox.com
• Online Arduino IDE : https://create.arduino.cc

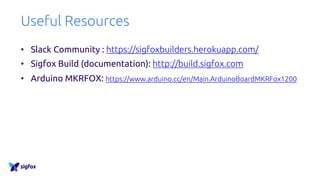

5. Useful Resources
• Slack Community : https://sigfoxbuilders.herokuapp.com/
• Sigfox Build (documentation): http://build.sigfox.com
• Arduino MKRFOX: https://www.arduino.cc/en/Main.ArduinoBoardMKRFox1200

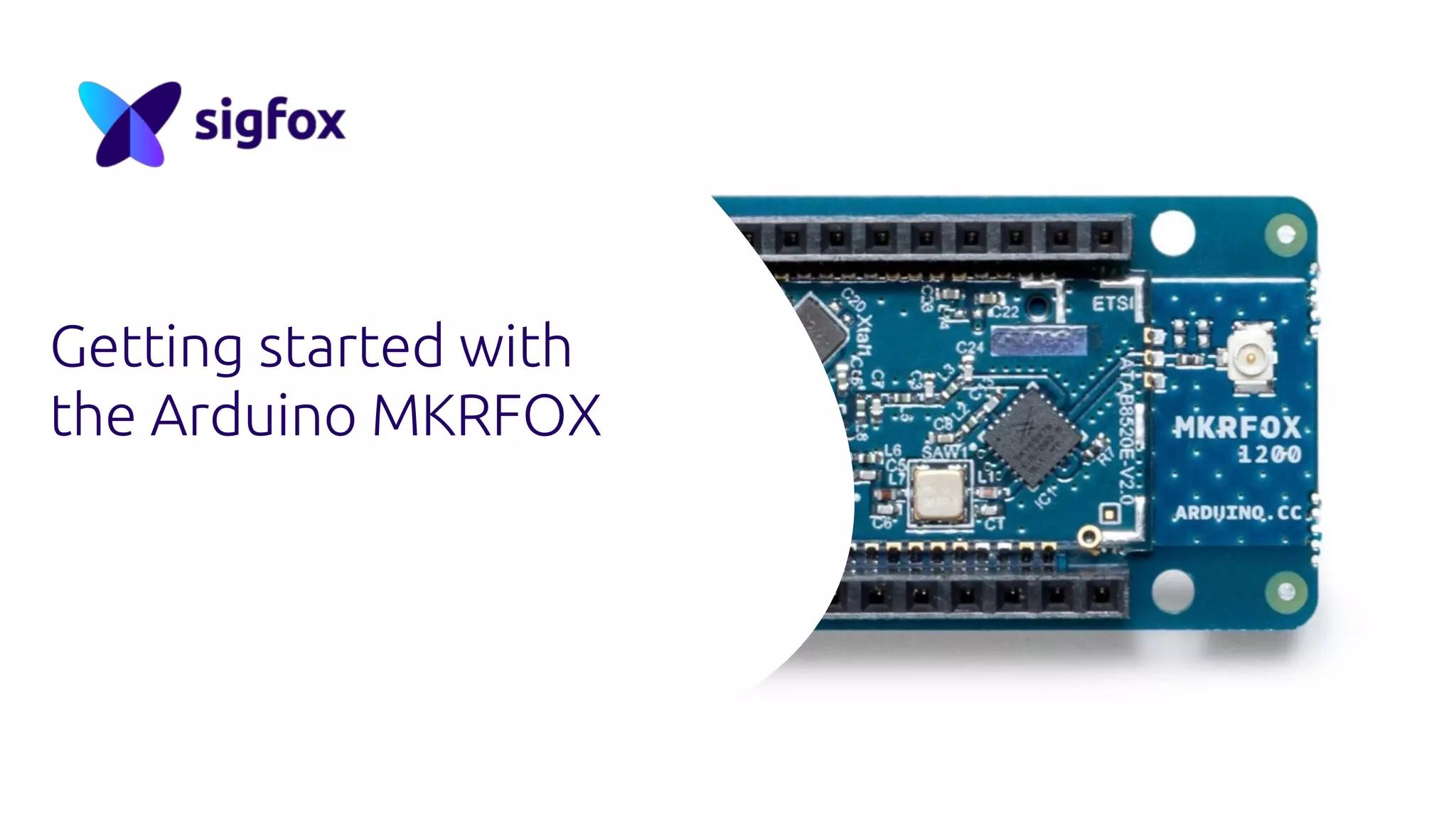

6. Getting started with
the Arduino MKRFOX

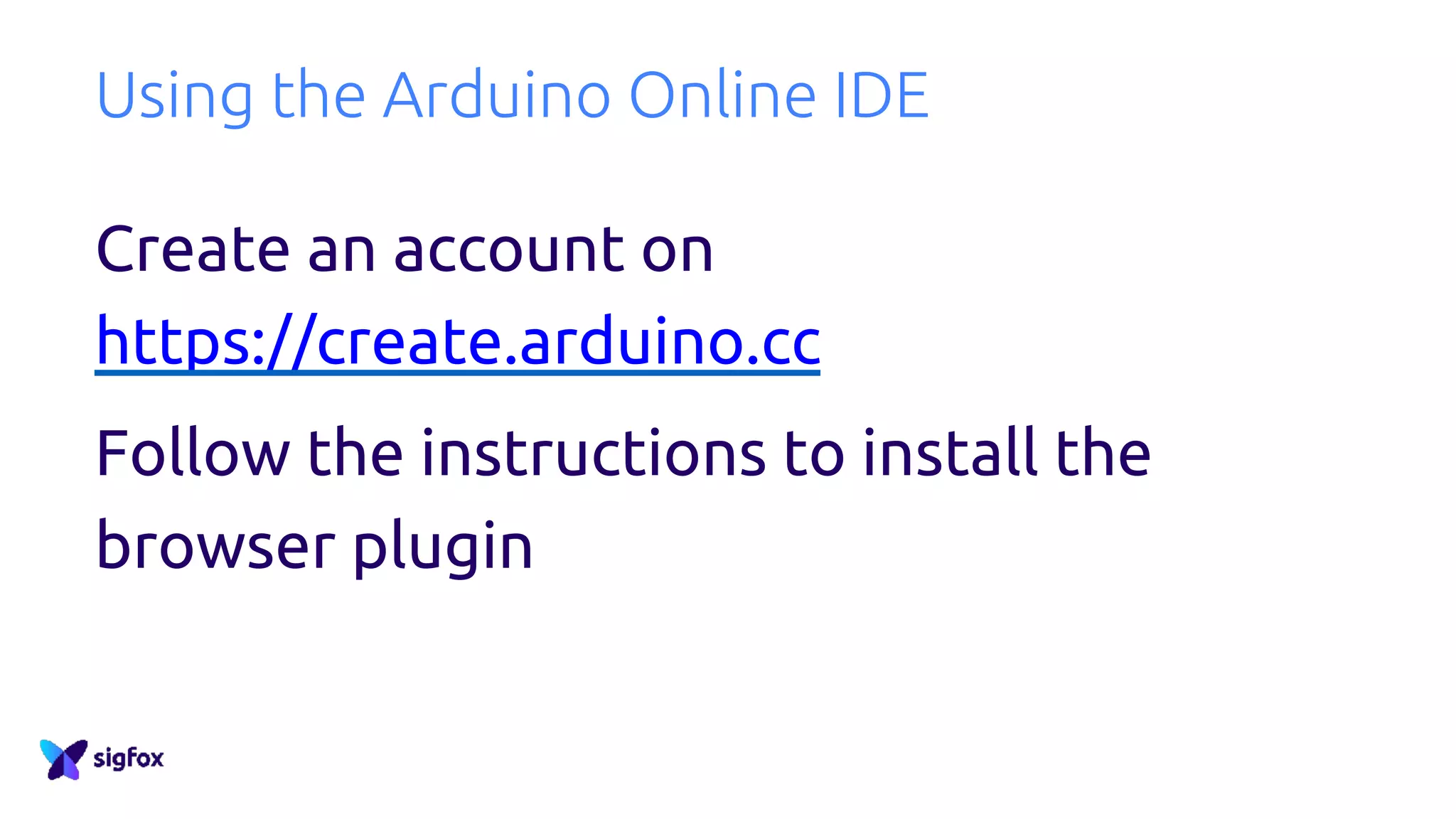

7. Using the Arduino Online IDE
Create an account on
https://create.arduino.cc
Follow the instructions to install the
browser plugin

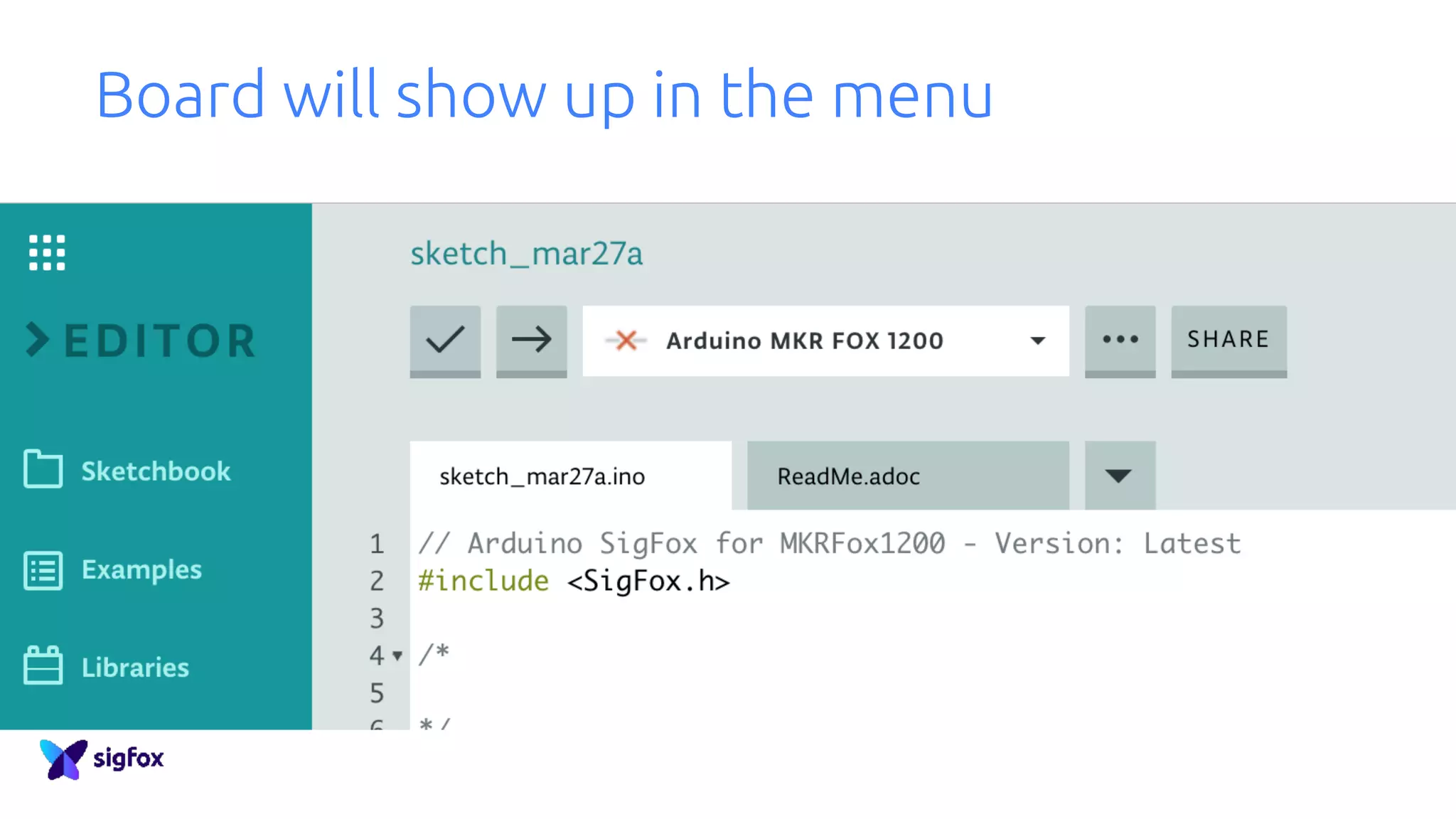

8. Board will show up in the menu

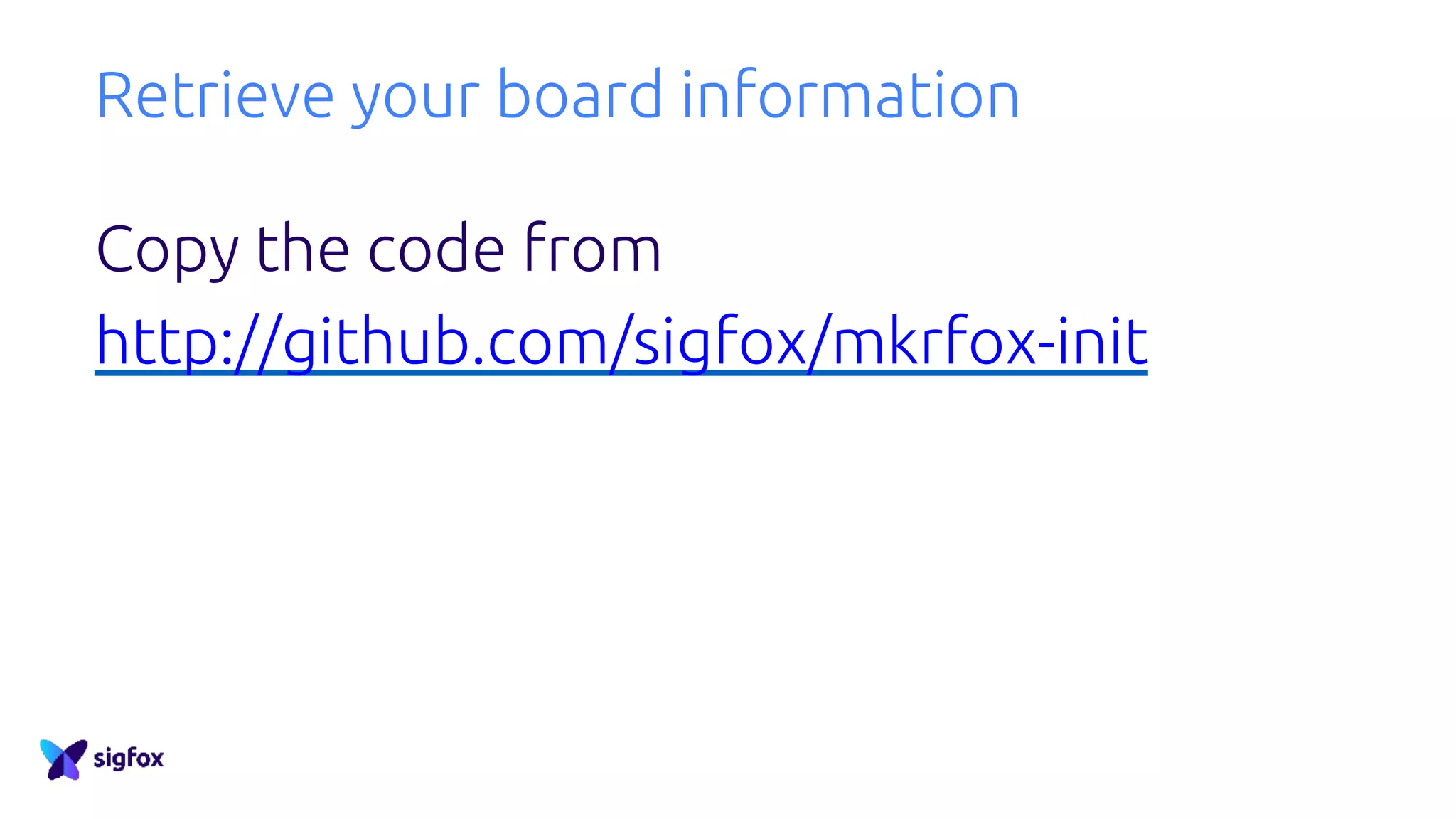

9. Retrieve your board information
Copy the code from
http://github.com/sigfox/mkrfox-init

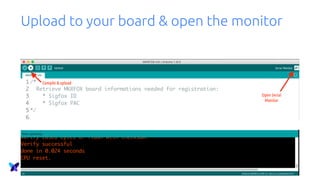

10. Upload to your board & open the monitor

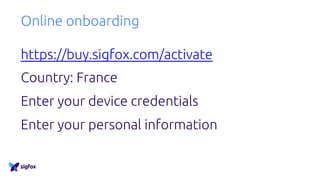

11. Online onboarding
https://buy.sigfox.com/activate
Country: France
Enter your device credentials
Enter your personal information

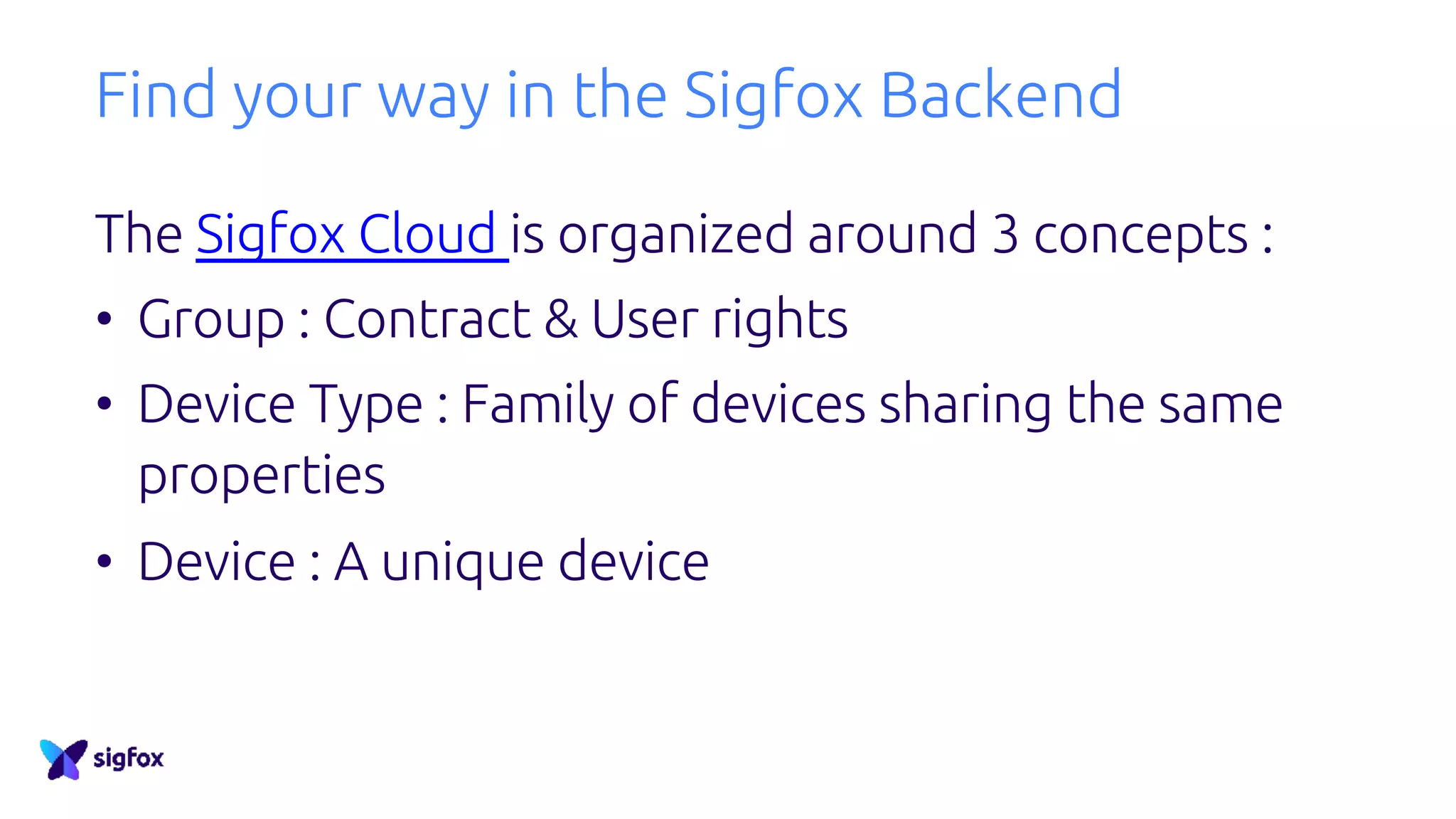

12. Find your way in the Sigfox Backend
The Sigfox Cloud is organized around 3 concepts :
• Group : Contract & User rights
• Device Type : Family of devices sharing the same
properties
• Device : A unique device

13. List of your device types

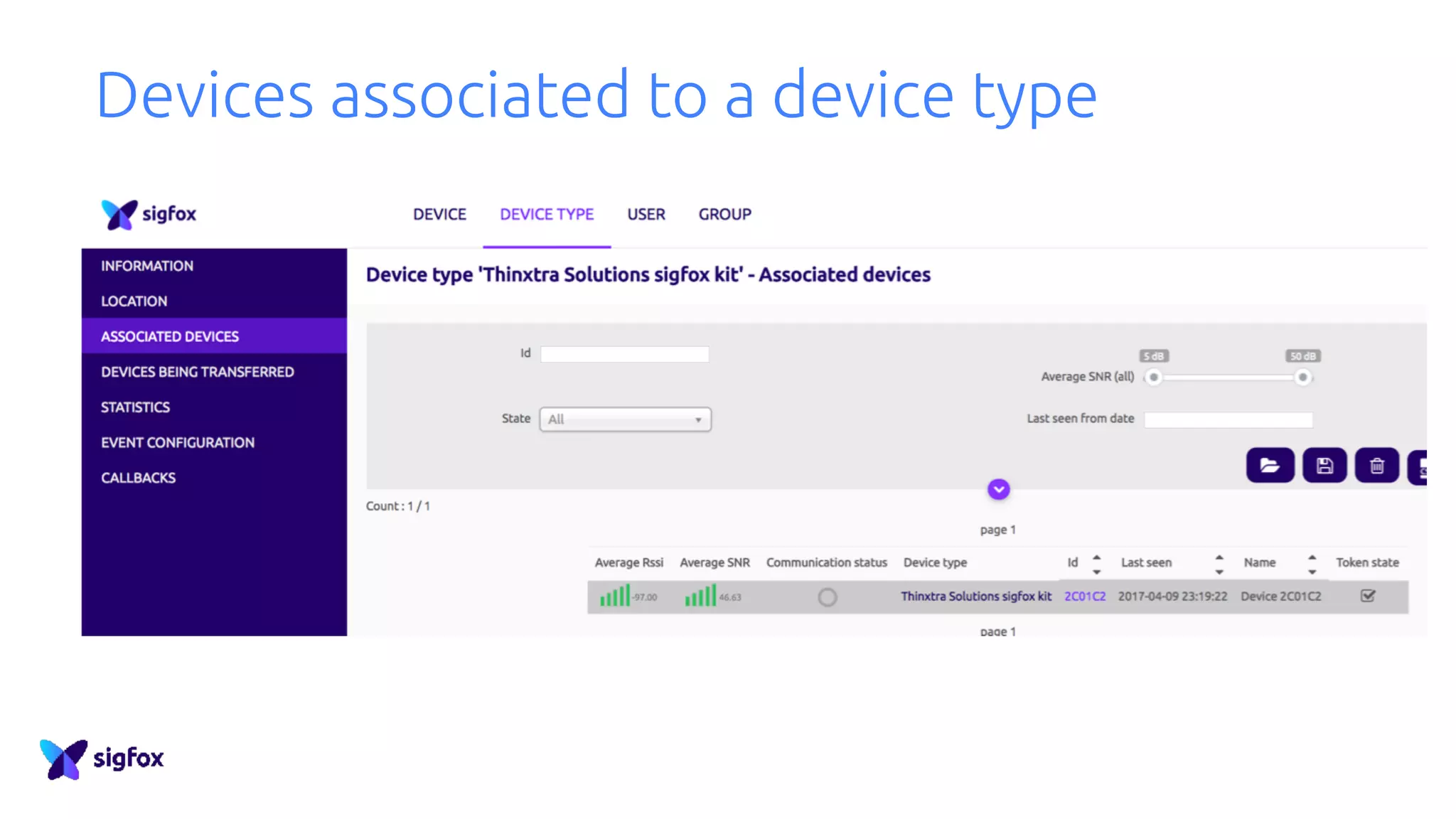

15. Devices associated to a device type

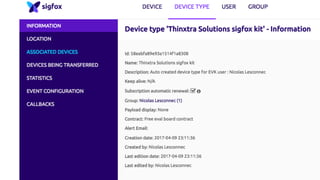

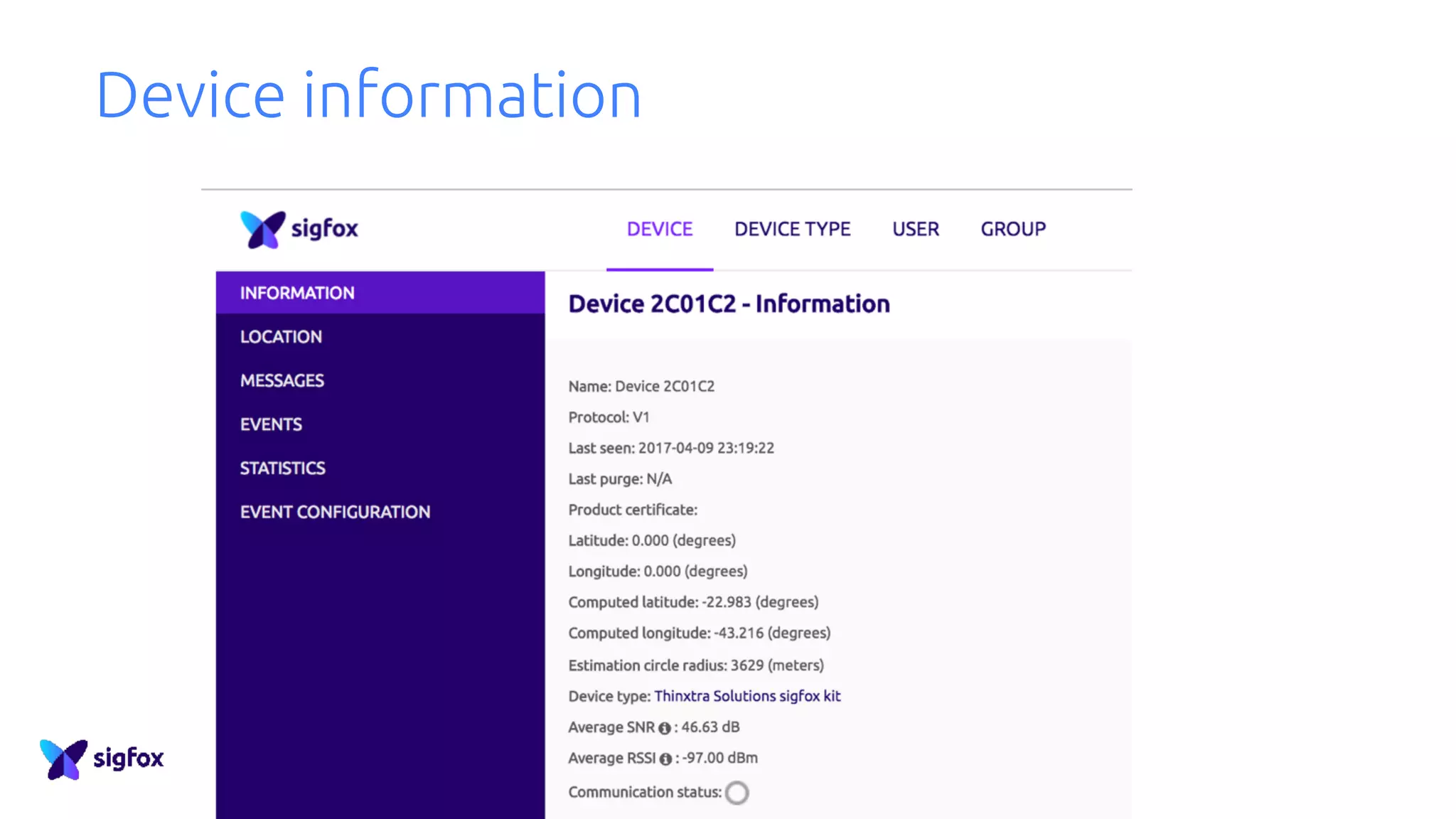

16. Device information

17. Hello World

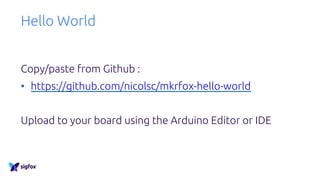

18. Hello World
Copy/paste from Github :
• https://github.com/nicolsc/mkrfox-hello-world
Upload to your board using the Arduino Editor or IDE

19. Message received ?
http://backend.sigfox.com
Navigate to the devices menu in the top bar
Click on the ID of your device
Enter the messages menu from the left navigation
column

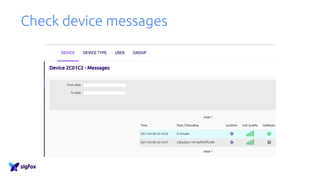

20. Check device messages

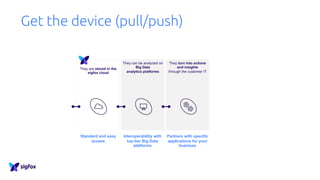

21. Get the device (pull/push)
They turn into actions
and insights
through the customer IT
They can be analyzed on
Big Data
analytics platforms
Partners with specific
applications for your
business
Interoperability with
top-tier Big Data
platforms
Standard and easy
access
They are stored in the
sigfox cloud

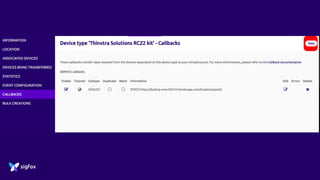

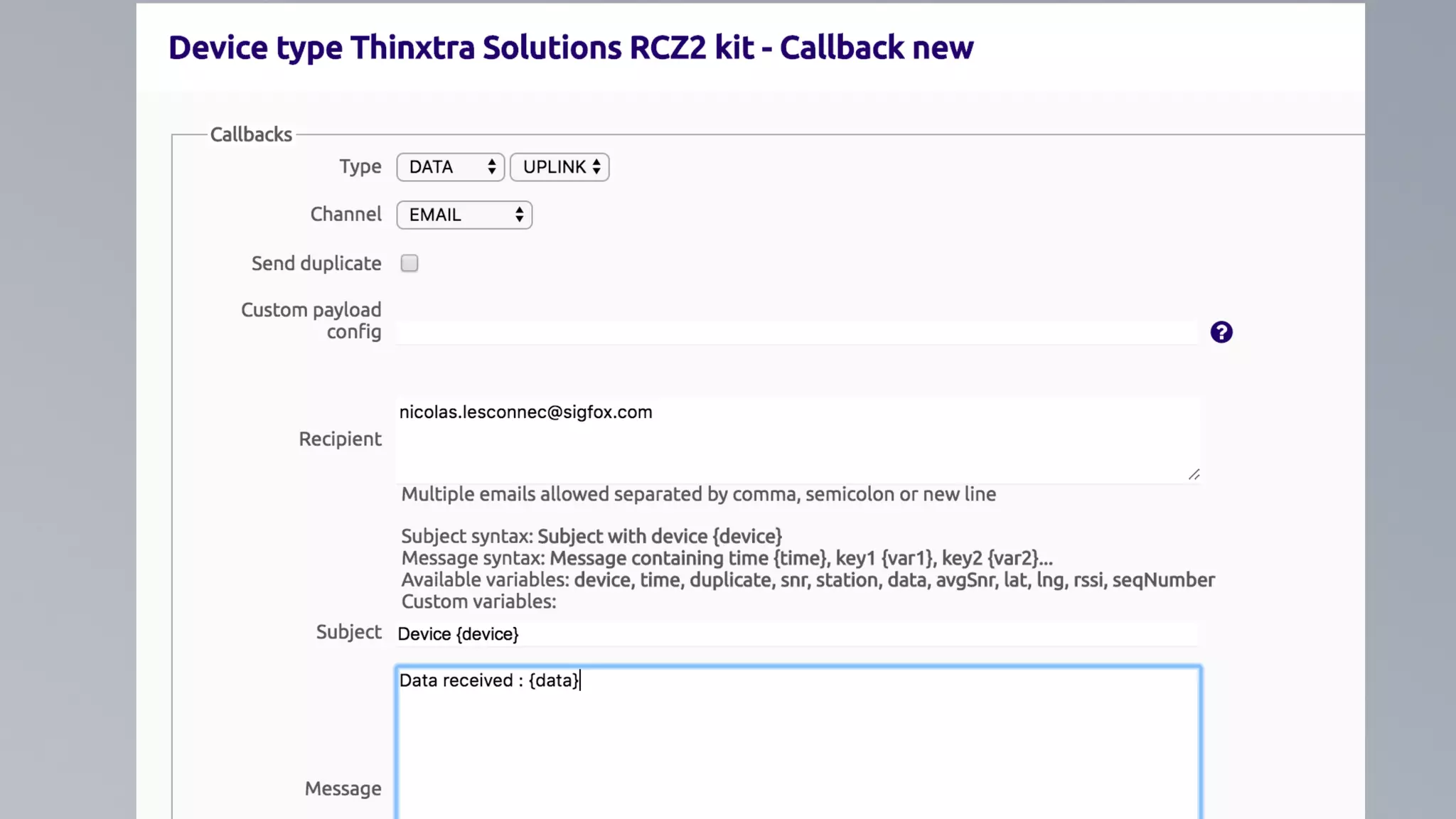

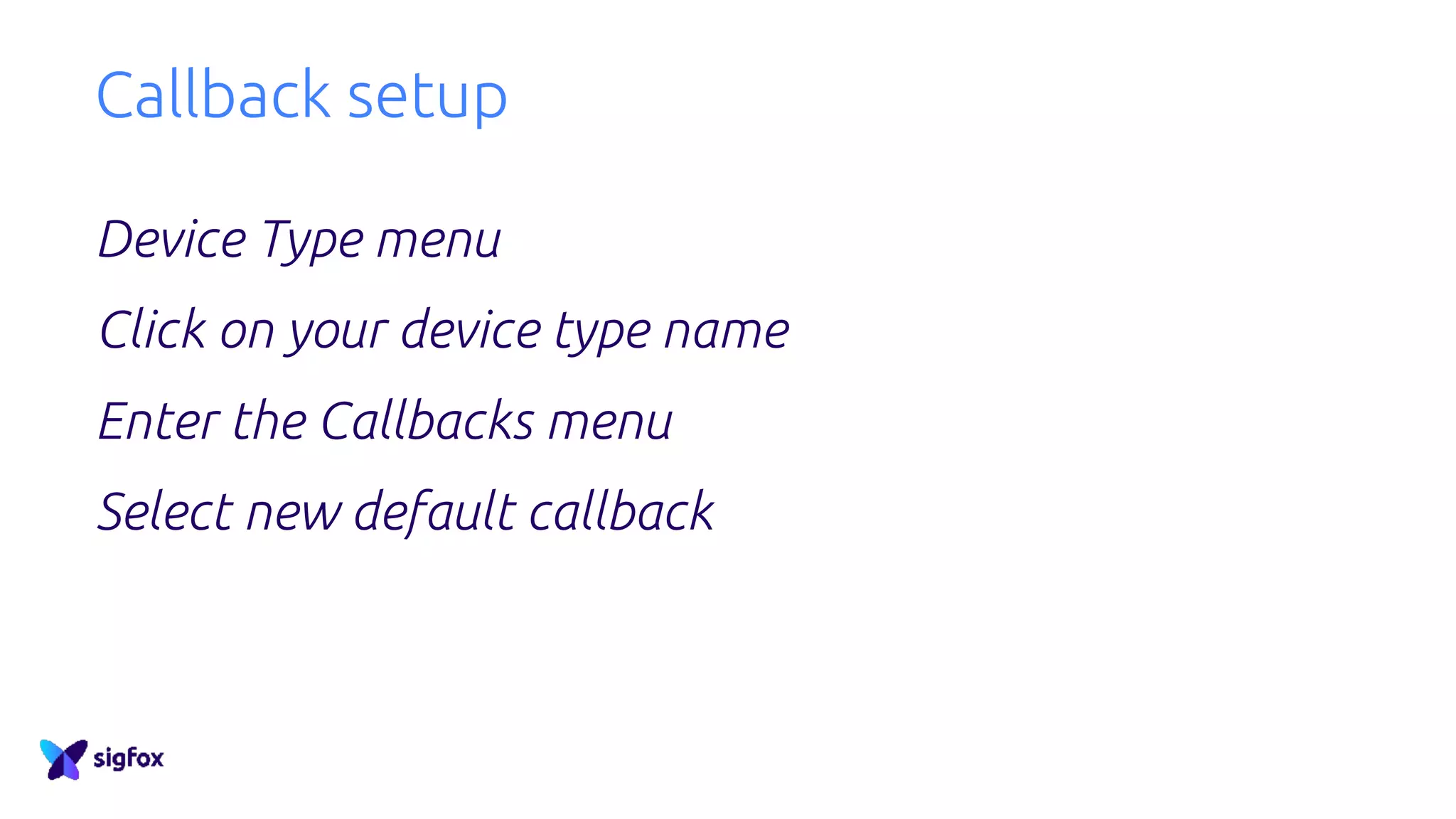

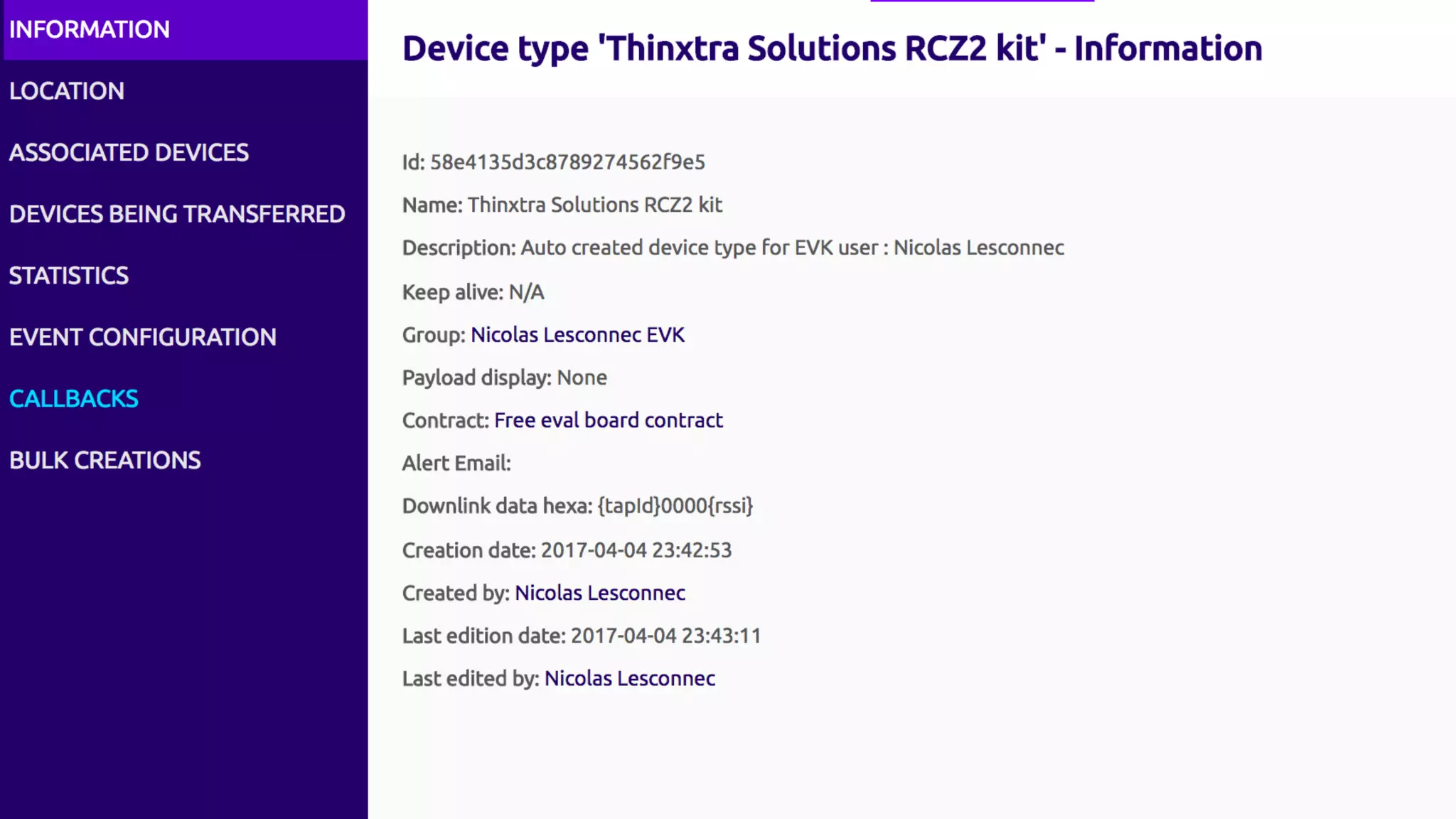

22. Callback setup
Device Type menu
Click on your device type name
Enter the Callbacks menu
Select new default callback

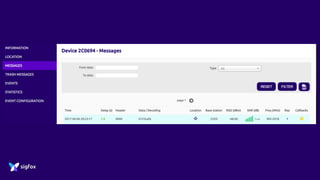

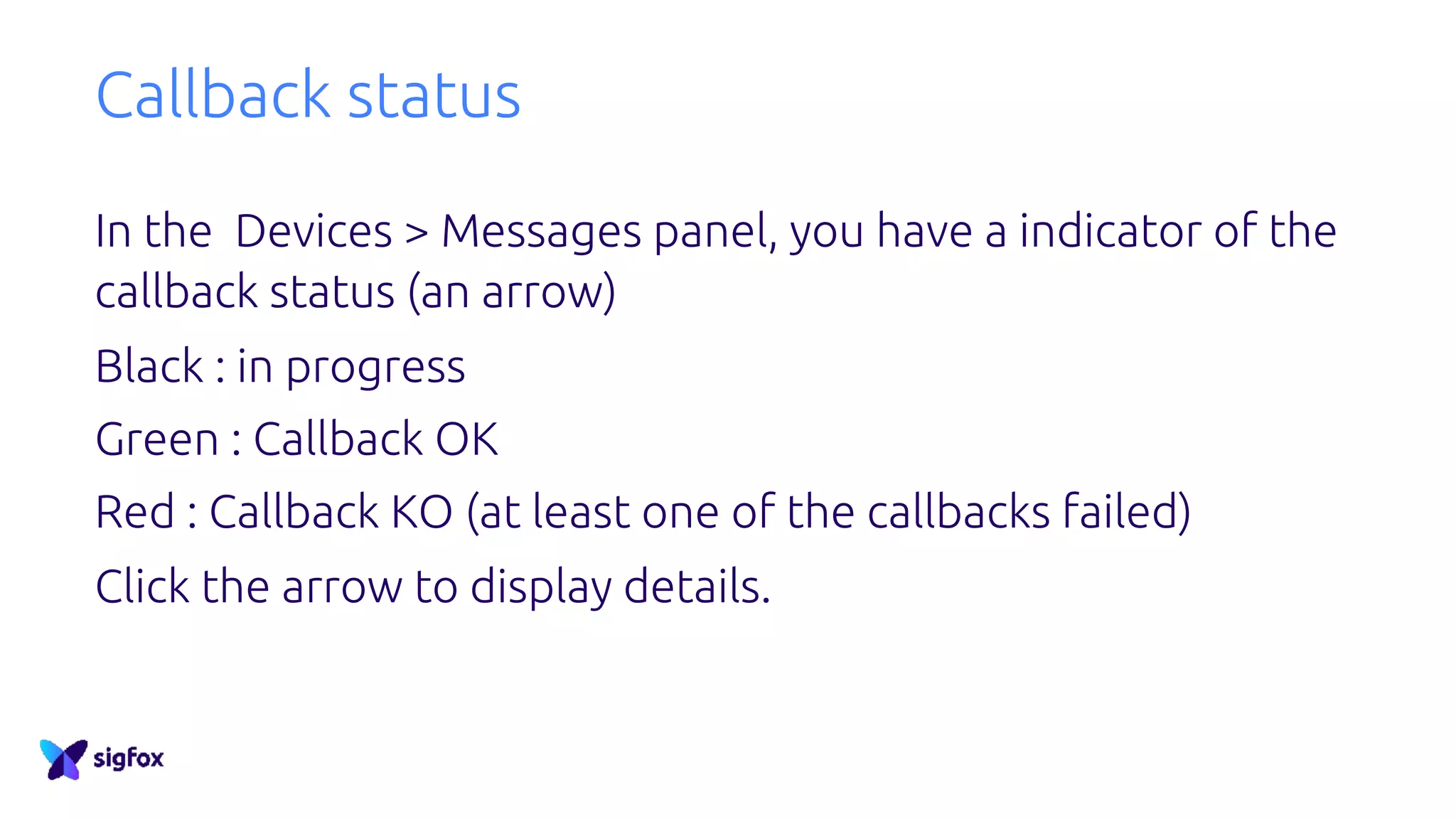

27. Callback status
In the Devices > Messages panel, you have a indicator of the
callback status (an arrow)
Black : in progress
Green : Callback OK
Red : Callback KO (at least one of the callbacks failed)
Click the arrow to display details.

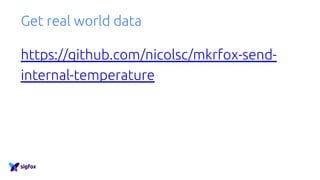

29. Get real world data
https://github.com/nicolsc/mkrfox-send-
internal-temperature

30. Data visualisation

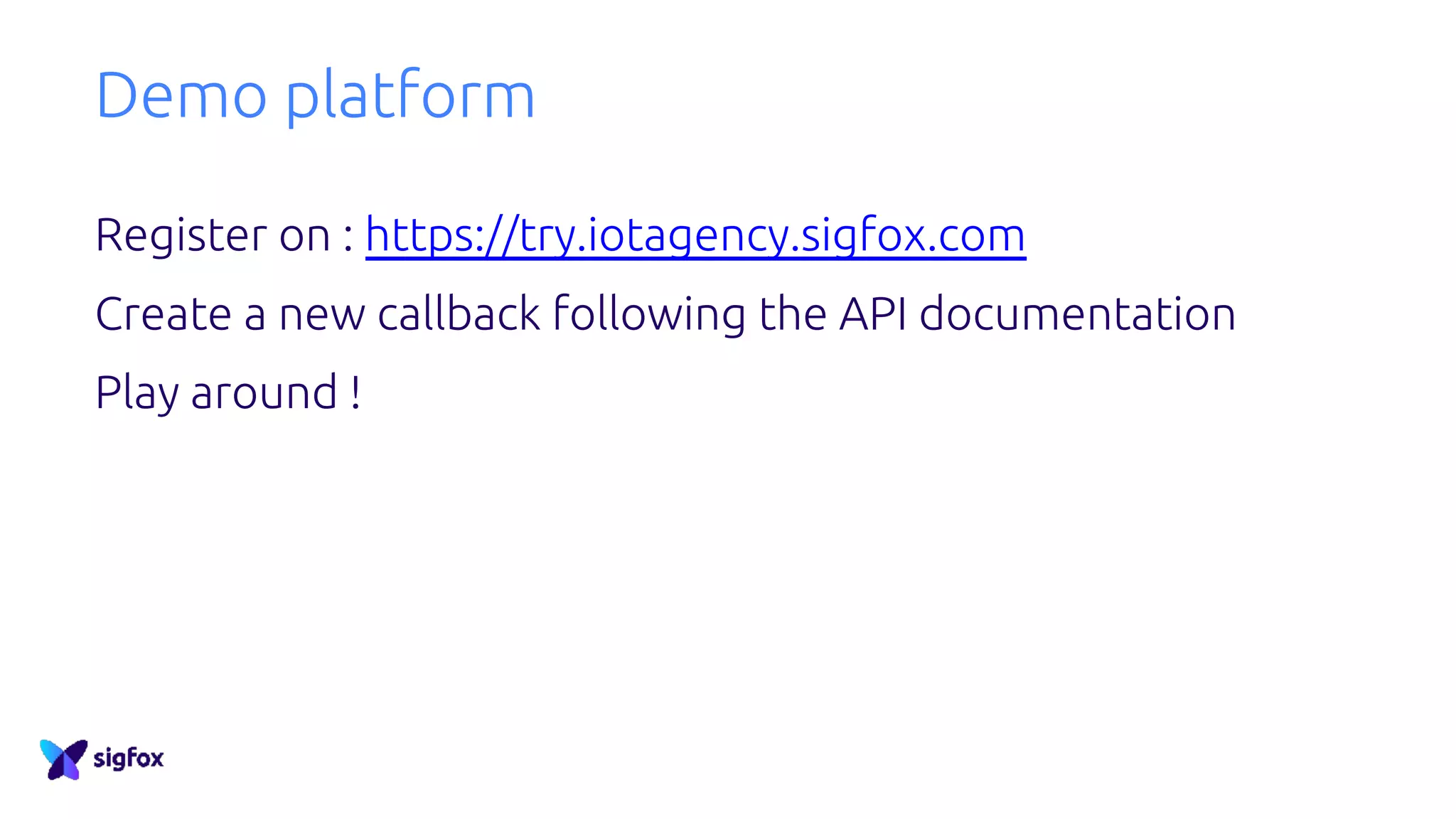

31. Demo platform
Register on : https://try.iotagency.sigfox.com
Create a new callback following the API documentation
Play around !

32. Geolocation

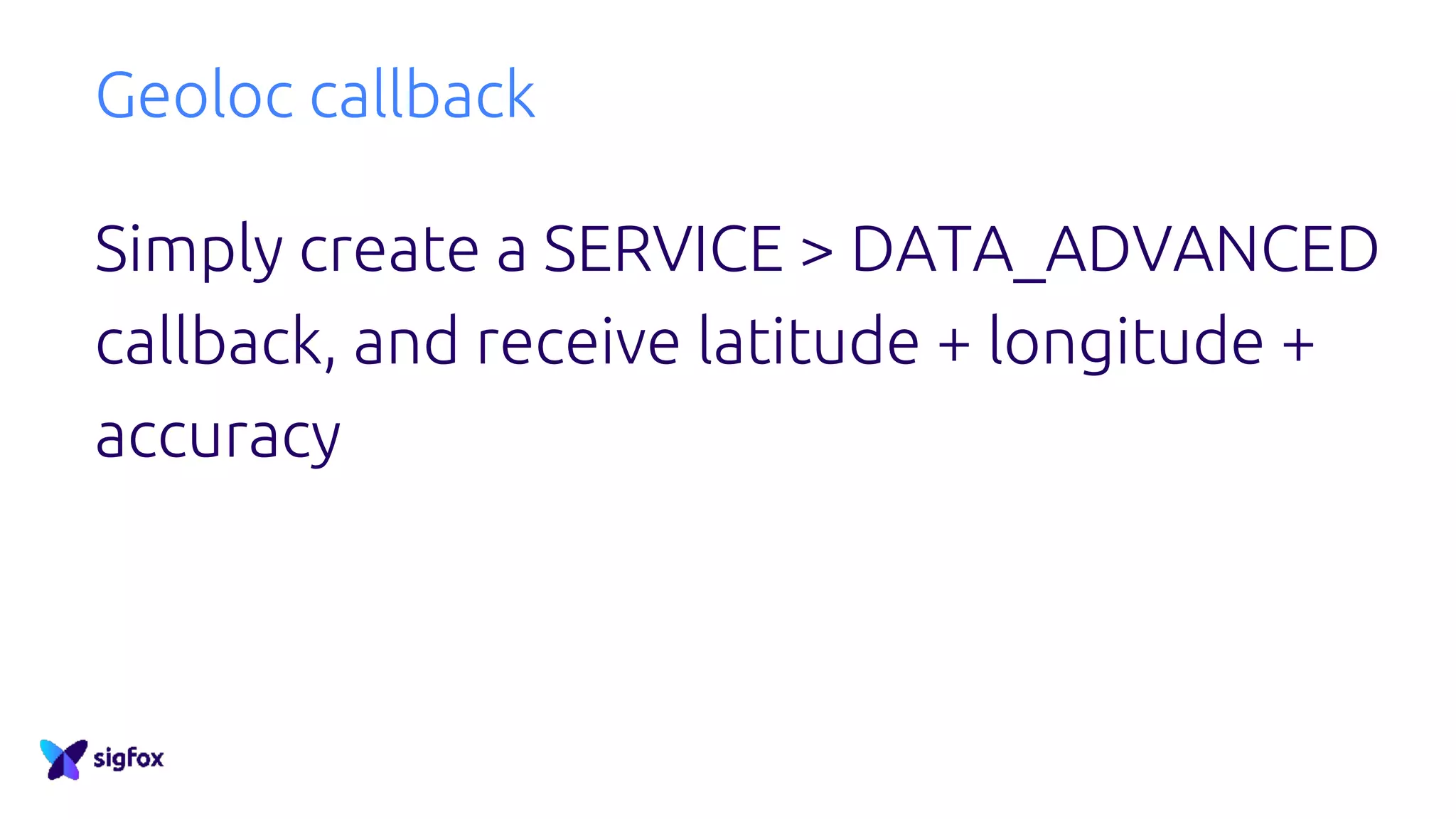

33. Geoloc callback
Simply create a SERVICE > DATA_ADVANCED
callback, and receive latitude + longitude +
accuracy

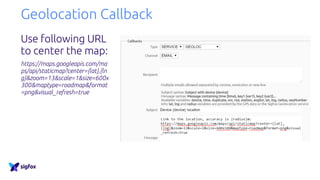

34. Geolocation Callback
Use following URL
to center the map:
https://maps.googleapis.com/ma
ps/api/staticmap?center={lat},{ln
g}&zoom=13&scale=1&size=600x
300&maptype=roadmap&format
=png&visual_refresh=true

35. Downlink Callback

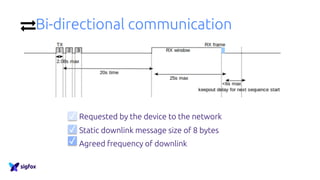

36. Bi-directional communication
Requested by the device to the network
Static downlink message size of 8 bytes
Agreed frequency of downlink
✓
✓
✓

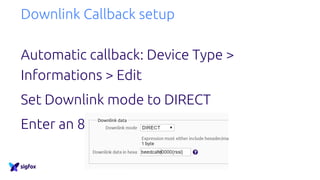

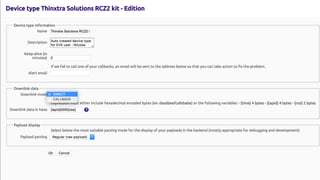

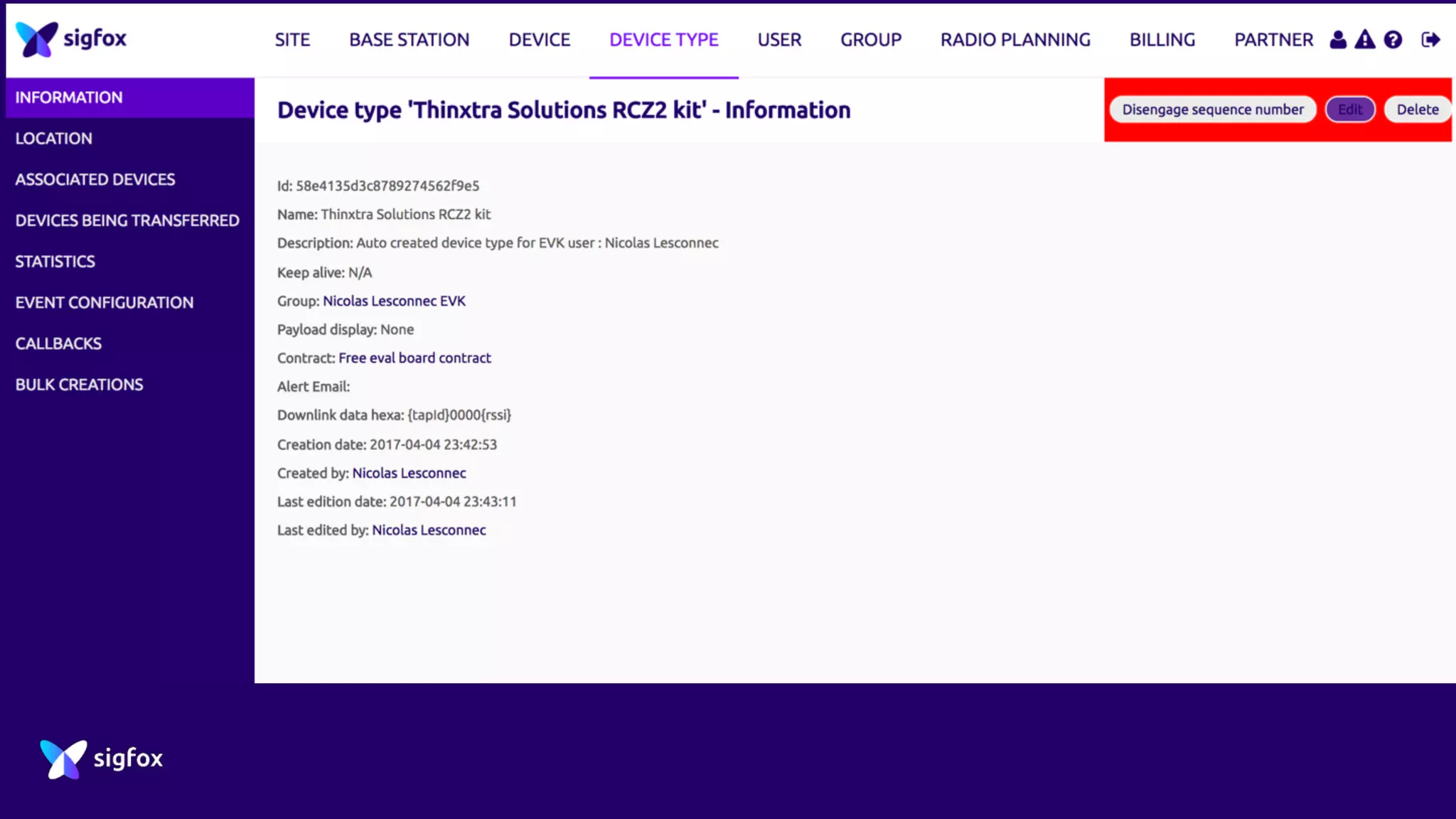

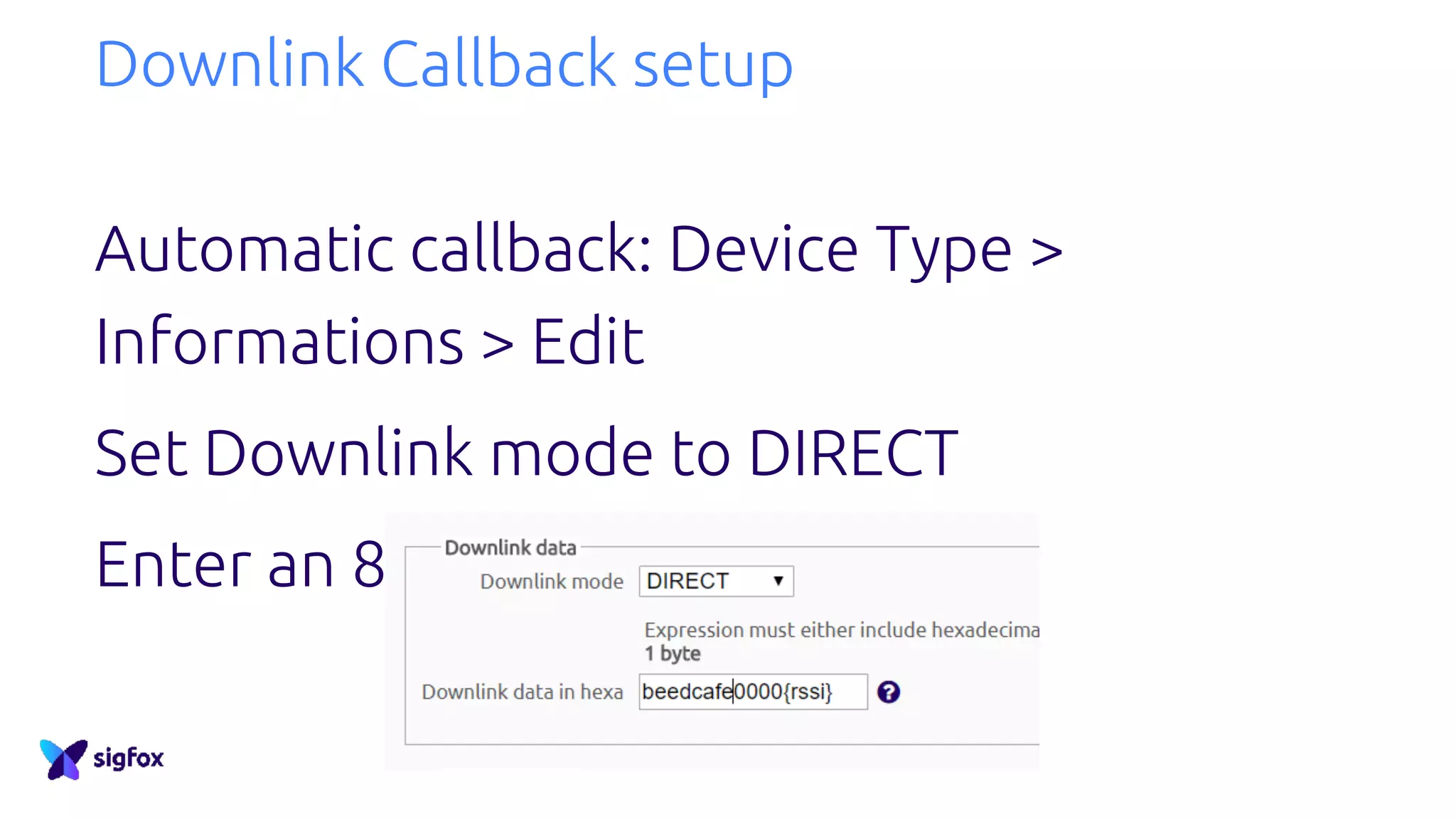

37. Downlink Callback setup
Automatic callback: Device Type >
Informations > Edit
Set Downlink mode to DIRECT
Enter an 8 bytes value

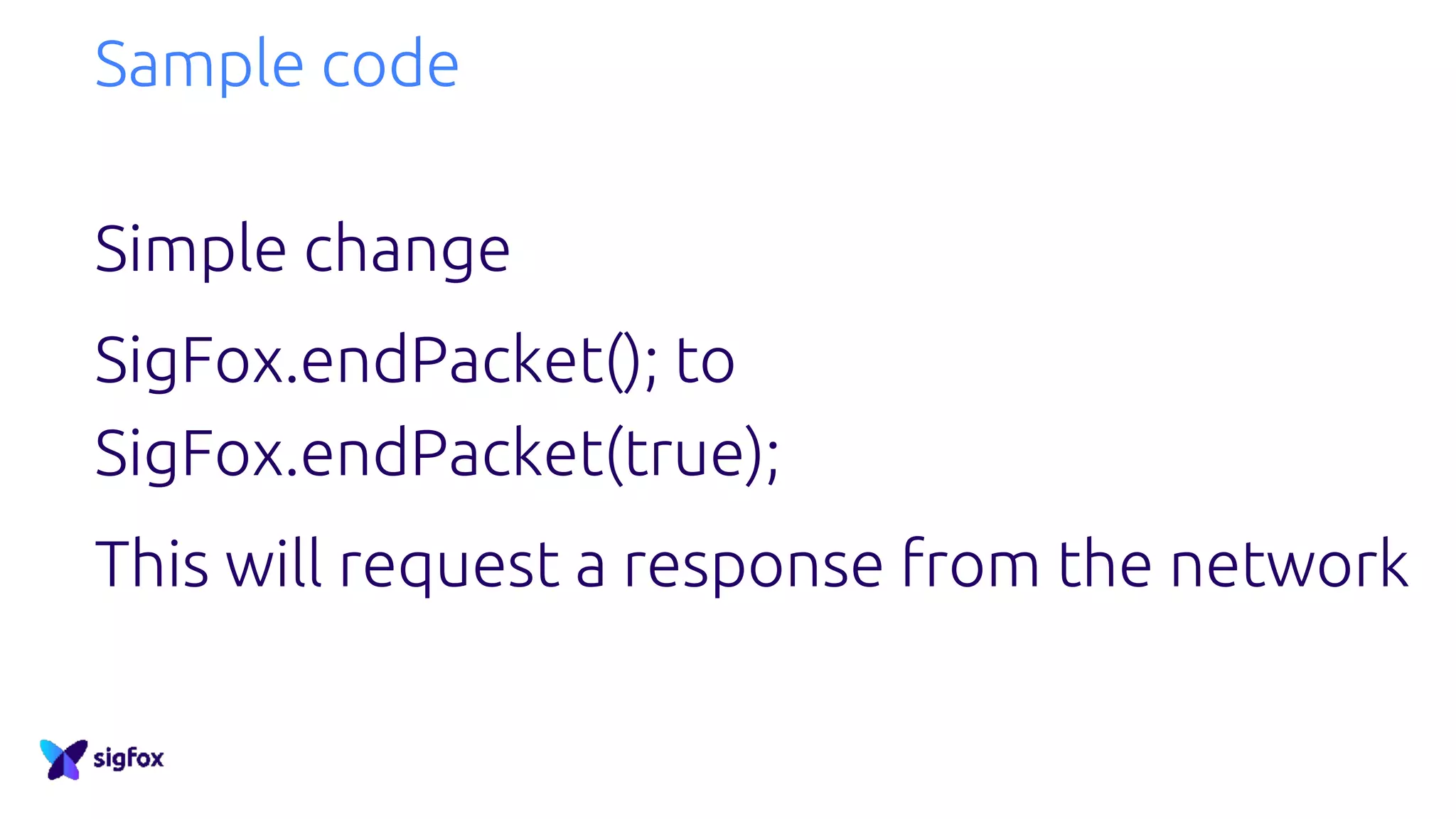

40. Sample code
Simple change
SigFox.endPacket(); to
SigFox.endPacket(true);
This will request a response from the network

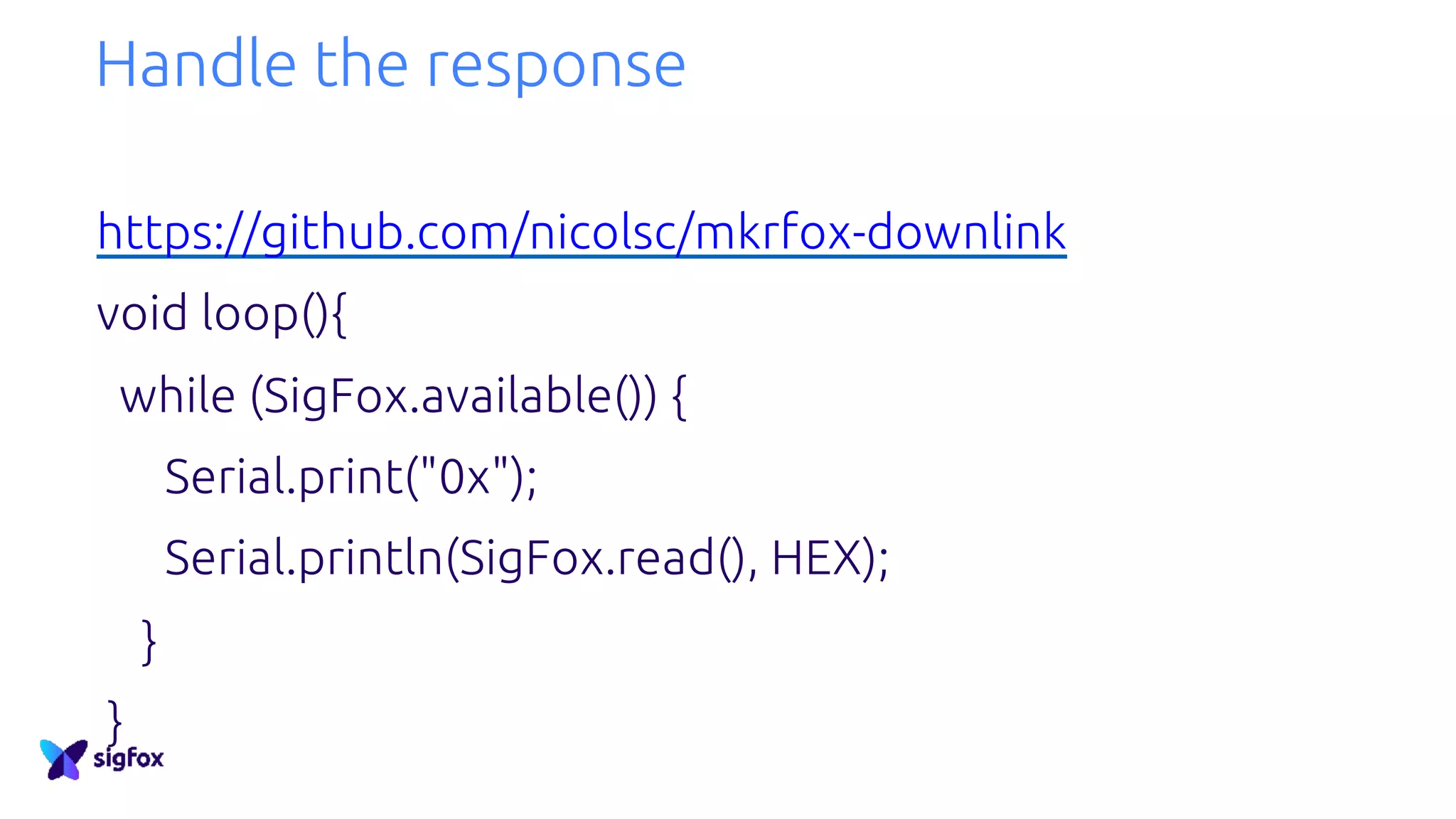

41. Handle the response
https://github.com/nicolsc/mkrfox-downlink
void loop(){
while (SigFox.available()) {
Serial.print("0x");
Serial.println(SigFox.read(), HEX);
}
}

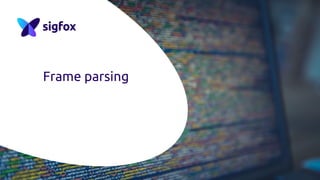

42. Frame parsing

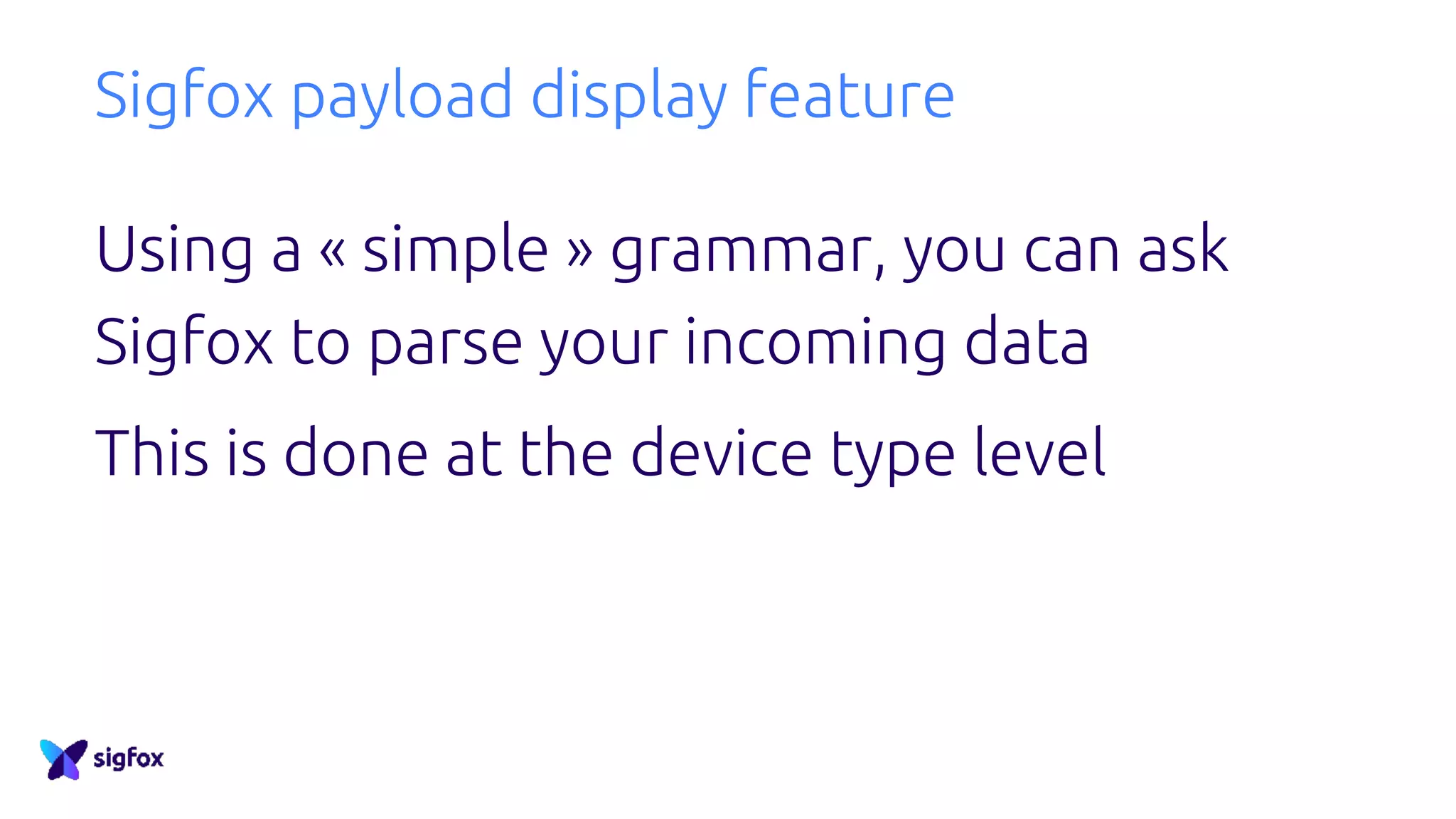

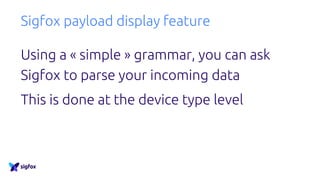

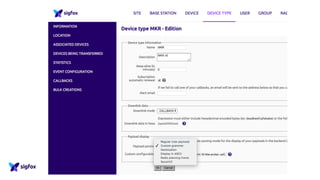

43. Sigfox payload display feature
Using a « simple » grammar, you can ask
Sigfox to parse your incoming data
This is done at the device type level

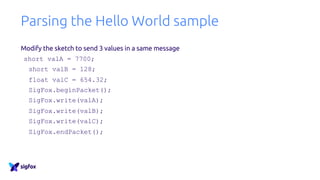

46. Parsing the Hello World sample
Modify the sketch to send 3 values in a same message
short valA = 7700;
short valB = 128;
float valC = 654.32;
SigFox.beginPacket();
SigFox.write(valA);
SigFox.write(valB);
SigFox.write(valC);
SigFox.endPacket();

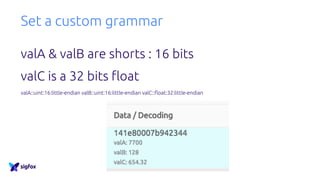

47. Set a custom grammar
valA & valB are shorts : 16 bits
valC is a 32 bits float
valA::uint:16:little-endian valB::uint:16:little-endian valC::float:32:little-endian

48. Thank you !
