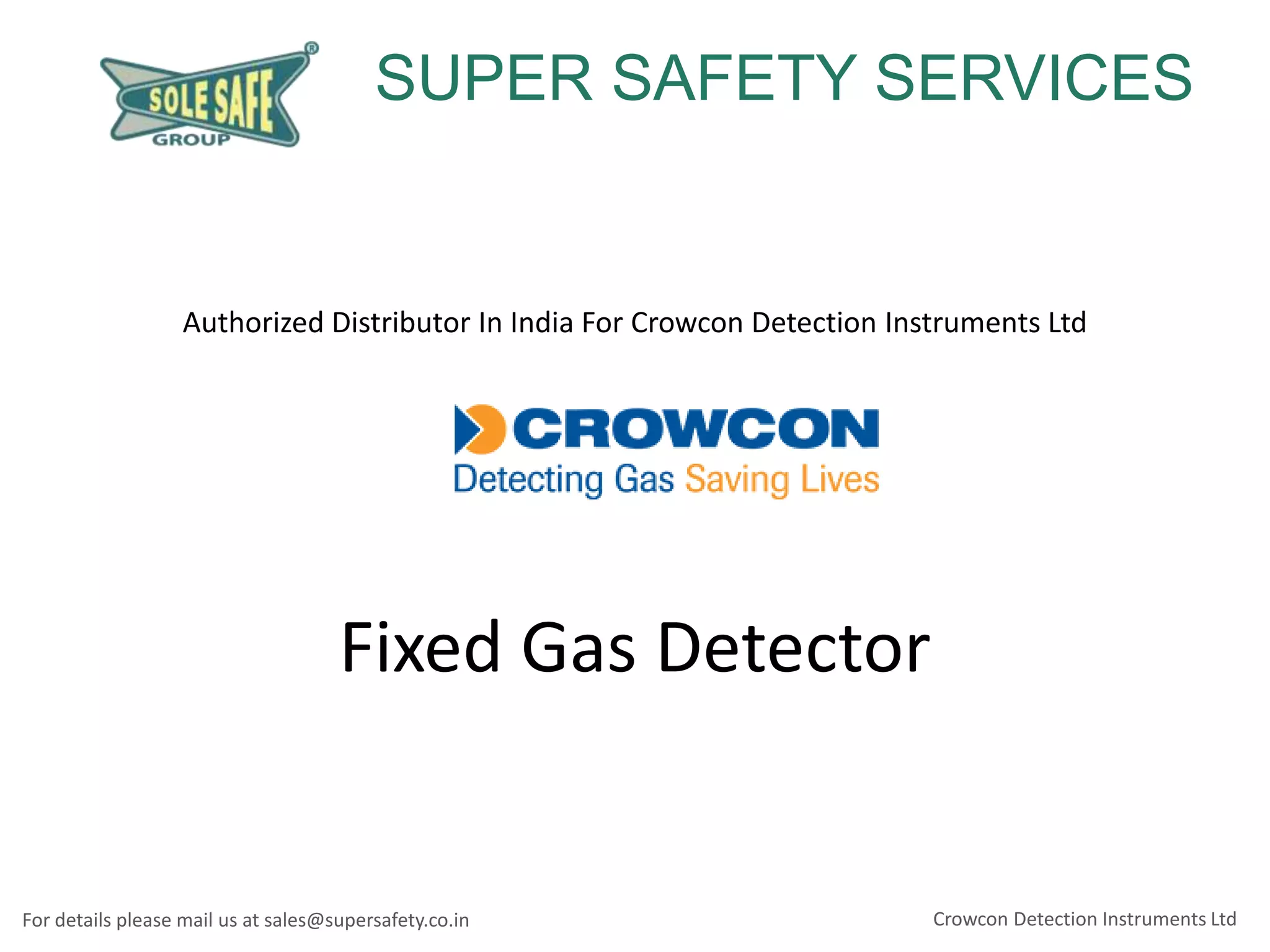

SUPER SAFETY SERVICES

Authorized Distributor In India For Crowcon Detection Instruments Ltd

Fixed Gas Detector

For details please mail us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd

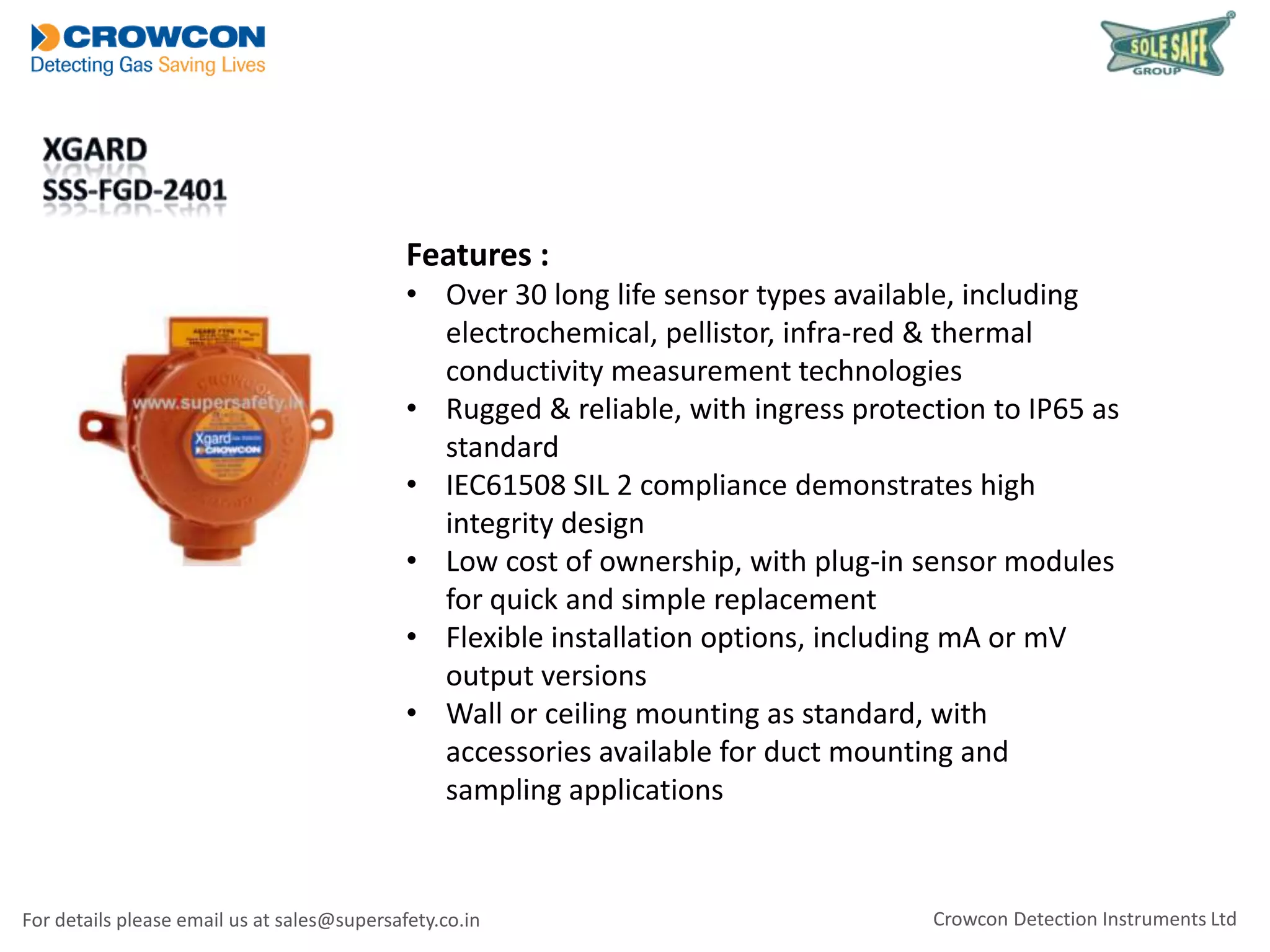

Features :
• Over 30 long life sensor types available, including
electrochemical, pellistor, infra-red & thermal
conductivity measurement technologies
• Rugged & reliable, with ingress protection to IP65 as
standard
• IEC61508 SIL 2 compliance demonstrates high
integrity design
• Low cost of ownership, with plug-in sensor modules
for quick and simple replacement
• Flexible installation options, including mA or mV
output versions
• Wall or ceiling mounting as standard, with
accessories available for duct mounting and
sampling applications

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd

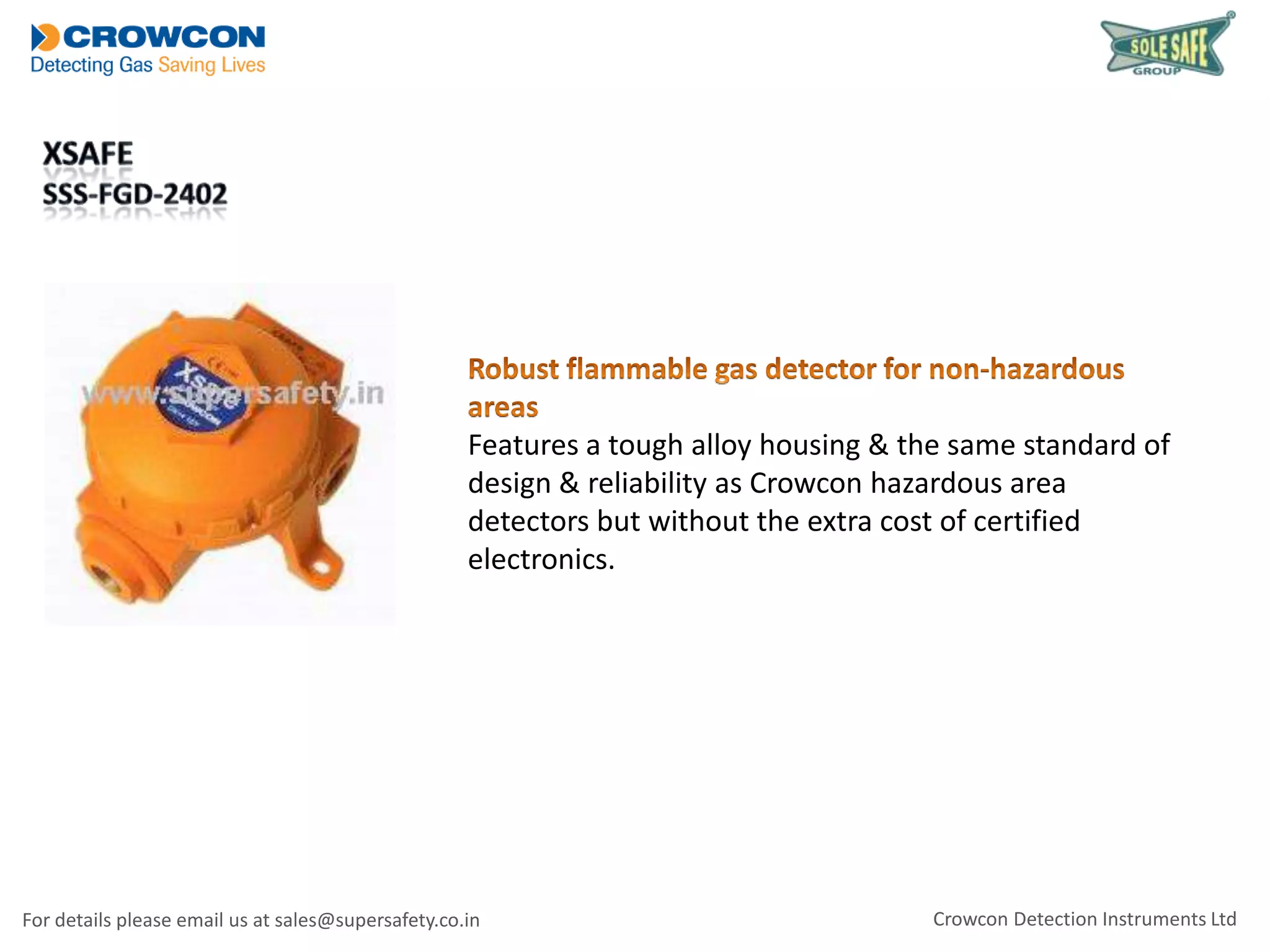

Features a tough alloy housing & the same standard of
design & reliability as Crowcon hazardous area
detectors but without the extra cost of certified
electronics.

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd

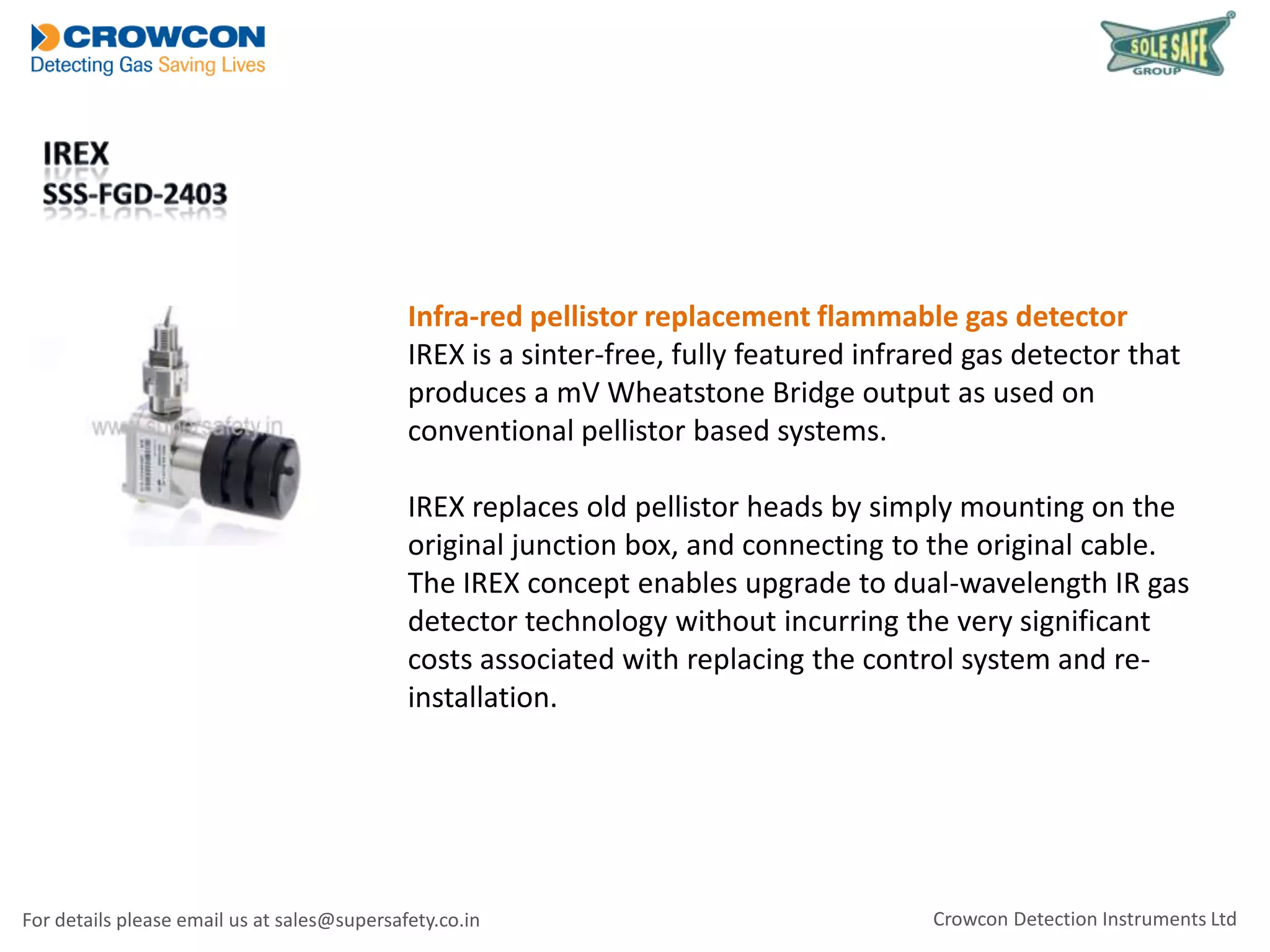

Infra-red pellistor replacement flammable gas detector
IREX is a sinter-free, fully featured infrared gas detector that
produces a mV Wheatstone Bridge output as used on
conventional pellistor based systems.
IREX replaces old pellistor heads by simply mounting on the
original junction box, and connecting to the original cable.
The IREX concept enables upgrade to dual-wavelength IR gas
detector technology without incurring the very significant
costs associated with replacing the control system and reinstallation.

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd

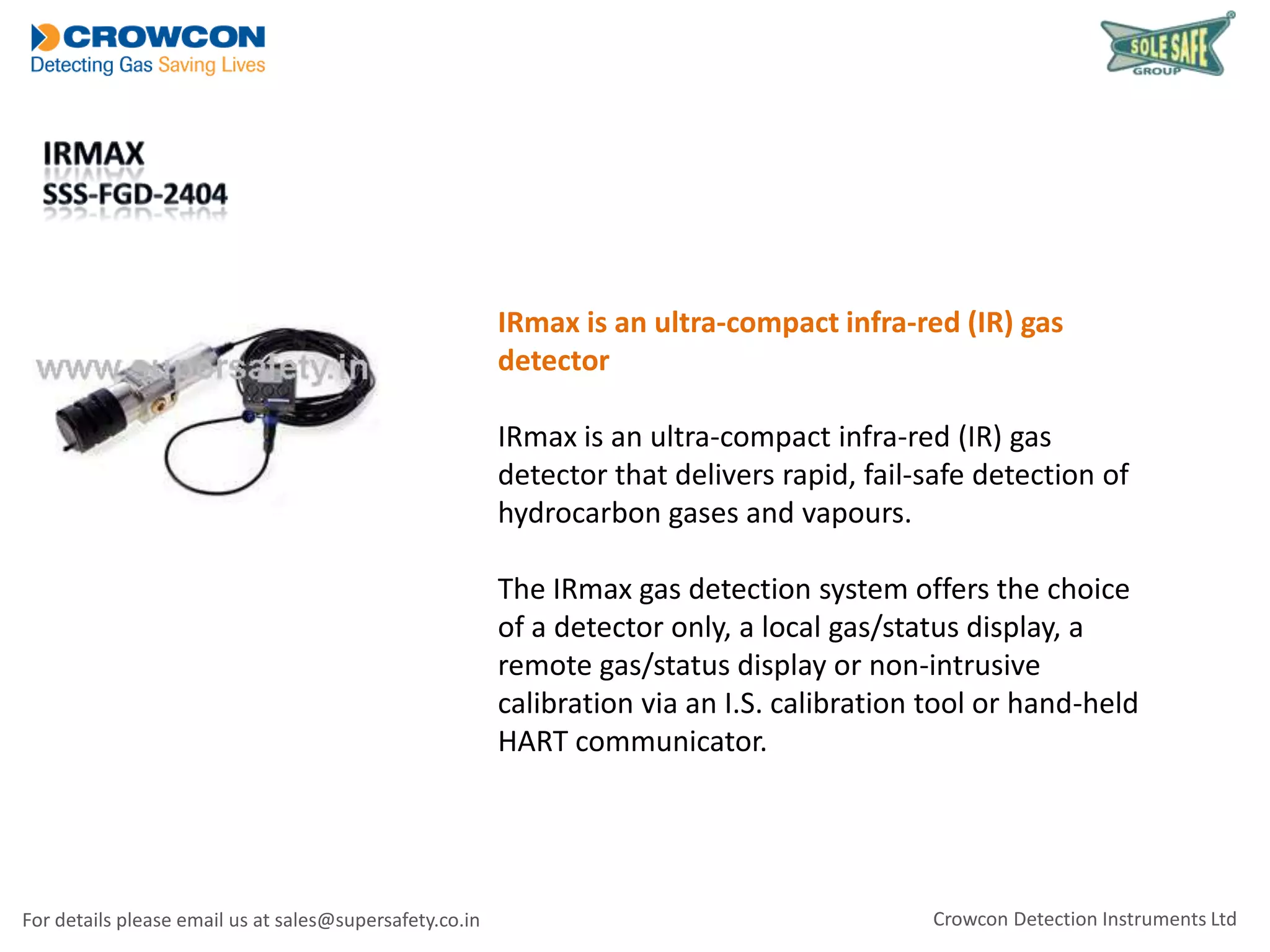

IRmax is an ultra-compact infra-red (IR) gas
detector
IRmax is an ultra-compact infra-red (IR) gas
detector that delivers rapid, fail-safe detection of
hydrocarbon gases and vapours.
The IRmax gas detection system offers the choice
of a detector only, a local gas/status display, a
remote gas/status display or non-intrusive
calibration via an I.S. calibration tool or hand-held
HART communicator.

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd

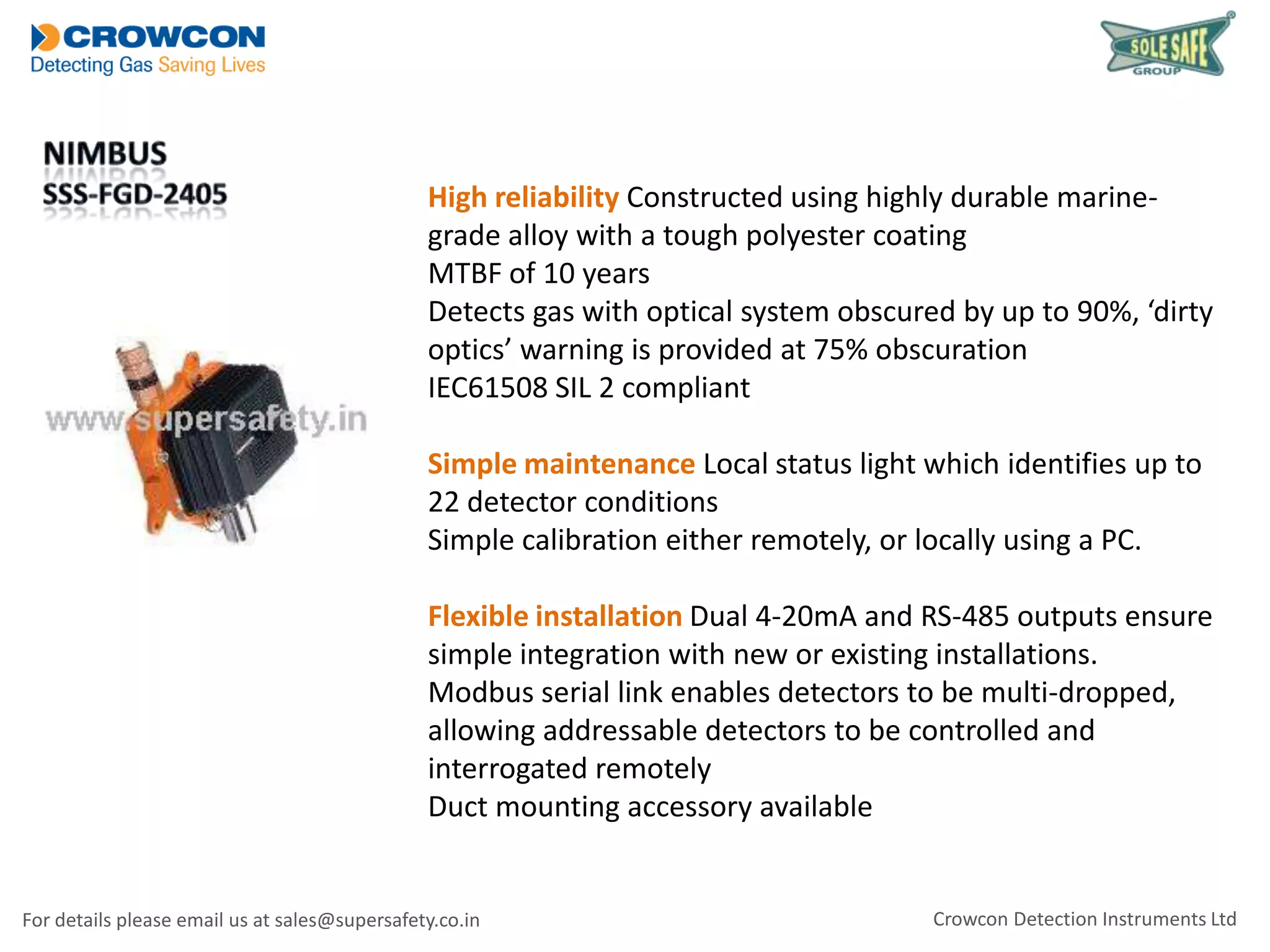

High reliability Constructed using highly durable marinegrade alloy with a tough polyester coating
MTBF of 10 years
Detects gas with optical system obscured by up to 90%, ‘dirty
optics’ warning is provided at 75% obscuration
IEC61508 SIL 2 compliant
Simple maintenance Local status light which identifies up to
22 detector conditions
Simple calibration either remotely, or locally using a PC.
Flexible installation Dual 4-20mA and RS-485 outputs ensure
simple integration with new or existing installations.
Modbus serial link enables detectors to be multi-dropped,
allowing addressable detectors to be controlled and
interrogated remotely
Duct mounting accessory available

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd
Features :
Non-intrusive calibration Calibration can be performed
locally without the need for hot work permits
Local display and buttons enable calibration without
opening the junction box

Flexible output options
A two-wire 4-20mA signal is provided
The output can be forced up without applying gas to
enable simple checking of control systems and alarms.
Rugged and reliable
Constructed using highly durable GRP to provide good
impact resistance
Ingress protection to IP65 as standard
Uses long-life electrochemical cells

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd

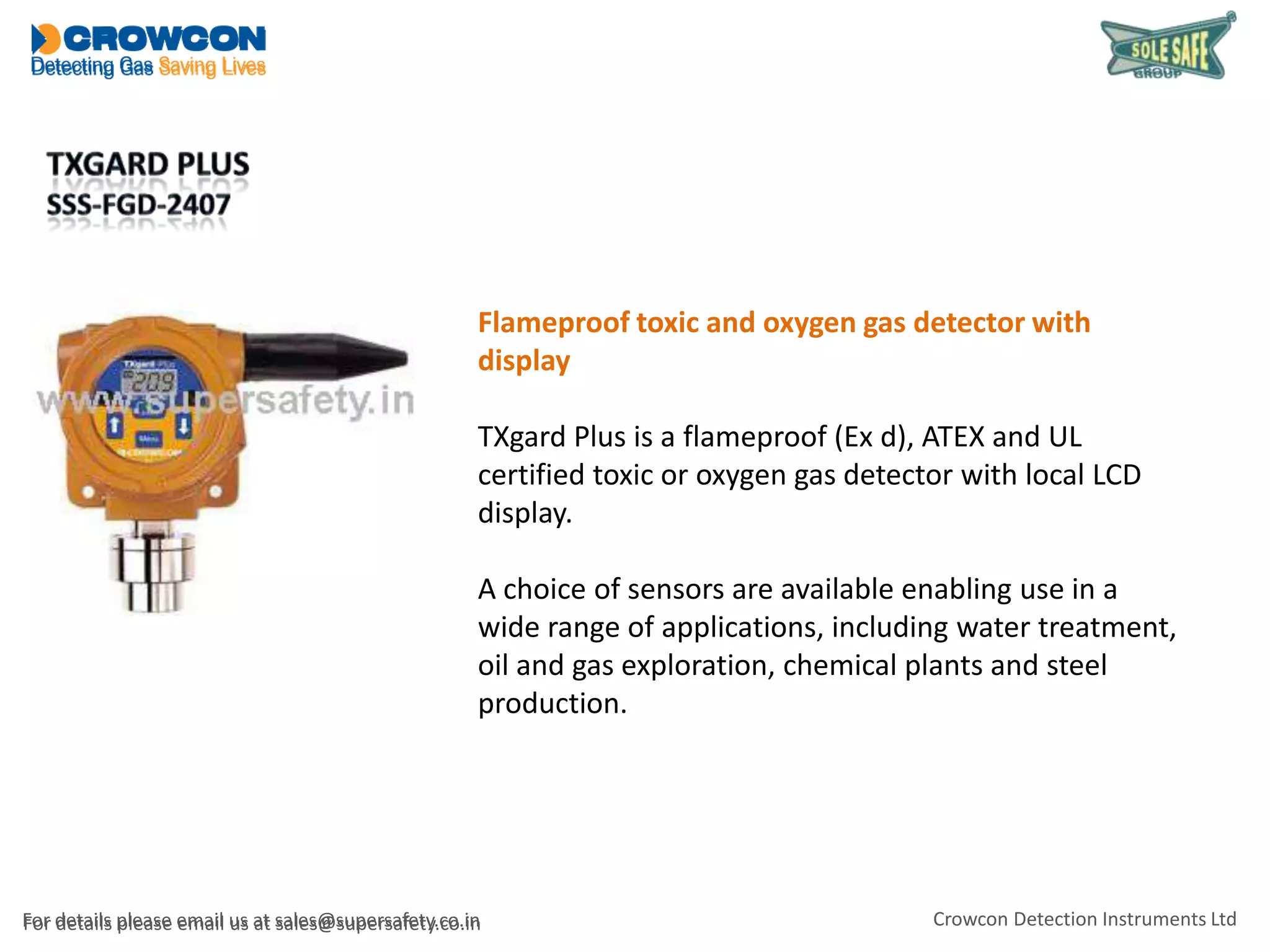

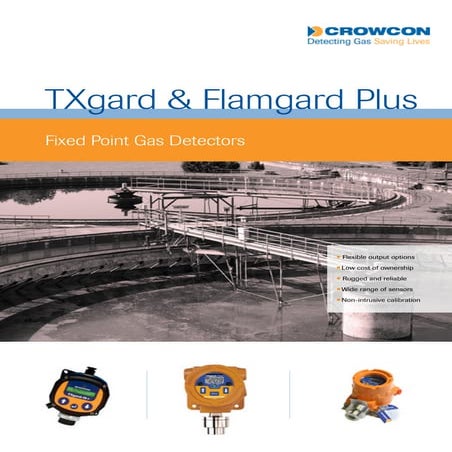

Flameproof toxic and oxygen gas detector with
display
TXgard Plus is a flameproof (Ex d), ATEX and UL
certified toxic or oxygen gas detector with local LCD
display.
A choice of sensors are available enabling use in a
wide range of applications, including water treatment,
oil and gas exploration, chemical plants and steel
production.

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd
Flammable gas detector with display

Flamgard Plus is a Flameproof (Exd) flammable
gas detector, which uses poison-resistant
pellistors to detect explosive levels of
hydrocarbons, hydrogen and other flammable
gases and vapours, including aviation fuel and
leaded petrol vapours.

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd
Open-path line of sight gas IR detectors
Crowcon offers open-path infra-red (IR) gas detection
systems based on well-proven technology for fast
detection of combustible gases and vapours over a
line-of-sight up to 140m (460ft) long.
Using superior "Xenon Flash" technology the SafEye
range is immune to false alarms caused by partial
blockage and extreme weather conditions (fog, rain or
snow) and direct or reflected sunlight, flame or other
black body radiation sources.

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd

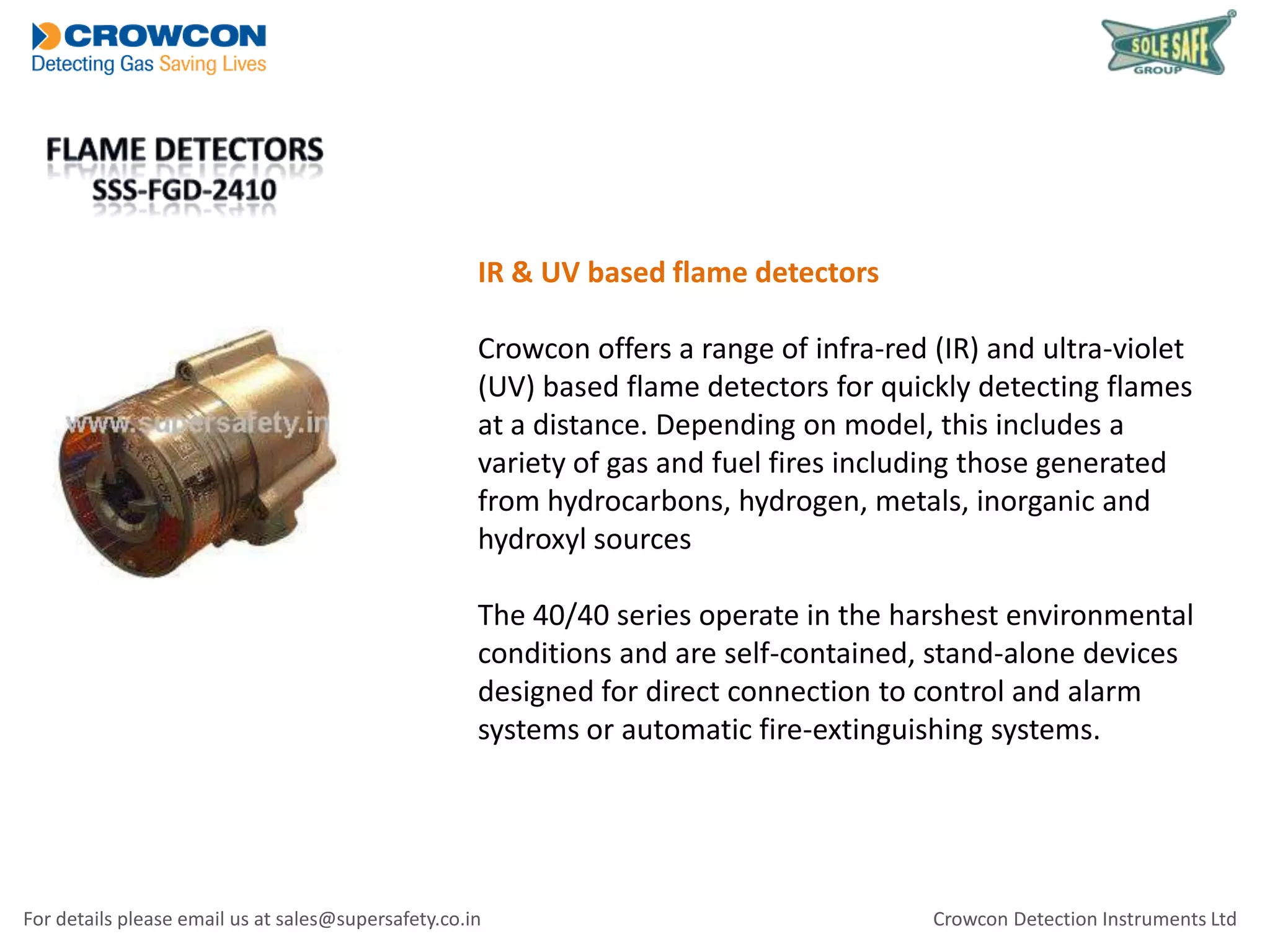

IR & UV based flame detectors
Crowcon offers a range of infra-red (IR) and ultra-violet
(UV) based flame detectors for quickly detecting flames
at a distance. Depending on model, this includes a
variety of gas and fuel fires including those generated
from hydrocarbons, hydrogen, metals, inorganic and
hydroxyl sources
The 40/40 series operate in the harshest environmental
conditions and are self-contained, stand-alone devices
designed for direct connection to control and alarm
systems or automatic fire-extinguishing systems.

For details please email us at sales@supersafety.co.in

Crowcon Detection Instruments Ltd

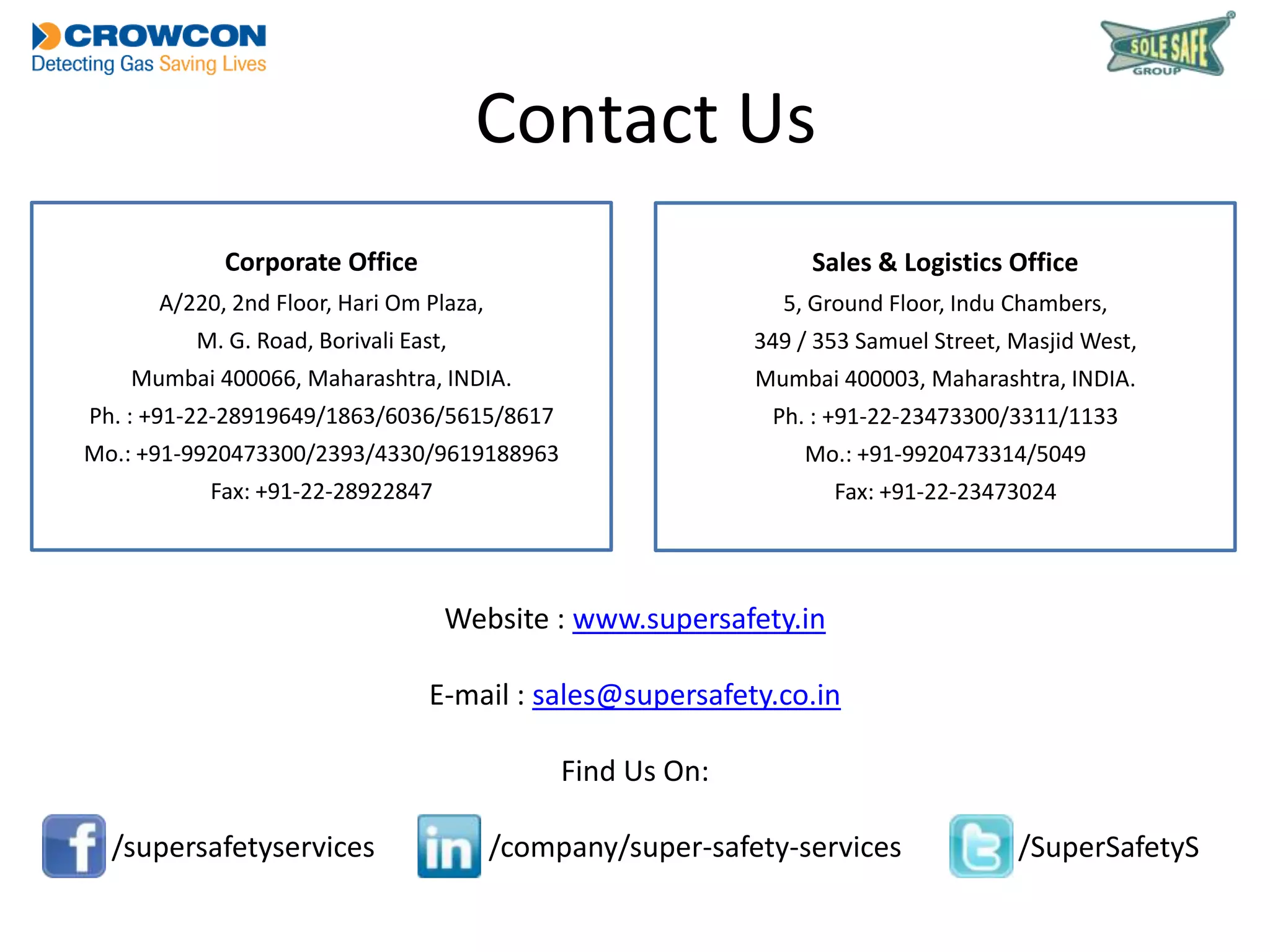

Contact Us
